Condition: Used

The Yokogawa 701267 is a 100kS/s, 16-bit isolated input module for use with Yokogawa ScopeCorder and data acquisition platforms. This module provides high-resolution voltage measurement with built-in isolation, making it well suited to power electronics, industrial, and research applications where channel isolation is essential.

Included in the sale:
• Yokogawa 701267 Isolation Module

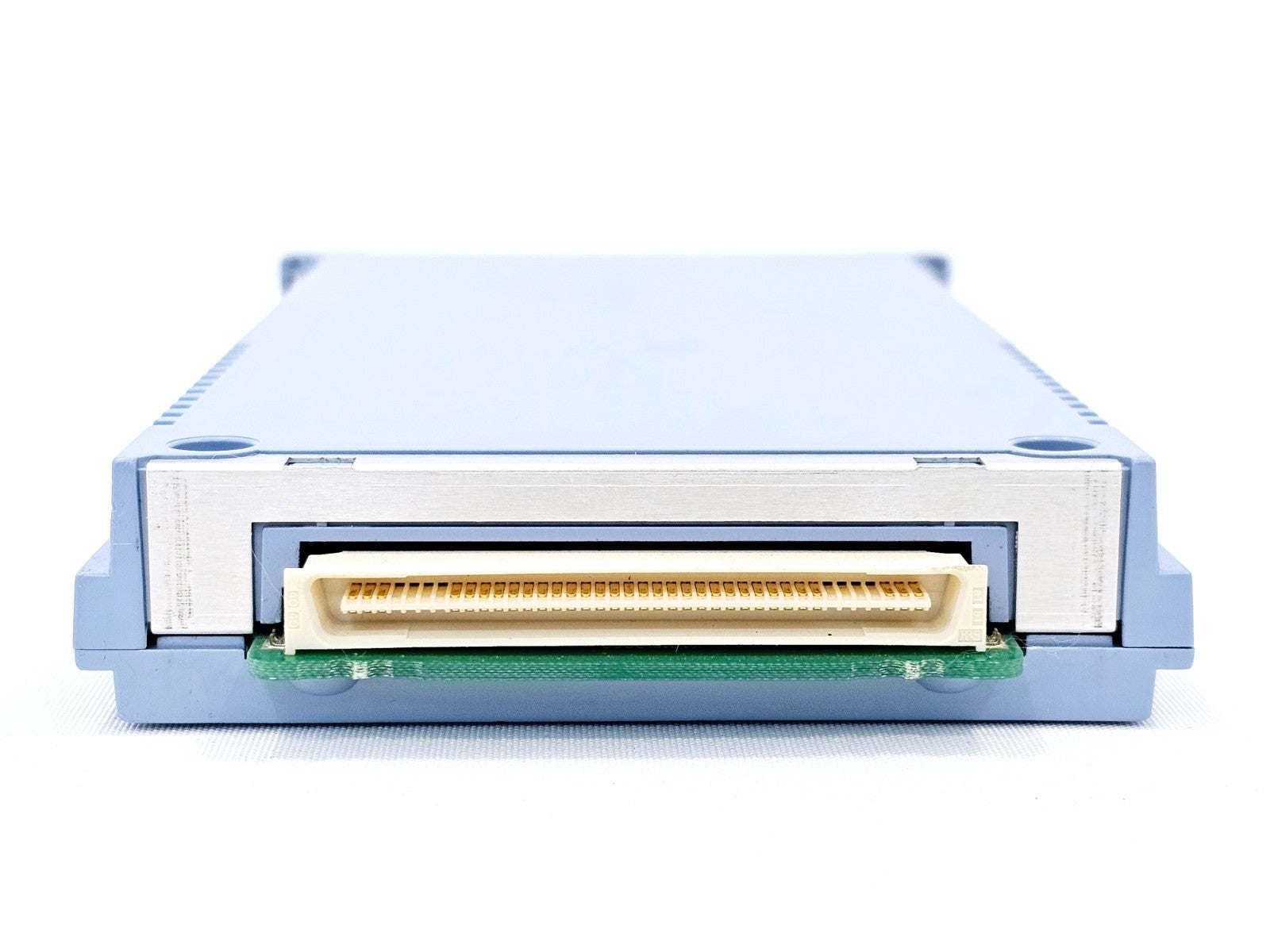

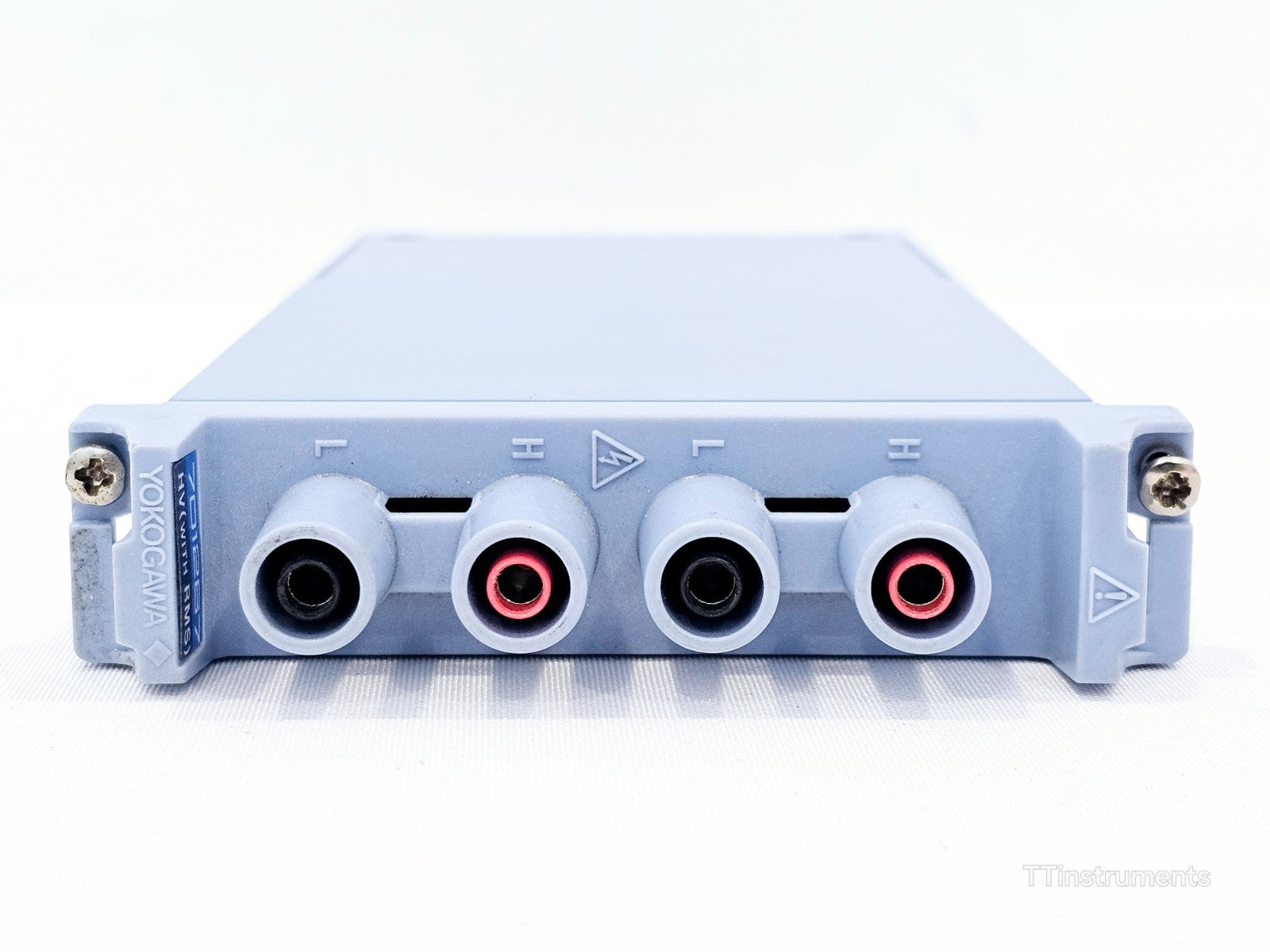

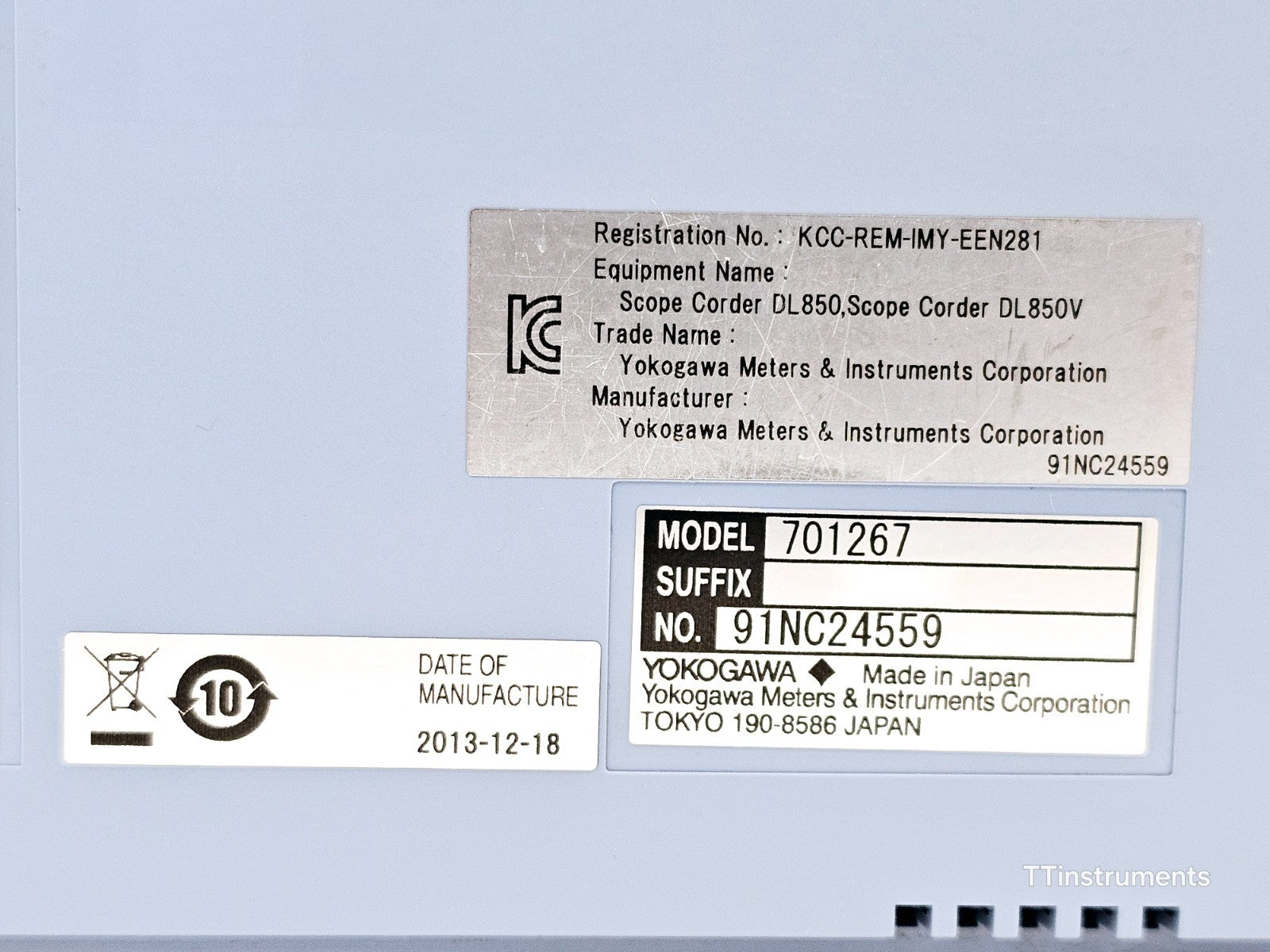

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

The Yokogawa 701267 is a 16-bit isolated input module designed for use with the Yokogawa DL750 and DL850 ScopeCorder series. It offers high-resolution data acquisition with galvanic isolation between channels and the mainframe, providing safe and accurate measurements in electrically noisy or high-voltage environments.

Key features include a maximum sampling rate of 100kS/s per channel and 16-bit vertical resolution, enabling detailed capture of fast-changing signals with high dynamic range. The isolation design is particularly valuable in power electronics testing, motor drive analysis, automotive applications, and industrial automation where ground loops or floating signals are present.

Specifications:
Model: 701267
Vertical Resolution: 16-bit
Maximum Sampling Rate: 100kS/s
Input Type: Isolated voltage input
Compatibility: Yokogawa DL750, DL850 ScopeCorder series
Isolation: Channel-to-channel and channel-to-frame galvanic isolation

Please refer to the Yokogawa manufacturer website for full and current specifications.
