Condition: Used

The Yokogawa 701260 is a 2-channel high voltage isolation input module designed for use with the Yokogawa DL750 and DL750P ScopeCorder series. It provides 16-bit resolution at a sampling rate of up to 100 kS/s per channel, with full galvanic isolation for safe measurement of high voltage signals. This variant includes the RMS computation function, enabling direct RMS voltage readings without post-processing.

Included in the sale:
• Yokogawa 701260 2CH High Voltage Isolation Module (With RMS)

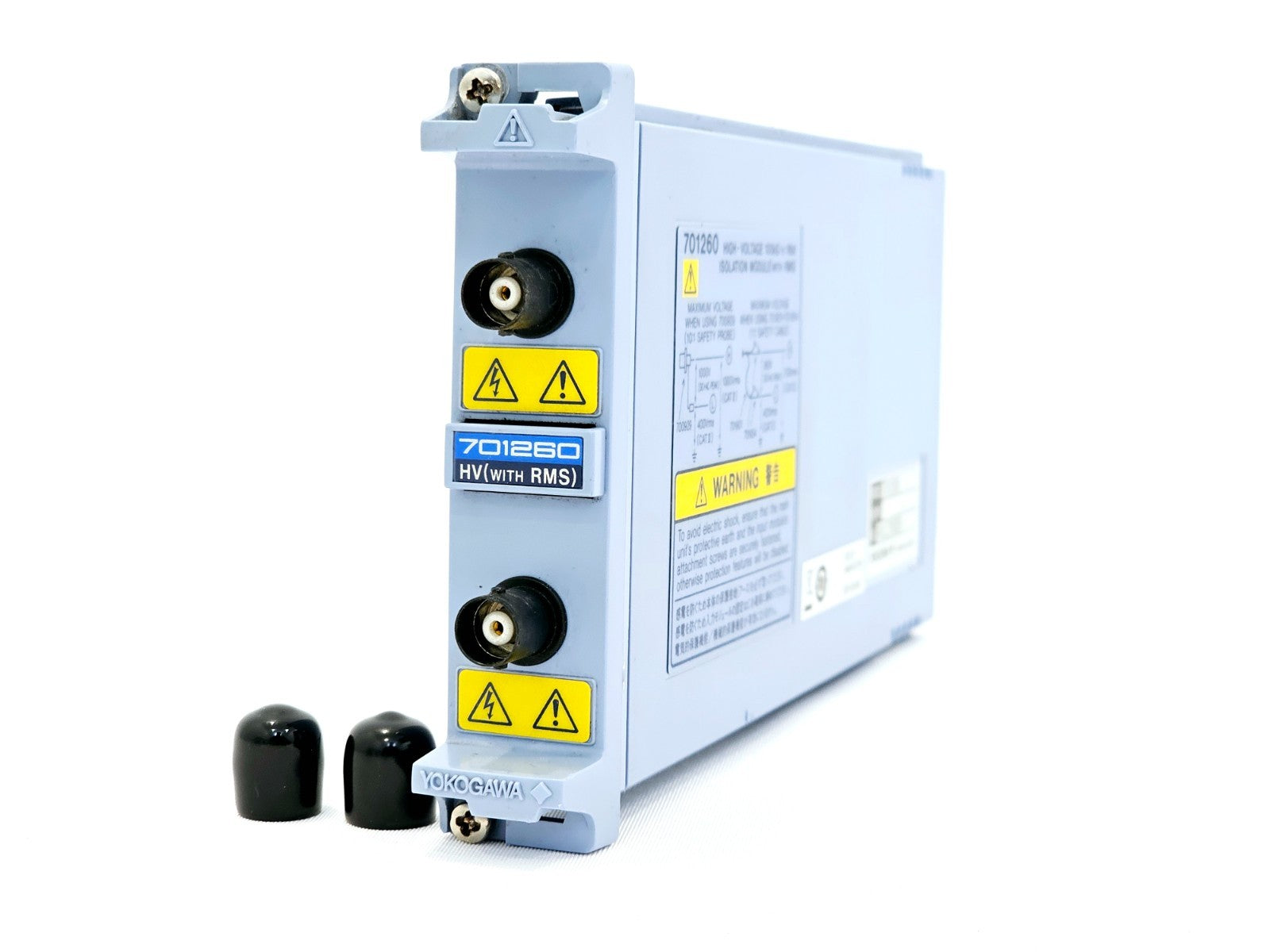

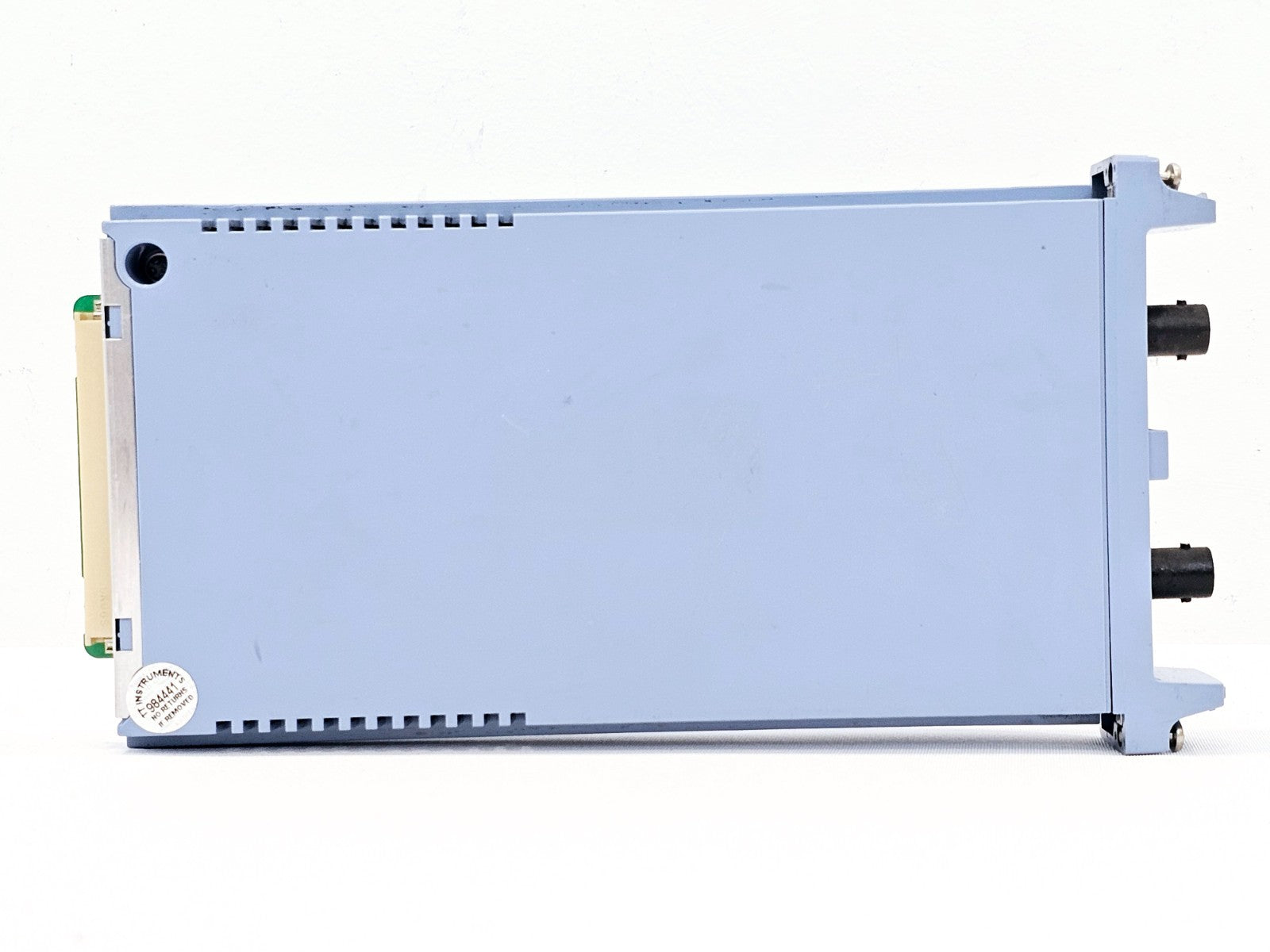

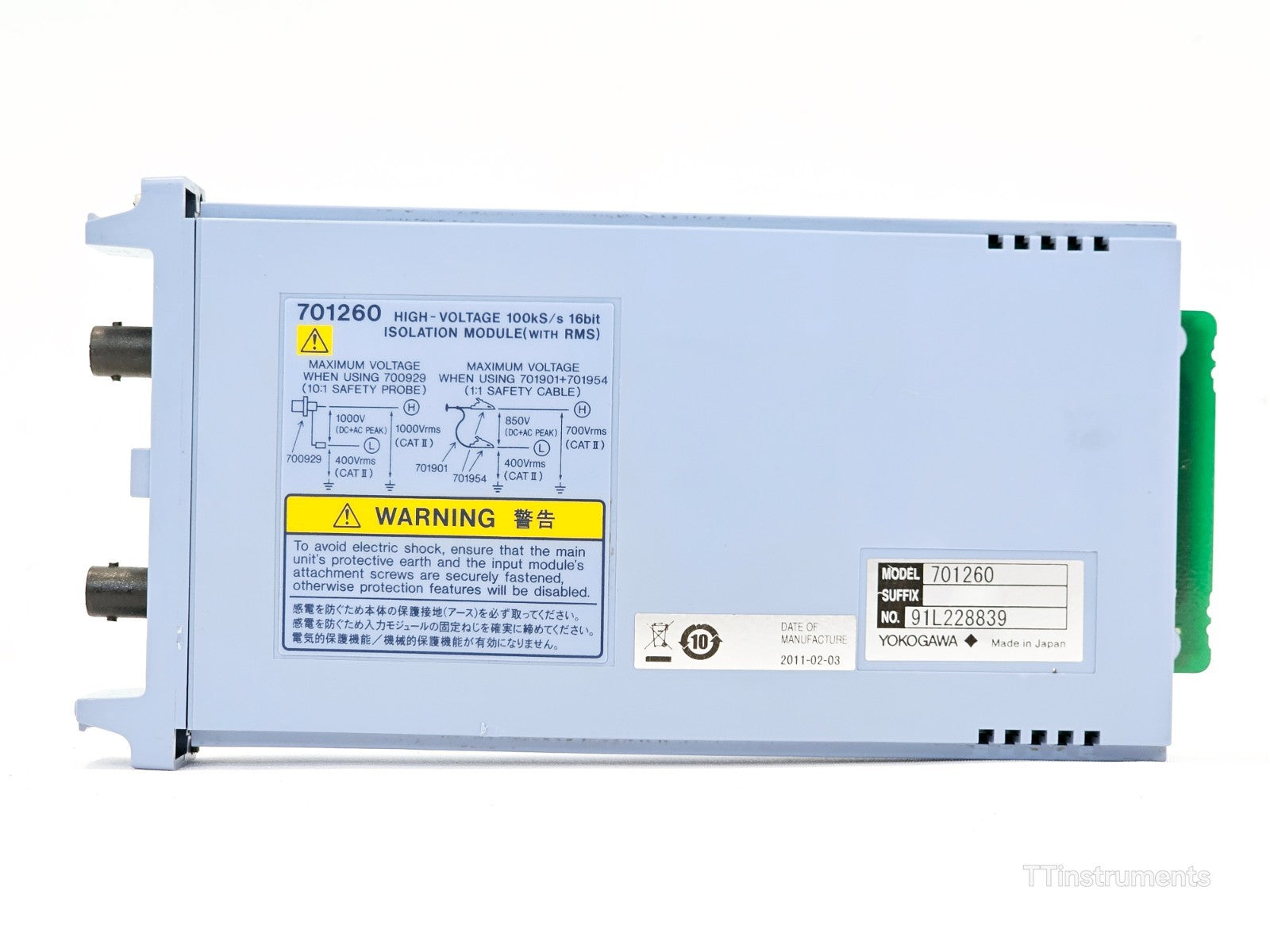

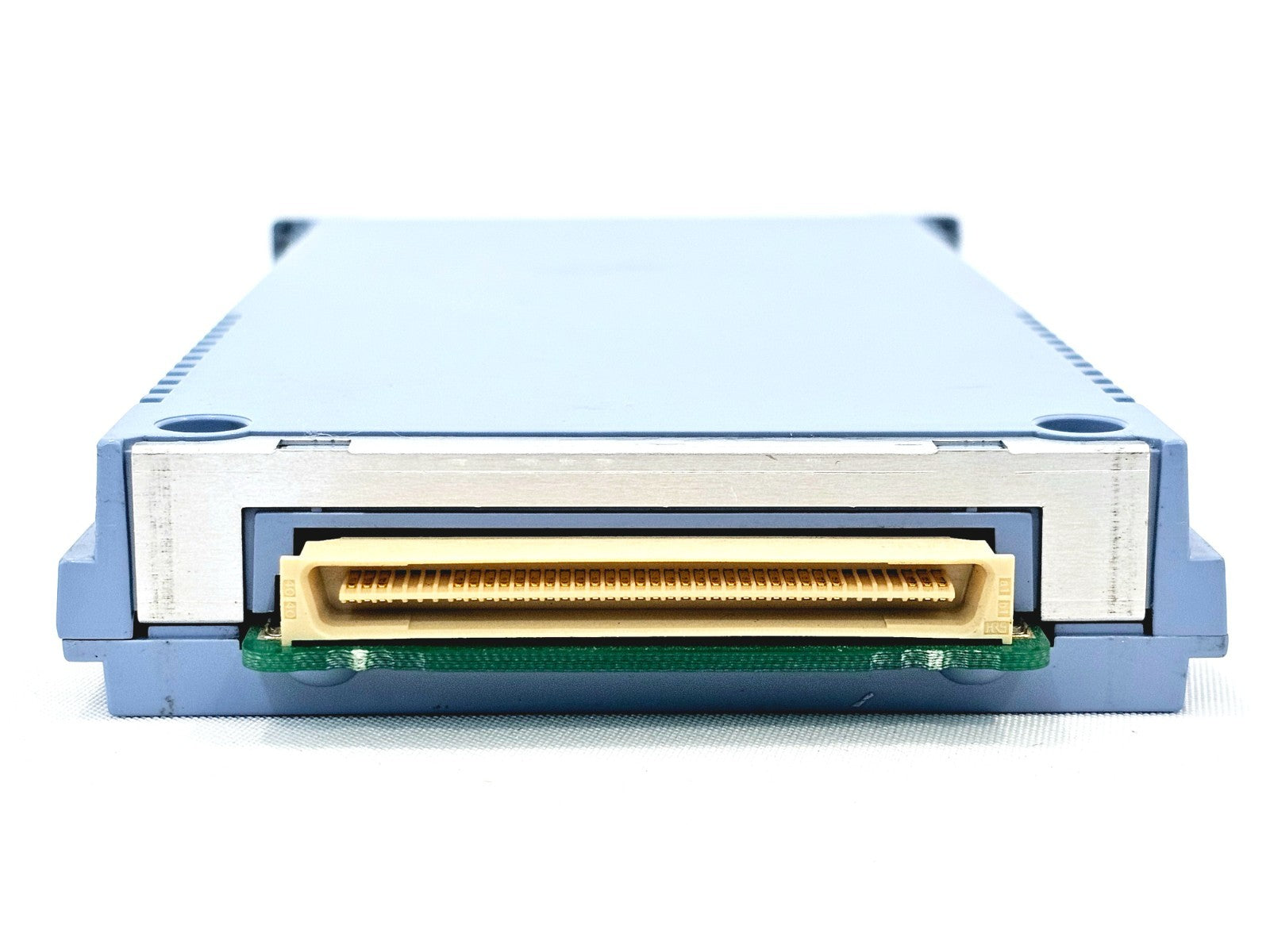

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

The Yokogawa 701260 is a 2-channel isolated input module developed for the DL750 and DL750P ScopeCorder portable data acquisition platforms. It is designed for high voltage measurement applications where isolation between channels and from earth ground is essential for both safety and measurement accuracy.

The module features full galvanic isolation, allowing users to measure floating or differential high voltage signals with confidence. The inclusion of RMS computation enables direct readout of true RMS values, making it particularly suited to power electronics testing, inverter analysis, motor drive evaluation, and electrical safety verification.

Key Specifications:
Number of Channels: 2
Resolution: 16-bit
Sample Rate: Up to 100 kS/s per channel
Input Isolation: Galvanic isolation between channels and ground
Maximum Input Voltage: 1000 V (CAT II)
RMS Function: Included
Compatible Instruments: Yokogawa DL750, DL750P ScopeCorder
Connector Type: BNC

The 701260 module is part of Yokogawa's extensive range of plug-in input modules for the ScopeCorder platform, enabling users to configure their instrument for a wide variety of signal types and measurement requirements.
