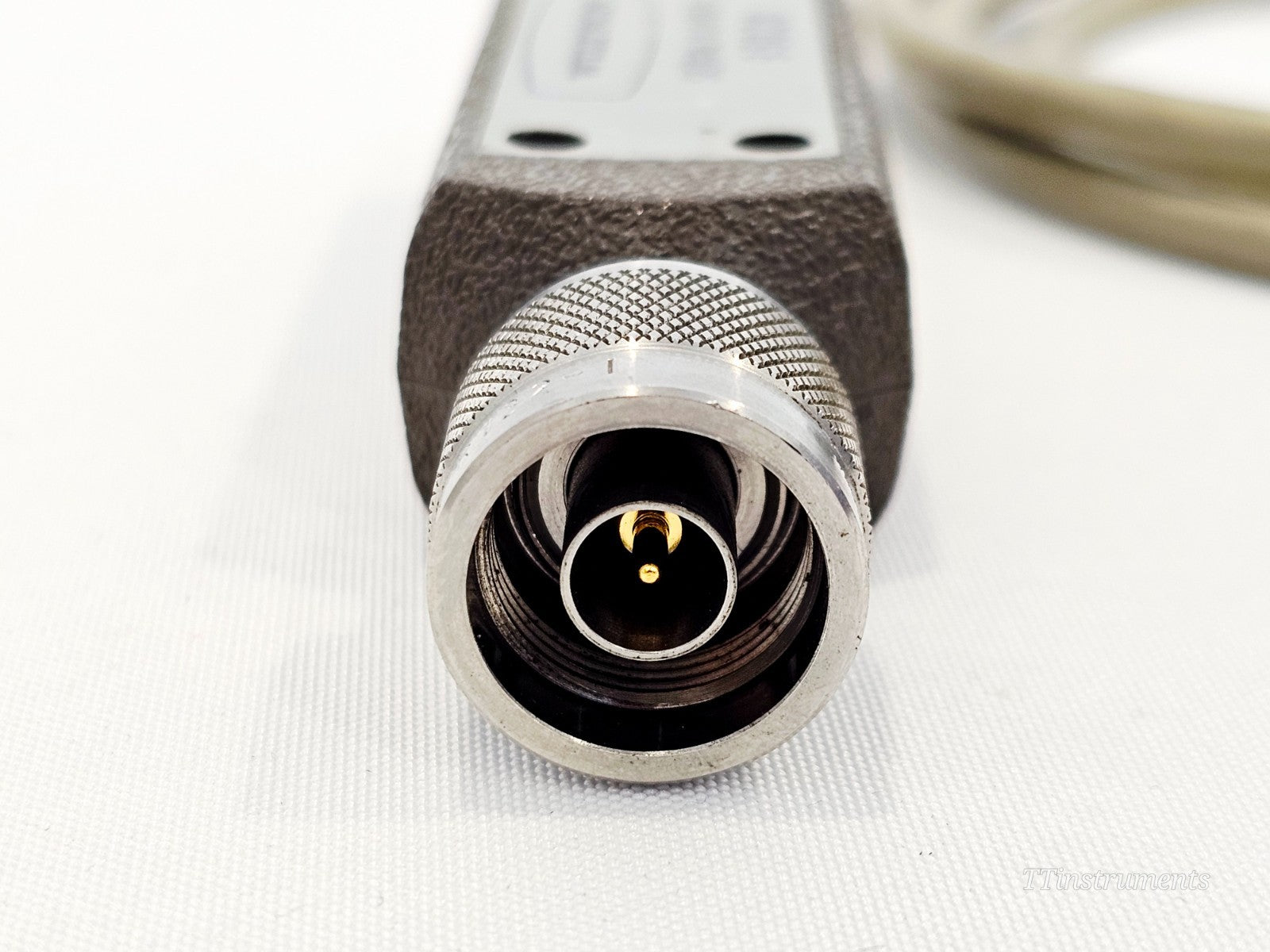

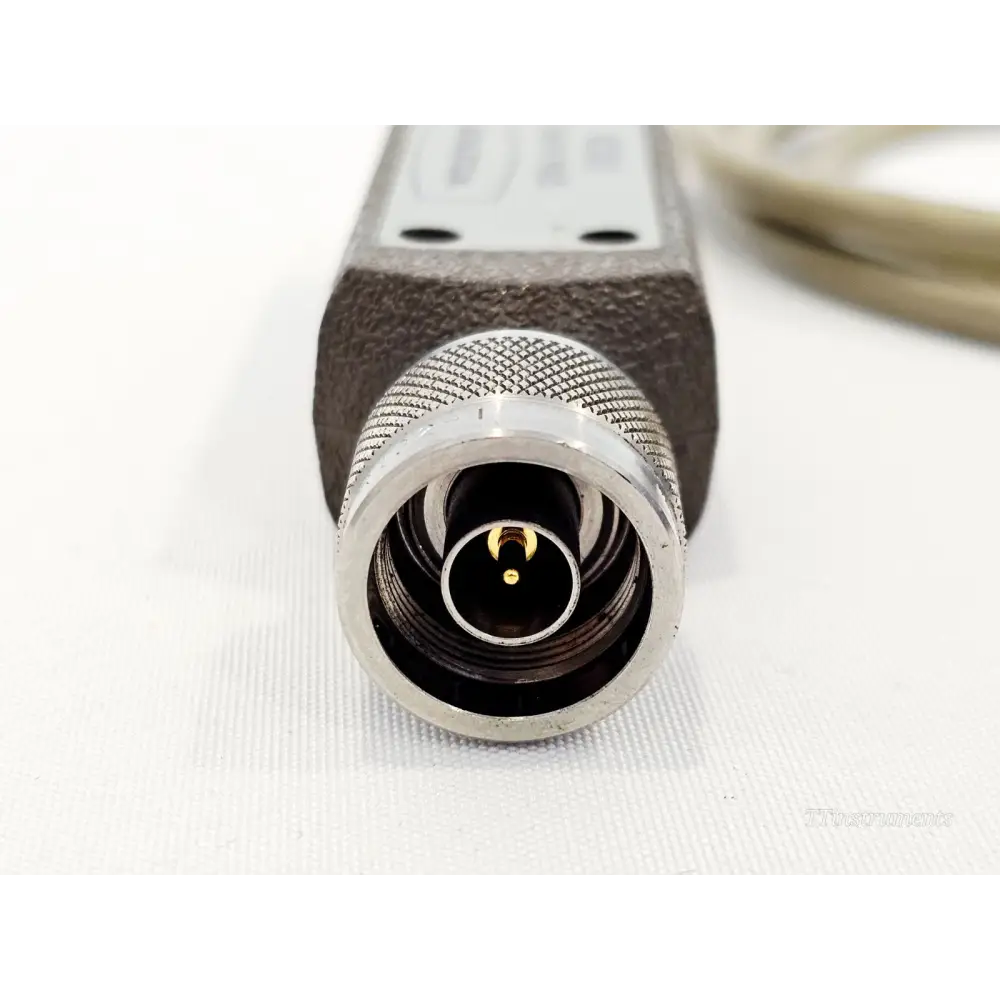

Wiltron 5400-71N50 RF Detector close-up of N-type male input connector with gold centre pin

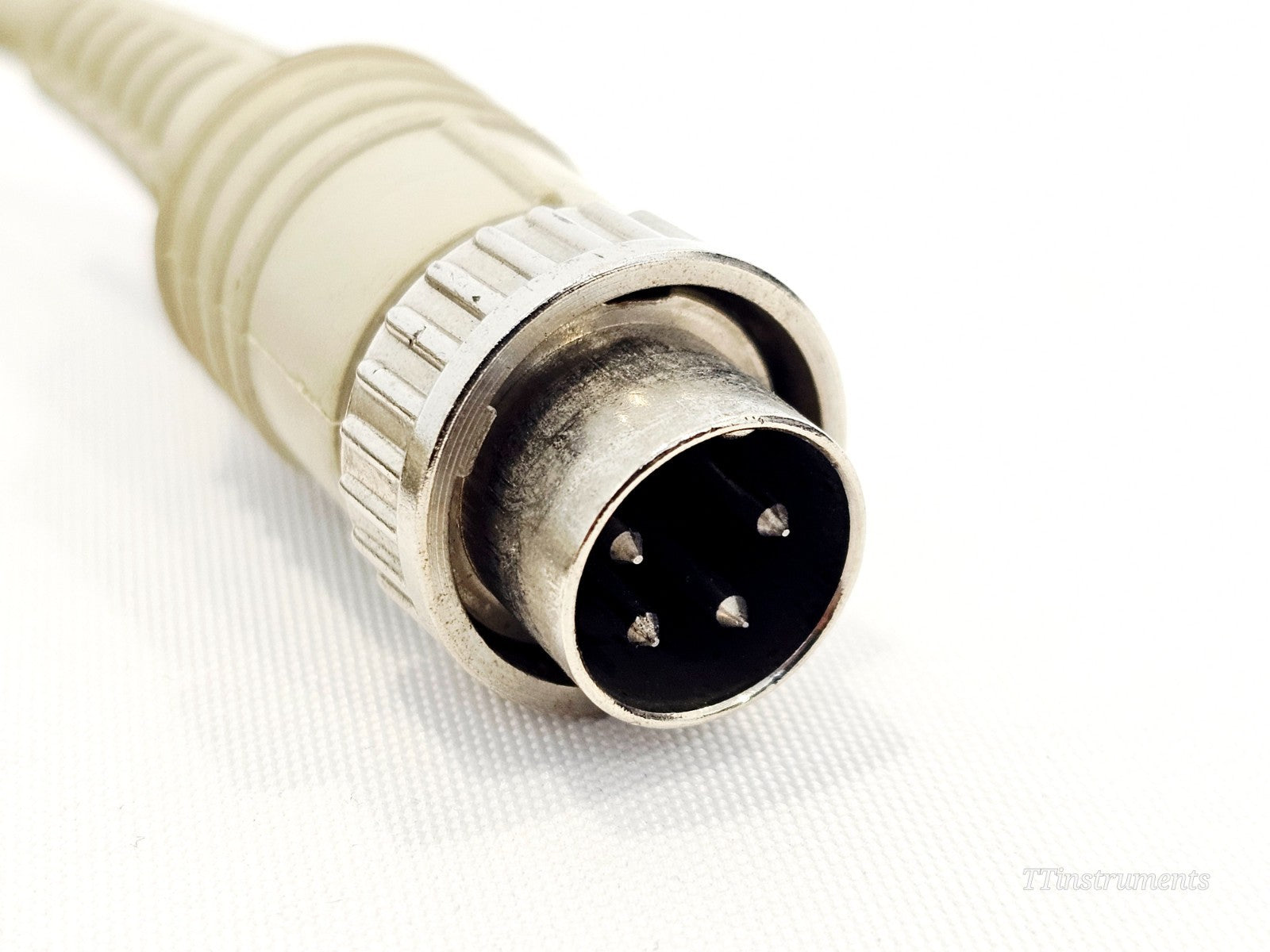

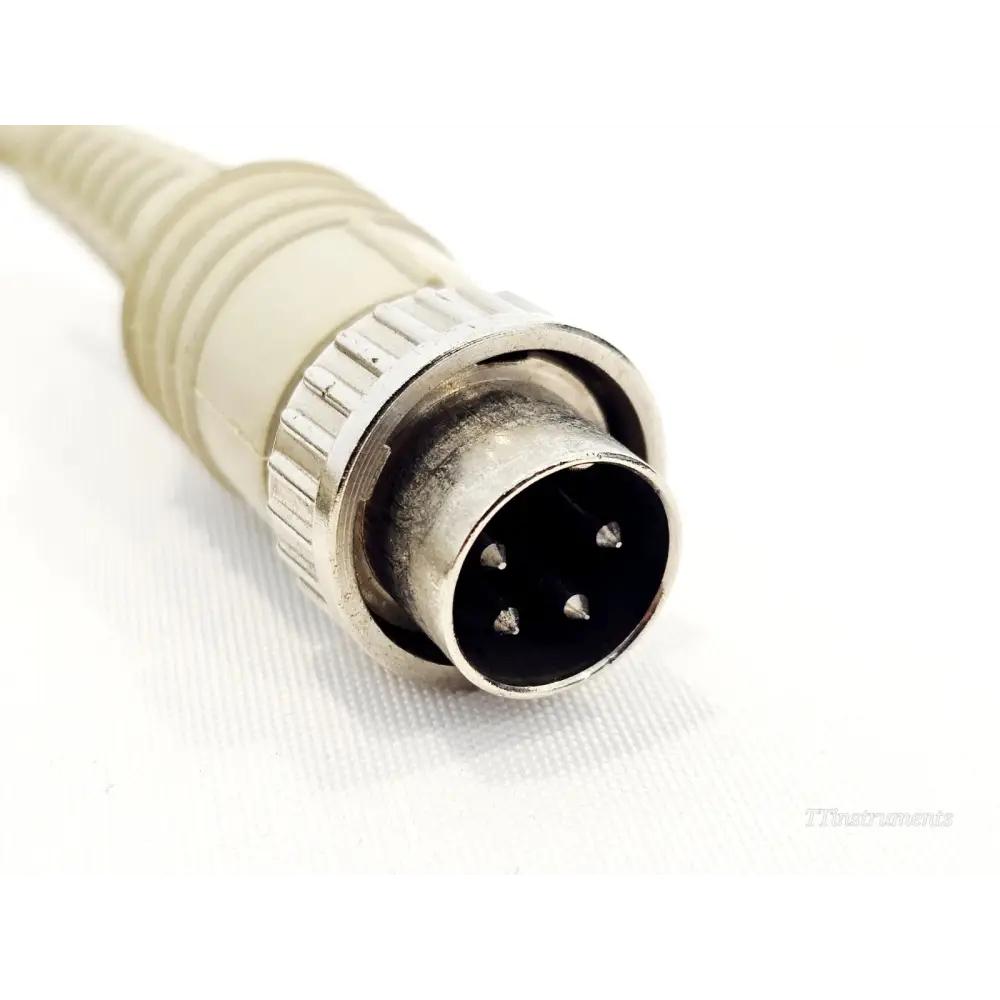

Wiltron 5400-71N50 RF Detector close-up of 4-pin multi-pin cable connector end

Tested

14 Day Money Back Guarantee

Great Value

Global Shipping

Wiltron 5400-71N50 RF Detector 1 MHz to 3 GHz +20 dBm MAX

Name: Wiltron 5400-71N50 RF Detector 1 MHz to 3 GHz +20 dBm MAX
Brand: Wiltron
SKU: 7966 3A03 ER60
Price: 63.75 GBP
Availability: InStock

The Wiltron (Anritsu) 5400-71N50 is a precision RF detector head covering 1 MHz to 3 GHz for use with scalar network analysers and scalar measurement systems.
• Frequency range 1 MHz to 3 GHz with N(m) 50 Ω input connector
• 26 dB dynamic range with flatness ±0.2 dB (<1 GHz) and ±0.3 dB (<3 GHz)
• Compatible with Anritsu/Wiltron 56100A, 54100A scalar systems and Site Master testers

Manufacturer

Wiltron

Model

5400-71N50

Condition

Used

In stock

SKU

7966 3A03

£63.75

Power Sensors
RF & Microwave
RF Components

Make an Offer

Wiltron 5400-71N50 RF Detector 1 MHz to 3 GHz +20 dBm MAX

£63.75

Condition: Used

The Wiltron 5400-71N50 RF Detector covers 1 MHz to 3 GHz with a 50 Ω N(m) input connector and a maximum input power of +20 dBm. Serial number 95028 is visible on the label. The unit is in good working condition and comes complete with its original multi-pin interface cable.

What's included:
• Wiltron 5400-71N50 RF Detector (S/N 95028)
• Attached multi-pin detector interface cable

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

Product Overview

Condition: Used

What's included:
• Wiltron 5400-71N50 RF Detector (S/N 95028)
• Attached multi-pin detector interface cable

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

Manufacturer's Description

The Anritsu (formerly Wiltron) 5400-71/560-7 Series RF Detectors are used with the Model 56100A Scalar Network Analyzer and with the Series 54100A Scalar Measurement System for making coaxial transmission loss or gain and power measurements. They are also used with the Site Master and Cable Mate Series Personal SWR/Return Loss and Fault Location Testers for making power measurements. The 5400-71N50 specifically features an N(m) male input connector, 50 Ω impedance, and covers the frequency range of 1 MHz (0.001 GHz) to 3 GHz, making it suitable for a wide range of RF transmission, reflection, and power measurement applications in both laboratory and field environments.

Model: 5400-71N50
Frequency Range: 0.001 GHz to 3 GHz (1 MHz to 3 GHz)
Impedance: 50 Ω
Input Connector: N(m) — N-type male
Dynamic Range: 26 dB
Frequency Flatness: ±0.2 dB (<1 GHz); ±0.3 dB (<3 GHz)
Maximum Input Power: +20 dBm
Power Range: –30 dBm to +20 dBm
Compatible Systems: Anritsu/Wiltron 56100A Scalar Network Analyzer, 54100A Scalar Measurement System, Site Master and Cable Mate series
Note: Anritsu Company was formerly known as Wiltron Company.

Resources

Series 560-7XXX and 5400-71XXX RF Detectors Operation and Maintenance Manual (Anritsu/Wiltron): Download PDF

Anritsu 54100A Scalar Measurement System datasheet including 5400-71N50 specifications table: Download PDF
