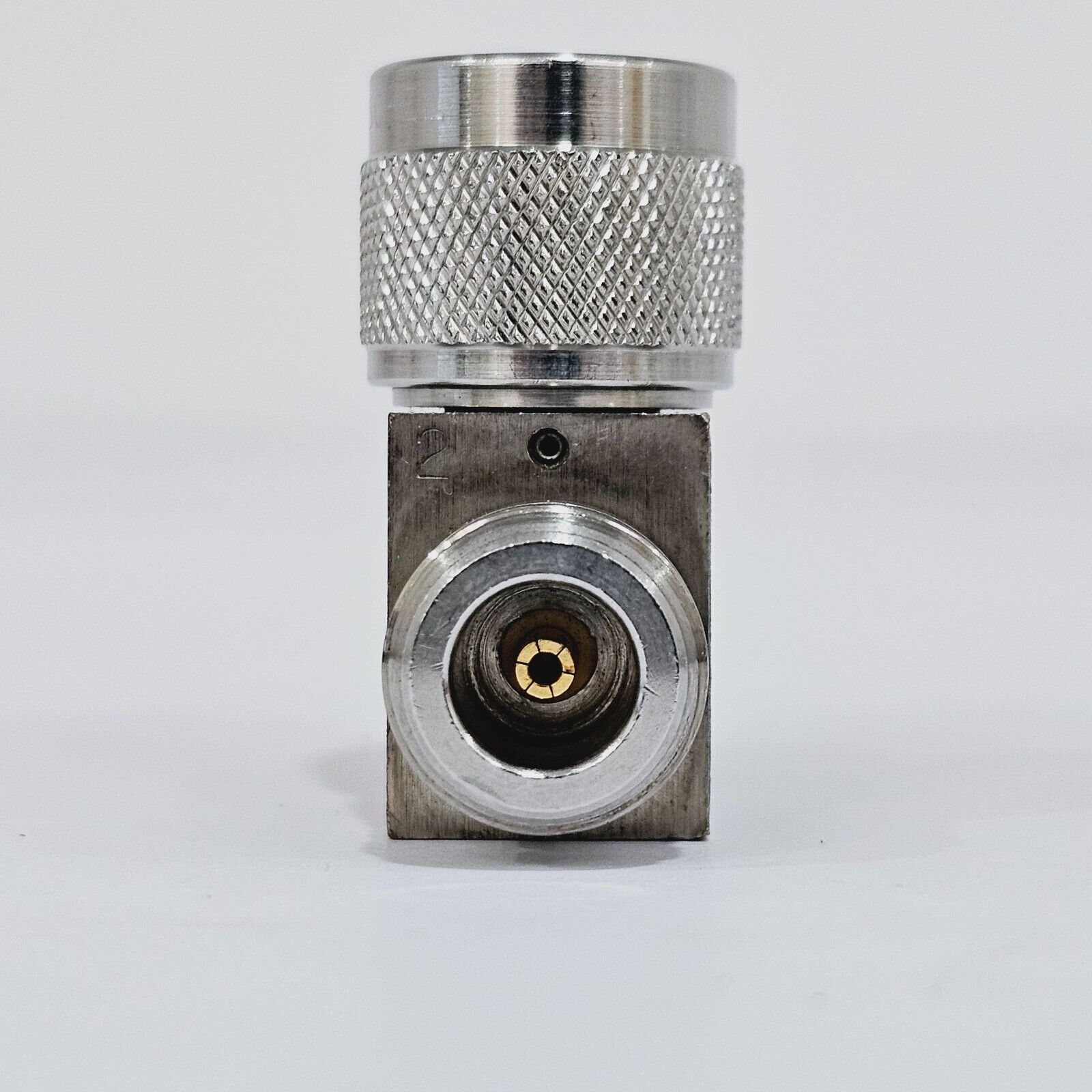

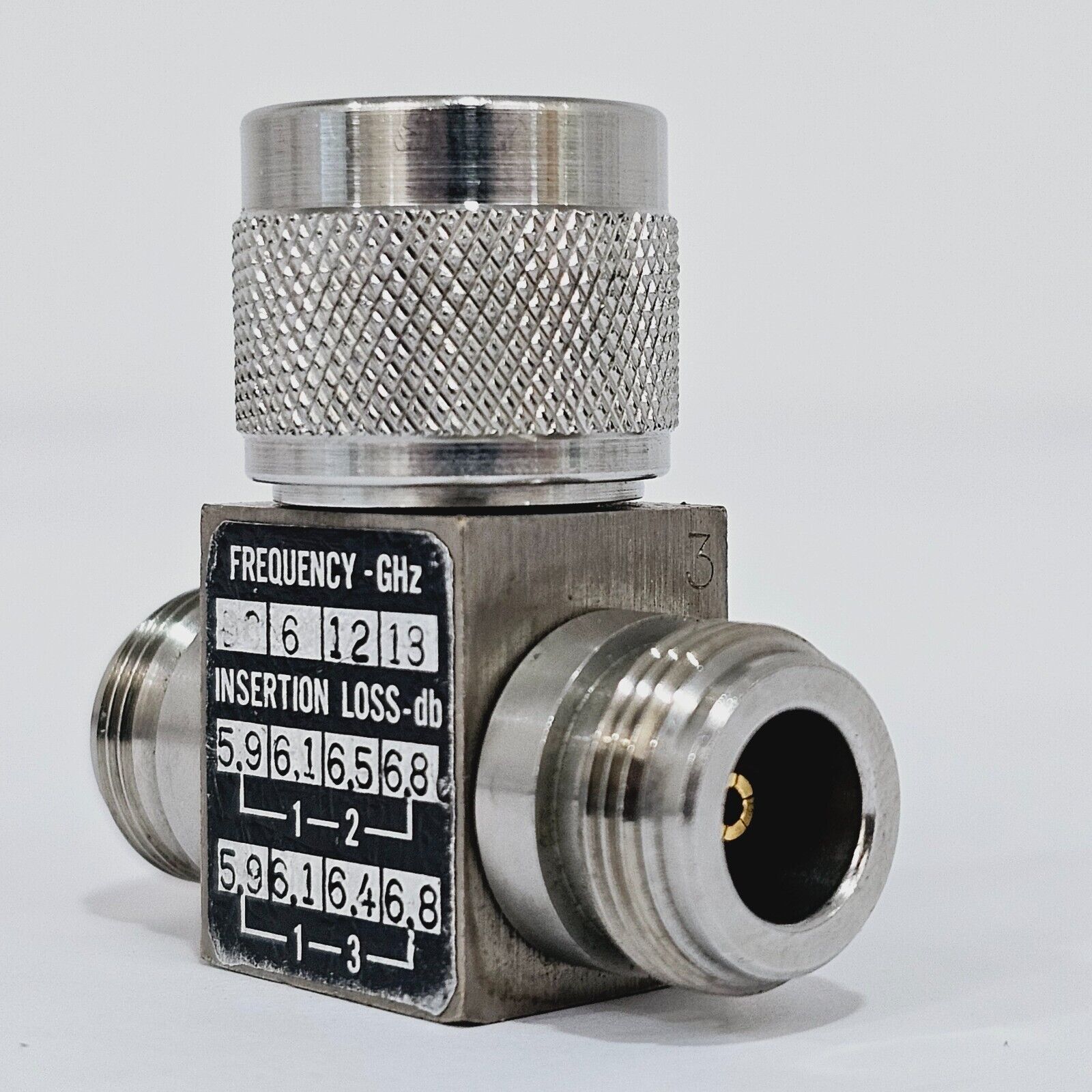

Weinschel 1506A broadband resistive power divider DC to 18 GHz Type N front view

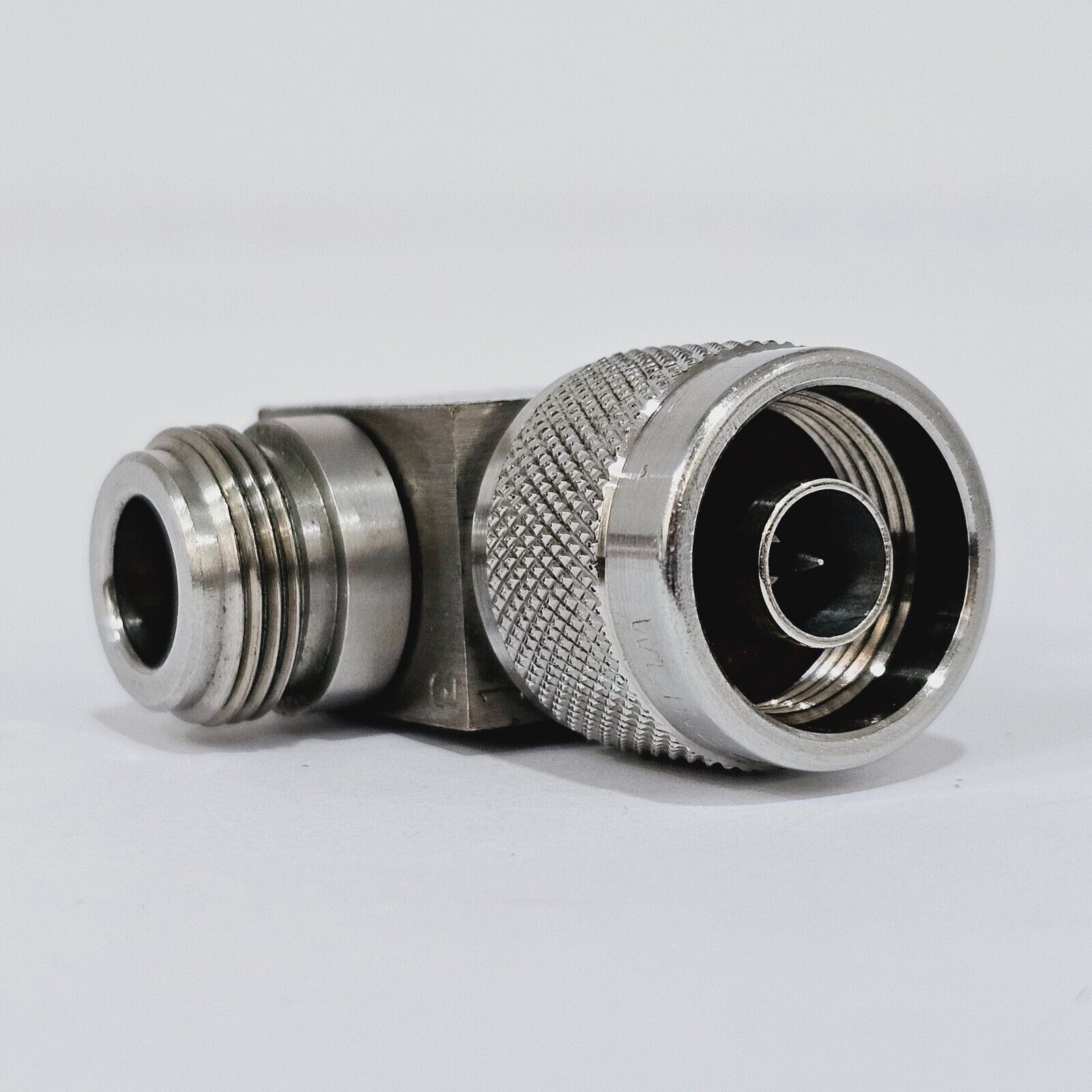

Weinschel 1506A power divider showing Type N connector ports

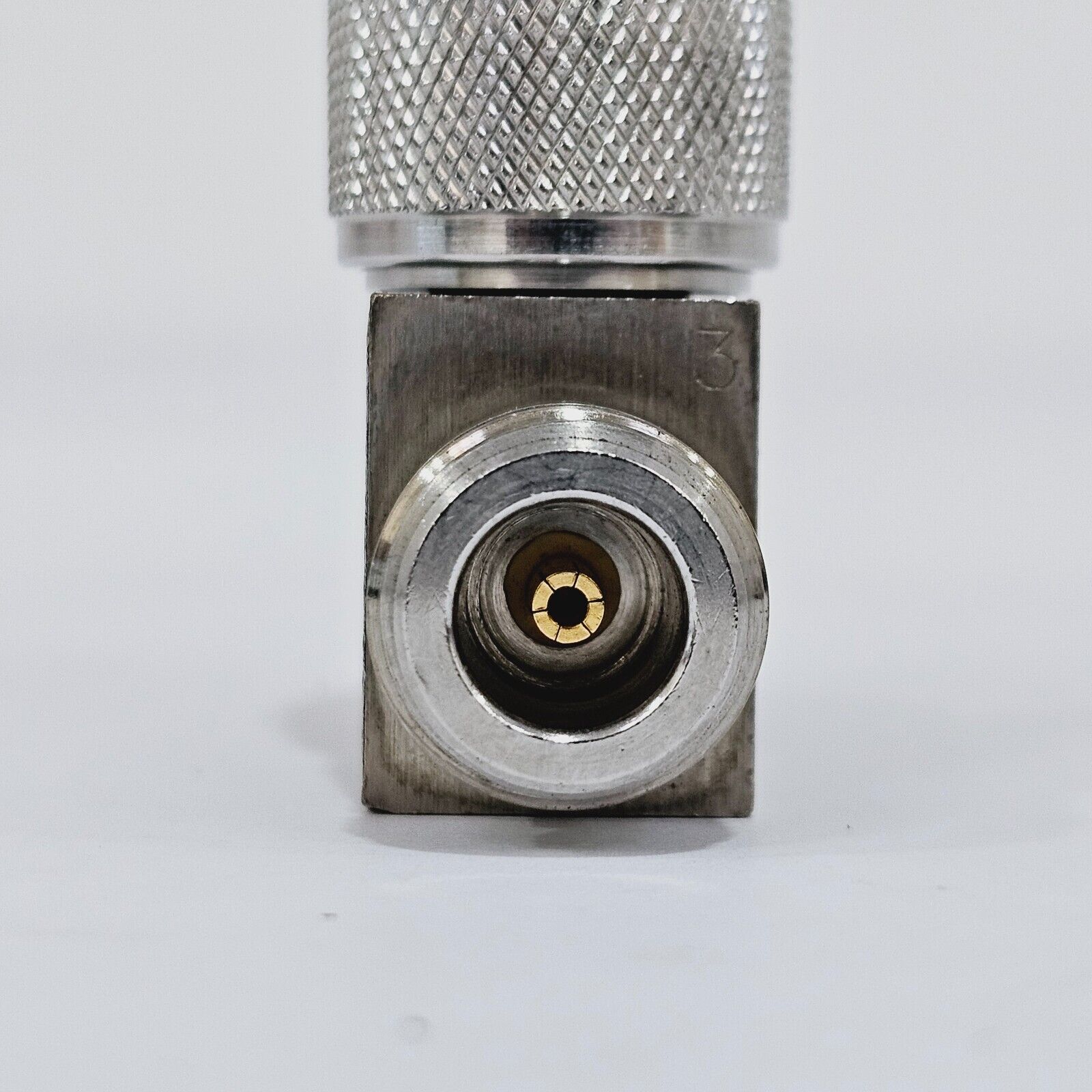

Weinschel 1506A 18 GHz resistive divider top view showing body and connectors

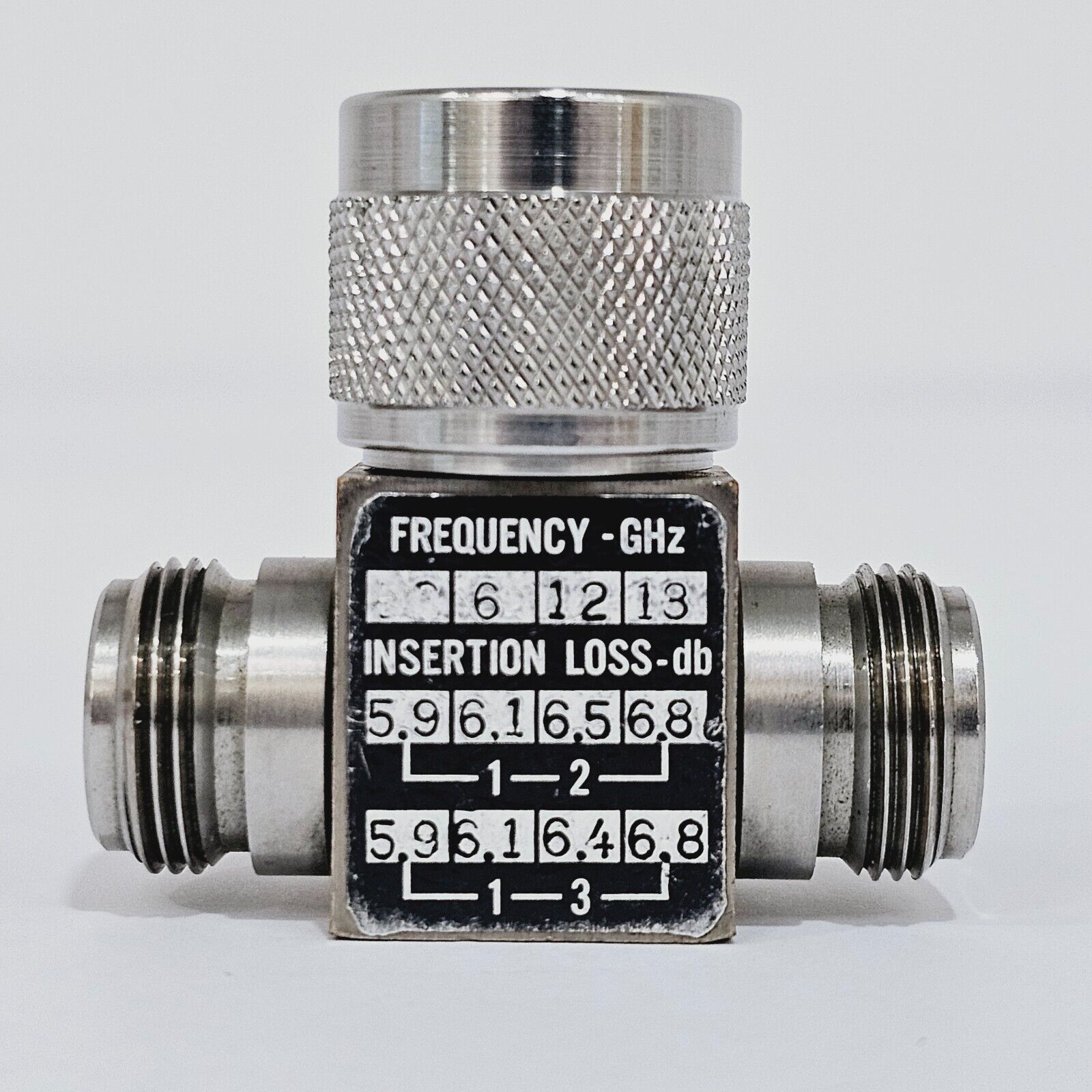

Weinschel 1506A power divider rear and connector detail

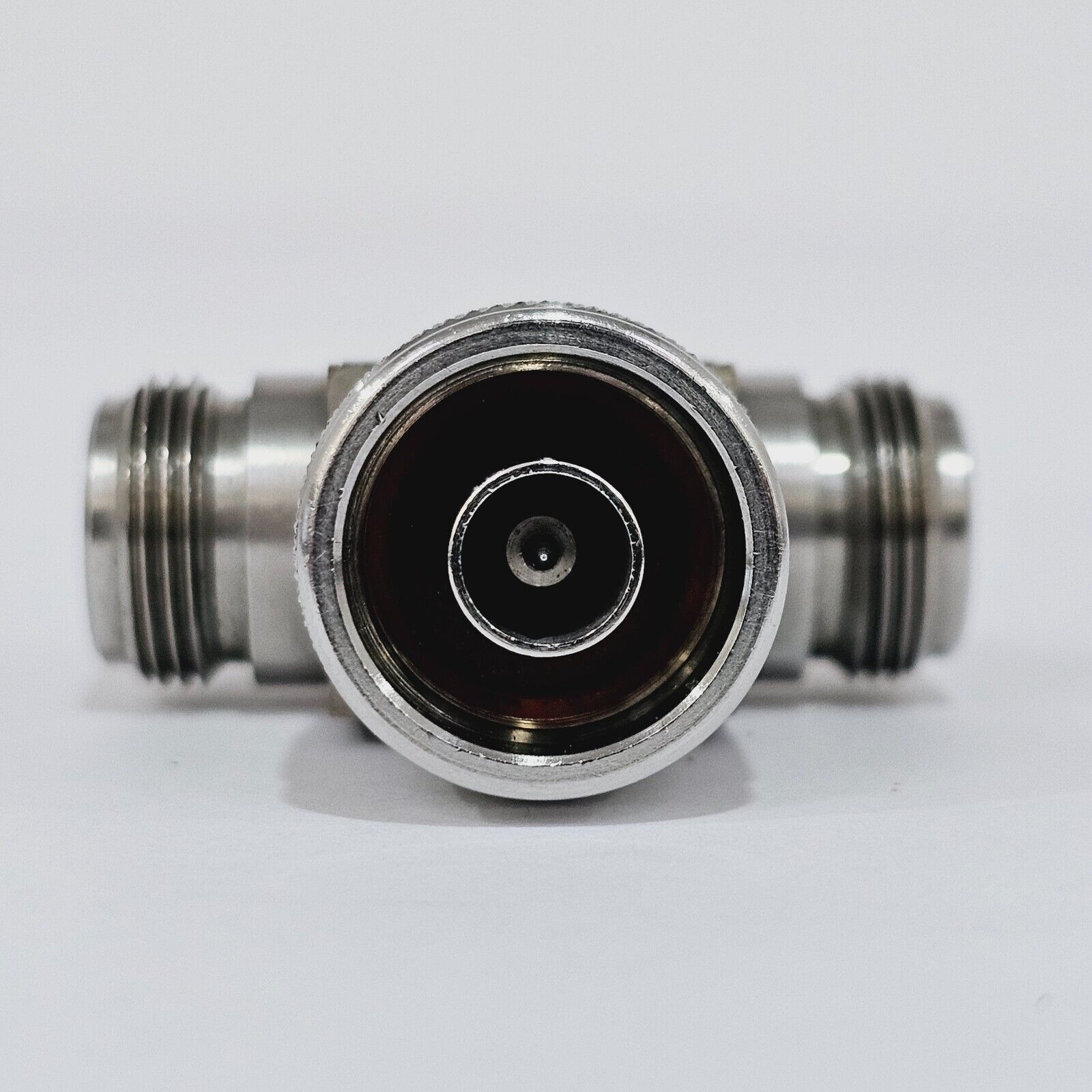

Weinschel 1506A broadband divider close-up of Type N port connectors

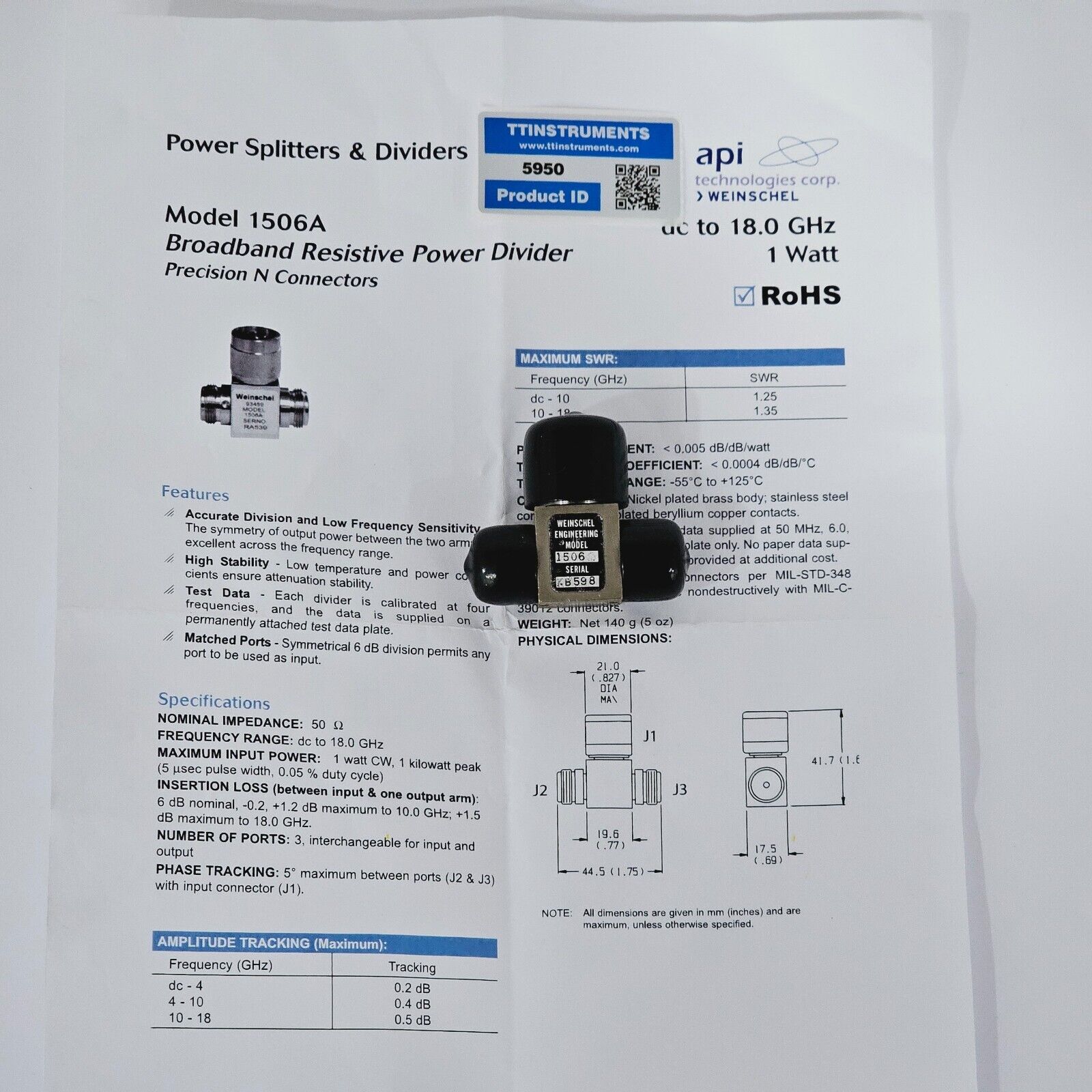

Weinschel 1506A RF divider label showing model number and specifications

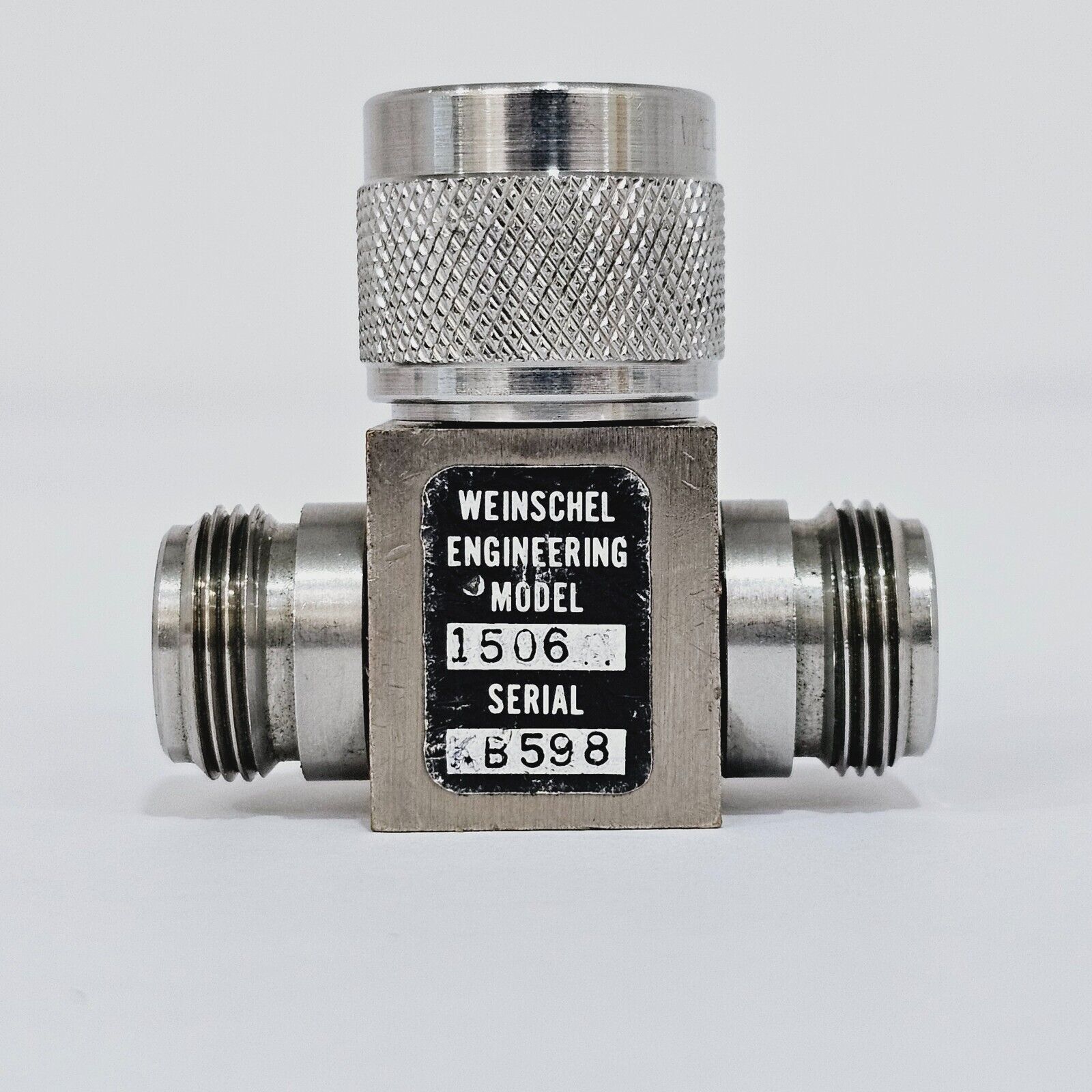

Weinschel 1506A power divider angled view showing all three Type N ports

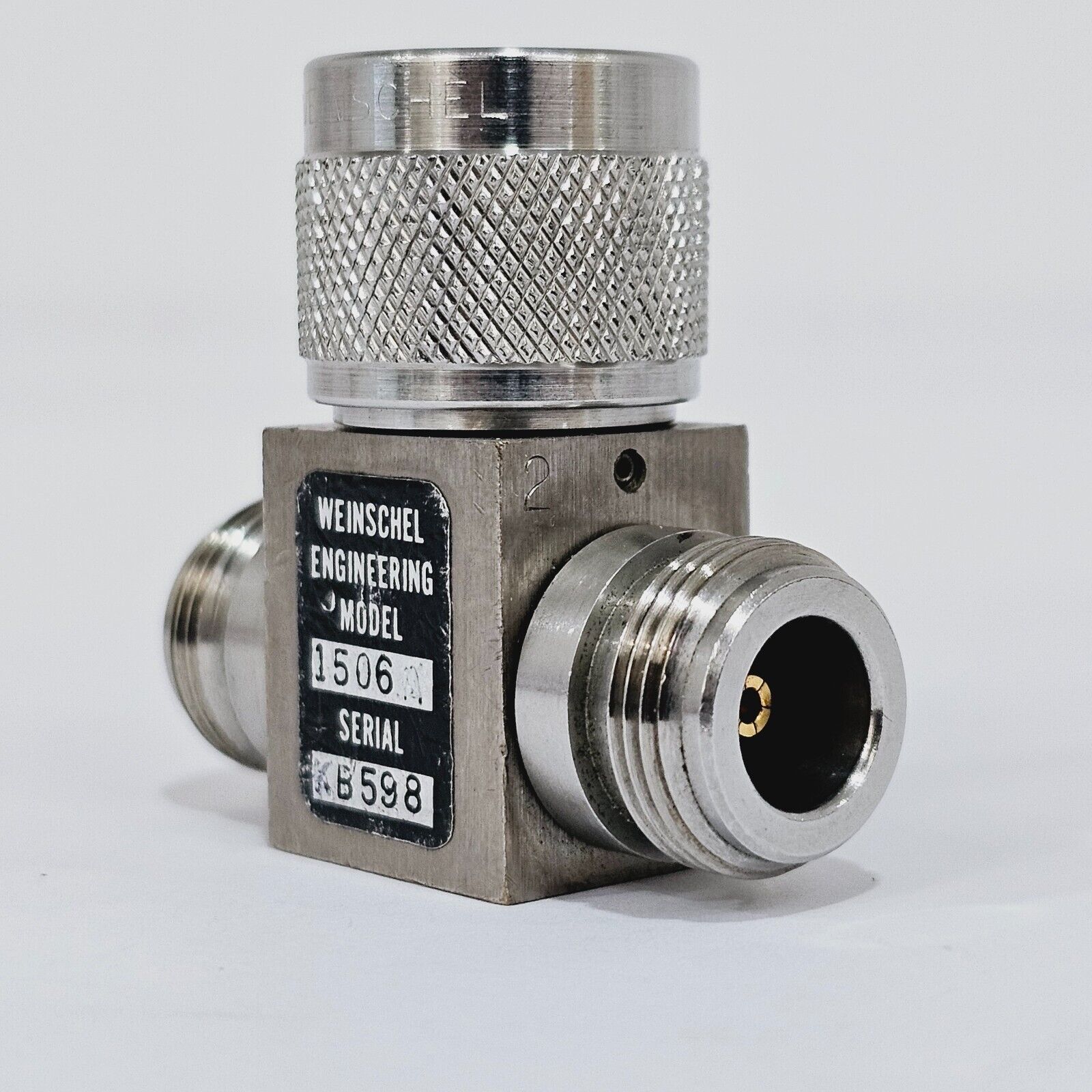

Weinschel 1506A 1 Watt resistive power divider overall condition view

Tested

14 Day Money Back Guarantee

Great Value

Global Shipping

Weinschel 1506A Broadband Resistive Power Divider DC - 18.0 GHz Type N 1 Watt

Name: Weinschel 1506A Broadband Resistive Power Divider DC - 18.0 GHz Type N 1 Watt
Brand: Weinschel
SKU: 5950 7D04 ER50
Price: 51.0 GBP
Availability: OutOfStock

The Weinschel 1506A is a broadband resistive power divider covering DC to 18.0 GHz with Type N connectors, rated at 1 Watt.
• Frequency range DC to 18.0 GHz for wideband signal splitting applications
• Type N connectors for reliable, low-loss RF connections
• Compact, passive design suitable for lab and system integration use

Manufacturer

Weinschel

Model

1506A

Condition

Used

In stock

SKU

5950 7D04

£51.00

RF & Microwave
RF Components
Splitters

Make an Offer

Condition: Used

The Weinschel 1506A is a broadband resistive power divider with a frequency range of DC to 18.0 GHz, featuring Type N connectors and a 1 Watt power rating. This passive device is well suited for splitting or combining RF and microwave signals across a wide frequency range in test and measurement or system integration environments.

Included in the sale:
• Weinschel 1506A Broadband Resistive Power Divider

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

Product Overview

Condition: Used

Included in the sale:
• Weinschel 1506A Broadband Resistive Power Divider

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

Manufacturer's Description

The Weinschel 1506A is a broadband resistive power divider designed for splitting or combining RF and microwave signals from DC to 18.0 GHz. It uses a resistive network topology which provides excellent isolation and flat frequency response across its wide operating range, making it ideal for signal distribution, test system setups, and calibration applications.

Type N connectors are used throughout, ensuring reliable and repeatable connections in laboratory and field environments. The 1 Watt input power rating makes the unit suitable for a broad range of RF test and measurement scenarios.

Key Specifications:
Frequency Range: DC to 18.0 GHz
Connector Type: Type N
Input Power Rating: 1 Watt
Division: 2-way resistive
Insertion Loss: Typically 6 dB (resistive split) plus connector and resistor losses
Isolation: Typically 6 dB between output ports
Impedance: 50 Ohm
Configuration: 3-port passive resistive divider

Please refer to the manufacturer's website or datasheet for full and confirmed specifications.
