Condition: Used

Waters ionKey Source For TQ Infusion Device (p/n 186006964, Model Code: INK, S/N E14INK044N). Professionally decommissioned and previously used by GSK. Well looked after. The source is the TQ (triple quadrupole) variant — it does not include a reference probe, distinguishing it from the ToF variant. The iKey separation device is not included in the sale.

What is included:

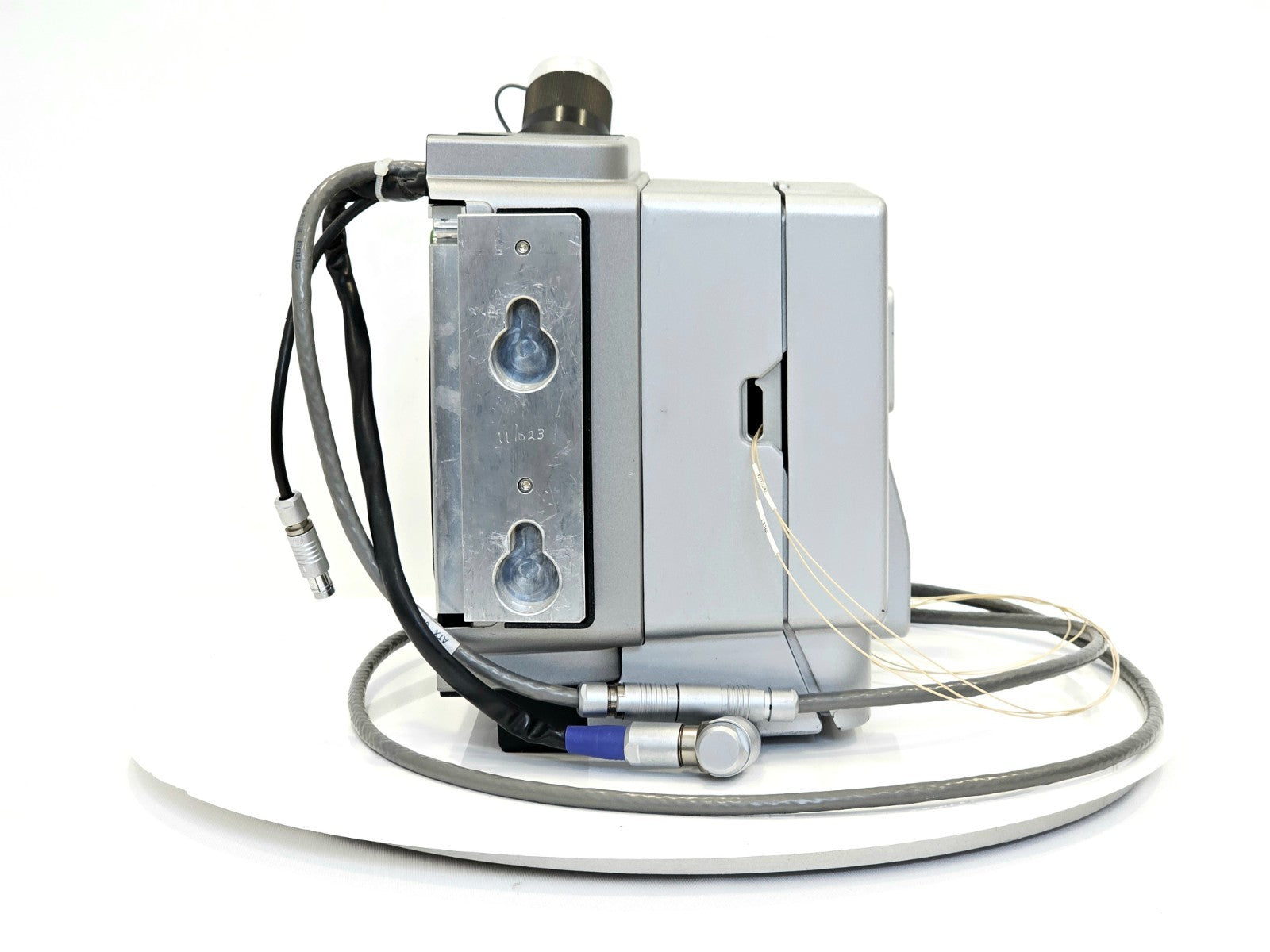

• Waters ionKey Source assembly (p/n 186006964, S/N E14INK044N)

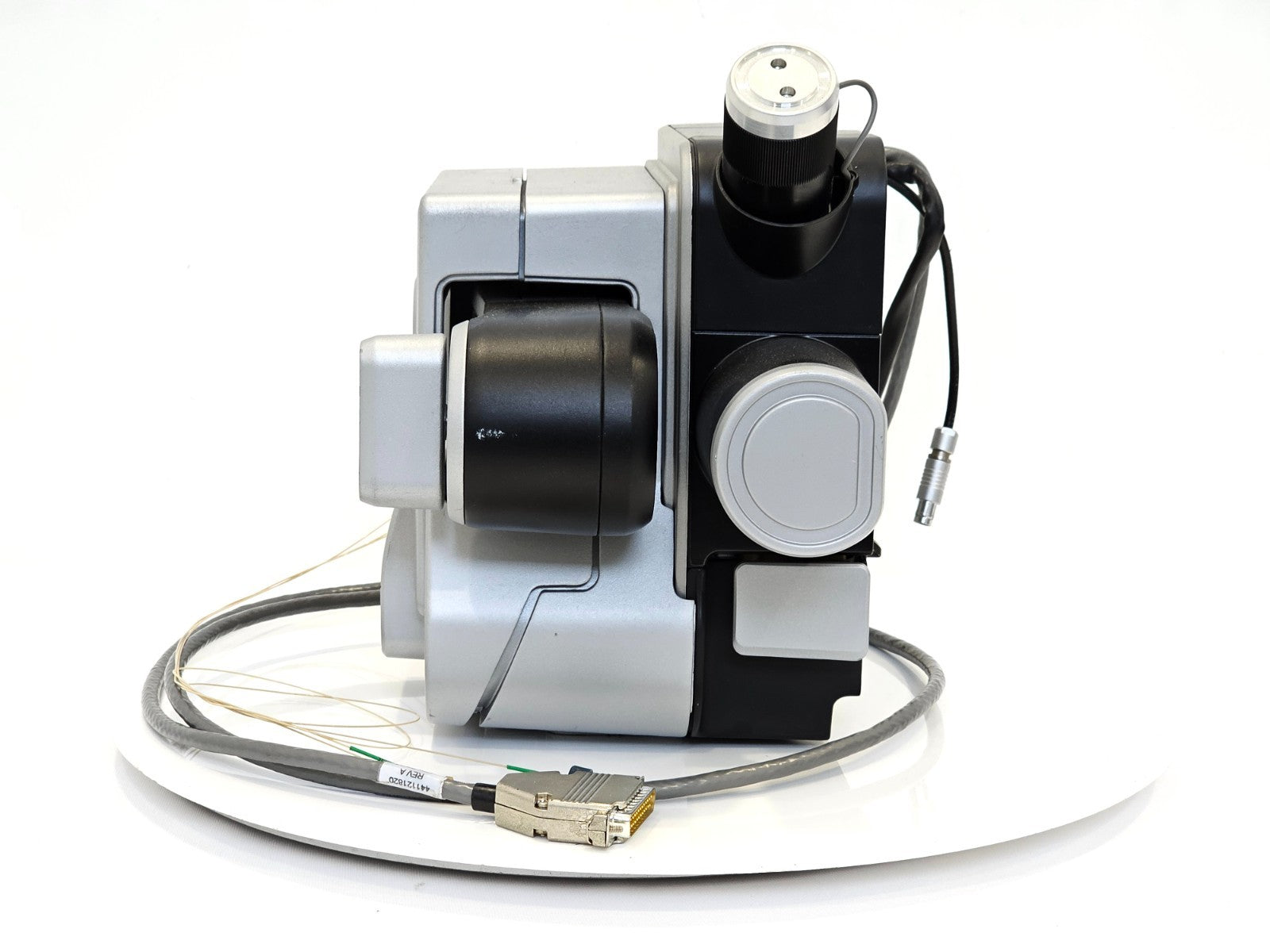

• Attached interconnect cable with D-sub multi-pin connector (Rev A, p/n 44112162D)
• Capillary/fluidic tubing lines
• Lemo-style circular connector cables

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

The Waters ionKey Source is the TQ (triple quadrupole) variant of the ionKey/MS ion source, designed to integrate microflow UPLC separation directly into the source of a compatible Waters mass spectrometer. It precisely positions the iKey separation device and its integral electrospray emitter at the optimal location within the mass spectrometer.

All fluid connections, electronic connections (including column heater and electrospray high voltage), and gas connections (sheath gas) are made internally within the source upon iKey device insertion — eliminating the need to manually connect individual capillary lines or electronic cables. Inserting the iKey simultaneously engages all electronic and fluidic connections with a single locking action.

The TQ-variant ionKey source (Model Code: INK) is designed for use with triple quadrupole instruments (e.g., Xevo TQ-S, Xevo TQ-XS) and does not include a reference probe (which is reserved for ToF-based instruments). The source is supported for use with the ACQUITY UPLC M-Class System.

Key Specifications and Features:
Part Number: 186006964

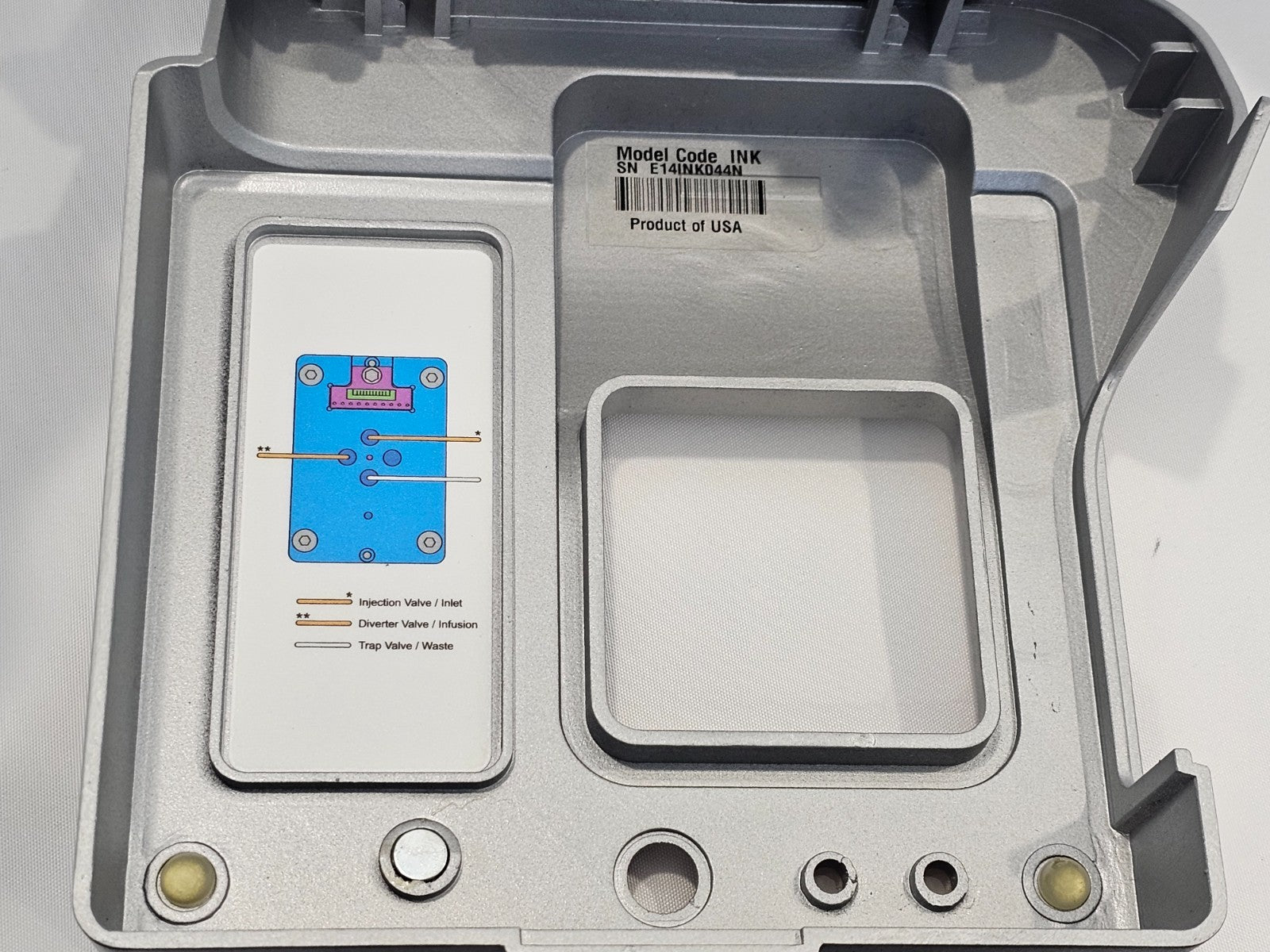

Model Code: INK
Ionization Mode: Electrospray Ionization (ESI) / Microflow ESI
Compatible Instruments: Xevo TQ-S, Xevo TQ-XS (triple quadrupole MS platforms)
Compatible LC Systems: ACQUITY UPLC M-Class System
Flow Rate: Microflow (direct, non-split operation at µL/min scale)
iKey Column I.D. Supported: 150 µm (standard sensitivity) and 300 µm (HT throughput)
iKey Particle Technology: Sub-2 µm UPLC-grade particles (e.g., 1.7 µm BEH)
Sensitivity Gain: Up to 40x improvement vs. 2.1 mm I.D. UPLC columns (150 µm iKey)
Solvent Savings: Approximately 90% reduction in solvent consumption vs. conventional UPLC
Internal Connections: Fluid, high-voltage ESI, column heater, sheath gas — all inside the source

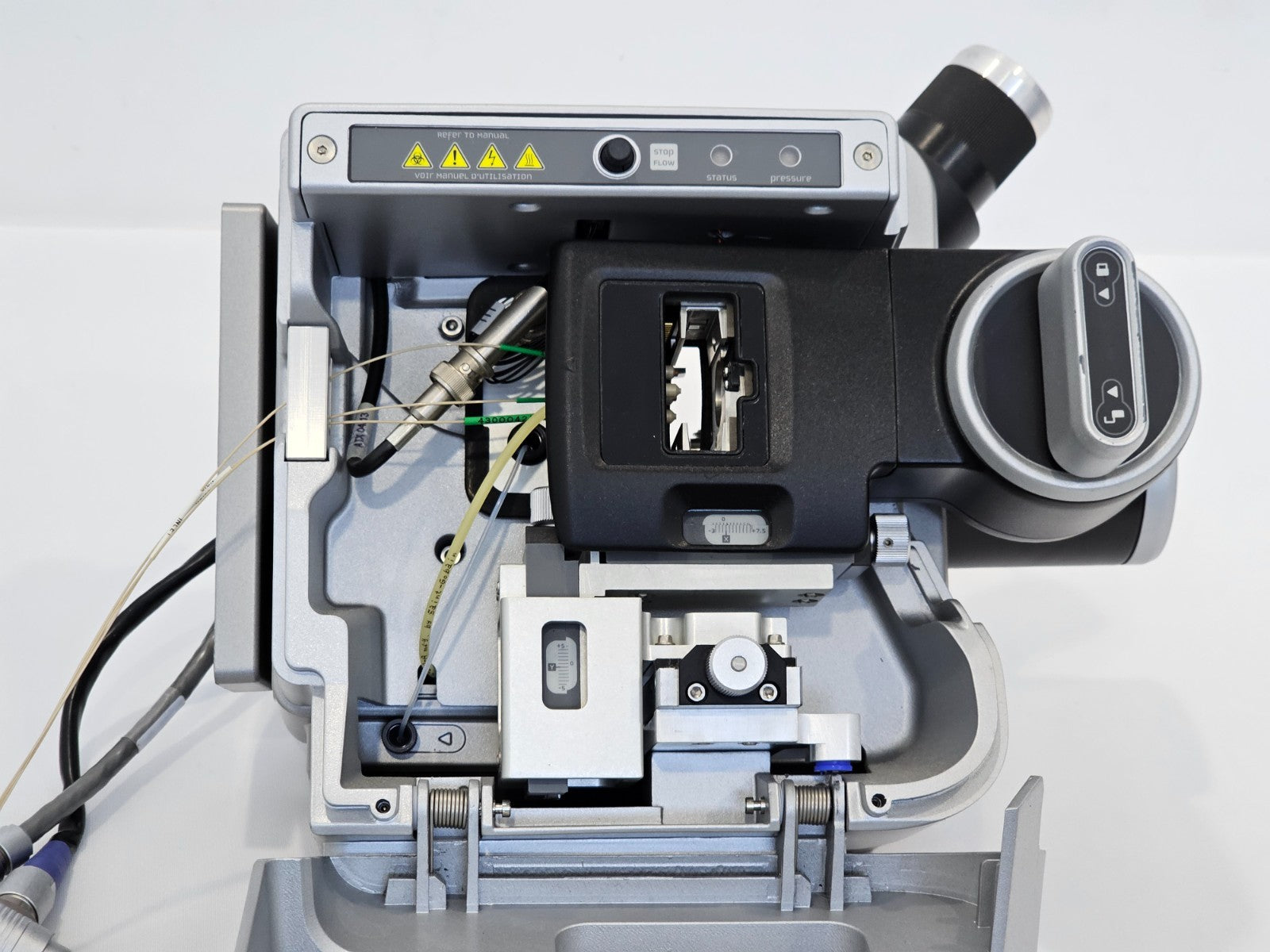

Front Panel Controls: Stop Flow button; Status LED; Pressure LED
Camera Port: Integrated camera mount for spray visualisation
Reference Probe: Not included (TQ variant)

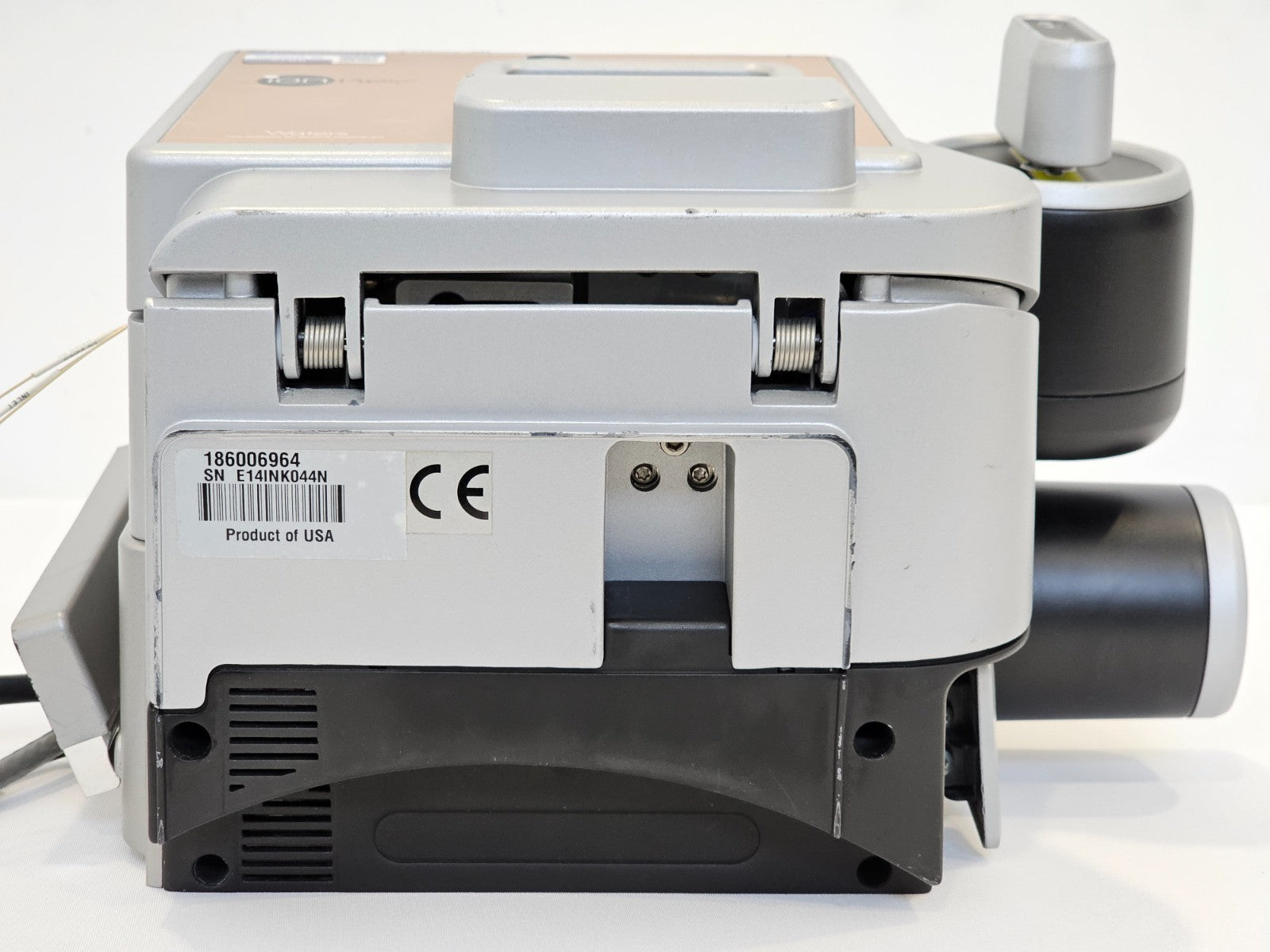

Origin: Product of USA
EMC Classification: ISM Group 1 Class B (IEC CISPR 11)

The ionKey/MS system is suited for quantitative bioanalysis, pharmacokinetic (PK) studies, drug metabolism and DMPK research, food safety, environmental analysis, proteomics, and metabolomics applications where sample-limited or high-sensitivity LC-MS analysis is required.

Waters ionKey/MS System Guide (715004028 Rev B) — official operator and installation guide for the ionKey/MS system: Download PDF

Waters Xevo TQ-S Mass Spectrometry System Overview and Maintenance Guide (715002212) — includes ionKey source installation and plumbing details: Download PDF

Waters Xevo TQ-XS Mass Spectrometry System Overview and Maintenance Guide (715004990 v02) — covers ionKey source integration with TQ-XS platform: Download PDF
