Condition: Used — in good working condition, tested and within specification.

The Wandel & Goltermann OLA-15 is a variable single-mode optical attenuator covering a wavelength range of 1260 to 1625 nm, calibrated at 1310 and 1550 nm. The unit features a 4-digit LCD display showing absolute attenuation including connector loss, with a measured insertion loss of less than 3.0 dB and a total attenuation uncertainty of ±0.8 dB. Attenuation is continuously variable from 3 to 60 dB across the full range.

Included in the sale:
• Wandel & Goltermann OLA-15 Variable Optical Attenuator

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

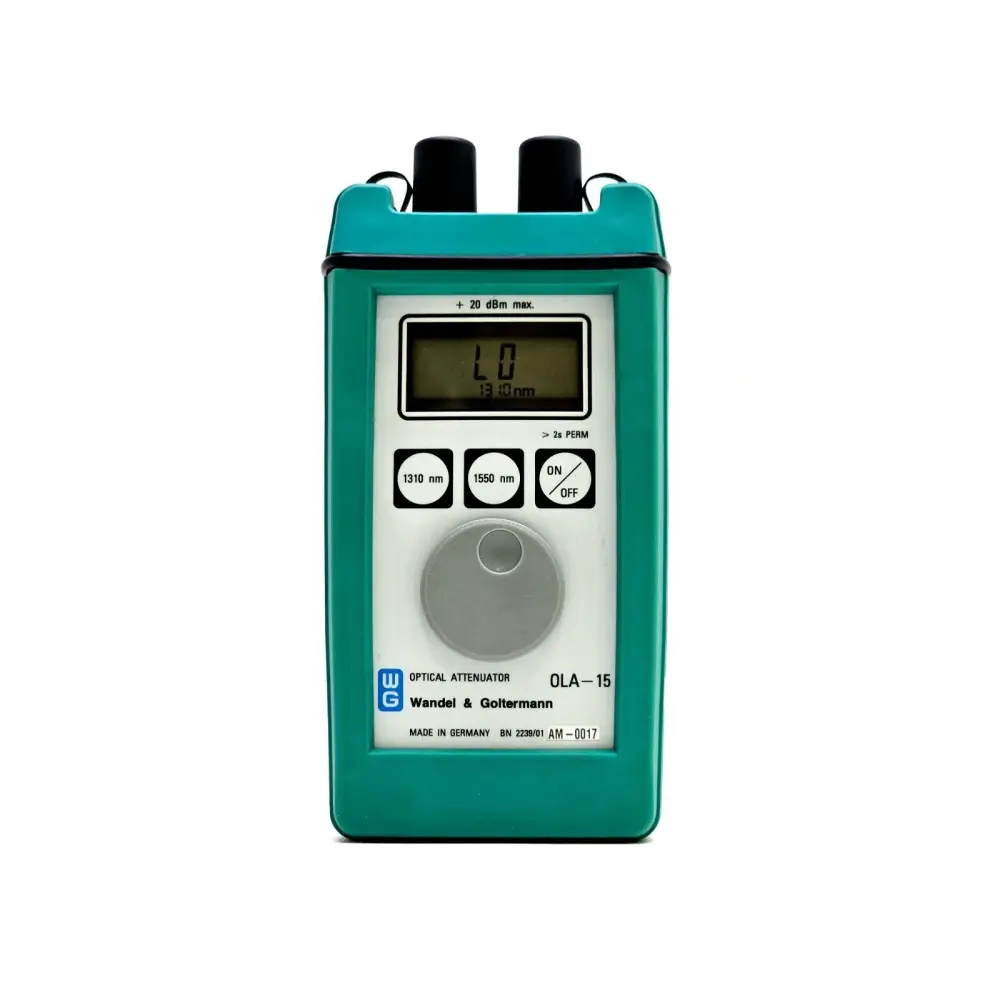

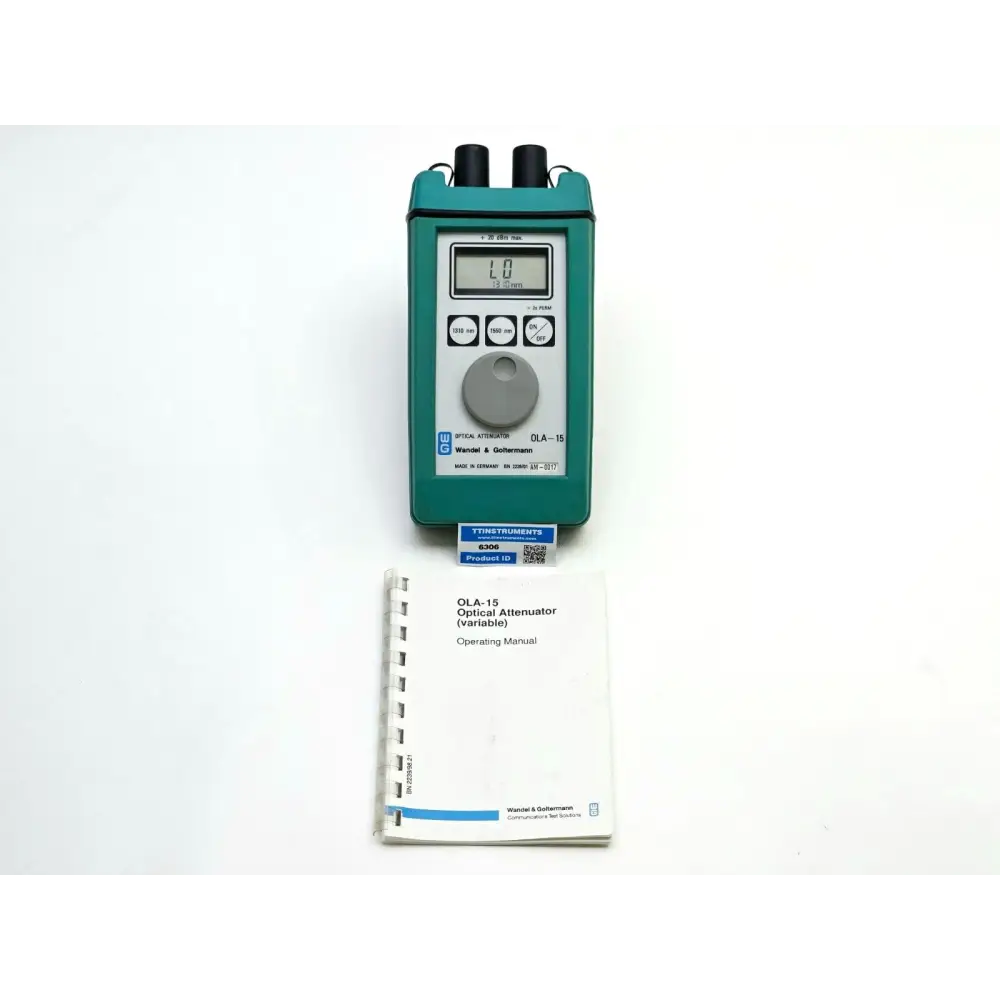

The Wandel & Goltermann OLA-15 is a rugged, compact, and lightweight hand-held variable optical attenuator designed for single-mode fibre optic applications. It enables engineers to simulate line loss for BER (Bit Error Ratio) testing, determine system margin and receiver sensitivity, and calibrate optical power meters. The instrument offers continuous attenuation adjustment over its full range with a 4-digit LCD displaying absolute attenuation values including connector loss. Interchangeable connector adapters (BN 2060/00.xx series) allow compatibility with DIN, FC, SC, and ST connector types.

Key Specifications:
Wavelength Range of Use: 1260 to 1625 nm
Calibrated At: 1310 and 1550 nm
Attenuation Range: 3 to 60 dB
Minimum Insertion Loss: ≤ 3 dB
Linearity: ±0.2 dB
Repeatability of Attenuation Setting: ±0.1 dB
Total Attenuation Uncertainty: ±0.8 dB
Setting Type: Continuous over entire attenuation range
Function: Bidirectional
Attenuation Display: 4-digit liquid-crystal display
Displayed Value: Absolute attenuation including connector
Resolution: 0.05 dB

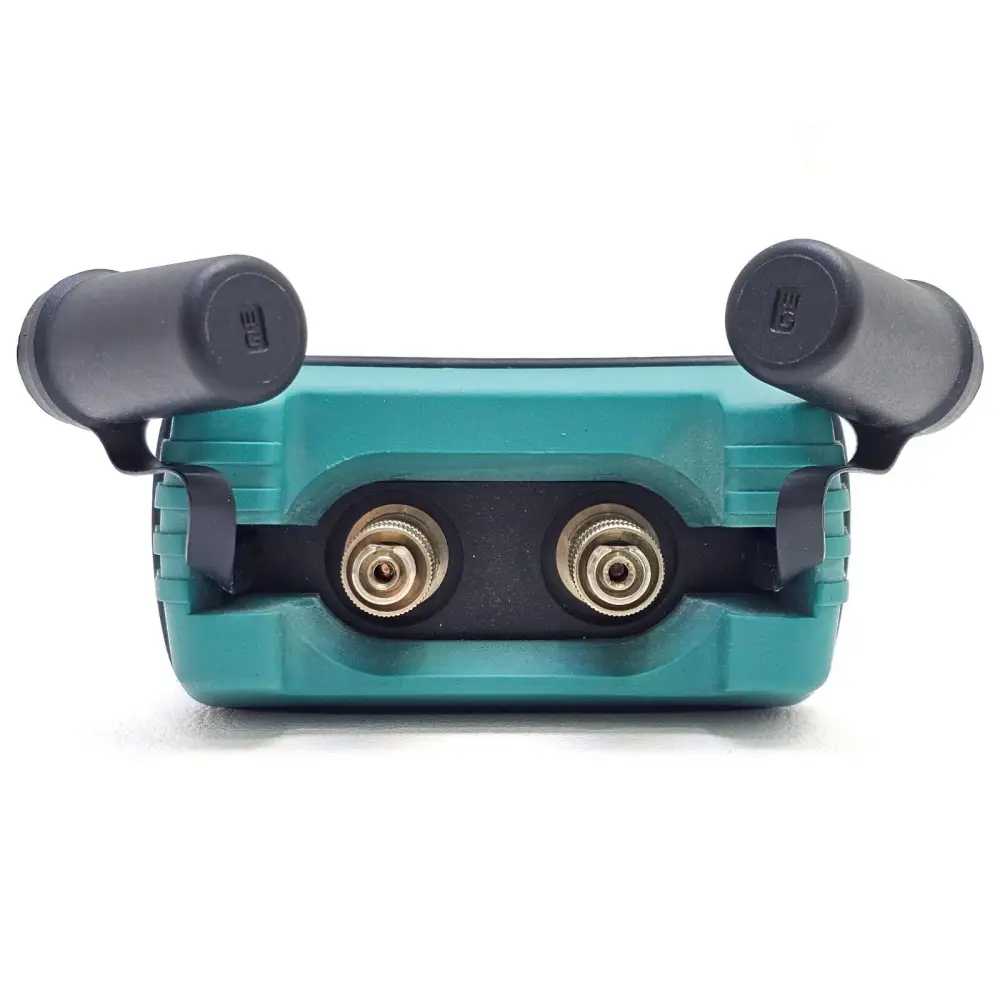

Connector Adapters: Interchangeable — DIN, FC, SC, ST (BN 2060/00.xx)
Fibre Type: Single-mode 9/125 µm
Return Loss at Input/Output: > 40 dB
Maximum Input Level: +20 dBm
