Condition: Used

In good working condition, tested and within specification.

From the manufacturer:

Measured Insertion Loss: <3.0 dBm

Features:

Wide Attenuation Range

Simple, Reliable Operation

Rugged, Compact and Lightweight

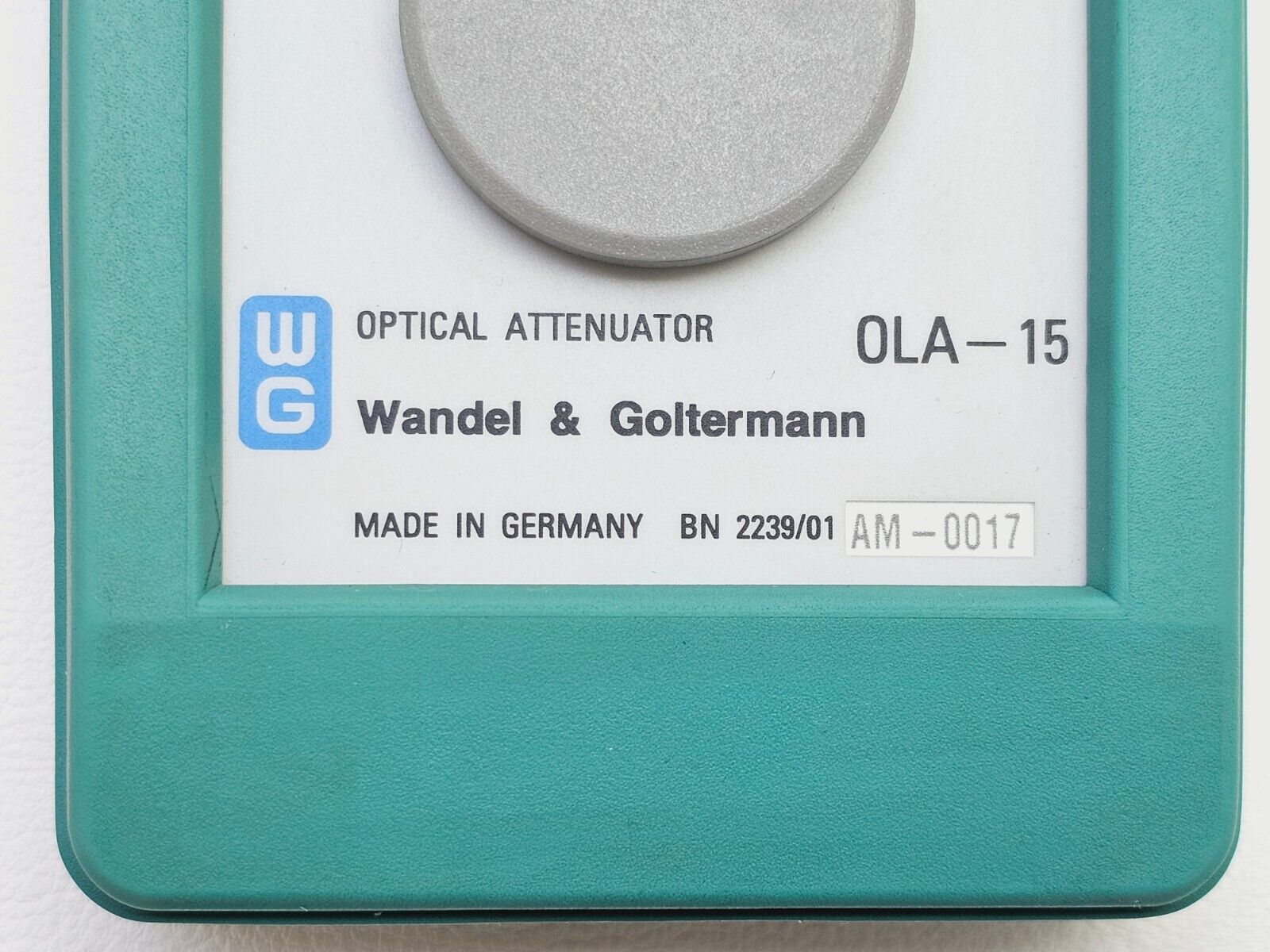

A rugged hand-held instrument for variably attenuating optical signals in single mode applications. Use to simulate line loss for BER (Bit Error Ratio) tests on fiber optics systems, determine system margin/receiver sensitivity or the calibration of optical power meters. 4-Digit LCD Display.

Wavelength

Range of use ..........................1260 to 1625 nm

Calibrated at. ........................ 1310 and 1550 nm

Attenuation setting

Attenuation range. . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 to 60 dB Minimum insertion loss1) ......................... ≤ 3 dB Linearity .................................... + 0.2 dB Repeatability of attenuation setting 2) ............. + 0.1 dB Total attenuation uncertainty1)................... + 0.8 dB Setting type . .......................... continuous over the entire attenuation range Function ................................. bidirectional

Attenuation display ...........4-digit liquid-crystal display

Displayed value ....absolute attenuation including connector

Resolution. . . ................................. 0.05 dB

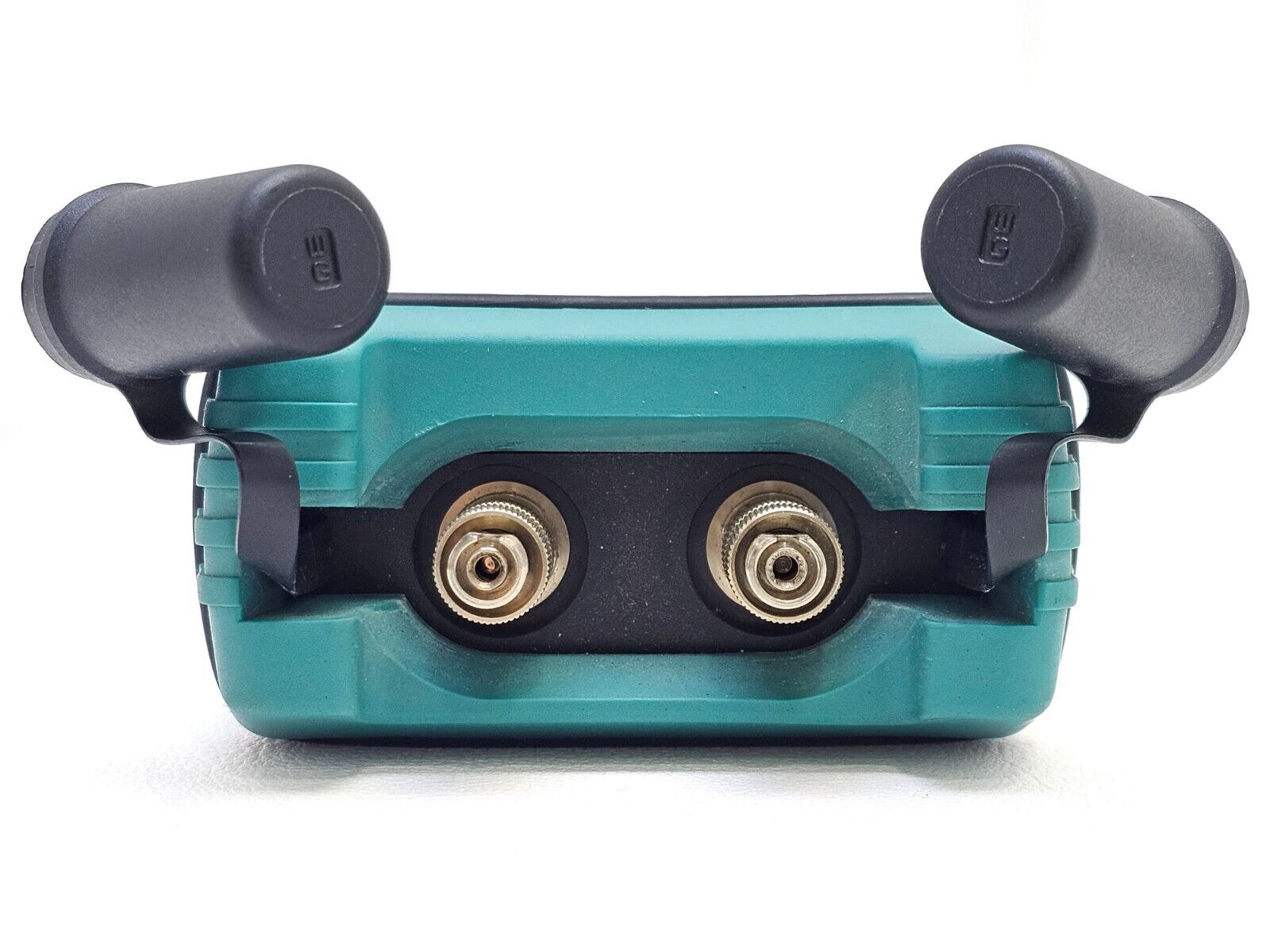

Optical input/output

Interchangeable adapter

BN 2060/00.xx . . . . . . . . . . . . . . . . . . . . . e. g. DIN, FC, SC, ST

Fiber type . . . ..................... single-mode 9/125 µm

Return loss at input / output 3) .................... > 40 dB

Maximum input level . . . . . . . . . . . . . . . . . . . . . . . . . . + 20 dBm
