Condition: Used

The Viavi Sidewinder FiberChek MPO (22120028) is an all-in-one handheld automated multifiber connector inspection and analysis solution, designed for MPO and MTP connector types. It features an integrated touchscreen, live fibre viewing, auto-centre, auto-focus, auto-pan/scroll, and built-in fibre end-face analysis conforming to IEC-61300-3-35. Pass/fail results are delivered automatically at the press of a button, with audible tones and user-selectable acceptance profiles. Results can be stored on the device or exported via WiFi or USB.

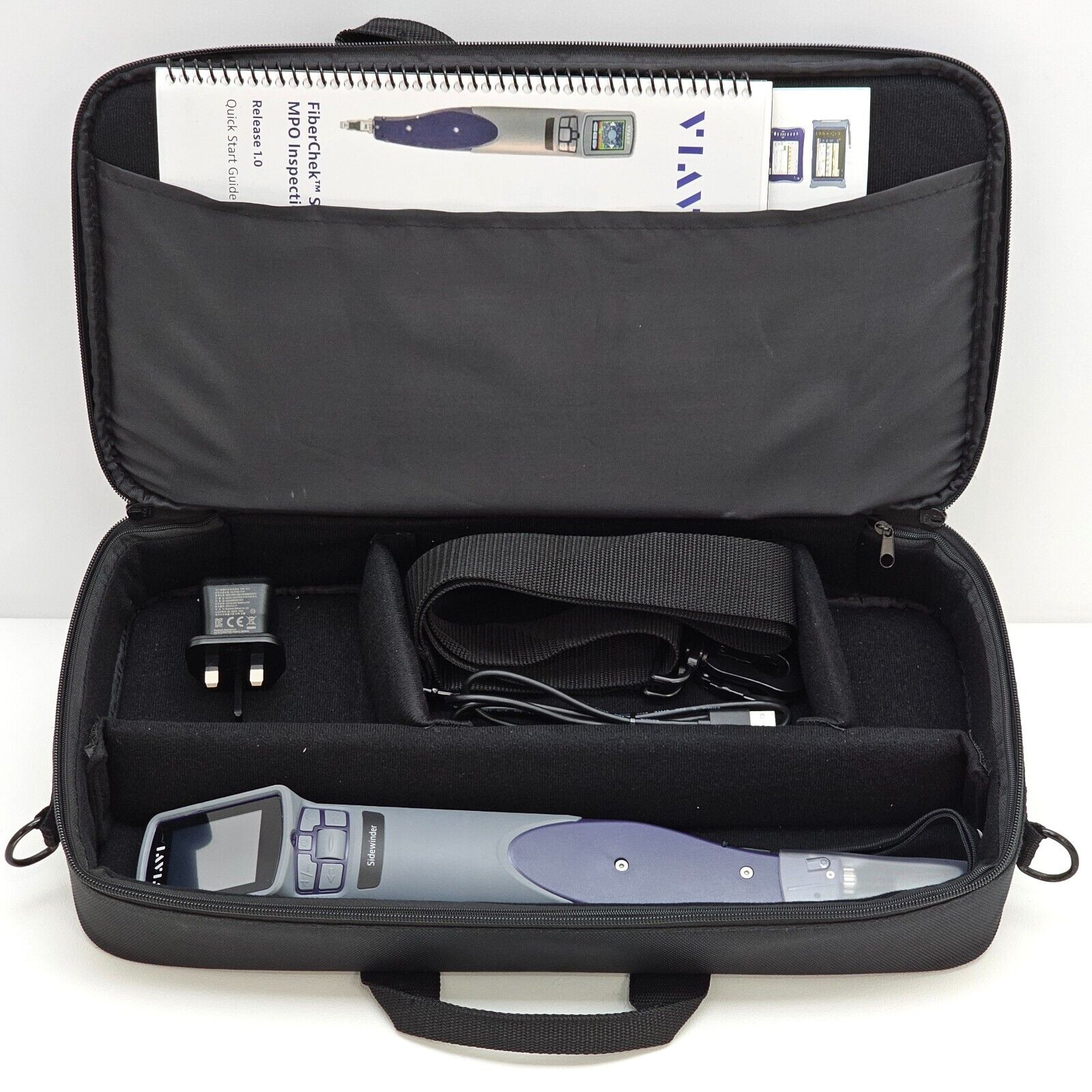

Included in the sale:
• Viavi Sidewinder FiberChek scope
• Carry case
• 3-pin UK power adapter
• FCPP-OLA-1 Standard Optical Assembly for Sidewinder

No additional accessories or tips are included.

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

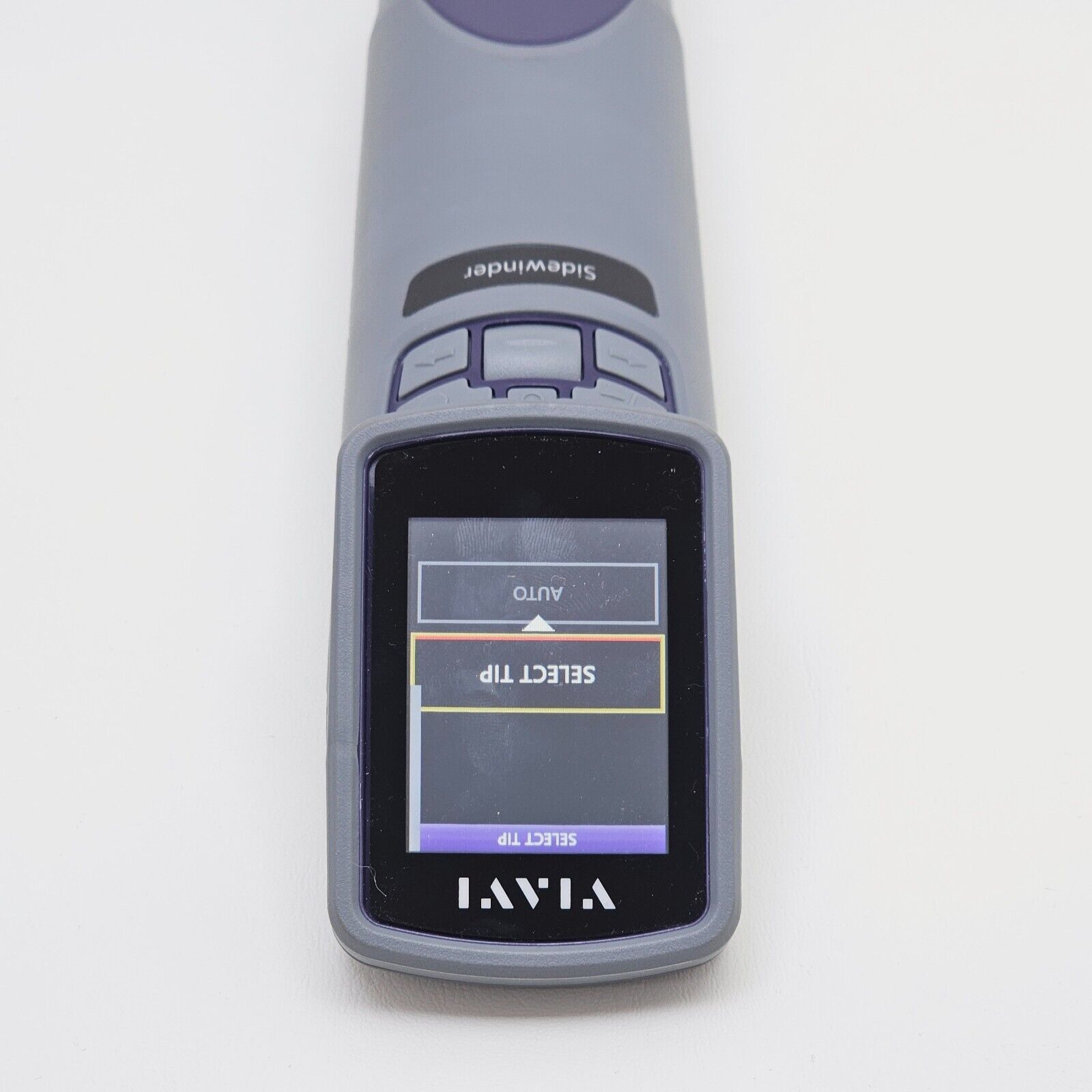

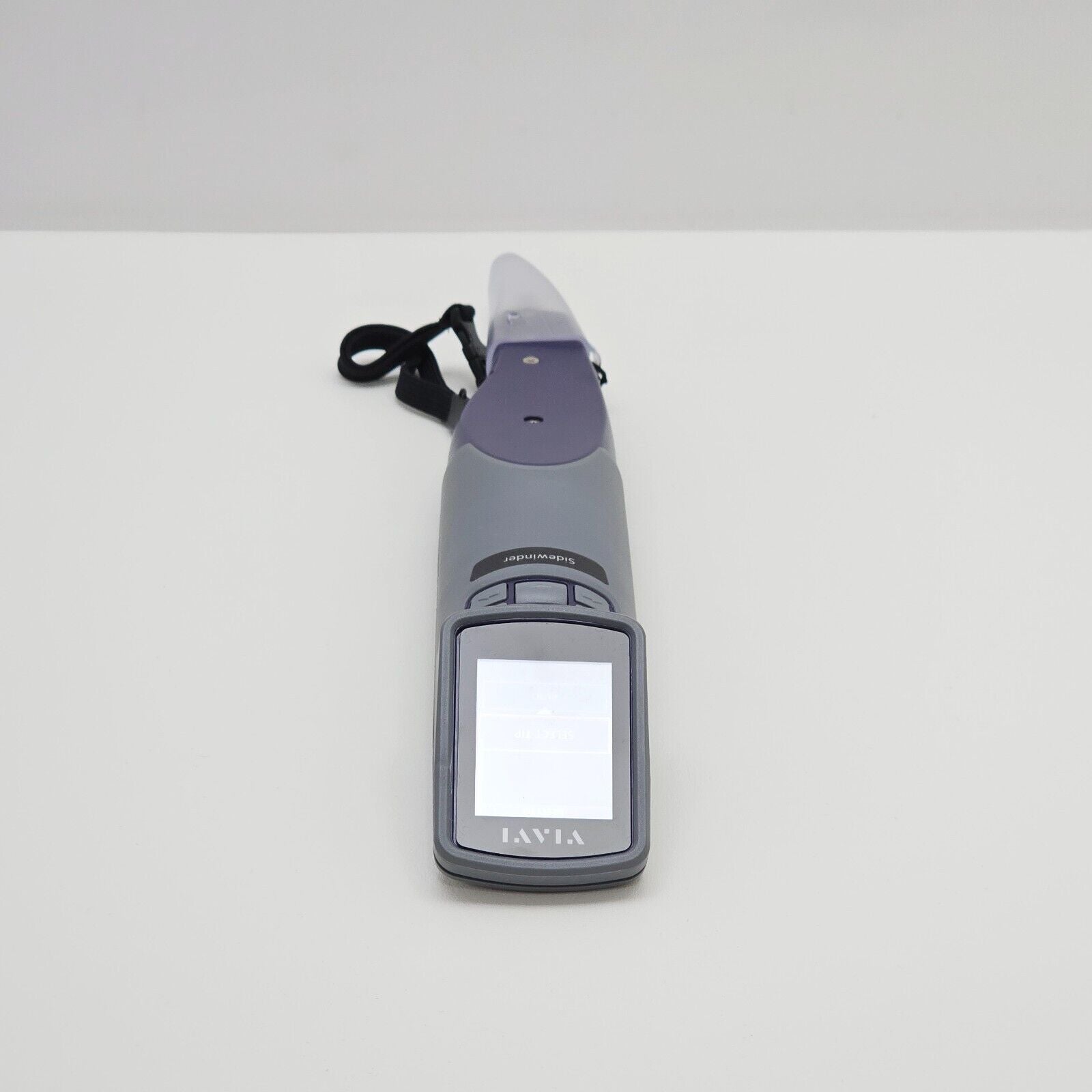

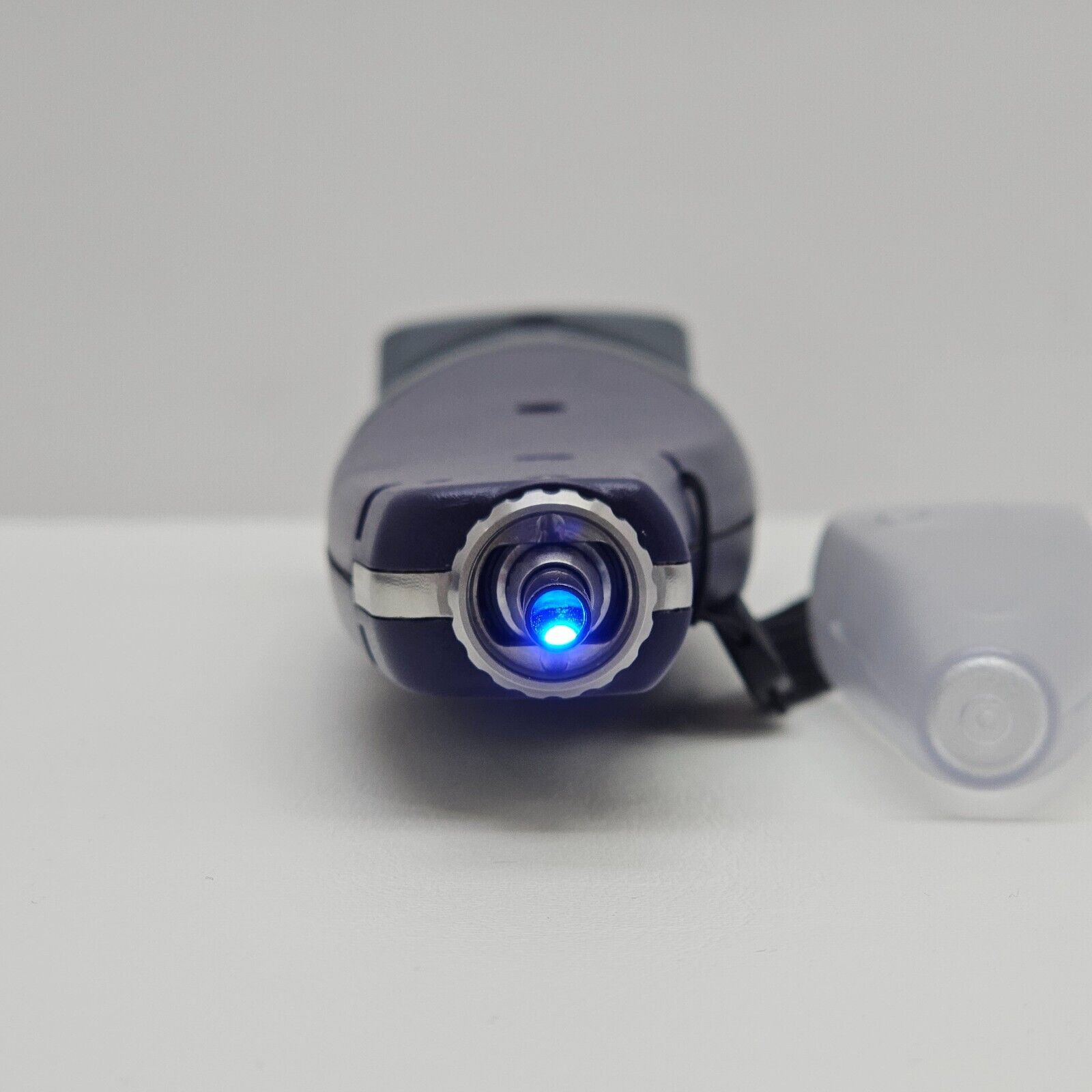

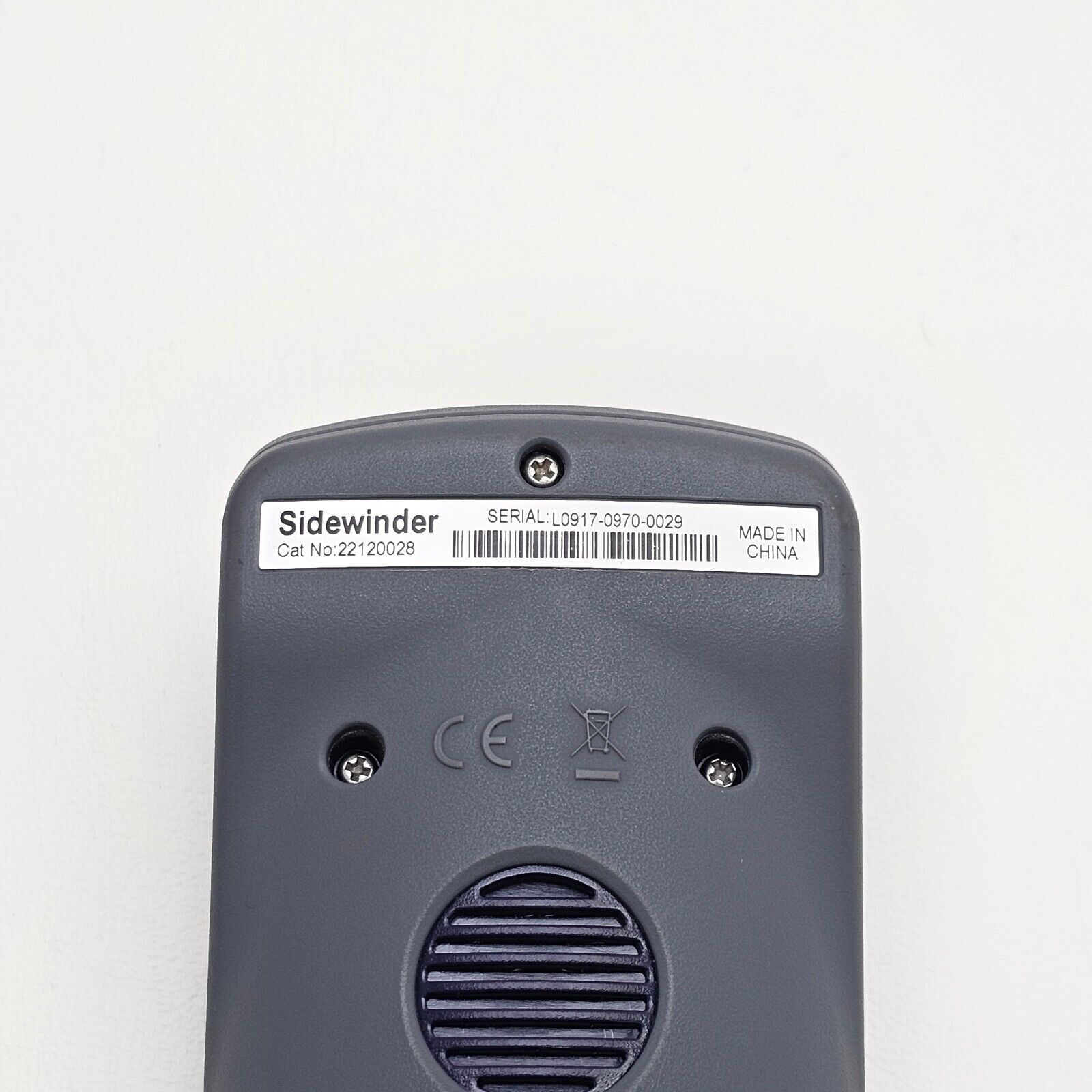

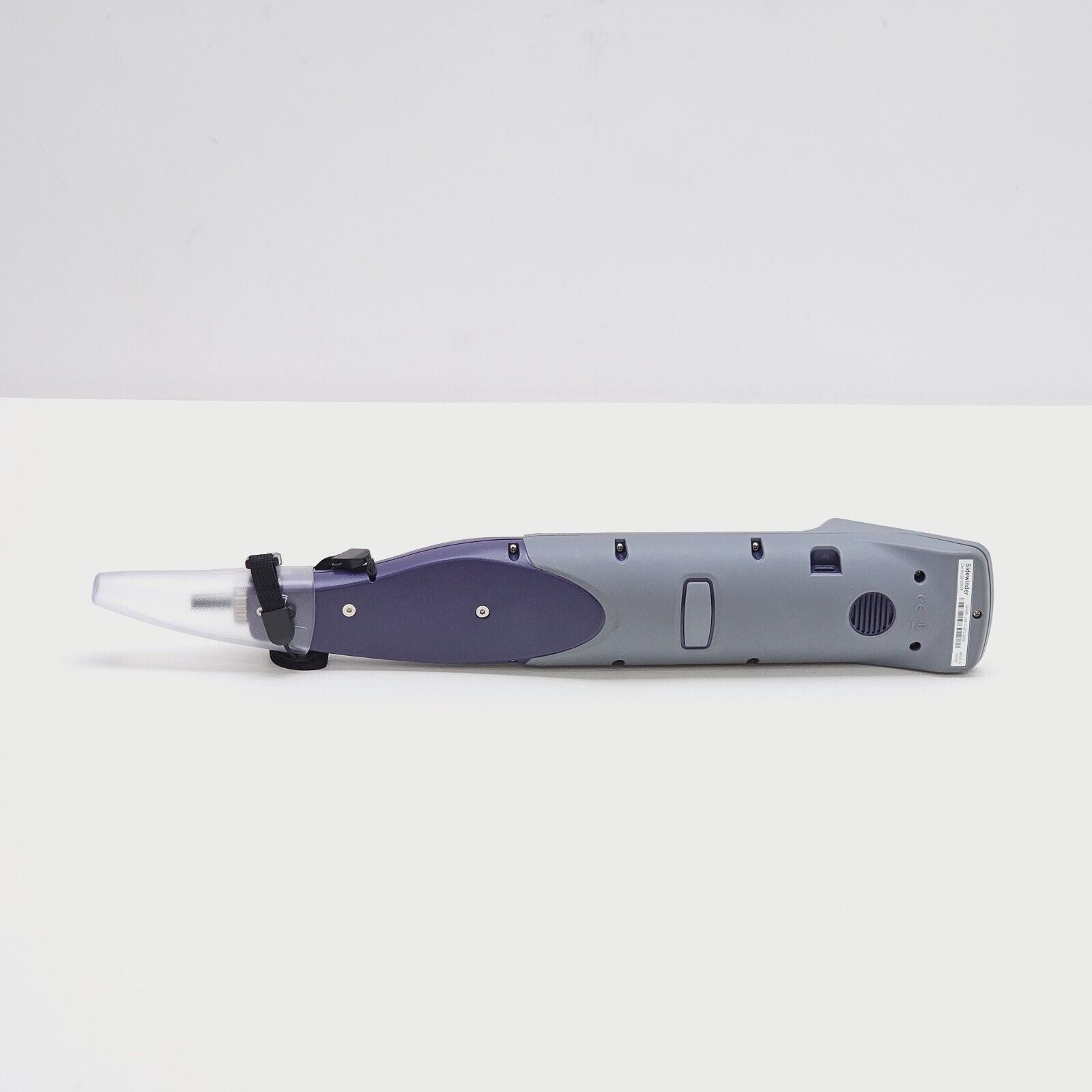

The Viavi Sidewinder FiberChek is a professional handheld digital probe scope with integrated display, designed for automated multifiber connector inspection and analysis. Purpose-built for MPO and MTP connector types, it is the preferred tool for field technicians and network engineers working on high-density fibre optic installations and data centre cabling.

The Sidewinder delivers fully autonomous inspection through its integrated touchscreen, live fibre viewing, auto-centre, auto-focus, and auto-pan/scroll functions. Results are delivered automatically at the press of a button, with audible pass/fail tones and user-selectable acceptance profiles. Results can be stored on the device or exported via WiFi or USB to a PC or mobile device. Built-in acceptance criteria conform to IEC-61300-3-35.

Key Specifications:
Product Type: Handheld digital probe fibre scope with integrated display
Connector Compatibility: MPO, MTP, and other multifiber connectors
Display: Integrated touchscreen
Focus: Auto-focus
Centring: Auto-centre
Pan/Scroll: Auto-pan/scroll
Analysis: Built-in fibre end-face analysis
Acceptance Standards: IEC-61300-3-35
Result Storage: On-device storage with export capability
Connectivity: WiFi, USB
Battery: All-day battery life
Result Indication: Audible pass/fail tones
Acceptance Profiles: User-selectable
Optical Assembly: Compatible with FCPP-OLA-1 Standard Optical Assembly
