Viavi Seeker-X Digital Leakage Detector DOCSIS3.1/OFDM high-split/OUDP & DAA/R-

Condition: Used

Viavi Seeker X Mobile Mapping Kit with MCAIII/GPS/Mobile and vehicle/handheld antennas — part number TRI-SKR-X-DRIVE-GPS-PKG. This is a comprehensive driveout leakage detection kit ready for full-spectrum cable plant surveying from 130–1220 MHz, with support for DOCSIS 3.1/OFDM, high-split/OUDP, and DAA/R-PHY architectures. Please note the unit can be charged via USB cable; the power adapter for the mobile mount is NOT included.

Included in the sale:

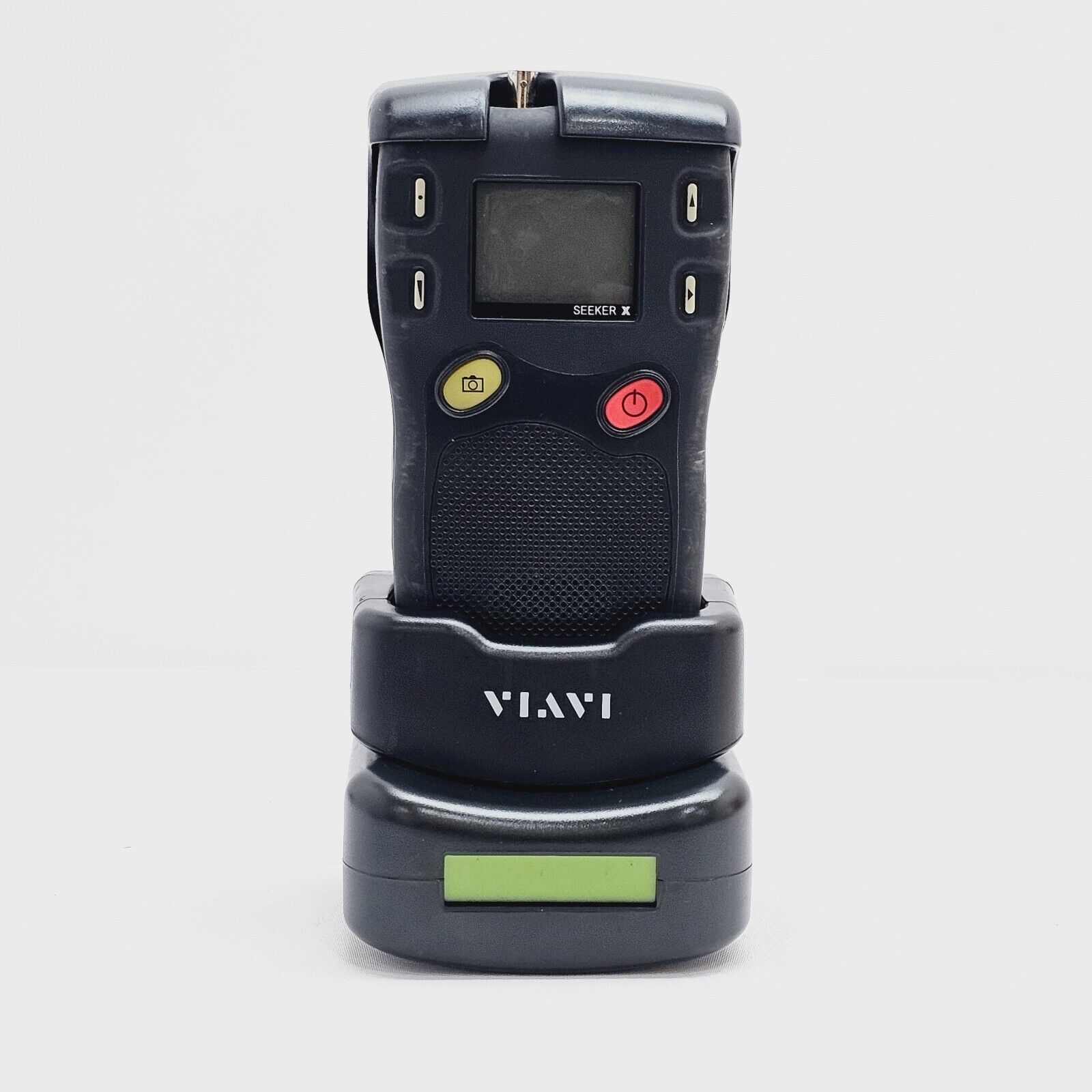

• Viavi Seeker X leakage detector

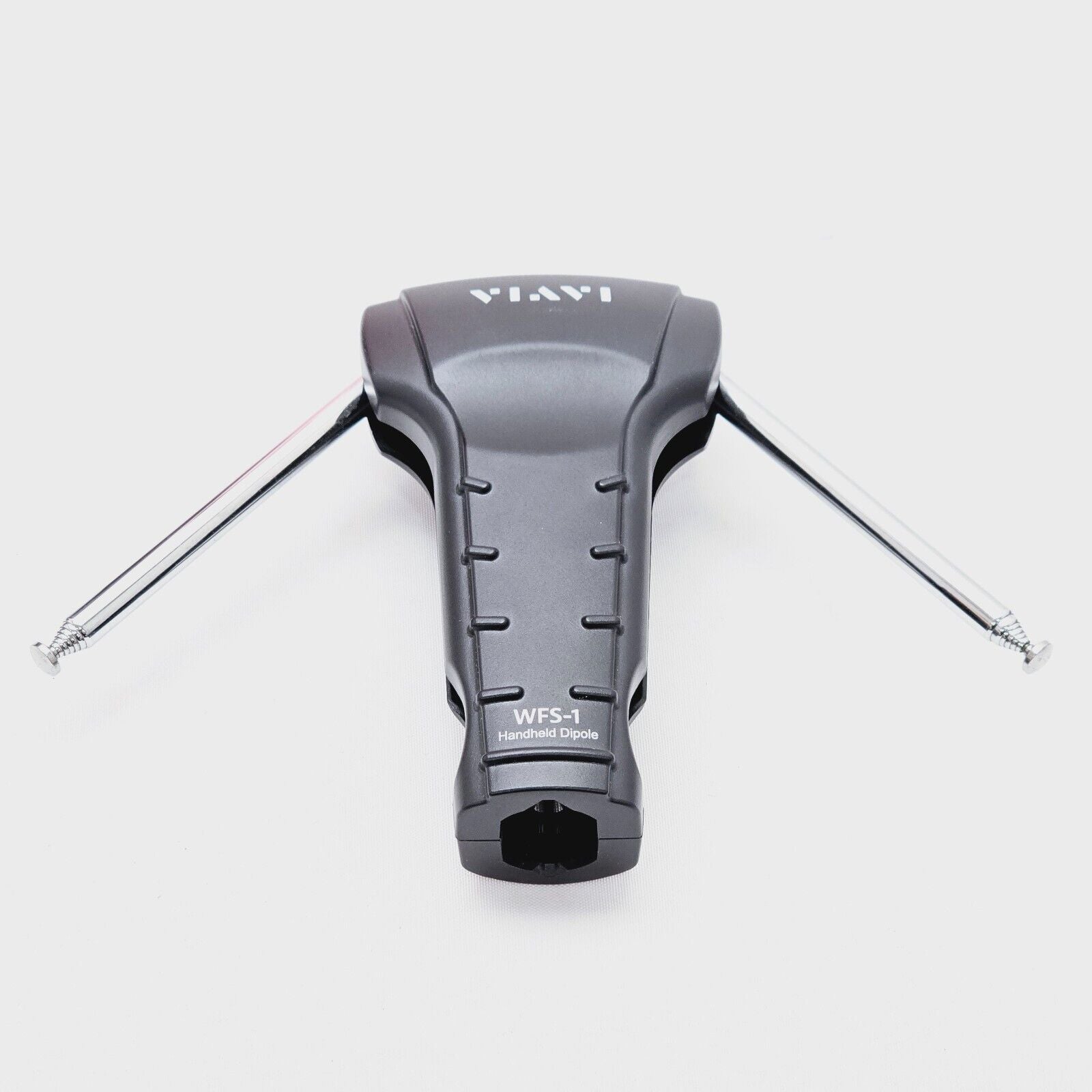

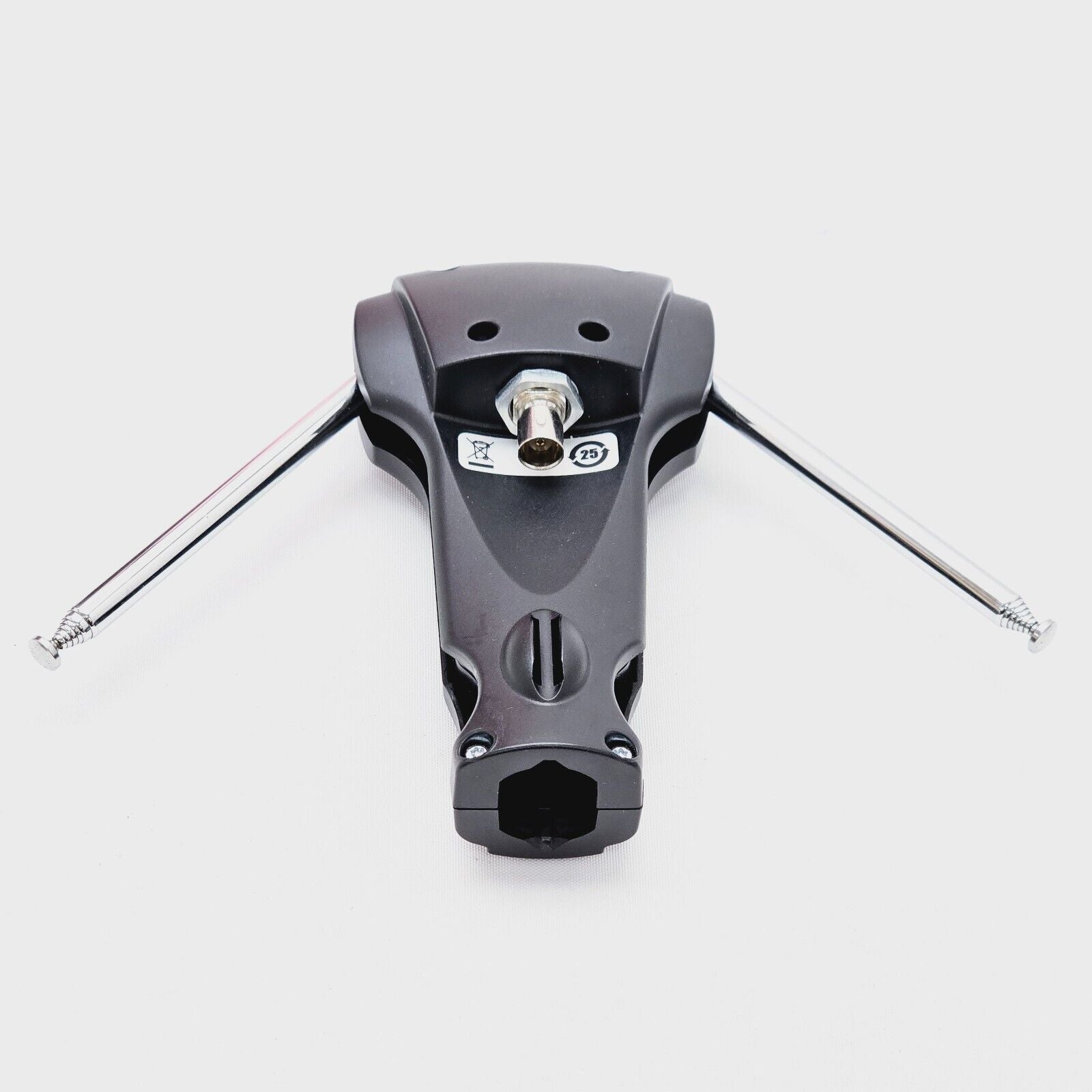

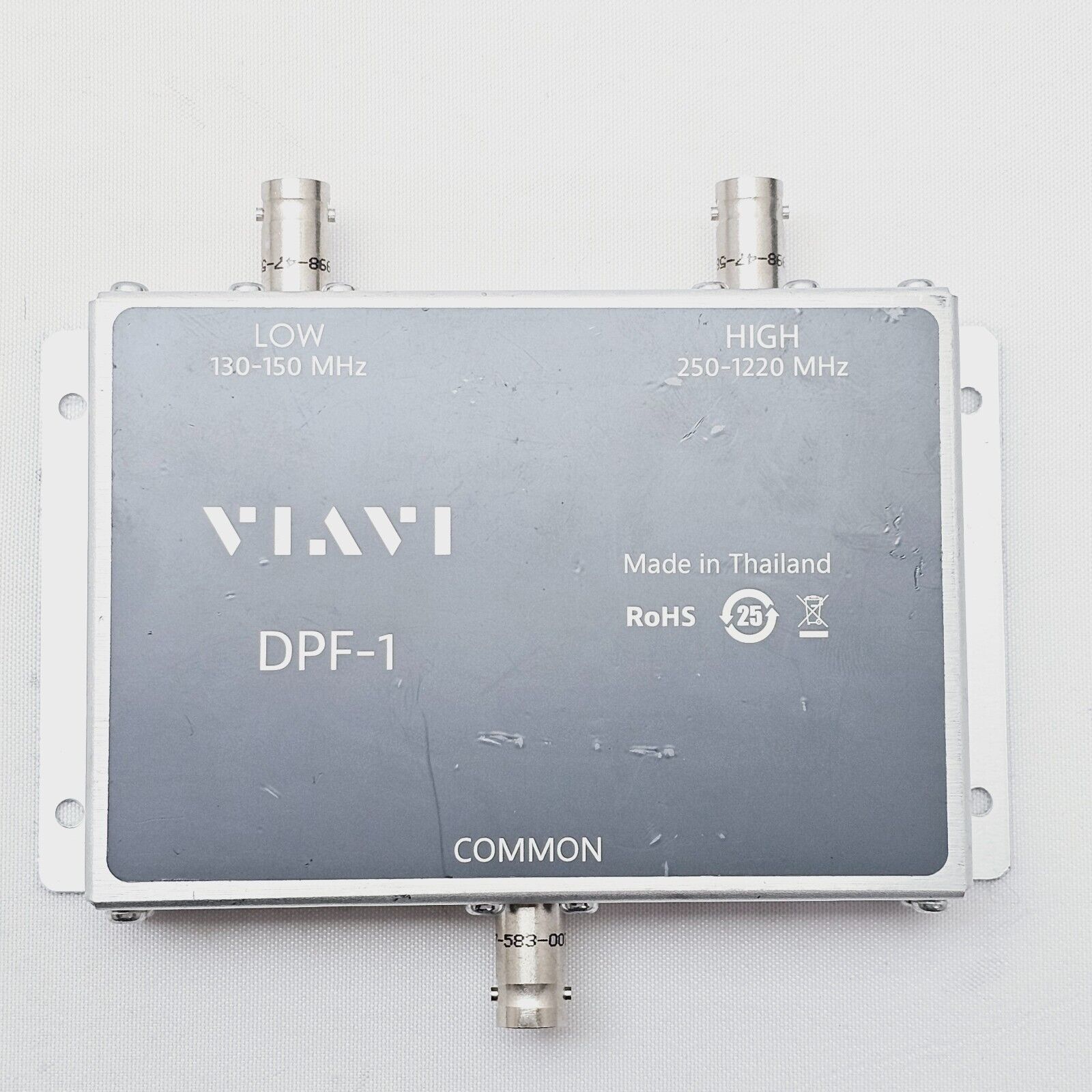

• WFS-1 Low-band adjustable dipole antenna (130–450 MHz) with DPF-1

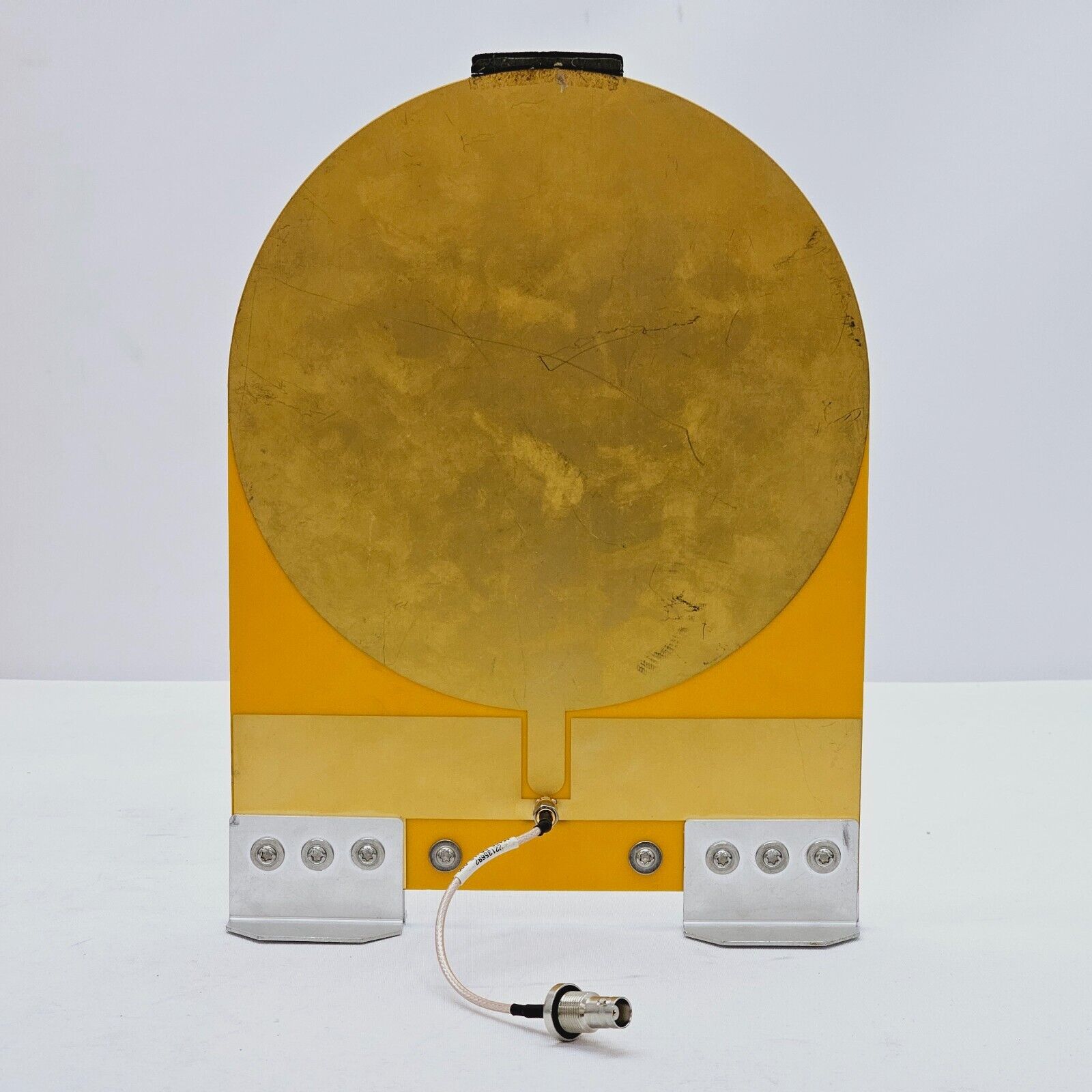

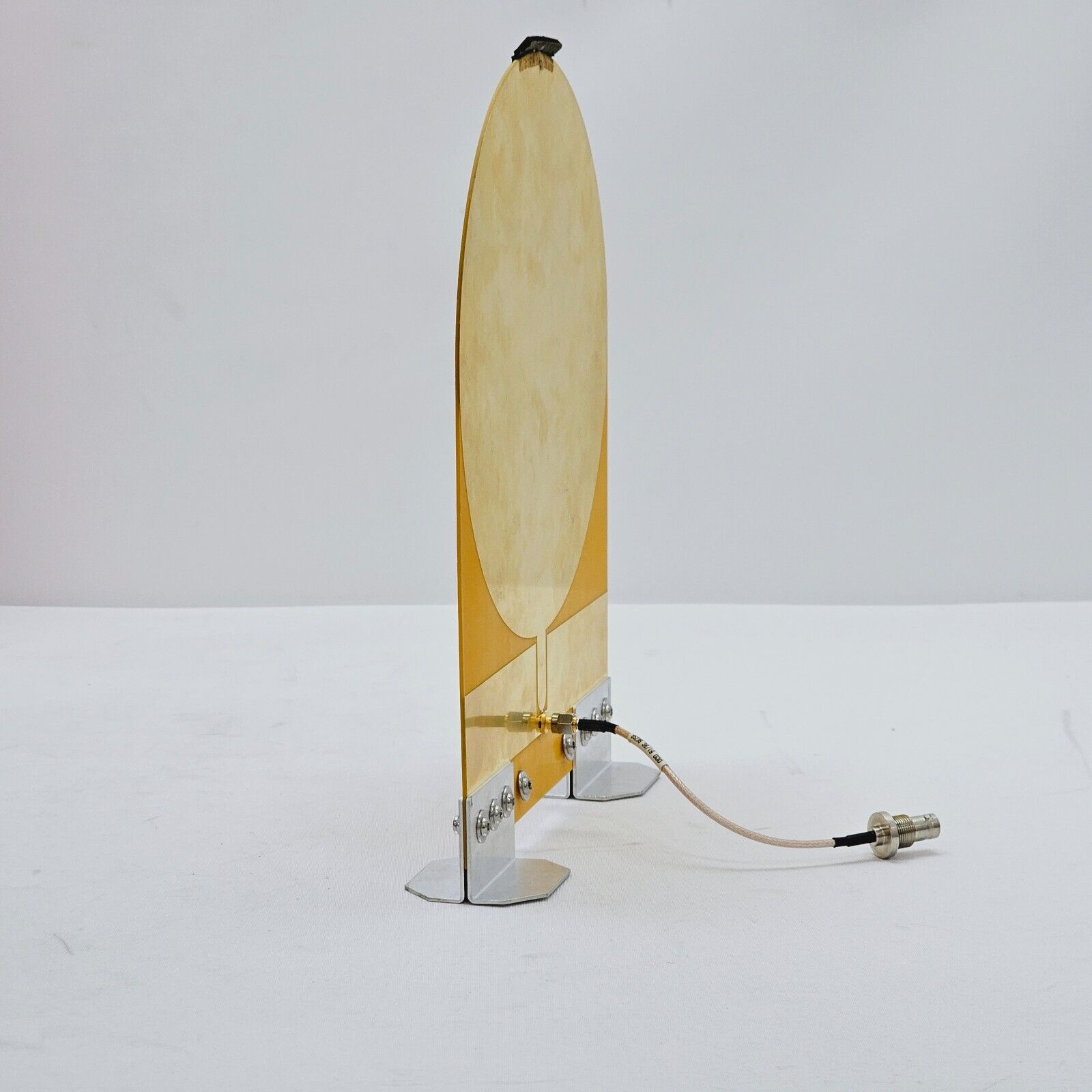

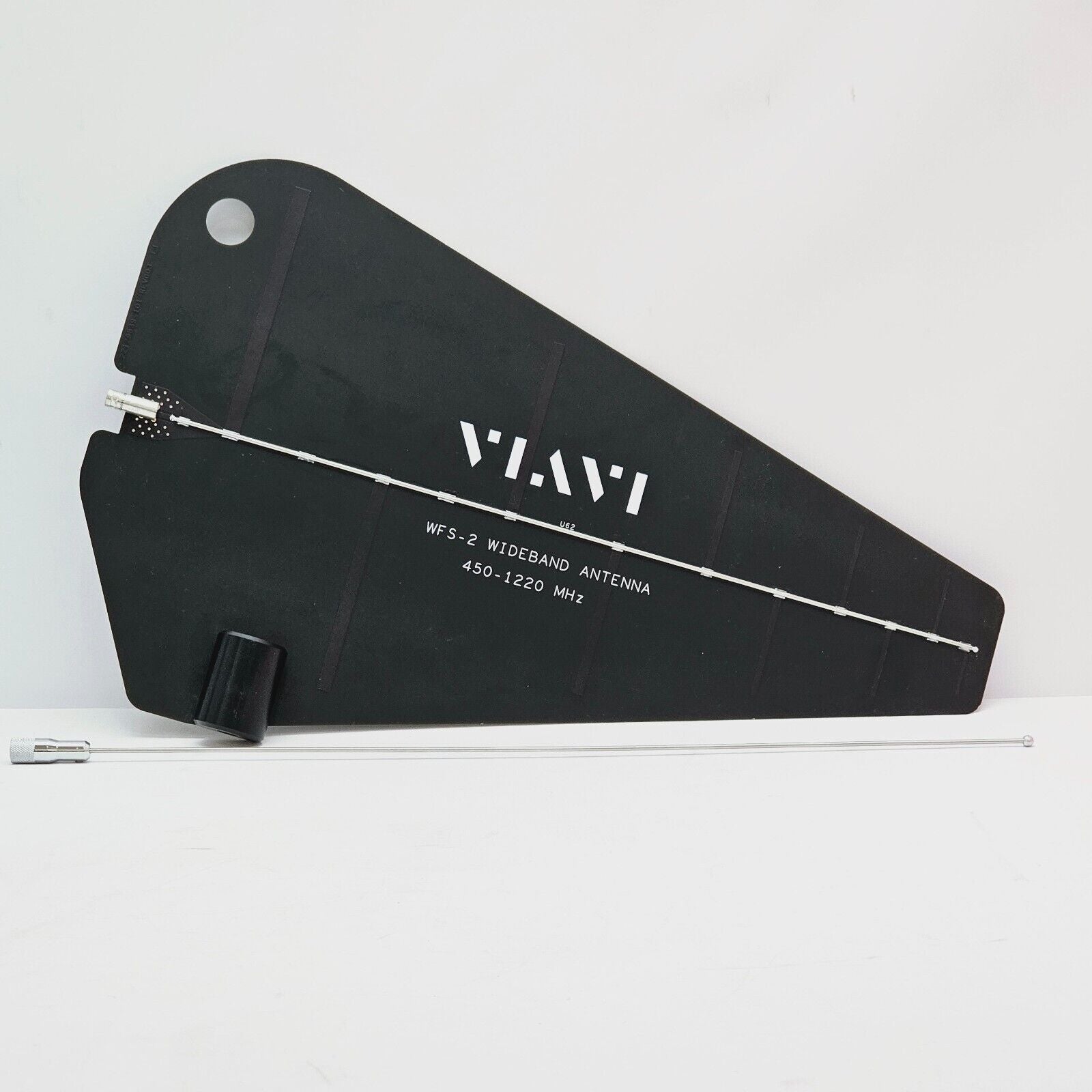

• WFS-2 High-frequency wideband directional antenna (450–1220 MHz)

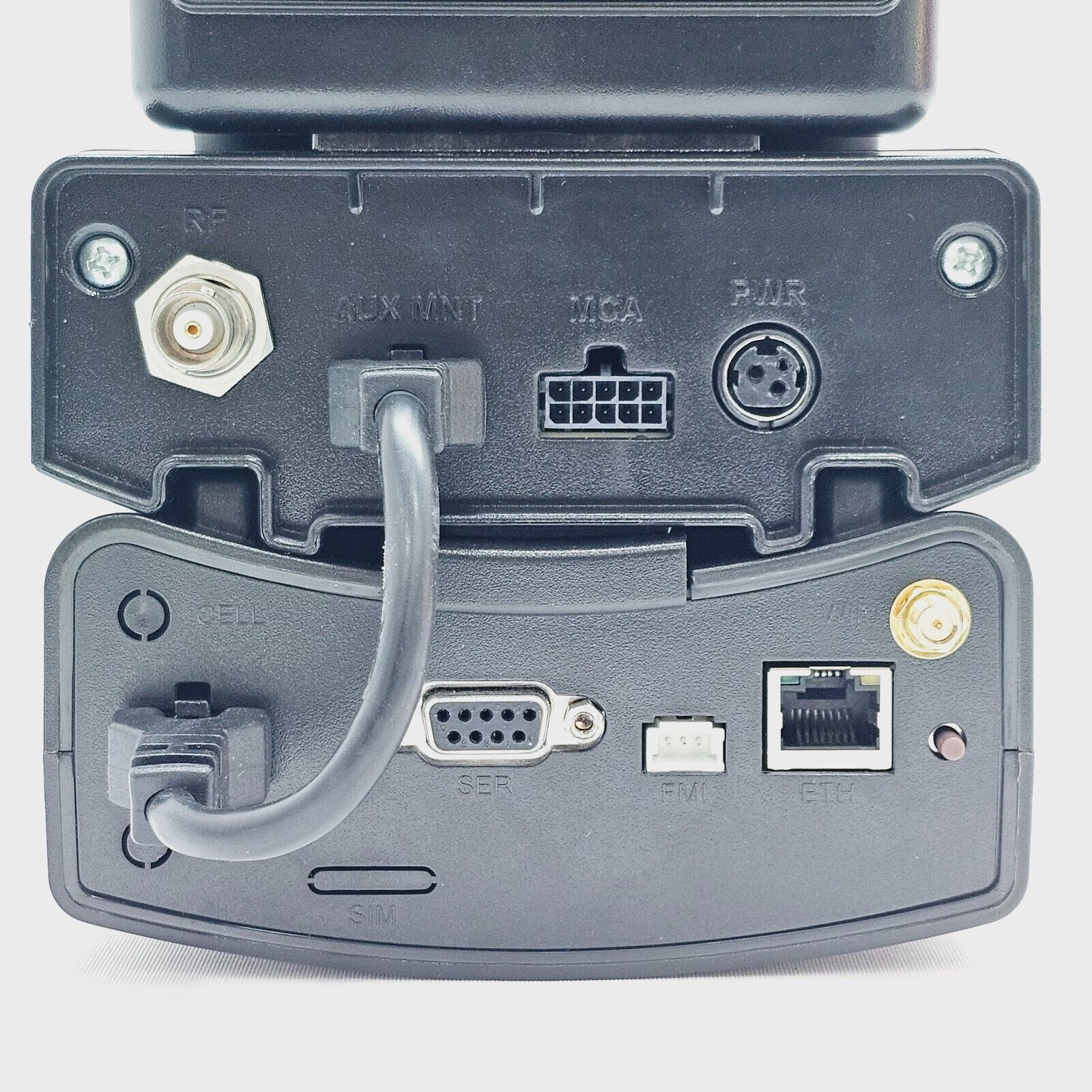

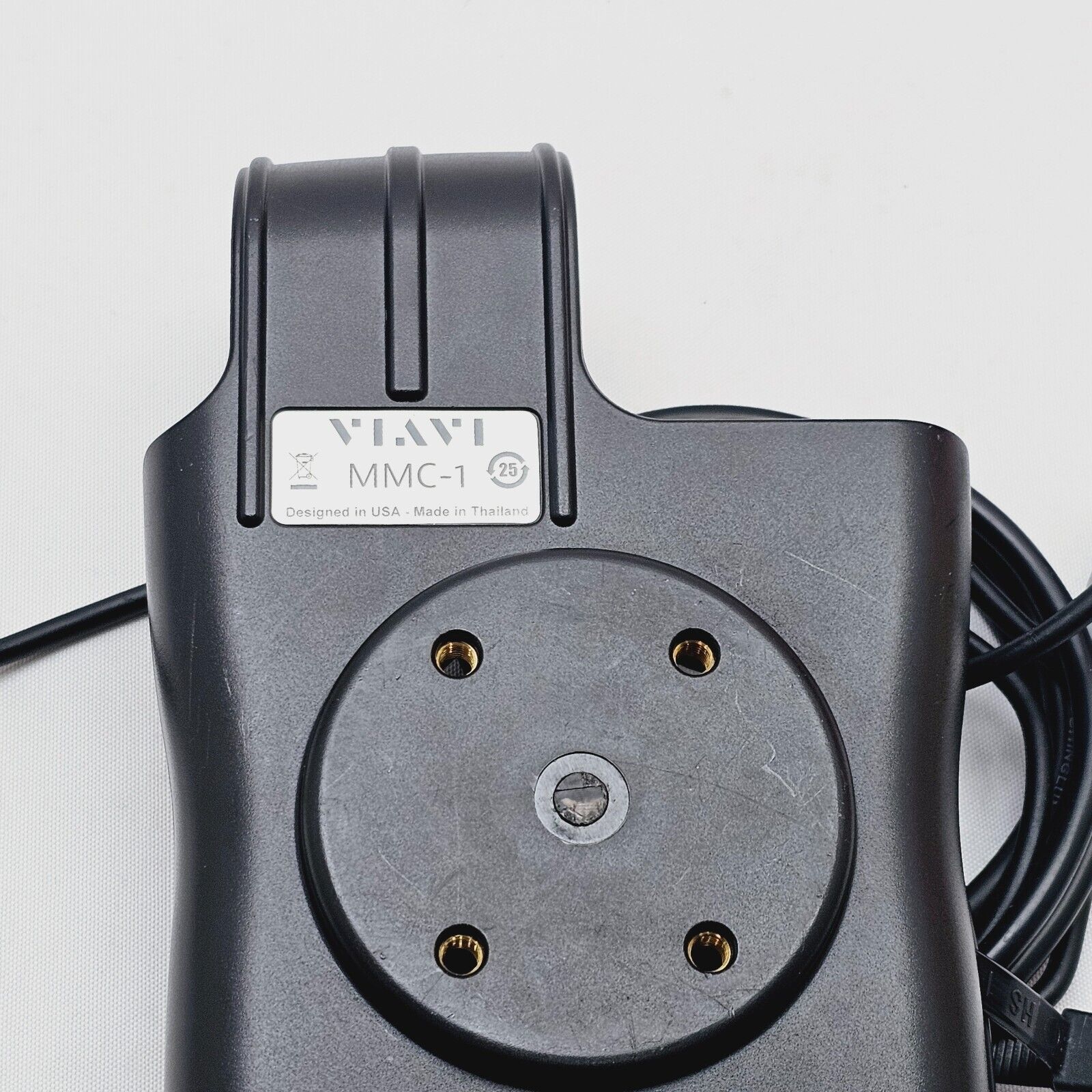

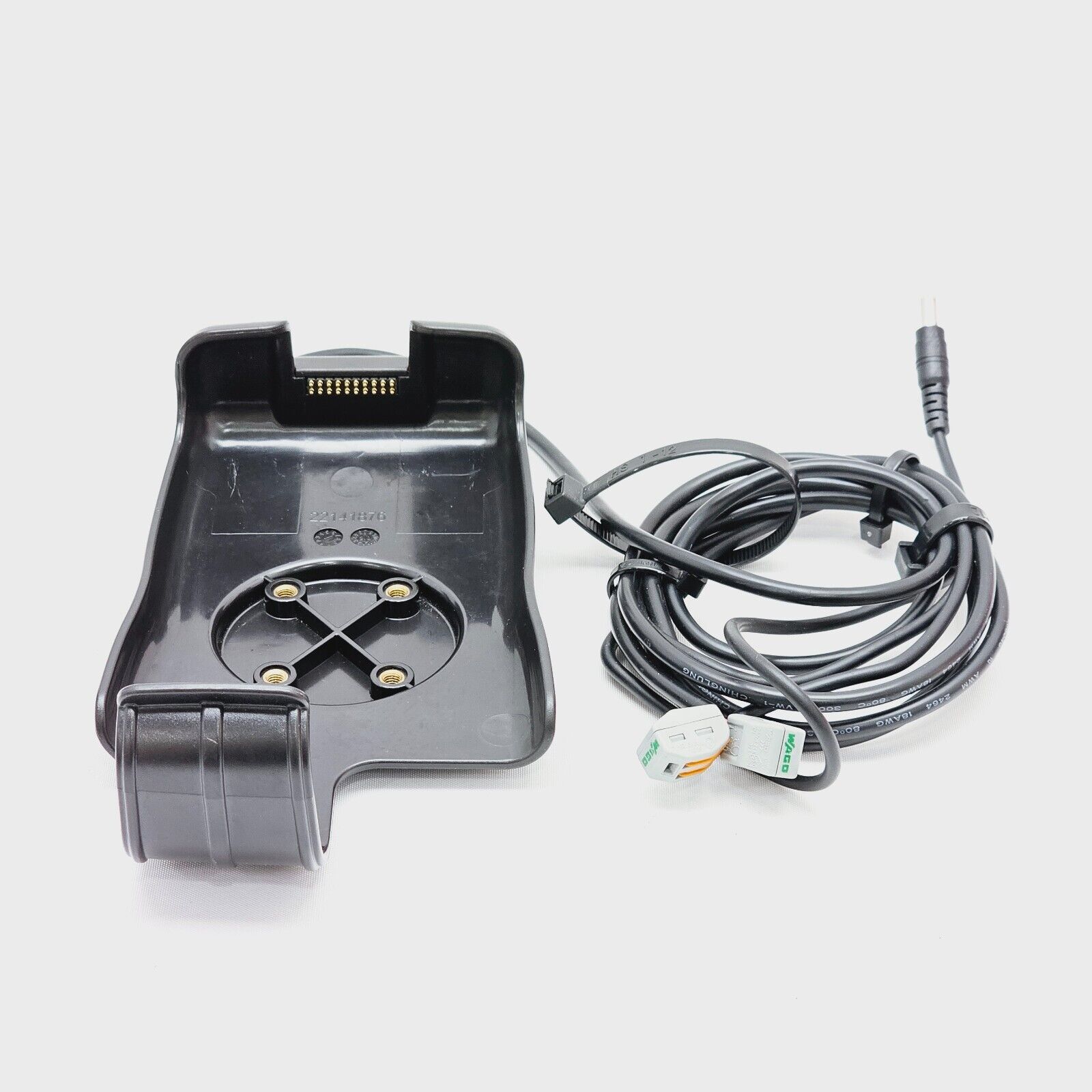

• MMC-1 Mini Mobile Charger and Mount

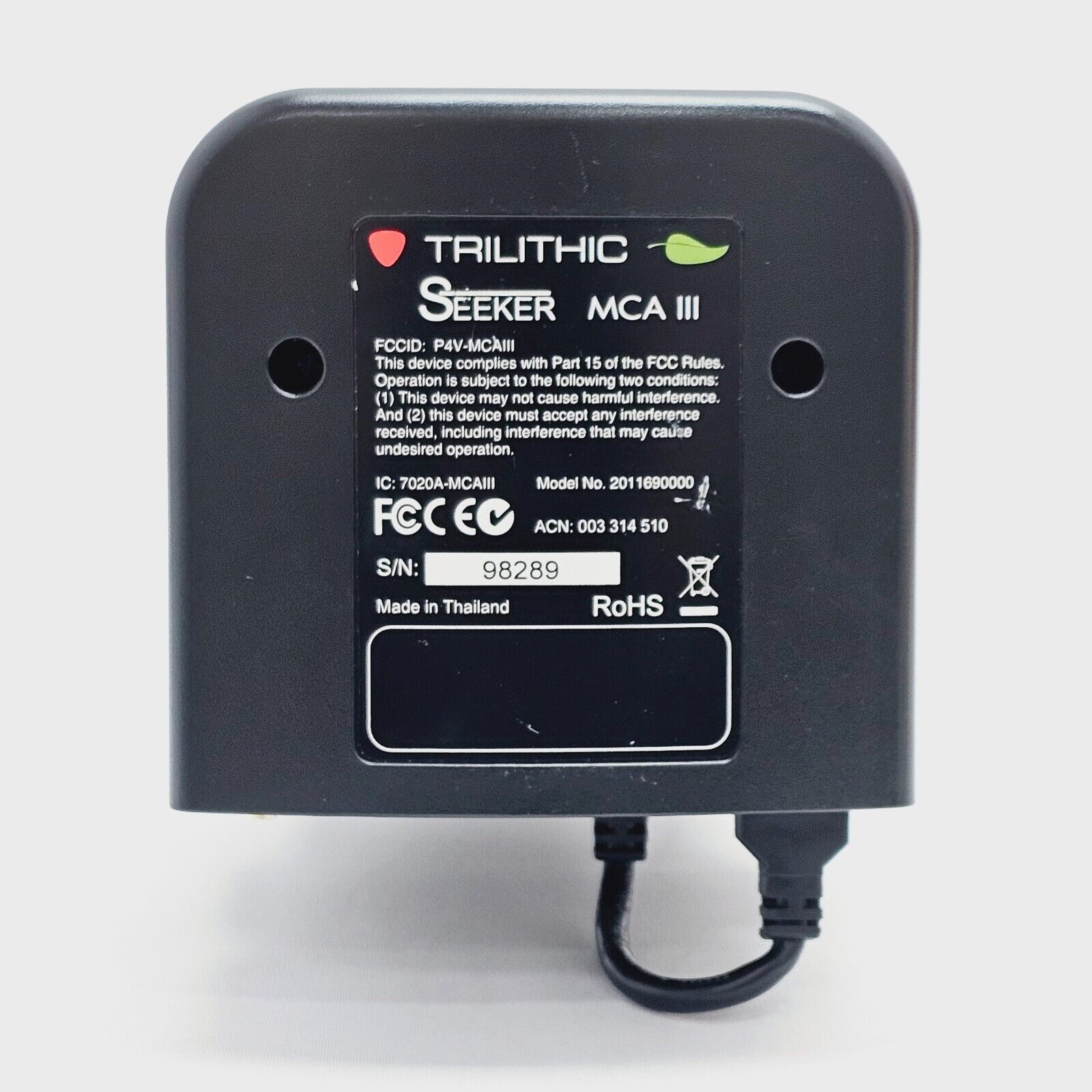

• MCA III

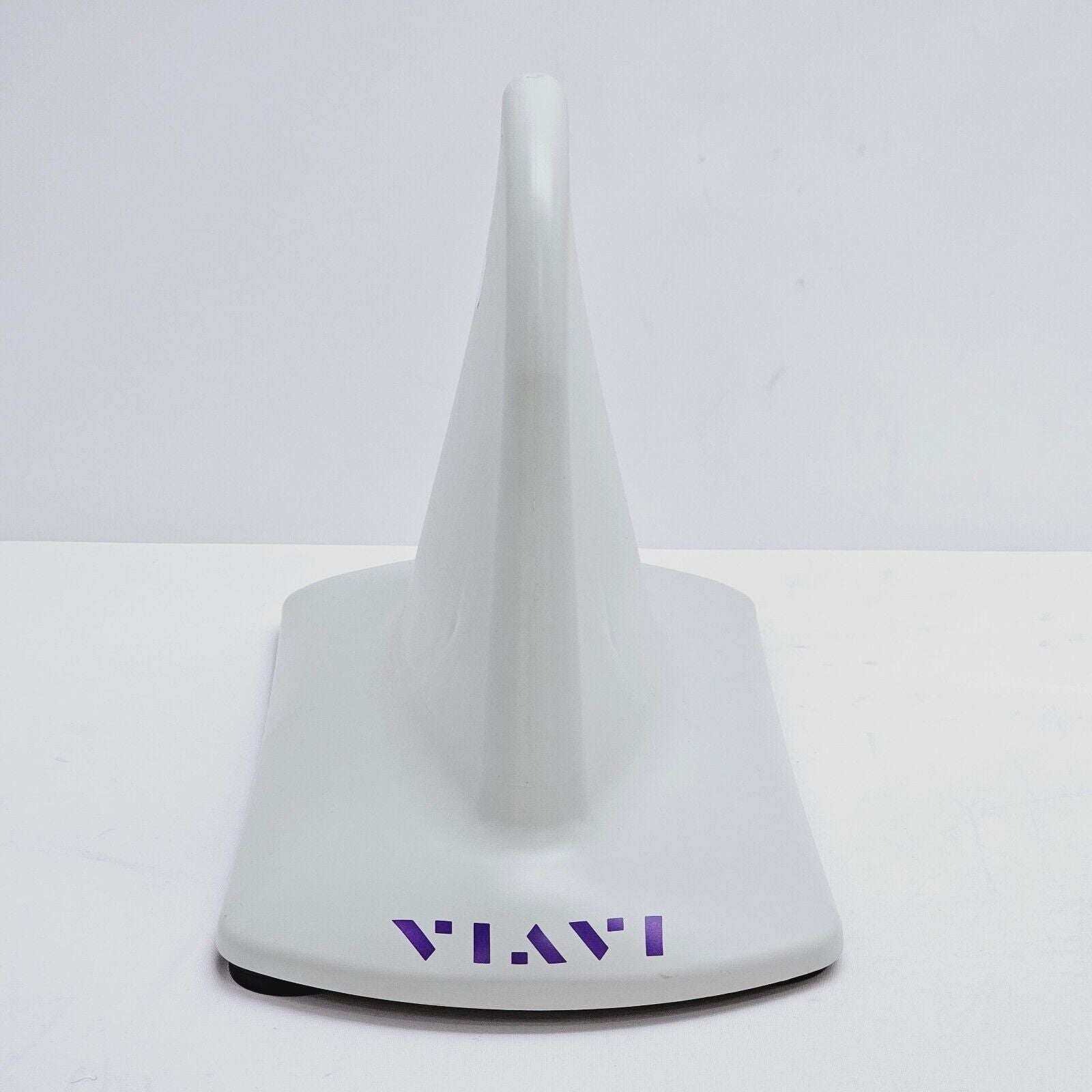

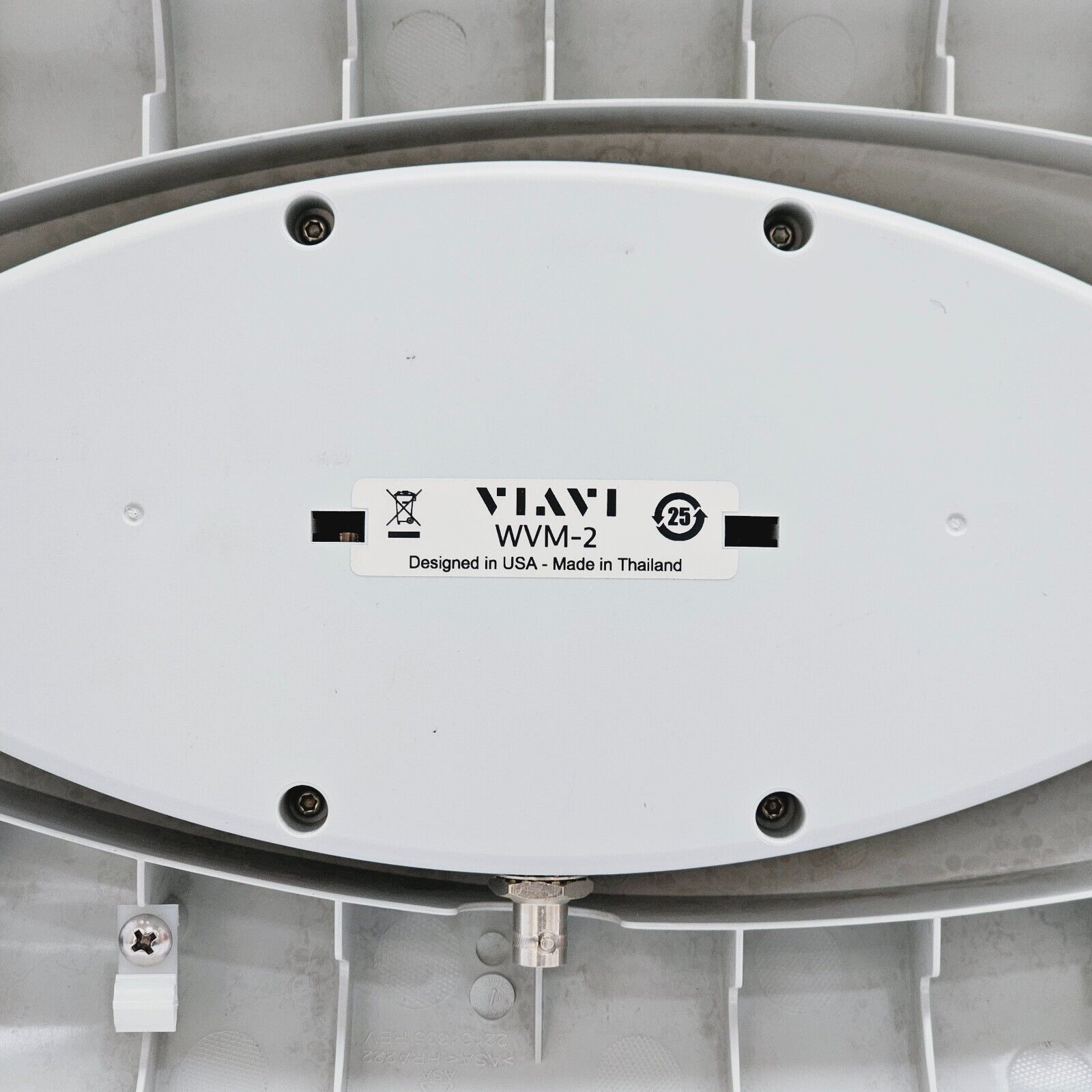

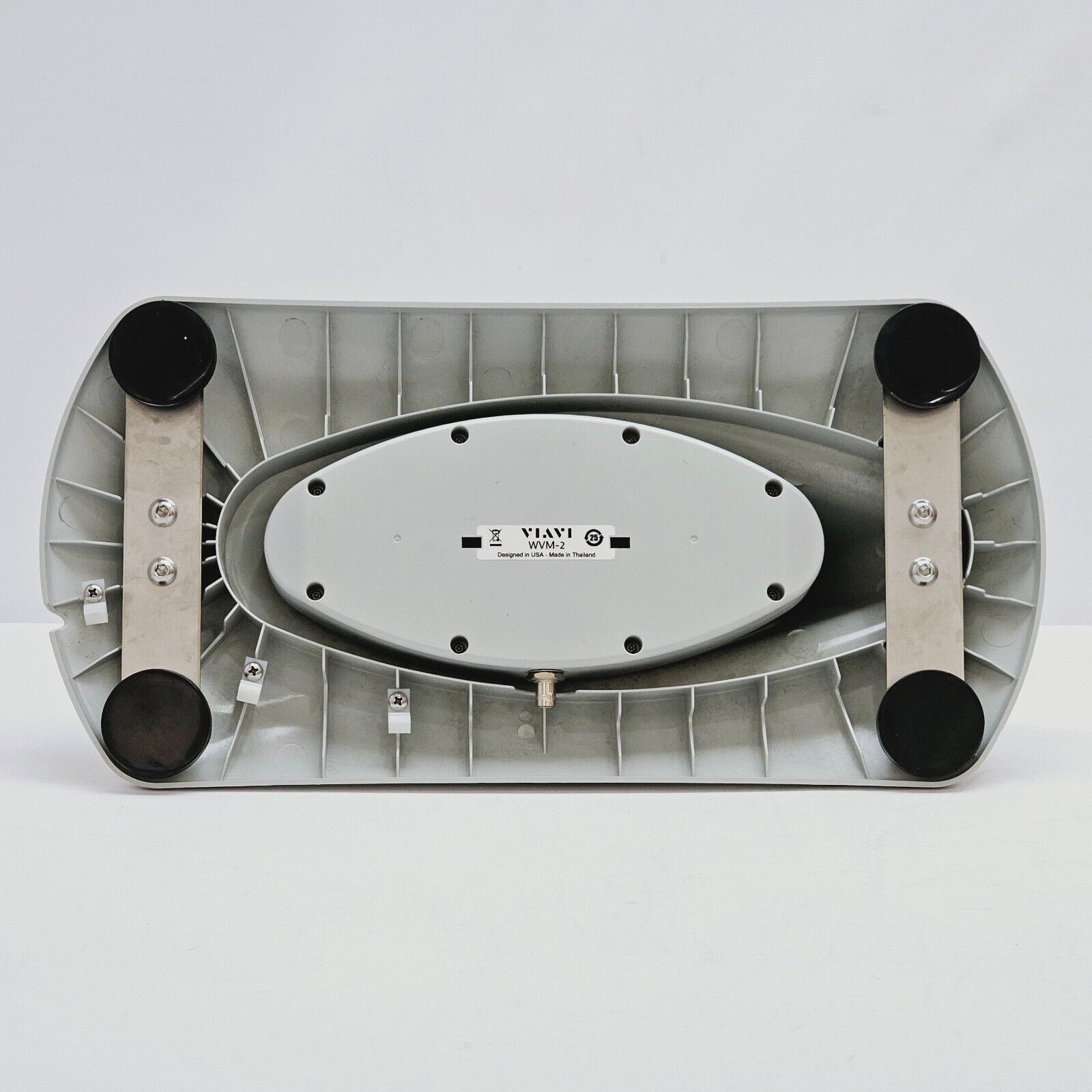

• WVM-2 Magnetic base, wideband vehicle antenna (250–1220 MHz)

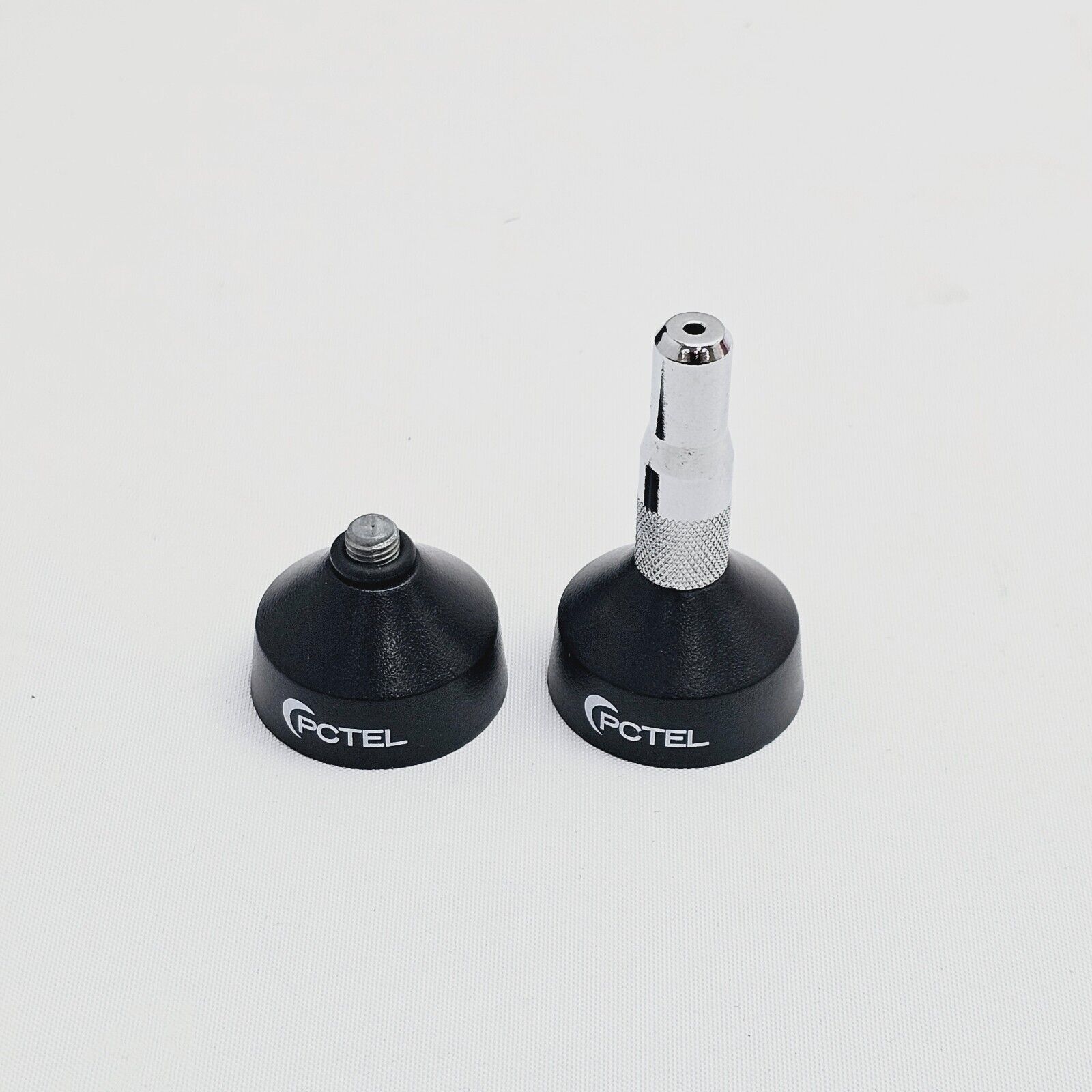

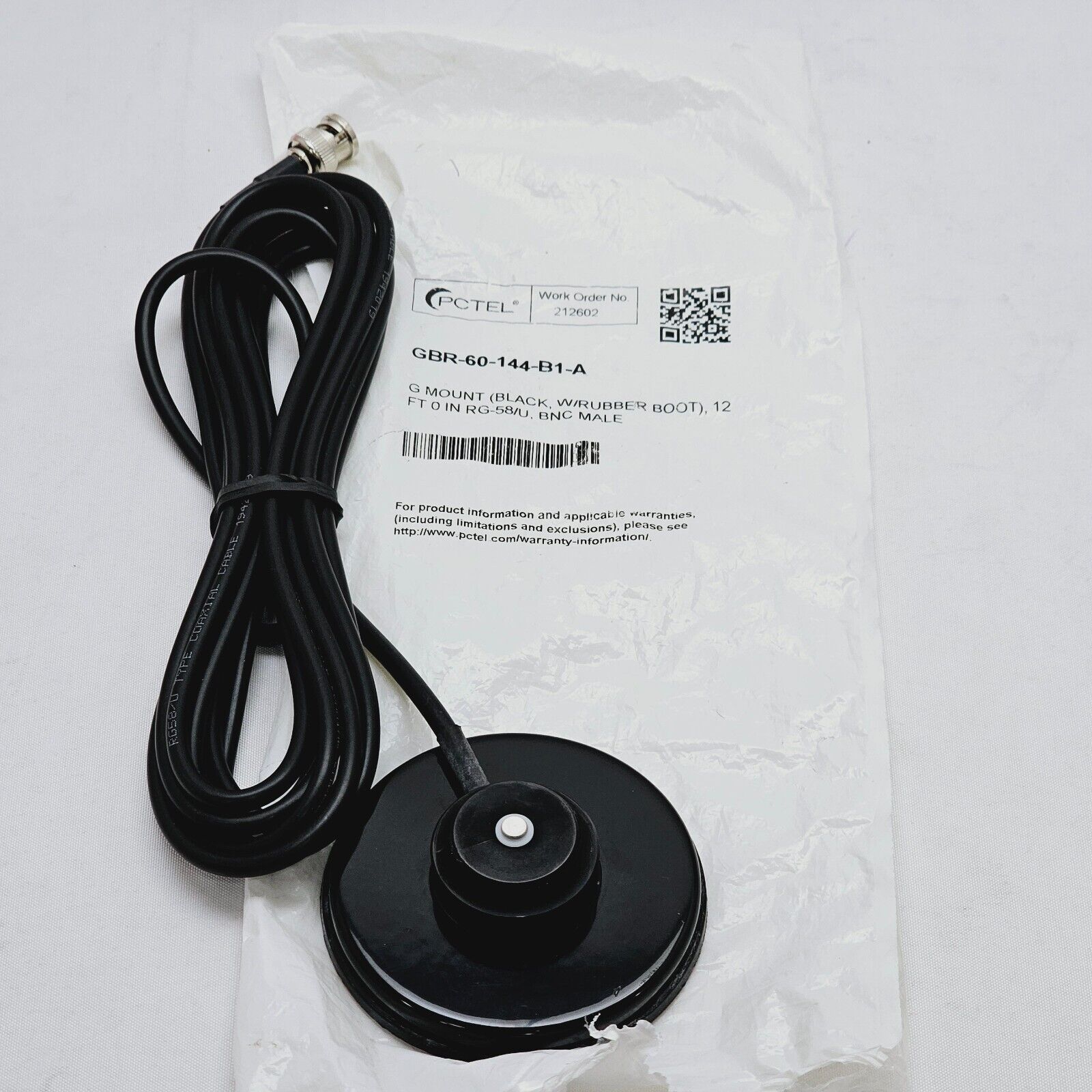

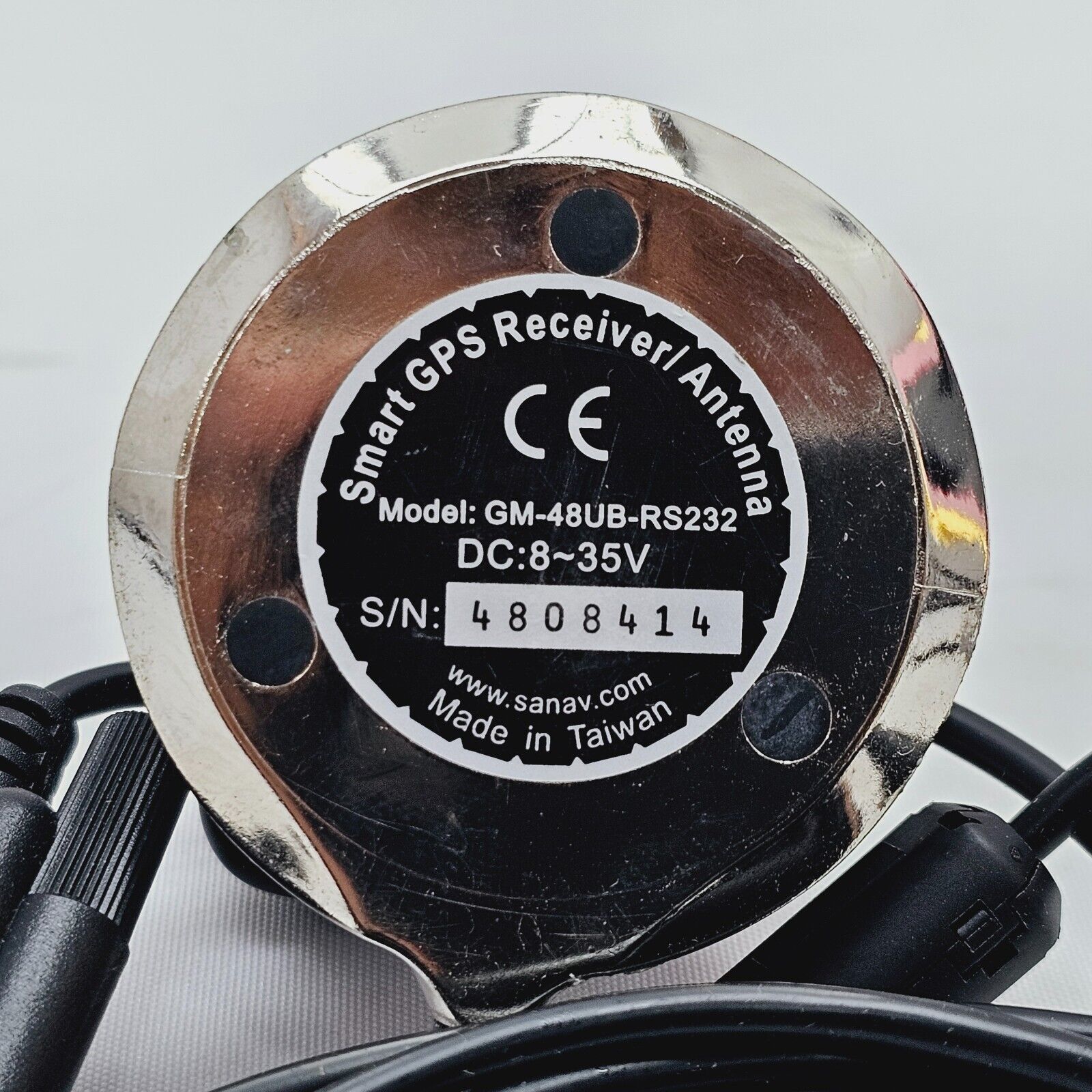

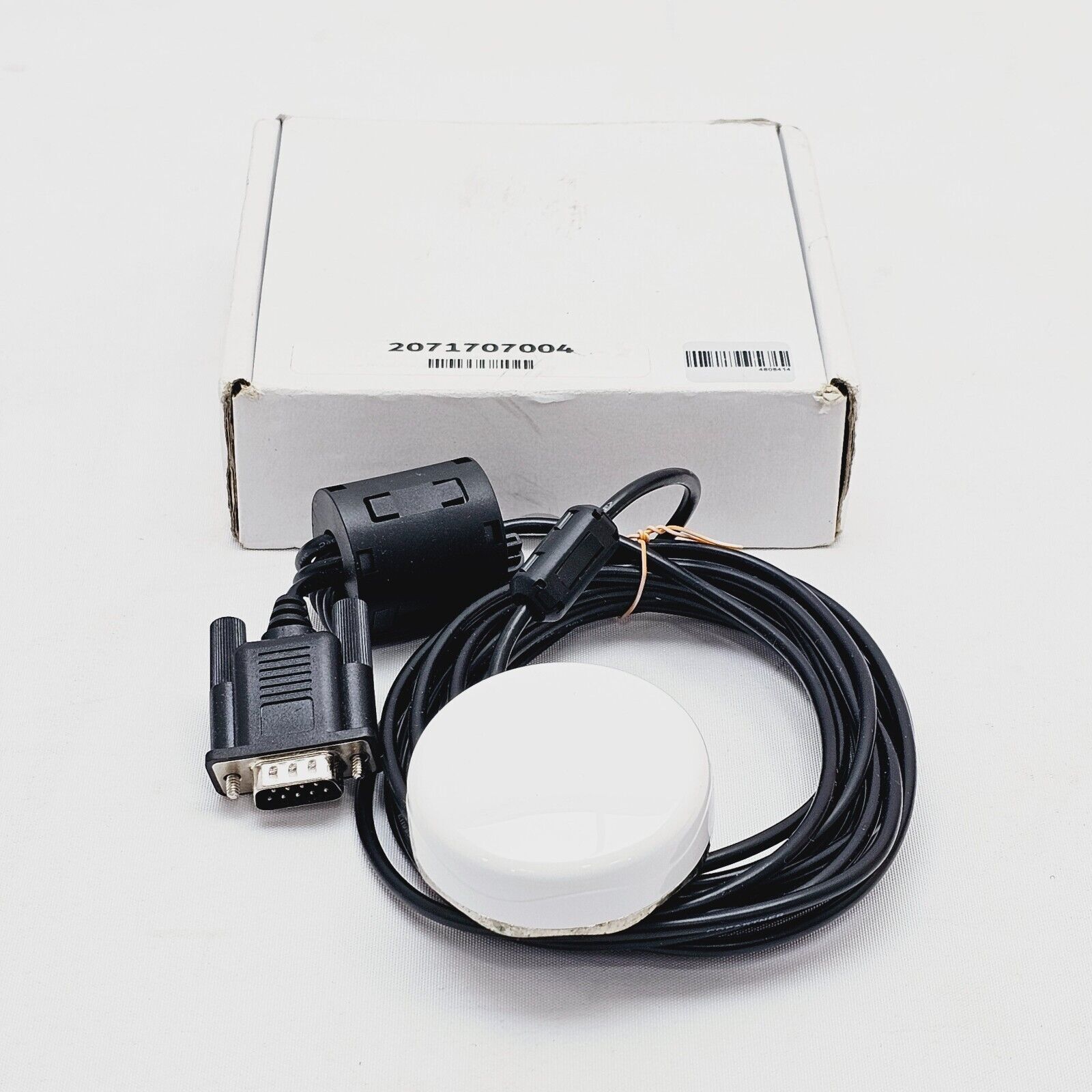

• PCTEL GBR-60-144-B1-A SMART GPS Receiver/Antenna

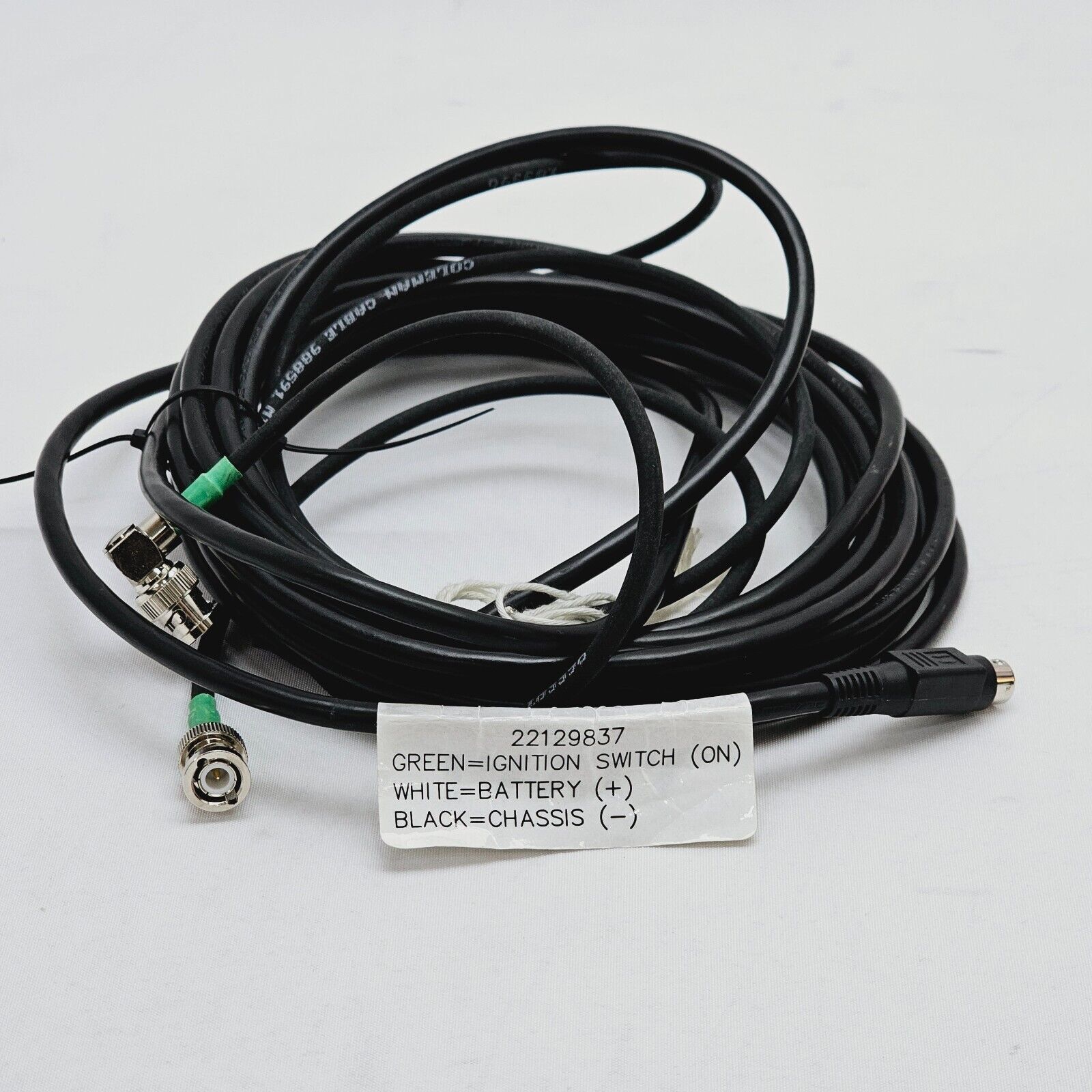

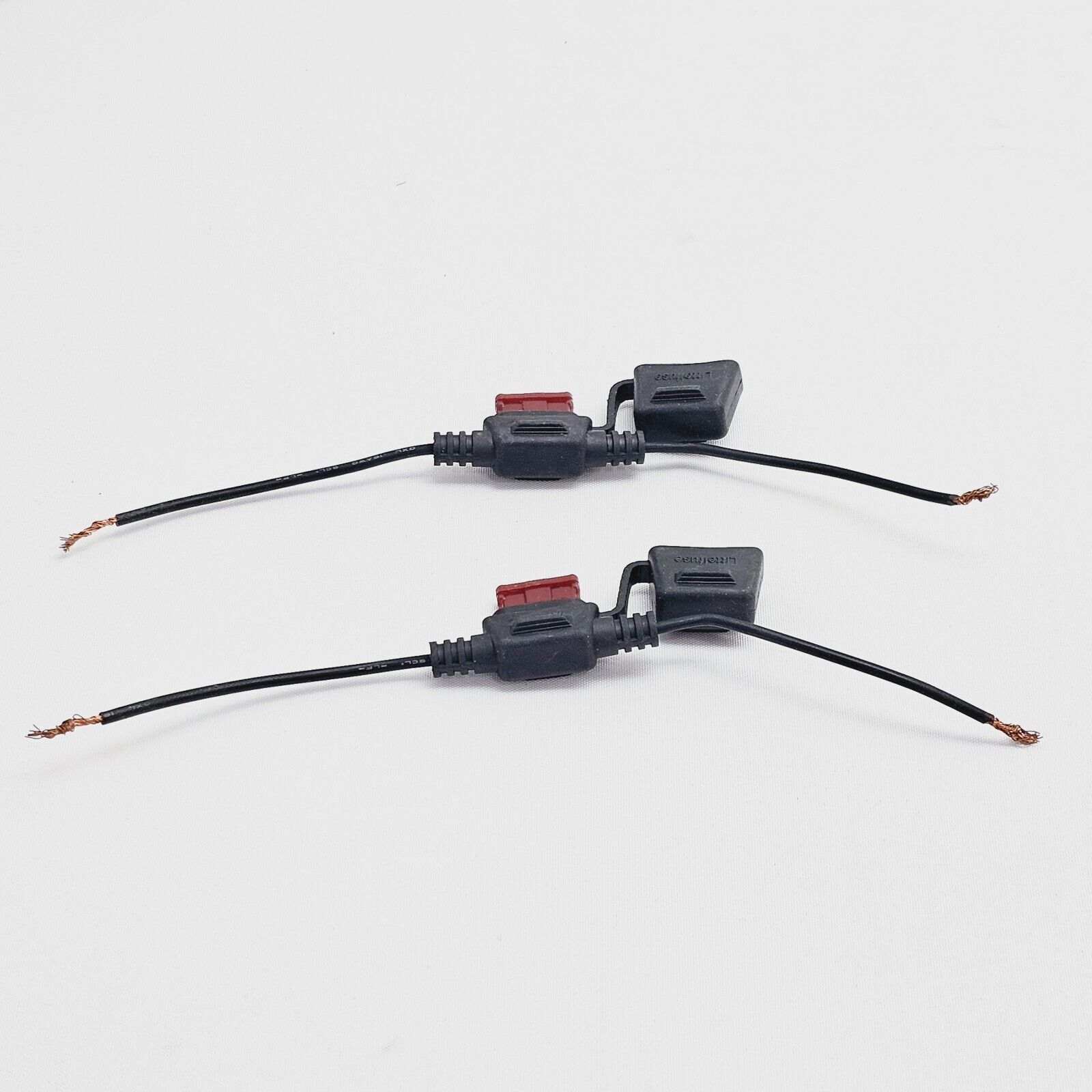

• Various other accessories as pictured

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

The VIAVI Seeker X™ leakage detector provides the agility to monitor leakage anywhere in a channel lineup, with the sensitivity and speed to accurately detect leaks that other systems miss.

With support for up to 4 concurrent monitoring frequencies from 130–1220 MHz — including OFDM and OUDP support — Seeker X affords operators complete flexibility in defining channel lineups while providing true full-spectrum leakage detection.

Seeker X detects tagged leaks and ignores untagged leaks, saving time from false alarms caused by signals not originating in your system, including overbuild situations. In addition to legacy Seeker D tag signals, Seeker X detects the next-generation digital chirp tag to deliver unmatched leakage sensitivity and positive leak detection.

OUDP burst detection enables continuity of leakage detection for high-split networks, allowing more thorough and accurate coverage of plant during driveout testing and much more efficient find-and-fix processes for field technicians.

Transition to distributed access architectures is simplified by virtualised tagging capabilities supported by most major R-PHY, R-MACPHY, and R-CCAP vendors. No specialised hardware is required in the hub, and technicians use the same Seeker leakage detectors and work processes regardless of node type.

Seeker X detectors and mobile mounts can be dropped into systems currently using Seeker D units with no change to existing monitoring and find/fix processes. These units benefit from increased speed, sensitivity, and OFDM detection, and can monitor two additional tagged frequencies when CT-X taggers are used in place of CT-4 units.

Key Specifications:
Frequency Range: 130–1220 MHz
Concurrent Detection Frequencies: Up to 4
Tagging Support: Digital chirp tag (Seeker X), legacy Seeker D dual CW tags
Protocol Support: DOCSIS 3.1/OFDM, high-split/OUDP, DAA/R-PHY
Connectivity: Mobile Tech app, StrataSync, XPERTrak
Backward Compatibility: Compatible with existing VIAVI Seeker D systems
Mobile Integration: StrataSync enabled, XPERTrak integrated
