Condition: New Other (see details)

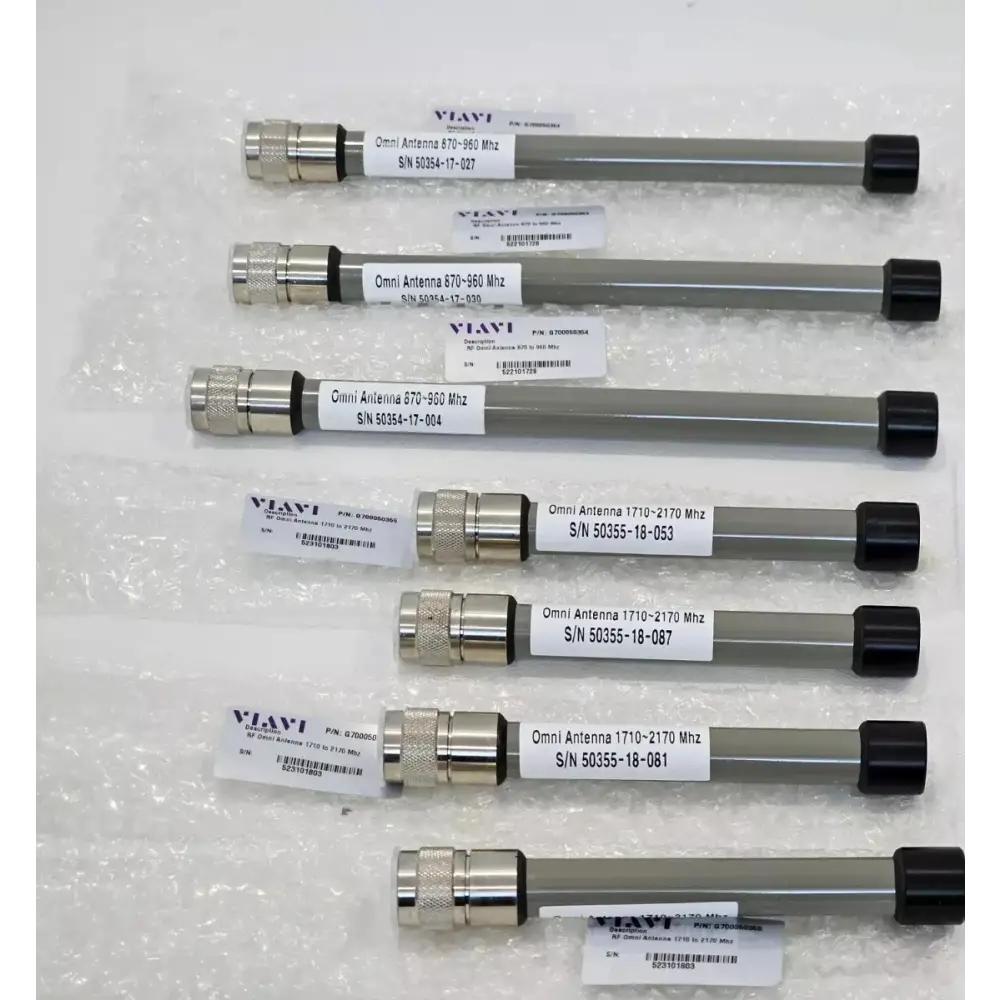

A lot of seven VIAVI RF Omni Antennas appearing unused/new — comprising three units of the G700050354 (870–960 MHz) and four units of the G700050355 (1710–2170 MHz). All antennas carry individual VIAVI part number and serial number labels and show no signs of use.

Included in the sale:
• 3x Viavi G700050354 RF Omni Antenna, Type N (m), 870–960 MHz, >1 dBi (S/N: 50354-17-027, 50354-17-030, 50354-17-004)
• 4x Viavi G700050355 RF Omni Antenna, Type N (m), 1710–2170 MHz, >1 dBi (S/N: 50355-18-053, 50355-18-087, 50355-18-081, and one further unit partially visible)

Please note that we have multiple units in stock, and the images presented are of one of them, therefore the cosmetic condition of the exact item you will receive may slightly differ.

The VIAVI G700050354 and G700050355 are RF Omni Antennas designed for use with the VIAVI CellAdvisor 5G, CellAdvisor JD780A, JD780B, JD740B Series, and OneAdvisor 800 wireless field test platforms. Suitable for both indoor and outdoor RF measurement applications, they feature a Type N male connector for direct attachment to compatible test instruments.

G700050354 — RF Omni Antenna, Type N (m), 870 to 960 MHz
Frequency Range: 870 to 960 MHz
Gain: >1 dBi
VSWR: ≤2.0:1
Impedance: 50 Ω
Maximum Power: 50 W
Connector: Type N plug (male)
Length: 223.0 ±3.0 mm
Operating Temperature: -20 to +70°C

G700050355 — RF Omni Antenna, Type N (m), 1710 to 2170 MHz
Frequency Range: 1710 to 2170 MHz
Gain: >1 dBi
VSWR: ≤2.0:1
Impedance: 50 Ω
Maximum Power: 50 W
Connector: Type N plug (male)
Length: 143.0 ±3.0 mm
Operating Temperature: -20 to +70°C

Compatible Instruments: VIAVI CellAdvisor 5G, CellAdvisor JD780A/JD780B/JD740B Series, OneAdvisor 800 Wireless
Applications: Cellular network field testing, over-the-air RF measurements, antenna and cable analysis, indoor and outdoor deployment

VIAVI RF Test Antennas Catalog — technical specifications and selection guide for G700050354, G700050355 and related omni antennas: Download PDF
