Condition: Used

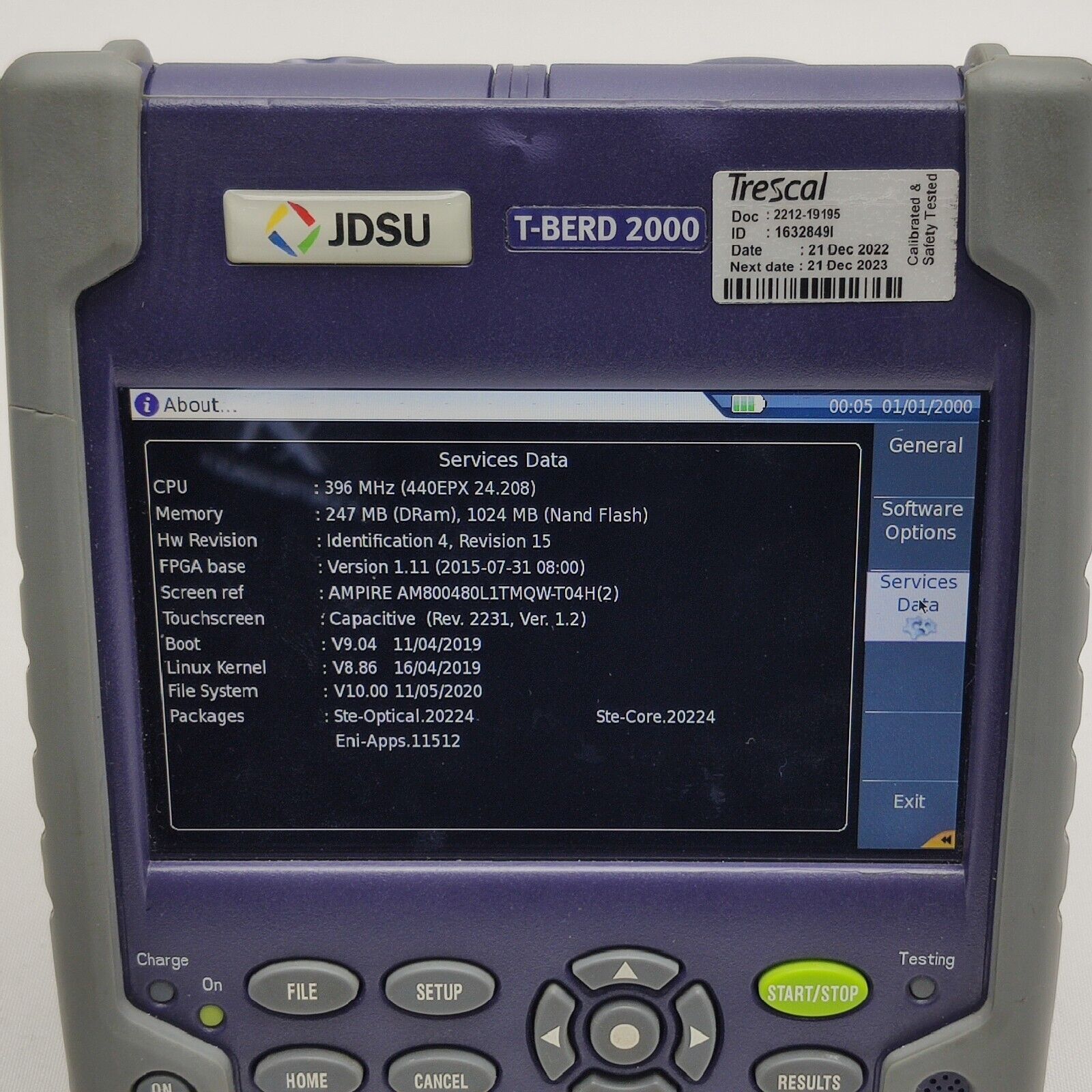

This Viavi JDSU T-BERD 2000 is in working condition and has had very little use. Calibration expired Dec-23. The unit is supplied with the Viavi 4138 MP49 SM OTDR module (E4138MP49 FC-S) and carries the following key specifications:

Source Wavelengths: 1310 / 1490 / 1550 nm
Dynamic Range: 43 / 41 / 41 dB
Connector: PC
Event Dead Zone: 0.8 m
Attenuation Dead Zone: 4 m
Range: 260 km

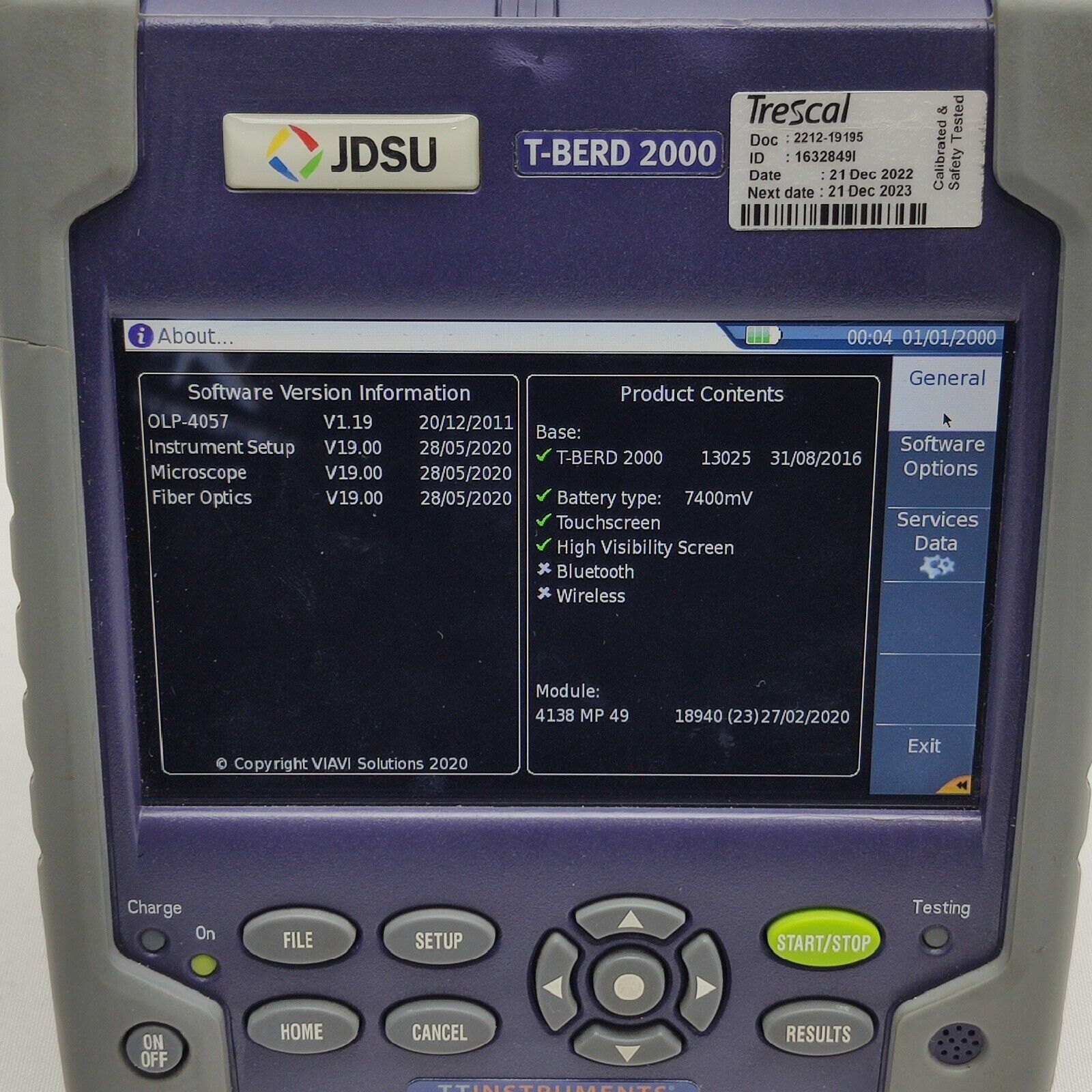

Active Software Options:

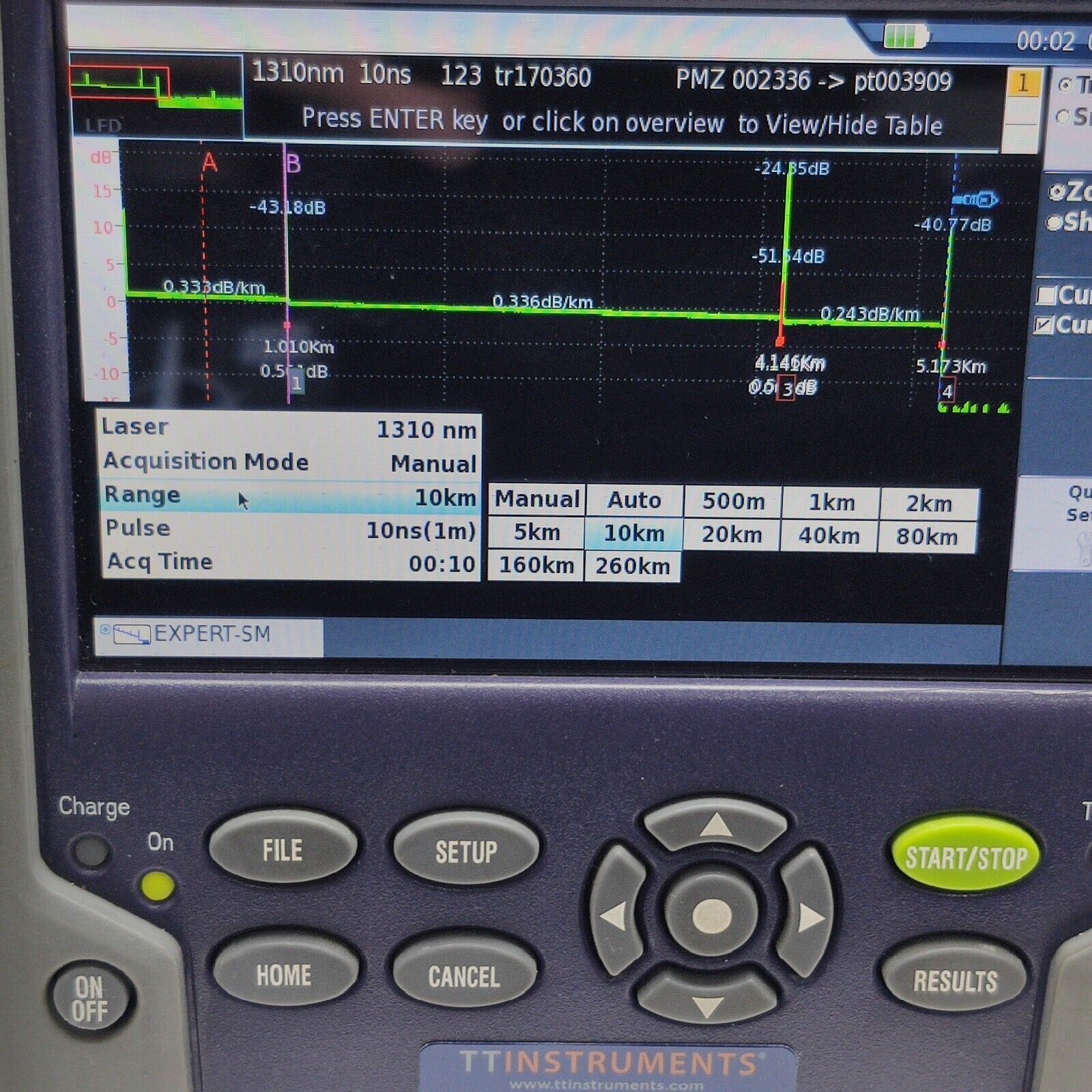

• Singlemode OTDR
• SMART TEST
• Source
• Fiber Complete
• Powermeter

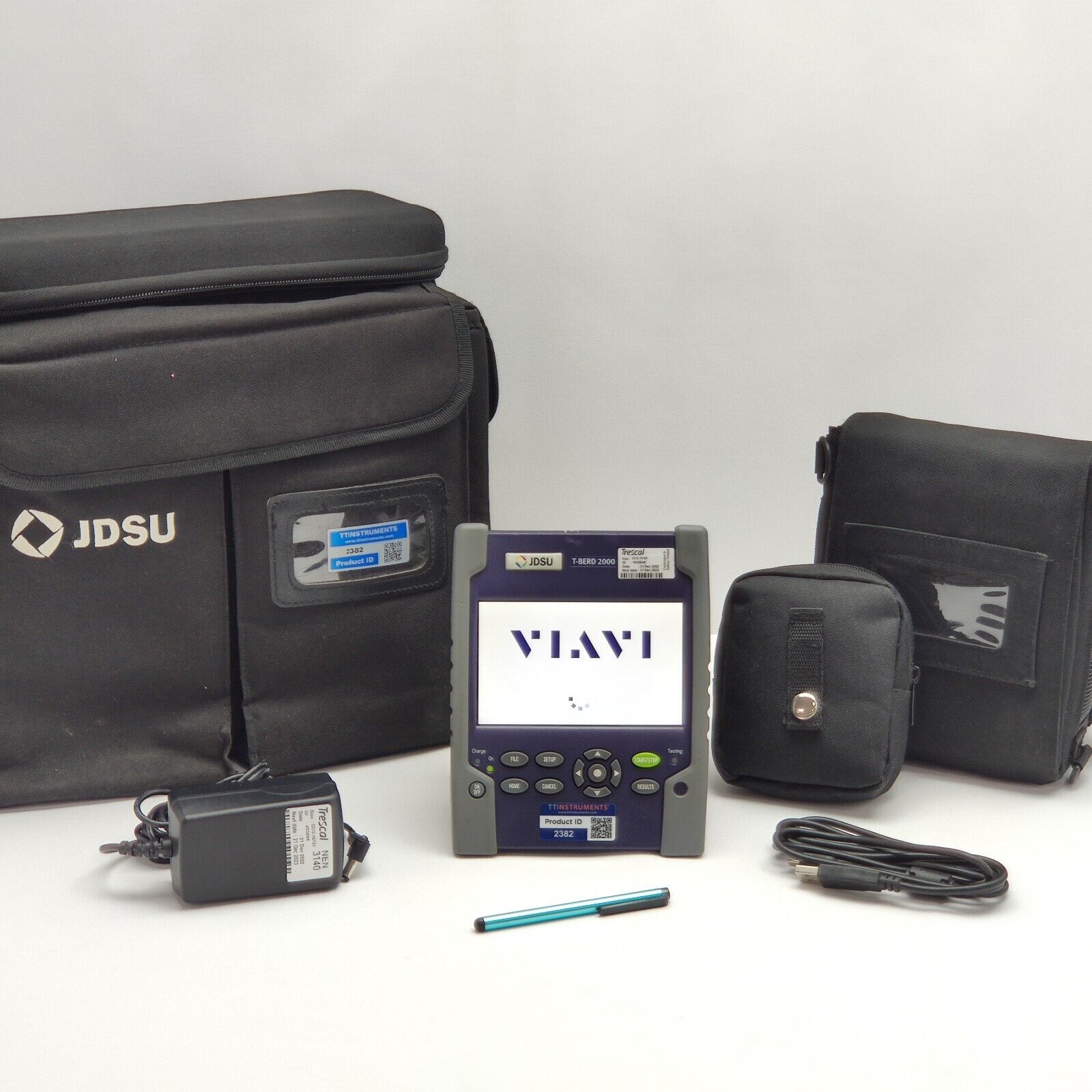

Included in the sale:

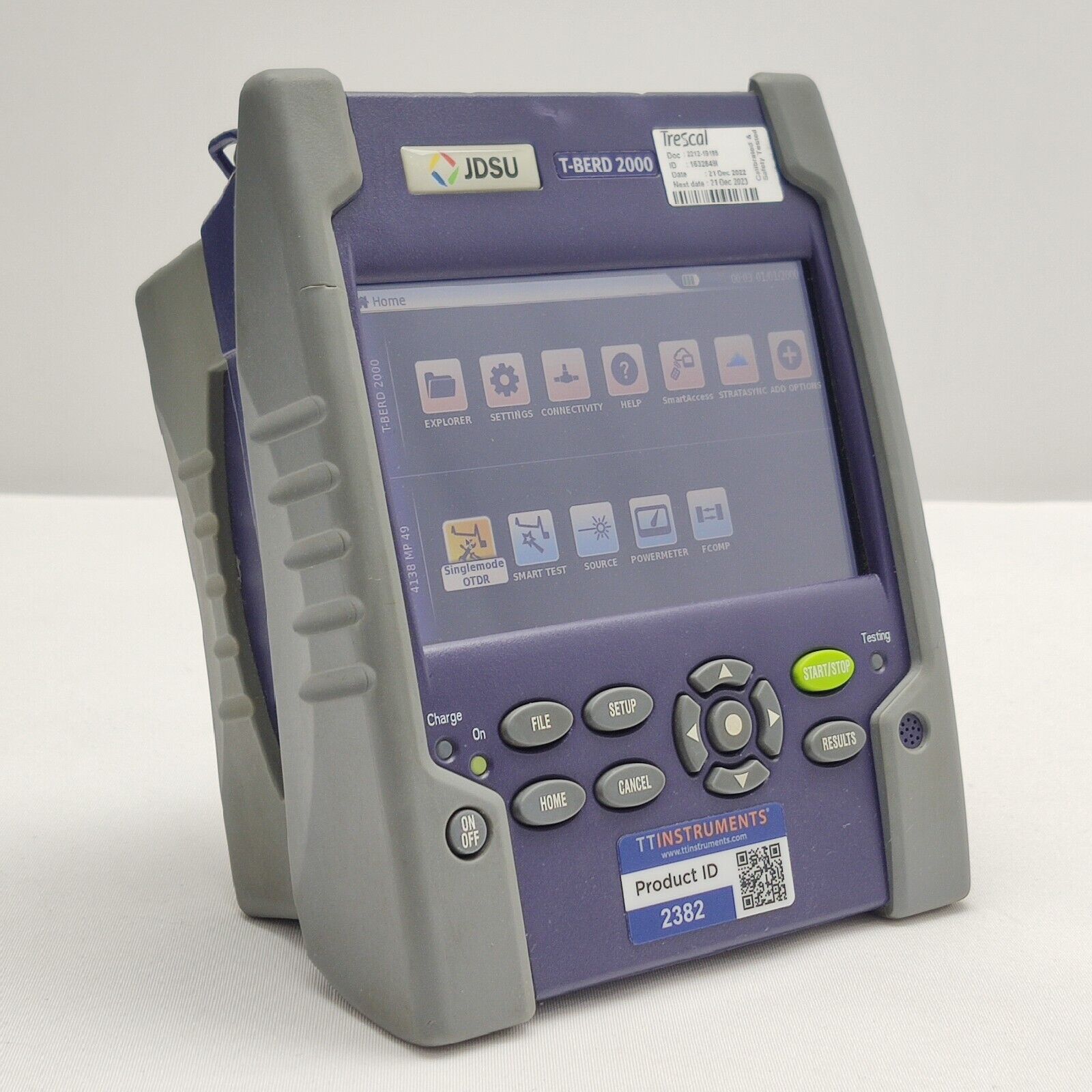

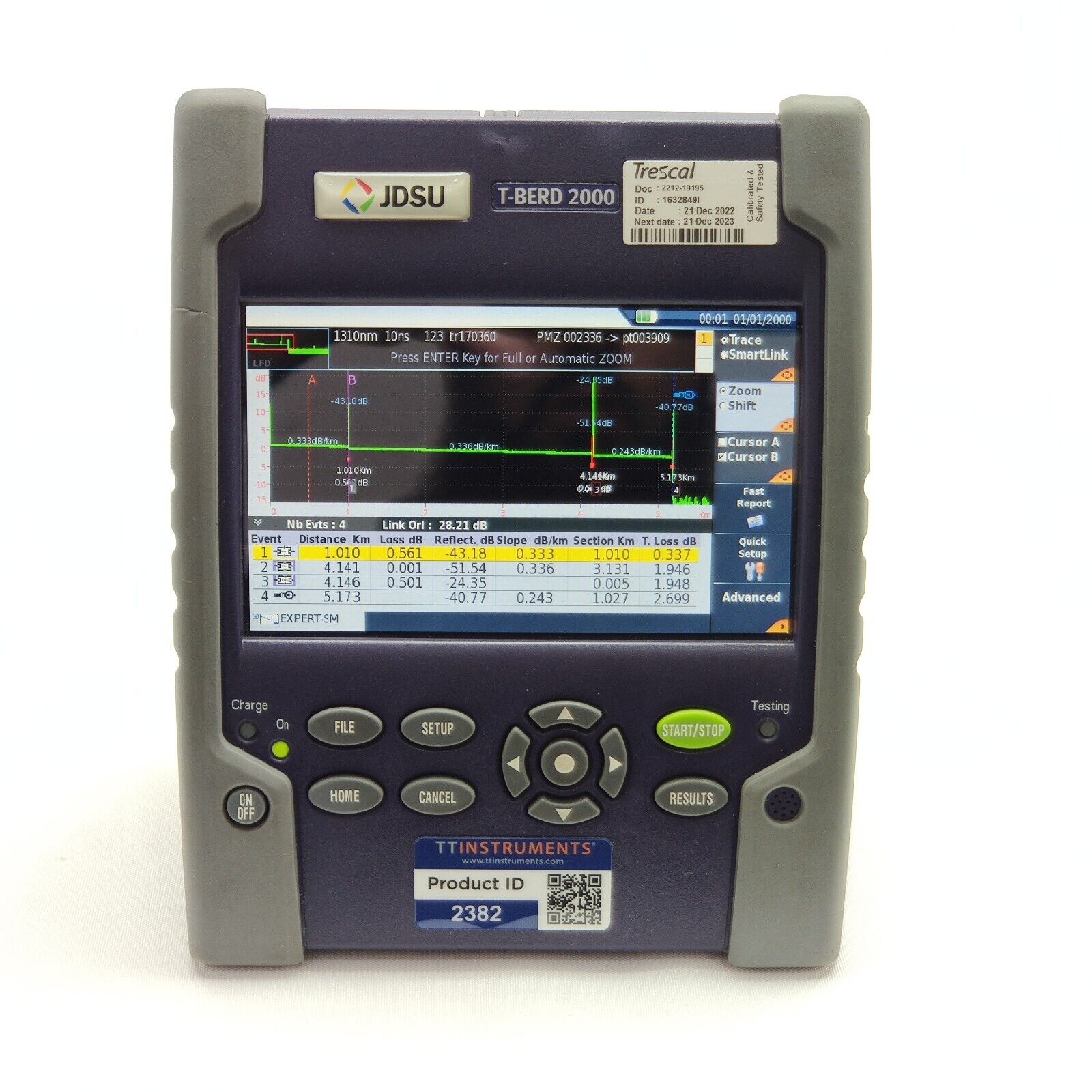

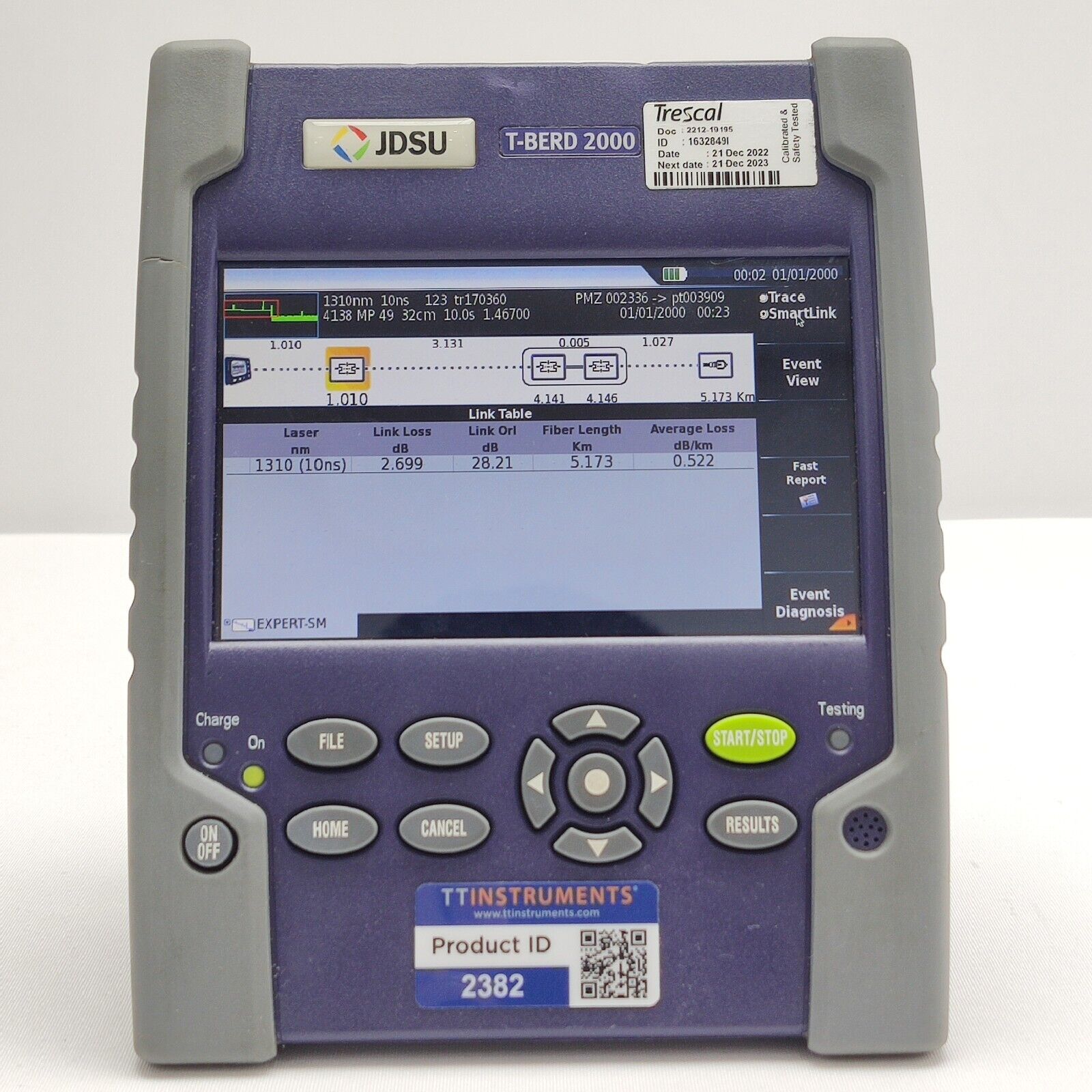

• Viavi JDSU MTS 2000 mainframe (touch screen / high visibility display)

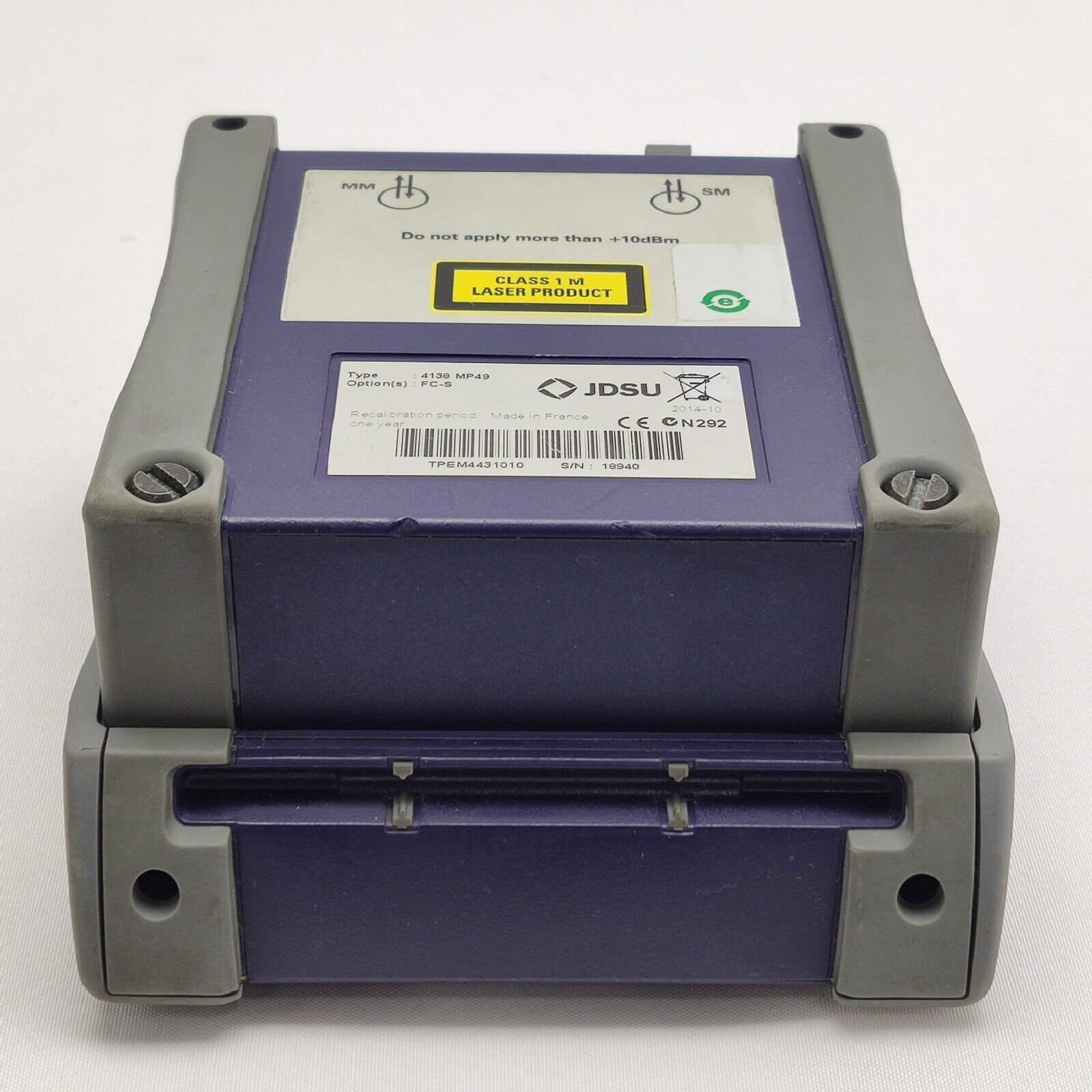

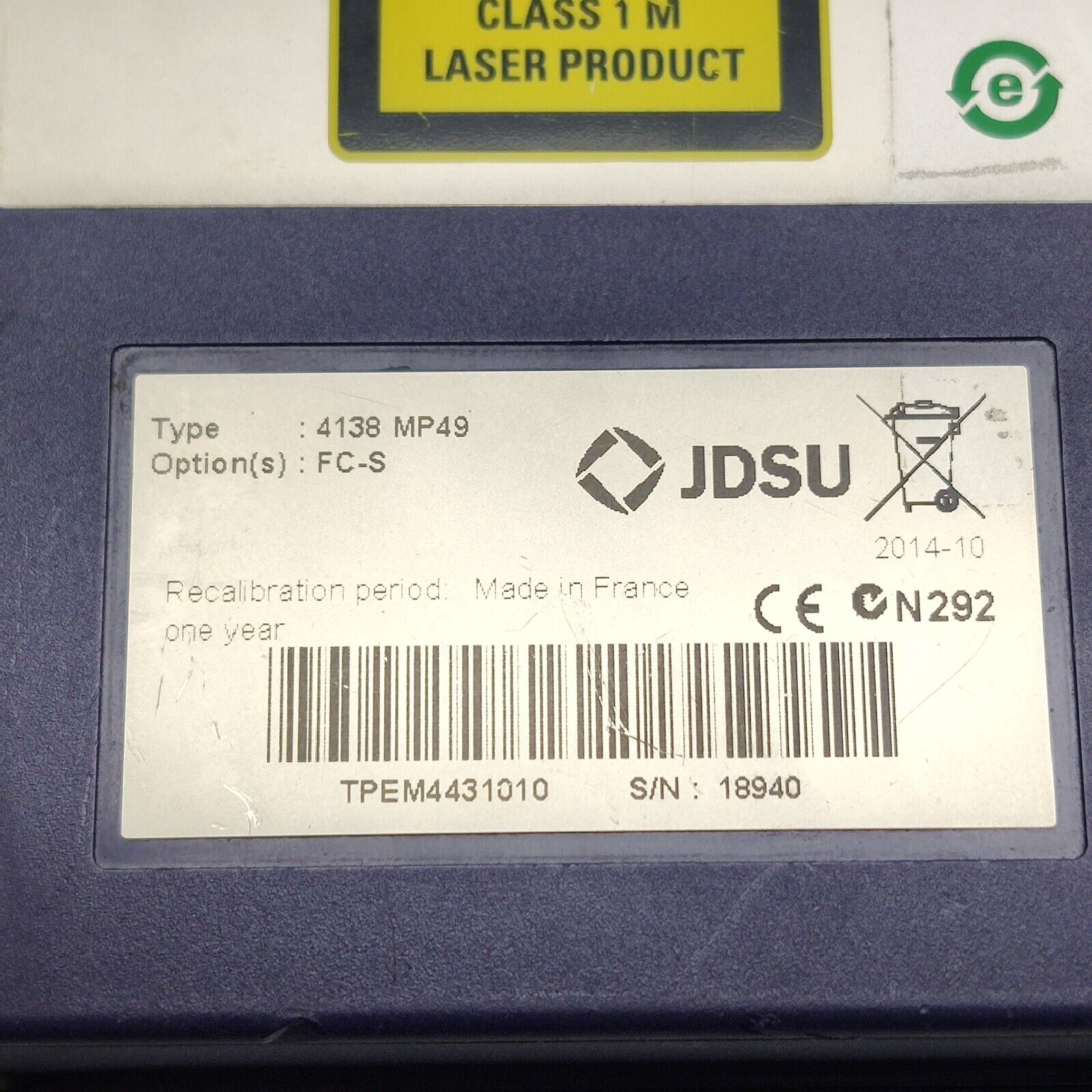

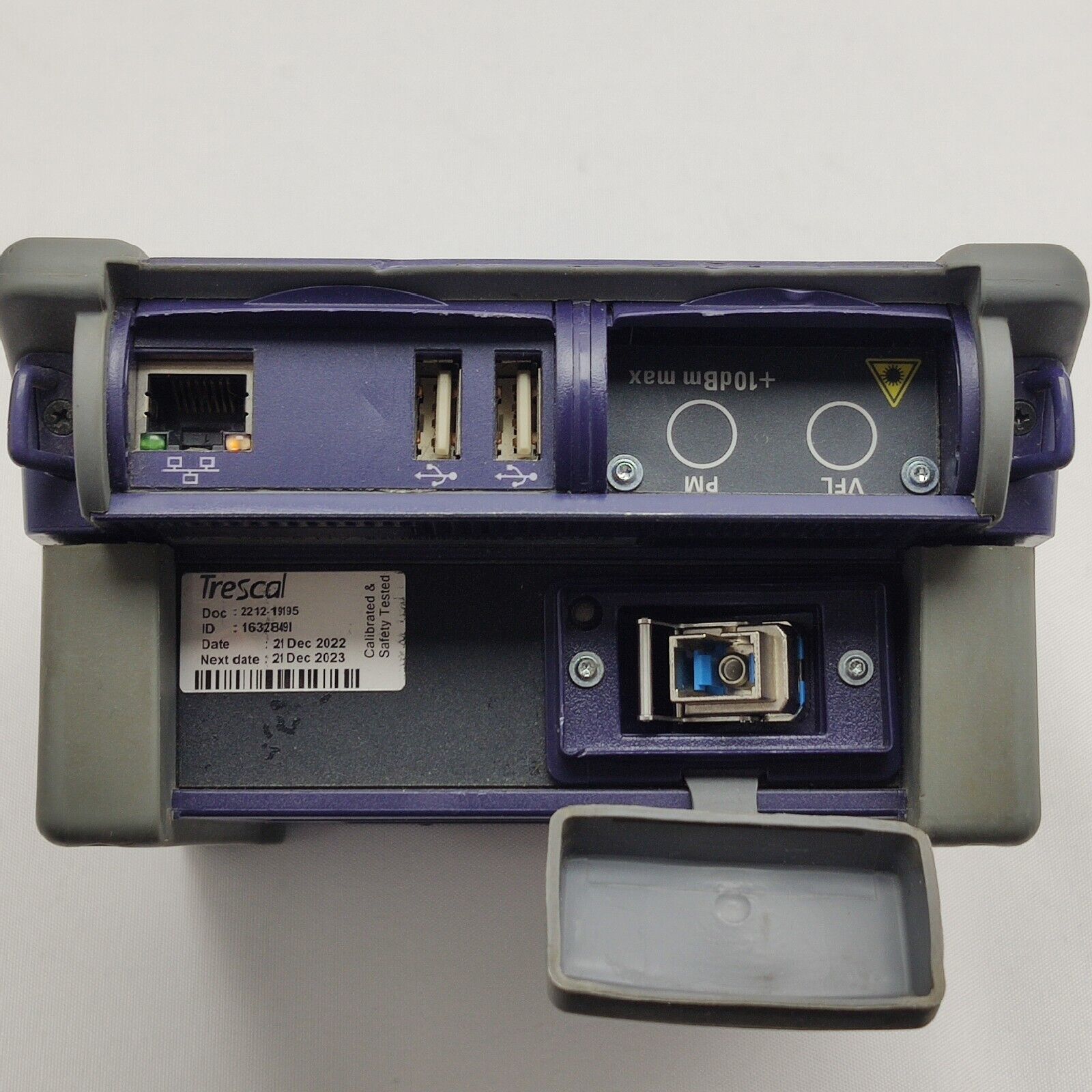

• Viavi 4138 MP49 SM OTDR Module (E4138MP49 FC-S) with FC/PC connector

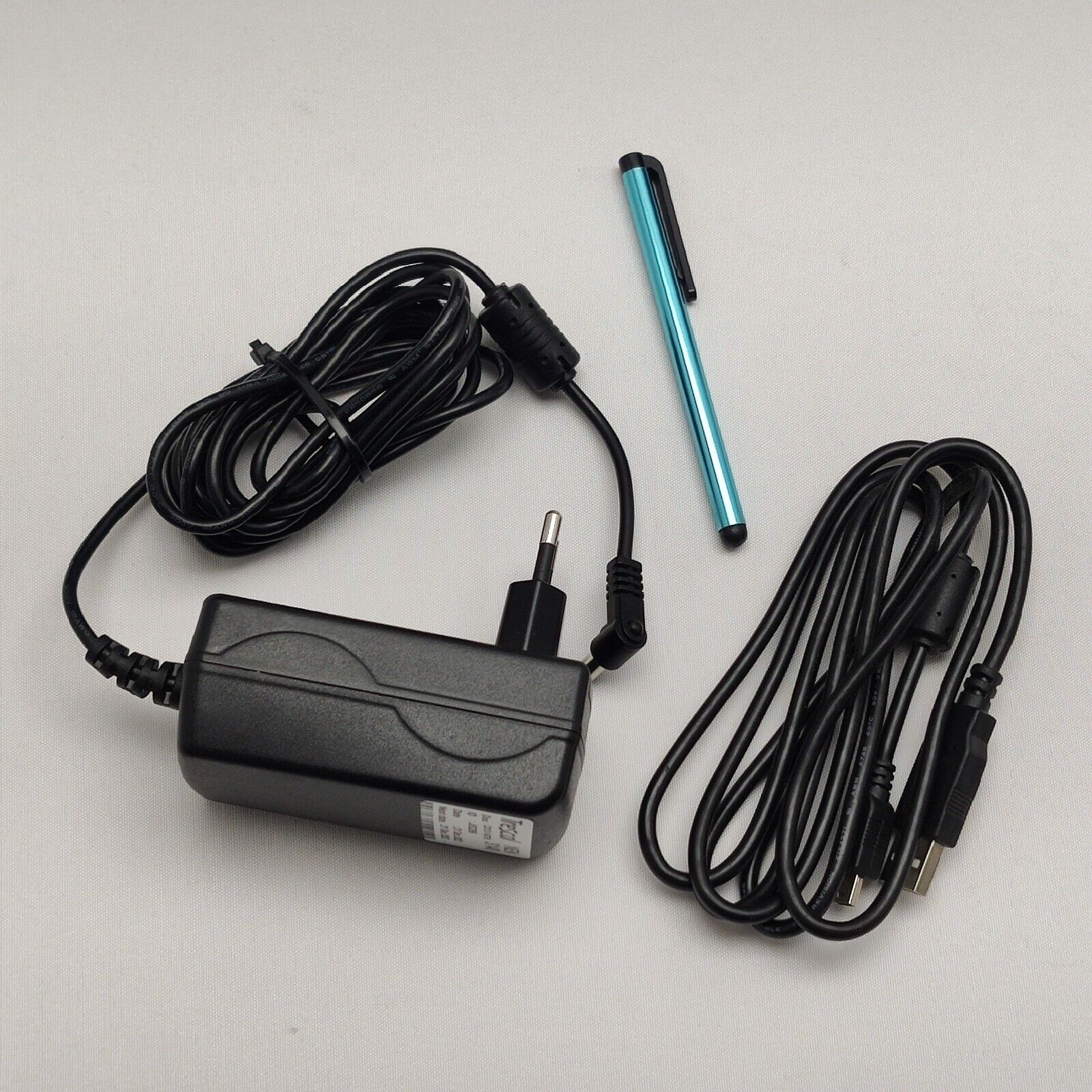

• AC Power Adapter

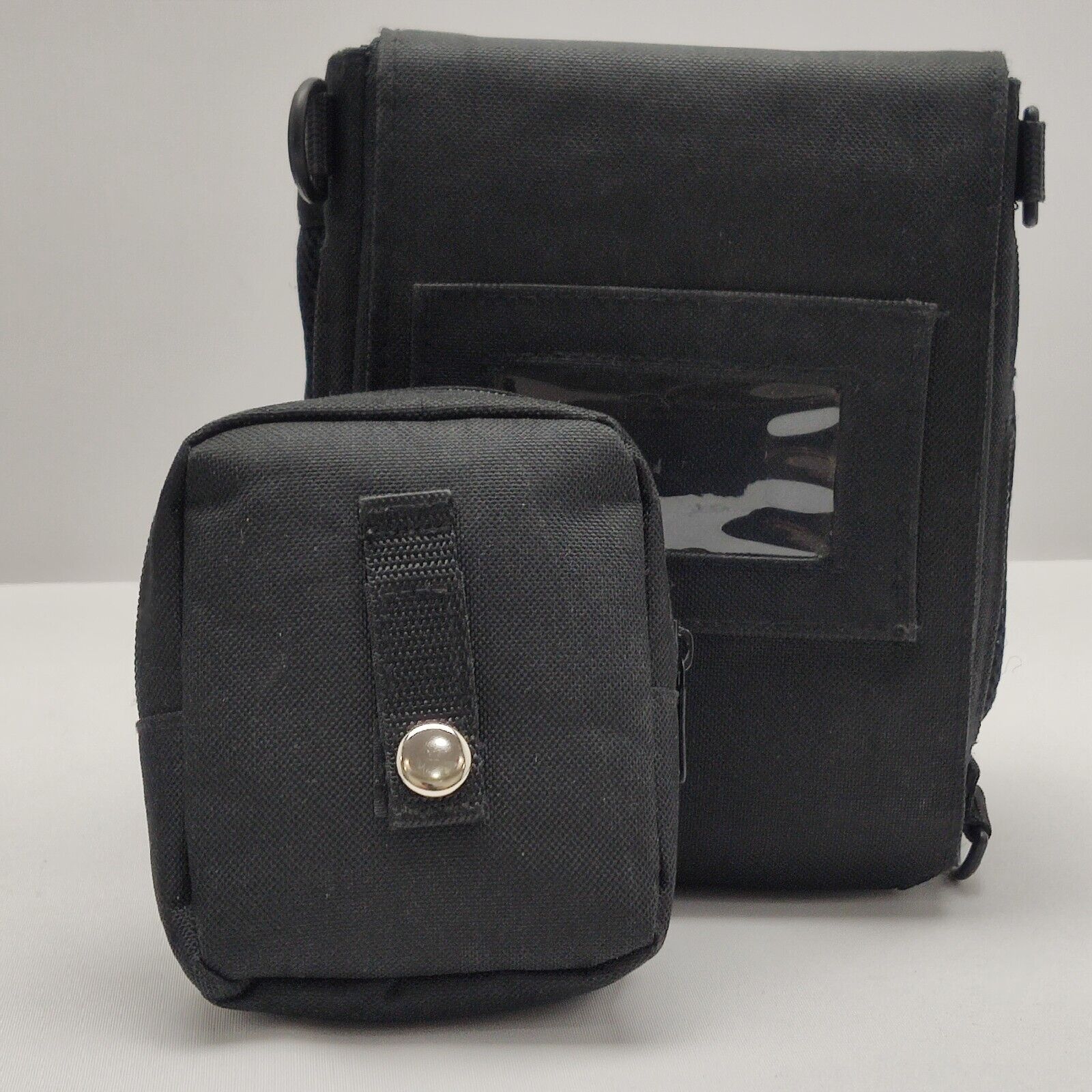

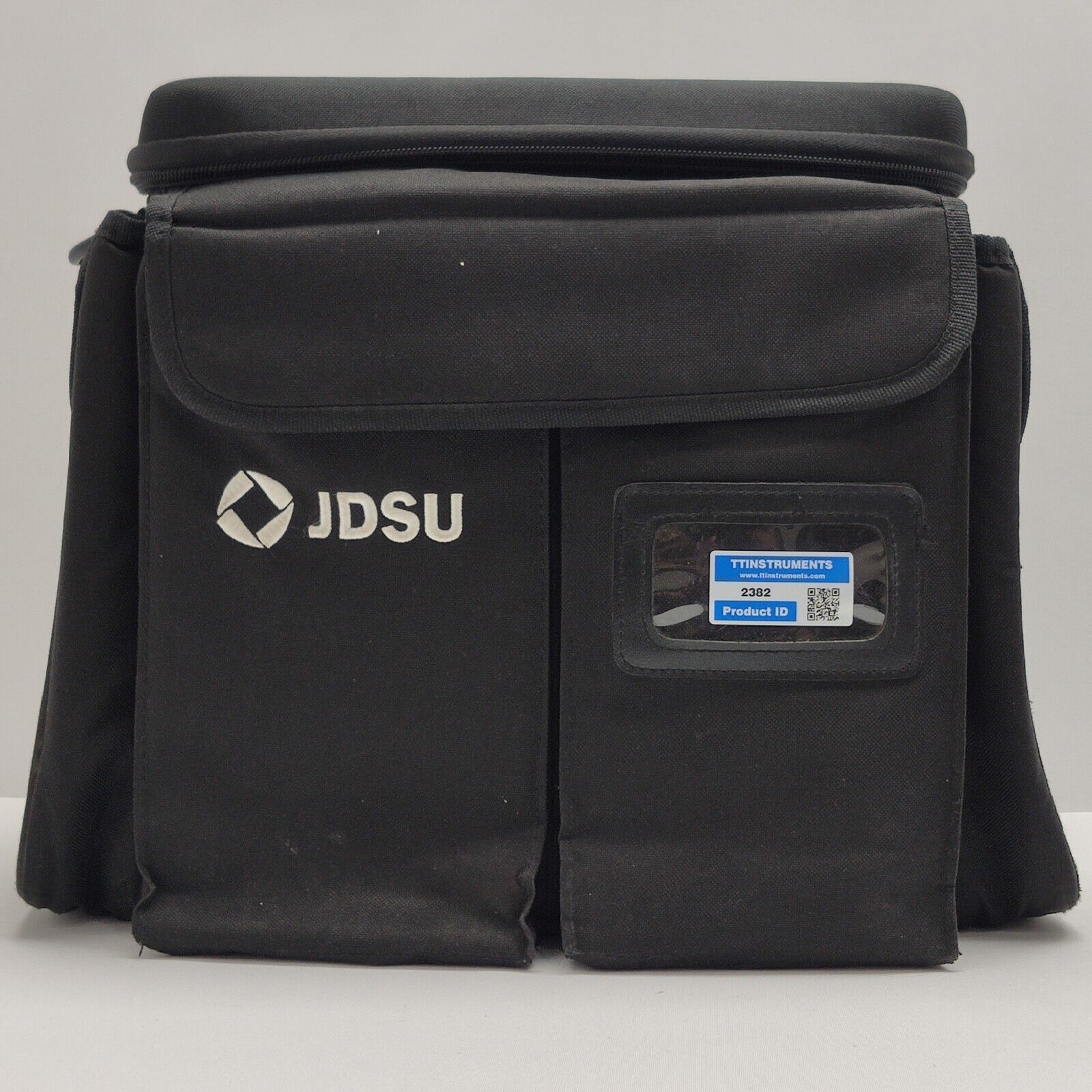

• Carry Case

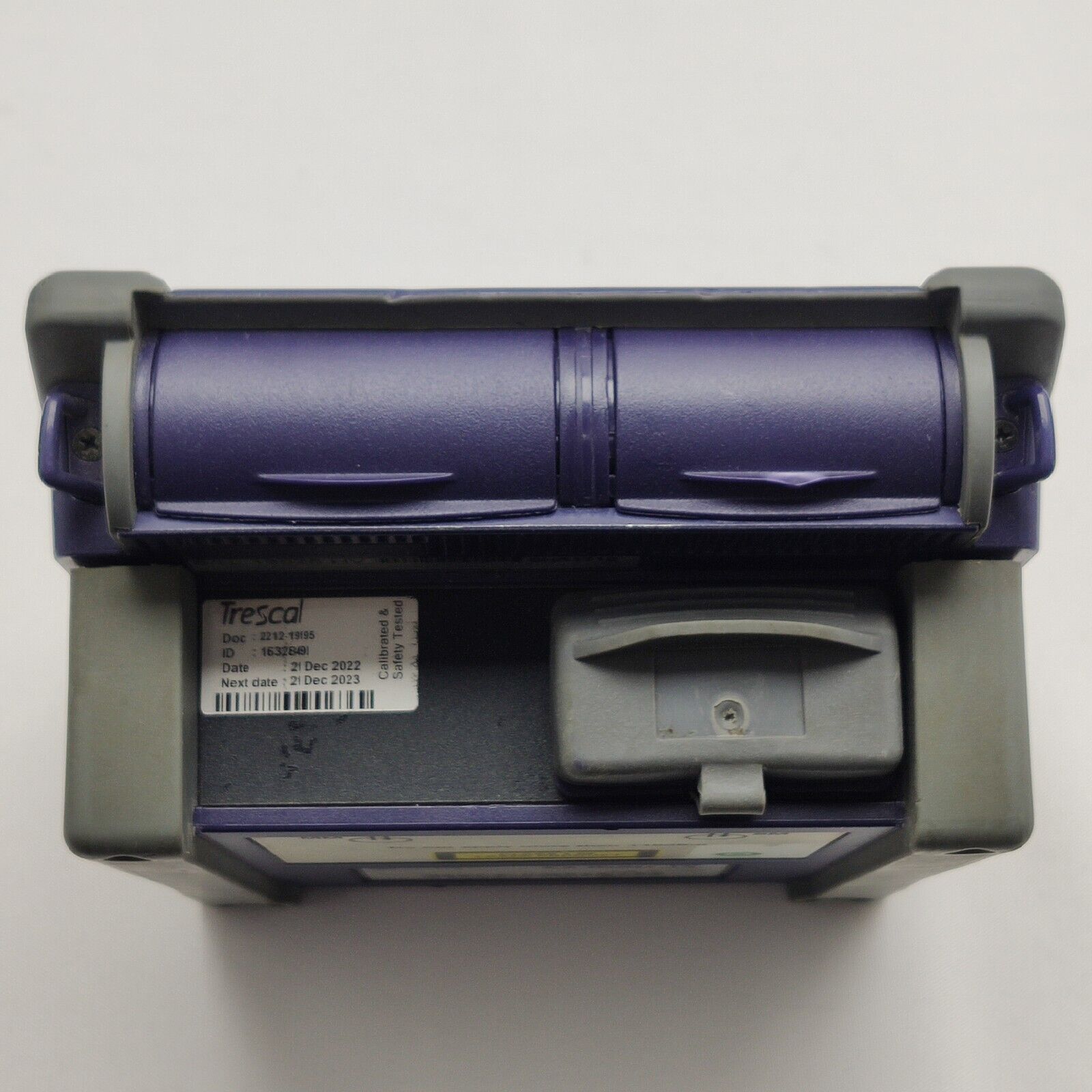

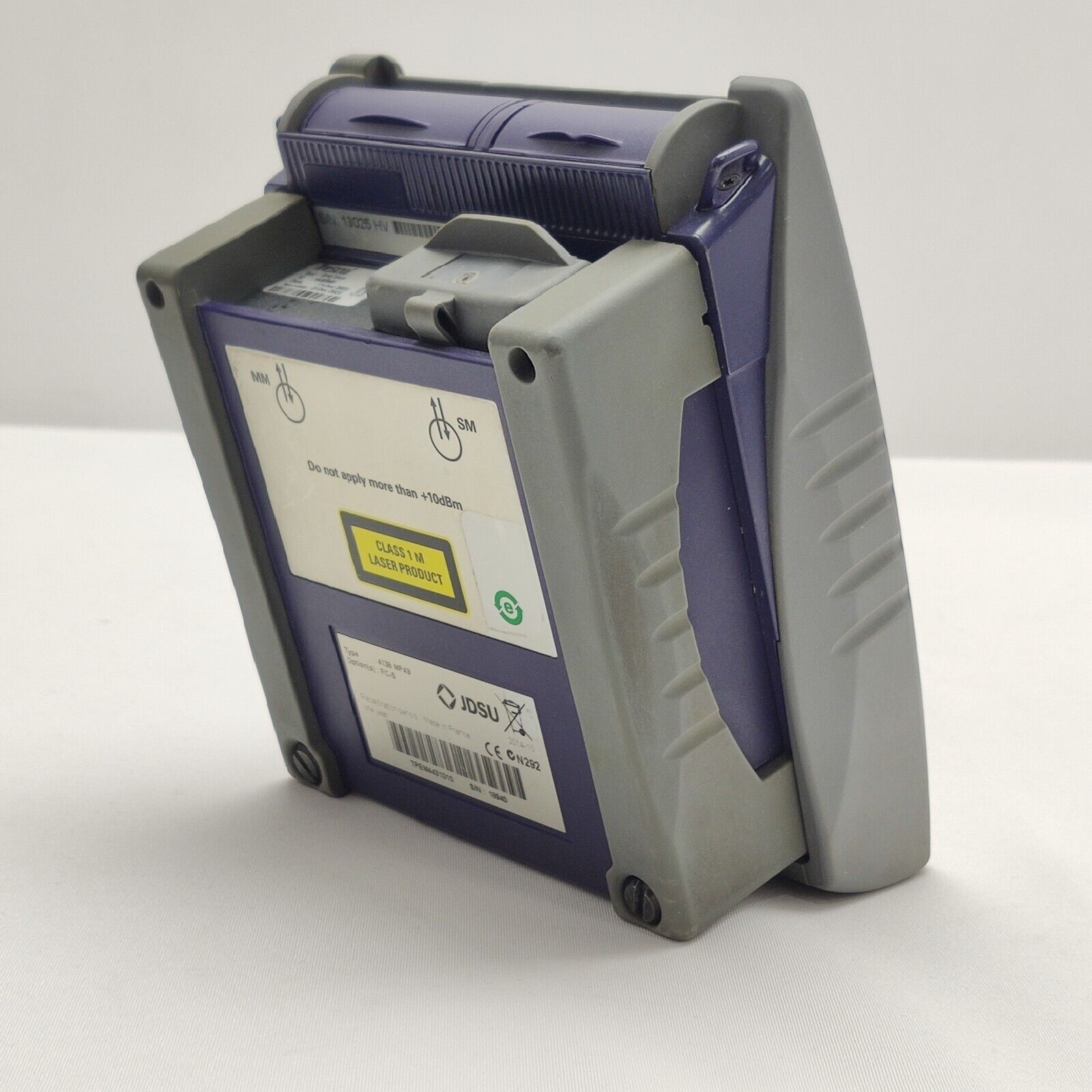

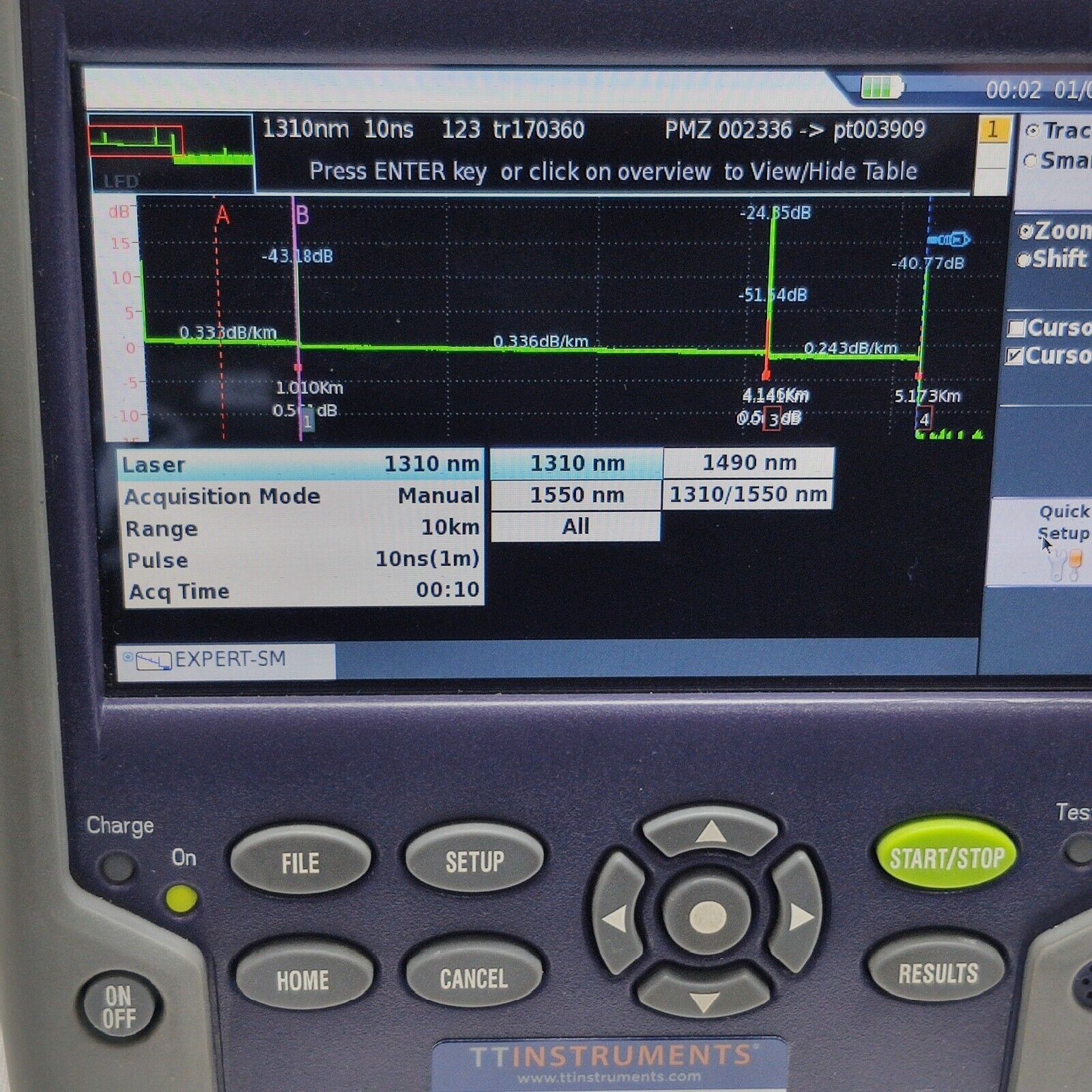

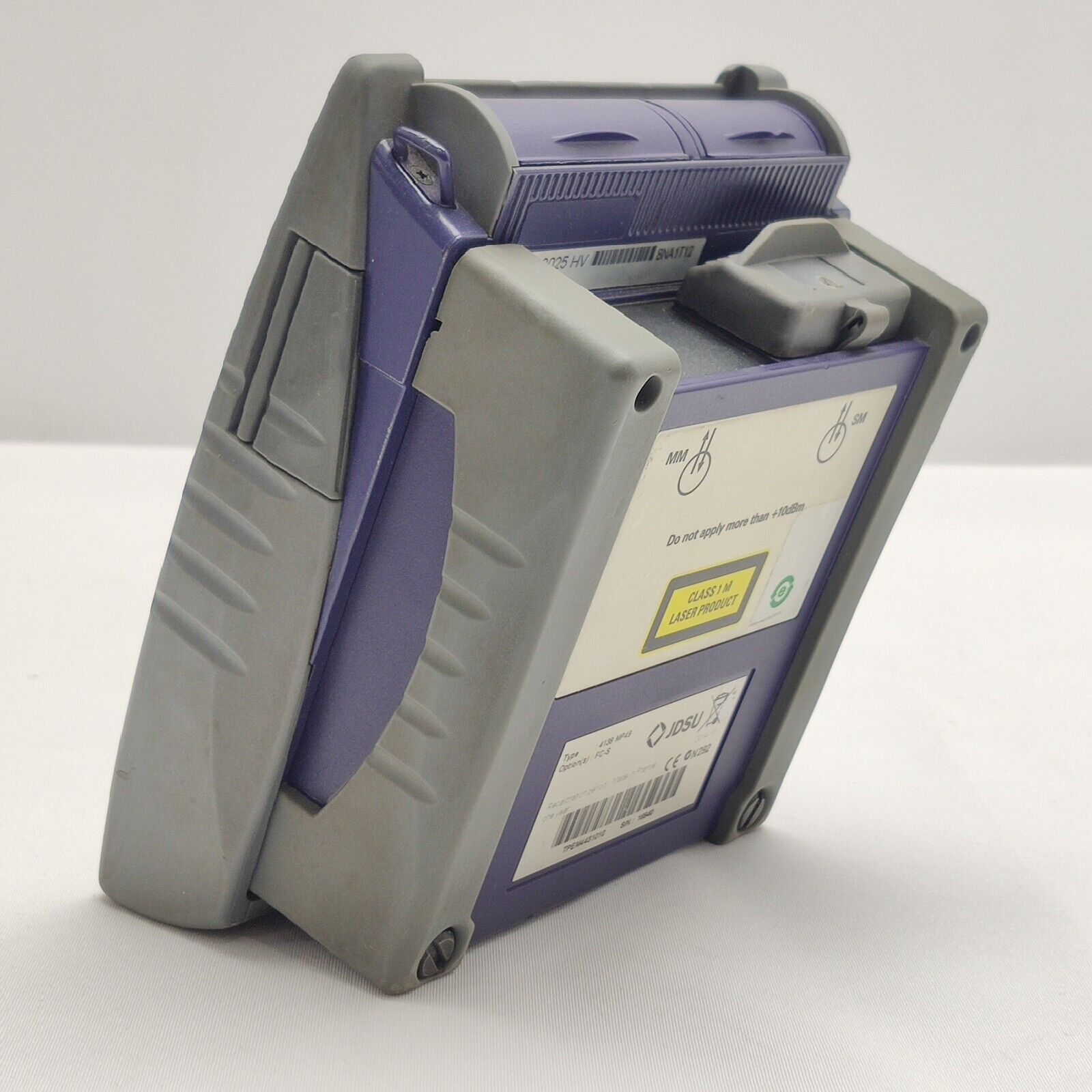

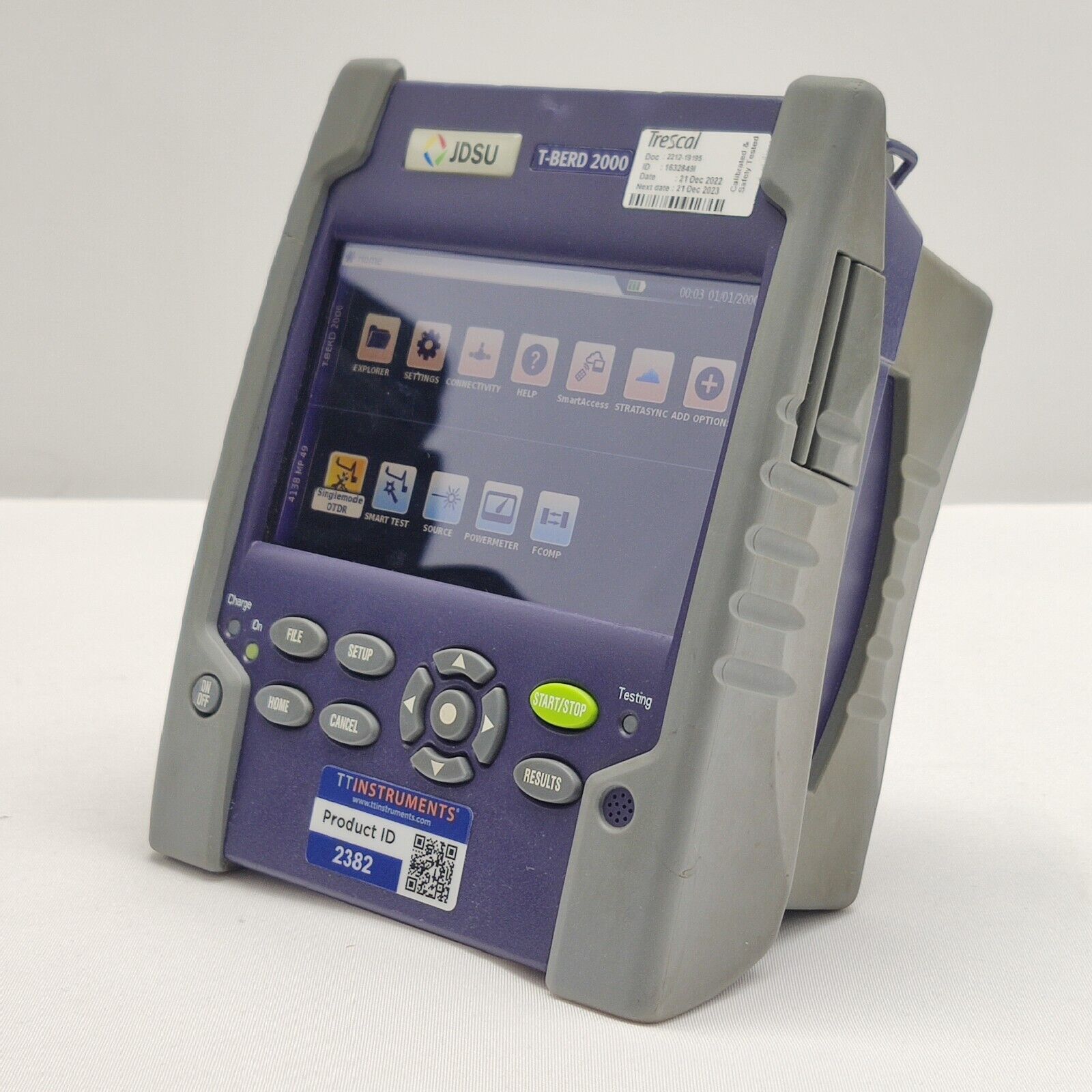

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

The Viavi (formerly JDSU) T-BERD 2000 is a compact, handheld multi-application fibre optic test platform designed for field technicians working on access, metro, CATV, and FTTH network installations and maintenance. Its modular architecture allows different test modules to be fitted to the mainframe, making it a flexible and cost-effective instrument for a wide range of fibre characterisation tasks.

The 4138 MP49 is a tri-wavelength singlemode OTDR module from the Viavi 4100 Series MP family. It is specifically optimised for PON and FTTH networks featuring high-port-count splitters, and supports in-service testing via filtered wavelengths. The module is compatible with the FiberComplete, SLM, FTTA-SLM, and FTTH-SLM intelligent optical application software suites.

Key Specifications — Viavi 4138 MP49 OTDR Module:
Wavelengths: 1310 / 1490 / 1550 nm
Dynamic Range: 43 / 41 / 41 dB
Event Dead Zone: 0.8 m
Attenuation Dead Zone: 4 m
Maximum Range: 260 km
Acquisition Points: Up to 256,000
Connector Type: PC
PON Splitting Ratio Support: Up to 1x128
Connector Port: Single port for all wavelengths

Key Features:
Automatic macrobend detection
Summary results table with pass/fail analysis
Bidirectional OTDR analysis
FastReport on-board report generation
Integrated CW light source and optical power meter
Instant live-fibre traffic detection
FiberComplete compatible
Ready for SLM, FTTA-SLM, and FTTH-SLM intelligent optical application software
