Condition: Used — this unit is untested. No additional accessories are included beyond what is pictured.

The Viavi JDSU SCU-1800 Sweep Control Unit is offered with the following active licensed options:
• Enable 16 Port Reverse Sweep
• Reverse Sweep Multi User

What is included in the sale:

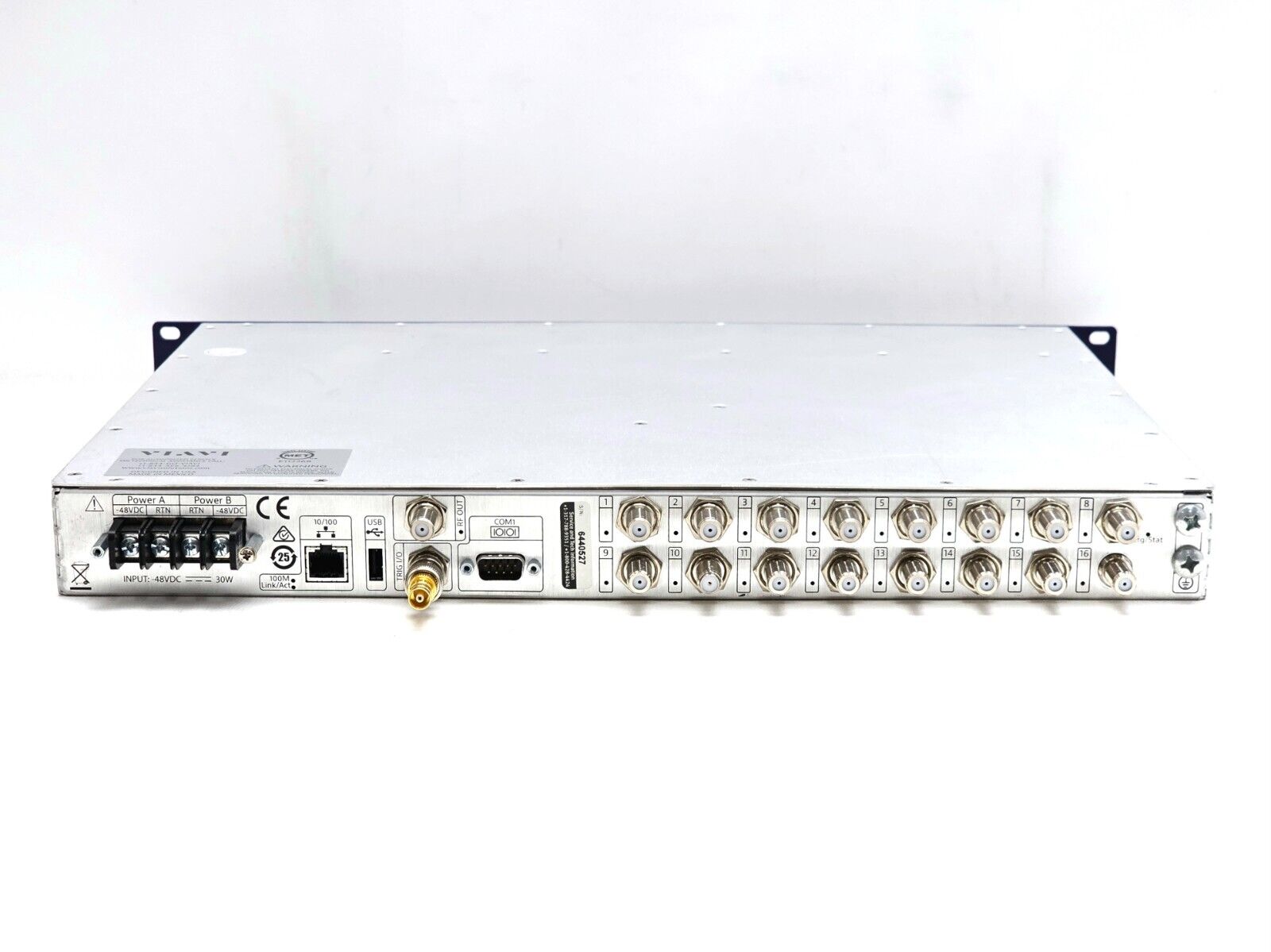

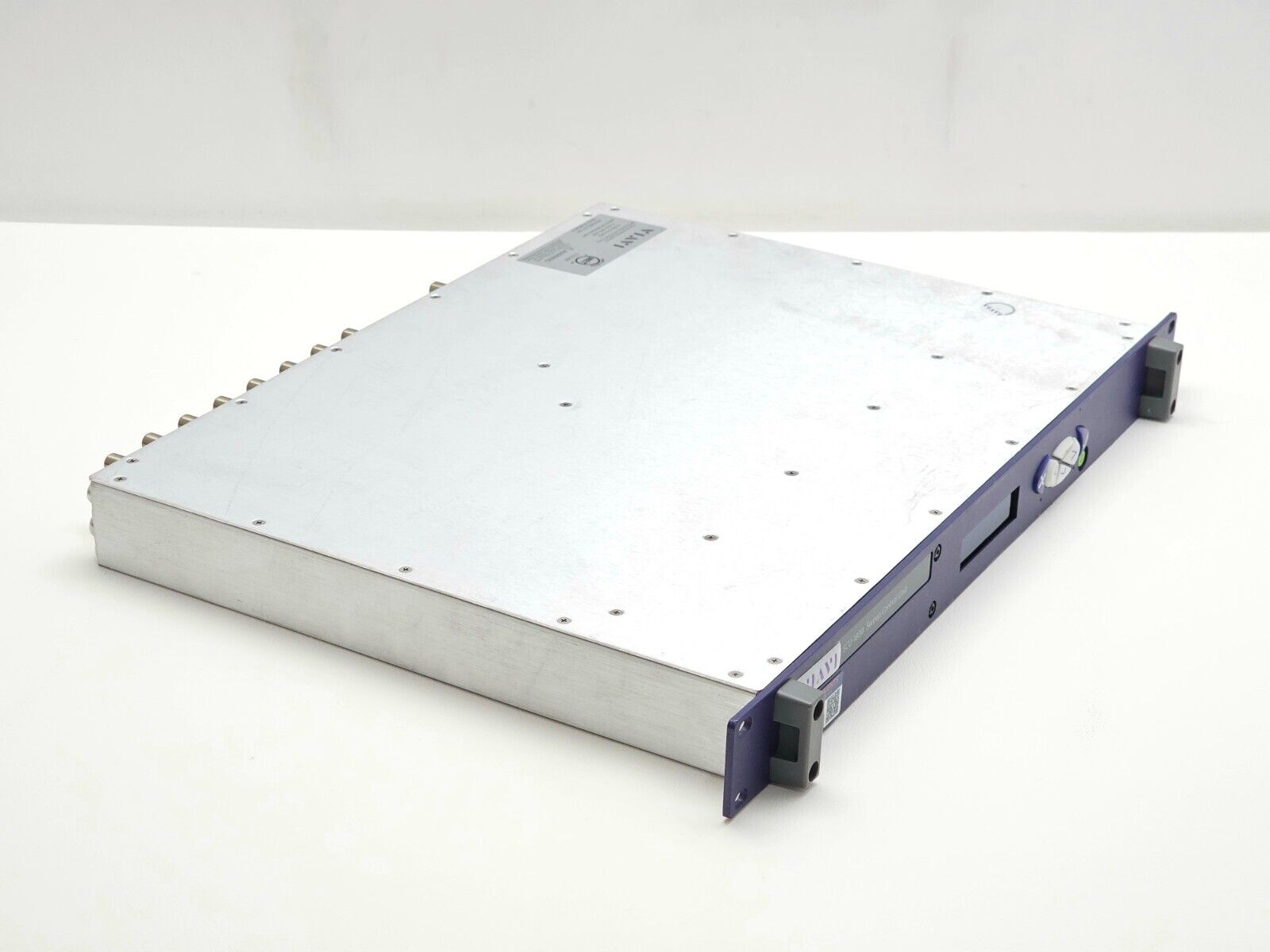

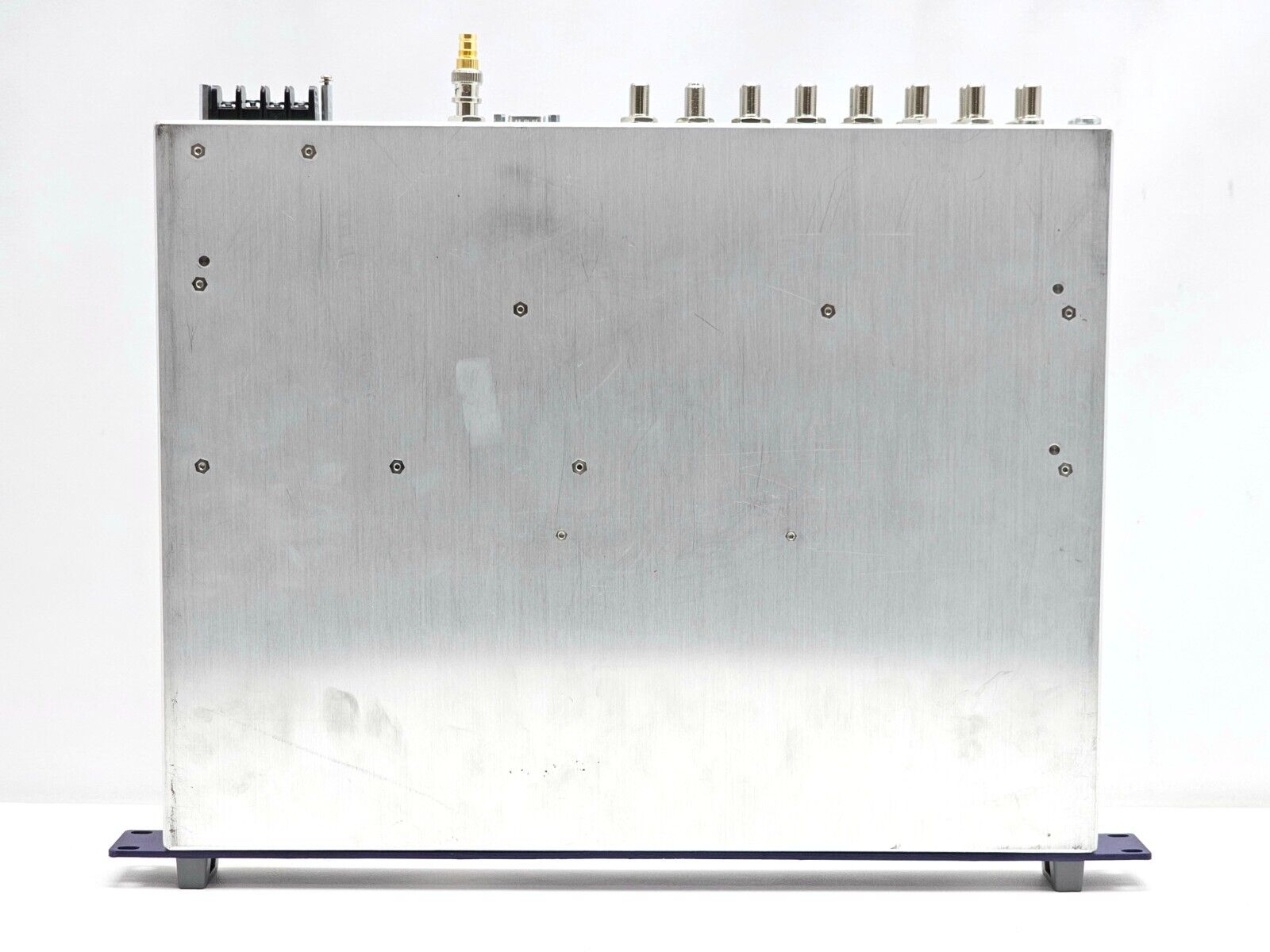

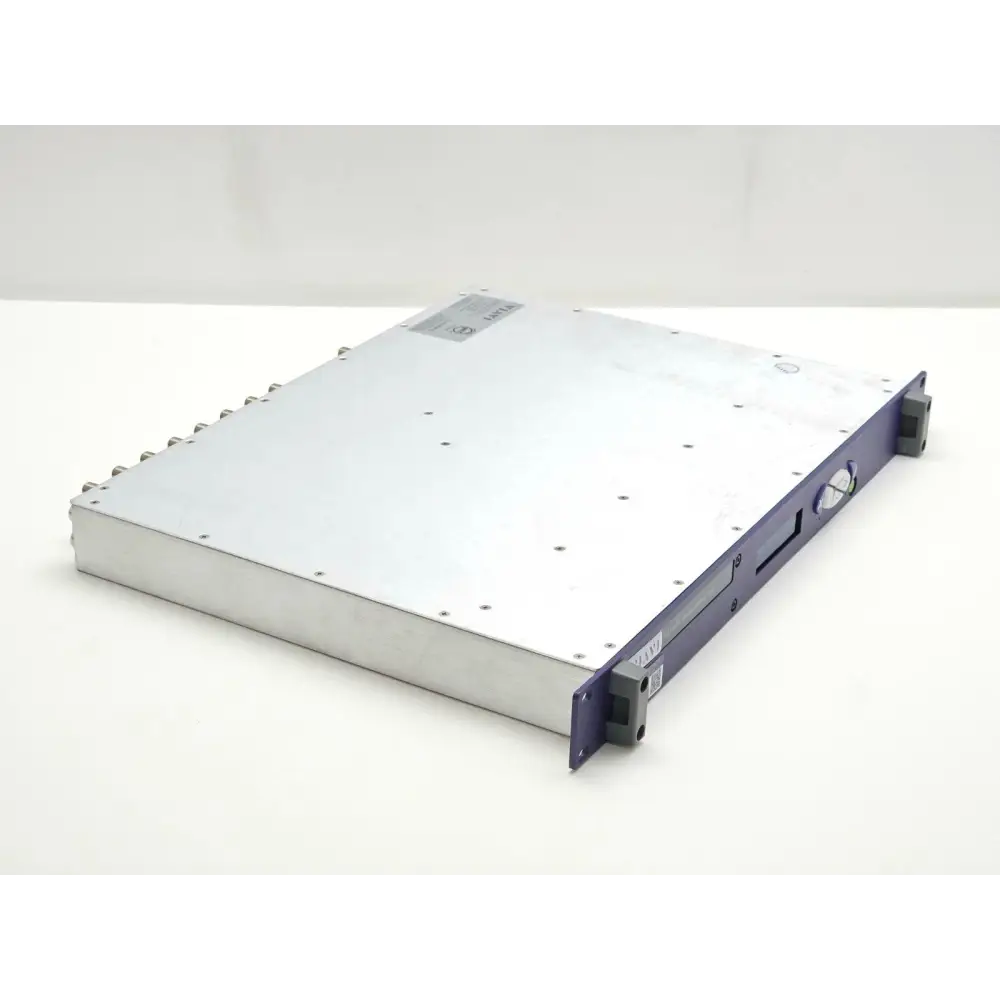

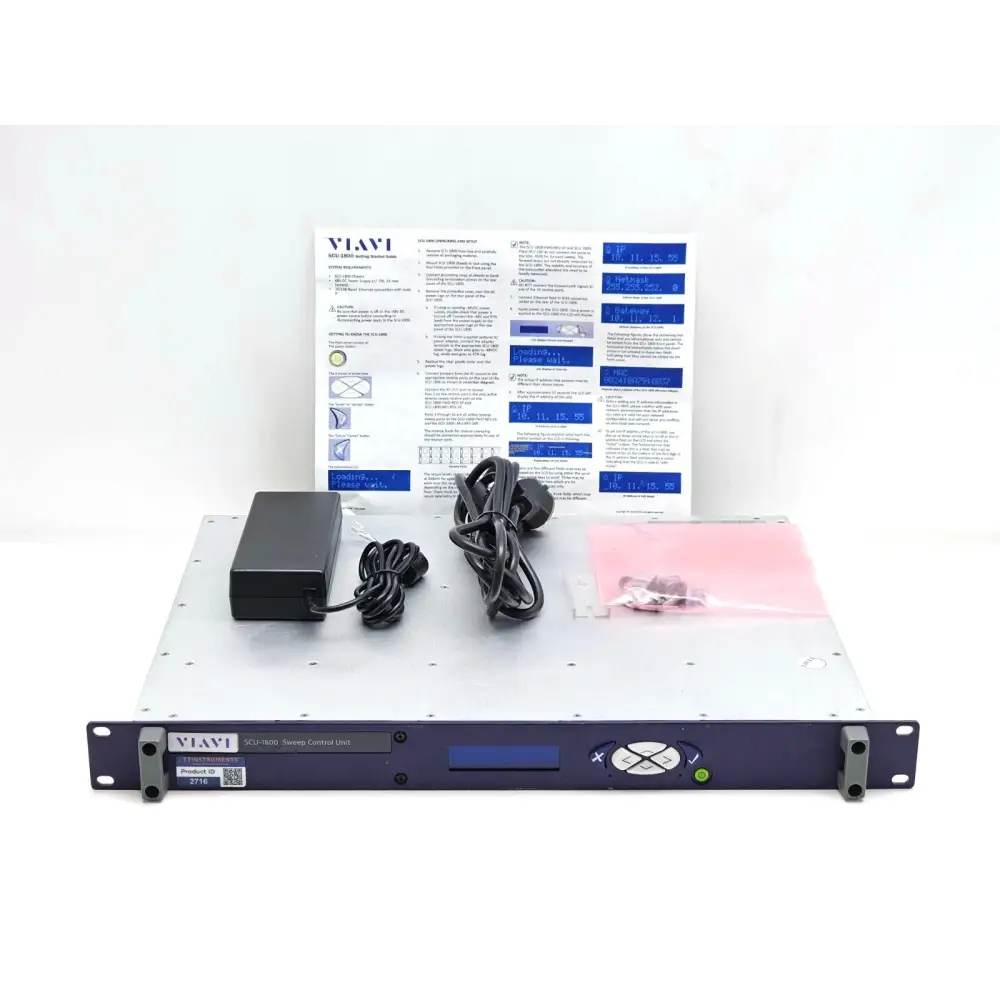

• Viavi JDSU SCU-1800 Sweep Control Unit (as pictured)

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

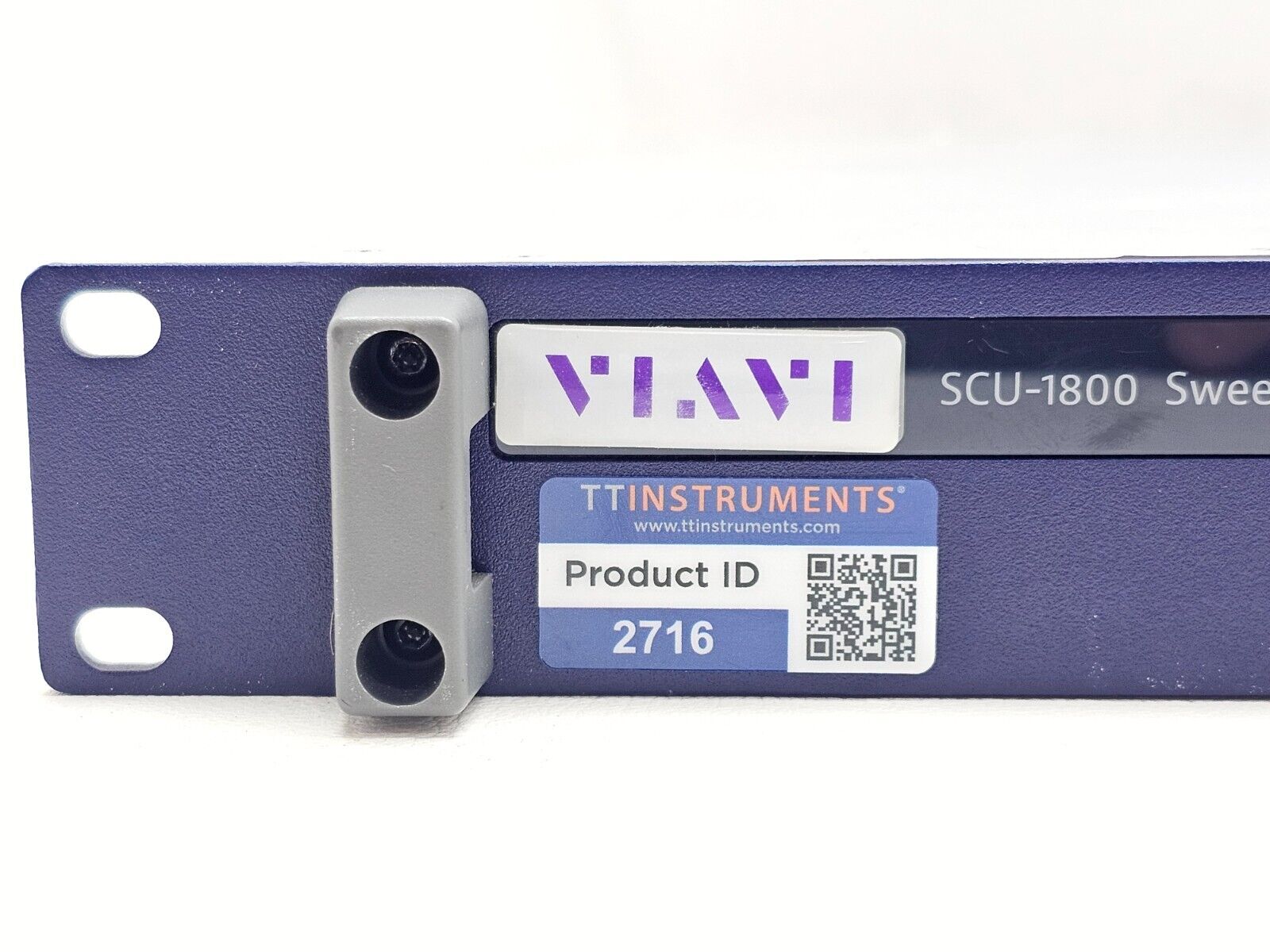

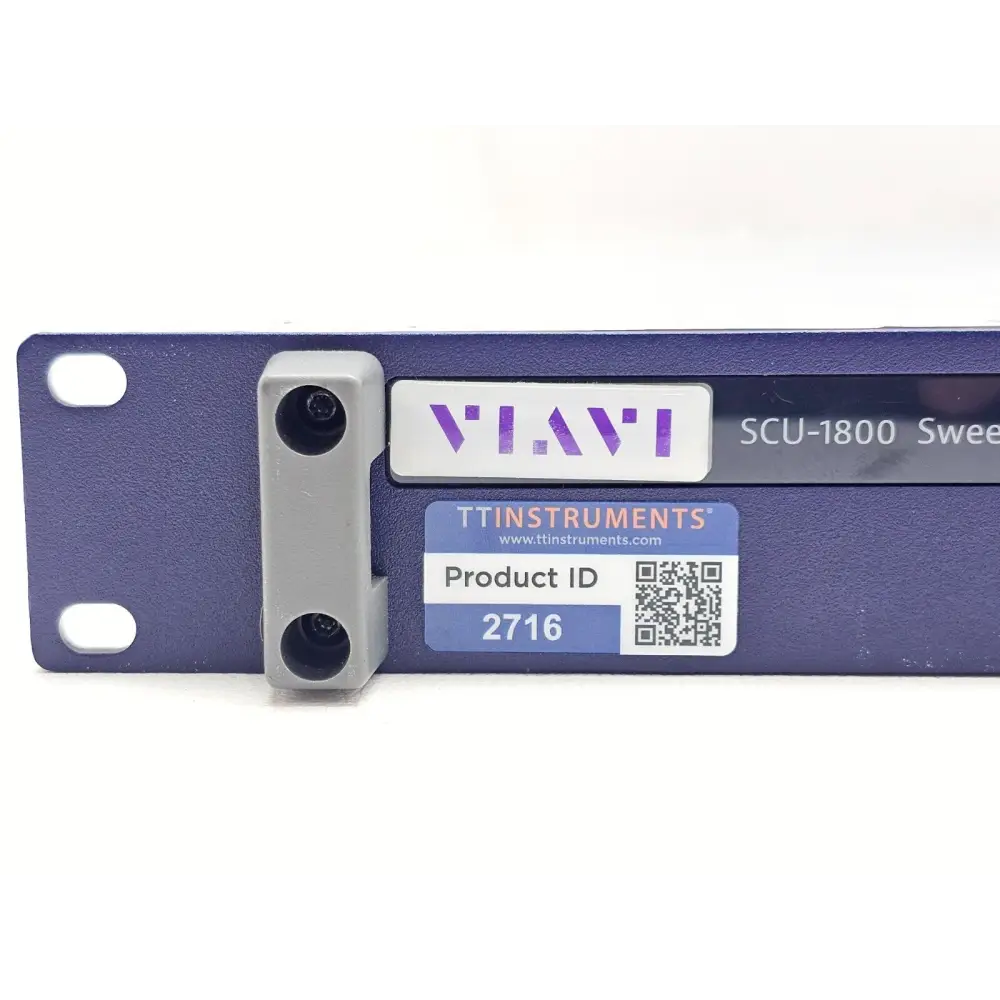

SCU-1800 Sweep Control Unit

The Viavi (formerly JDSU) SCU-1800 Sweep Control Unit is an advanced sweep transceiver offering updated, space-saving hardware and simple browser-based configurability. The headend/hub rack-mounted SCU-1800 provides non-interfering downstream sweep to 1,218 MHz and upstream sweep to 204 MHz on up to 16 switchable ports.

Advanced System Sweep
The ONX/SCU system meets the needs of current and evolving cable networks, with the sweep frequency range extended to 1,218 MHz forward and 204 MHz reverse. The platform is compatible with existing VIAVI sweep equipment (SDA-55xx, DSAM), offering smooth, seamless integration and a clear transition path to the next generation of network technology.

A space-conserving 1RU Sweep Control Unit with 16 switchable return sweep ports means less combining is required, leading to improved noise performance. Sweep receivers can be consolidated to conserve cost. The unit is remotely or locally configurable, with the interface accessible via Ethernet, Internet, Intranet, or browser. Improved pulse generation performance provides a pure, clean RF sweep signal with narrower pulses, enabling insertion between carriers.

Key Features:
DOCSIS 3.1 frequency range: 1,218 MHz forward, 204 MHz reverse

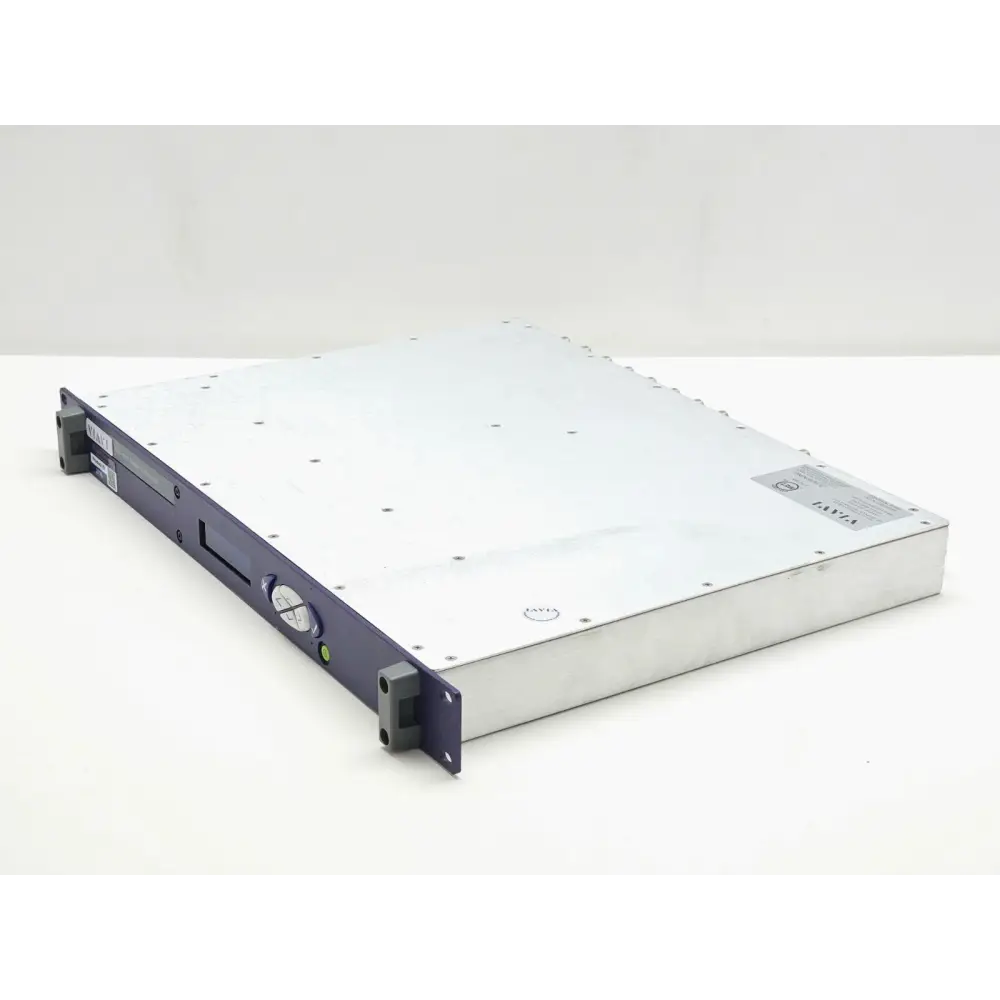

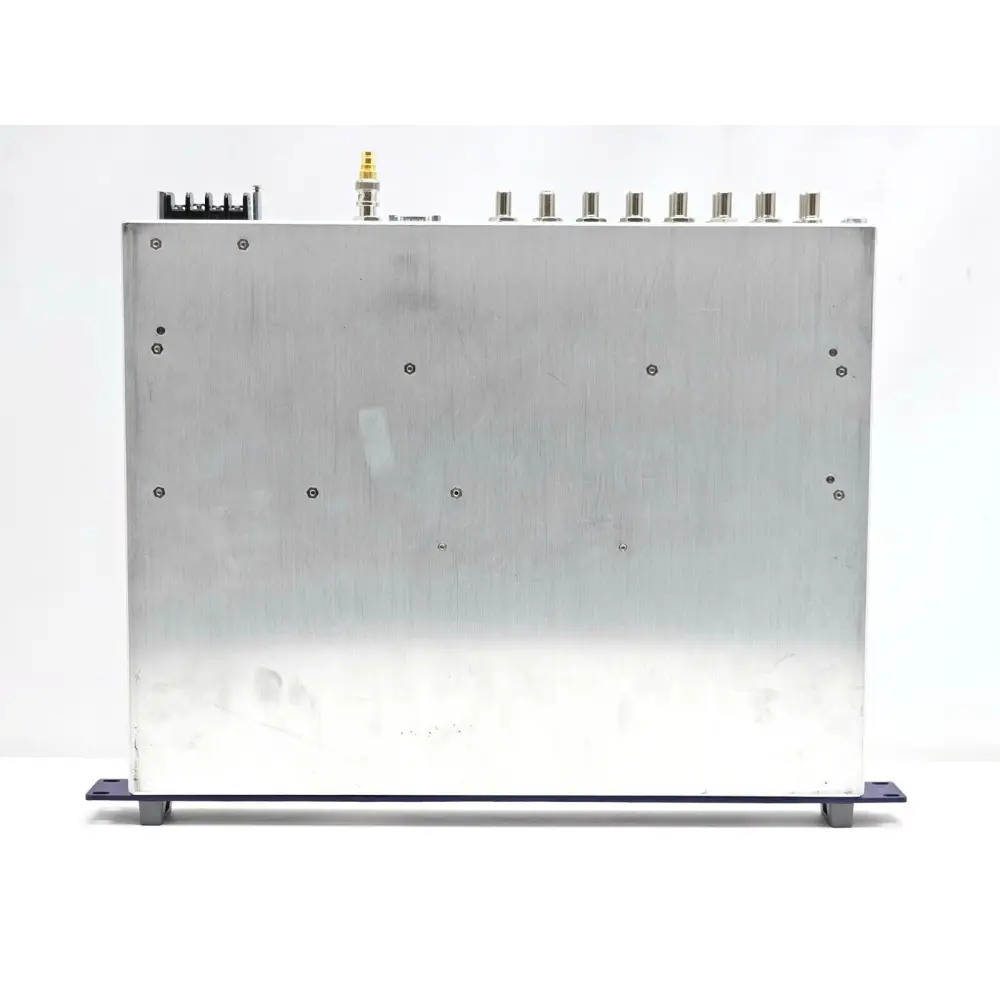

Form factor: 1RU rack-mount

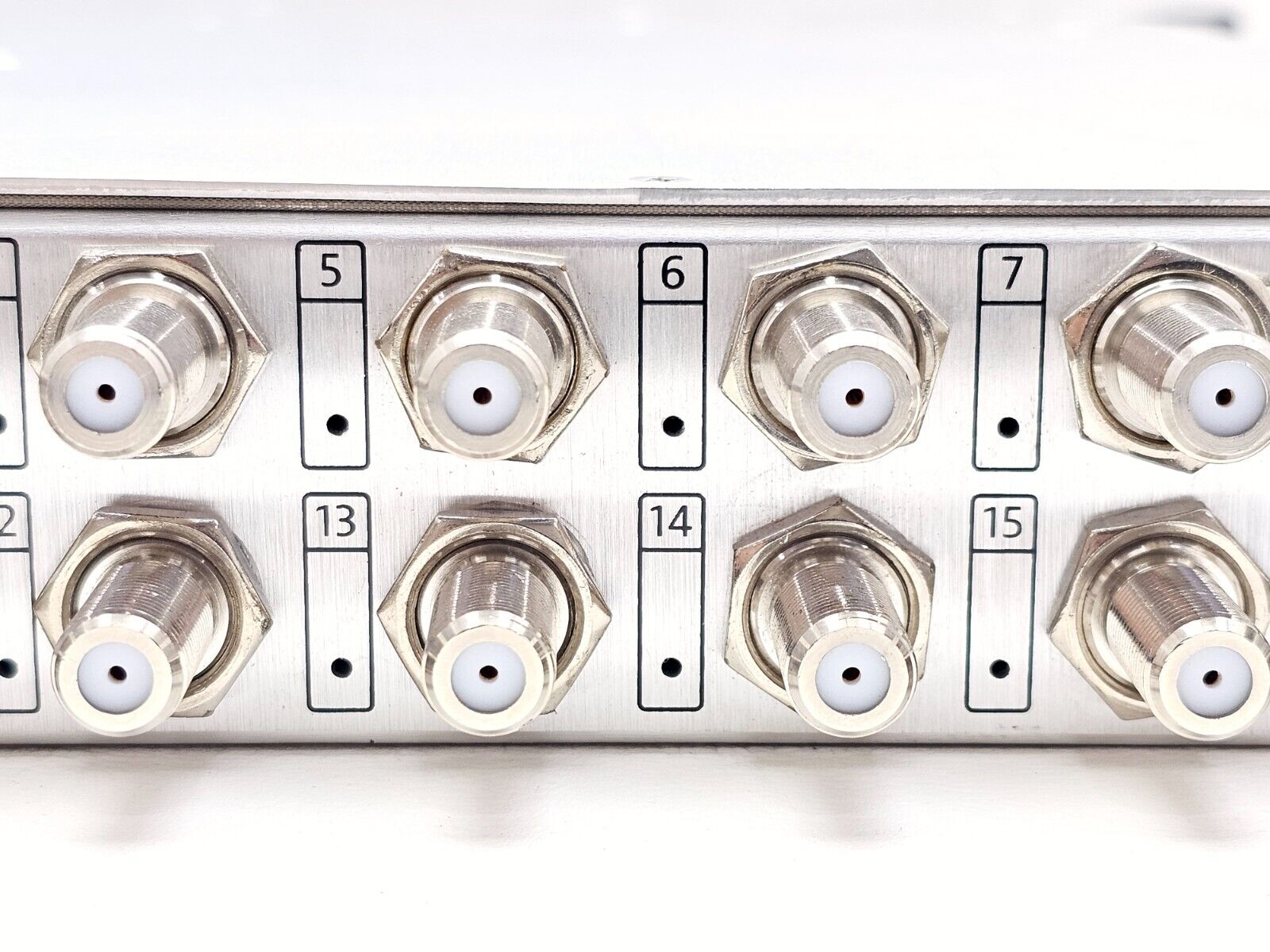

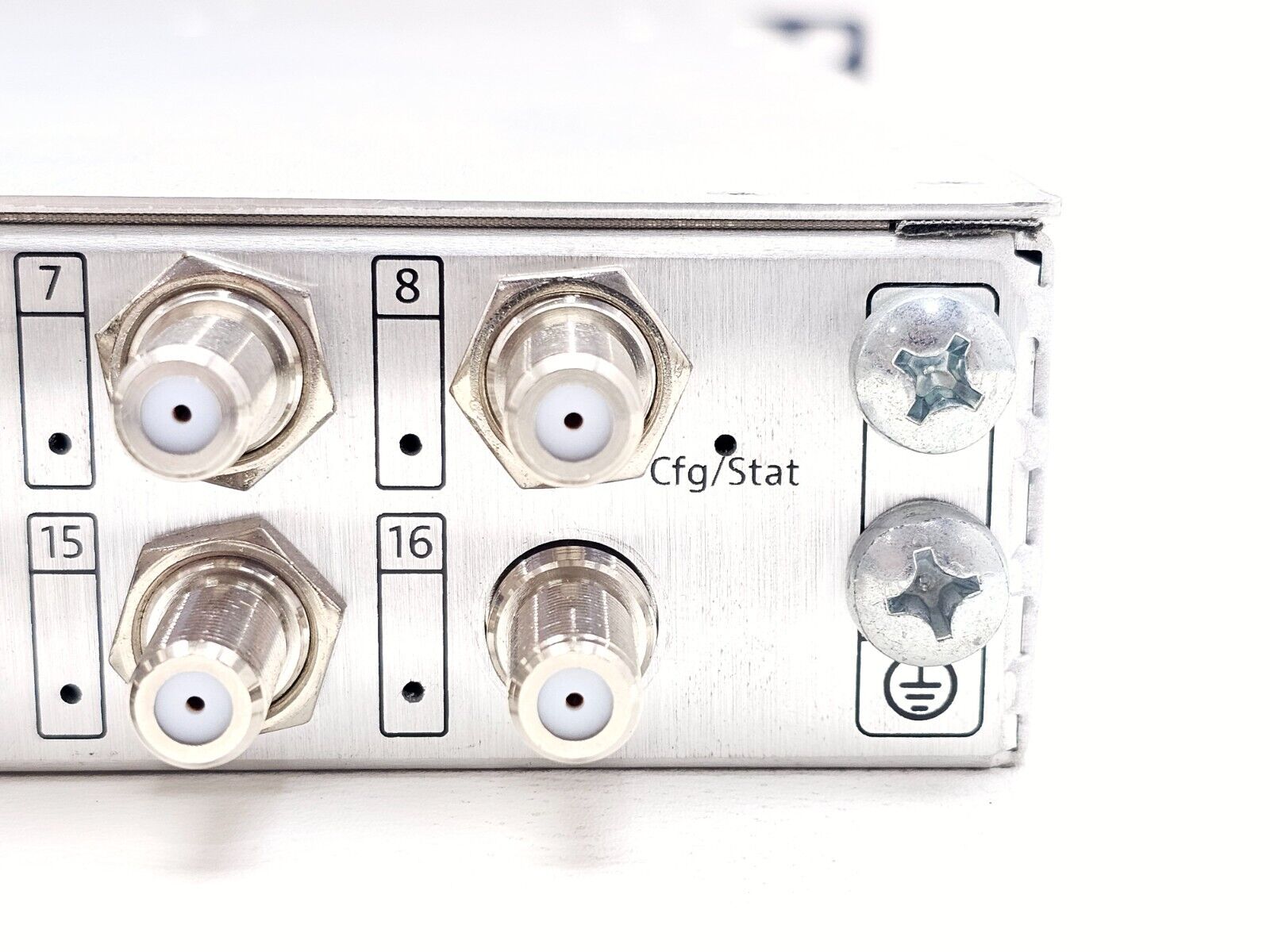

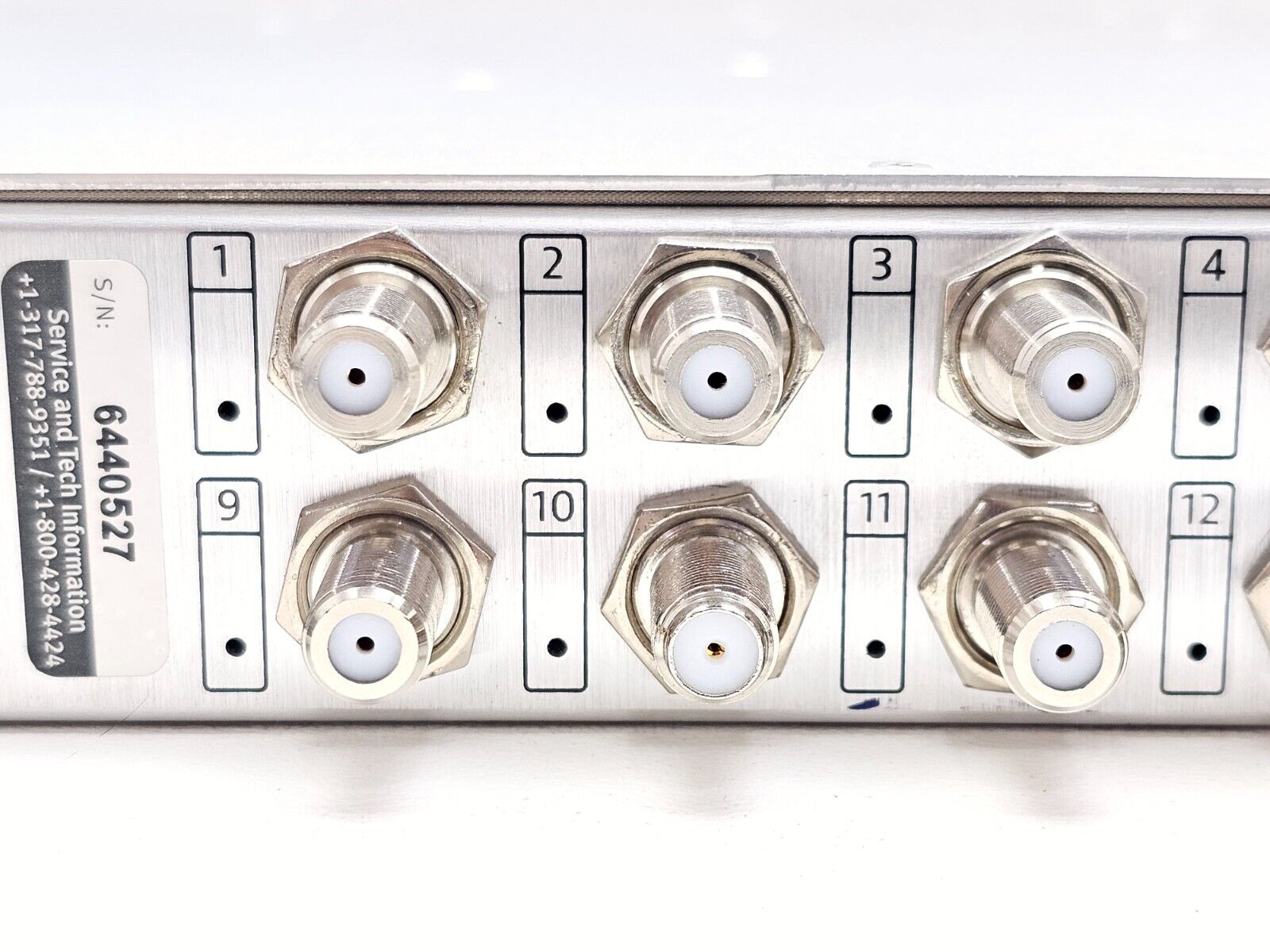

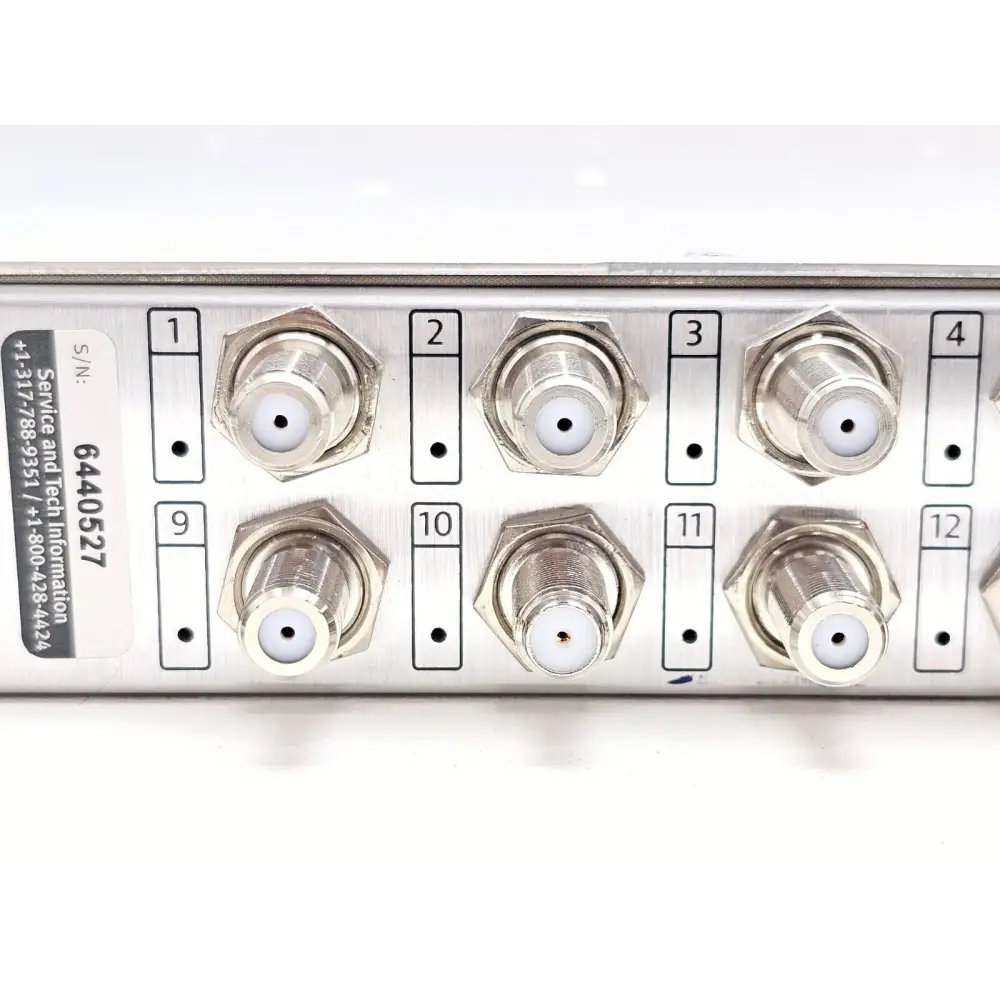

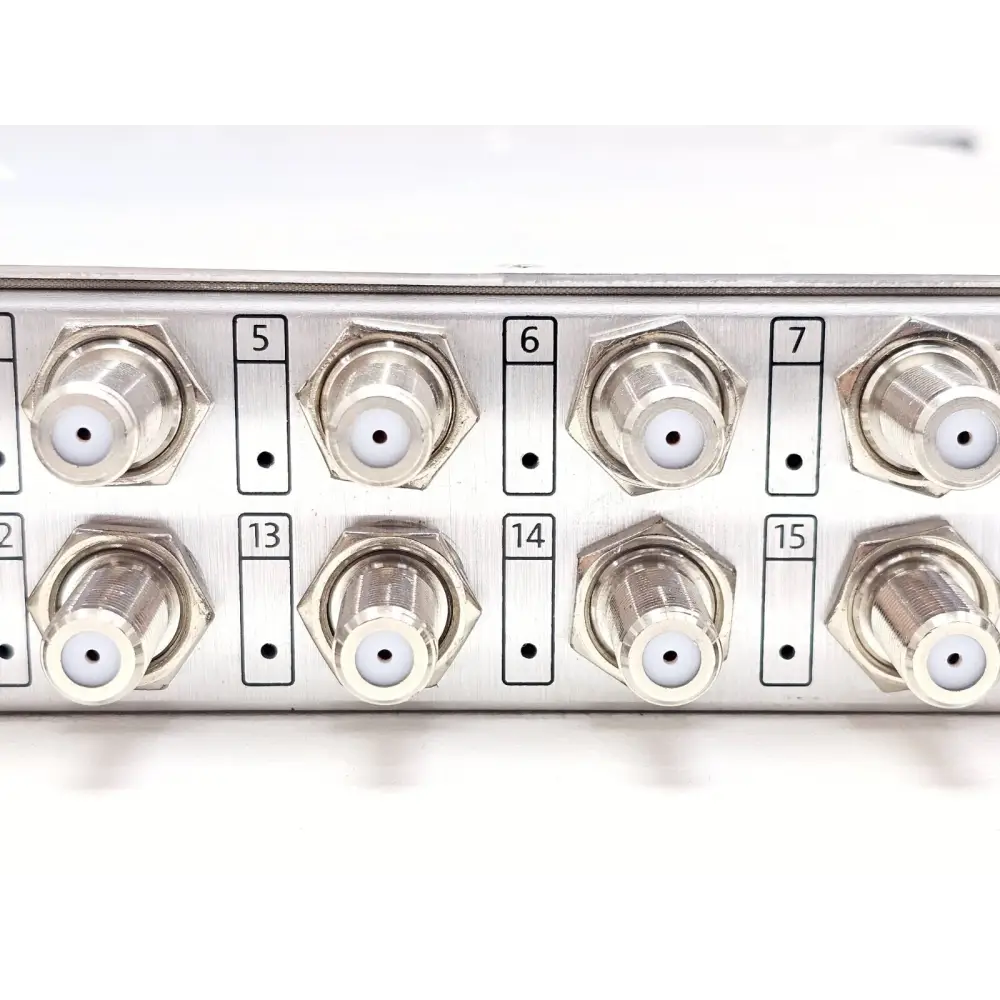

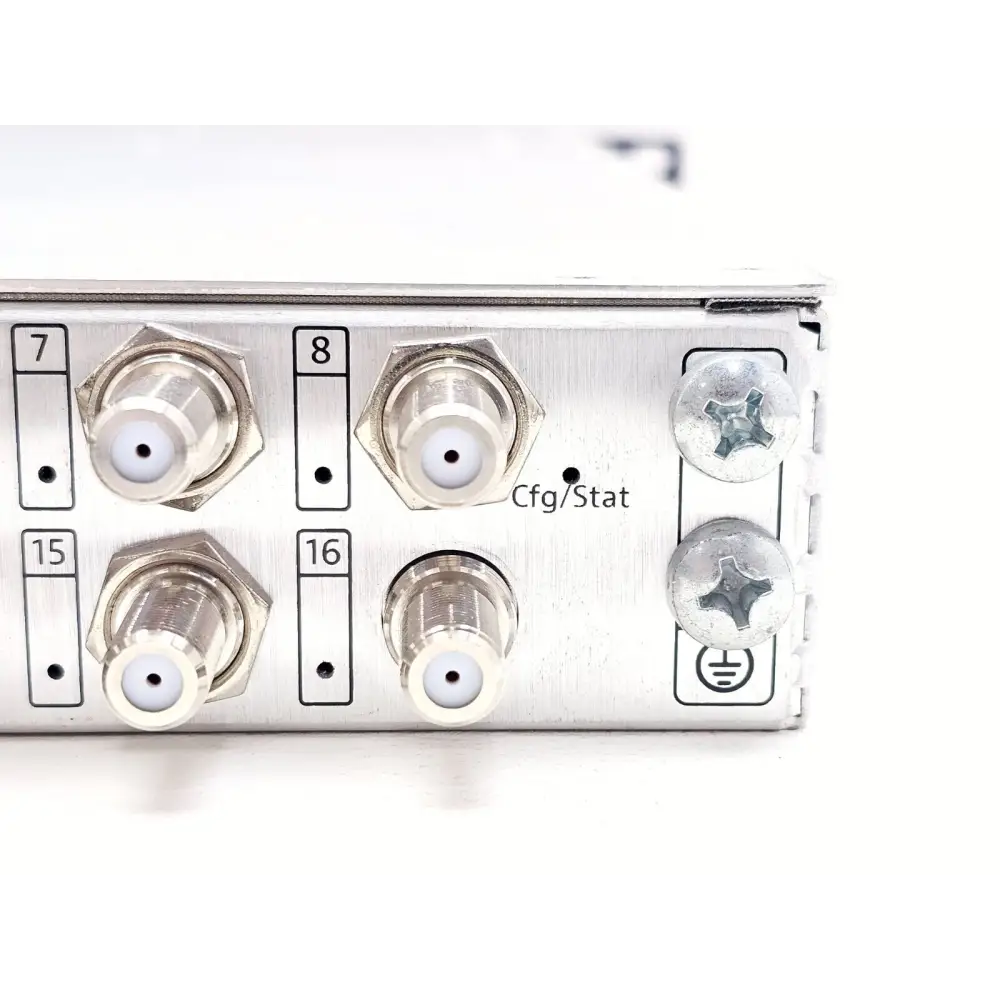

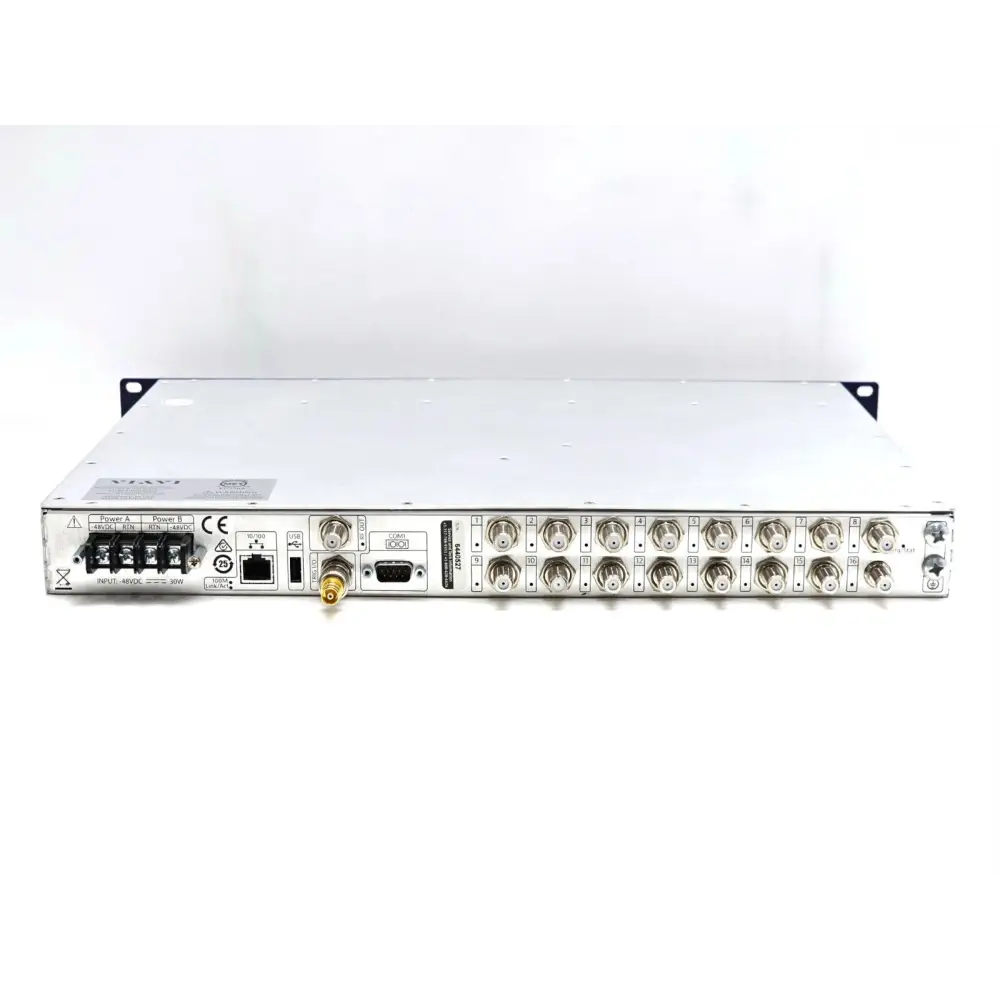

Return sweep ports: Up to 16 switchable ports per unit
Configuration interface: Ethernet/Internet/Intranet/browser
Compatibility: VIAVI SDA-55xx, DSAM sweep equipment
Sweep type: Non-interfering downstream and upstream sweep
Pulse generation: Improved narrow-pulse RF sweep signal

Highlights:
- DOCSIS 3.1 capable
- Smaller headend/hub site footprint

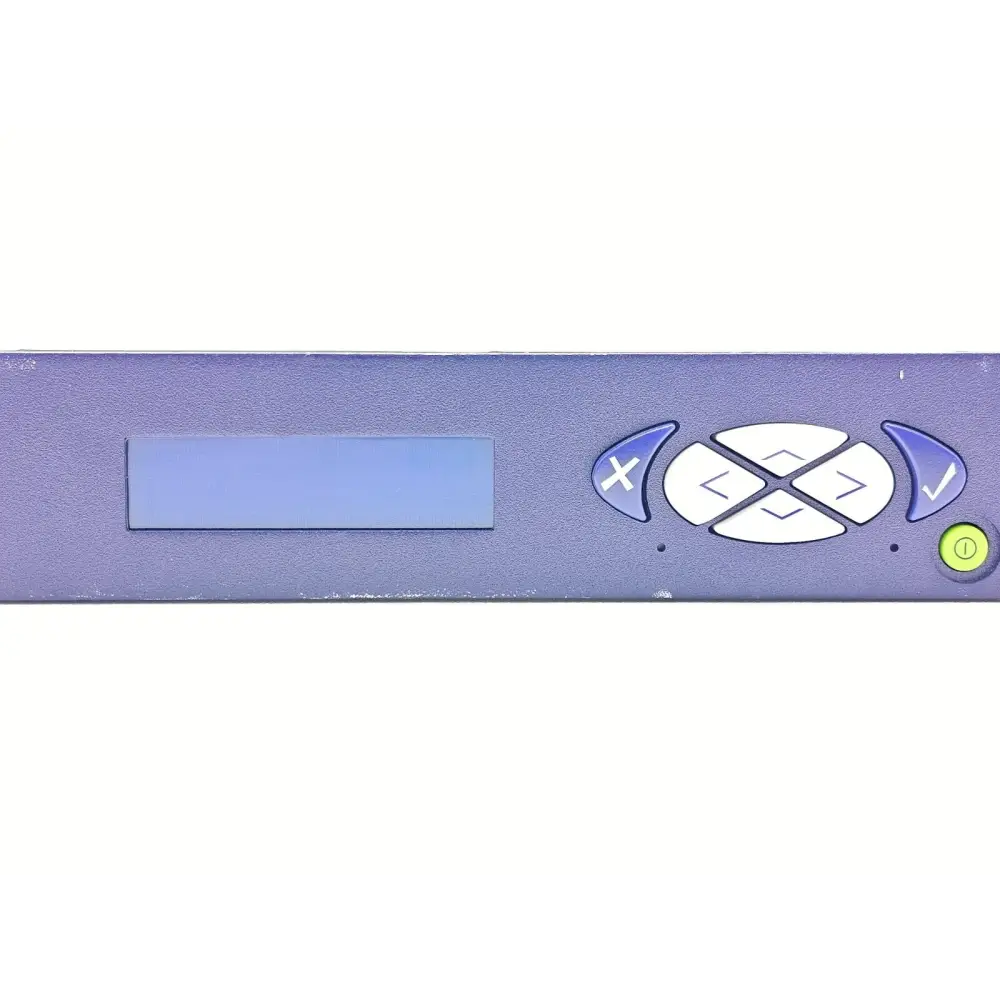

- Remote and local configuration
- Compatible with existing VIAVI sweep gear, minimising learning curve and maximising field gear longevity
- Conserves rack space, enabling transition to new technology with less real estate
