Condition: Used

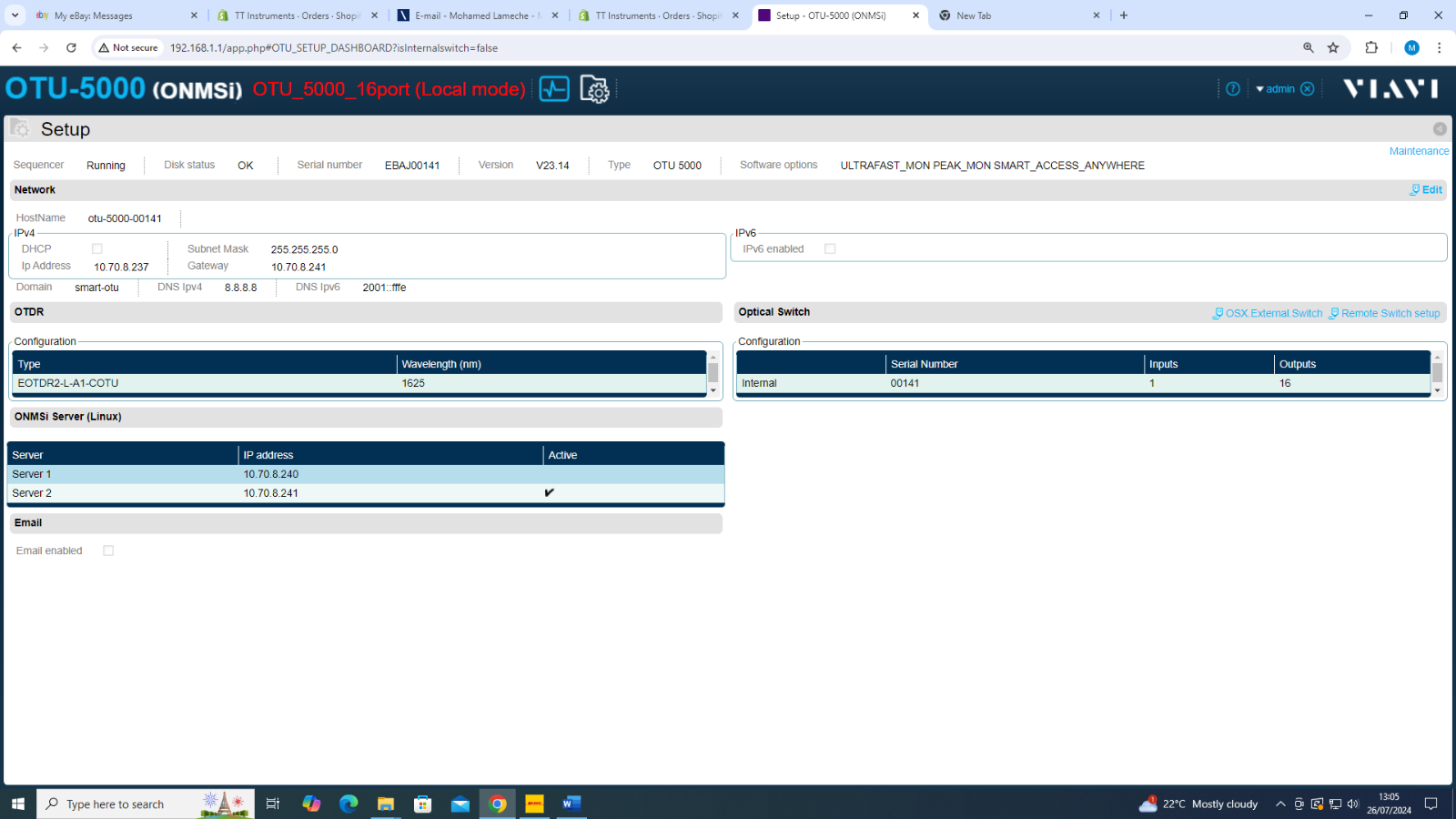

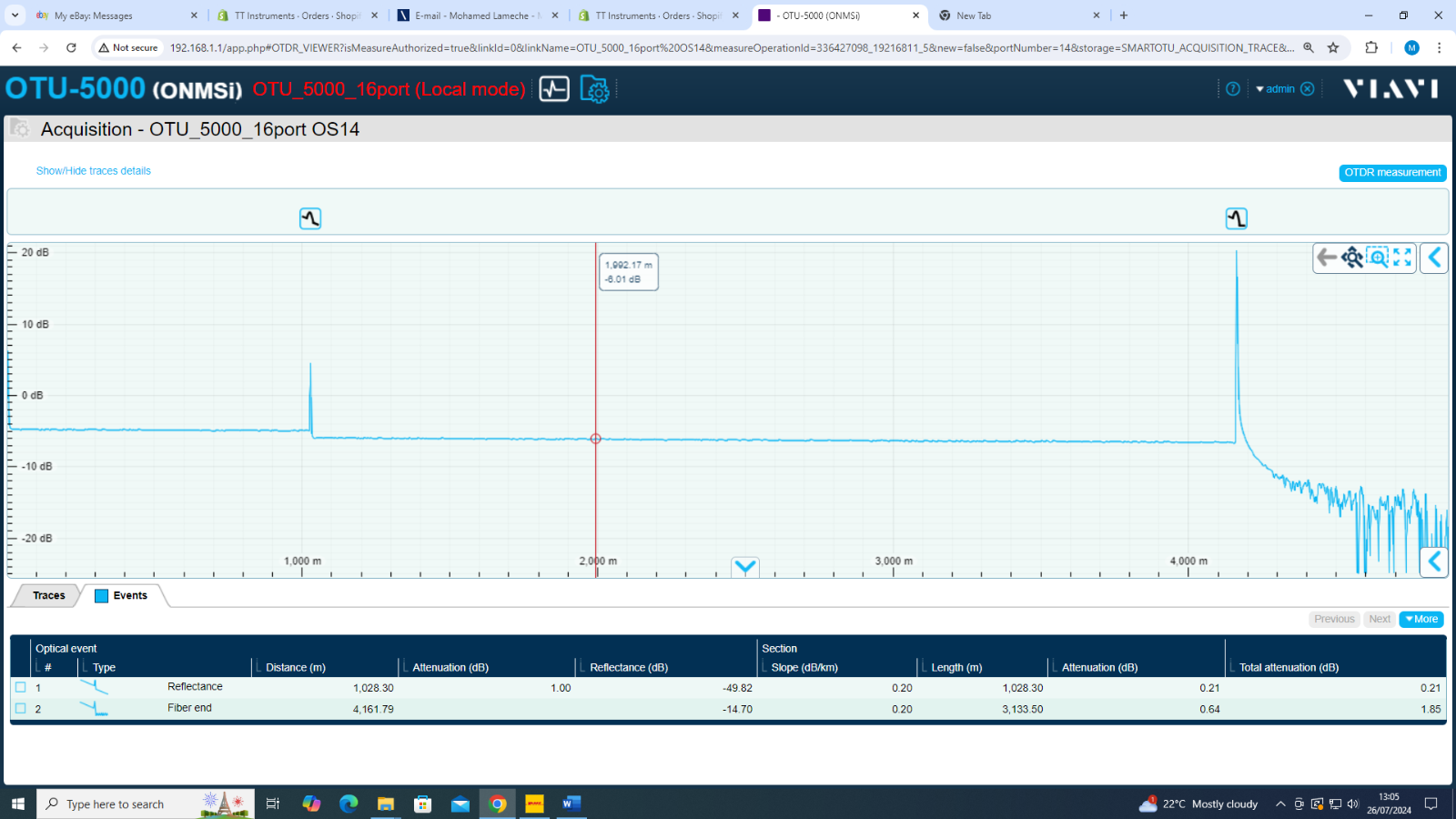

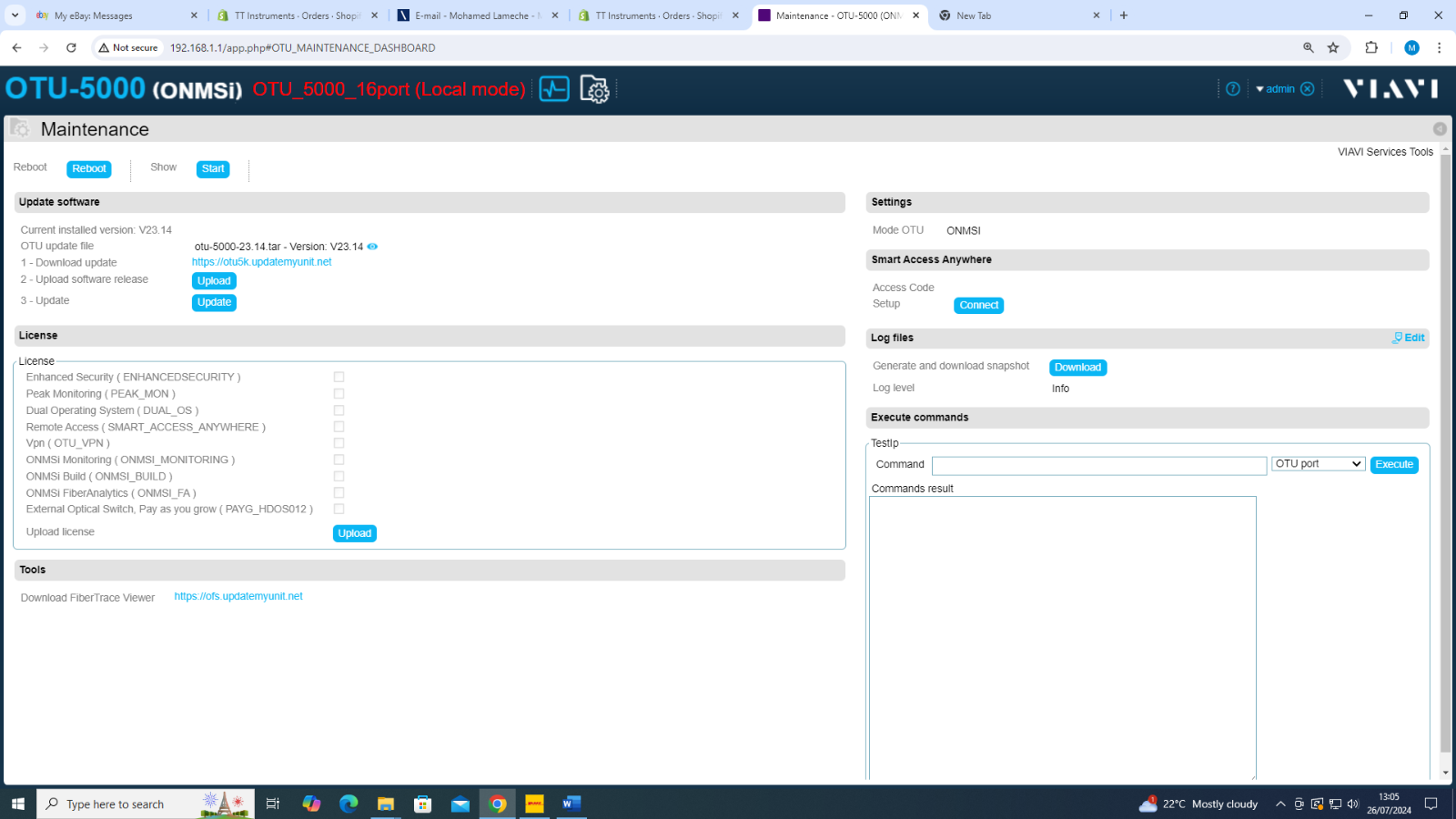

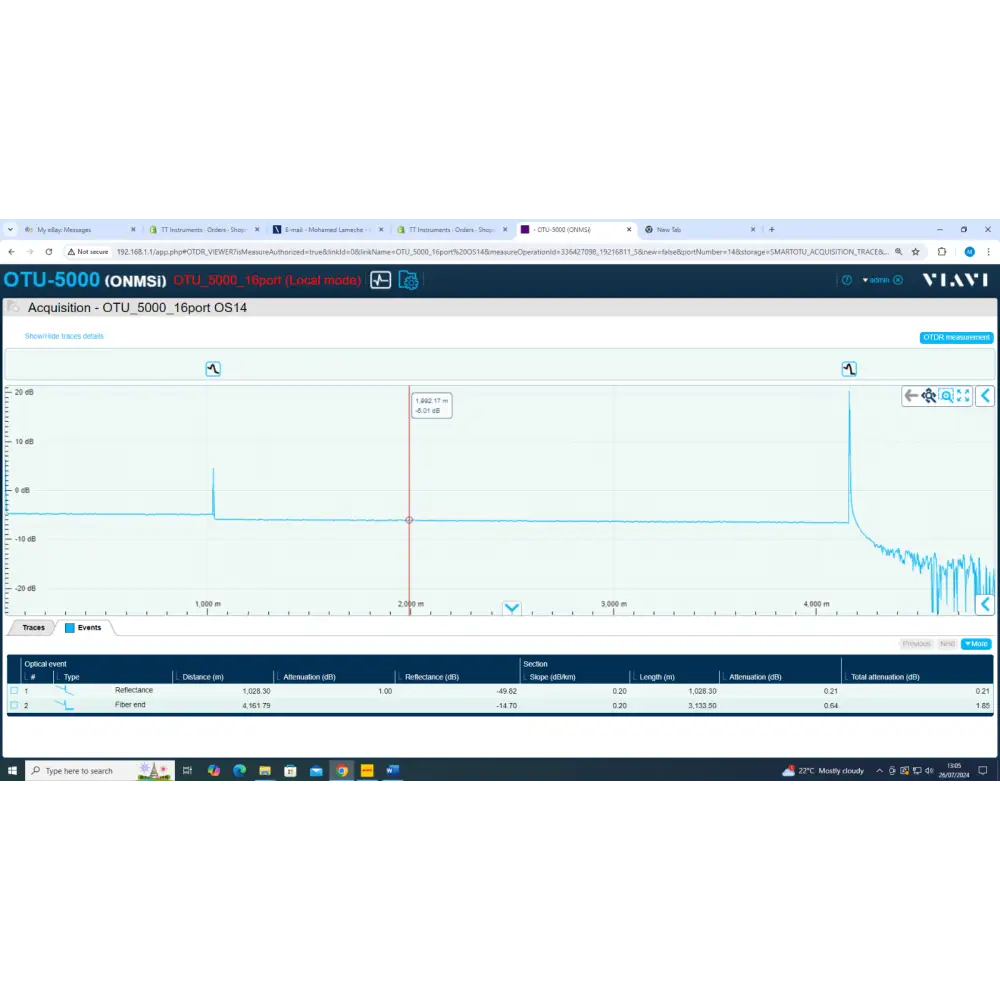

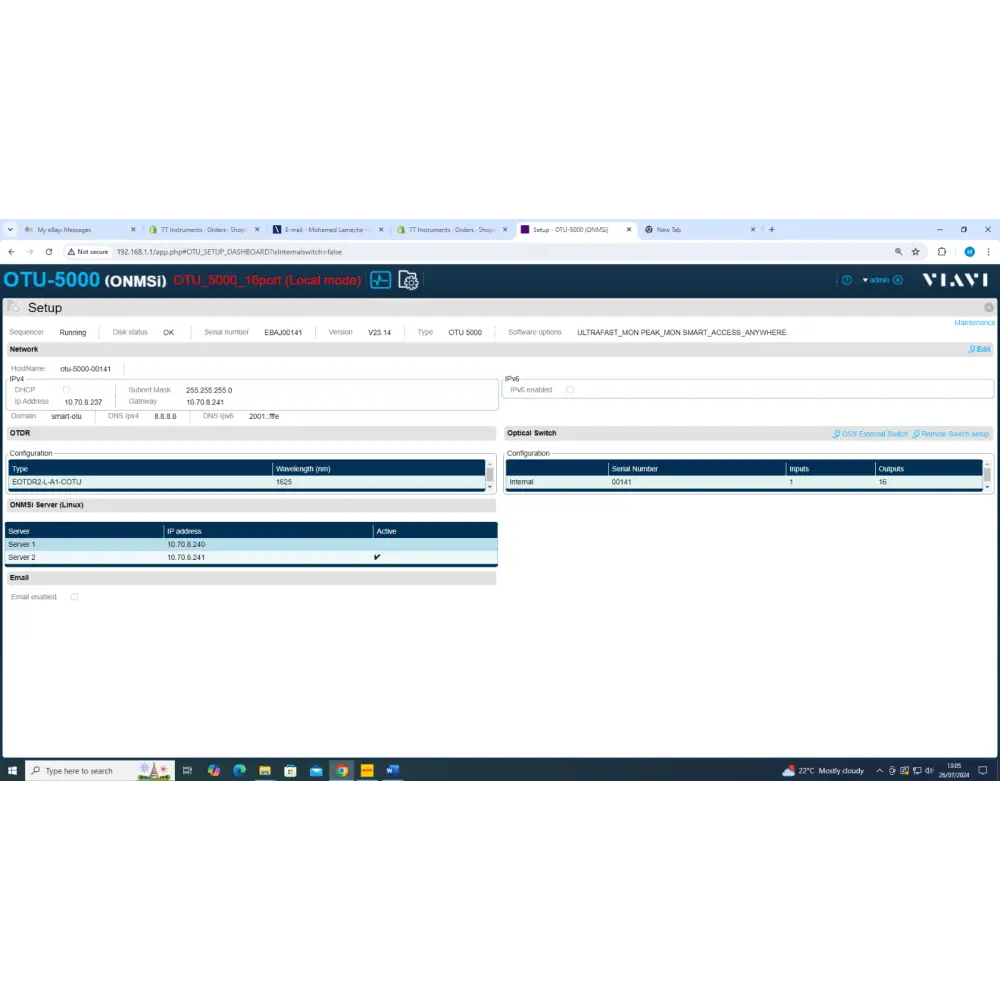

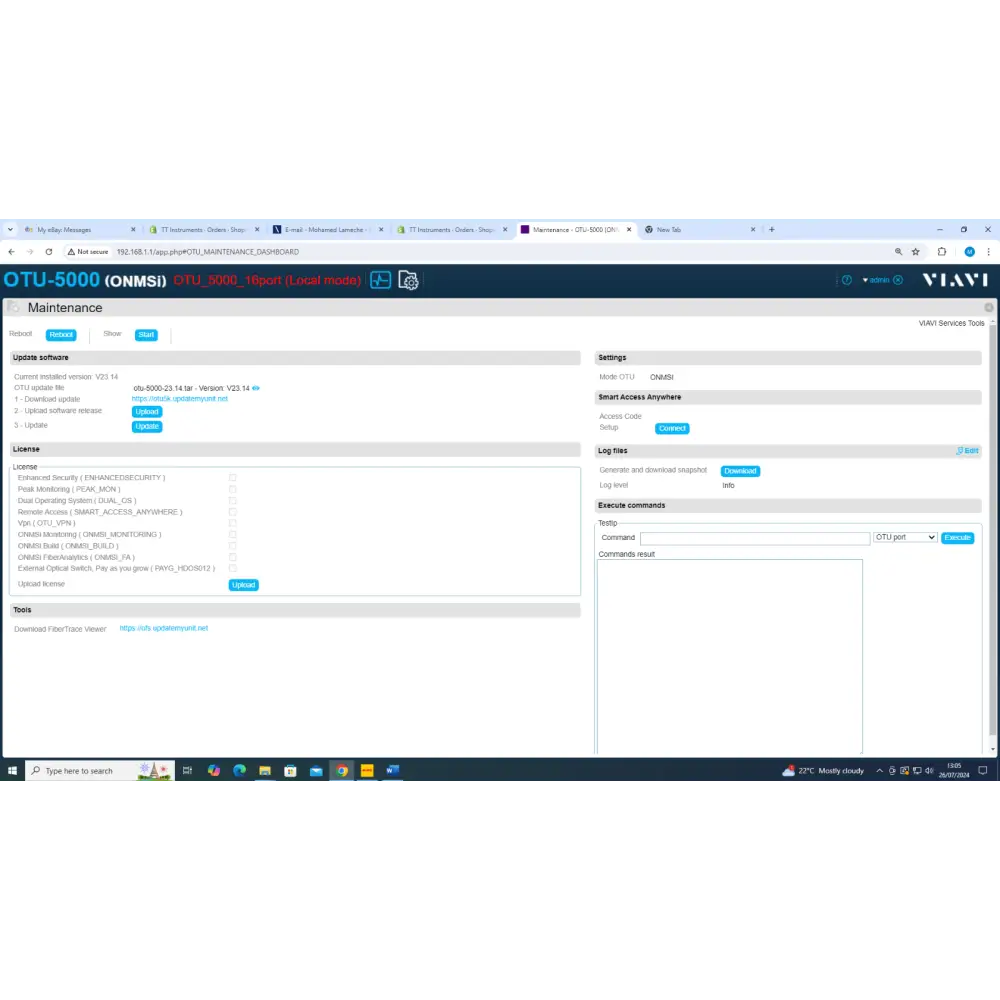

The Viavi JDSU OTU 5000 EOTDR2-L-A1-COTU is a 1625 nm out-of-band C+L medium range 16-port OTDR module for use within the OTU-5000 rack-mounted optical test unit platform. This unit is supplied as pictured with no additional accessories. Please refer to the images for software options and licensed features active on this unit.

Key specifications for this module:
• Wavelength: 1625 nm
• Dynamic Range: 40 dB
• Connector: LC/APC
• Event Dead Zone: 0.8 m
• Attenuation Dead Zone: 3 m
• Range: 260 km
• Pulse Width: 5 ns to 20 µs

Included in the sale:

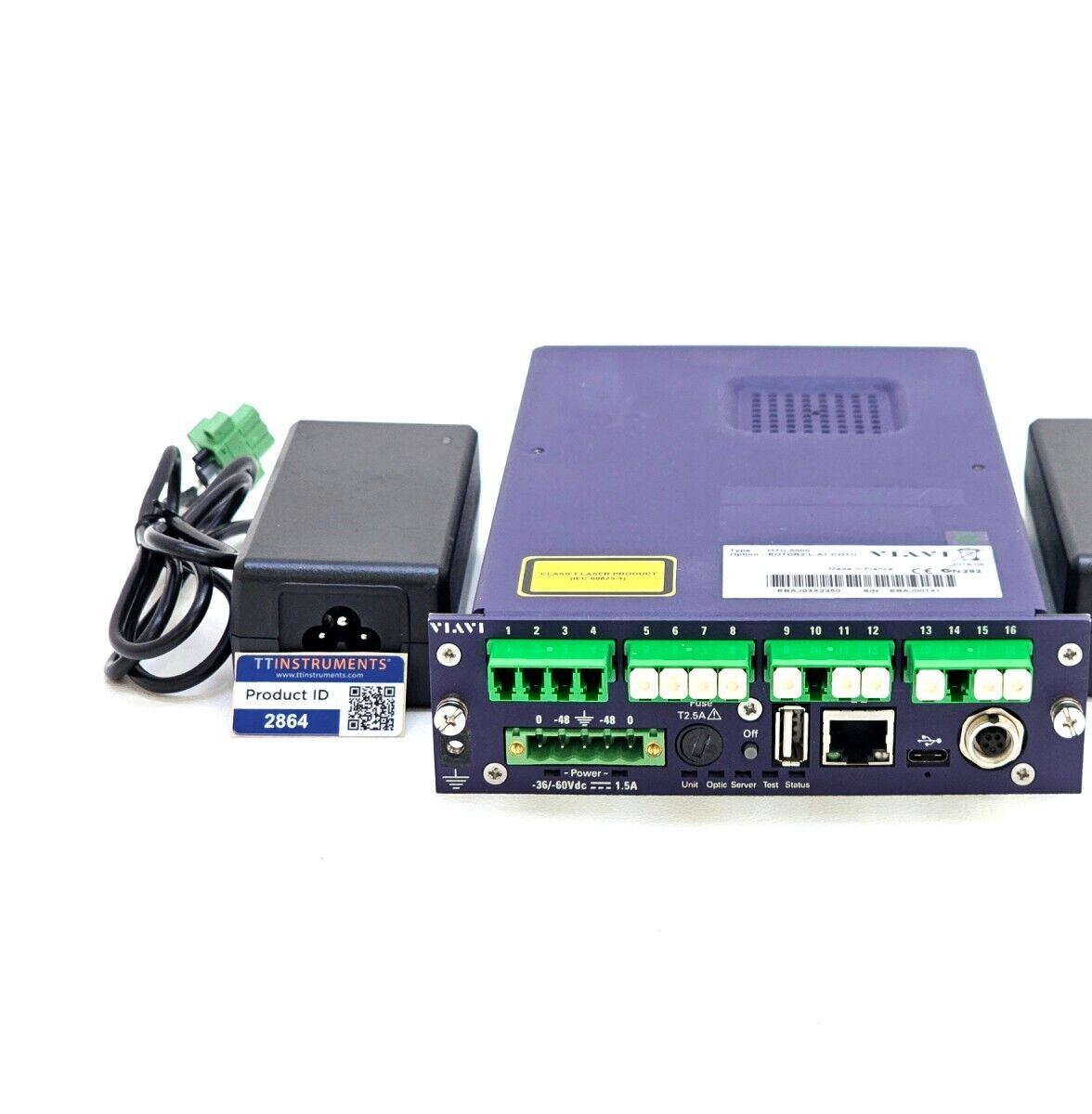

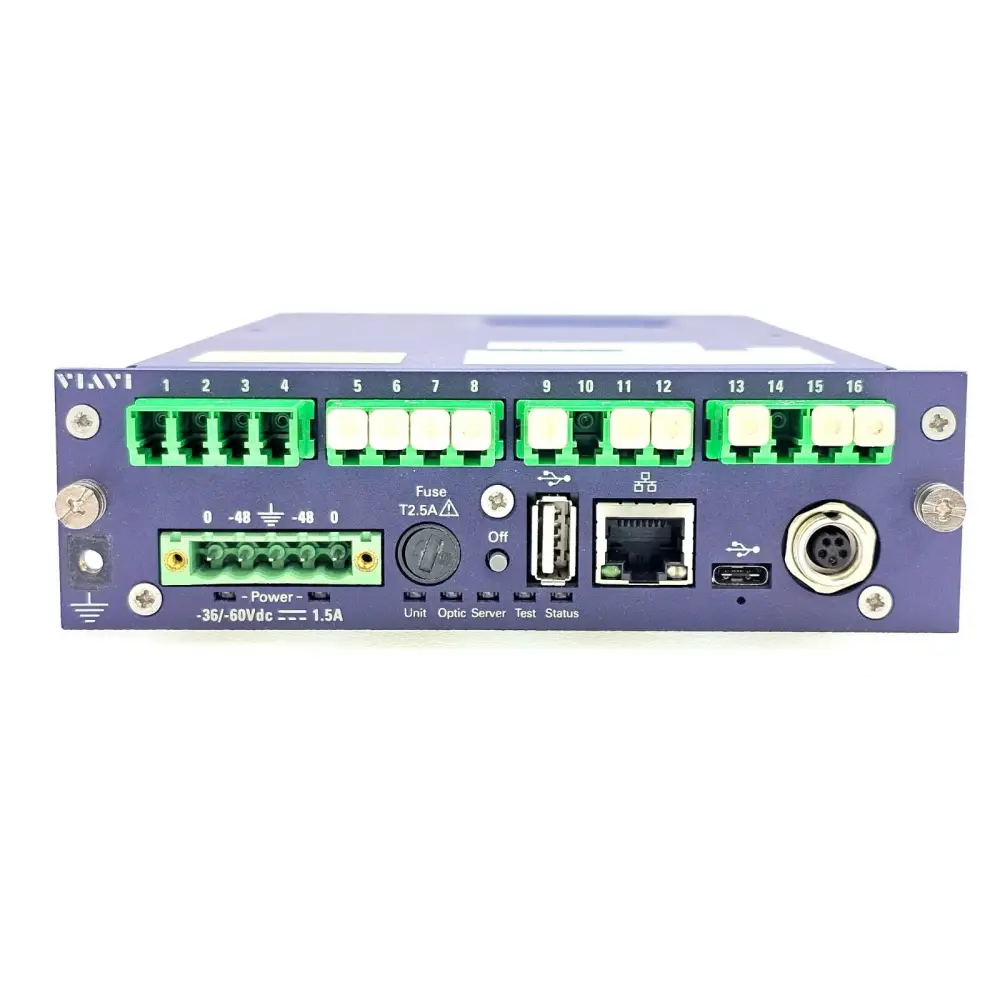

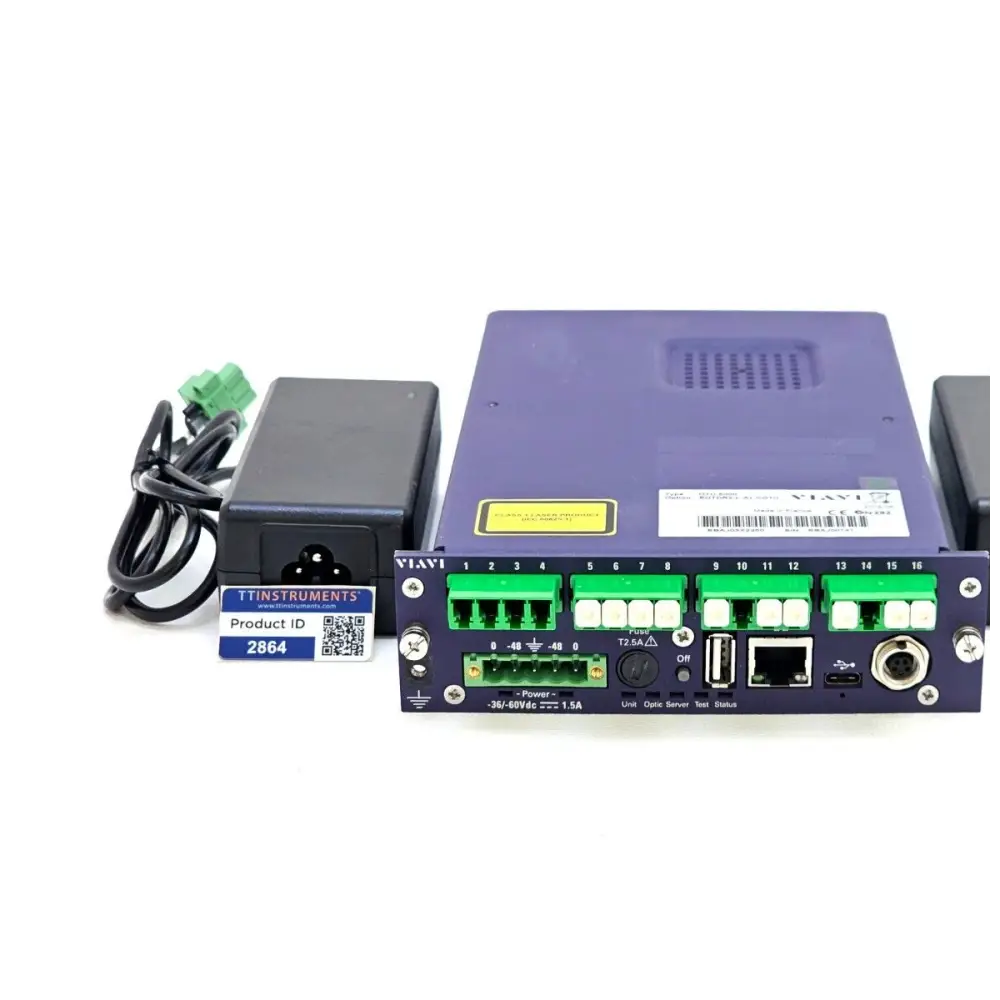

• Viavi OTU 5000 EOTDR2-L-A1-COTU Out-of-Band C+L OTDR Medium Range module with LC/APC connector
• AC Power Adapter
• Other accessories as pictured

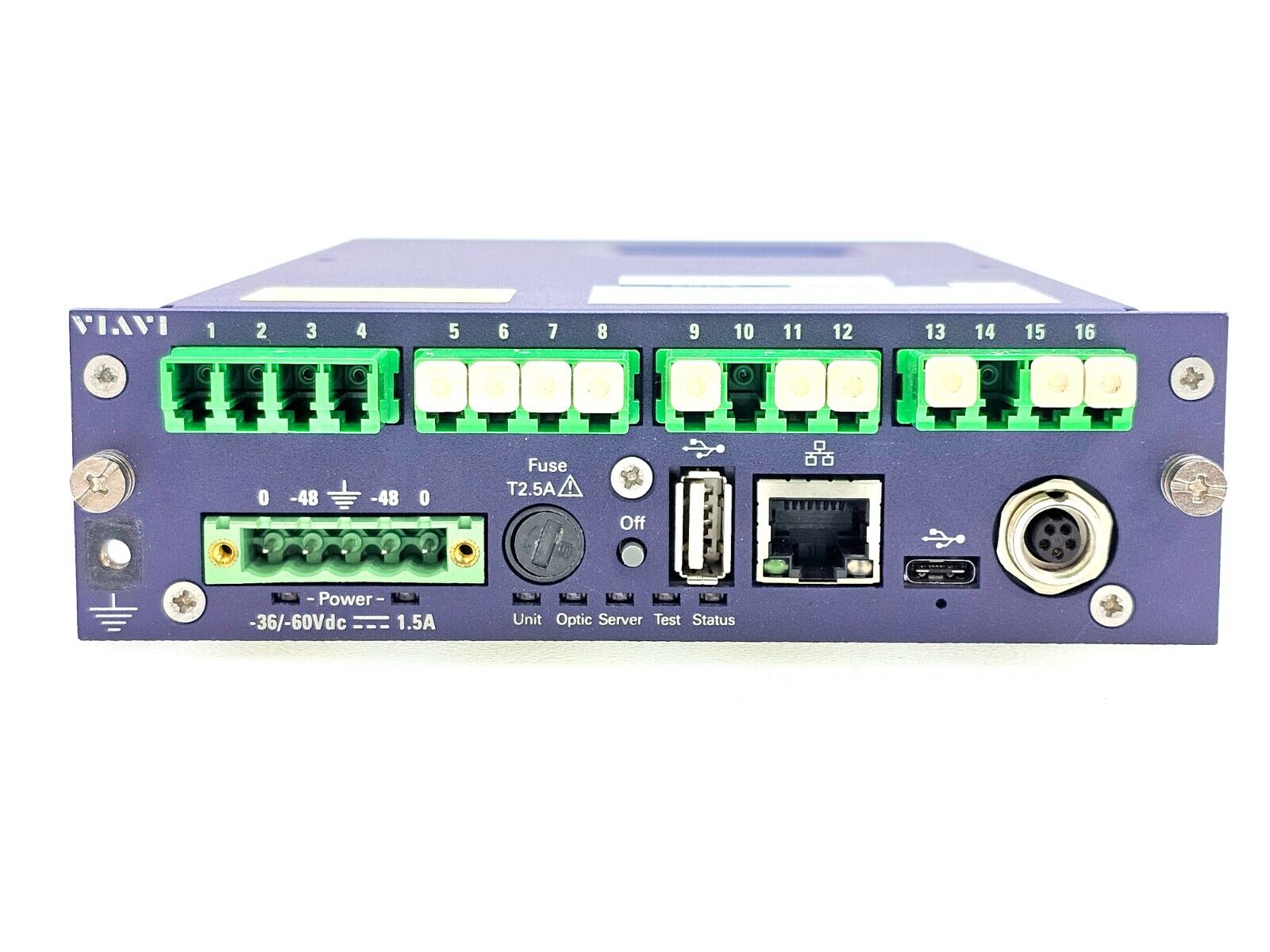

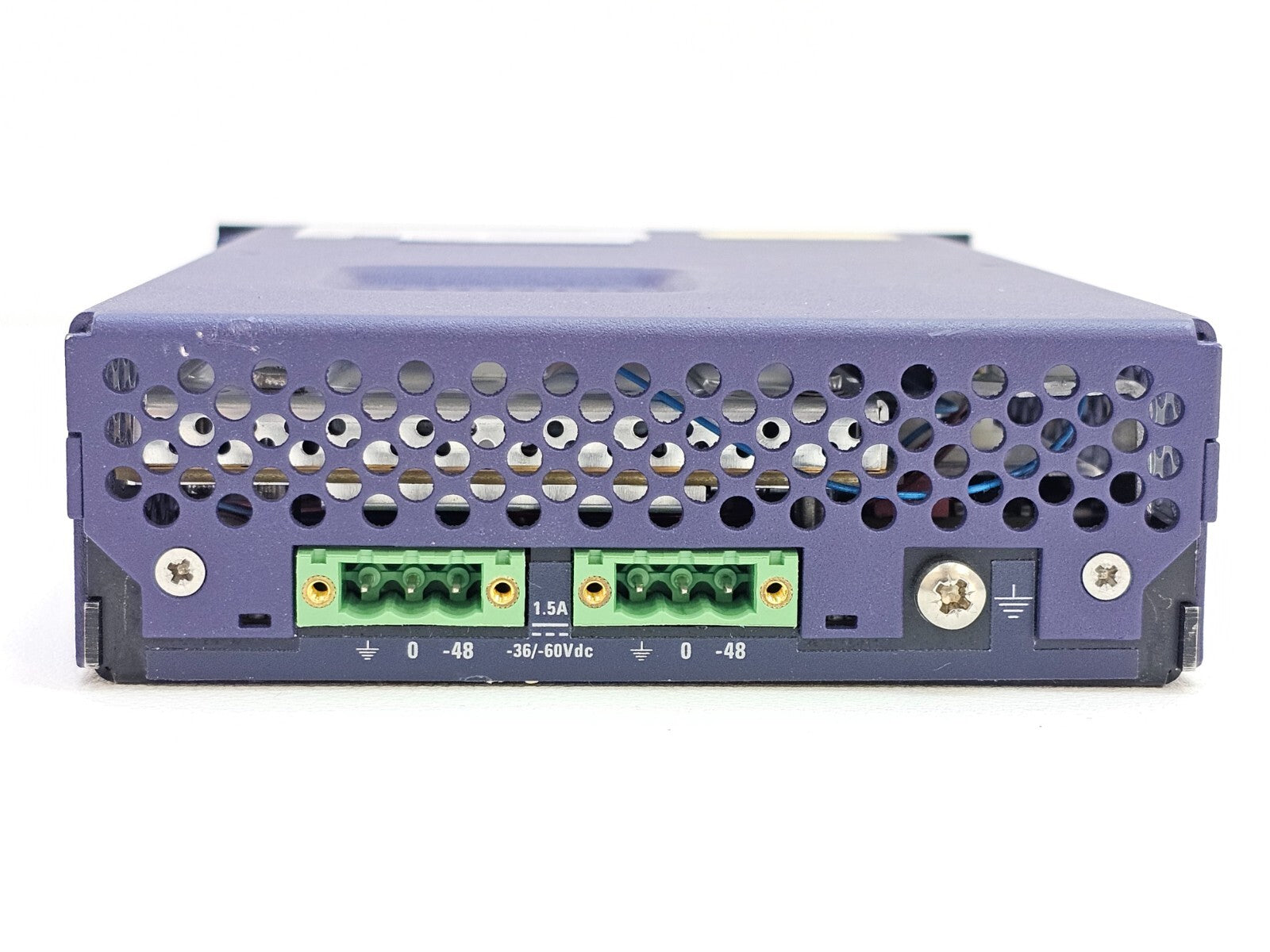

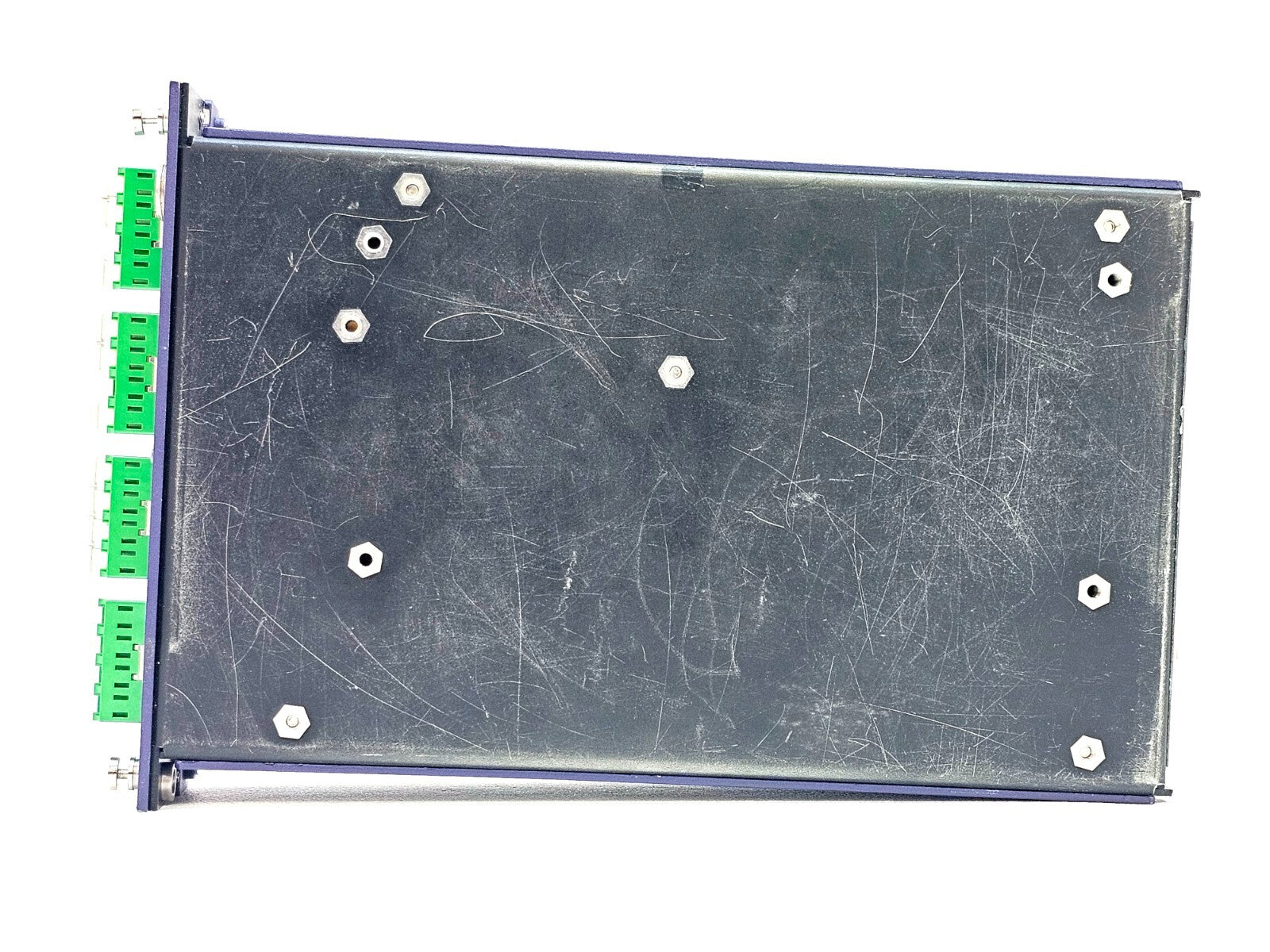

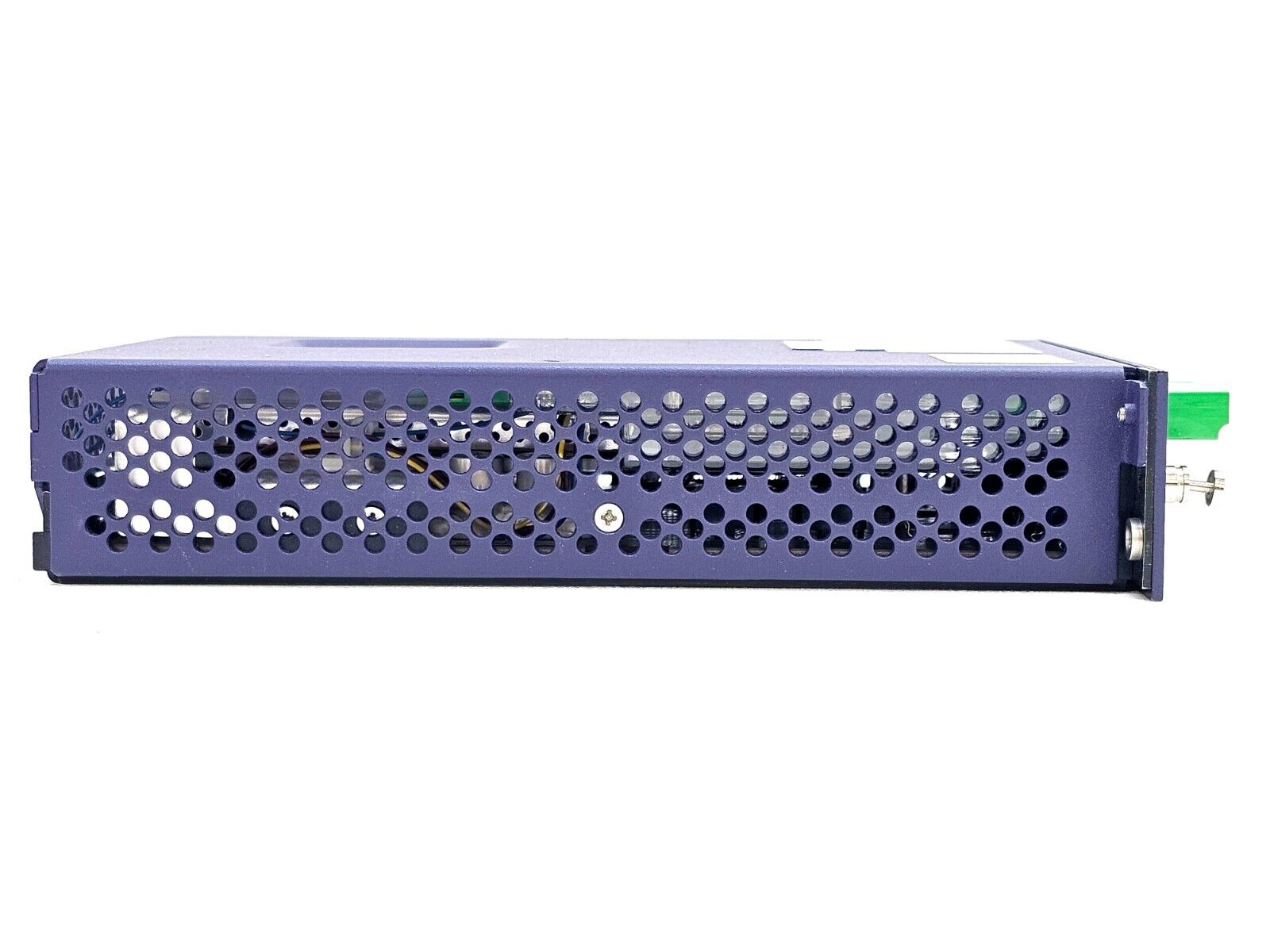

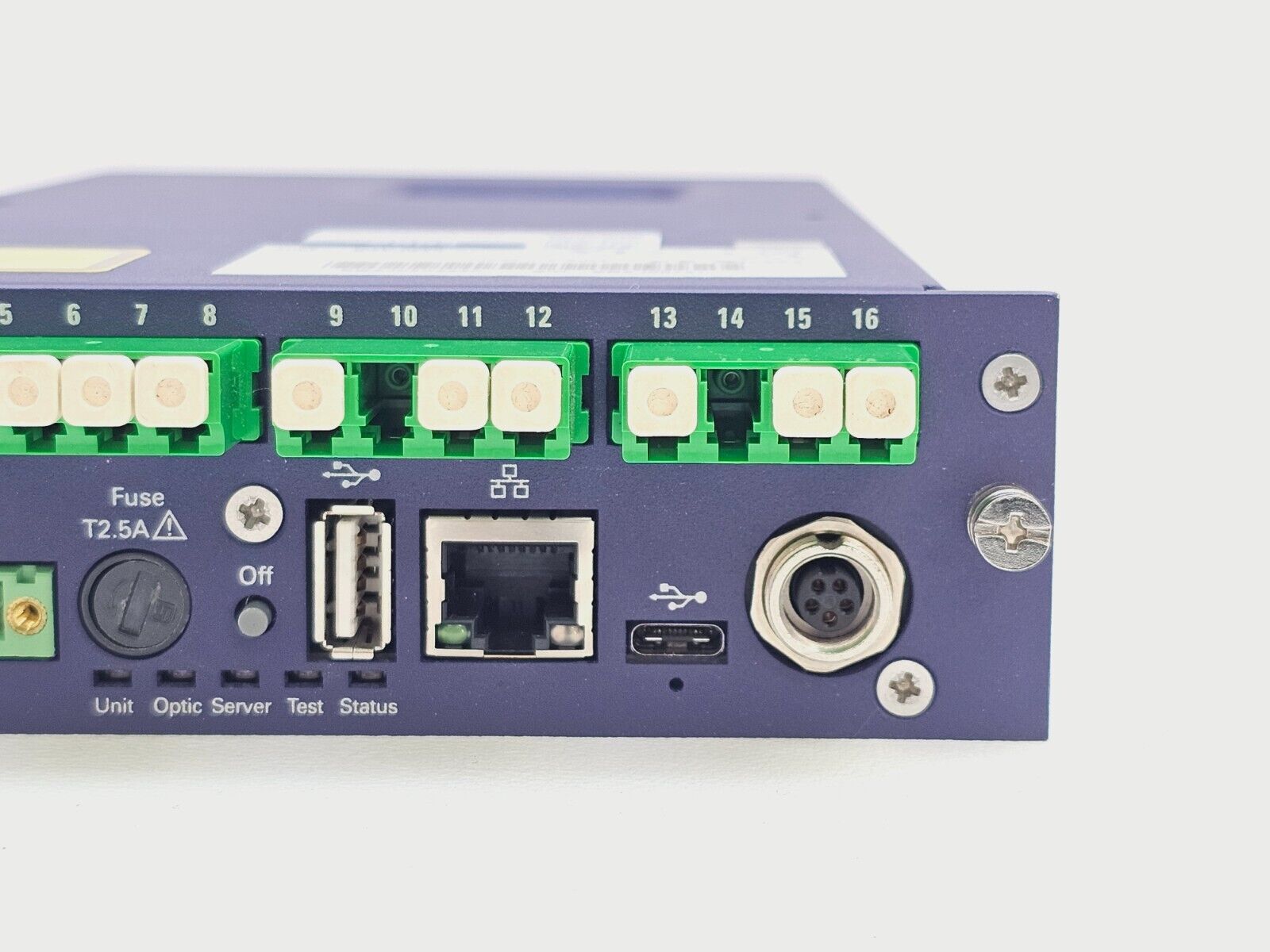

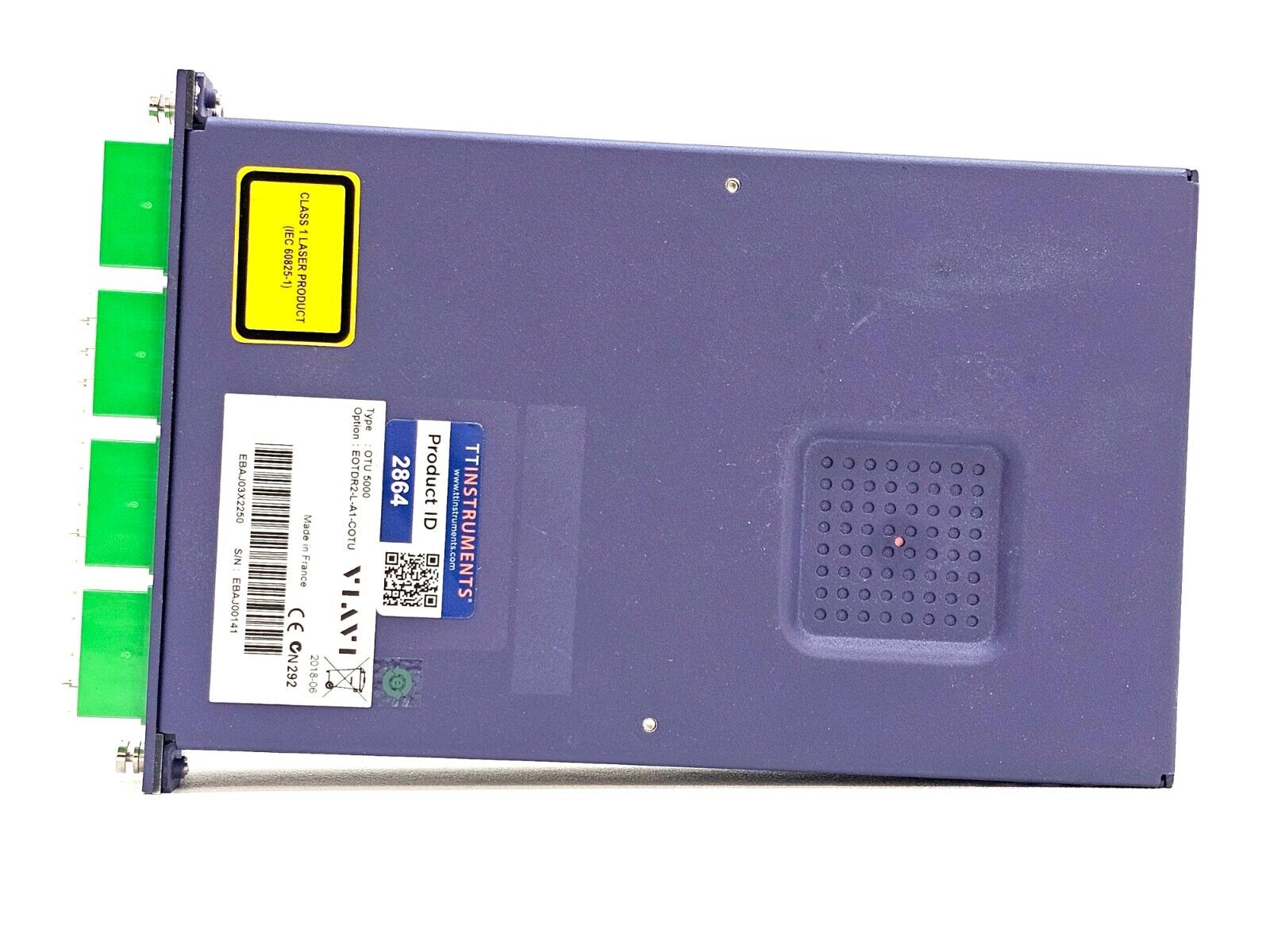

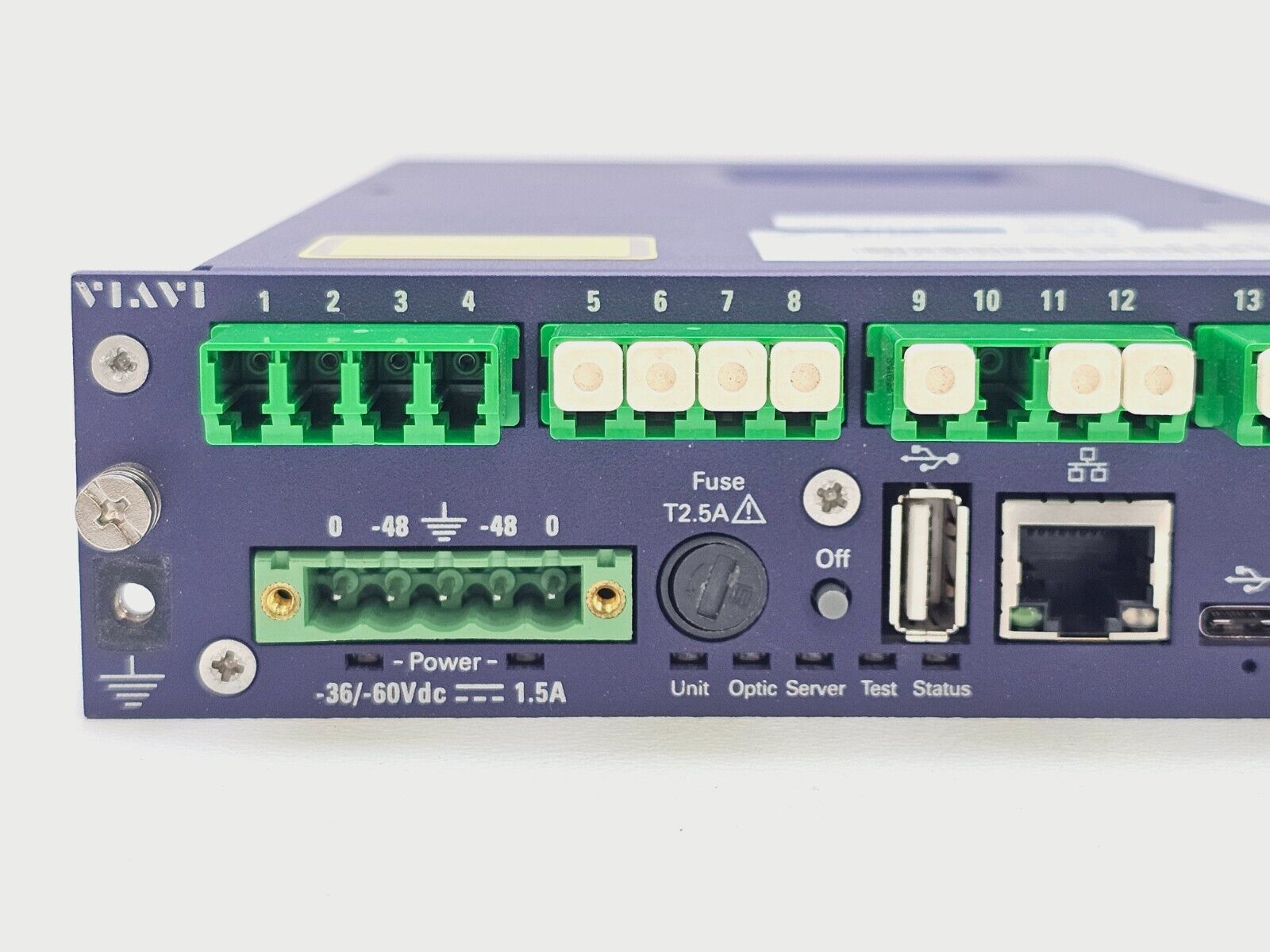

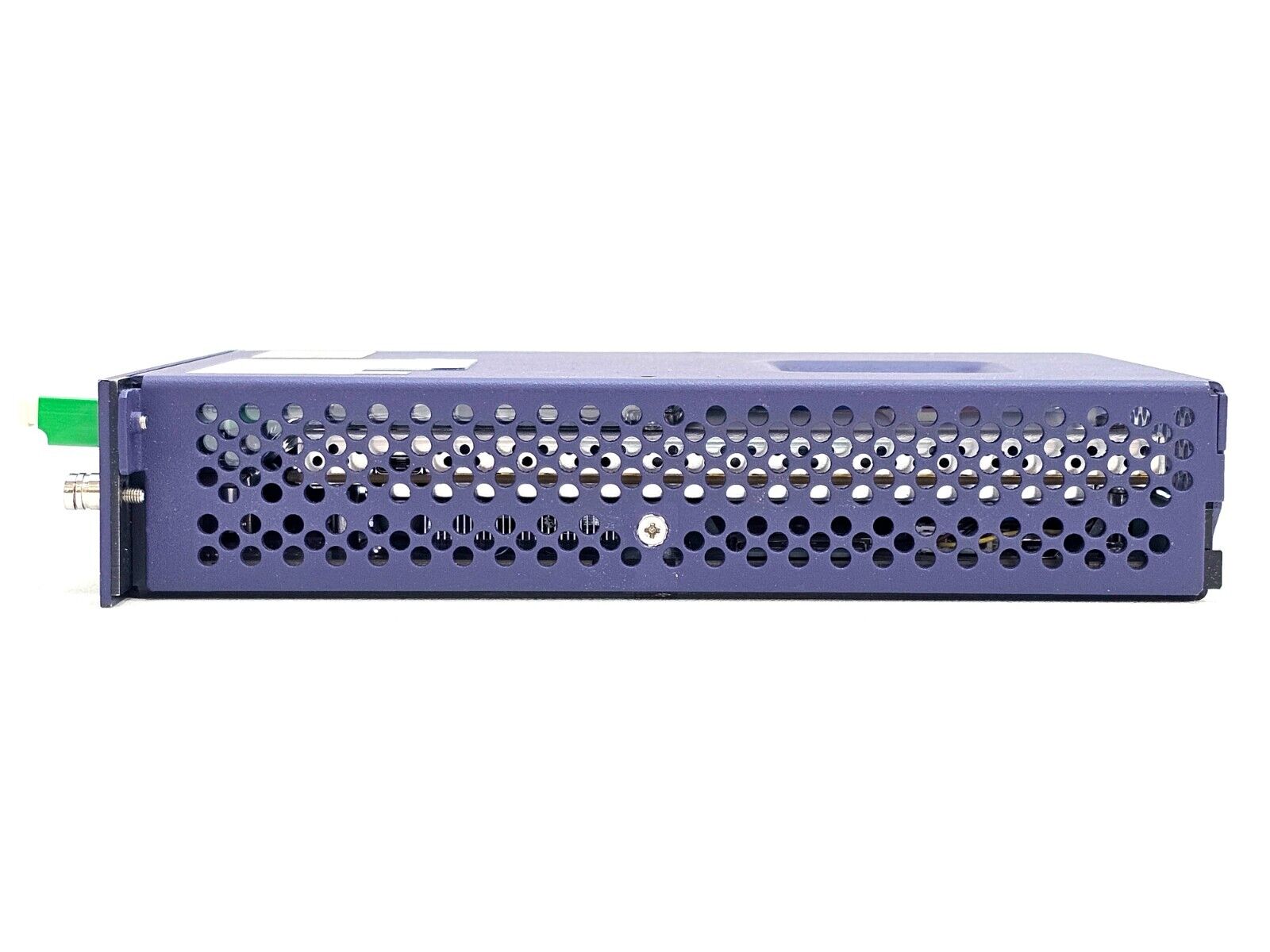

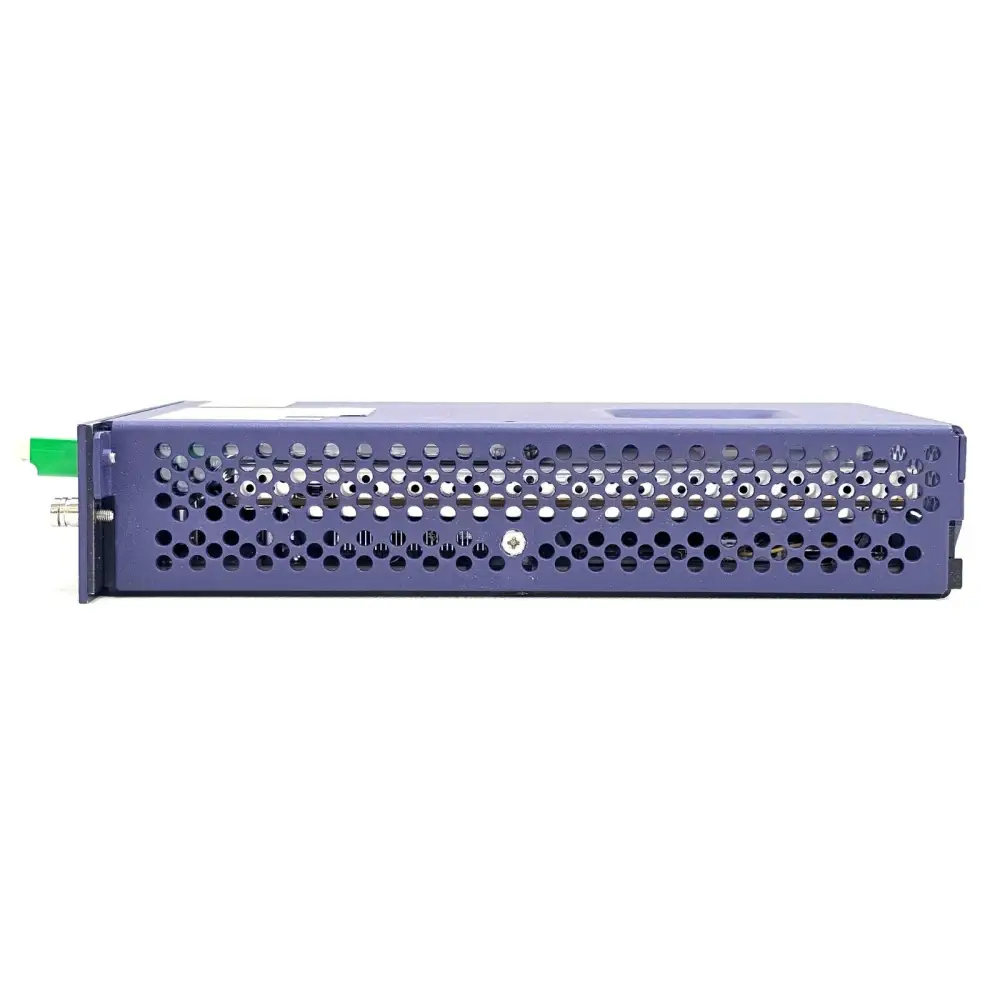

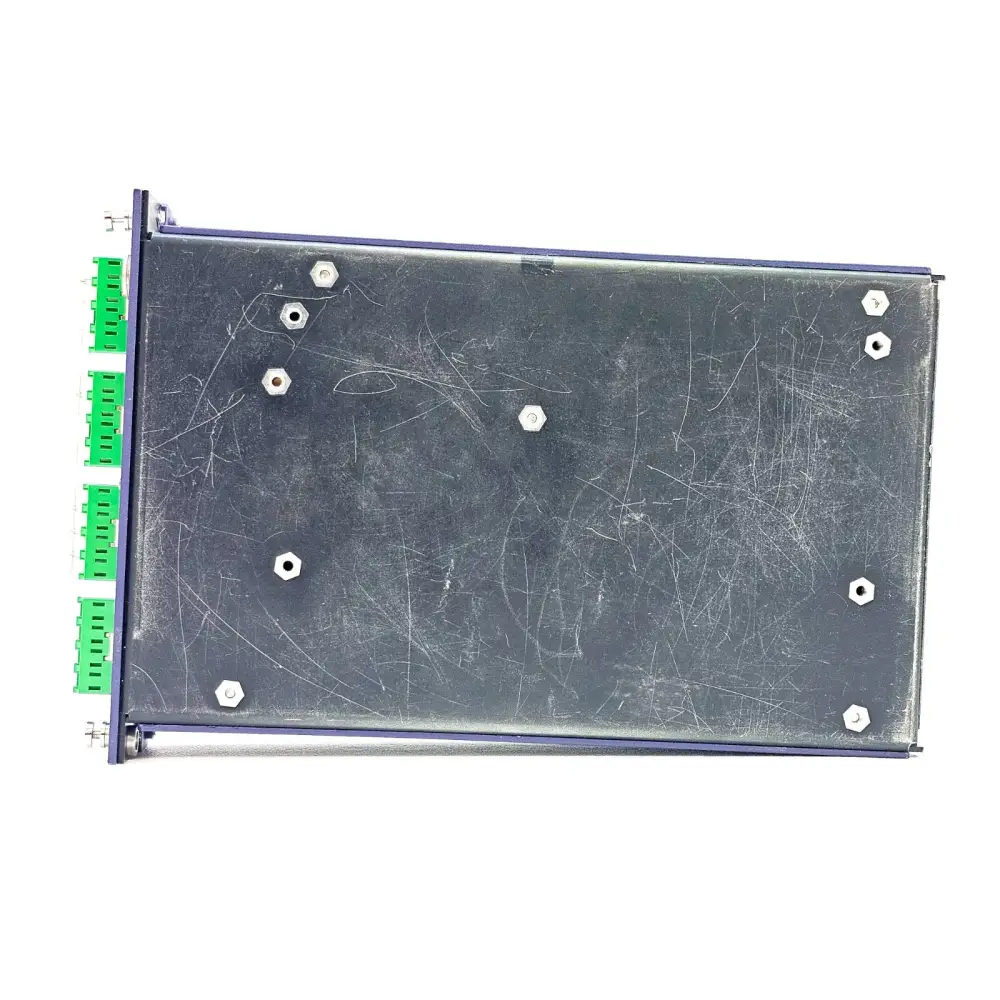

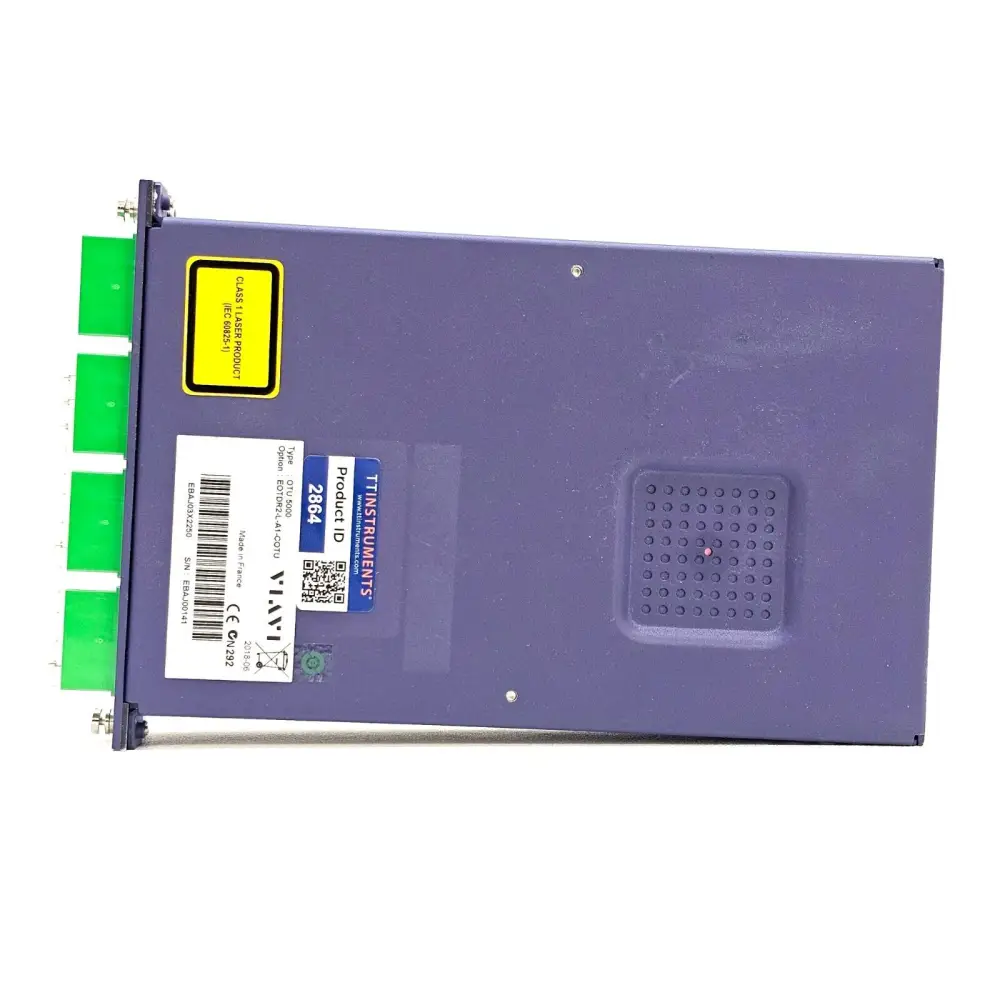

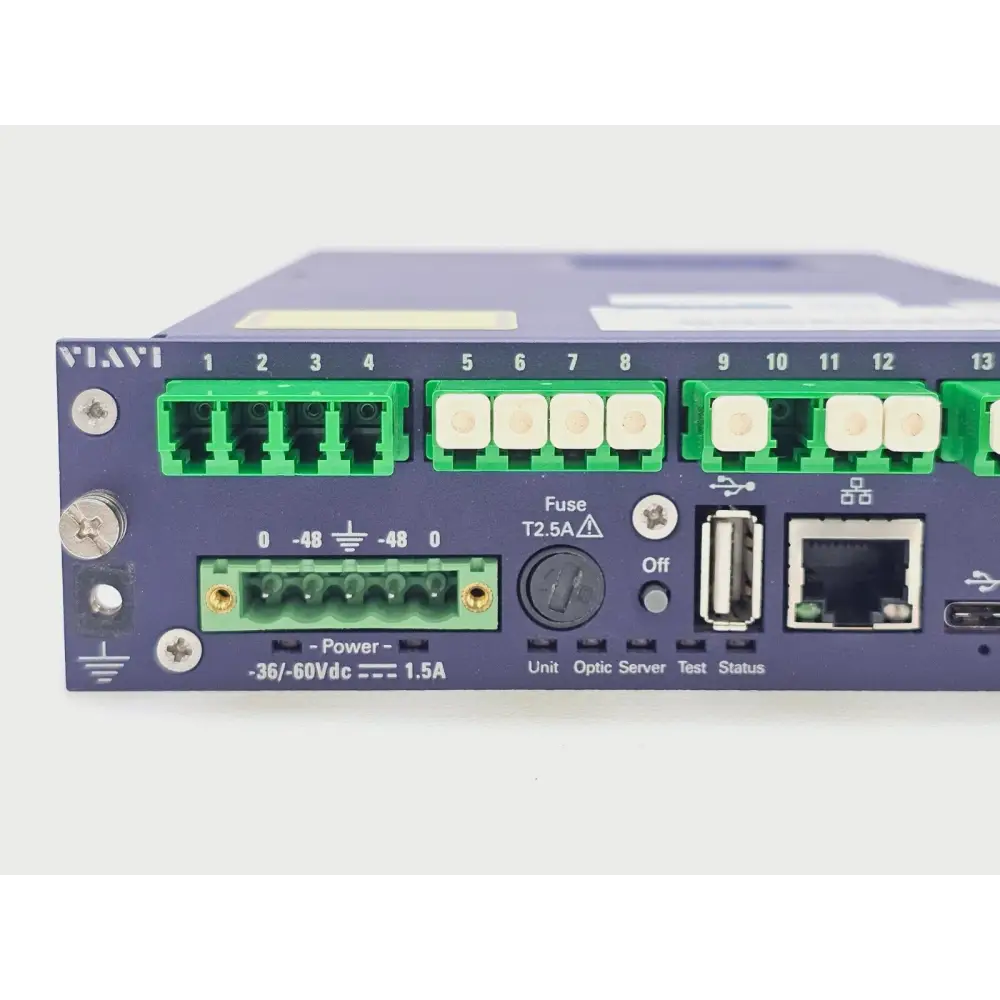

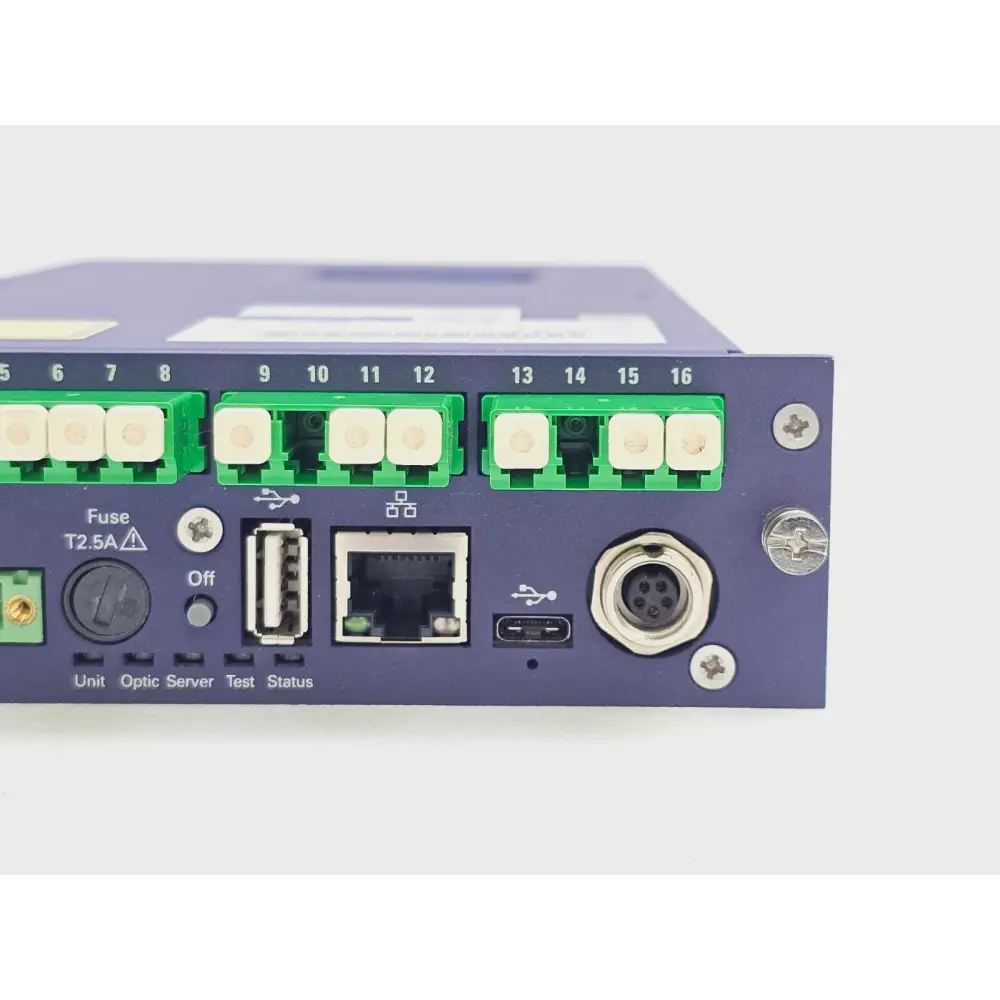

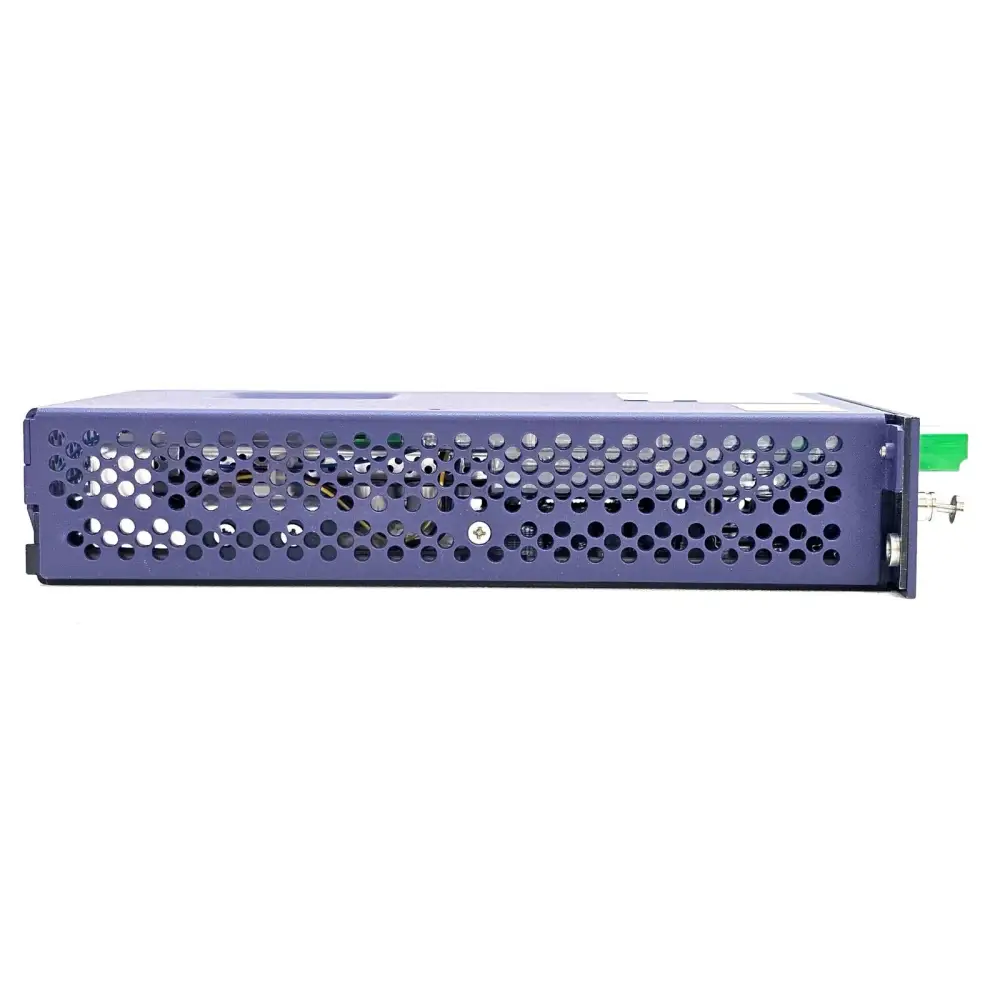

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

The Viavi Solutions (formerly JDSU) OTU-5000 Optical Test Unit is a compact, rack-mounted remote OTDR platform designed for automated optical network monitoring. It combines optical time-domain reflectometry (OTDR) and optical-switch technology to deliver continuous fibre monitoring across multiple spans anywhere in the network.

The EOTDR2-L-A1-COTU module operates at 1625 nm in an out-of-band C+L configuration, allowing OTDR measurements to be performed on fibres carrying live traffic without service disruption. A single OTU-5000 unit monitoring 72 fibres of 100 km and more occupies only 1RU, making it one of the most space-efficient solutions available for network monitoring centres.

Key Specifications (EOTDR2-L-A1-COTU Module):
Wavelength: 1625 nm
Configuration: Out-of-Band C+L
Dynamic Range: 40 dB
Connector: LC/APC
Event Dead Zone: 0.8 m
Attenuation Dead Zone: 3 m
Maximum Range: 260 km
Pulse Width: 5 ns to 20 µs
Port Count: 16 ports
Form Factor: 1/3 RU (expandable to 72 fibres per 1RU chassis)
Switch Scalability: Up to 1080 ports

Platform Features:
• Web-browser remote access
• E-mail fault notifications
• Solid-state disk storage
• Low power consumption

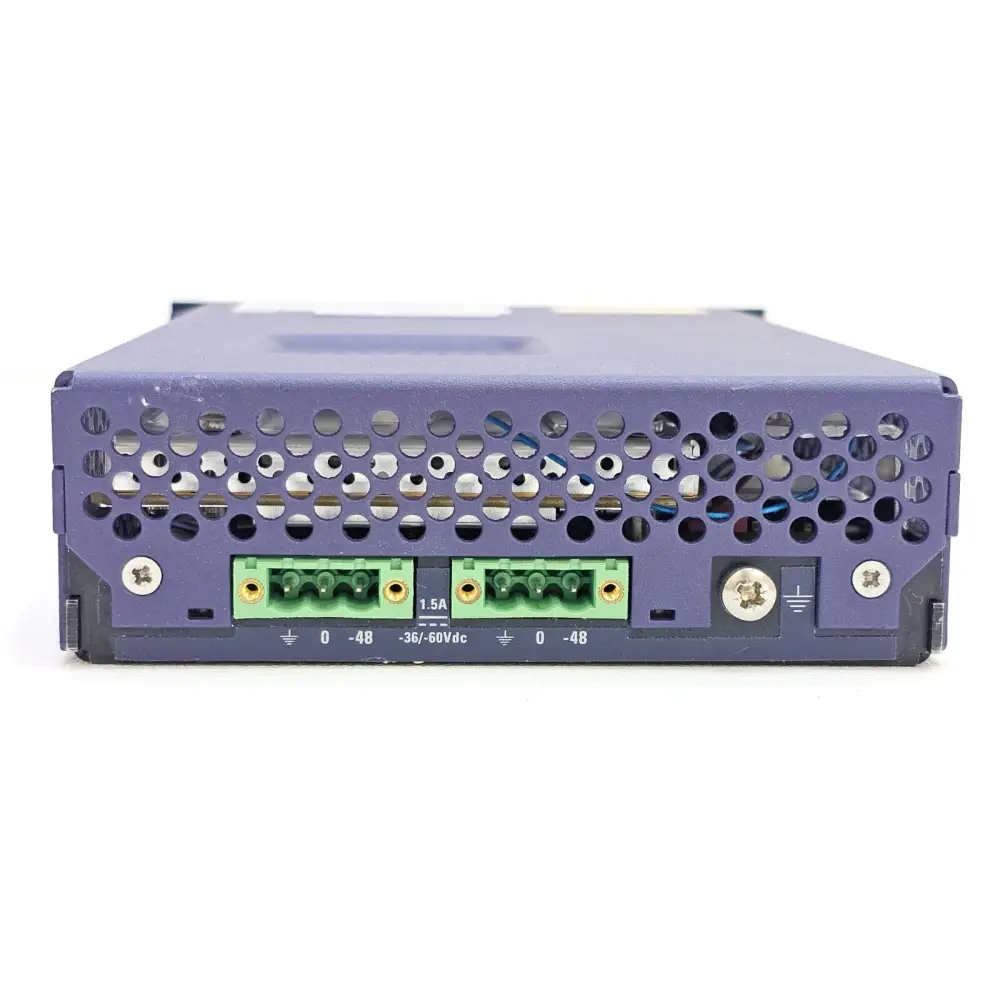

• Dual power feeds
• LAN-based firmware updates
• Compatible with Viavi ONMSi and SmartOTU software

The OTU-5000 proactively detects fibre degradation before it affects service, provides geographical fault coordinates to speed up repair dispatch, and helps reduce mean time to repair (MTTR) by locating fibre faults in minutes. It is suited to network construction, service activation, in-service monitoring, and long-term fibre performance management.
