Condition: Used — tested and working; will require calibration.

The Viavi JDSU OSA-110M (part number 2304/91.02) is a compact full-band optical spectrum analyzer module with a measurement range of 1250 nm to 1650 nm. Compatible with the T-BERD/MTS-6000A and T-BERD/MTS-8000 platforms (sold separately), it features built-in wavelength calibration guaranteeing ±0.05 nm accuracy, one-touch test with automatic pass/fail analysis, and an optical port configured as Universal SM-PC (PC-FC connector). Suitable for all CWDM to DWDM applications down to 33 GHz channel spacing with future-proof support for 40/100G testing and new modulation formats.

Included in the sale:

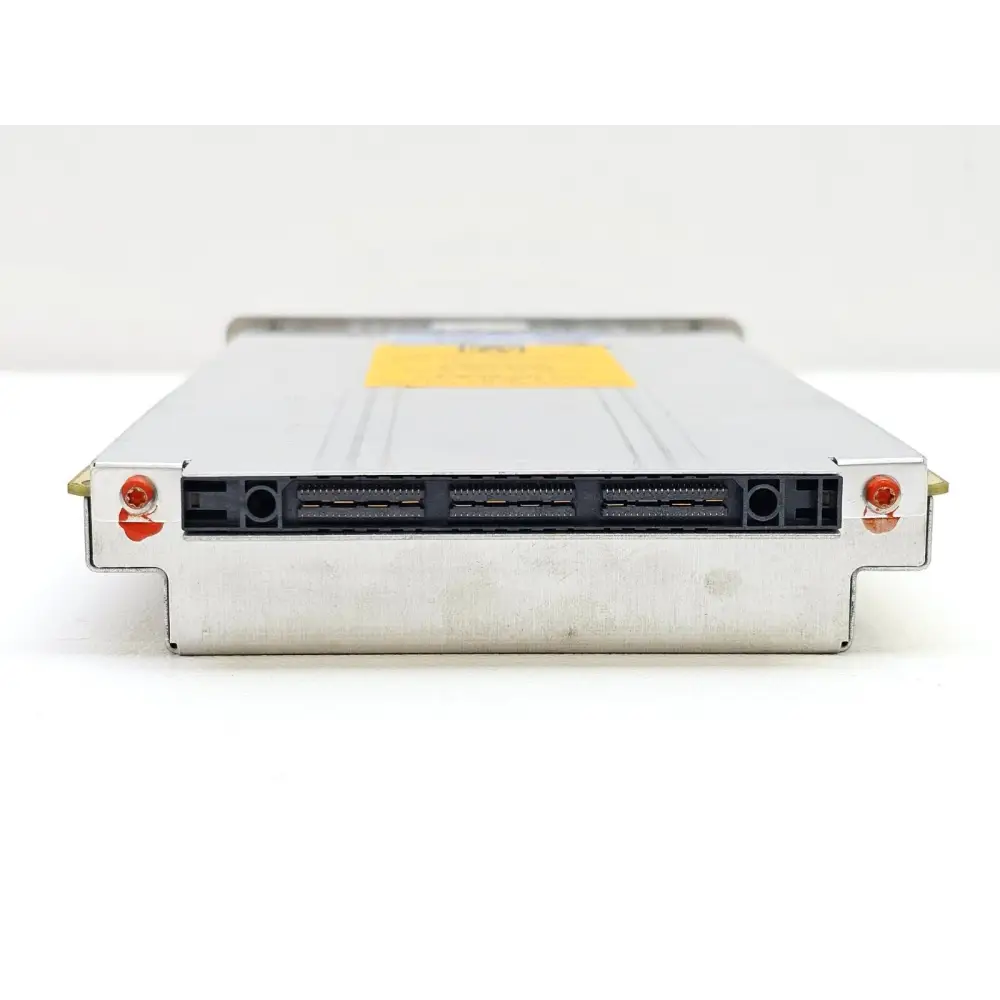

• OSA-110M PC Compact Full-Band (2304/91.02) Optical Spectrum Analyzer Module

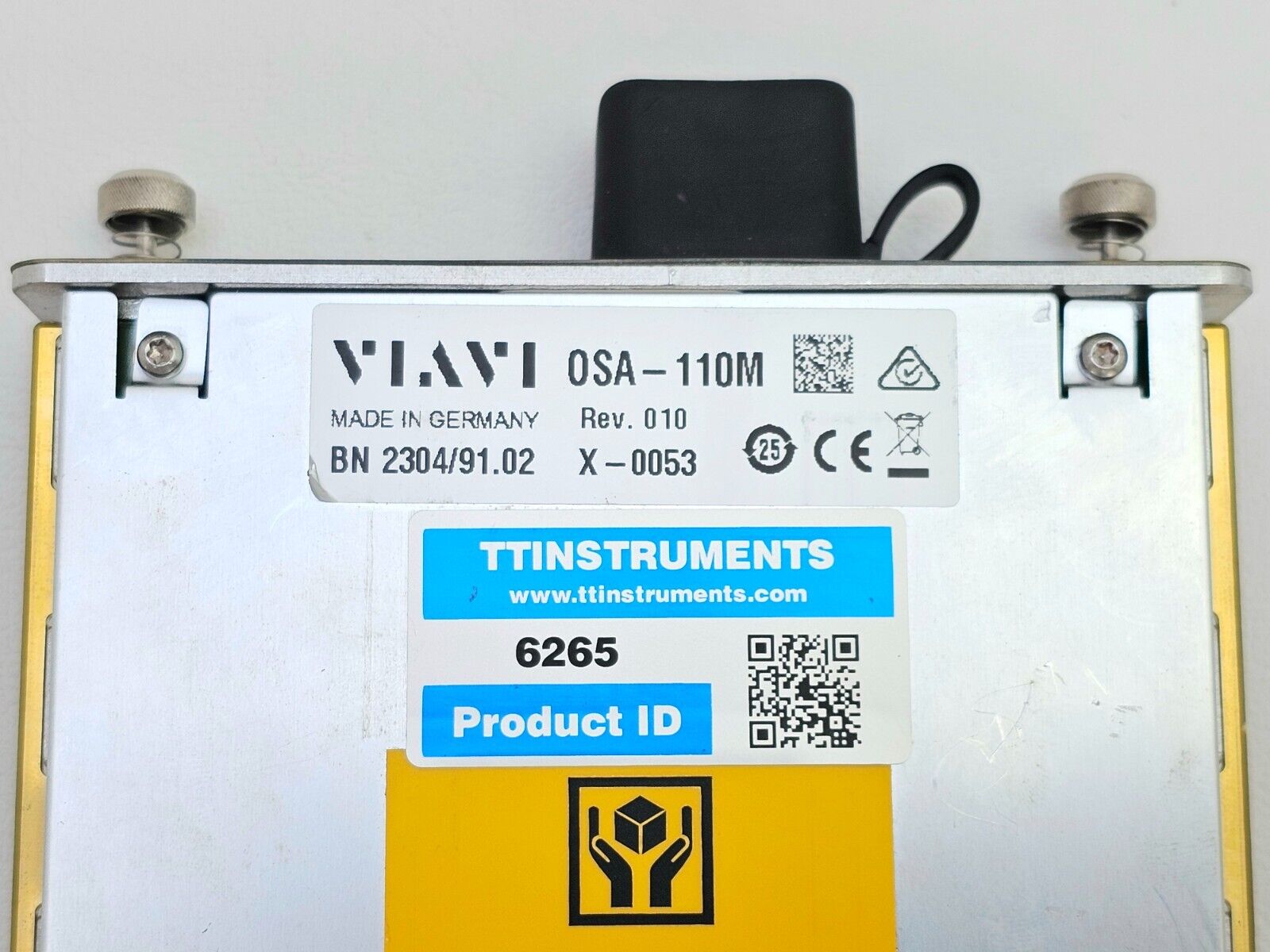

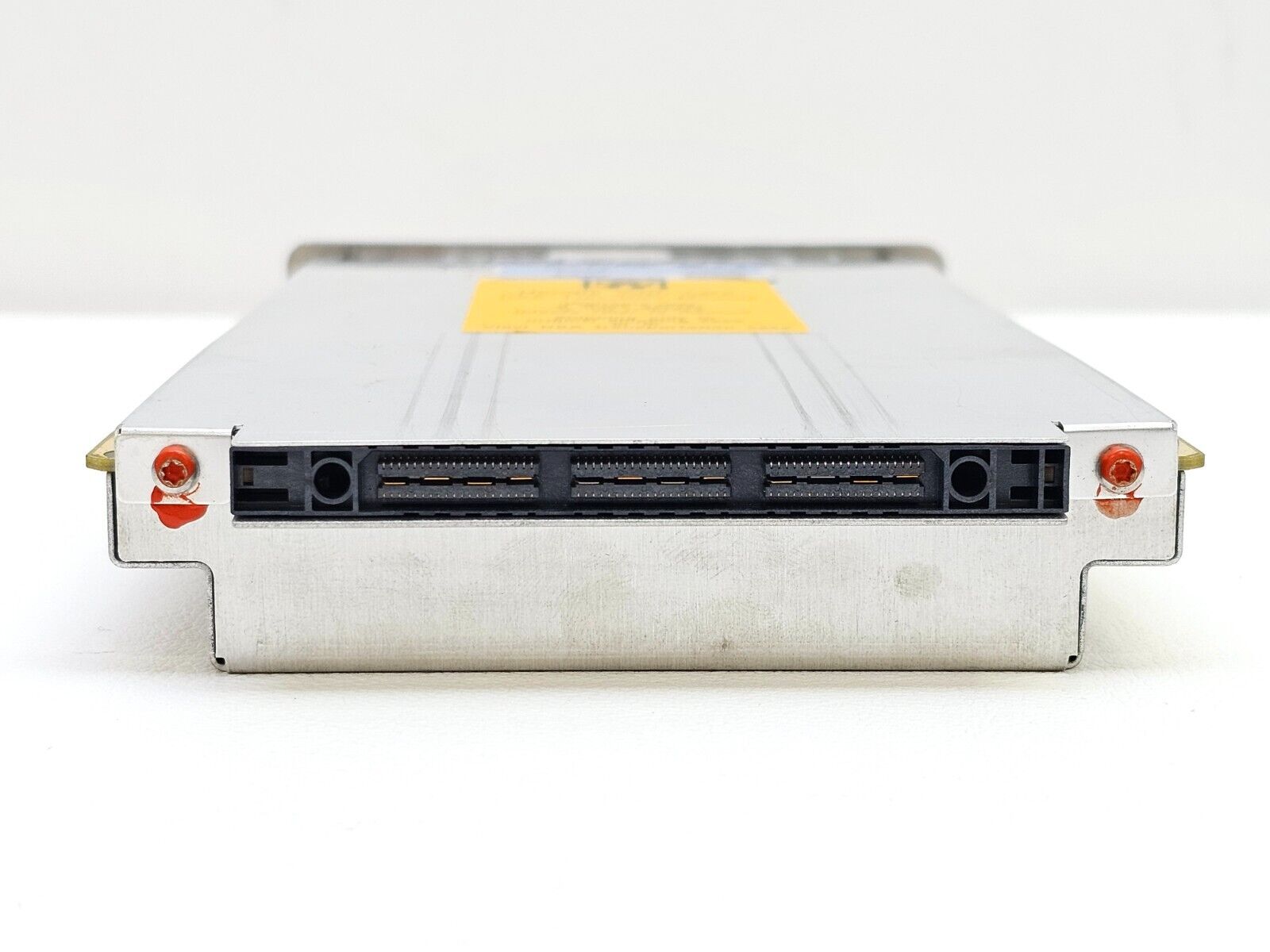

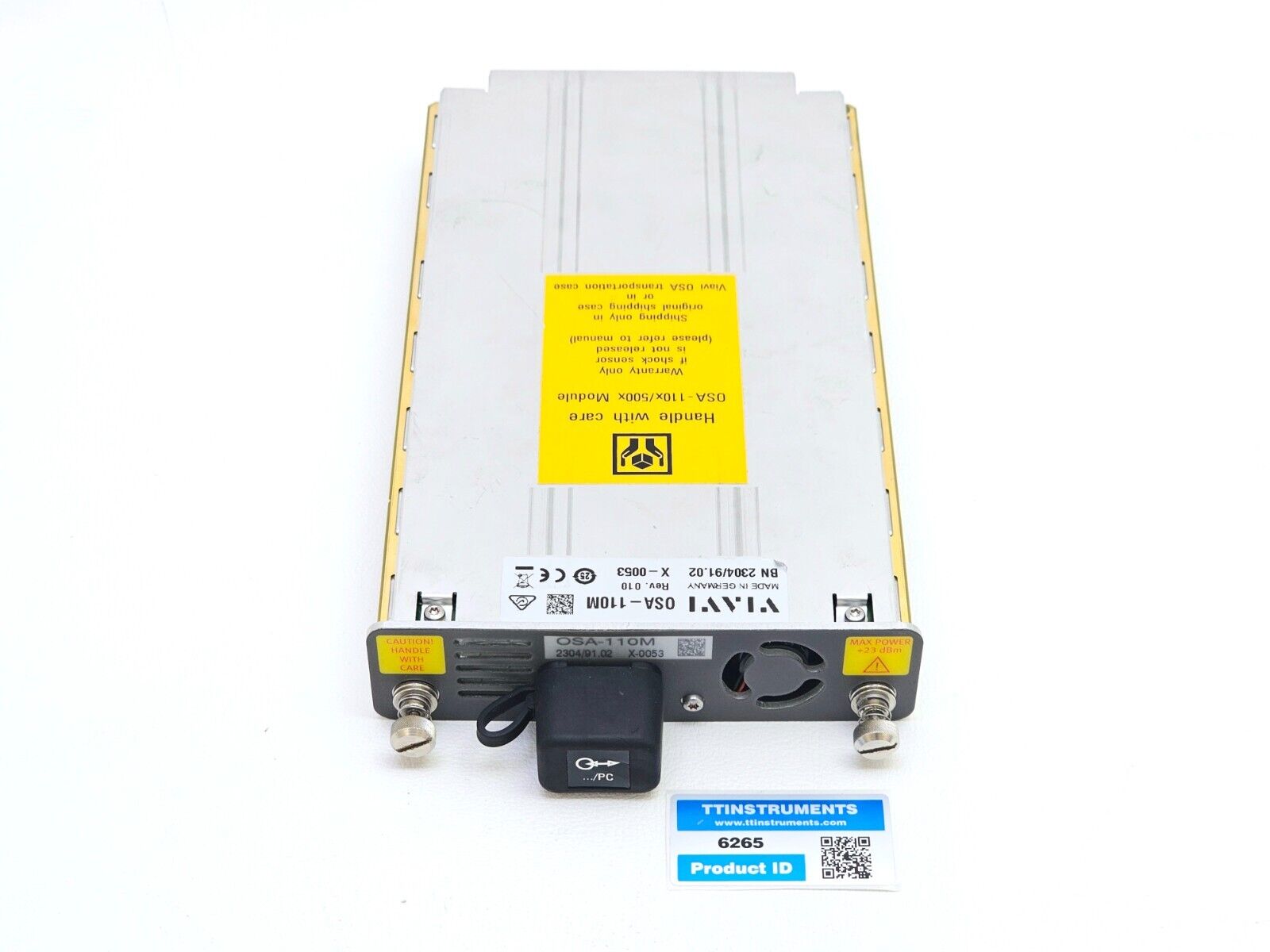

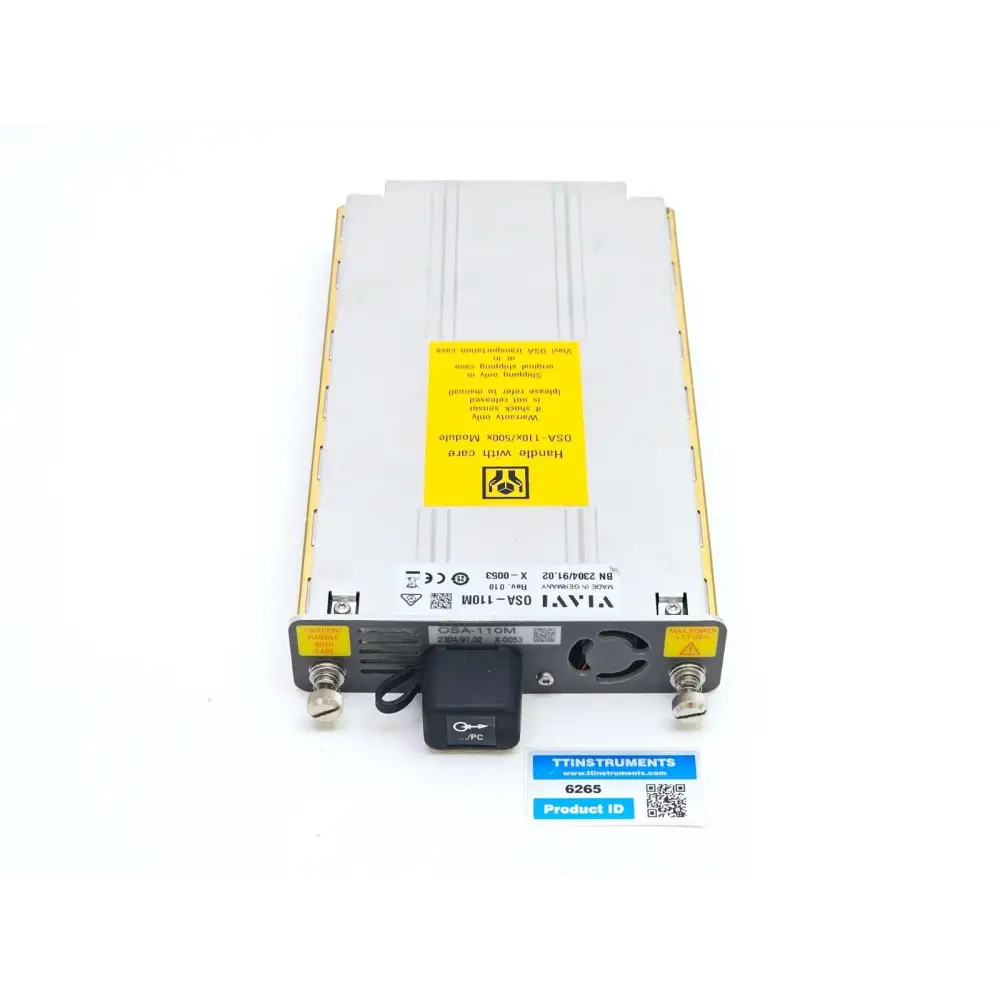

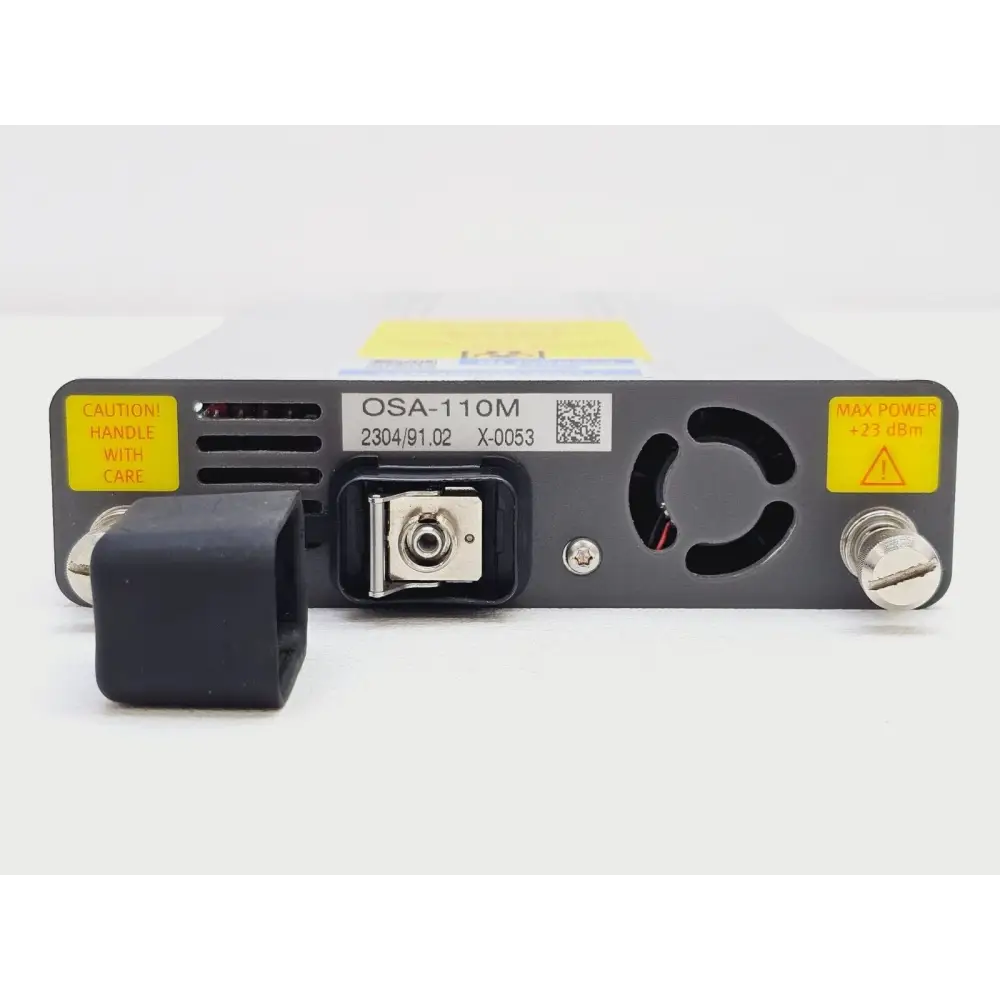

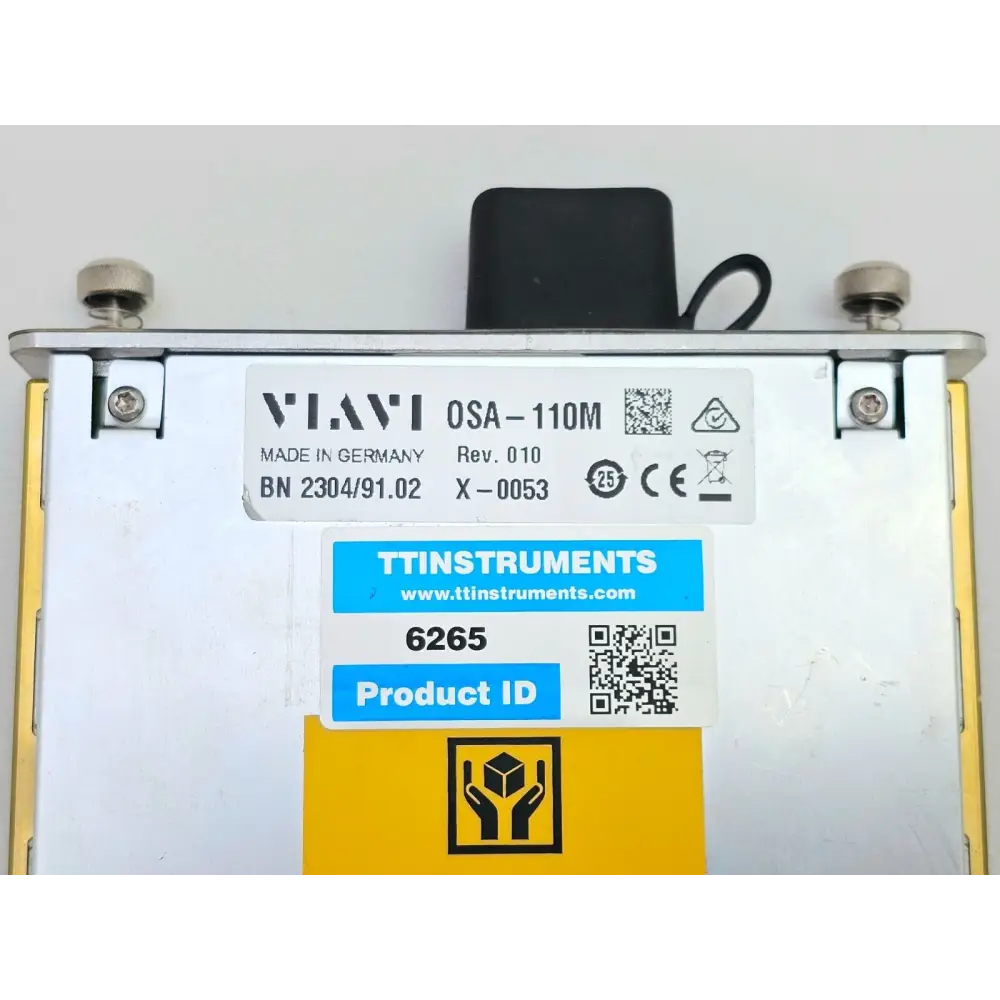

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

The Viavi (formerly JDSU) OSA-110M Compact Full-Band Optical Spectrum Analyzer Module (part number 2304/91.02) offers unmatched size, weight, and performance, making it ideal for field deployment. Housed inside the T-BERD/MTS-6000A series platform, it represents the smallest full-band OSA solution available for that platform. The module is suitable for all CWDM and DWDM networks down to 33 GHz channel spacing, and the combination of high optical resolution with full-band measurement capability makes it ideal for testing power, wavelength, and drift during provisioning, maintenance, and upgrades of WDM systems. The OSA-110M is future-proofed for 40/100G signal analysis and new modulation formats.

Key Specifications:
Measurement Range: 1250 nm to 1650 nm
Wavelength Accuracy: ±0.05 nm (built-in calibration)
Channel Spacing: Down to 33 GHz

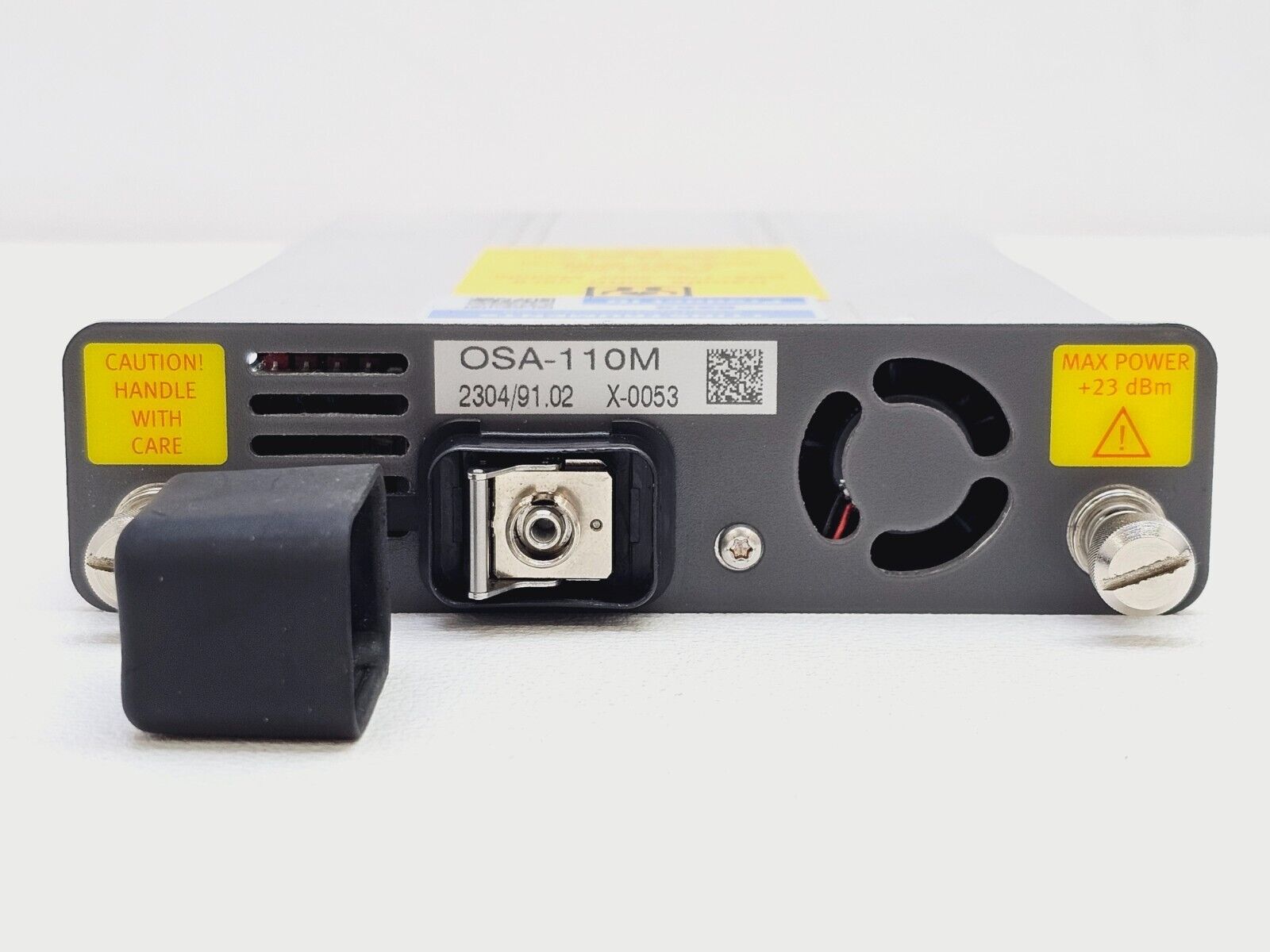

Optical Port: Universal SM-PC
Compatible Platforms: T-BERD/MTS-6000A, T-BERD/MTS-8000
Applications: CWDM, DWDM, 40/100G signal analysis
Test Mode: One-touch with automatic pass/fail analysis
Form Factor: Compact plug-in module

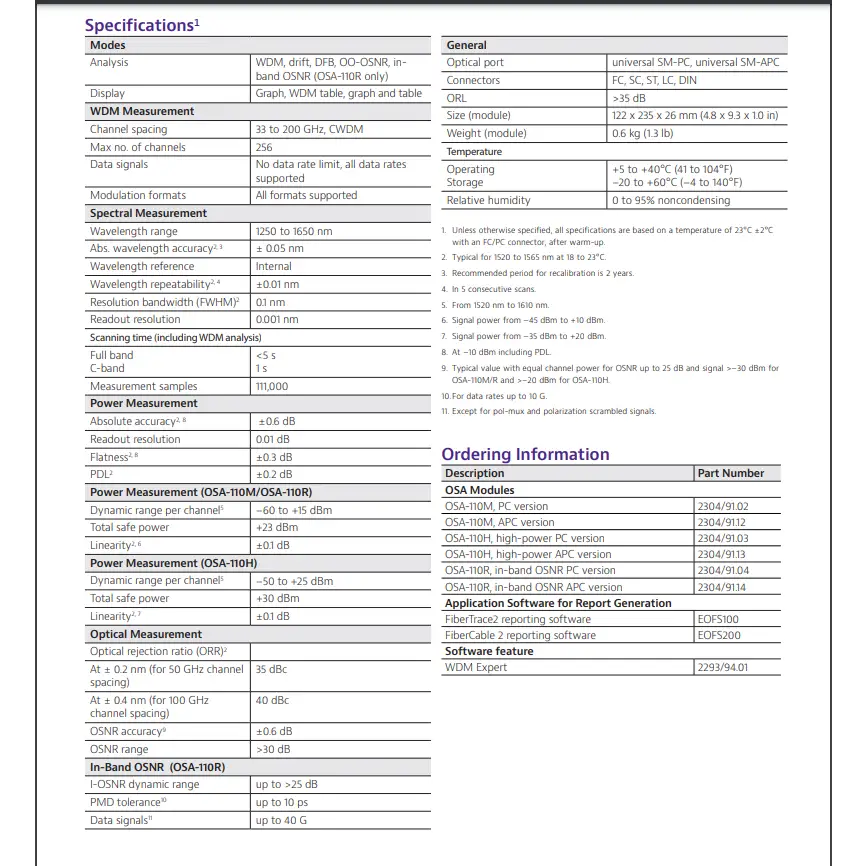

Viavi OSA-110M Compact Full-Band Optical Spectrum Analyzer Module datasheet (PDF): Download PDF
