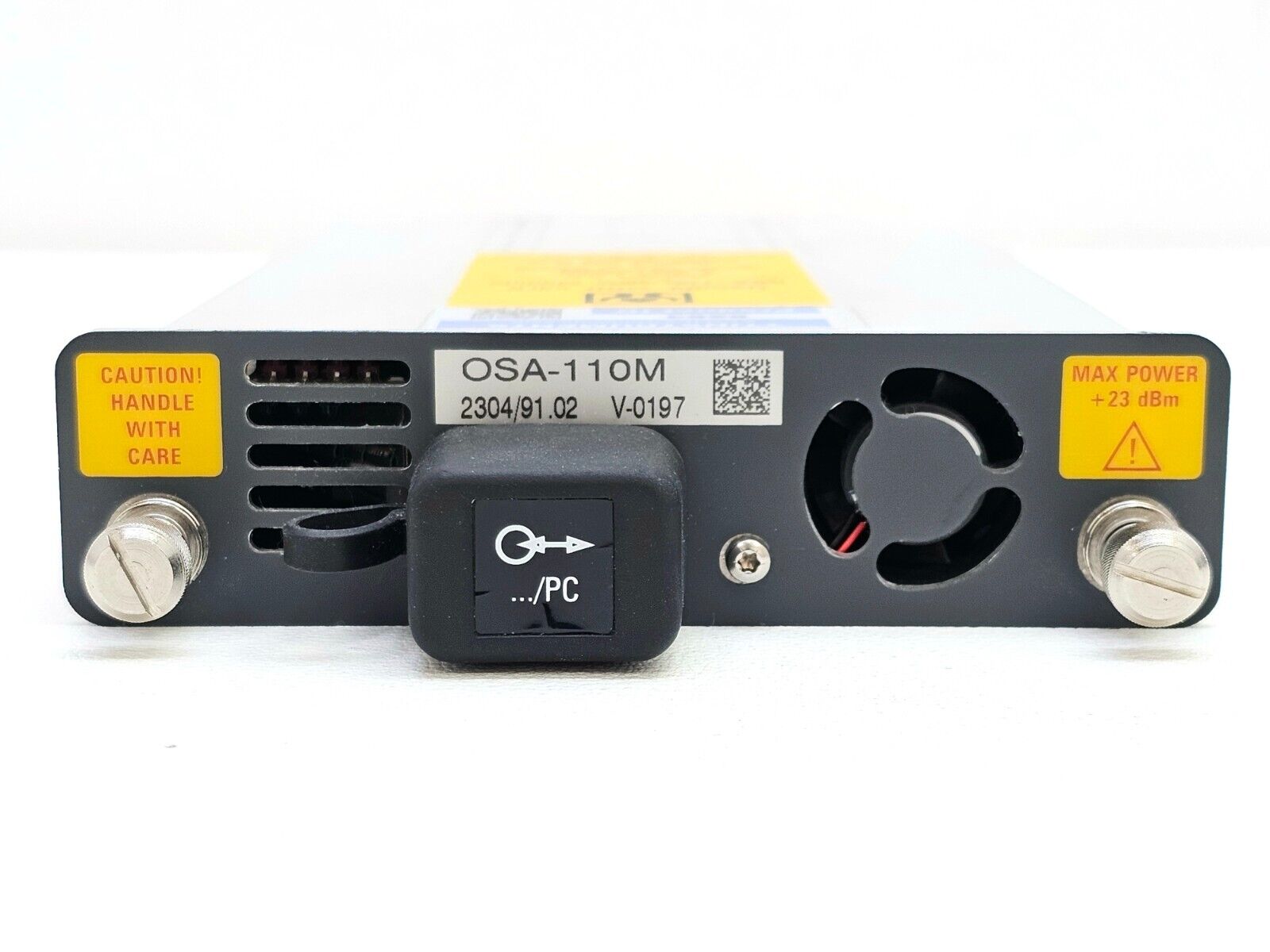

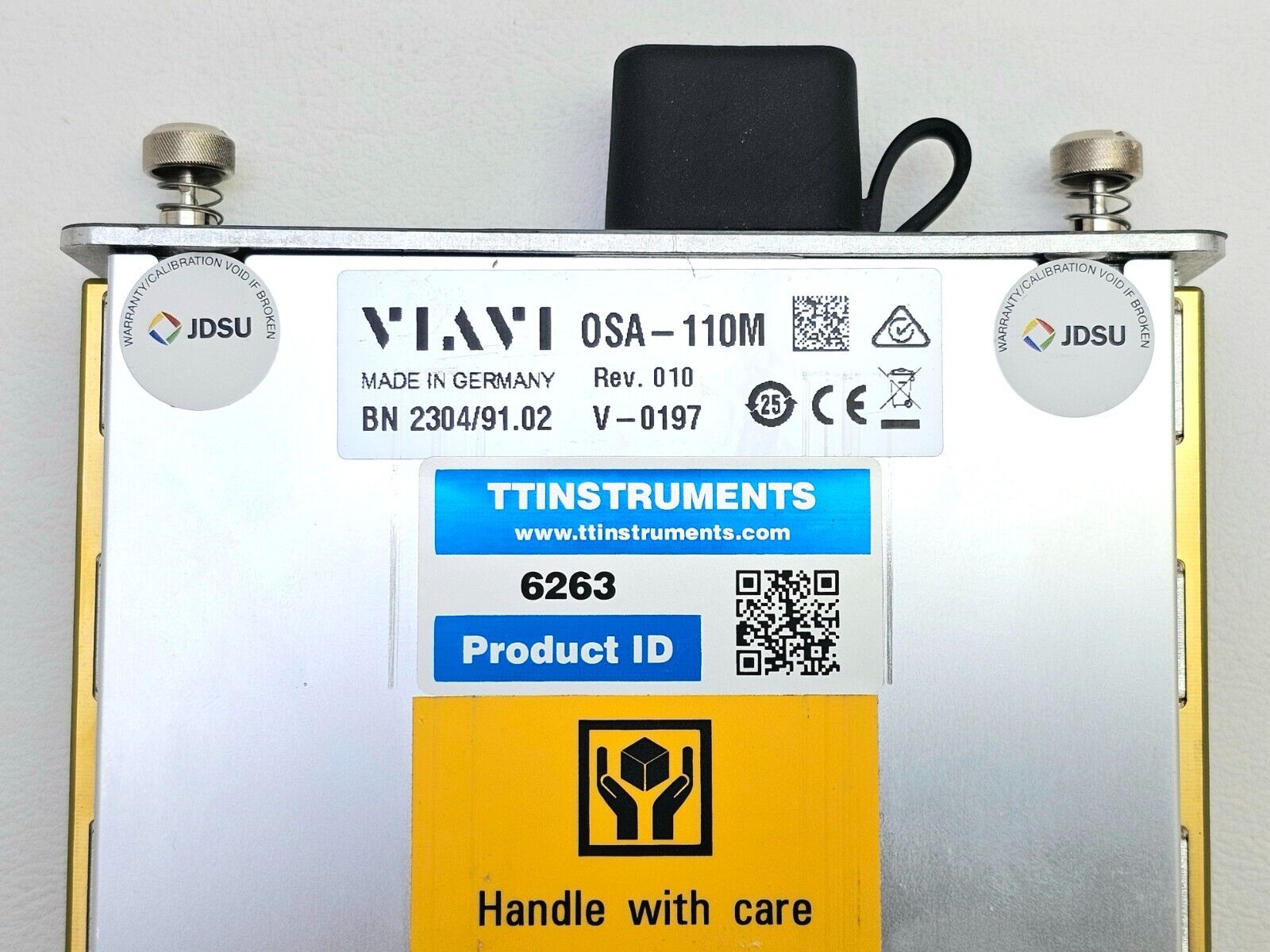

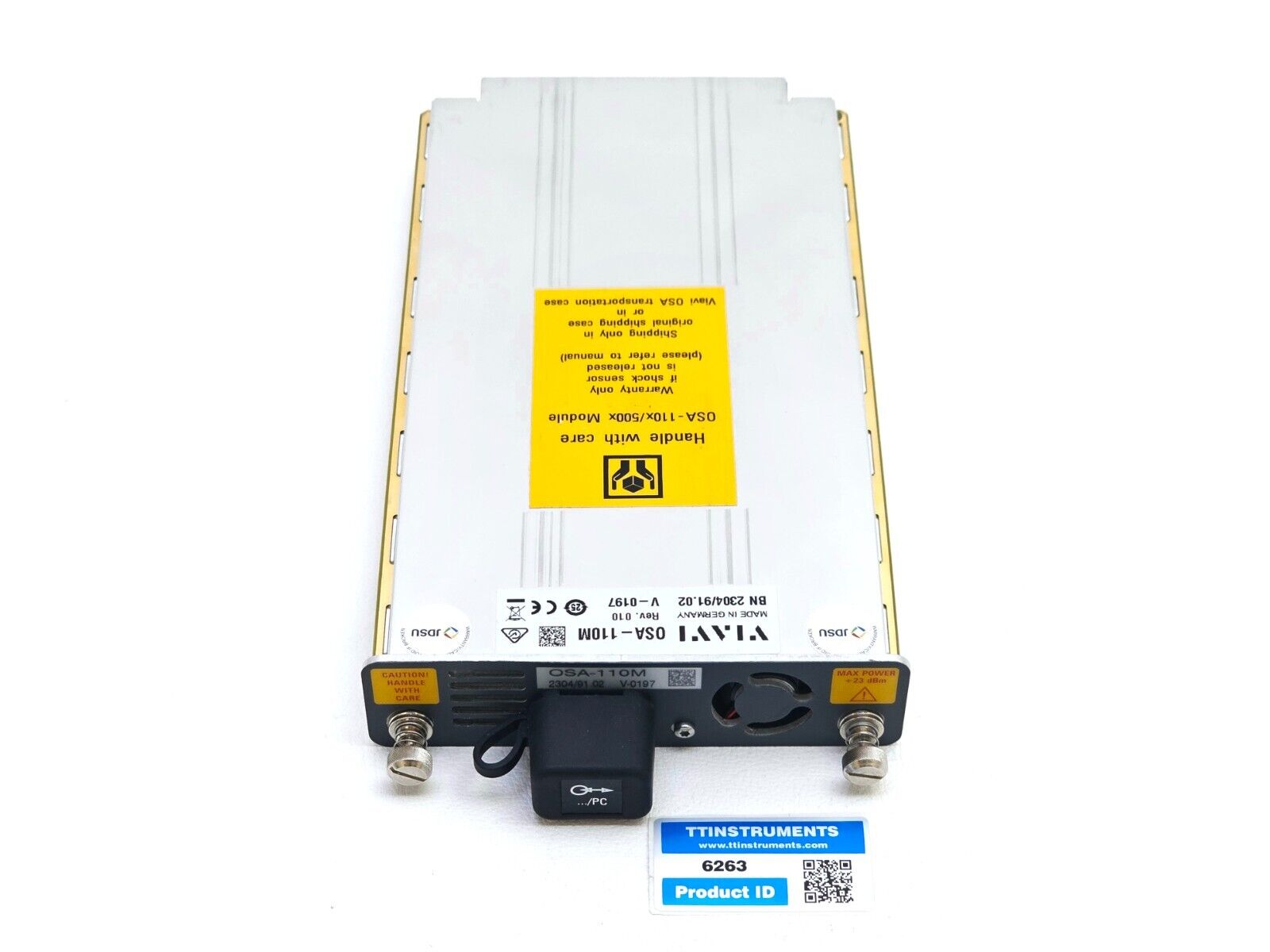

The Viavi (formerly JDSU) OSA-110M Compact Full-Band Optical Spectrum Analyzer Module (part number 2304/91.02) offers unmatched size, weight, and performance, making it ideal for field deployment. Housed inside the T-BERD/MTS-6000A series platform, it represents the smallest full-band OSA solution available for that platform. The module is suitable for all CWDM and DWDM networks down to 33 GHz channel spacing, and the combination of high optical resolution with full-band measurement capability makes it ideal for testing power, wavelength, and drift during provisioning, maintenance, and upgrades of WDM systems. The OSA-110M is future-proofed for 40/100G signal analysis and new modulation formats.
Key Specifications:
Measurement Range: 1250 nm to 1650 nm
Wavelength Accuracy: ±0.05 nm (built-in calibration)

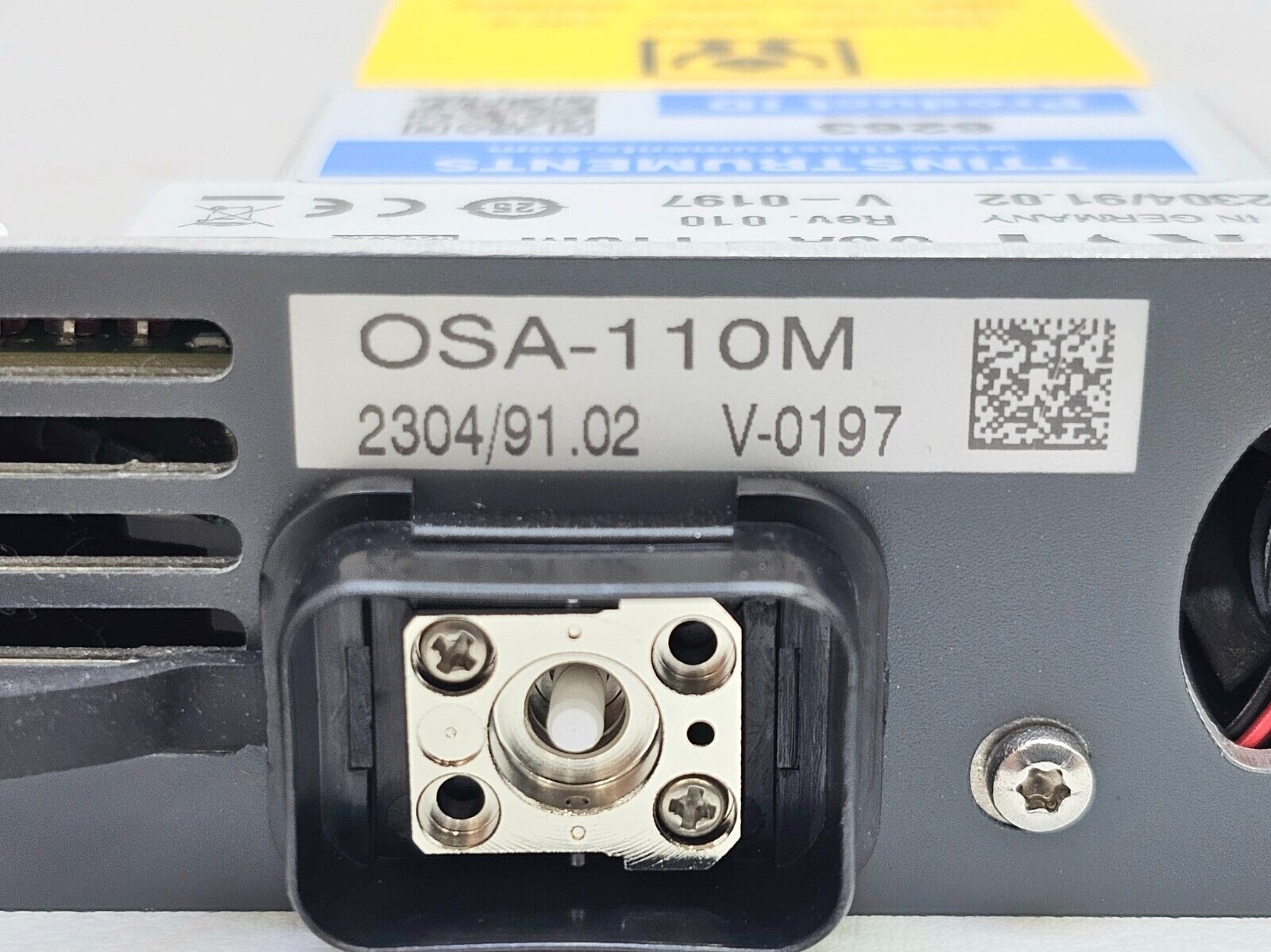

Optical Port: Universal SM-PC (FC connector)
Minimum Channel Spacing: 33 GHz (DWDM)
Compatible Platforms: T-BERD/MTS-6000A, T-BERD/MTS-8000
Test Modes: One-touch test with automatic pass/fail analysis
Applications: CWDM, DWDM, 40G/100G network testing, power/wavelength/drift measurement
Design: Compact, lightweight, field-portable module
