Viavi JDSU ONA-800A with 8126B SM OTDR 1310/1550 nm 41/40 dB E8126B APC 400KM

Condition: Used — in excellent working condition.

This listing includes the Viavi (JDSU) ONA-800A mainframe in its dual module carrier configuration (ONA-800A-MF2), capable of accepting up to two 4000-series test modules, paired with the Viavi 8126B single-mode OTDR module. The 8126B module supports 1310/1550 nm sources with a dynamic range of 41/40 dB, an APC-FC connector interface, an event dead zone of 0.65 m, an attenuation dead zone of 2 m, and a maximum range of 400 km. WiFi connectivity is included. The platform is suited to a wide range of fibre applications including metro and ultra-long-haul network characterisation, advanced FTTH PON qualification and troubleshooting, upgrading core fibre networks to 40G and 100G, remote fibre monitoring in-service and out-of-service, and advanced Tier-2 certification for enterprise and data centre networks.

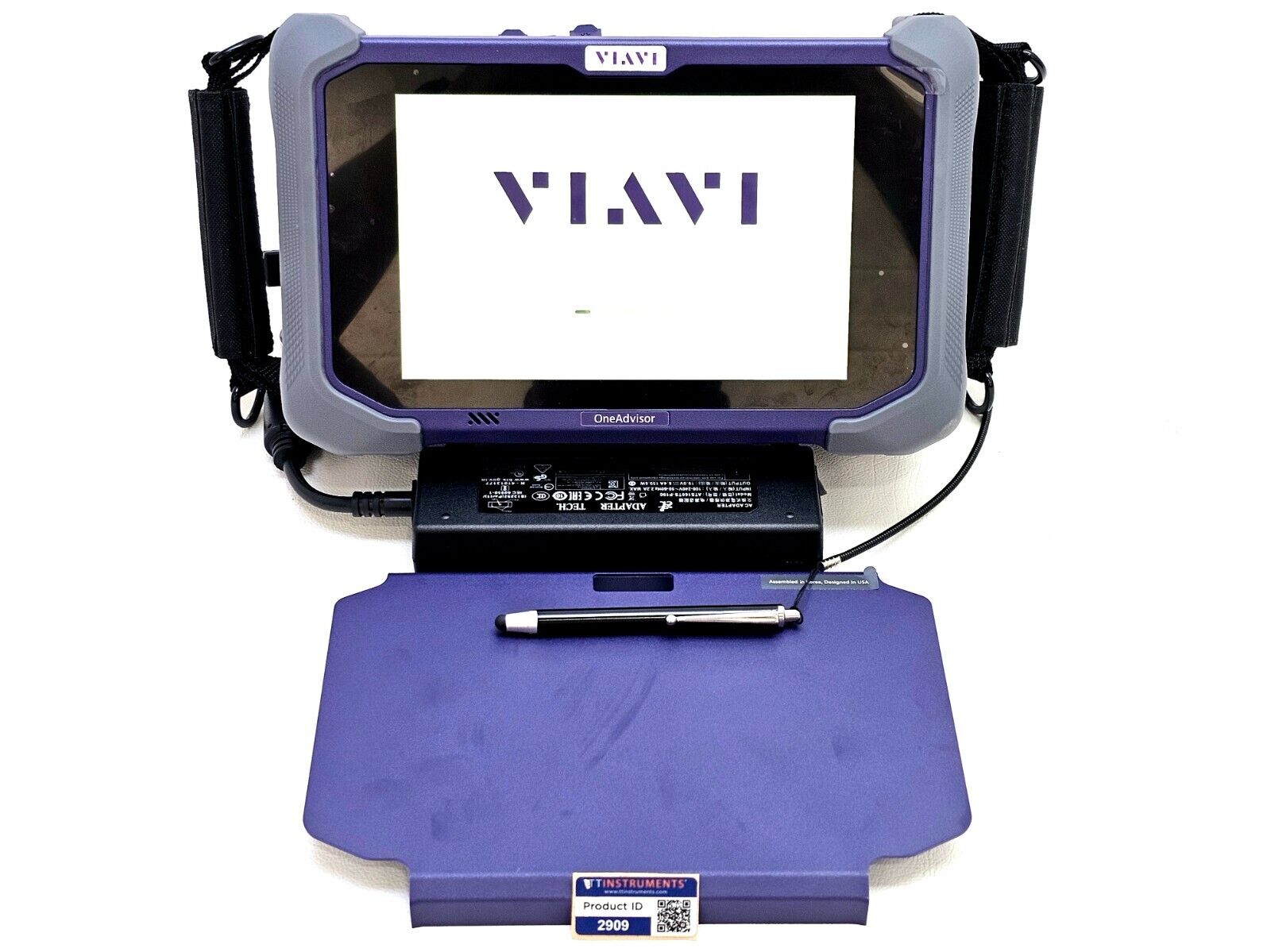

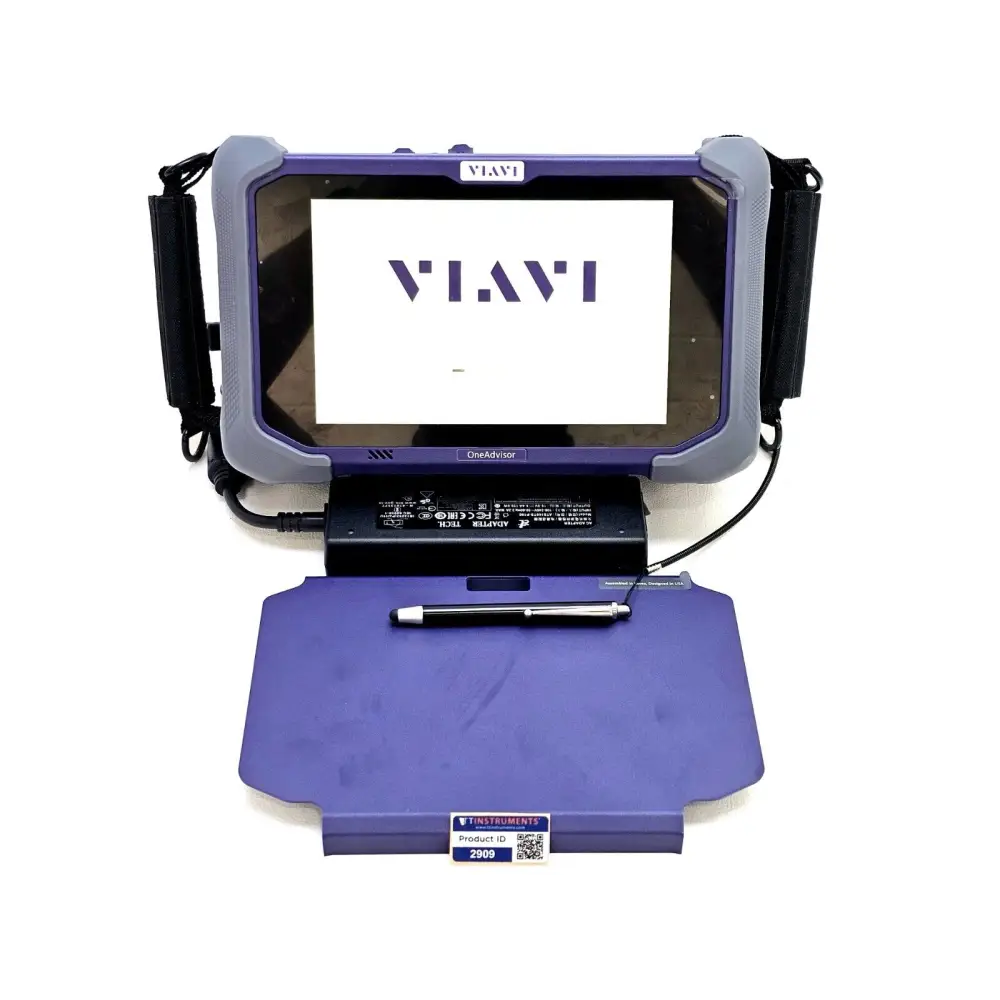

Included in the sale:

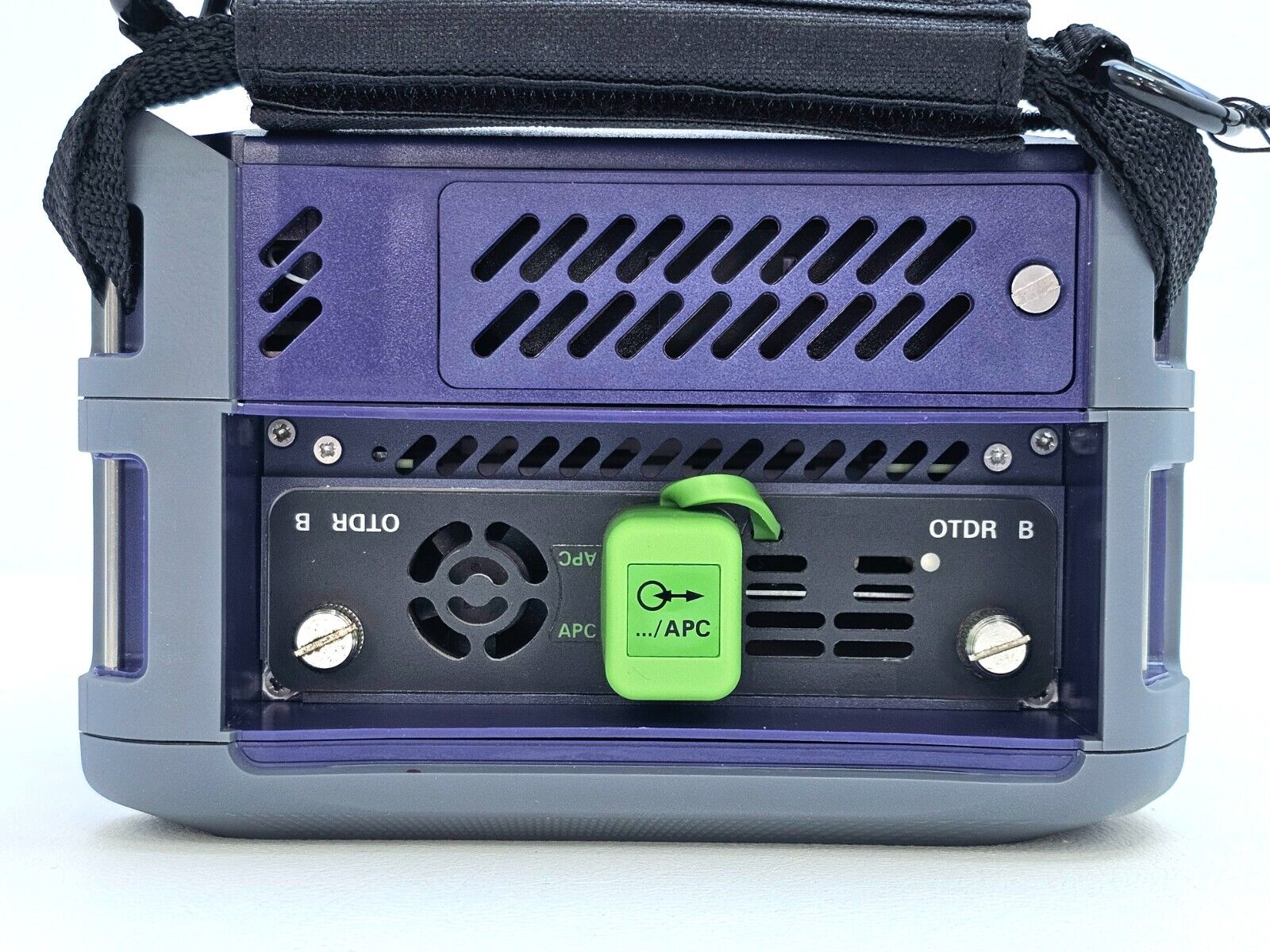

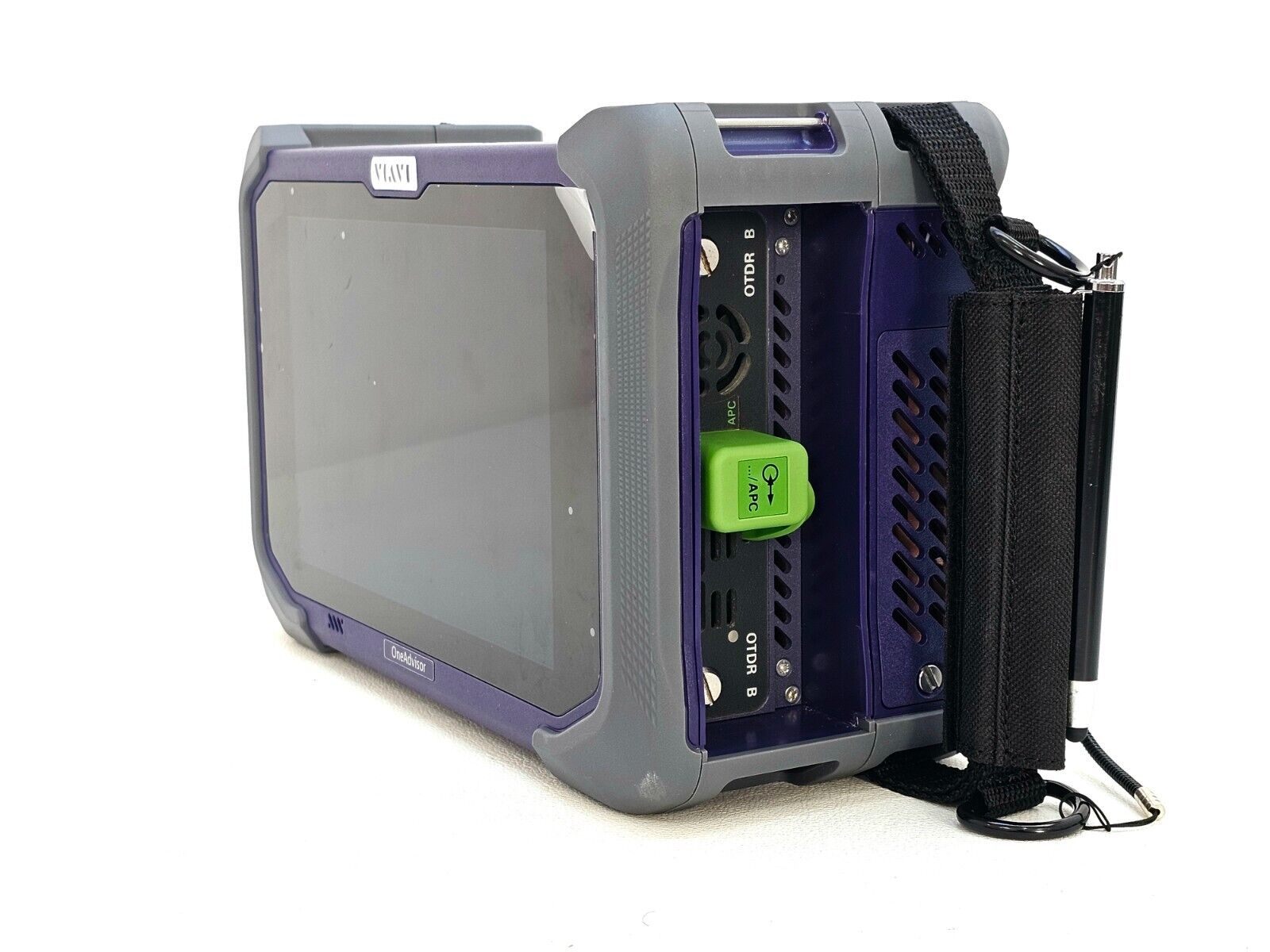

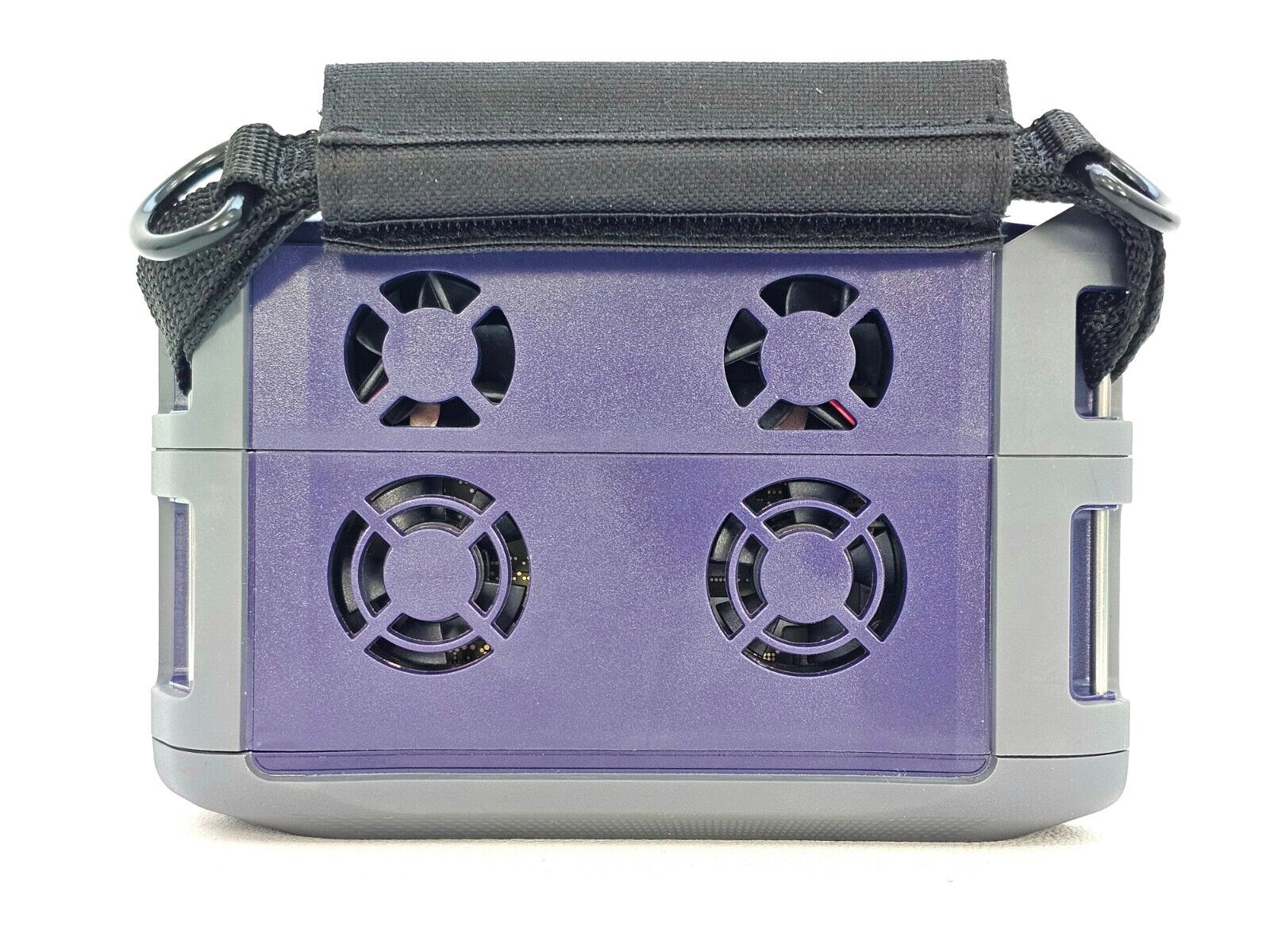

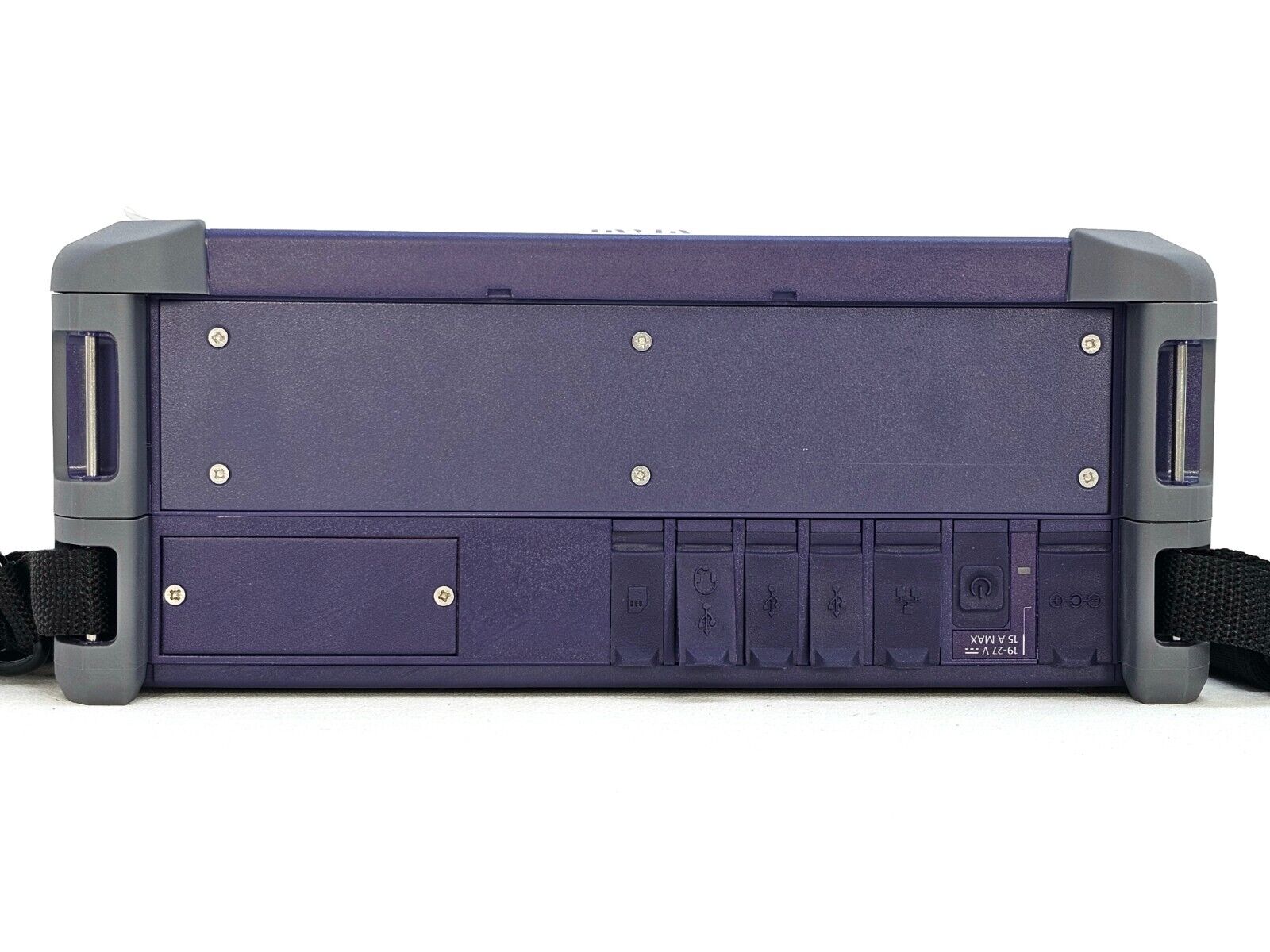

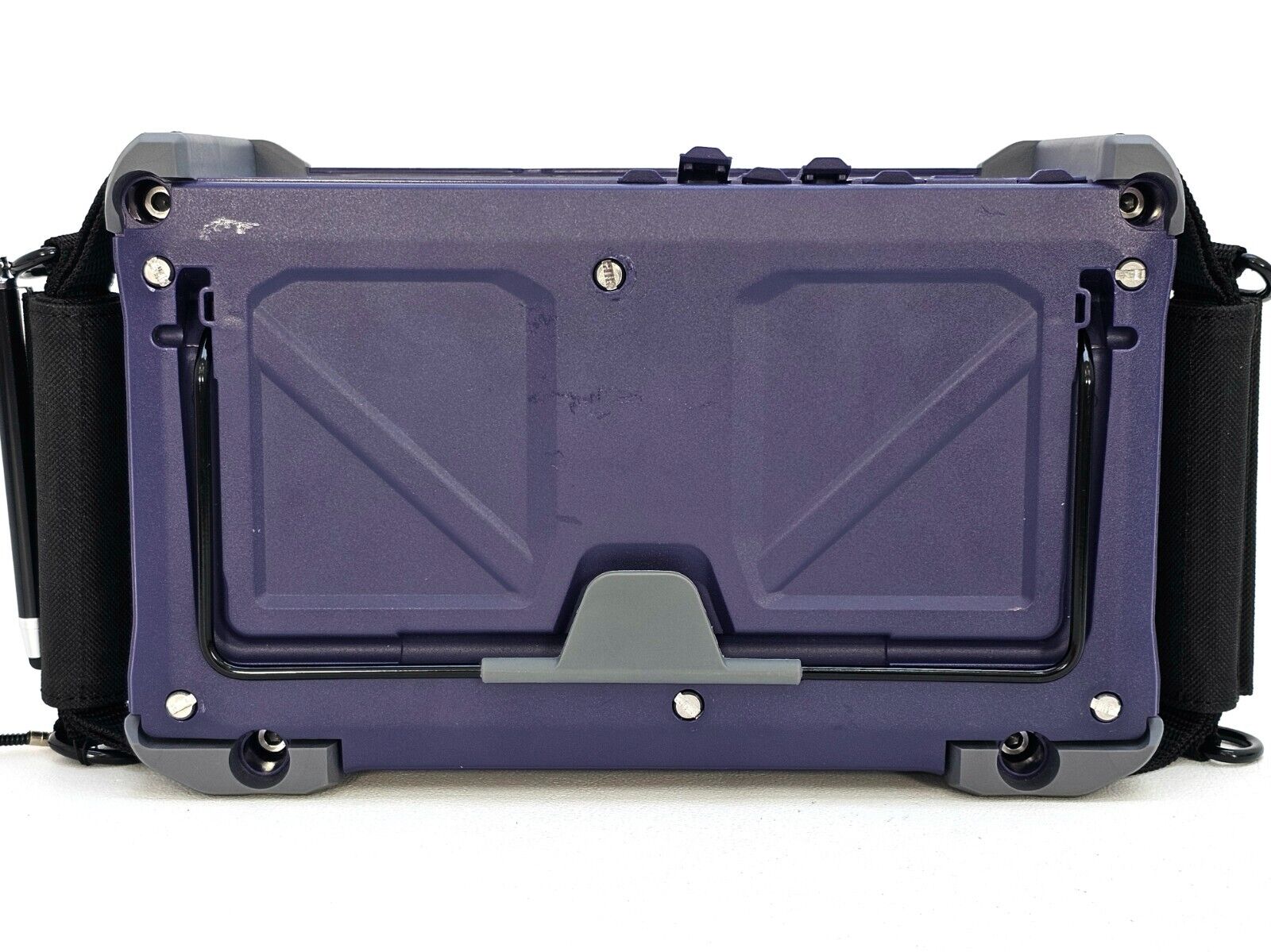

• Viavi ONA-800A mainframe (dual module carrier, ONA-800A-MF2)

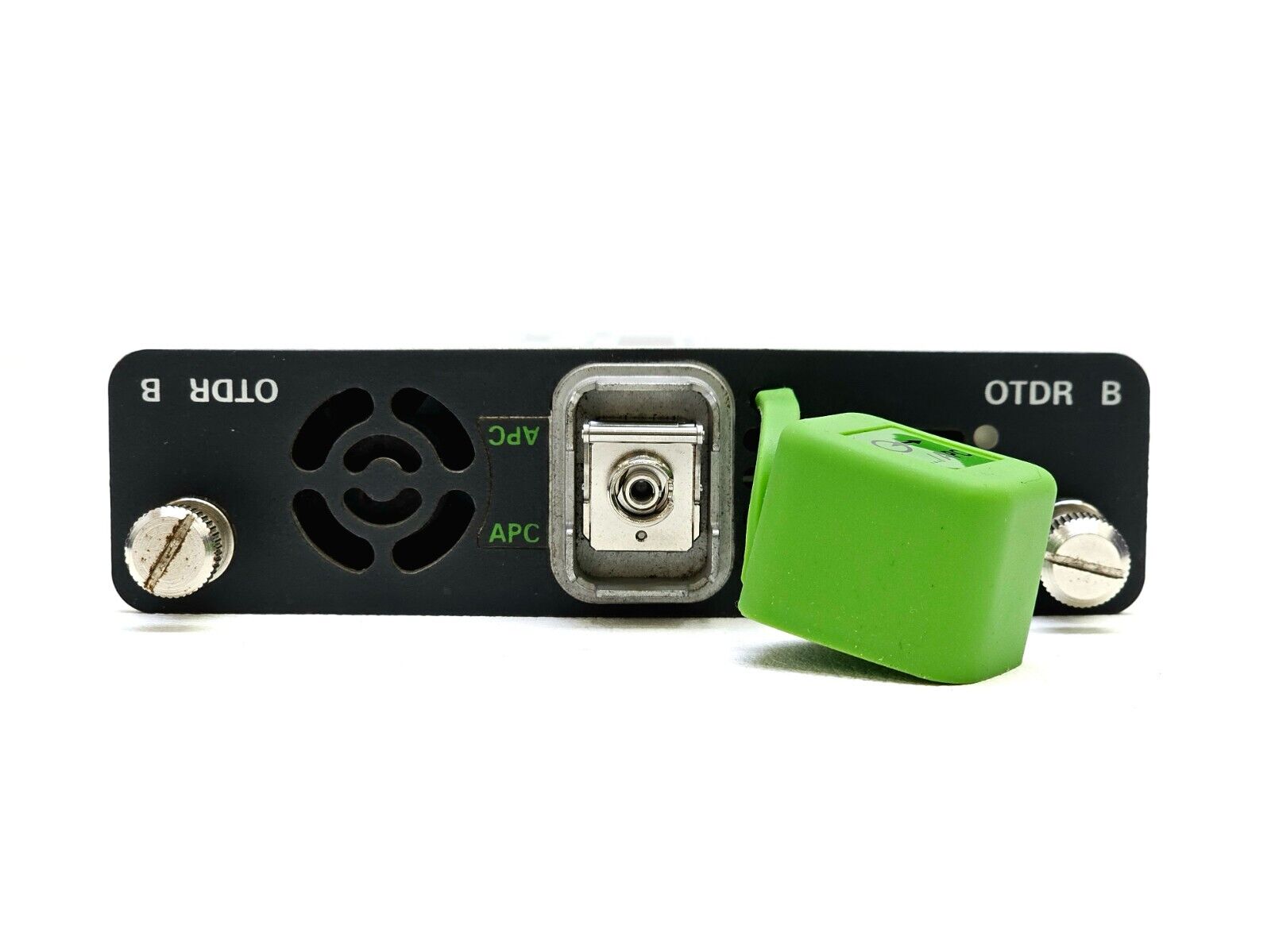

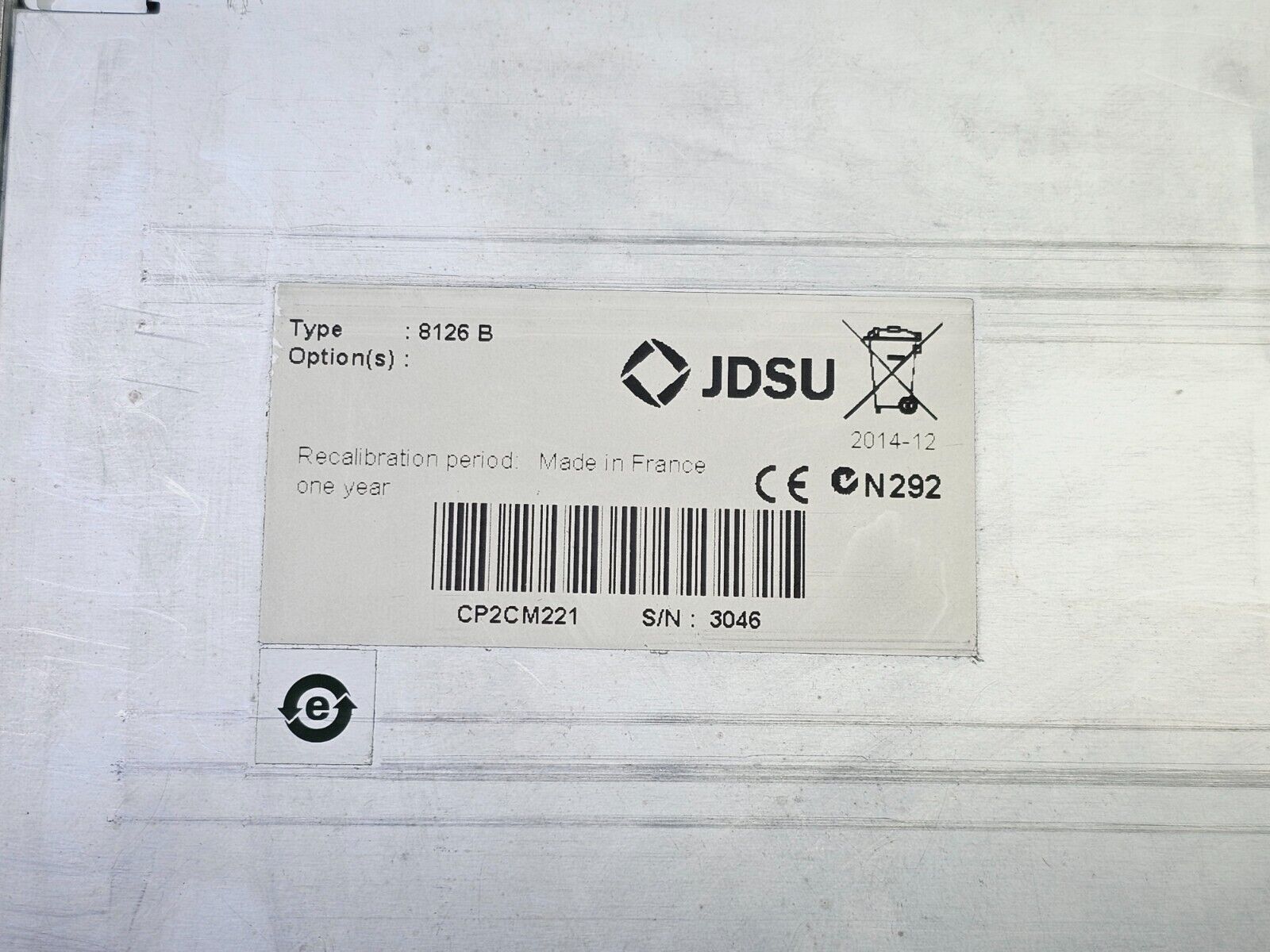

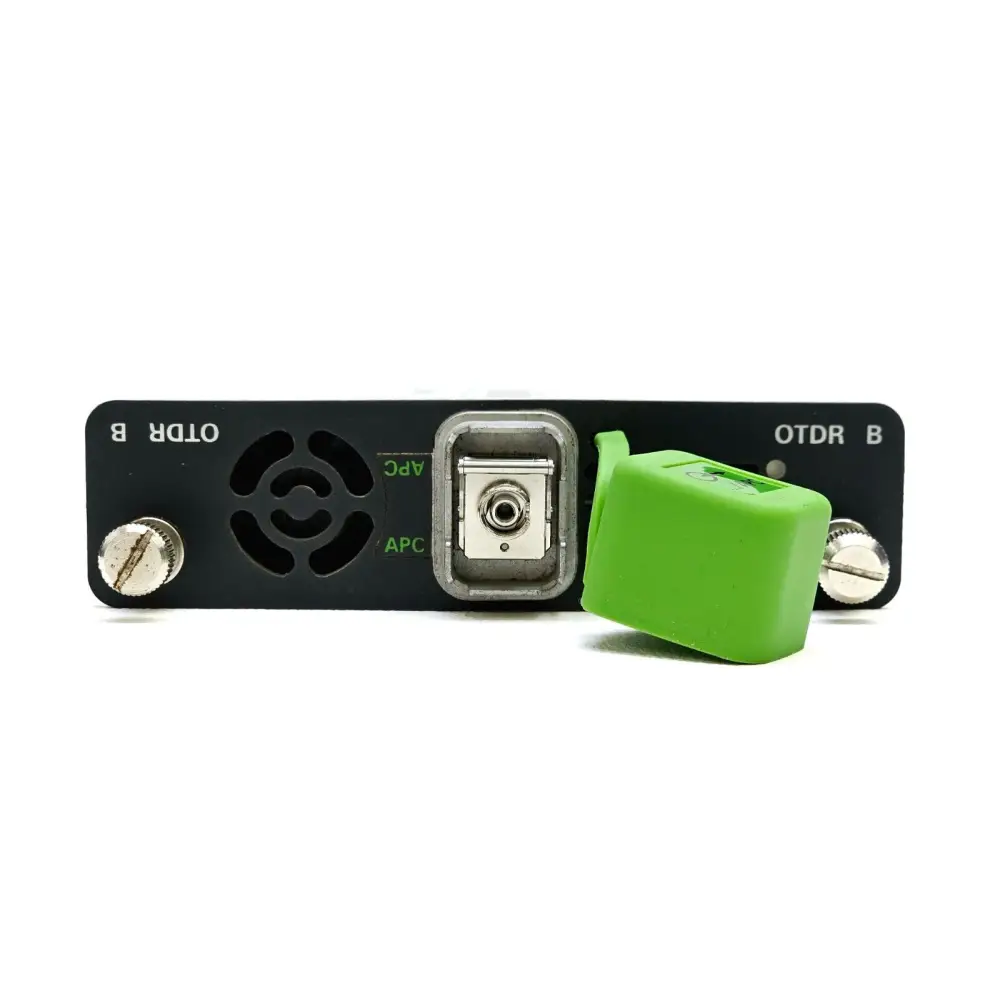

• Viavi 8126B SM OTDR module (1310/1550 nm, 41/40 dB, APC-FC)
• AC power adapter
• Stylus

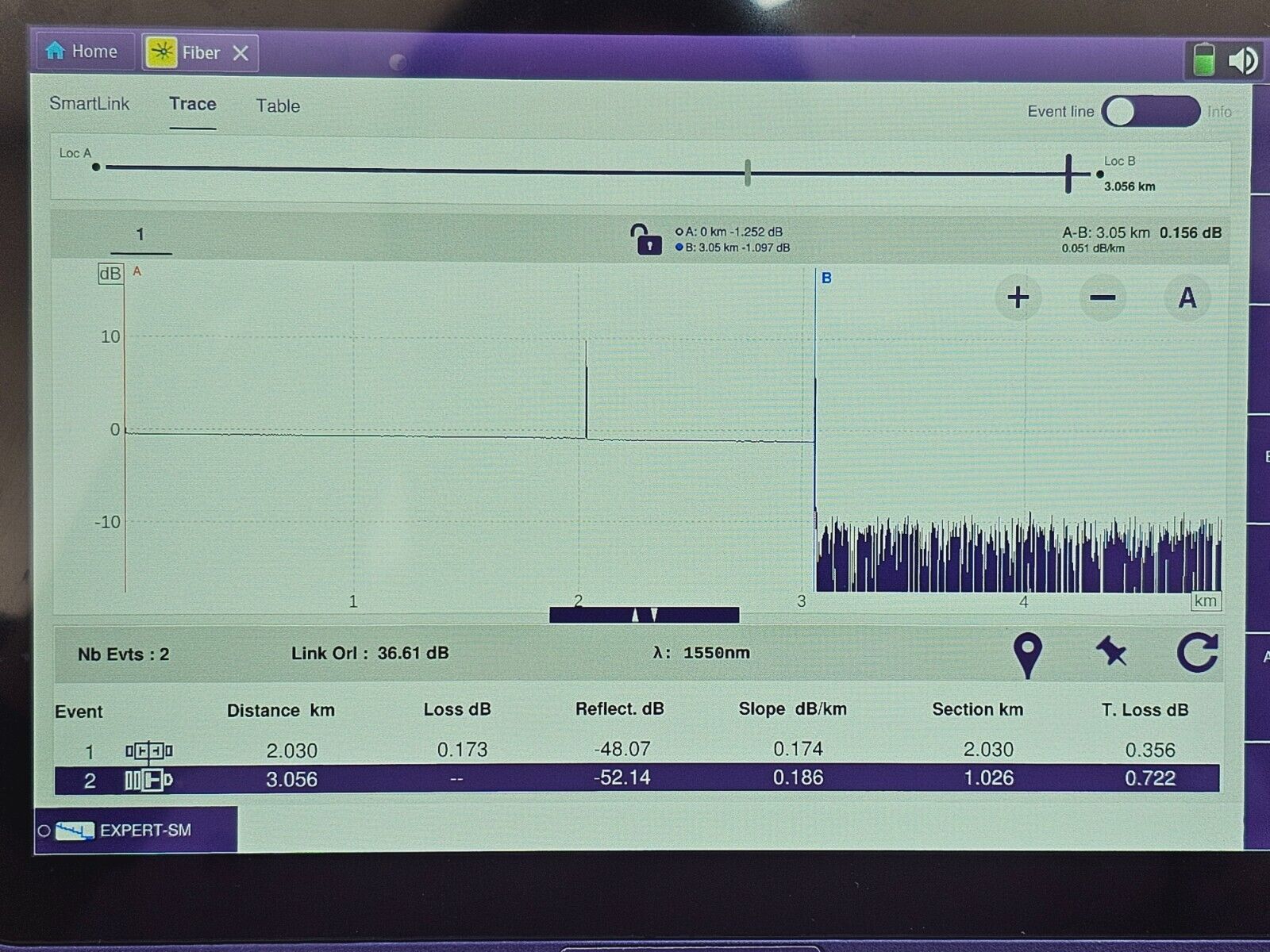

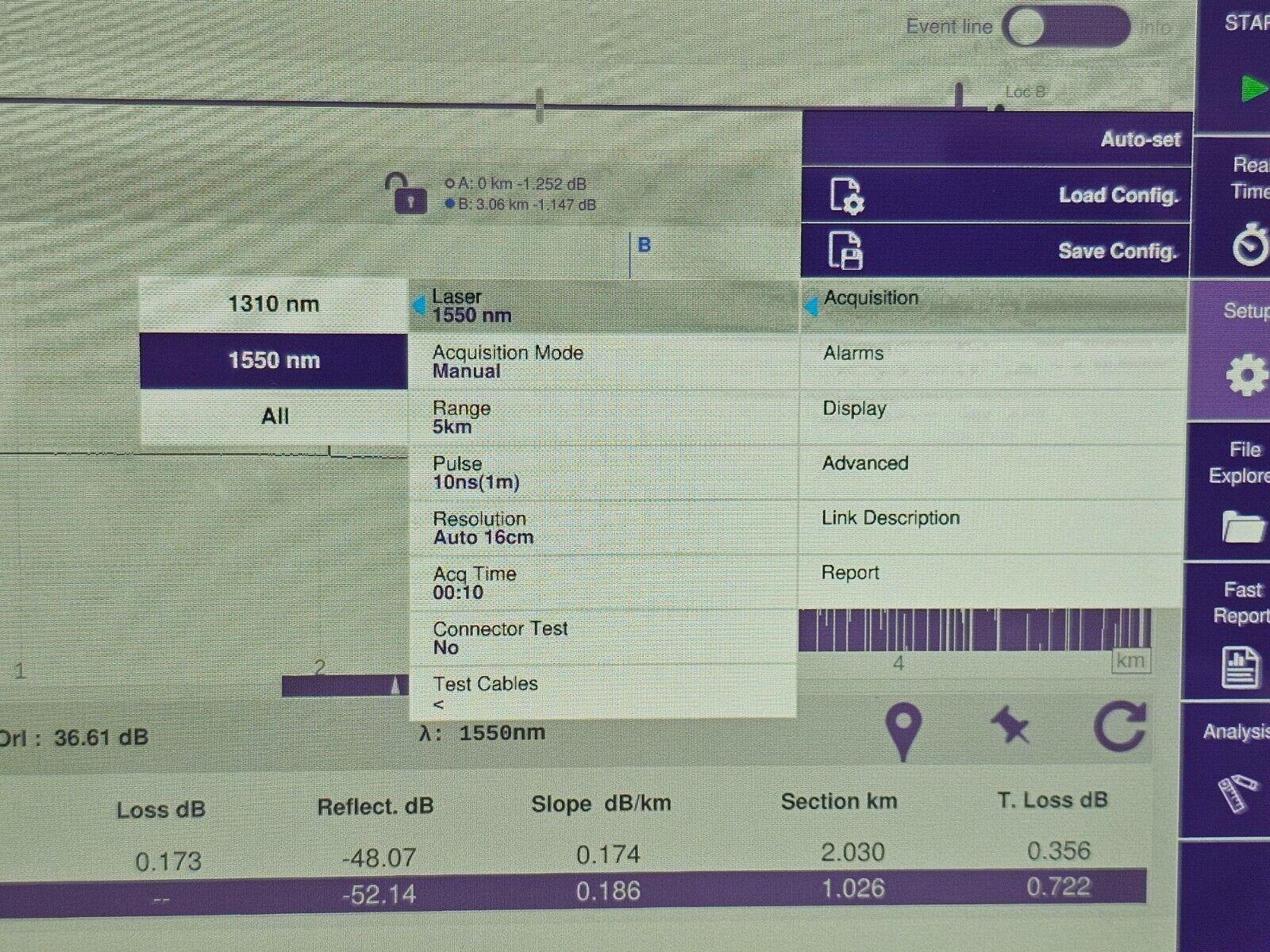

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

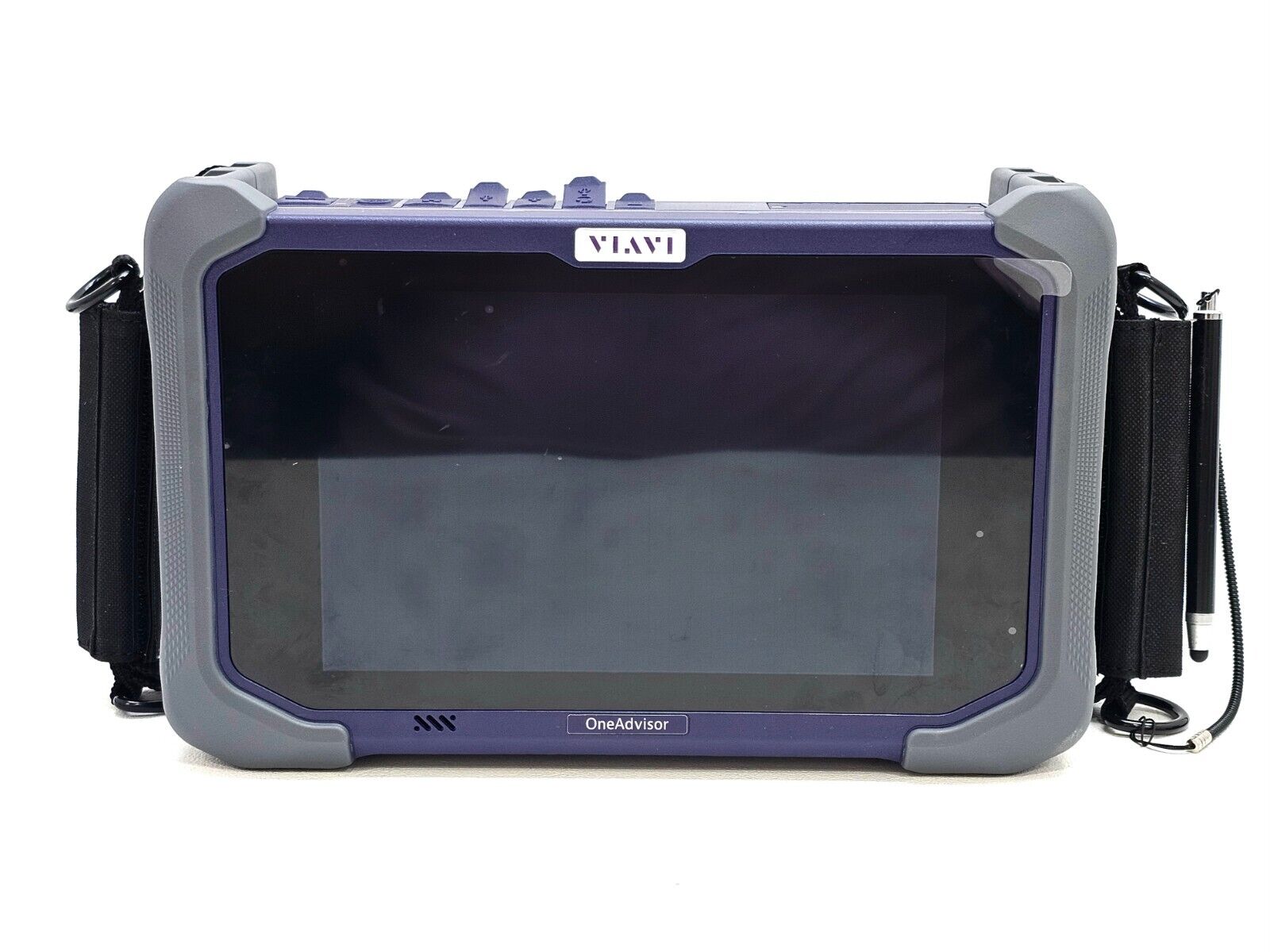

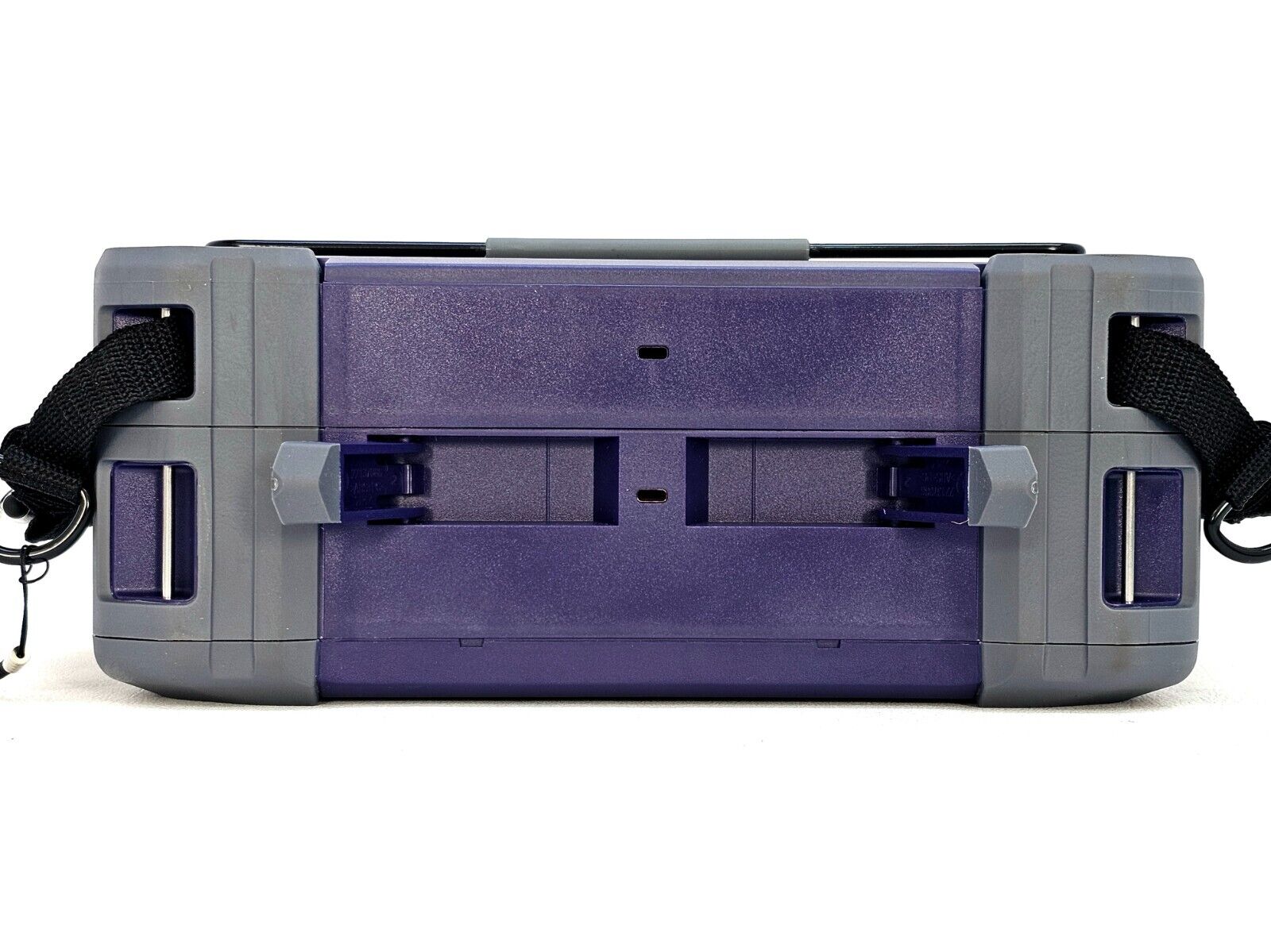

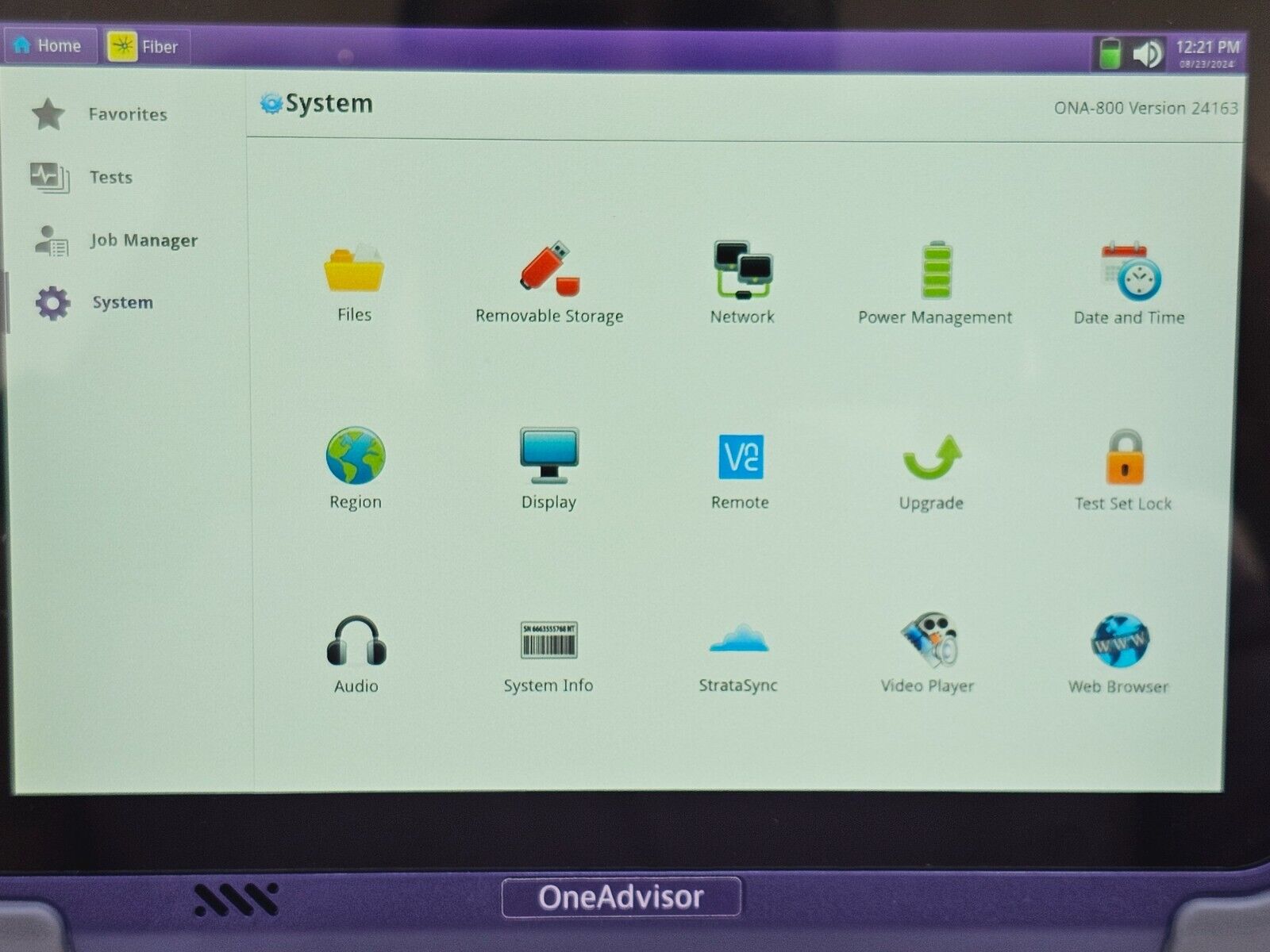

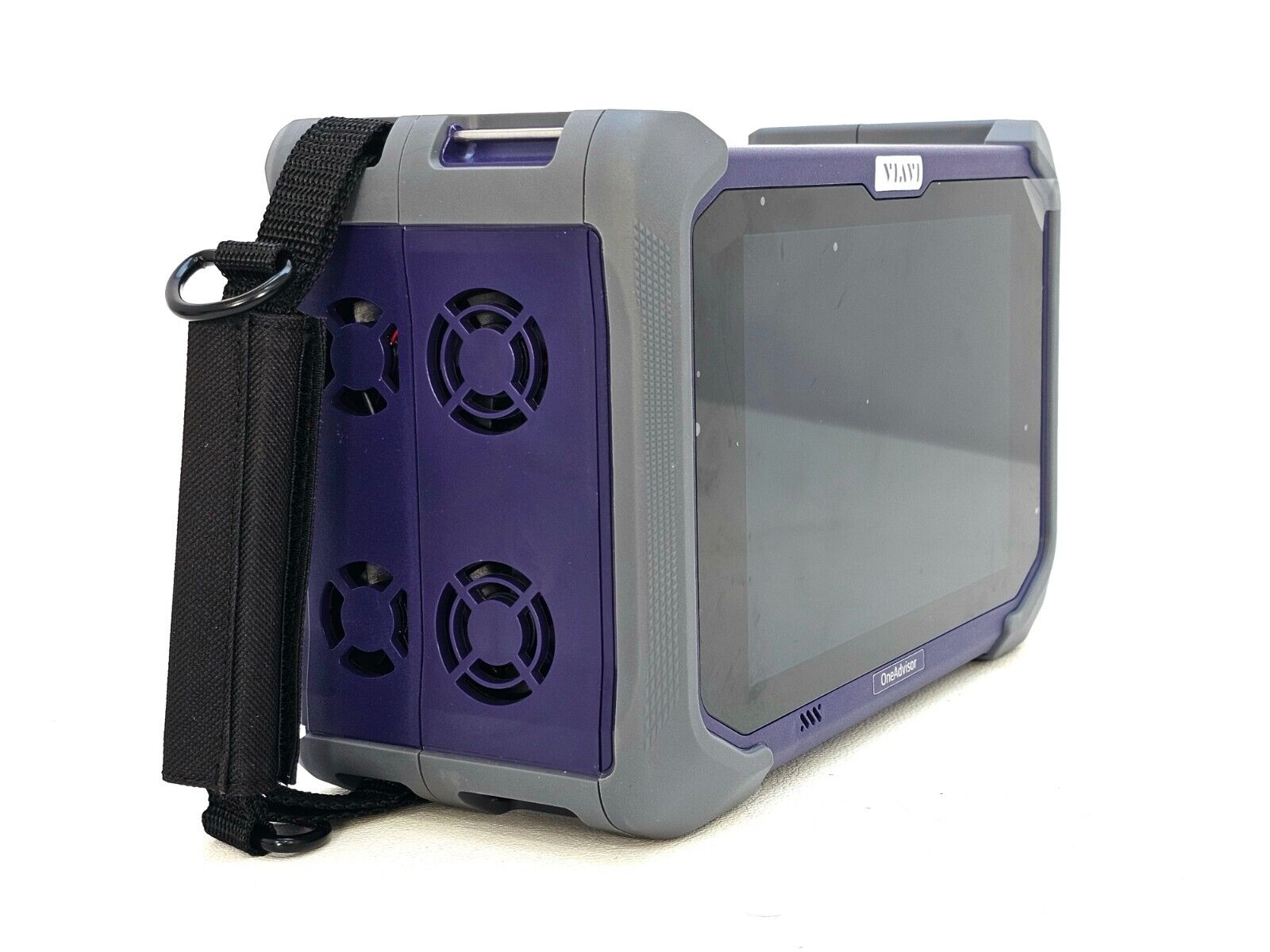

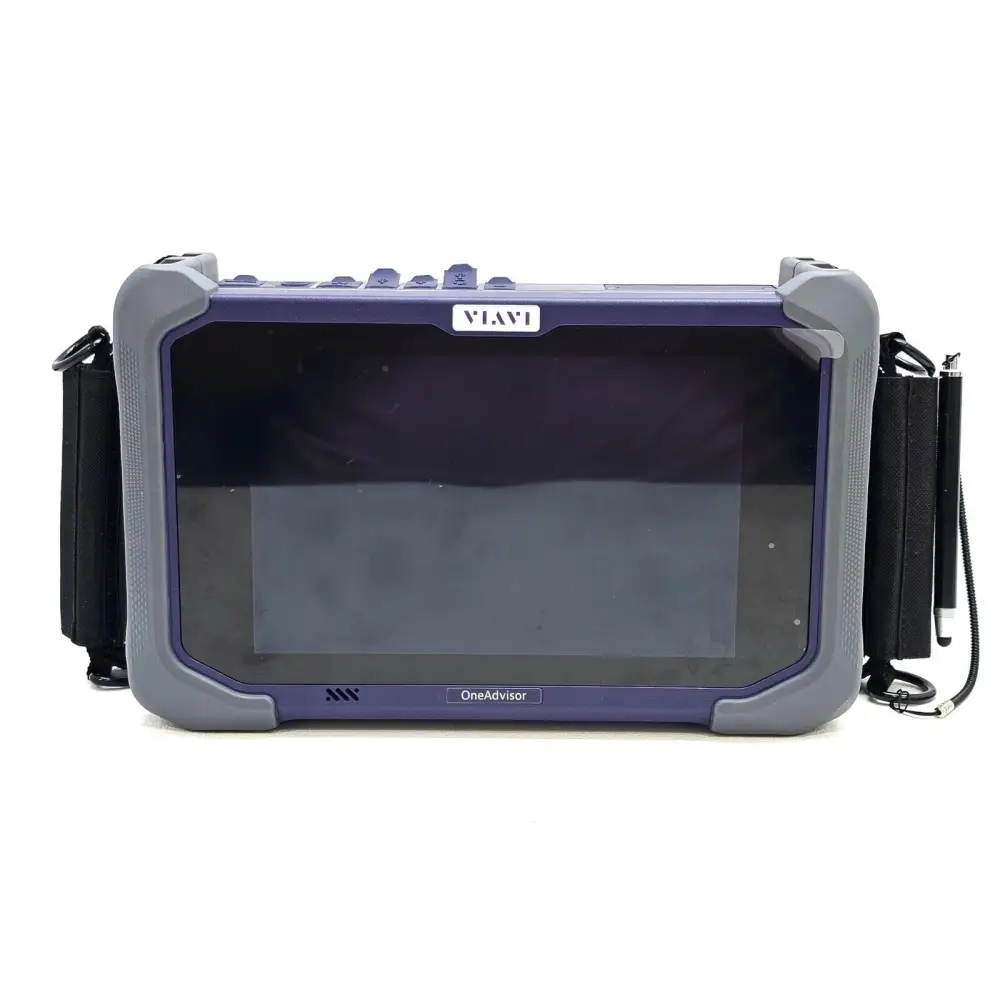

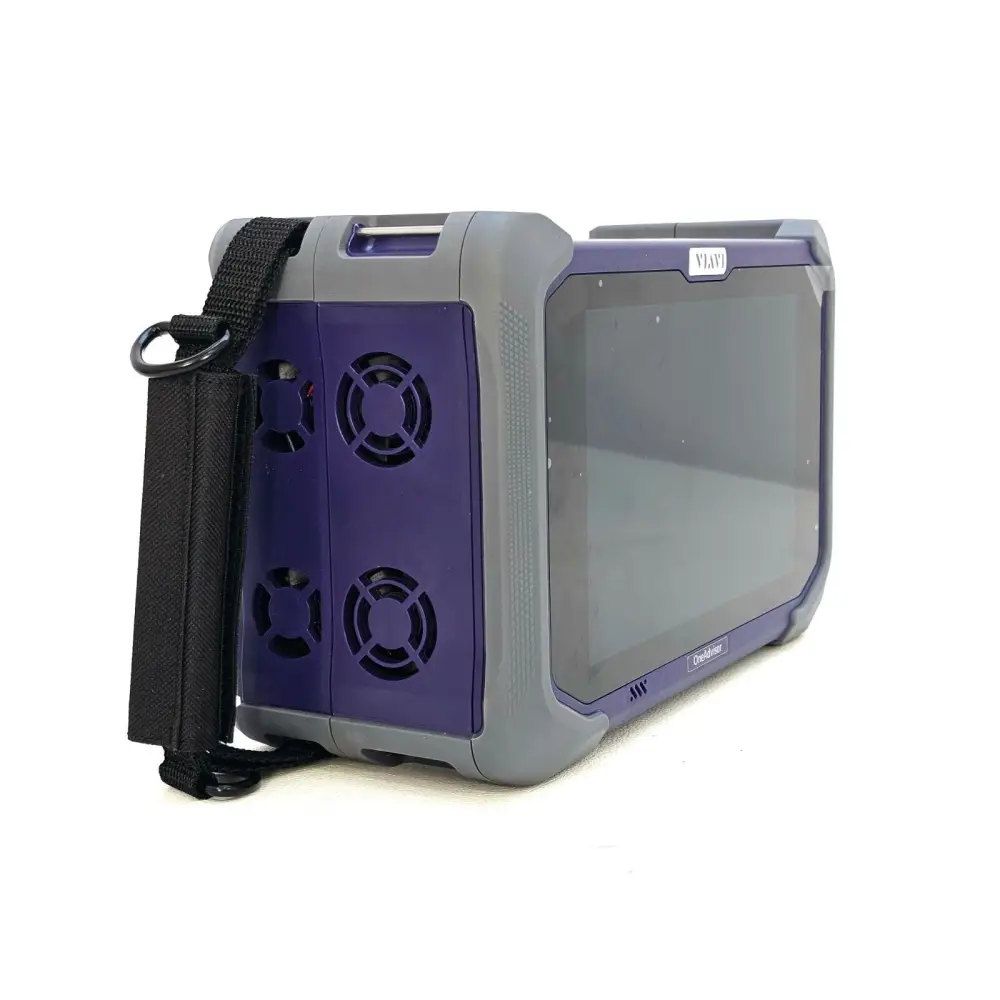

The Viavi (formerly JDSU) ONA-800A OneAdvisor is a rugged, modular, all-in-one field test platform designed for the installation, commissioning, and maintenance of optical fibre networks. The chassis accepts swappable test modules from the 4000-series range, allowing engineers to address multiple test disciplines with a single handheld instrument.

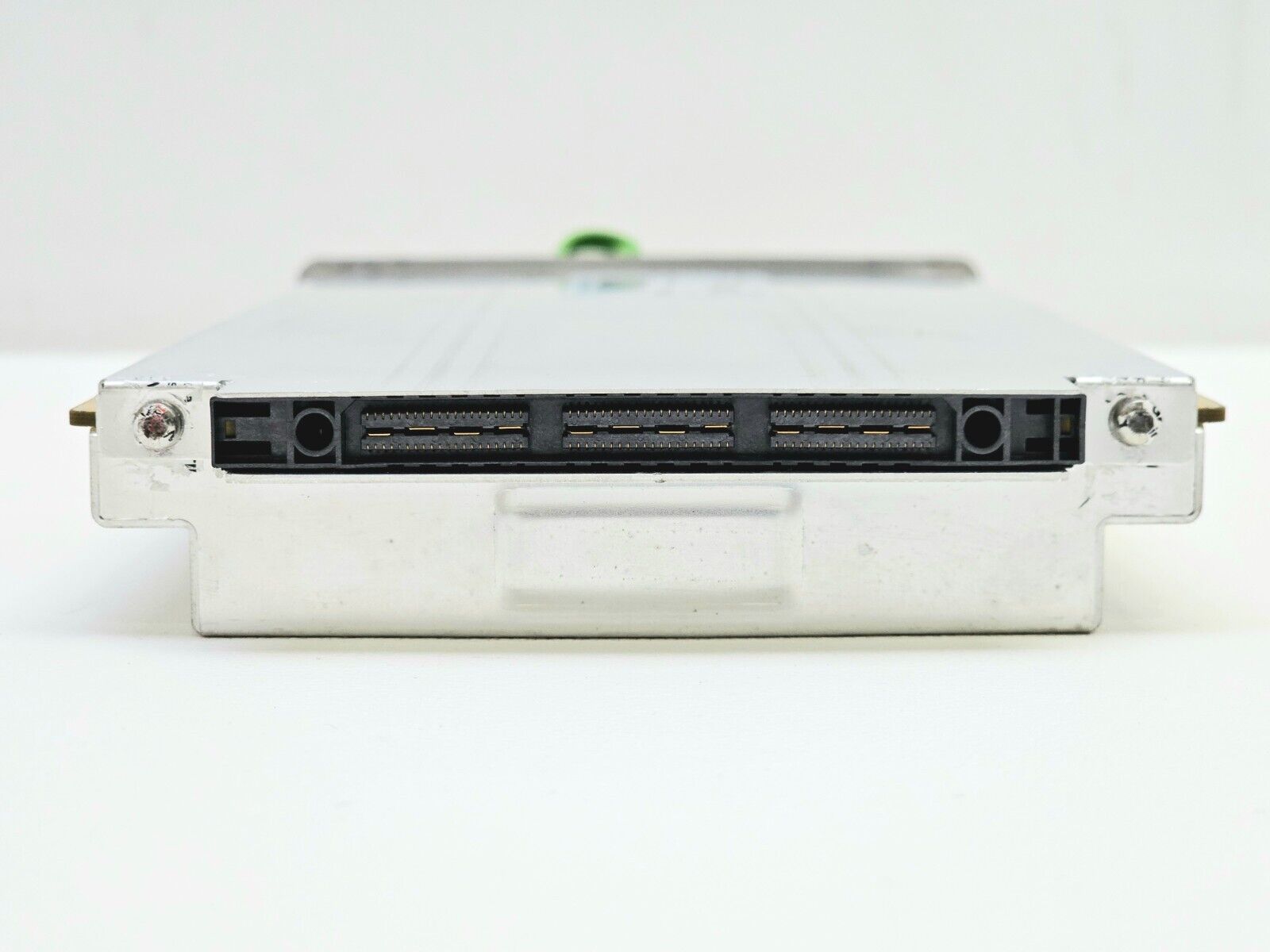

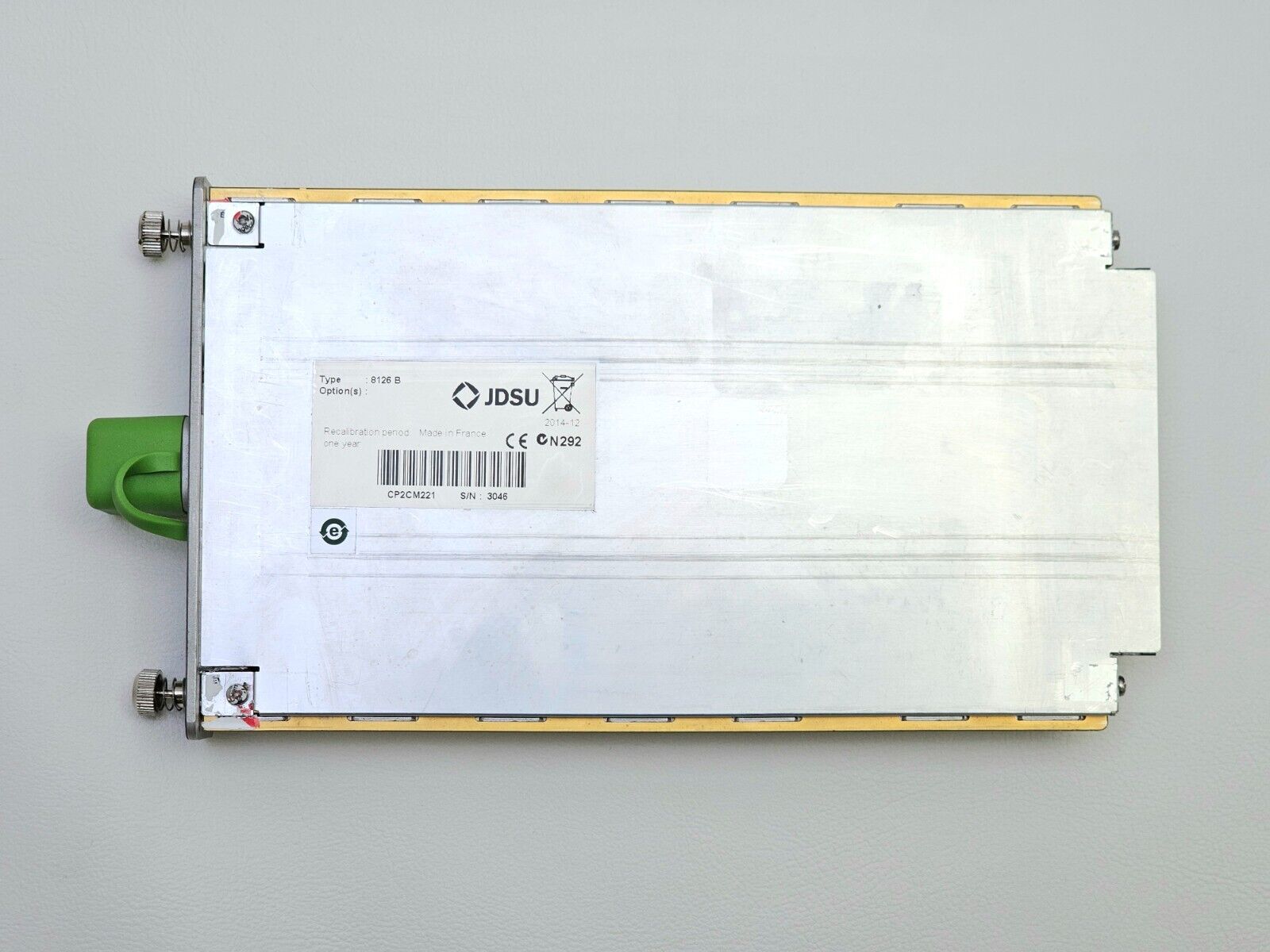

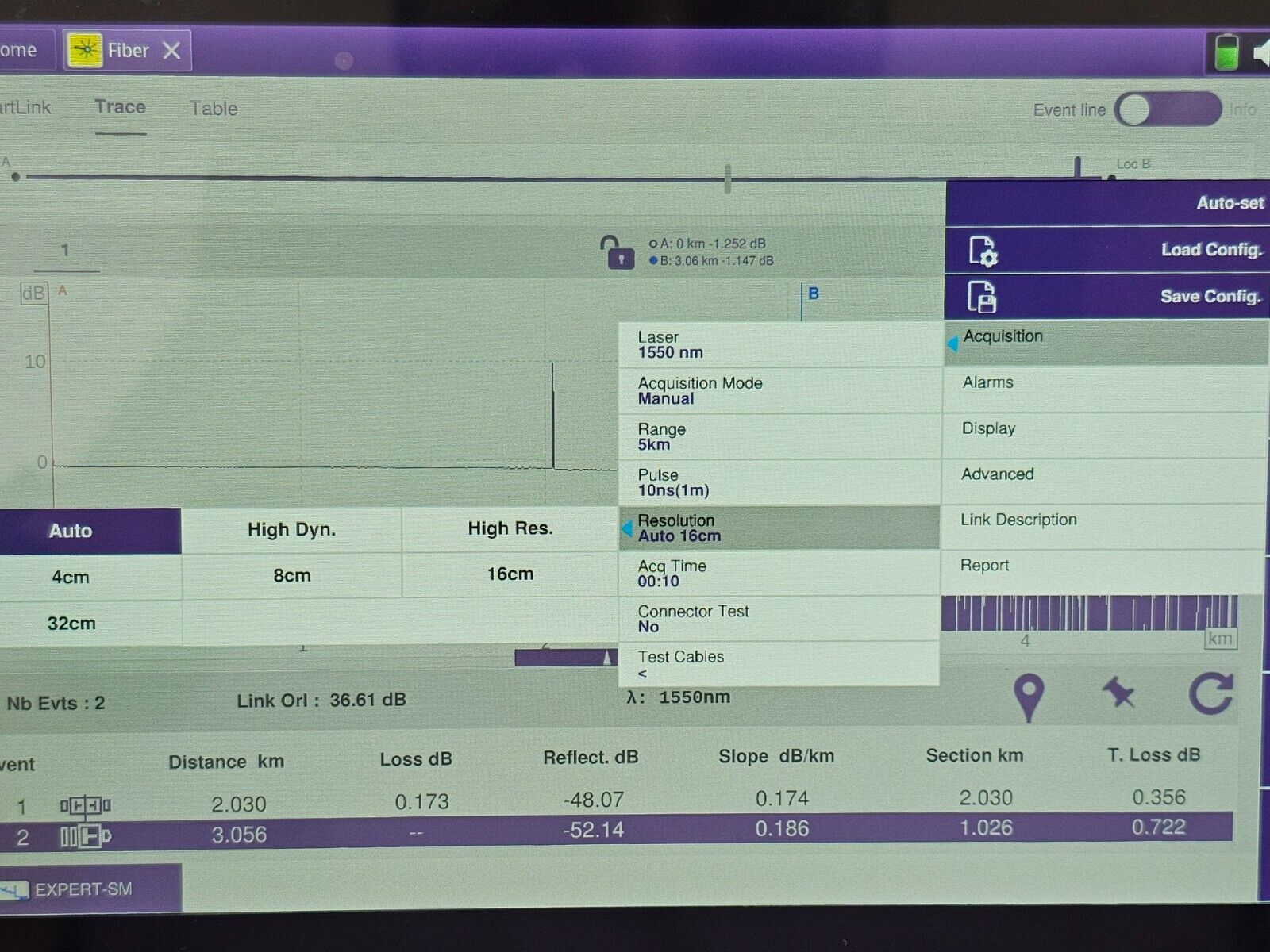

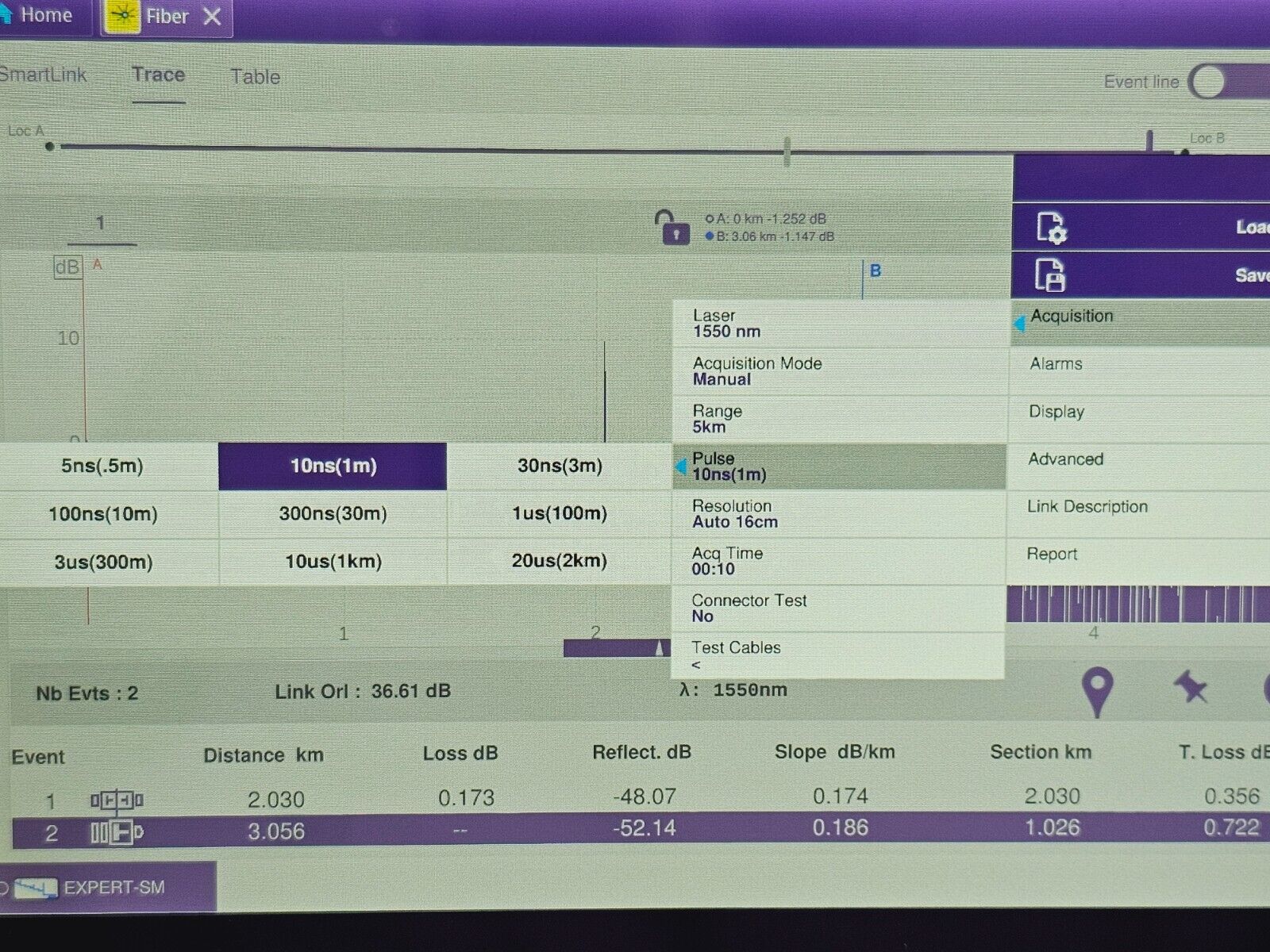

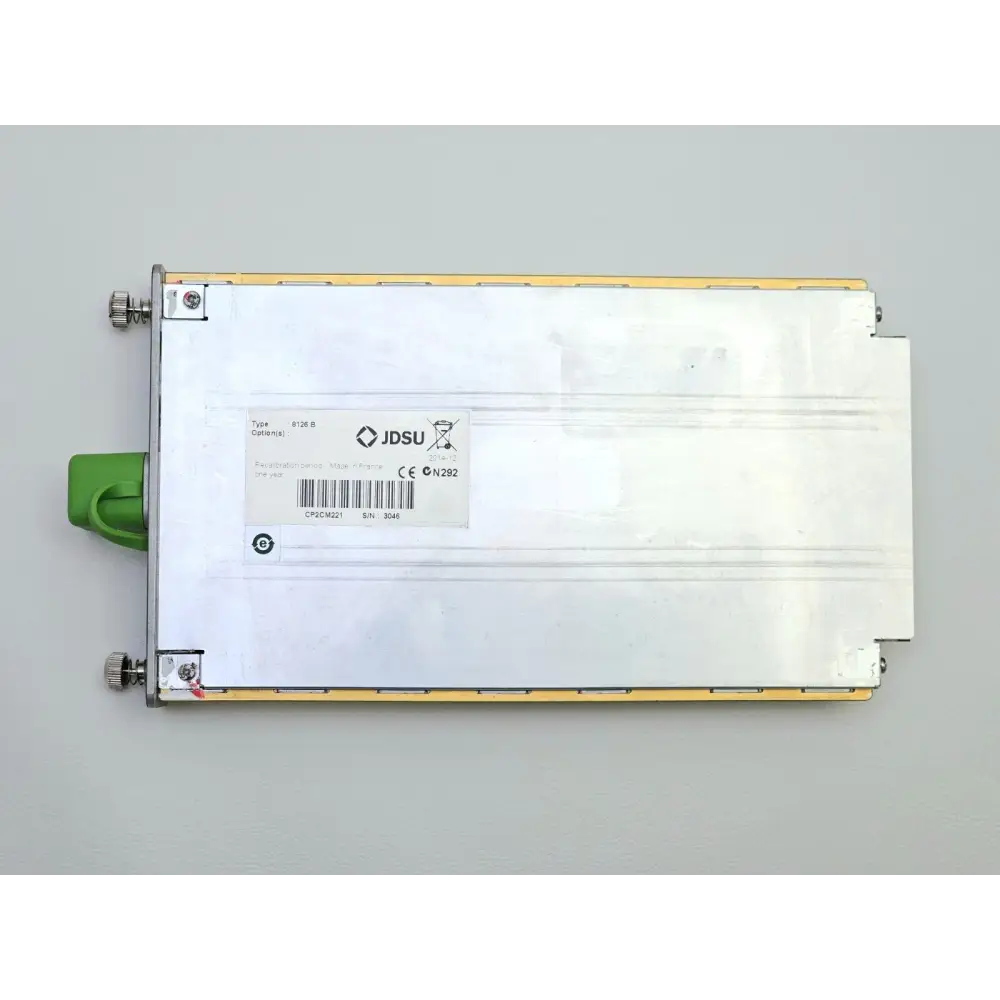

The Viavi 8126B is a high-performance single-mode OTDR module designed for demanding fibre characterisation tasks including metro and ultra-long-haul networks. With its high dynamic range and precision dead zone performance, the 8126B is well suited to FTTH PON qualification, 40G/100G network upgrades, in-service and out-of-service remote fibre monitoring, and Tier-2 certification for enterprise and data centre environments.

Viavi 8126B SM OTDR Module Key Specifications:
Wavelengths: 1310 / 1550 nm
Dynamic Range: 41 dB (1310 nm) / 40 dB (1550 nm)

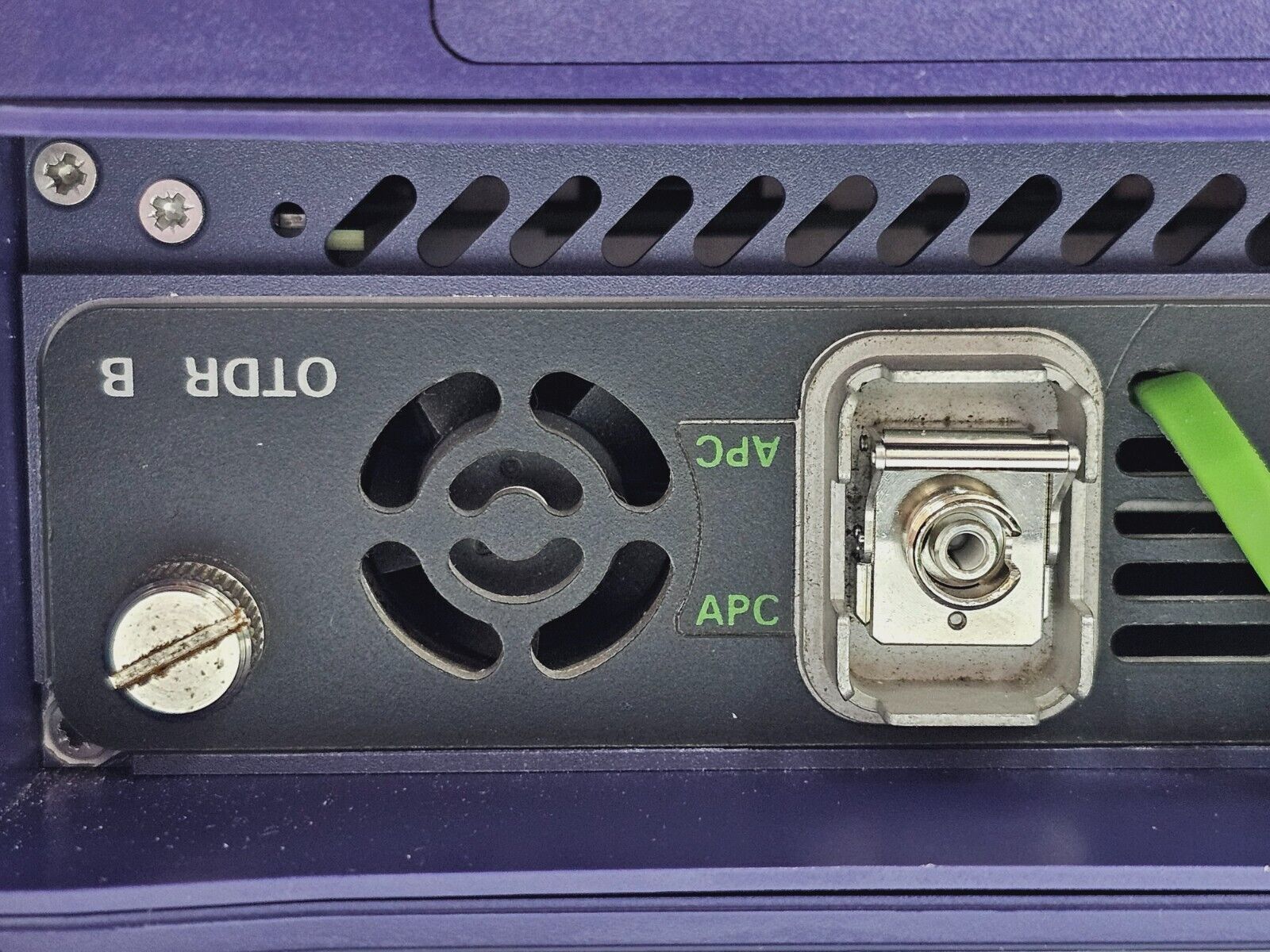

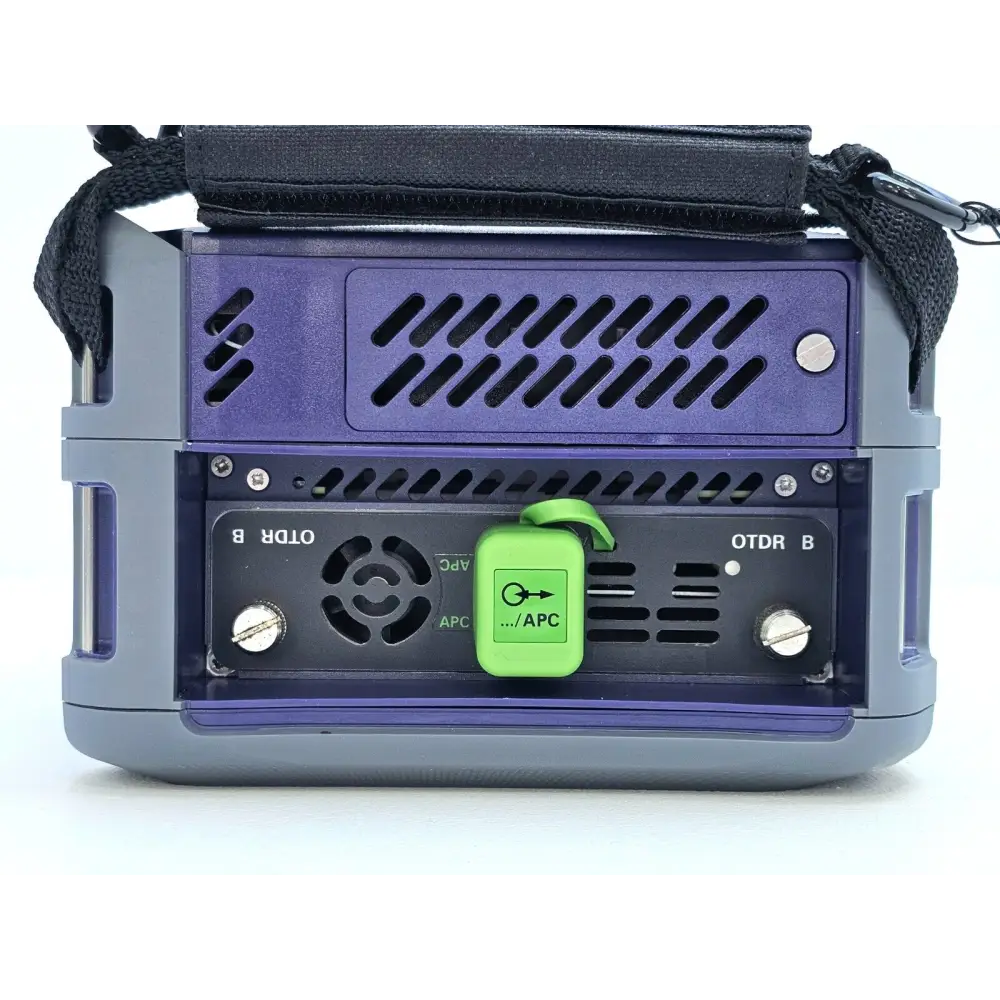

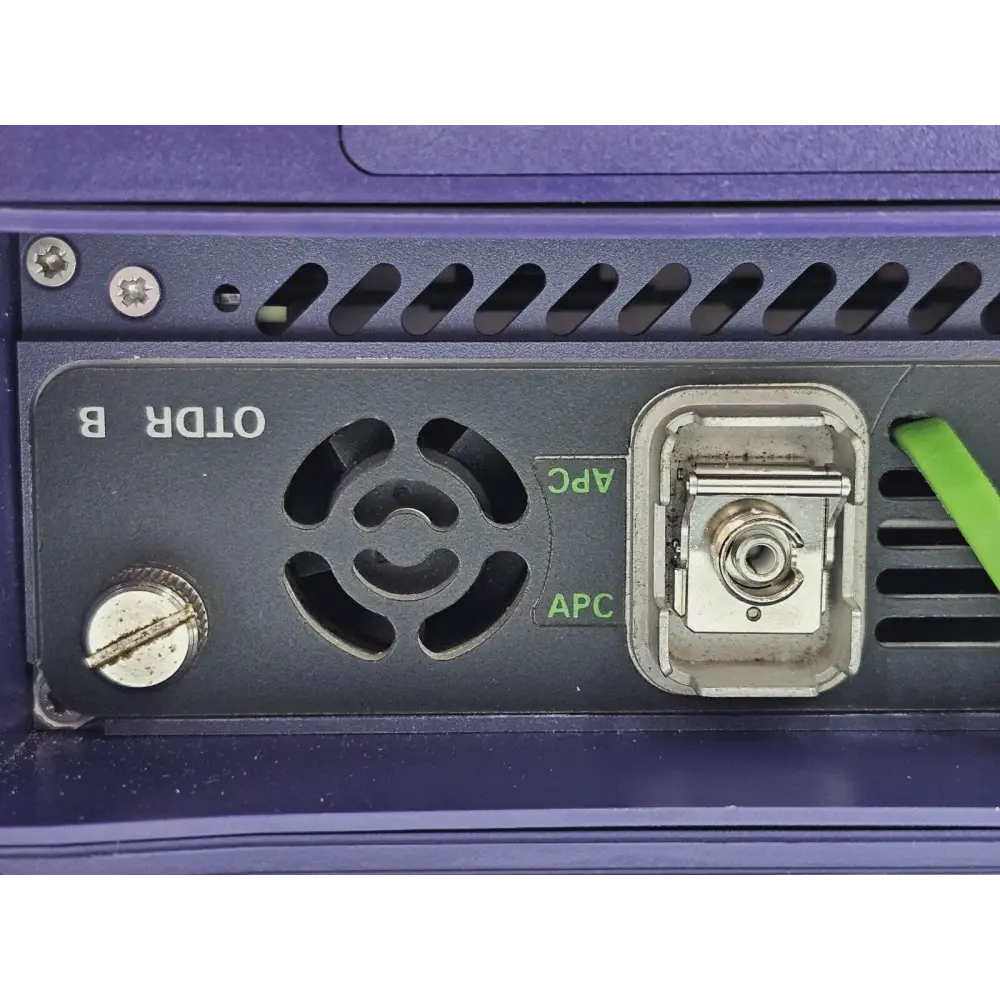

Connector: APC-FC
Event Dead Zone: 0.65 m
Attenuation Dead Zone: 2 m
Maximum Range: 400 km
Network Type: Single-mode fibre
Connectivity: WiFi

ONA-800A Platform:

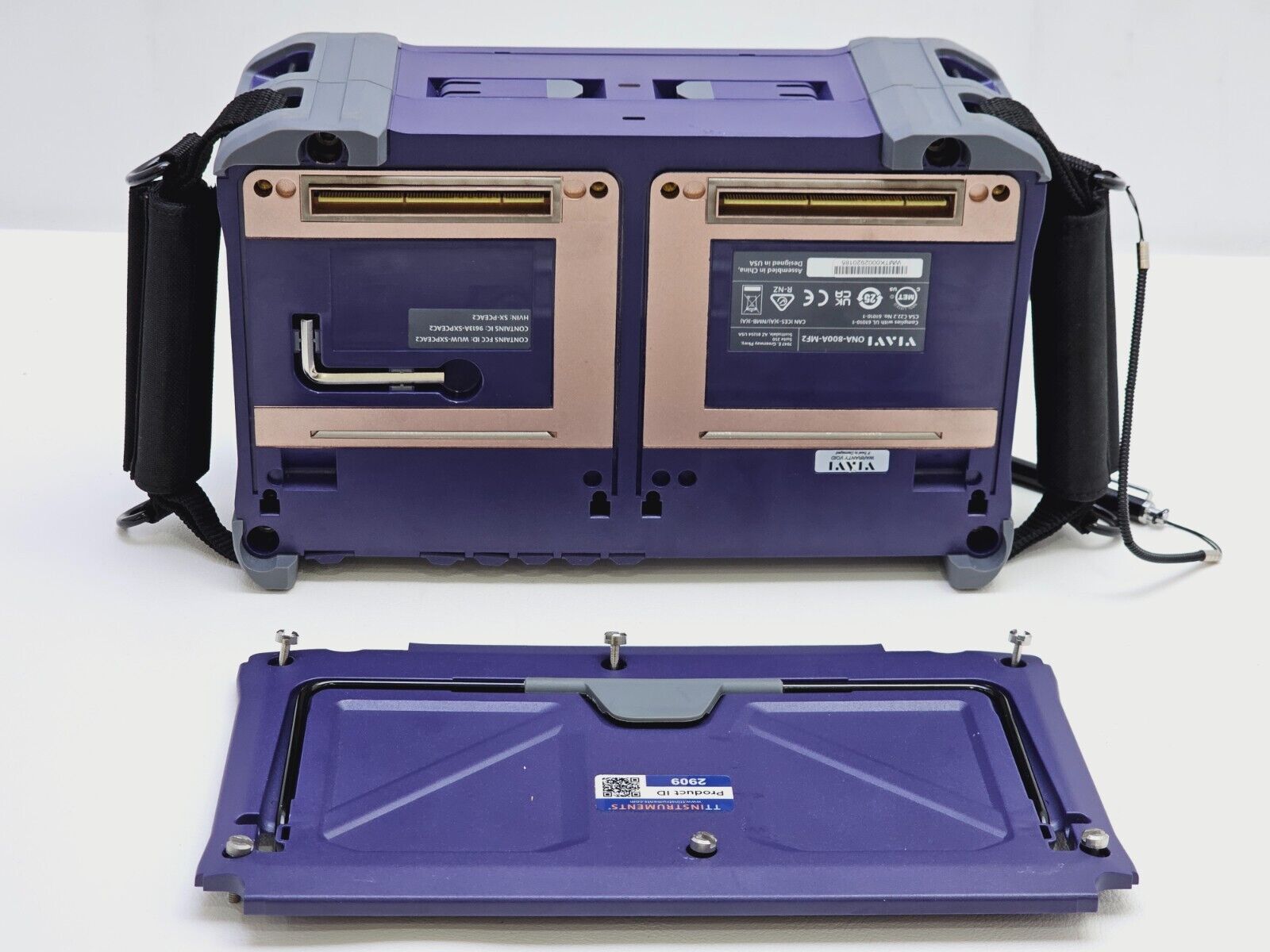

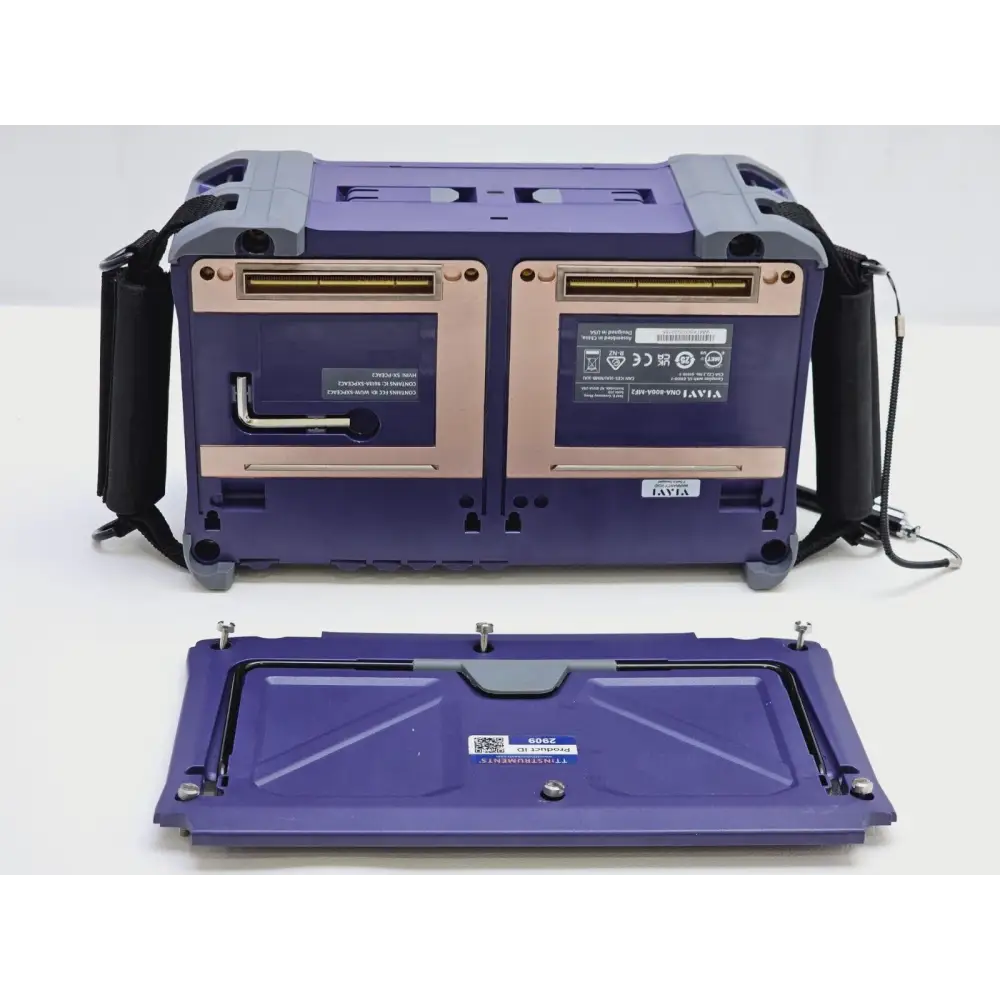

Module Slots: 2 x 4000-series modules (ONA-800A-MF2 dual carrier)
Form Factor: Handheld, modular
Power: AC adapter (mains) and internal battery

For full specifications, please refer to the Viavi Solutions website.

Viavi 8126B OTDR Module Datasheet (Viavi Solutions): Download PDF
