Condition: Used — In working condition. Please refer to the images for cosmetic condition.

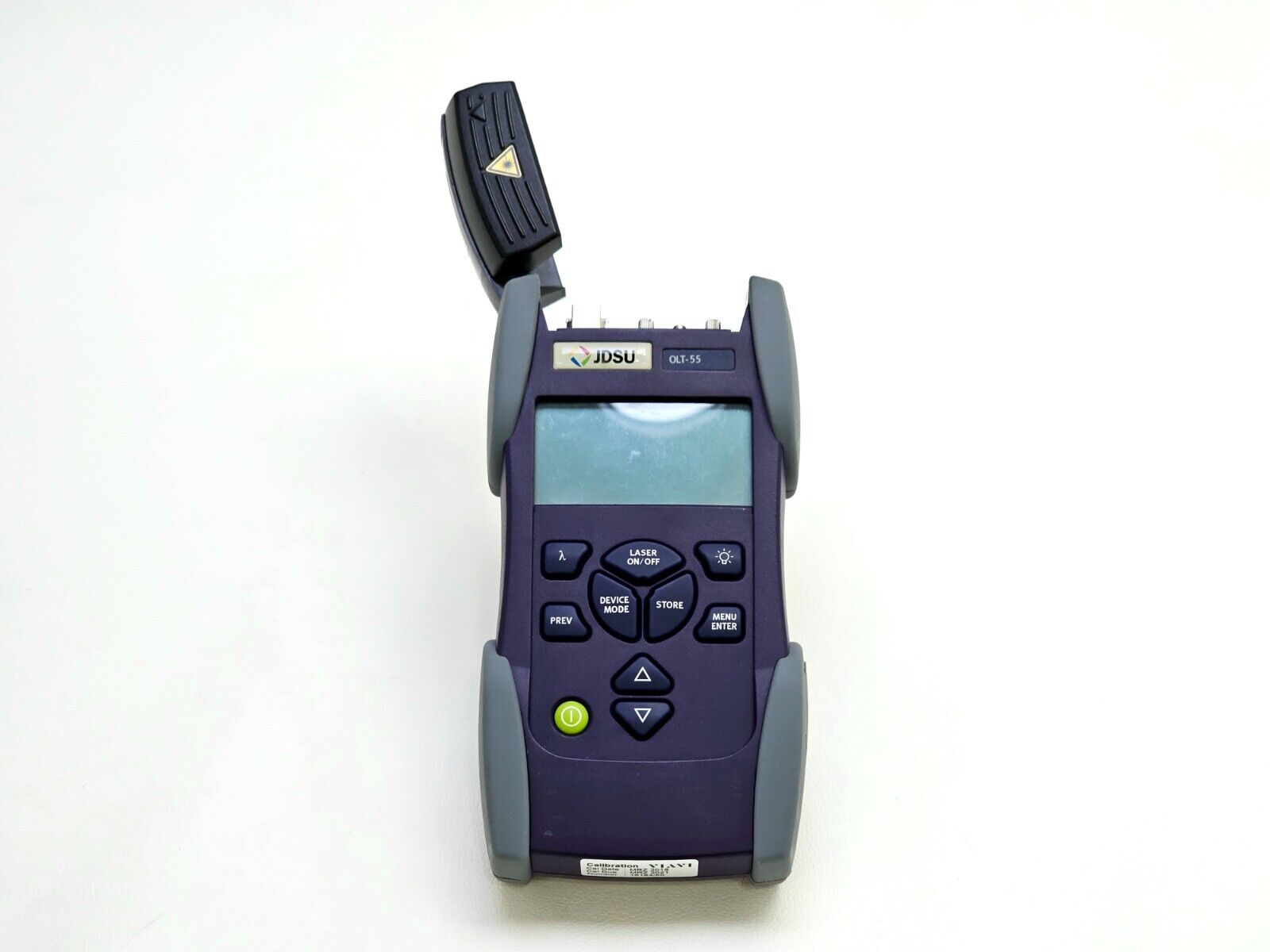

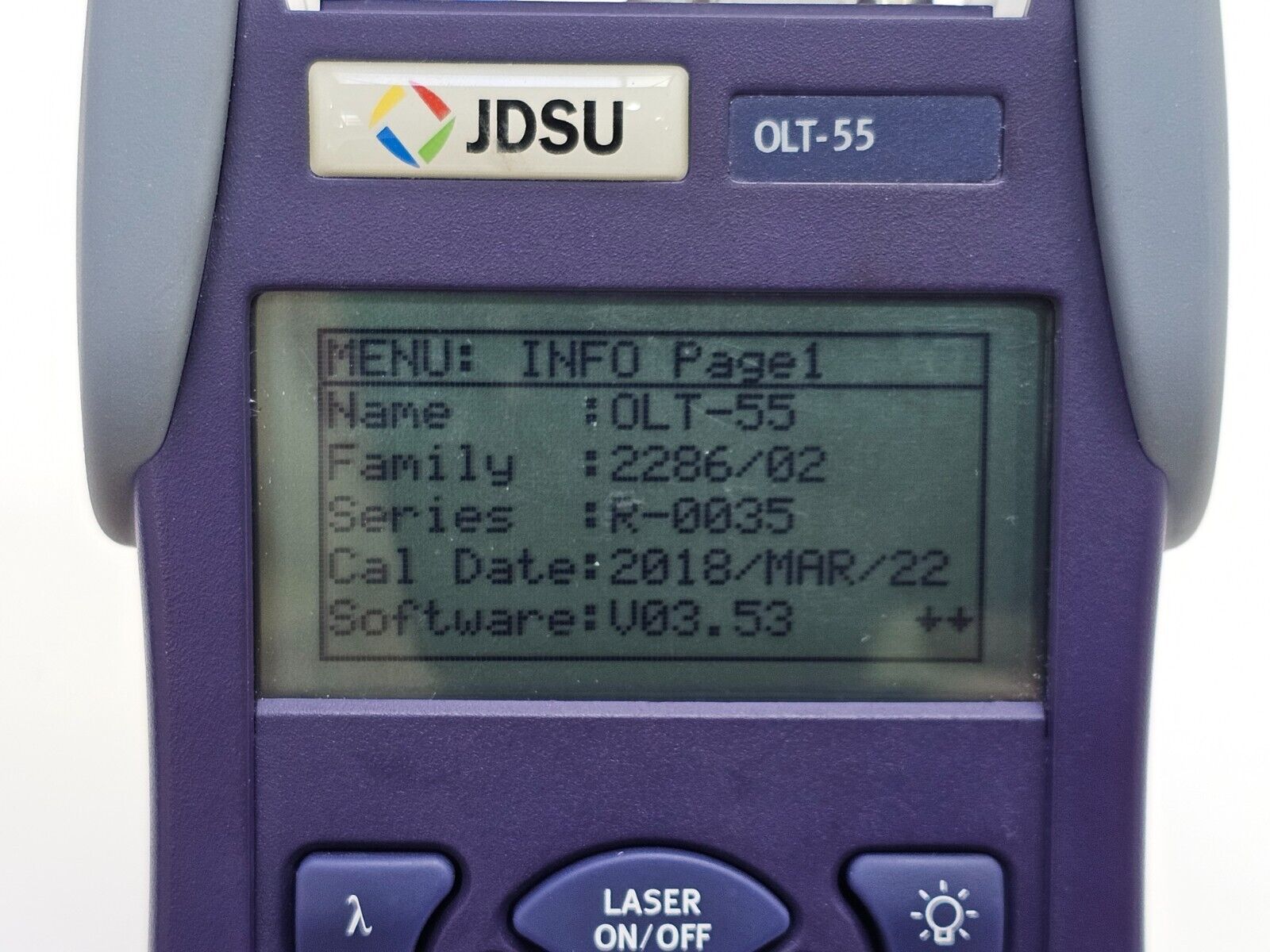

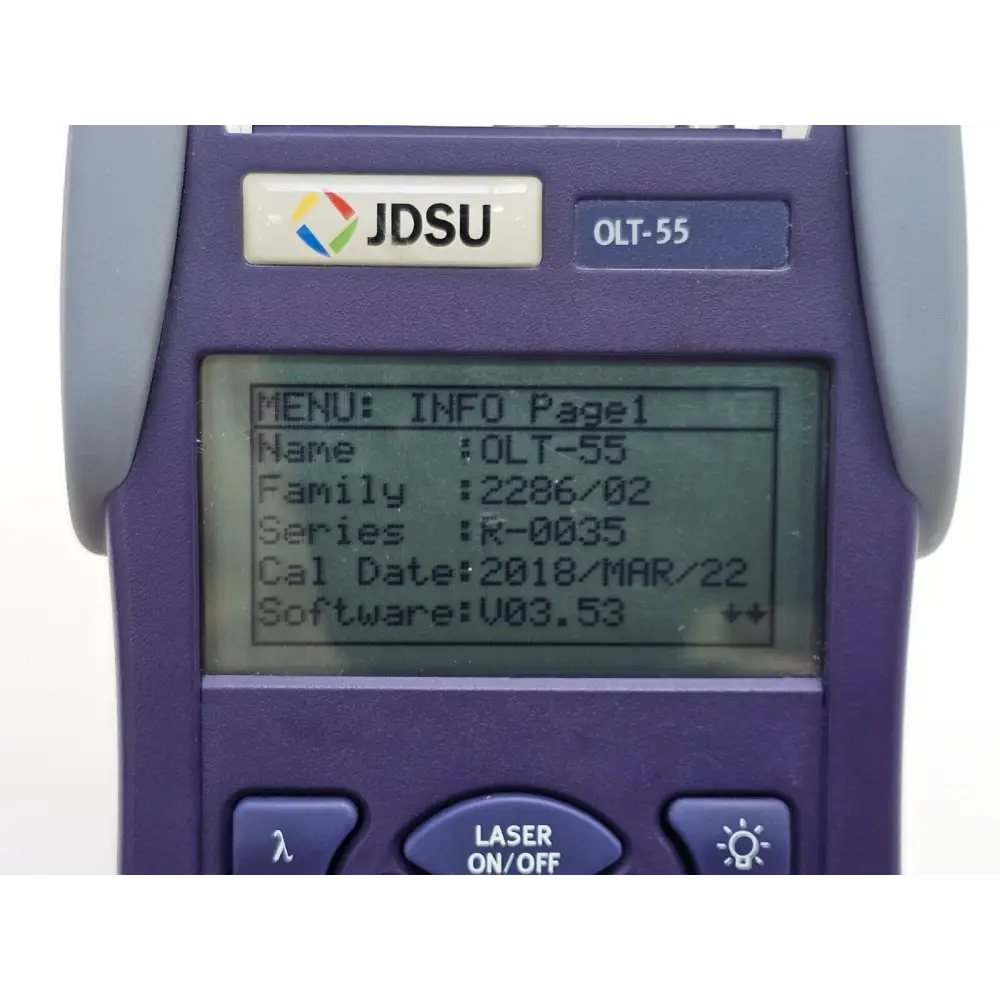

This is the Viavi JDSU OLT-55 SmartClass Optical Loss Test Set in the 2286/02 configuration, supporting wavelengths of 1310, 1490, and 1550 nm — making it suitable for FTTx and PON network testing. The unit combines the functionality of the OLS-55 Smart Optical Light Source and OLP-55 Smart Optical Power Meter in a single handheld instrument. It features independent quick referencing for all built-in wavelengths, built-in auto-zeroing for very low power levels or high loss measurements, and a SMARTStar graphical user interface. Quick start operation requires no warm-up time, and measurements are traceable to NIST/PTB standards.

Included in the sale:

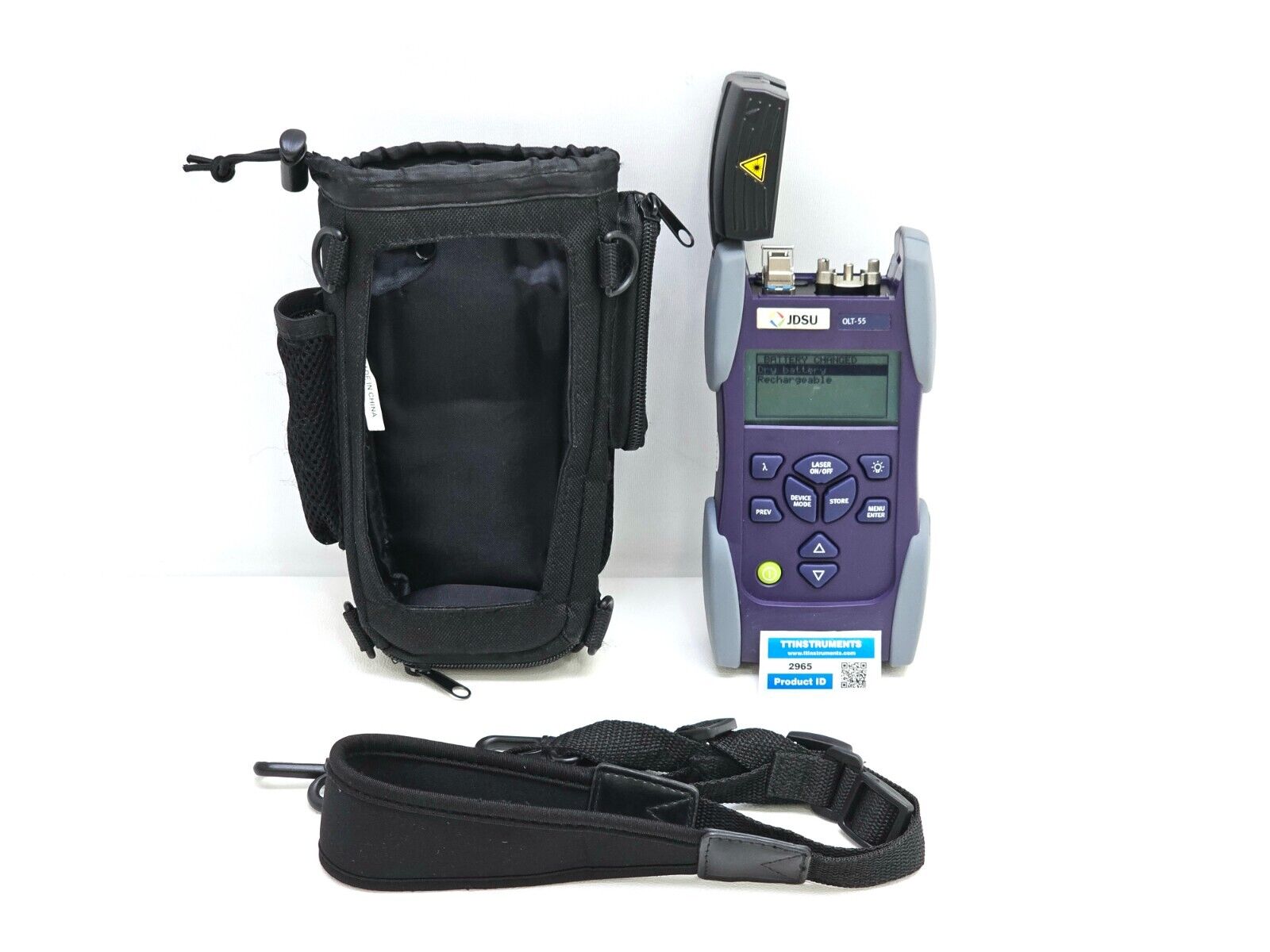

• Viavi JDSU OLT-55 SmartClass Optical Loss Test Set (2286/02)

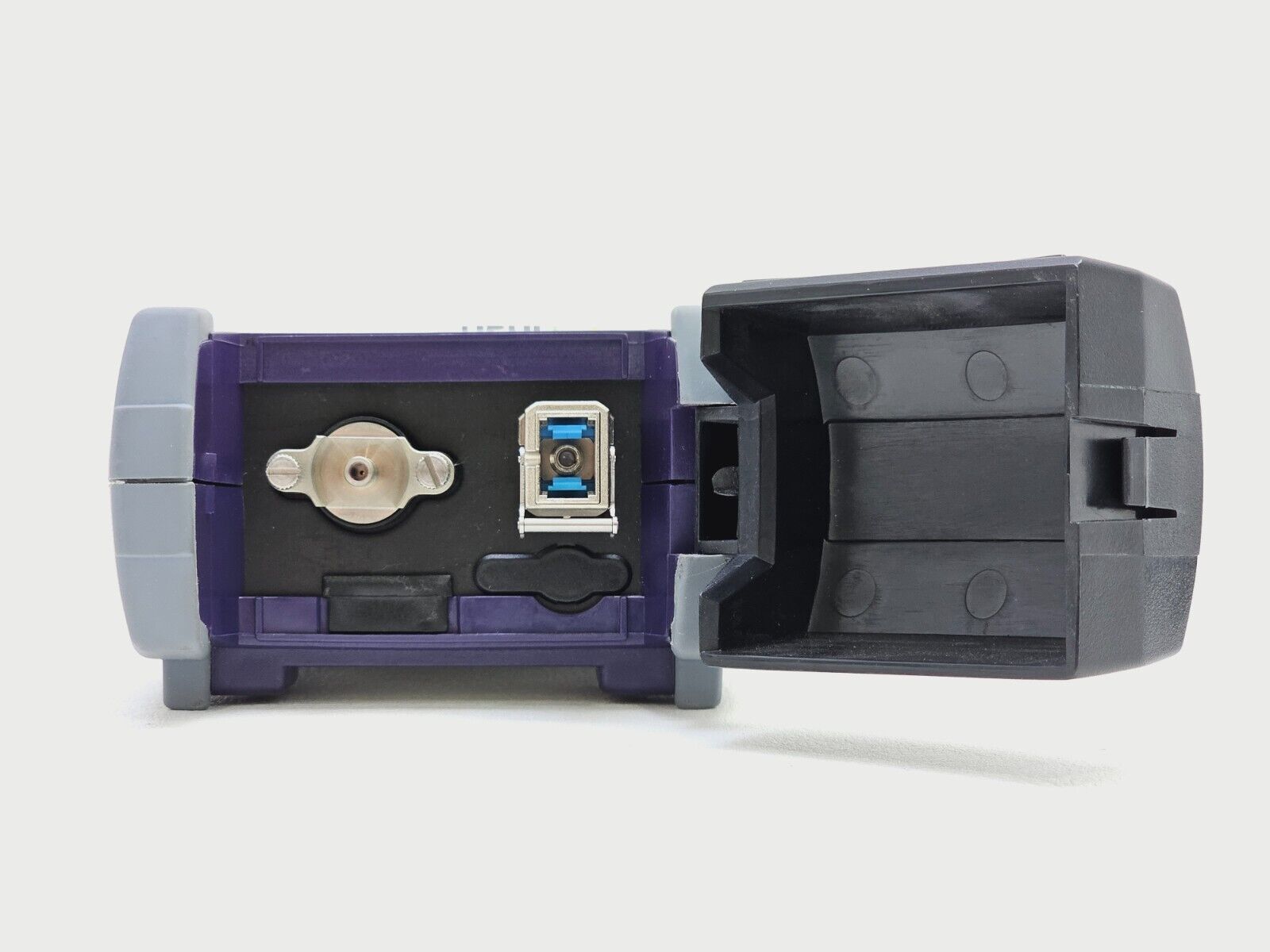

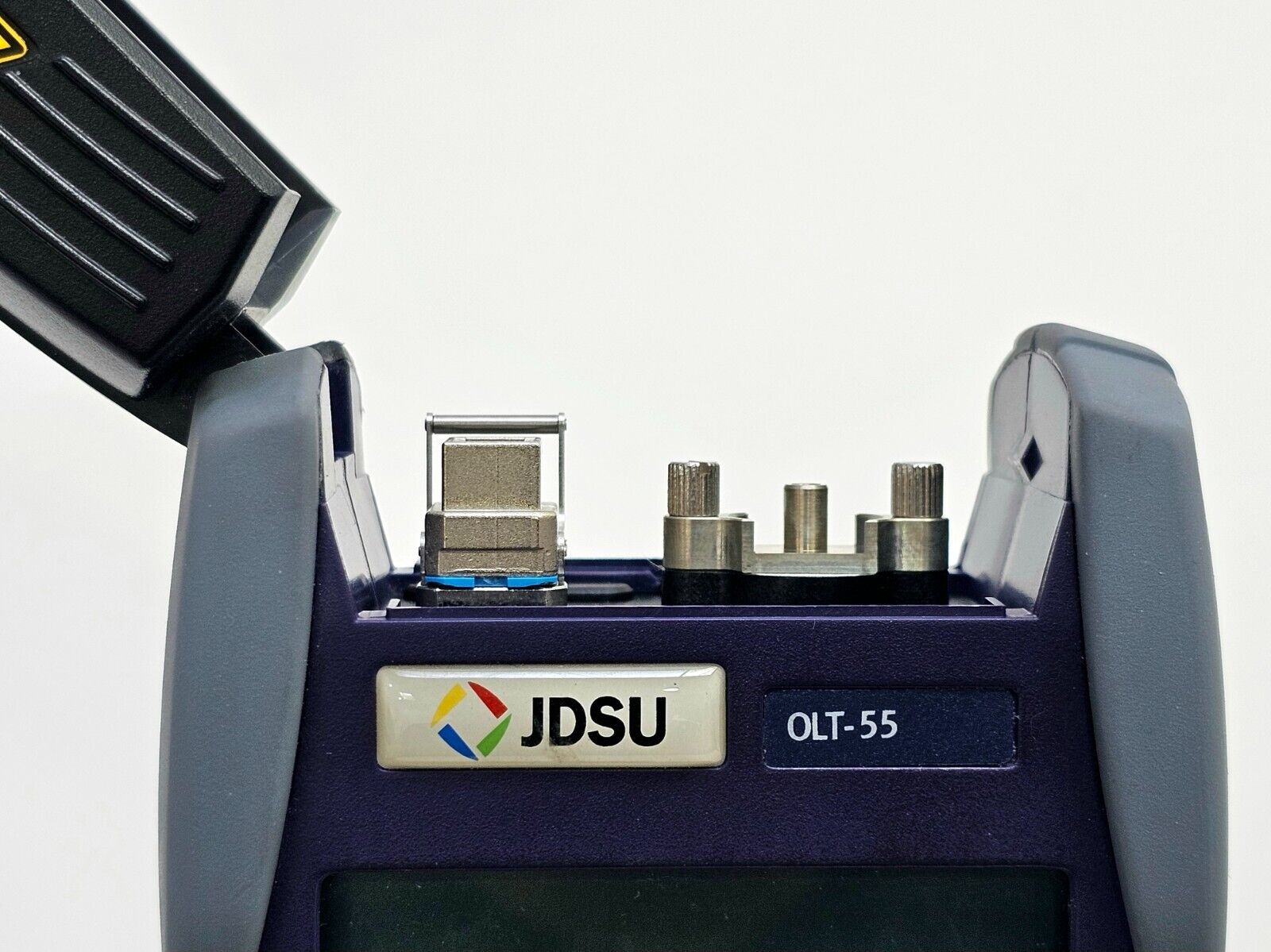

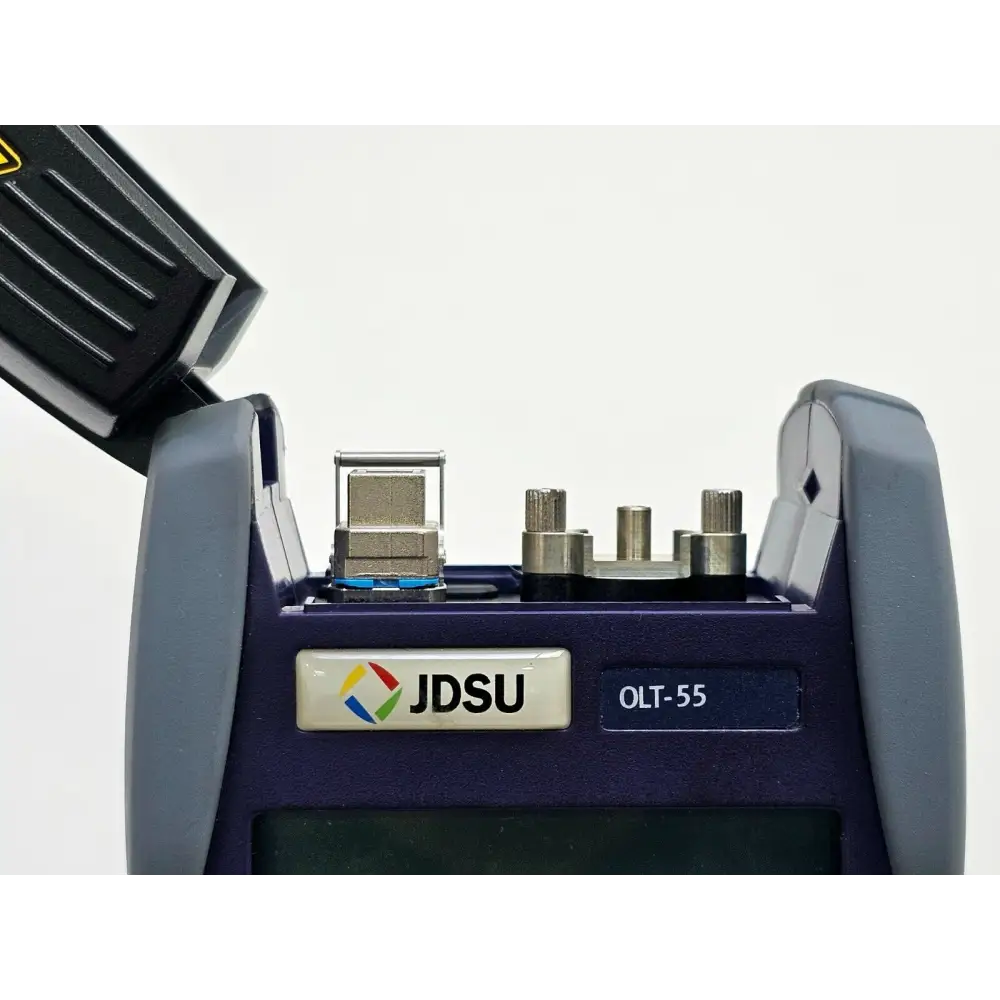

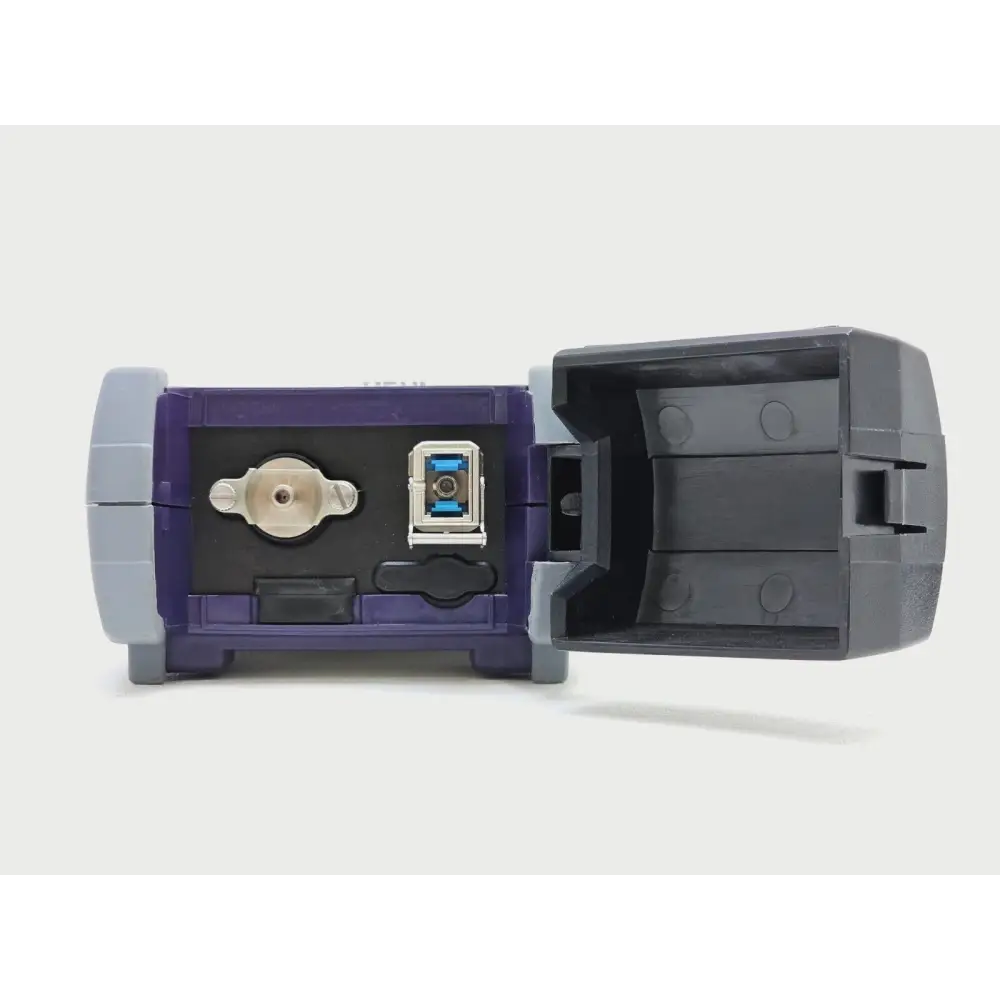

• SC connector interface (as pictured)

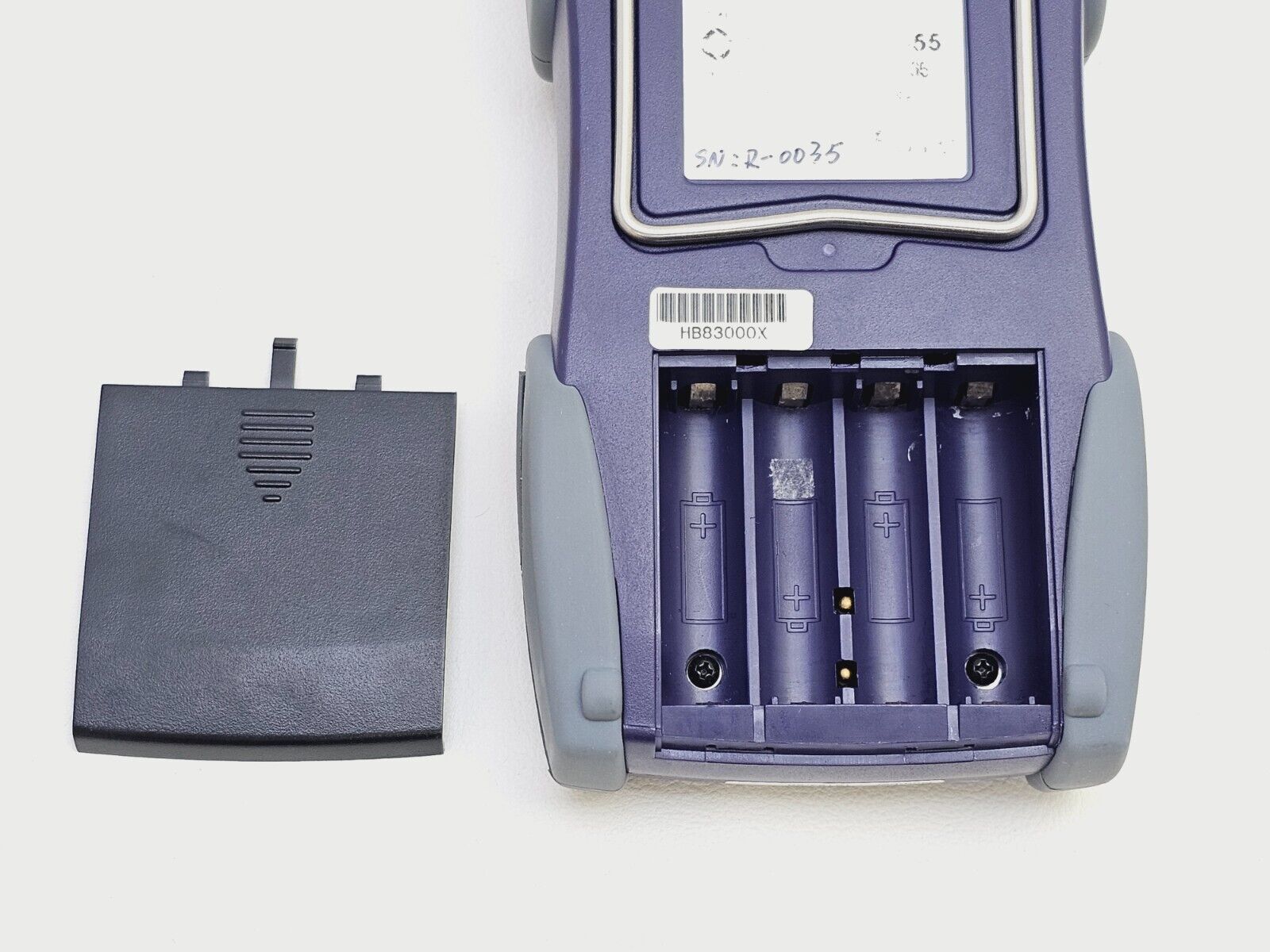

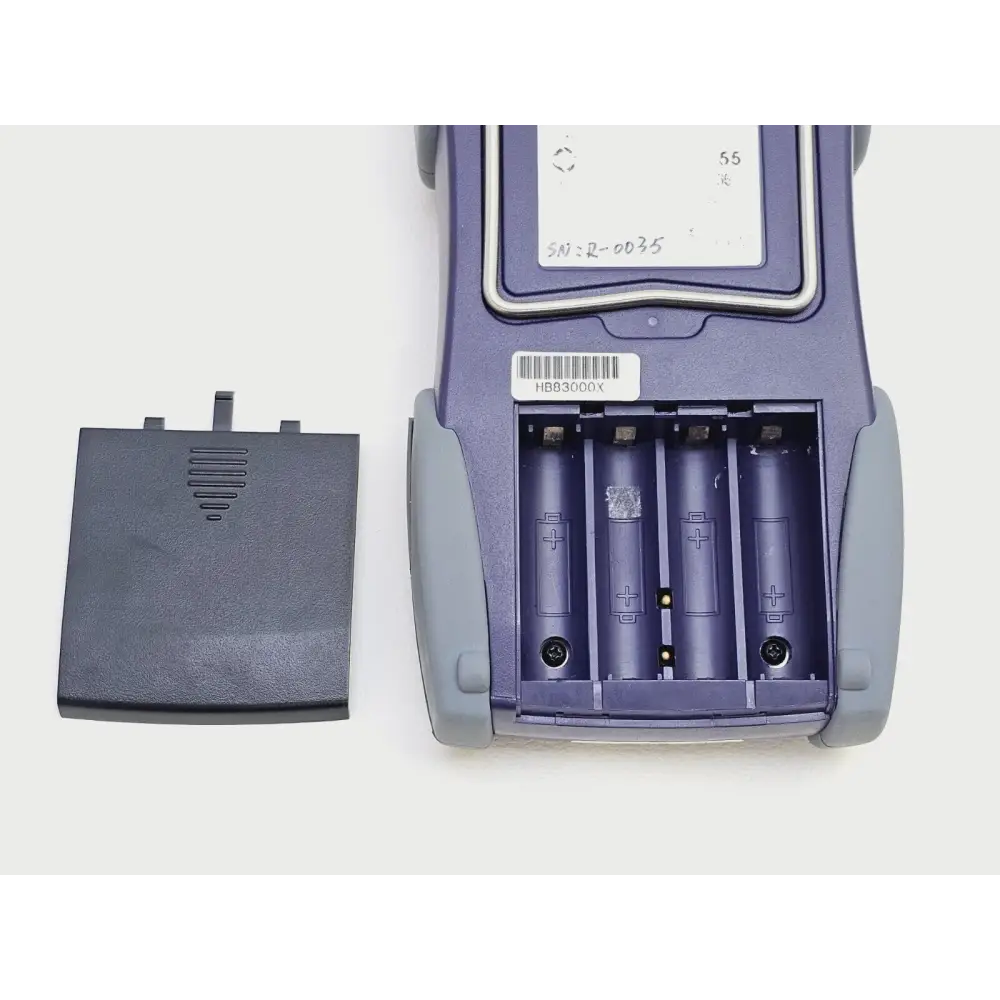

Please note: power adapter and batteries are not included.

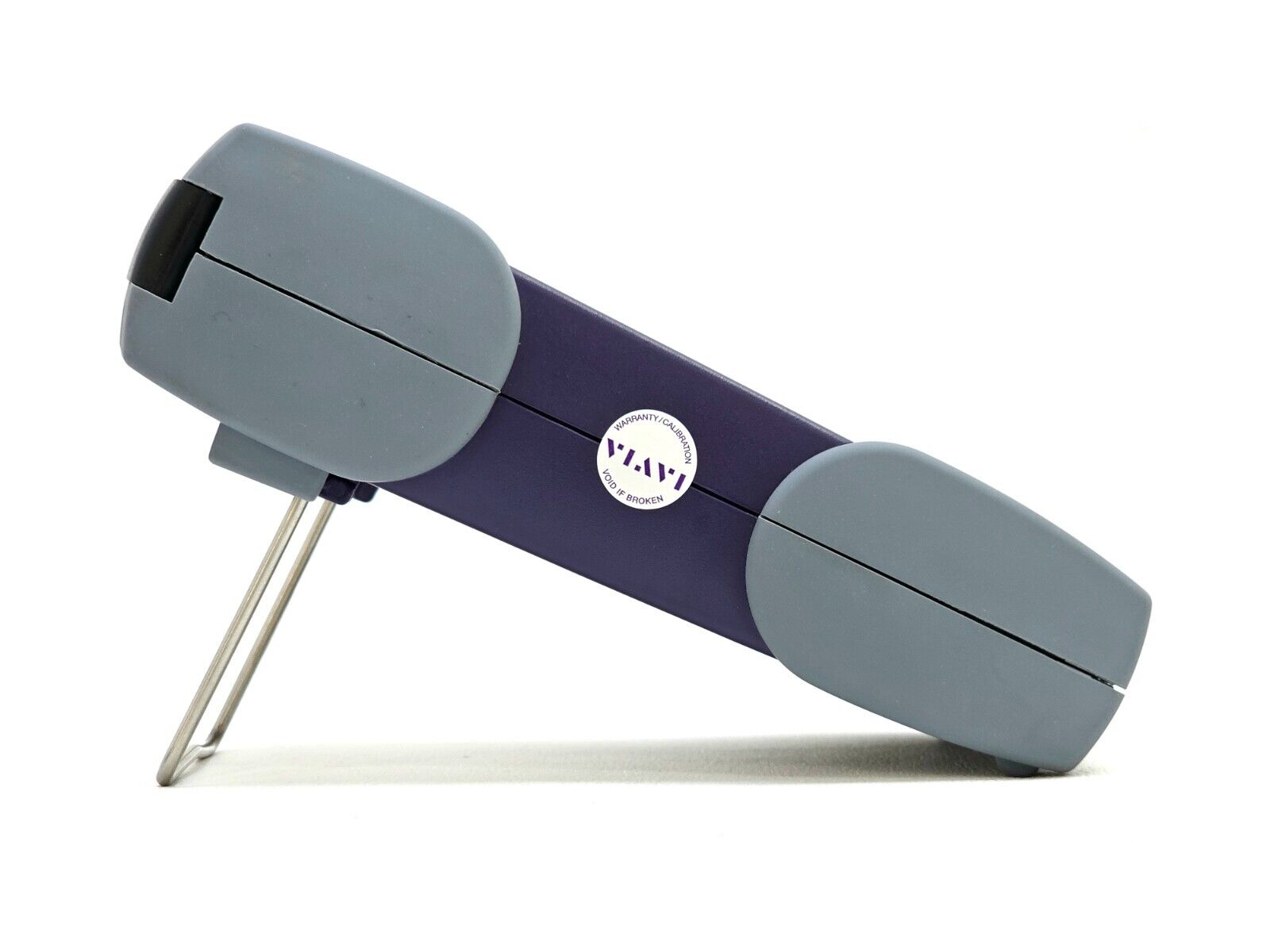

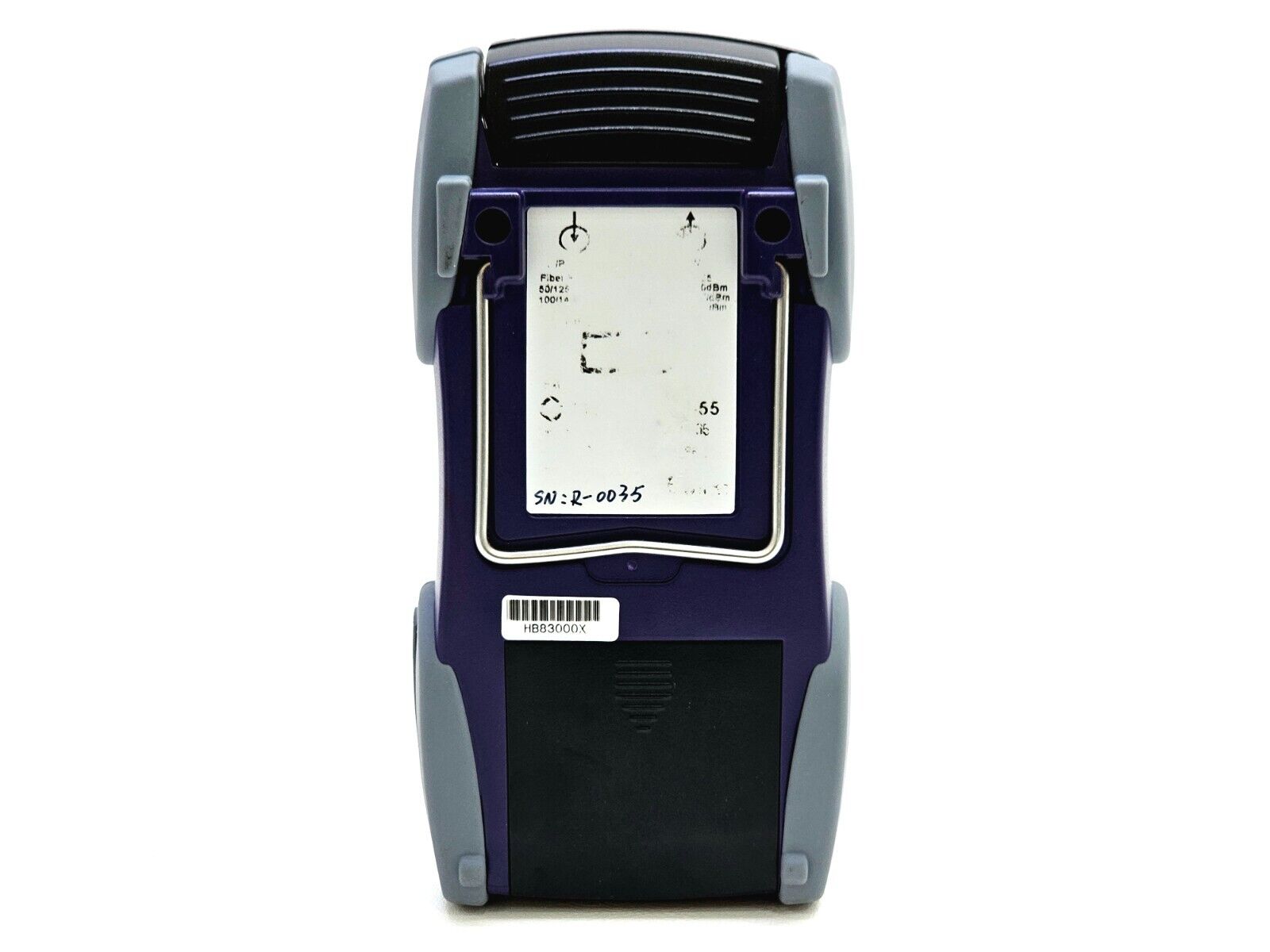

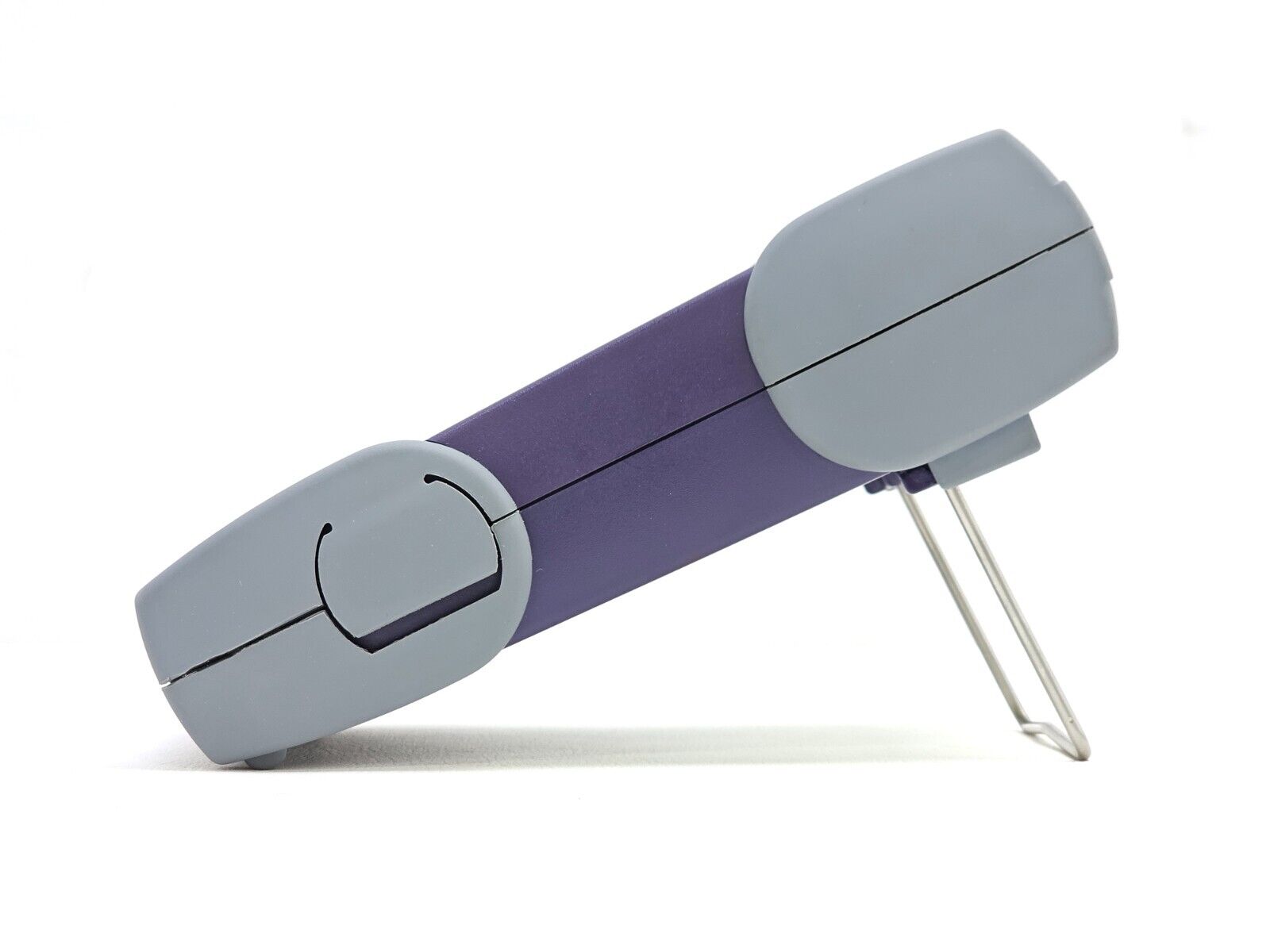

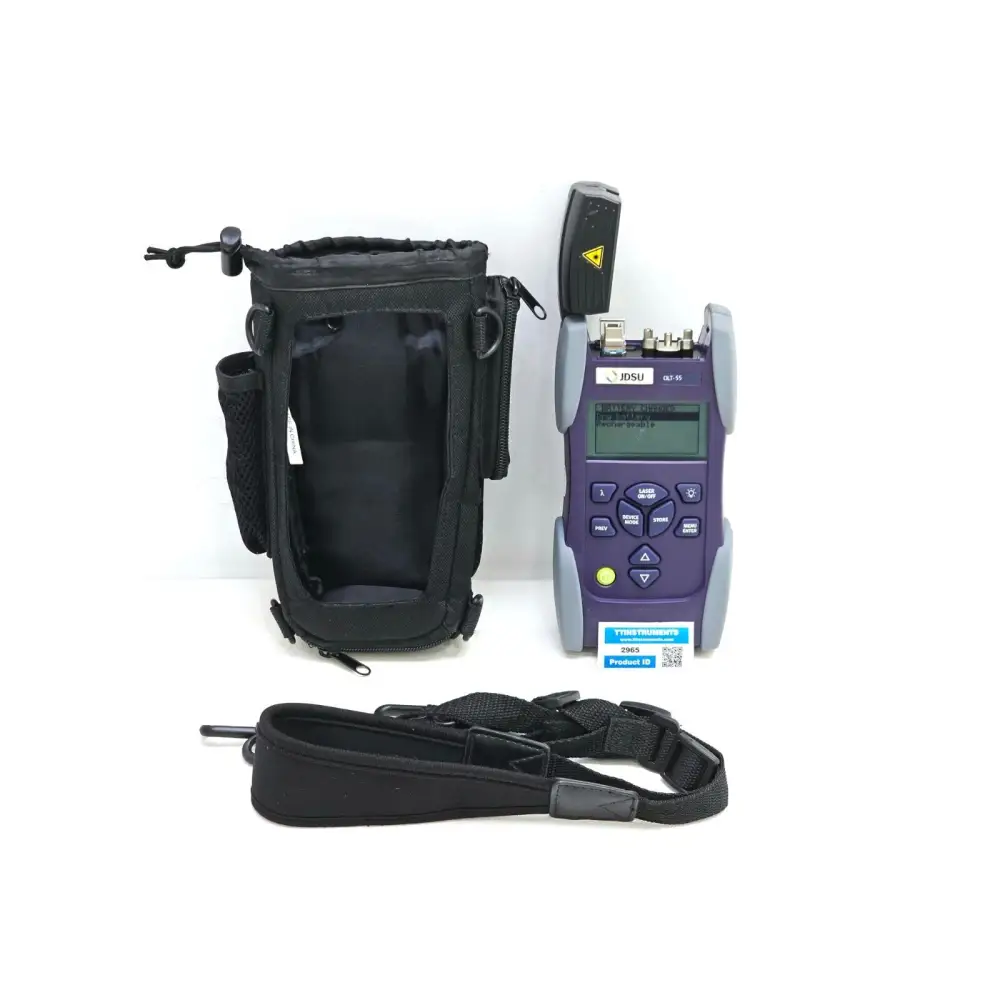

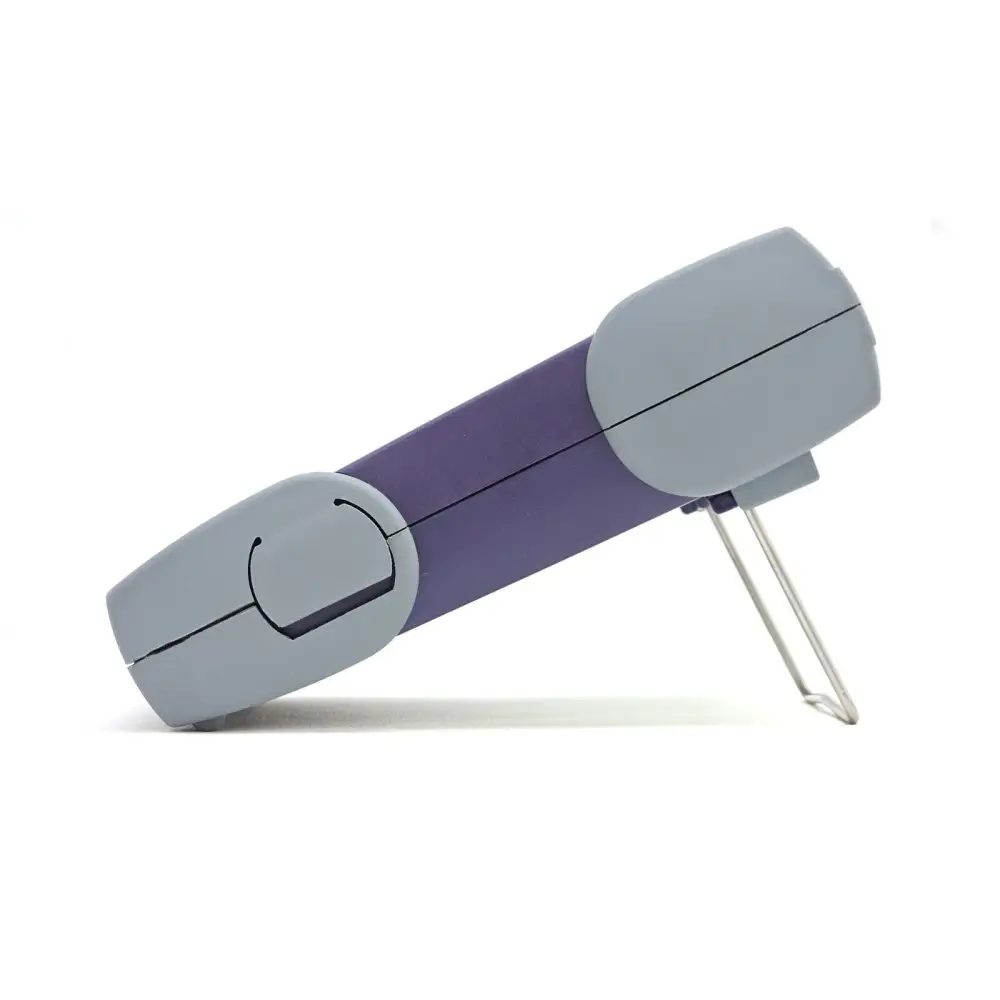

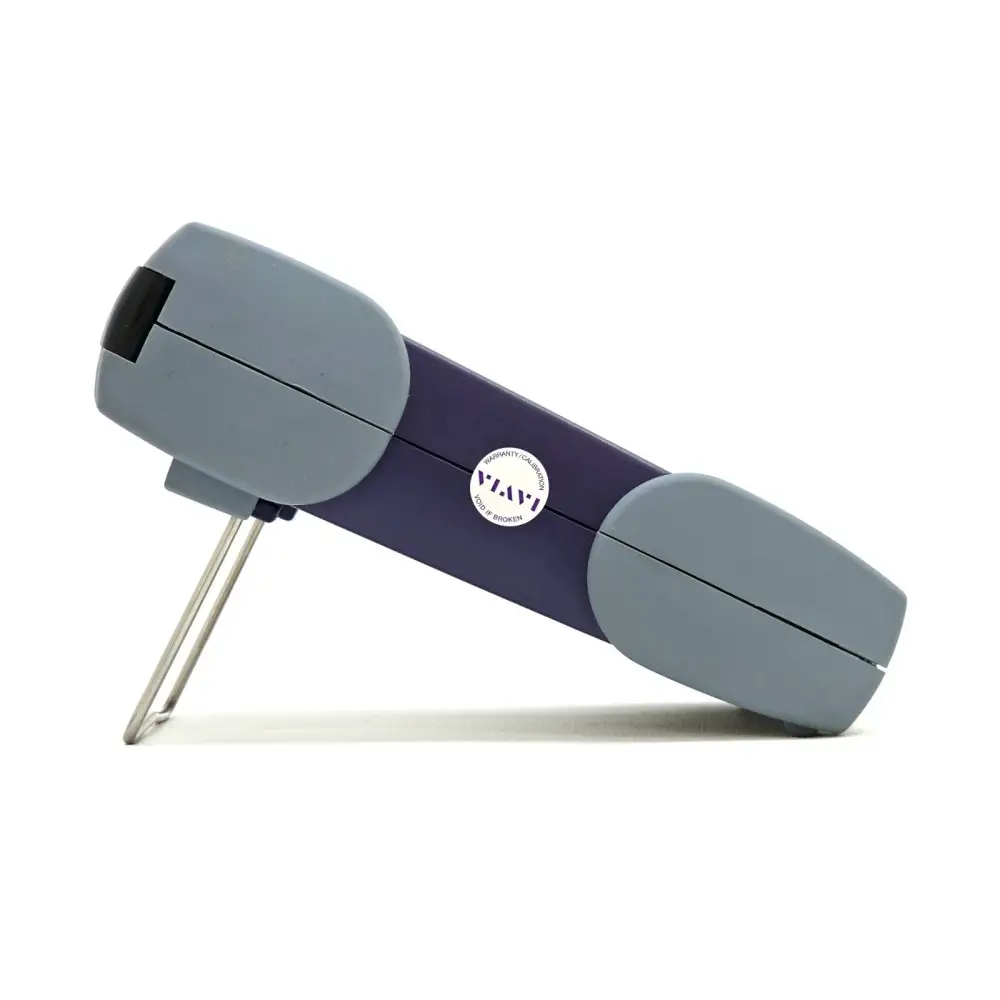

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

The Viavi (formerly JDSU) OLT-55 SmartClass Optical Loss Test Set is a universal instrument designed for singlemode fibre testing across lab, manufacturing, installation, maintenance, and troubleshooting environments. It integrates a calibrated laser light source and optical power meter into a single, robust handheld unit, eliminating the need for two separate instruments.

The 2286/02 version supports three wavelengths — 1310 nm, 1490 nm, and 1550 nm — simultaneously, making it particularly well suited to FTTx and passive optical network (PON) applications. Loss measurements at all wavelengths can be read and displayed concurrently, significantly accelerating field testing workflows.

Key specifications and features:

Wavelengths (2286/02): 1310 / 1490 / 1550 nm
Fibre Type: Singlemode
Application: Optical insertion loss measurement, PON, FTTx, Gigabit Ethernet
Auto-lambda: Automatic wavelength detection for fast testing

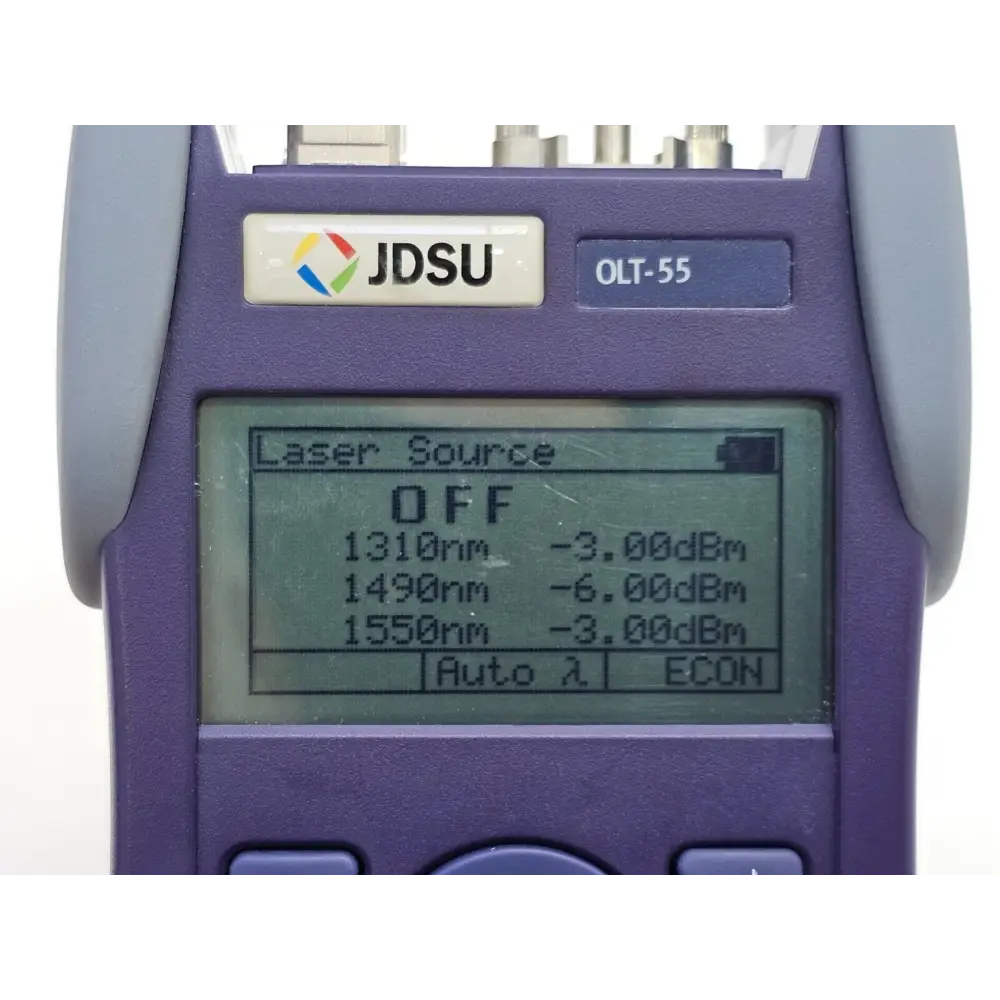

Measurement modes: Standalone power meter, standalone laser source, or combined OLT mode
Auto-zeroing: Built-in, for very low power levels or high-loss measurements
Output stability: High stability via built-in optical isolators
Interface: Built-in USB for remote control and report generation
Data storage: Host USB data storage option
Visual Fault Locator: Optional

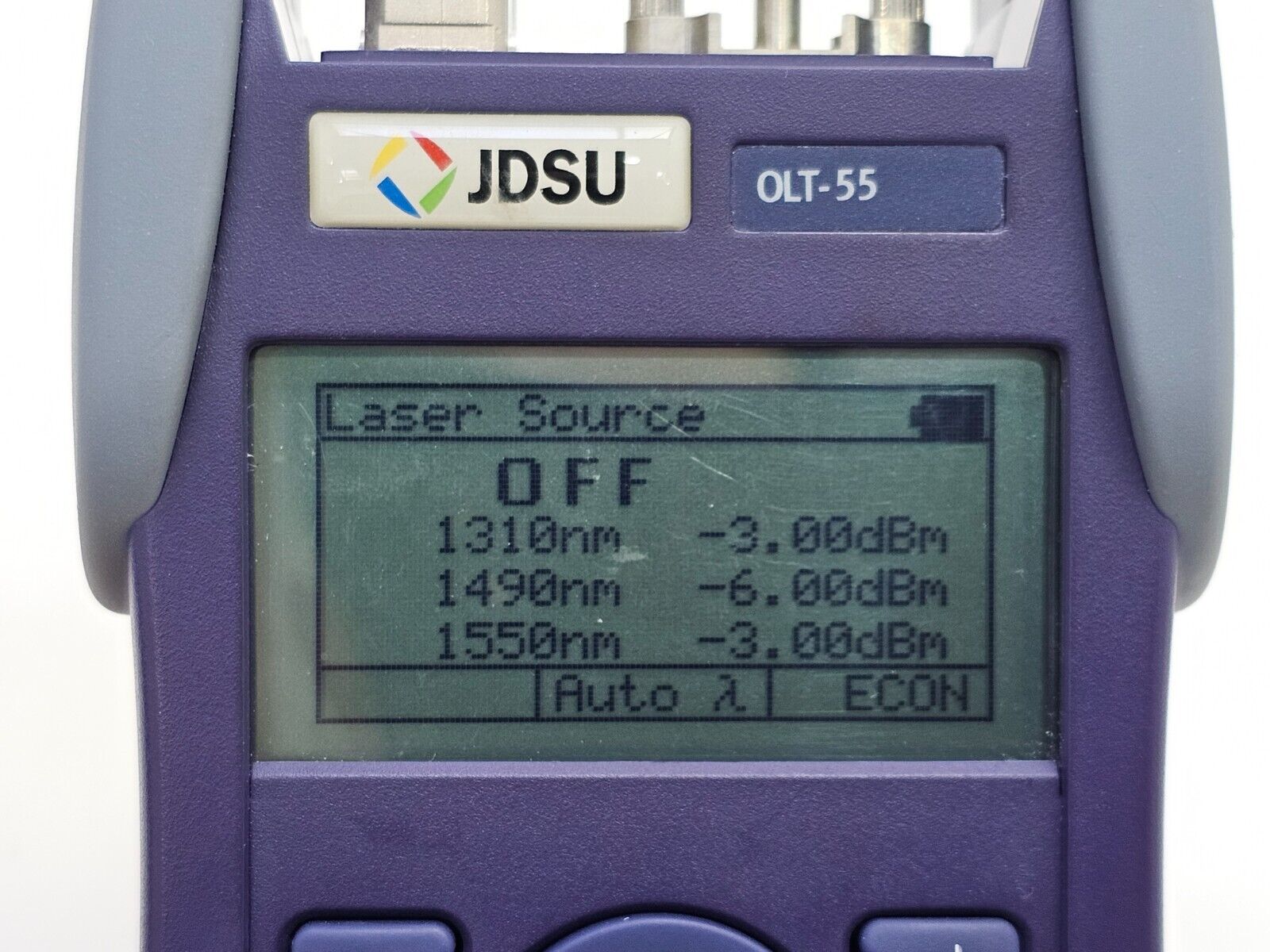

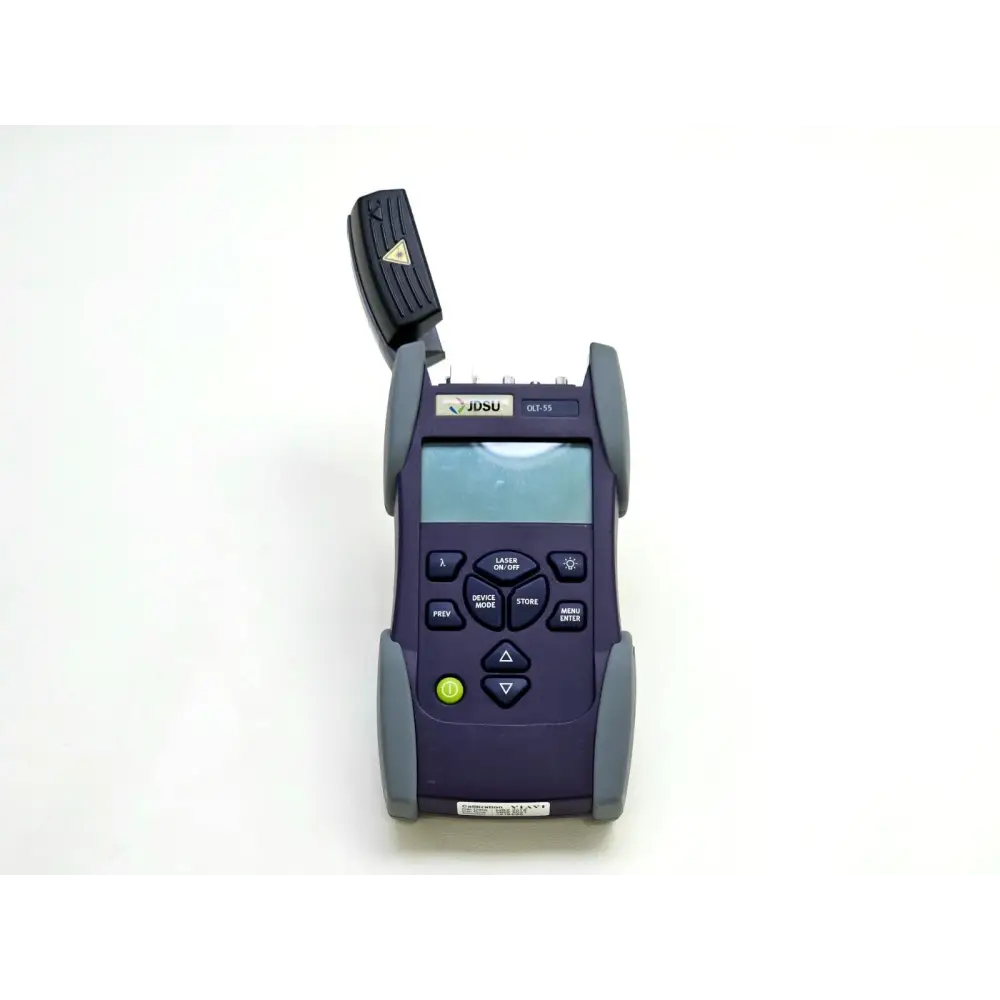

Display: SMARTStar graphical user interface
Power management: SMARTEnergy system
Warm-up time: None required — instant quick start

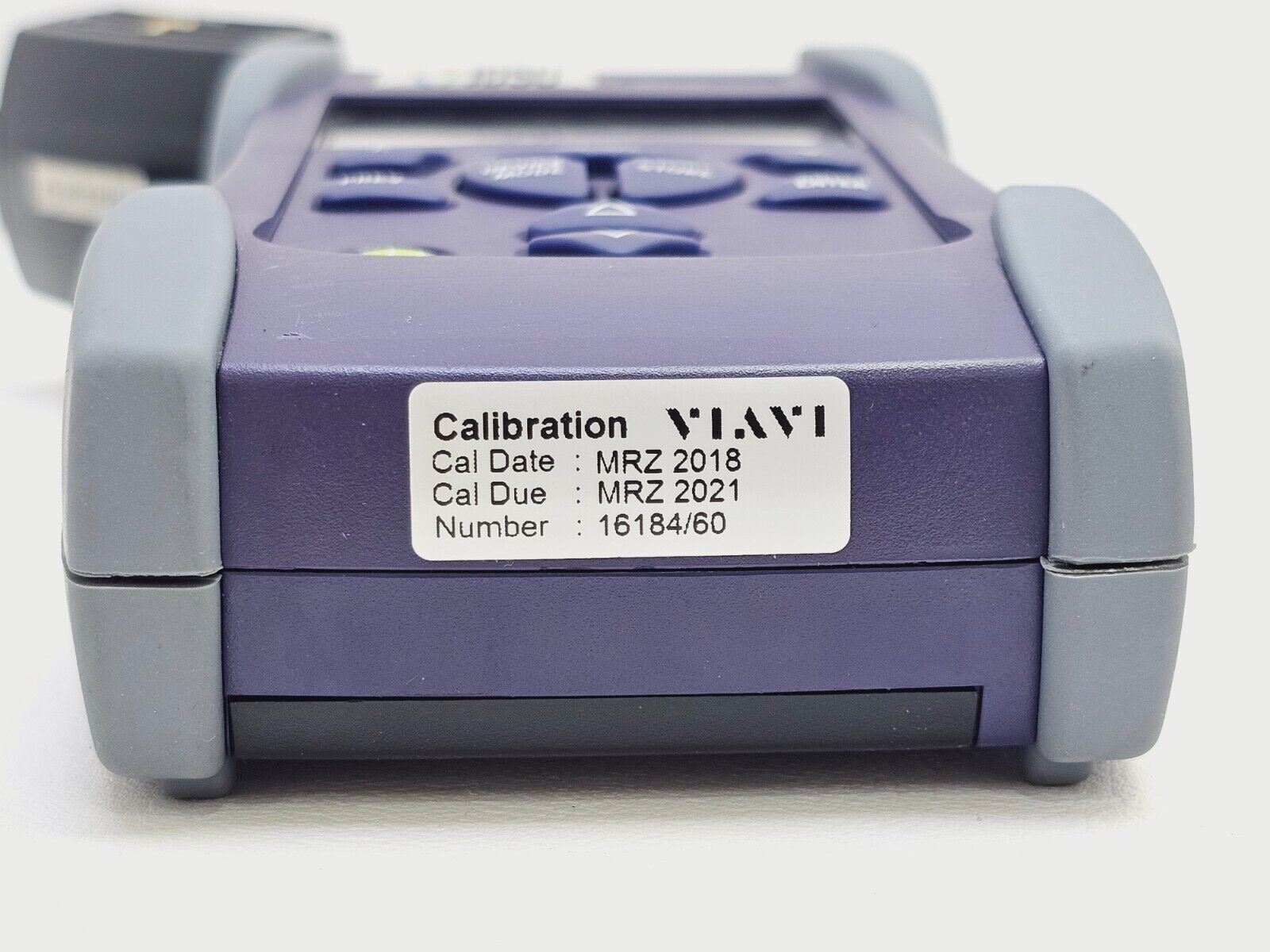

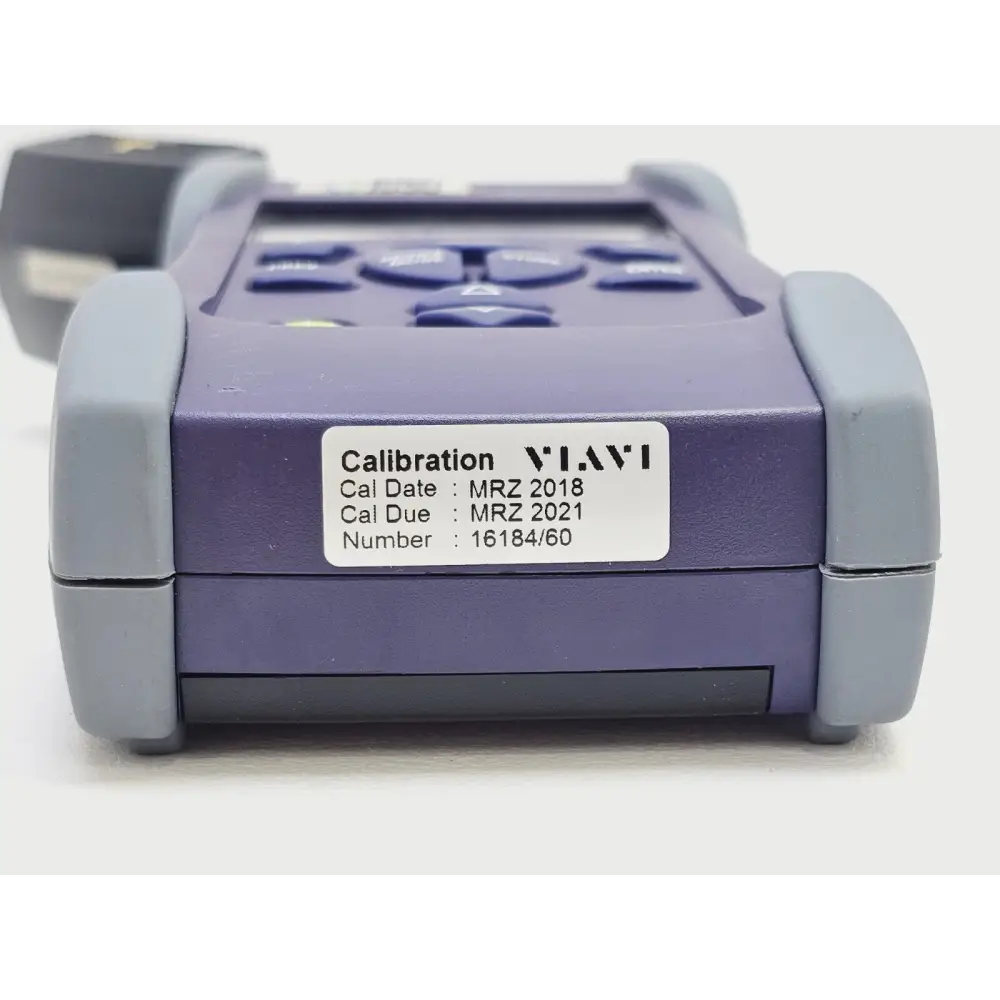

Traceability: NIST/PTB traceable measurements
Design: Robust, shock-proof, and splash-proof for field use
Operation: One-handed field operation

The OLT-55 is compatible with JDSU/Viavi's broader SmartClass fibre test ecosystem and can replicate the full functionality of both the OLS-55 Smart Optical Light Source and the OLP-55 Smart Optical Power Meter.
