Condition: Used

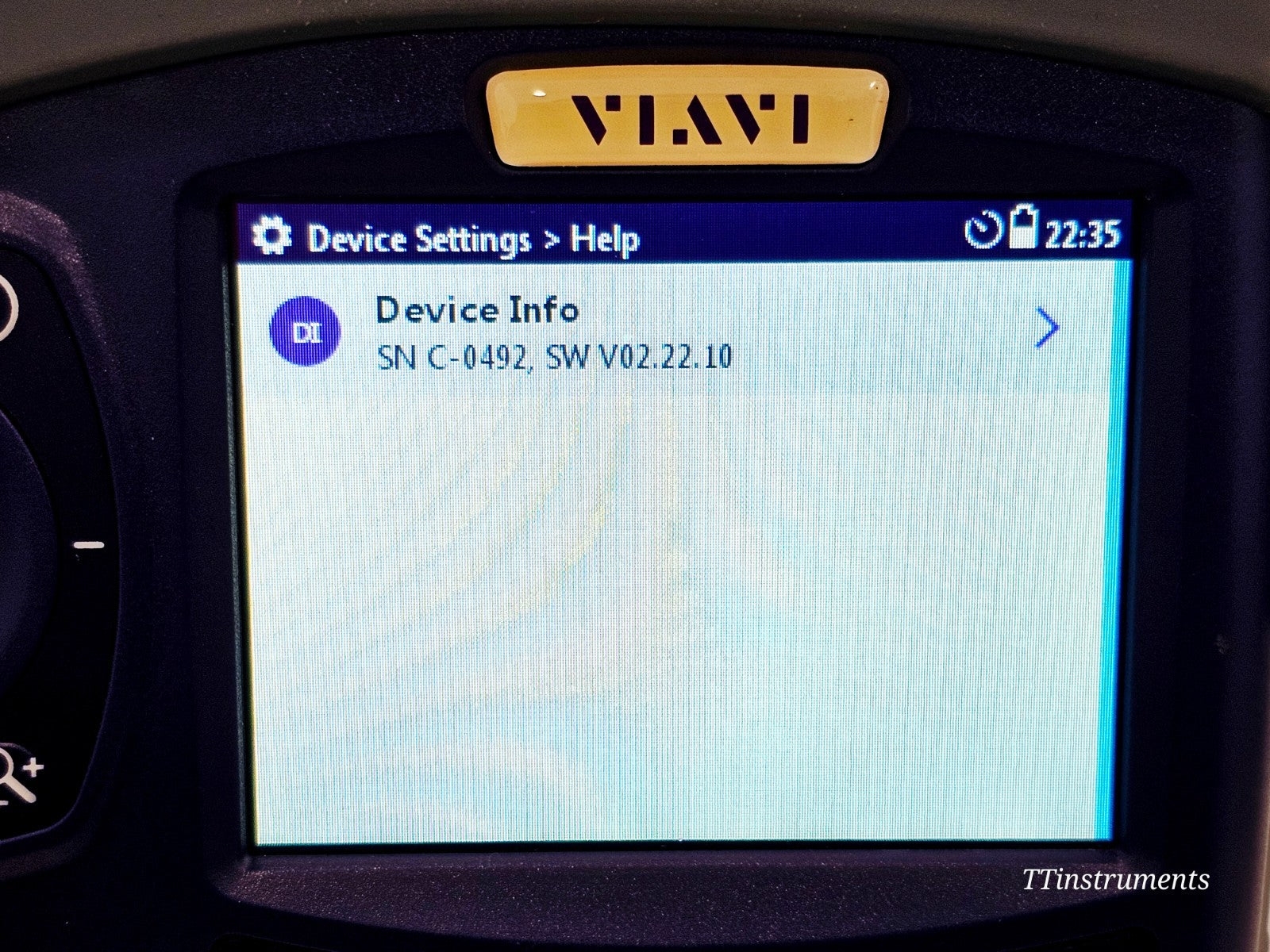

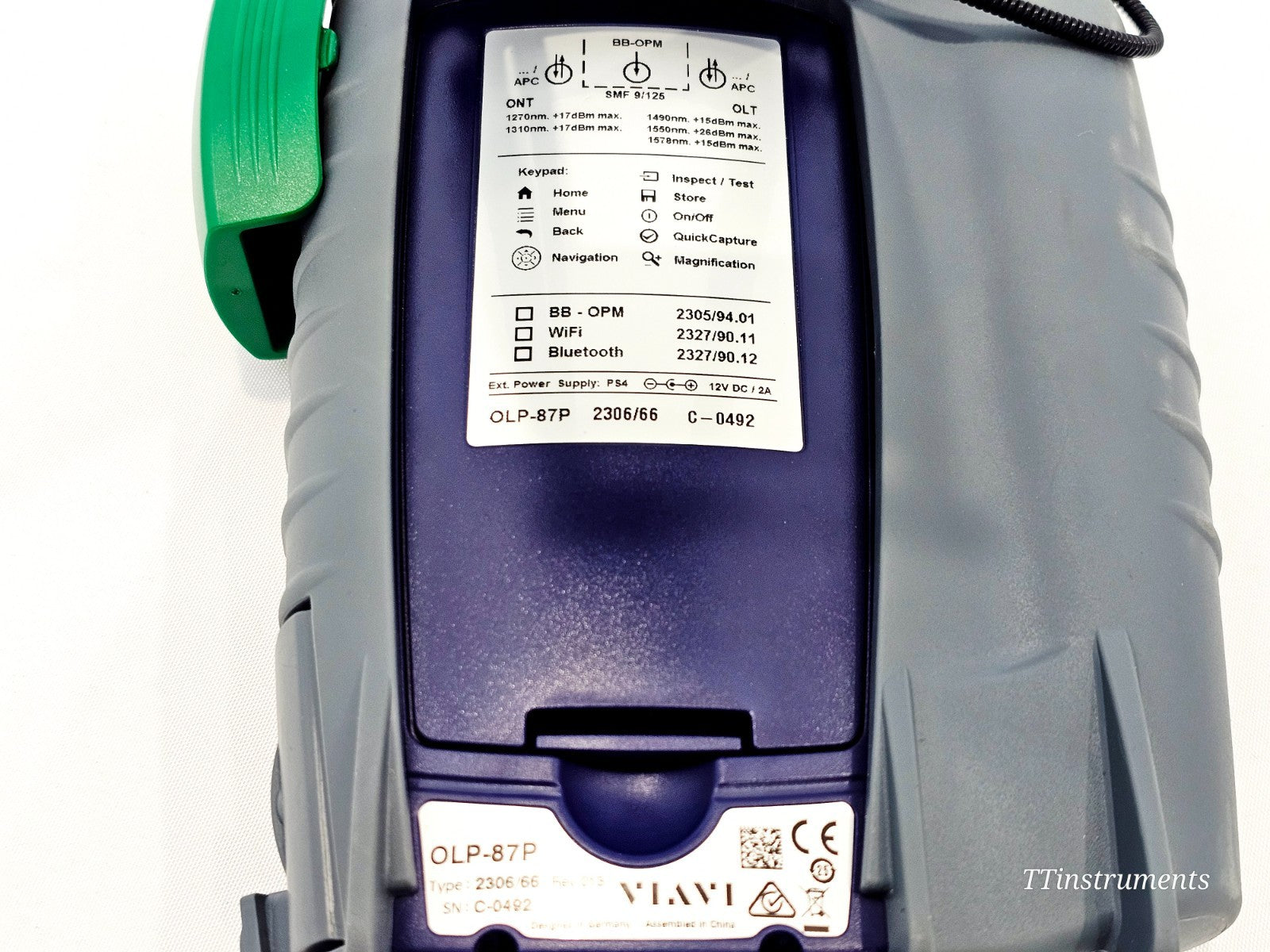

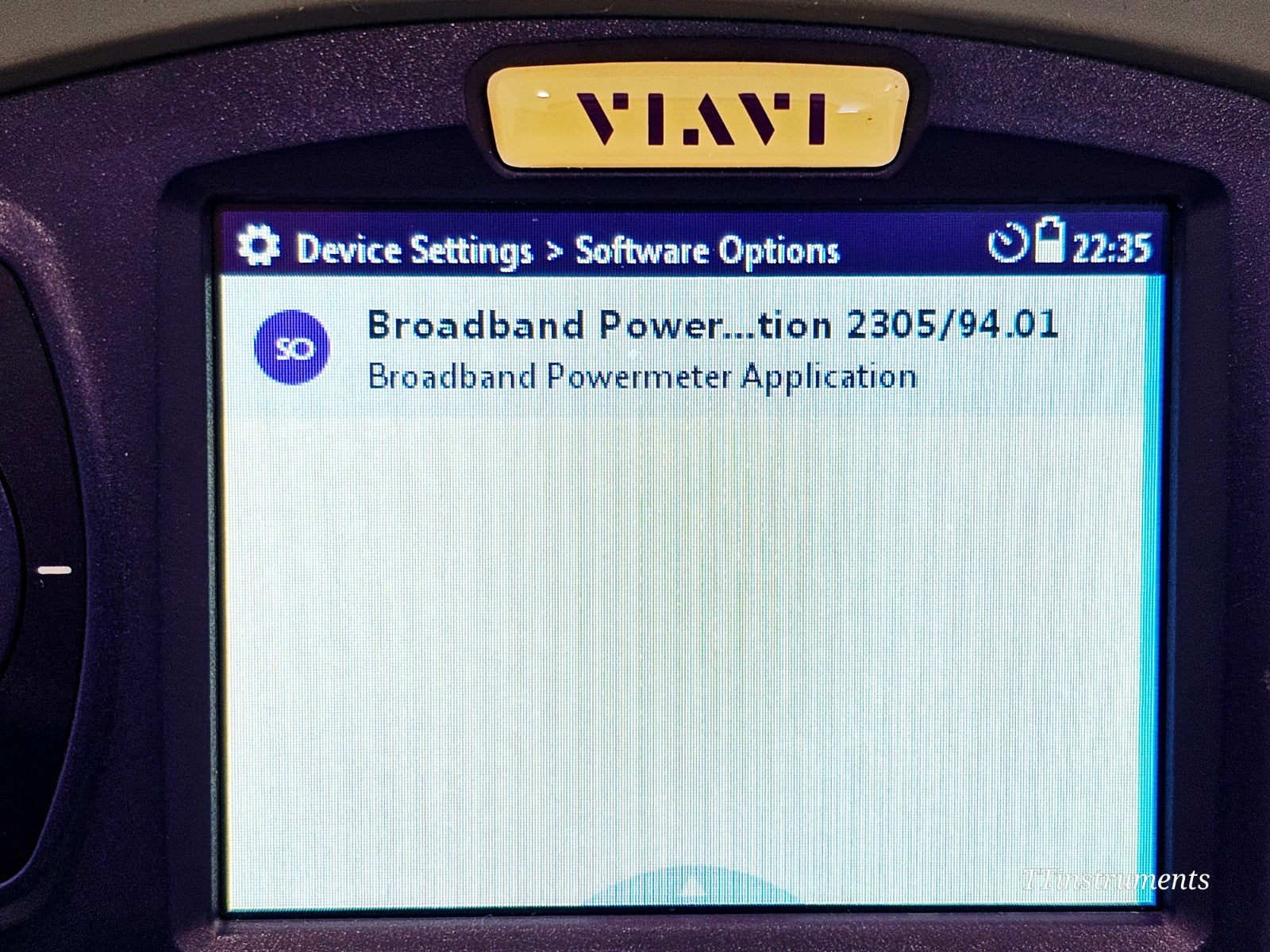

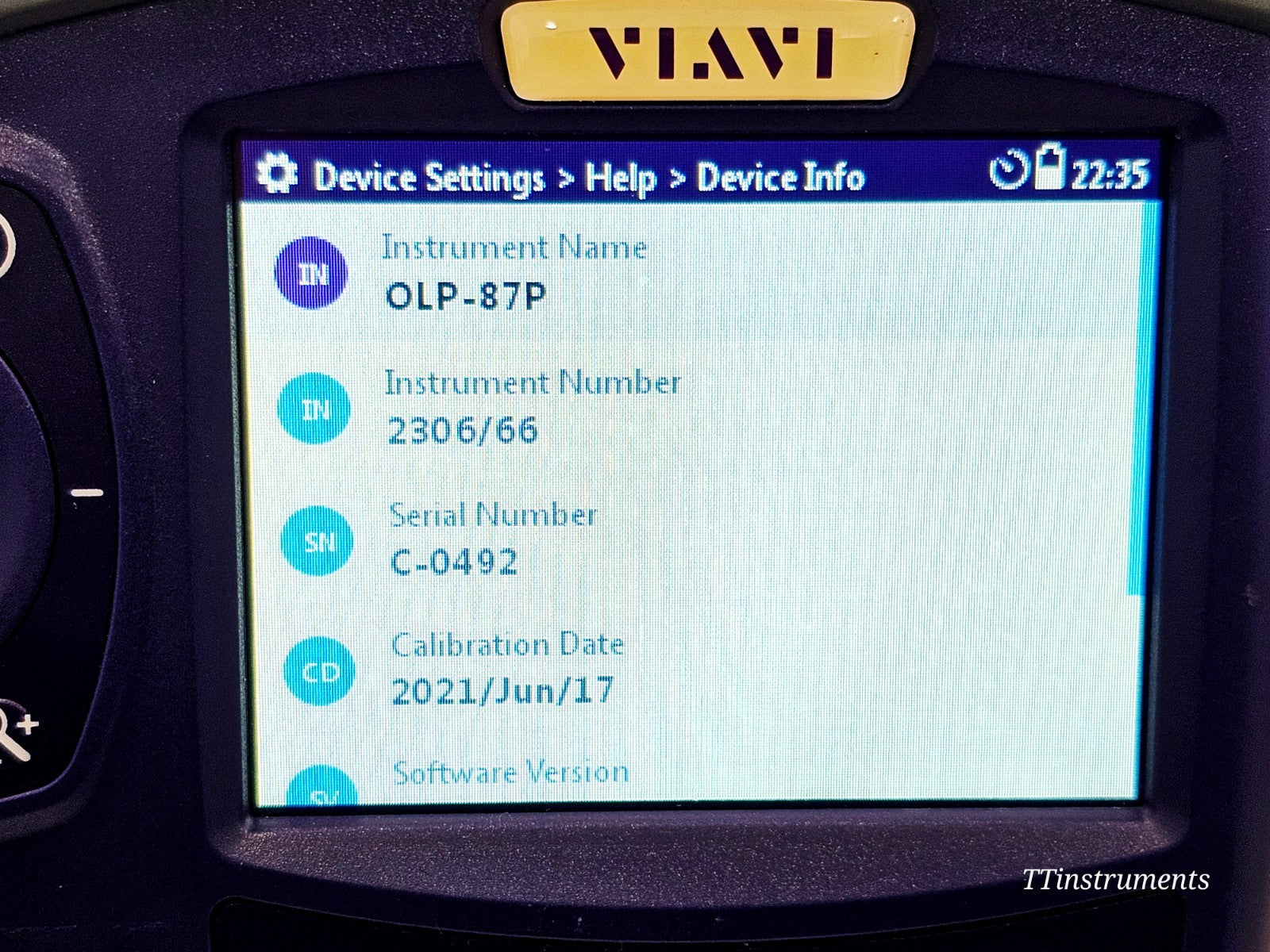

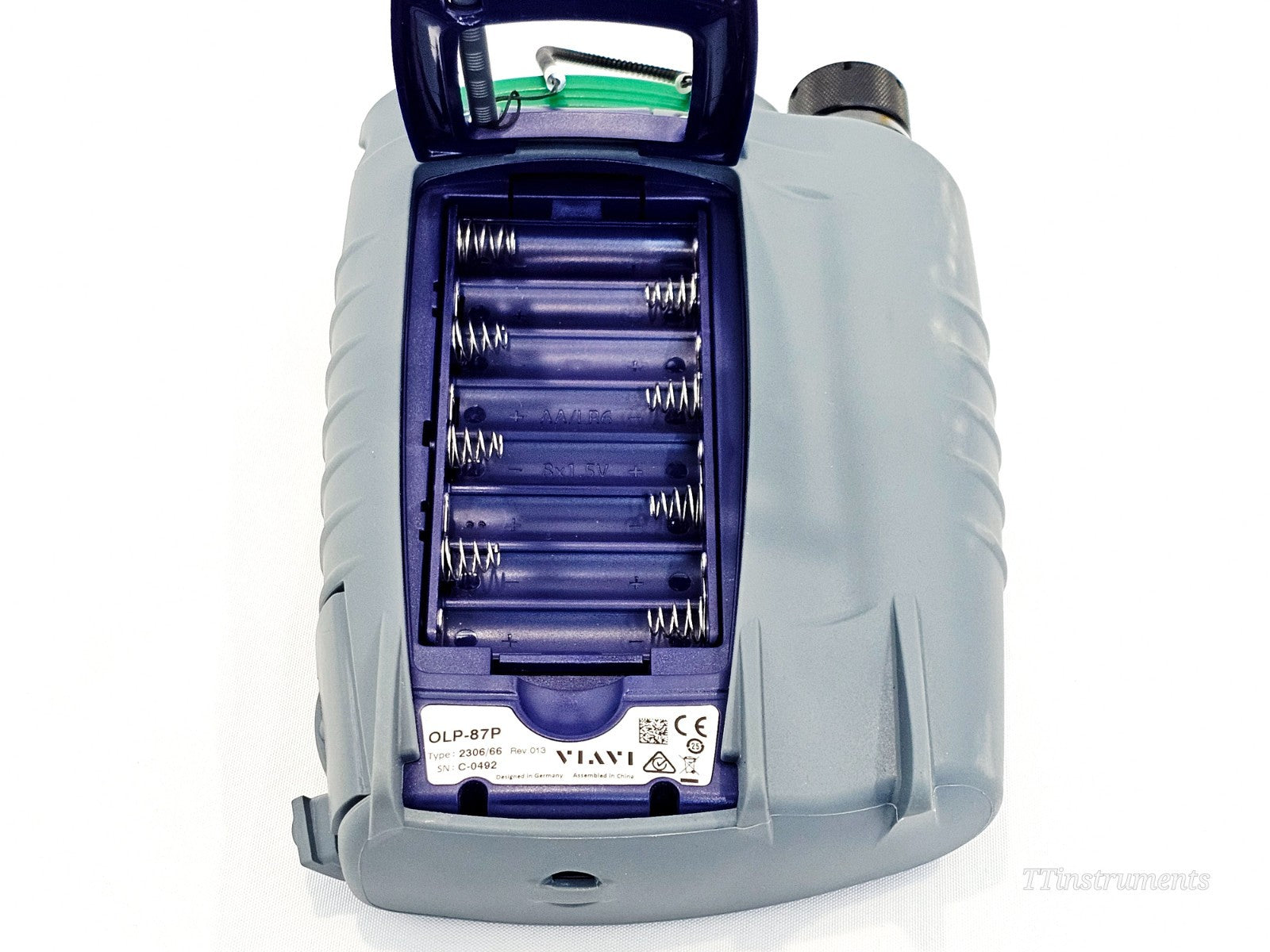

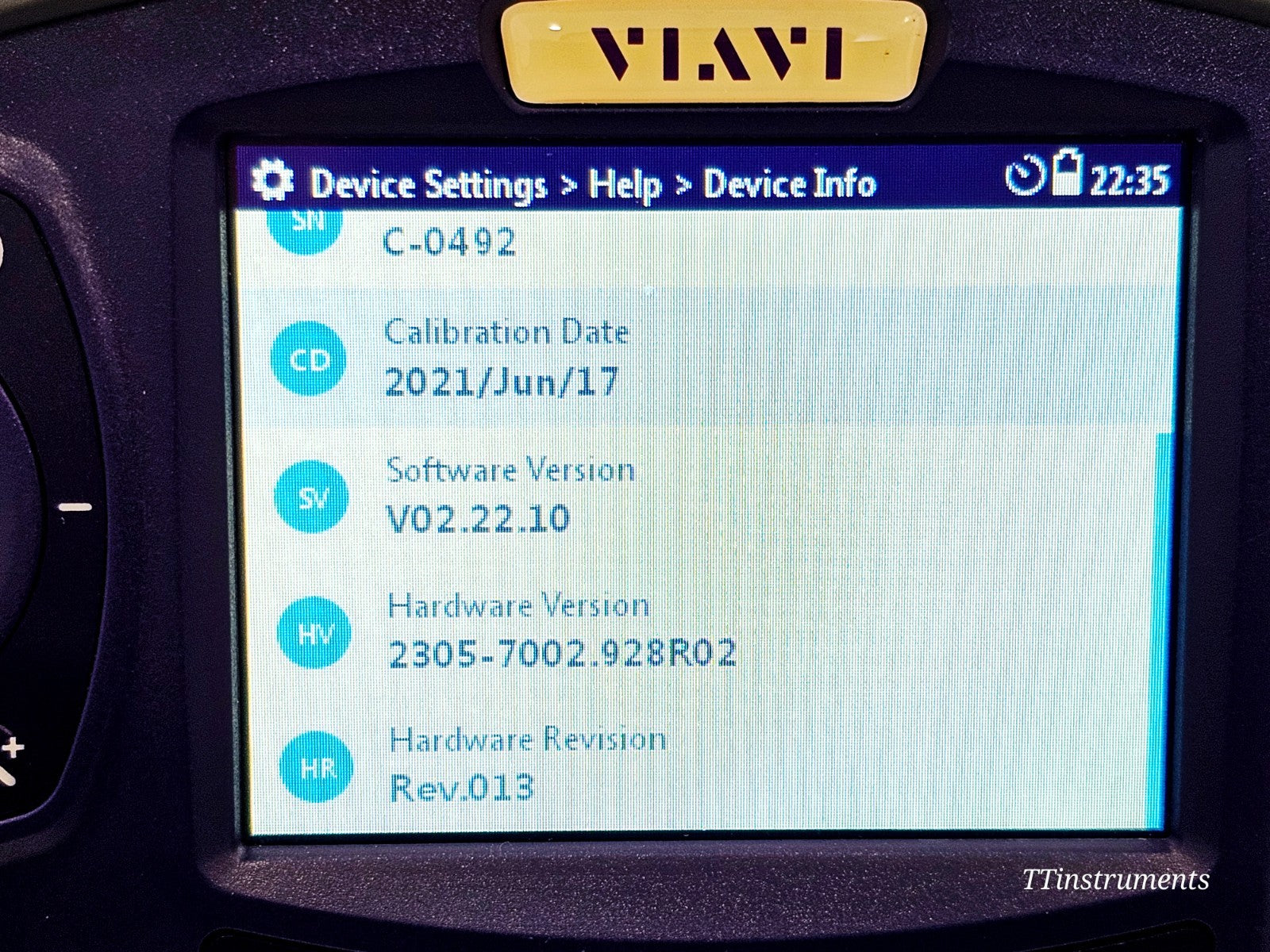

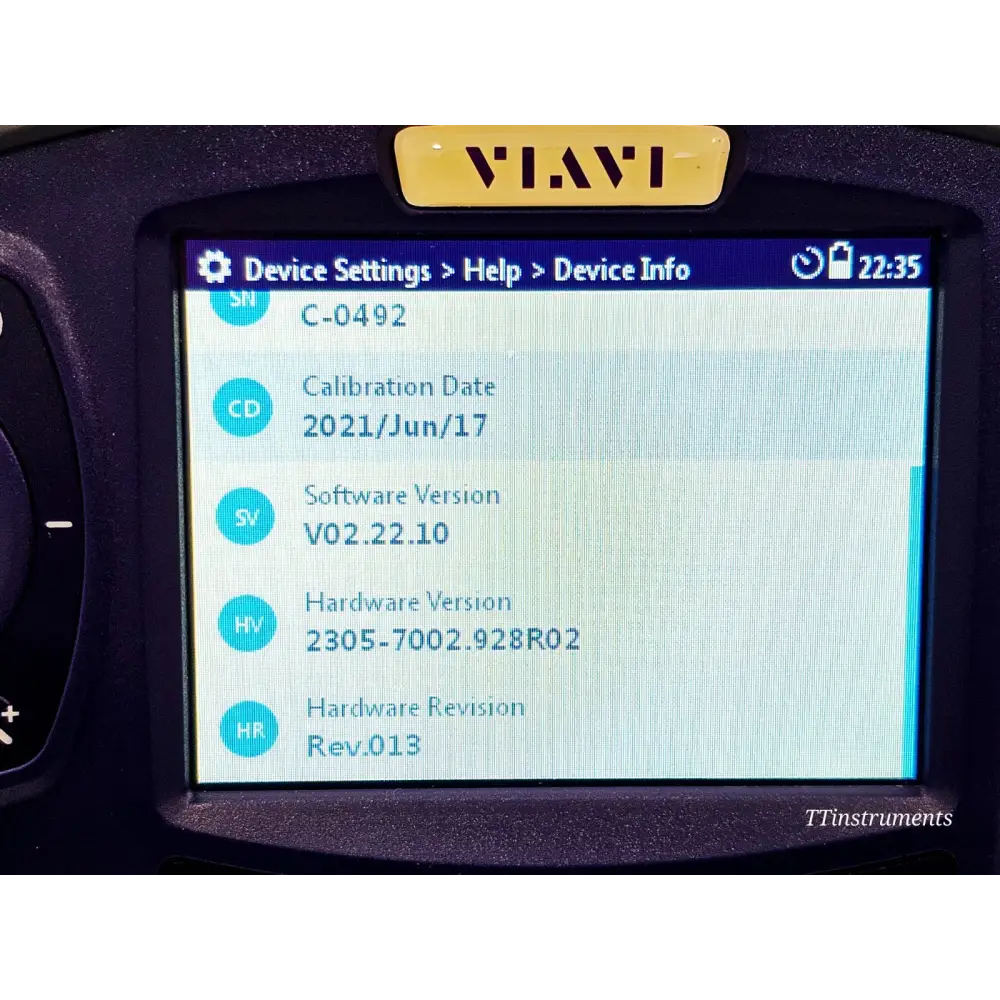

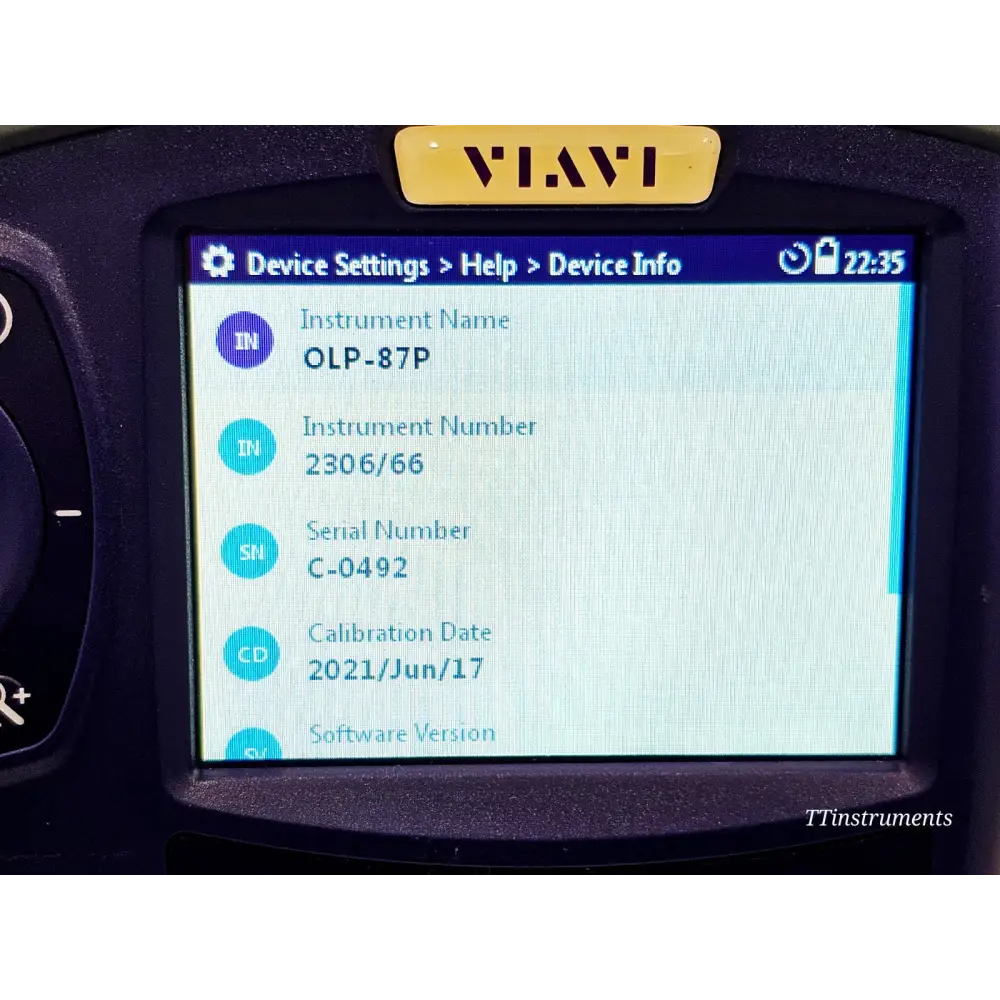

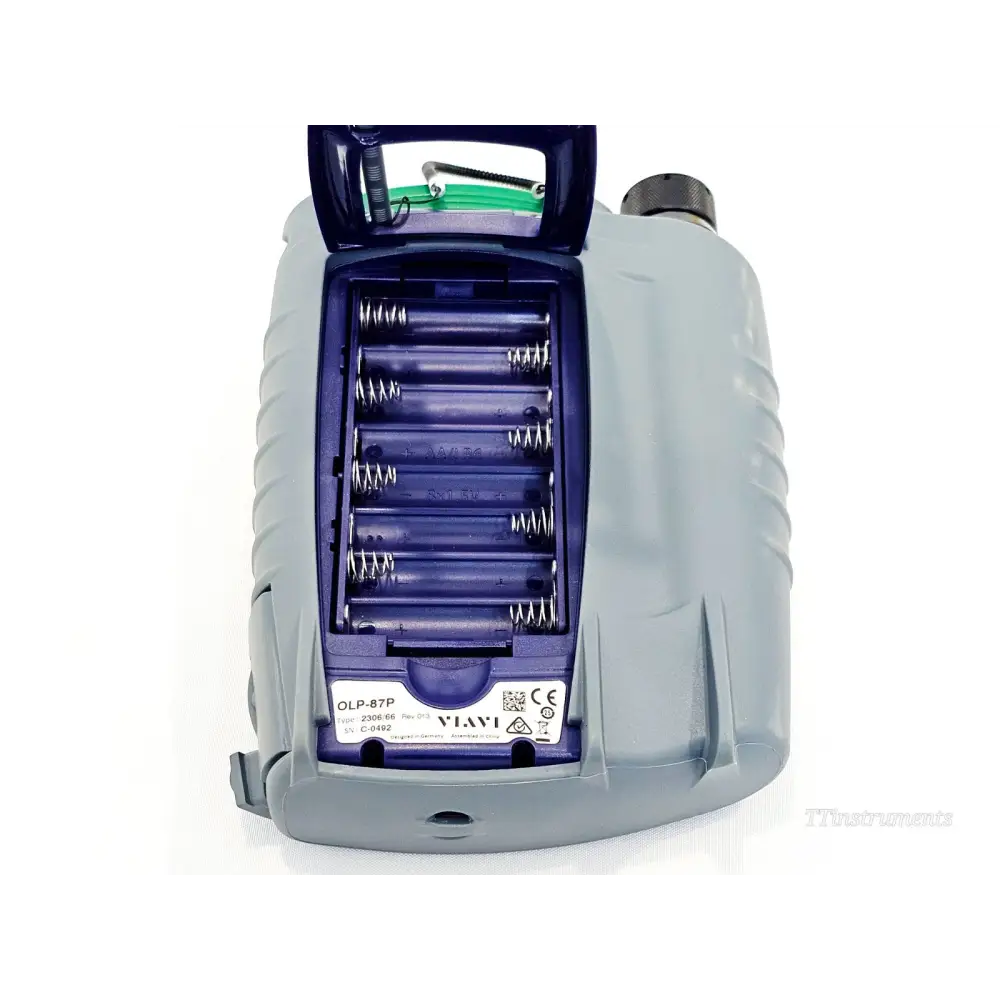

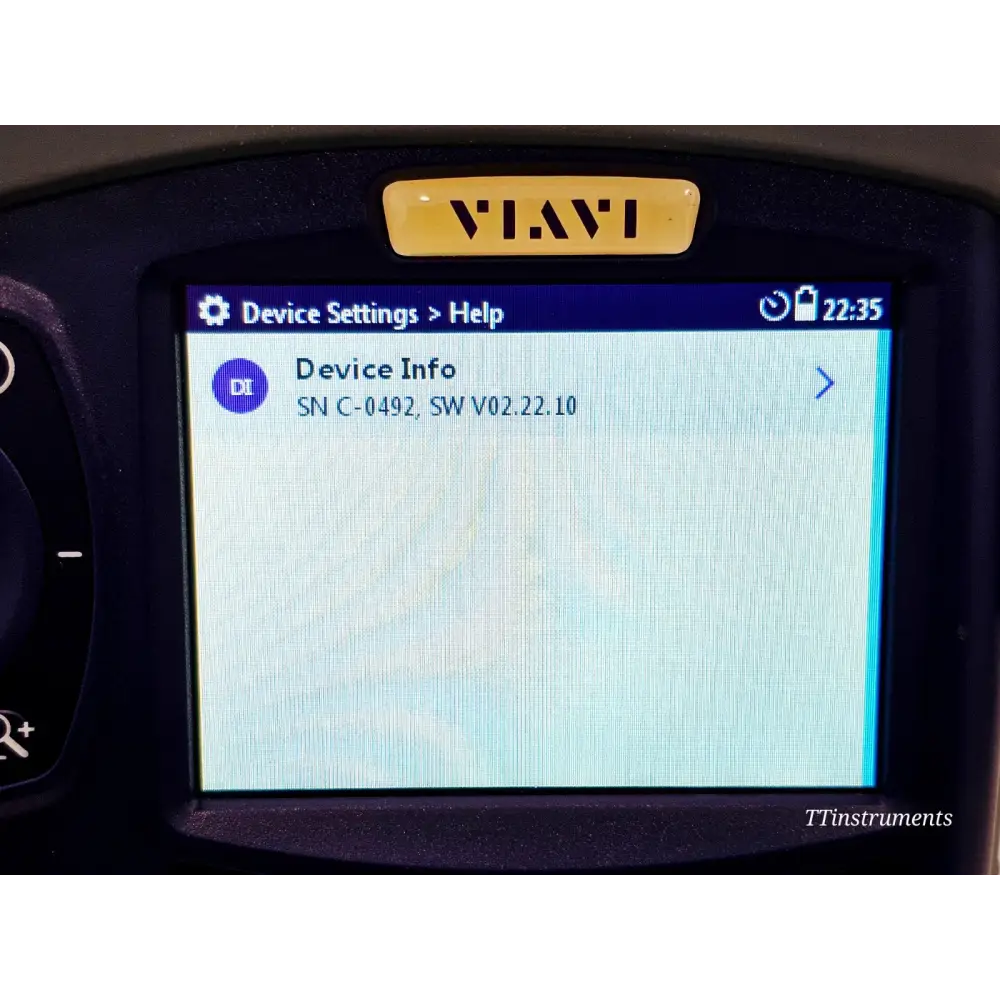

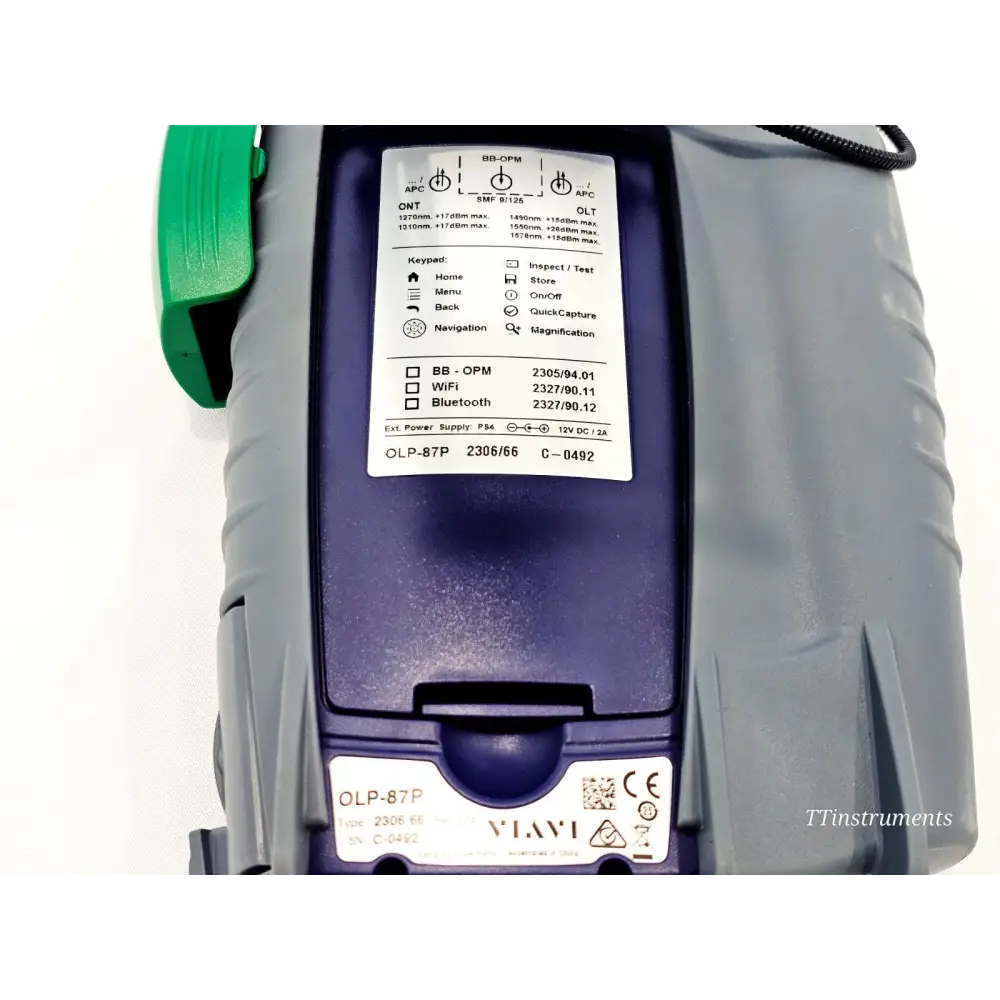

This is the VIAVI OLP-87P Selective PON Power Meter, type 2306/66, serial number C-0492, running firmware version V02.22.10. The rear label confirms BB-OPM, WiFi, and Bluetooth options are NOT activated on this unit. Operates on AA batteries (not included); no rechargeable battery is provided.

Included in the sale:
• VIAVI OLP-87P PON Power Meter and Microscope (2306/66)
• Mains power adapter (12V DC / 2A)
• Stylus pen
• Soft carry bag with shoulder strap

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

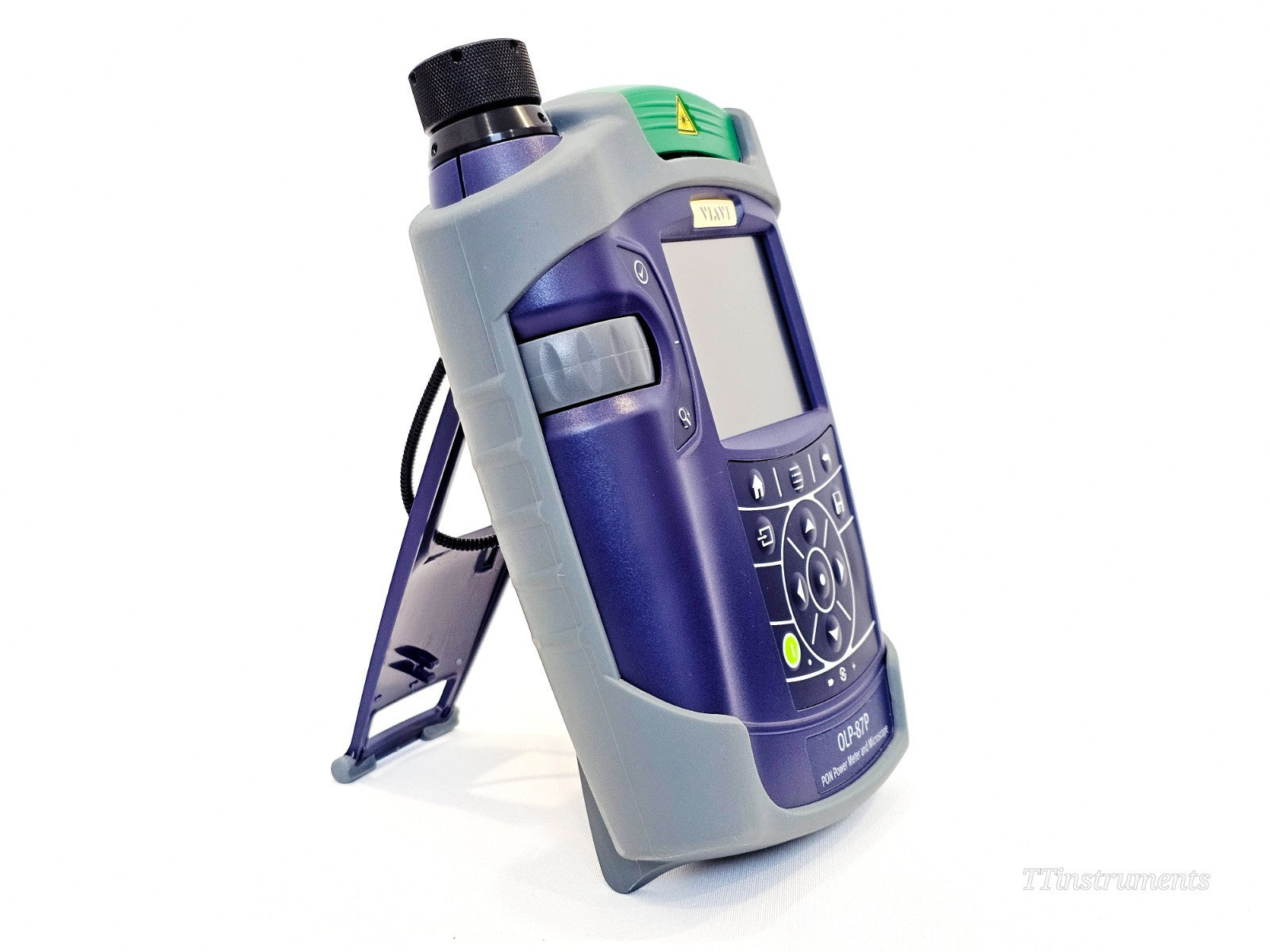

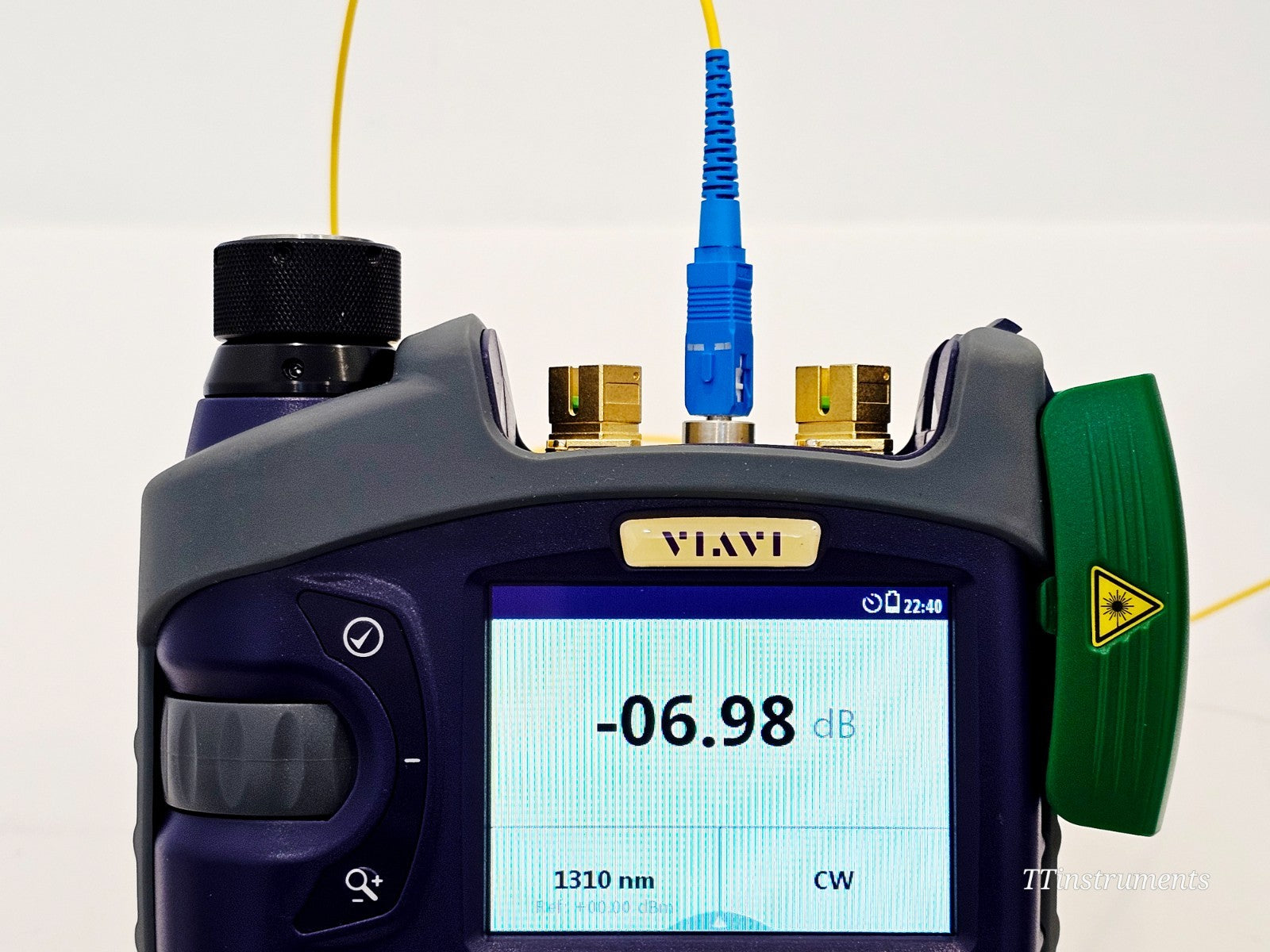

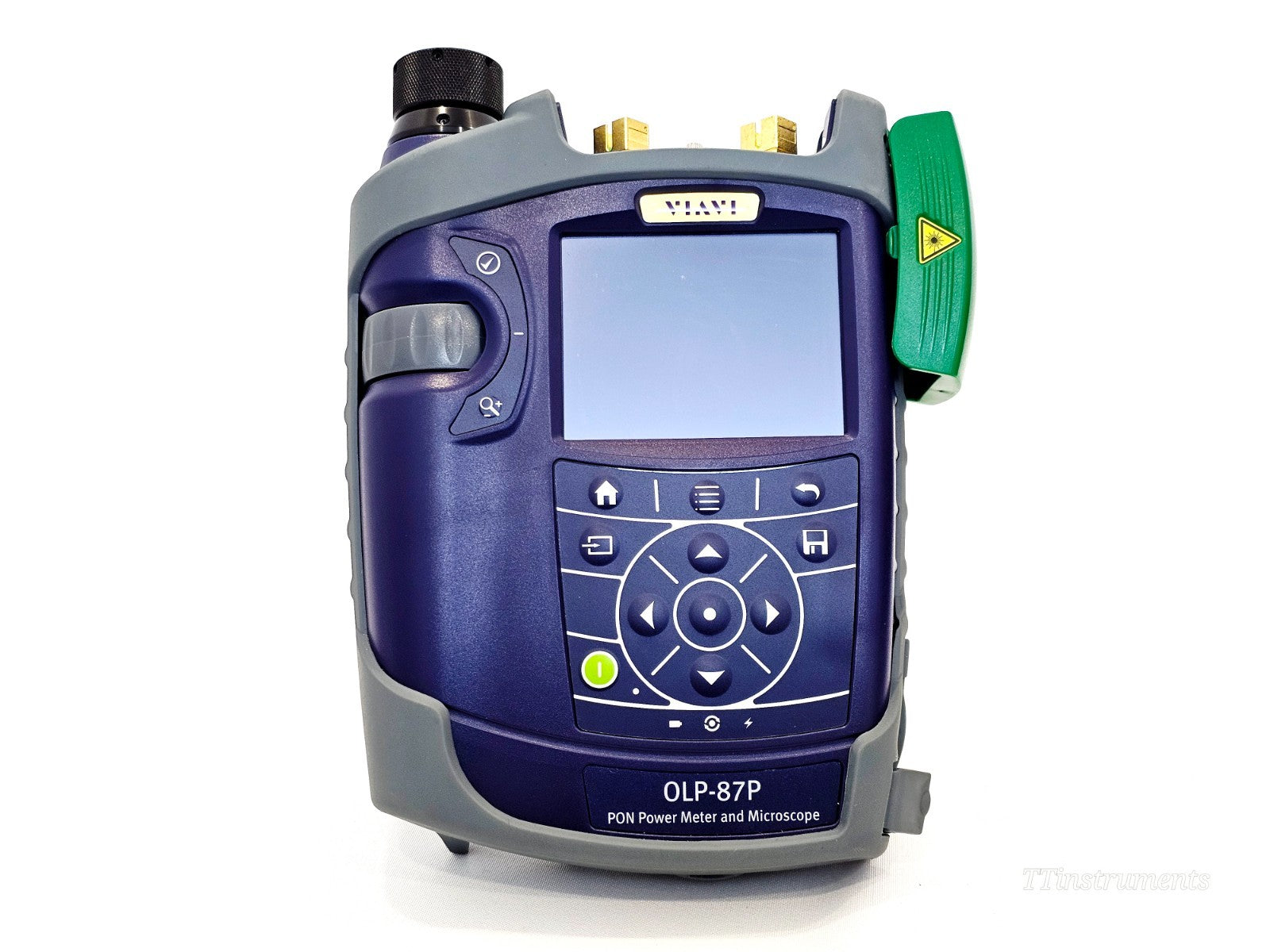

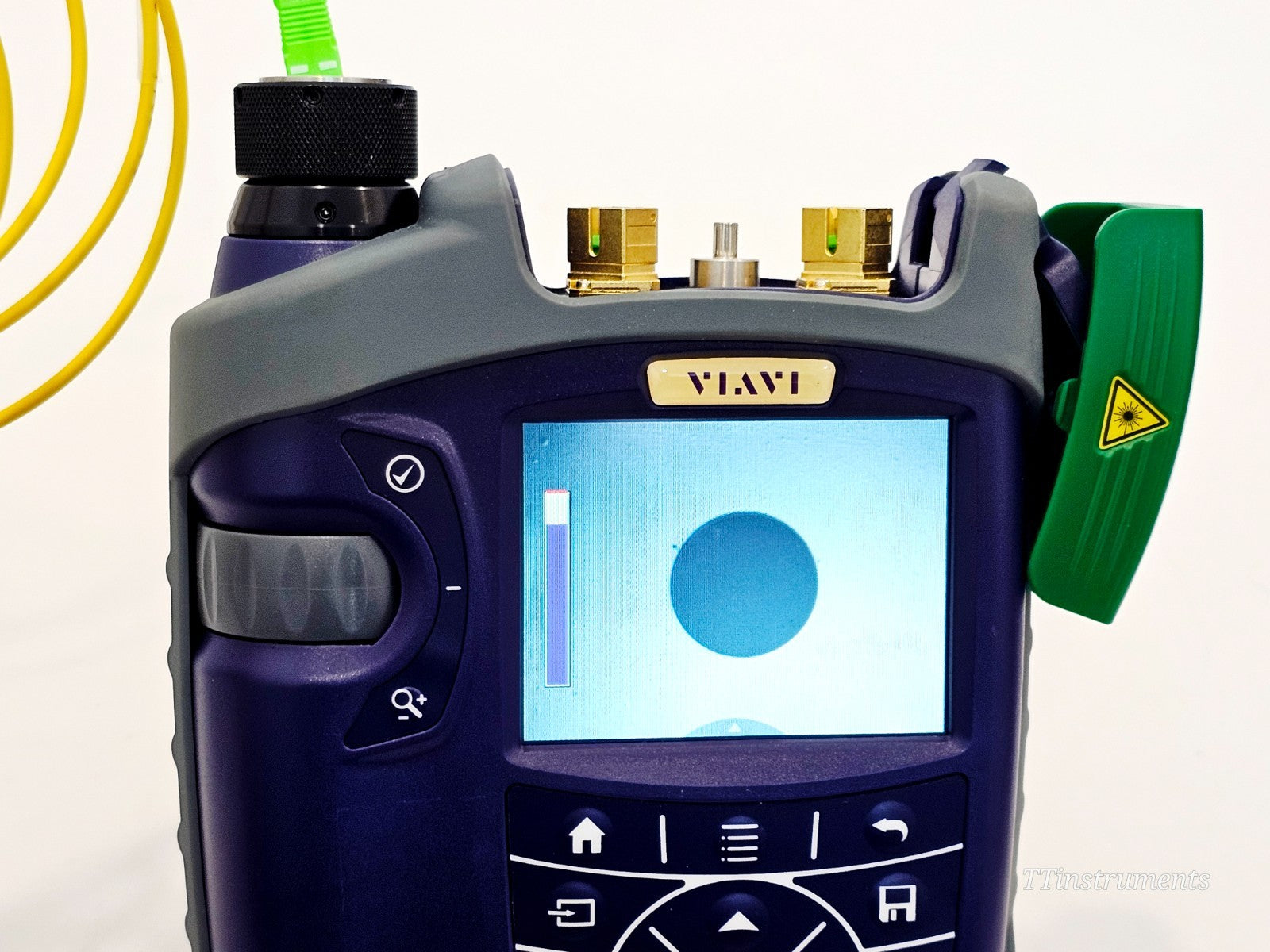

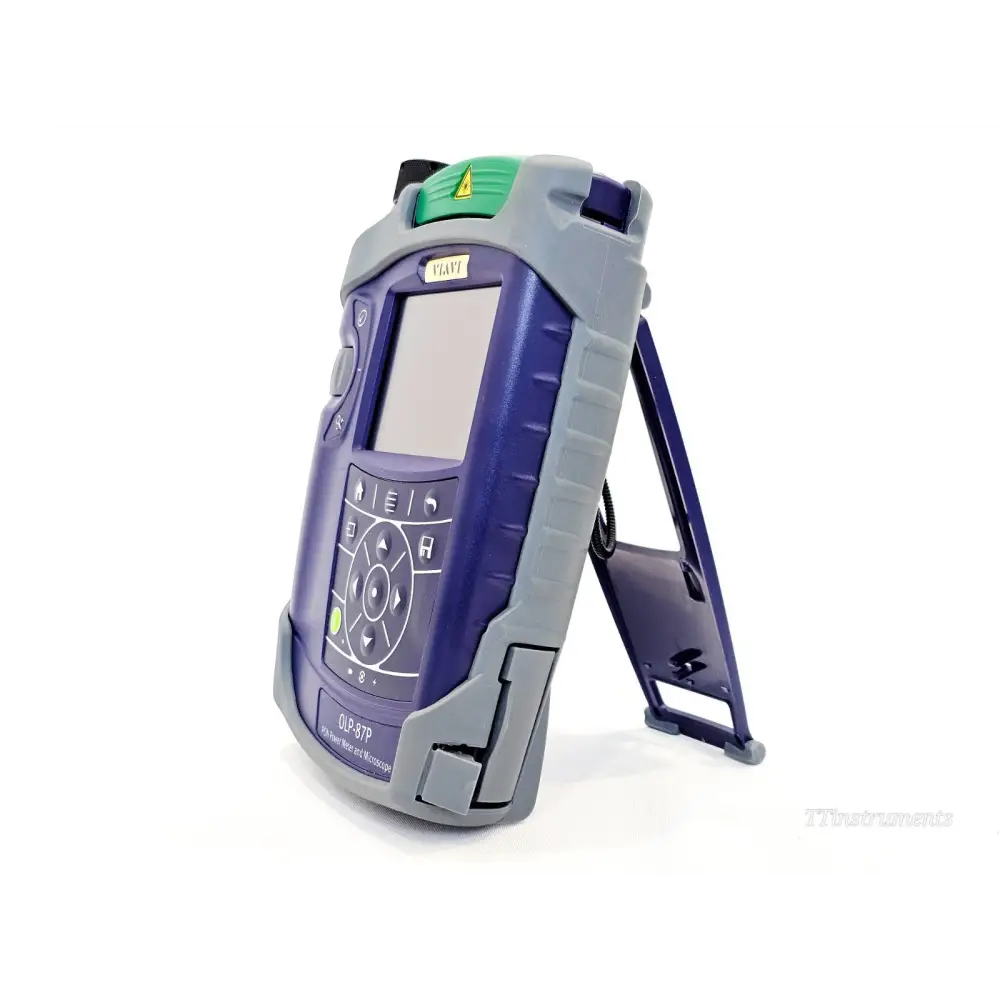

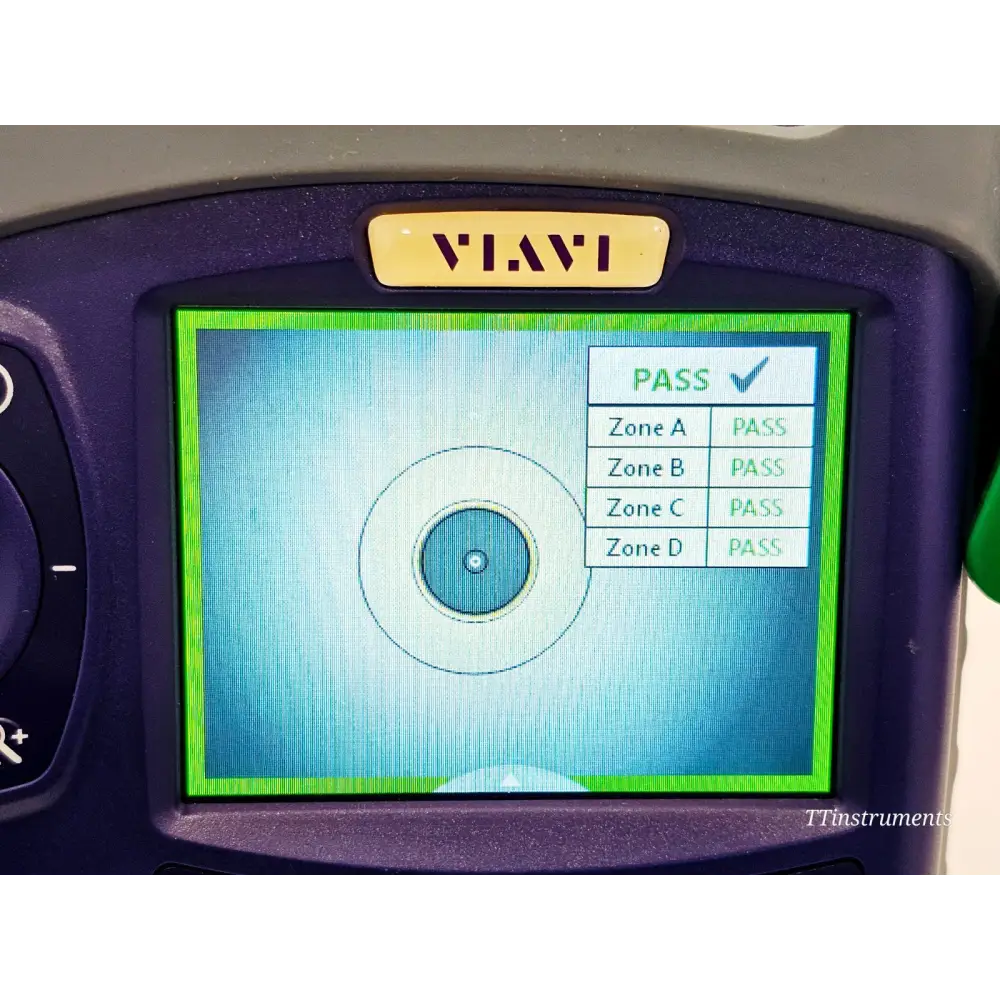

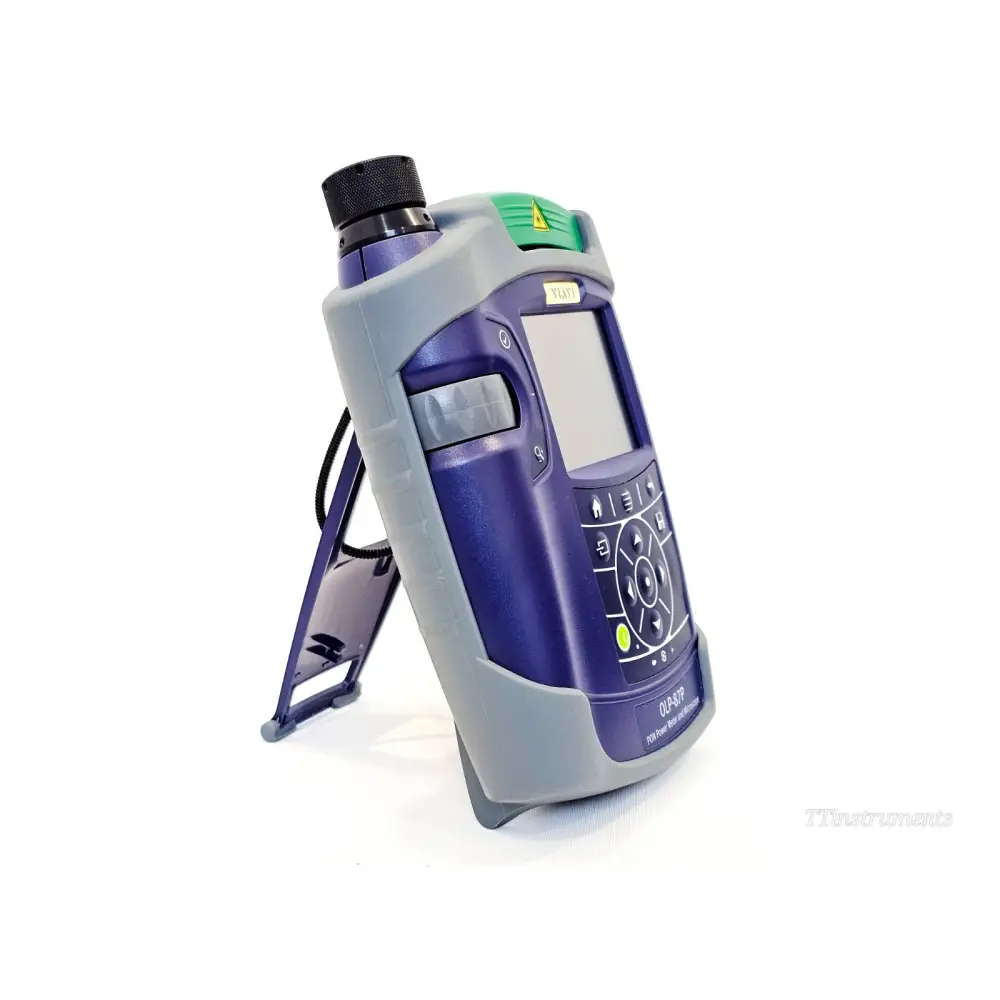

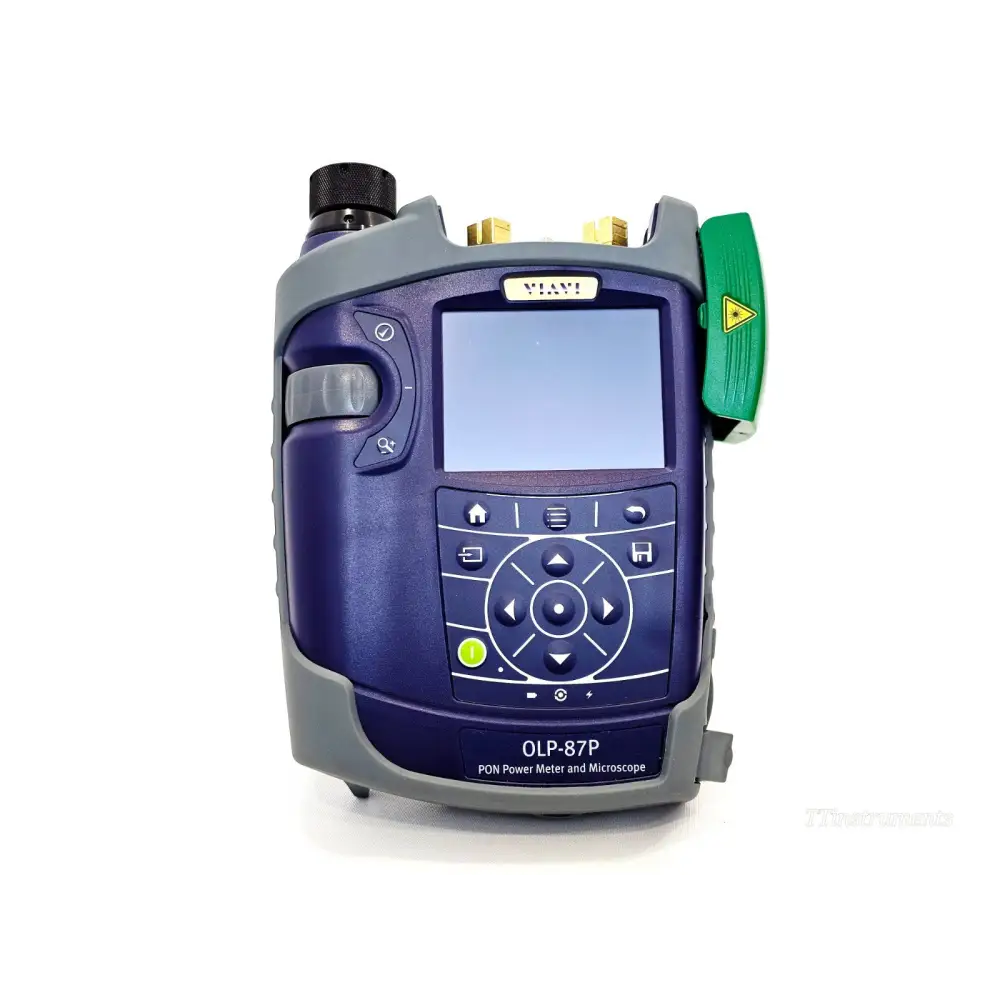

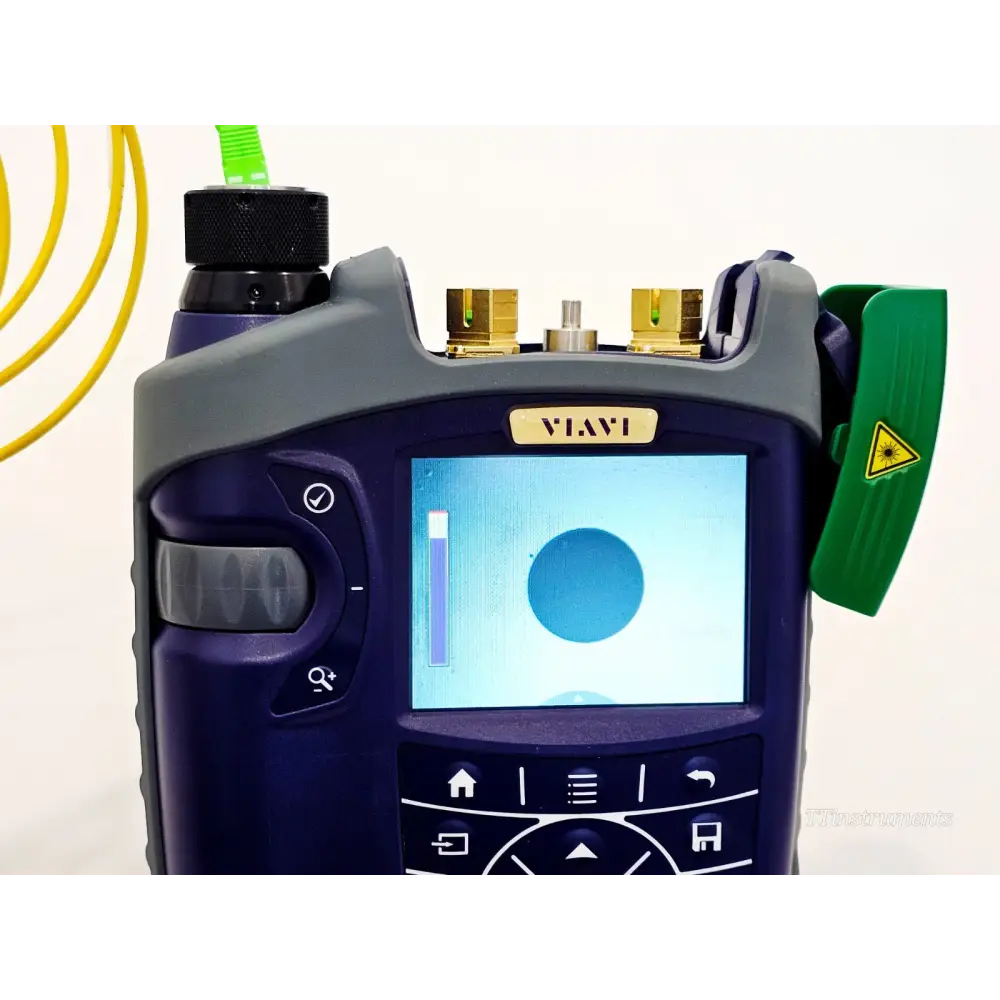

The VIAVI (JDSU) OLP-87P is a field-portable, wavelength-selective XG-PON power meter with through-mode capability, part of the SmartClass Fiber platform. It enables technicians to simultaneously measure and display optical power levels for voice, data, and RF video signals on a single fibre without interrupting live service. An integrated patch-cord microscope (PCM) allows on-the-spot inspection of fibre end faces, helping to eliminate contamination issues before they affect network performance.

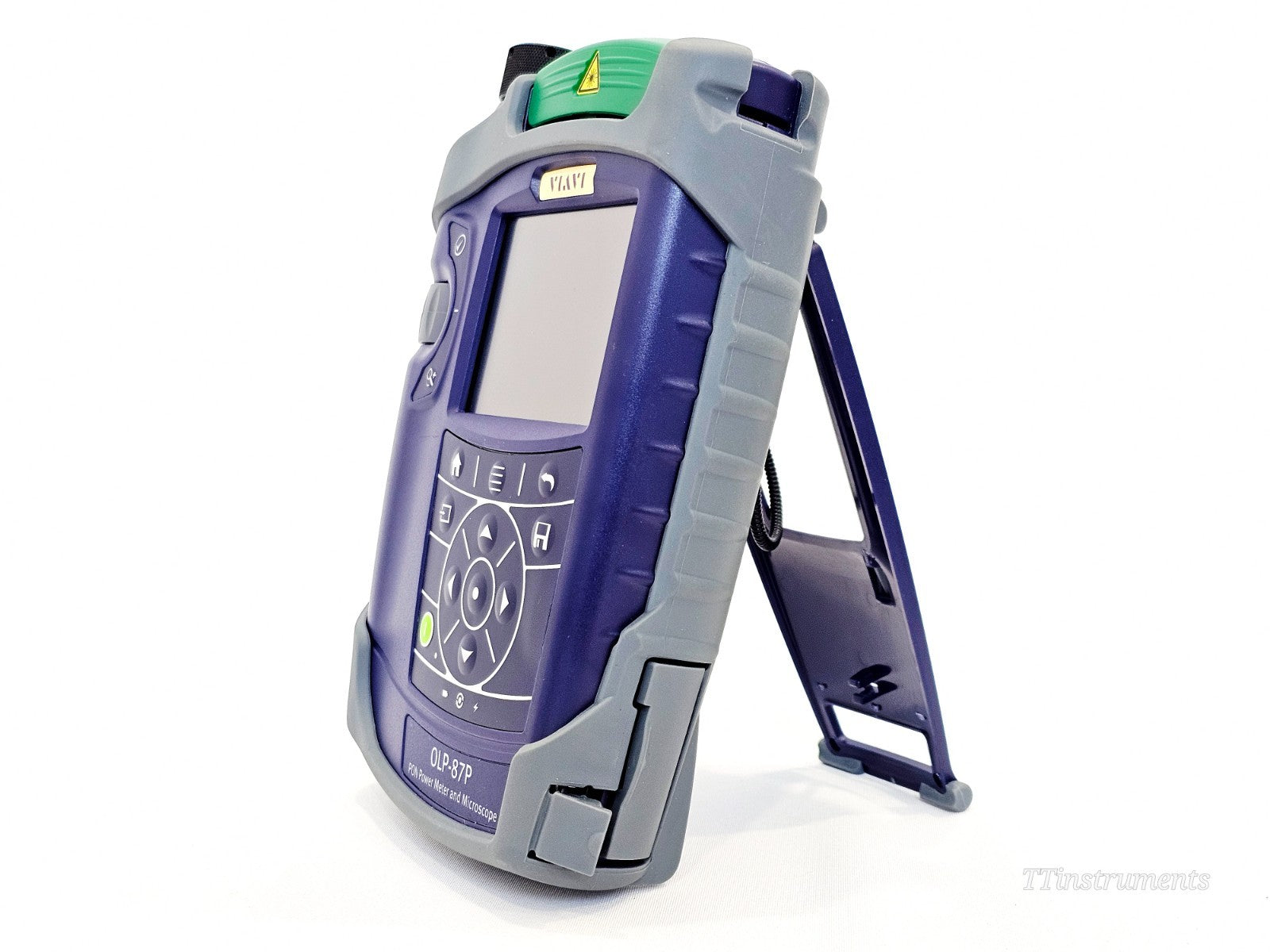

The OLP-87P supports testing across B-PON, E-PON, G-PON, and XG-PON/10G-EPON networks, making it a versatile tool for service activation, fault diagnosis, and troubleshooting. Its modern smartphone-style interface with colour touchscreen and rugged, weather-resistant housing make it well suited for both indoor and outdoor field use.

OLP-87P (2306/66) Specifications:
Photo Diode: InGaAs
Spectral Range: Passband 1260–1280 nm, 1290–1330 nm, 1480–1500 nm, 1535–1565 nm, 1573–1583 nm

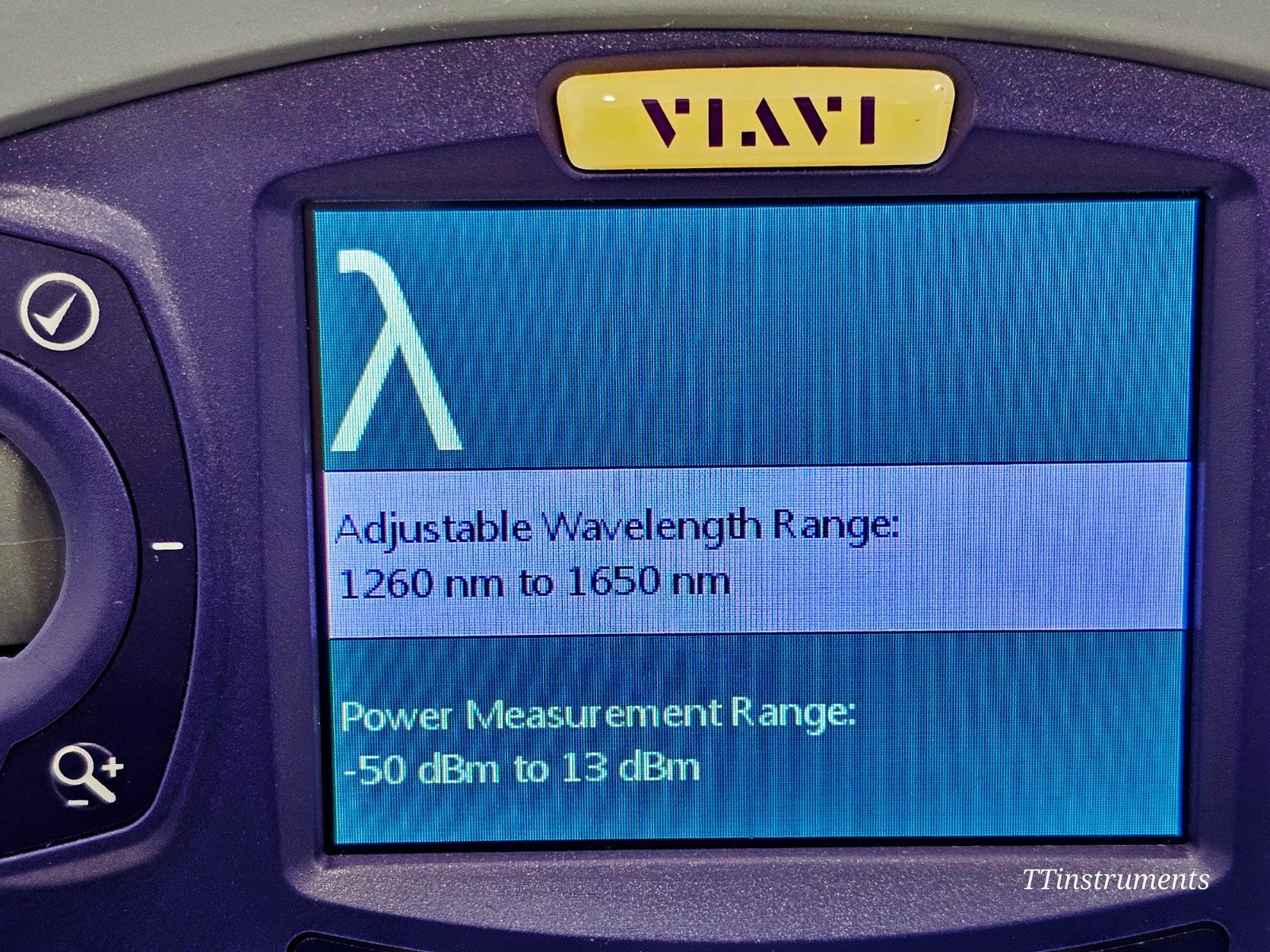

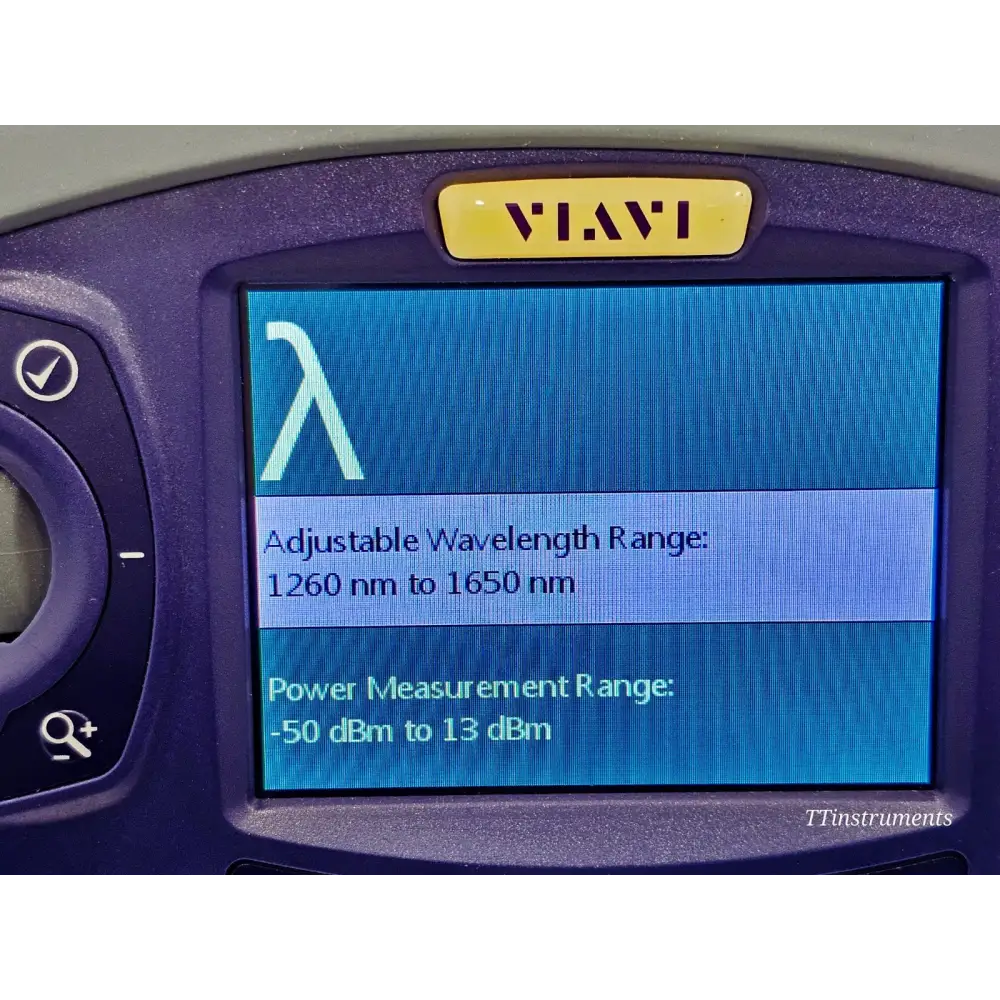

Wavelength Settings: 1270, 1310, 1490, 1550, 1577 nm; Broadband 1260–1625 nm (1 nm steps)
Resolution: 0.01 dB / 0.001 µW
Measurement Range — 1270 nm: -40 to +13 dBm
Measurement Range — 1310 nm: -40 to +13 dBm
Measurement Range — 1490 nm: -50 to +13 dBm
Measurement Range — 1550 nm: -50 to +26 dBm
Measurement Range — 1577 nm: -50 to +13 dBm
Measurement Range — Broadband: -50 to +13 dBm
Maximum Power Level — 1270/1310 nm: +17 dBm
Maximum Power Level — 1490 nm: +15 dBm
Maximum Power Level — 1550 nm: +27 dBm
Maximum Power Level — 1577 nm: +15 dBm
Measurement Uncertainty: ±0.5 dB (per wavelength); Broadband ±0.2 dB
ORL: >60 dB
Pass-through Insertion Loss: <1.5 dB
Number of Calibrated Wavelengths: 4 (1310, 1490, 1550, 1625 nm)
Tone Detection: CW, 270 Hz, 1 kHz, 2 kHz
Auto Functions: Auto-λ / Multi-λ

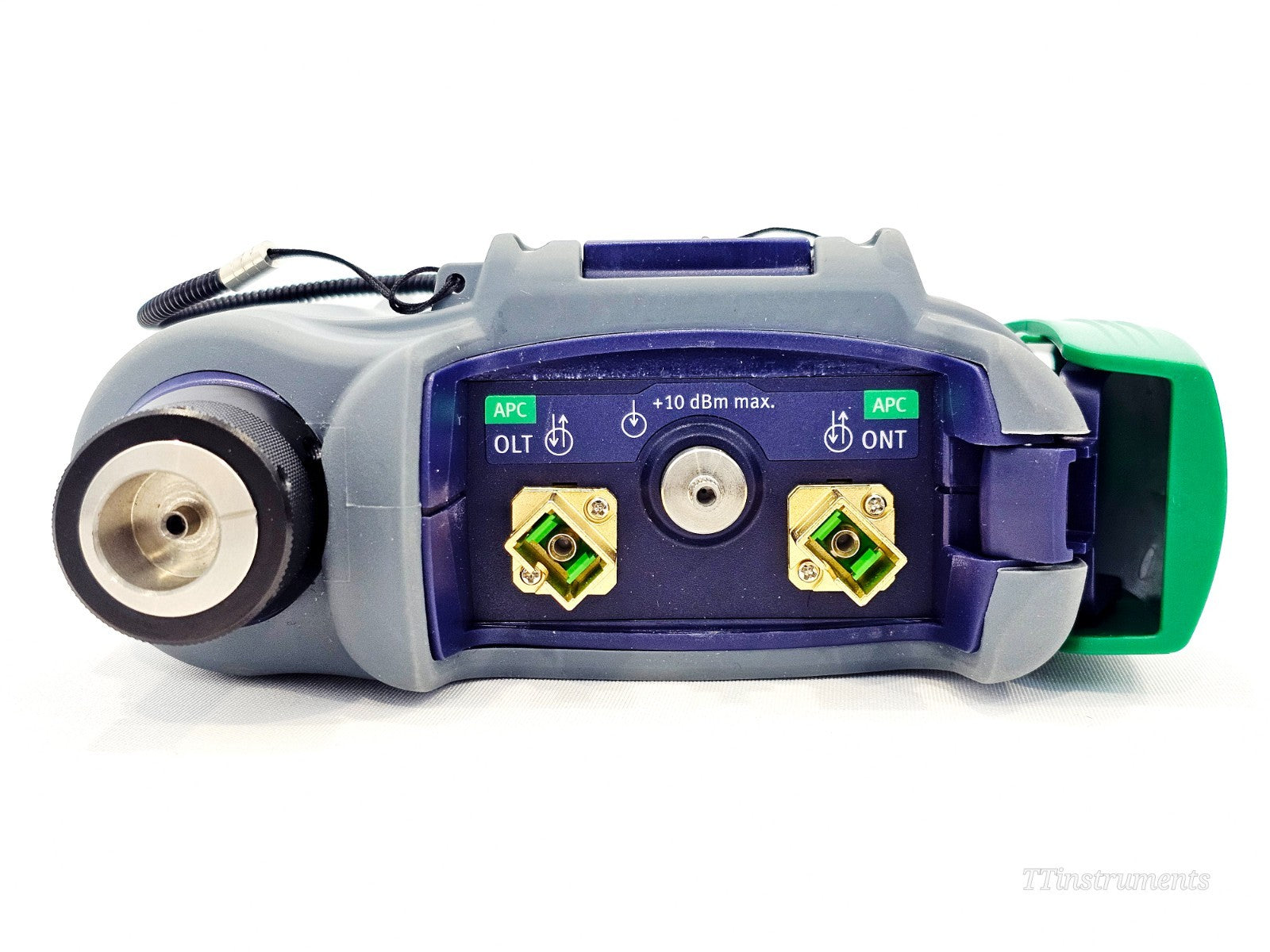

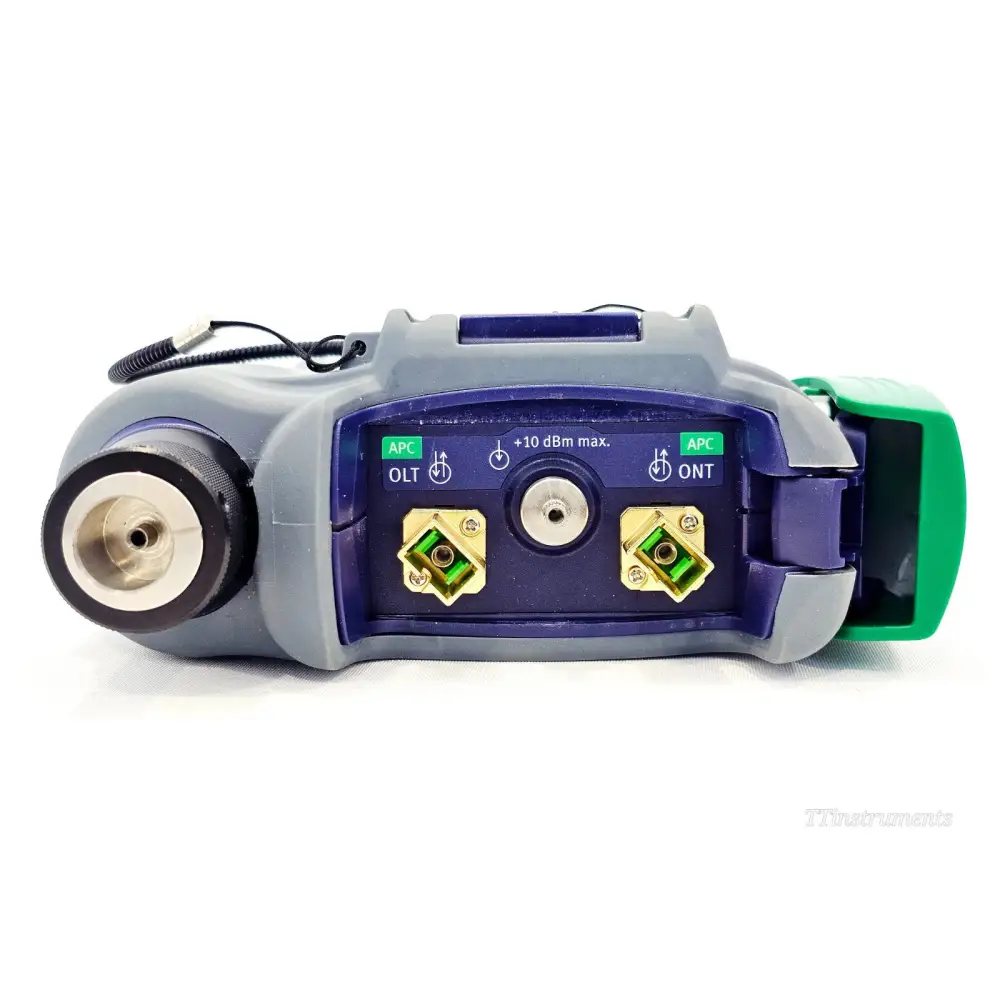

Optical Connectors: 2x SC/APC (1x OLT, 1x ONT), 1x UPP 2.5 mm
Data Storage: Up to 10,000 measurement results
Interfaces: USB, Ethernet
External Power Supply: 12V DC / 2A
Fibre Type: SMF 9/125
Form Factor: Handheld, field-portable

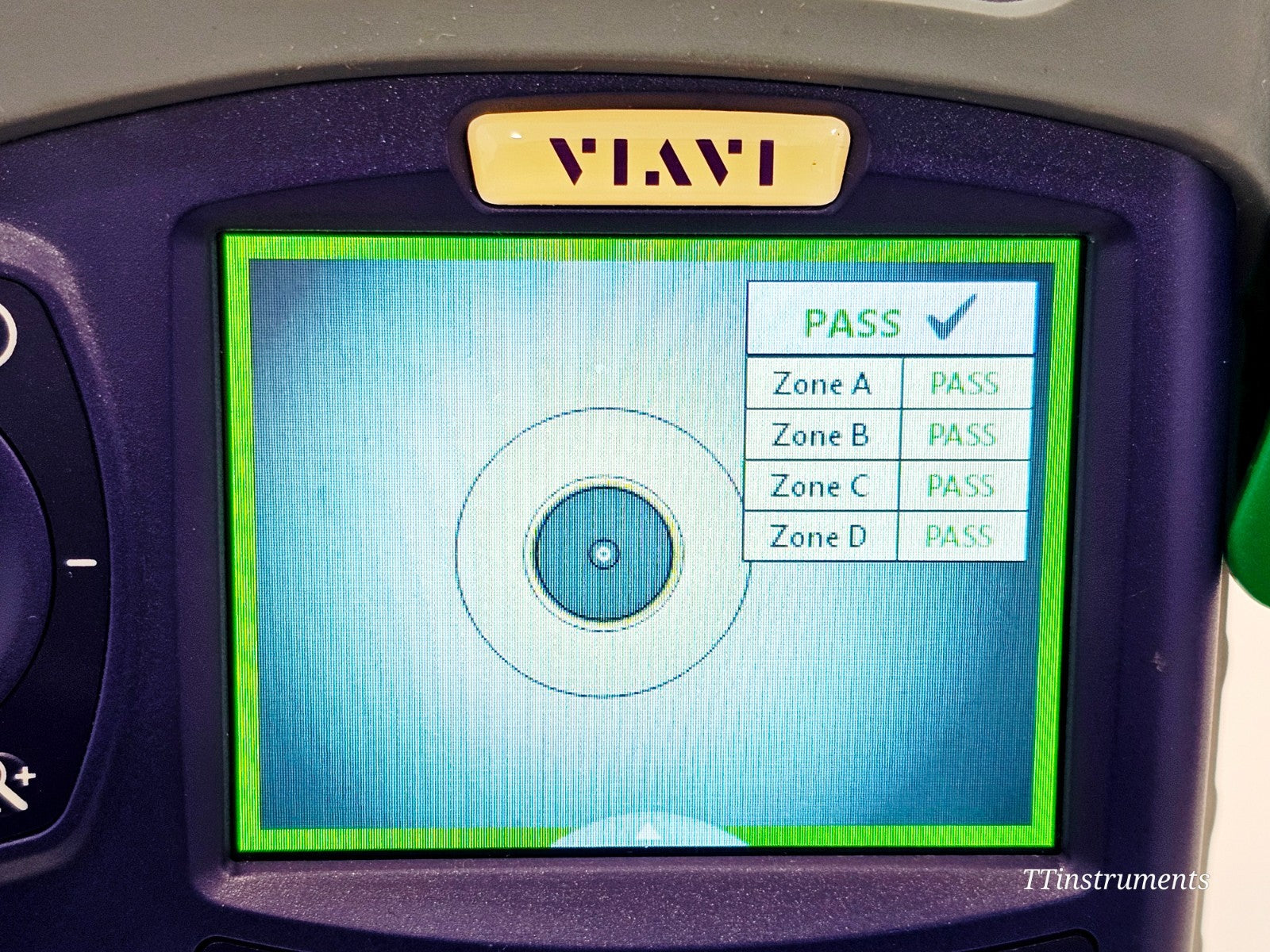

Compatibility: P5000i microscope (sold separately) for automated pass/fail fibre inspection

VIAVI SmartClass Fiber OLP-87/87P product datasheet — specifications, features and ordering information: Download PDF

VIAVI SmartClass Fiber OLP-87P user manual — operating instructions and technical reference: Download PDF
