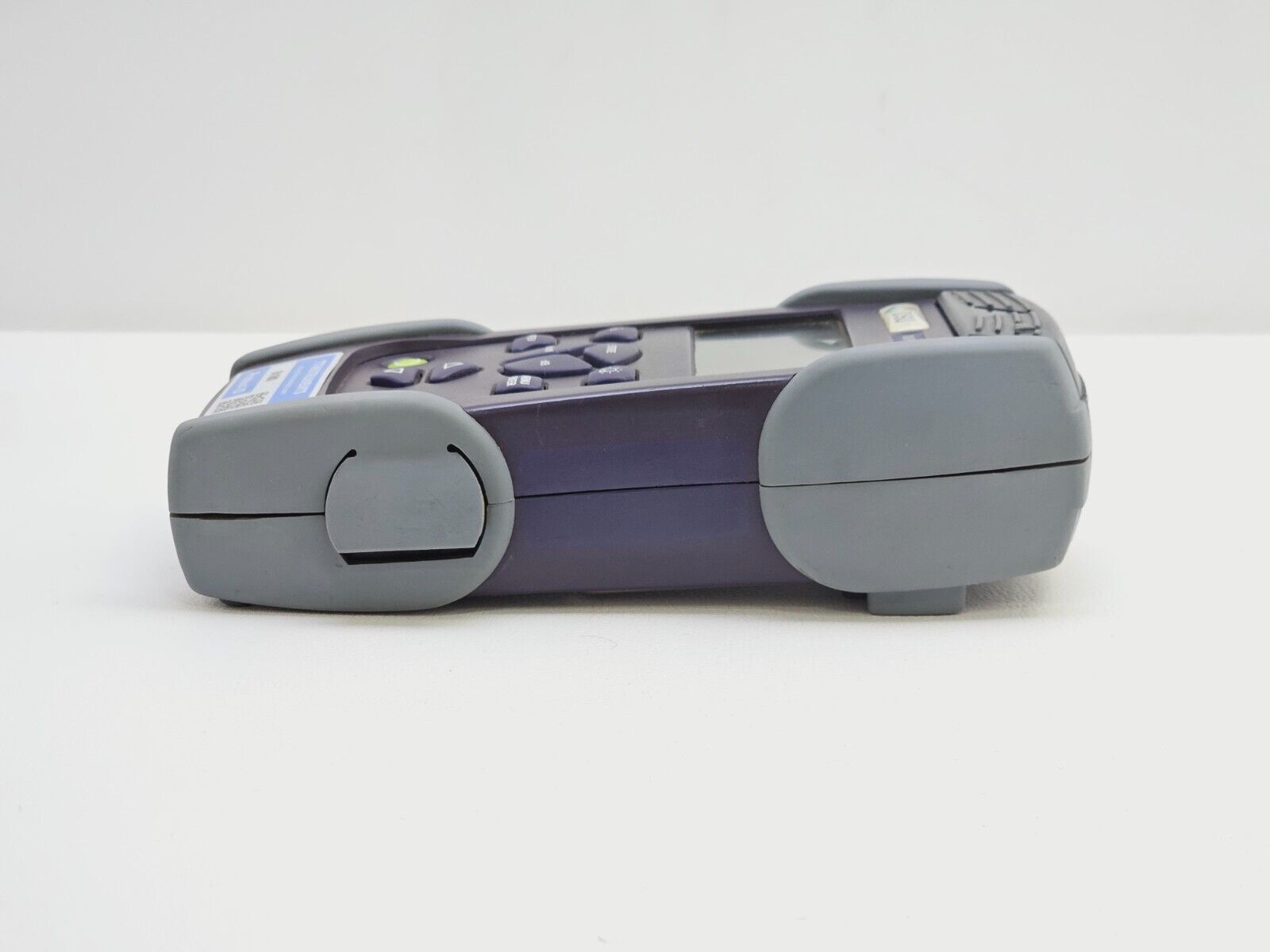

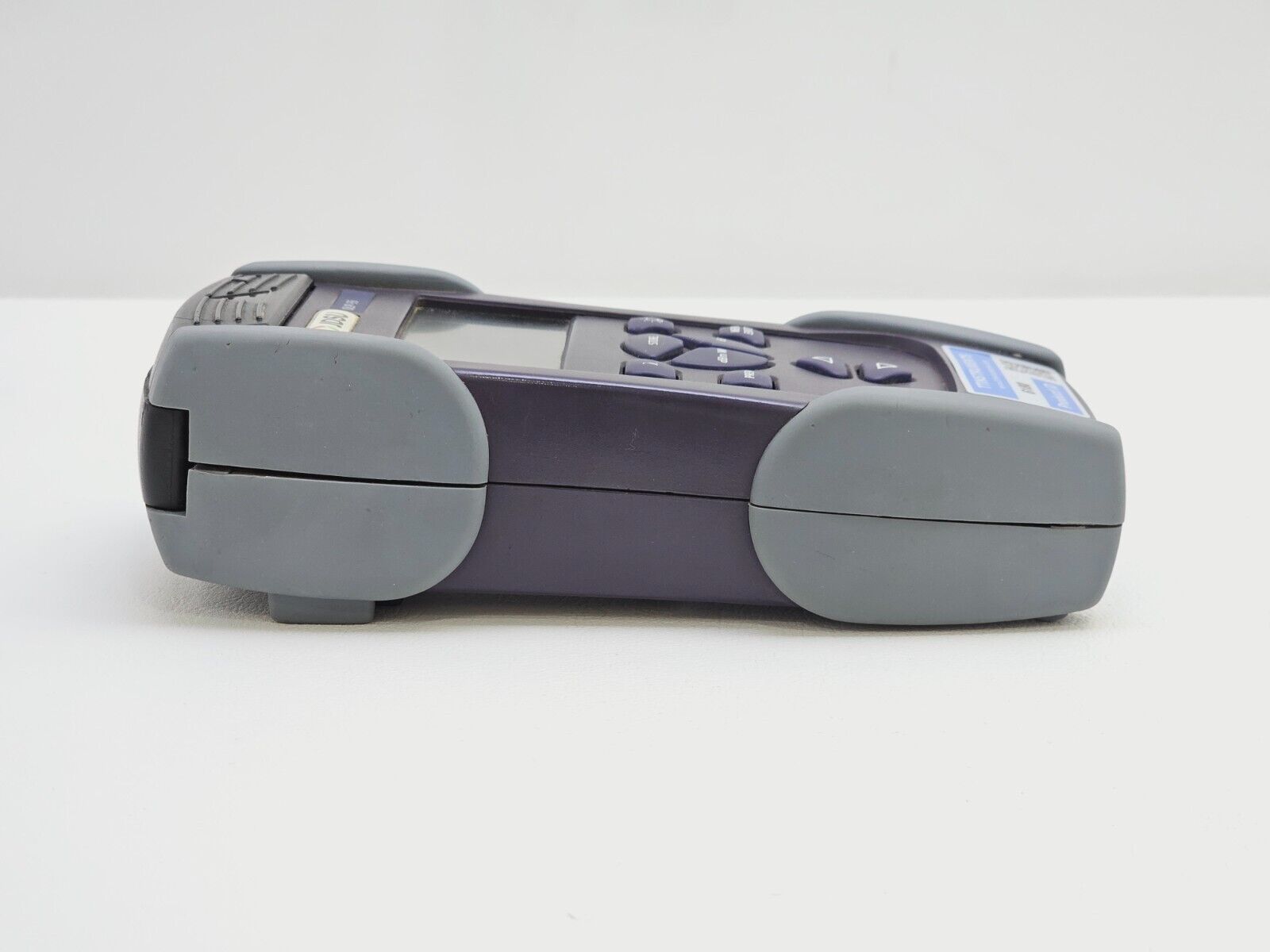

The Viavi (formerly JDSU) OLP-55 is a SMART Optical Power Meter designed for installing, testing, and maintaining singlemode and multimode fibre optic networks and cables. It defines a new industry standard with its unique built-in auto-zeroing function for automatic dark current compensation, significantly increasing measurement accuracy and reliability in the field.
Key Features:
- SMARTStar graphical user interface for fast, easy, and straightforward operation
- SMARTEnergy power supply management system for extended battery life
- Traceable measurements to NIST/PTB standards for confidence in accuracy
- Robust, shock-proof, and splash-proof design built for field operation
- One-handed operation for convenience in the field
- Quick start operation with no warm-up time required
- Compatible with singlemode and multimode fibre optic networks
Specifications:
Wavelength Range: 780 nm to 1650 nm
Connector Type: SC (interchangeable adapters available)
Power Range: Typically -70 dBm to +10 dBm
Measurement Uncertainty: ±0.25 dB
Display: Graphical LCD with SMARTStar GUI
Auto Zero: Built-in automatic dark current compensation
Standards Compliance: NIST/PTB traceable
Design: Shock-proof, splash-proof field instrument
Operation: One-handed, no warm-up time required
Please refer to the Viavi manufacturer's website for full and current specifications.
