Viavi SmartPocket OLP-34/-35/-38 Optical Power Meters
A family of pocket-sized, low-cost optical power meters for the installation and maintenance of single mode and multimode fibre optic networks. The Viavi (formerly JDSU) SmartPocket series offers an excellent price-to-performance ratio in a rugged, field-ready housing with a straightforward user interface.
The OLP-38 (Filtered InGaAs) is the high-power variant of the SmartPocket family, rated to +26 dBm, making it the ideal choice for CATV networks with analogue RF transmission and amplified DWDM system applications. Units can be combined with LED (OLS-34/OLS-36) or laser light sources (OLS-35/OLS-36) for full insertion loss measurement workflows.
Key Features:
Detector Type: Filtered InGaAs
Wavelengths: 1310 nm / 1550 nm
Maximum Power: +26 dBm

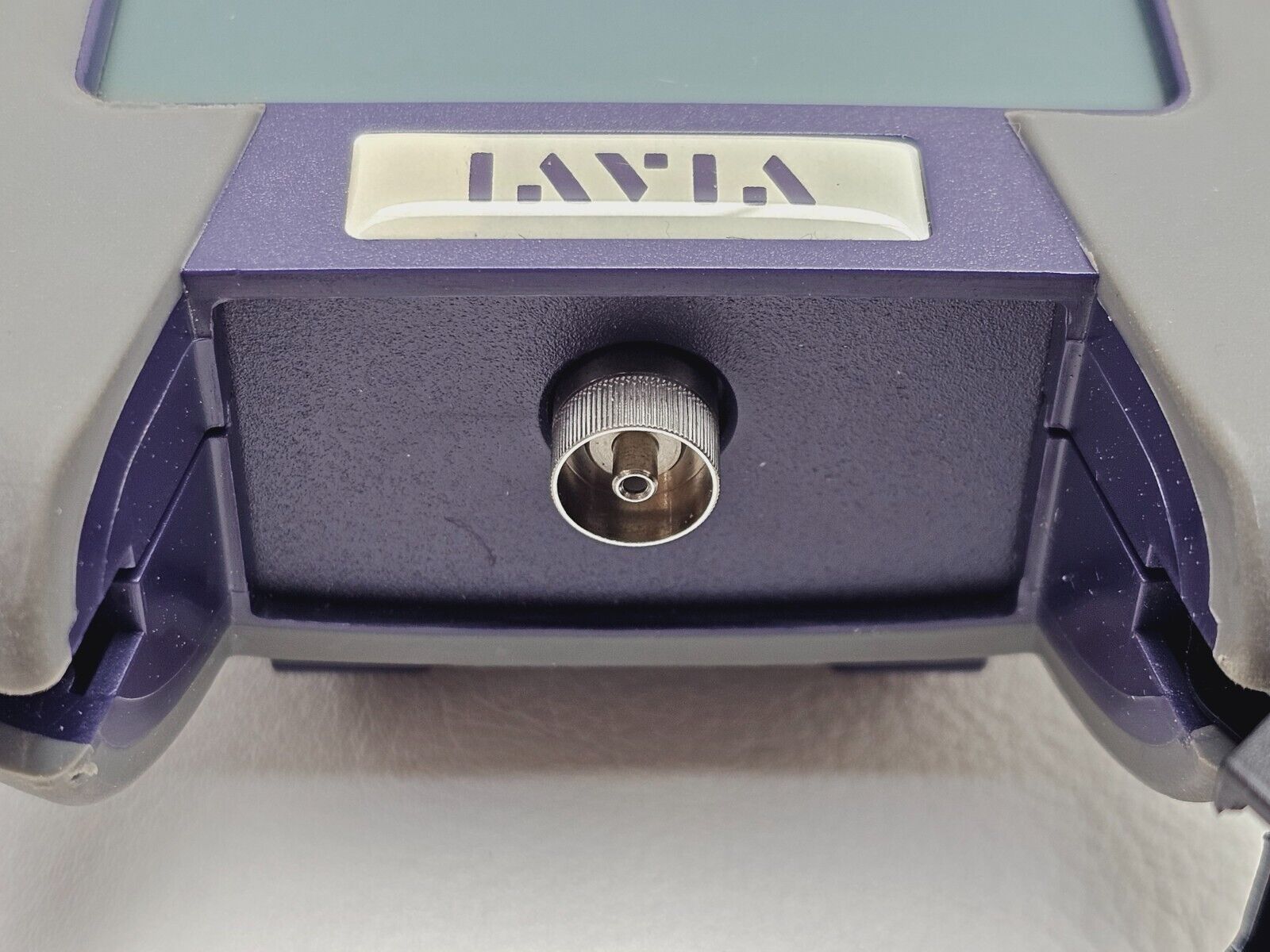

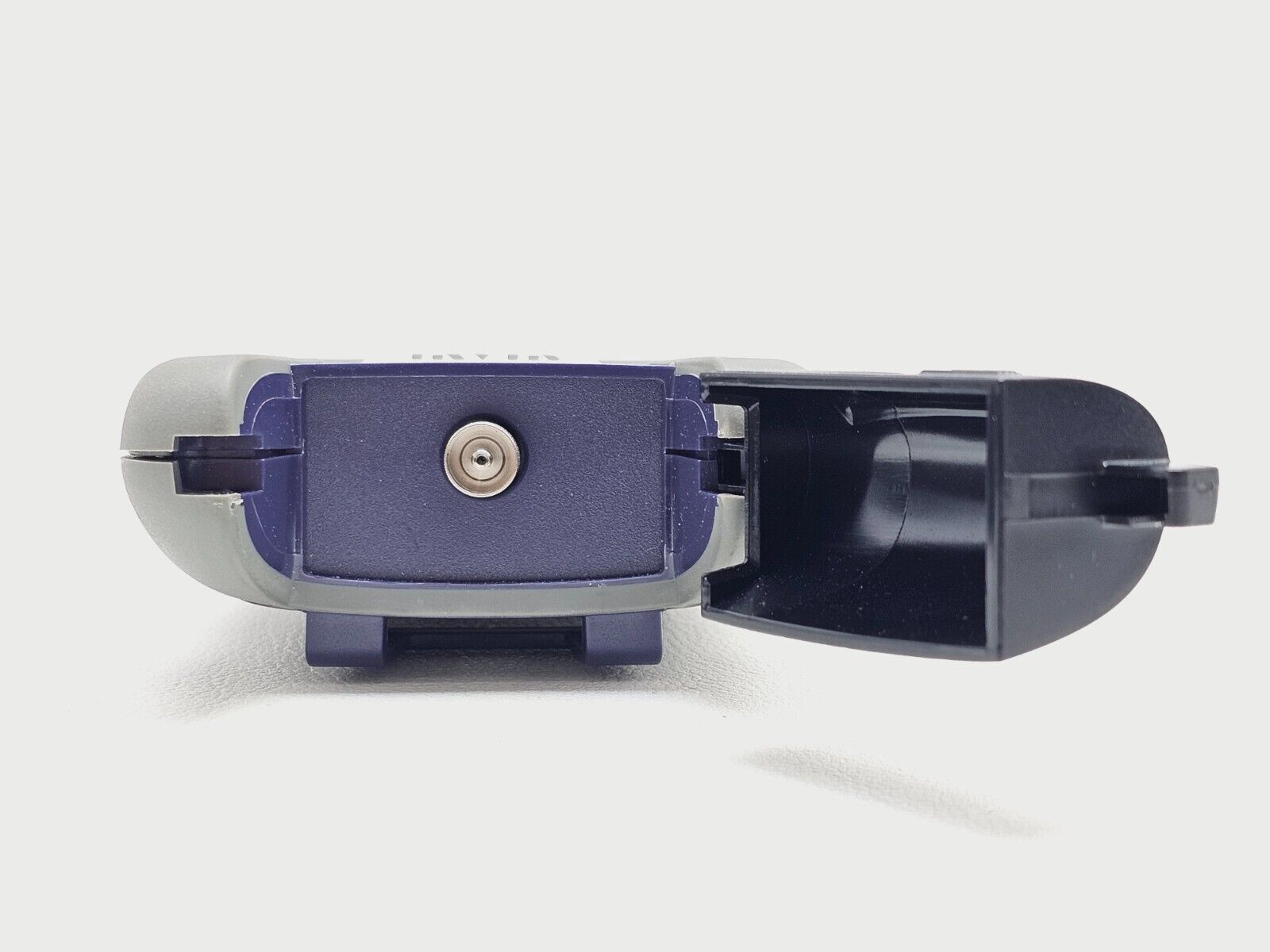

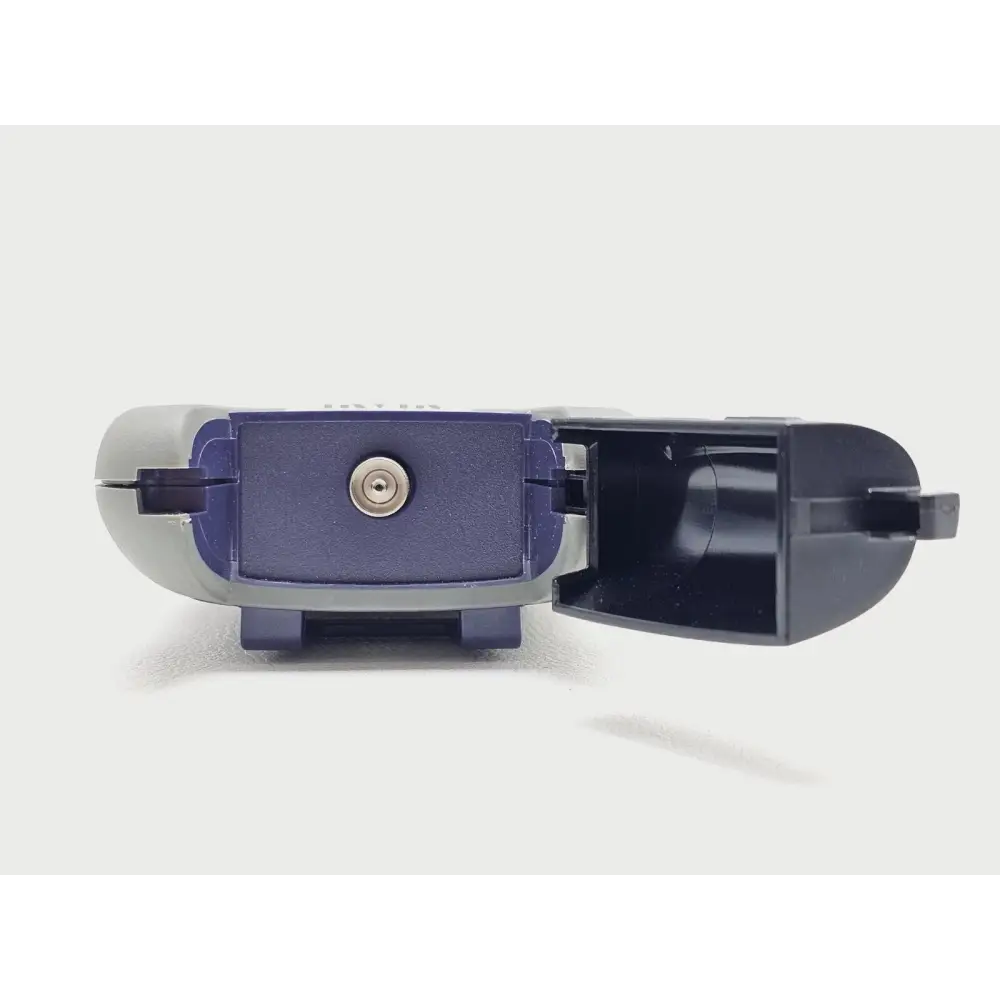

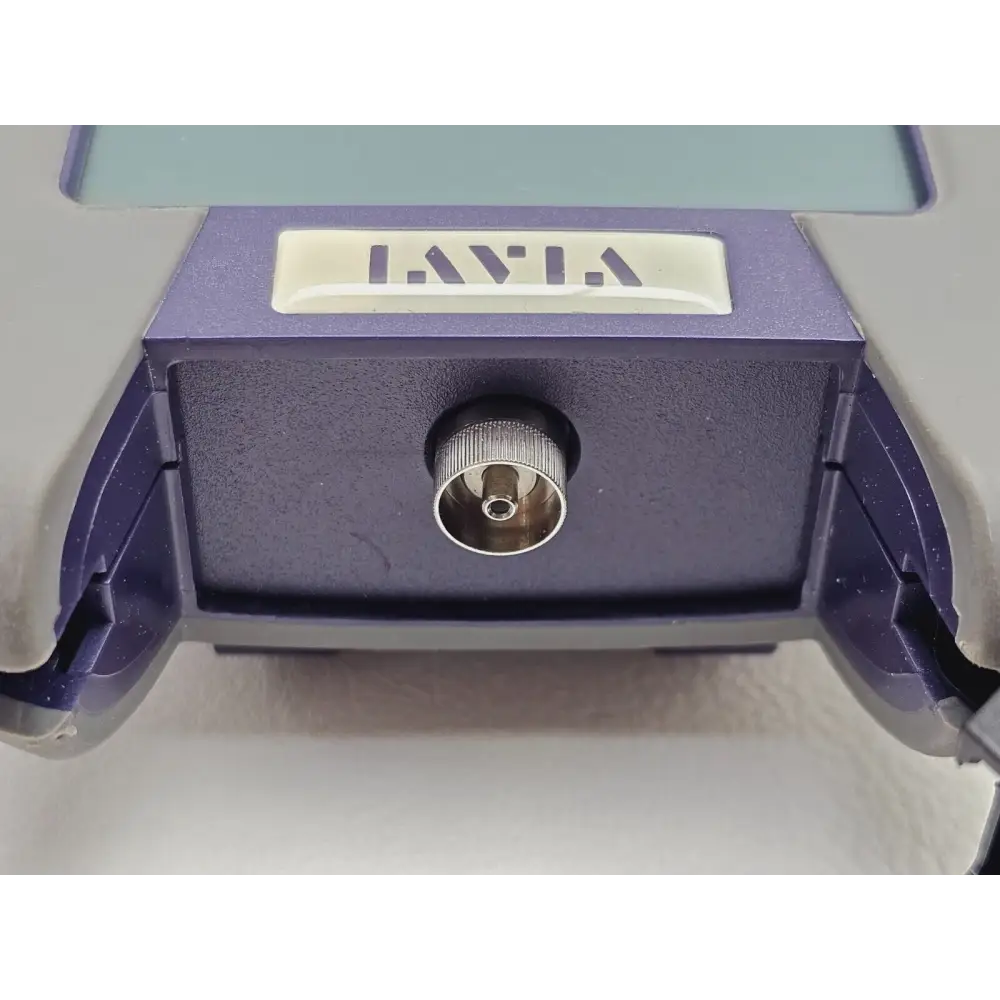

Universal optical interface: Compatible with all 2.5 mm and 1.25 mm connectors
Wavelength setting: Individually settable per 1 nm step
Auto-wavelength recognition: Yes
Internal data storage: 100 results

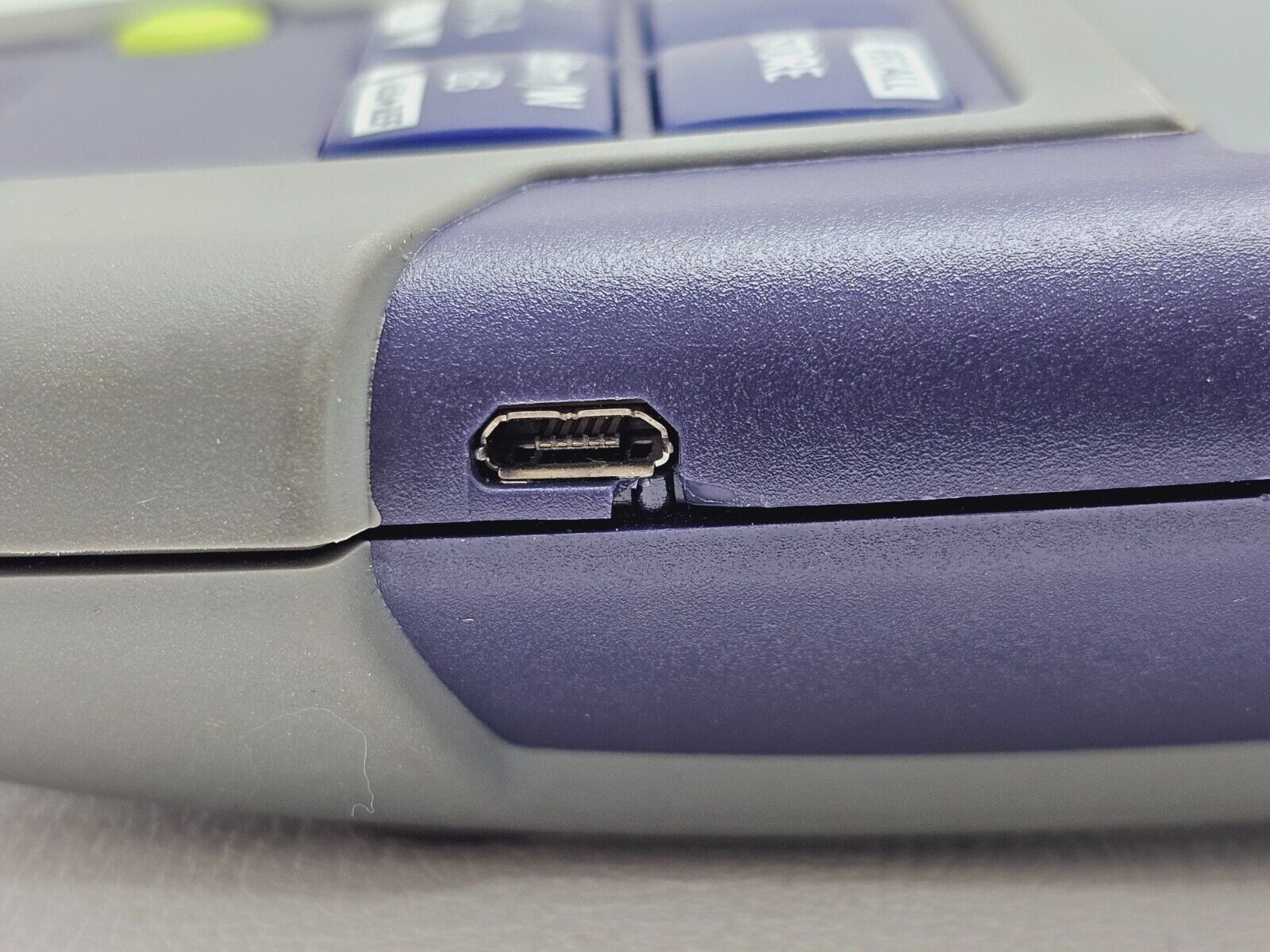

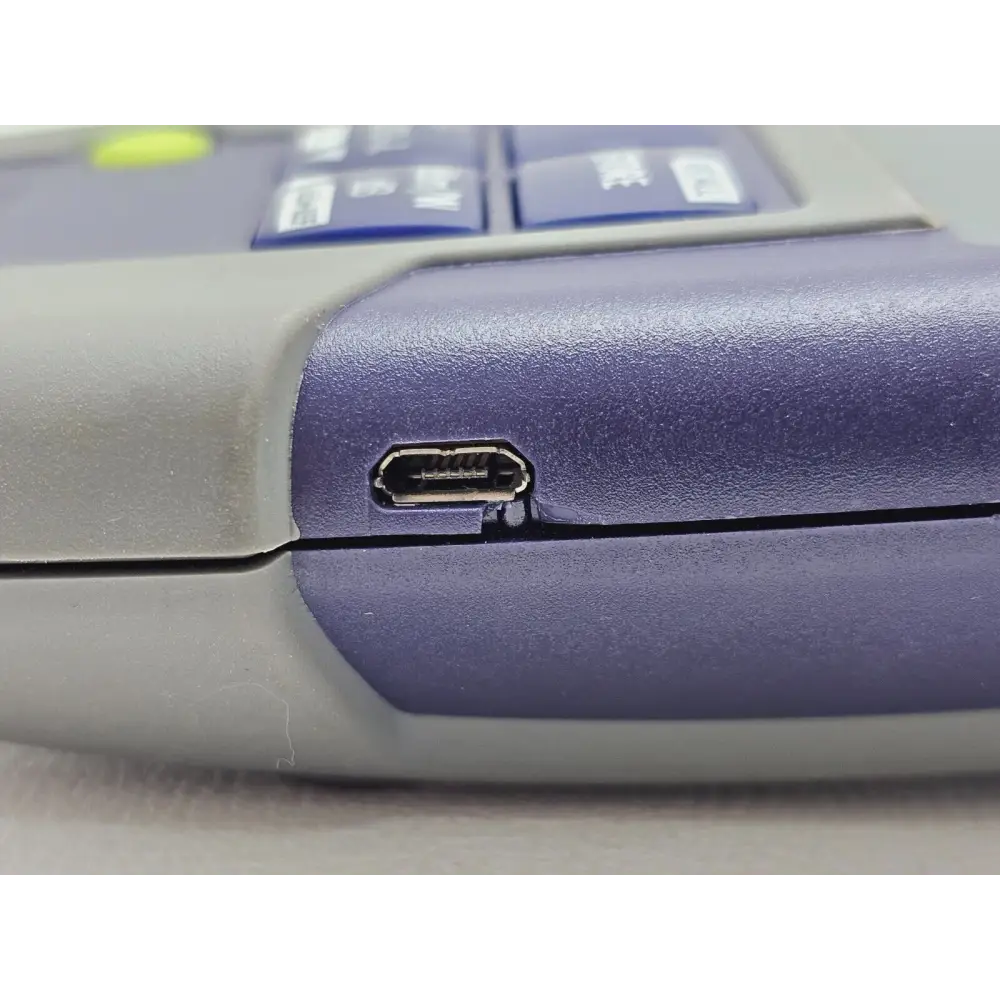

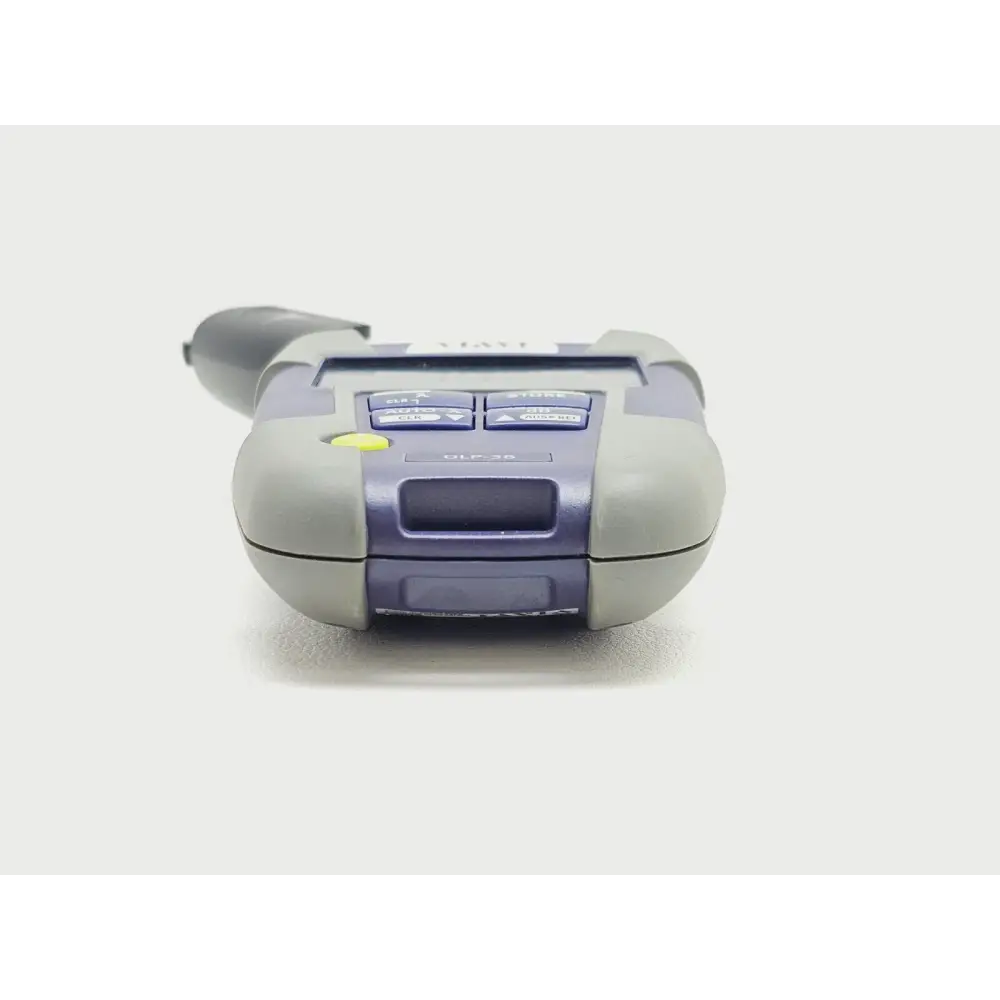

Interface: Micro USB (power supply and data transfer)

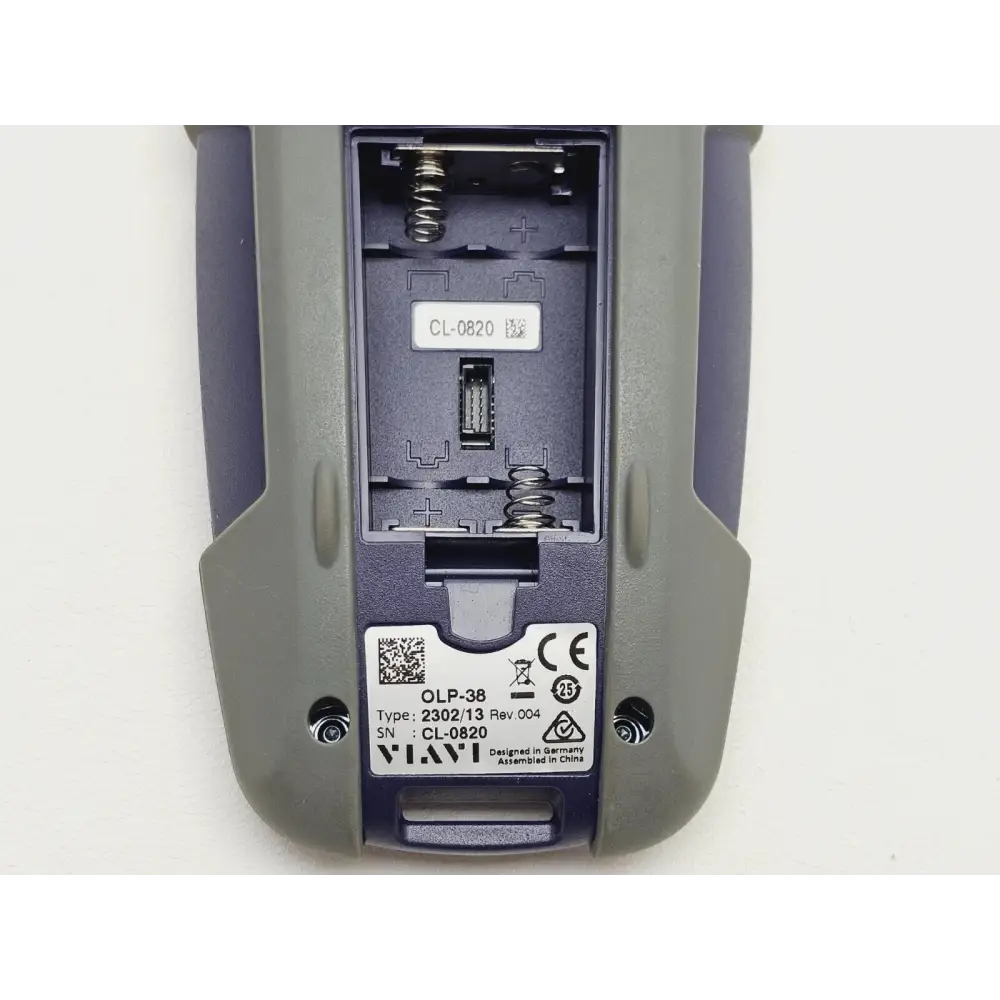

Battery life: Over 200 hours
Calibration period: 3 years
Software: Report generation with OFS-355

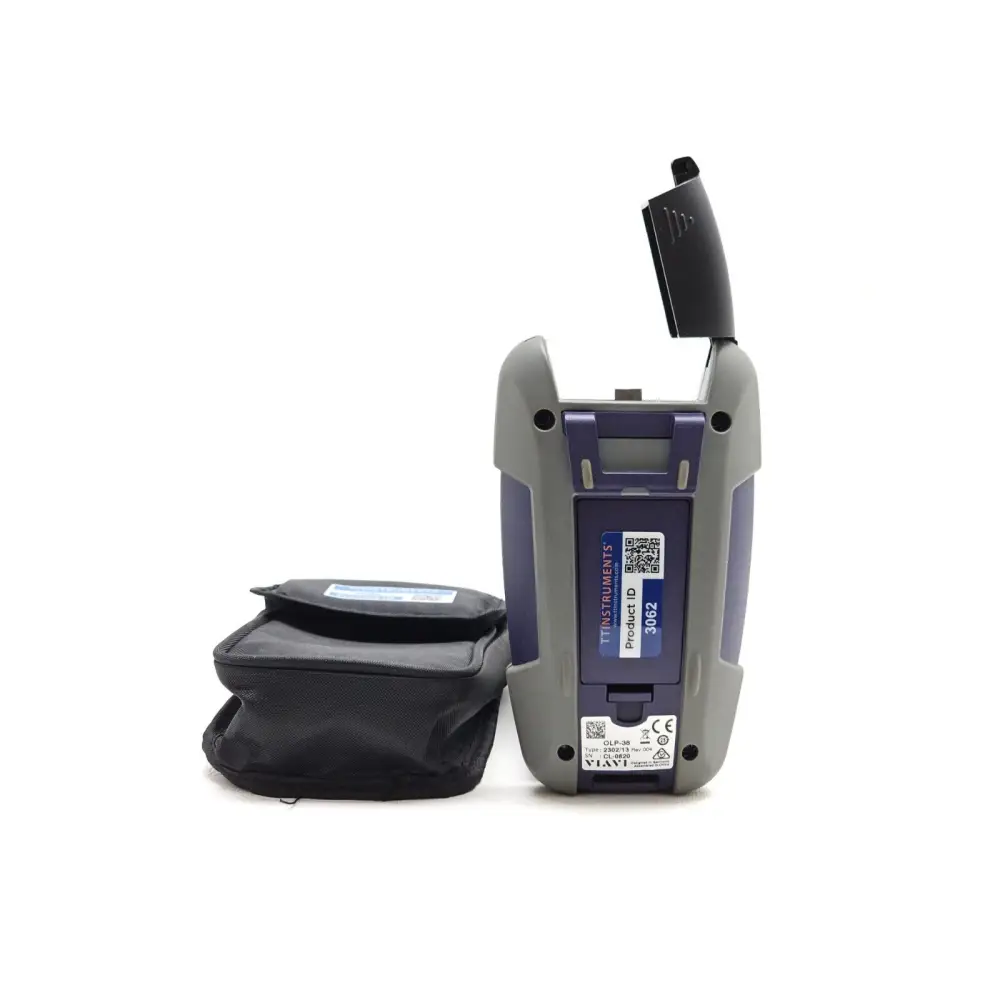

Form factor: Rugged, pocket-sized housing
Applications:
The OLP-38 is specifically designed for CATV (analogue RF transmission) and amplified DWDM system applications where higher optical power levels are present. It can also form part of the SmartPocket Optical Test Kits when paired with compatible light sources.
