Viavi JDSU OLP-38 Optical Power Meter 1310/1550 nm SM Filtered InGaAs +26 dBm Po
Model: OLP-38
Condition: Used
In stock: 0
SKU: 3061 7D02
- Fiber Optics
- Loss Testers & Fault Locators
- Power Meters
Choose options

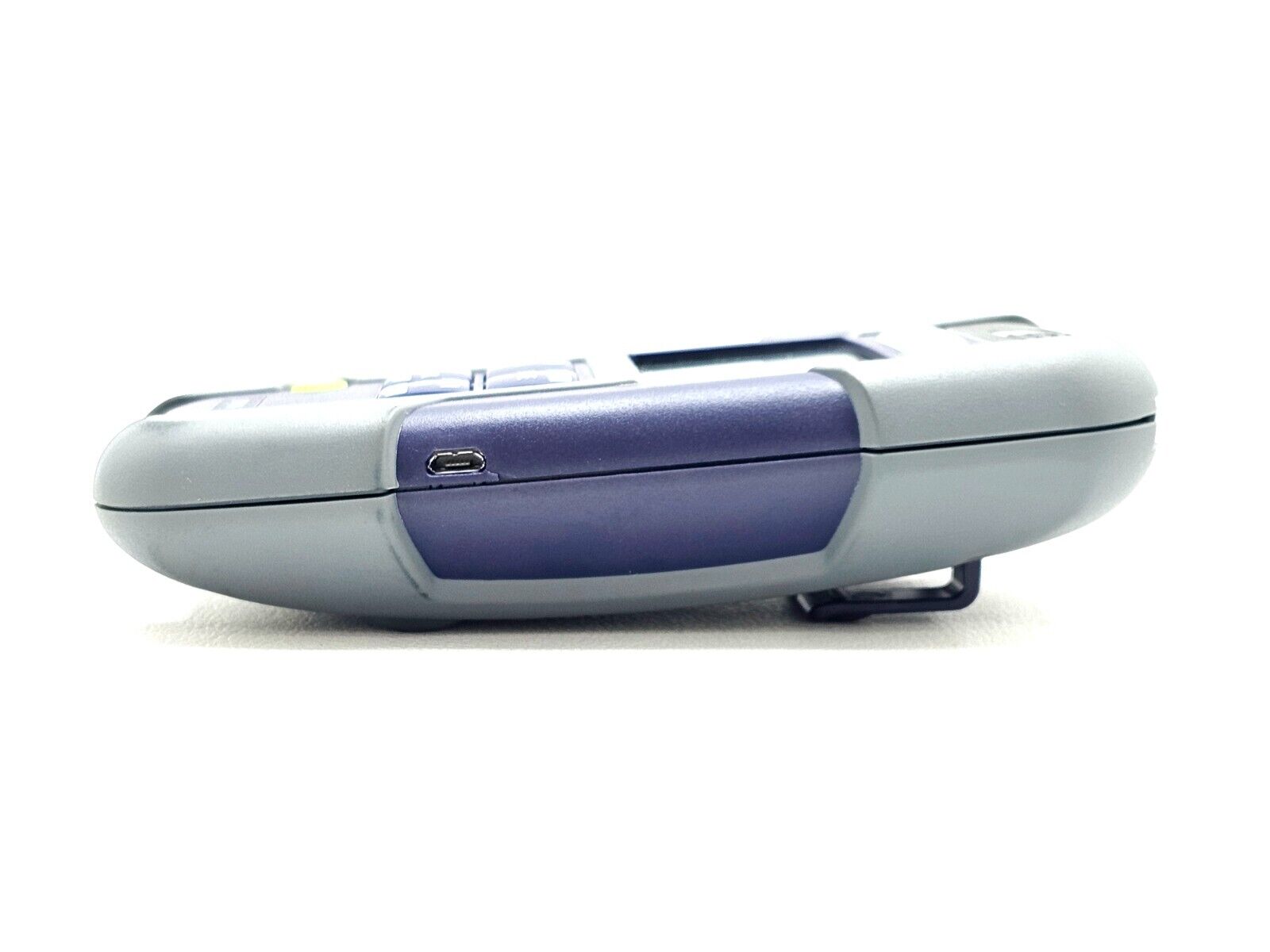

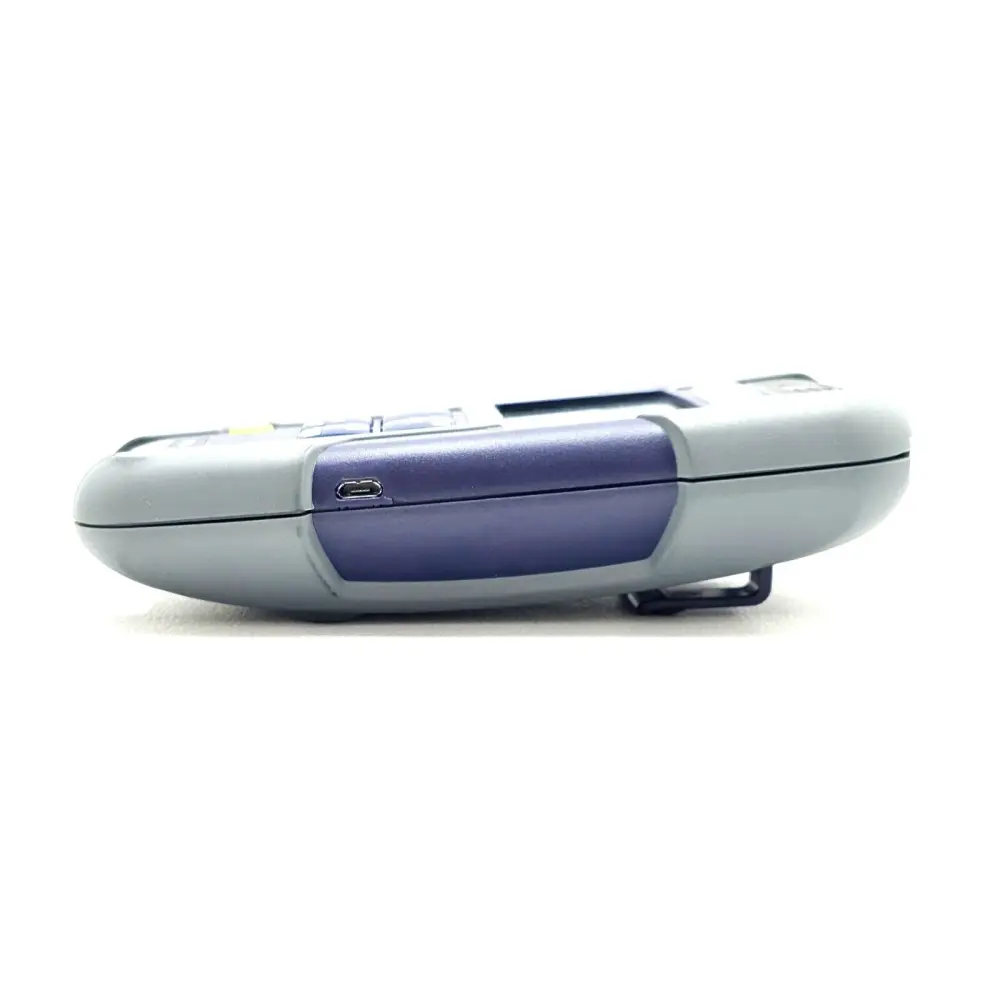

Condition: Used — Tested and in good working condition. Note that the plastic around the USB port is slightly damaged, though this does not affect functionality (a common cosmetic fault on this model).
Included in the sale:

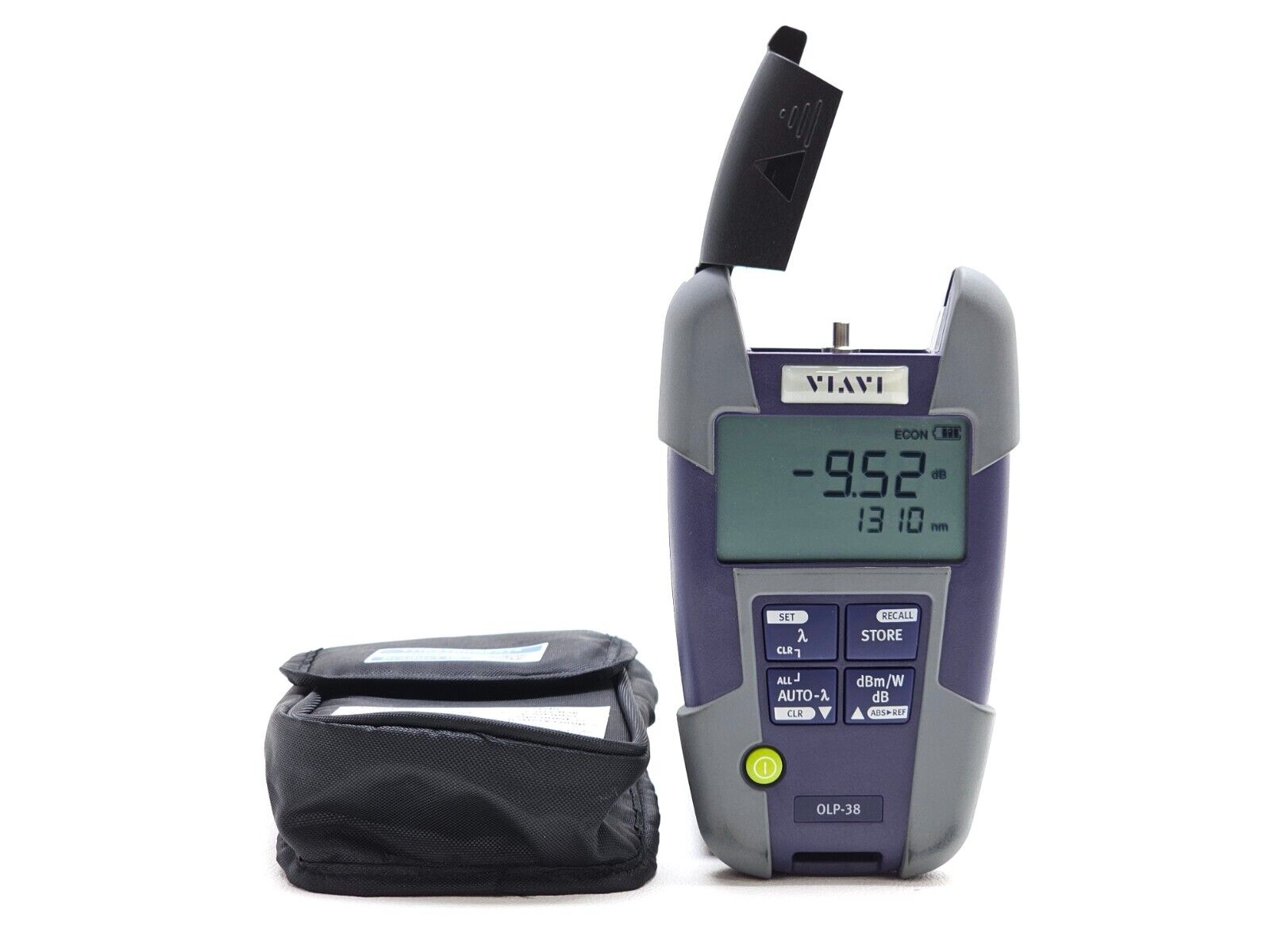

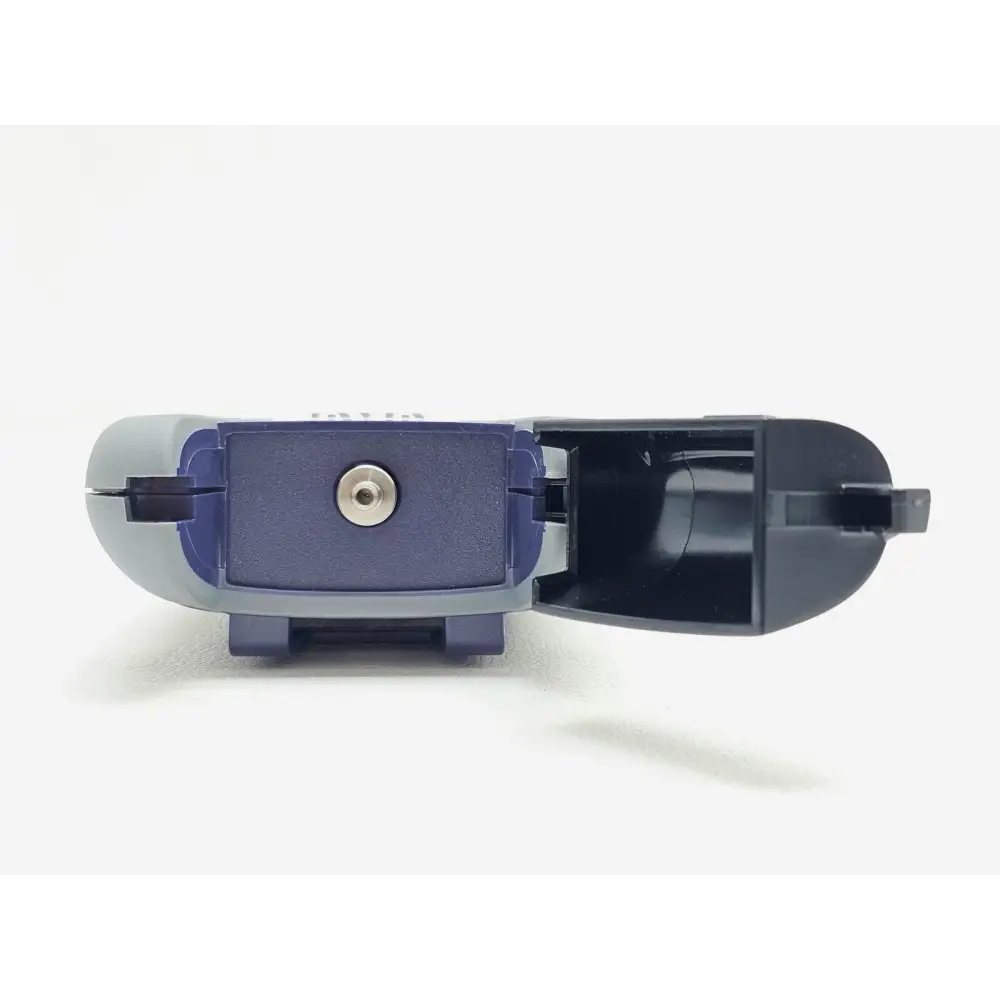

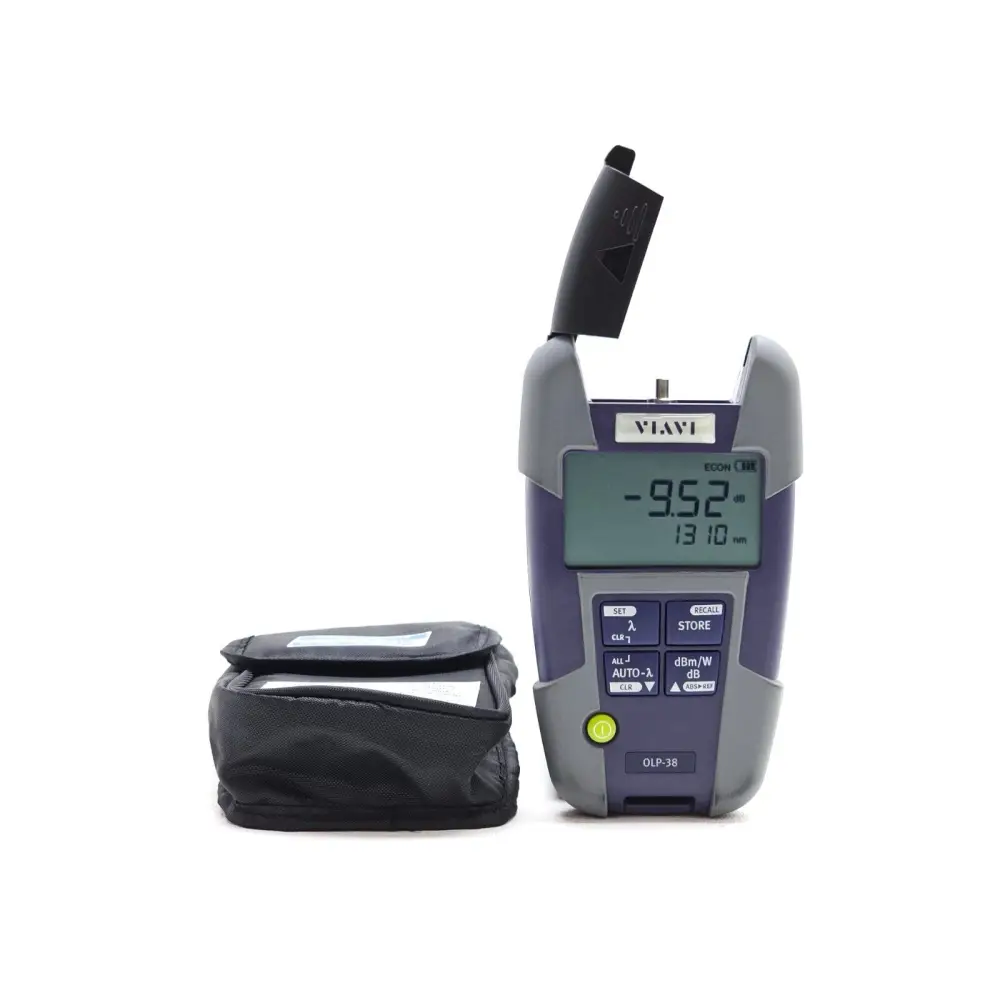

• Viavi JDSU OLP-38 optical power meter (with 2.5mm adapter)

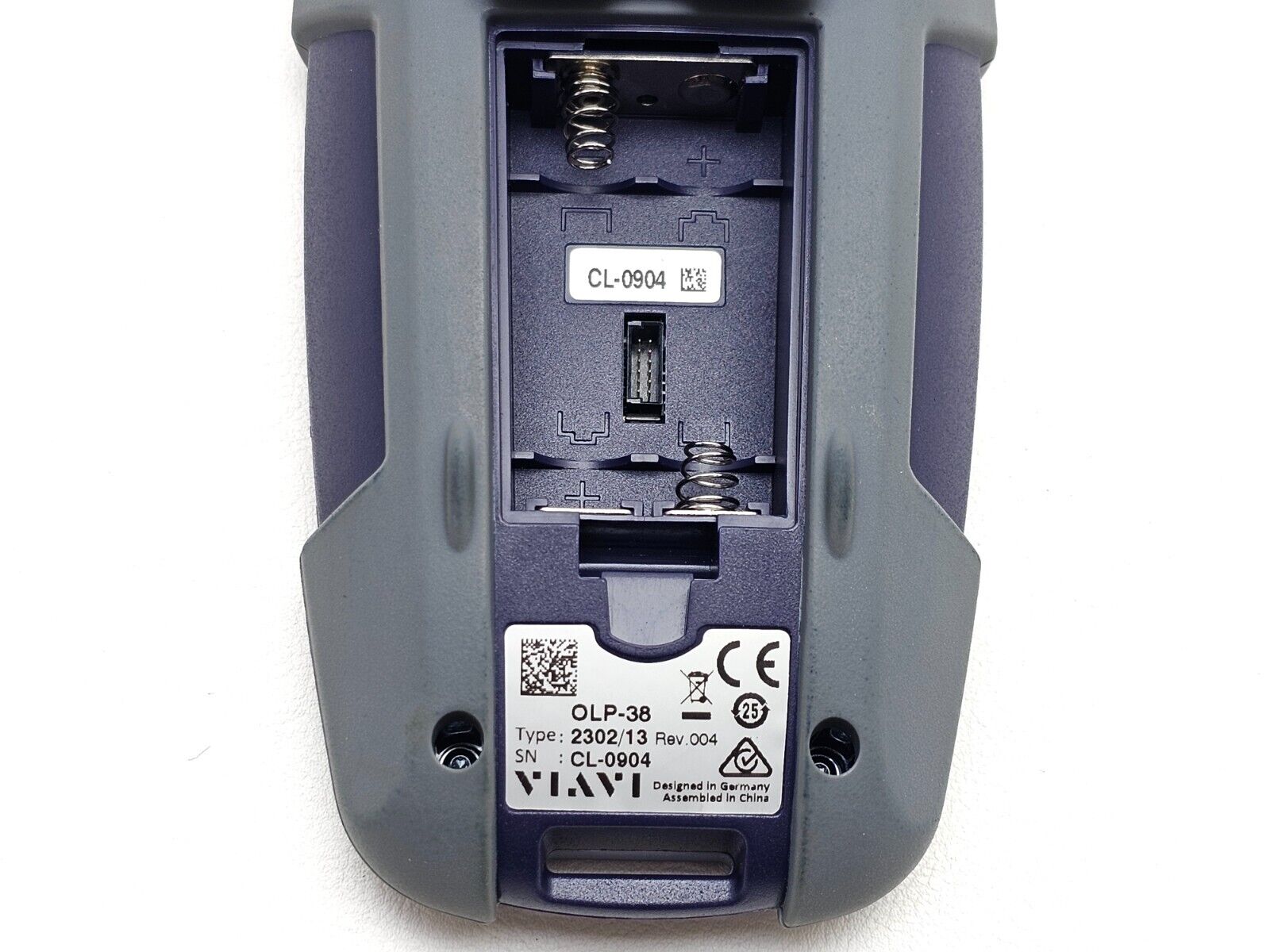

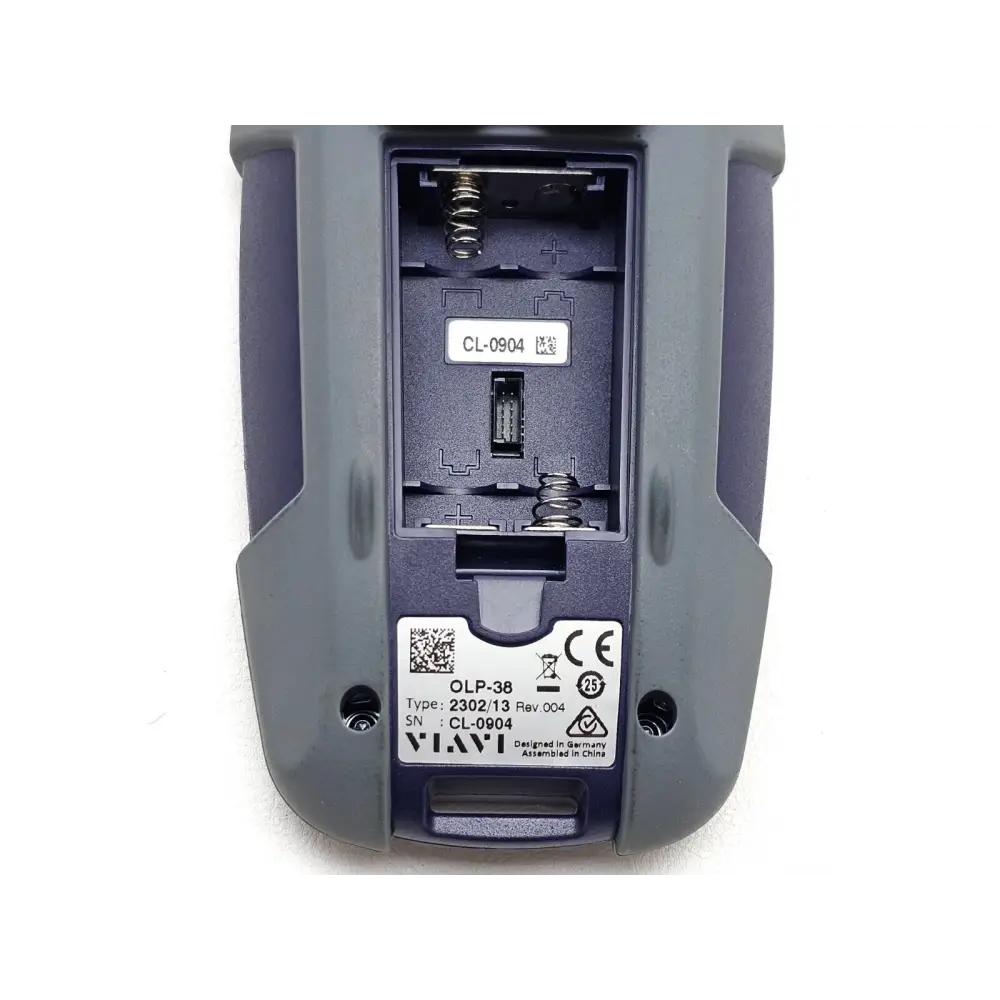

Please note: Batteries are NOT included.

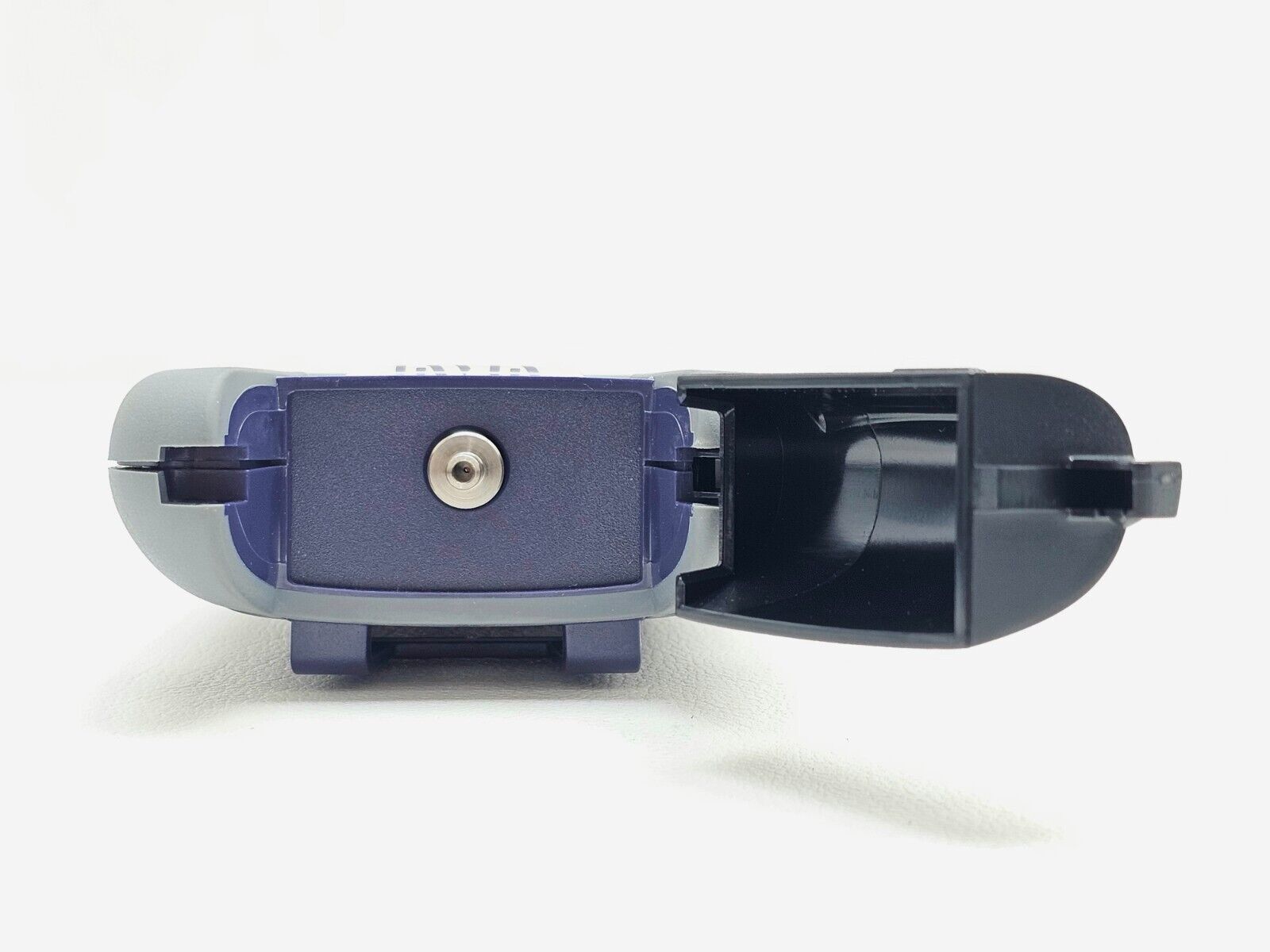

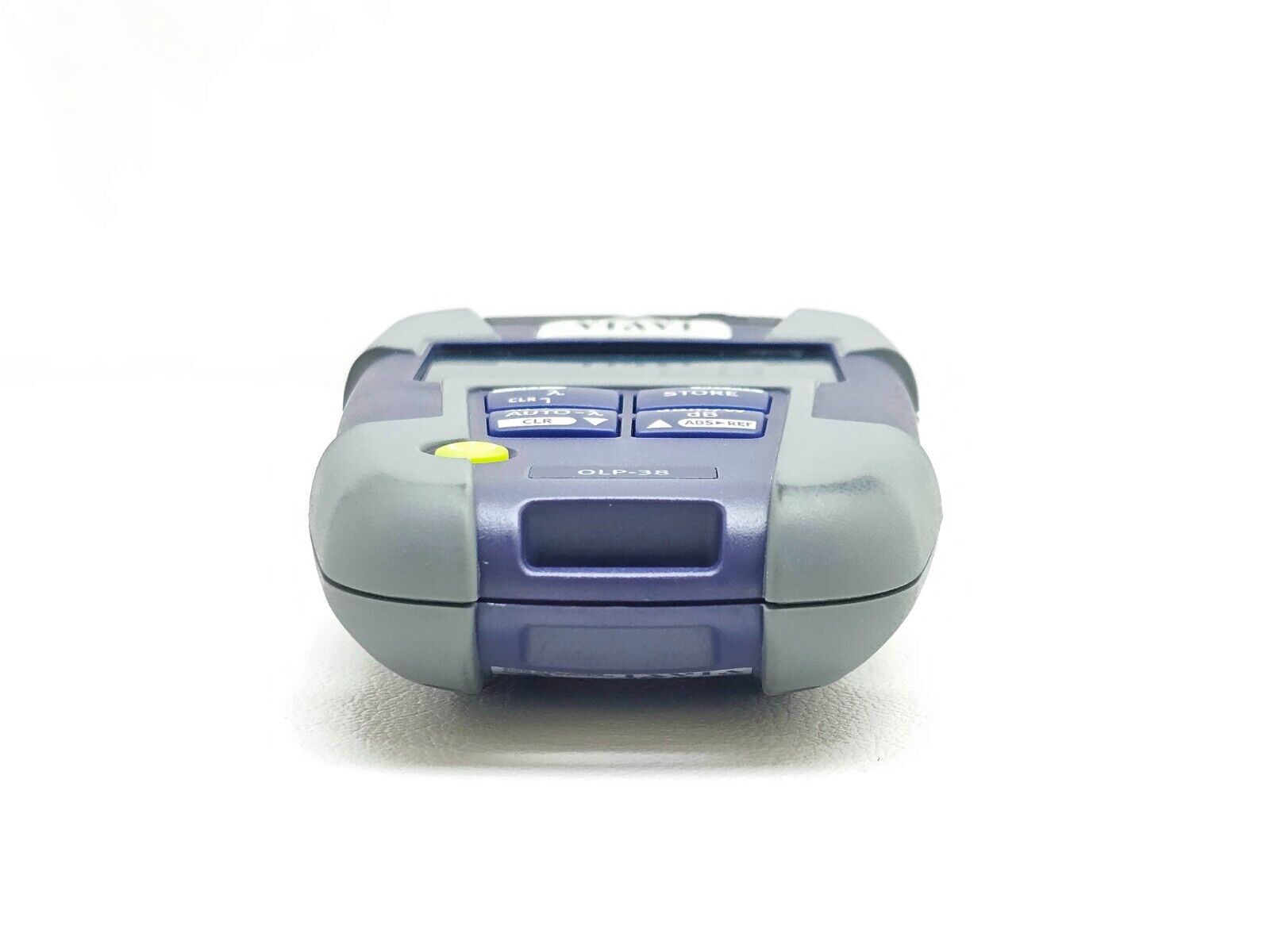

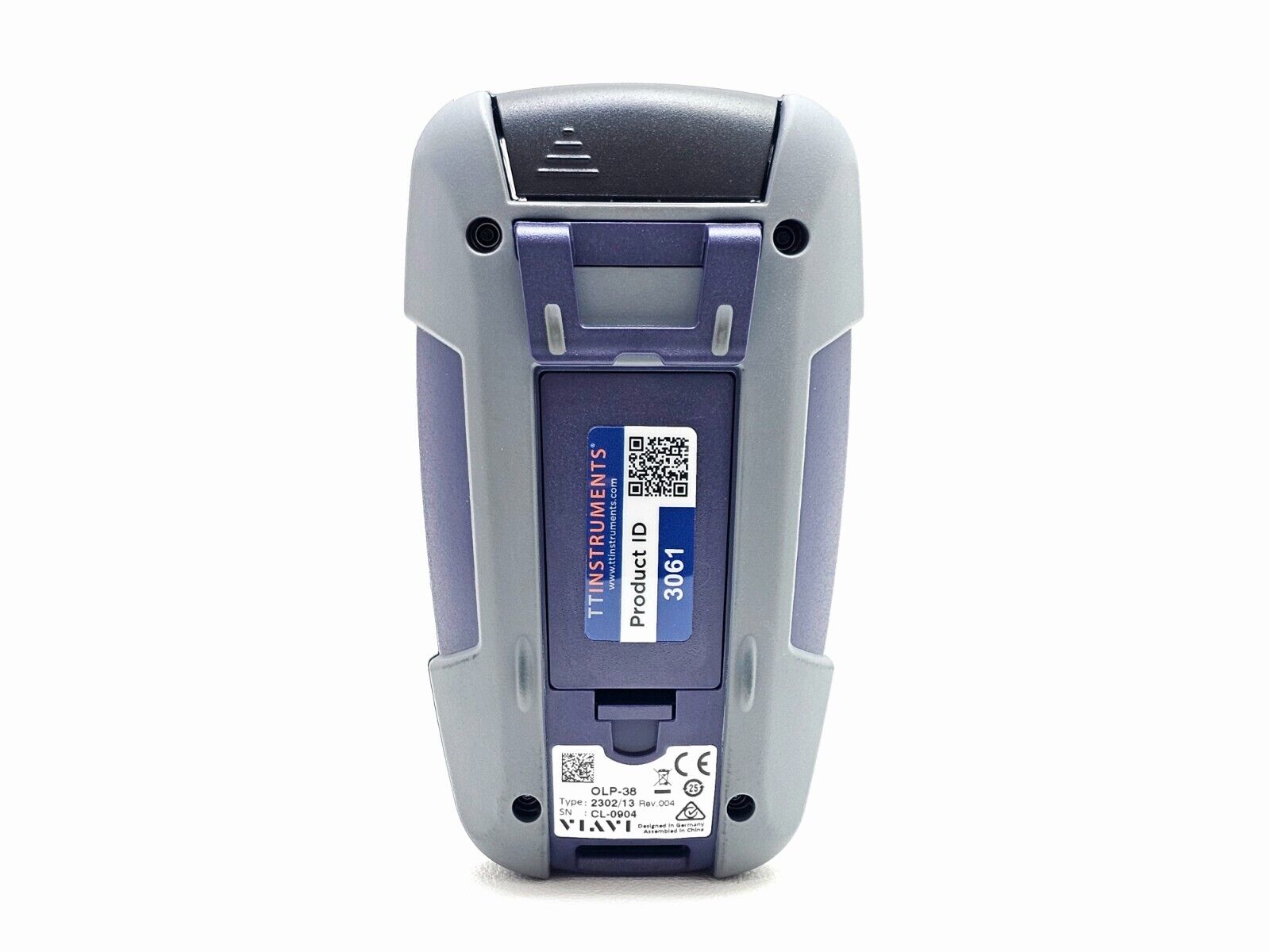

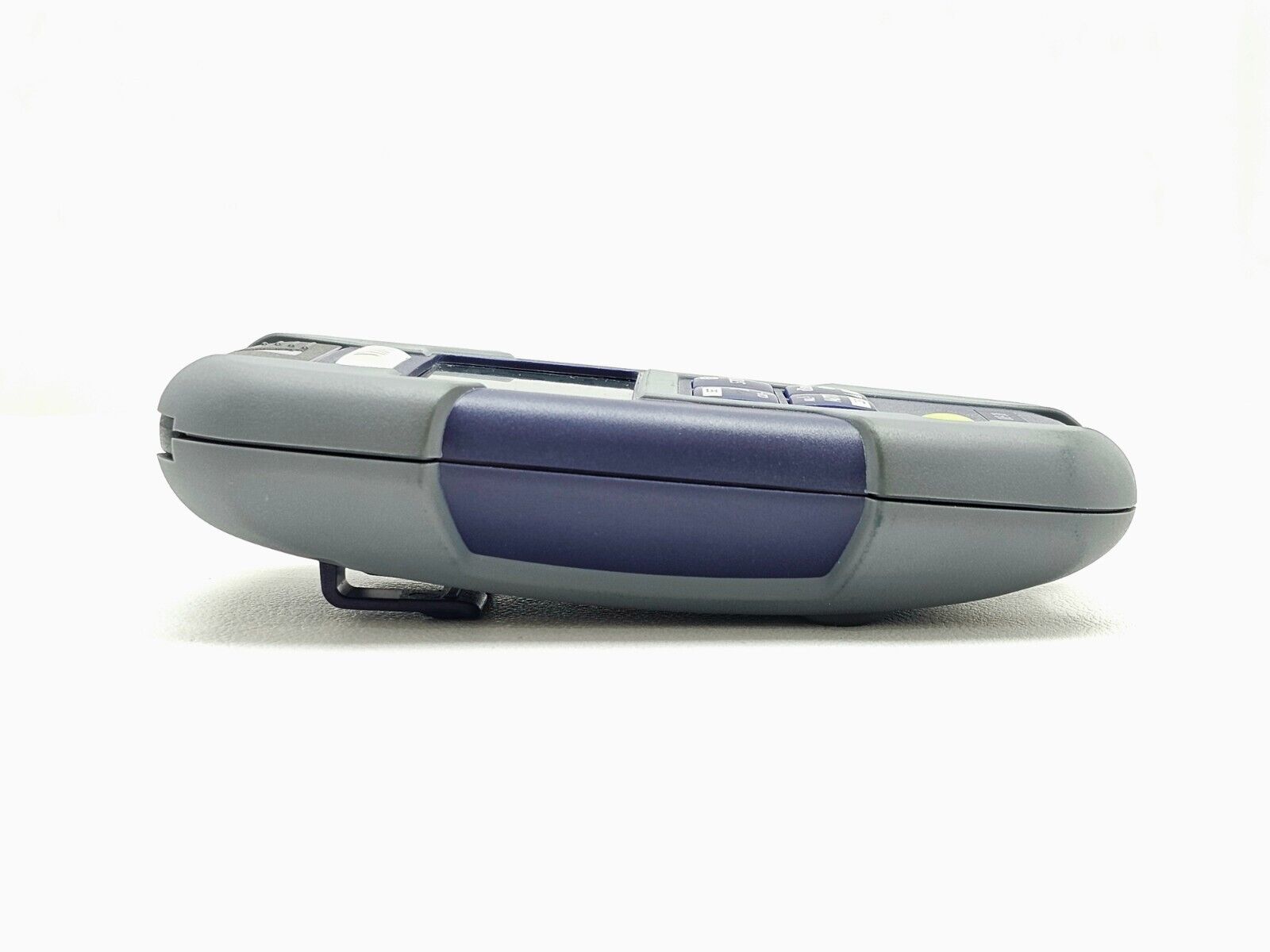

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.
Viavi SmartPocket OLP-34/-35/-38 Optical Power Meters
A family of pocket-sized, low-cost optical power meters for the installation and maintenance of single mode and multimode fibre optic networks. The Viavi (formerly JDSU) SmartPocket series offers an excellent price-to-performance ratio in a rugged, field-ready housing with a straightforward user interface.
The OLP-38 (Filtered InGaAs) is the high-power variant of the SmartPocket family, rated to +26 dBm, making it the ideal choice for CATV networks with analogue RF transmission and amplified DWDM system applications. Units can be combined with LED (OLS-34/OLS-36) or laser light sources (OLS-35/OLS-36) for full insertion loss measurement workflows.
Key Features:
Detector Type: Filtered InGaAs
Wavelengths: 1310 nm / 1550 nm
Power Measurement Range: Up to +26 dBm
Battery Life: Over 200 hours
Calibration Period: 3 years
Optical Interface: Universal — compatible with all 2.5 mm and 1.25 mm connectors
Wavelength Adjustment: Individually settable per 1 nm step
Data Storage: 100 internal results
Connectivity: Micro USB (for power supply or data transfer)
Report Generation: Compatible with OFS-355 software
Form Factor: Rugged, pocket-sized housing
Auto-Wavelength Recognition: Yes
Applications:
The OLP-38 is specifically designed for high-power optical networks including CATV systems with analogue RF transmission and amplified DWDM applications. It can also be used in conjunction with VIAVI SmartPocket light sources to perform insertion loss measurements across premises, telco, and CATV fibre optic networks.

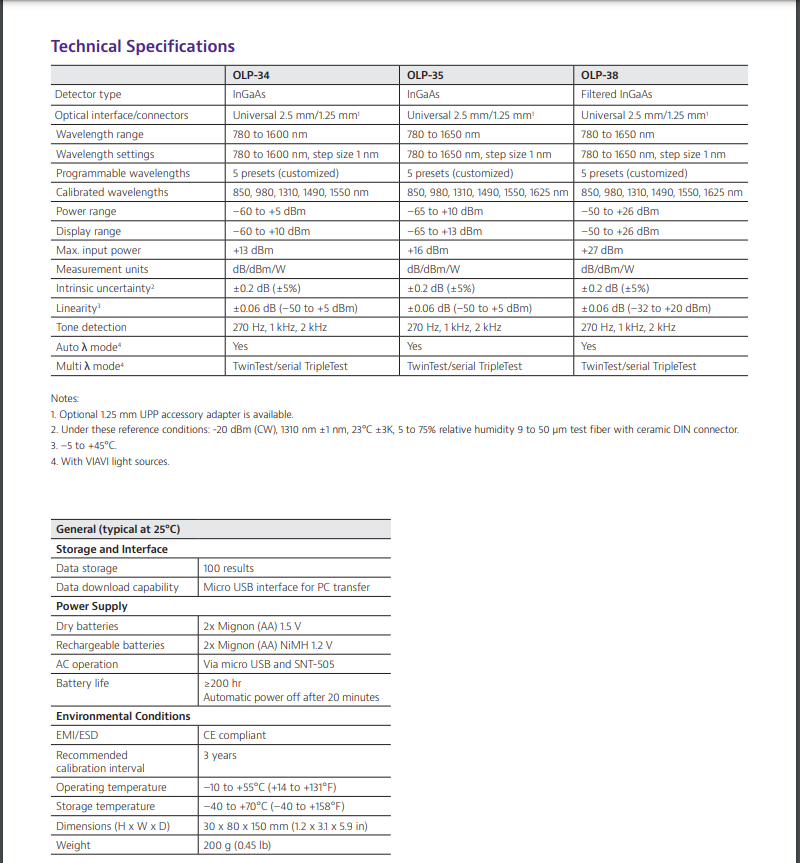

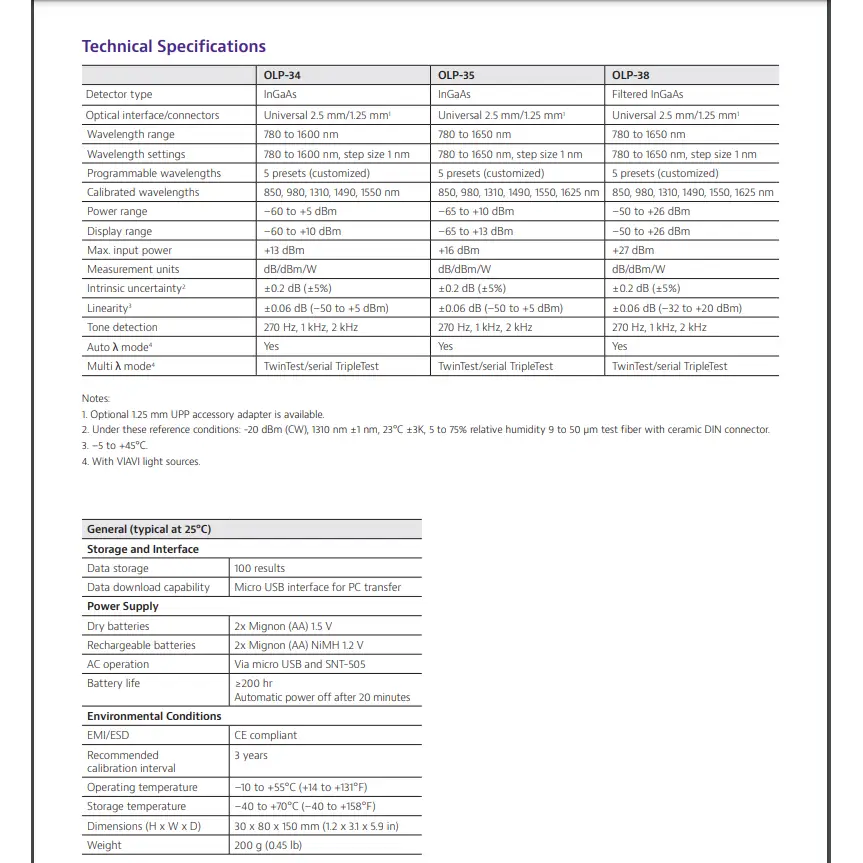

Viavi SmartPocket OLP-34/-35/-38 Optical Power Meters official datasheet (PDF): Download PDF
Product Overview
Condition: Used — Tested and in good working condition. Note that the plastic around the USB port is slightly damaged, though this does not affect functionality (a common cosmetic fault on this model).
Included in the sale:
• Viavi JDSU OLP-38 optical power meter (with 2.5mm adapter)
Please note: Batteries are NOT included.
The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.
Manufacturer's Description
Viavi SmartPocket OLP-34/-35/-38 Optical Power Meters
A family of pocket-sized, low-cost optical power meters for the installation and maintenance of single mode and multimode fibre optic networks. The Viavi (formerly JDSU) SmartPocket series offers an excellent price-to-performance ratio in a rugged, field-ready housing with a straightforward user interface.
The OLP-38 (Filtered InGaAs) is the high-power variant of the SmartPocket family, rated to +26 dBm, making it the ideal choice for CATV networks with analogue RF transmission and amplified DWDM system applications. Units can be combined with LED (OLS-34/OLS-36) or laser light sources (OLS-35/OLS-36) for full insertion loss measurement workflows.
Key Features:
Detector Type: Filtered InGaAs
Wavelengths: 1310 nm / 1550 nm
Power Measurement Range: Up to +26 dBm
Battery Life: Over 200 hours
Calibration Period: 3 years
Optical Interface: Universal — compatible with all 2.5 mm and 1.25 mm connectors
Wavelength Adjustment: Individually settable per 1 nm step
Data Storage: 100 internal results
Connectivity: Micro USB (for power supply or data transfer)
Report Generation: Compatible with OFS-355 software
Form Factor: Rugged, pocket-sized housing
Auto-Wavelength Recognition: Yes
Applications:
The OLP-38 is specifically designed for high-power optical networks including CATV systems with analogue RF transmission and amplified DWDM applications. It can also be used in conjunction with VIAVI SmartPocket light sources to perform insertion loss measurements across premises, telco, and CATV fibre optic networks.
Resources
Viavi SmartPocket OLP-34/-35/-38 Optical Power Meters official datasheet (PDF): Download PDF
