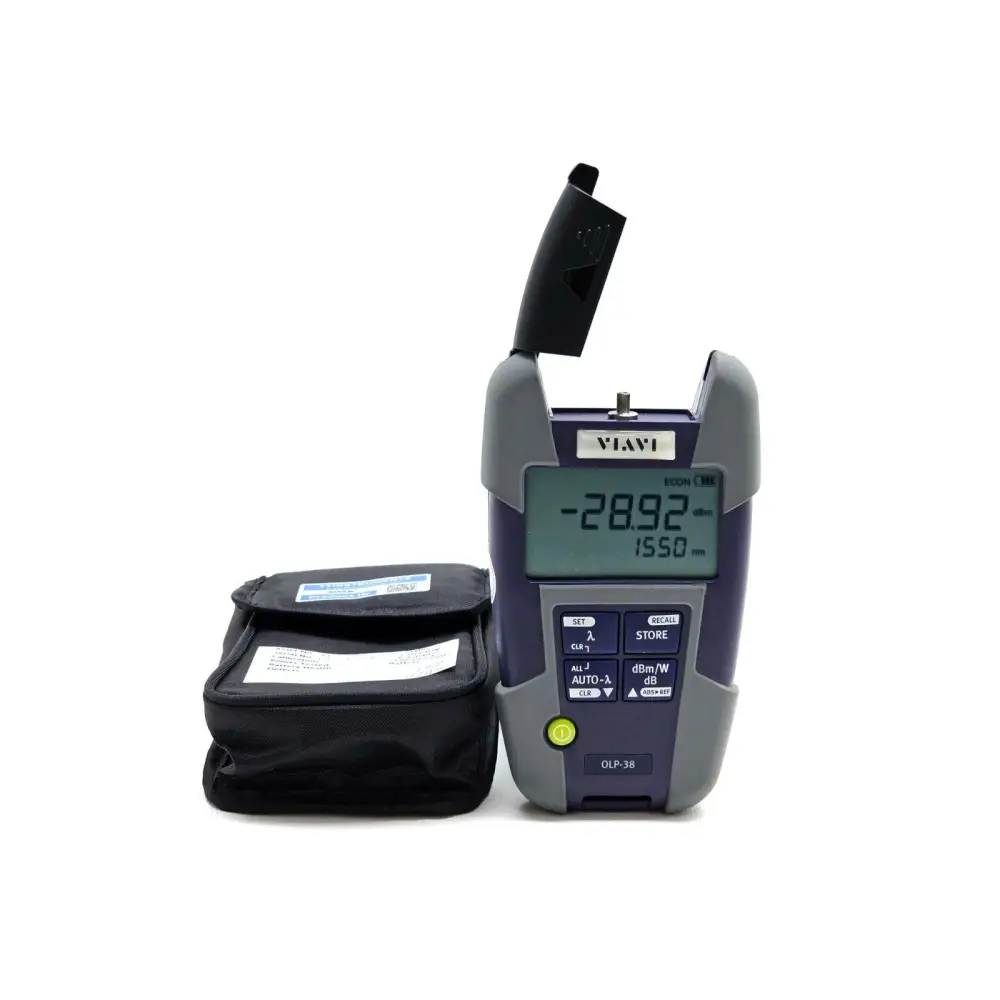

Viavi JDSU OLP-38 Optical Power Meter 1310/1550 nm SM Filtered InGaAs +26 dBm
Model: OLP-38
Condition: Used
In stock: 0
SKU: 3058 6B03
- Fiber Optics
- Loss Testers & Fault Locators
- Power Meters
Choose options









Condition: Used — Tested and in good working condition. This is the 2302/13 superior version of the OLP-38, featuring internal data storage for up to 100 results and USB download capability for report generation.
Included in the sale:
• OLP-38 2302/13 optical power meter with 2.5 mm adapter

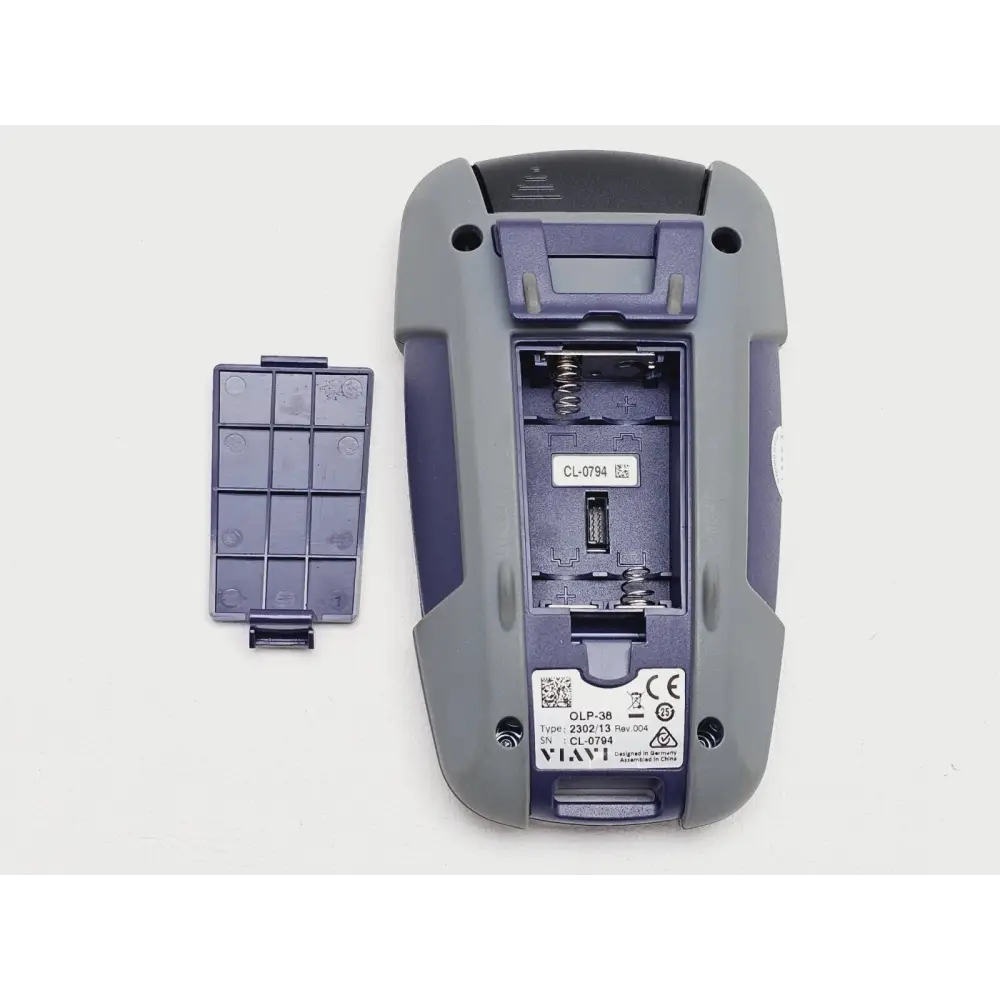

Please note: Batteries are NOT provided.

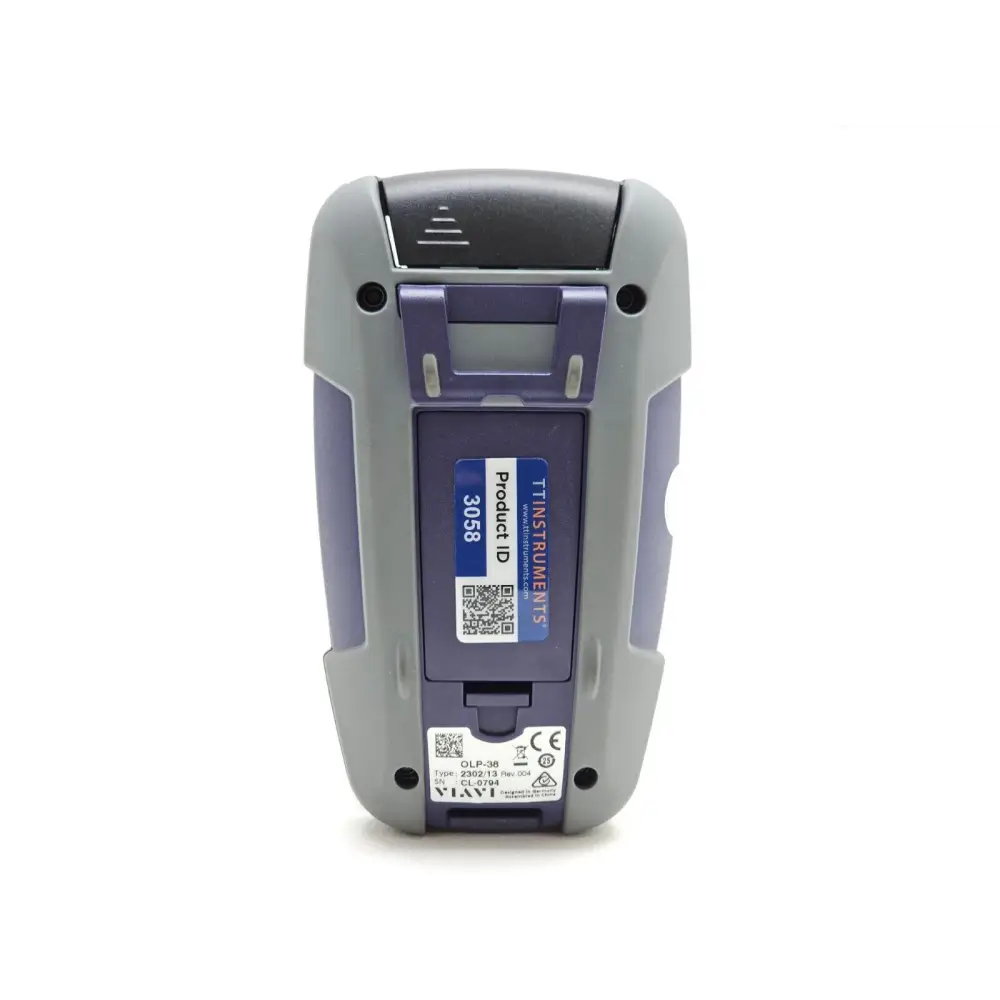

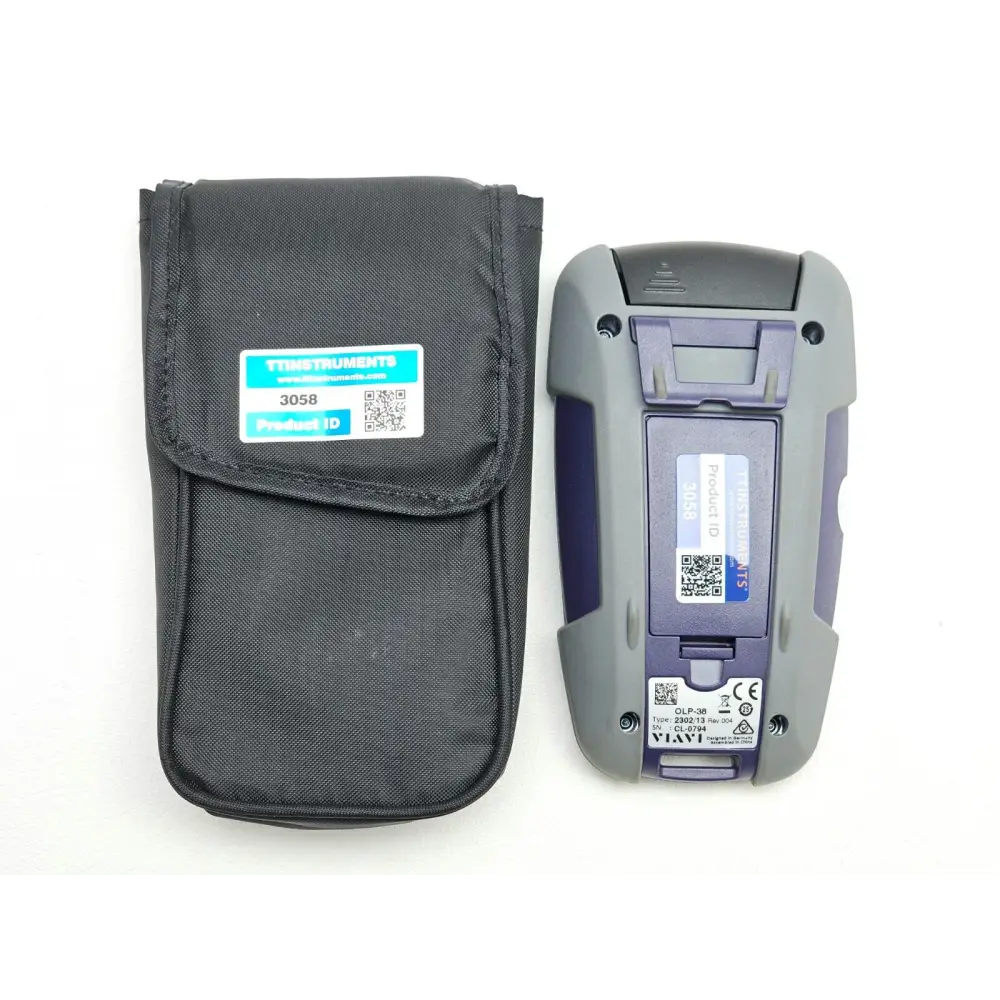

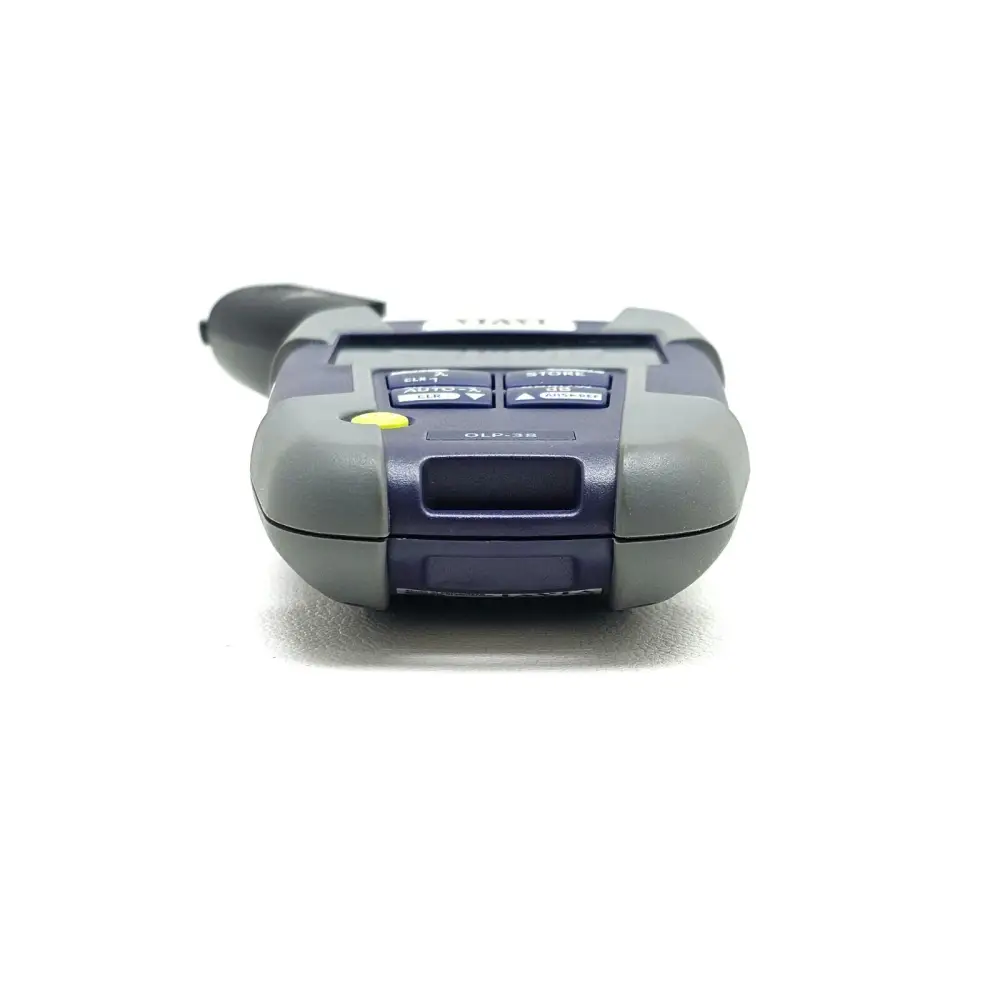

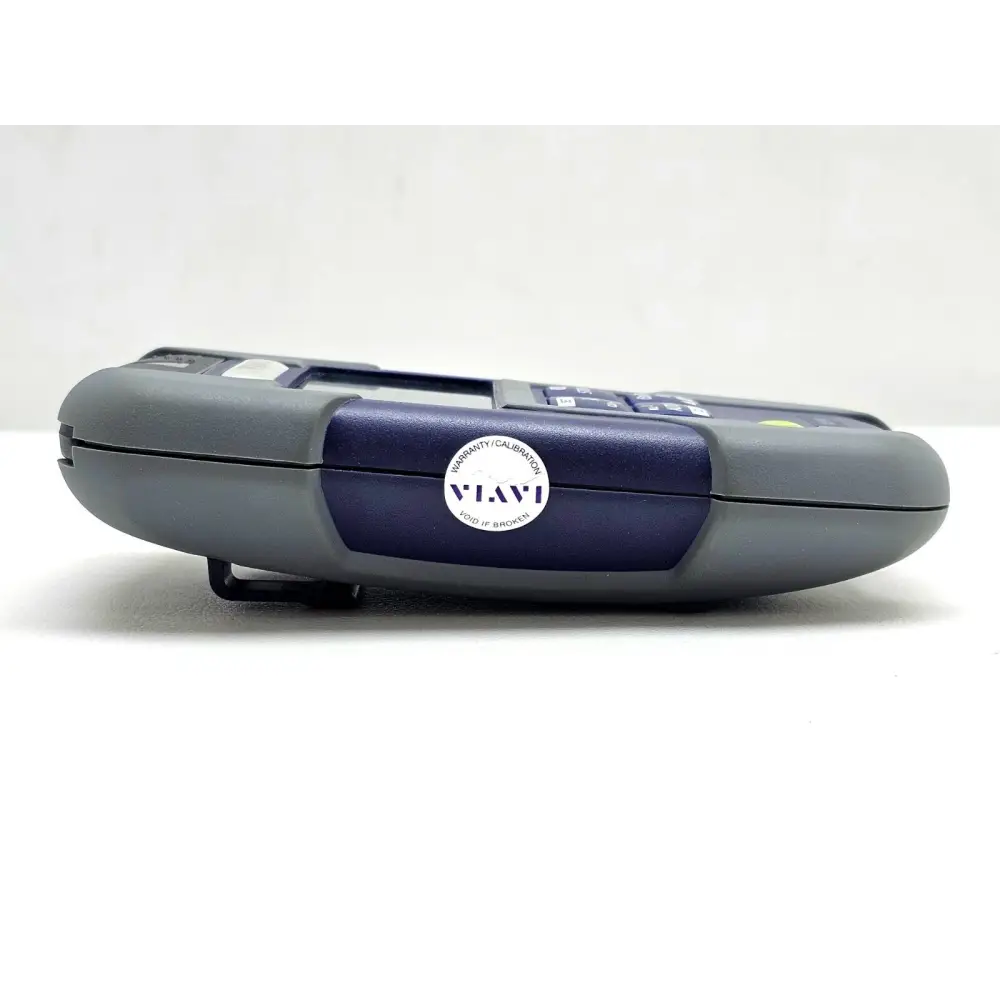

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.
Viavi SmartPocket OLP-34/-35/-38 Optical Power Meters
A family of pocket-sized, low-cost optical power meters for the installation and maintenance of single mode and multimode fibre optic networks. The Viavi (formerly JDSU) SmartPocket series offers an excellent price-to-performance ratio in a rugged, field-ready housing with a straightforward user interface.
The OLP-38 (Filtered InGaAs) is the high-power variant of the SmartPocket family, rated to +26 dBm, making it the ideal choice for CATV networks with analogue RF transmission and amplified DWDM system applications. Units can be combined with LED (OLS-34/OLS-36) or laser light sources (OLS-35/OLS-36) for full insertion loss measurement workflows.
Key Features:
Detector type: Filtered InGaAs
Wavelengths: 1310 nm / 1550 nm
Power measurement range: Up to +26 dBm
Battery life: >200 hours
Calibration period: 3 years
Data storage: 100 results internally

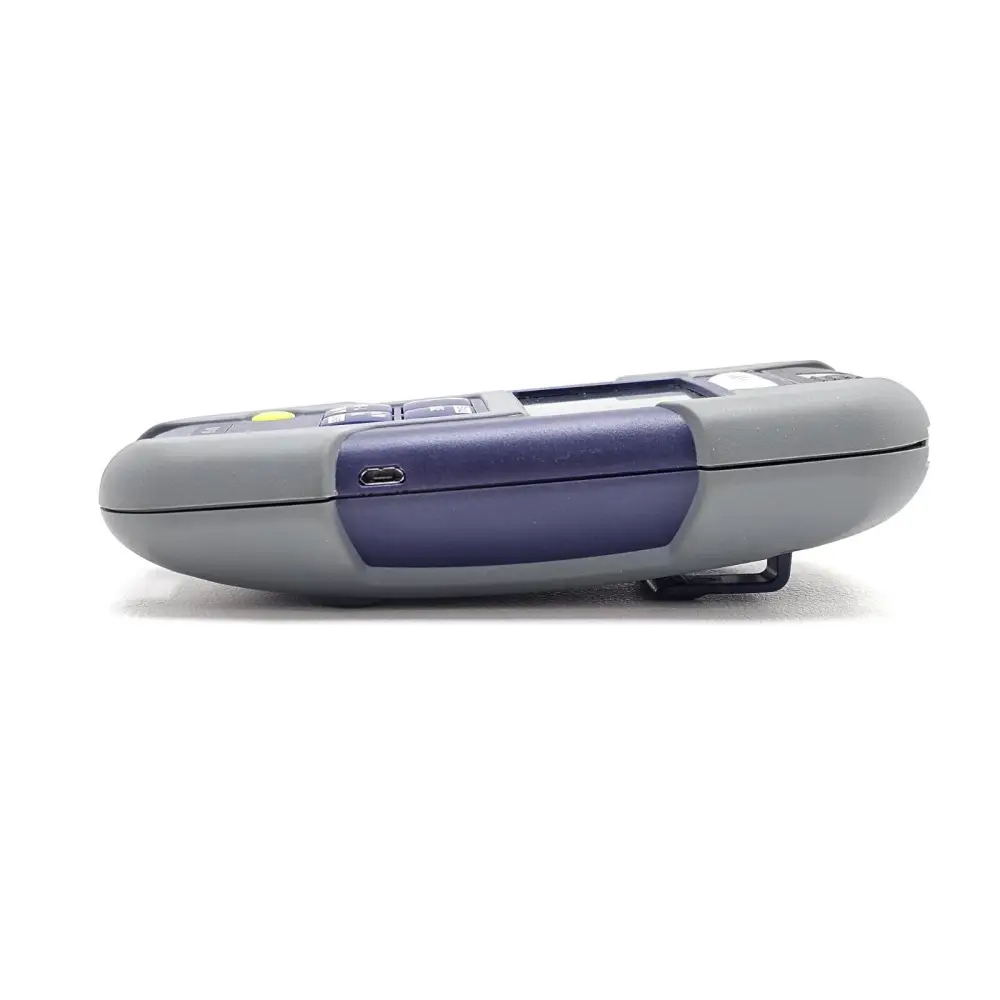

Interface: Micro USB (power supply and data transfer)

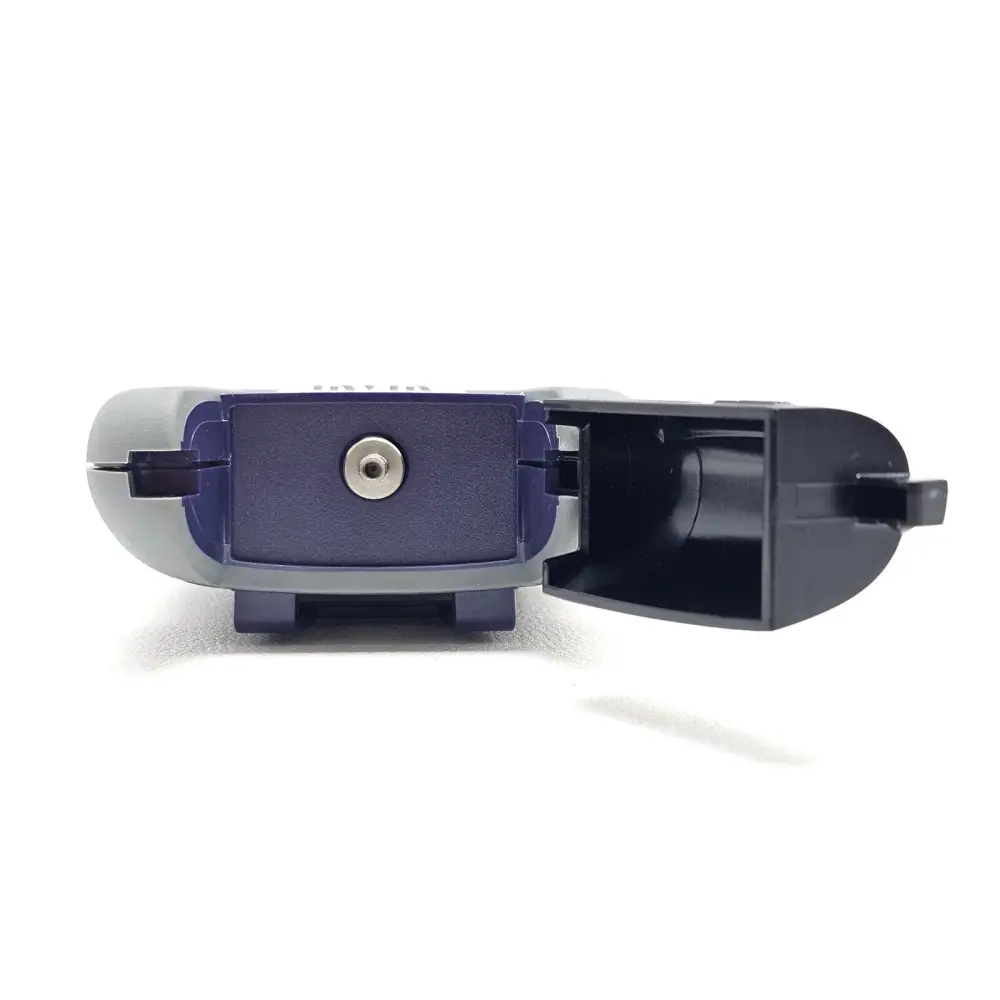

Optical connector: Universal 2.5 mm / 1.25 mm interface
Wavelength resolution: Individually settable per 1 nm step
Auto-wavelength recognition: Yes
Report generation: Via OFS-355 software
Form factor: Pocket-sized, rugged field housing
Applications:
The OLP-38 is optimised for CATV networks employing analogue RF transmission, amplified DWDM systems, and any application requiring high optical power measurement beyond the range of standard InGaAs meters. The OLP-35 (standard InGaAs) covers singlemode telecom networks including Passive Optical Networks (PON), while the OLP-34 (Ge) targets LAN/WAN and enterprise multimode applications.

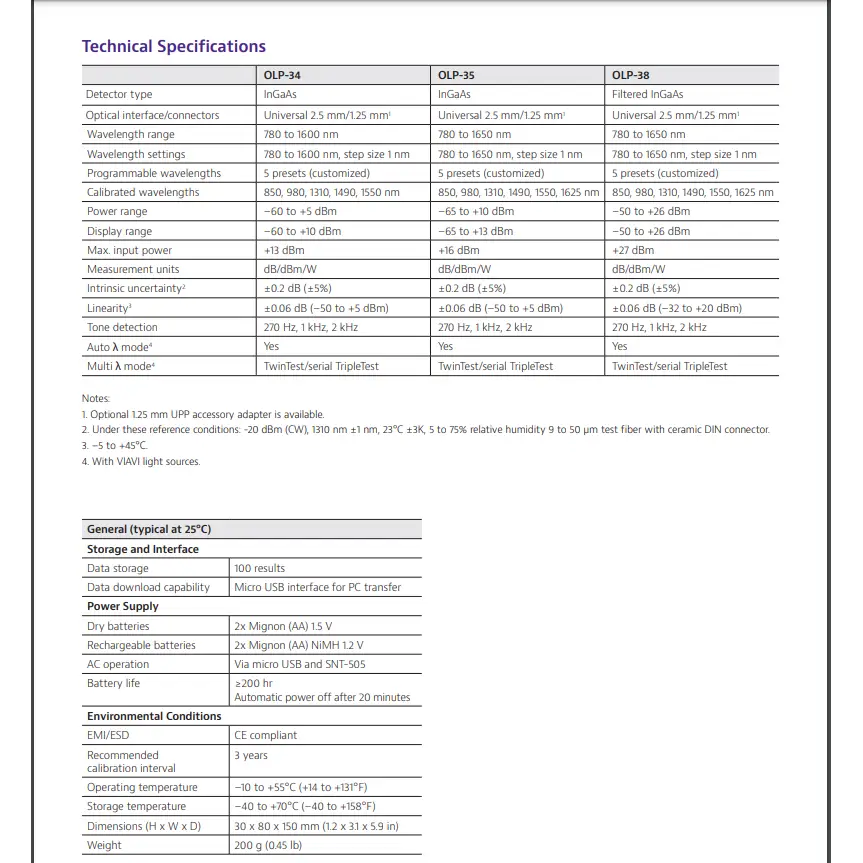

Viavi SmartPocket OLP-34/-35/-38 Optical Power Meters datasheet (PDF): Download PDF
Product Overview
Condition: Used — Tested and in good working condition. This is the 2302/13 superior version of the OLP-38, featuring internal data storage for up to 100 results and USB download capability for report generation.
Included in the sale:
• OLP-38 2302/13 optical power meter with 2.5 mm adapter
Please note: Batteries are NOT provided.
The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.
Manufacturer's Description
Viavi SmartPocket OLP-34/-35/-38 Optical Power Meters
A family of pocket-sized, low-cost optical power meters for the installation and maintenance of single mode and multimode fibre optic networks. The Viavi (formerly JDSU) SmartPocket series offers an excellent price-to-performance ratio in a rugged, field-ready housing with a straightforward user interface.
The OLP-38 (Filtered InGaAs) is the high-power variant of the SmartPocket family, rated to +26 dBm, making it the ideal choice for CATV networks with analogue RF transmission and amplified DWDM system applications. Units can be combined with LED (OLS-34/OLS-36) or laser light sources (OLS-35/OLS-36) for full insertion loss measurement workflows.
Key Features:
Detector type: Filtered InGaAs
Wavelengths: 1310 nm / 1550 nm
Power measurement range: Up to +26 dBm
Battery life: >200 hours
Calibration period: 3 years
Data storage: 100 results internally
Interface: Micro USB (power supply and data transfer)
Optical connector: Universal 2.5 mm / 1.25 mm interface
Wavelength resolution: Individually settable per 1 nm step
Auto-wavelength recognition: Yes
Report generation: Via OFS-355 software
Form factor: Pocket-sized, rugged field housing
Applications:
The OLP-38 is optimised for CATV networks employing analogue RF transmission, amplified DWDM systems, and any application requiring high optical power measurement beyond the range of standard InGaAs meters. The OLP-35 (standard InGaAs) covers singlemode telecom networks including Passive Optical Networks (PON), while the OLP-34 (Ge) targets LAN/WAN and enterprise multimode applications.
Resources
Viavi SmartPocket OLP-34/-35/-38 Optical Power Meters datasheet (PDF): Download PDF
