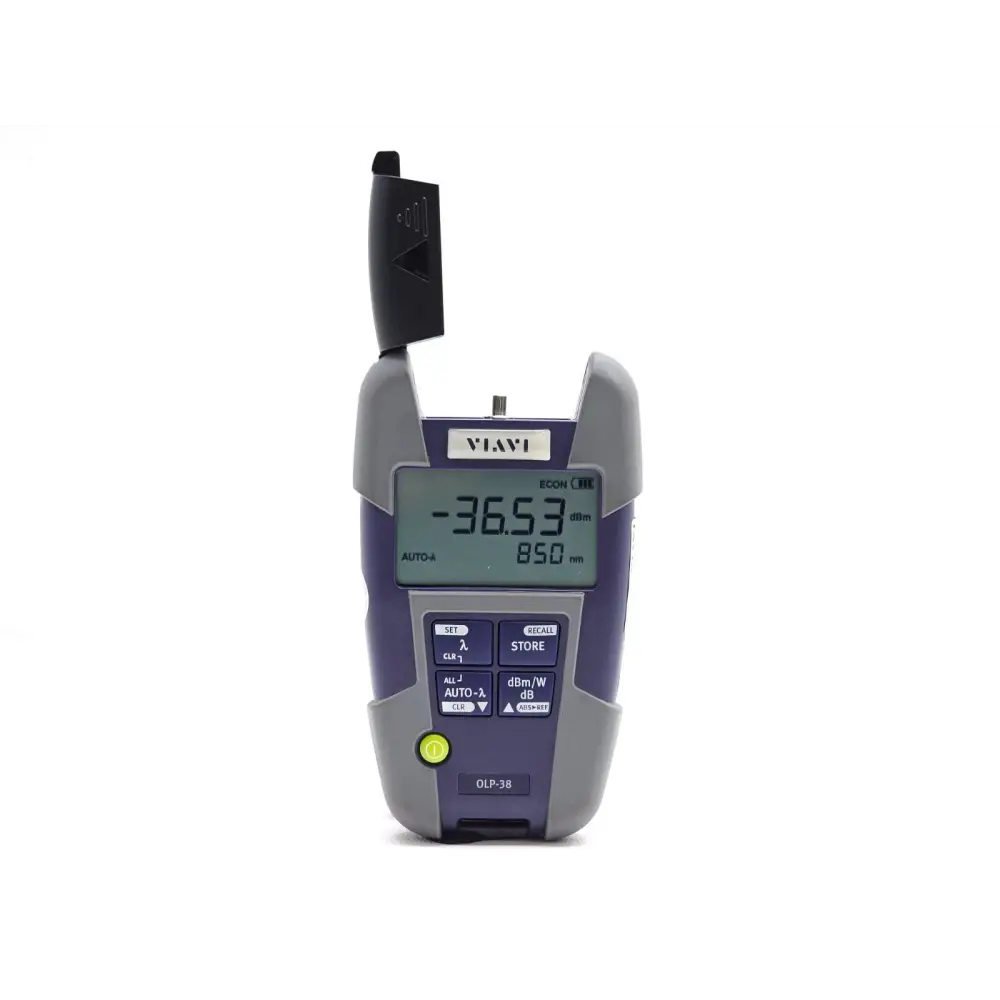

Viavi SmartPocket OLP-34/-35/-38 Optical Power Meters
A family of pocket-sized, low-cost optical power meters for the installation and maintenance of single mode and multimode fibre optic networks. The Viavi (formerly JDSU) SmartPocket series offers an excellent price-to-performance ratio in a rugged, field-ready housing with a straightforward user interface.
The OLP-38 (Filtered InGaAs) is the high-power variant of the SmartPocket family, rated to +26 dBm, making it the ideal choice for CATV networks with analogue RF transmission and amplified DWDM system applications. Units can be combined with LED (OLS-34/OLS-36) or laser light sources (OLS-35/OLS-36) for full insertion loss measurement workflows.
Key Features:
Detector Type: Filtered InGaAs
Wavelengths: 1310 nm / 1550 nm
Maximum Power Level: +26 dBm
Auto-Wavelength Recognition: Yes
Internal Data Storage: 100 results

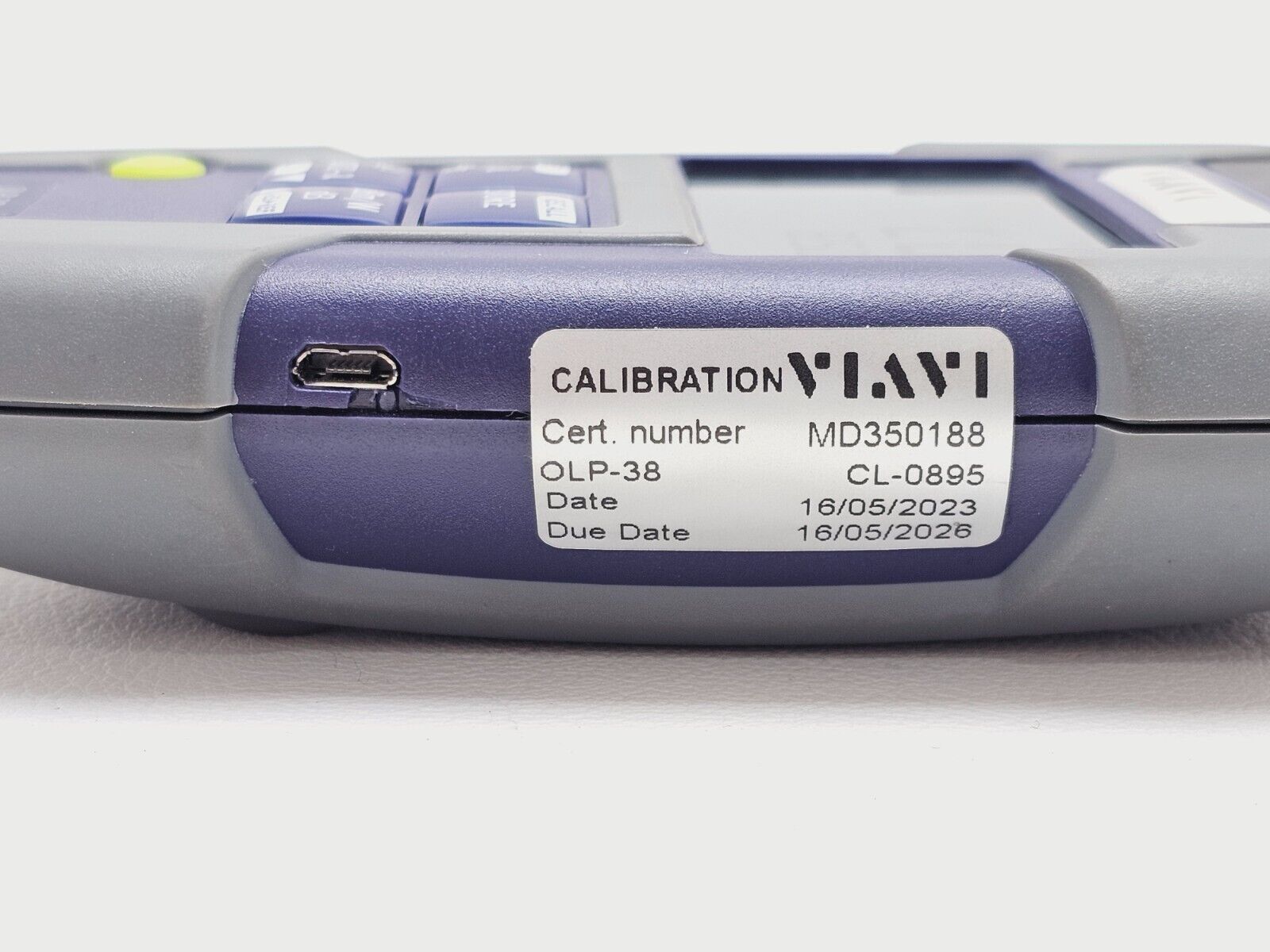

Calibration Period: 3 years

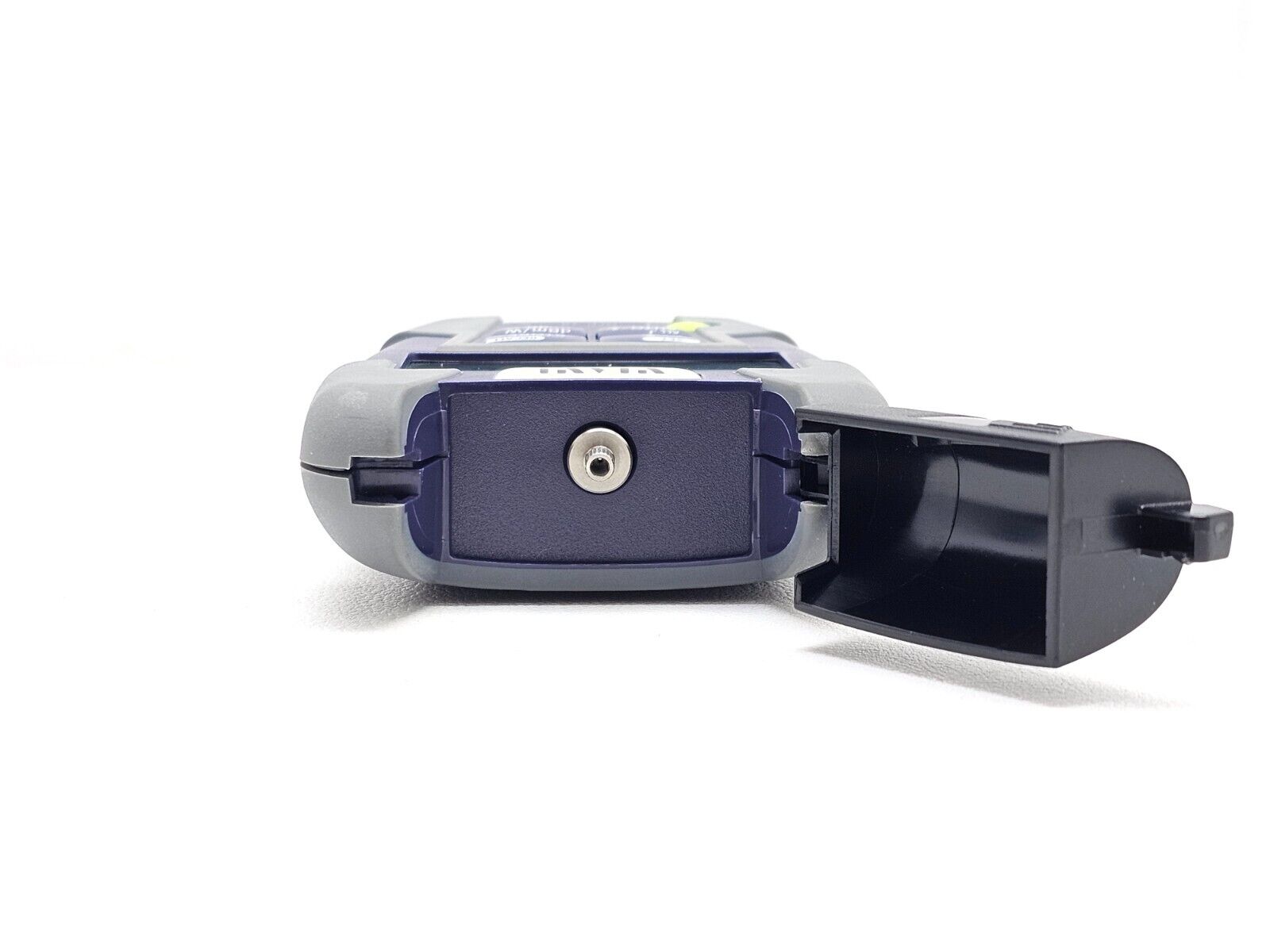

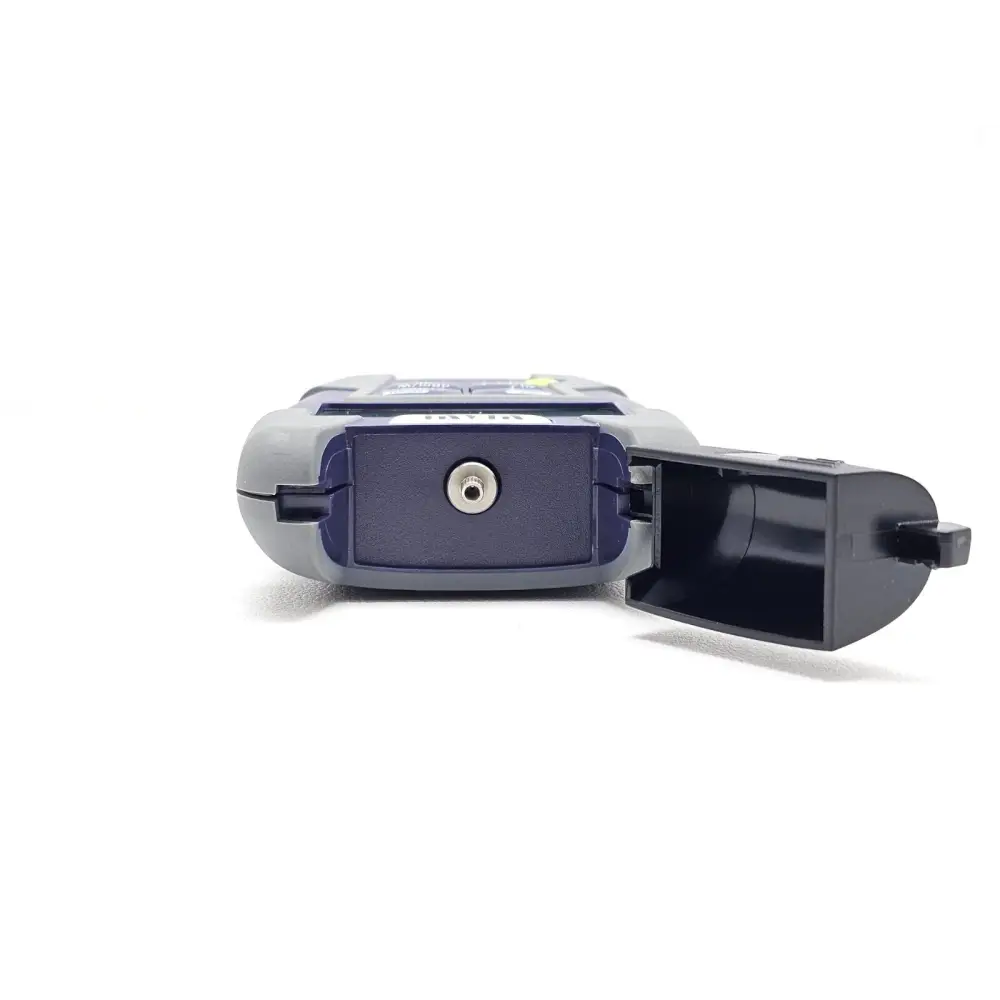

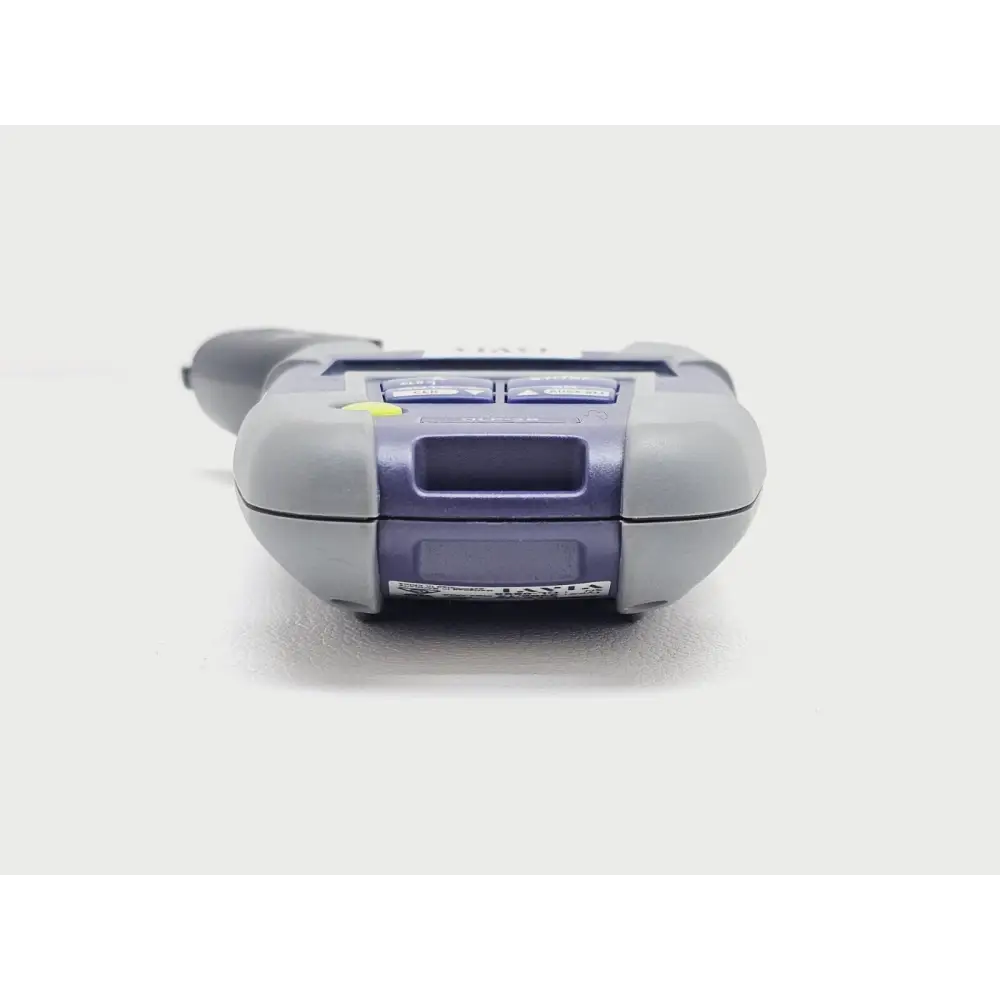

Connector Interface: Universal 2.5 mm / 1.25 mm optical interface
Wavelength Setting Resolution: 1 nm steps (individually settable)

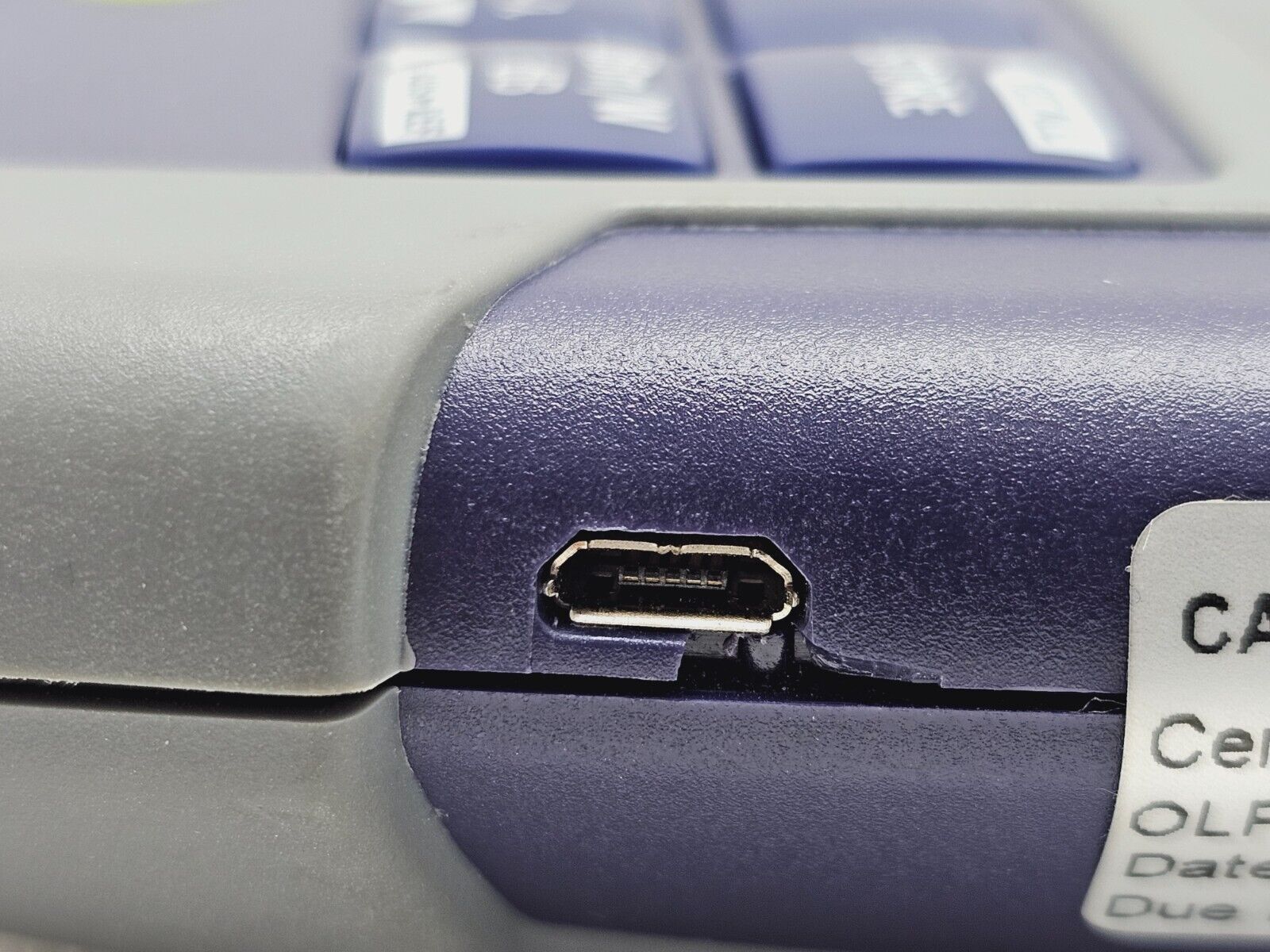

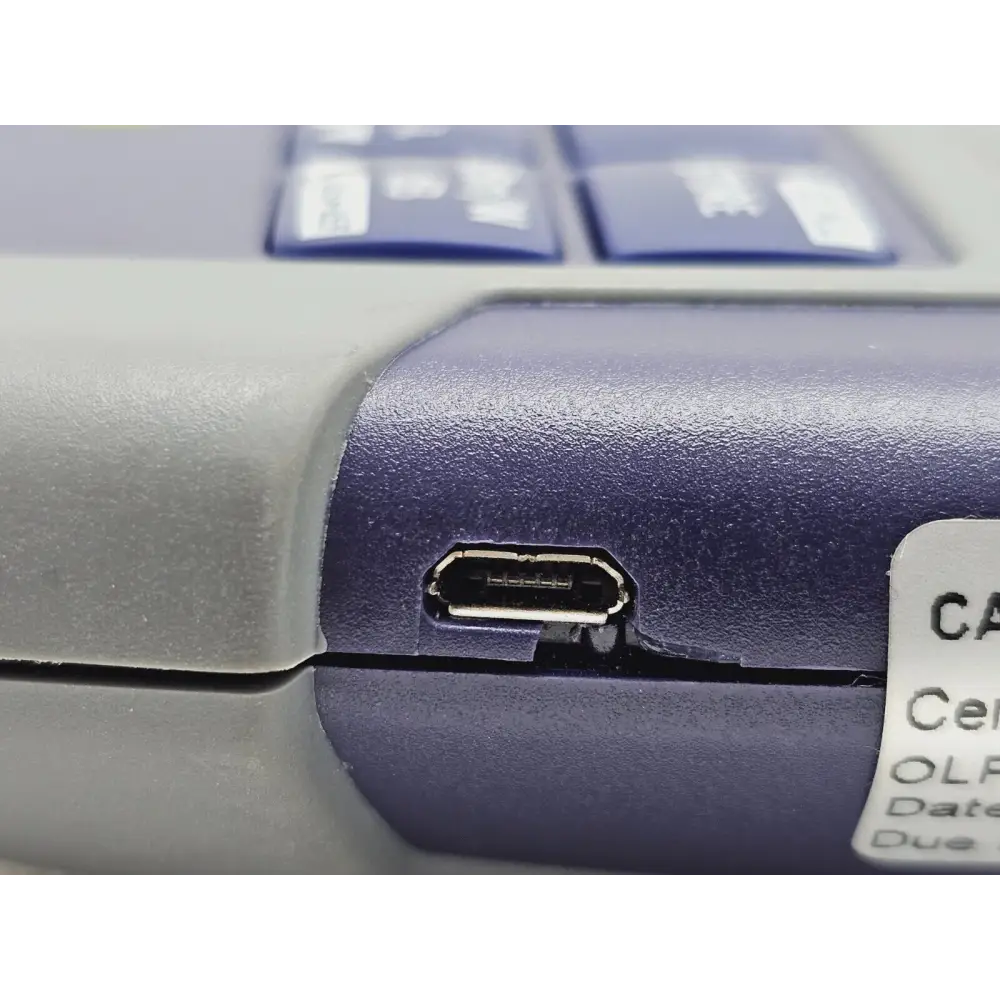

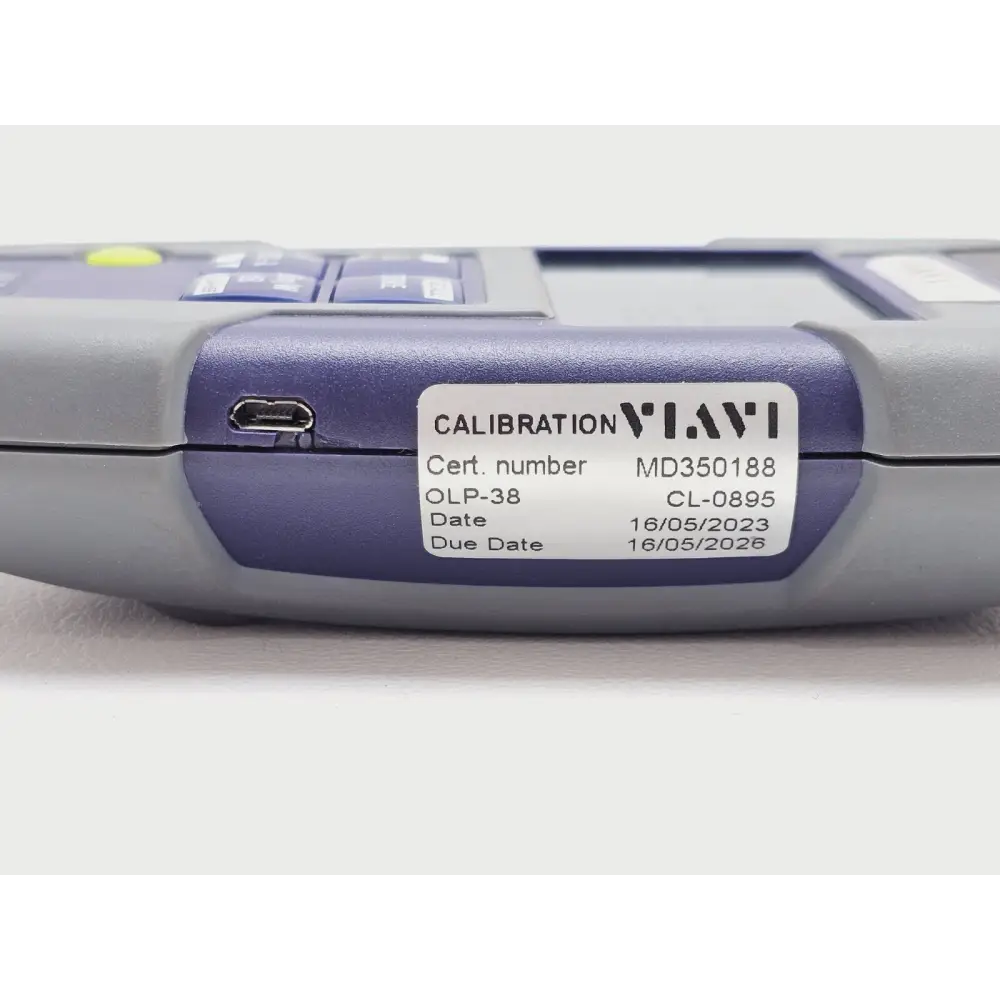

Data Interface: Micro USB (power supply and data transfer)
Battery Life: >200 hours
Report Generation: Via OFS-355 software
Form Factor: Pocket-sized, rugged housing
Applications:
The OLP-38 is specifically suited to CATV networks with analogue RF transmission, amplified DWDM systems, and any high-power single mode fibre optic application. It can be used as part of the SmartPocket Optical Test Kits alongside compatible light sources for end-to-end insertion loss testing.
