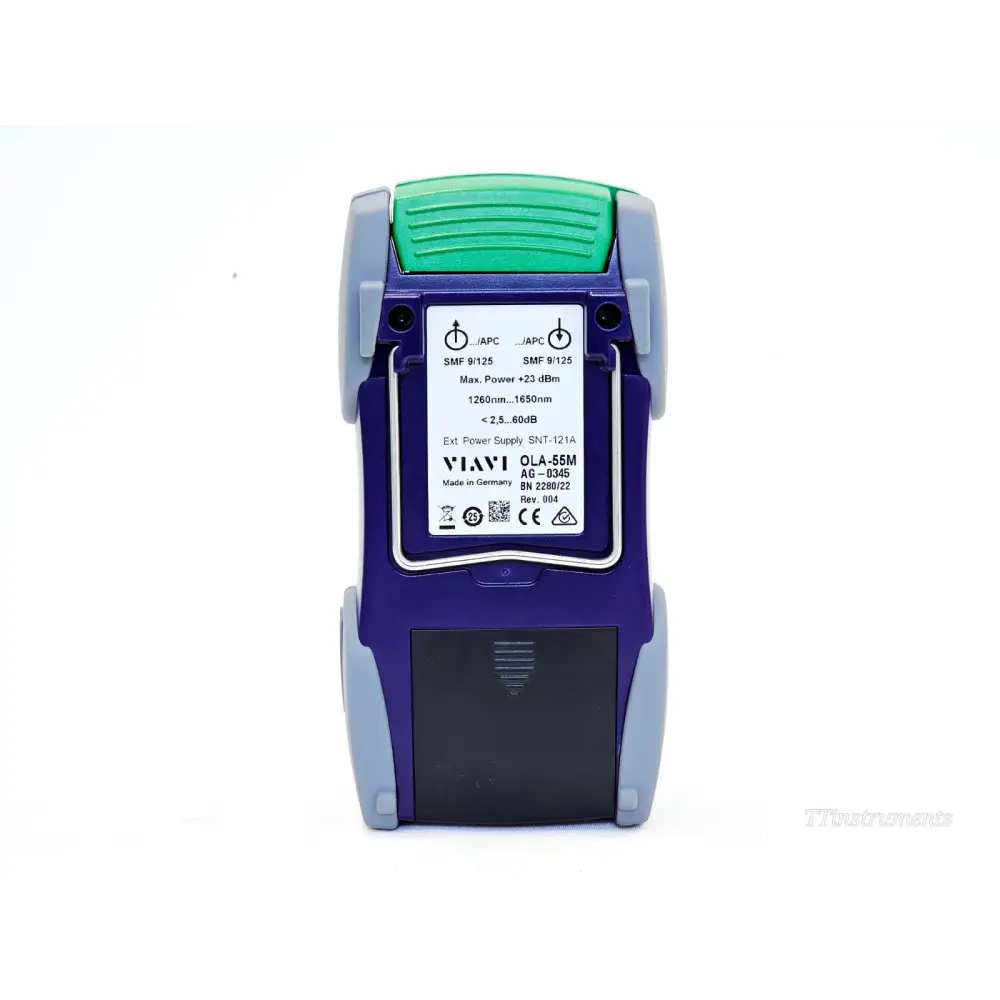

Viavi JDSU OLA-55M Fiber Optical Level Attenuator 1260-1650 nm SM 2280/22 SC/APC

Name: Viavi JDSU OLA-55M Fiber Optical Level Attenuator 1260-1650 nm SM 2280/22 SC/APC
Brand: Viavi JDSU
SKU: 8253 7E02 ER88
Price: 505.75 GBP
Availability: InStock

The Viavi JDSU OLA-55M Fiber Optical Level Attenuator 1260-1650 nm SM is an optical attenuator used to reduce signal power in fibre optic test and measurement applications.

• The Viavi JDSU OLA-55M Fiber Optical Level Attenuator 1260-1650 nm SM provides calibrated optical signal reduction for fibre test and measurement setups.
• Used to simulate link loss in receiver sensitivity measurements
• Reduces optical power to prevent receiver saturation

Manufacturer

Viavi JDSU

Model

OLA-55M

Condition

Used

In stock

SKU

8253 7E02

£505.75

Fiber Optics
Newly-Listed
Optical Attenuators

Make an Offer

Viavi JDSU OLA-55M Fiber Optical Level Attenuator 1260-1650 nm SM 2280/22 SC/APC

£505.75

Condition: Used

Viavi JDSU OLA-55M Fiber Optical Level Attenuator 1260-1650 nm SM 2280/22 SC/APC

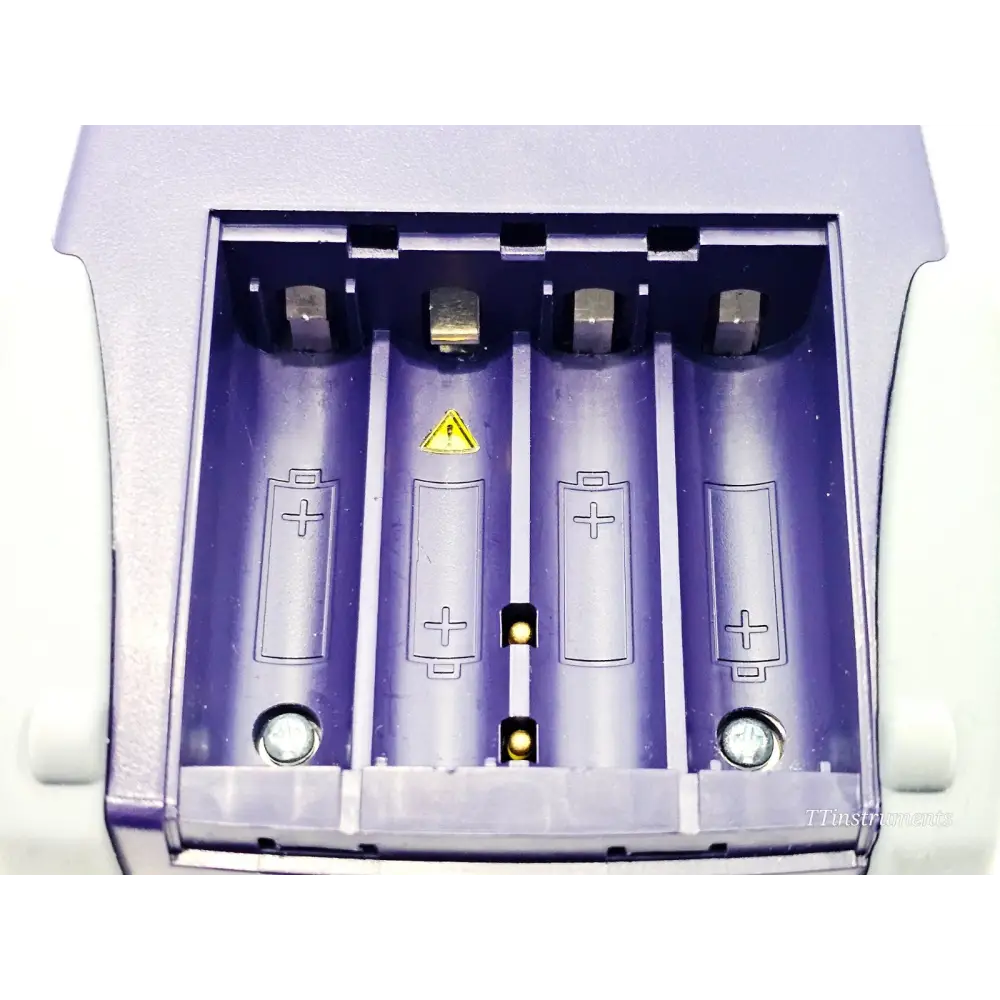

In excellent working condition, tested and within specification. There was a broken battery connector which has been replaced.

The Viavi 228022 is a SmartClass OLA-55M Single-Mode Variable Attenuator with Level Control Mode and APC. This future-proof variable attenuator is designed for fiber system testing - as well as installation, maintenance, and production of single-mode fibers. It also provides an implemented power meter for stabilized level controller applications.

Reduces testing time: Quick start operation and no warm-up
Excellent overall accuracy: 400 adjustable wavelengths

The Viavi 2280/22 SmartClass OLA-55M Single-Mode, Variable Attenuator with Level Control Mode, APC, is a future-proof, improved variable attenuator designed for fiber system testing as well as installation, maintenance, and production of singlemode fibers. The OLA-55M Motorized Optical Level Attenuator also provides an implemented power meter for stabilized level controller applications.

The SmartClass OLA-55M Optical Level Attenuator can be used as part of a SmartClass Optical Test Kit (sold separately) that contains all of the tools, including instruments and accessories, necessary to perform professional-grade power or loss tests in the field.

Automatic Level Controller Mode

Most applications require a defined power level rather than a certain level of attenuation. A standard attenuator only allows the setting of an attenuation value. Against it, the level controller mode of the SmartClass OLA-55M allows direct setting of a precise and defined optical power level. It integrates the function of an attenuator and a power meter and therefore avoids extra steps to adjust the power level with a separate power meter. Being in this mode the attenuator is automatically counterbalancing the changes of varying input power level and provides a stable output level.

Key Features

Reduces testing time with quick start operation that requires no warm-up time
Provides excellent overall accuracy with 400 adjustable wavelengths
Reduces need for couplers and additional instruments in test setups
Minimizes insertion loss due to special optical design
Robust, shock-proof, and splash-proof design ideal for field operation
USB port allows for remote operation
Offers both absolute and relative attenuation setting
Level controller function allows direct setting of attenuator output level
Suitable for 40 Gbps due to low Differential Group Delay
Traceable measurements to NIST/PTB standards for high accuracy

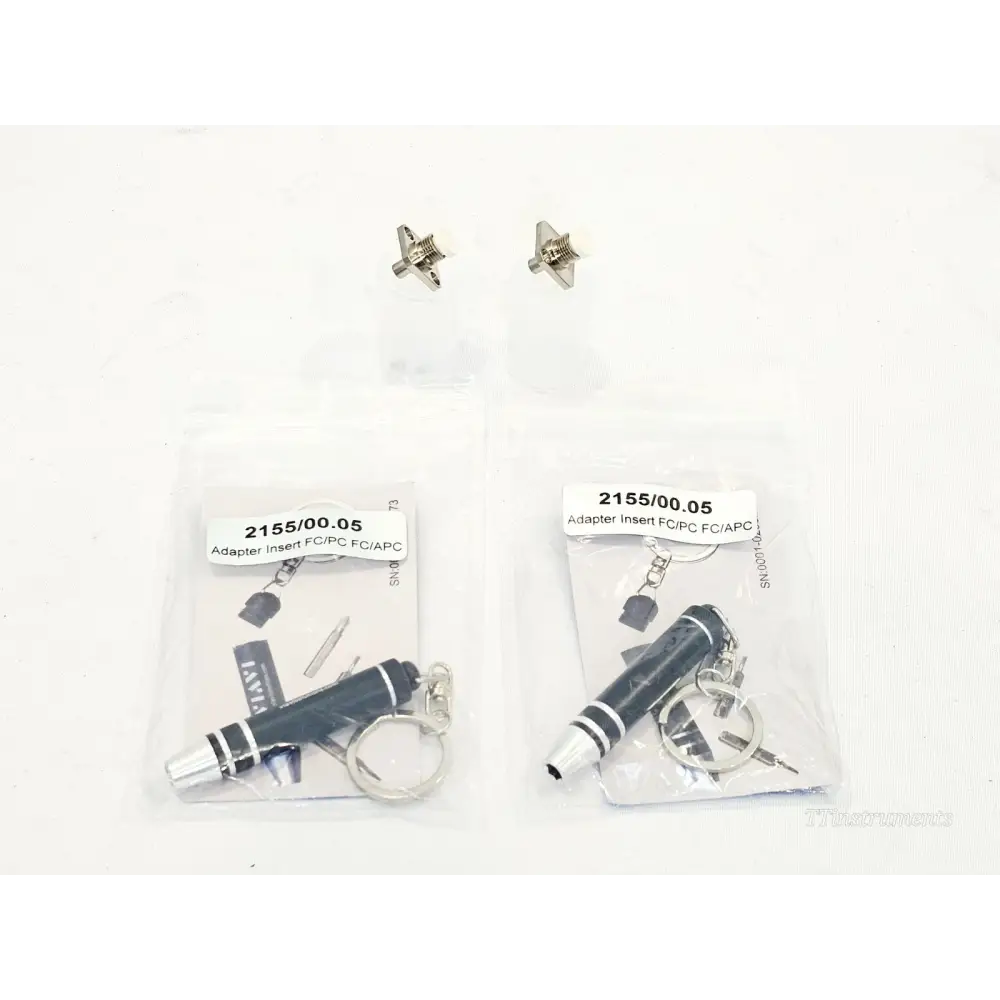

APC SC mounted with FC interchangeable adapter enclosed

Applications:

Emulate fiber loss for testing system dynamics
Simulate line loss for BER testing and amplifier testing
System installation and maintenance of singlemode fiber
Power level control for calibration test setups

Product Overview

Condition: Used

Viavi JDSU OLA-55M Fiber Optical Level Attenuator 1260-1650 nm SM 2280/22 SC/APC

In excellent working condition, tested and within specification. There was a broken battery connector which has been replaced.

Manufacturer's Description

Reduces testing time: Quick start operation and no warm-up
Excellent overall accuracy: 400 adjustable wavelengths

Automatic Level Controller Mode

Key Features

Reduces testing time with quick start operation that requires no warm-up time
Provides excellent overall accuracy with 400 adjustable wavelengths
Reduces need for couplers and additional instruments in test setups
Minimizes insertion loss due to special optical design
Robust, shock-proof, and splash-proof design ideal for field operation
USB port allows for remote operation
Offers both absolute and relative attenuation setting
Level controller function allows direct setting of attenuator output level
Suitable for 40 Gbps due to low Differential Group Delay
Traceable measurements to NIST/PTB standards for high accuracy
APC SC mounted with FC interchangeable adapter enclosed

Applications:

Emulate fiber loss for testing system dynamics
Simulate line loss for BER testing and amplifier testing
System installation and maintenance of singlemode fiber
Power level control for calibration test setups
