Condition: Used

In excellent working condition, tested and within specification.

Refer to image 2 for specifications.

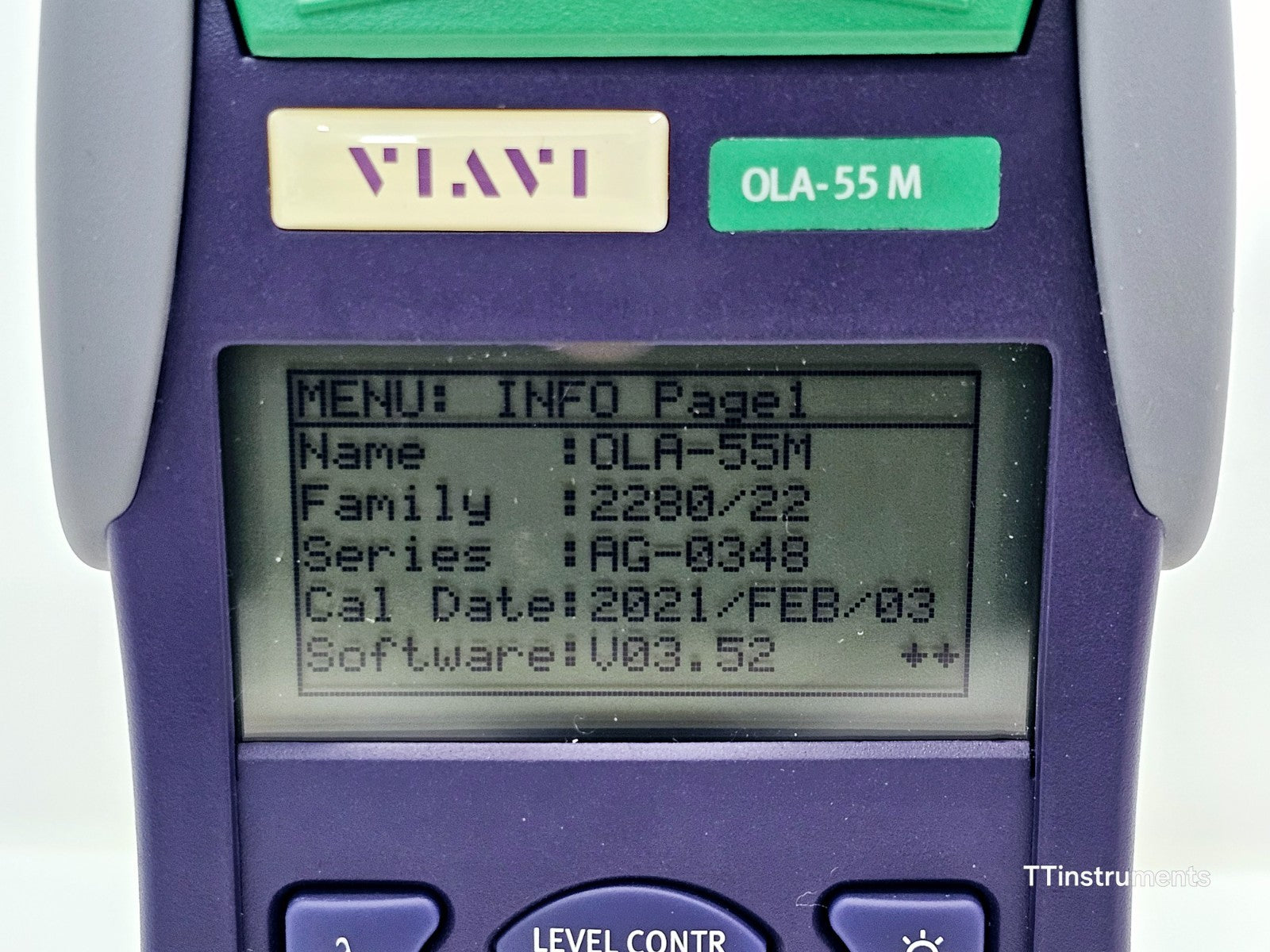

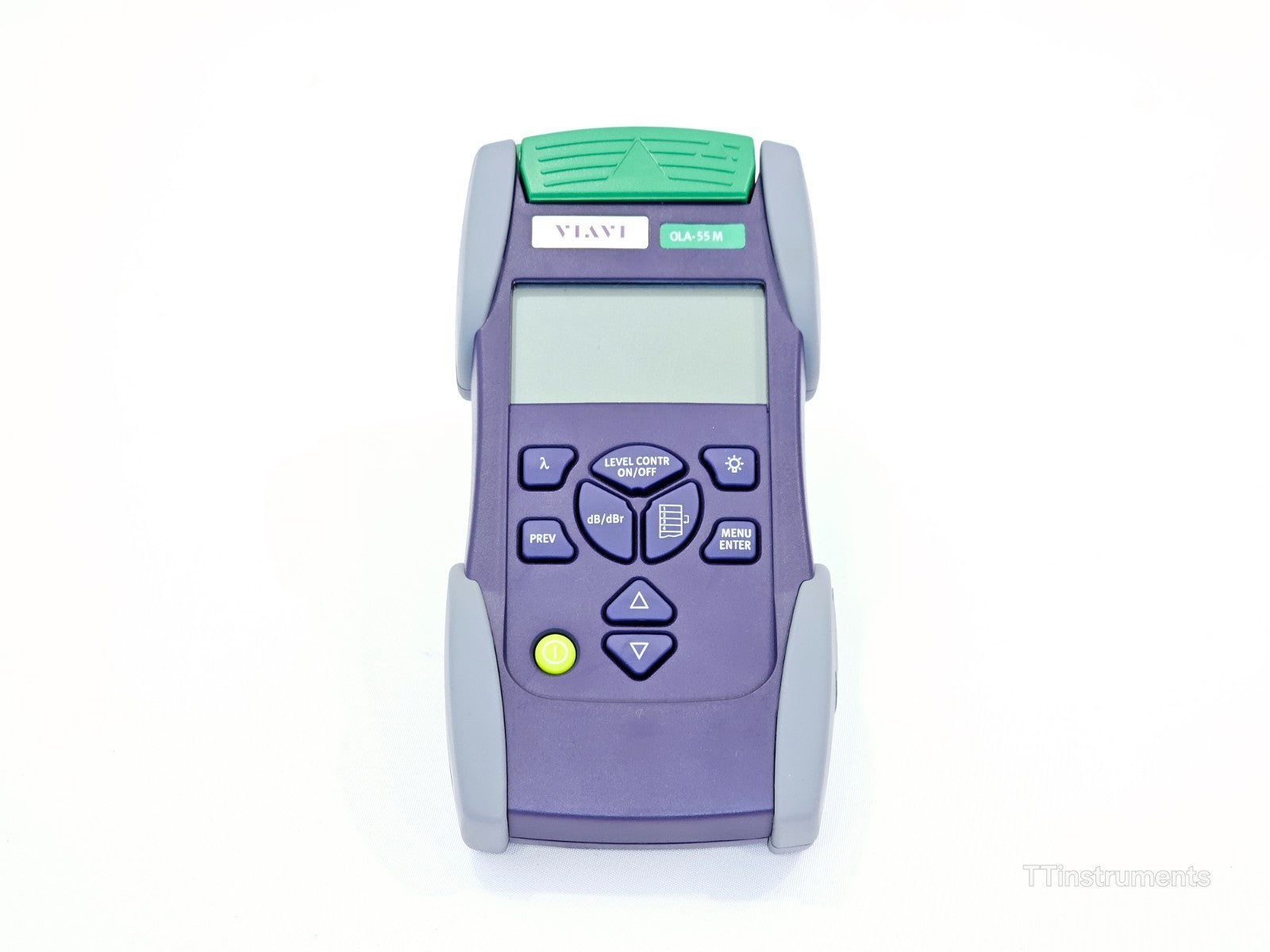

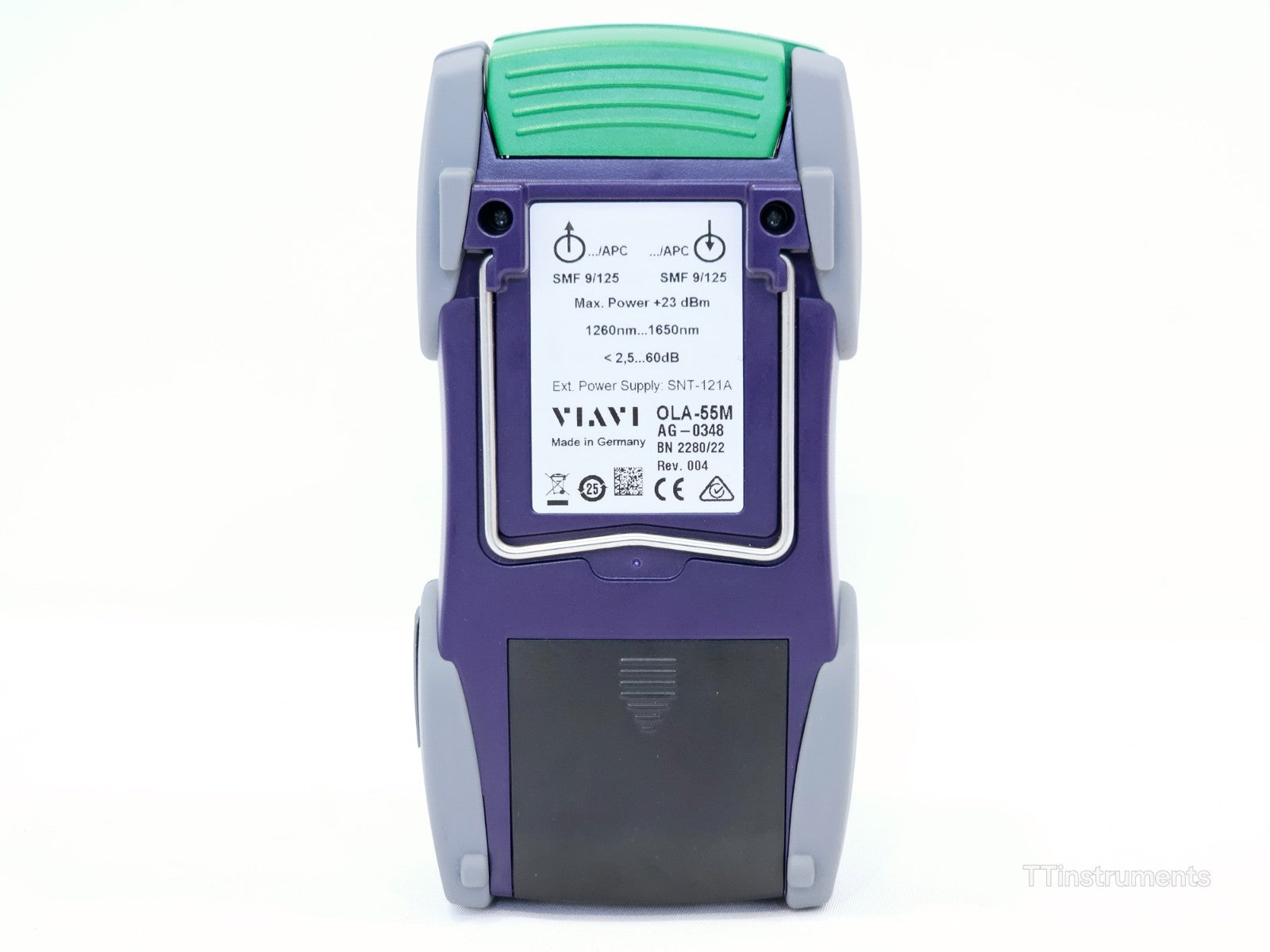

The Viavi 228022 is a SmartClass OLA-55M Single-Mode Variable Attenuator with Level Control Mode and APC. This future-proof variable attenuator is designed for fiber system testing - as well as installation, maintenance, and production of single-mode fibers. It also provides an implemented power meter for stabilized level controller applications.

• Reduces testing time: Quick start operation and no warm-up
• Excellent overall accuracy: 400 adjustable wavelengths

The Viavi 2280/22 SmartClass OLA-55M Single-Mode, Variable Attenuator with Level Control Mode, APC, is a future-proof, improved variable attenuator designed for fiber system testing as well as installation, maintenance, and production of singlemode fibers. The OLA-55M Motorized Optical Level Attenuator also provides an implemented power meter for stabilized level controller applications.

The SmartClass OLA-55M Optical Level Attenuator can be used as part of a SmartClass Optical Test Kit (sold separately) that contains all of the tools, including instruments and accessories, necessary to perform professional-grade power or loss tests in the field.

Automatic Level Controller Mode

Most applications require a defined power level rather than a certain level of attenuation. A standard attenuator only allows the setting of an attenuation value. Against it, the level controller mode of the SmartClass OLA-55M allows direct setting of a precise and defined optical power level. It integrates the function of an attenuator and a power meter and therefore avoids extra steps to adjust the power level with a separate power meter. Being in this mode the attenuator is automatically counterbalancing the changes of varying input power level and provides a stable output level.

Key Features

• Reduces testing time with quick start operation that requires no warm-up time
• Provides excellent overall accuracy with 400 adjustable wavelengths
• Reduces need for couplers and additional instruments in test setups
• Minimizes insertion loss due to special optical design
• Robust, shock-proof, and splash-proof design ideal for field operation
• USB port allows for remote operation
• Offers both absolute and relative attenuation setting
• Level controller function allows direct setting of attenuator output level
• Suitable for 40 Gbps due to low Differential Group Delay
• Traceable measurements to NIST/PTB standards for high accuracy

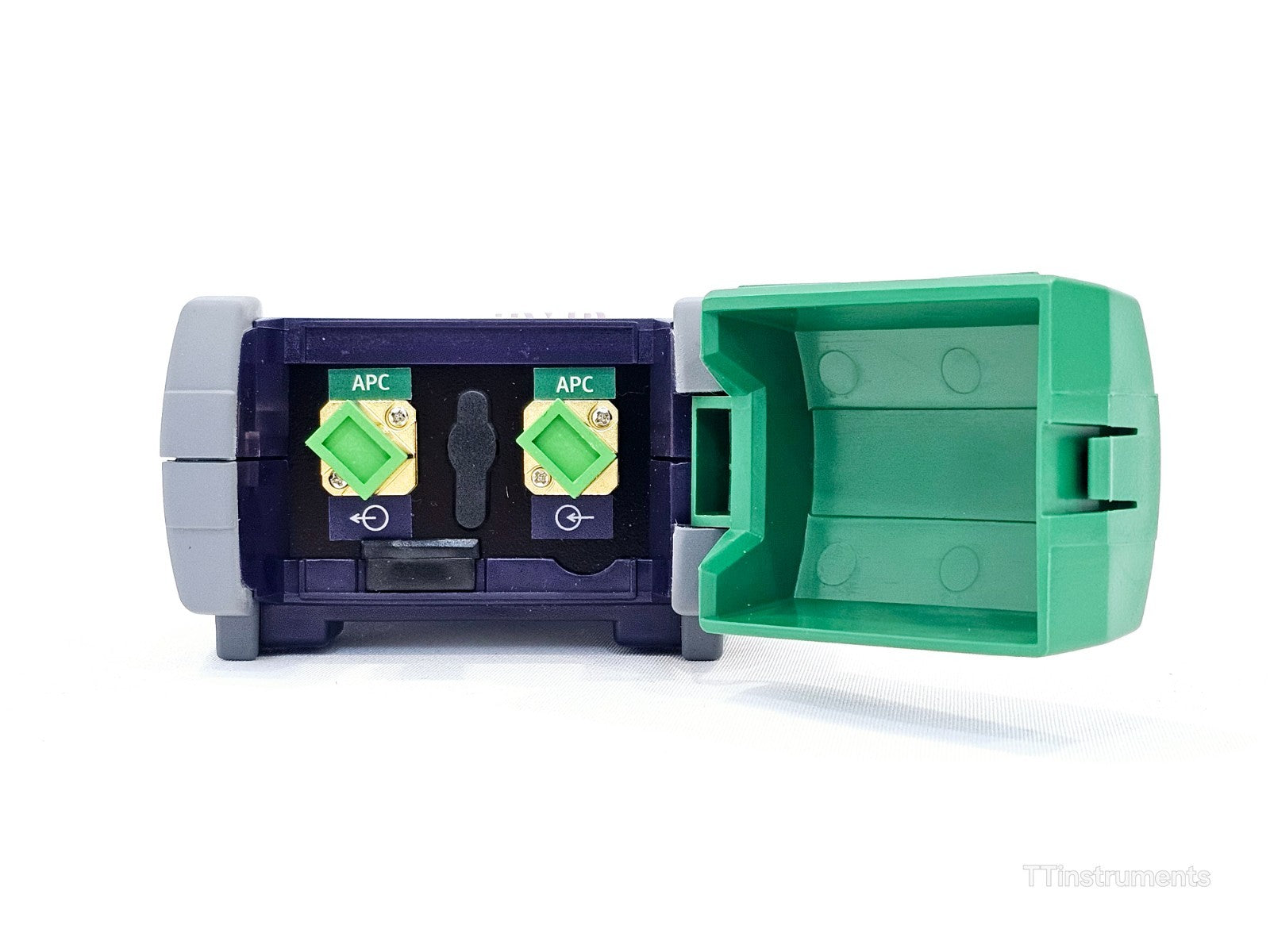

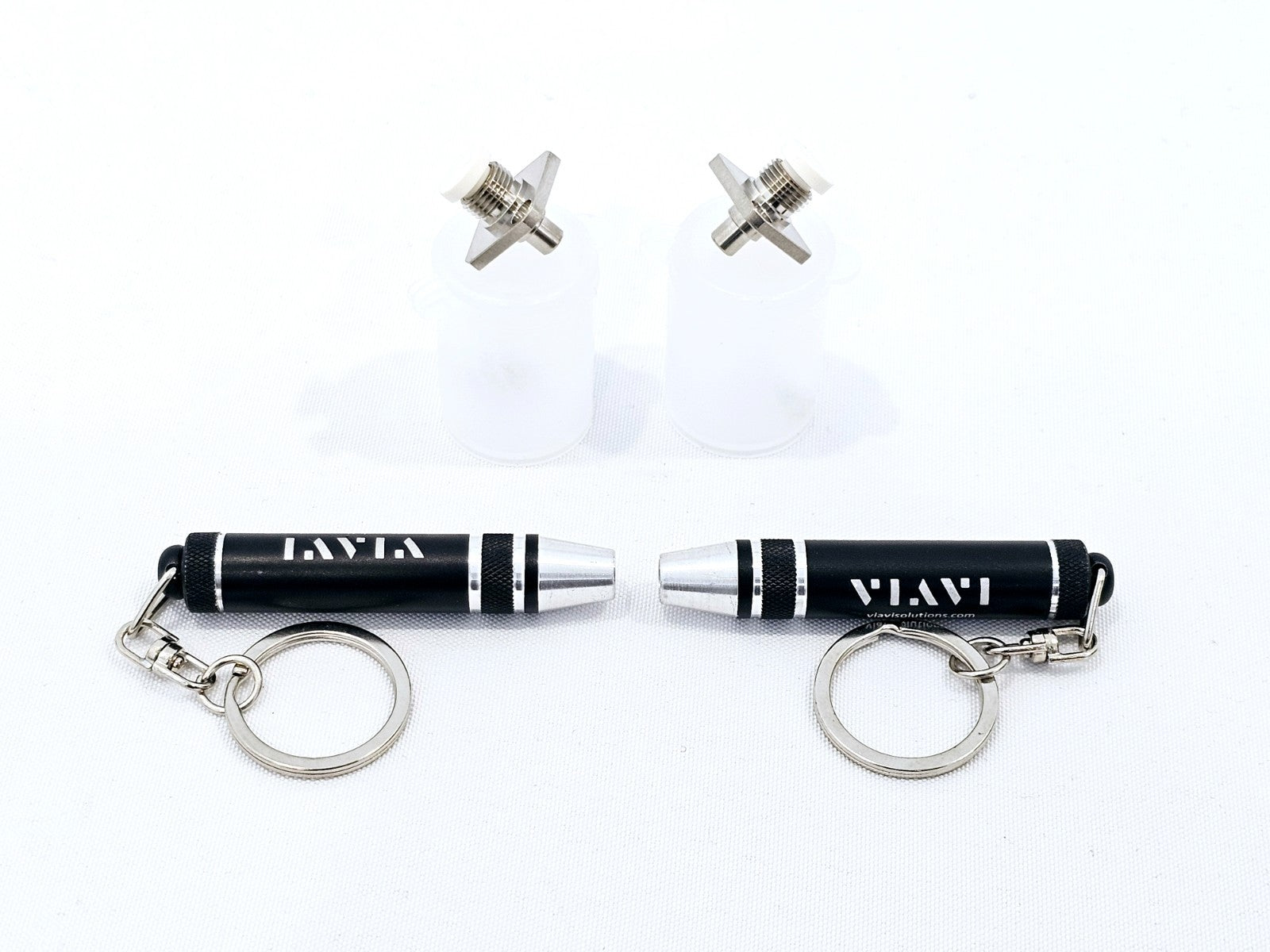

• APC SC mounted with FC interchangeable adapter enclosed

Applications:

• Emulate fiber loss for testing system dynamics
• Simulate line loss for BER testing and amplifier testing
• System installation and maintenance of singlemode fiber
• Power level control for calibration test setups

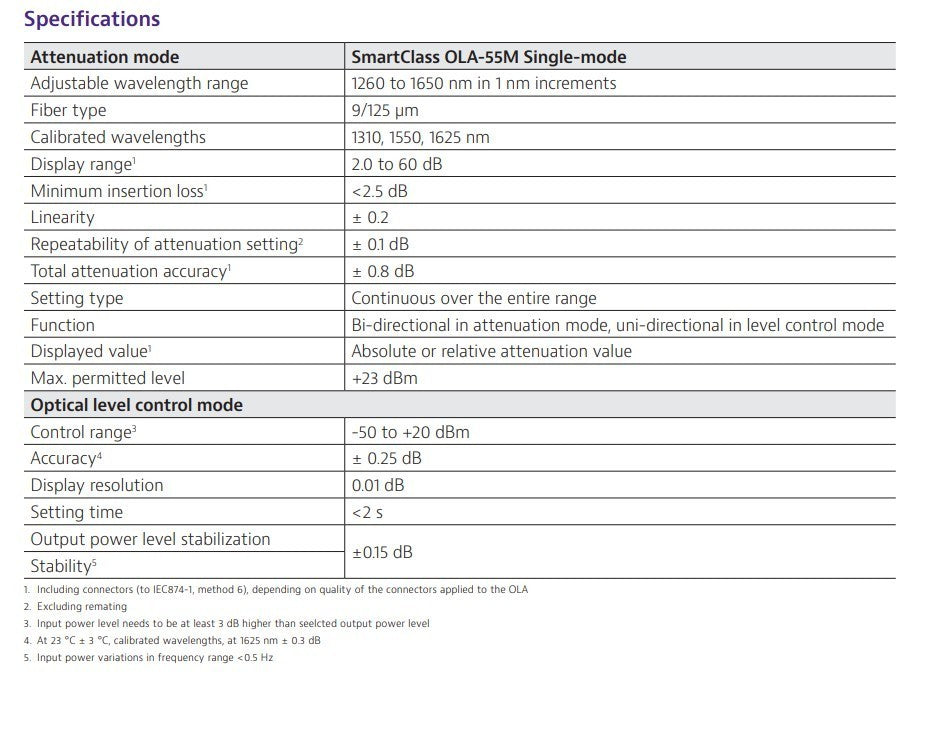

Specifications

Refer to image 2.
