Viavi JDSU OLA-55 Optical Level Attenuator 1260-1650 nm SM 2280/01 9/125 FC
Model: OLA-55
Condition: Used
In stock: 0
SKU: 6181 7D05
- Fiber Optics
- Optical Attenuators
Choose options

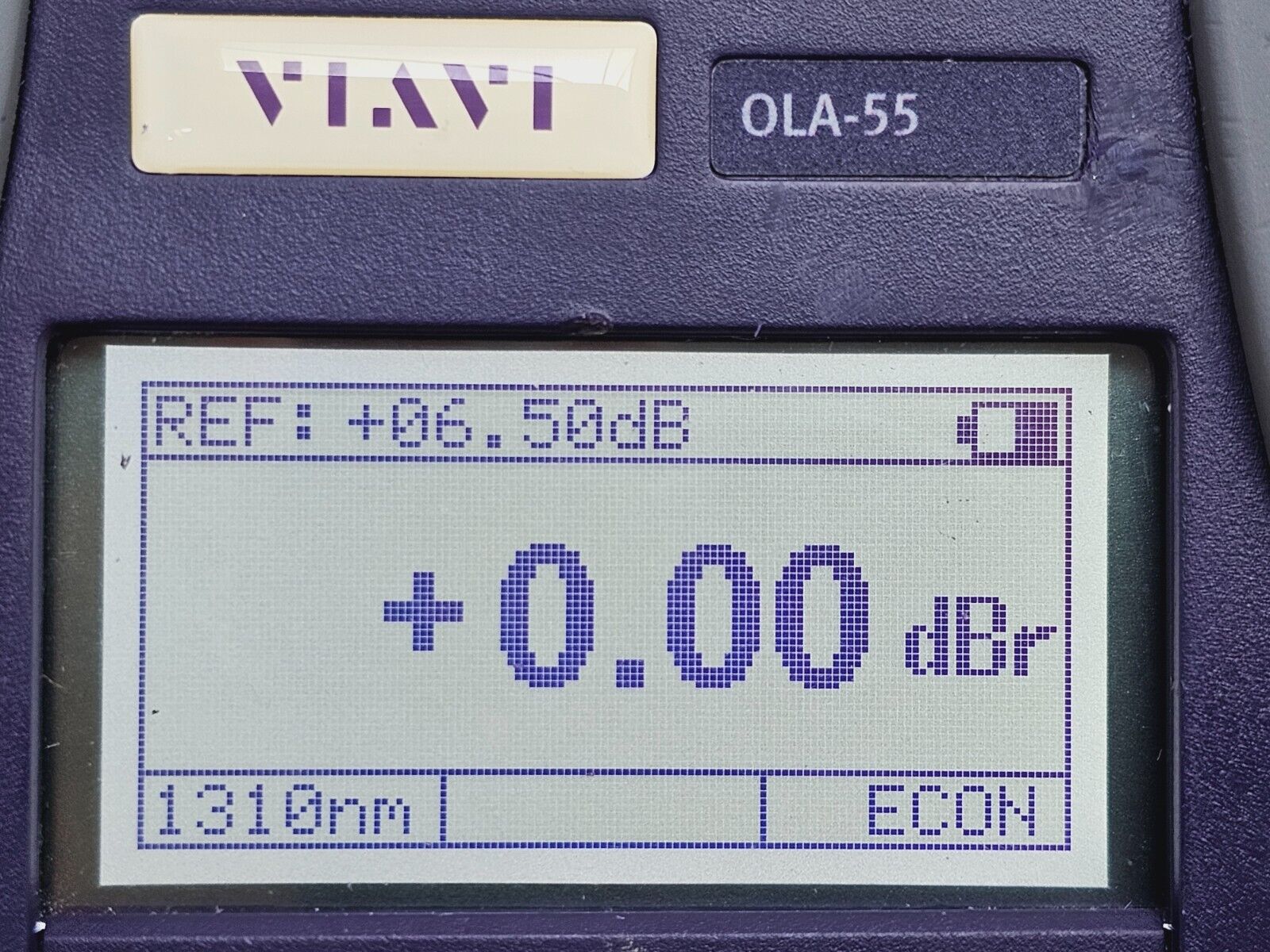

Condition: Used — this unit is supplied in working condition; the screen shows signs of wear and tear from previous use.
The Viavi JDSU OLA-55 is a singlemode fibre optical attenuator operating across 1260–1650 nm in 1 nm increments, with FC connectors and 9/125 µm fibre compatibility. It supports testing of systems up to 40 Gbps including BERT applications, with 400 adjustable wavelengths, continuous attenuation setting, and measurements traceable to NIST/PTB standards.
Items included in the sale:
• Viavi JDSU OLA-55 Optical Level Attenuator

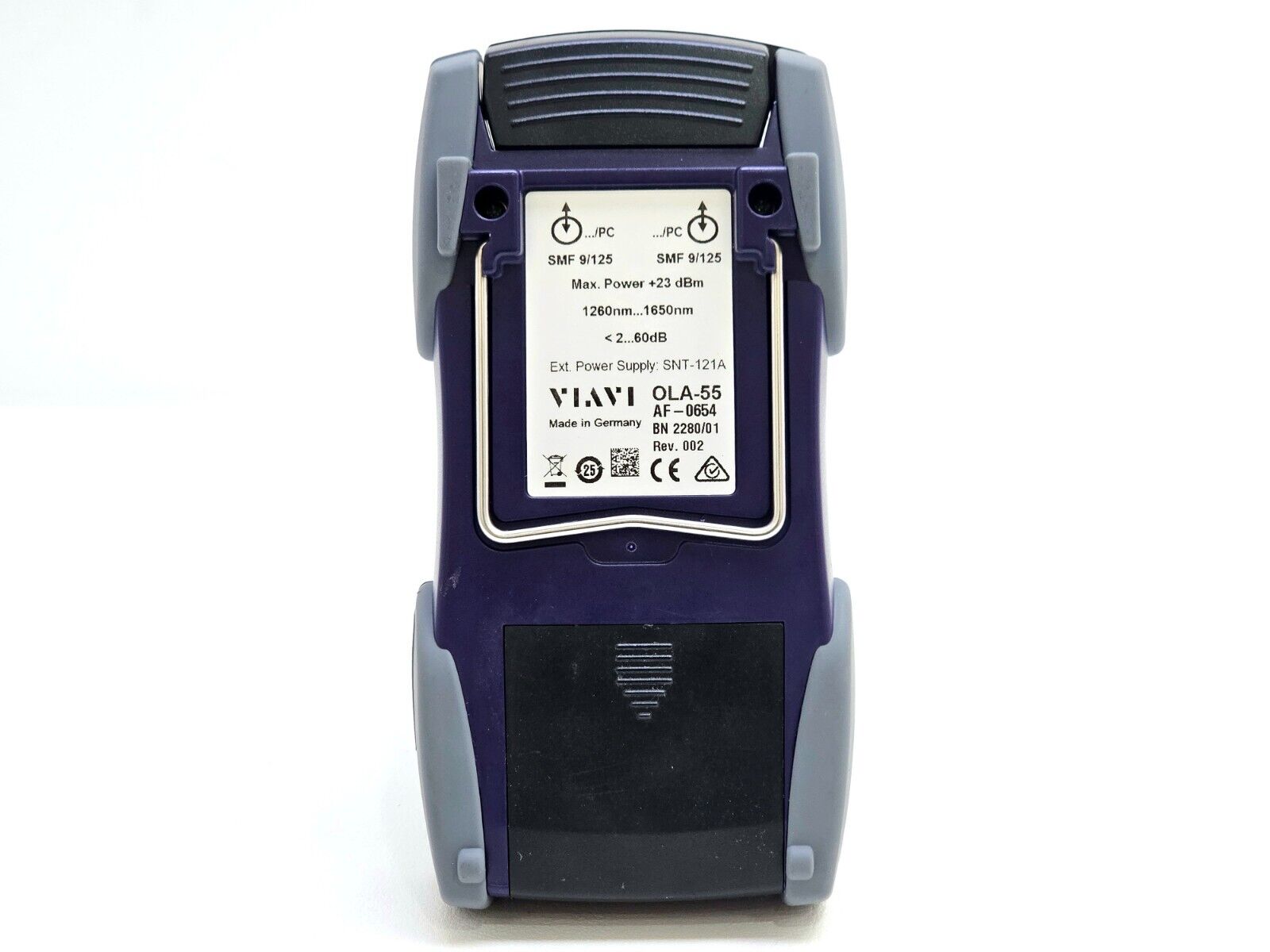

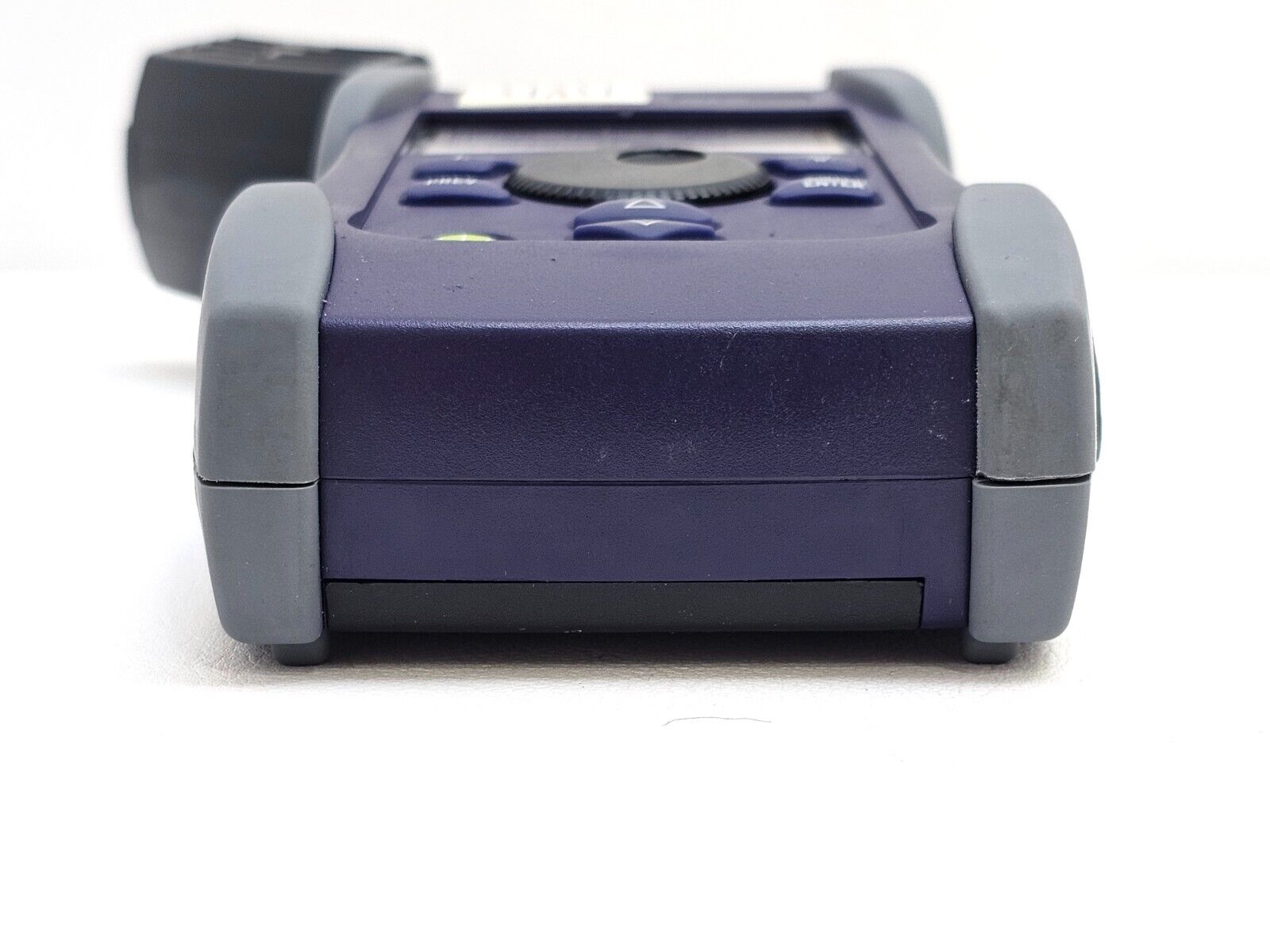

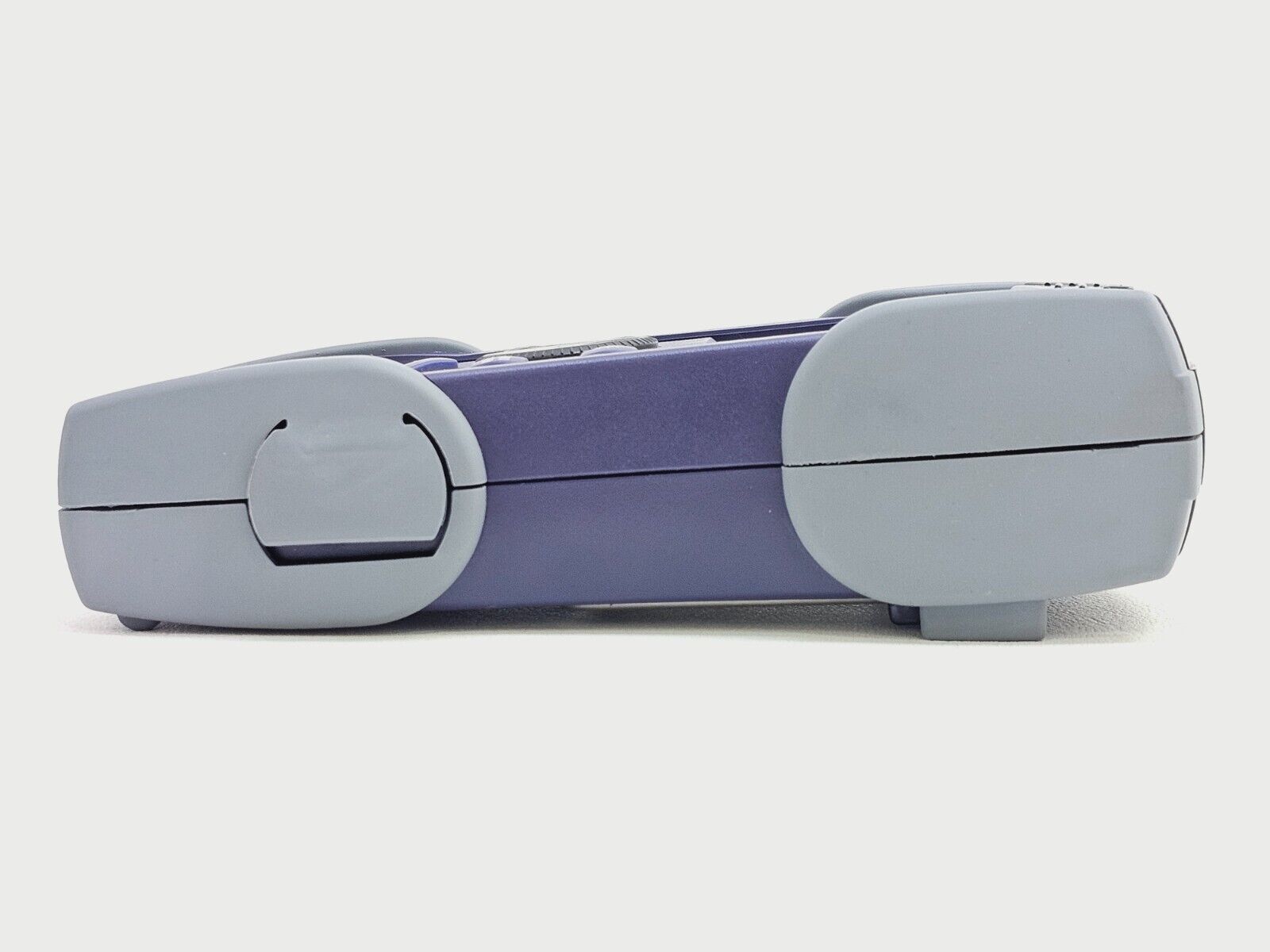

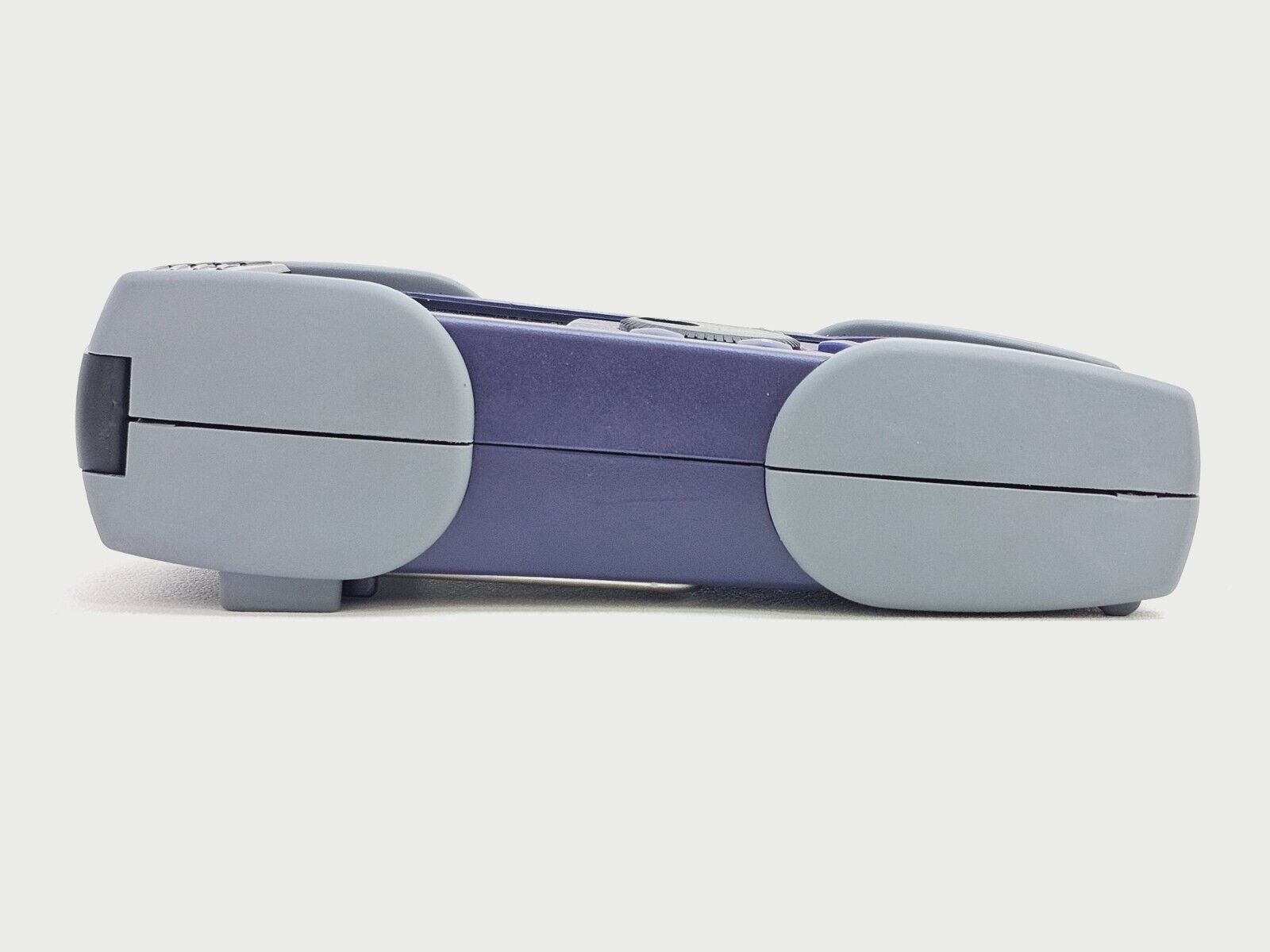

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.
The Viavi (formerly JDSU) OLA-55 is a high-performance singlemode fibre optical attenuator designed for field and laboratory use in the installation, maintenance, and testing of singlemode optical networks, including systems operating up to 40 Gbps. It supports bit error rate testing (BERT) applications and is used to emulate fibre loss for system dynamics testing.
The OLA-55 features the SMARTWheel for precise and fast manual attenuation adjustment, the SMARTStar graphical user interface for intuitive and straightforward operation, and the SMARTEnergy power management system delivering over 1000 hours of battery life. Measurements are traceable to NIST/PTB standards, and the instrument is built to withstand demanding field environments with a shock-proof, splash-proof enclosure. Operation is possible with one hand in the field, with quick-start functionality requiring no warm-up time.
Key Specifications:
Fiber Type: 9/125 µm (singlemode)
Adjustable Wavelength Range: 1260 to 1650 nm in 1 nm increments
Calibrated Wavelengths: 1300 nm, 1310 nm, 1550 nm, 1625 nm
Adjustable Wavelengths: 400
Display Range: 2.0 to 60 dB
Minimum Insertion Loss: <2.0 dB
Linearity: ±0.2 dB
Repeatability of Attenuation Setting: ±0.1 dB
Total Attenuation Accuracy: ±0.8 dB
Setting Type: Continuous over the entire range
Function: Bi-directional
Displayed Value: Absolute or relative attenuation
Max. Permitted Level: +23 dBm
Battery Life: >1000 hours

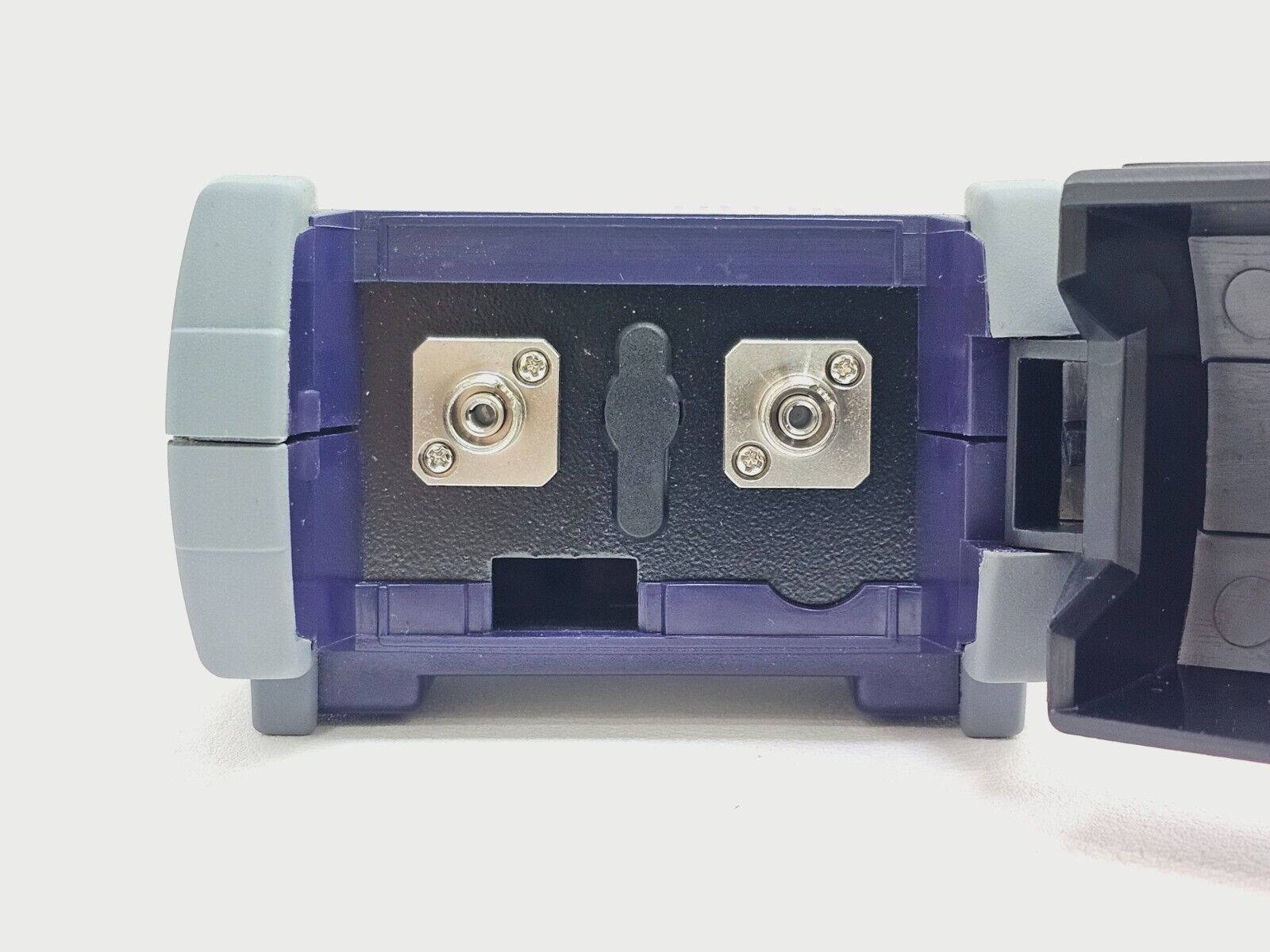

Connector Type: FC

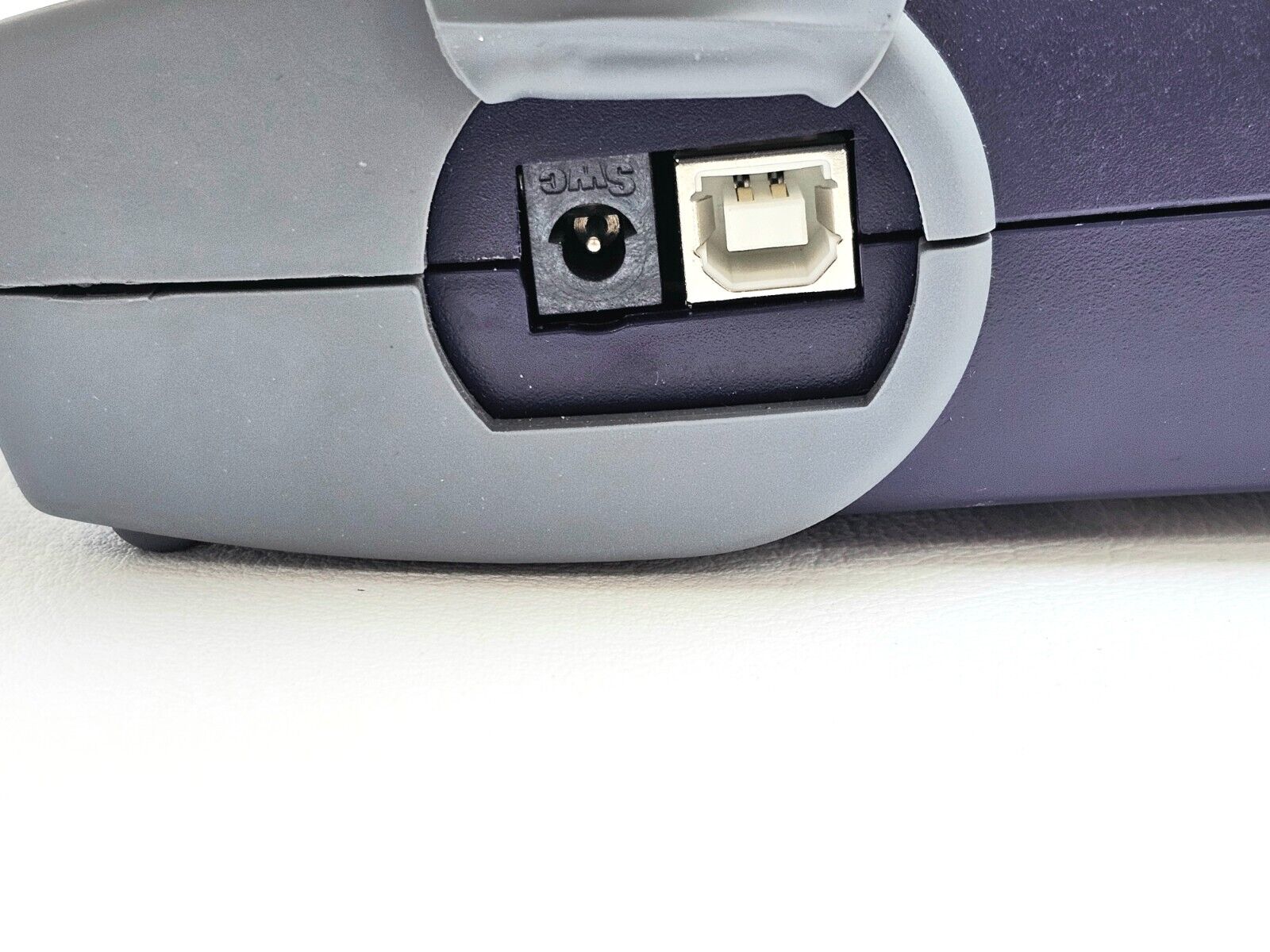

Remote Interface: USB
Product Overview
Condition: Used — this unit is supplied in working condition; the screen shows signs of wear and tear from previous use.
The Viavi JDSU OLA-55 is a singlemode fibre optical attenuator operating across 1260–1650 nm in 1 nm increments, with FC connectors and 9/125 µm fibre compatibility. It supports testing of systems up to 40 Gbps including BERT applications, with 400 adjustable wavelengths, continuous attenuation setting, and measurements traceable to NIST/PTB standards.
Items included in the sale:
• Viavi JDSU OLA-55 Optical Level Attenuator
The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.
Manufacturer's Description
The Viavi (formerly JDSU) OLA-55 is a high-performance singlemode fibre optical attenuator designed for field and laboratory use in the installation, maintenance, and testing of singlemode optical networks, including systems operating up to 40 Gbps. It supports bit error rate testing (BERT) applications and is used to emulate fibre loss for system dynamics testing.
The OLA-55 features the SMARTWheel for precise and fast manual attenuation adjustment, the SMARTStar graphical user interface for intuitive and straightforward operation, and the SMARTEnergy power management system delivering over 1000 hours of battery life. Measurements are traceable to NIST/PTB standards, and the instrument is built to withstand demanding field environments with a shock-proof, splash-proof enclosure. Operation is possible with one hand in the field, with quick-start functionality requiring no warm-up time.
Key Specifications:
Fiber Type: 9/125 µm (singlemode)
Adjustable Wavelength Range: 1260 to 1650 nm in 1 nm increments
Calibrated Wavelengths: 1300 nm, 1310 nm, 1550 nm, 1625 nm
Adjustable Wavelengths: 400
Display Range: 2.0 to 60 dB
Minimum Insertion Loss: <2.0 dB
Linearity: ±0.2 dB
Repeatability of Attenuation Setting: ±0.1 dB
Total Attenuation Accuracy: ±0.8 dB
Setting Type: Continuous over the entire range
Function: Bi-directional
Displayed Value: Absolute or relative attenuation
Max. Permitted Level: +23 dBm
Battery Life: >1000 hours
Connector Type: FC
Remote Interface: USB
