Condition: Used — in excellent working condition, tested and within specification.

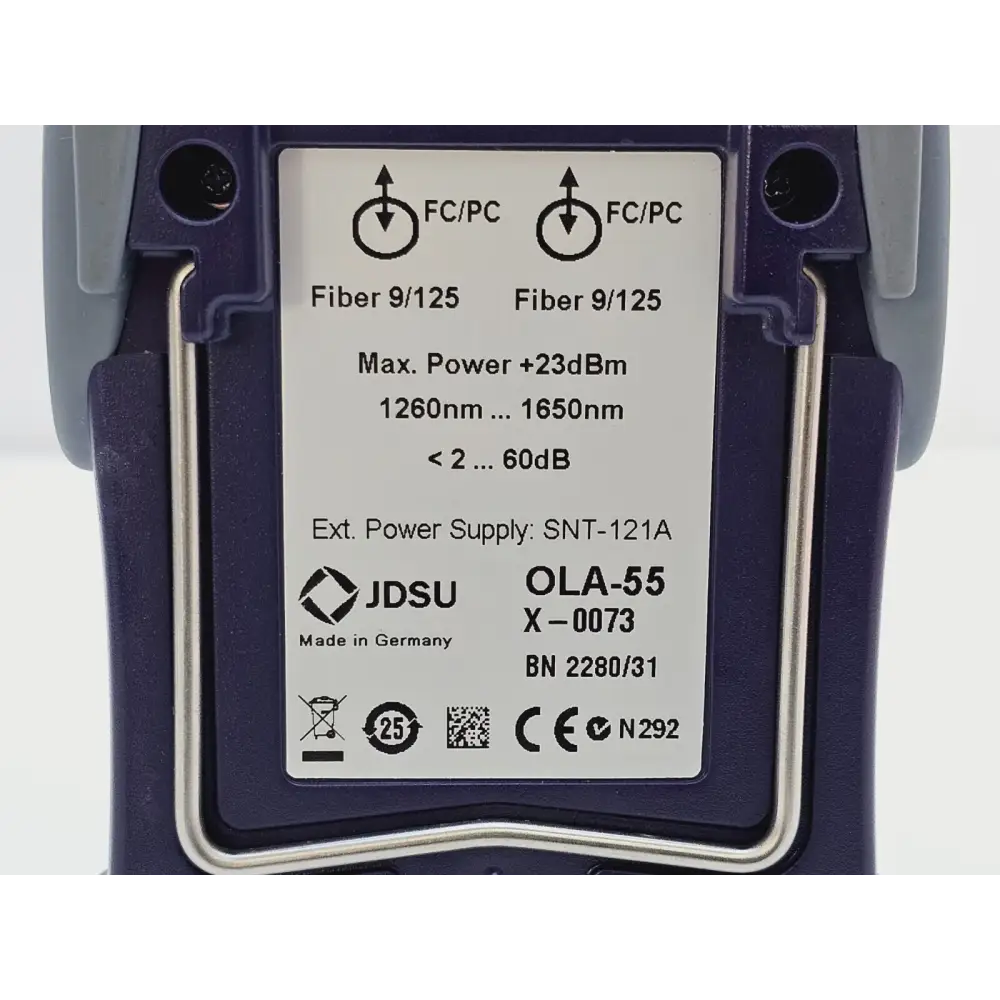

The Viavi (formerly JDSU) OLA-55 is a singlemode fibre optical attenuator with an adjustable wavelength range of 1260–1650 nm in 1 nm increments. Calibrated wavelengths include 1300 nm, 1310 nm, 1550 nm, and 1625 nm. The unit supports absolute and relative attenuation display, bidirectional operation, and is suitable for testing systems up to 40 Gbps including BERT applications. The connector type is FC/PC and the unit bears the reference 2280/31.

Included in the sale:

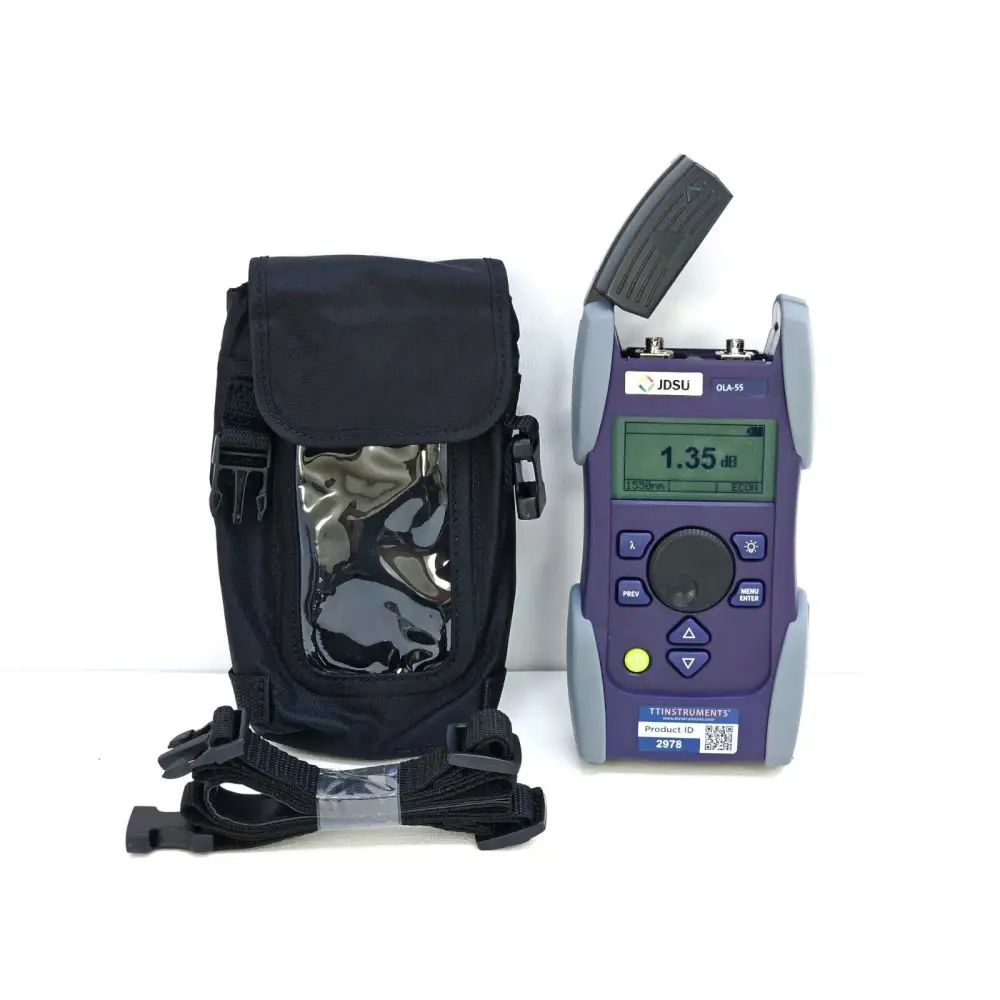

• Viavi JDSU OLA-55 Optical Attenuator

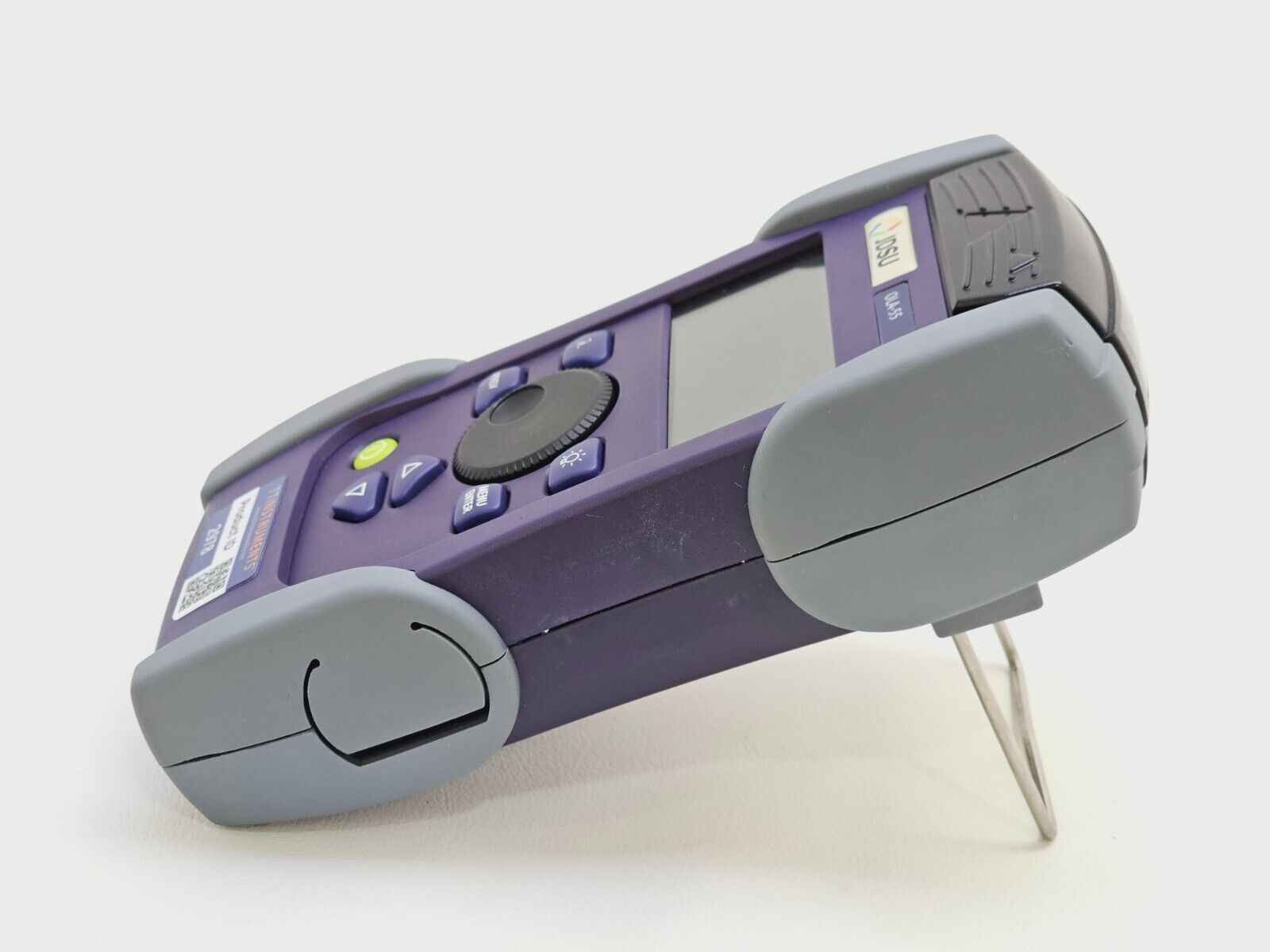

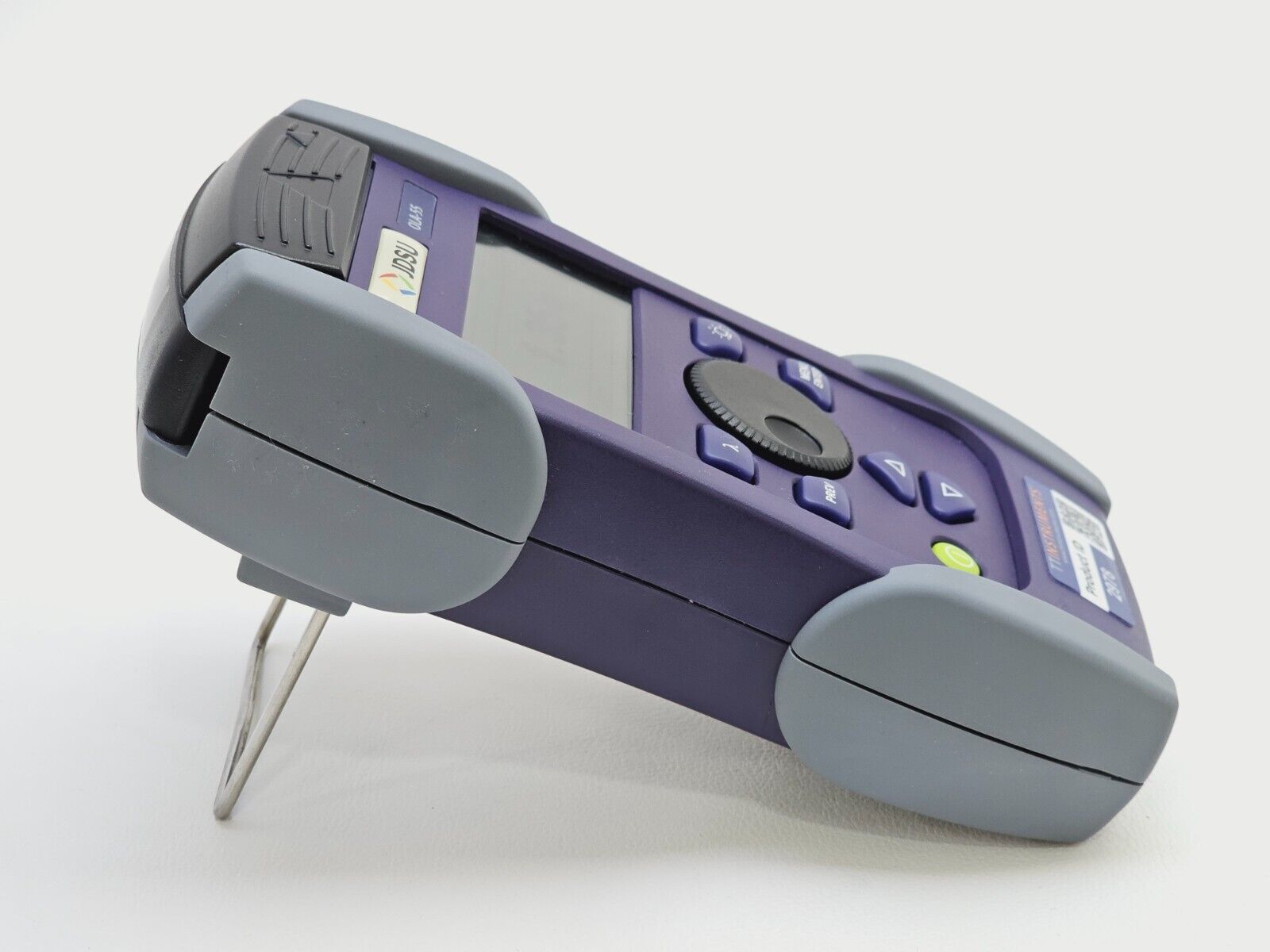

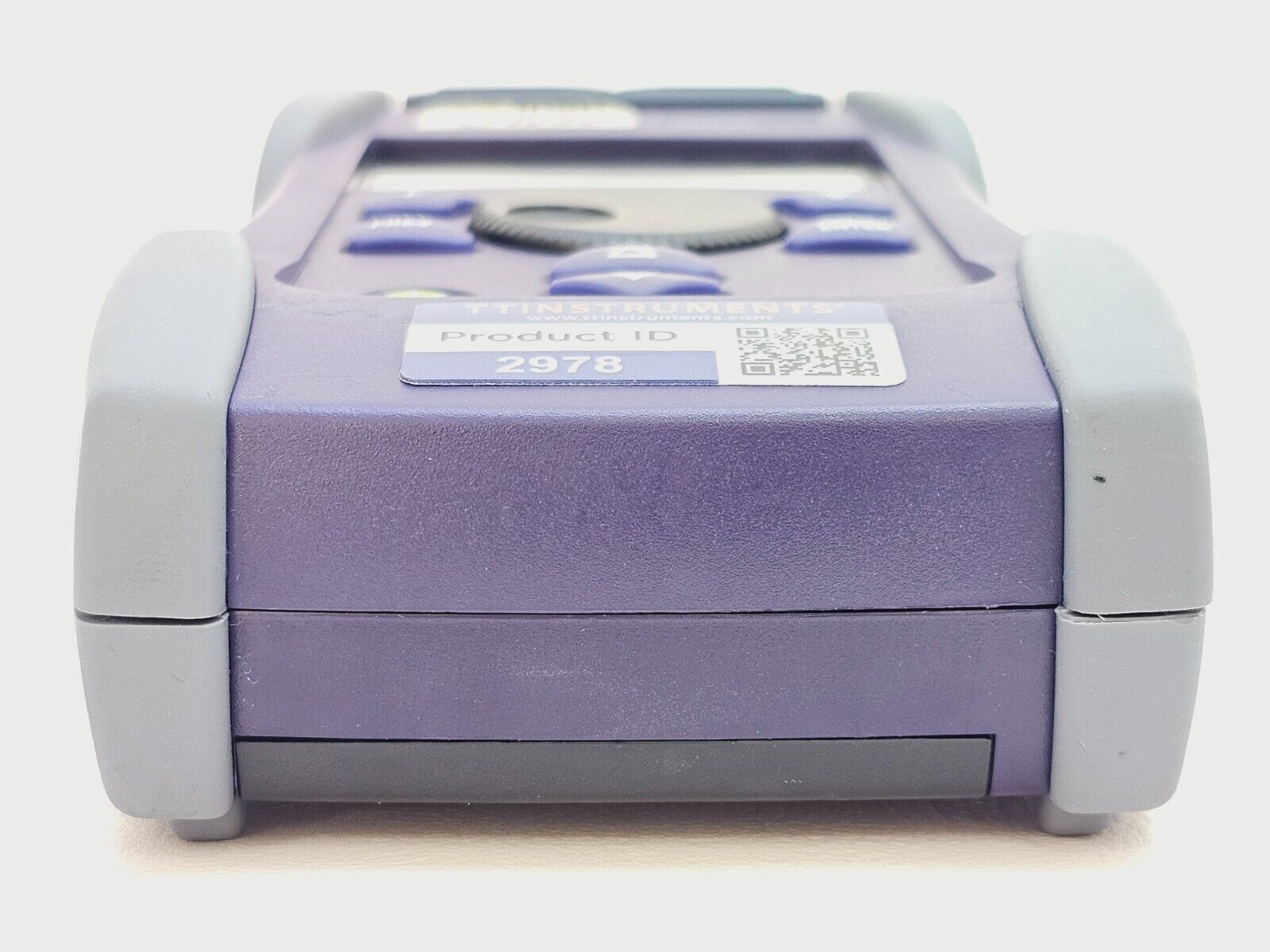

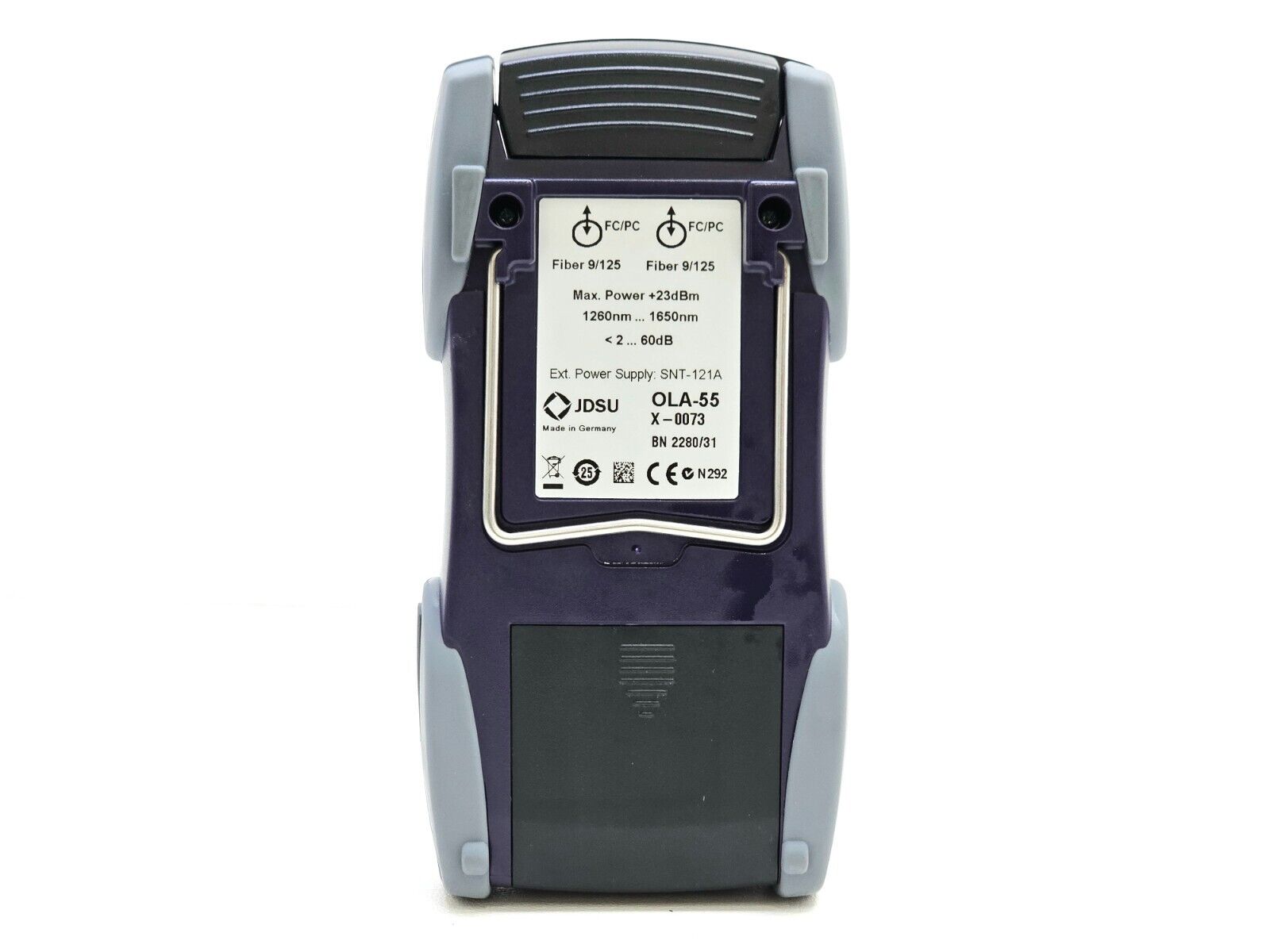

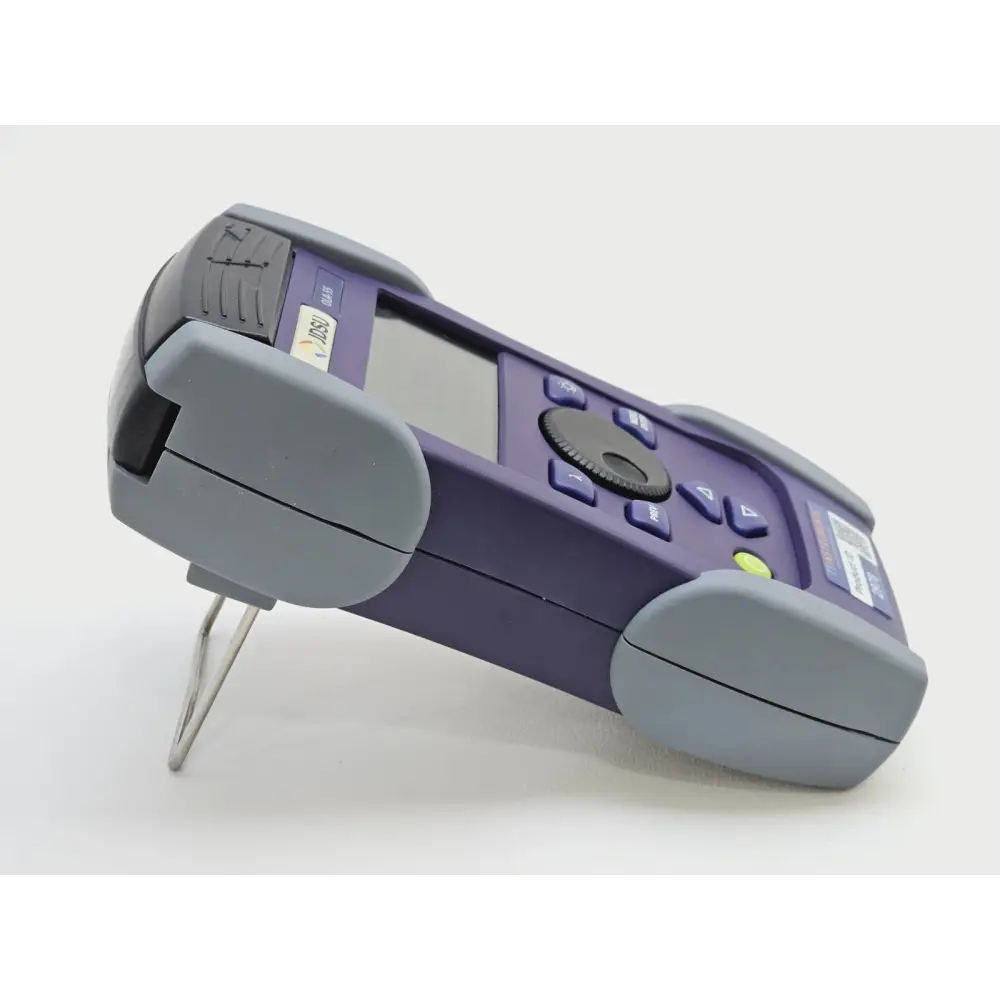

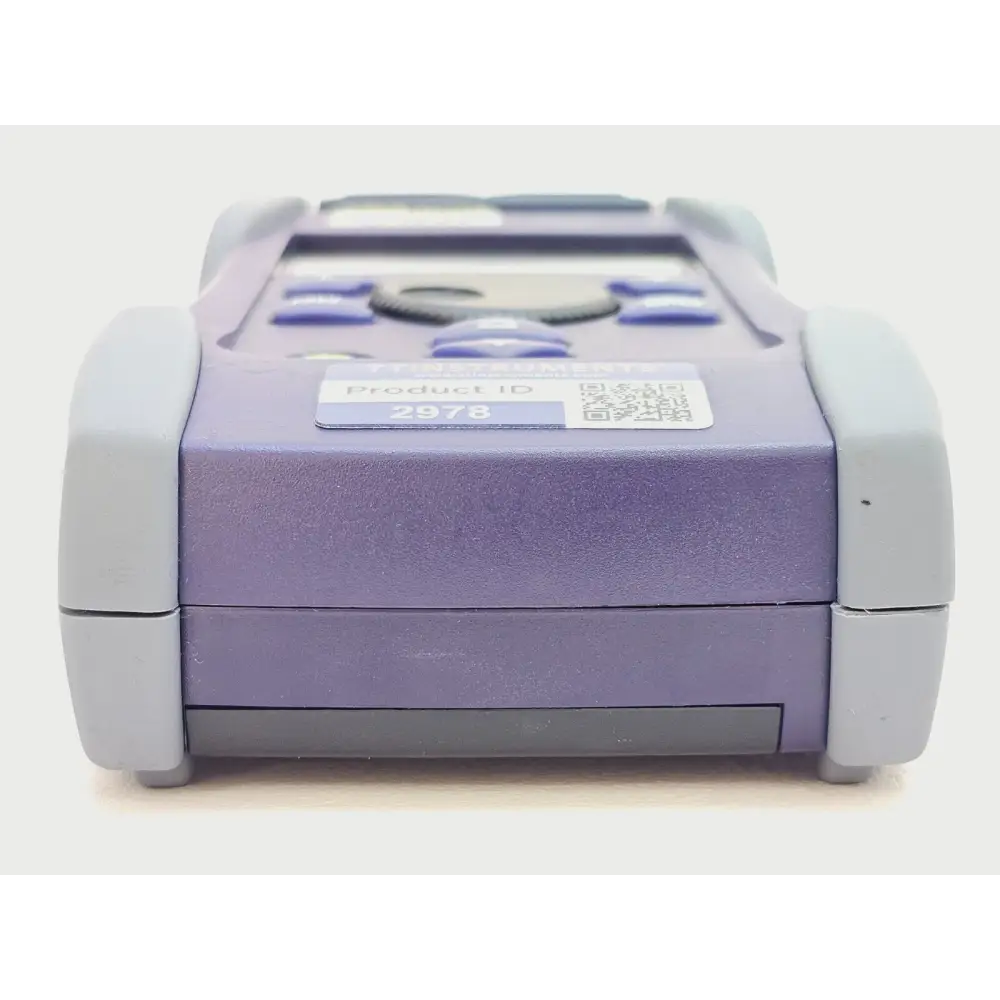

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

The Viavi (formerly JDSU) OLA-55 is a high-performance singlemode fibre optical attenuator designed for field and laboratory use in the installation, maintenance, and testing of singlemode optical networks, including systems operating up to 40 Gbps. It supports bit error rate testing (BERT) applications and is used to emulate fibre loss for system dynamics testing.

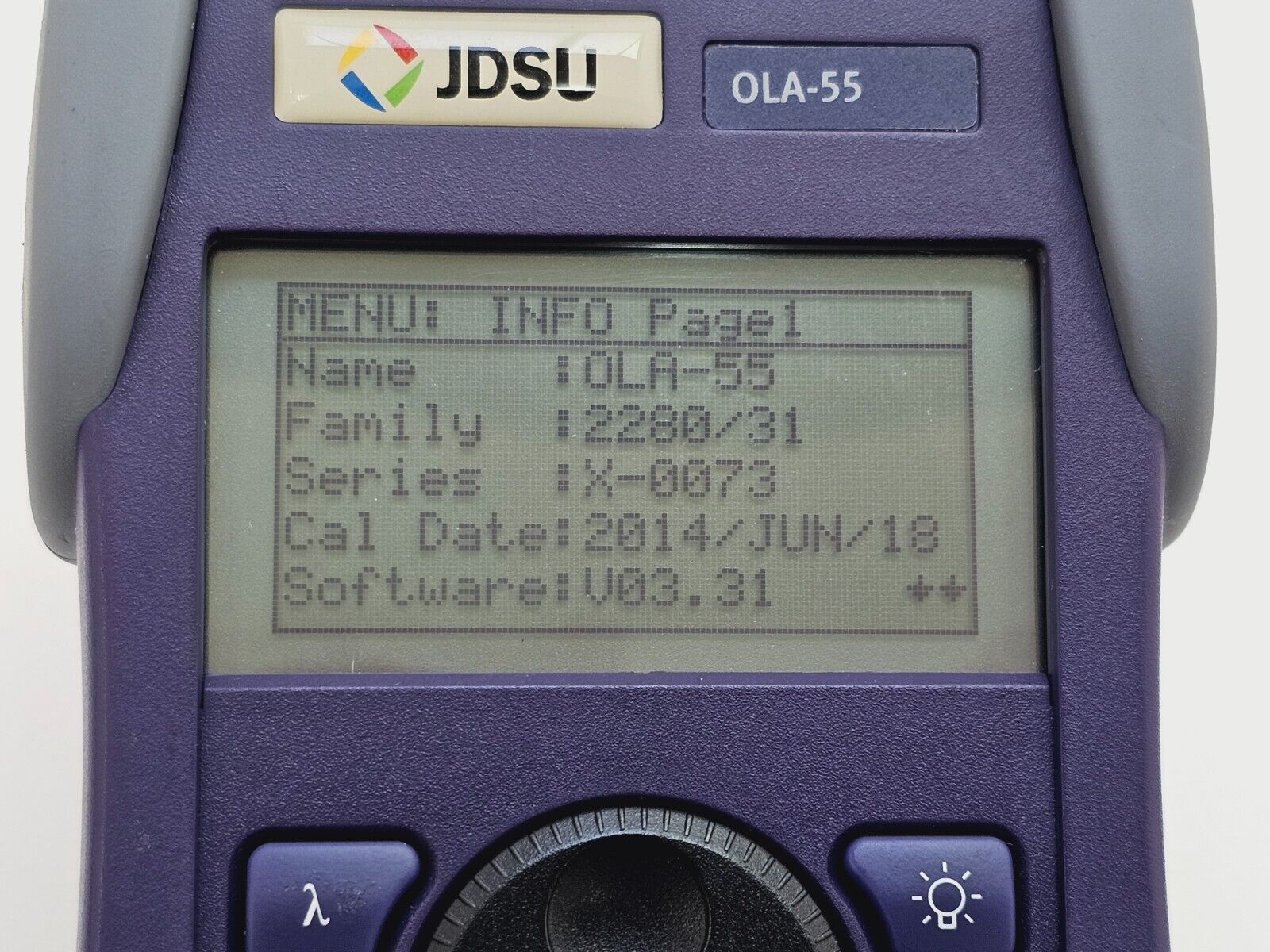

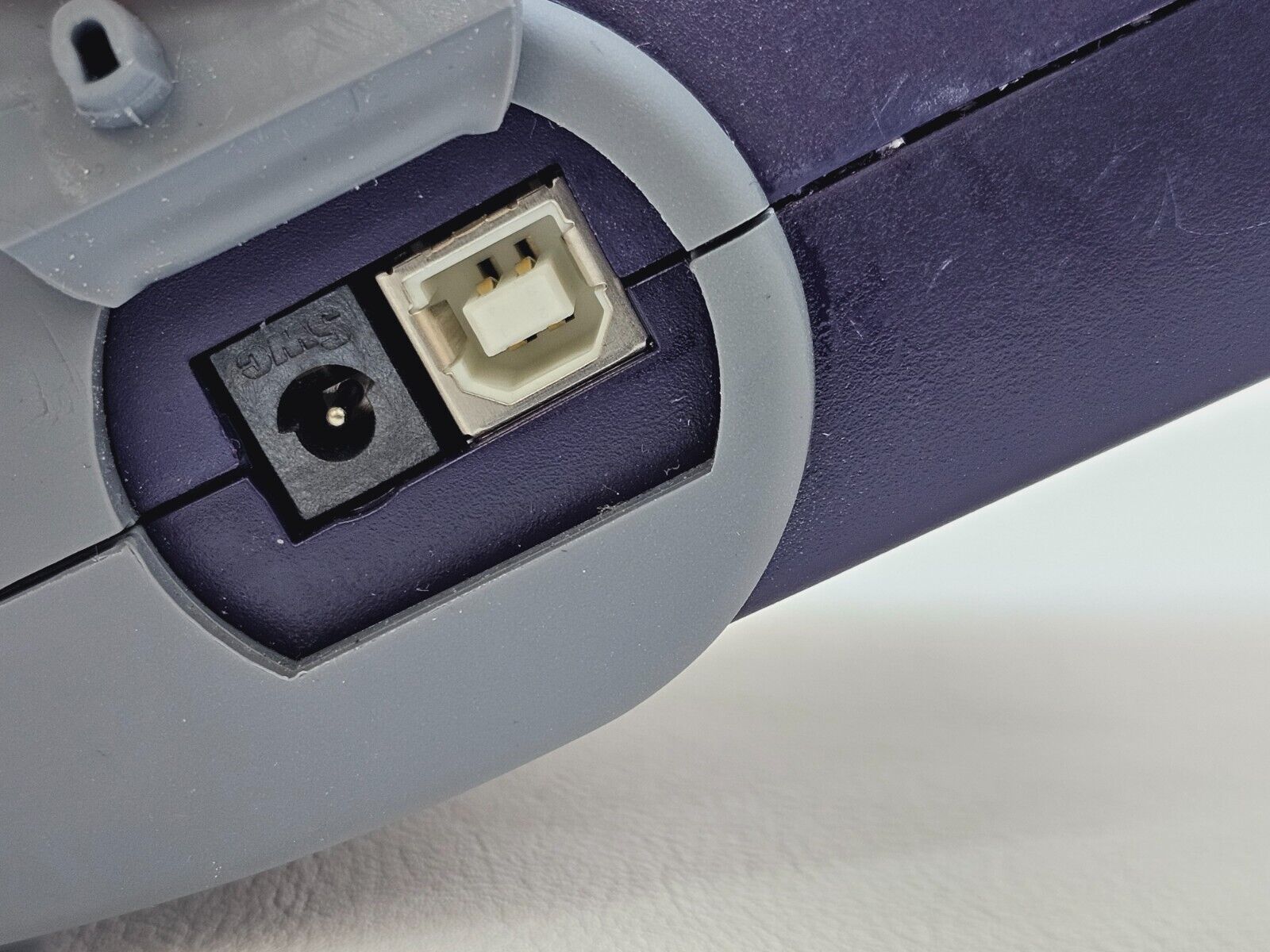

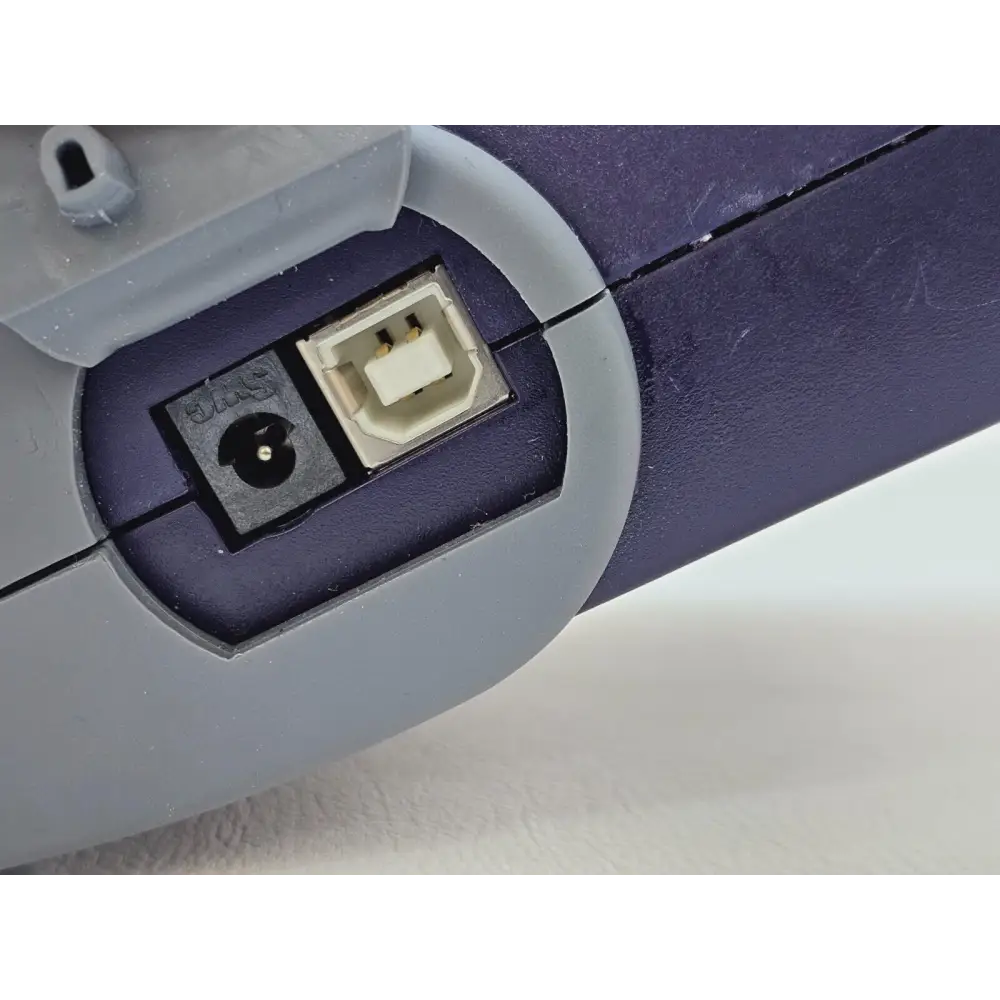

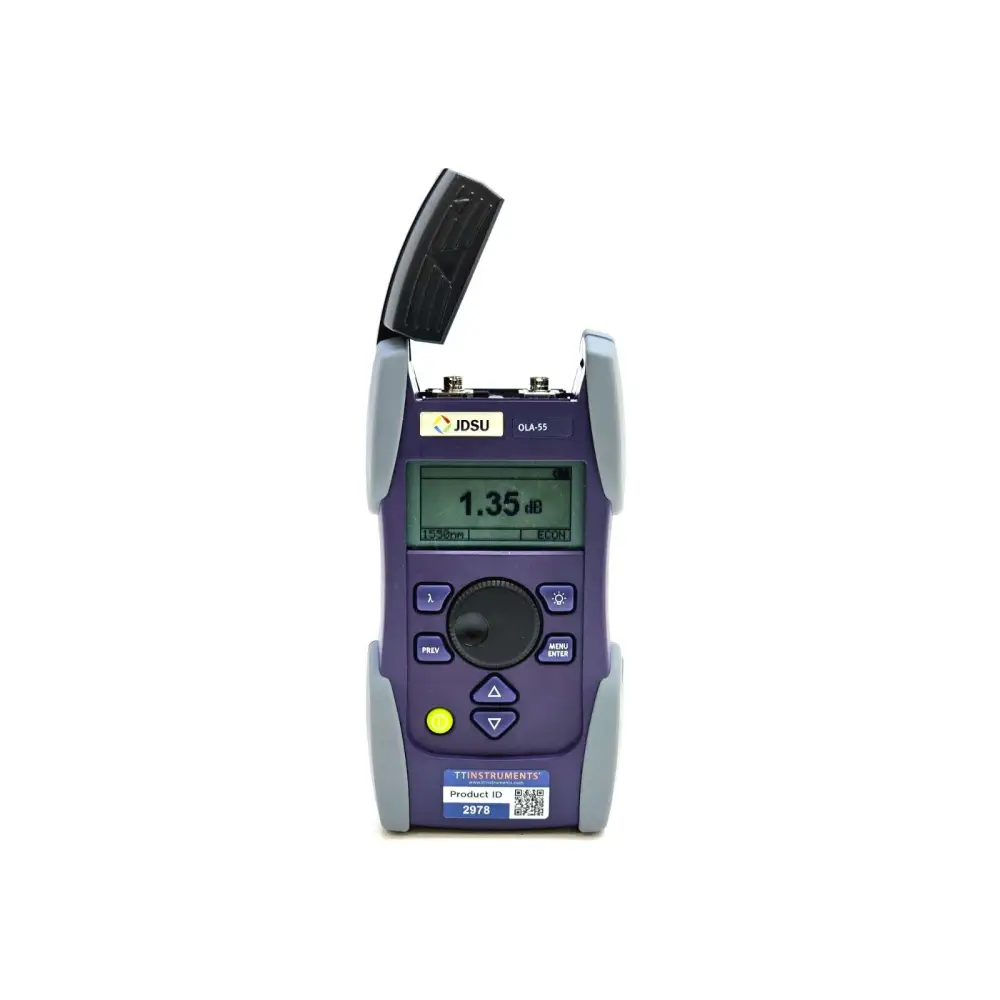

The OLA-55 features the SMARTWheel for precise manual attenuation adjustment, the SMARTStar graphical user interface for intuitive operation, and the SMARTEnergy power management system delivering over 1000 hours of battery life. Measurements are traceable to NIST/PTB standards, and the instrument is built to withstand demanding field environments with a shock-proof, splash-proof enclosure. A USB port enables remote operation.

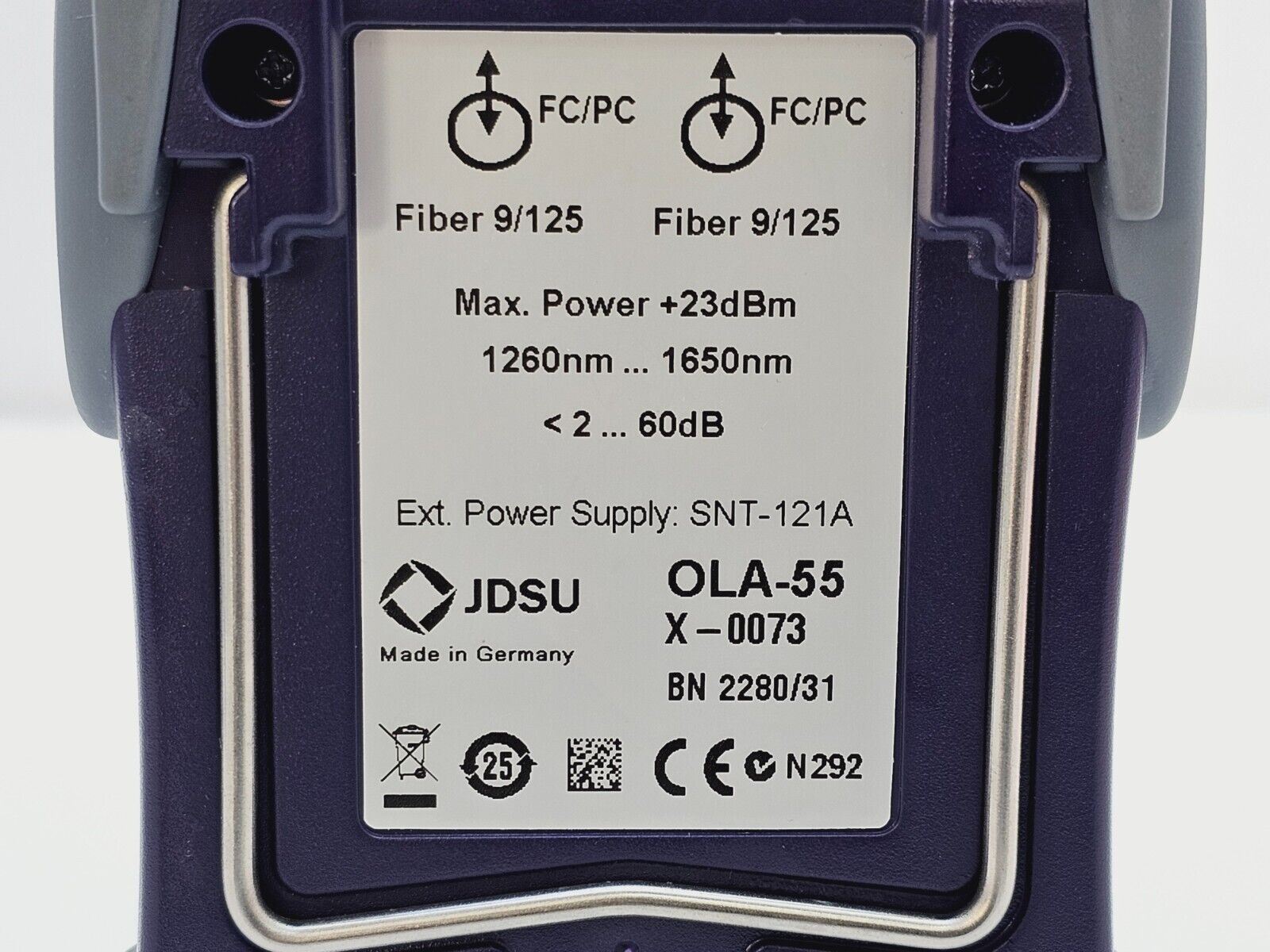

Key Specifications:
Fiber Type: 9/125 µm (singlemode)
Adjustable Wavelength Range: 1260 to 1650 nm in 1 nm increments
Calibrated Wavelengths: 1300 nm, 1310 nm, 1550 nm, 1625 nm
Adjustable Wavelengths: 400
Display Range: 2.0 to 60 dB
Minimum Insertion Loss: <2.0 dB
Linearity: ±0.2 dB
Repeatability of Attenuation Setting: ±0.1 dB
Total Attenuation Accuracy: ±0.8 dB
Setting Type: Continuous over the entire range
Function: Bi-directional
Displayed Value: Absolute or relative attenuation
Max. Permitted Level: +23 dBm
Battery Life: >1000 hours

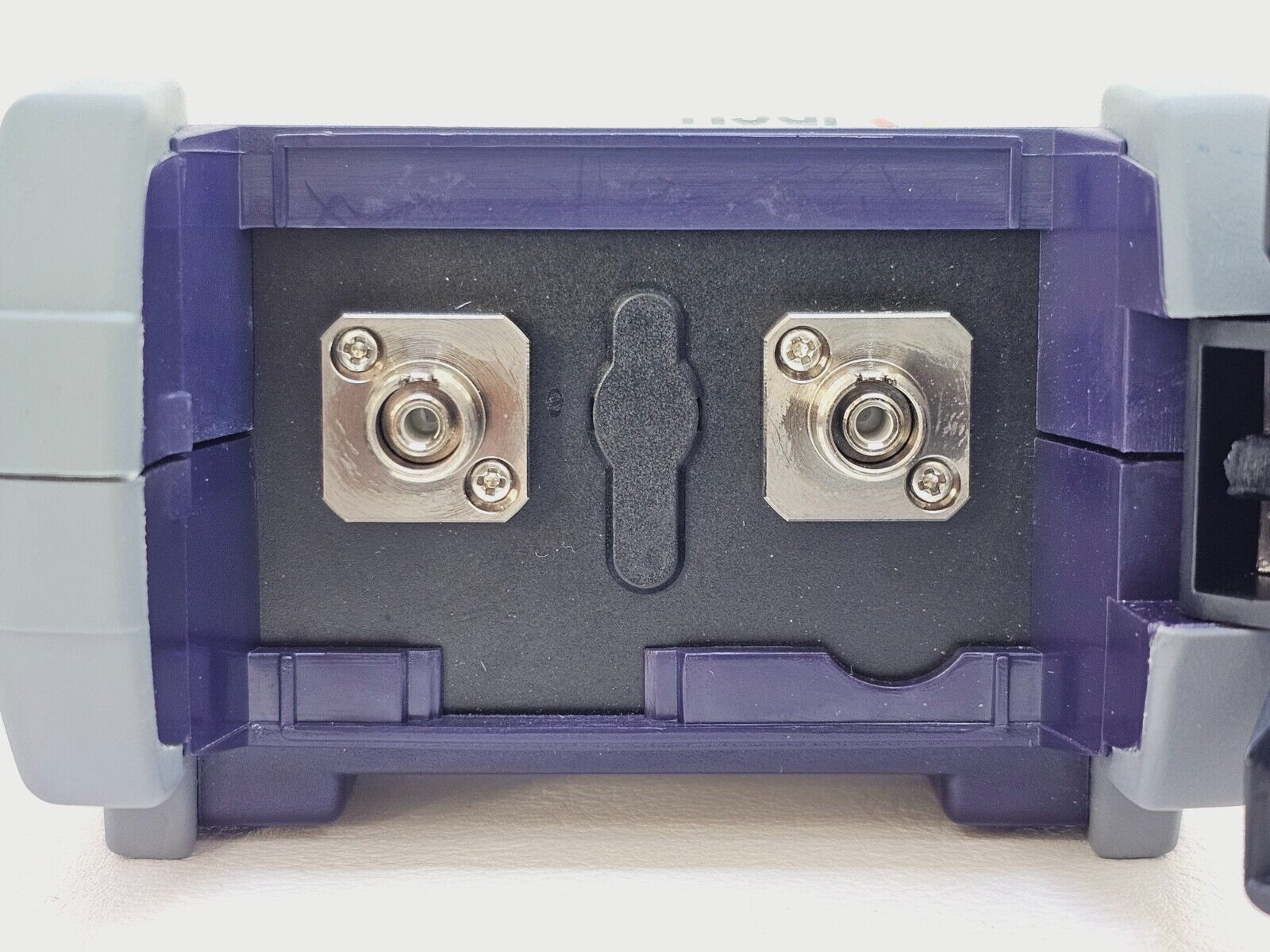

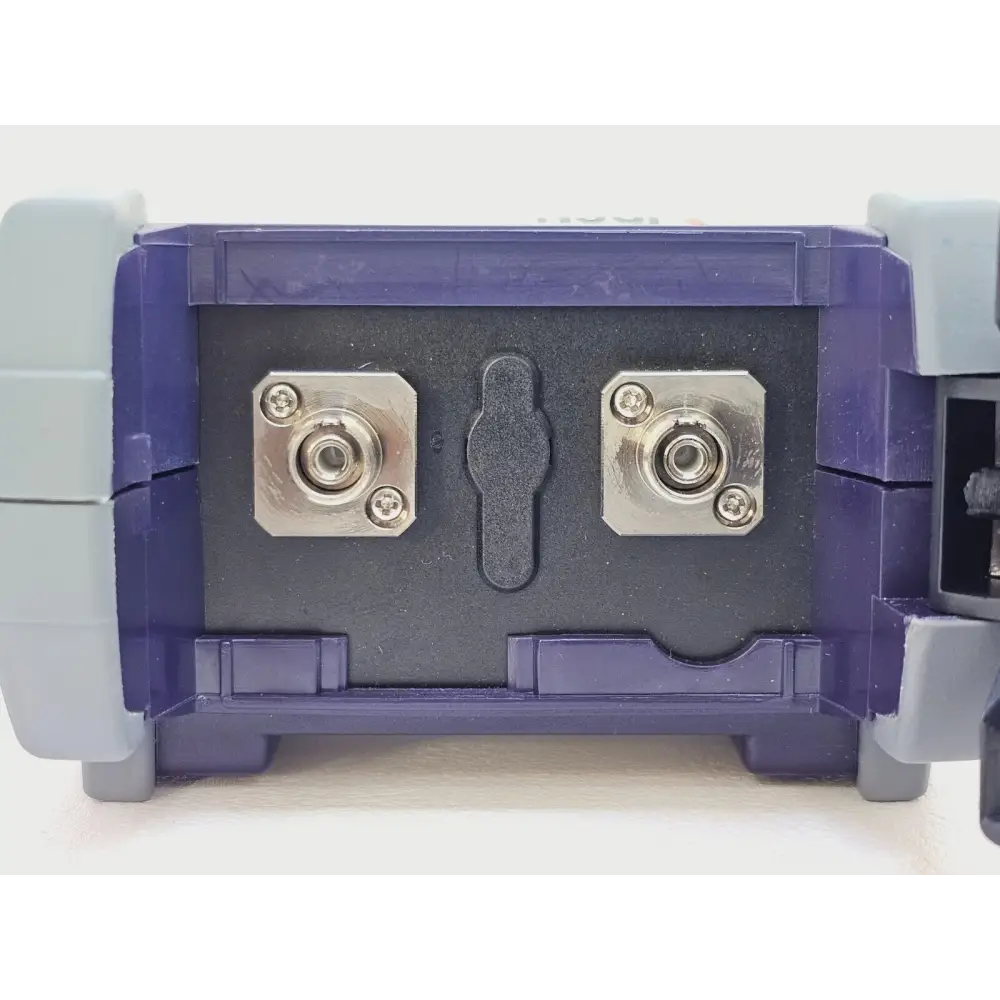

Connector Type: FC/PC
