Condition: Used

Multiple units available — in excellent working condition, tested and confirmed within specification. These Viavi JDSU OLA-55 singlemode fibre optical attenuators cover an adjustable wavelength range of 1260 to 1650 nm in 1 nm increments, with 400 calibrated wavelength settings. Calibrated at 1300 nm, 1310 nm, 1550 nm, and 1625 nm. Display range is 2.0 to 60 dB with a minimum insertion loss of less than 2.0 dB. Suitable for testing up to 40 Gbps systems and BERT applications. Connector type: FC/PC.

Please note that we have multiple units in stock, and the images presented are of one of them, therefore the cosmetic condition of the exact item you will receive may slightly differ.

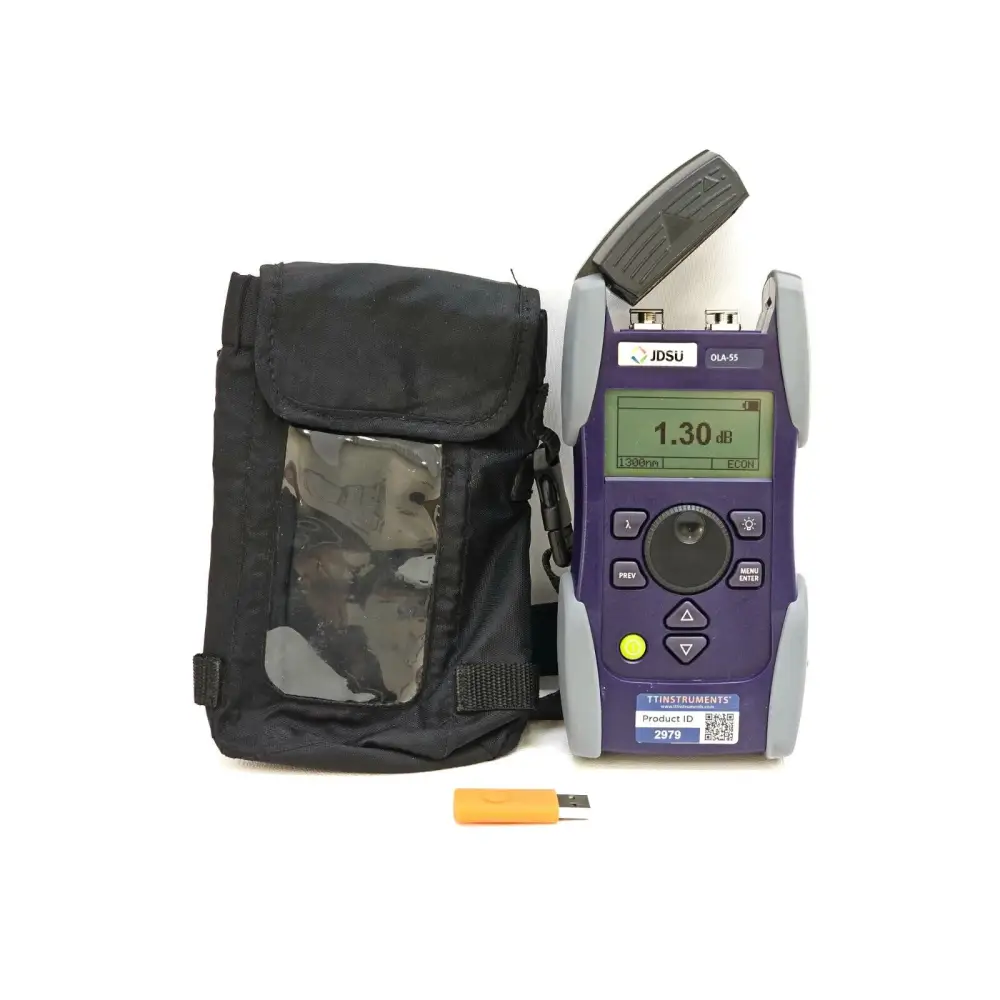

The Viavi (formerly JDSU) OLA-55 is a high-performance singlemode fibre optical attenuator designed for field and laboratory use in the installation, maintenance, and testing of singlemode optical networks, including systems operating up to 40 Gbps. It supports bit error rate testing (BERT) applications and is used to emulate fibre loss for system dynamics testing.

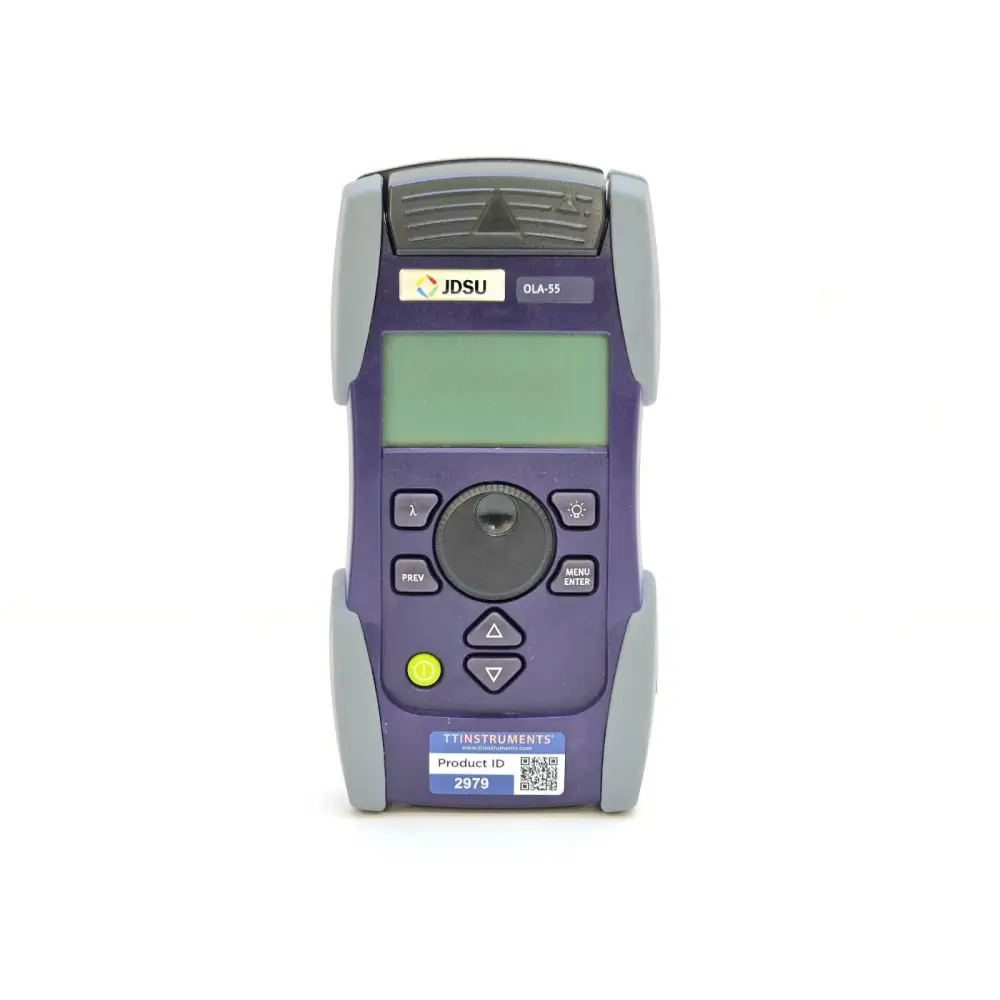

The OLA-55 features the SMARTWheel for precise manual attenuation adjustment, the SMARTStar graphical user interface for intuitive operation, and the SMARTEnergy power management system delivering over 1000 hours of battery life. Measurements are traceable to NIST/PTB standards, and the instrument is built to withstand demanding field environments with a shock-proof, splash-proof enclosure. A USB port enables remote operation.

Key Specifications:
Fiber Type: 9/125 µm (singlemode)
Adjustable Wavelength Range: 1260 to 1650 nm in 1 nm increments
Calibrated Wavelengths: 1300 nm, 1310 nm, 1550 nm, 1625 nm
Adjustable Wavelengths: 400
Display Range: 2.0 to 60 dB
Minimum Insertion Loss: <2.0 dB
Linearity: ±0.2 dB
Repeatability of Attenuation Setting: ±0.1 dB
Total Attenuation Accuracy: ±0.8 dB
Setting Type: Continuous over entire range
Function: Bi-directional
Displayed Value: Absolute or relative attenuation
Max. Permitted Input Level: +23 dBm
Battery Life: >1000 hours

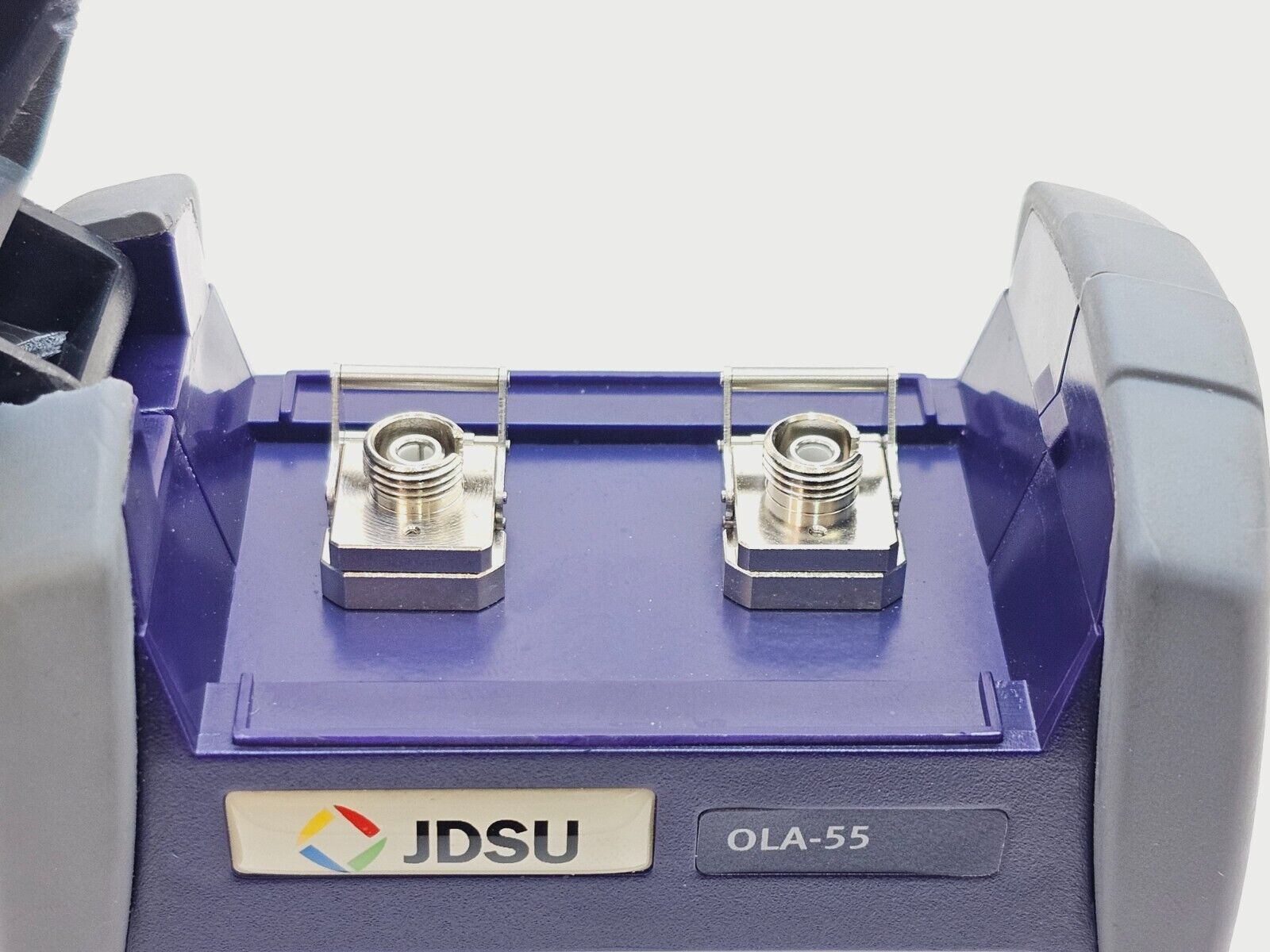

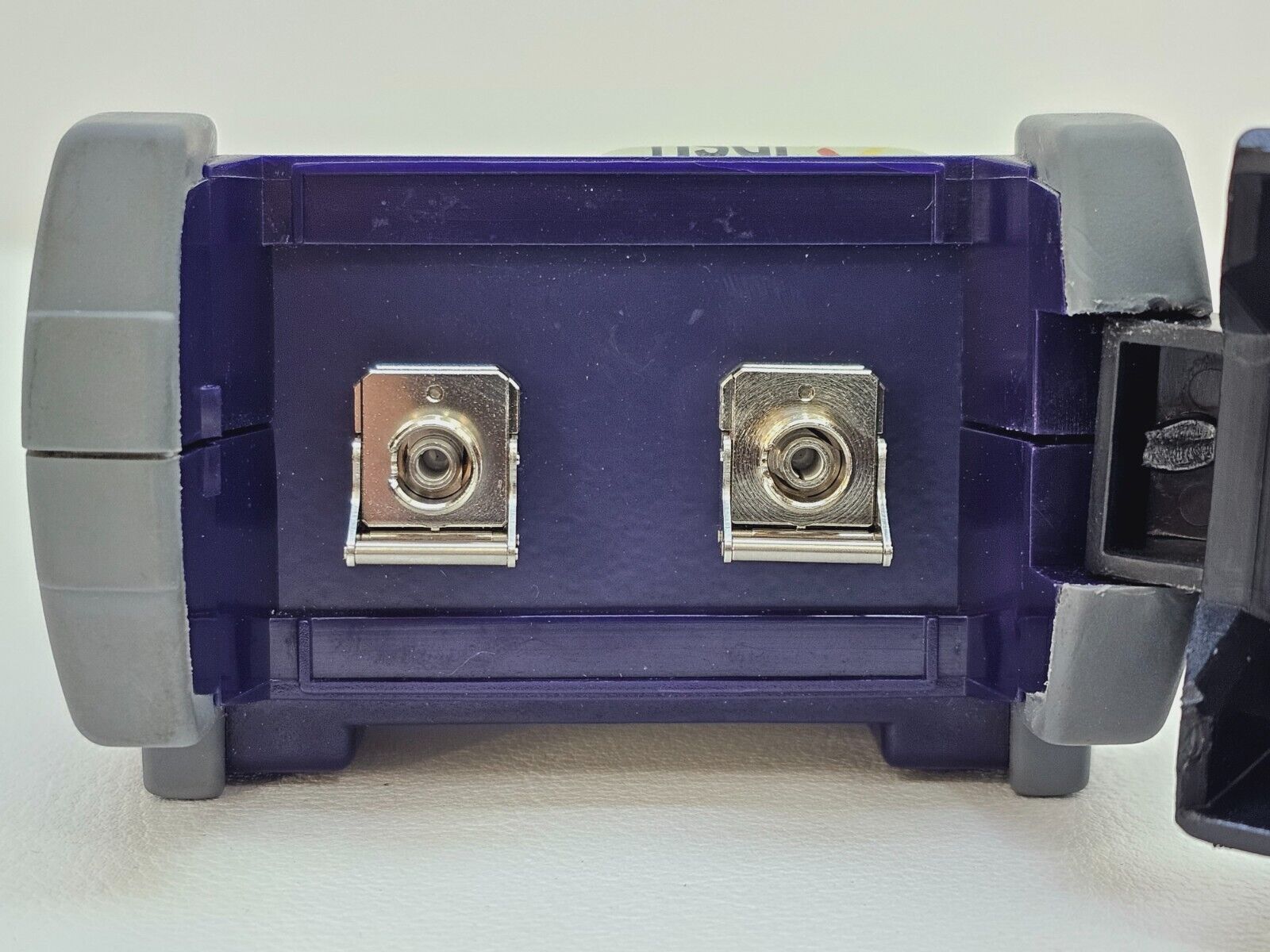

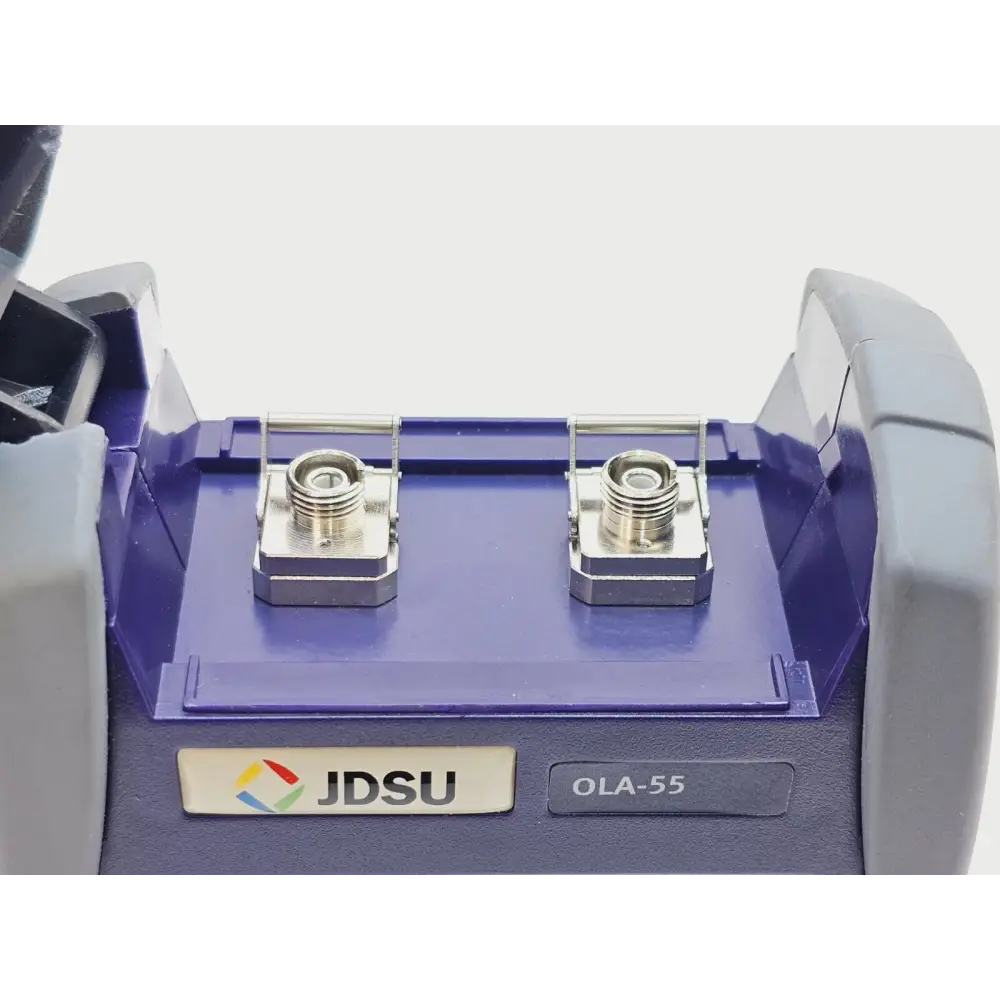

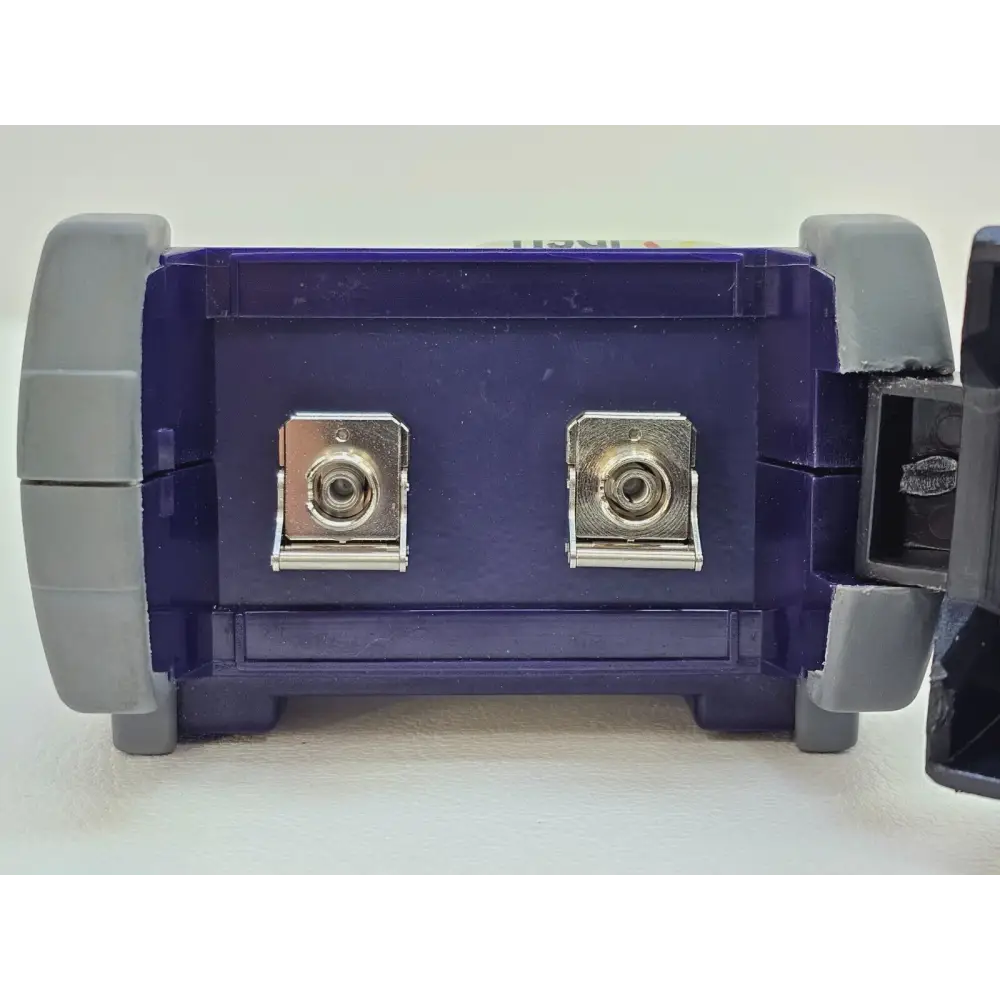

Connector Type: FC/PC

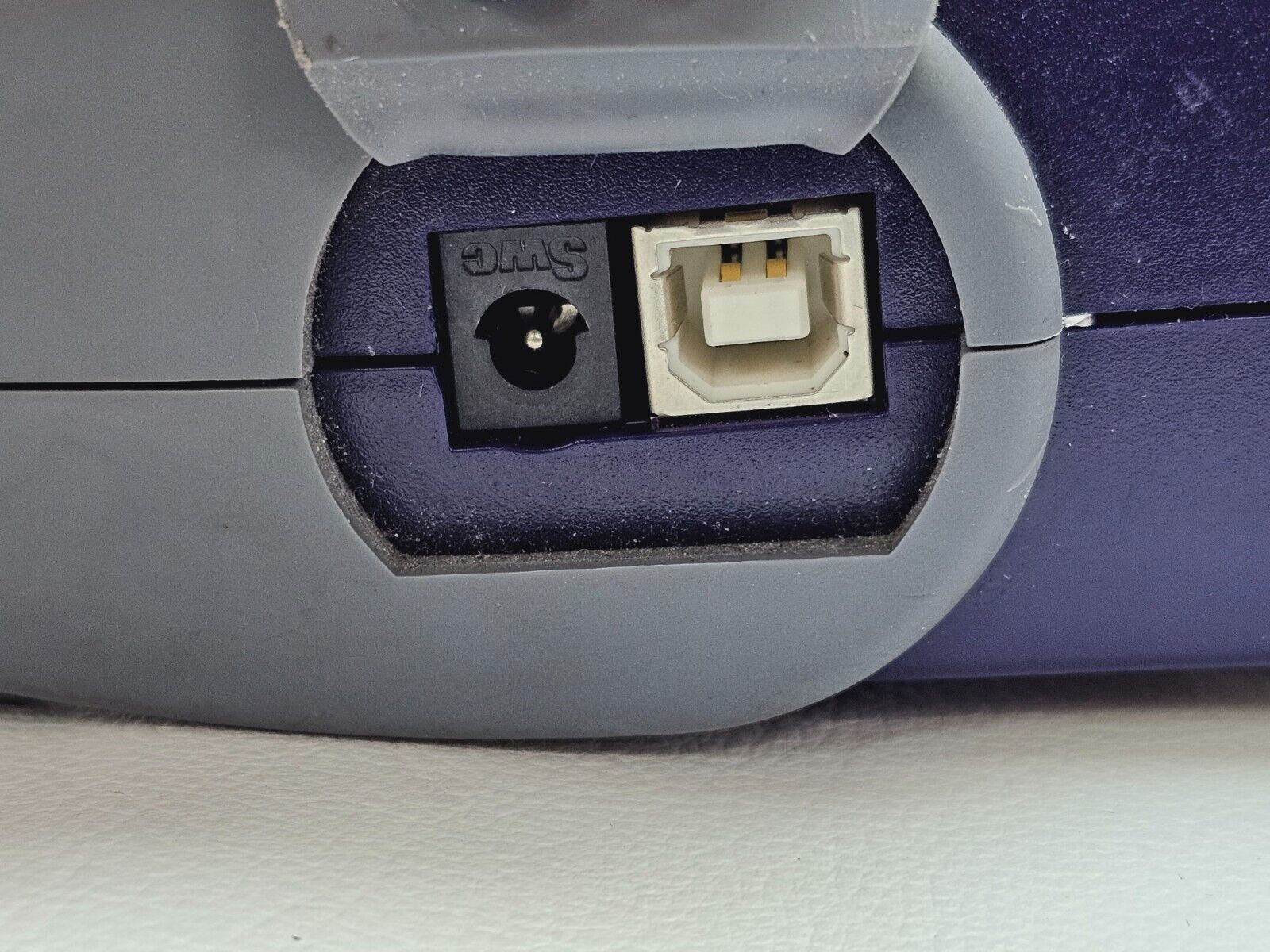

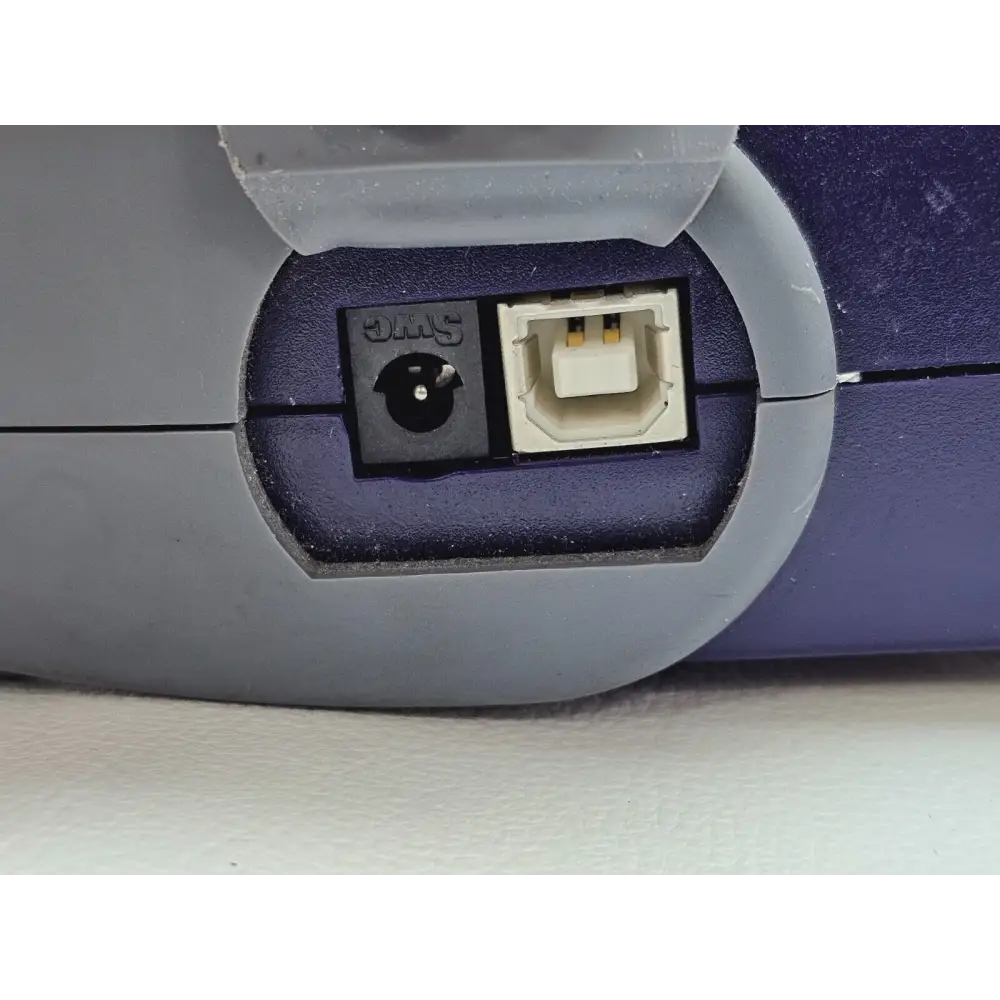

Interface: USB for remote operation
Standards Traceability: NIST/PTB
