Viavi JDSU OLA-55 Fiber Optical Level Attenuator 1250-1650 nm SM 2280/01 +23 dBm
Model: OLA-55
Condition: Used
In stock: 0
SKU: 3381 6A05
- Fiber Optics
- Optical Attenuators
Choose options
Condition: Used — in good working condition, tested and within specification.
The Viavi JDSU OLA-55 is a singlemode fibre optical level attenuator supporting an adjustable wavelength range of 1260 to 1650 nm in 1 nm increments, with calibrated wavelengths at 1300 nm, 1310 nm, 1550 nm, and 1625 nm. It supports testing of systems up to 40 Gbps and features a maximum permitted input level of +23 dBm. The unit uses a 9/125 µm singlemode fibre type and offers bi-directional operation with both absolute and relative attenuation display modes. Total attenuation accuracy is ±0.8 dB with a repeatability of ±0.1 dB.
Items included in the sale:
• Viavi JDSU OLA-55 Optical Level Attenuator

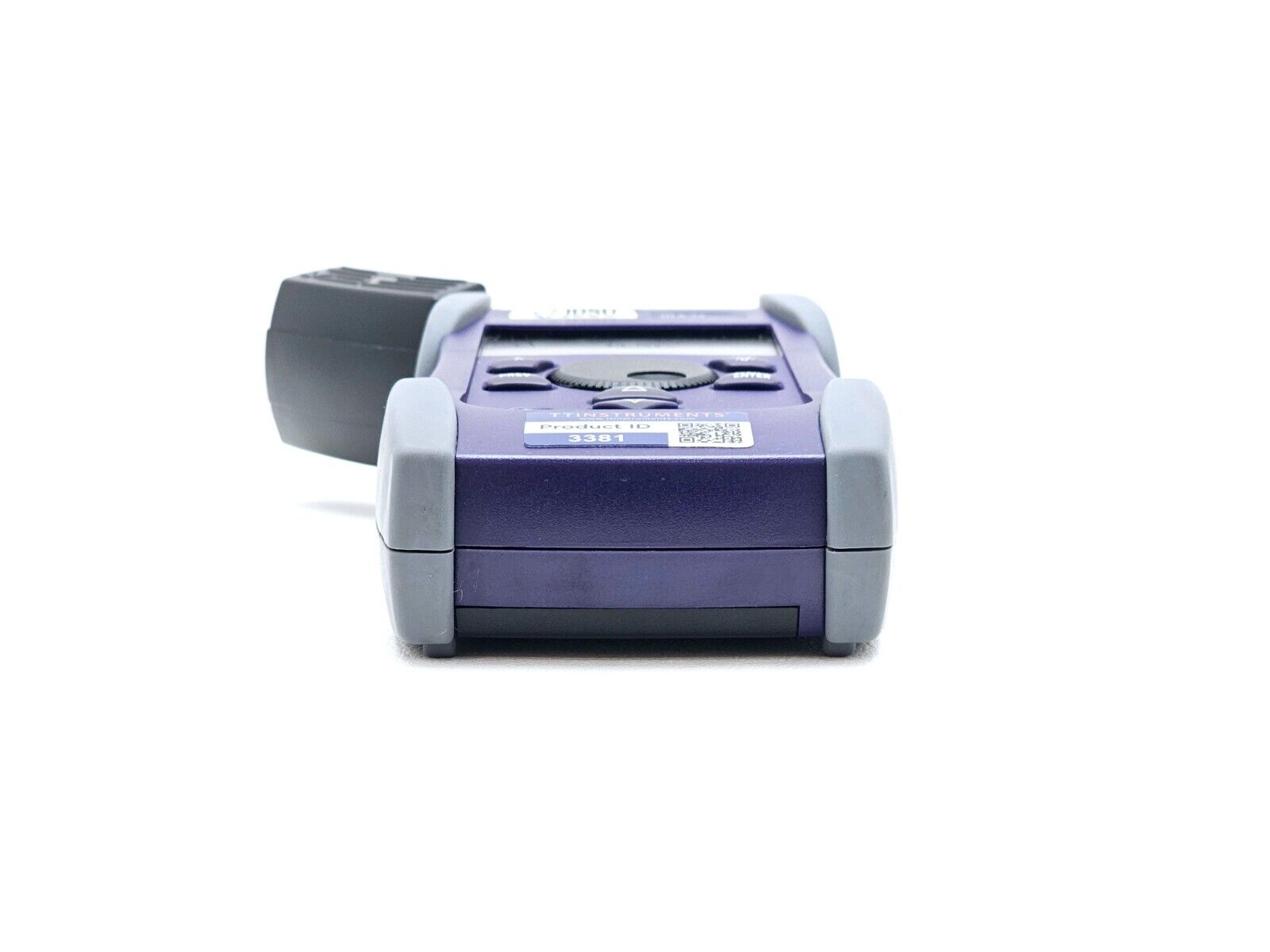

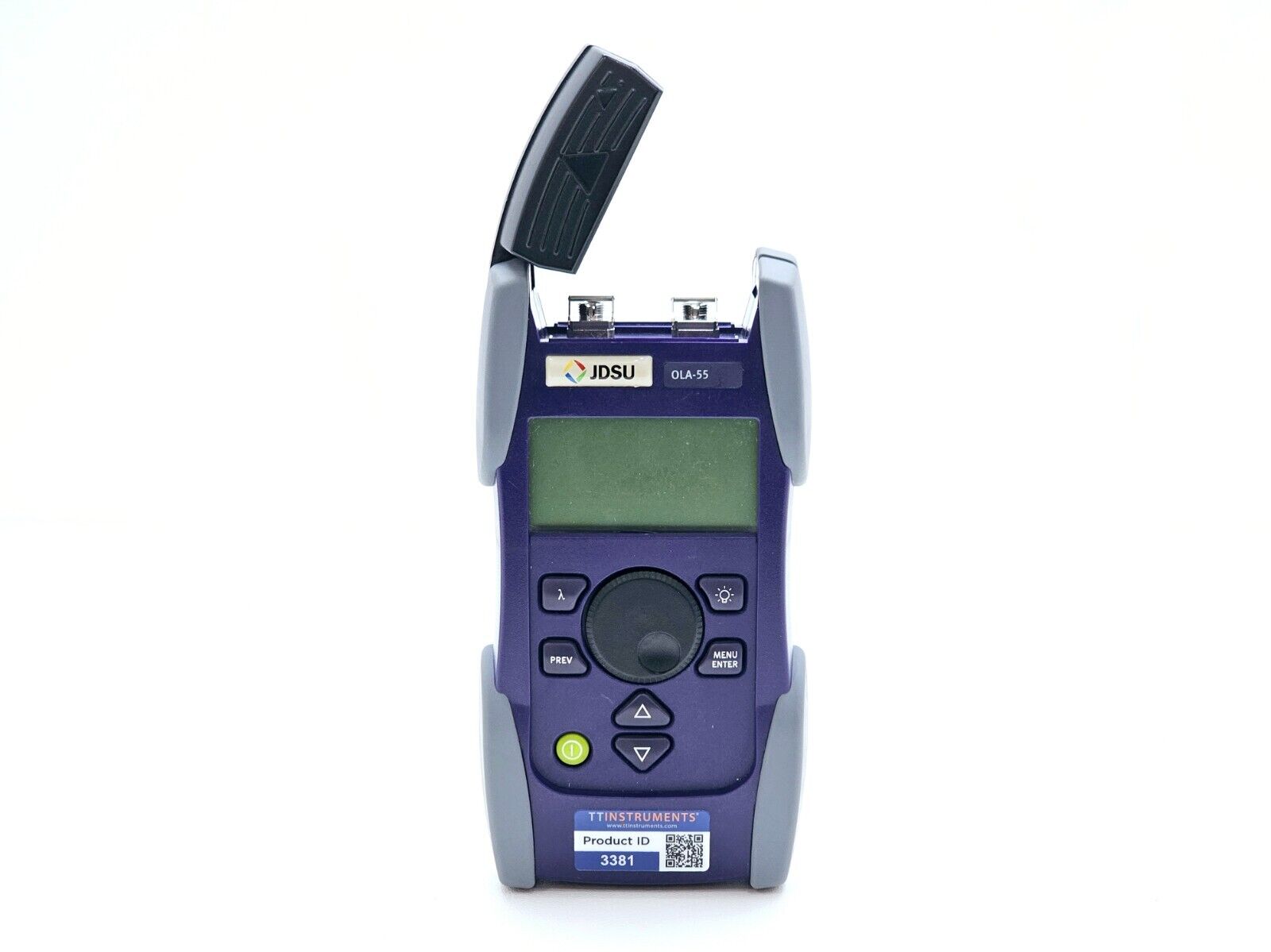

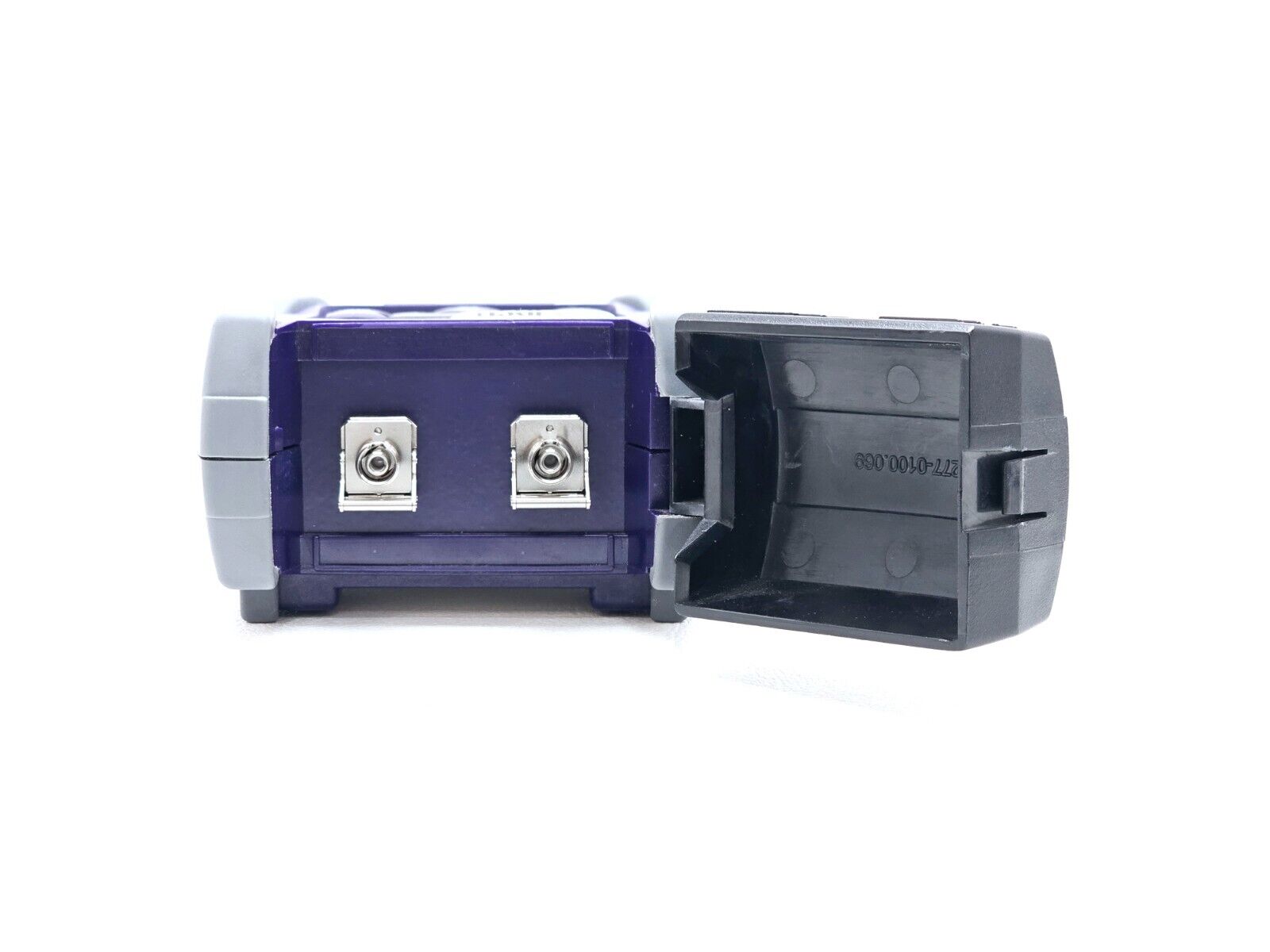

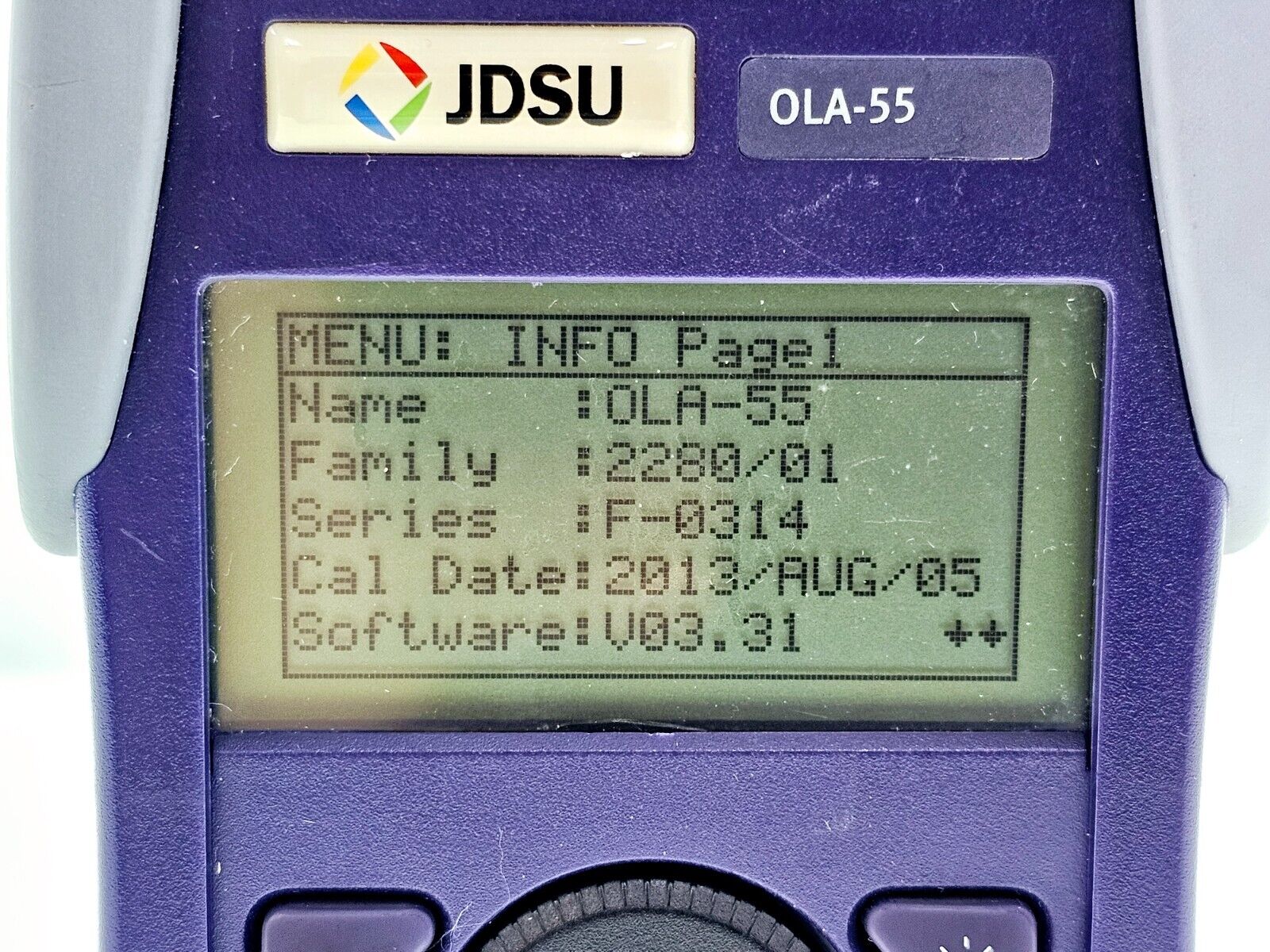

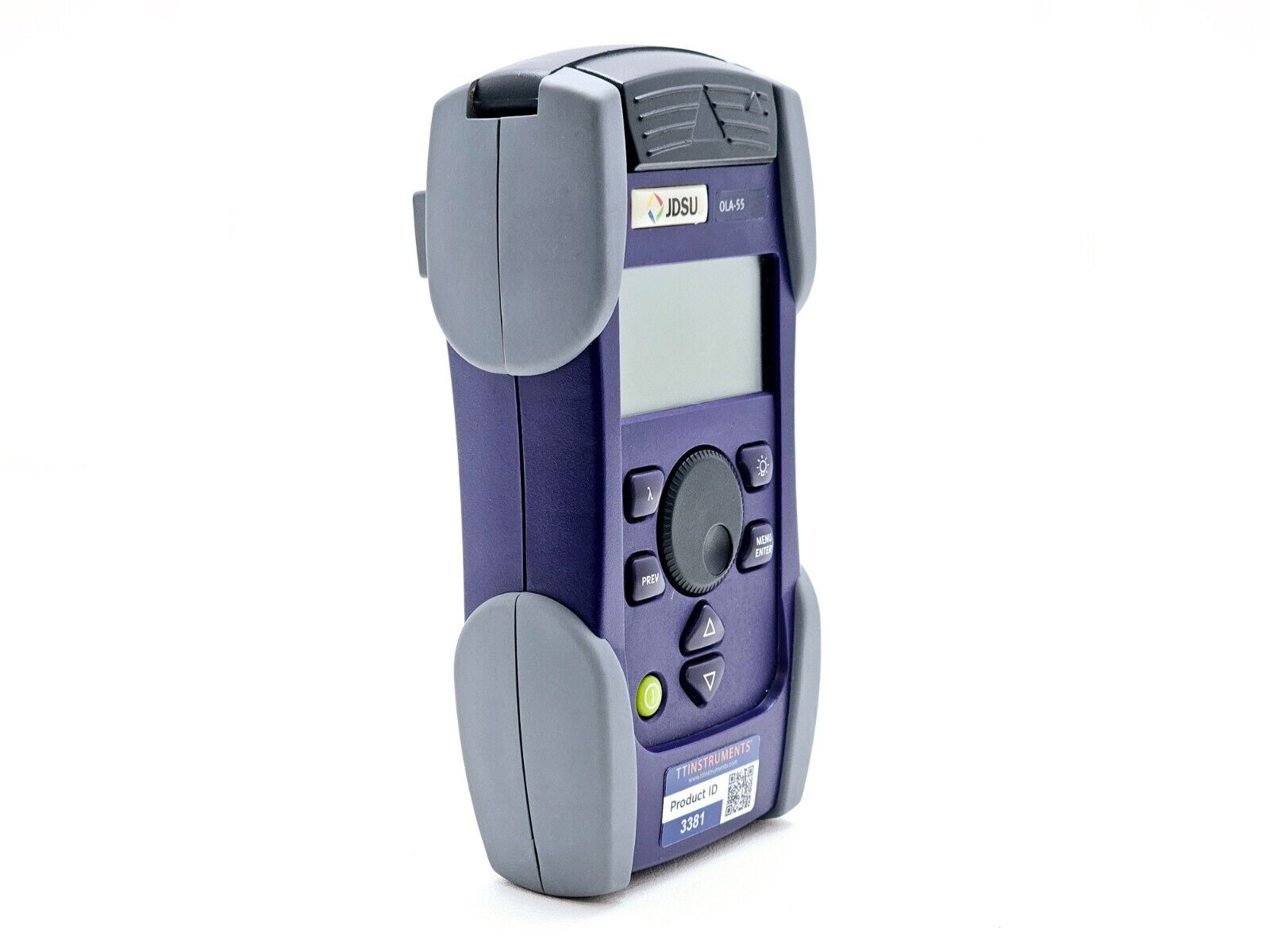

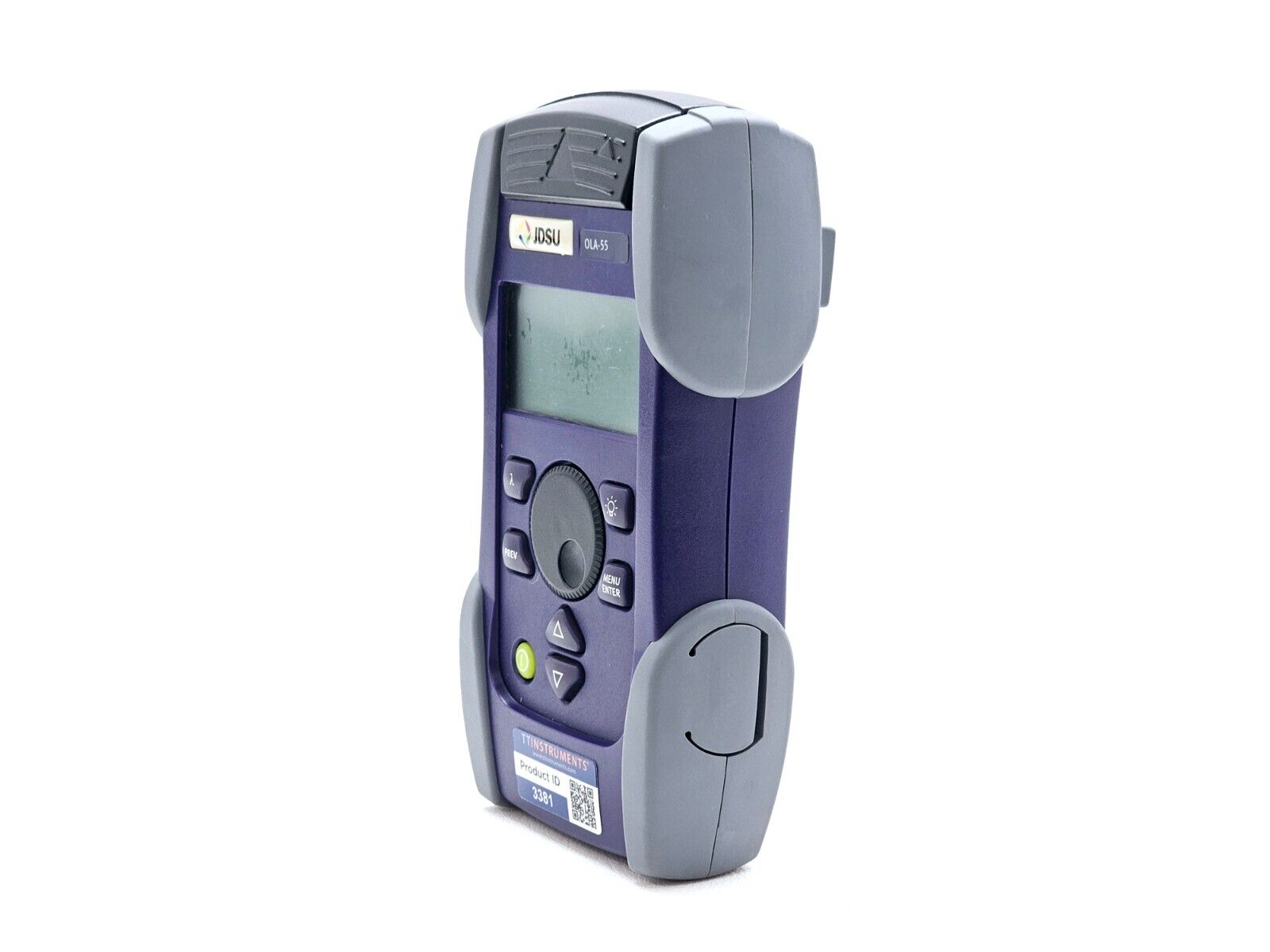

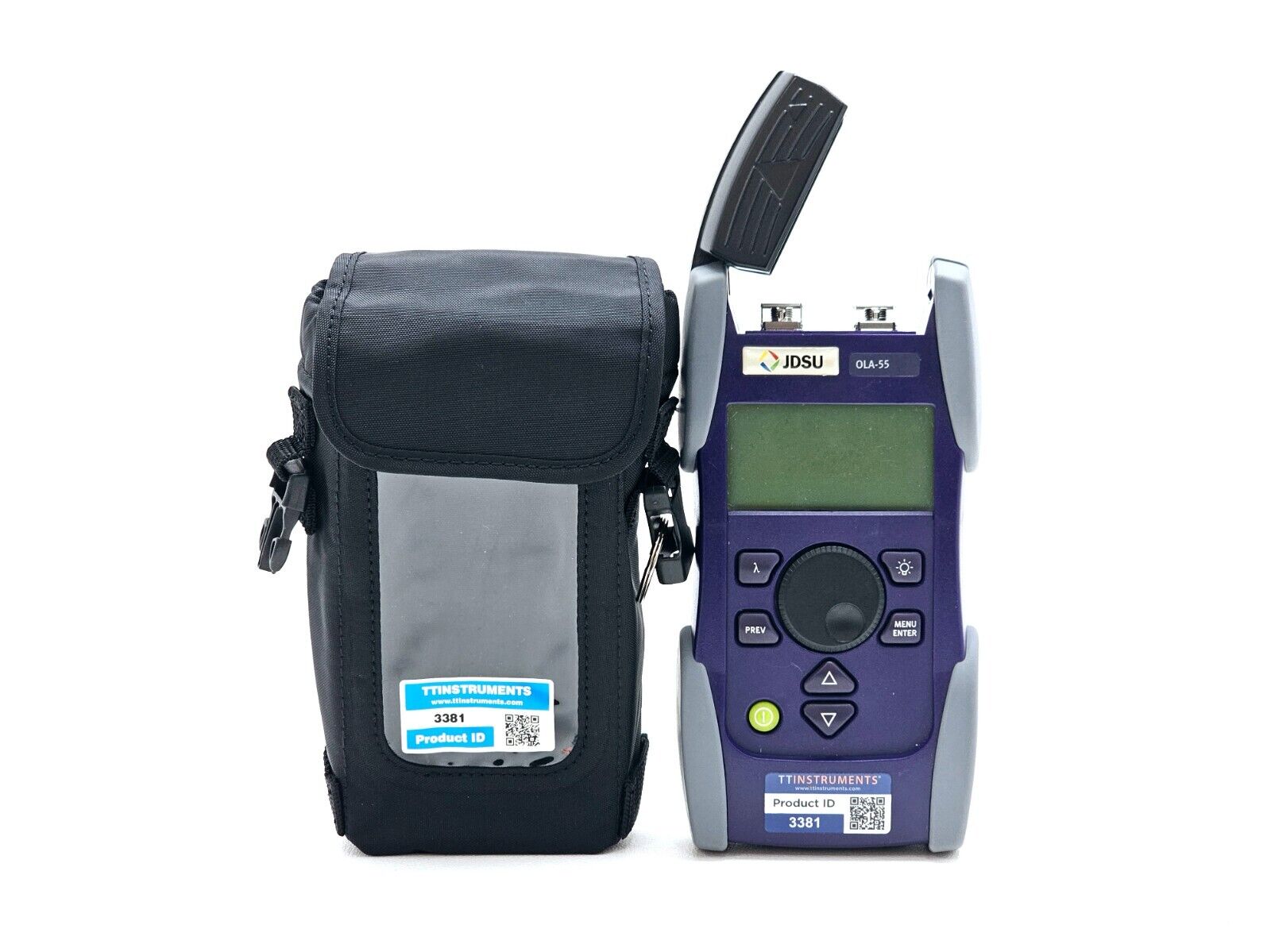

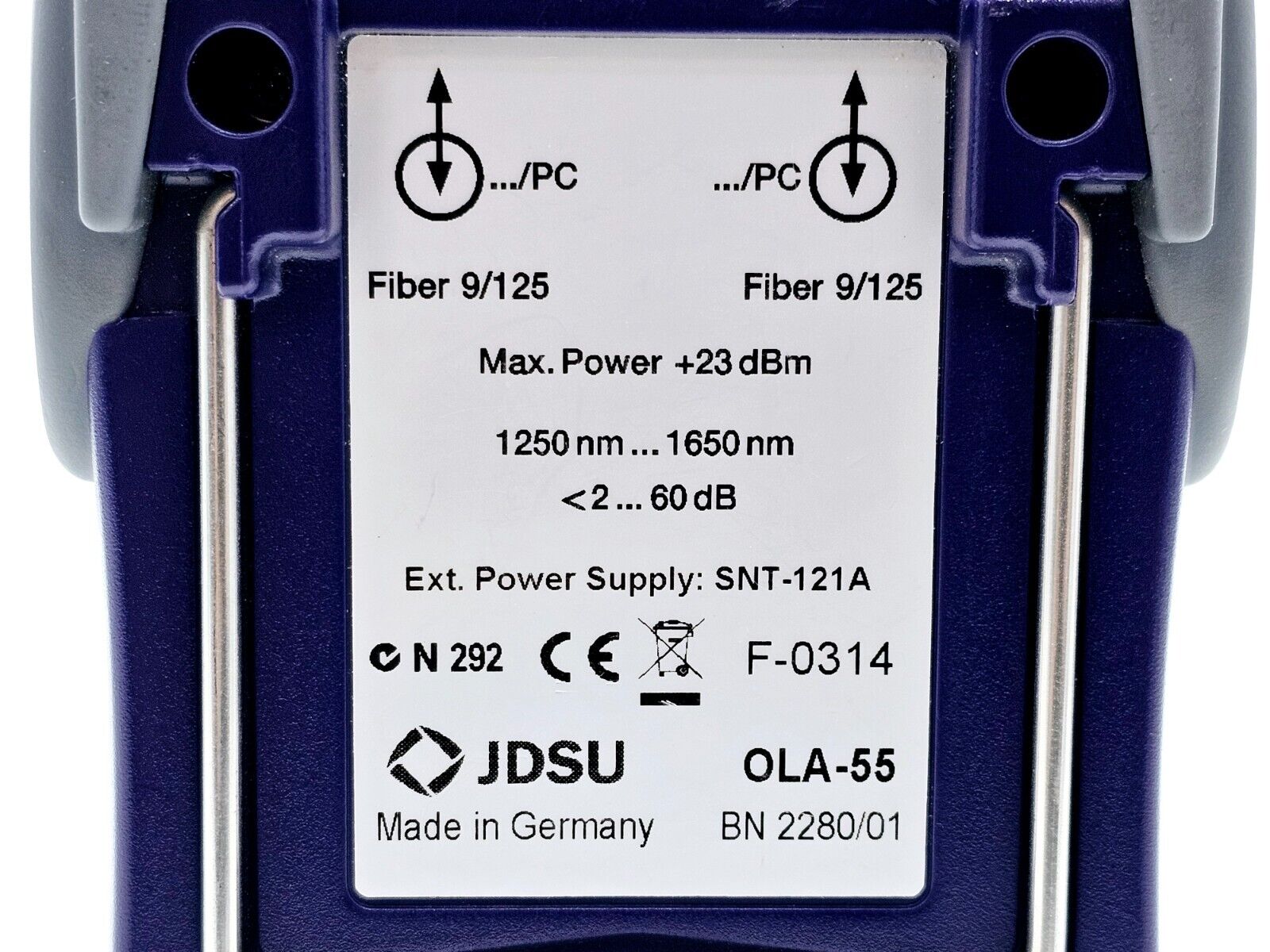

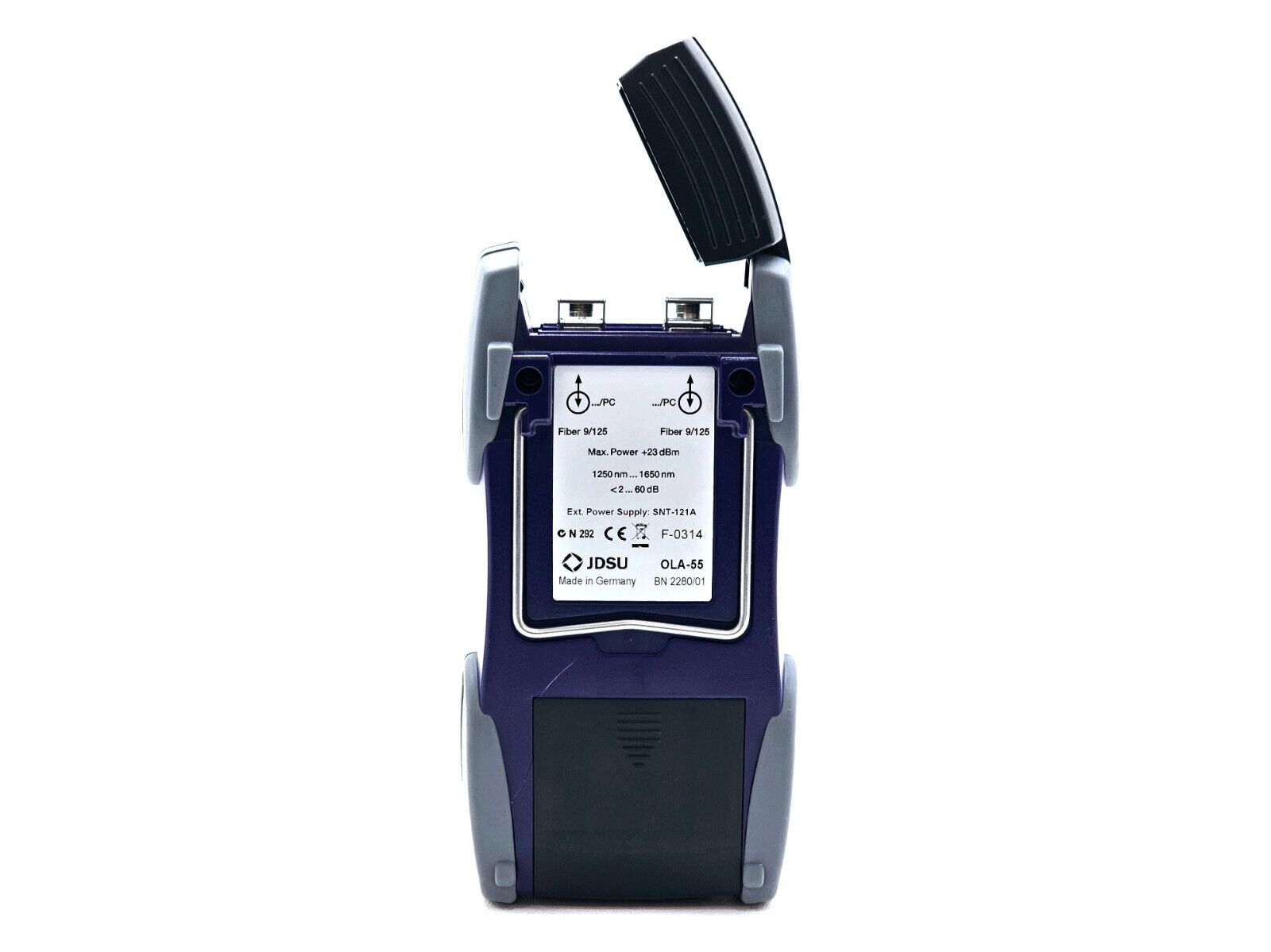

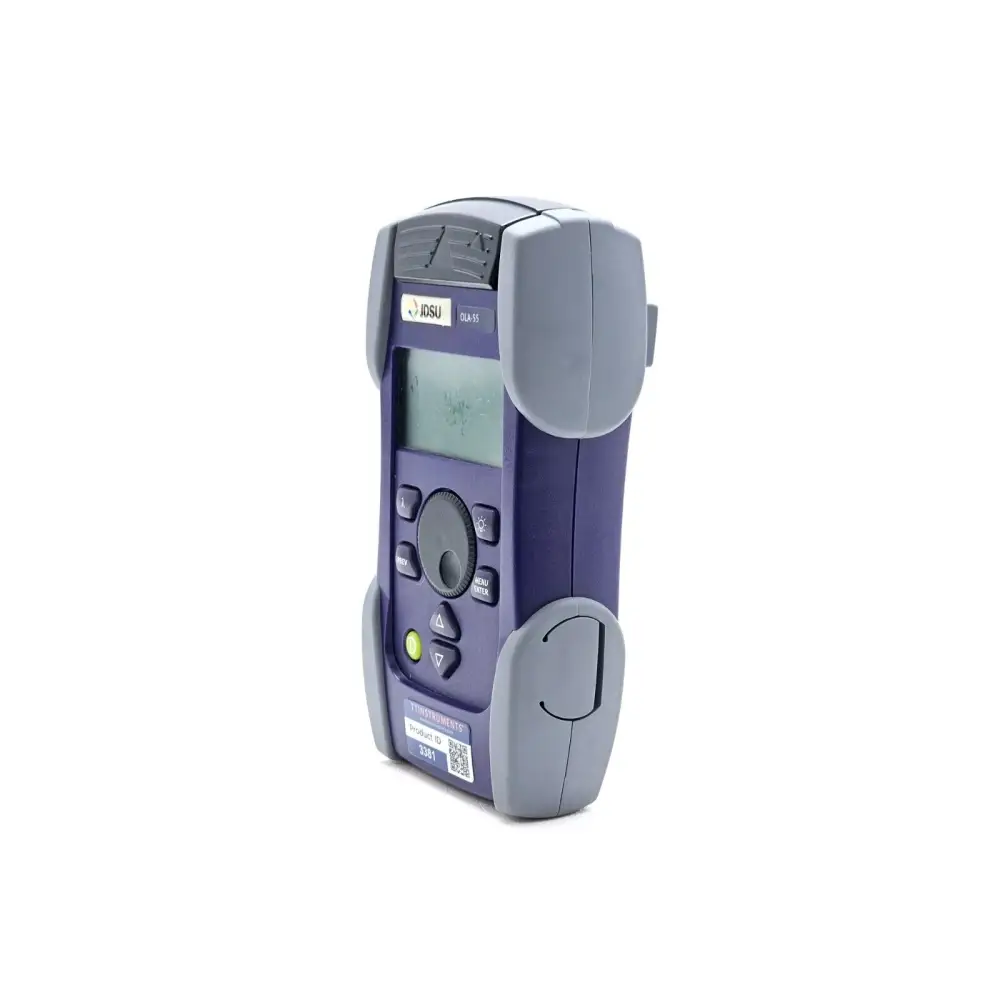

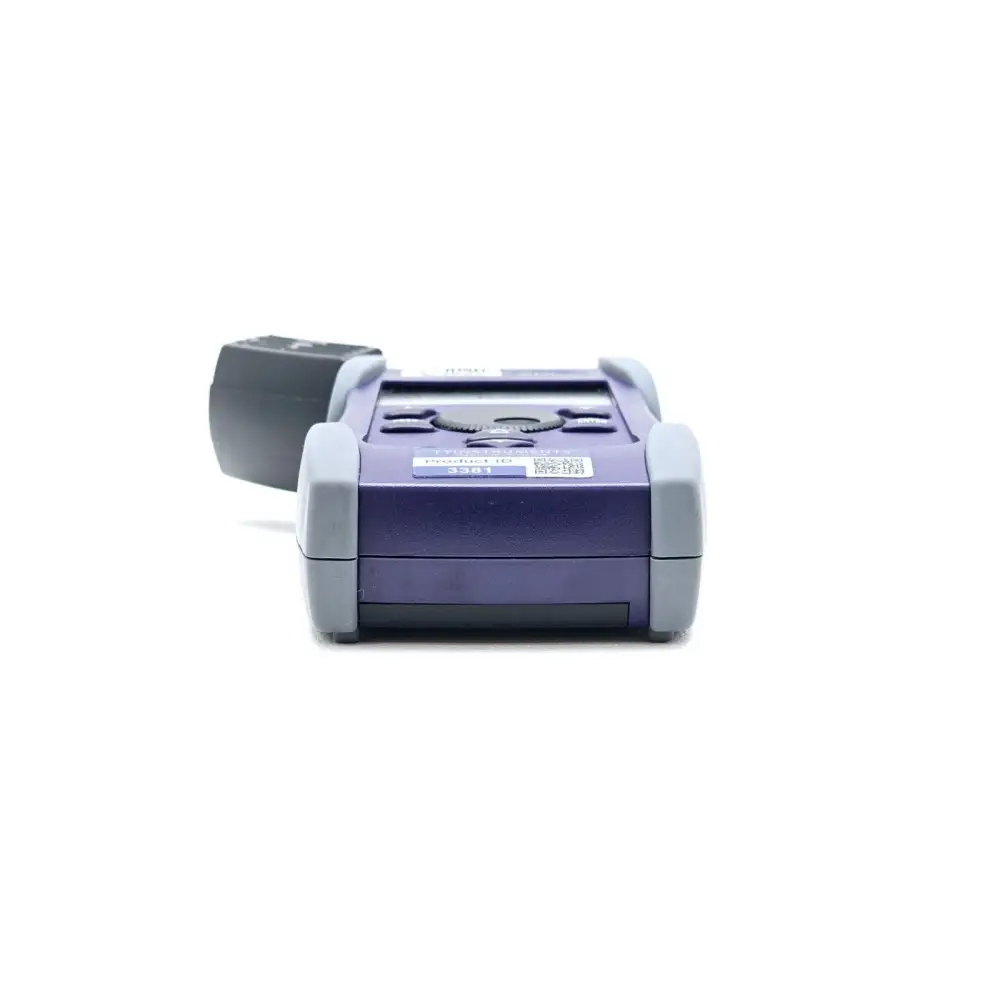

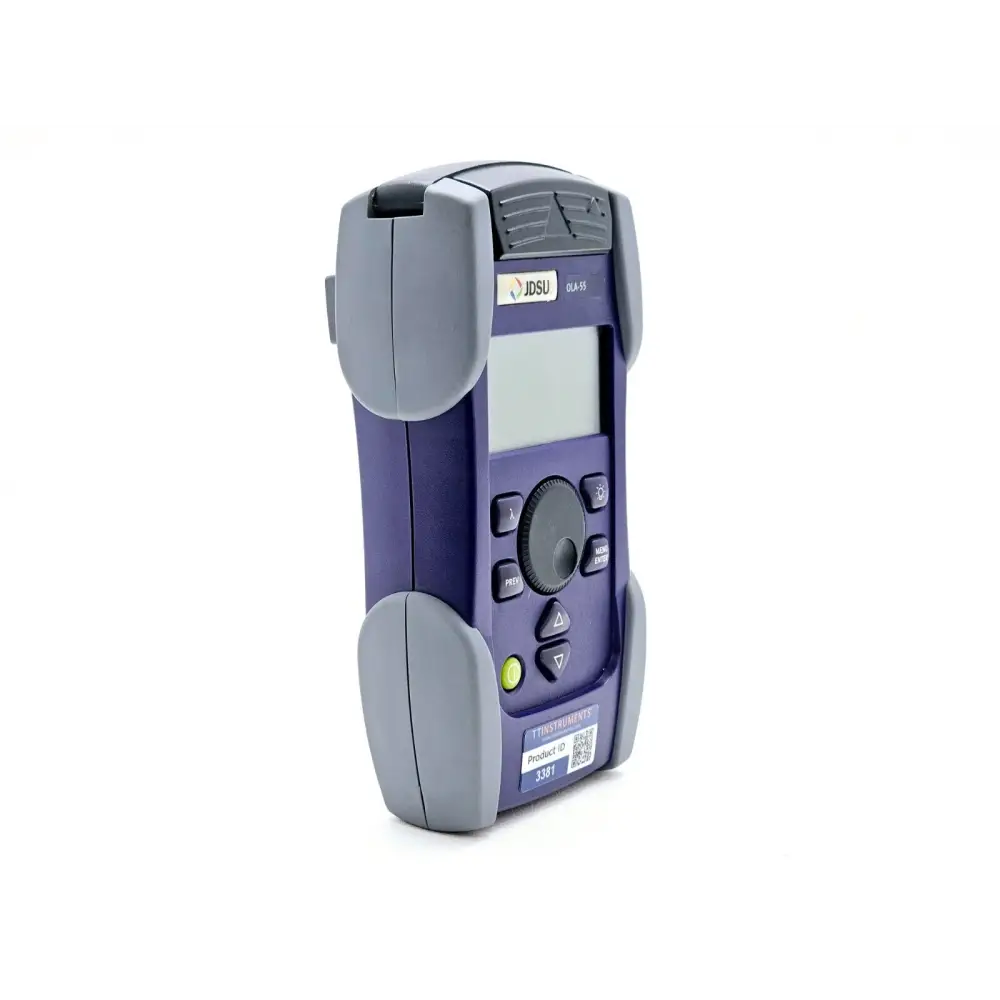

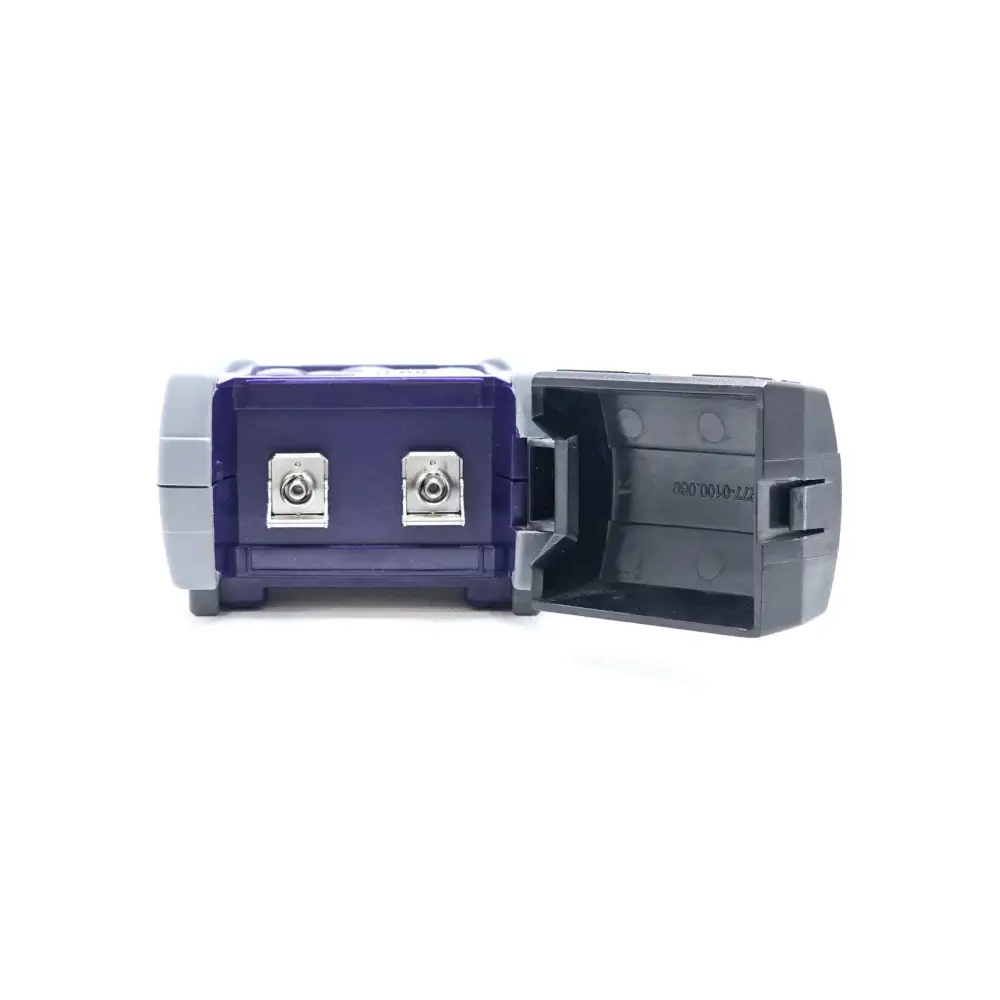

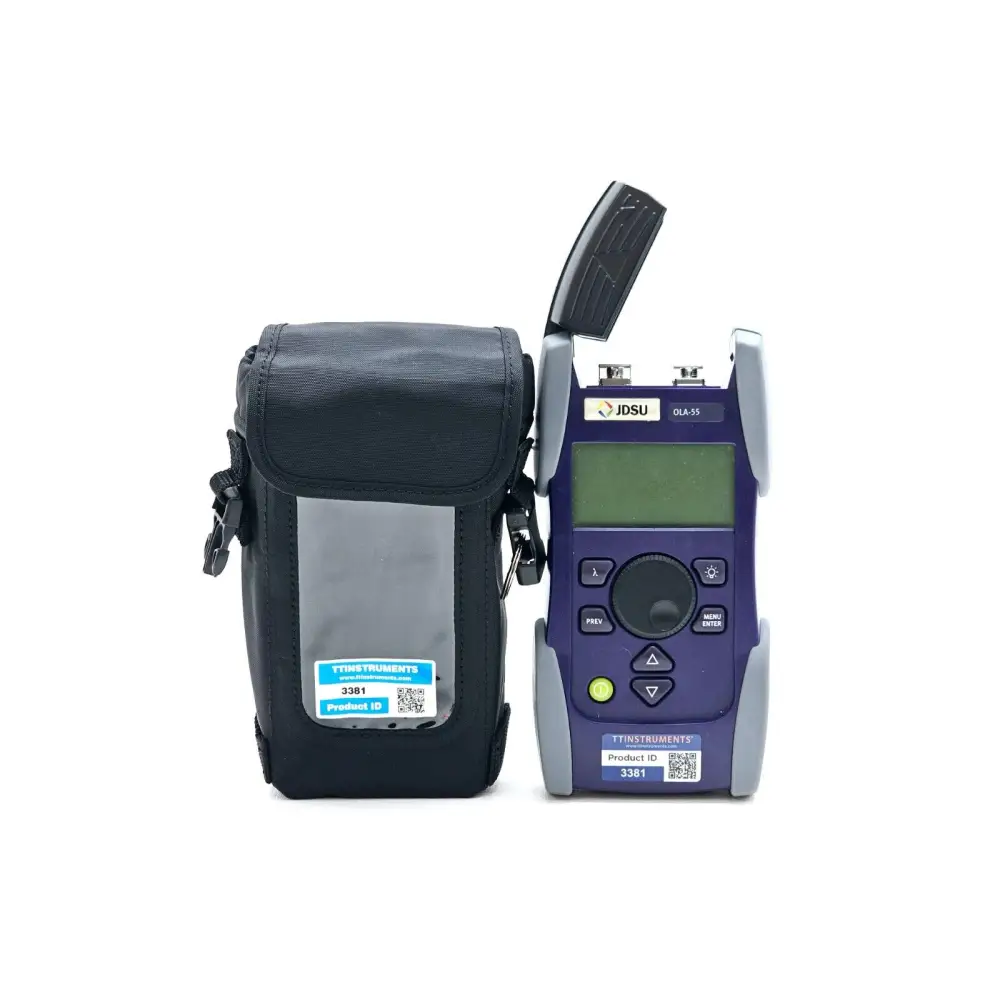

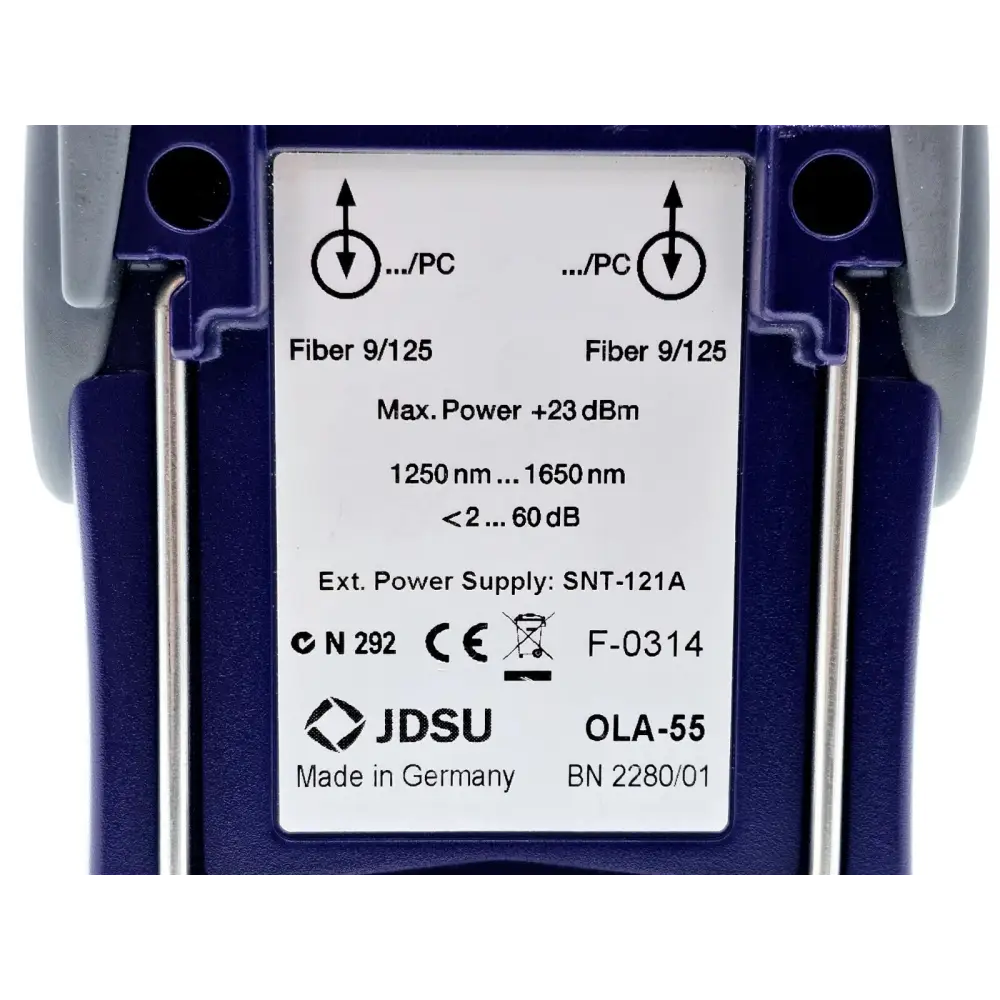

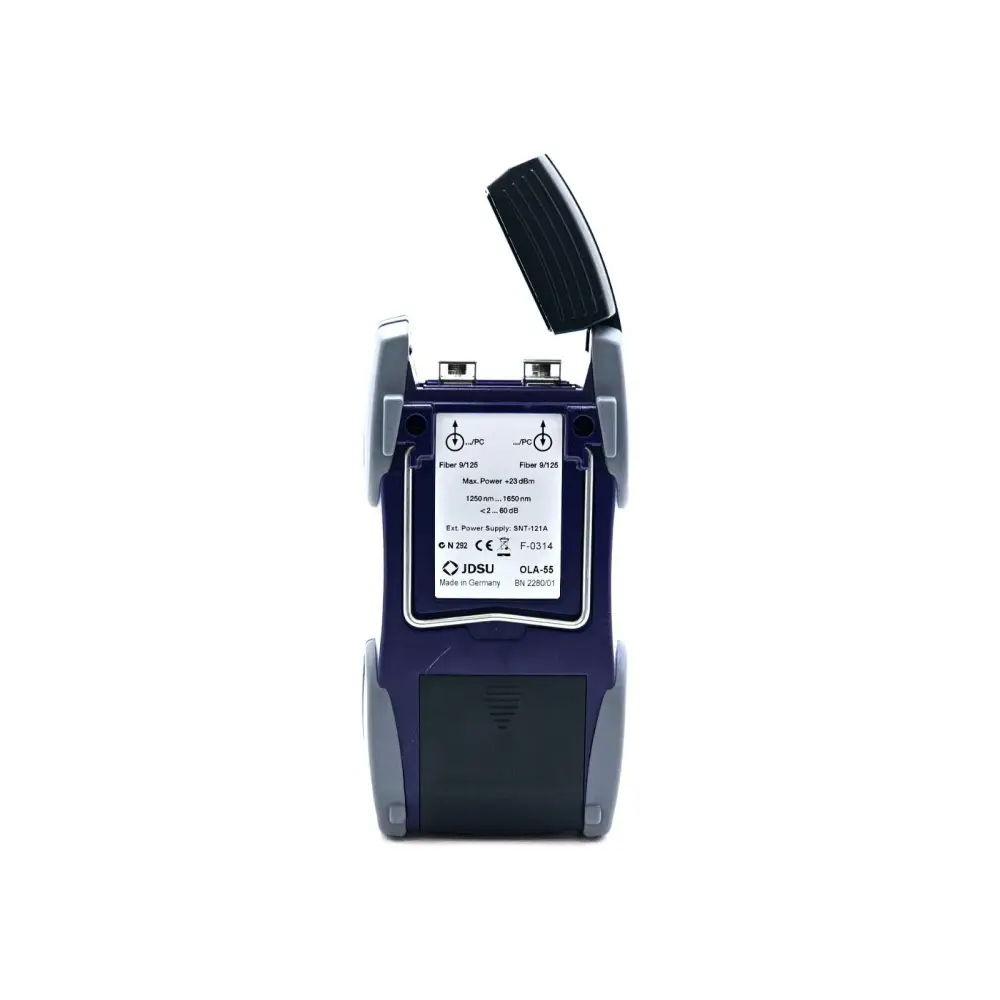

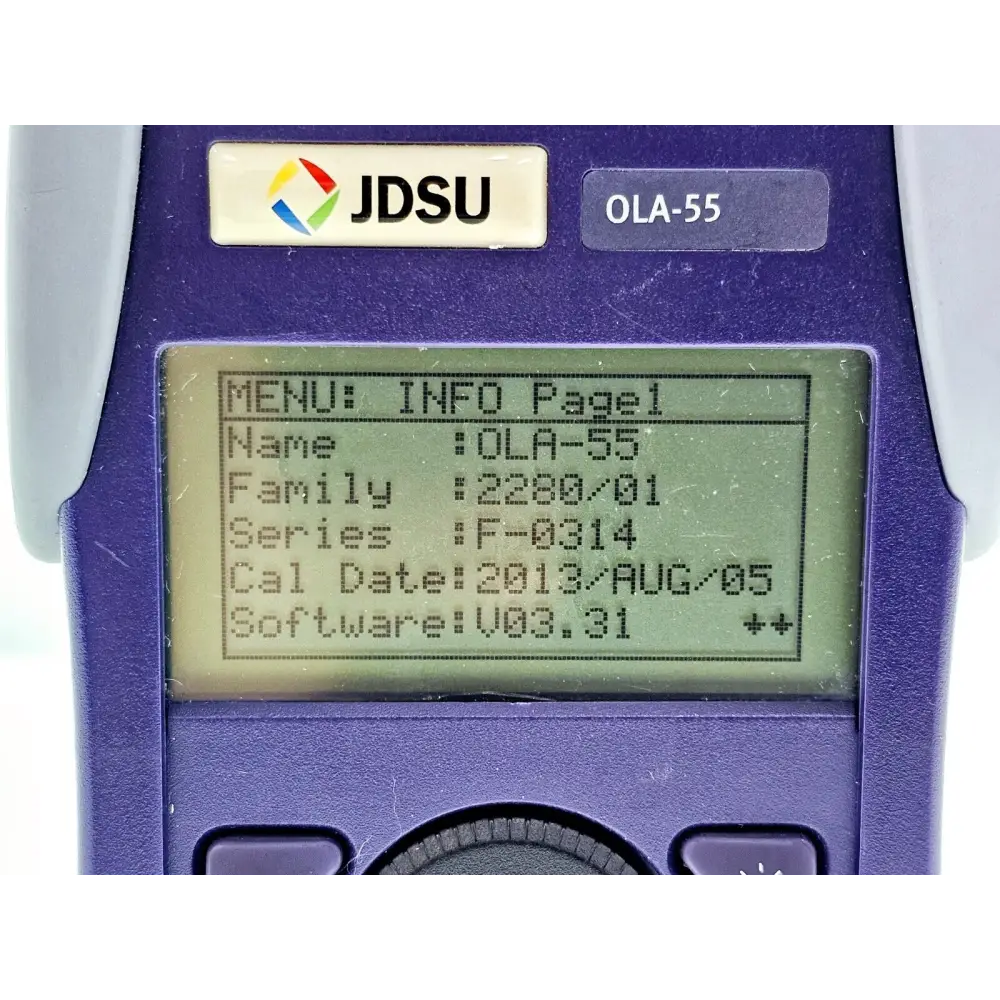

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.
The Viavi (formerly JDSU) OLA-55 is a high-performance singlemode fibre optical attenuator designed for field and laboratory use in the installation, maintenance, and testing of singlemode optical networks, including systems operating up to 40 Gbps. It supports bit error rate testing (BERT) applications and is used to emulate fibre loss for system dynamics testing.

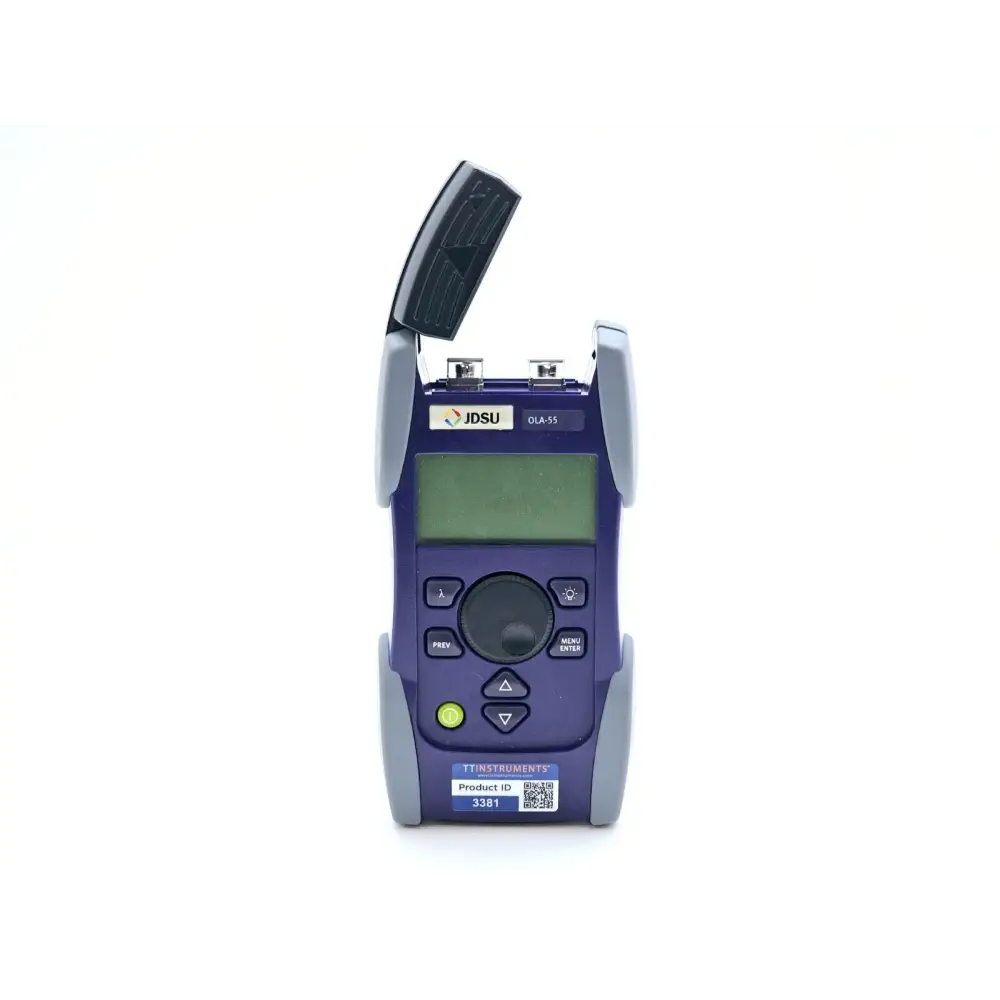

The OLA-55 features the SMARTWheel for precise manual attenuation adjustment, the SMARTStar graphical user interface for intuitive operation, and the SMARTEnergy power management system delivering over 1000 hours of battery life. Measurements are traceable to NIST/PTB standards, and the instrument is built to withstand demanding field environments with a shock-proof, splash-proof enclosure.
Key Specifications:
Fiber Type: 9/125 µm singlemode
Adjustable Wavelength Range: 1260 to 1650 nm in 1 nm increments
Calibrated Wavelengths: 1300 nm, 1310 nm, 1550 nm, 1625 nm
Adjustable Wavelengths: 400
Display Range: 2.0 to 60 dB
Minimum Insertion Loss: <2.0 dB
Linearity: ±0.2 dB
Repeatability of Attenuation Setting: ±0.1 dB
Total Attenuation Accuracy: ±0.8 dB
Setting Type: Continuous over entire range
Function: Bi-directional
Displayed Value: Absolute or relative attenuation
Max. Permitted Input Level: +23 dBm
Battery Life: >1000 hours
Connectivity: USB port for remote operation
Standards Compliance: NIST/PTB traceable
Product Overview
Condition: Used — in good working condition, tested and within specification.
The Viavi JDSU OLA-55 is a singlemode fibre optical level attenuator supporting an adjustable wavelength range of 1260 to 1650 nm in 1 nm increments, with calibrated wavelengths at 1300 nm, 1310 nm, 1550 nm, and 1625 nm. It supports testing of systems up to 40 Gbps and features a maximum permitted input level of +23 dBm. The unit uses a 9/125 µm singlemode fibre type and offers bi-directional operation with both absolute and relative attenuation display modes. Total attenuation accuracy is ±0.8 dB with a repeatability of ±0.1 dB.
Items included in the sale:
• Viavi JDSU OLA-55 Optical Level Attenuator
The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.
Manufacturer's Description
The Viavi (formerly JDSU) OLA-55 is a high-performance singlemode fibre optical attenuator designed for field and laboratory use in the installation, maintenance, and testing of singlemode optical networks, including systems operating up to 40 Gbps. It supports bit error rate testing (BERT) applications and is used to emulate fibre loss for system dynamics testing.
The OLA-55 features the SMARTWheel for precise manual attenuation adjustment, the SMARTStar graphical user interface for intuitive operation, and the SMARTEnergy power management system delivering over 1000 hours of battery life. Measurements are traceable to NIST/PTB standards, and the instrument is built to withstand demanding field environments with a shock-proof, splash-proof enclosure.
Key Specifications:
Fiber Type: 9/125 µm singlemode
Adjustable Wavelength Range: 1260 to 1650 nm in 1 nm increments
Calibrated Wavelengths: 1300 nm, 1310 nm, 1550 nm, 1625 nm
Adjustable Wavelengths: 400
Display Range: 2.0 to 60 dB
Minimum Insertion Loss: <2.0 dB
Linearity: ±0.2 dB
Repeatability of Attenuation Setting: ±0.1 dB
Total Attenuation Accuracy: ±0.8 dB
Setting Type: Continuous over entire range
Function: Bi-directional
Displayed Value: Absolute or relative attenuation
Max. Permitted Input Level: +23 dBm
Battery Life: >1000 hours
Connectivity: USB port for remote operation
Standards Compliance: NIST/PTB traceable
