Viavi JDSU MTS 8000e V2 with OSA-500RS 2281/91.57 Optical DWDM Analyzer OSA PC

Condition: Used

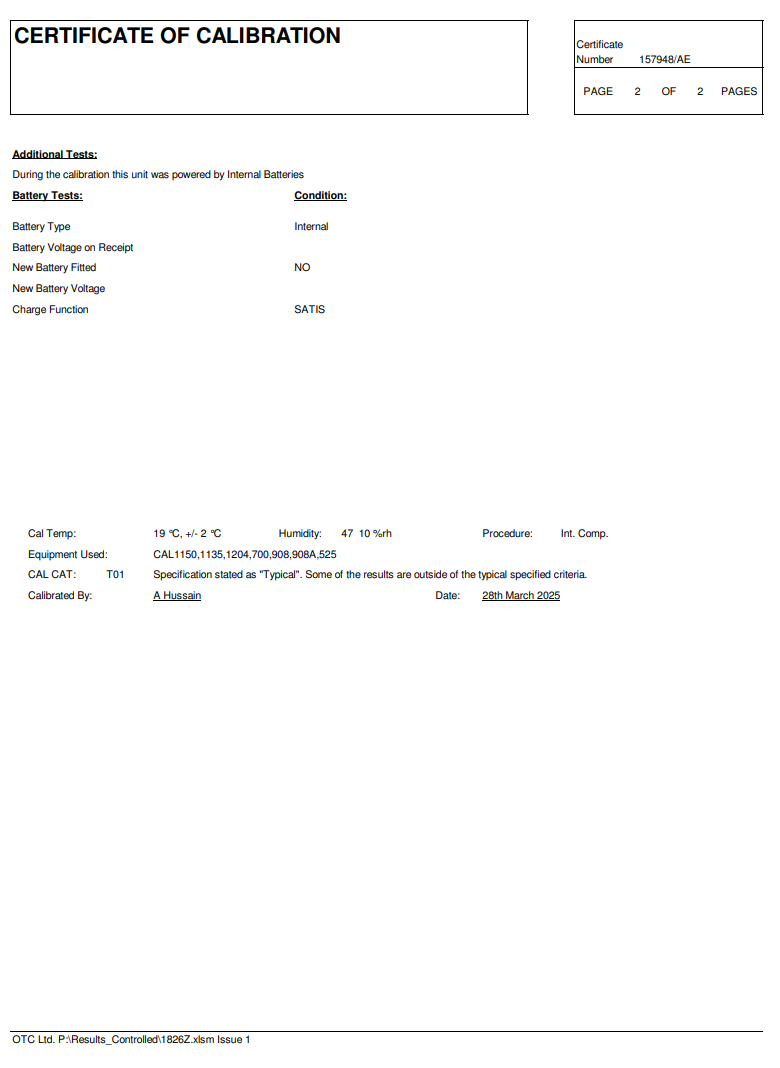

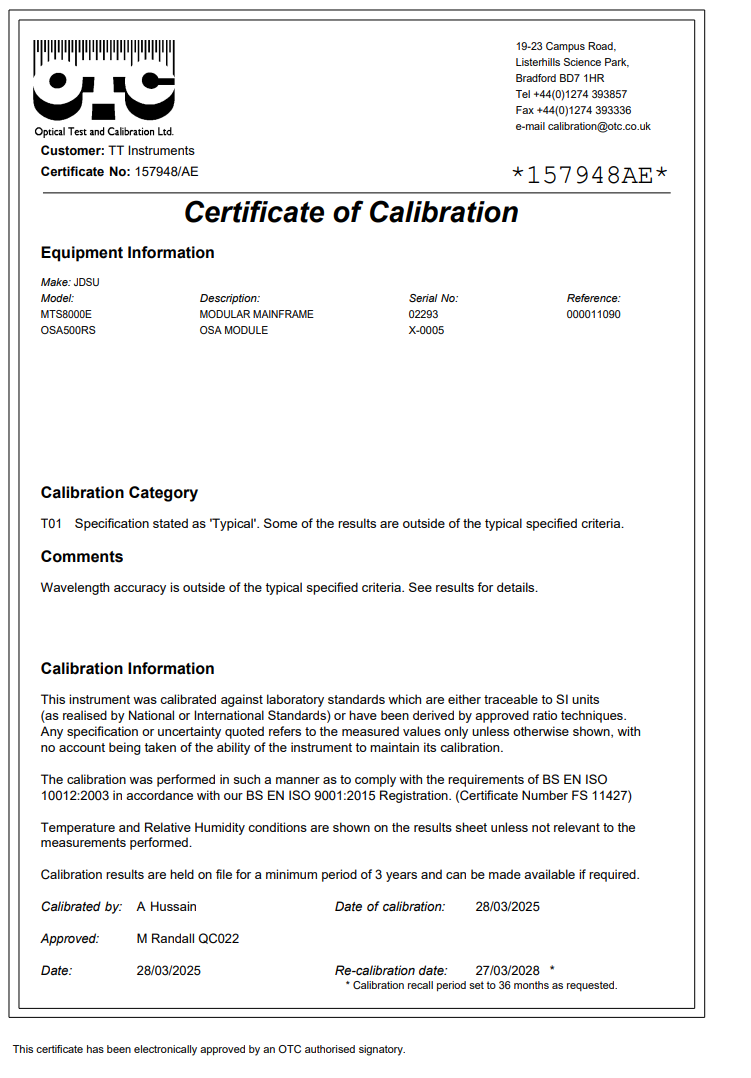

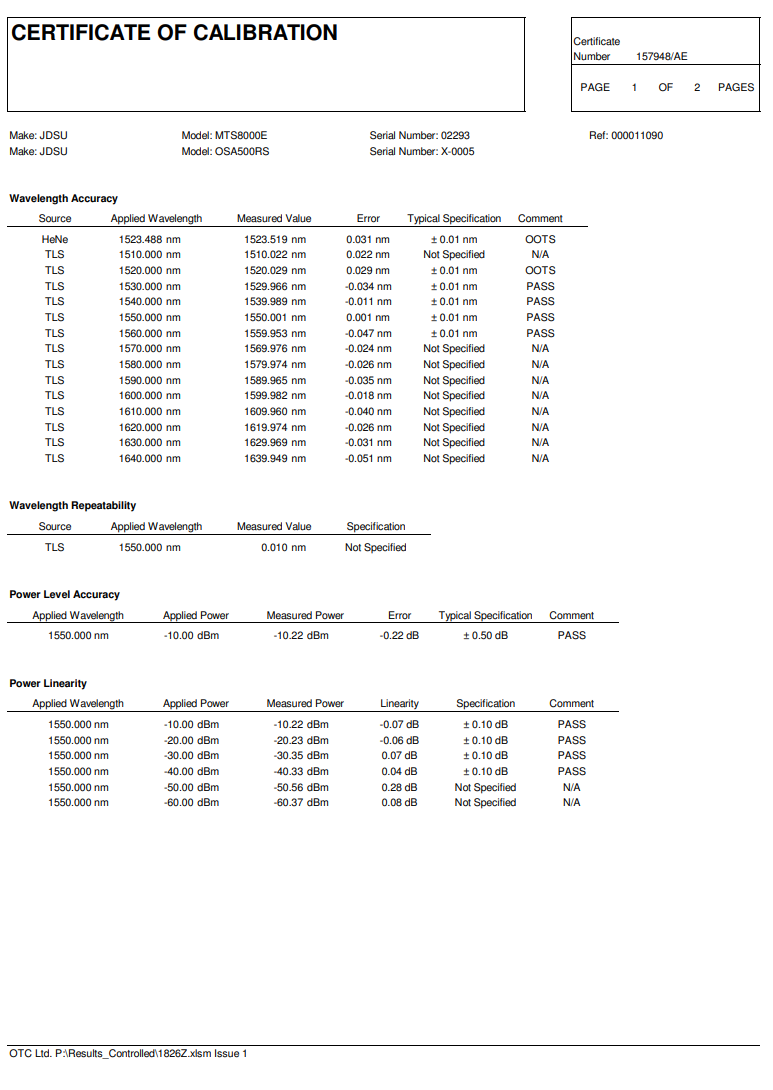

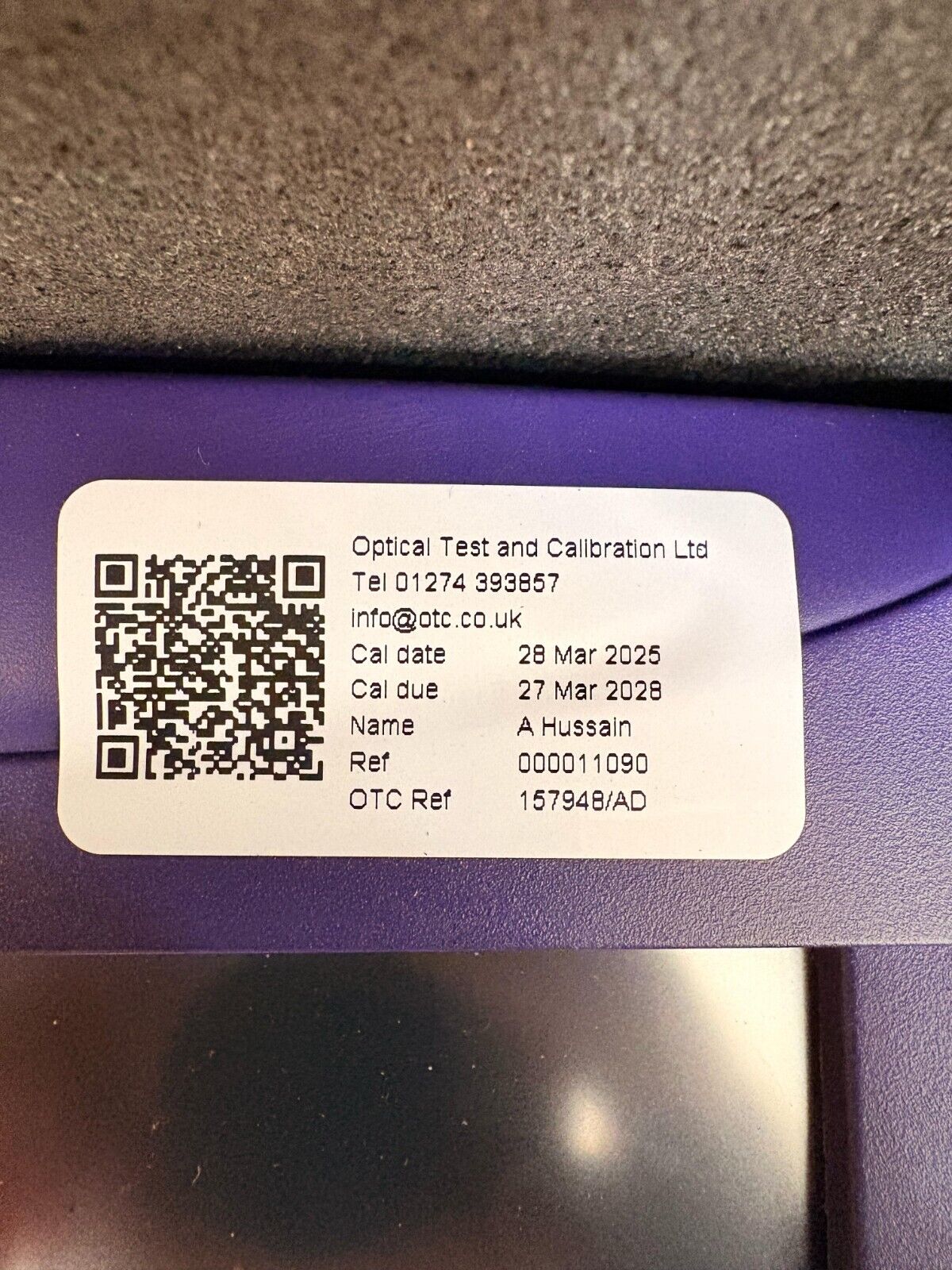

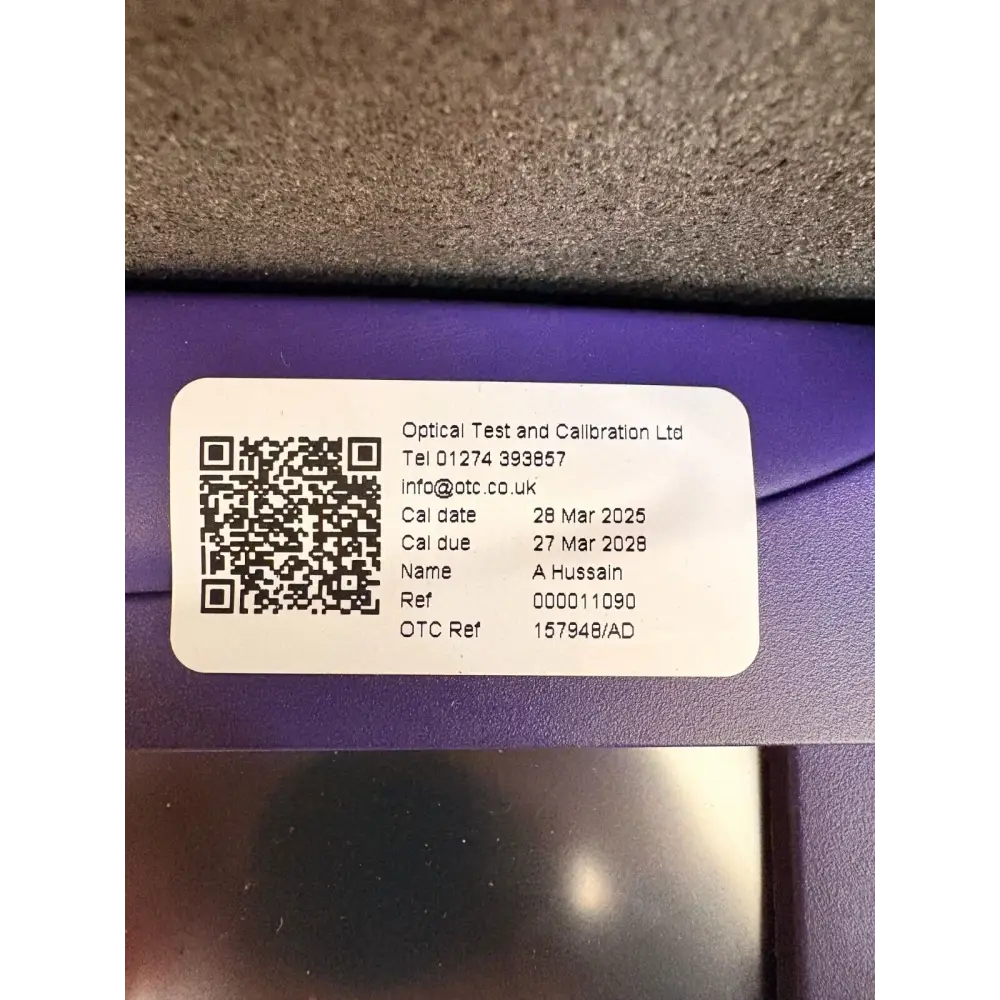

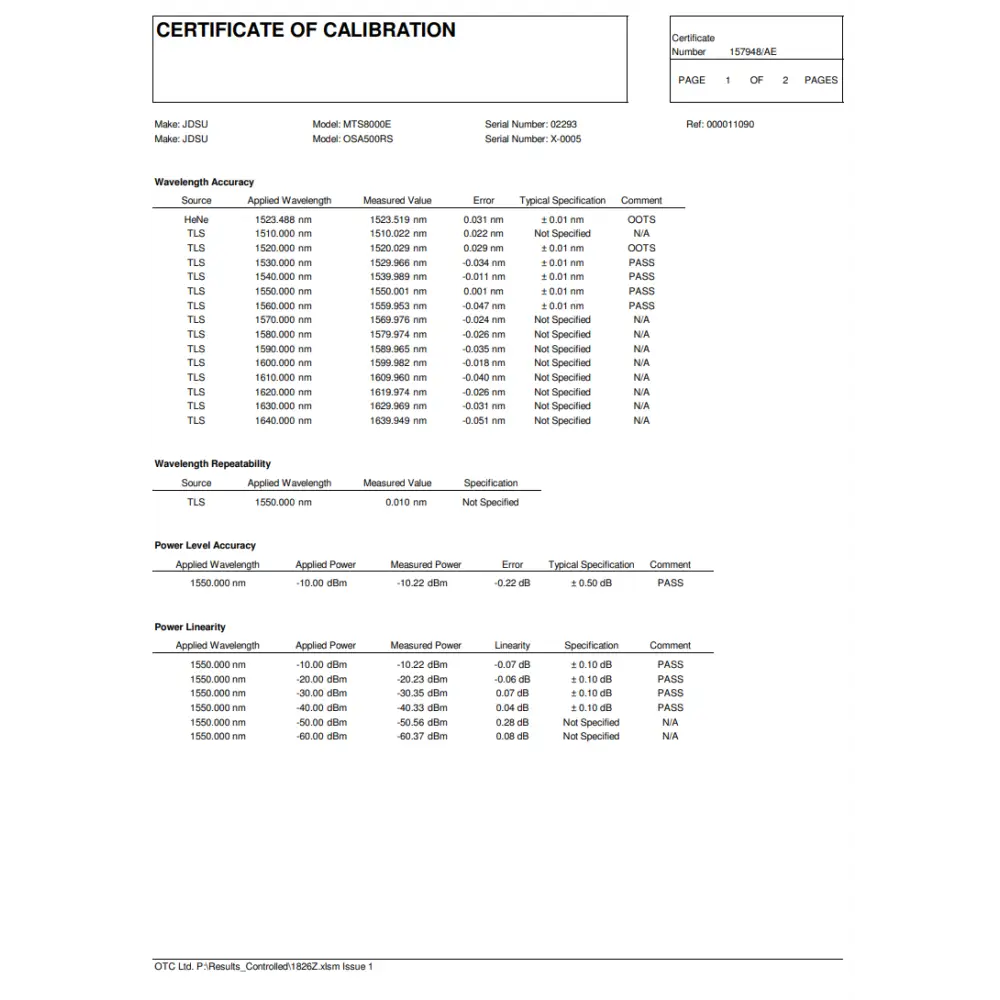

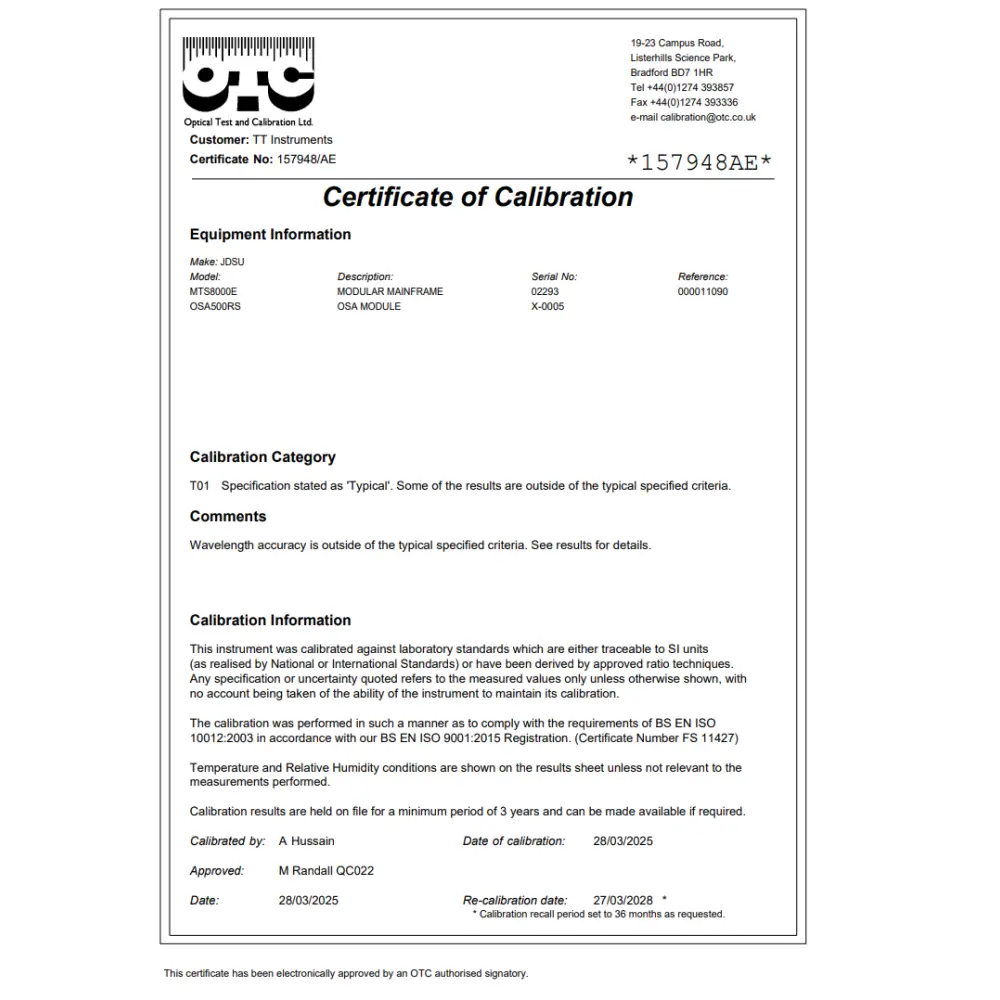

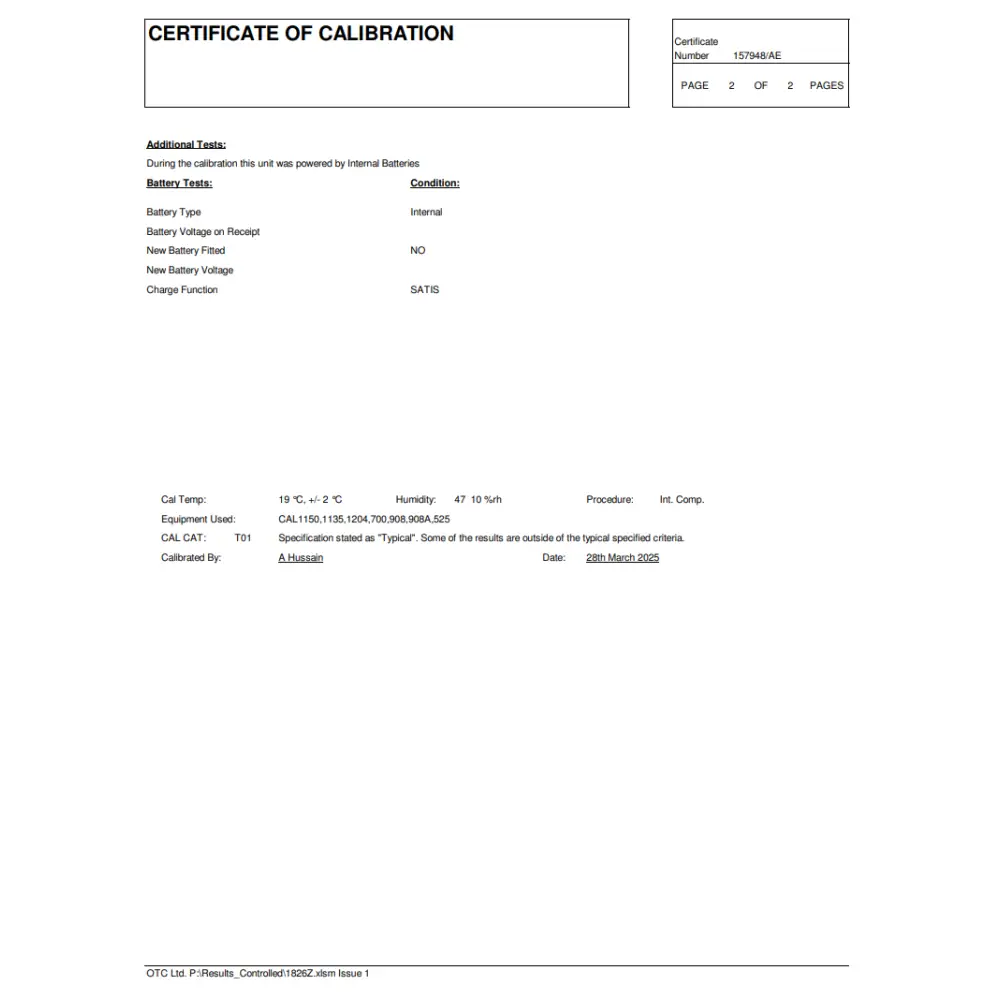

This Viavi JDSU MTS 8000e V2 mainframe fitted with the OSA-500RS 2281/91.57 Optical DWDM Analyzer module has been tested and is confirmed working. A calibration was performed in March 2025 and passed with an advisory — please review the images for full details of the calibration report.

Included in the sale:

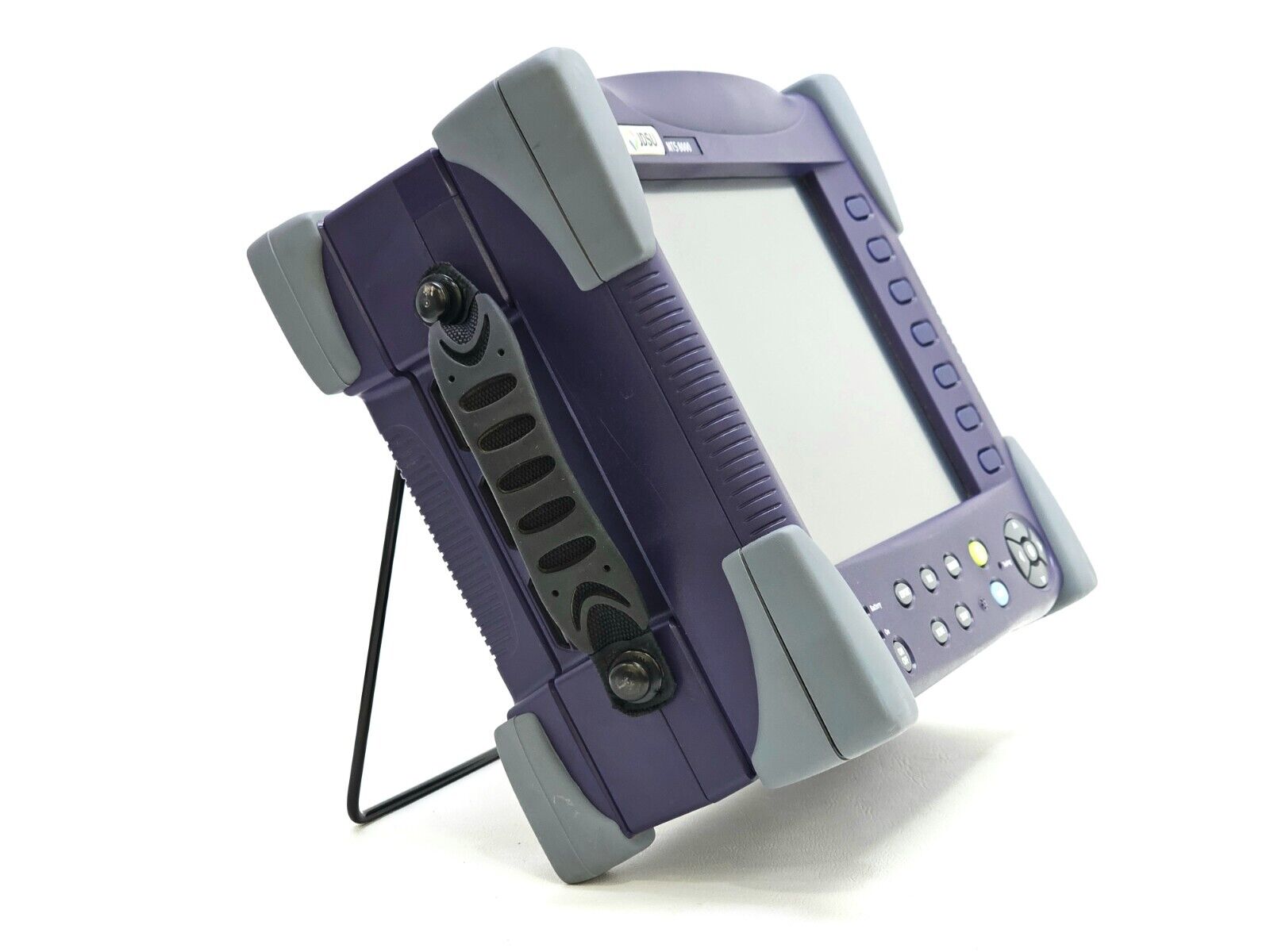

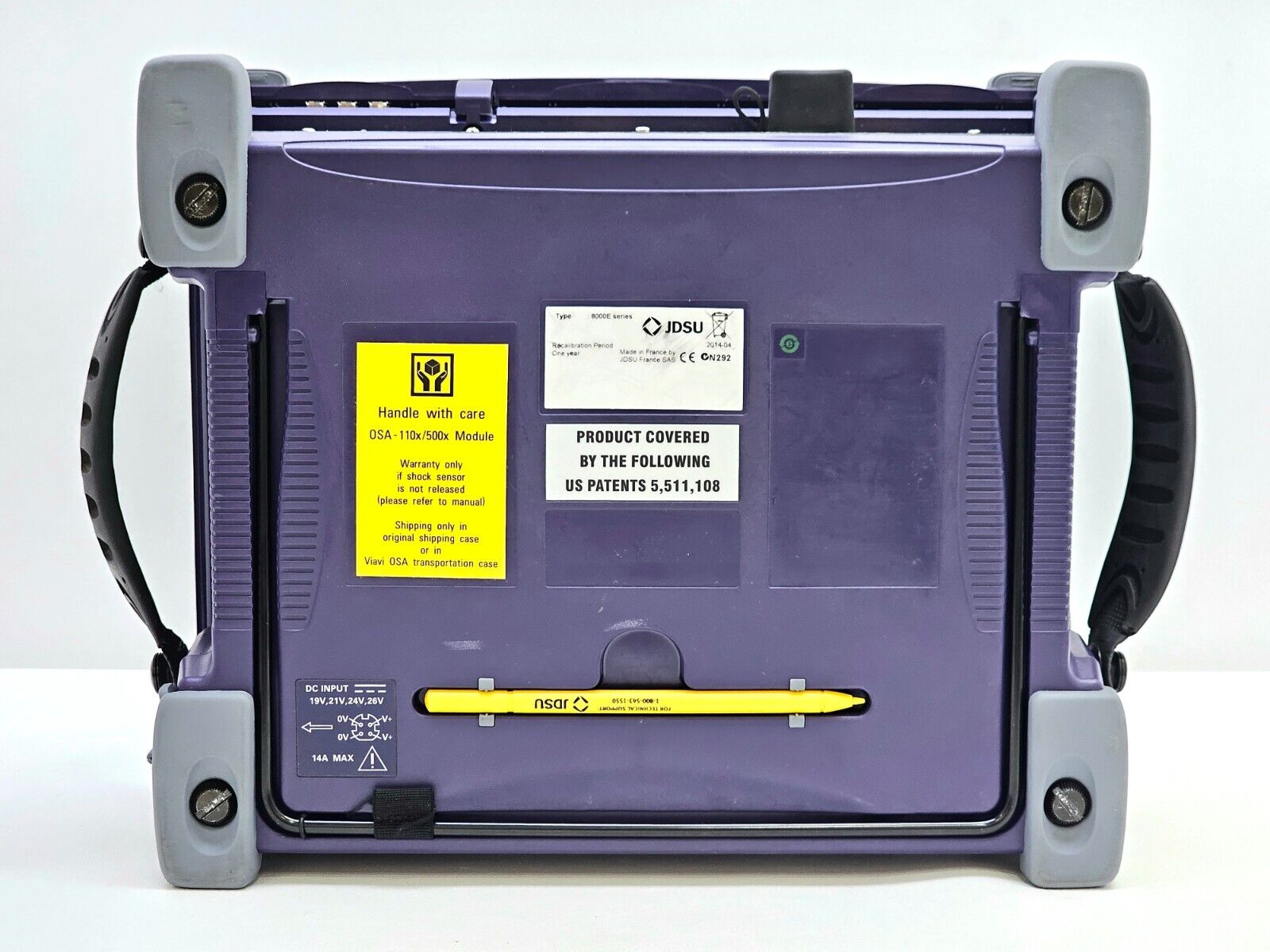

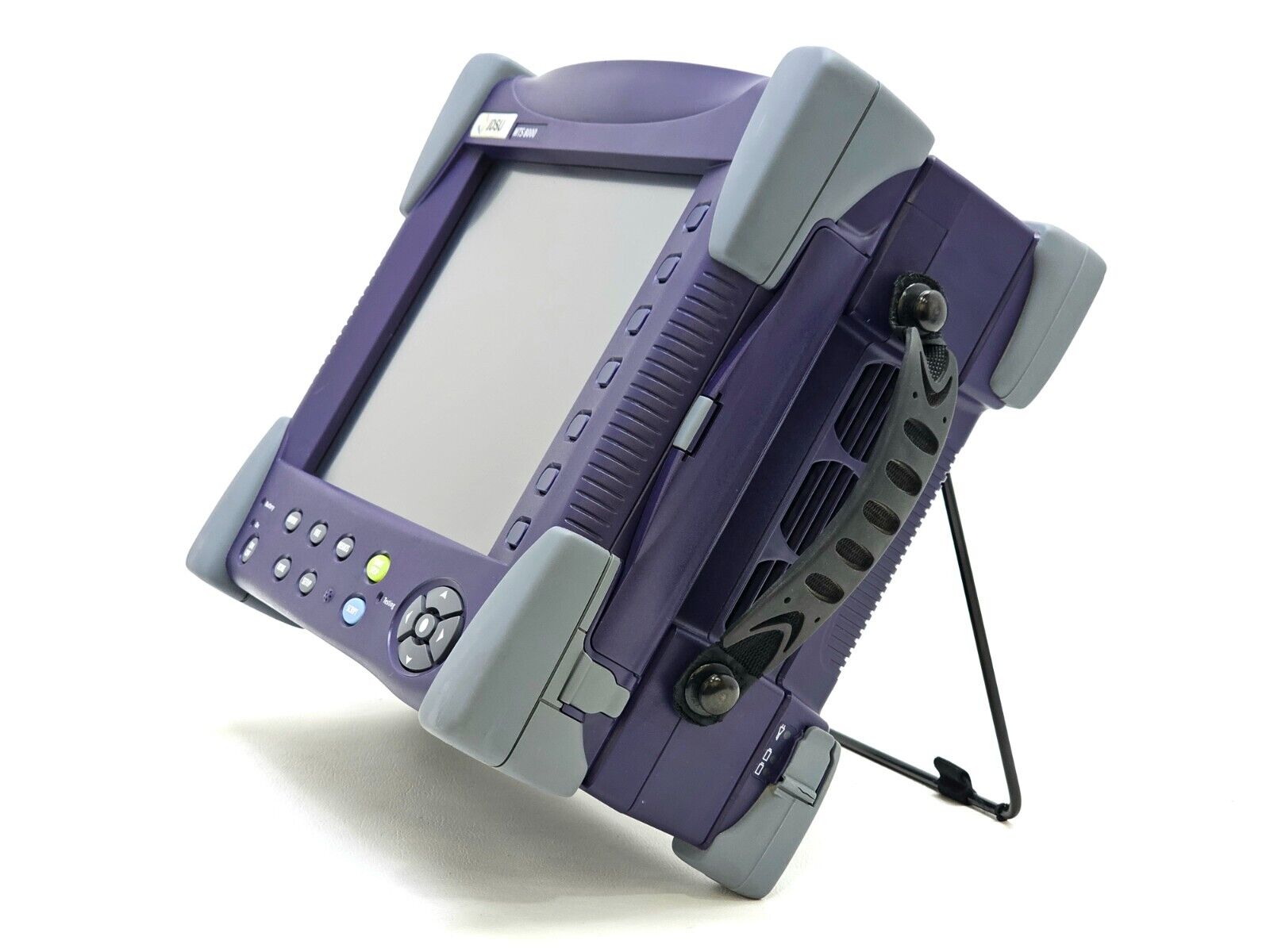

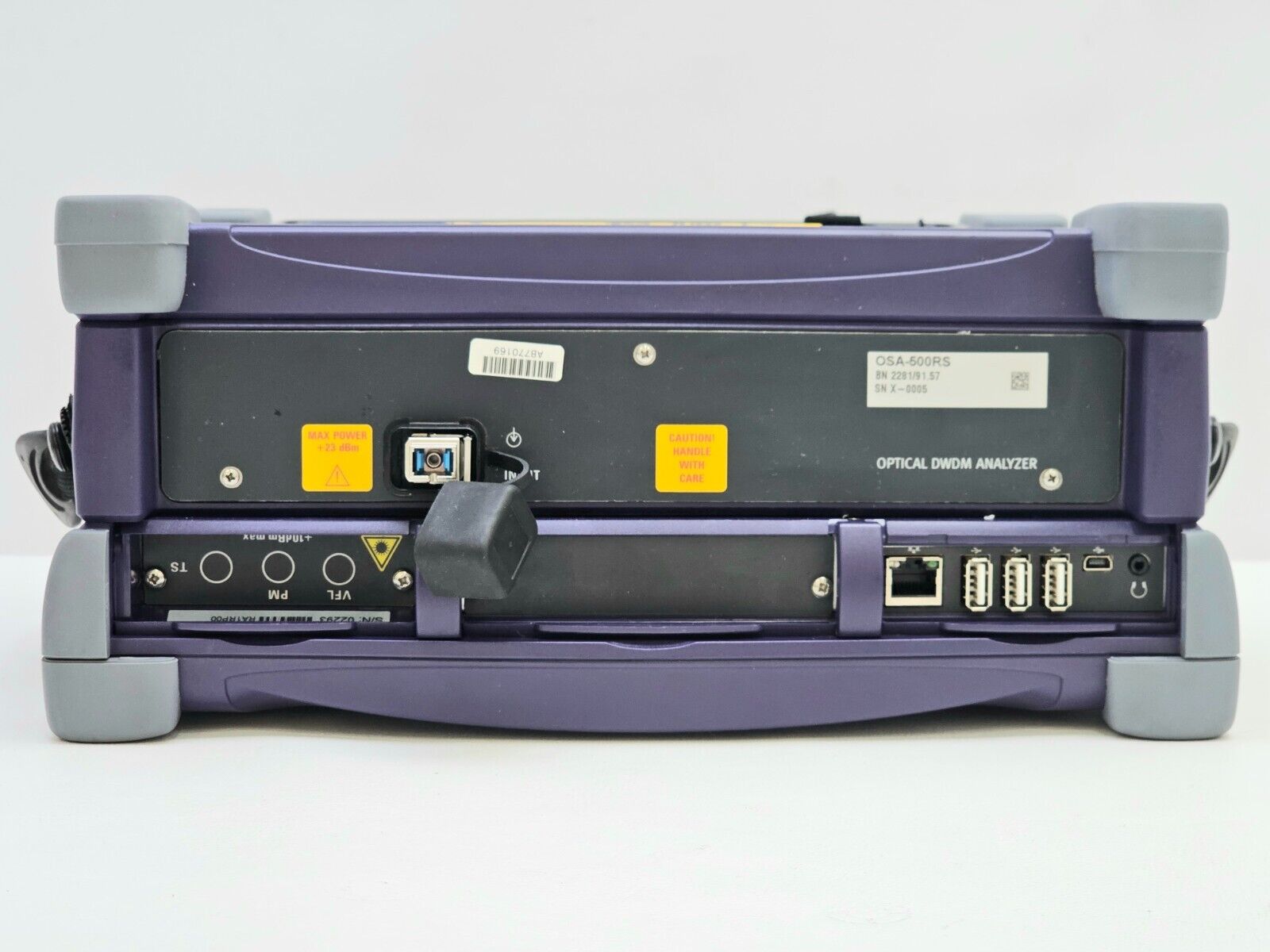

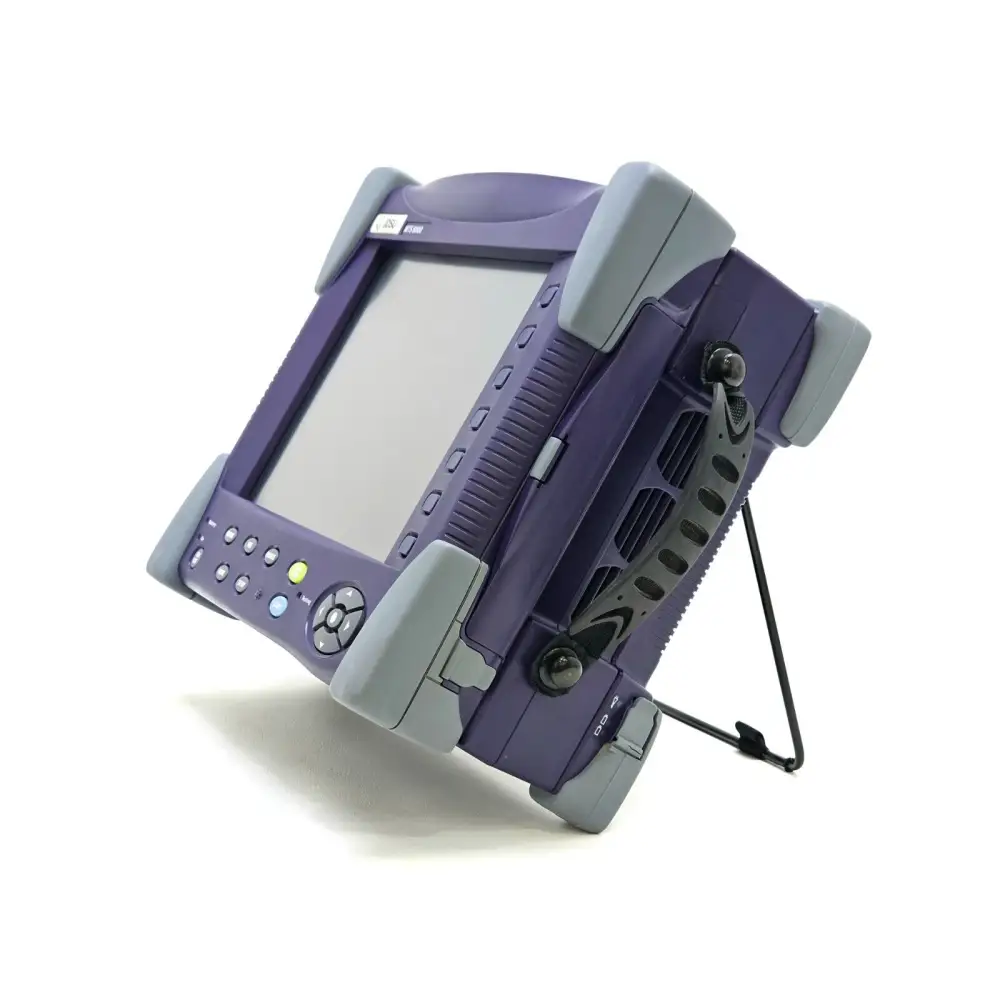

• JDSU T-BERD 8000e Mainframe

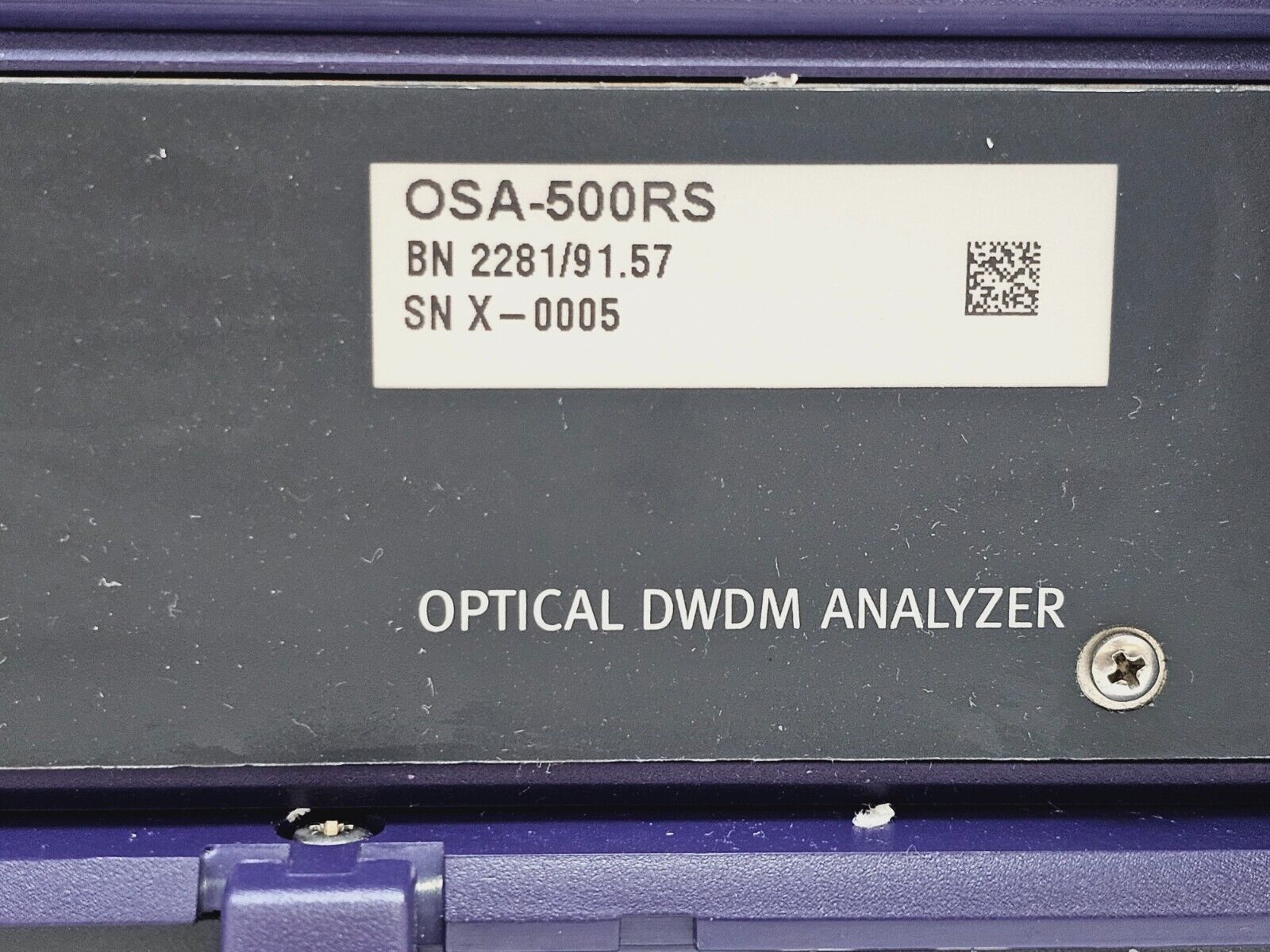

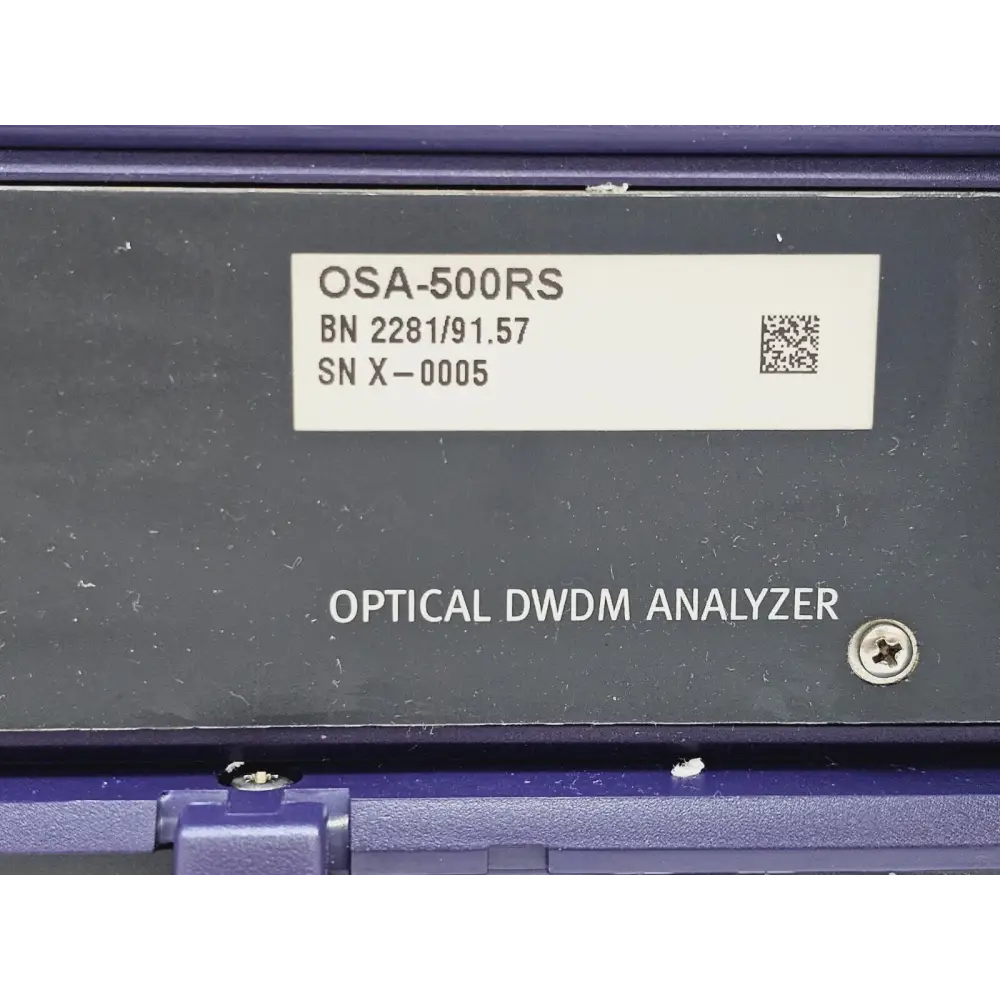

• OSA-500RS 2281/91.57 Optical DWDM Analyzer module

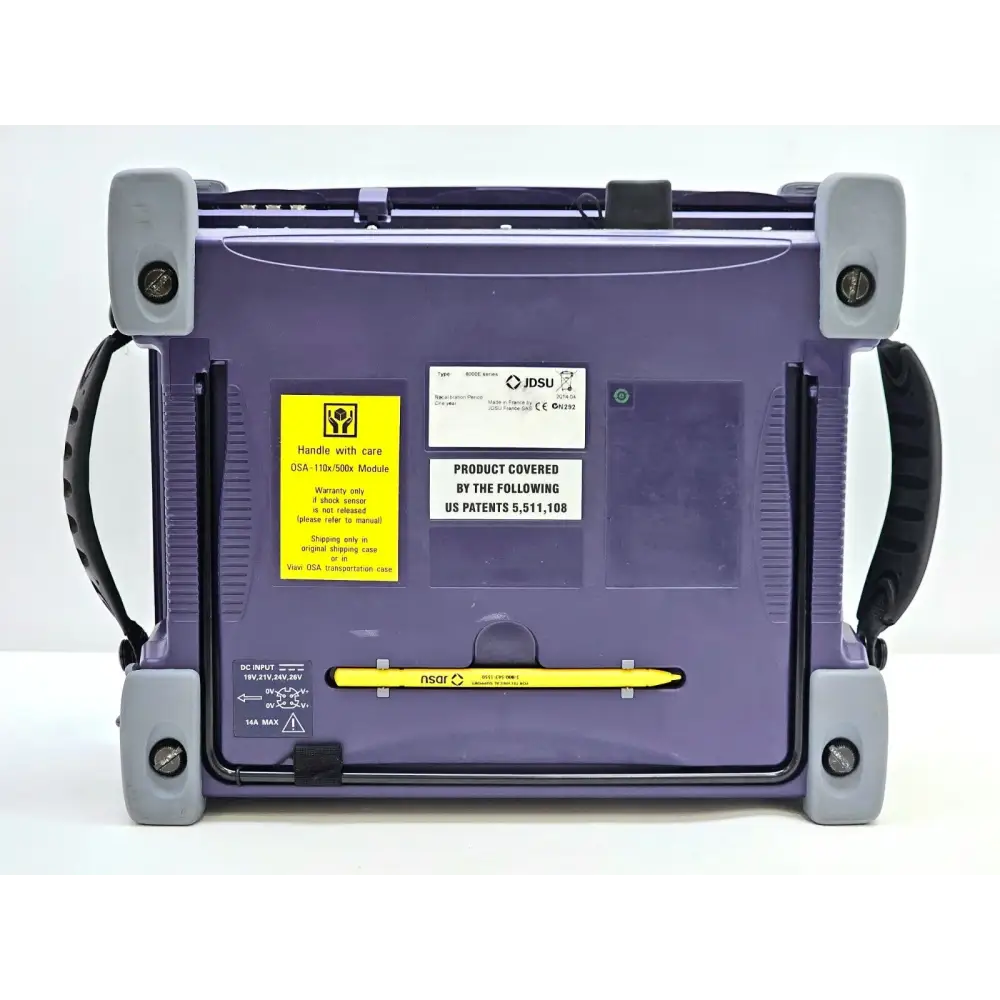

• Stylus

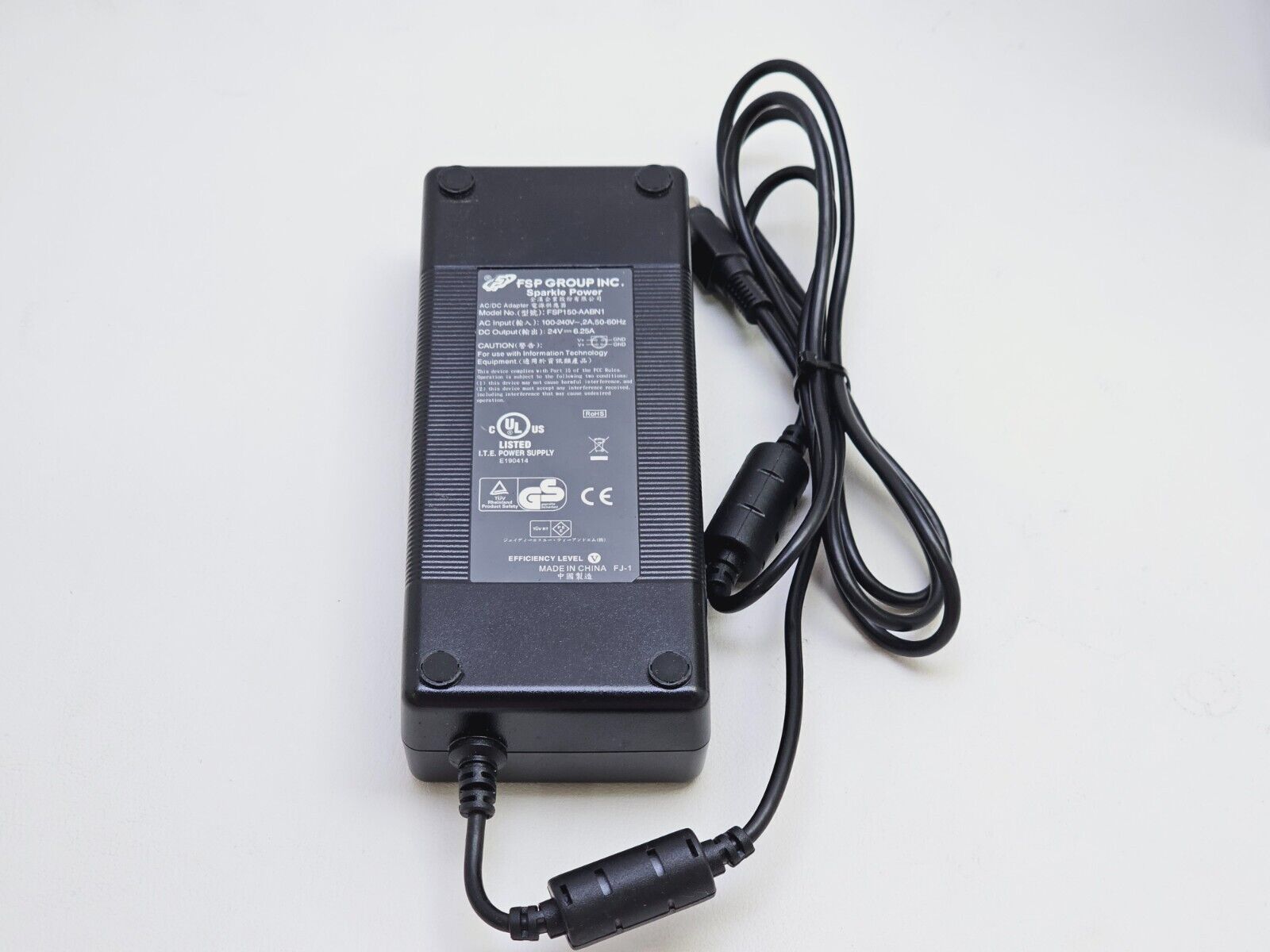

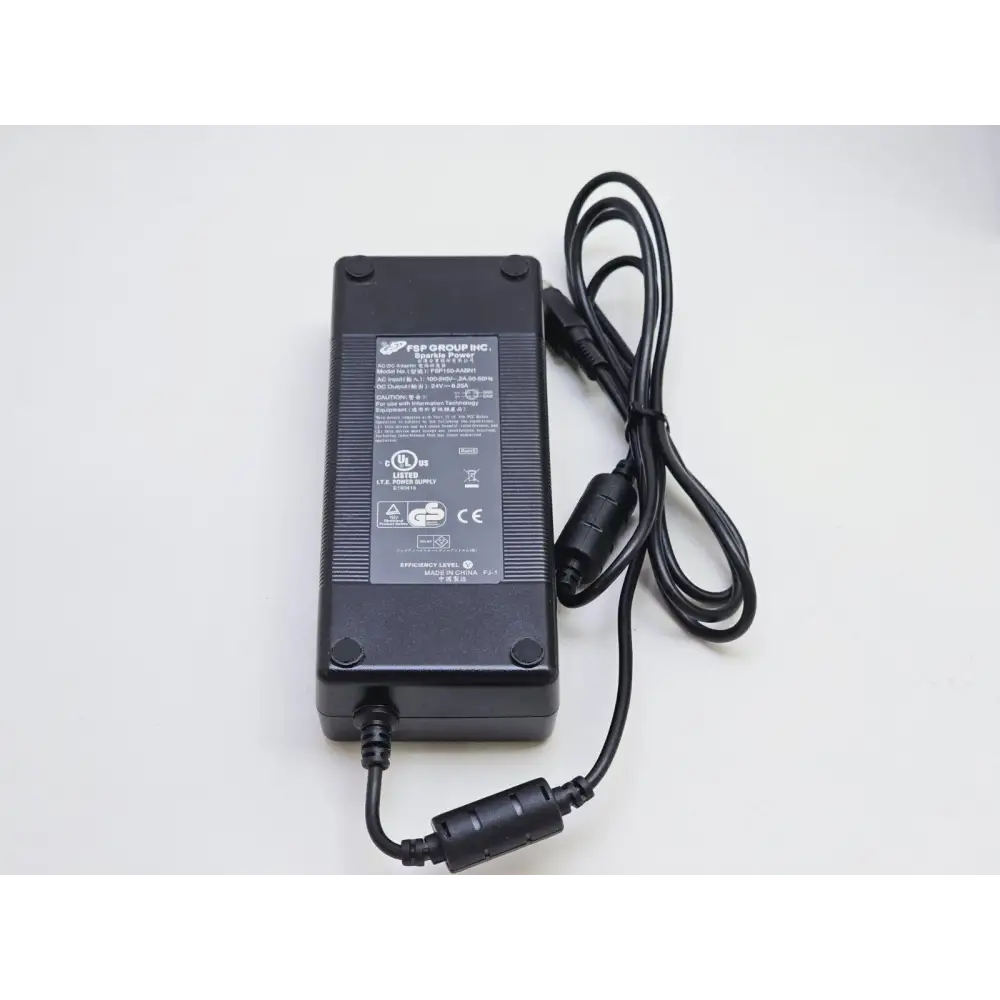

• Power adapter

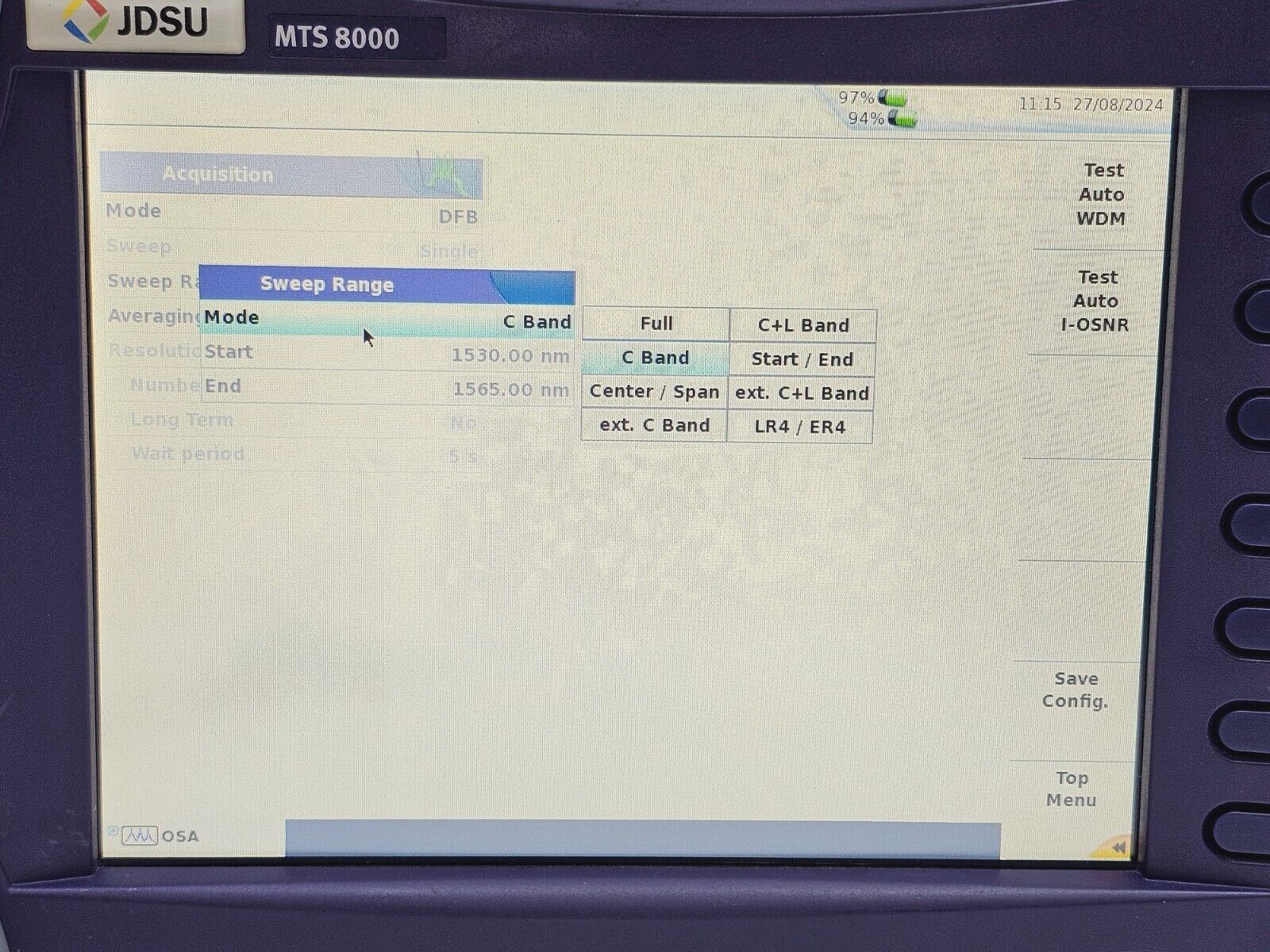

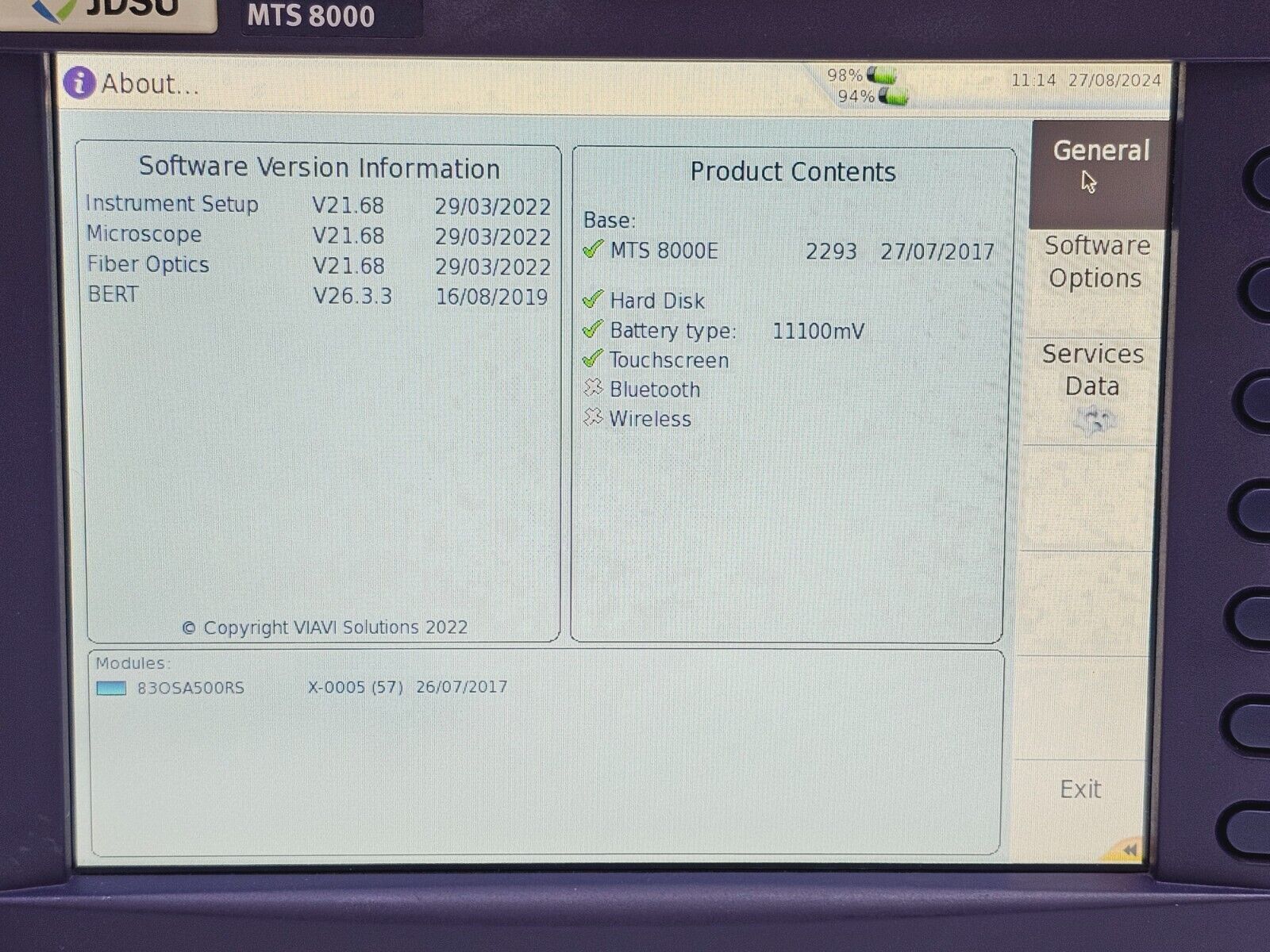

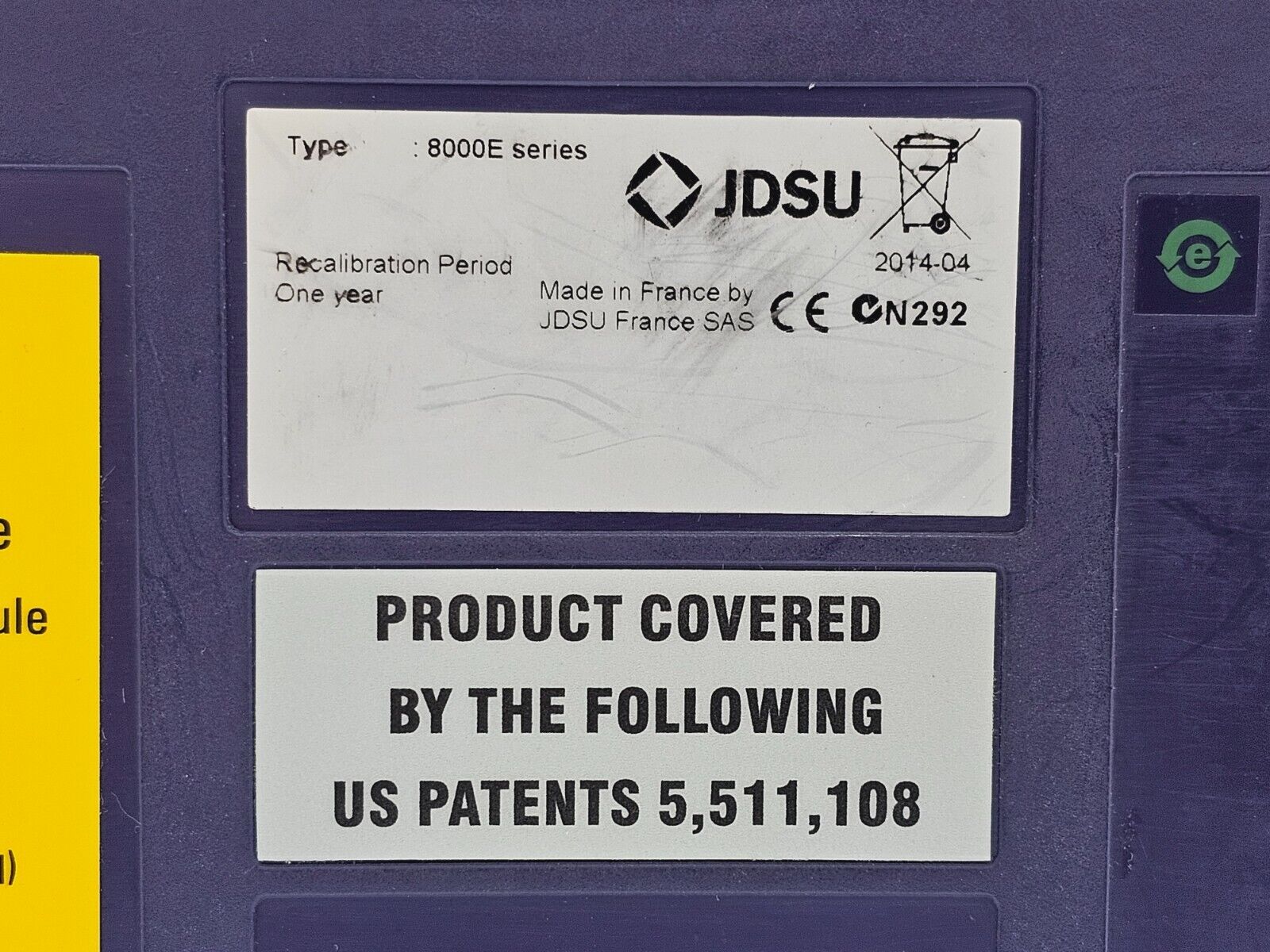

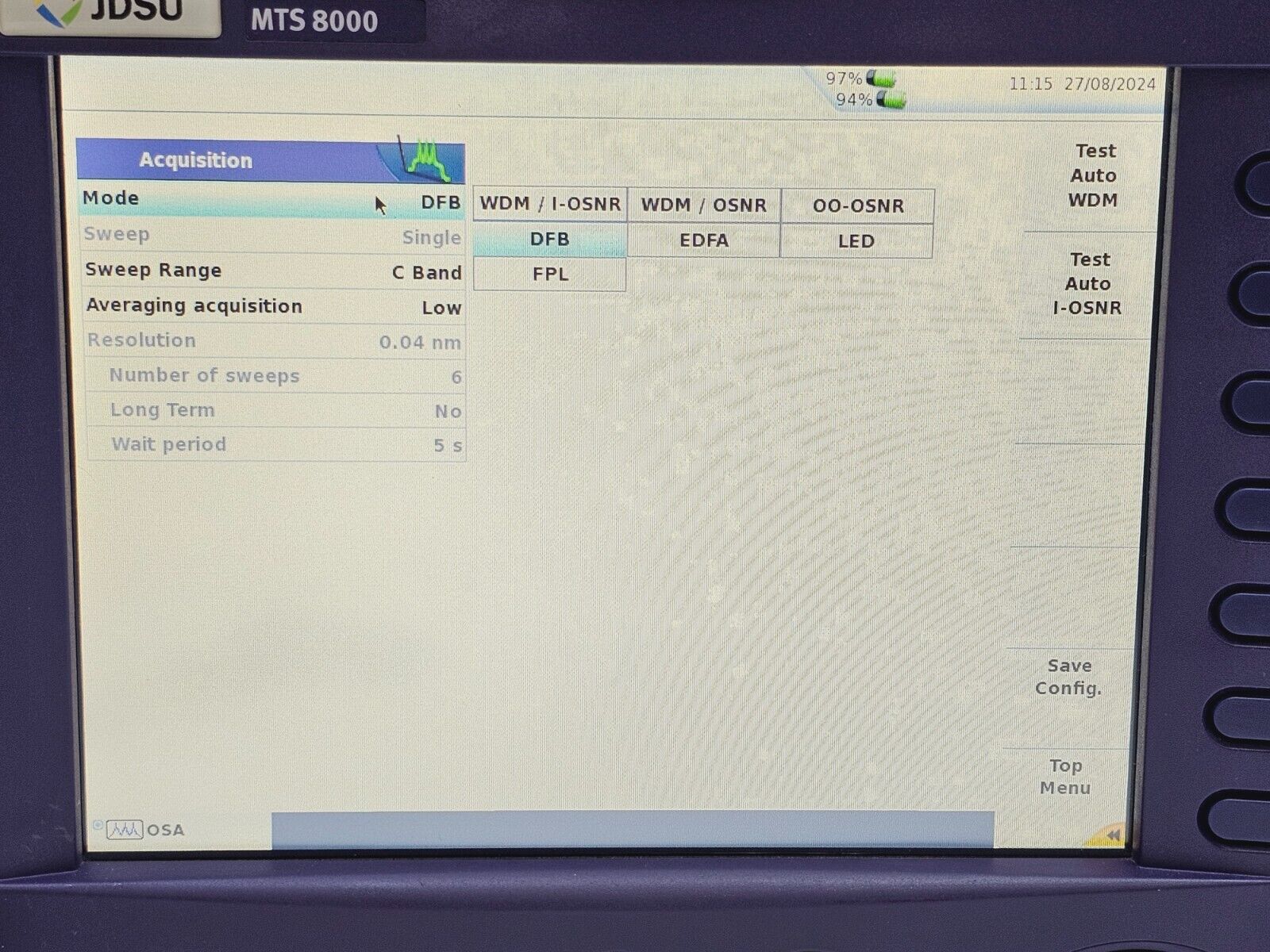

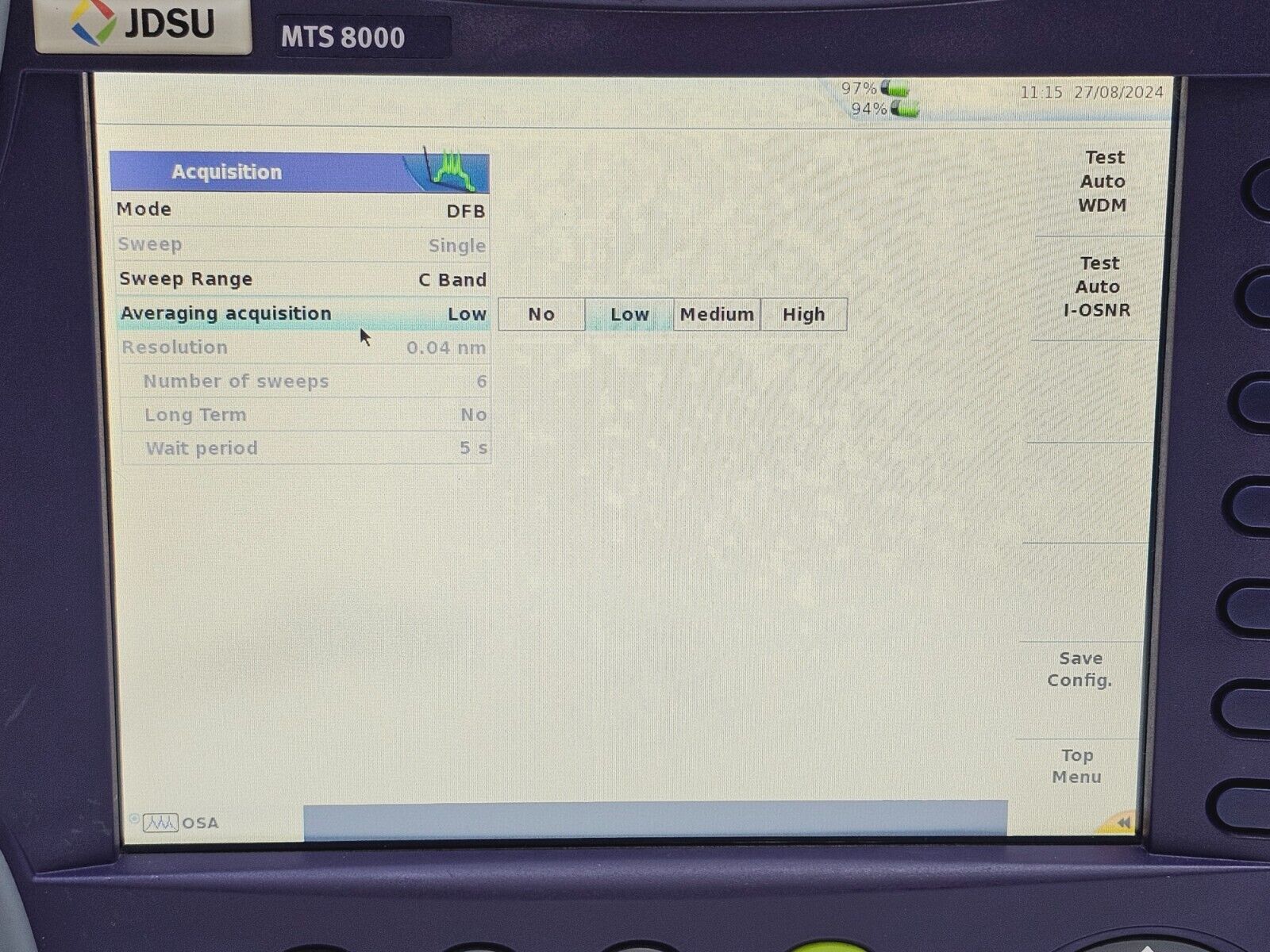

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

Industry-leading solutions for CWDM/DWDM and ROADM testing-based systems up to 100 Gbps.

VIAVI offers a full range of OSAs tailored for spectral measurements in CWDM systems in the access network as well as DWDM systems in high-speed backbone networks with data rates up to 40 Gbps or 100 Gbps. The OSA-500RS features VIAVI's unique in-band OSNR method for true OSNR measurements in ROADM-based systems, combined with full-band optical performance in a field-modular design.

Key Features:
New Optical Polarisation Splitting method (OPS-method, VIAVI pat. pending) for measuring true in-band OSNR in ROADM-based networks
In-band OSNR measurement time significantly reduced using a fast polarisation controller
Internal online wavelength calibration guarantees highest wavelength accuracy with no recalibration required, reducing service costs
High filter selectivity and lab-grade optical performance over the full band, 1250 to 1650 nm
Future-proof wide tuning range suitable for all optical DWDM and CWDM (Metro) networks up to 100 Gbps
Channel drop option for troubleshooting and fault location — isolates a single channel from the entire spectrum for in-depth signal analysis with BERT or Q-factor meter
Software option for PMD testing based on the fixed analyser PMD test method
Built-in optical component test applications for laser diodes, LEDs, and optical amplifiers
Compatible with MTS-8000 / T-BERD 8000 and MTS-6000 / T-BERD 6000 platforms

Applications:
Measurement of true in-band OSNR in agile optical networks including ROADM testing and dispersion compensating modules
DWDM and CWDM system testing during installation, maintenance, and network upgrade
Automated DWDM passive and active component testing
System verification testing according to customer preset limits
Verification of ROADM configurations in agile optical networks
Full-band optical spectrum analysis for field-portable platforms

Specifications:
Wavelength Range: 1250 to 1650 nm
Application: CWDM and DWDM network testing up to 100 Gbps
OSNR Method: In-band OSNR (OPS polarisation splitting method)
Wavelength Calibration: Internal online, no recalibration required
Platform Compatibility: MTS-8000 / T-BERD 8000, MTS-6000 / T-BERD 6000
Form Factor: Field-modular, portable

Viavi OSA-500x Series Optical Spectrum Analyser Modules Datasheet (PDF): Download PDF
