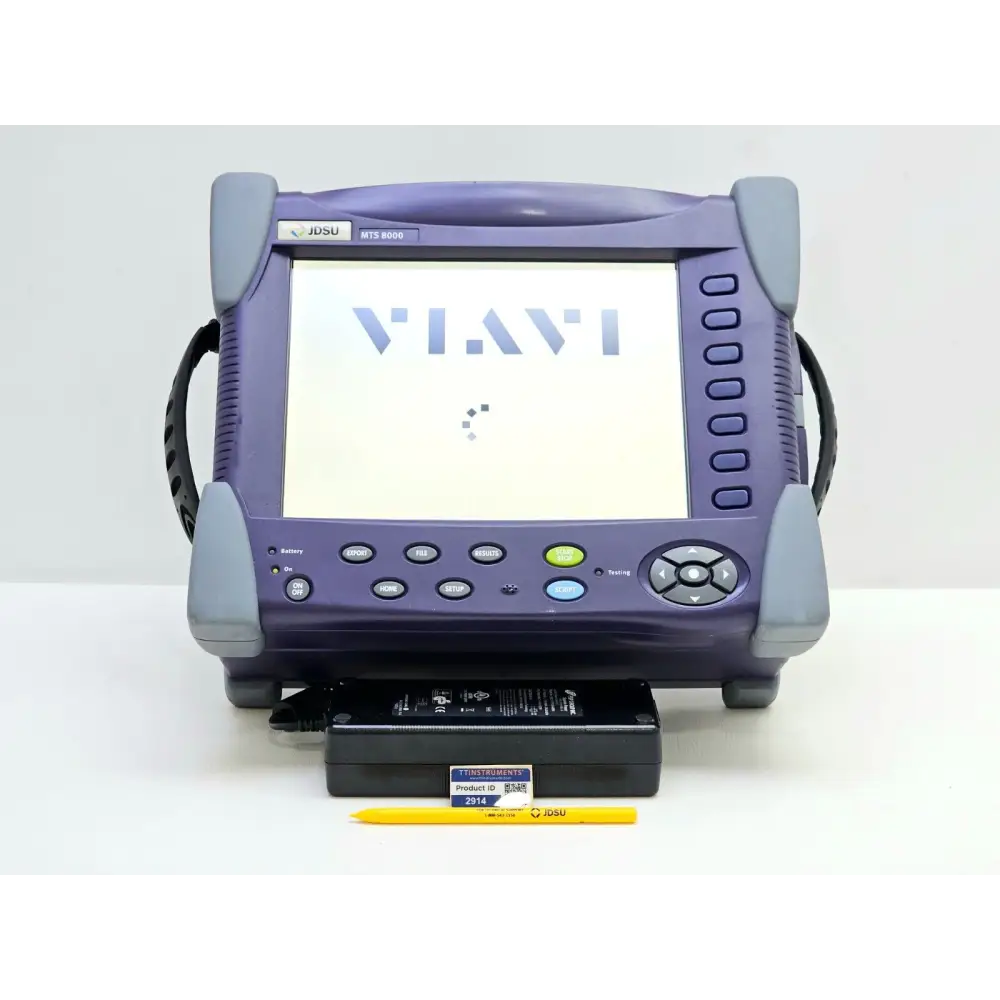

Viavi JDSU MTS 8000e V2 with OSA-500RS 2281/91.57 Optical DWDM Analyzer OSA PC

Condition: Used

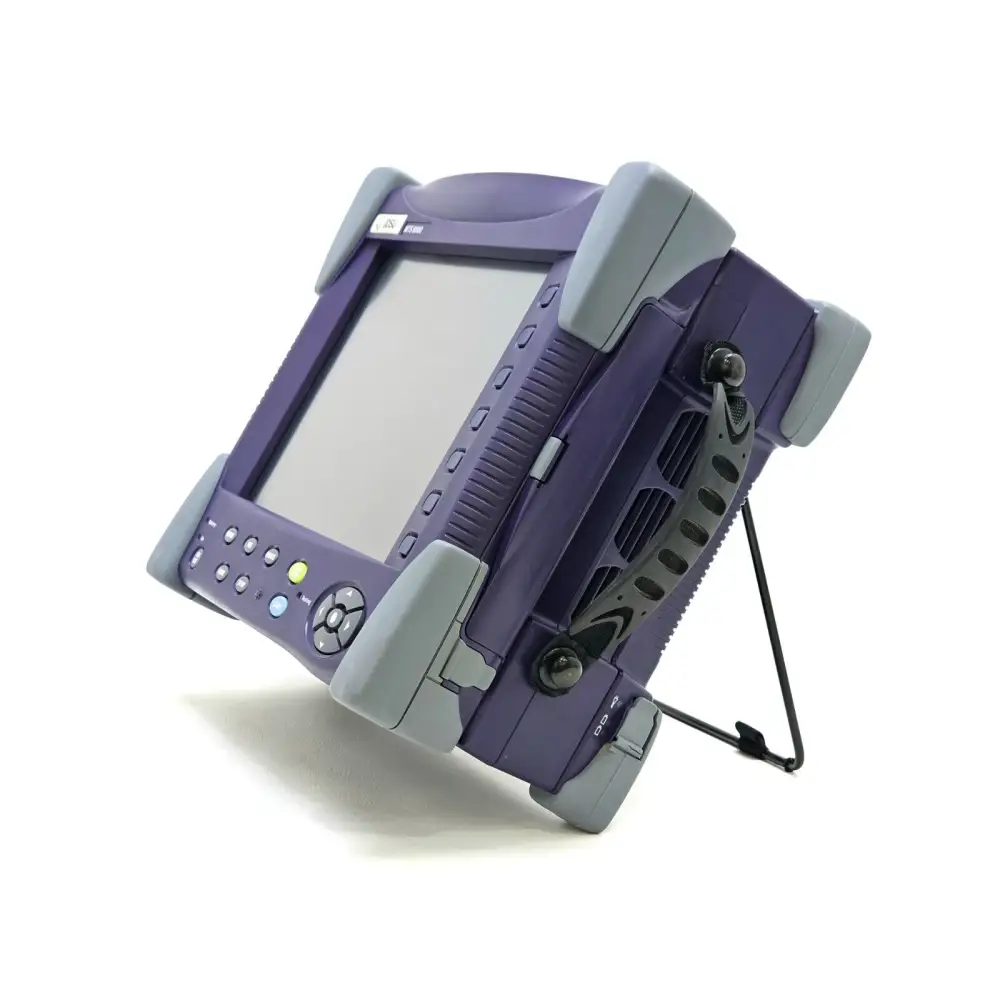

This Viavi JDSU MTS 8000e V2 mainframe with OSA-500RS 2281/91.57 Optical DWDM Analyzer module has been tested and is confirmed working. The OSA-500RS provides true in-band OSNR measurement capability for ROADM-based networks using VIAVI's polarisation splitting method, covering the full optical band from 1250 to 1650 nm. The unit is suited to DWDM and CWDM system testing, network installation, maintenance, and upgrade applications.

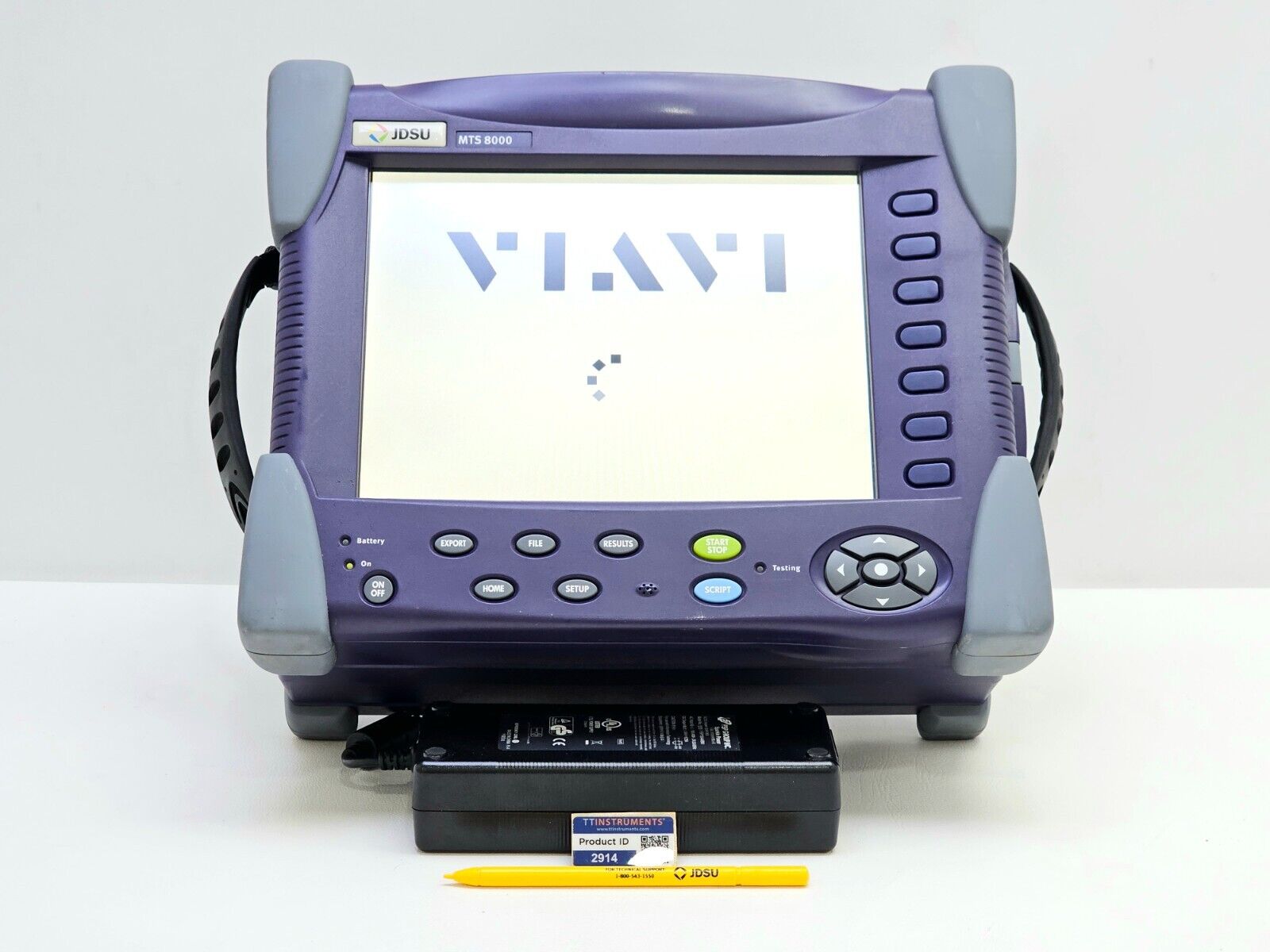

Included in the sale:

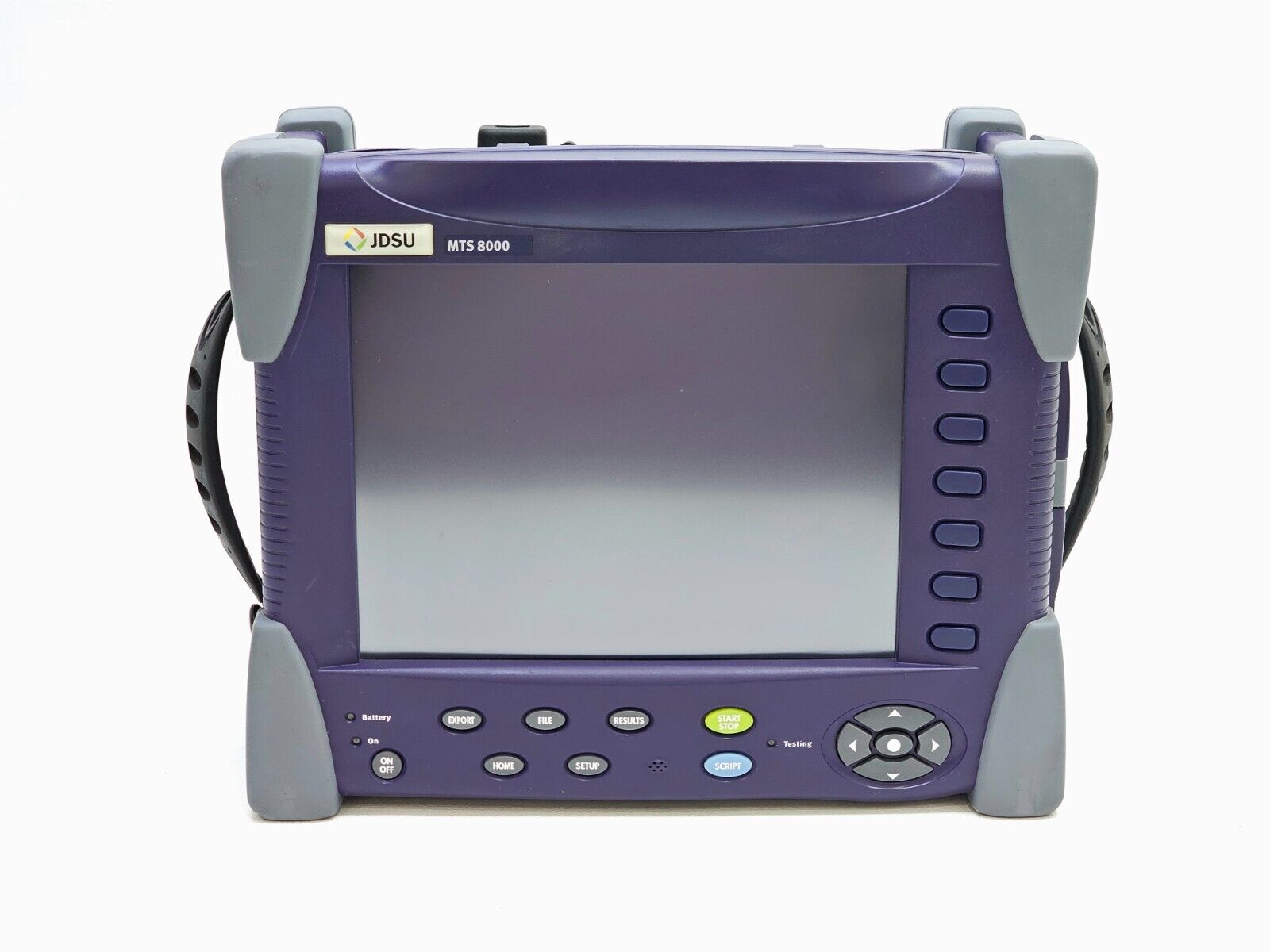

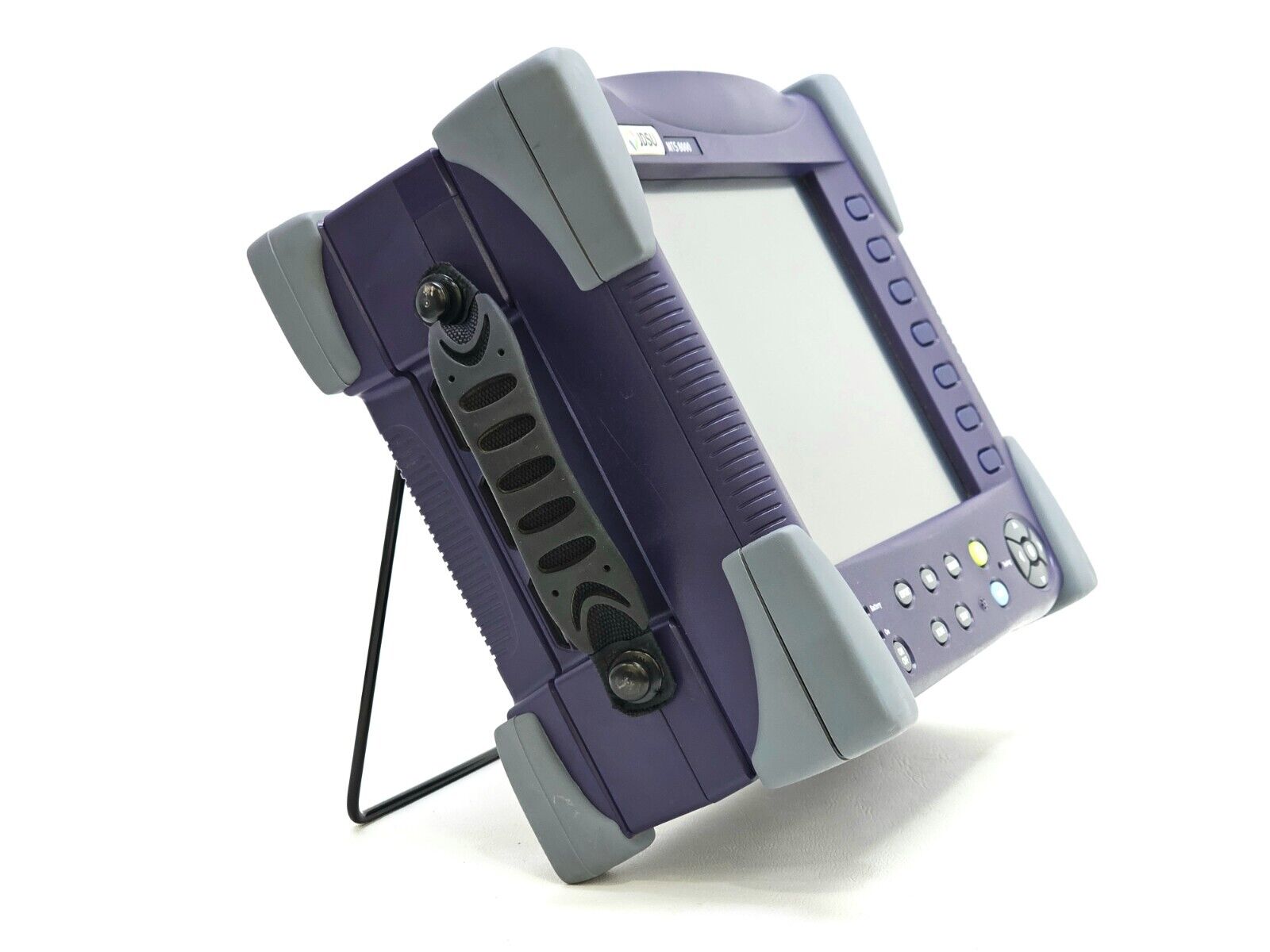

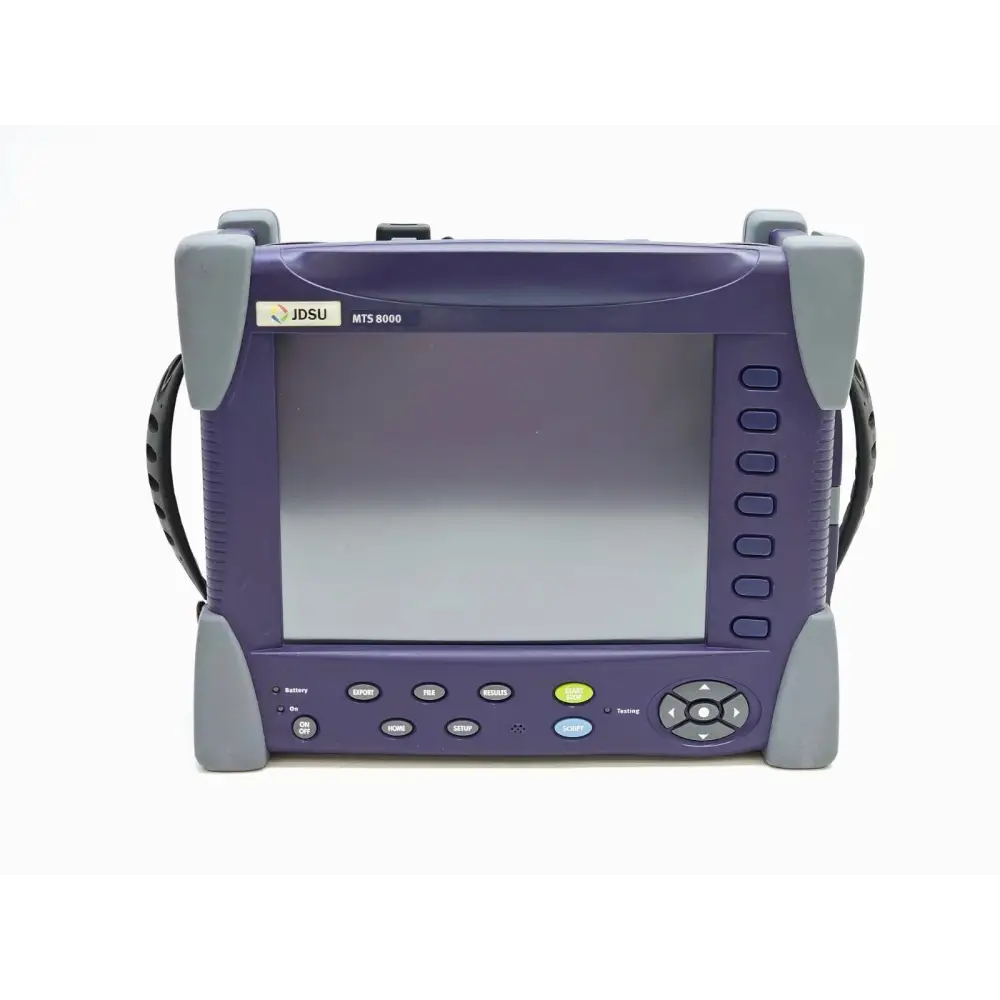

• JDSU T-BERD 8000e Mainframe

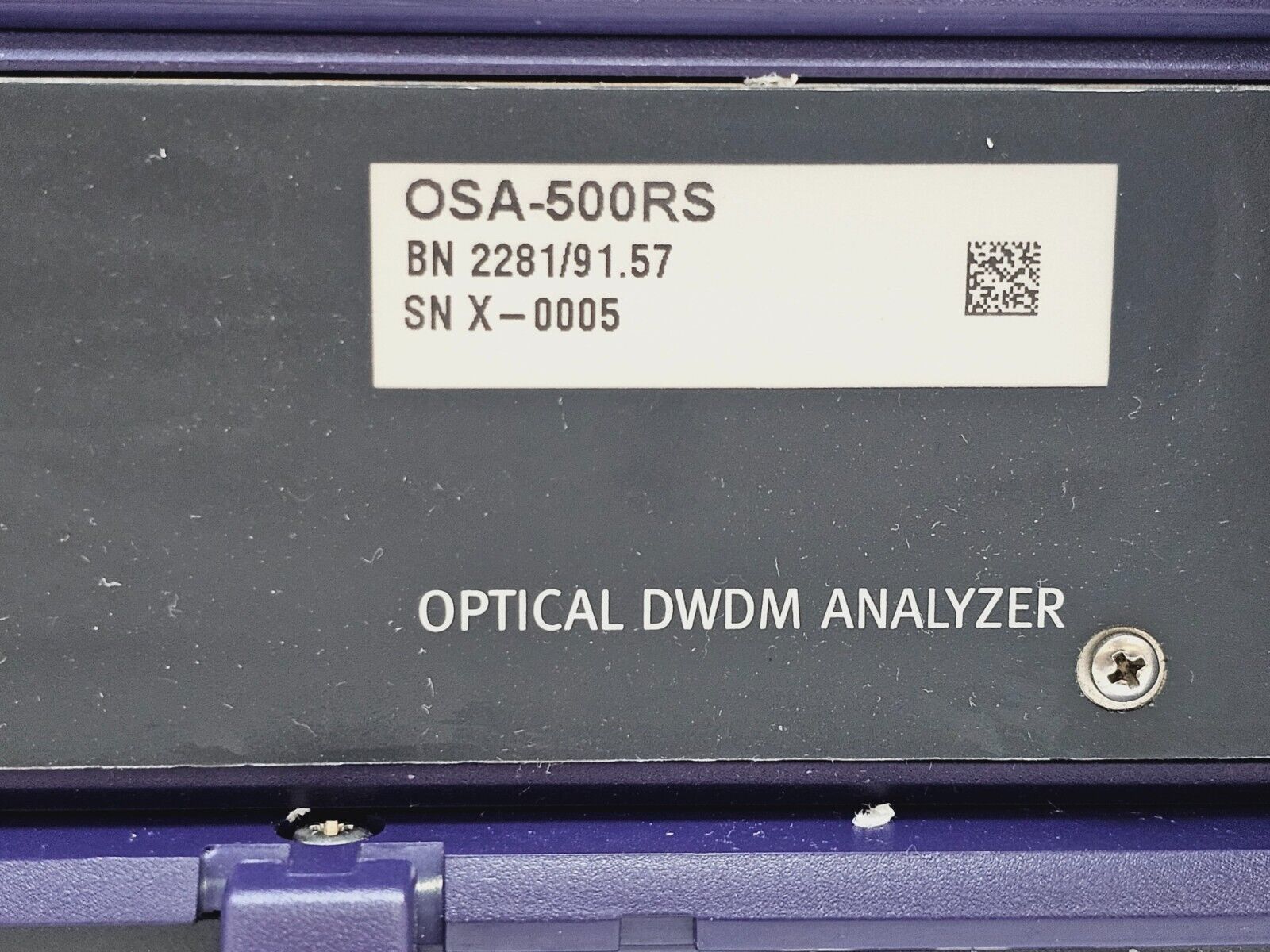

• OSA-500RS 2281/91.57 Optical DWDM Analyzer module

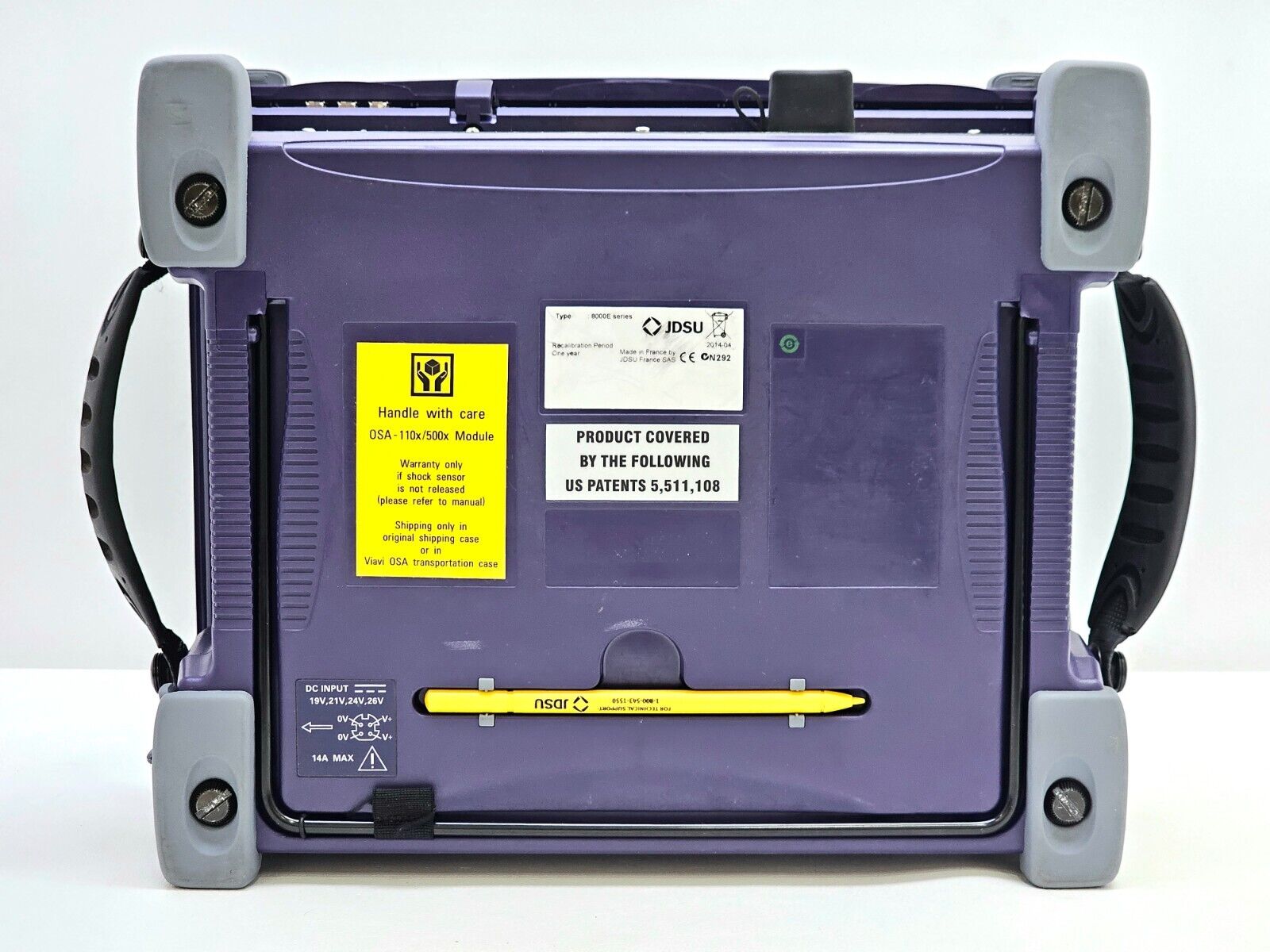

• Stylus

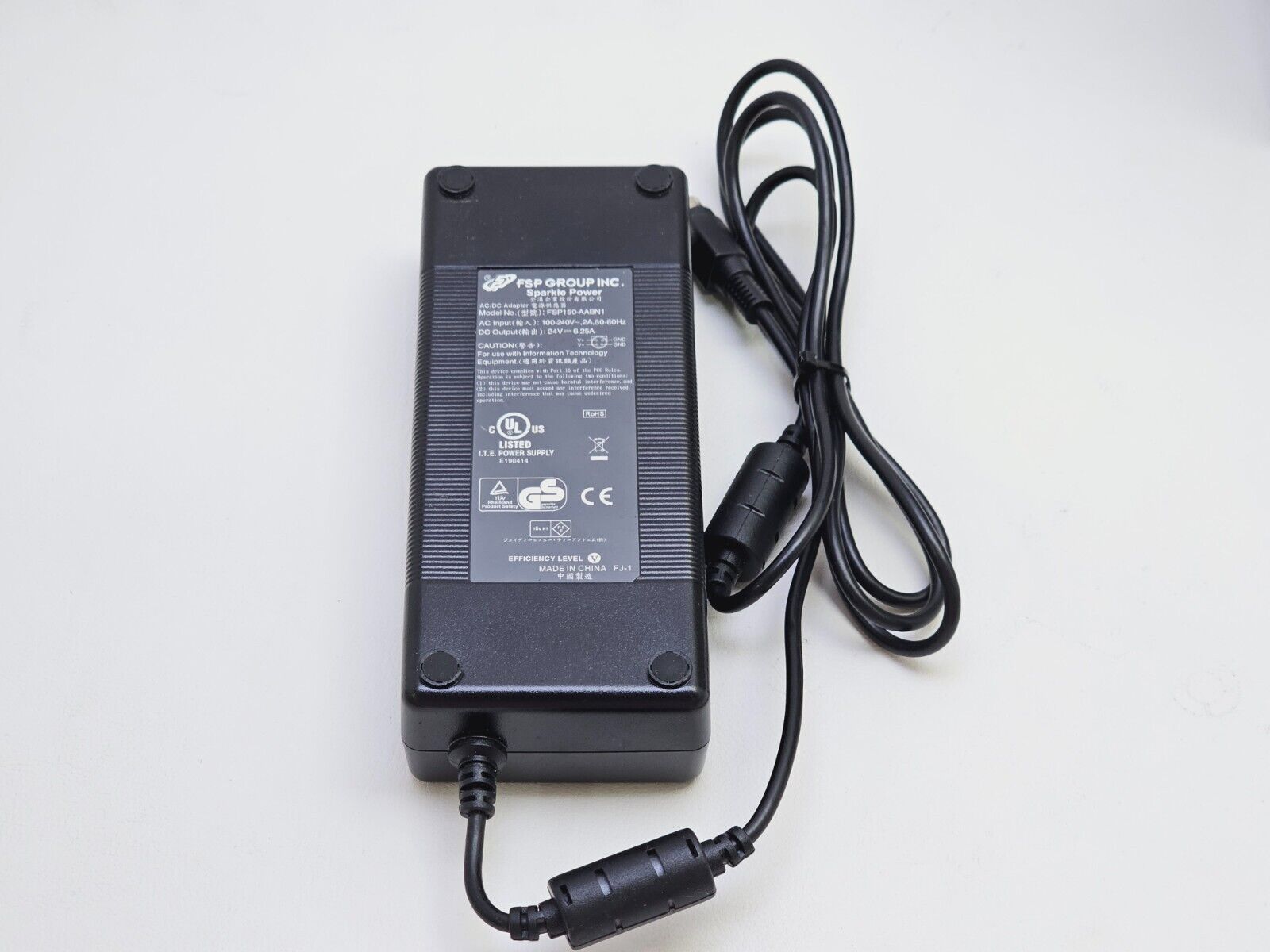

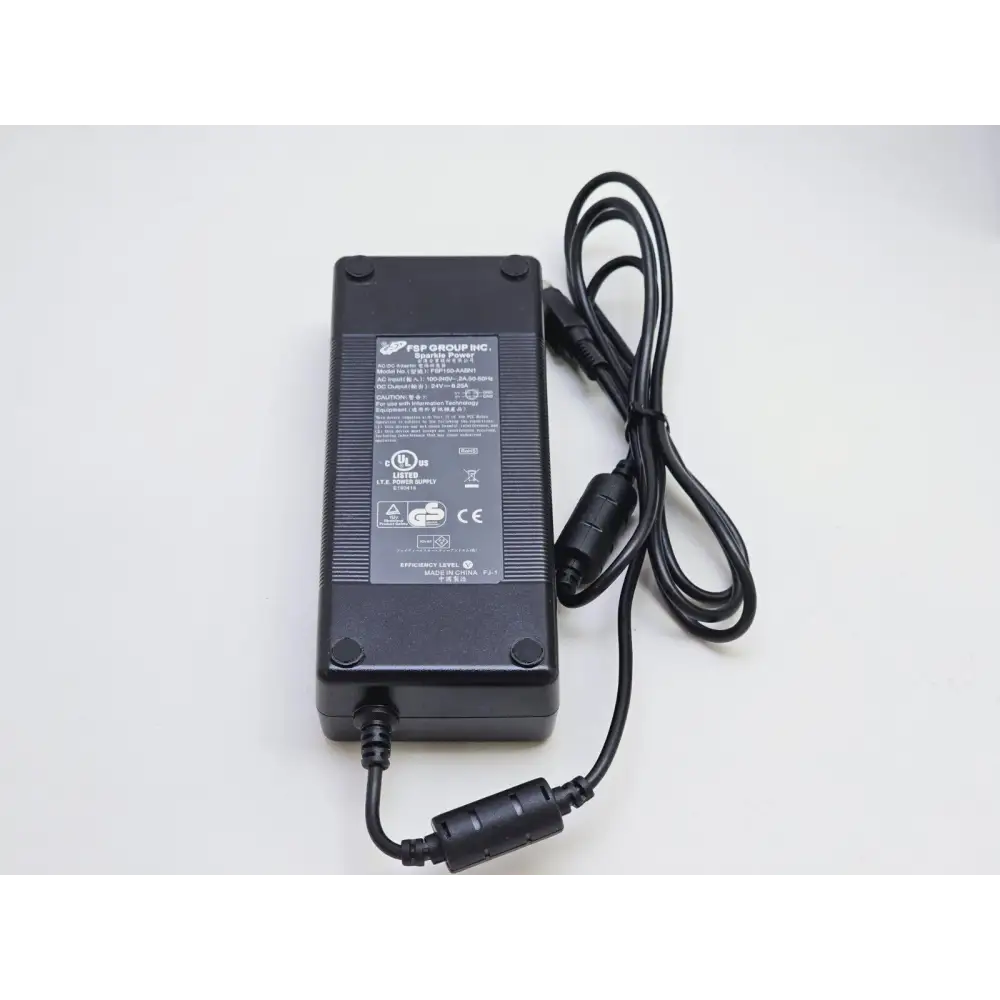

• Power adapter

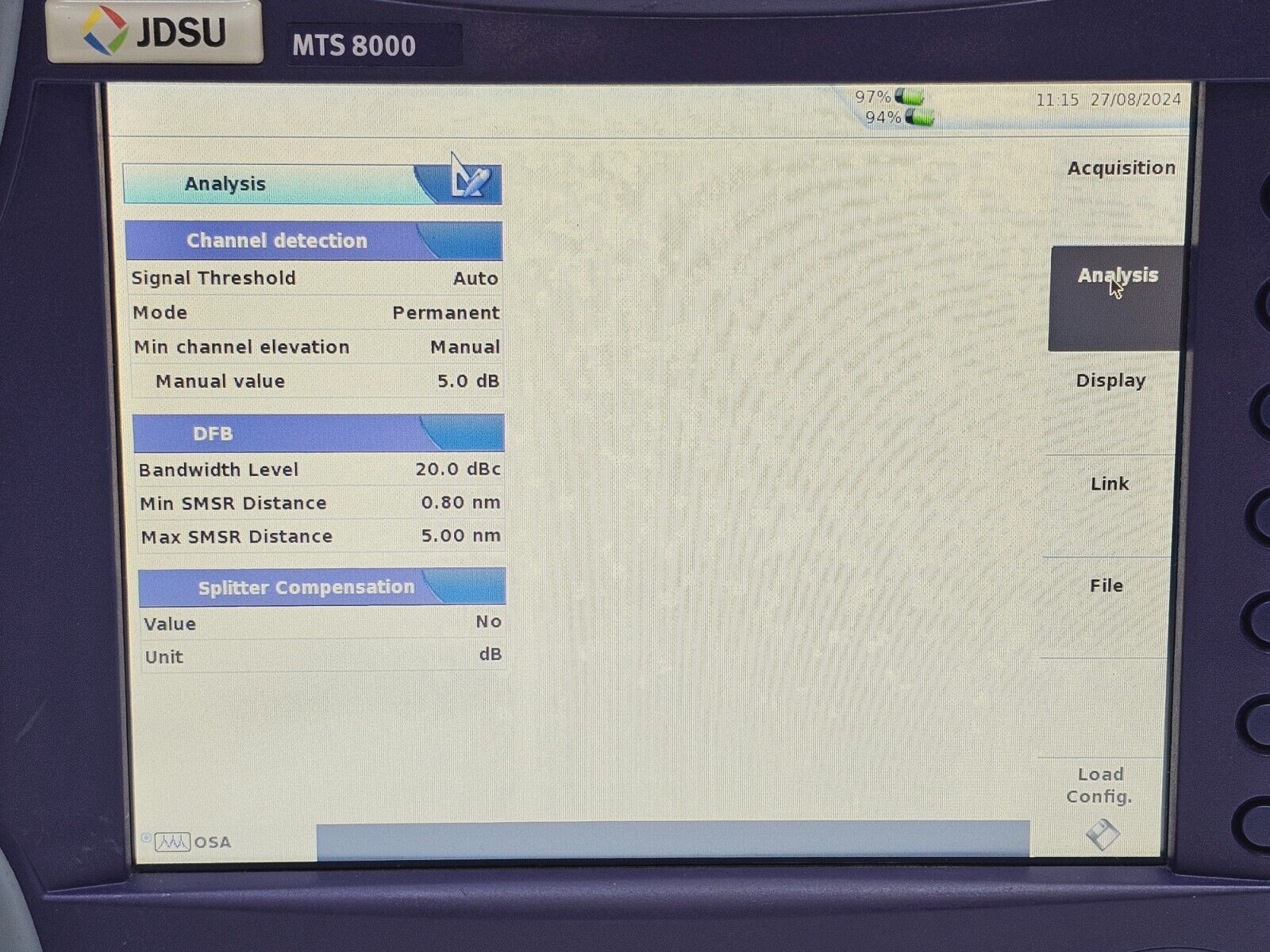

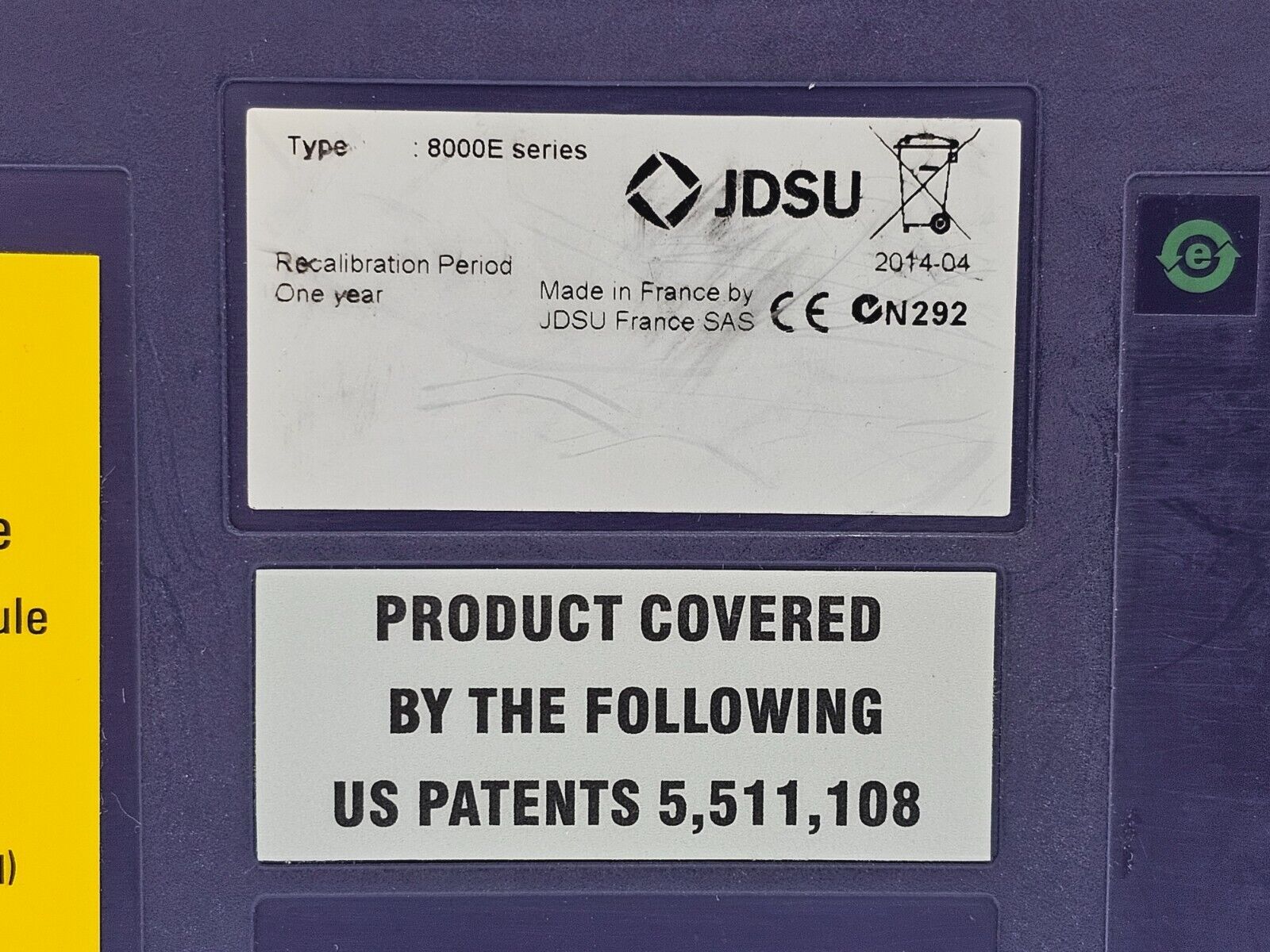

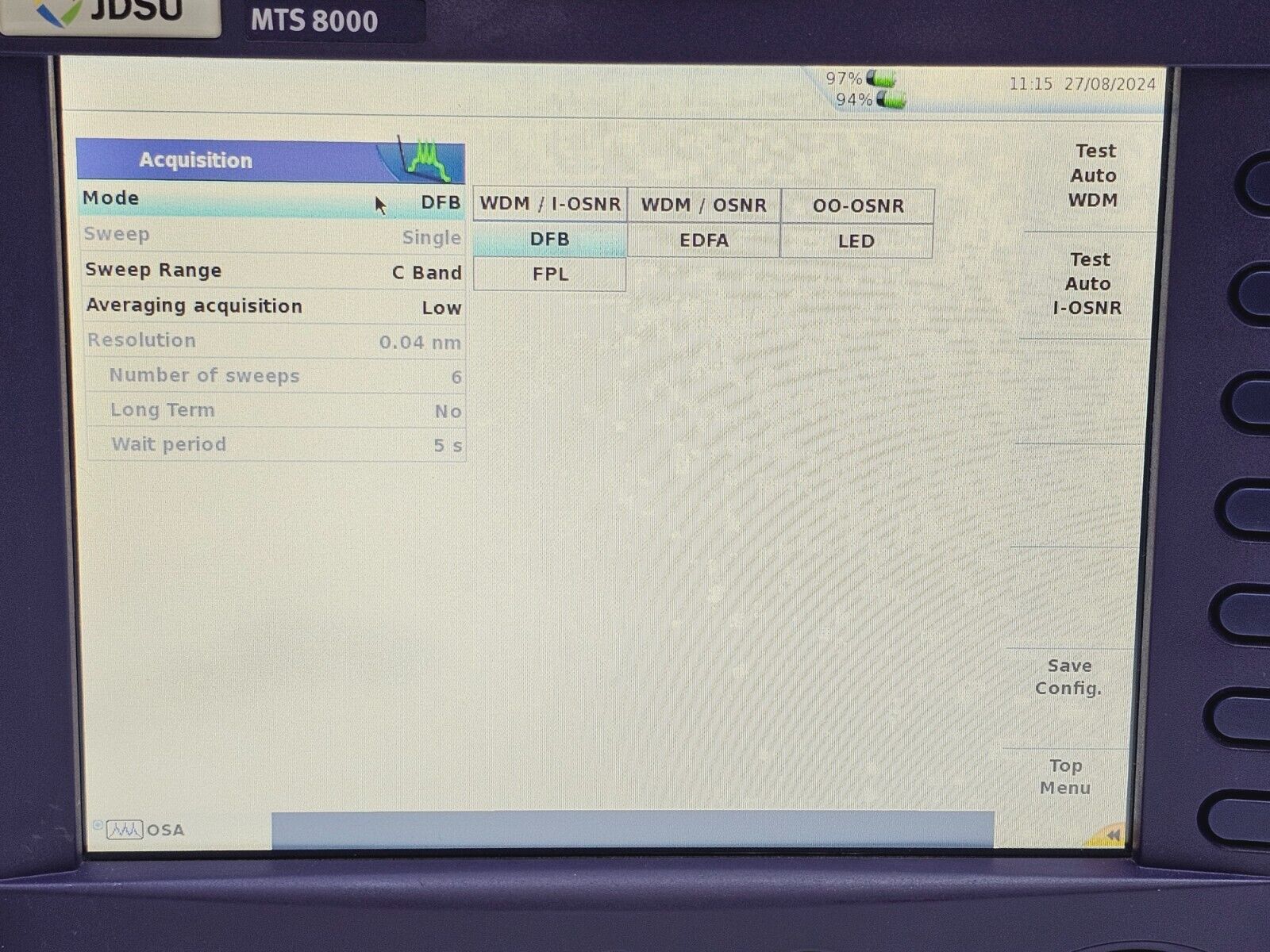

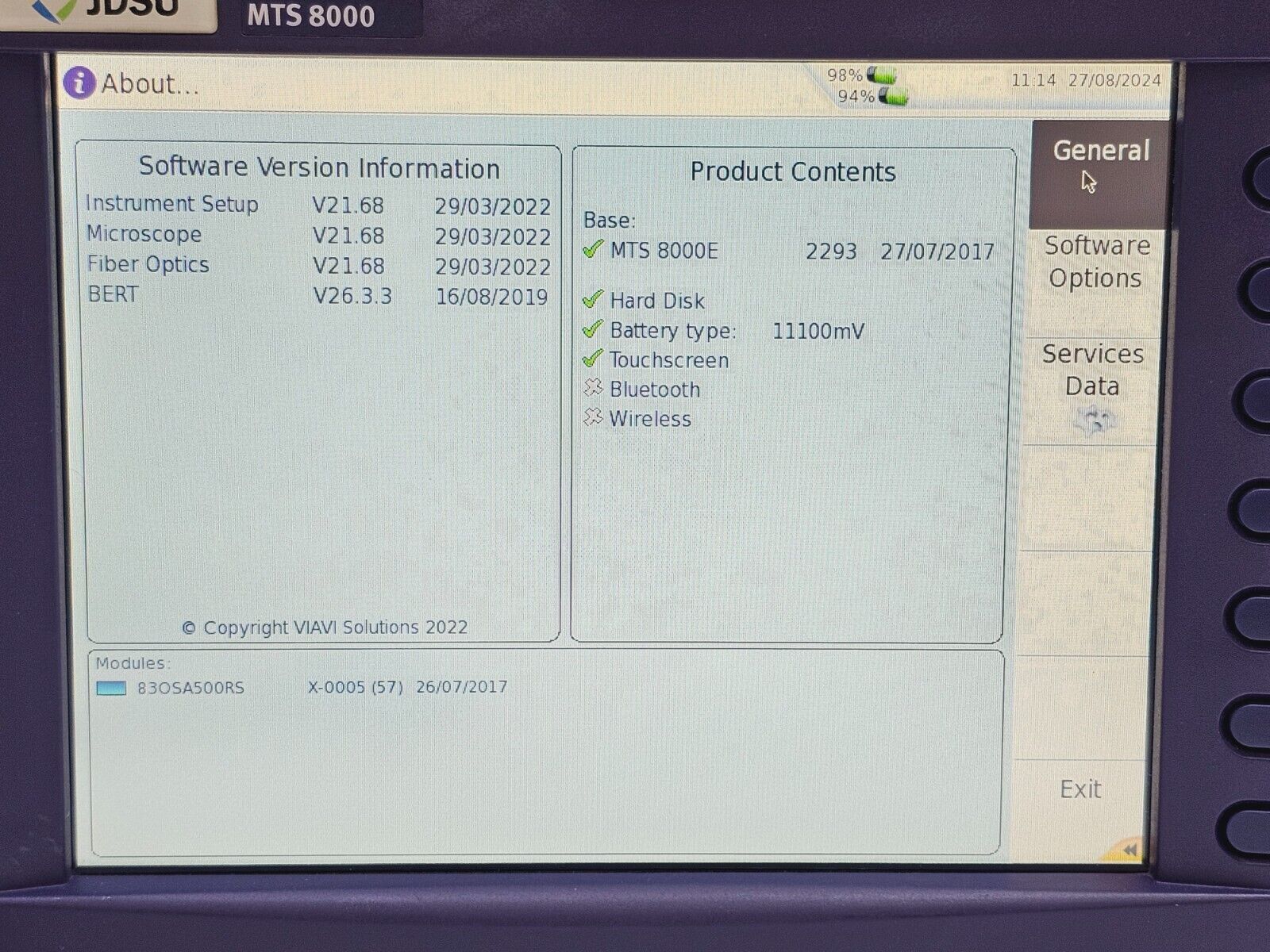

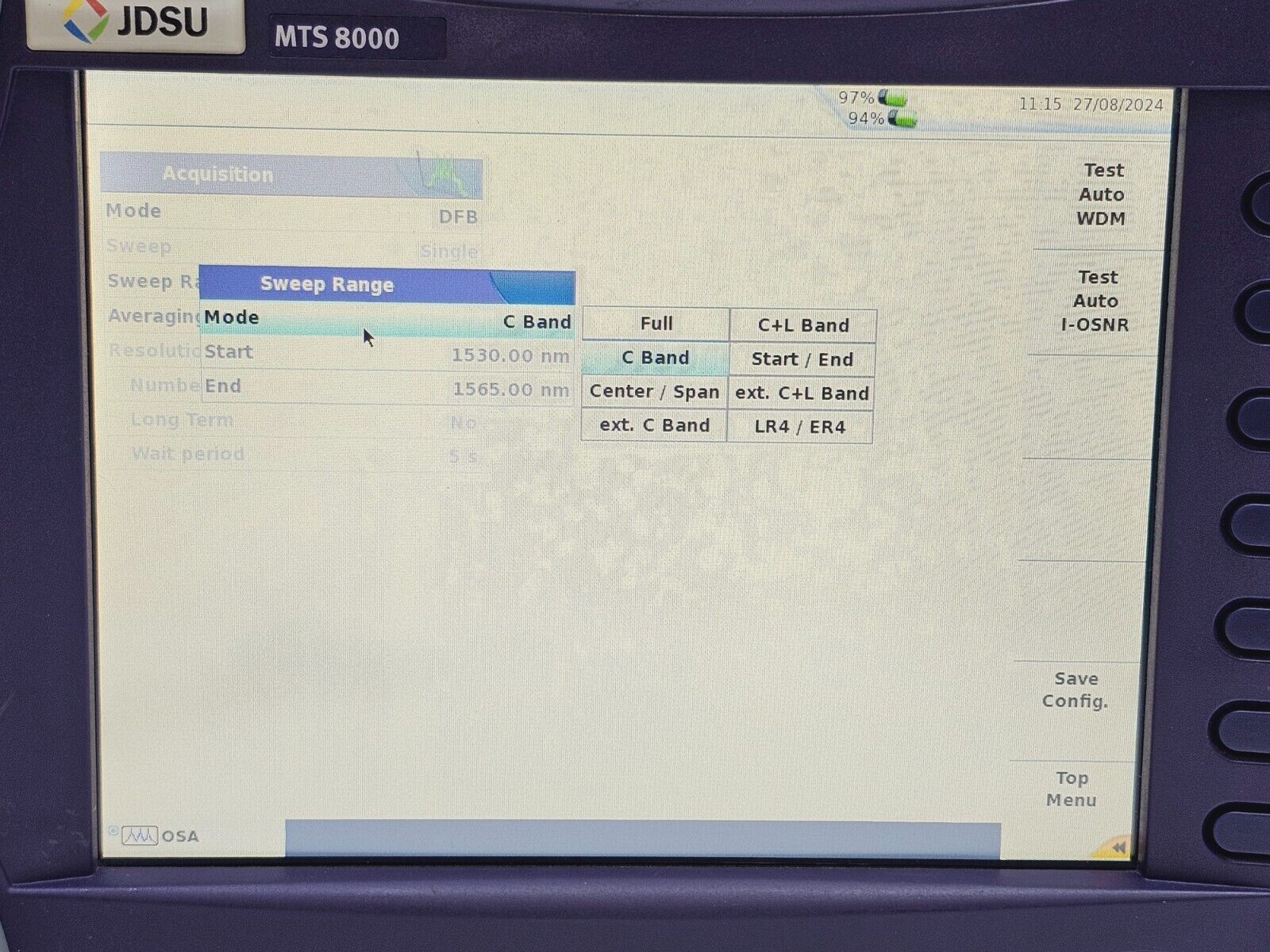

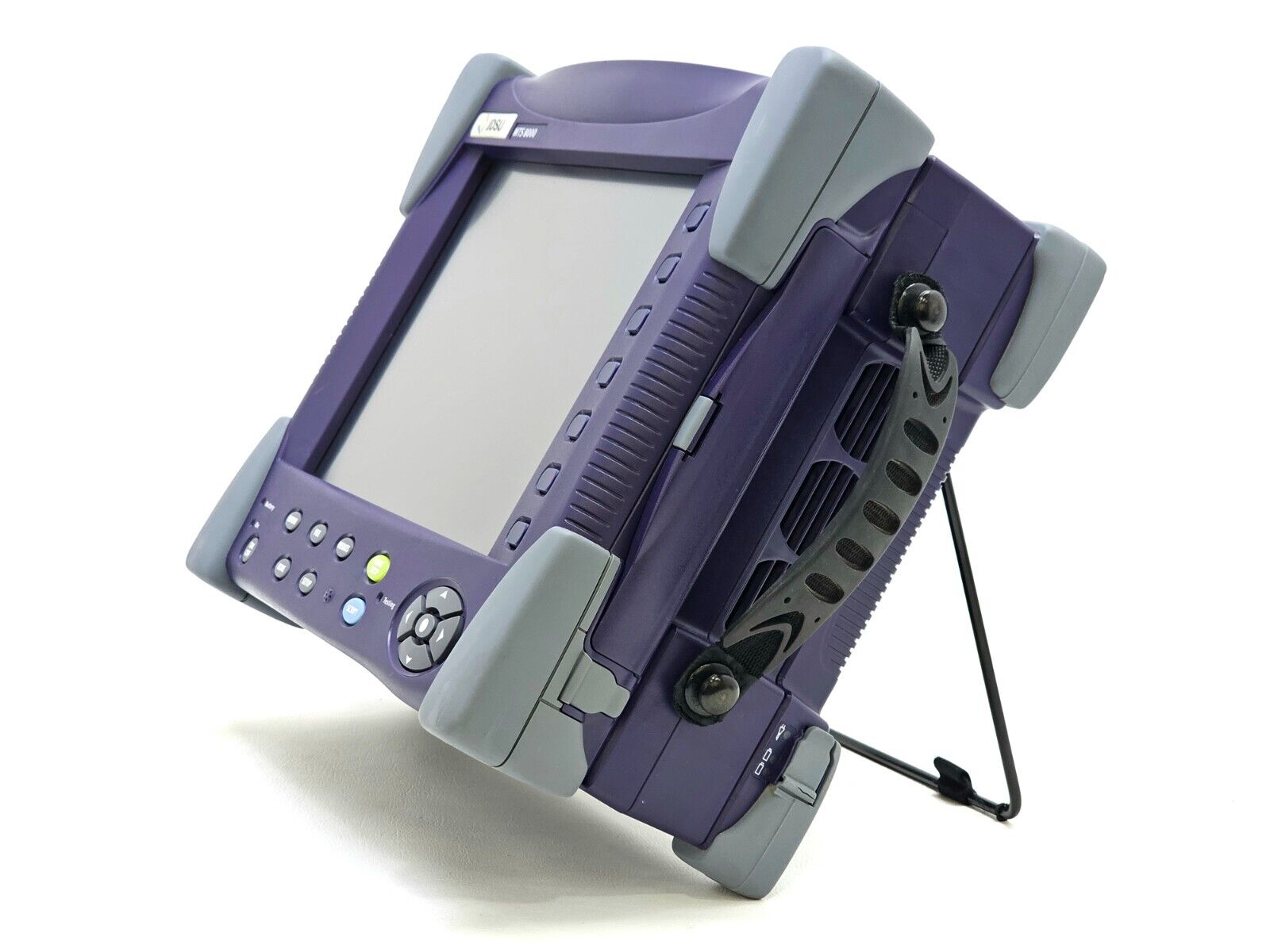

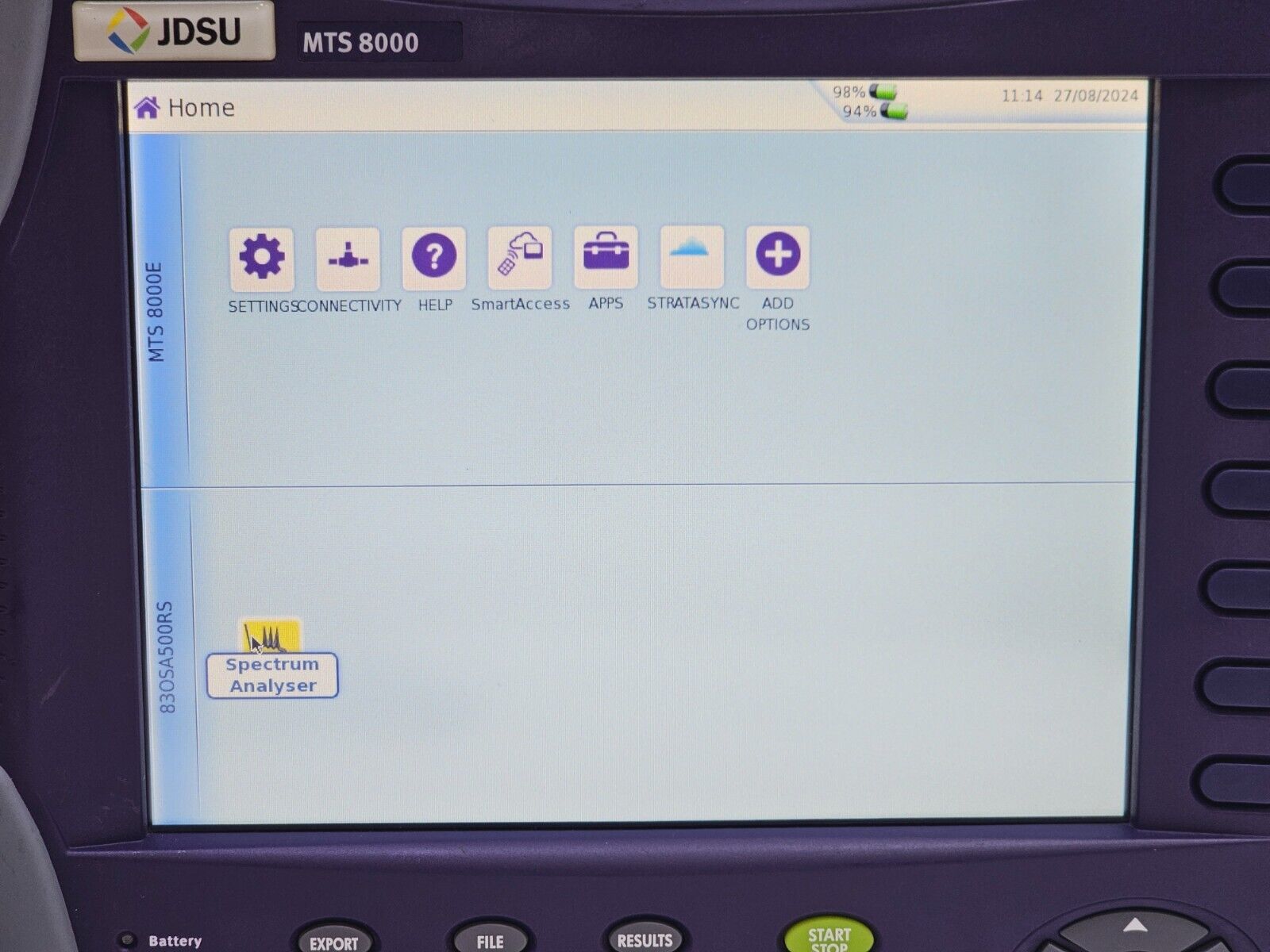

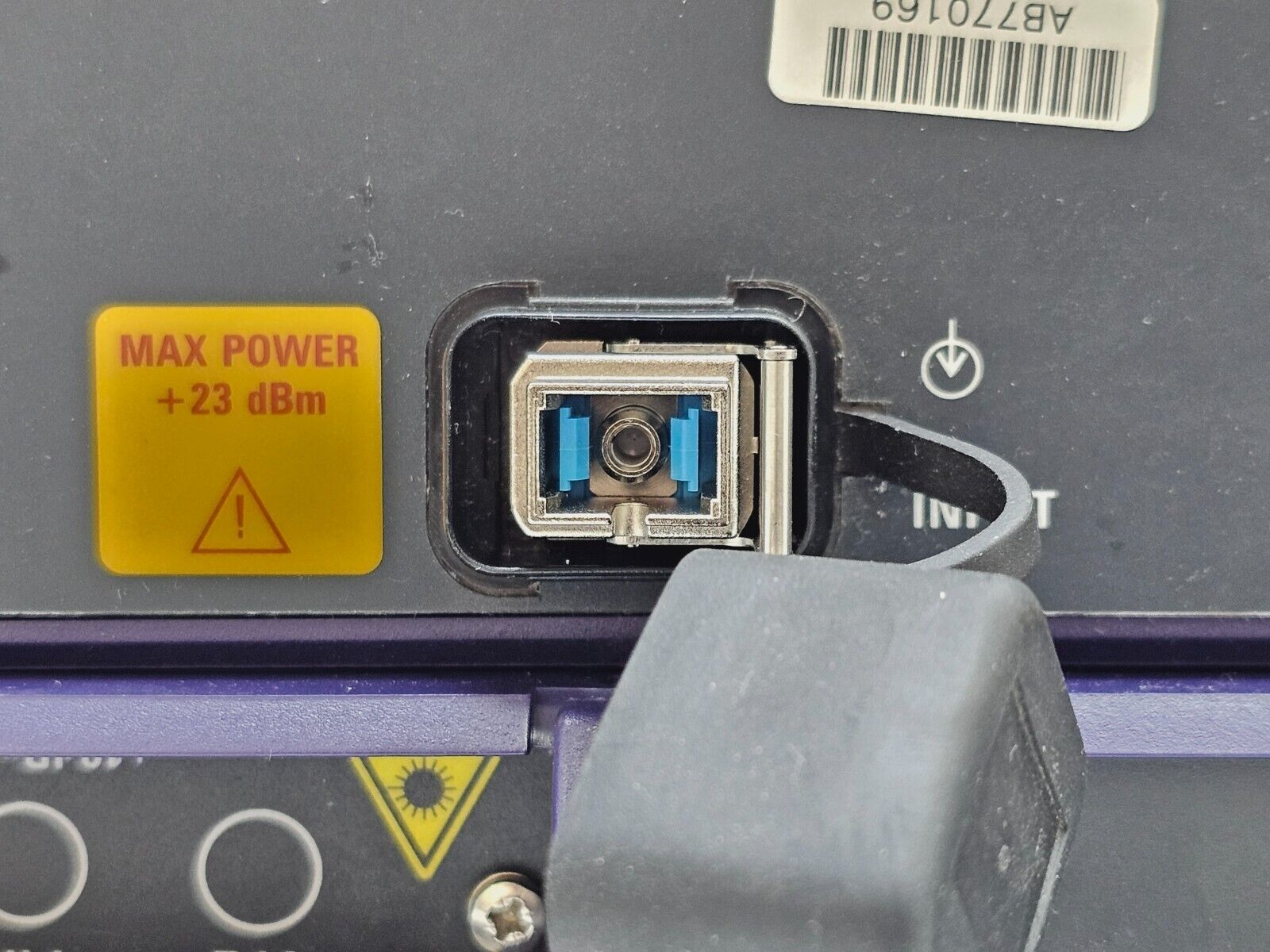

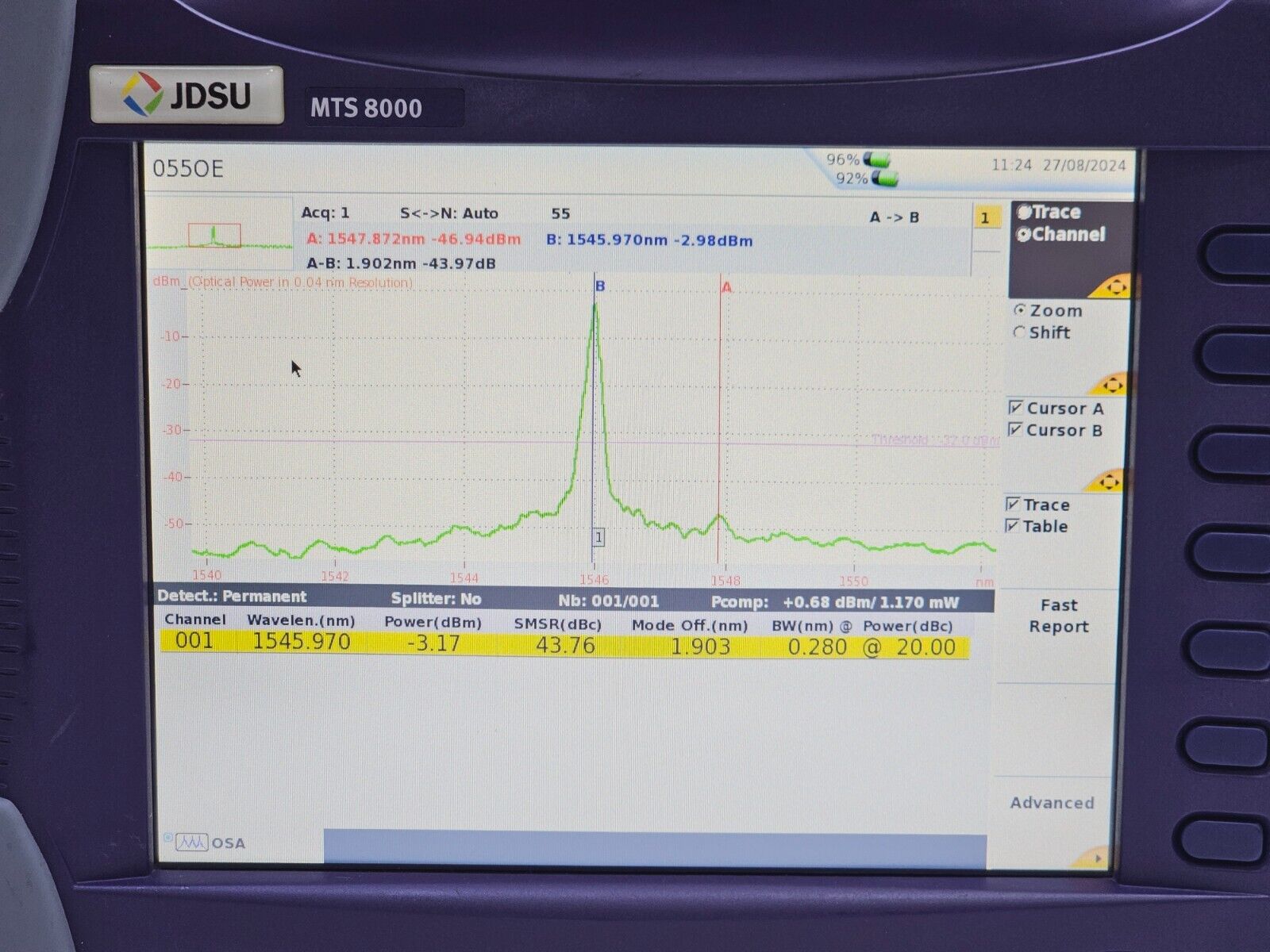

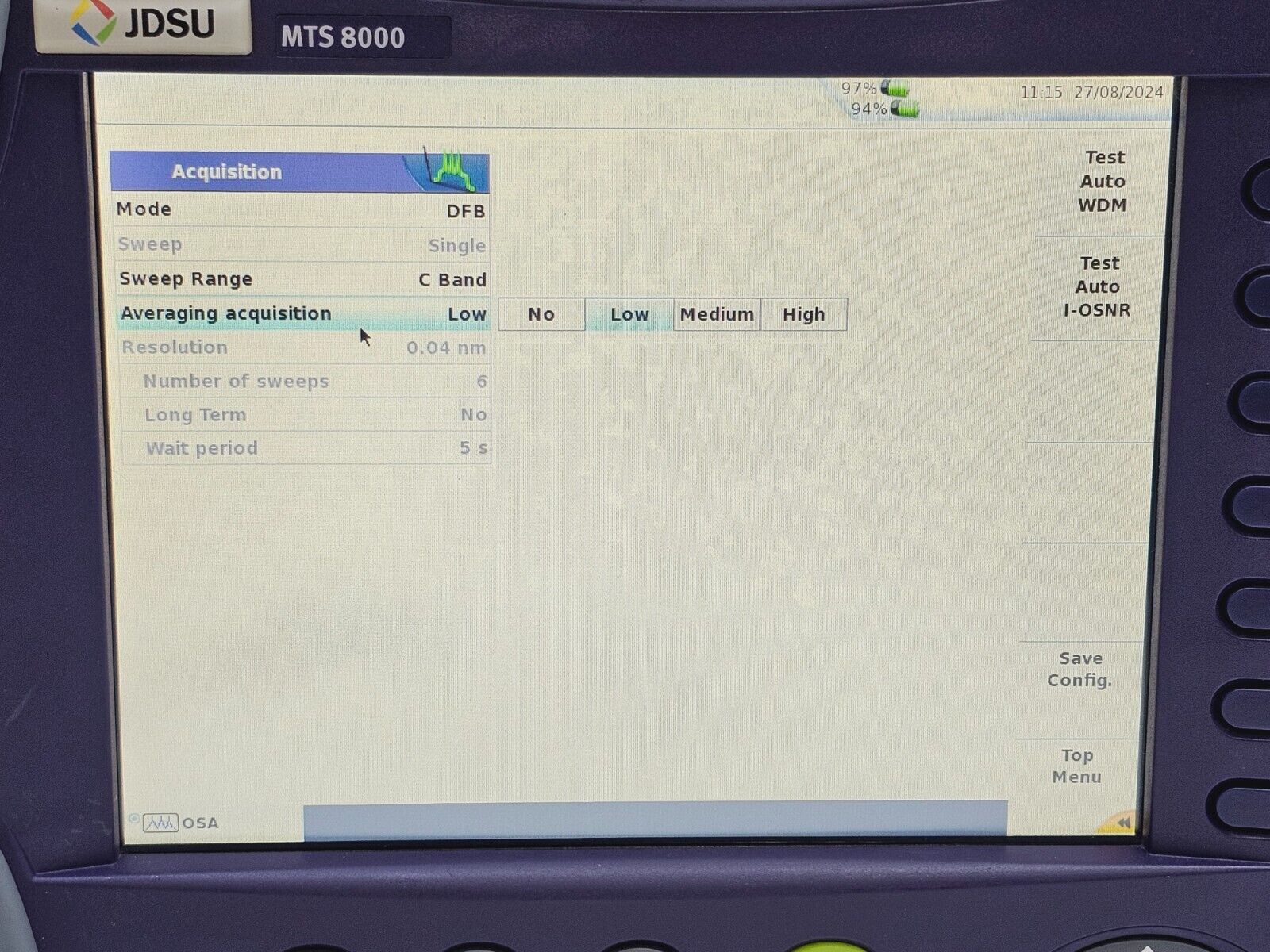

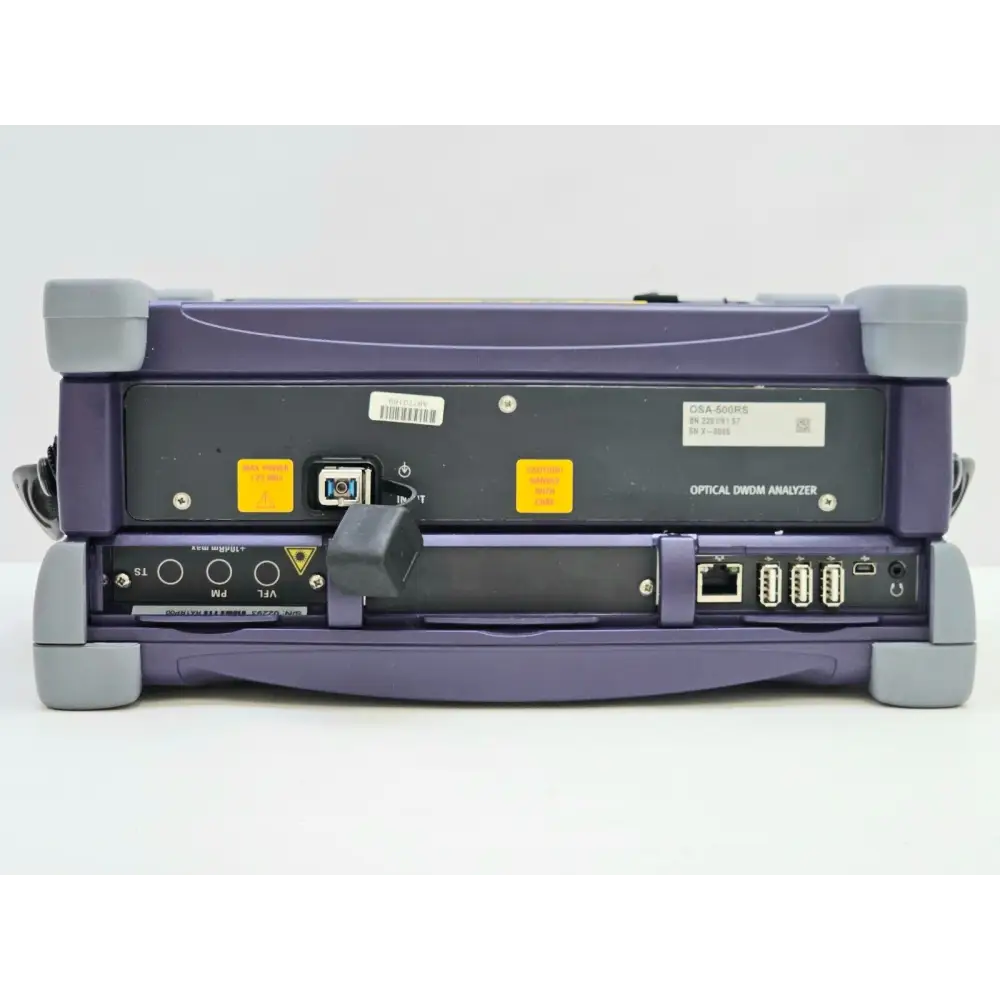

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

The Viavi (JDSU) MTS 8000e is a modular, portable mainframe platform designed for testing CWDM, DWDM, and ROADM-based optical networks with full-band, high-performance optical spectrum analysis. The OSA-500RS module represents VIAVI's advanced field-portable spectral test solution, combining free-space optics technology with full-band measurement capability across 1250–1650 nm.

The OSA-500RS features VIAVI's unique in-band OSNR measurement method based on the Optical Polarization Splitting (OPS) technique, enabling true in-band OSNR measurements in ROADM-based systems where conventional interpolation methods are insufficient. A fast polarisation controller significantly reduces in-band OSNR measurement time. Internal online wavelength calibration eliminates the need for recalibration in the field, reducing service costs and downtime.

Key Features:
In-band OSNR measurement using OPS method (VIAVI patent pending) for ROADM-based networks
Full-band tuning range from 1250 to 1650 nm, suitable for all DWDM and CWDM (Metro) networks
Internal online wavelength calibration for highest wavelength accuracy without recalibration
High filter selectivity and lab-grade optical performance in a field-modular design
Channel drop option for isolating a single DWDM channel for in-depth analysis with BERT or Q-factor meter
Software option for PMD testing based on the fixed analyser method
Built-in optical component test applications for laser diodes, LEDs, and optical amplifiers
Automated pass/fail testing to customer-preset limits

Applications:
True in-band OSNR measurement in agile optical networks including ROADM testing
DWDM and CWDM system testing during installation, maintenance, and network upgrade
Automated DWDM passive and active component testing
System verification testing to customer-preset limits
Verification of ROADM configurations in agile optical networks
Dispersion compensating module testing

Specifications (OSA-500RS):
Wavelength Range: 1250 to 1650 nm
Supported Network Types: CWDM, DWDM (up to 40 Gbps and 100 Gbps)
OSNR Measurement Method: In-band OSNR (OPS method)
Platform Compatibility: MTS-8000 / T-BERD 8000, MTS-6000 / T-BERD 6000
Form Factor: Field-modular, portable
Wavelength Calibration: Internal online, no recalibration required

Viavi OSA-500x Series Optical Spectrum Analyser Modules Datasheet (PDF): Download PDF
