Condition: Used

Good working condition, light source is included.
Included in the sale:

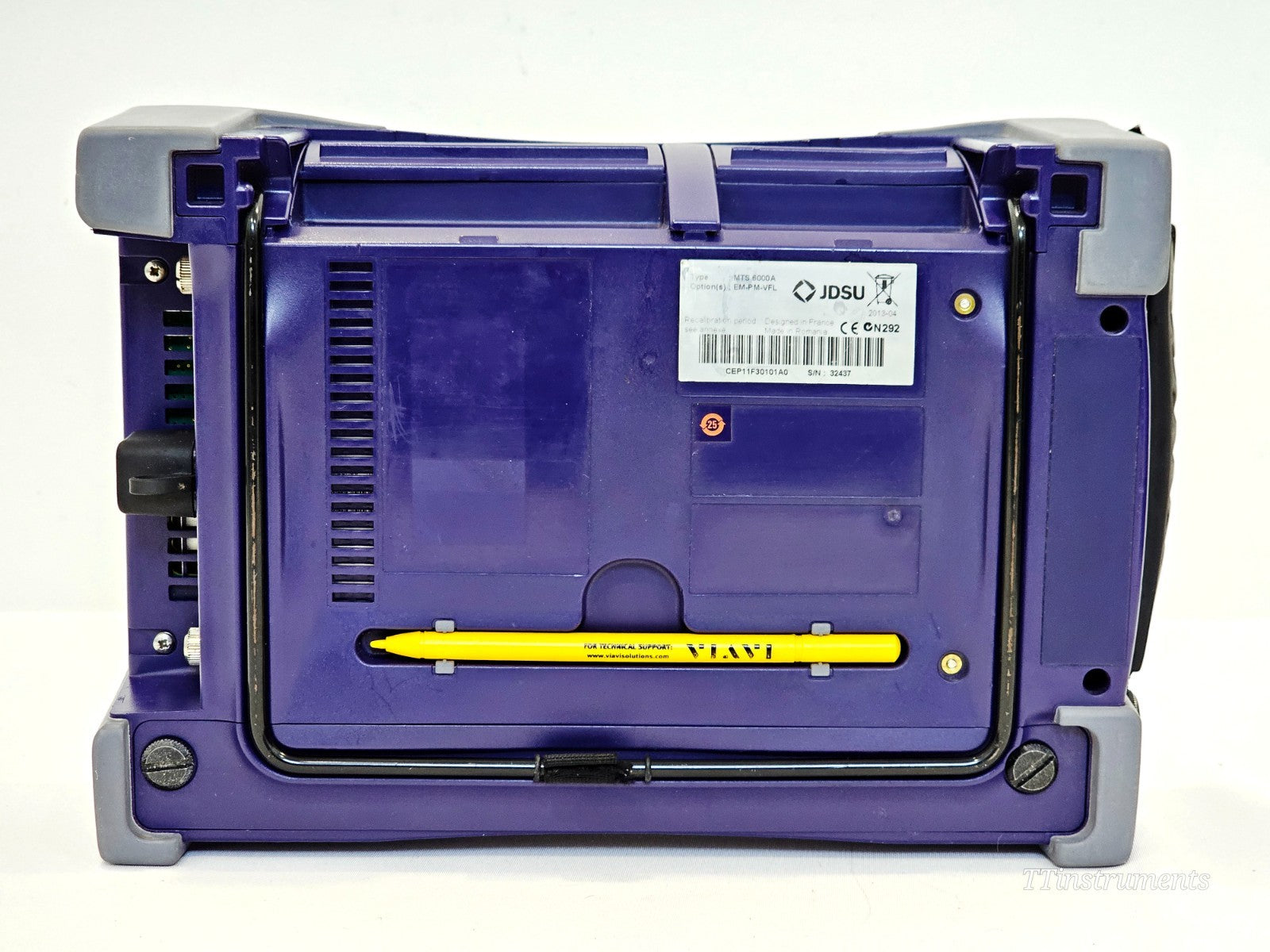

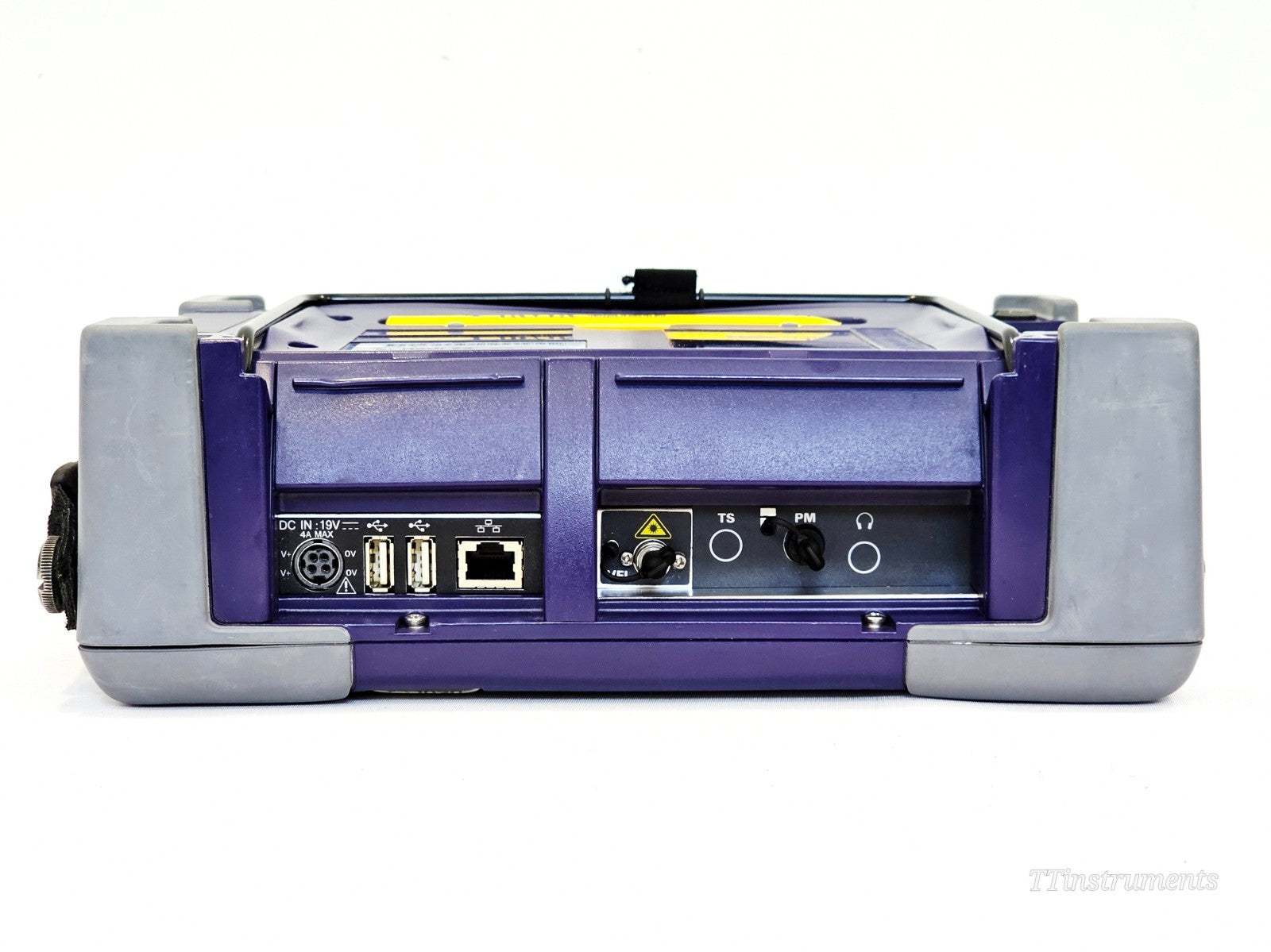

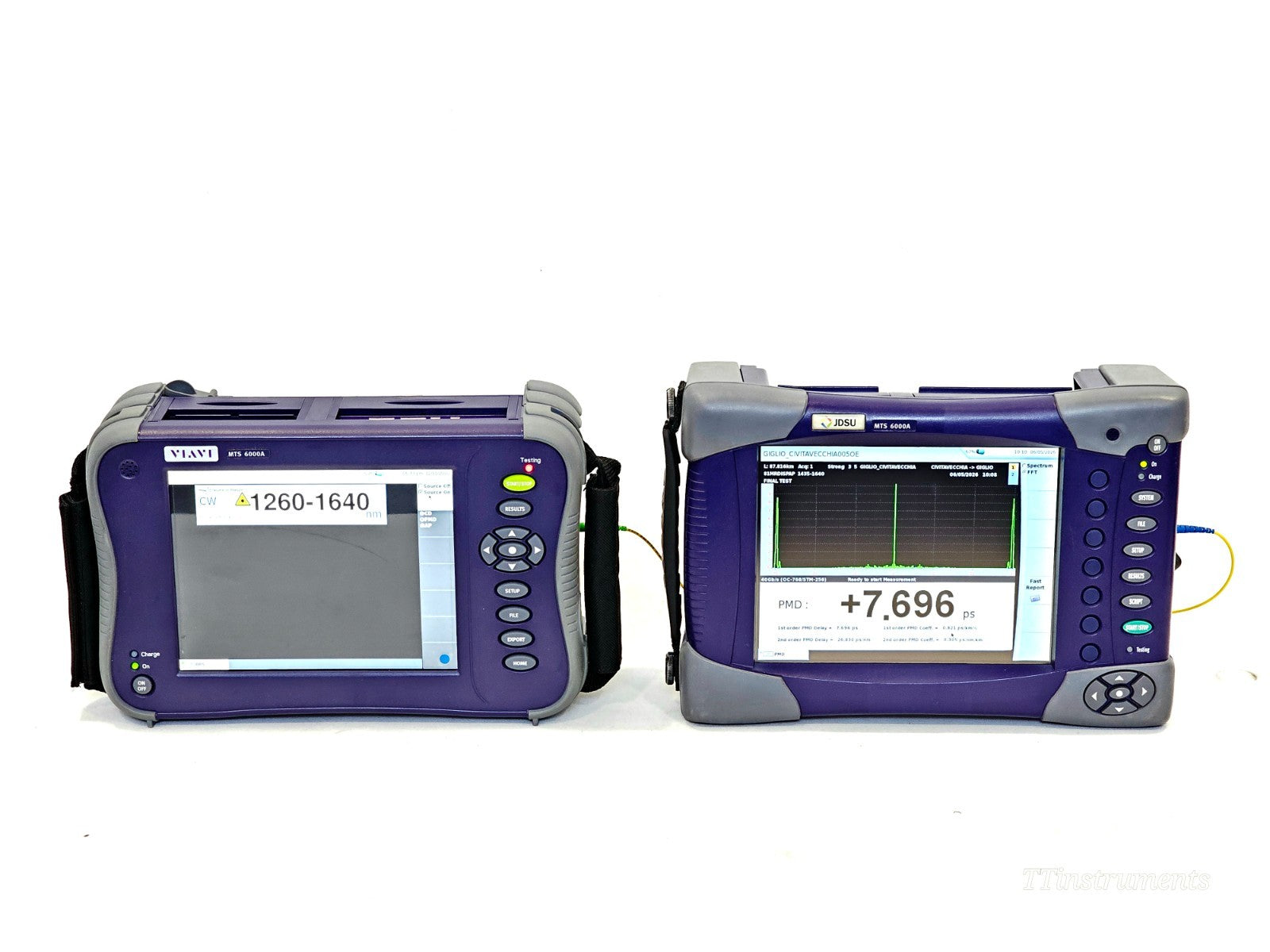

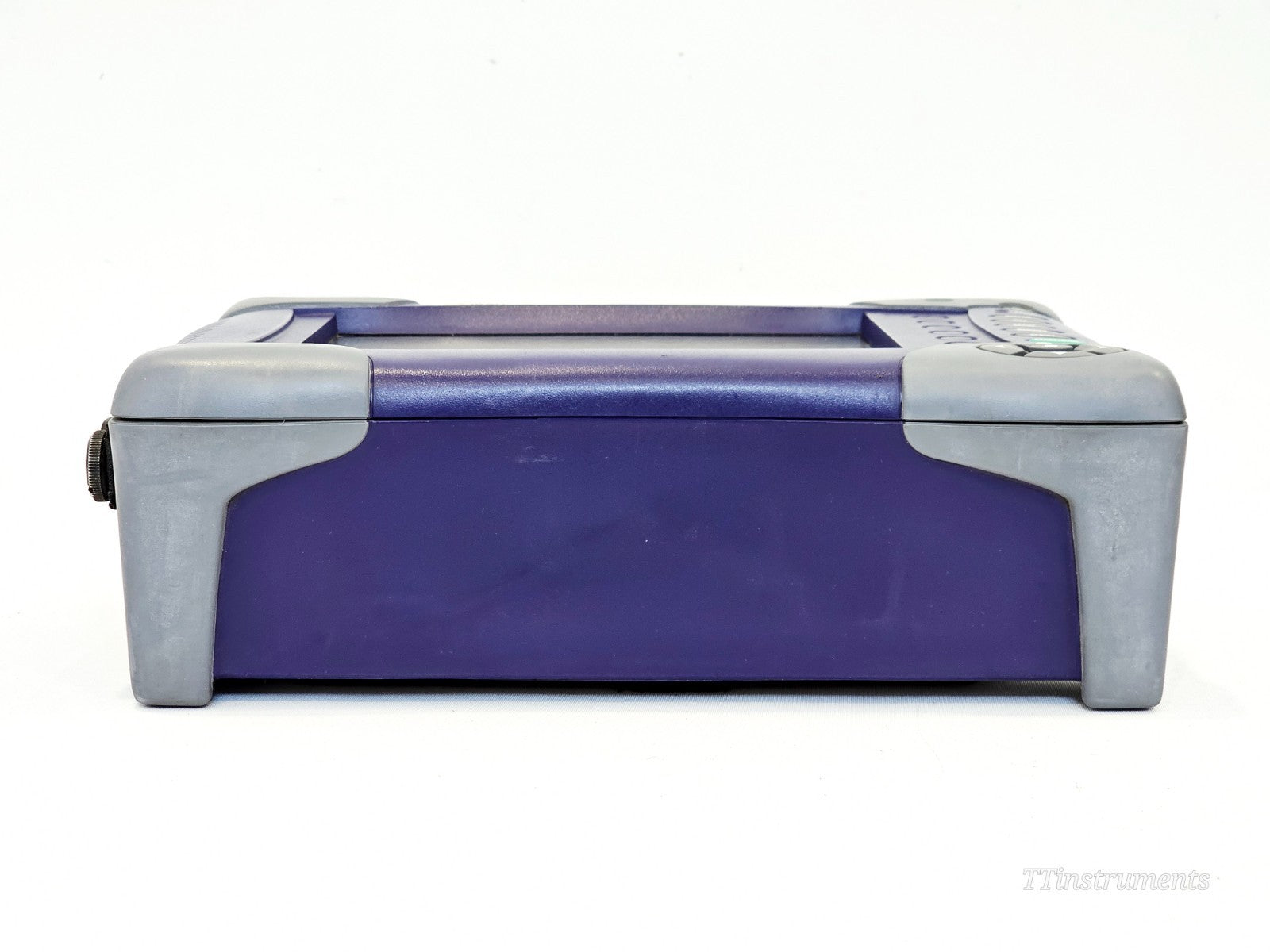

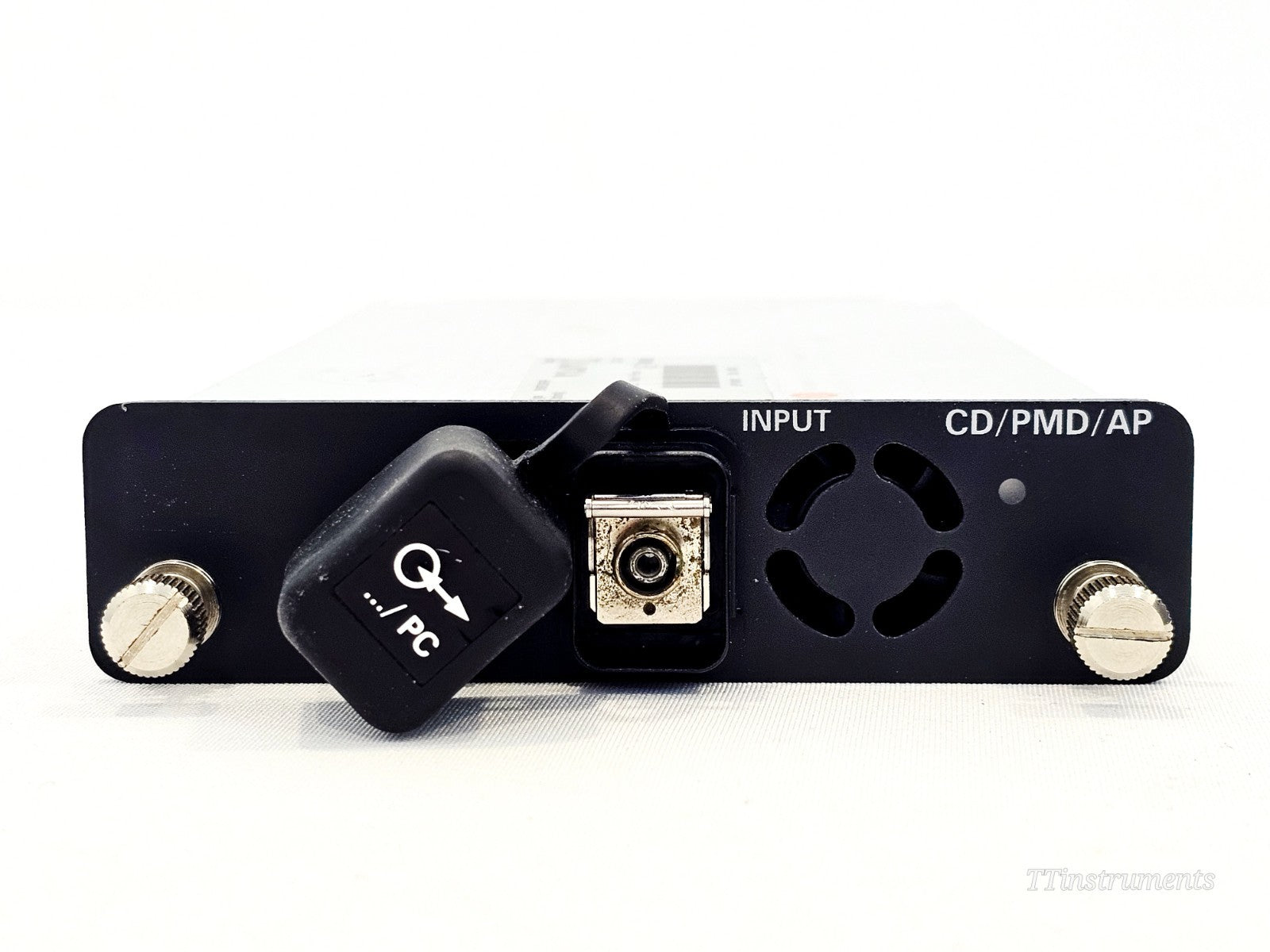

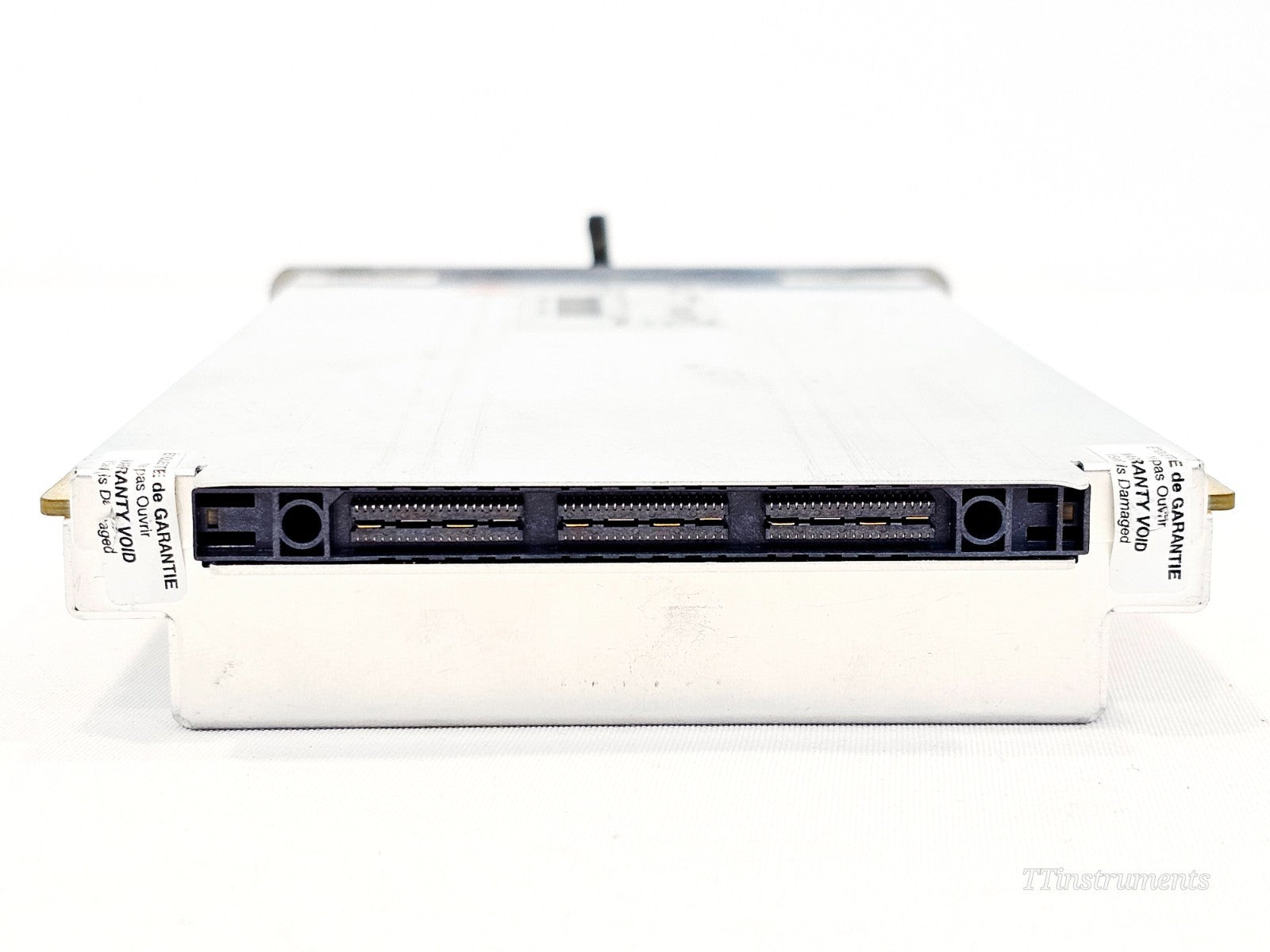

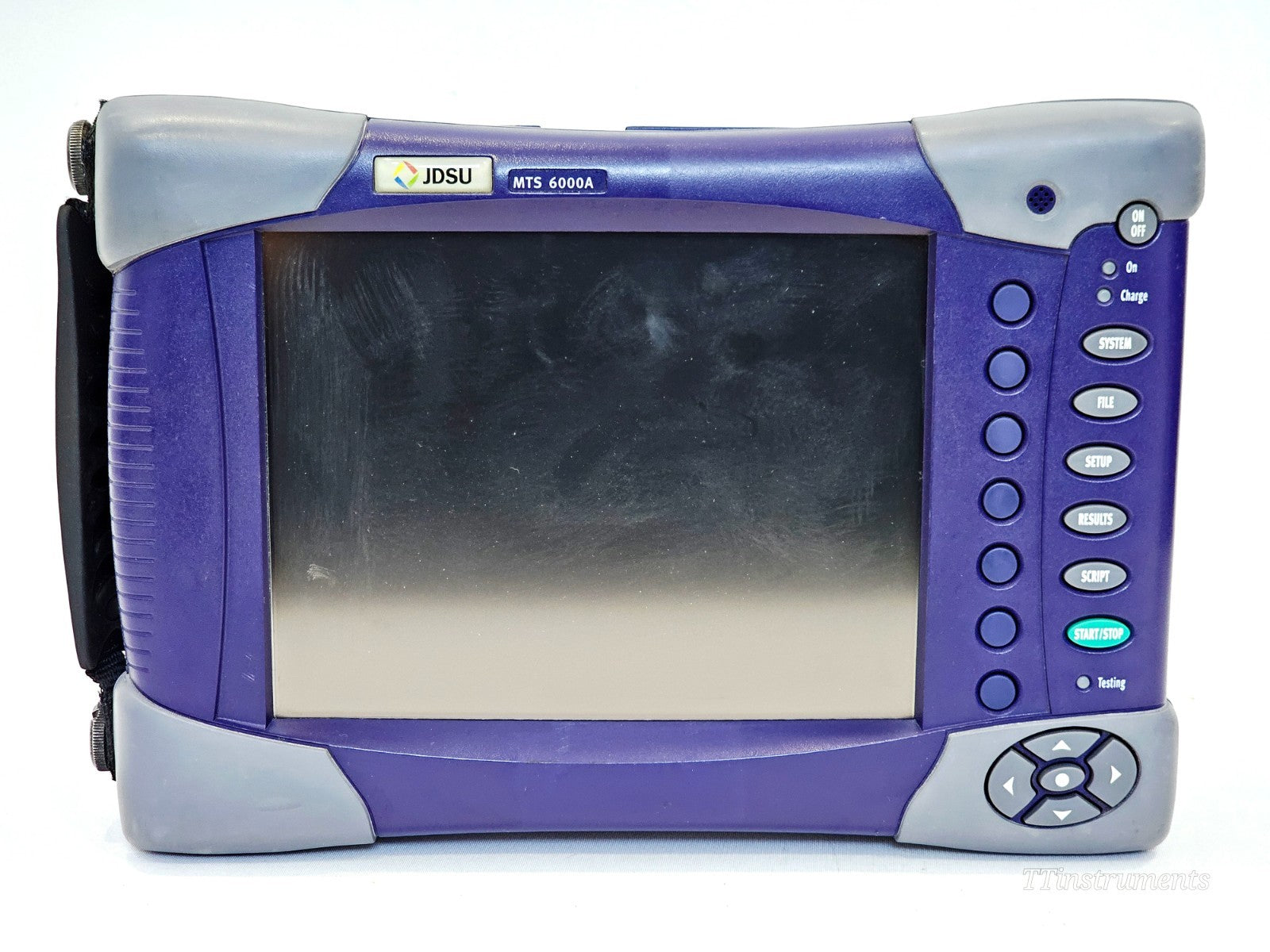

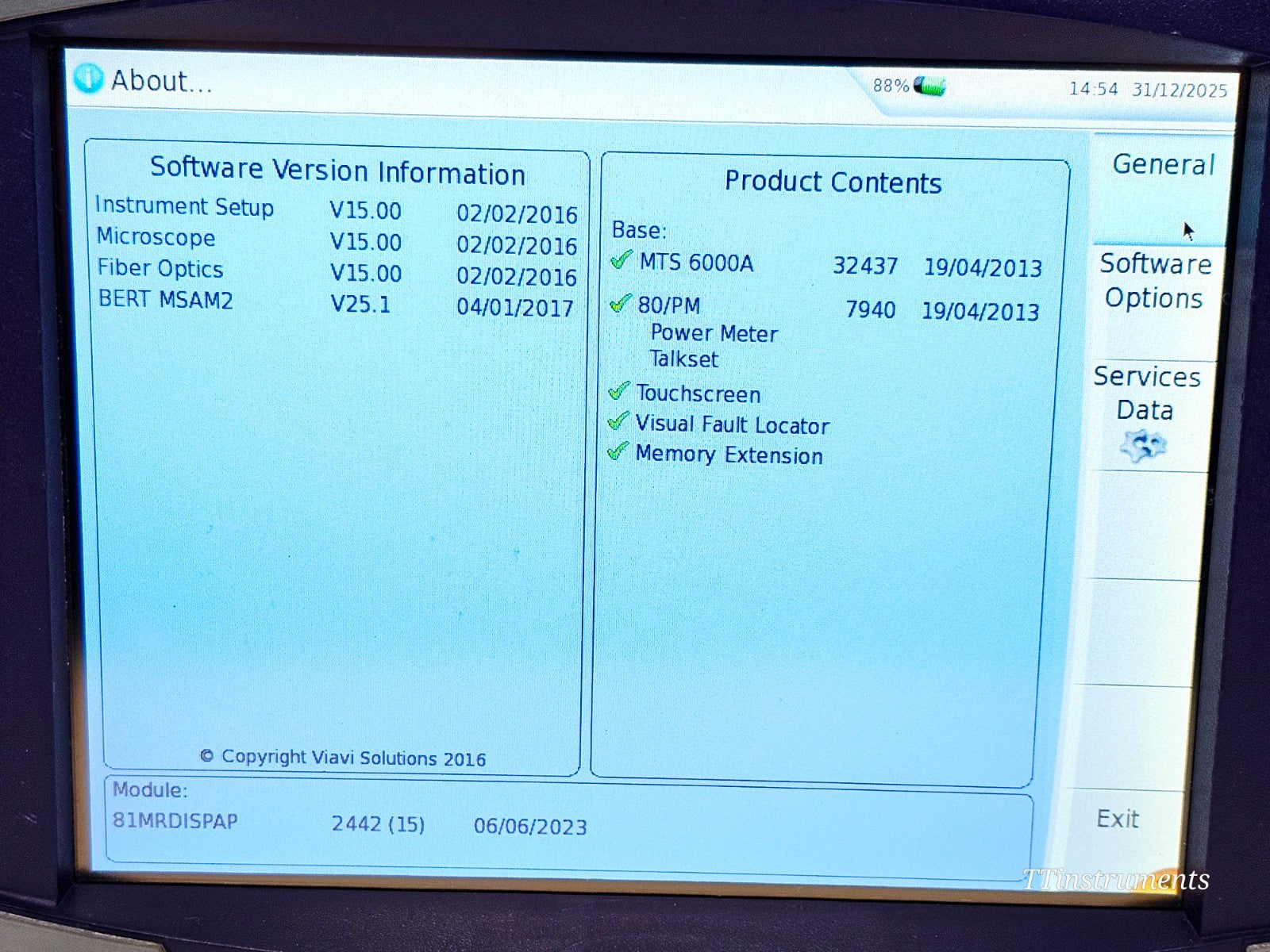

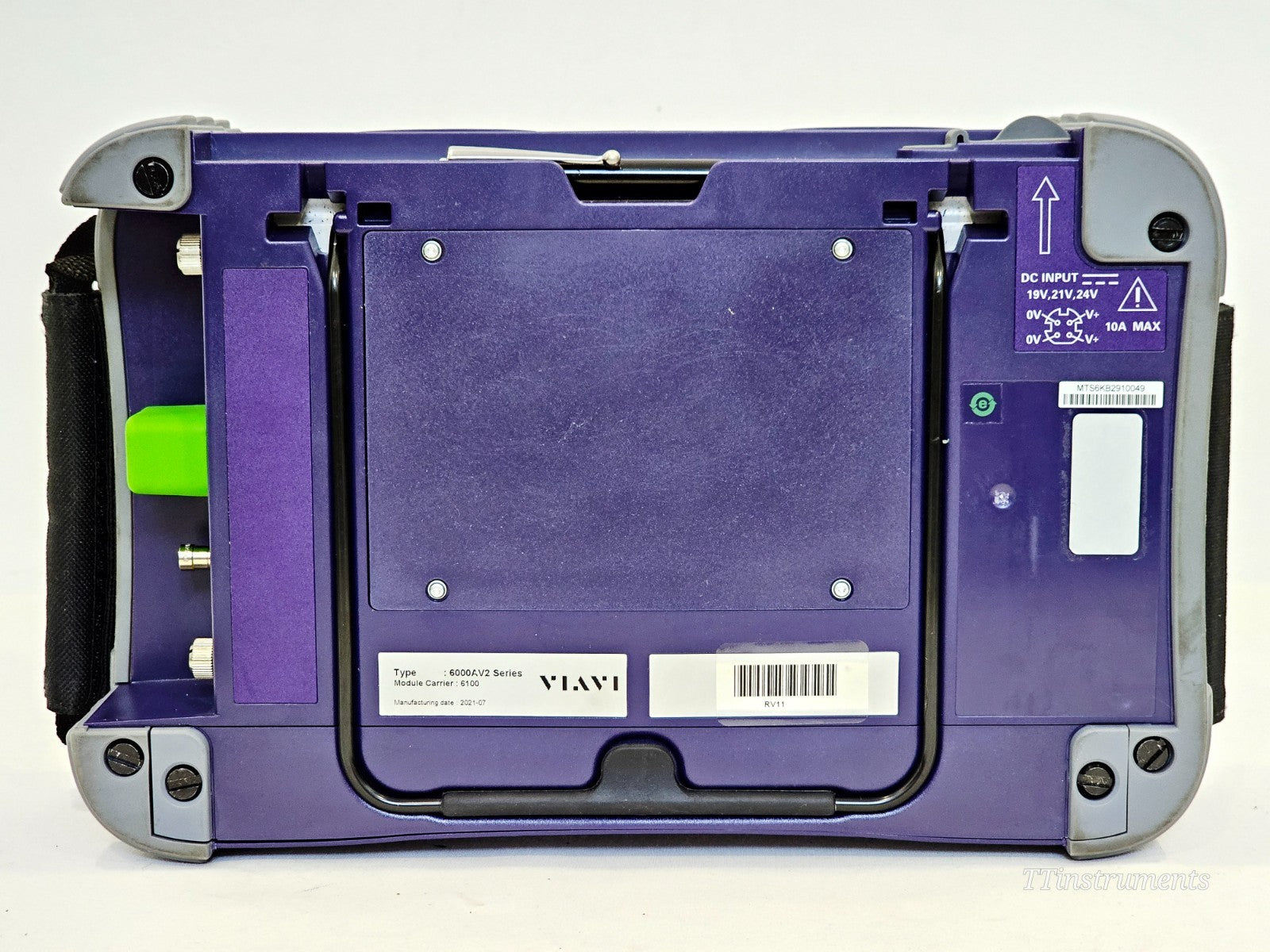

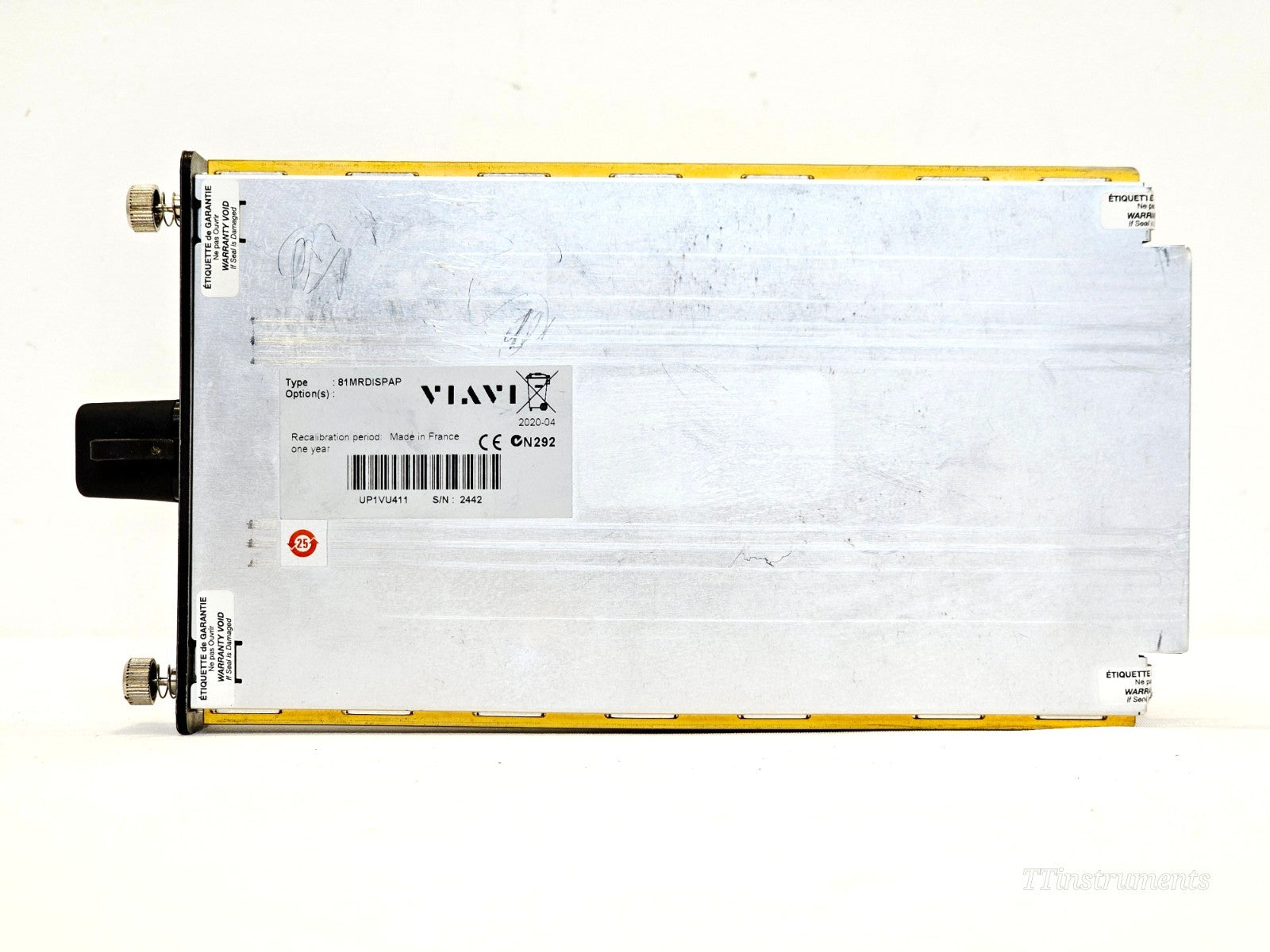

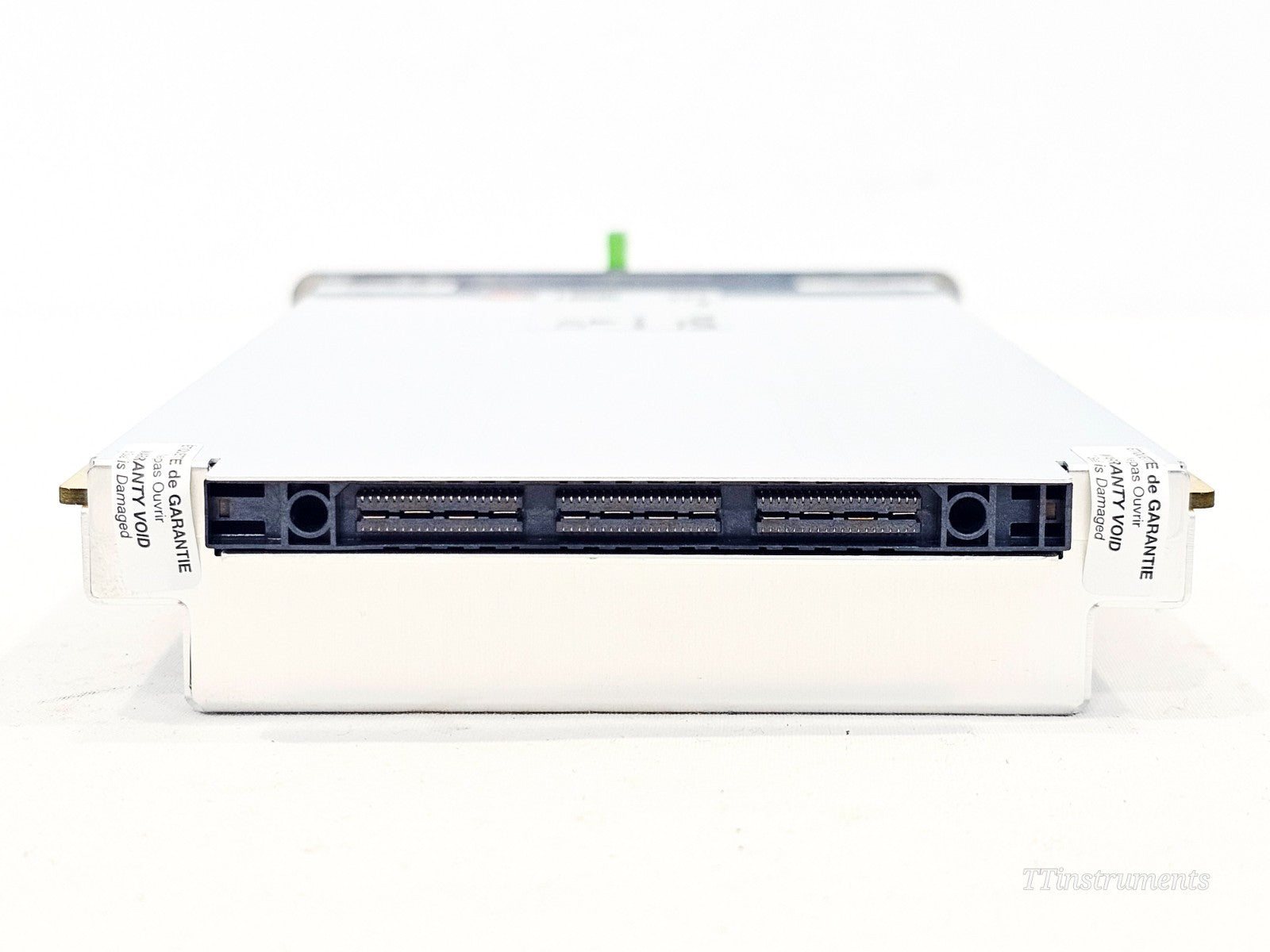

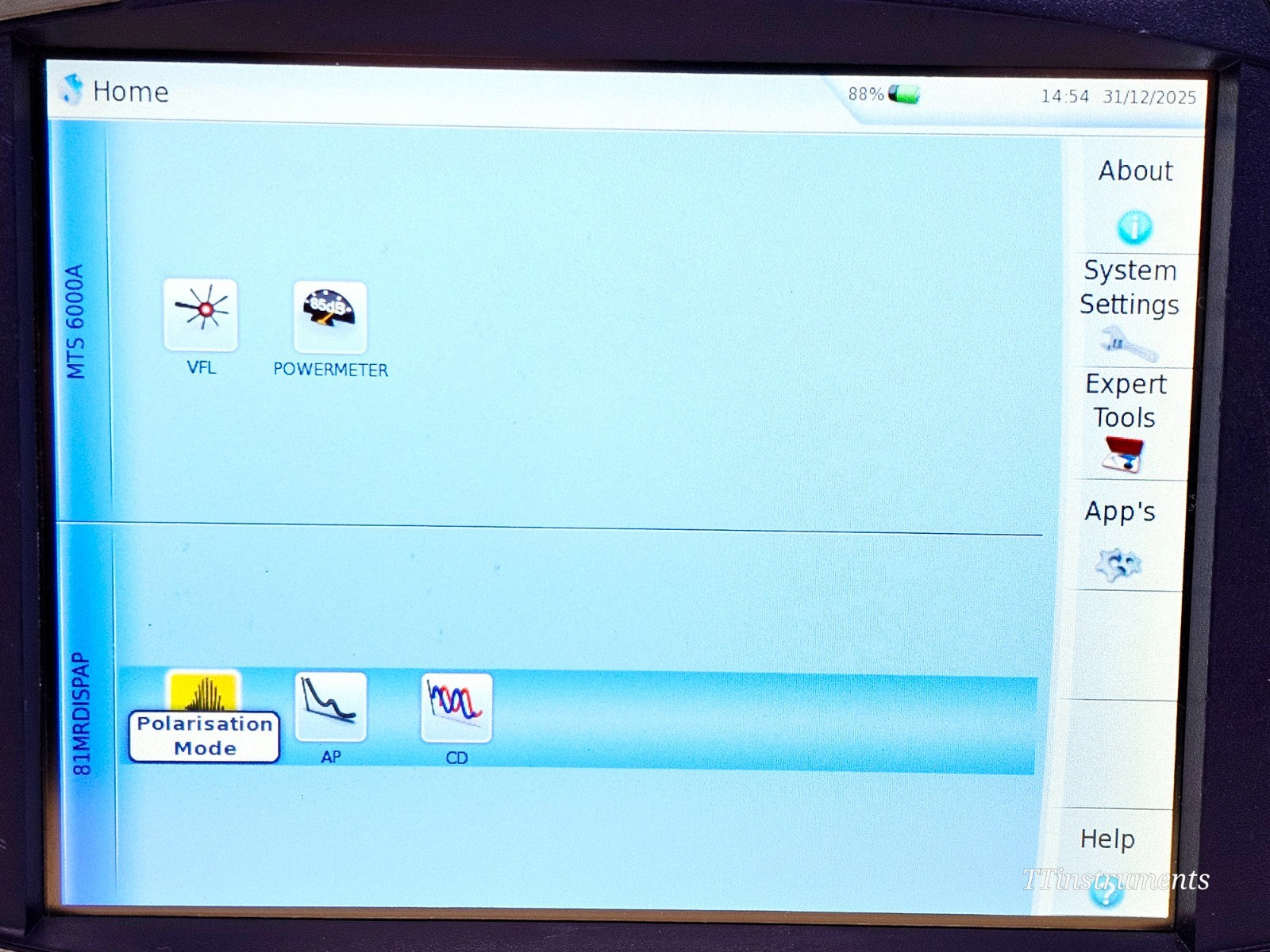

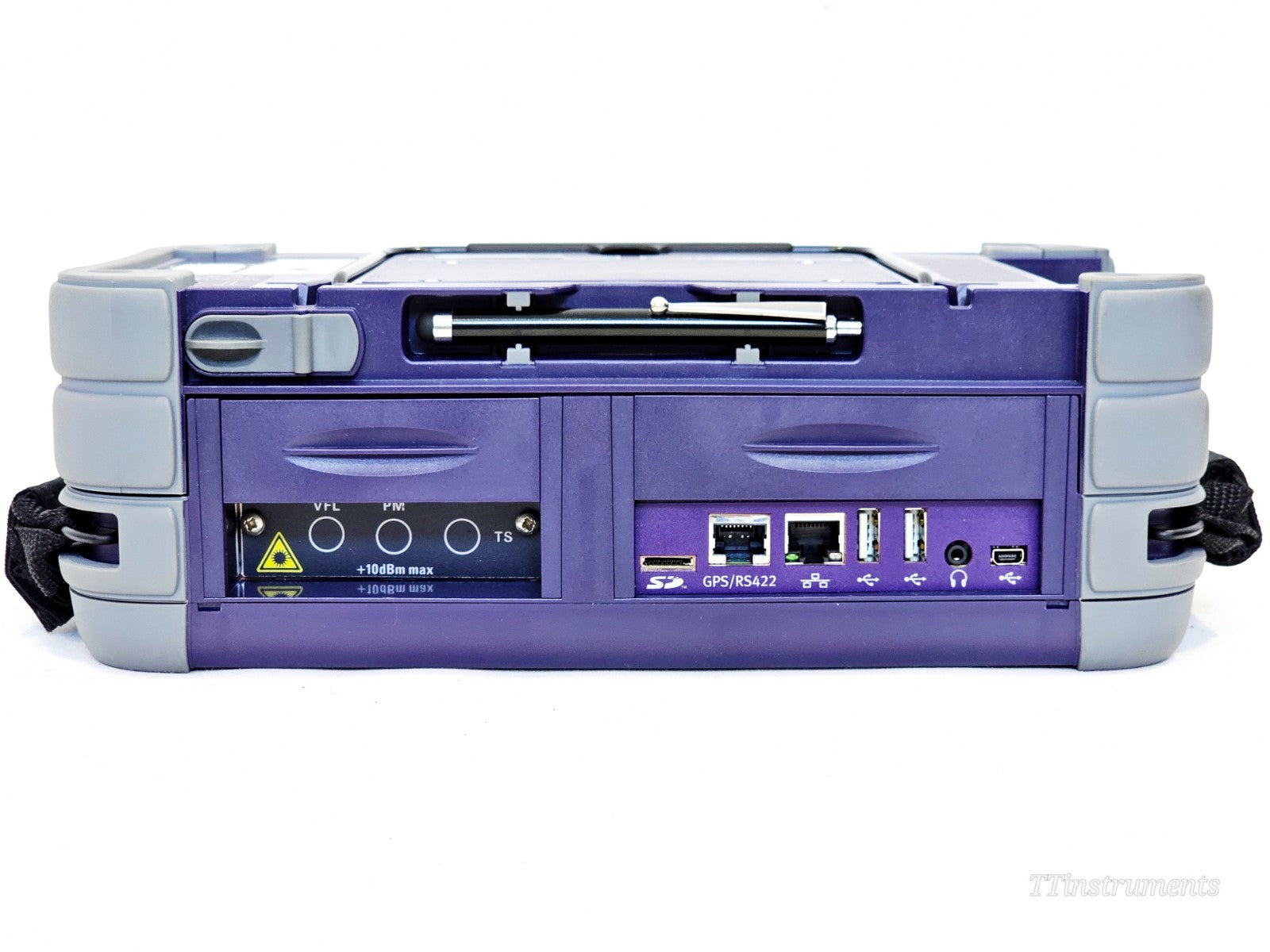

• MTS 6000A Mainframe with built-in power meter and vfl with 81MRDISPAP CD PMD AP Module

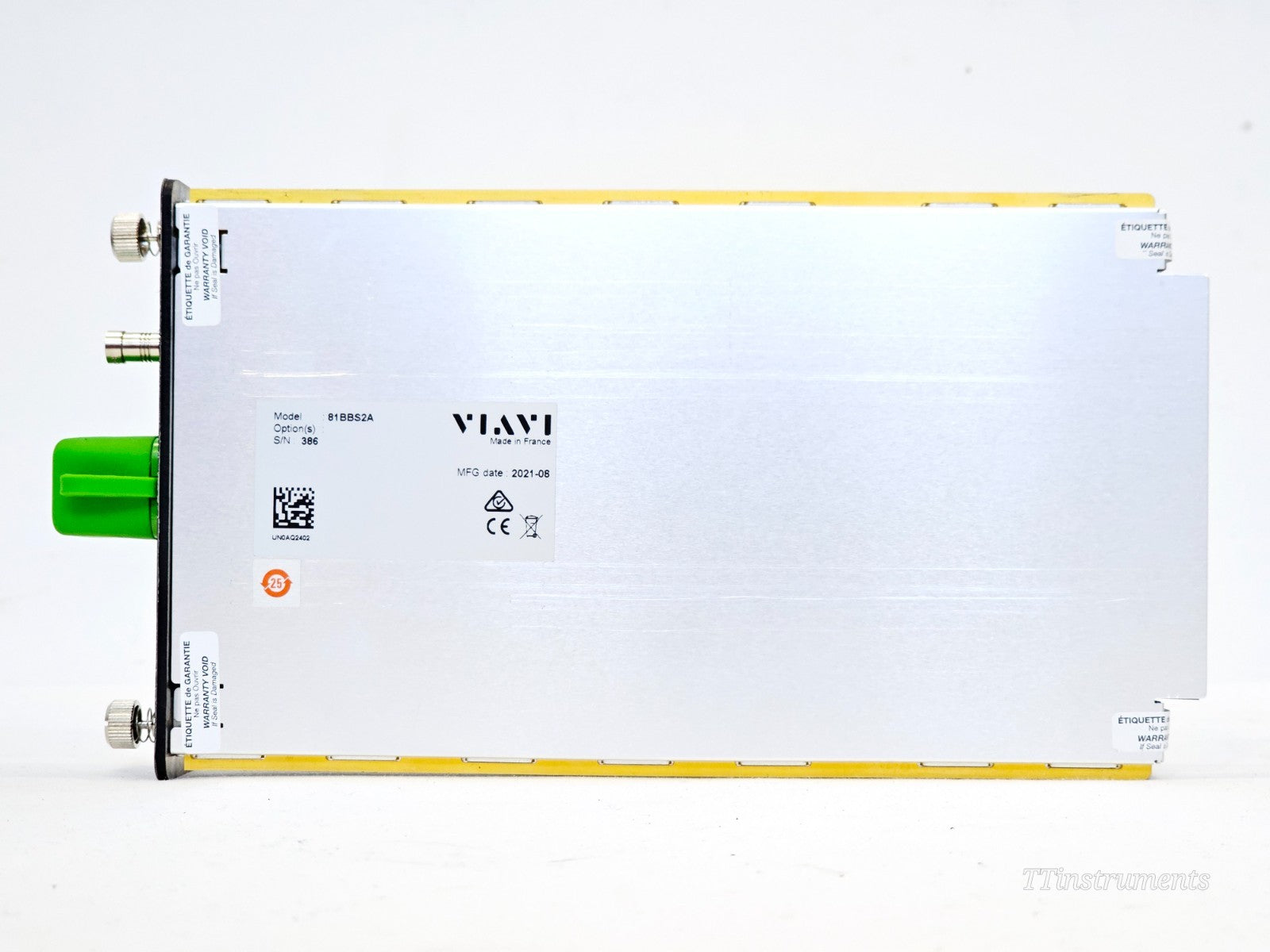

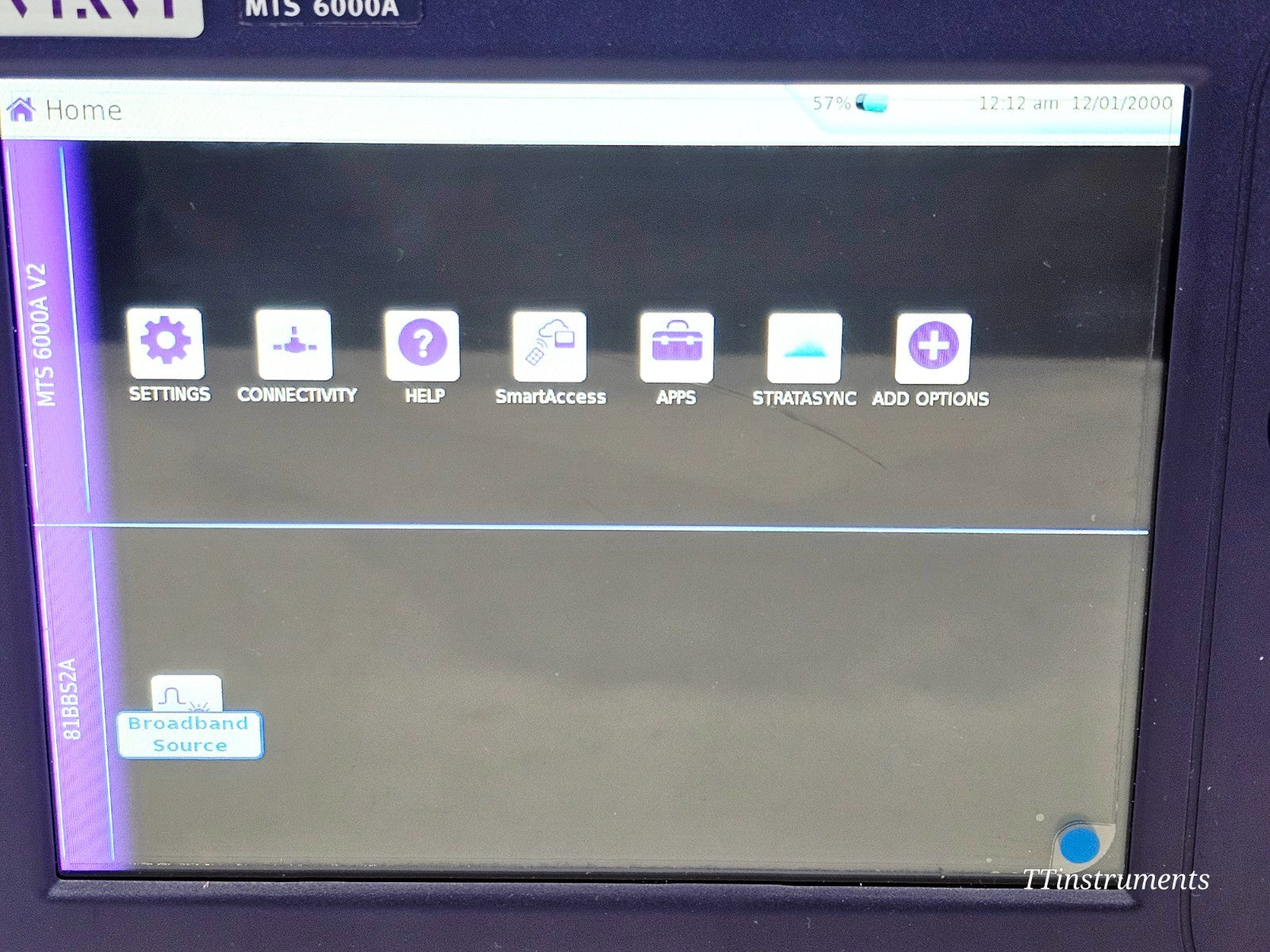

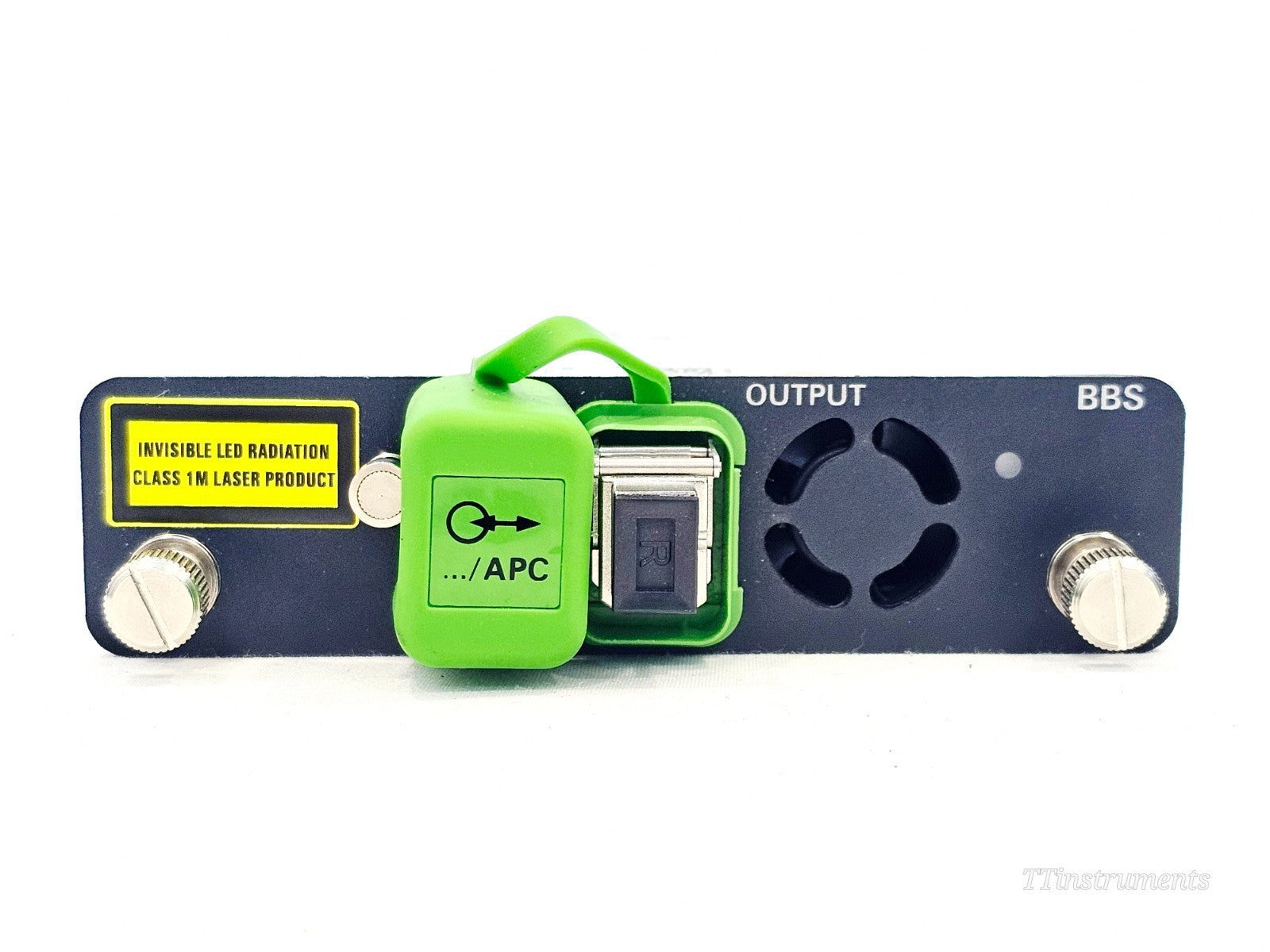

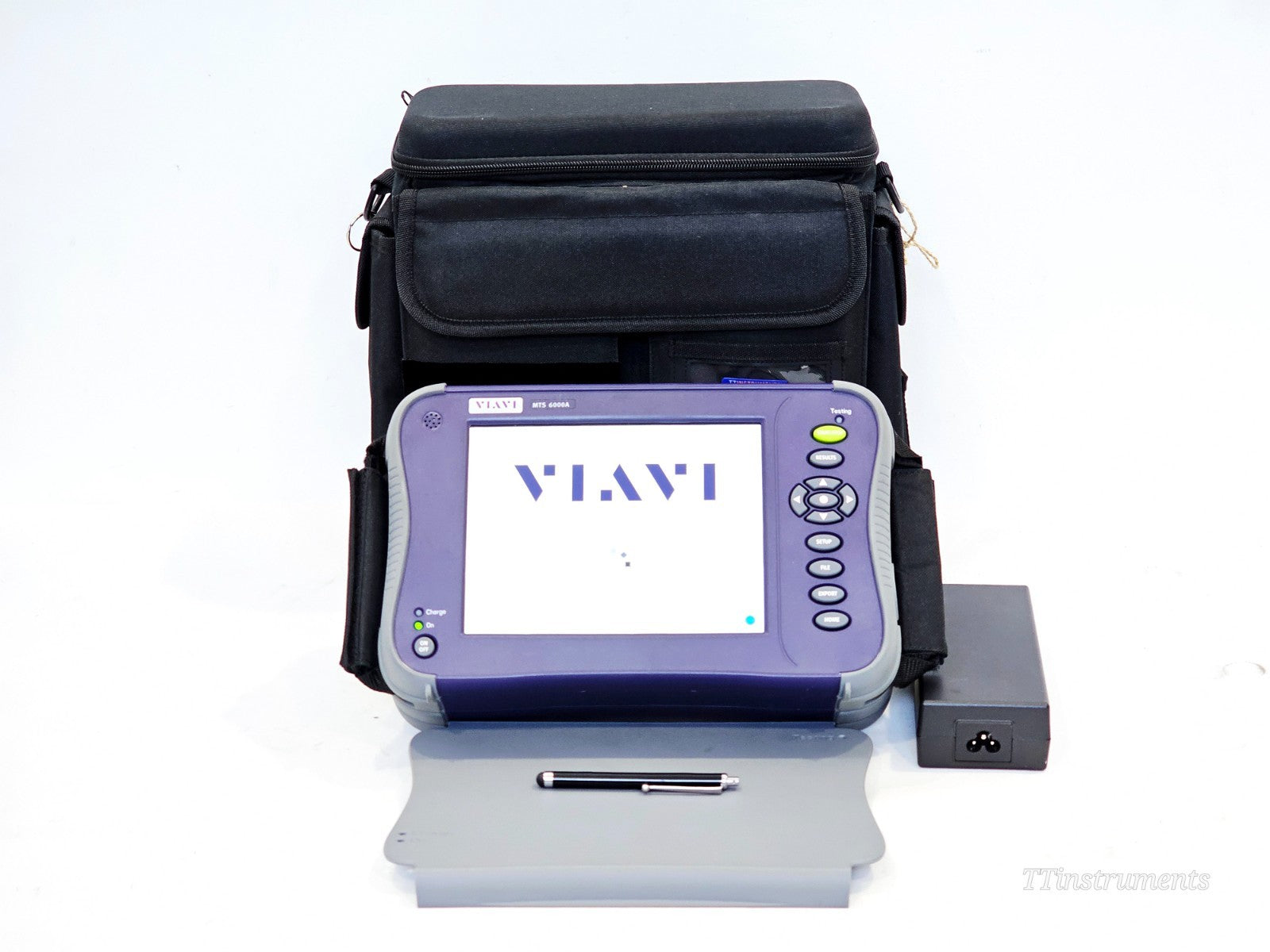

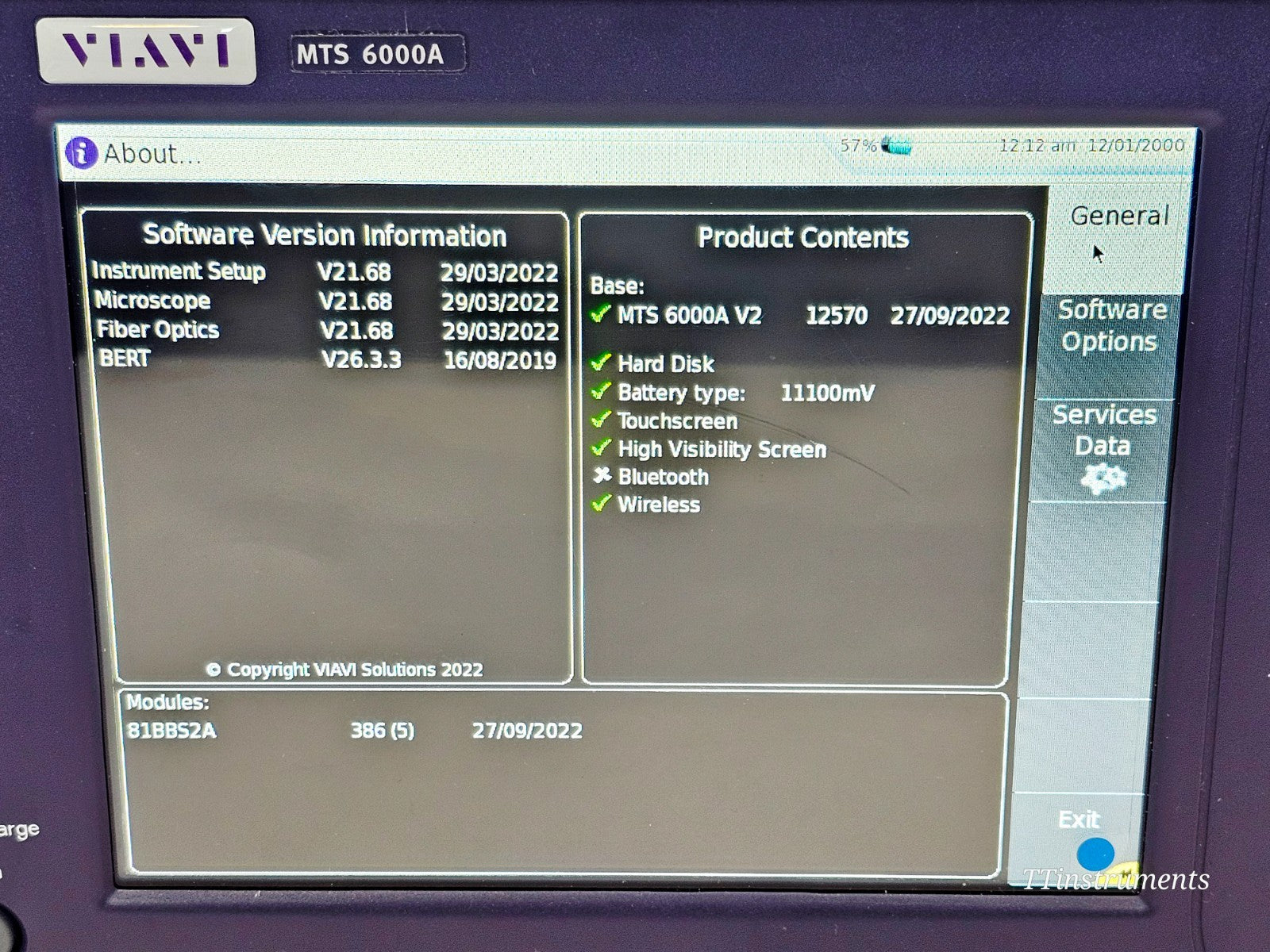

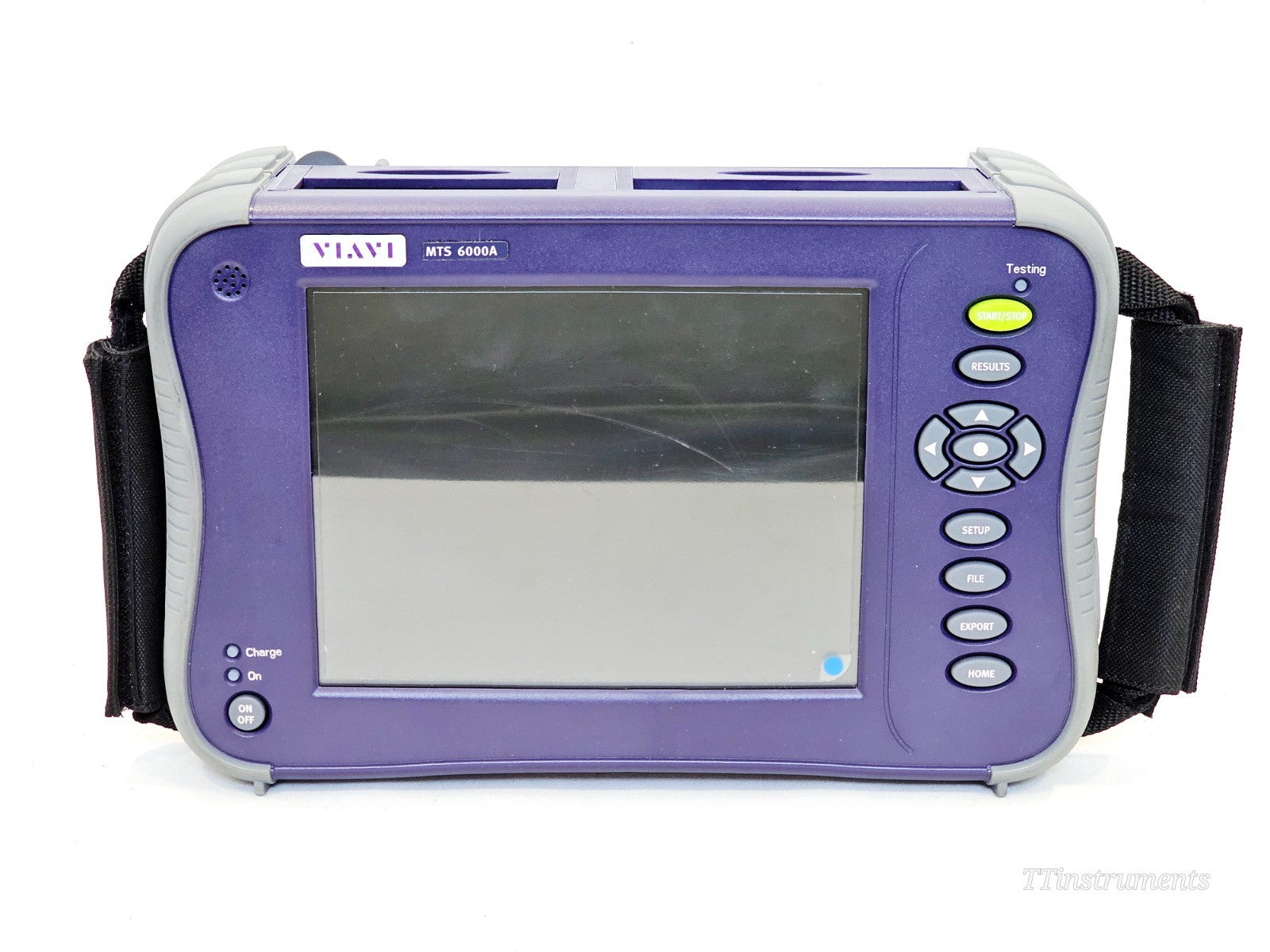

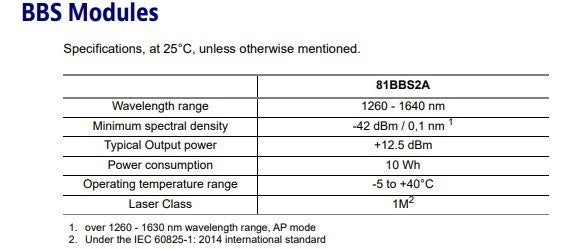

• MTS 6000A V2 mainframe with 81BBS2A broadband light source (like new condition)

The right testing combination The ability to measure CD, PMD, and AP is essential during fiber characterization, which is a series of tests performed to identify fiber viability for very high-speed transmission systems. These tests include 10 Gigabit Ethernet (GigE) and 40 G in both the installation and maintenance phases. If not properly managed, CD, PMD, and AP severely degrade transmission quality that must operate optimally to deliver reliable broadband services.

The combination of CD, PMD, and AP test functions lets technicians validate the compatibility of the fiber link with highspeed coarse wavelength division multiplexing (CWDM)/dense wavelength division multiplexing (DWDM) system implementation including reconfigurable optical add/drop multiplexer (ROADM) networks. The performance of each function makes the ODM module the right tool for characterizing fiber at transmission speeds of 40 Gb/s and higher.

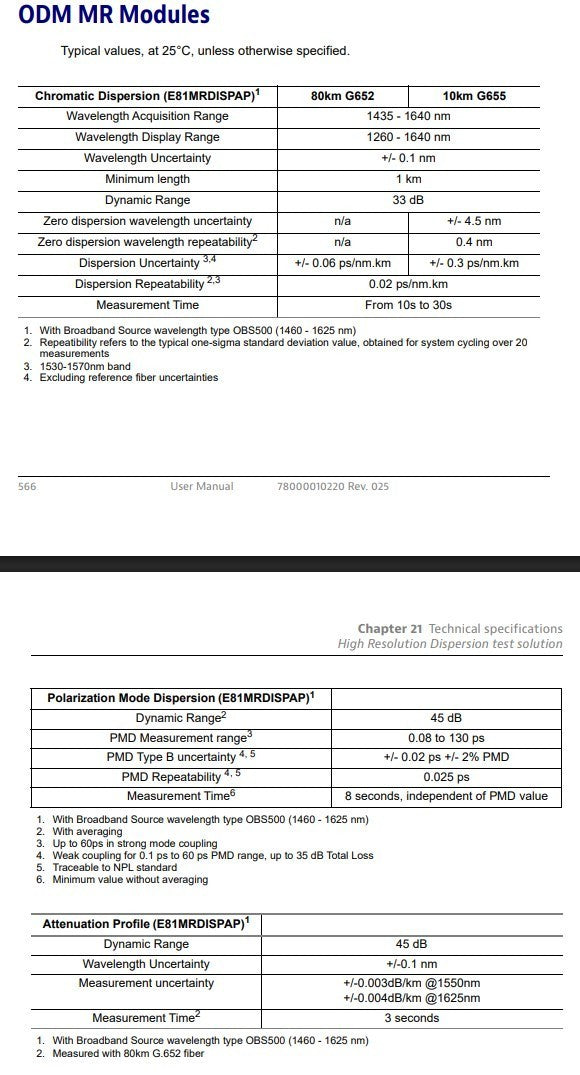

Chromatic Dispersion

– Two-ended test using one fiber based on phase shift method

– Full wavelength range characterization –
Suitable for any fiber type

– High dynamic range up to 55 dB

Polarization Mode Dispersion

– Based on the fixed analyzer method using fast Fourier transform (FFT)

– Established in the market

– High dynamic range up to 65 dB

Attenuation Profile

– dB loss/km over the full wavelength range: 1260-1640 nm

– Allows CWDM and DWDM transmission band characterization

– Water peak (1383 nm area) characterization
High-performance solution

In addition to its high level of integration and industry-leading field test performance features, all test methods used in the ODM module are approved and/or referenced by all international standardization bodies.

Its high dynamic range (up to 65 dB), its wide wavelength acquisition range, repeatability and high level of accuracy make it the product of choice for reliable fiber characterization.

High-performance features include:

– Test through non-bidirectional components, including erbium doped fiber amplifiers (EDFAs) and filters

– Very fast acquisition time (from 40 to 80 seconds) with minimum 500 acquisition points

– Accurate zero-wavelength characterization on G.652 fiber – One input port for any test configuration
