Condition: Used

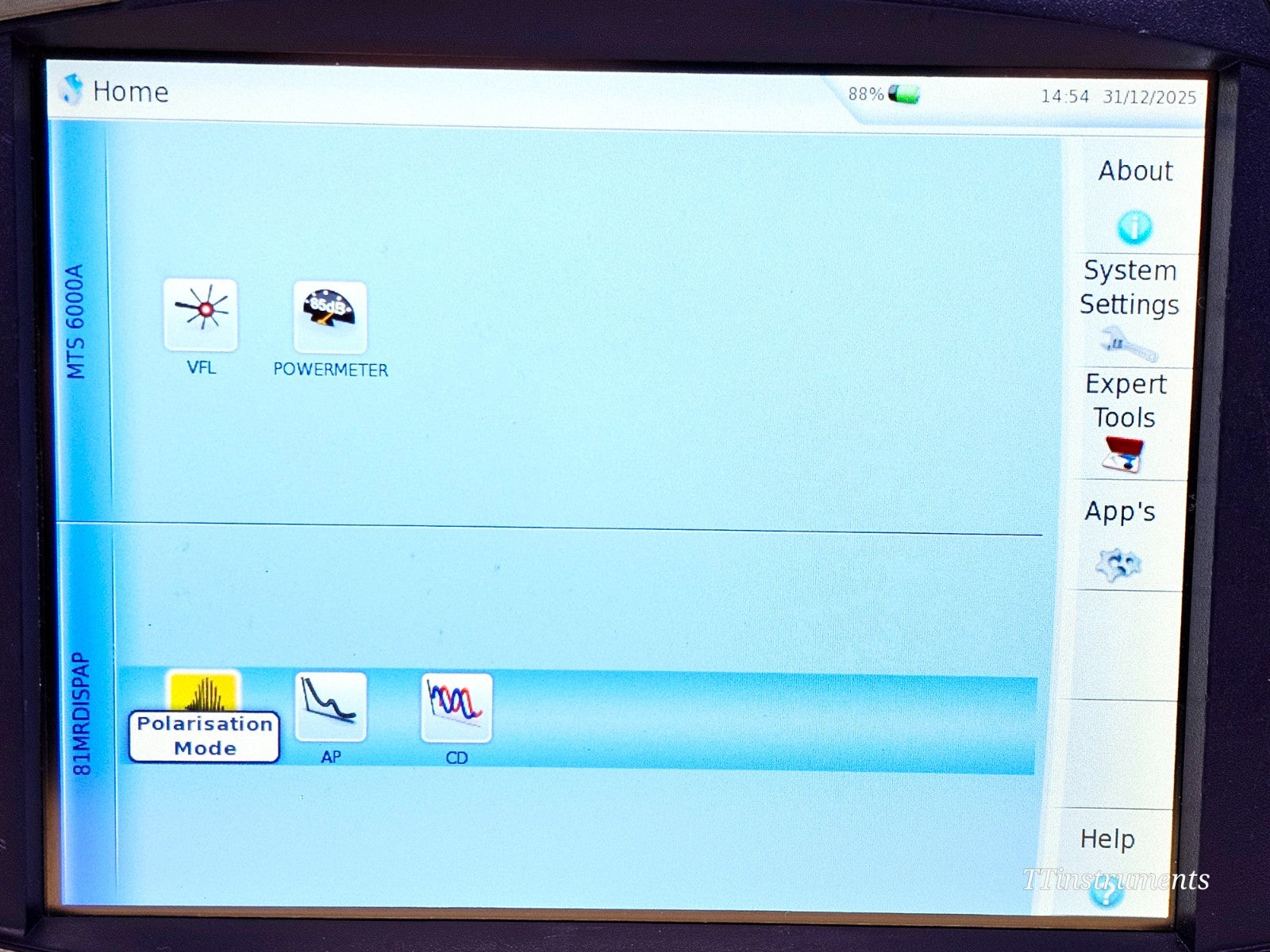

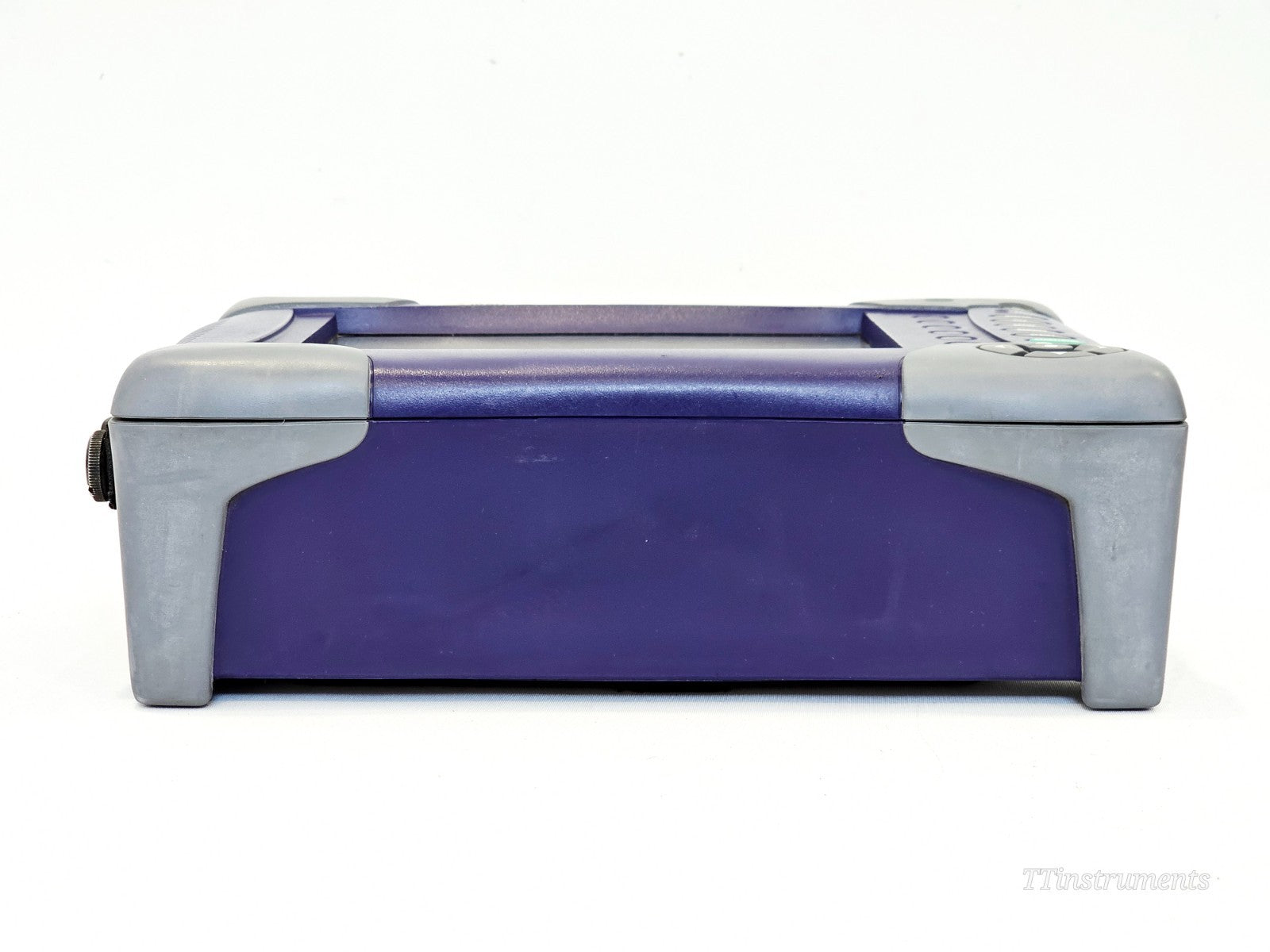

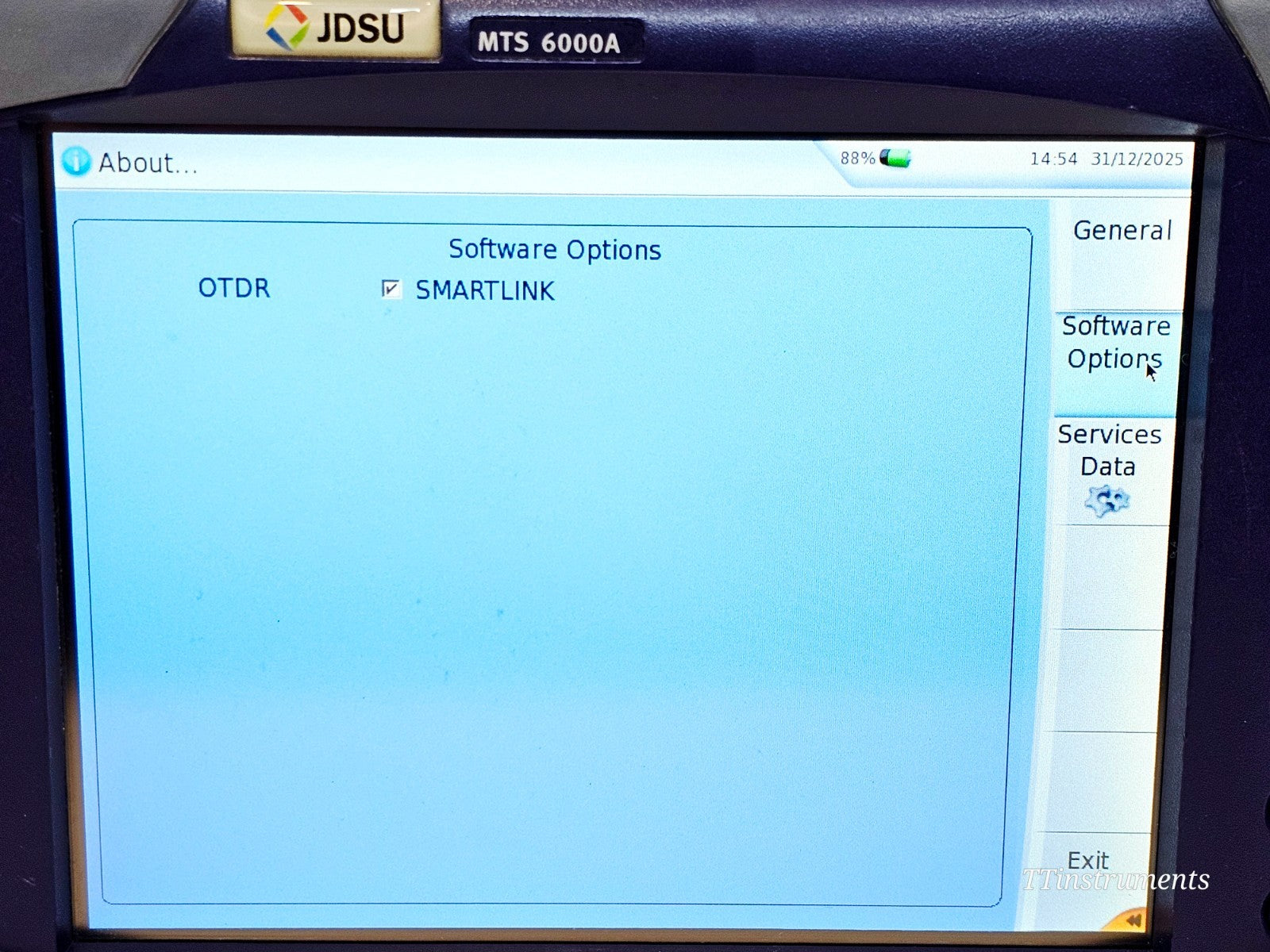

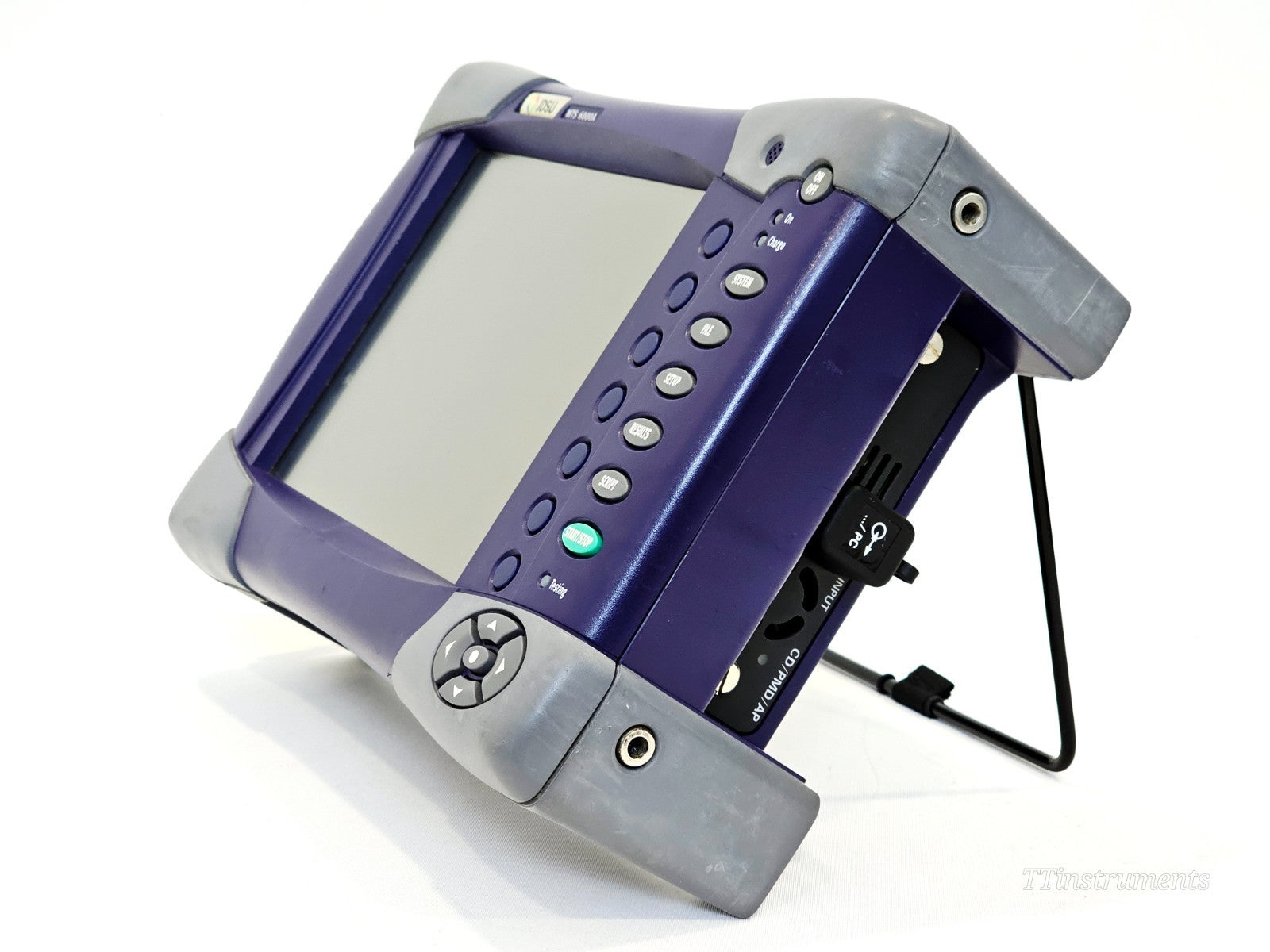

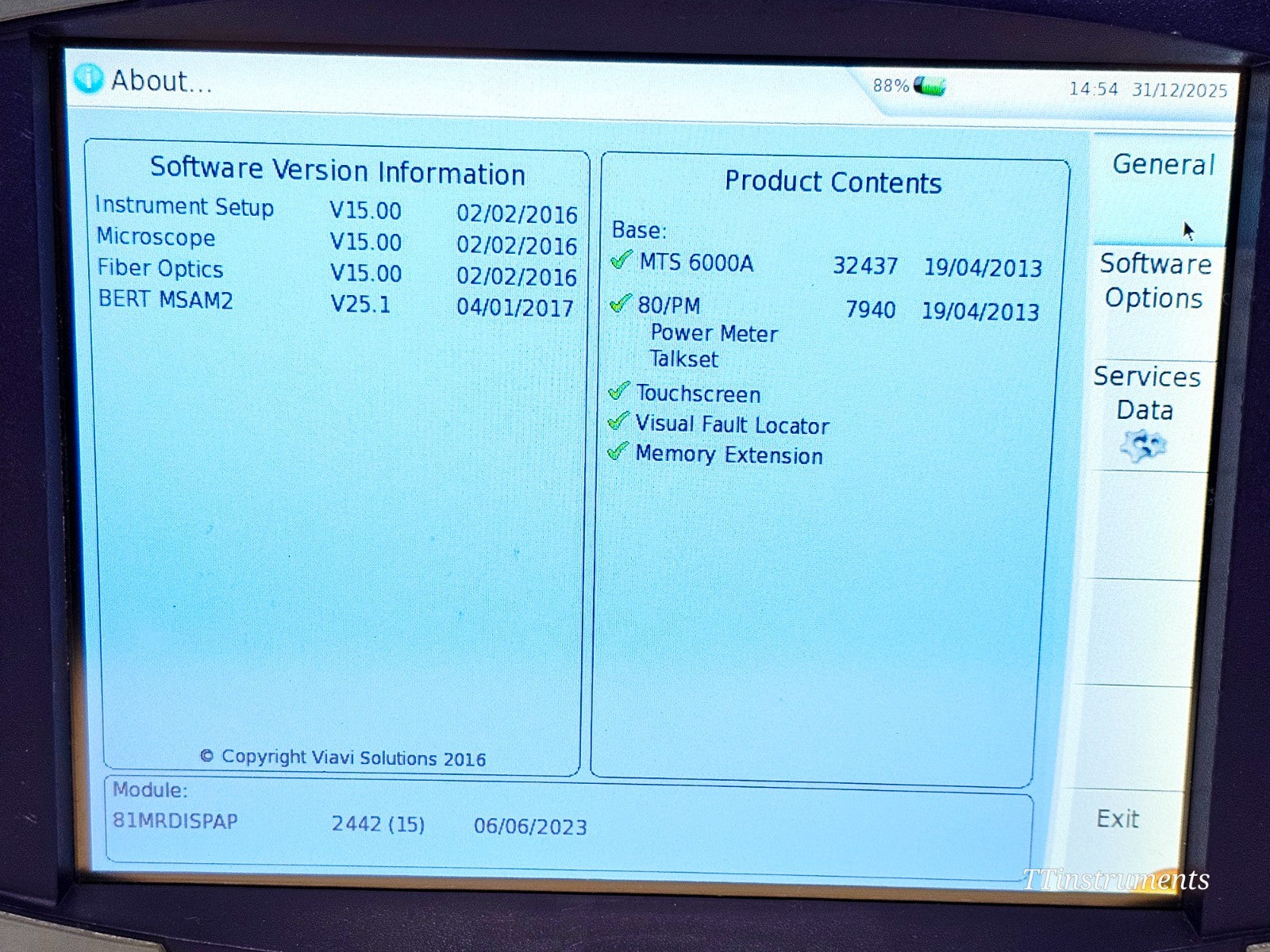

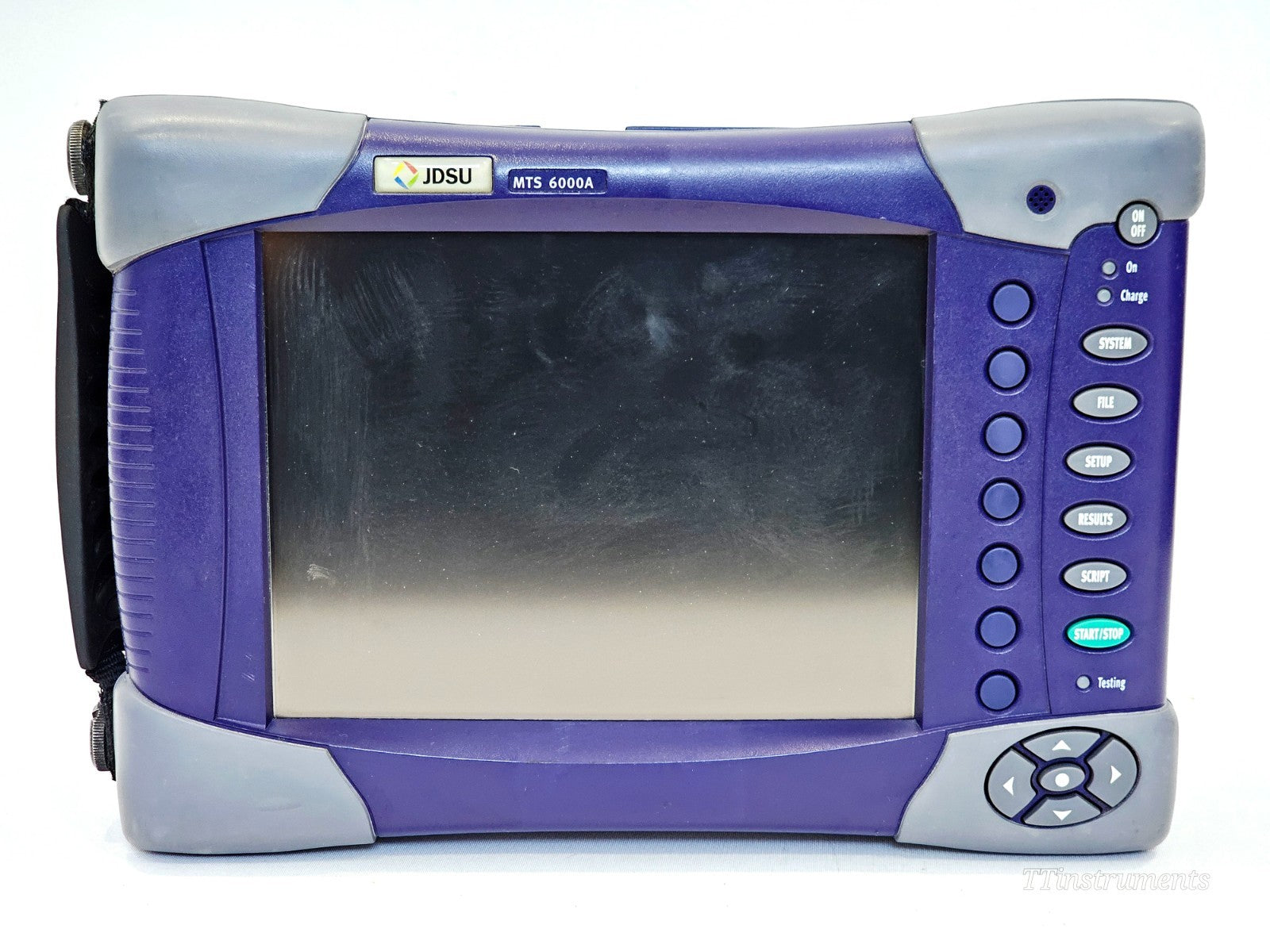

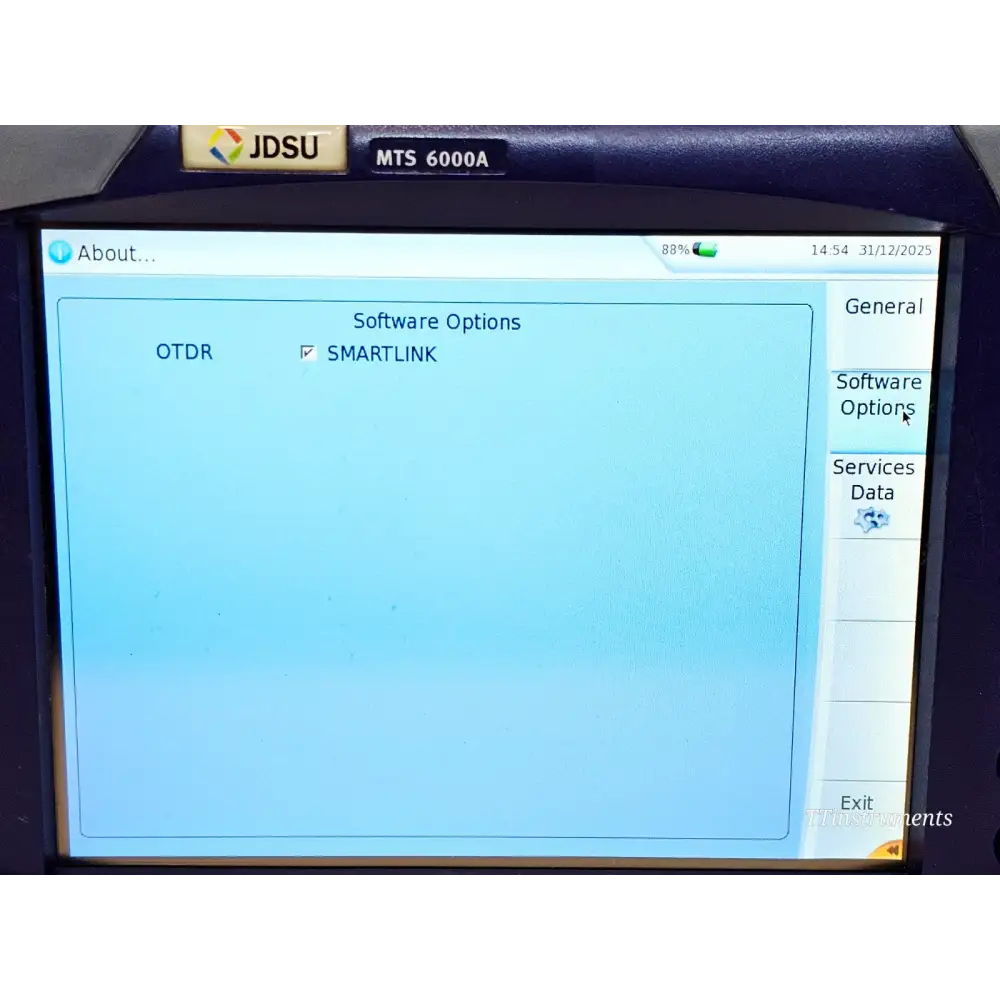

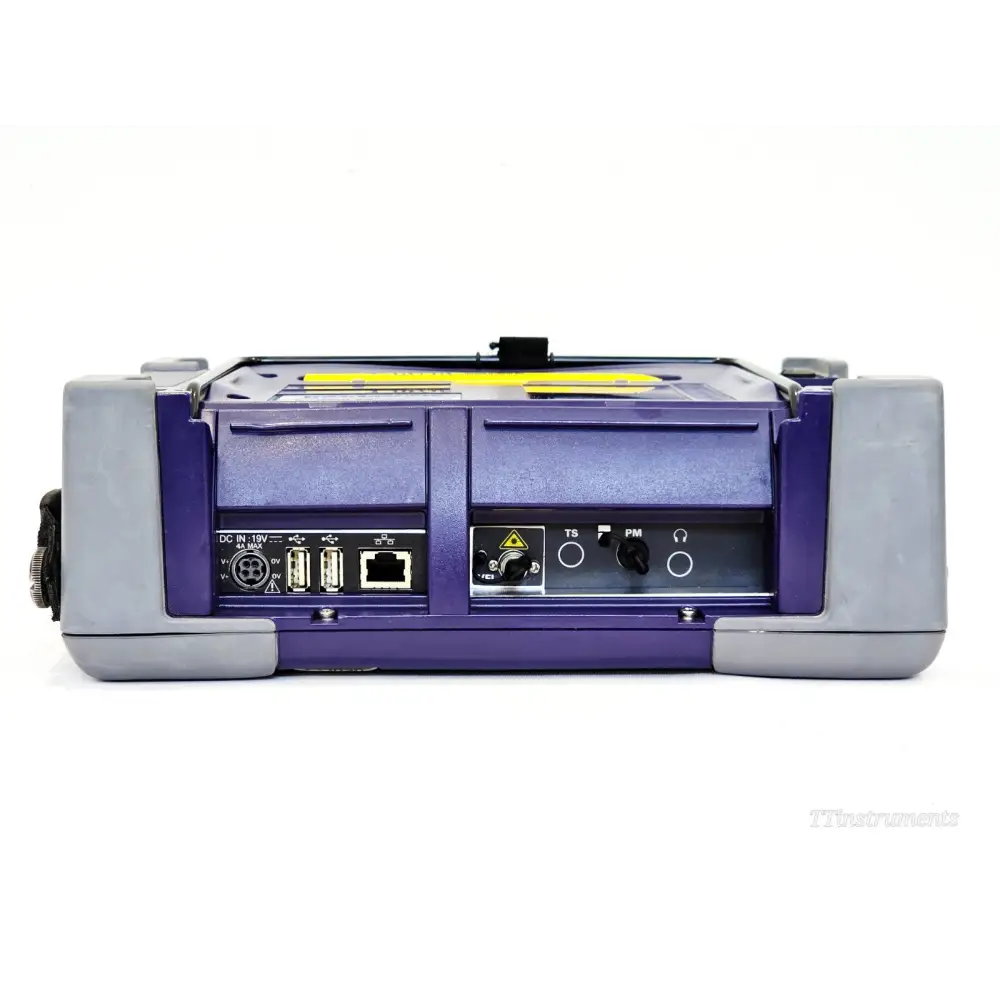

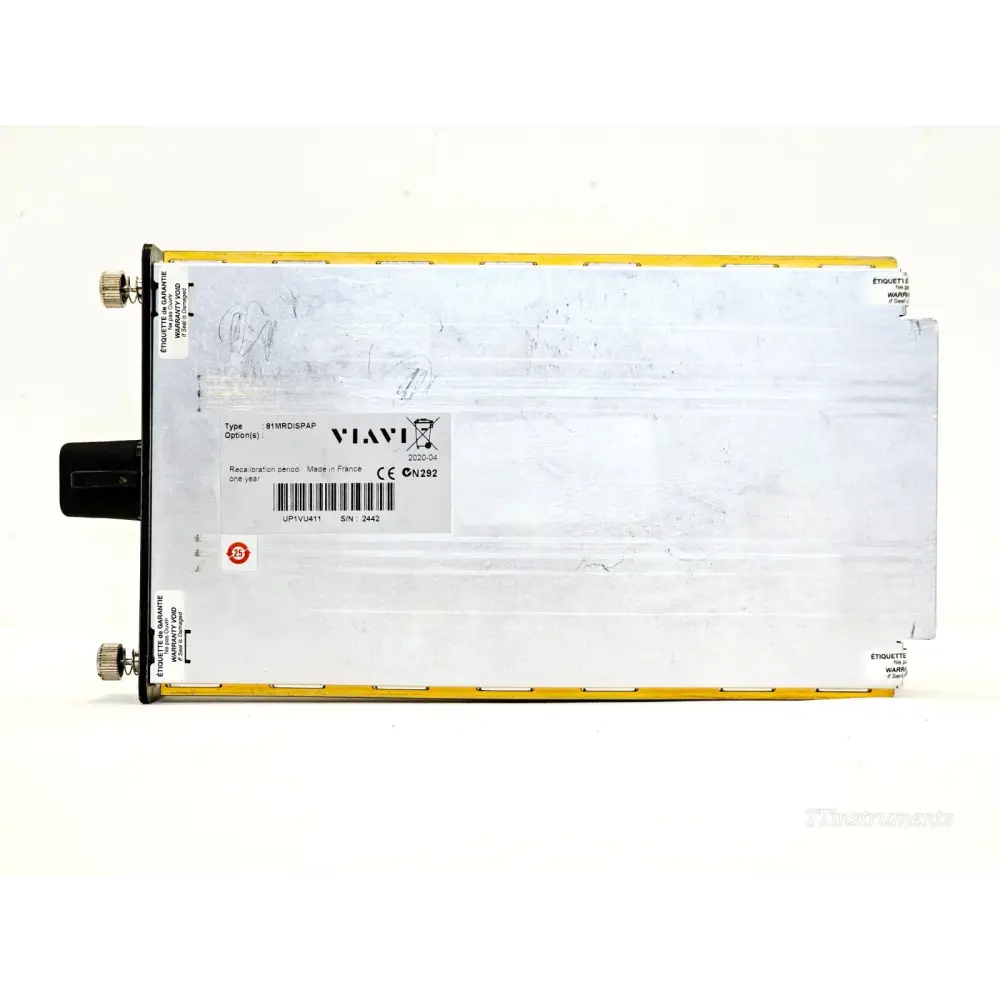

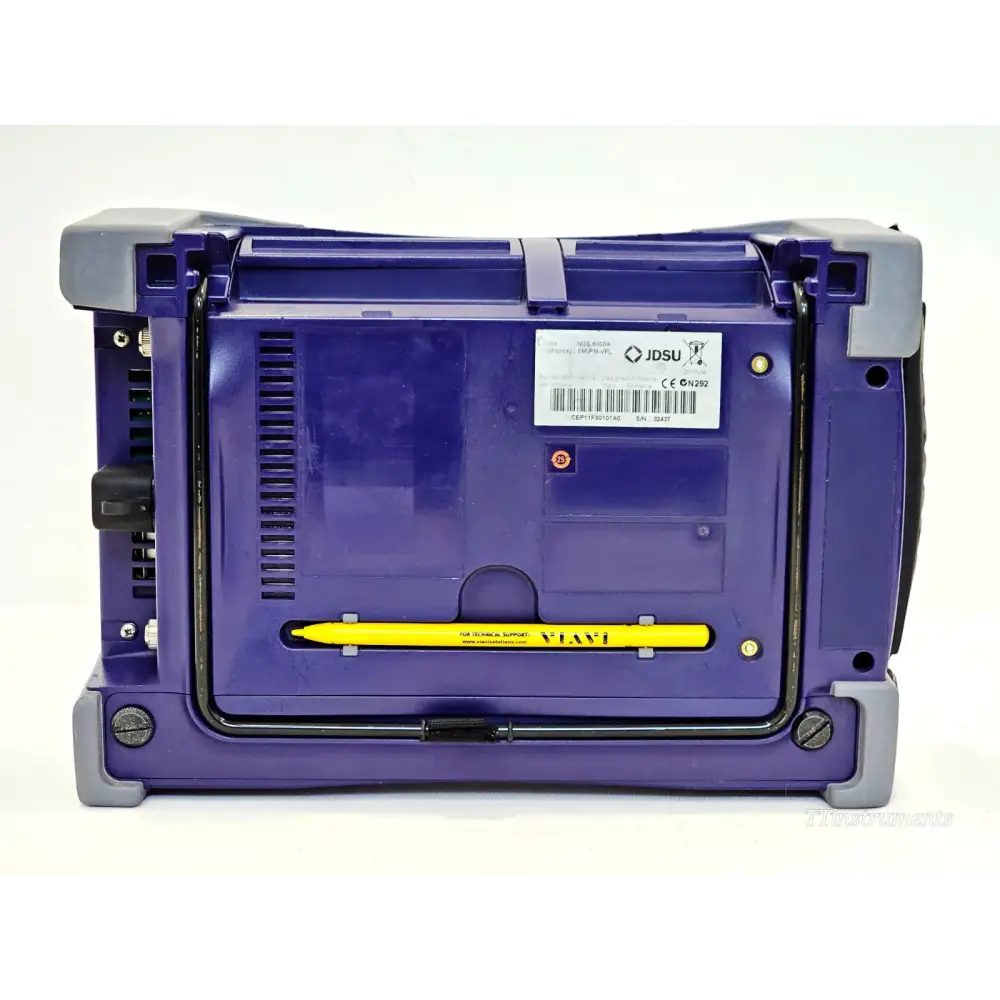

This JDSU MTS 6000A mainframe is in good working condition and is fitted with the 81MRDISPAP CD/PMD/AP dispersion analyser module covering 1260–1640 nm. The unit includes a built-in power meter and visual fault locator (VFL). Please note the light source is NOT included.

Included in the sale:

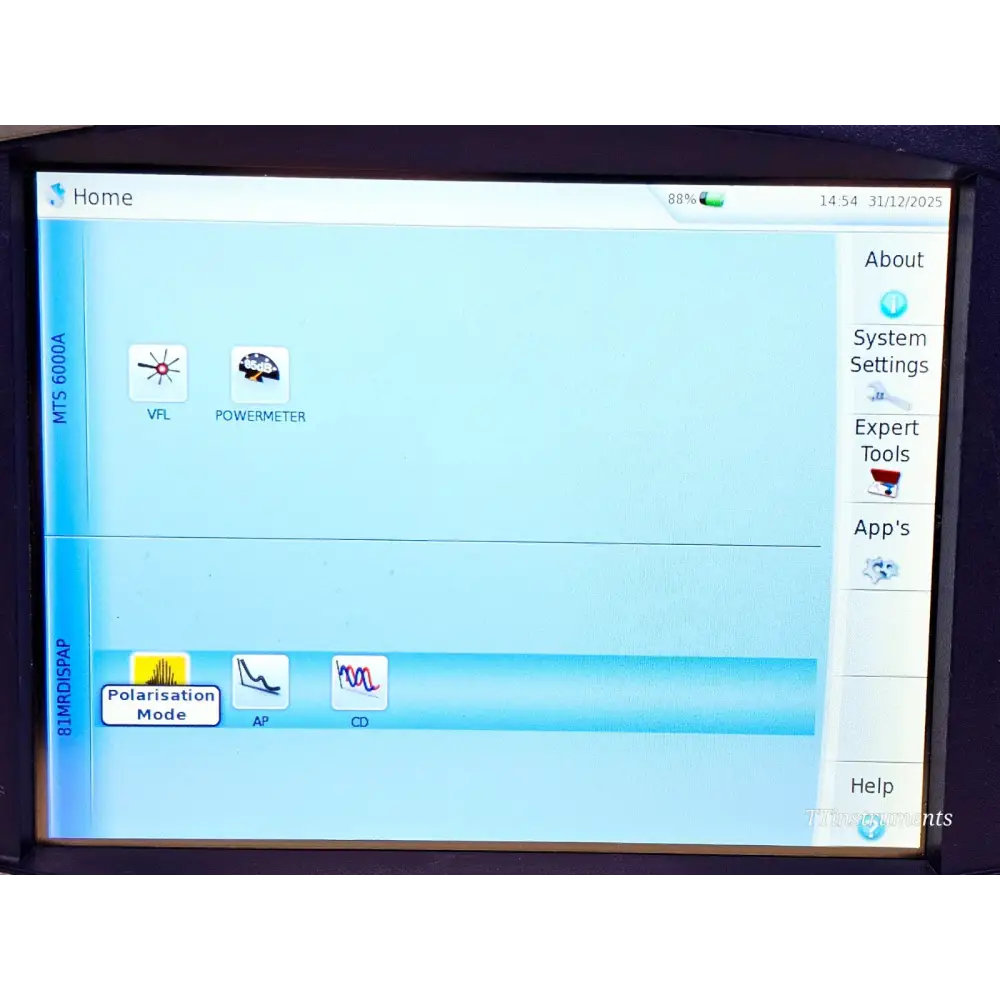

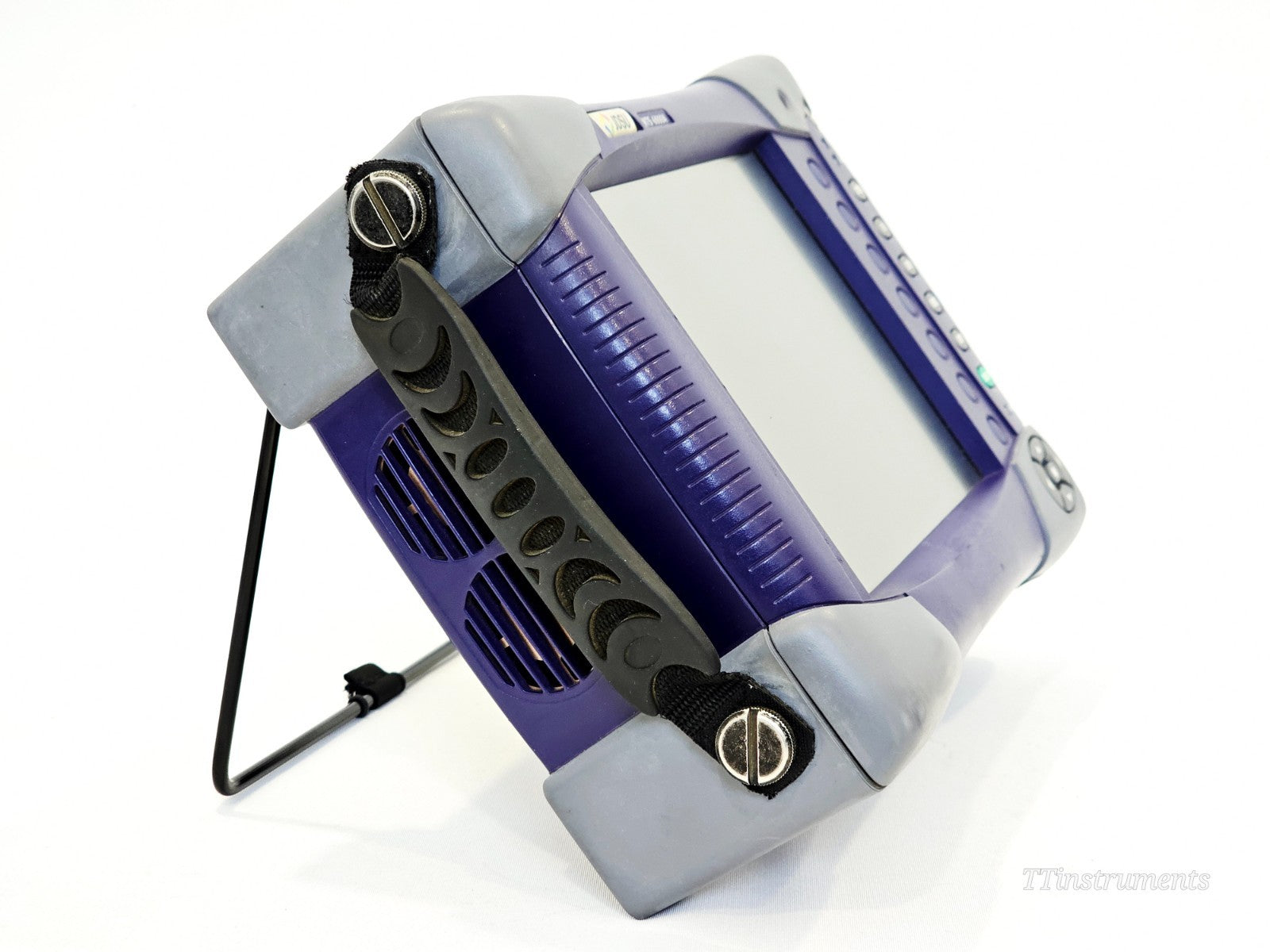

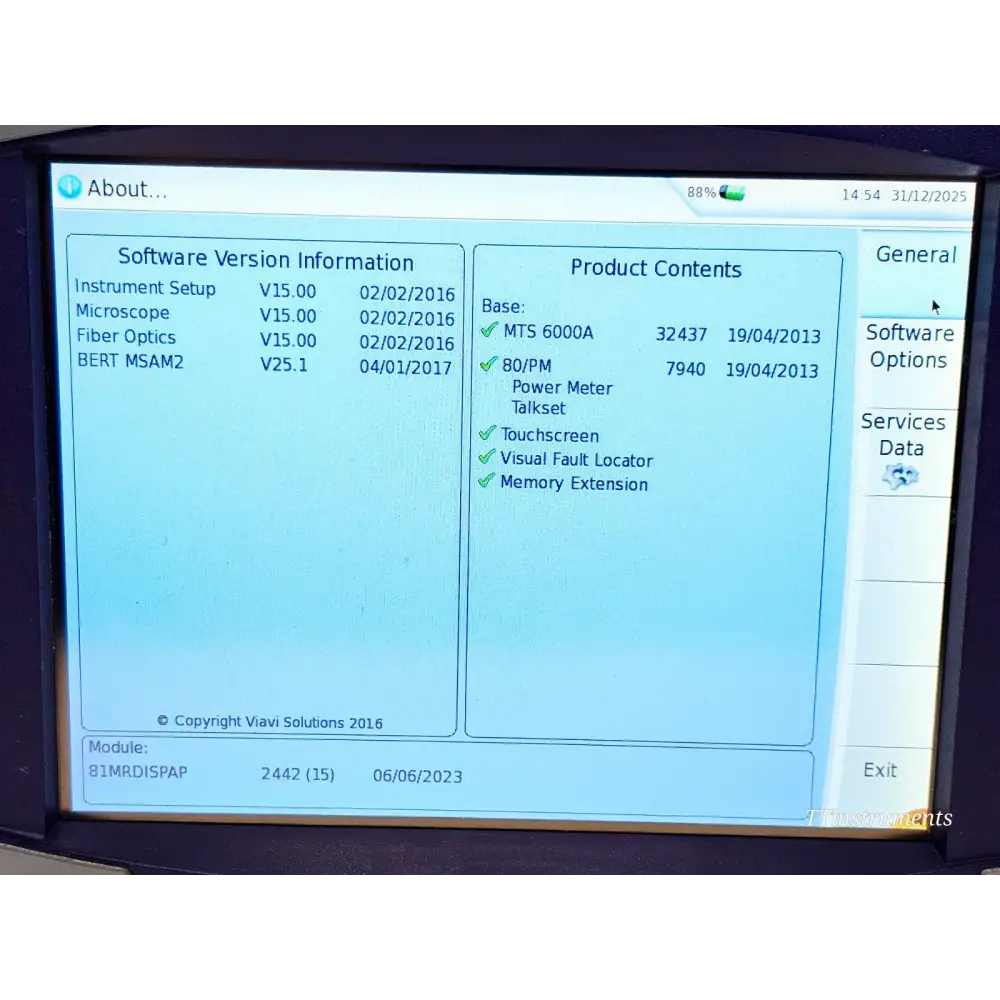

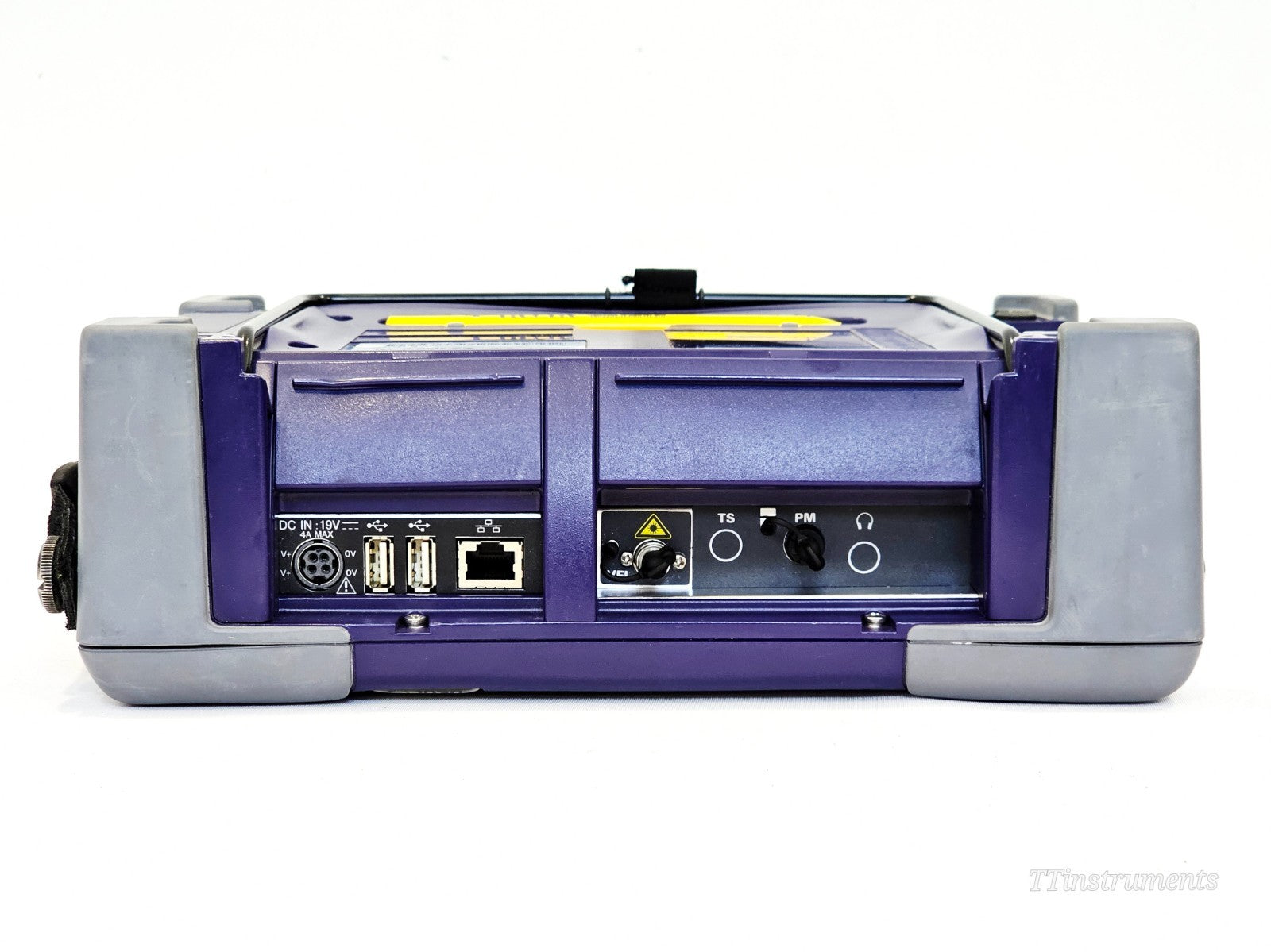

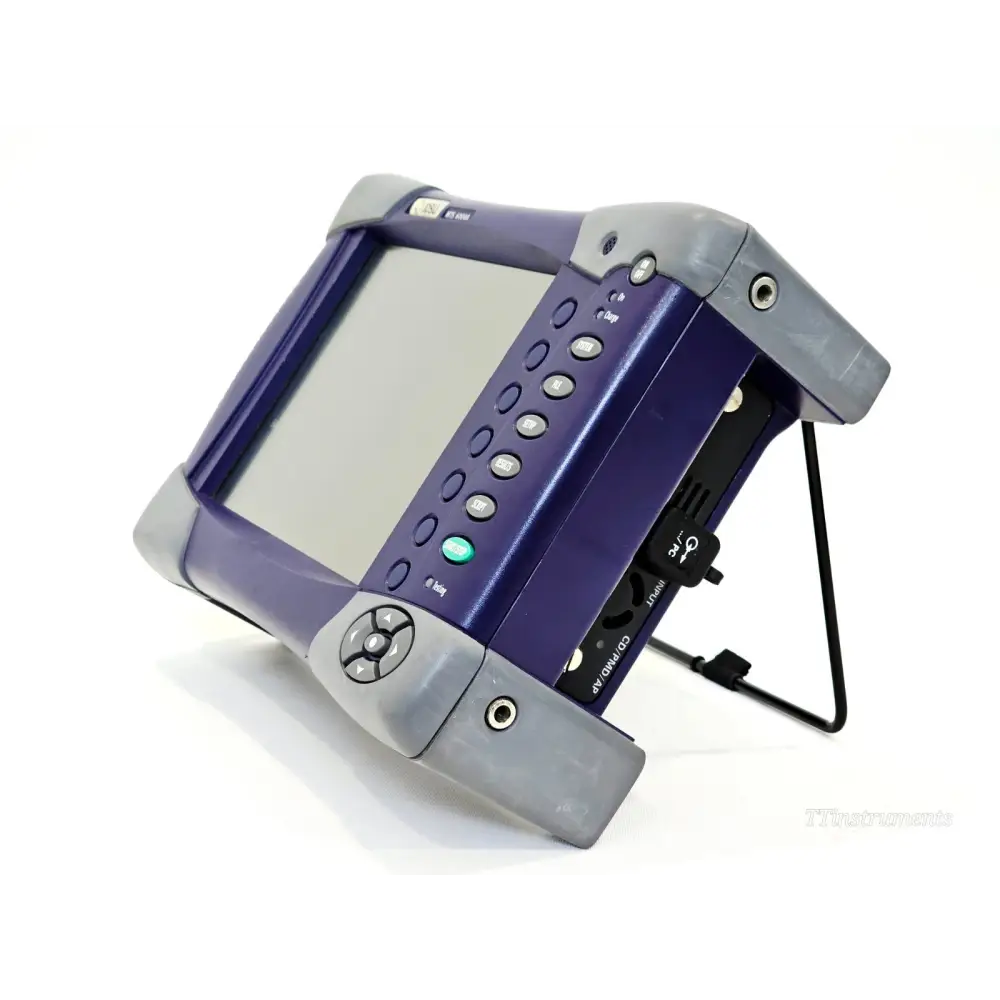

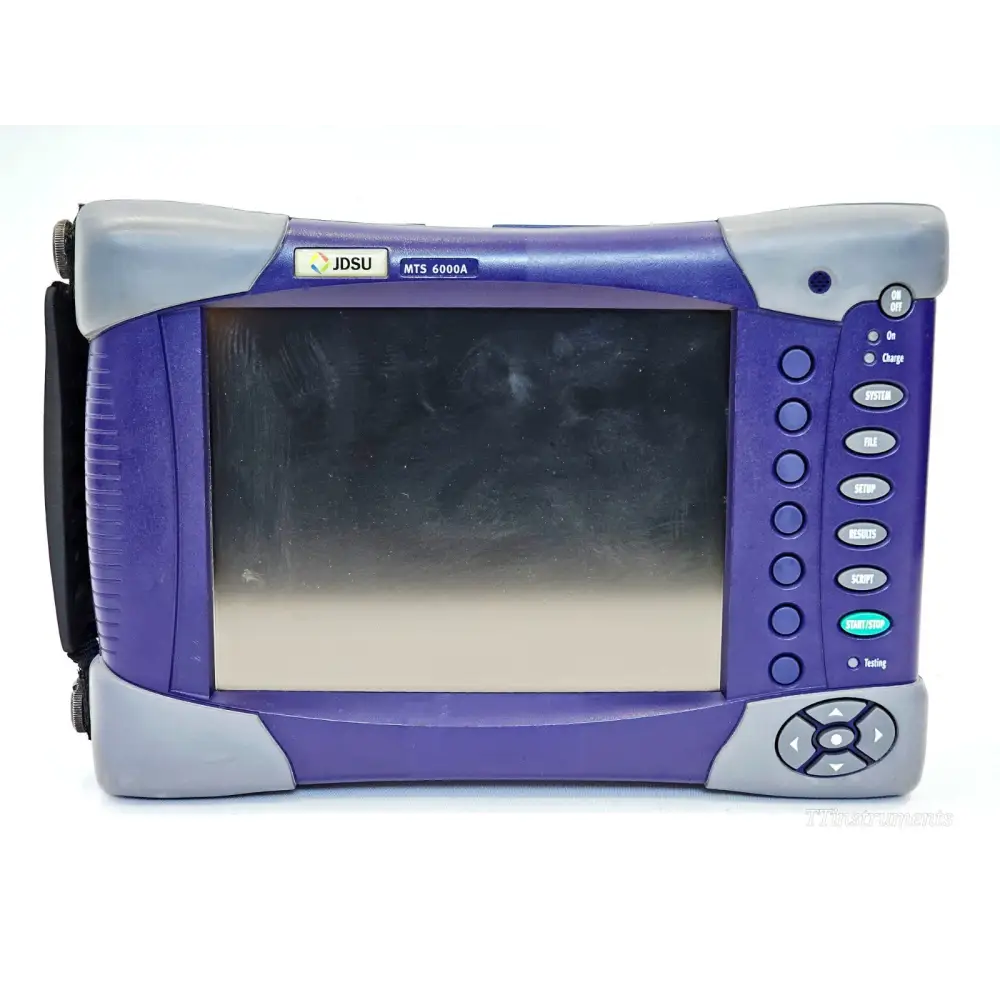

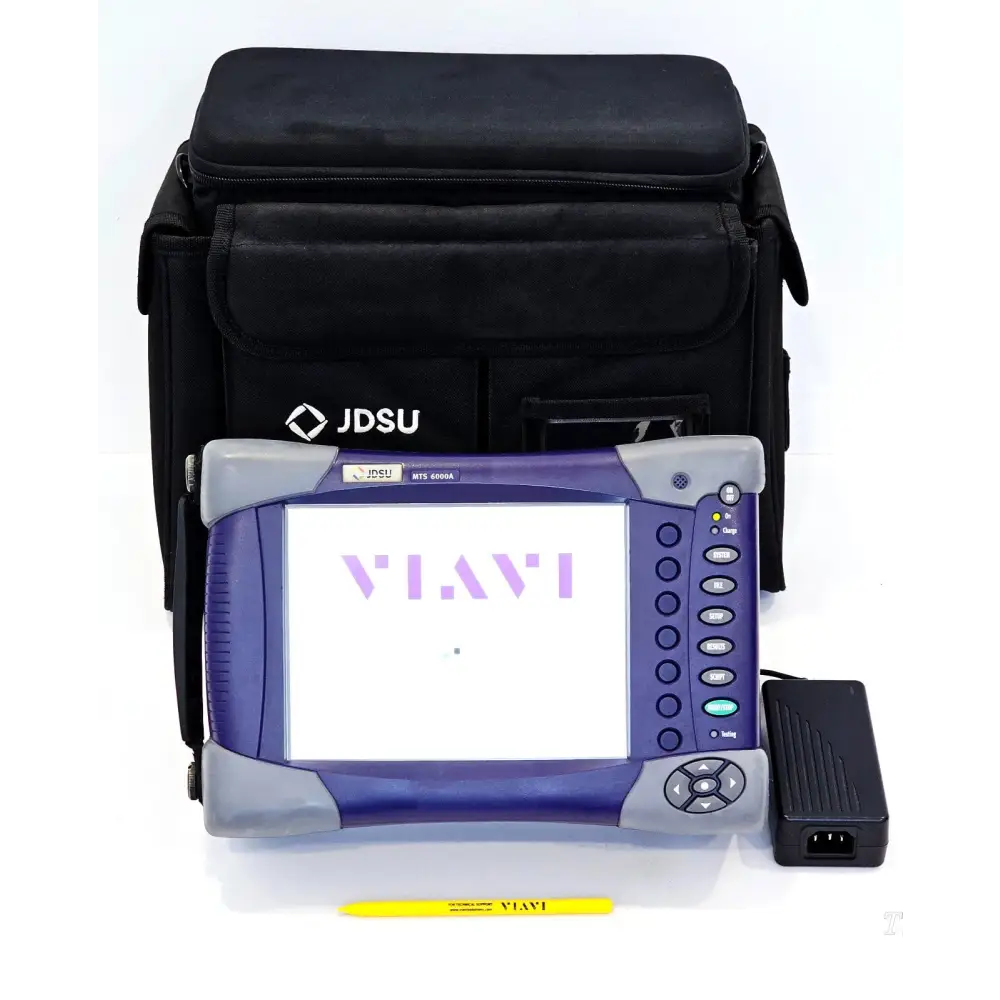

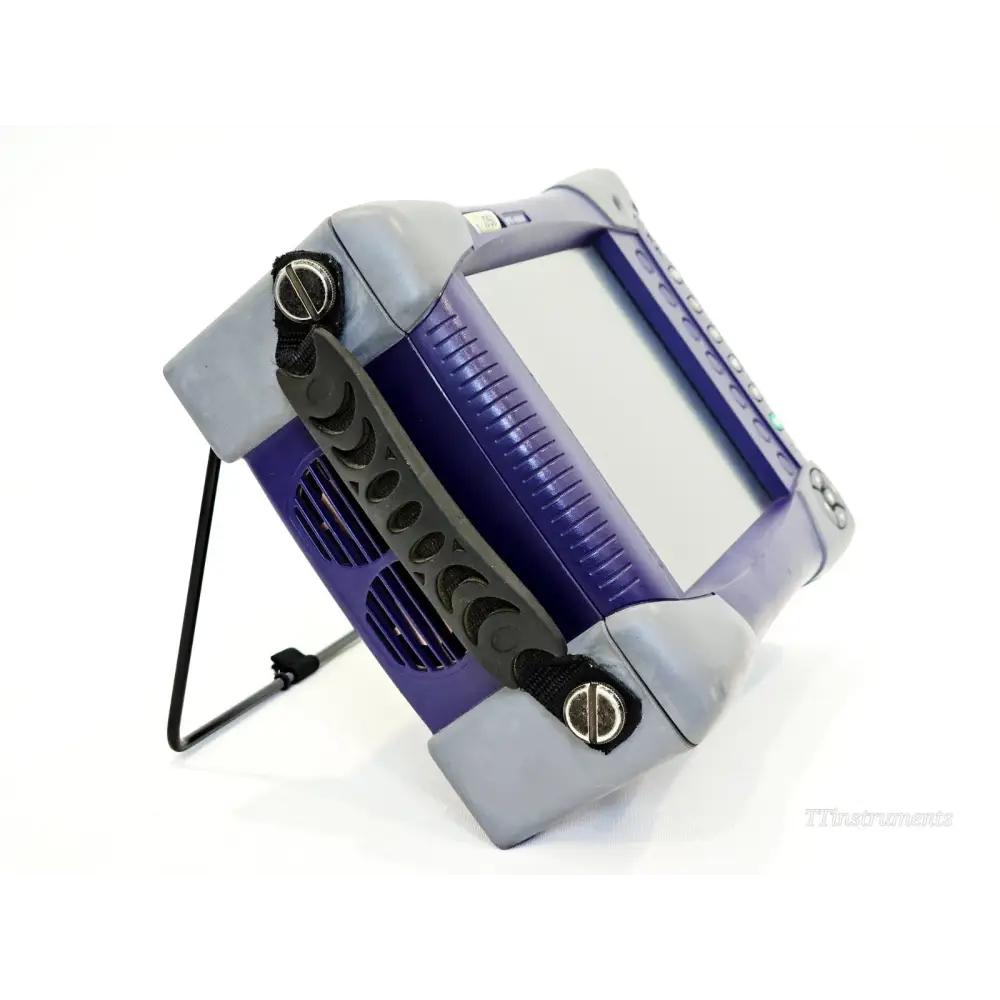

• MTS 6000A mainframe with built-in power meter and VFL

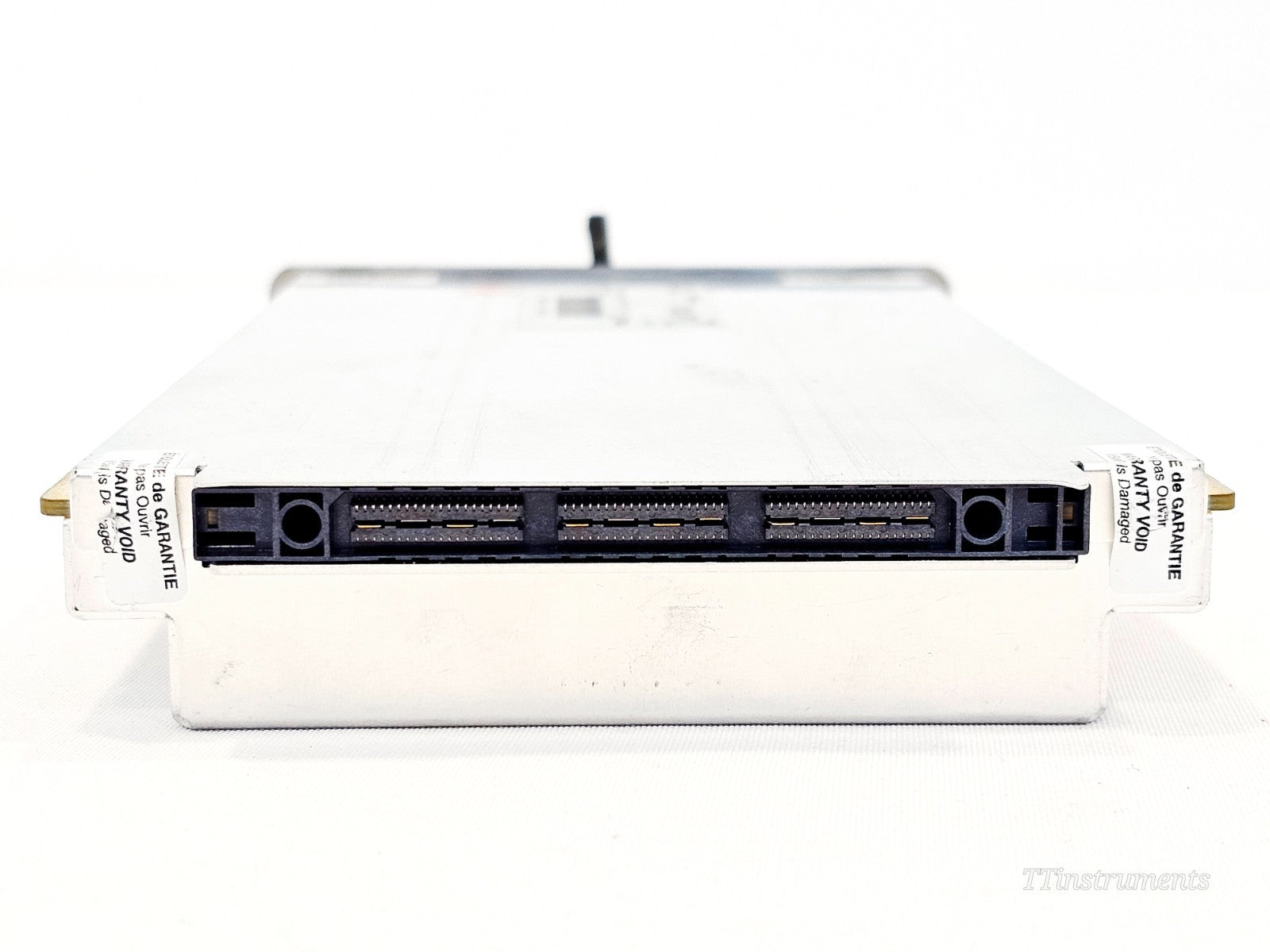

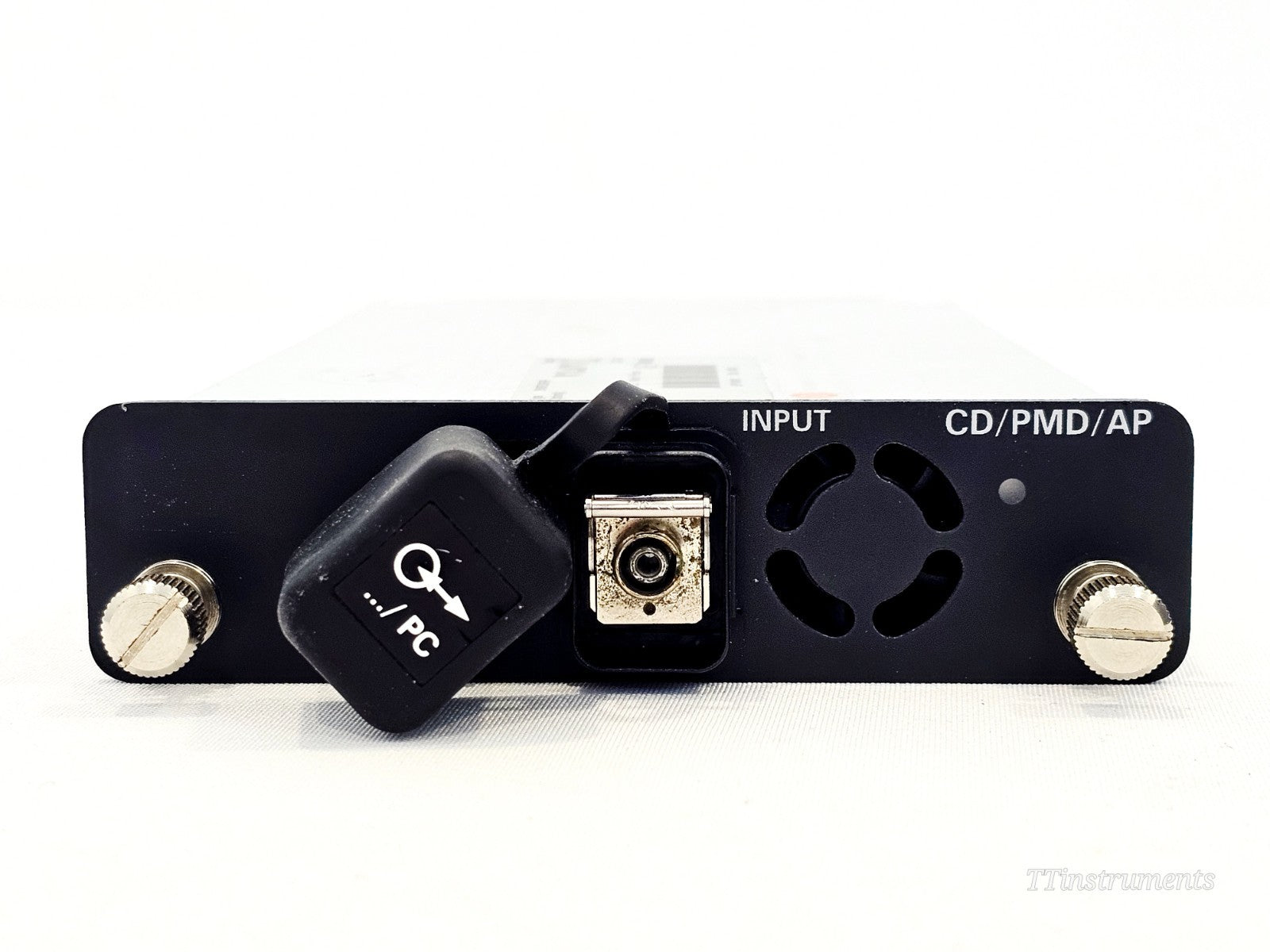

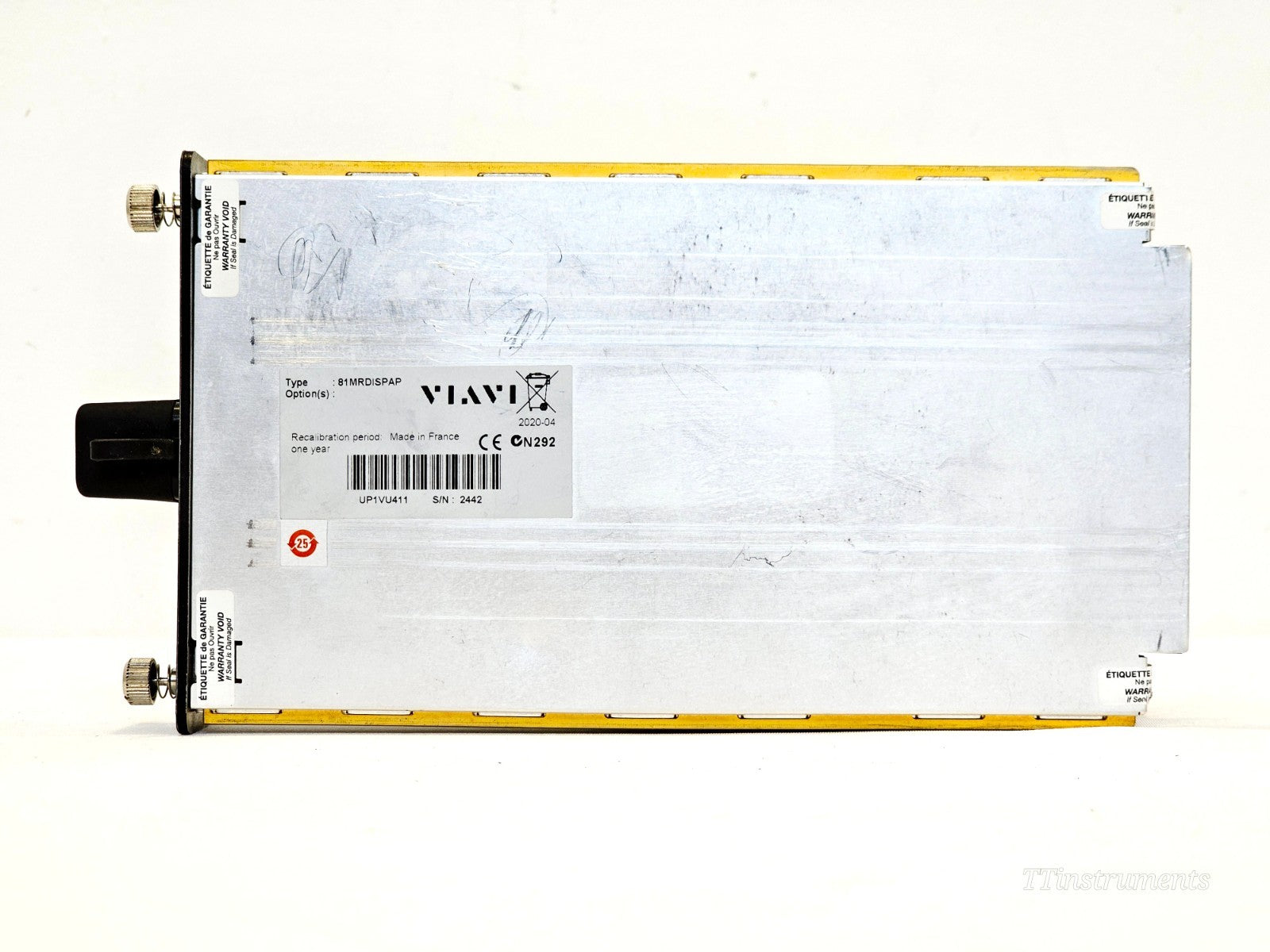

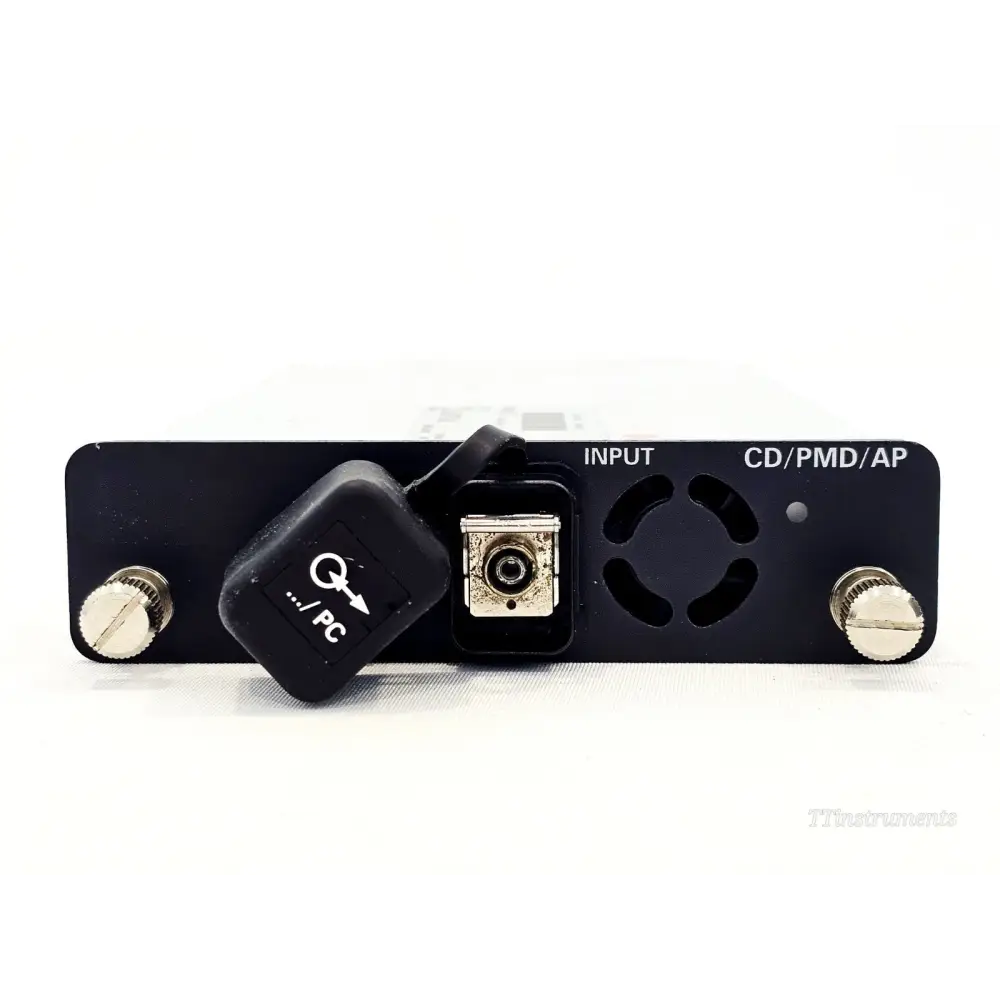

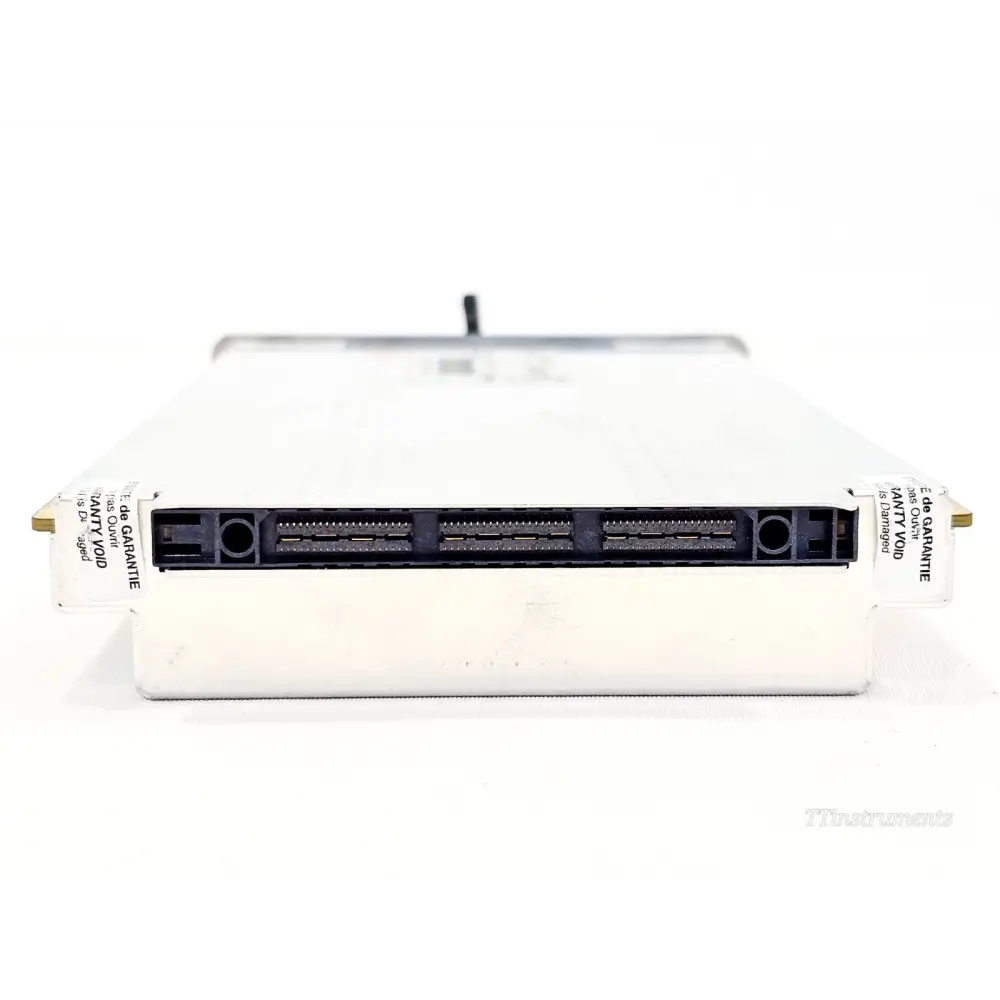

• 81MRDISPAP CD/PMD/AP dispersion analyser module
• AC power adapter
• JDSU branded soft carry case
• VIAVI stylus pen

*Light source is NOT included.

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

The JDSU (Viavi) MTS 6000A with 81MRDISPAP ODM (Optical Dispersion Module) is a handheld, modular fibre characterisation platform designed for installation and maintenance of high-speed optical networks including 10 GigE, 40 G, and beyond. The ODM module combines Chromatic Dispersion (CD), Polarisation Mode Dispersion (PMD), and Attenuation Profile (AP) measurements in a single test unit, enabling full fibre characterisation essential for CWDM, DWDM, and ROADM network validation.

All test methods used in the ODM module are approved and/or referenced by international standardisation bodies. The high dynamic range, wide wavelength acquisition range, and high accuracy make it a field-proven solution for reliable fibre characterisation.

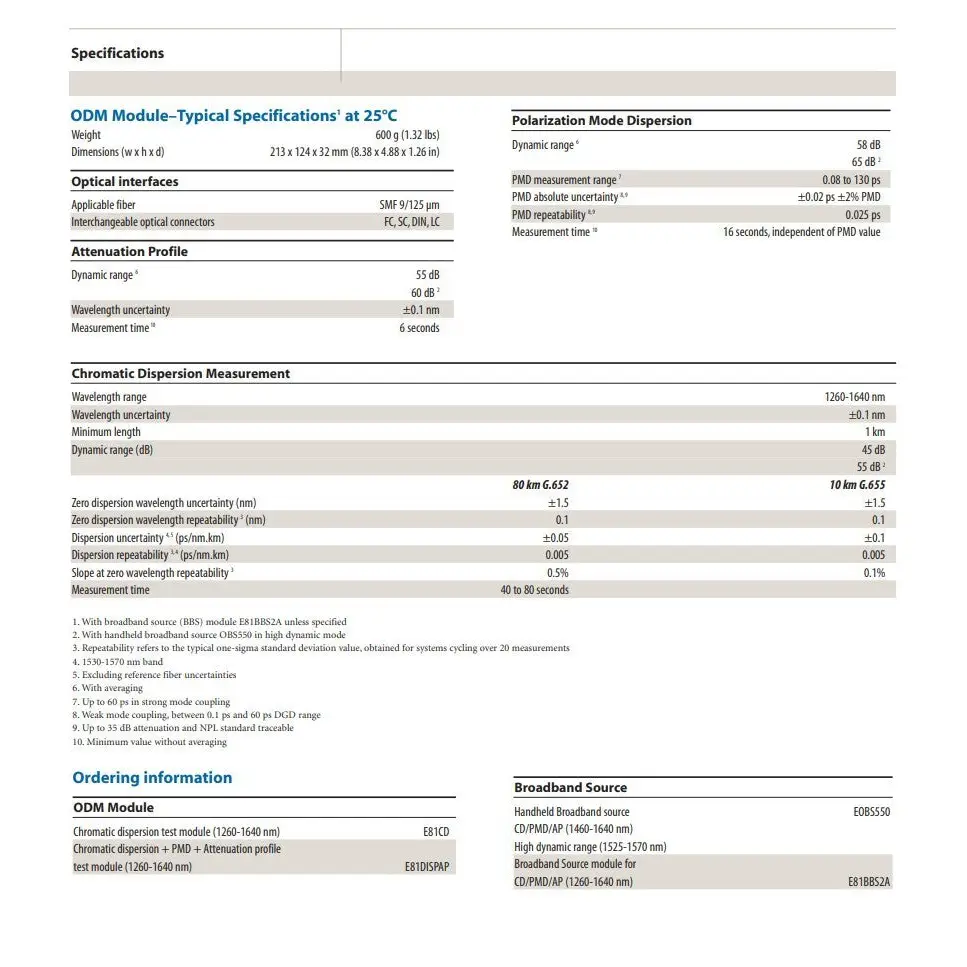

ODM Module — Optical Interfaces:
Applicable Fibre: SMF 9/125 µm
Interchangeable Optical Connectors: FC, SC, DIN, LC

ODM Module — Physical:
Weight: 600 g (1.32 lbs)
Dimensions (W x H x D): 213 x 124 x 32 mm (8.38 x 4.88 x 1.26 in)

Attenuation Profile:
Dynamic Range: 55 dB (60 dB with handheld broadband source OBS550)
Wavelength Uncertainty: ±0.1 nm
Measurement Time: 6 seconds

Chromatic Dispersion:
Wavelength Range: 1260–1640 nm
Wavelength Uncertainty: ±0.1 nm
Minimum Length: 1 km
Dynamic Range: 45 dB (55 dB with OBS550)
Zero Dispersion Wavelength Uncertainty (G.652): ±1.5 nm
Dispersion Uncertainty: ±0.05 ps/nm·km (1530–1570 nm band)
Measurement Time: 40 to 80 seconds

Polarisation Mode Dispersion:
Dynamic Range: 58 dB (65 dB with OBS550)
PMD Measurement Range: 0.08 to 130 ps
PMD Absolute Uncertainty: ±0.02 ps ±2% PMD
PMD Repeatability: 0.025 ps
Measurement Time: 16 seconds, independent of PMD value

Key Features:
— Combined CD, PMD, and AP measurement in one module
— Two-ended CD test using phase shift method over full wavelength range
— PMD based on fixed analyser method using FFT
— Attenuation Profile: dB loss/km over 1260–1640 nm full wavelength range
— Supports CWDM and DWDM transmission band characterisation
— Water peak (1383 nm) characterisation
— Test through non-bidirectional components including EDFAs and filters
— High dynamic range up to 65 dB
— Single input port for any test configuration
— Compatible with E81BBS2A broadband source module and E0BS550 handheld broadband source
