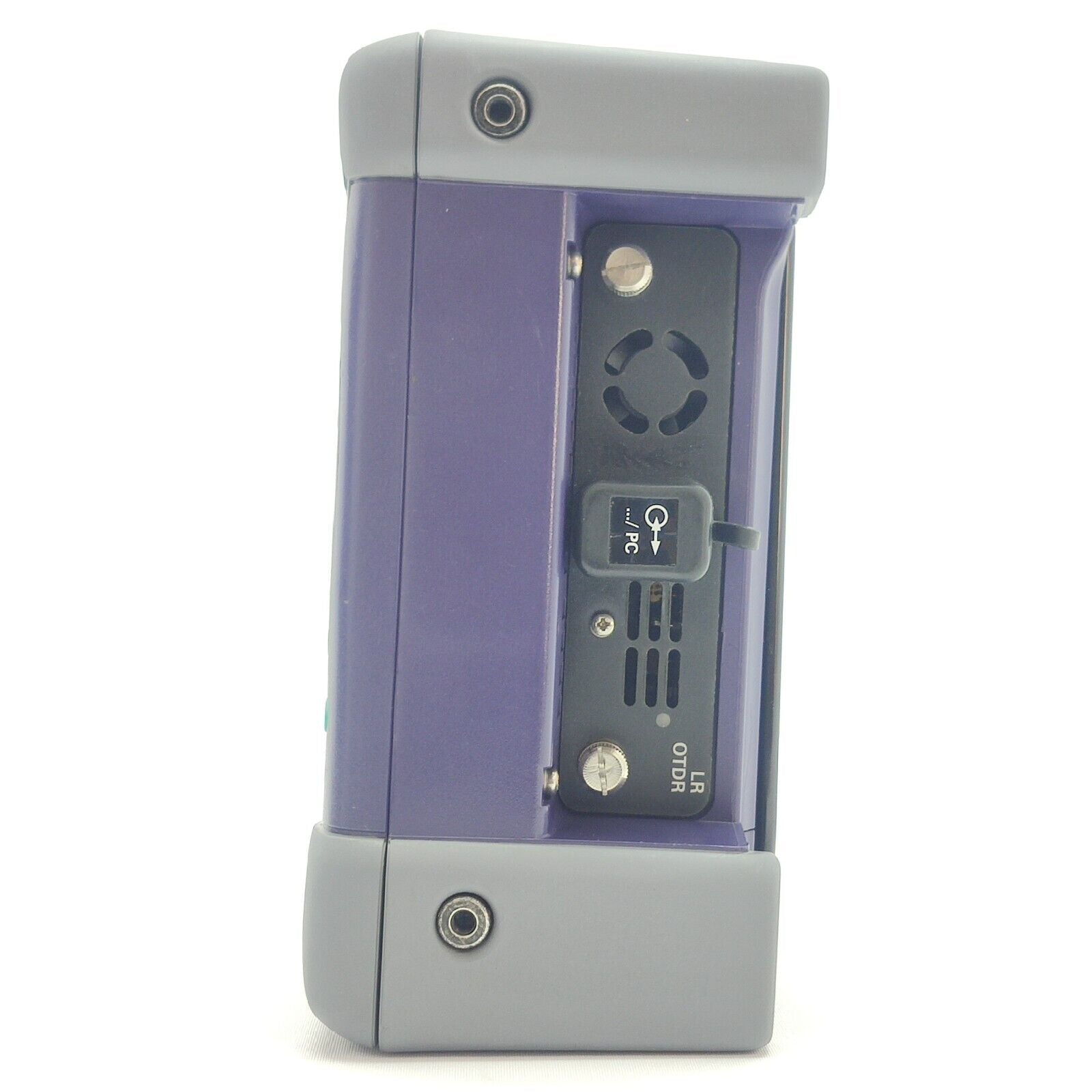

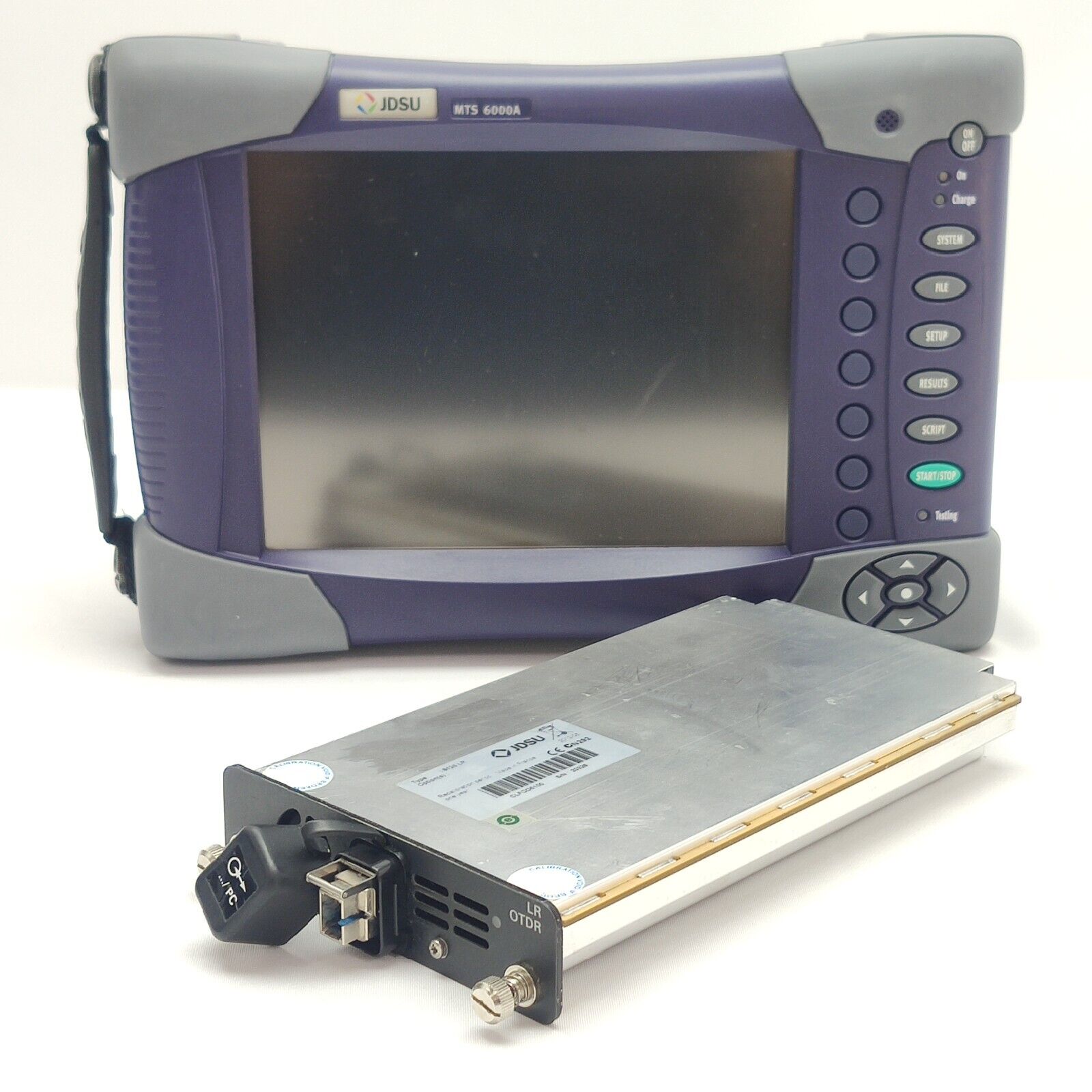

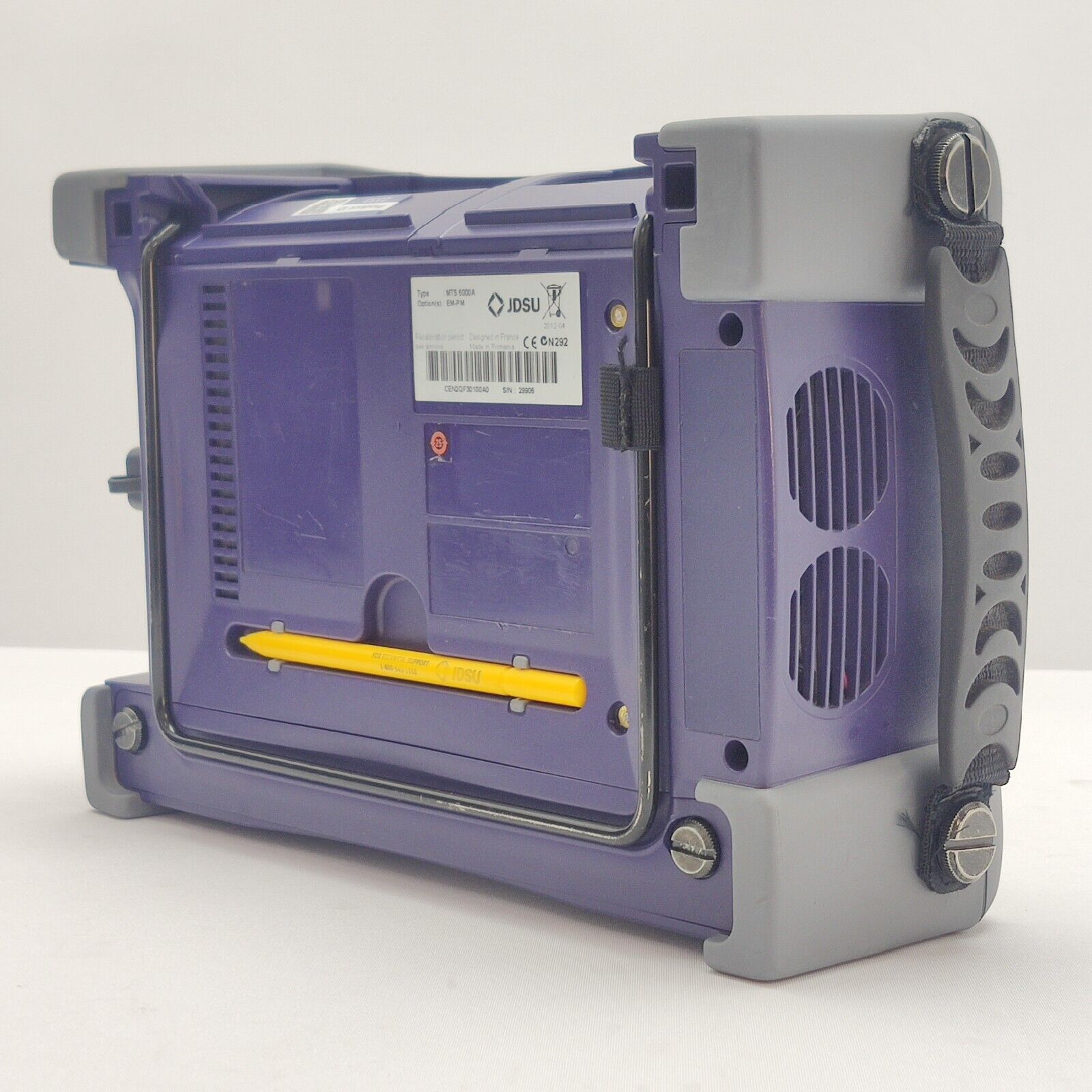

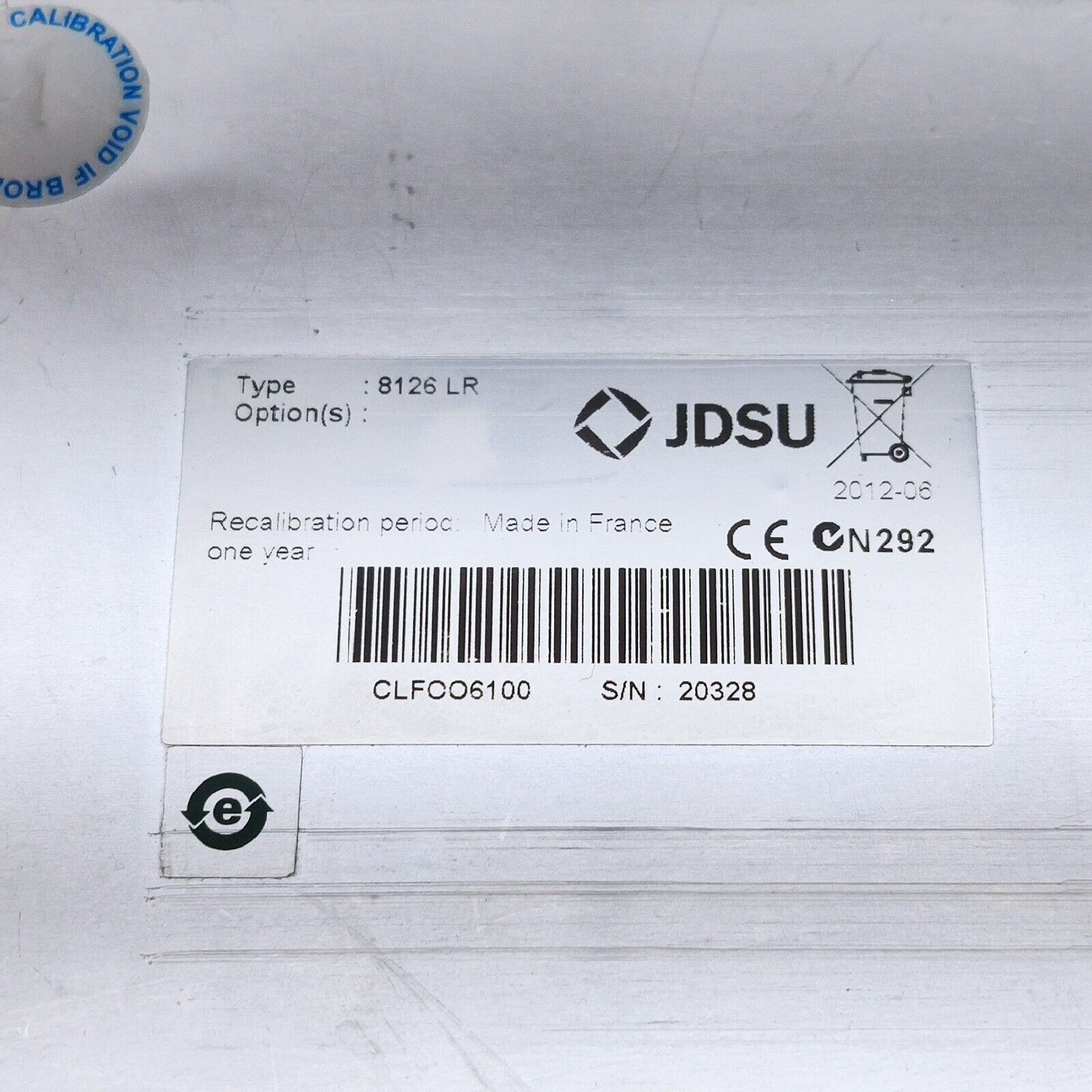

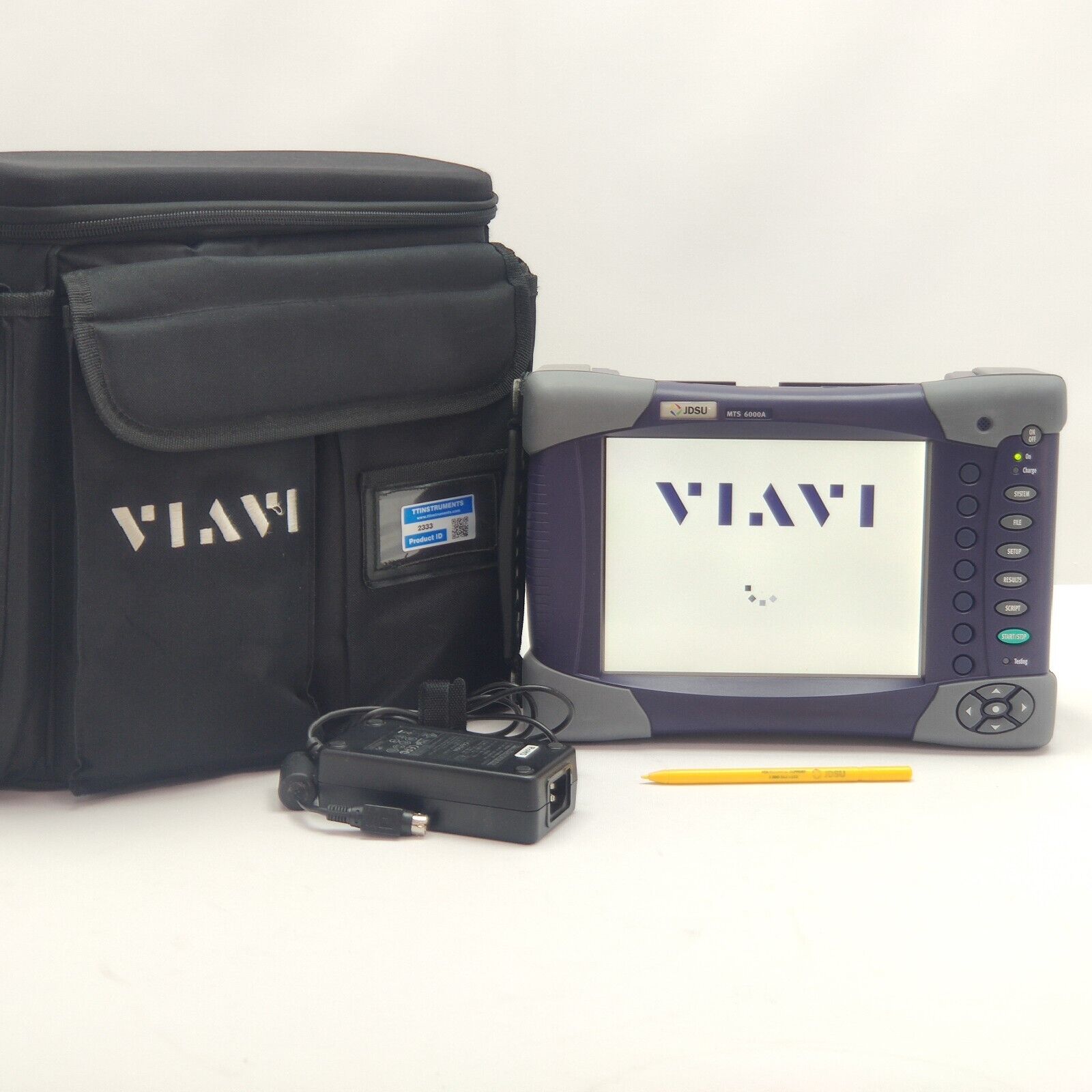

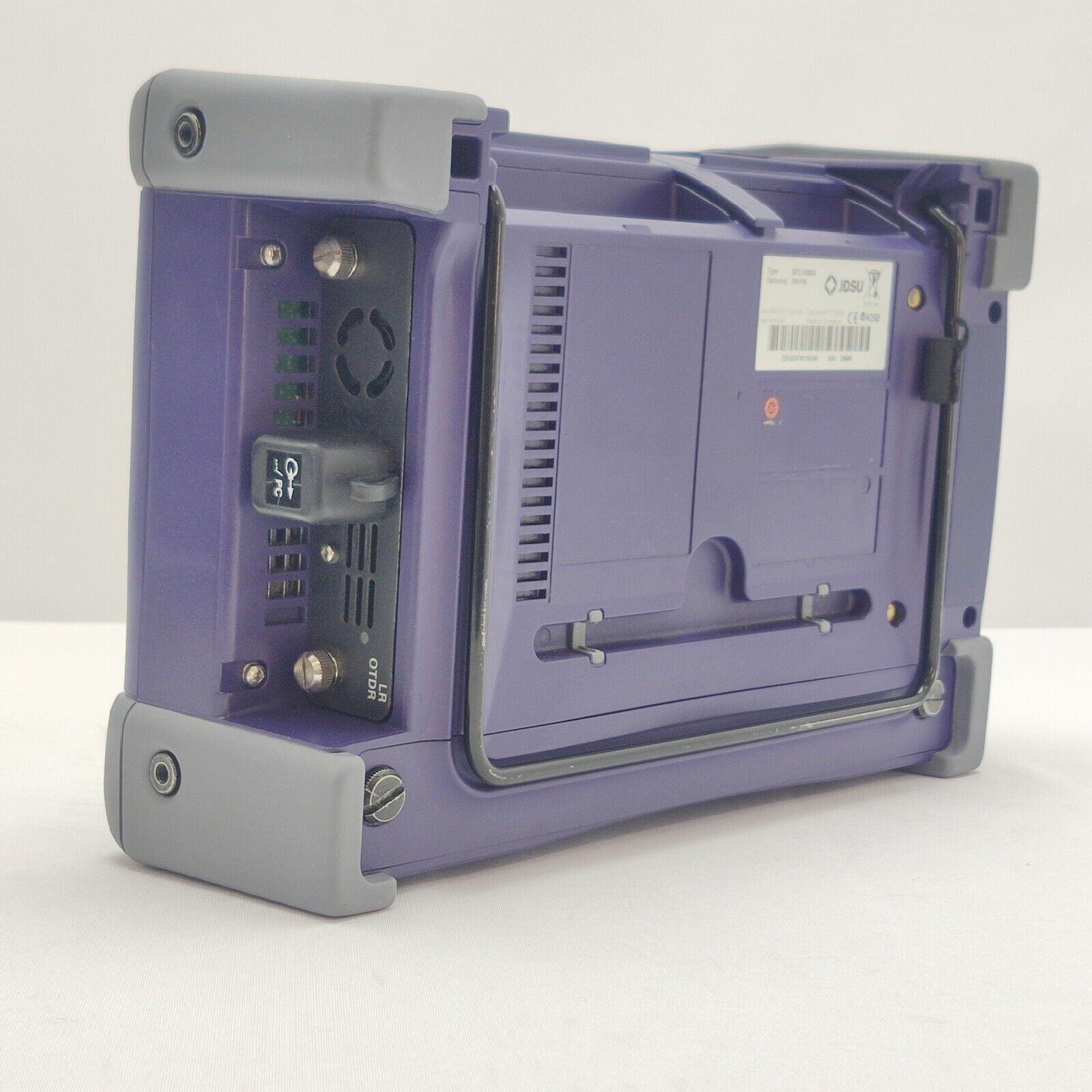

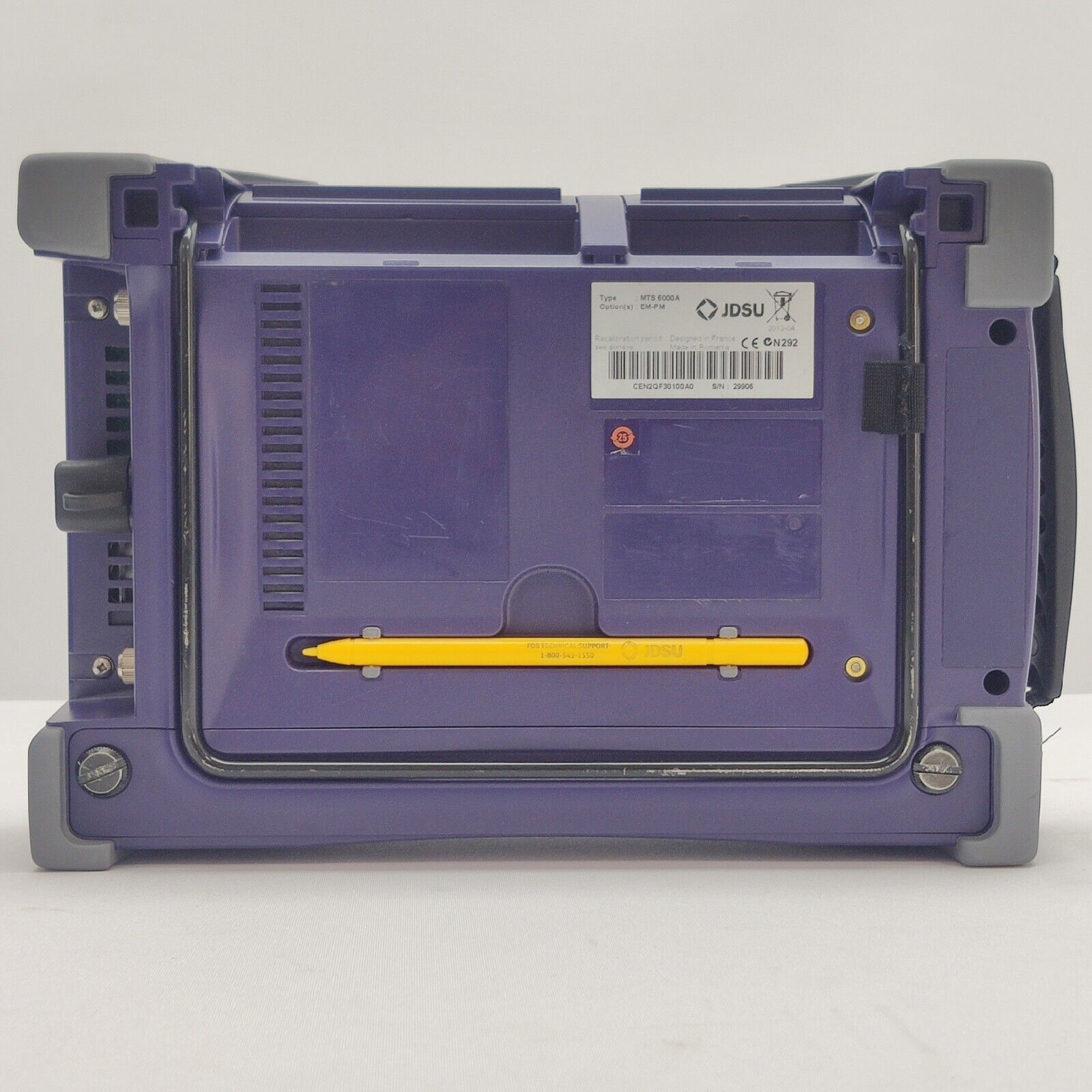

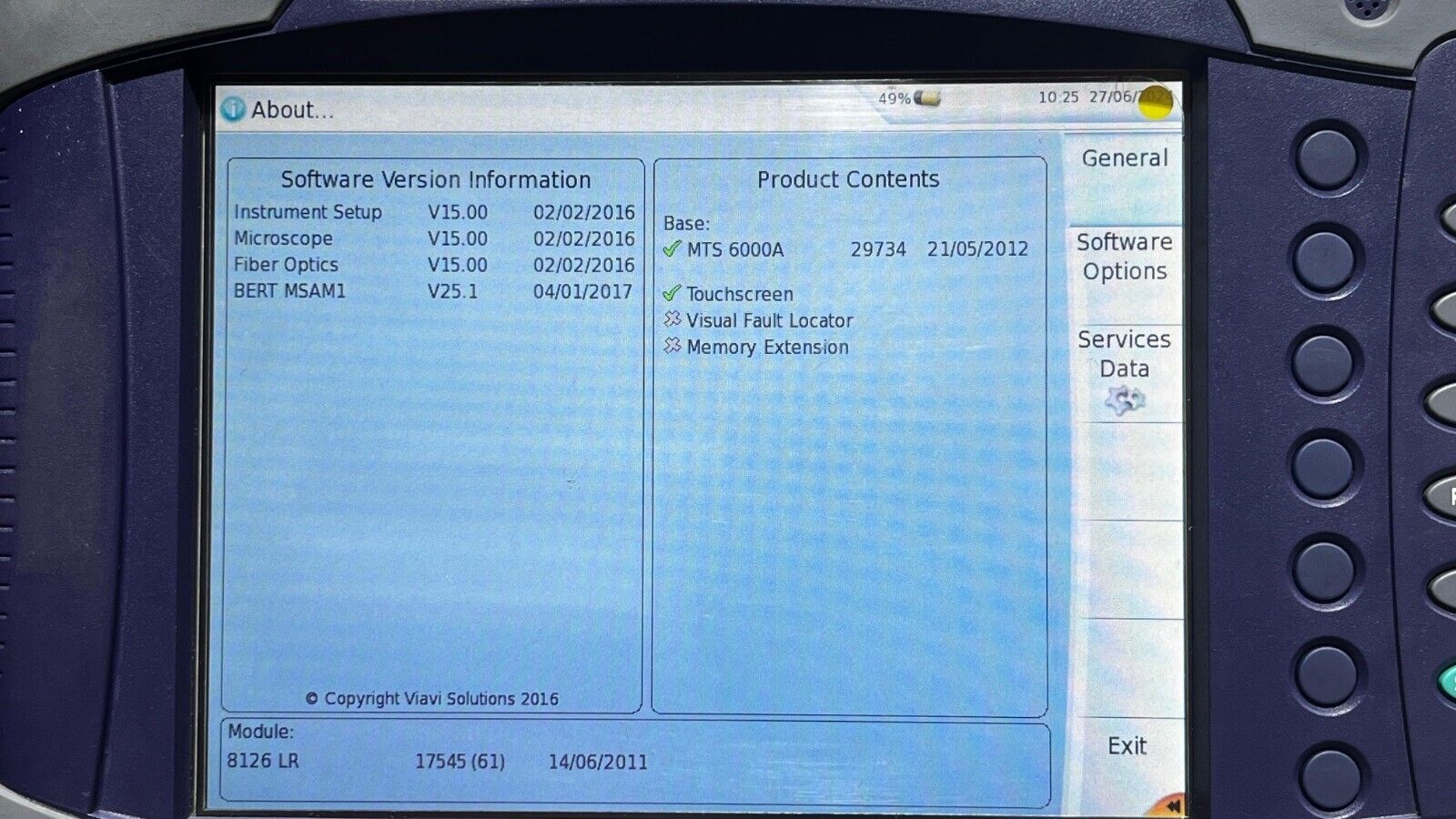

JDSU 8126 LR Long Haul OTDR Module
The optical time domain reflectometer (OTDR) is at the core of fiber optic characterization. Allowing measurements of fiber link attenuation, attenuation coefficient, reflection, splice/connector loss, and point of error, all as part of the fiber distance function.
Multi-application optical test moduleIn today’s telecommunications market, test solutions must be cost effective, in-crease productivity, and reduce the complexity of field testing. JDSU’s Long Range (LR) OTDR Module offers a high-performance OTDR test module, which has been specifically developed in response to these industry demands.

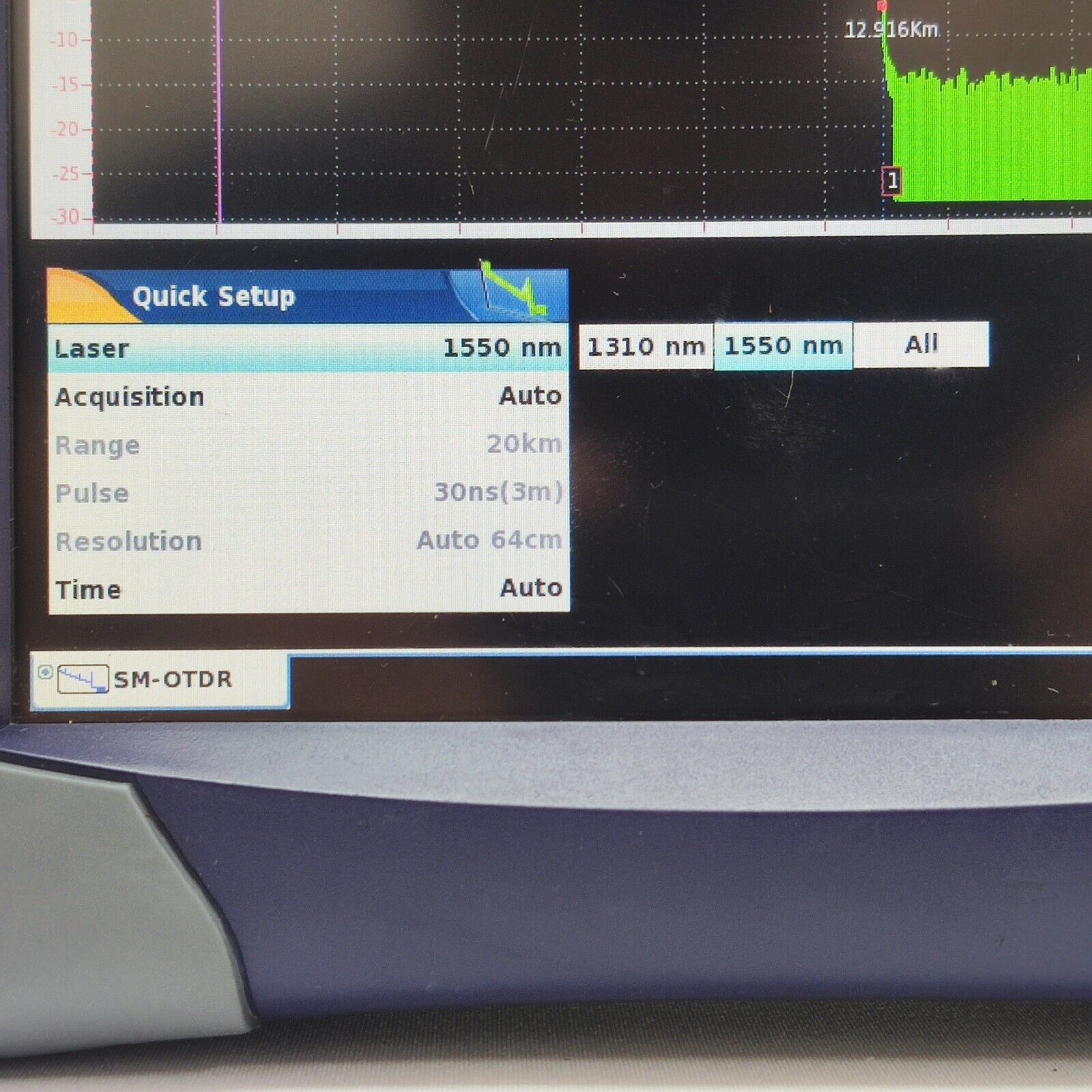

Configurable at the time of order, the LR OTDR Module offers multiple wave-length test capabilities (1310, 1490, 1550, and 1626 nm), providing field technicians with an all-in-one test instrument.
The LR OTDR Module's performance enables effective testing on short haul (access, FTTx, P2MP), long haul, and very long haul networks.
Test the fiber…with the right solution… at the right wavelength

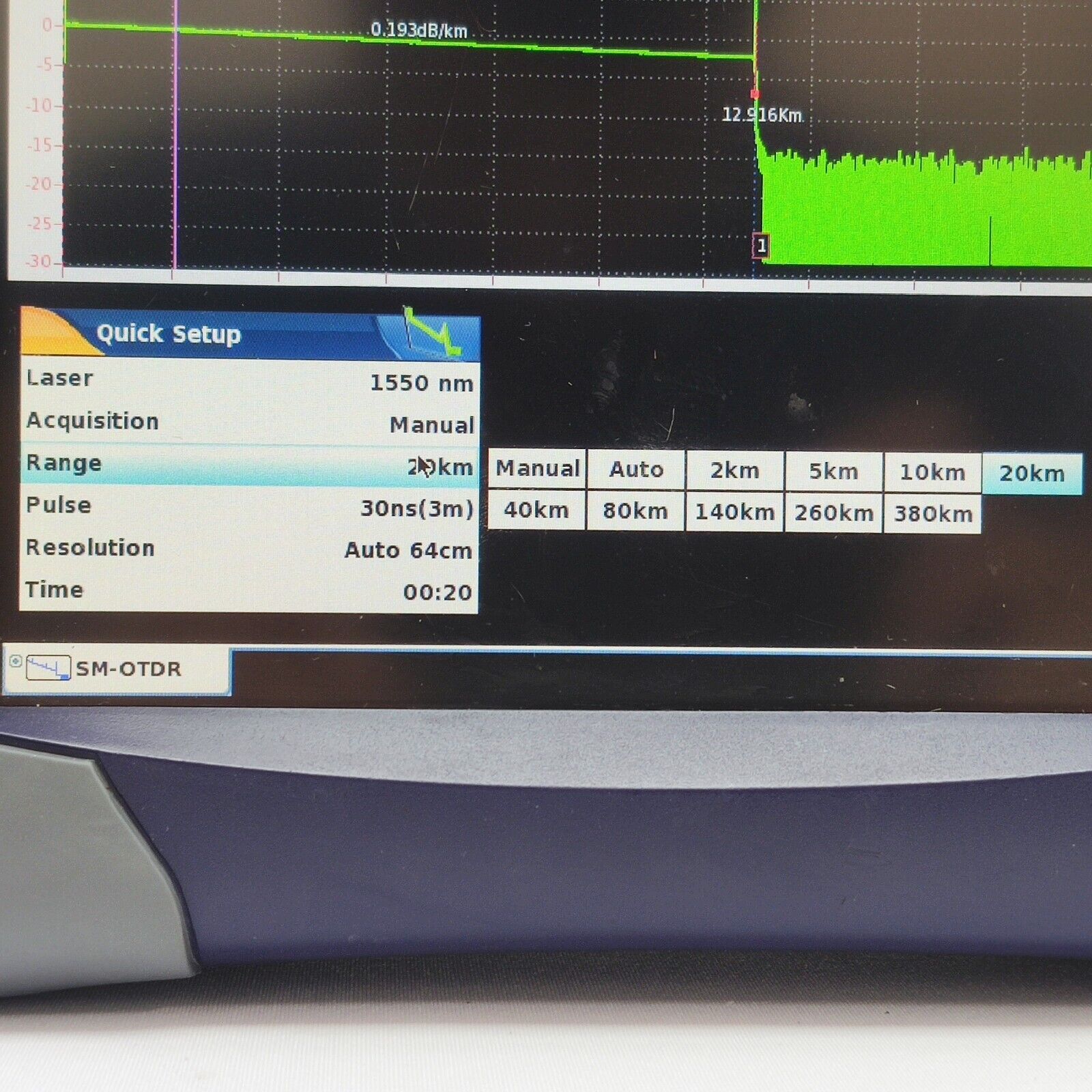

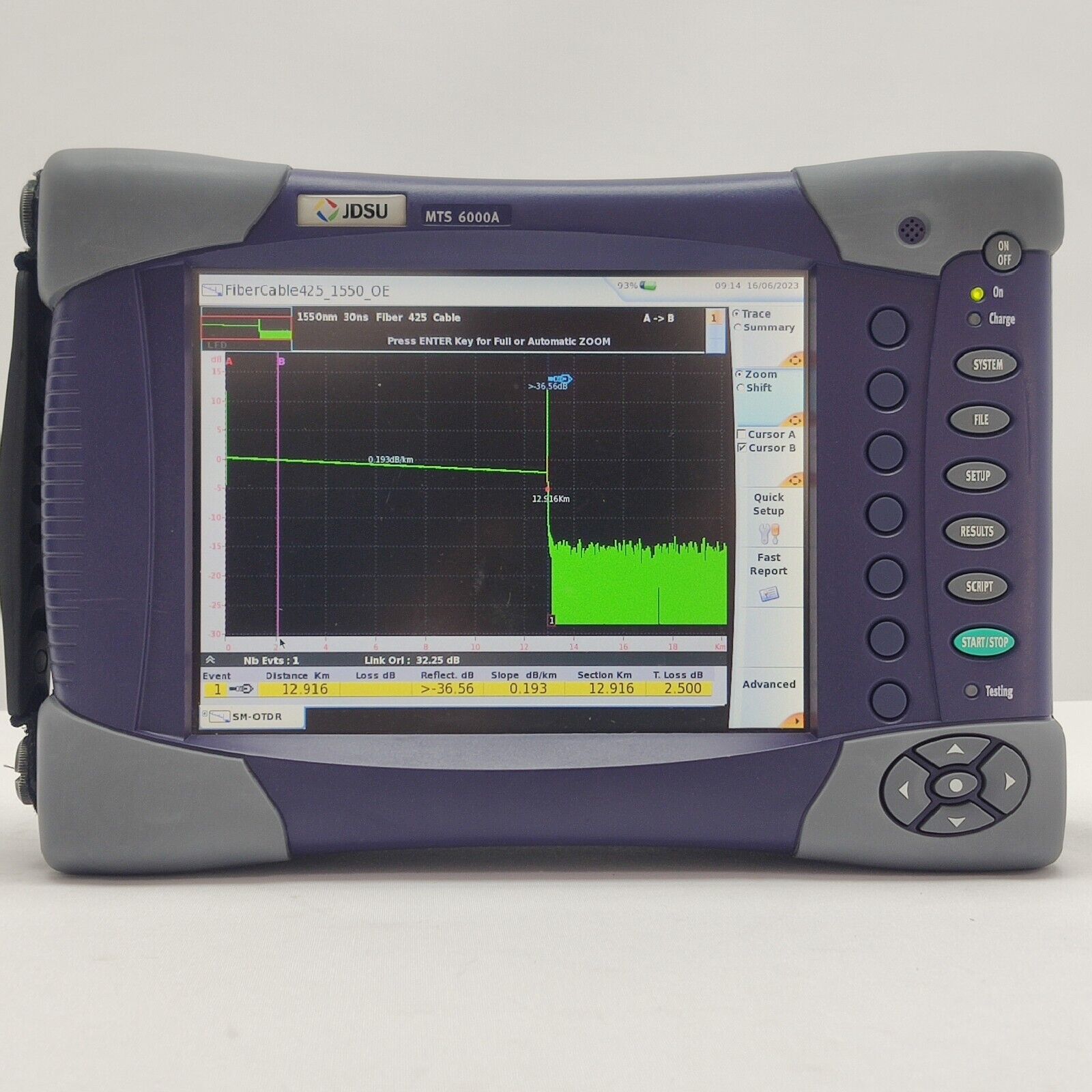

As fiber installers and technicians continue to look for ways to reduce time and costs during field operation, it is essential for them to use the right tool for the job at hand. The combination of an unprecedented 0.1 s refreshing time, the shortest event resolution (0.8 m event dead zone and 4 m attenuation dead zone), and a 43 dB dynamic range, makes the LR OTDR Module an ideal tool for the qualification of any type of fiber network.
A large range of wavelengths is available to best match any application:
- For metro networks, a three-wavelength (1310/1550/1625 nm) LR OTDR Module is used for fiber qualification (according to ITU standards G.652, G.655, and G.656).
- For access networks, a three-wavelength (1310/1490/1550 nm) LR OTDR Module is used for fiber qualification at FTTx transmission wavelengths.
A new standard in OTDR performanceThe LR OTDR Module is a high performance OTDR and is capable of characterizing sections of singlemode fiber links that have been illusive in the past. With a 0.8 m event dead zone, it is now possible to qualify and troubleshoot problems in never before investigated sections of the fiber link.
- Pinpoint any fault in the network.
- Discriminate a failure or break within the patch panel or distribution frame.
- Reduce testing time for medium and long haul fiber network commissioning.
- Obtain a superior and cleaner trace form for high link loss for best fault detection.
Test through a PON splitter with the best available performance
With the combination of an impressive acquisition time, event dead zone, and dynamic range, FTTx technicians are able to test through a splitter with unprecedented accuracy using the LR OTDR Module.
- In compliance with ITU-T G.983.3, the LR OTDR Module provides a three-wavelength version at 1310/1490nm/1550 nm, expanding its test capabilities to FTTx/PON.
- Provides splice and connector information at the three PON wavelengths.
- Combines a high dynamic range and short event resolution in order to characterize short fiber lengths and measure through the splitters.
- Integrates splitter management data in the table results

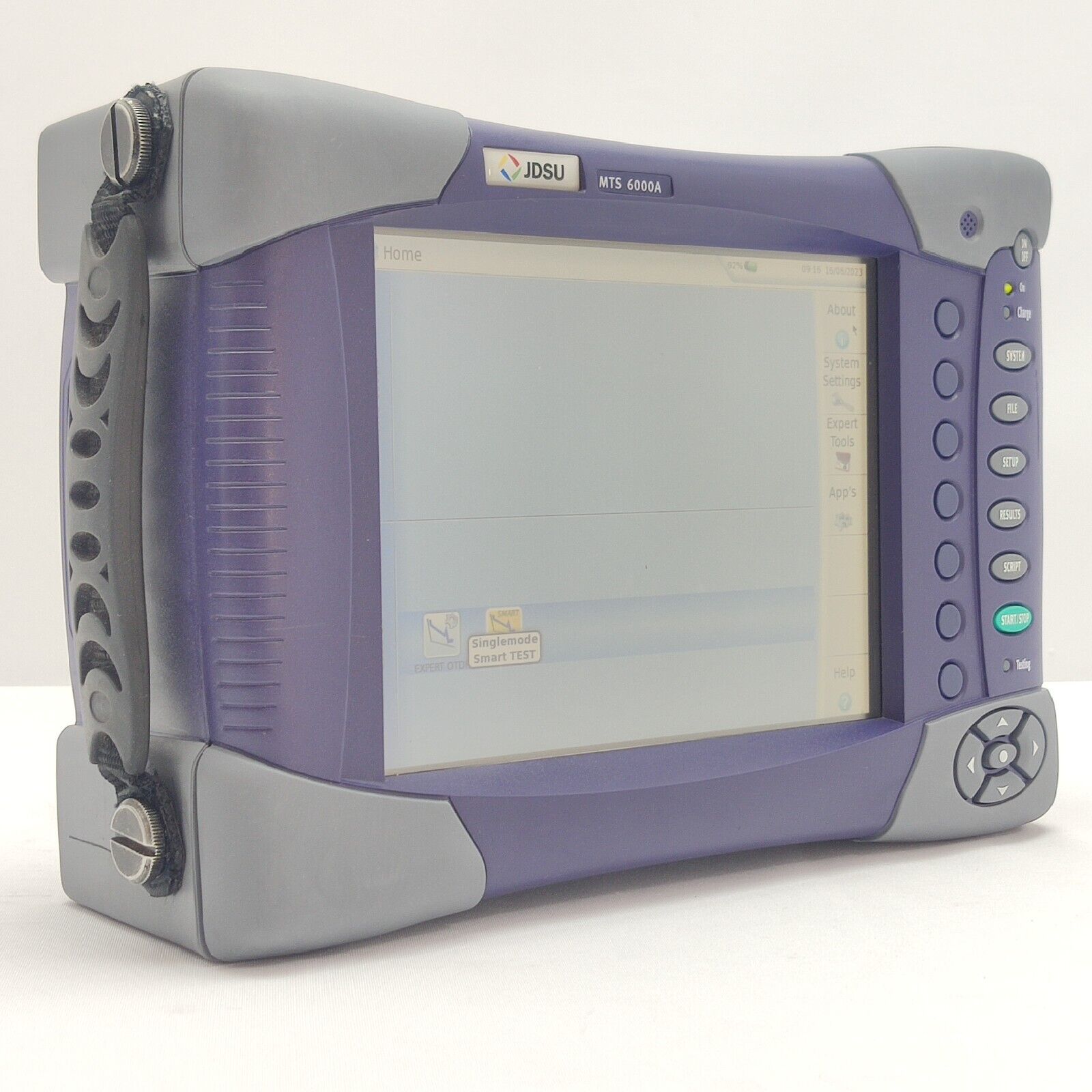

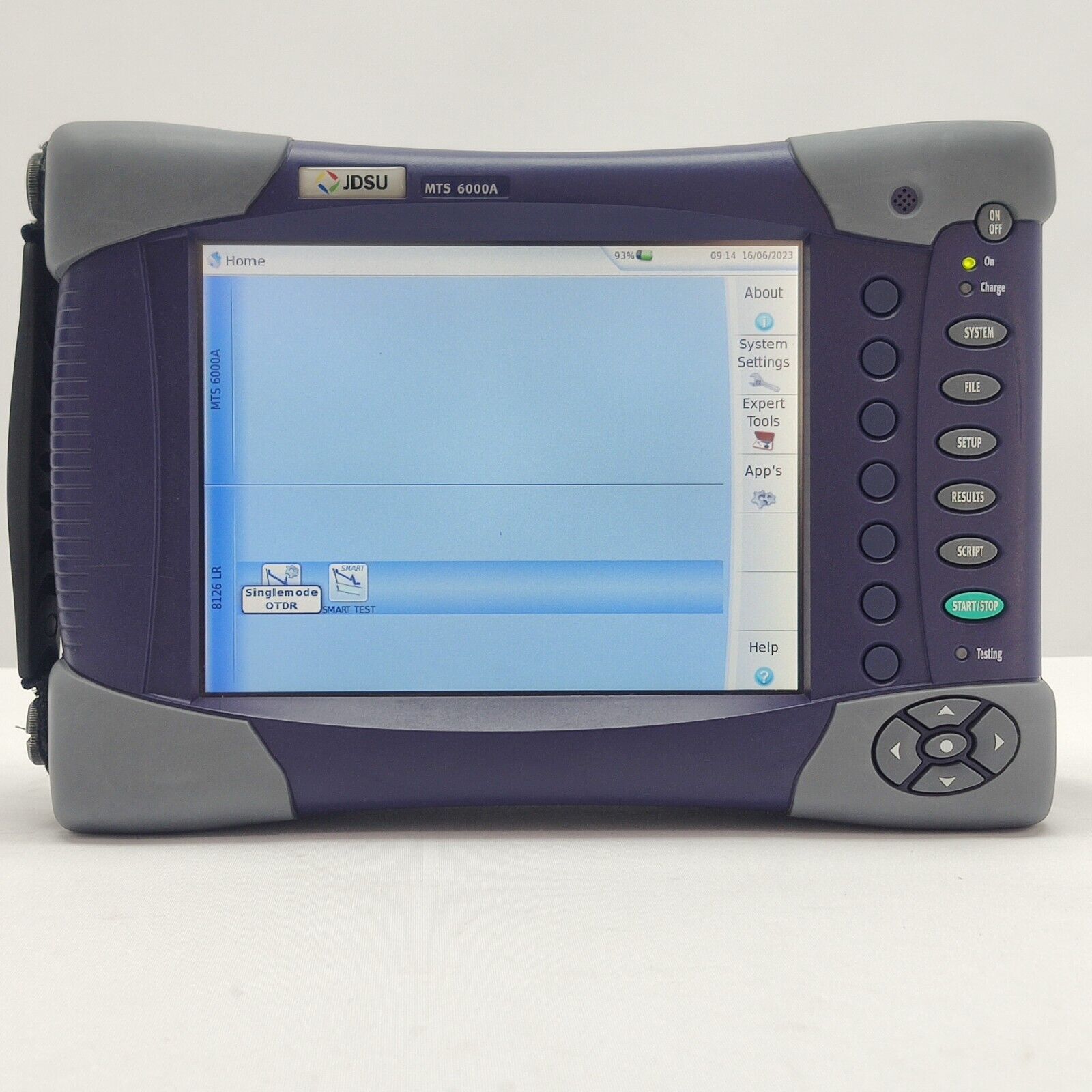

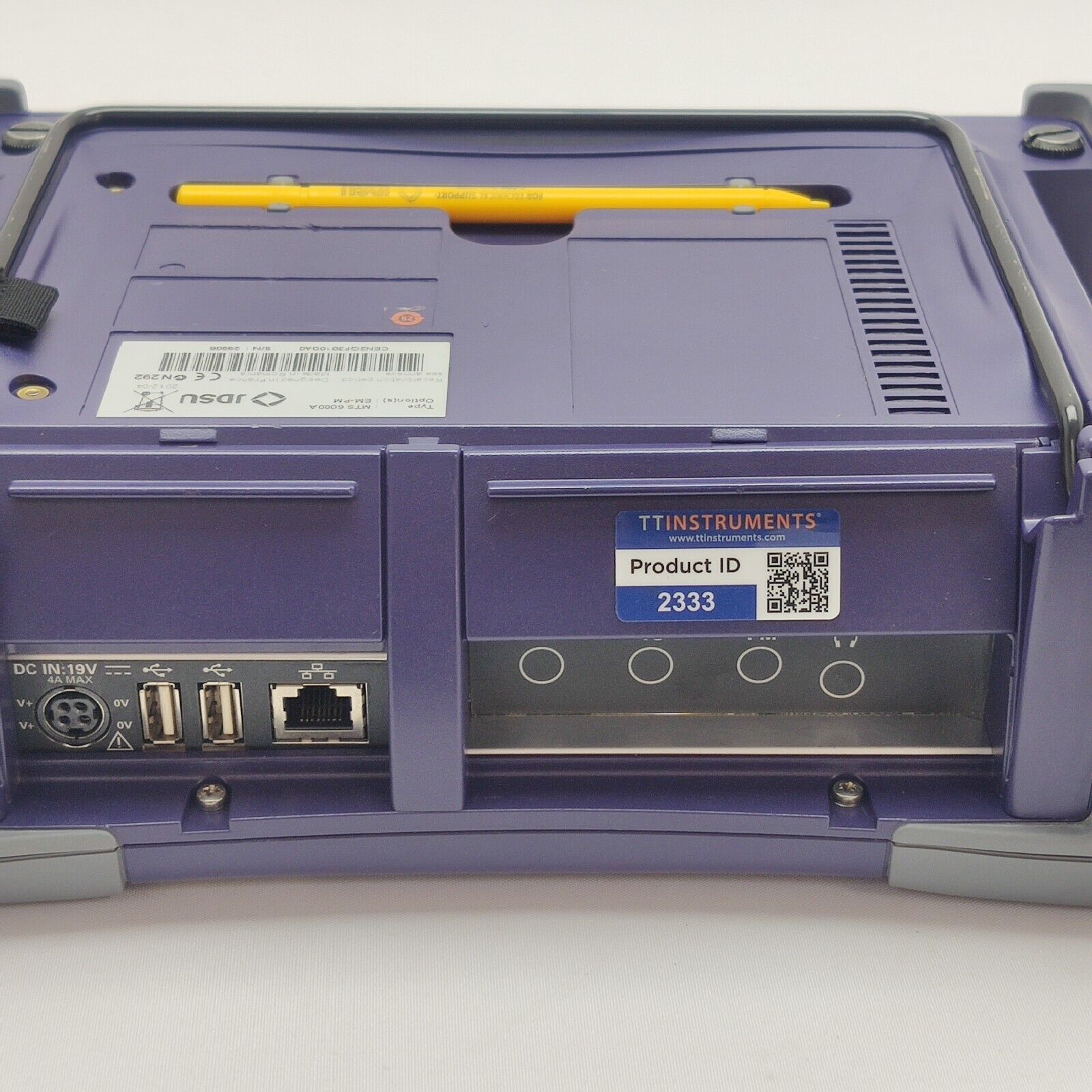

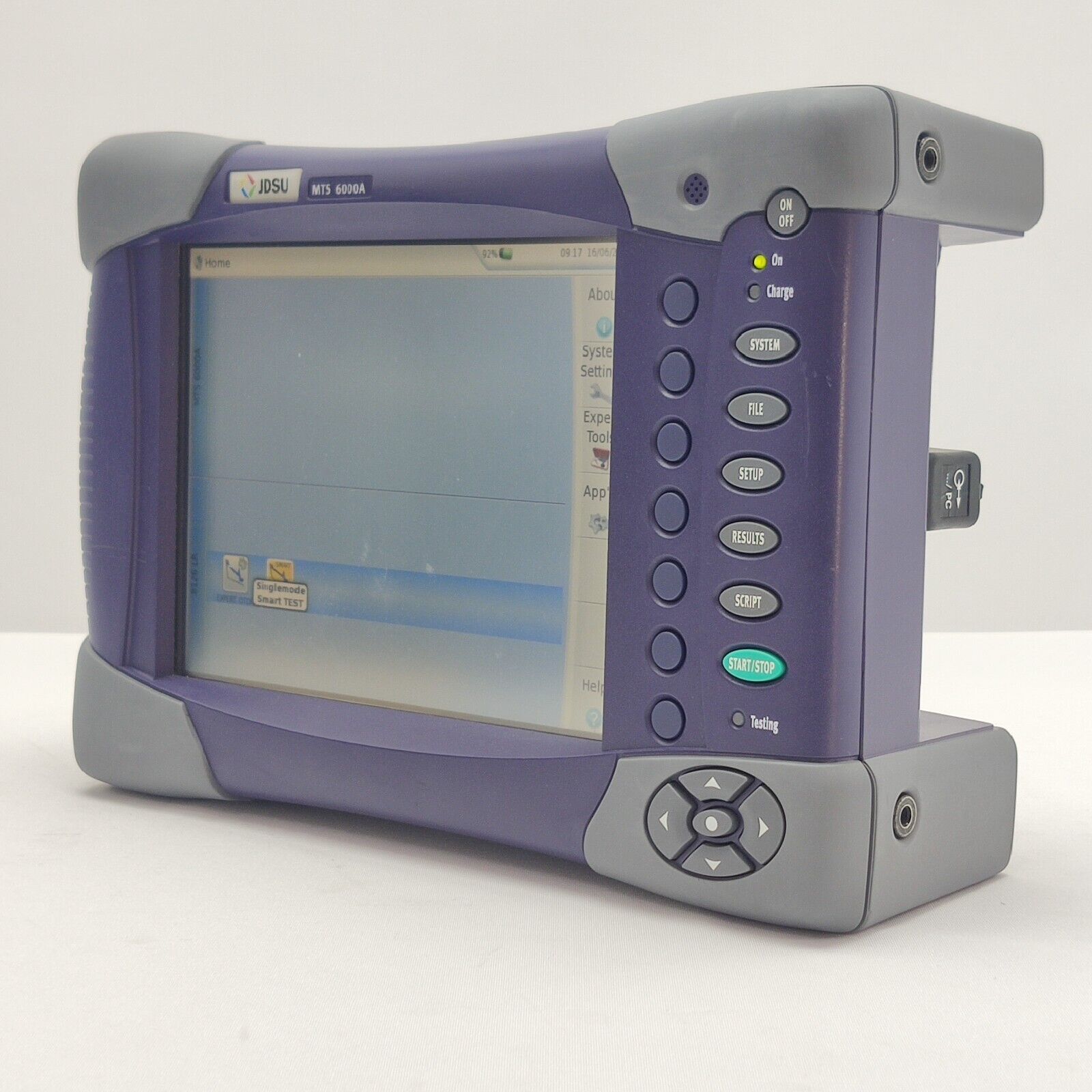

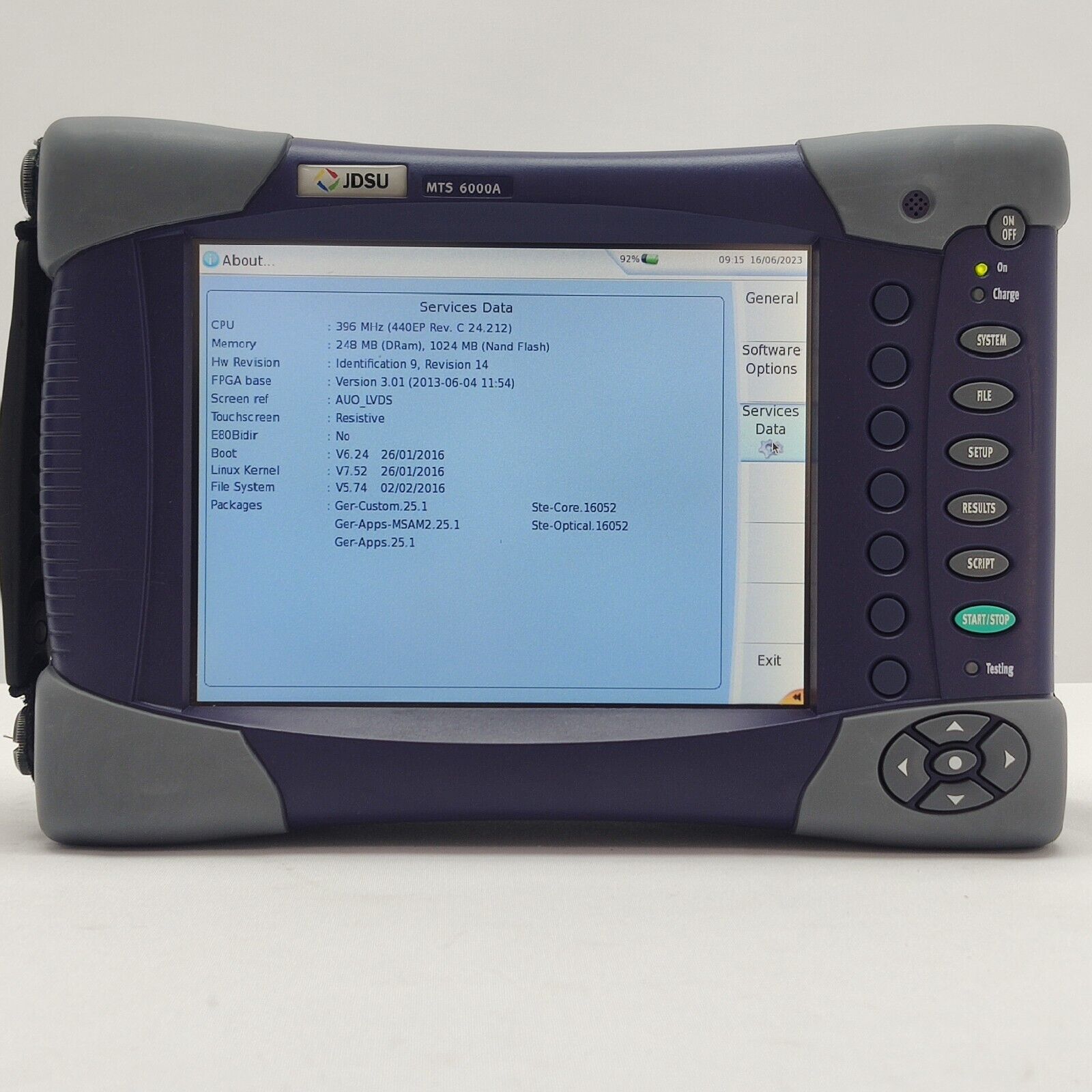

Enhanced testing solutionWith the scalable design of the MTS/T-BERD platforms, field technicians can quickly and easily plug-in the appropriate test module to perform precise measurement from the outside plant to the central office. The optical test platforms offer a full range of fiber characterization test modules with OTDR, CD, and spectral attenuation measurement, as well as DWDM testing capabilities.
With this new LR OTDR Module and the current range of available OTDR modules, JDSU’s test solution is the broadest offering on the market, making JDSU the provider of choice for all telecommunications operators and fiber optic installers.
The LR OTDR Module can be combined with additional measurement capabilities in JDSU’s optical test platforms so that technicians can fully characterize the fiber network with an all-in-one solution:
- Optical insertion loss
- Optical return loss
- OTDR
- Chromatic dispersion
- Polarization mode dispersion
- Spectral attenuation profile
