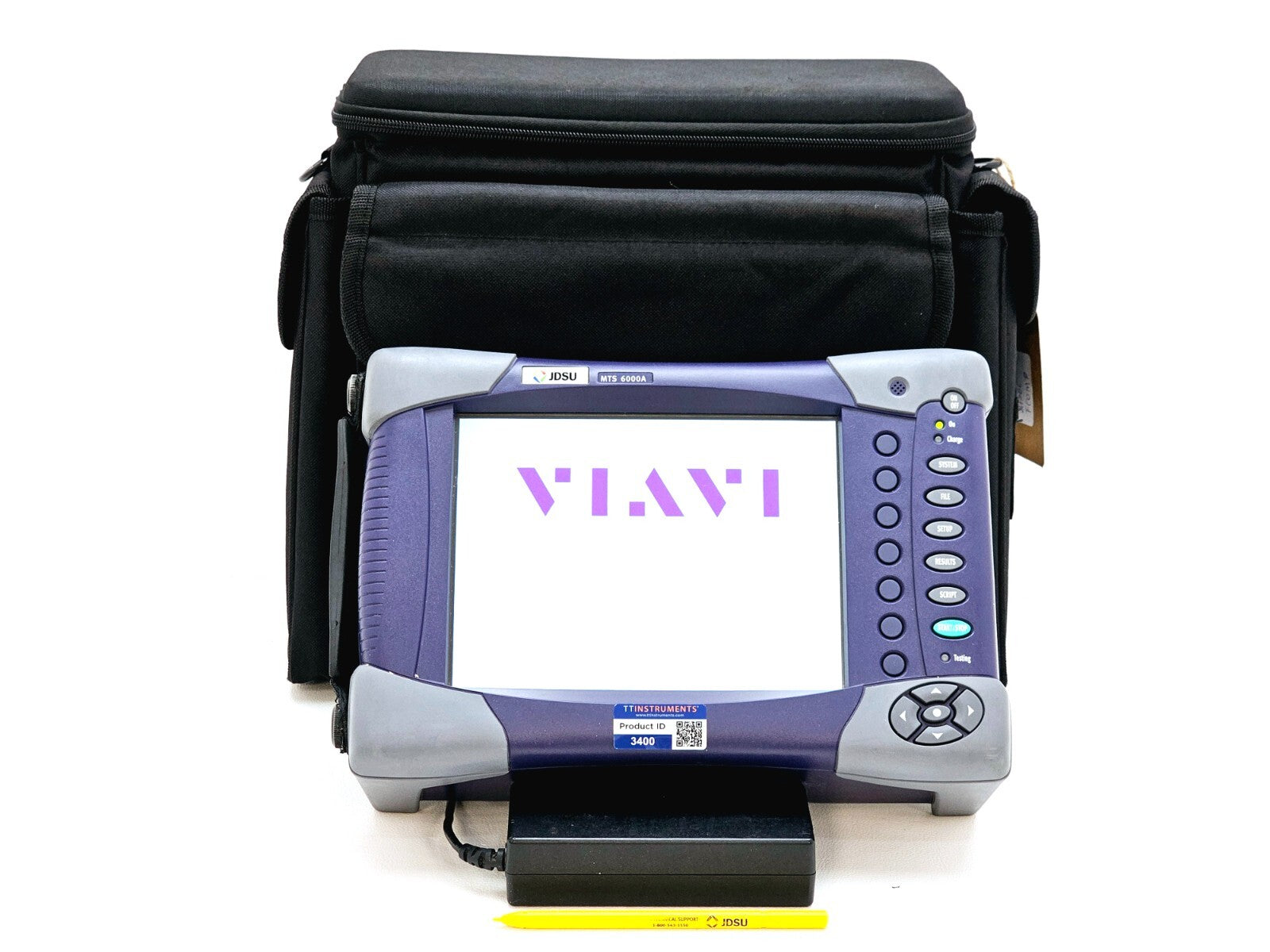

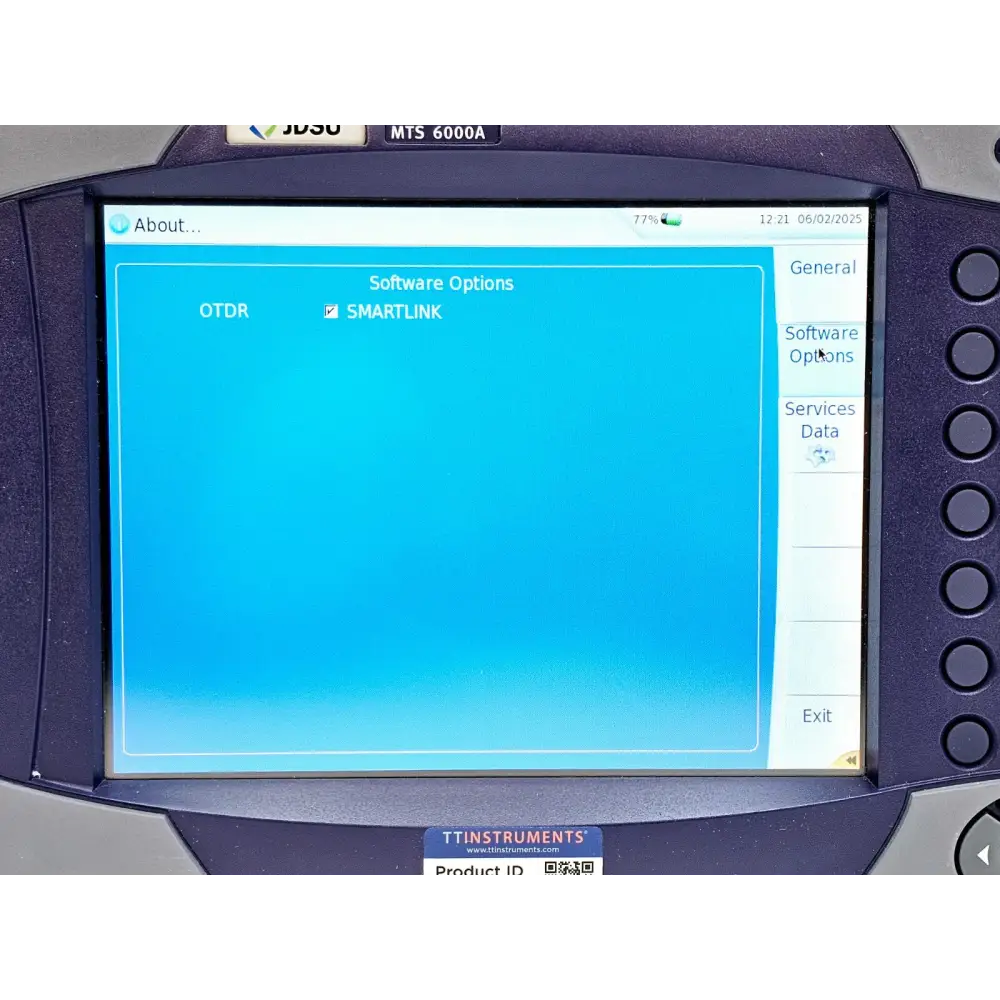

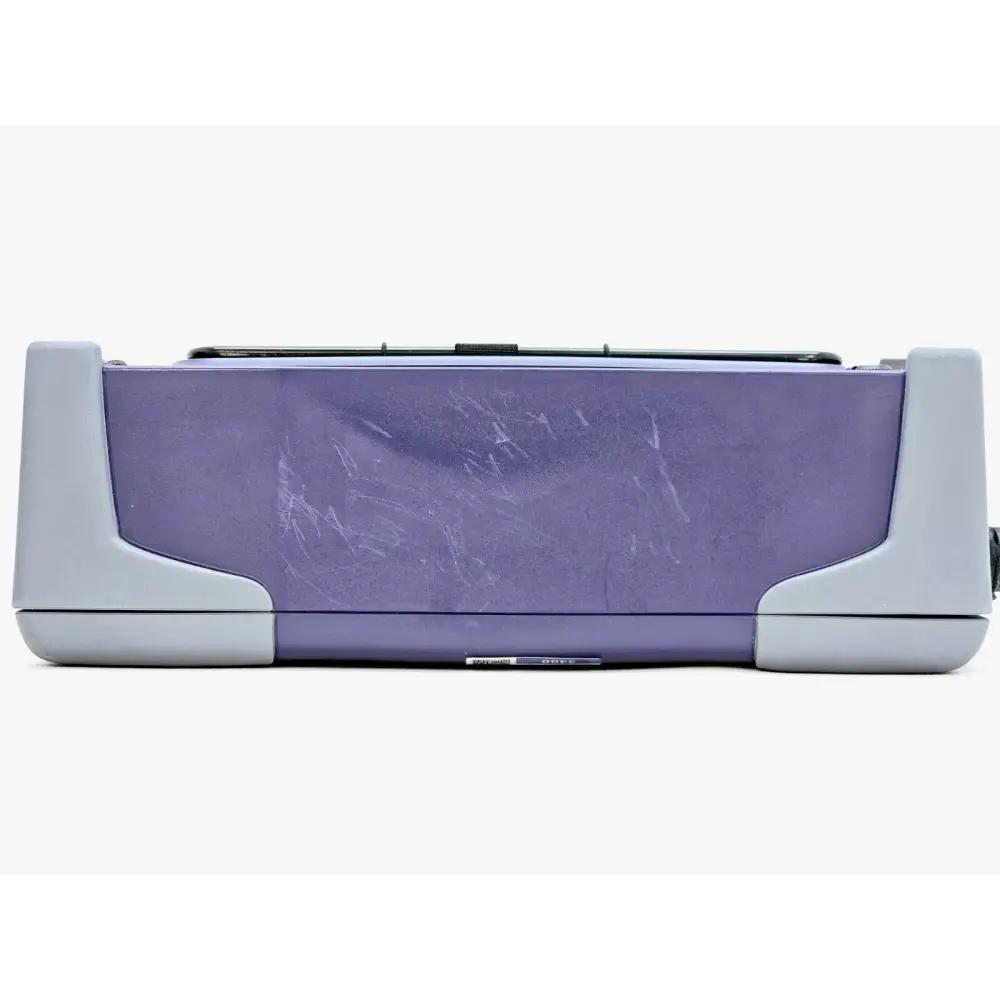

Condition: Used In very good condition, calibration expired March 25, we have multiple units so cosmetically they may differ though all tested and working. With 2 units you are able to conduct bi-directional testing as the modules are loaded with Fiber Complete software Included in the sale: Viavi MTS 6000A Mainframe with built-in power meter and smartlink software o   Touch Screen Viavi 8126C SM OTDR Module with FCOMP software o   Source: 1310/1550 nm o   Dynamic Range: 47.5/47 dB o   Connector: APC o   Event Dead Zone: 0.5 m o   Attenuation Dead Zone: 2 m  o   Range: 400KM  o   Software Options: Singlemode OTDR / SMART TEST / Source 1310/1490/1550/1625 nm / Power Meter 1310/1490/1550/1625 nm / Fiber Complete automated bidirectional OTDR, IL, and ORL measurements AC Power Adapter Stylus Carry Bag

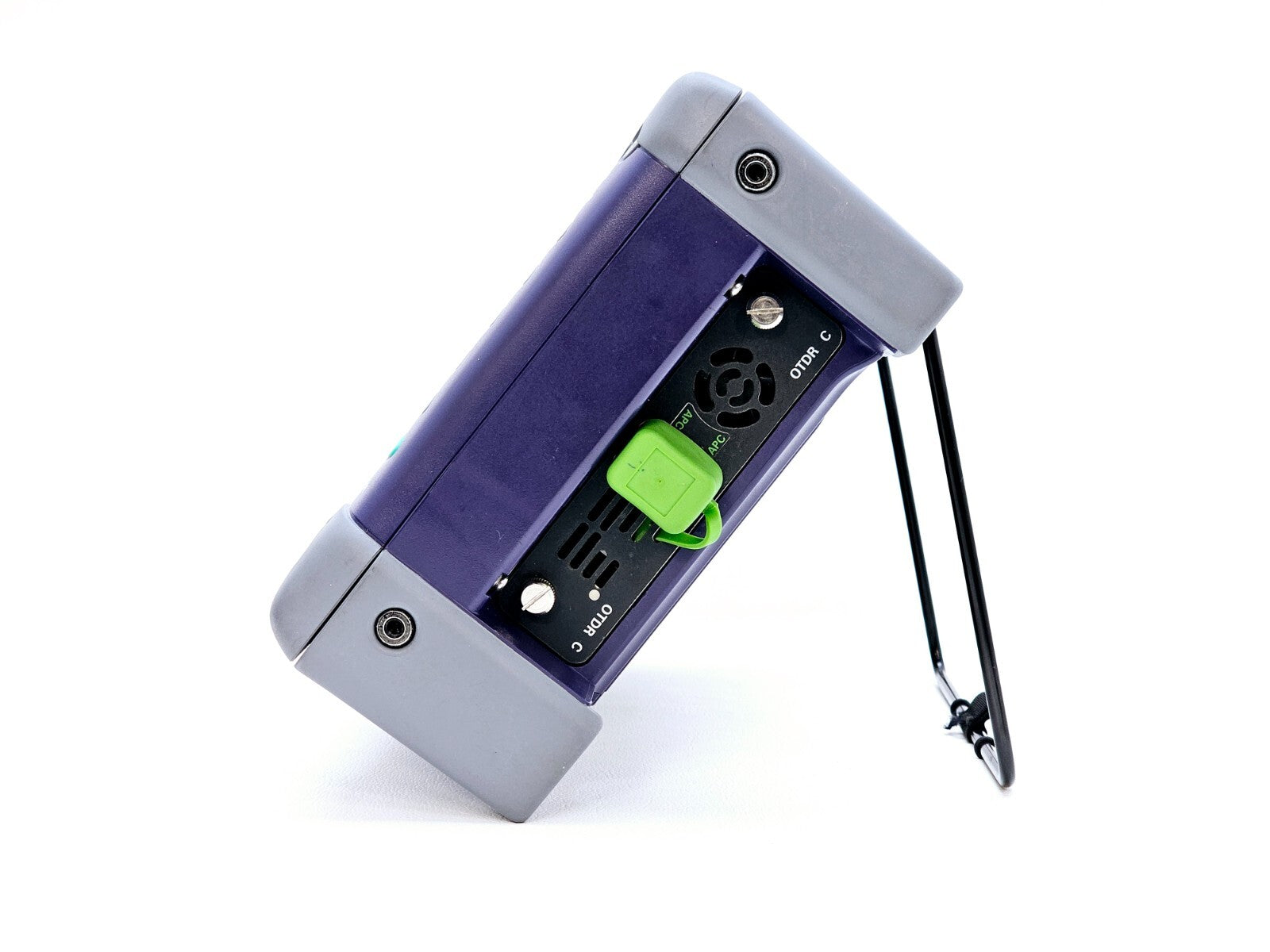

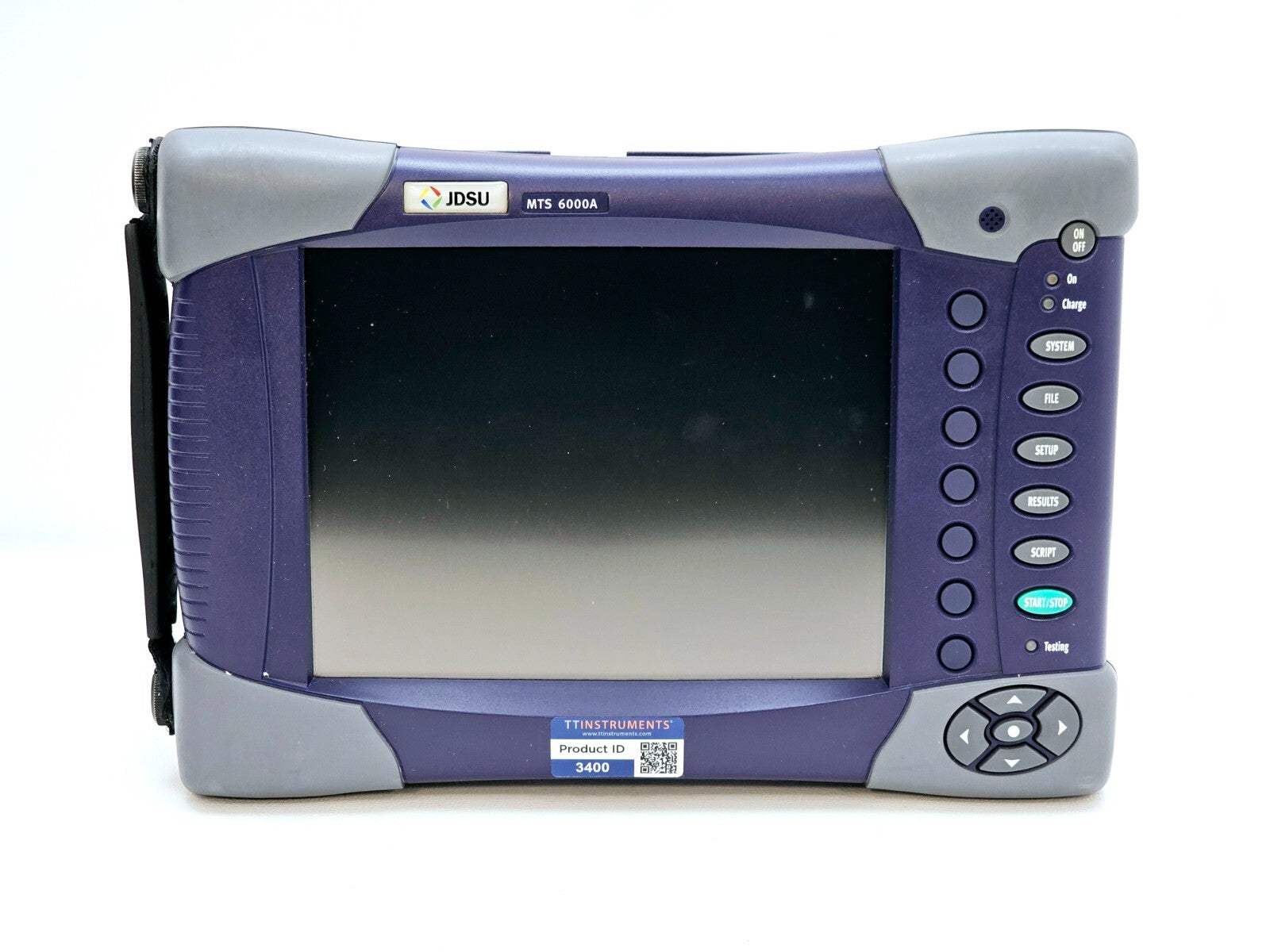

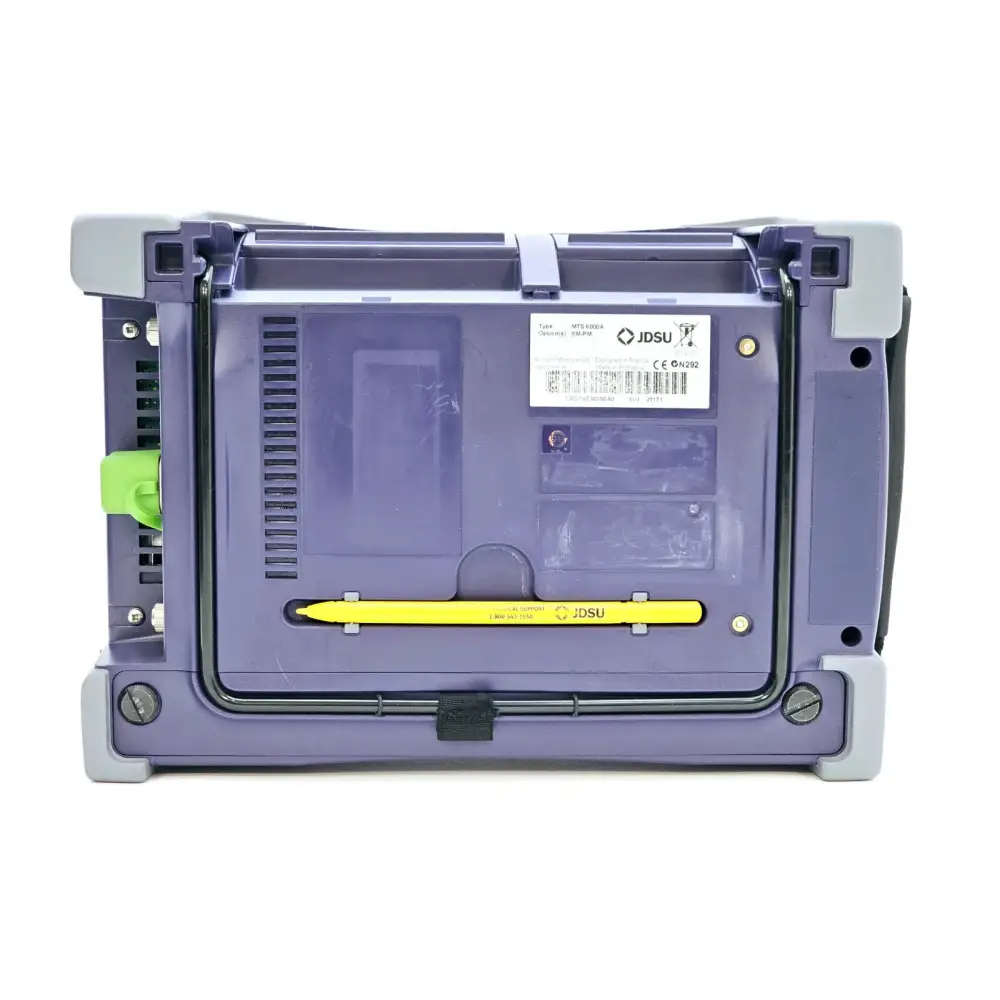

Viavi (formerly JDSU) MTS 6000A Optical Test Platform with 8126C SM OTDR Module

The MTS 6000A is a rugged, field-portable modular optical test platform designed for installation, commissioning, and maintenance of singlemode and multimode fibre optic networks including metro, access, long-haul, and enterprise applications. Its large colour touchscreen display and modular architecture allow technicians to combine multiple test functions — OTDR, power meter, light source, visual fault locator, and talk set — in a single handheld platform.

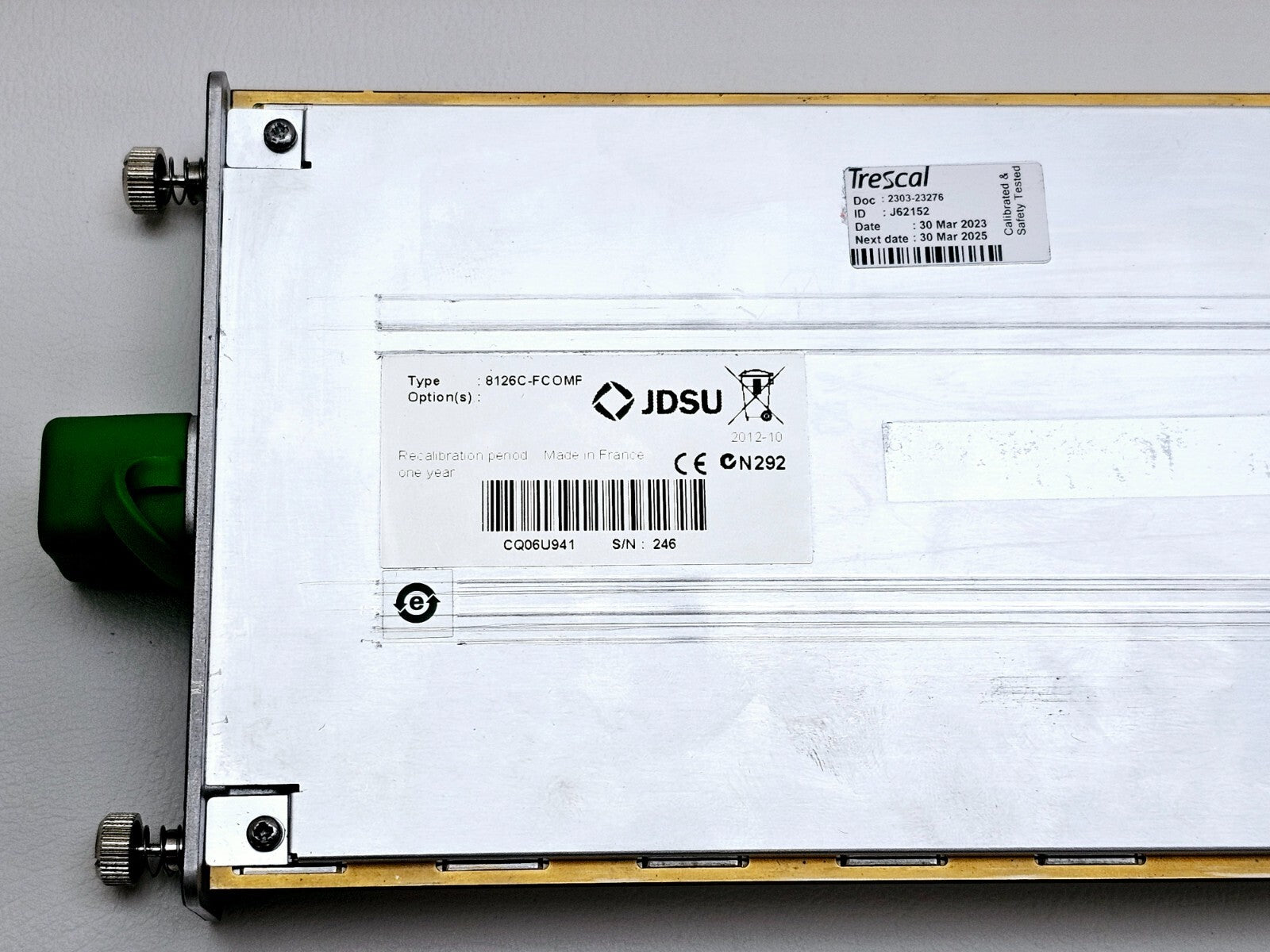

The 8126C is a high-performance singlemode OTDR module for the MTS 6000 platform family, offering dual-wavelength testing at 1310 nm and 1550 nm with industry-leading dynamic range, ultra-short dead zones, and long distance range for demanding field applications.

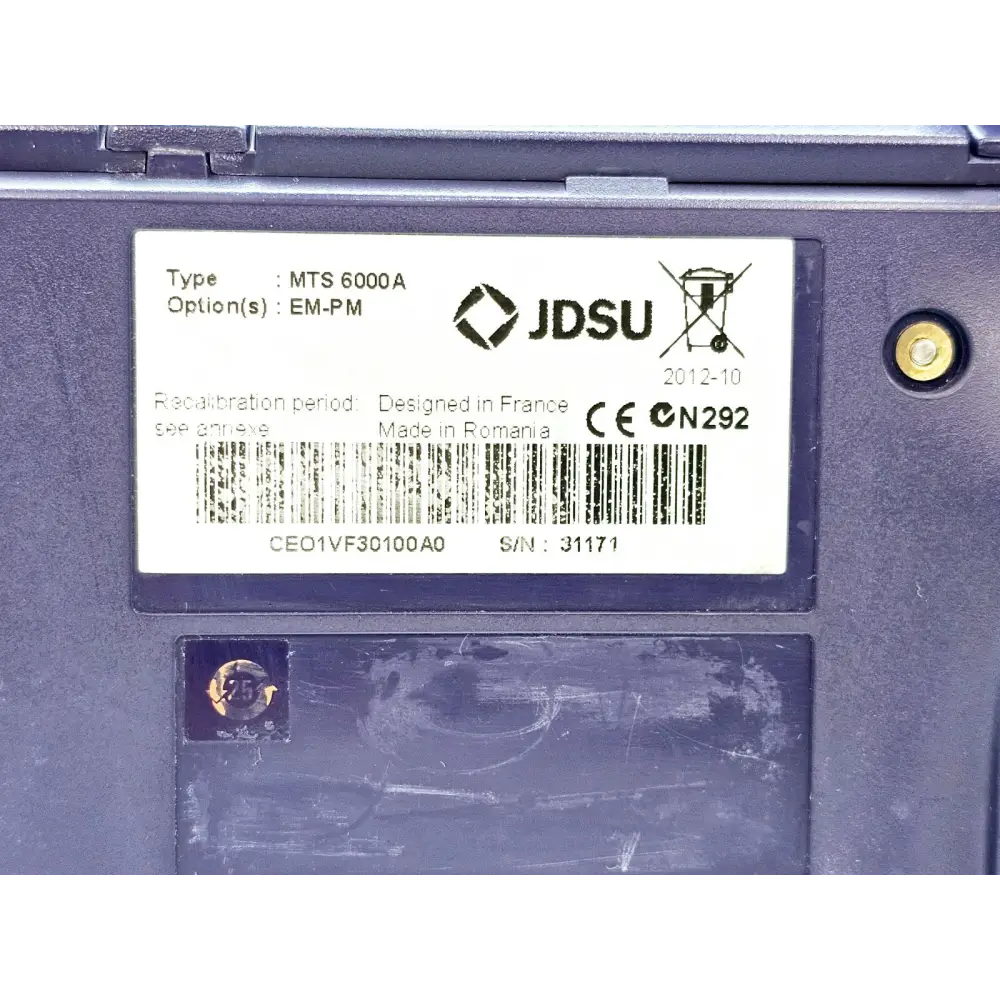

MTS 6000A Platform Specifications:

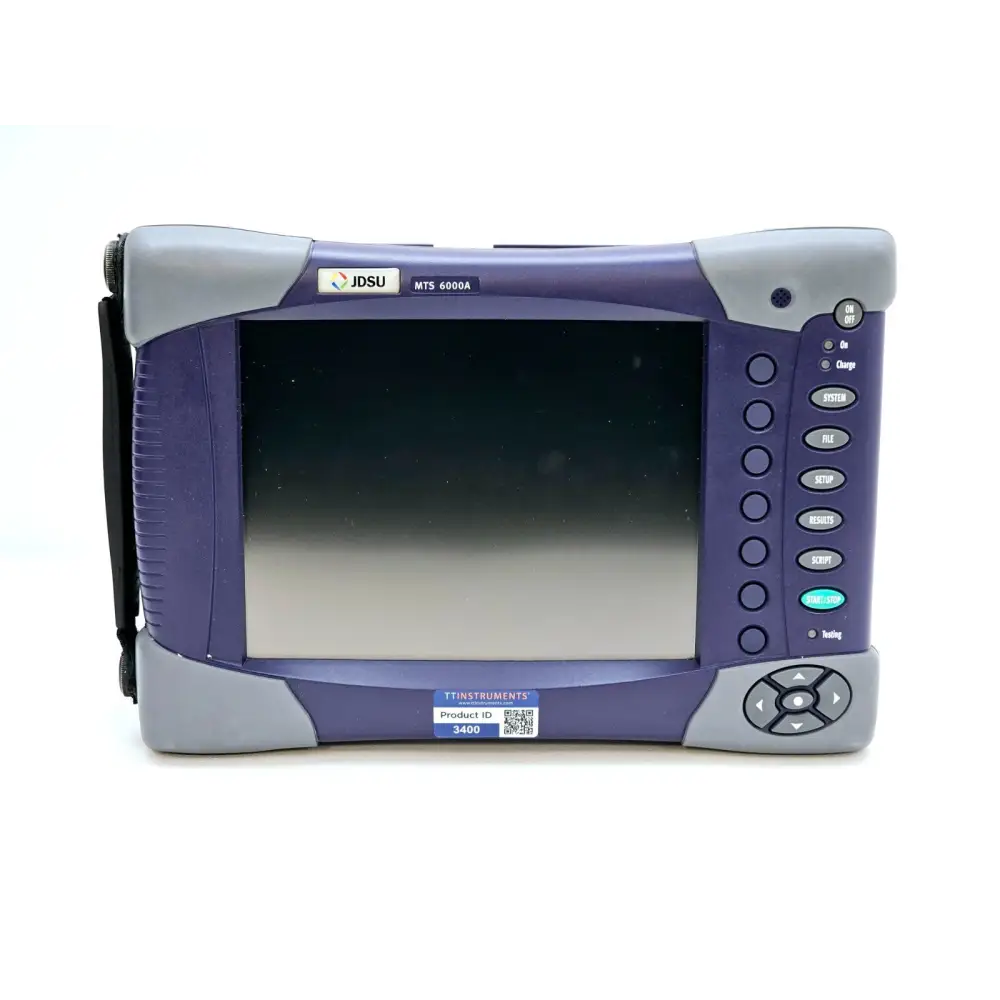

Display: Large colour TFT touchscreen
Module Bays: Compatible with MTS 6000-series OTDR modules
Connectivity: USB, Ethernet, RS-232
Power Input: DC 19 V, 4 A max

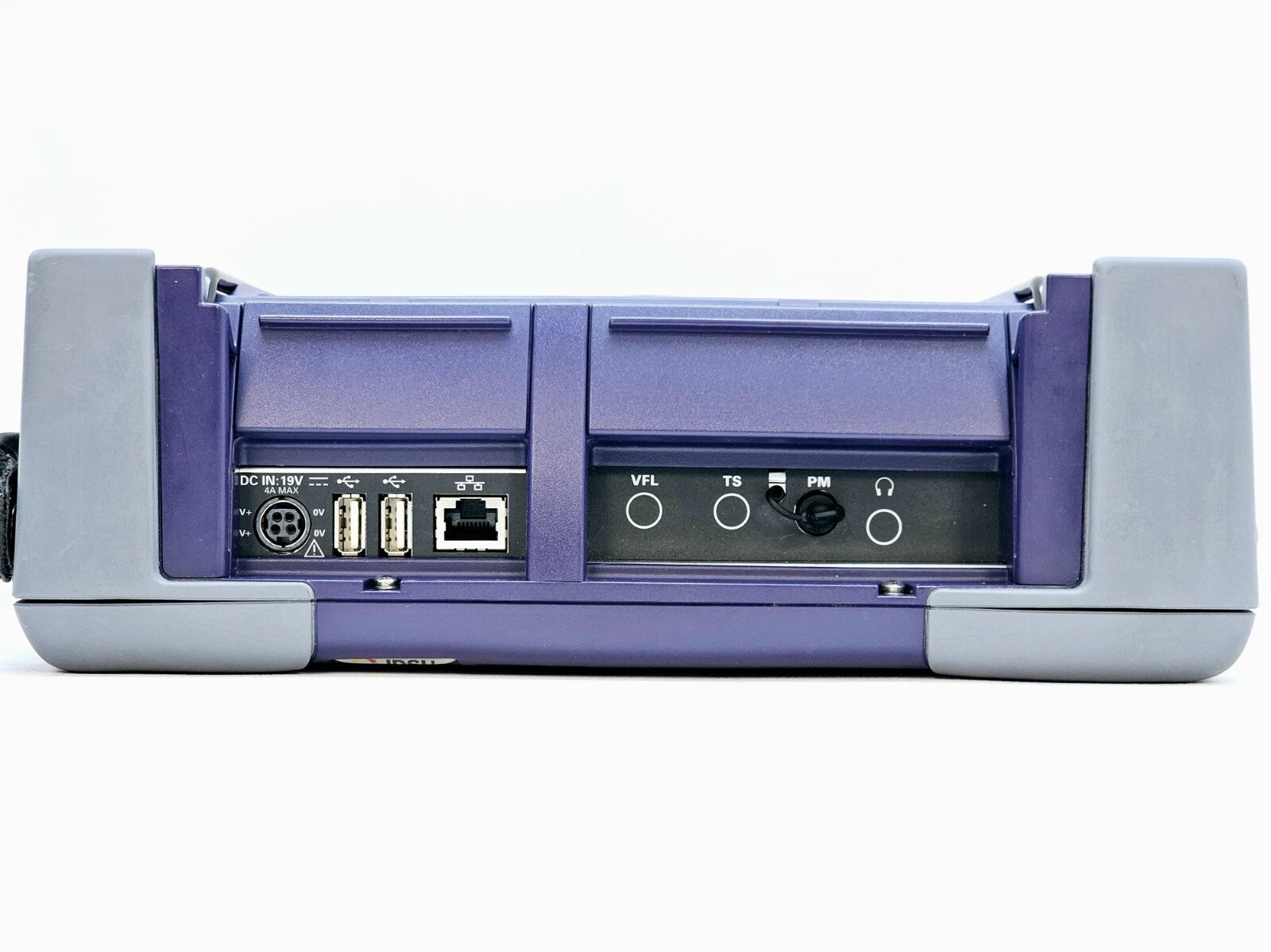

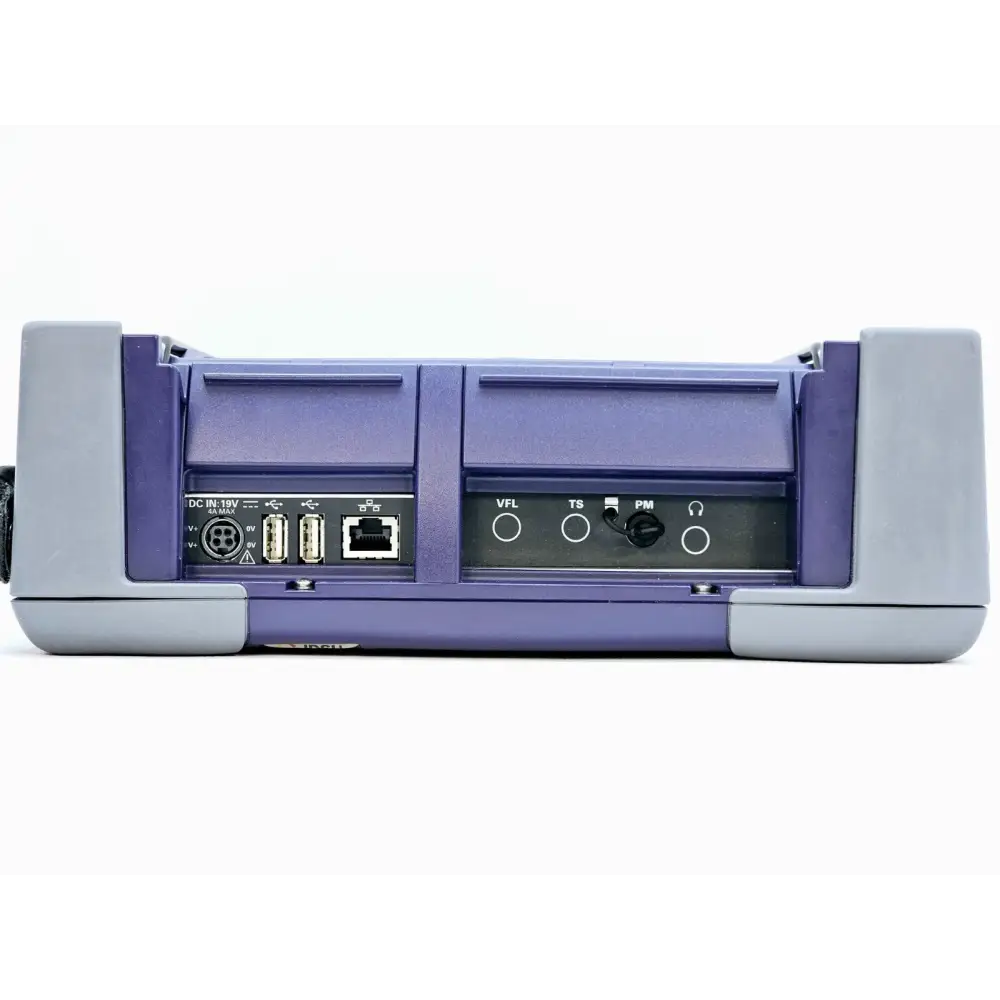

Interface Ports: VFL, Talk Set (TS), Power Meter (PM), headphone
Battery: Rechargeable Li-Ion
Operating Temperature: -10°C to +50°C
Storage Temperature: -20°C to +60°C

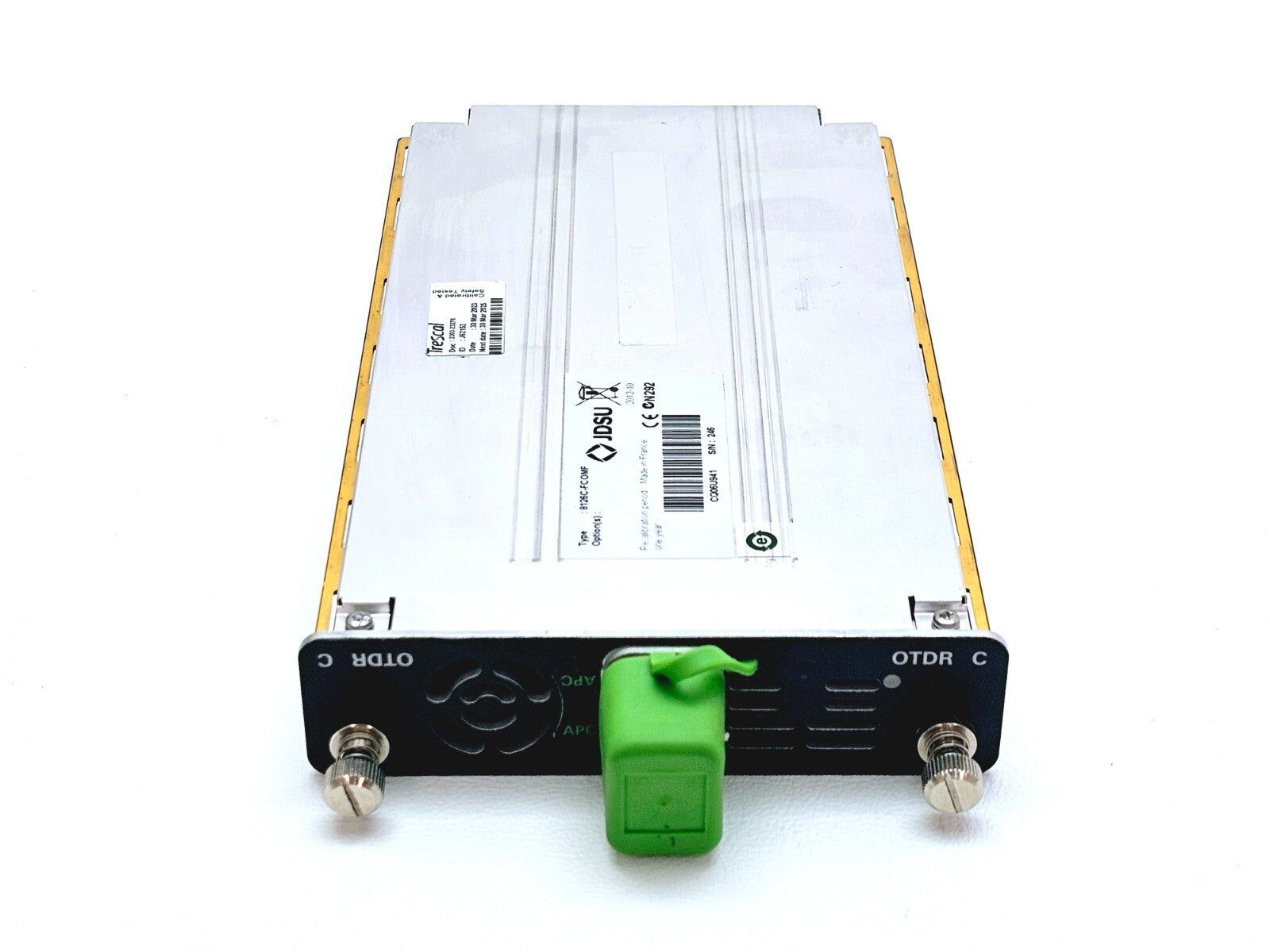

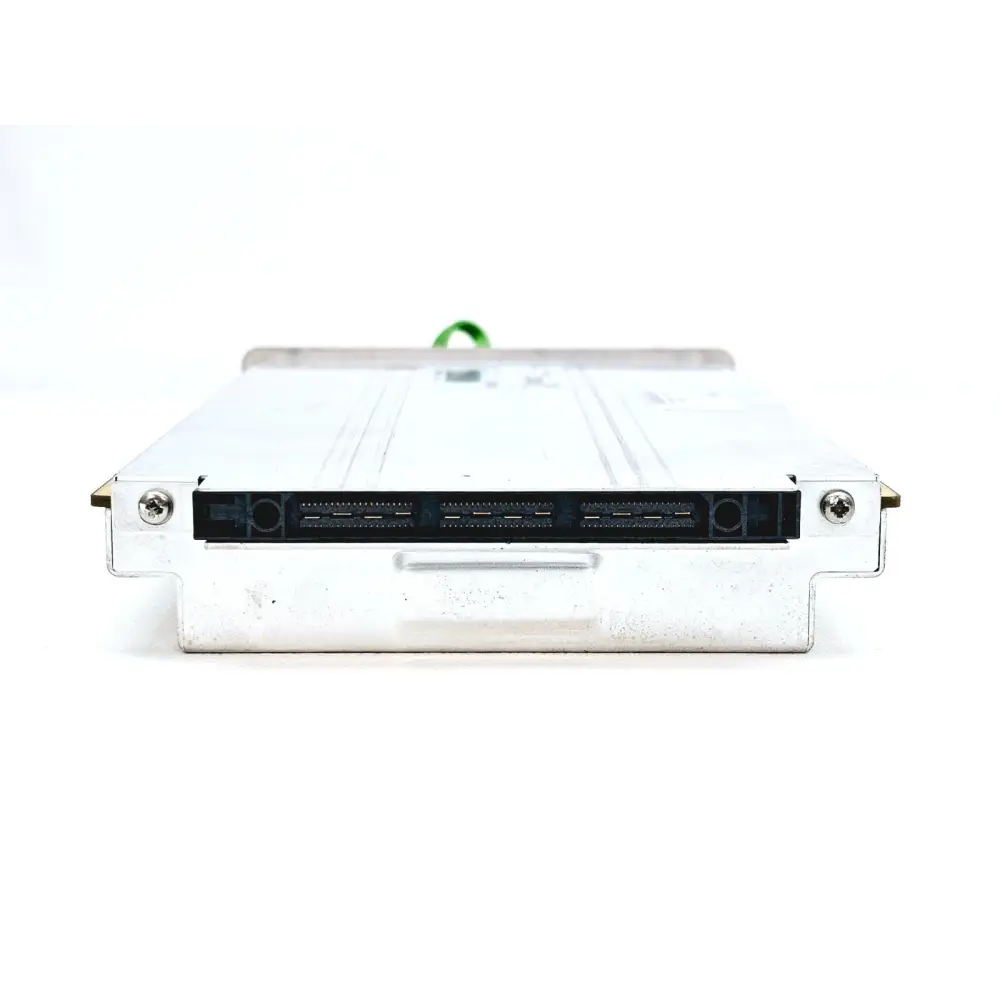

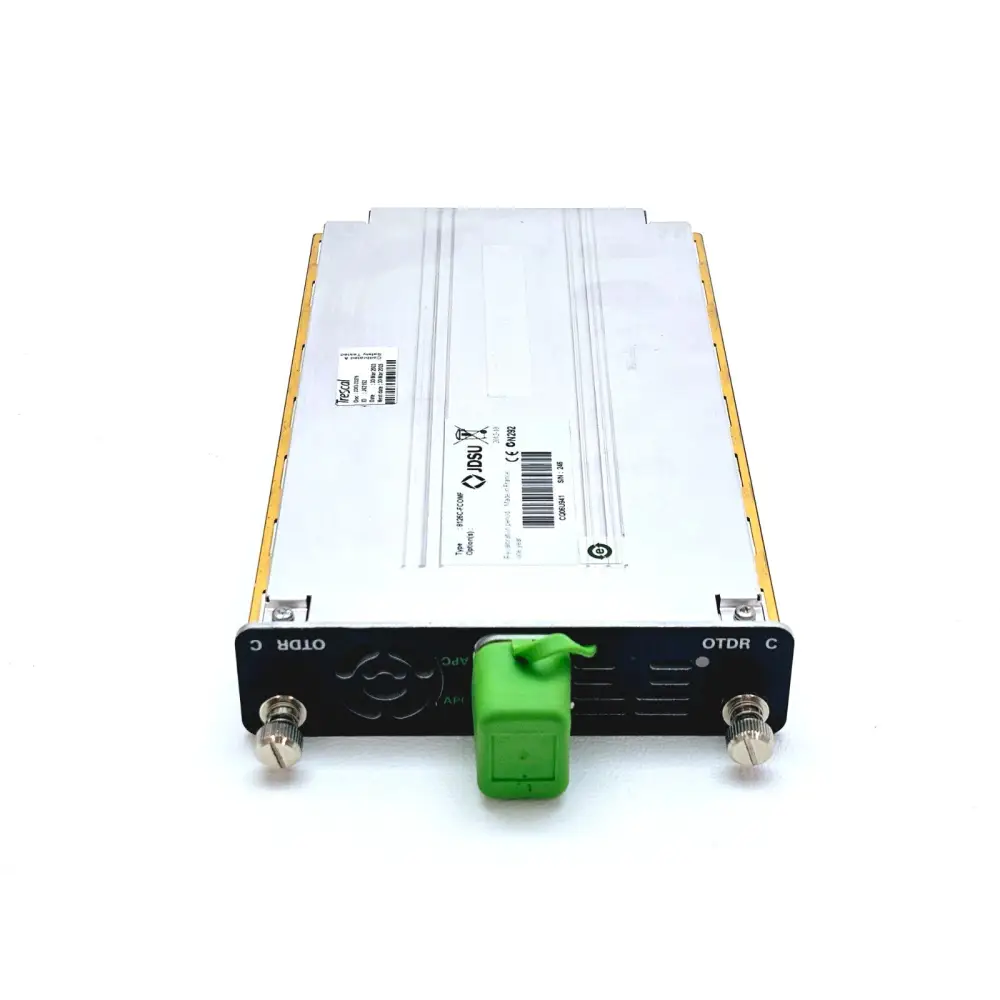

8126C SM OTDR Module Specifications:

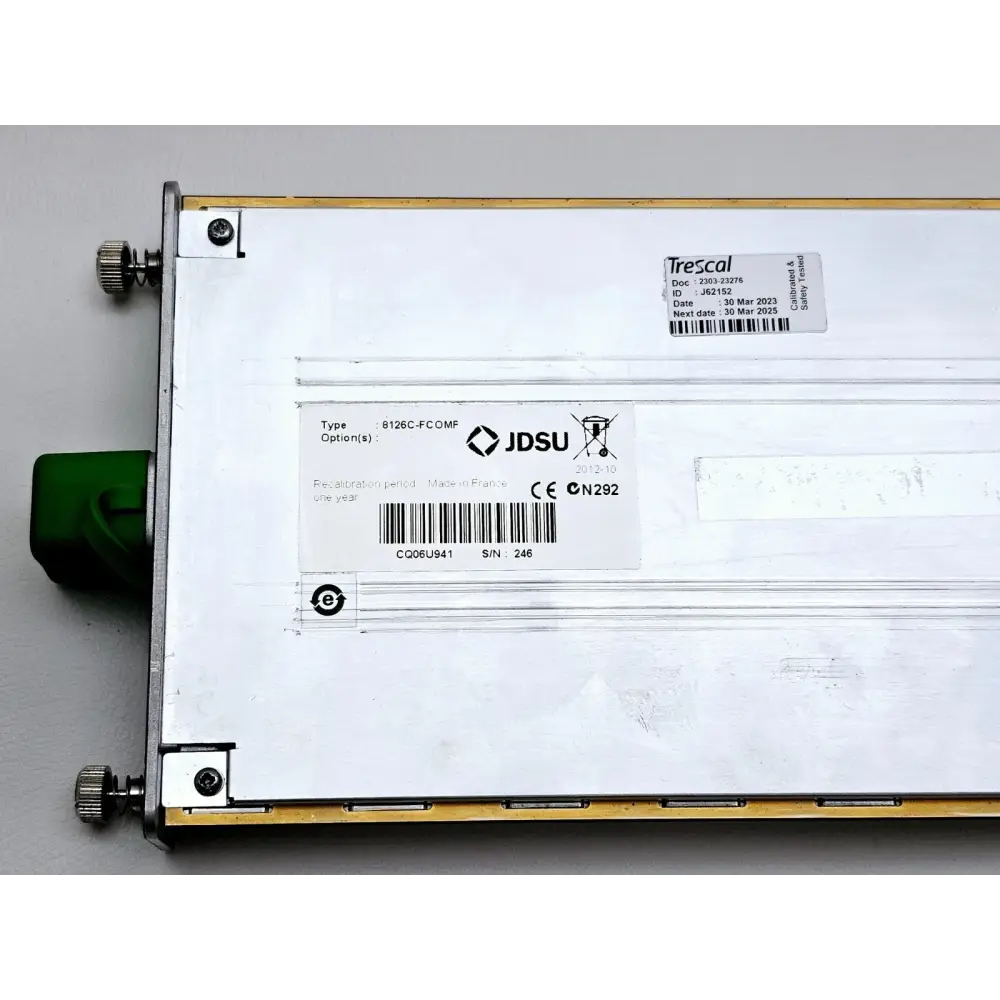

Module Type: Singlemode OTDR

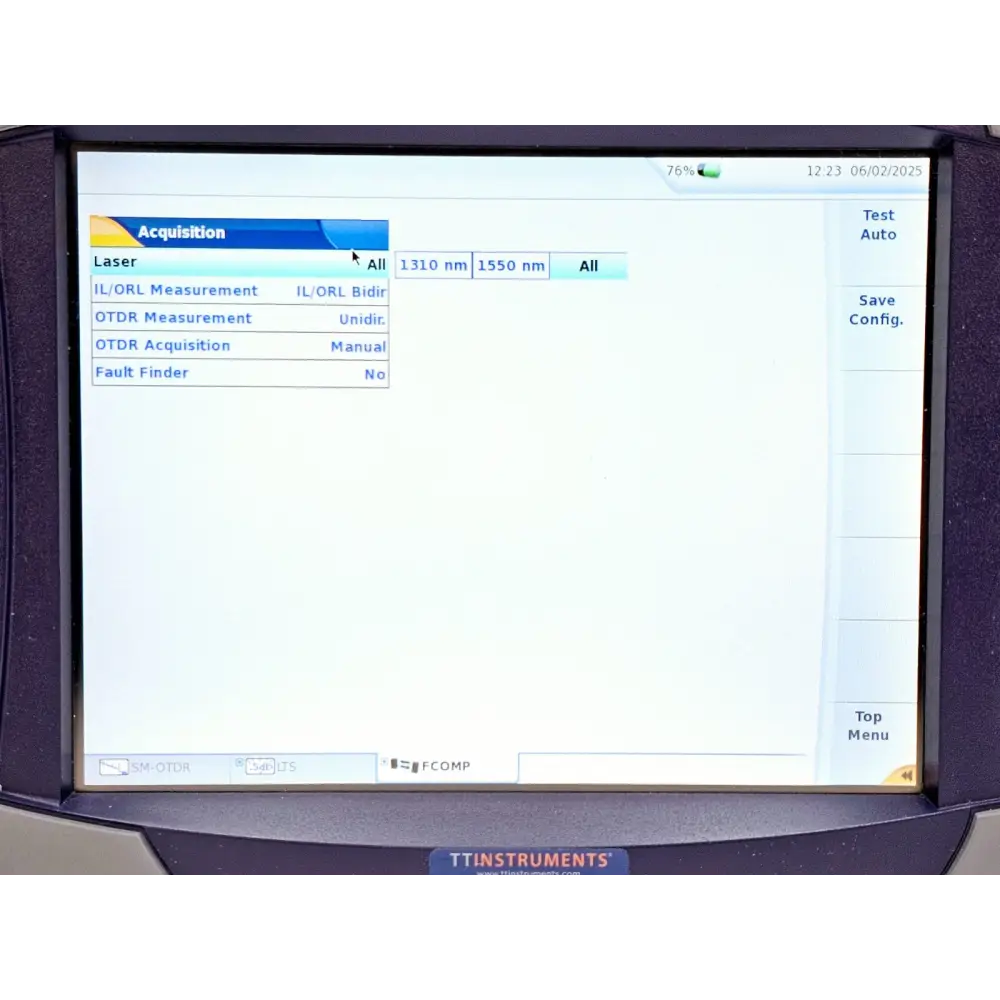

Wavelengths: 1310 nm / 1550 nm
Dynamic Range: 47.5 dB / 47 dB

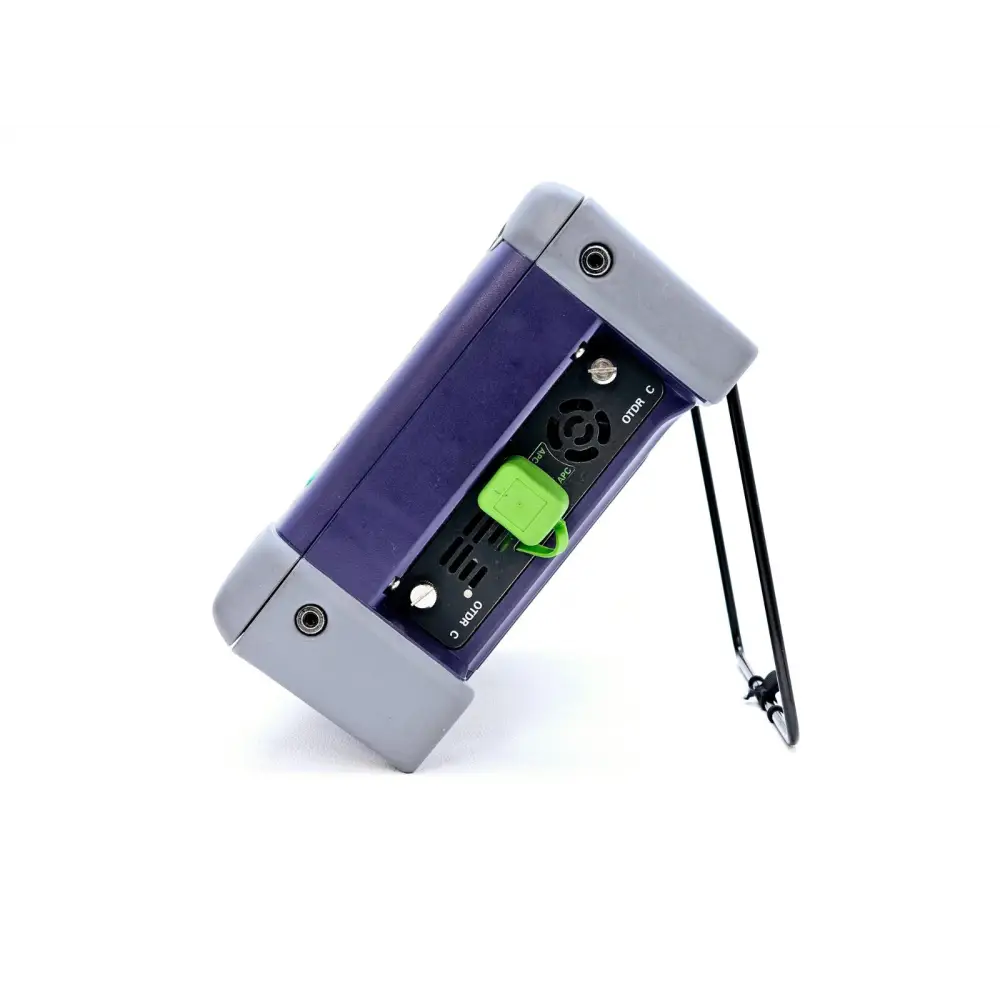

Connector Type: APC (angled physical contact)
Event Dead Zone: 0.5 m
Attenuation Dead Zone: 2 m
Distance Range: Up to 400 km

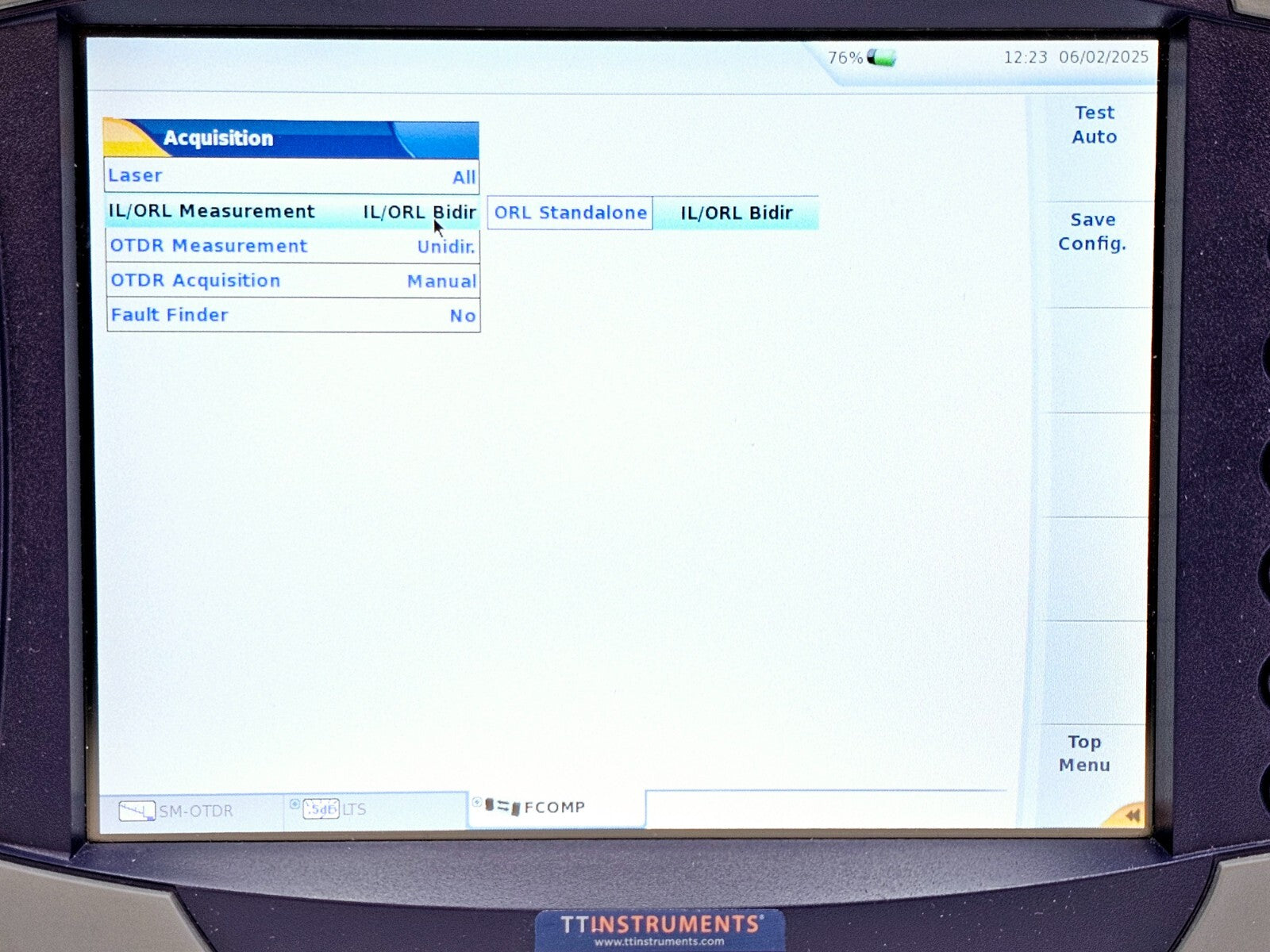

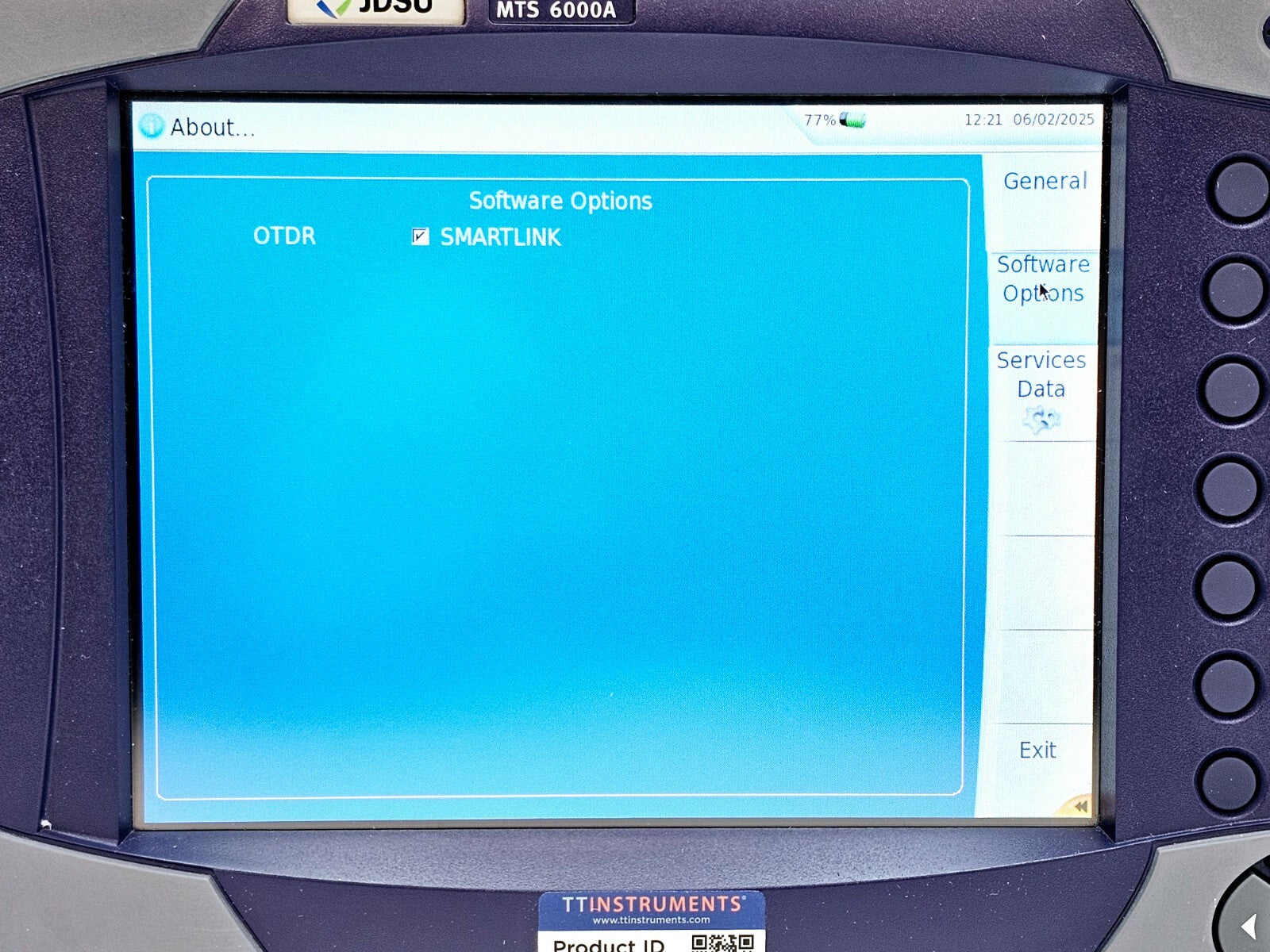

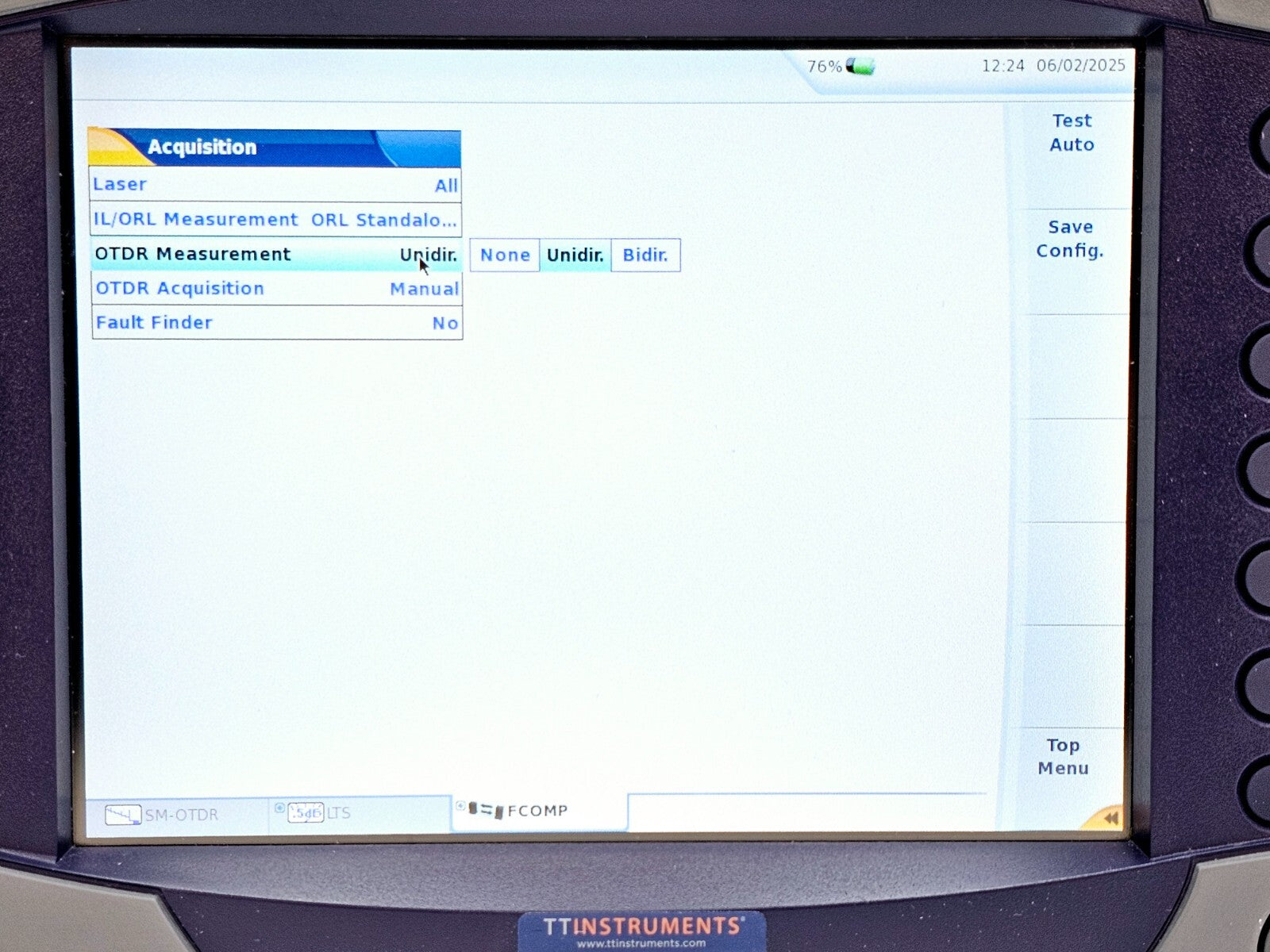

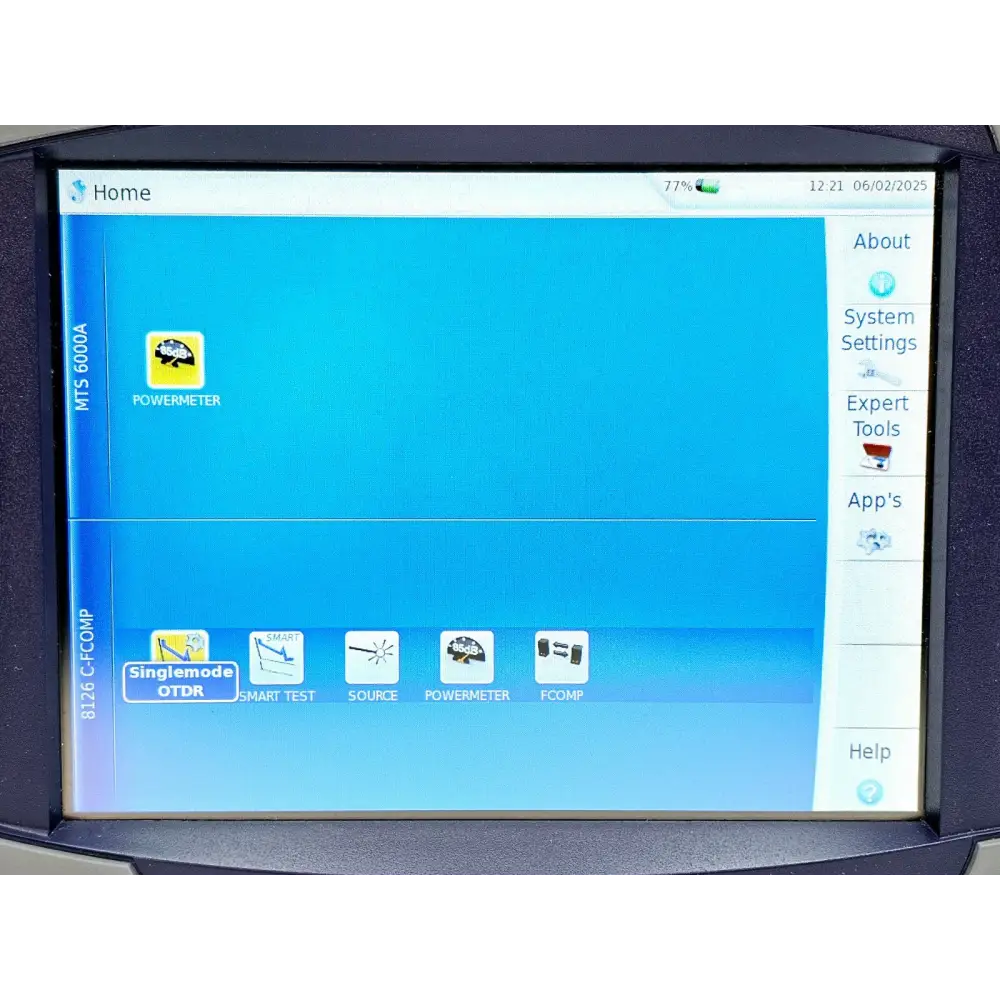

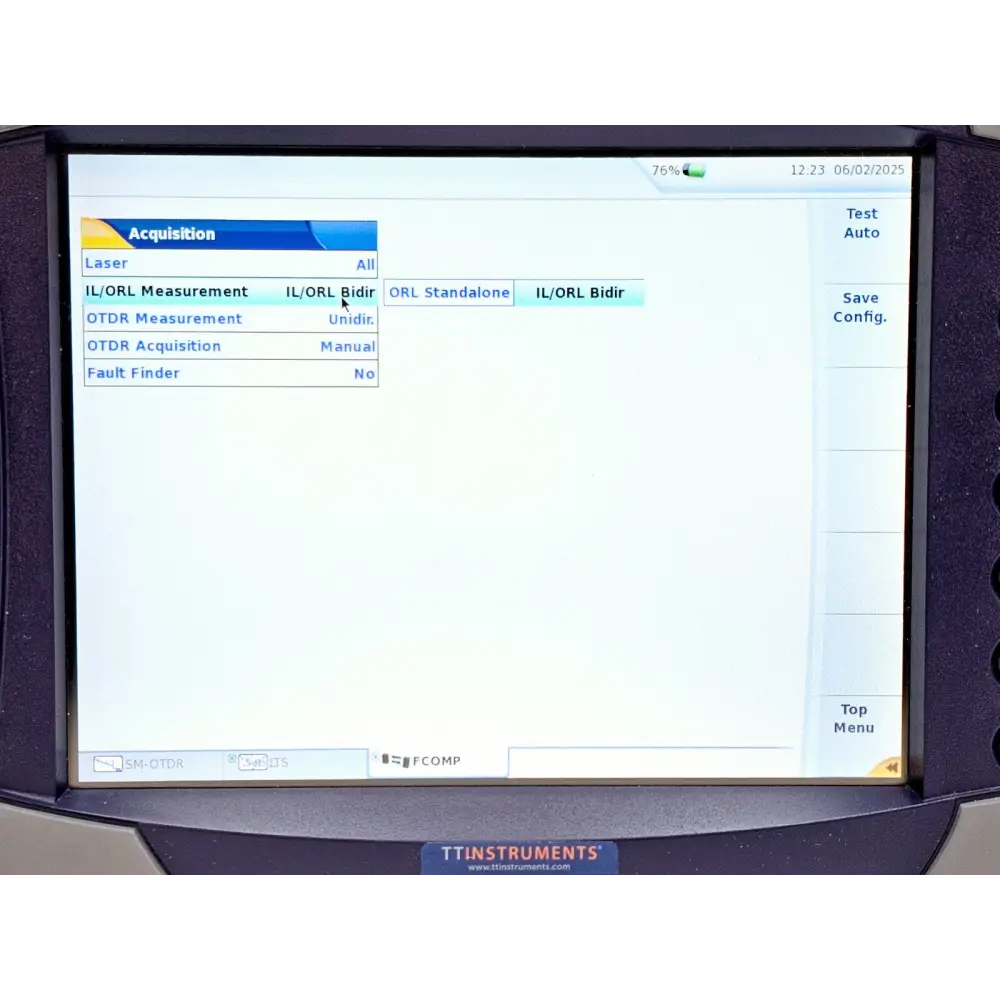

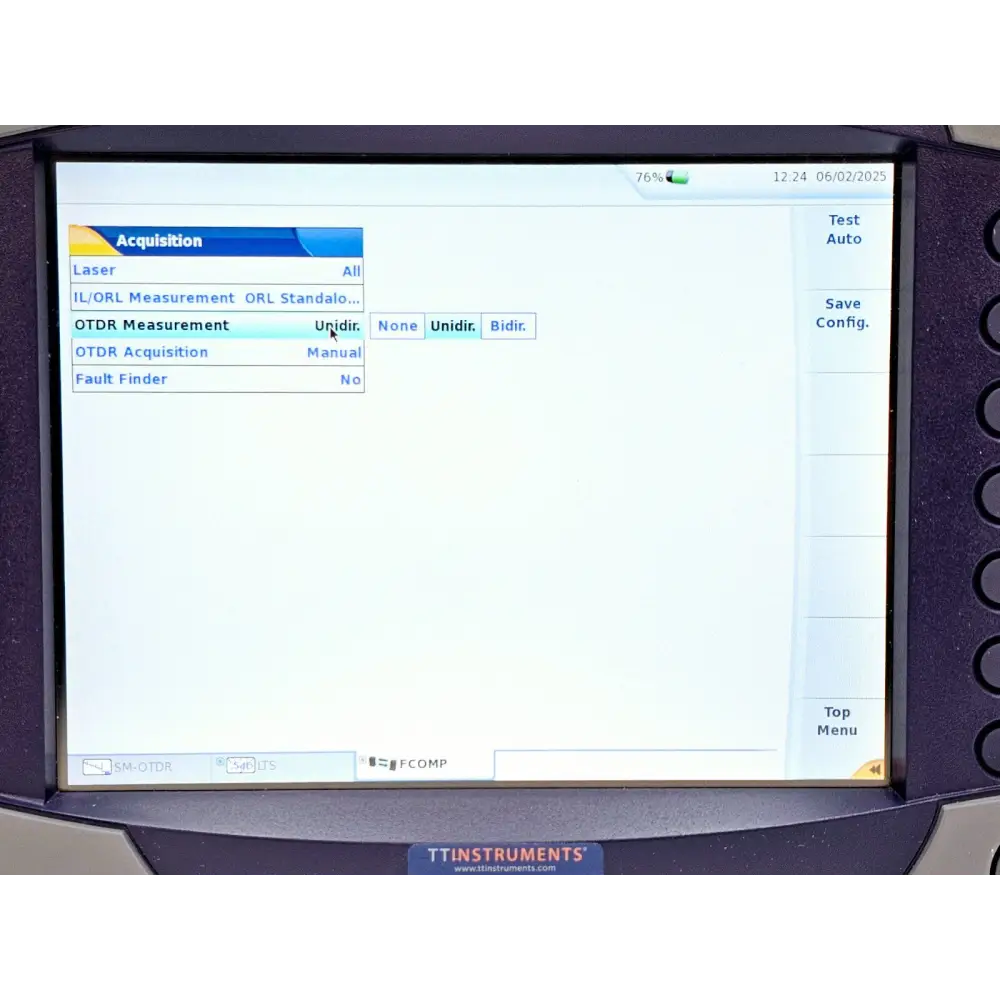

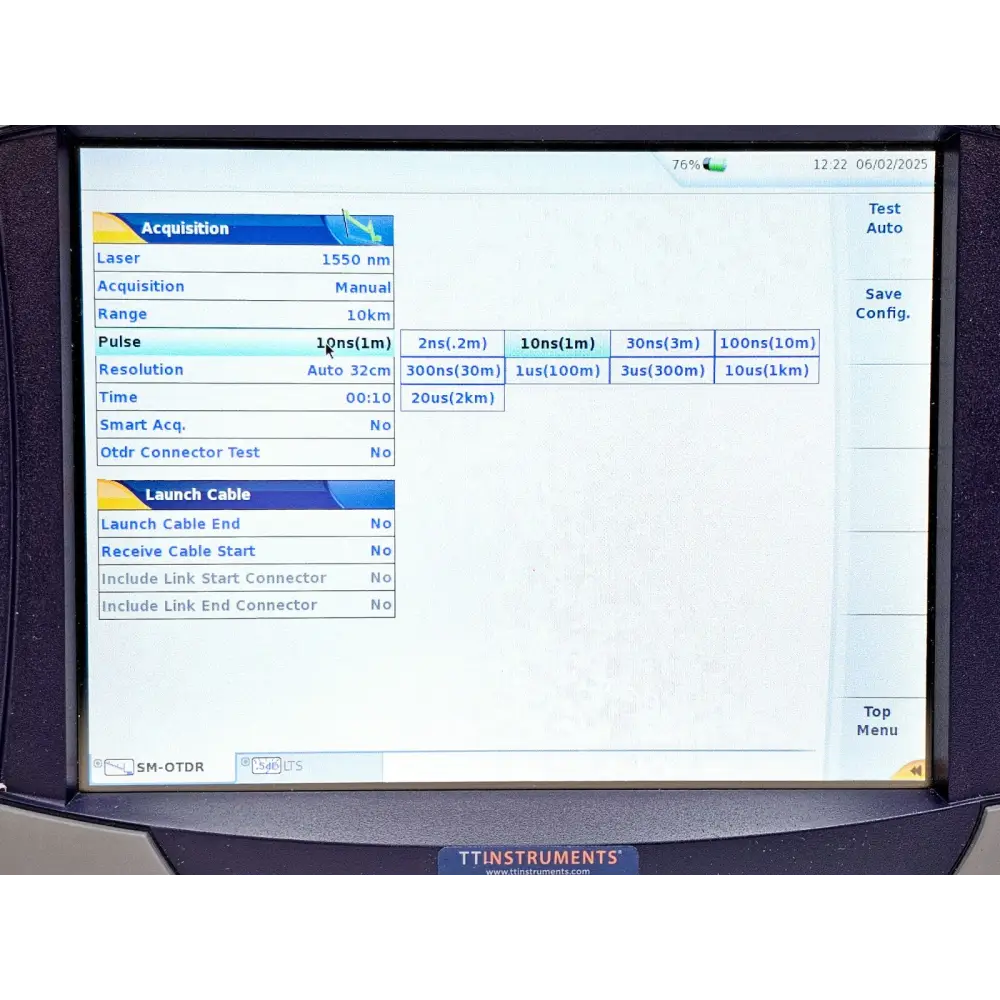

Software Options: Singlemode OTDR, SMART TEST, Fiber Complete (FCOMP) automated bidirectional OTDR/IL/ORL
Key Features: Automated pass/fail analysis, bidirectional averaging, Fast Report generation, SmartLink event mapping, live fibre detection, field-replaceable module design

Typical Applications:
Long-haul and metro fibre characterisation
FTTx/access network installation and maintenance
Enterprise and data centre fibre testing
Bi-directional OTDR testing and reporting
Fault localisation, splice and connector loss measurement

Viavi T-BERD/MTS-4000 V2 Optical Test Platform — official product datasheet with features and specifications: Download PDF

Viavi MA2 OTDR Module (4100-Series) — official datasheet covering 4126 MA2 specifications and performance data: Download PDF

Viavi T-BERD/MTS-4000 V2 User Manual — full operation and technical reference guide (PDF): Download PDF

Viavi 4100-Series OTDR Modules datasheet — specifications for all 4100-series modules including the 4126 MA2: Download PDF
