Condition: Used

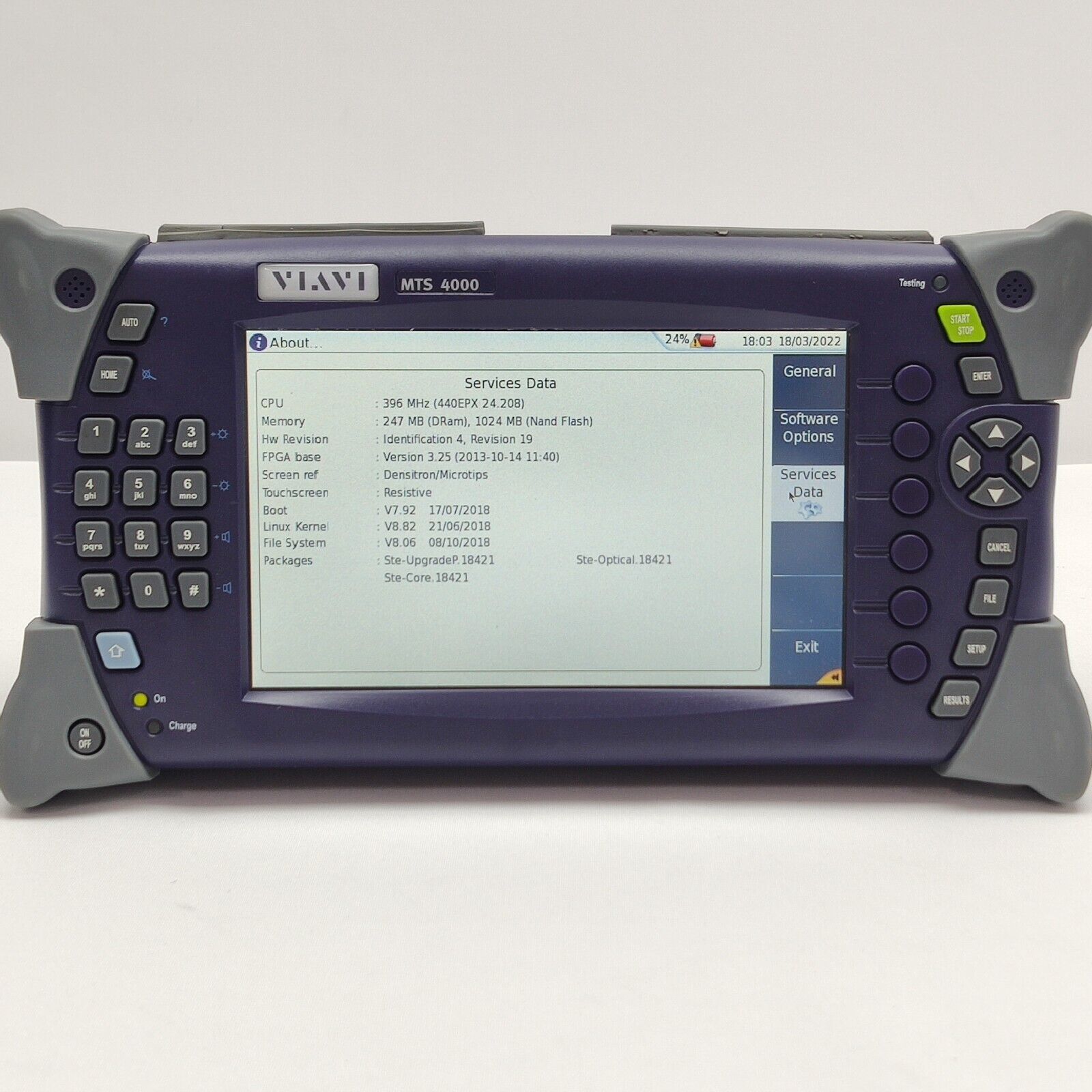

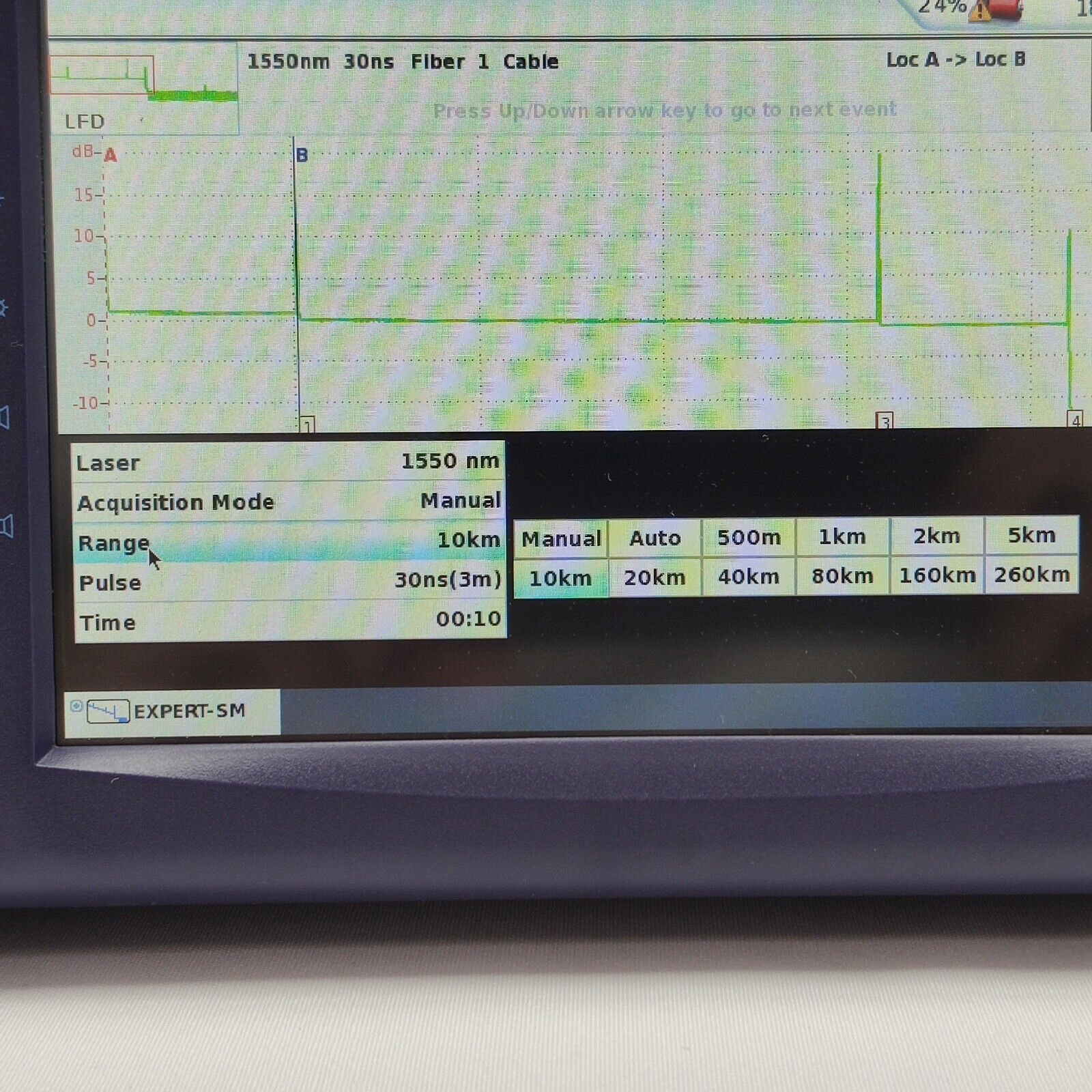

This Viavi JDSU MTS 4000 mainframe is in working condition and includes the Viavi 4138 MP49 singlemode OTDR module (E4138MP49). The module has had very little use. The MTS 4000 is equipped with Smartlink software, a touch screen interface, and an integrated power meter. The OTDR module operates at 1310/1490/1550 nm with dynamic ranges of 43/41/41 dB respectively, an event dead zone of 0.8 m, an attenuation dead zone of 4 m, APC connector, and a maximum range of 260 km.

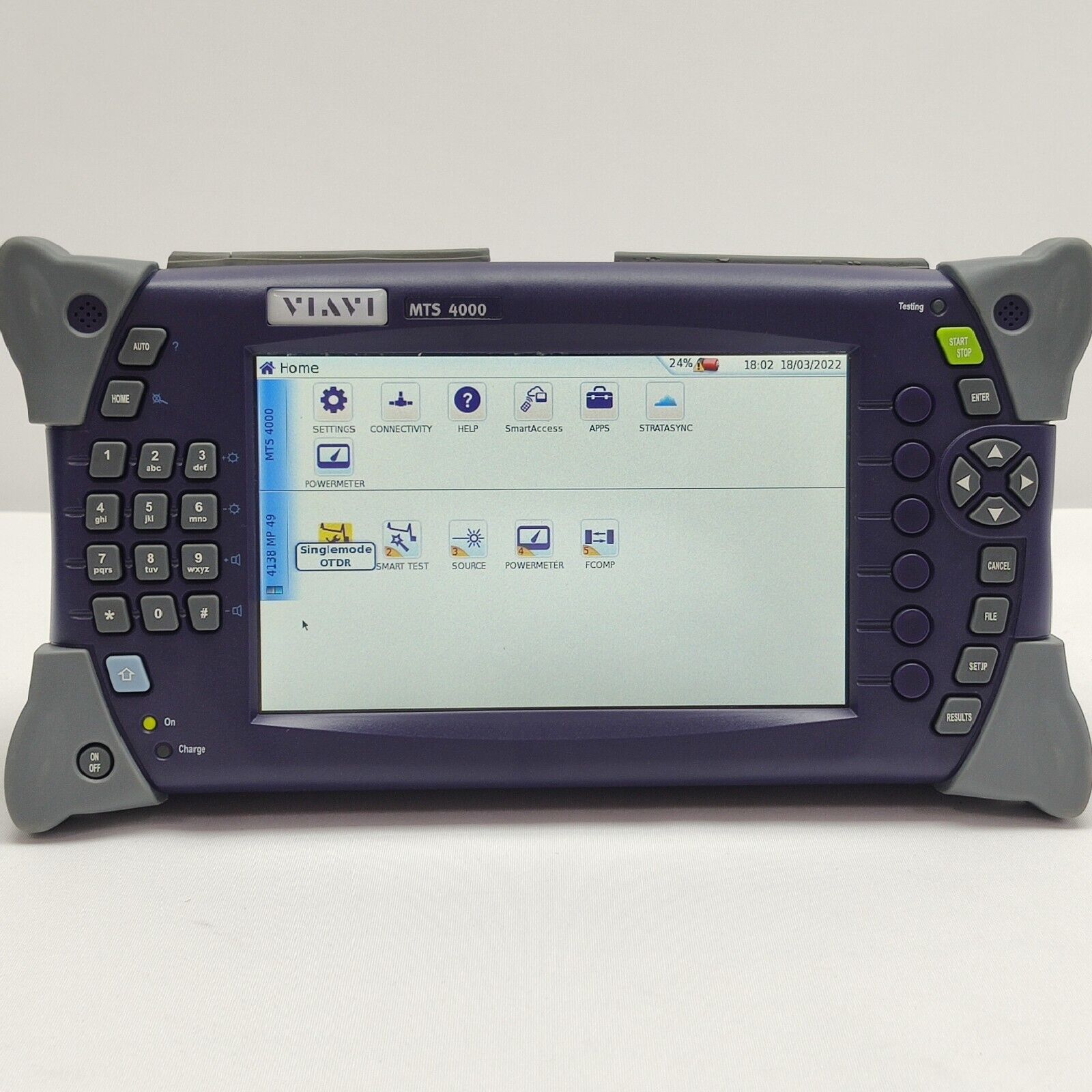

Active software options on this unit:
• Singlemode OTDR
• SMART TEST
• Source
• Power Meter
• Fiber Complete

Included in the sale:

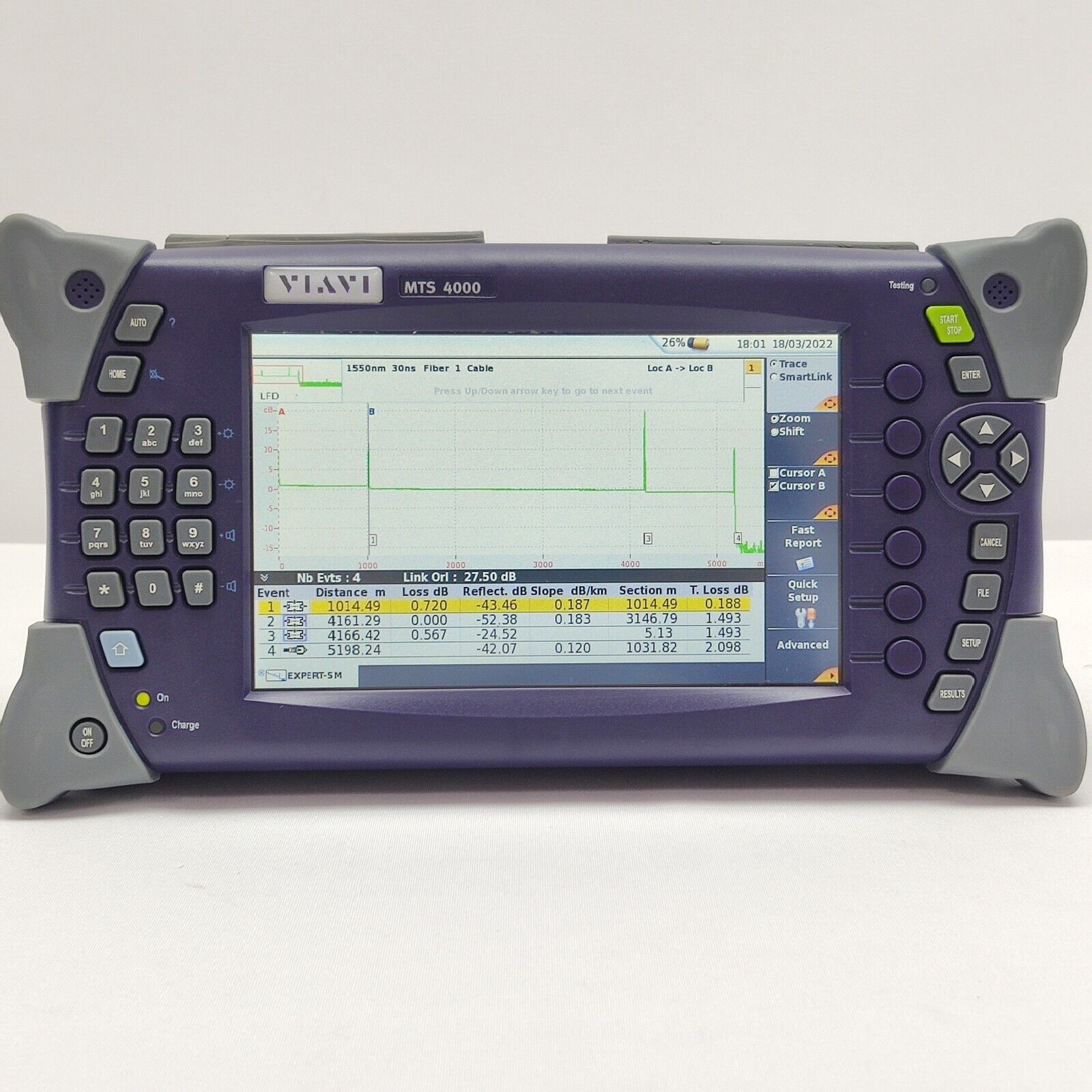

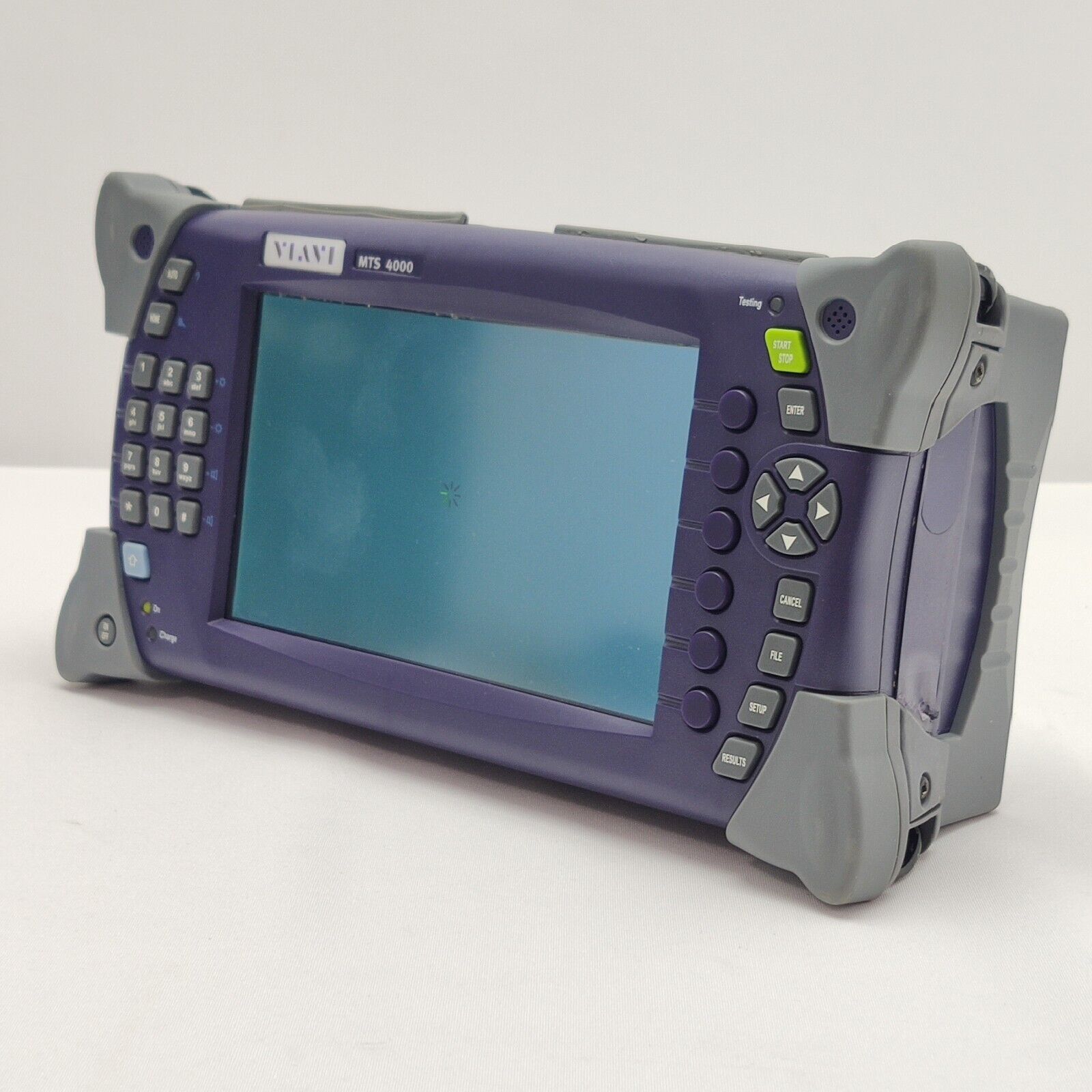

• Viavi JDSU MTS 4000 mainframe with Smartlink software, touch screen, and power meter

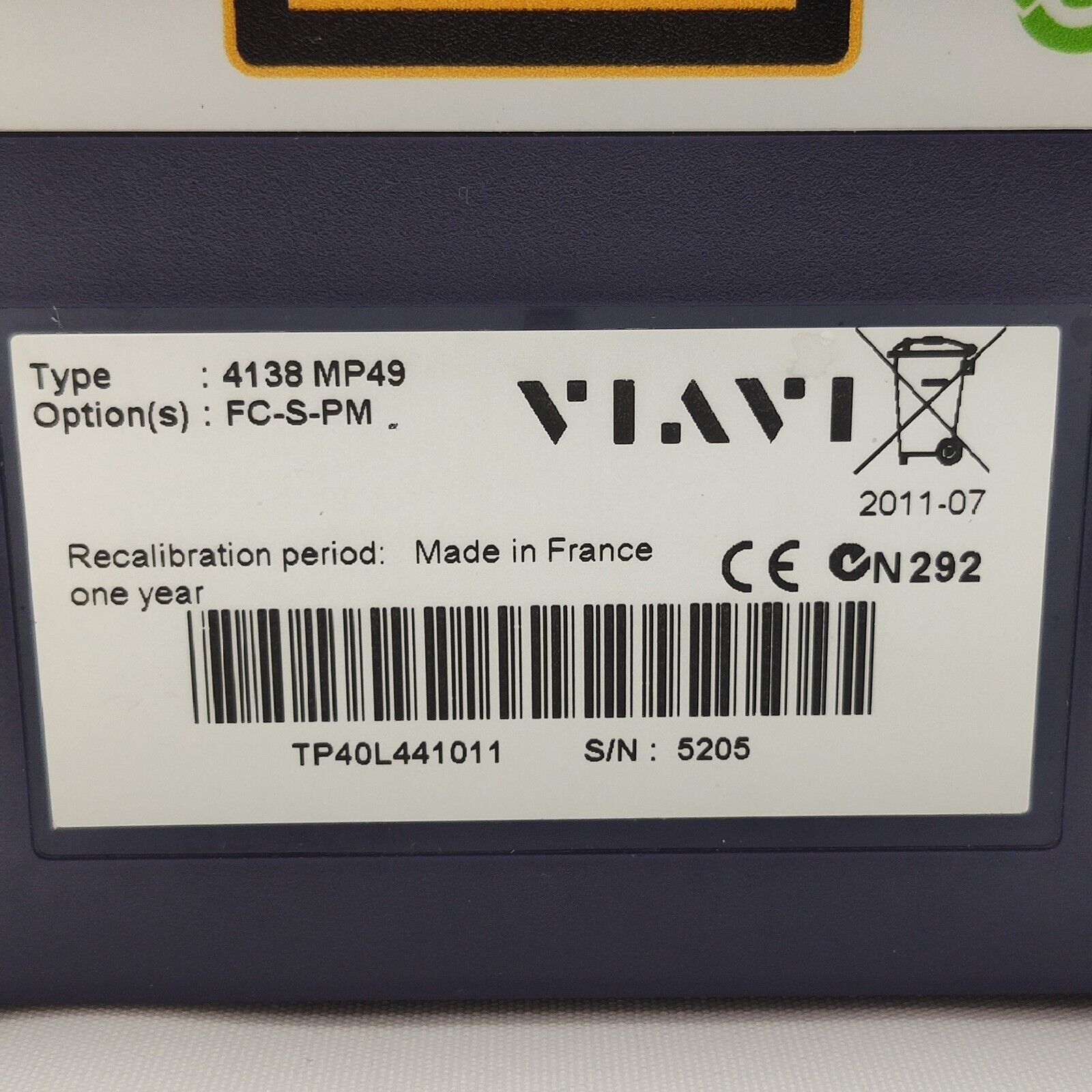

• Viavi 4138 MP49 SM OTDR Module (E4138MP49) — 1310/1490/1550 nm, 43/41/41 dB
• AC Power Adapter
• Carry Case

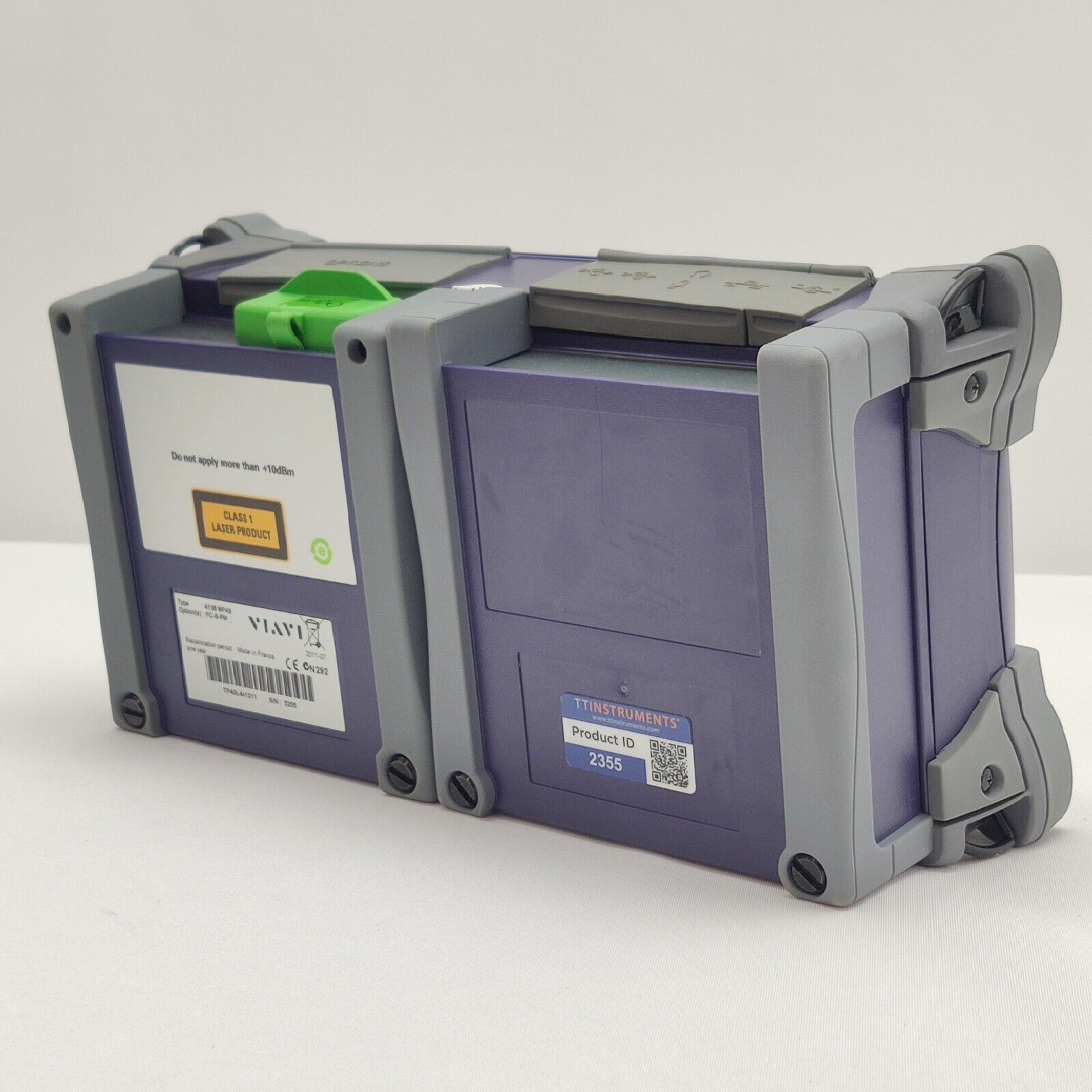

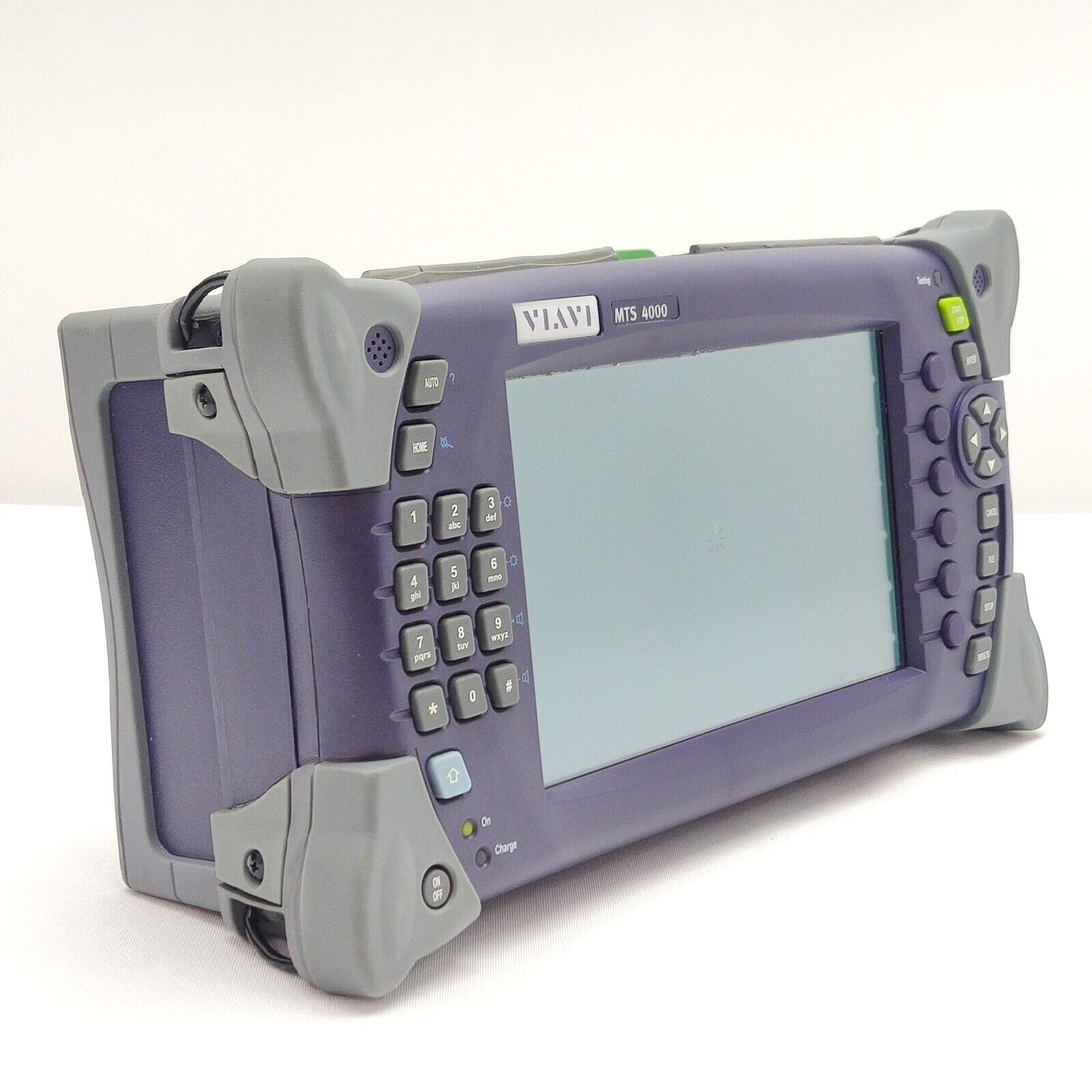

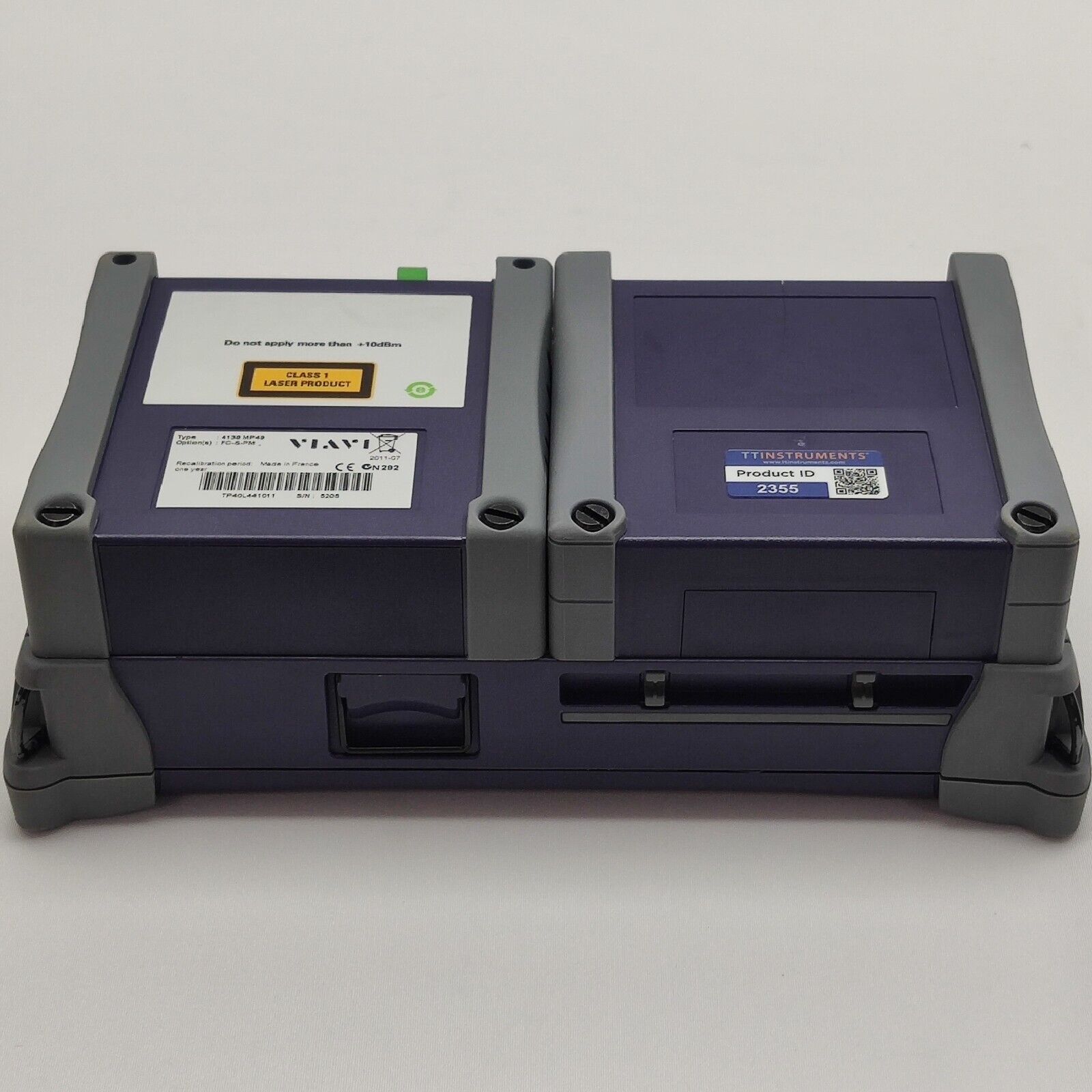

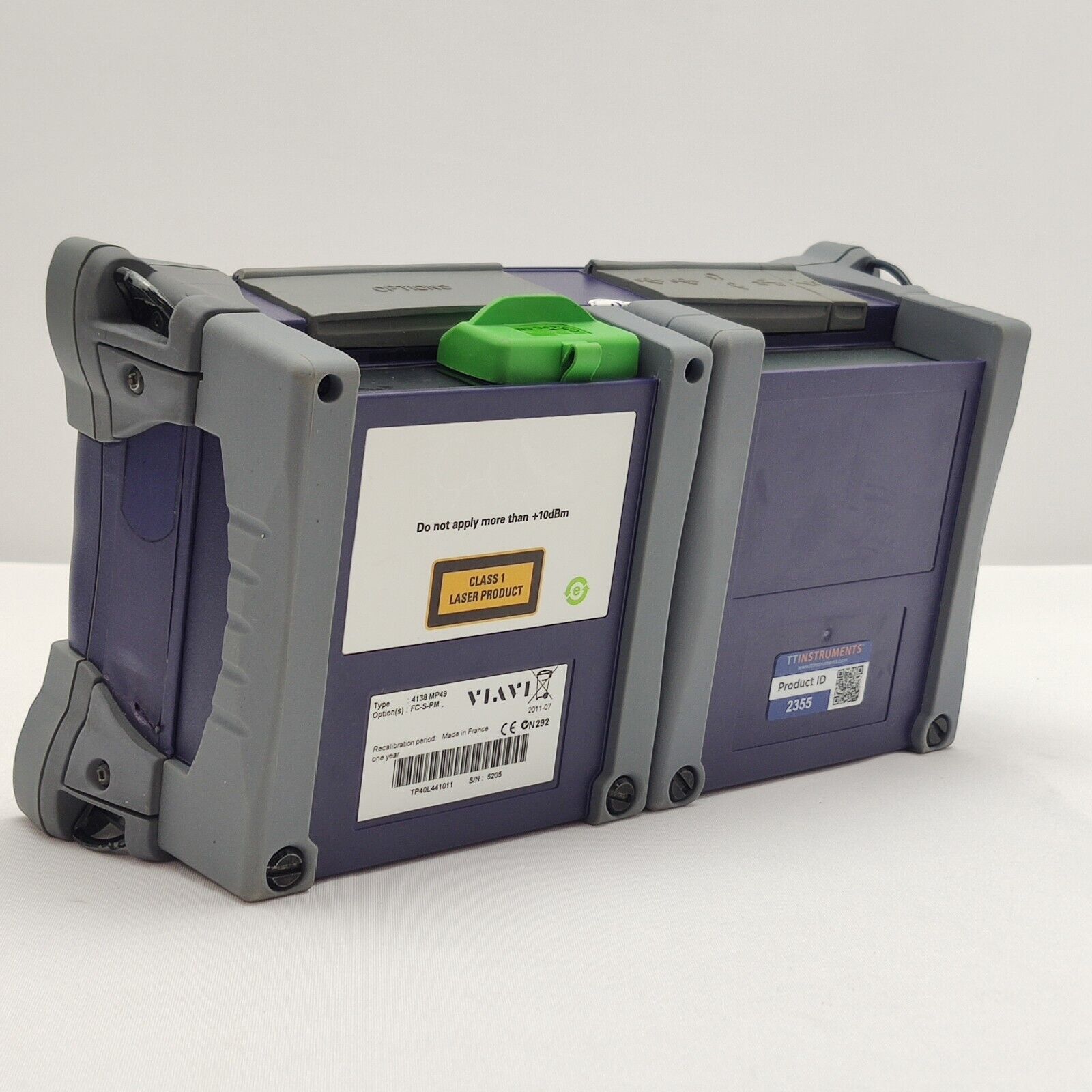

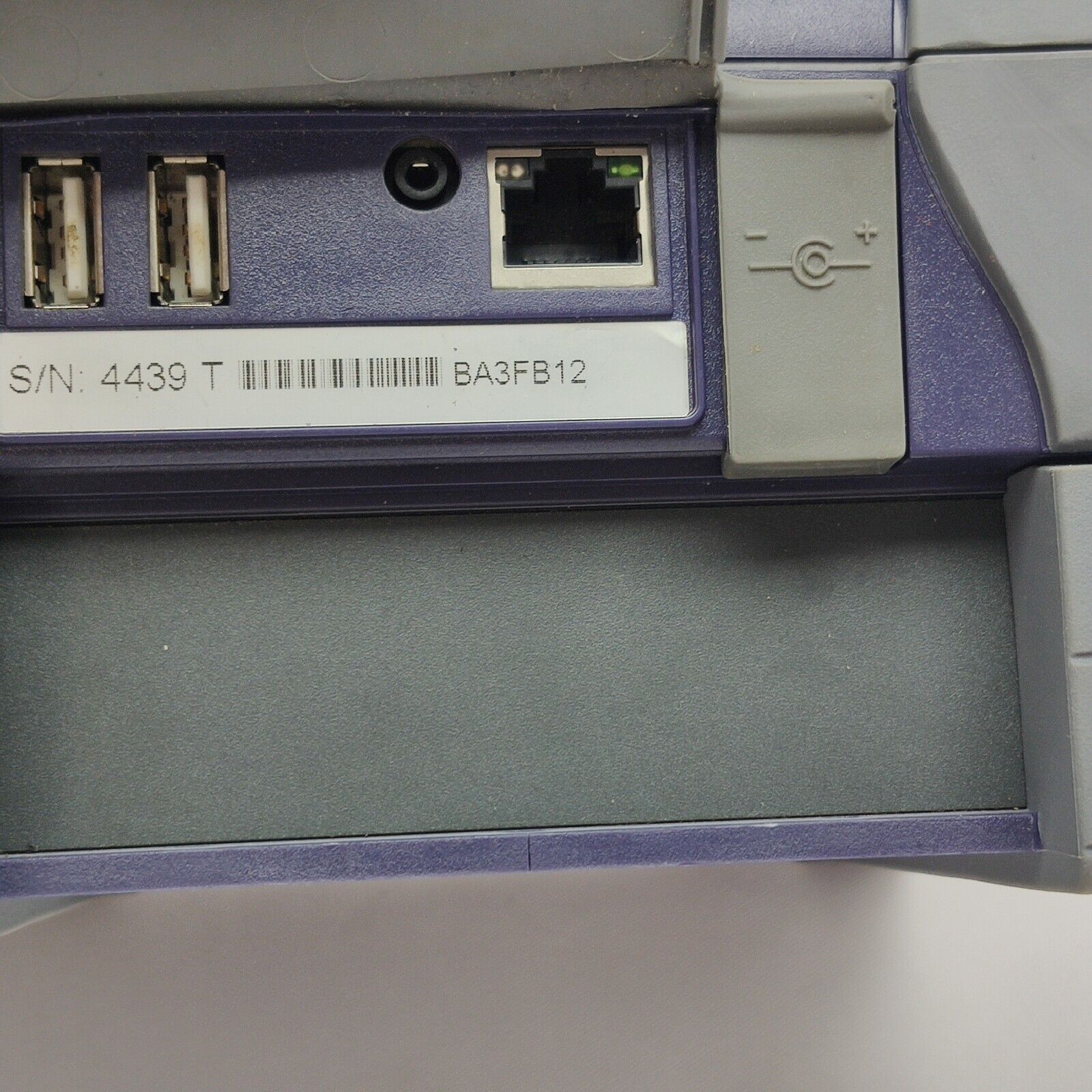

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

The Viavi Solutions MTS 4000 is a compact, portable test mainframe from the T-BERD/MTS platform family, designed to support a wide range of optical fibre test modules for field technicians and service providers. When paired with the MP49 OTDR module, it delivers a comprehensive solution for testing metro, cable TV (CATV), FTTH, and PON networks with high-port-count splitters.

The MP OTDR module provides improved dynamic range, optimised resolution, and minimal dead zones at short pulses, making it ideal for testing PON systems with splitting ratios up to 1x128. Filtered wavelengths allow in-service testing without disrupting live traffic.

Standard testing features include:
• Automatic macrobend detection
• Summary results table with pass/fail analysis
• Bidirectional OTDR analysis
• FastReport on-board report generation
• Instant live-fibre traffic detection

Key Specifications (4138 MP49 Module):
Wavelengths: 1310 / 1490 / 1550 nm
Dynamic Range: 43 / 41 / 41 dB
Event Dead Zone: 0.8 m
Attenuation Dead Zone: 4 m
Maximum Range: 260 km
Acquisition Points: Up to 256,000
Connector Type: APC
Splitter Support: Up to 1x128 PON
Compatibility: FiberComplete, SLM, FTTA-SLM, FTTH-SLM
Integrated Features: CW light source, power meter
Platform: Viavi MTS 4000 / T-BERD mainframe

Datasheet
