Viavi JDSU MTS 4000 V2 + 4138 RMP65 SM 1310/1550/F1650 nm OTDR Metro PON Live

Condition: Used

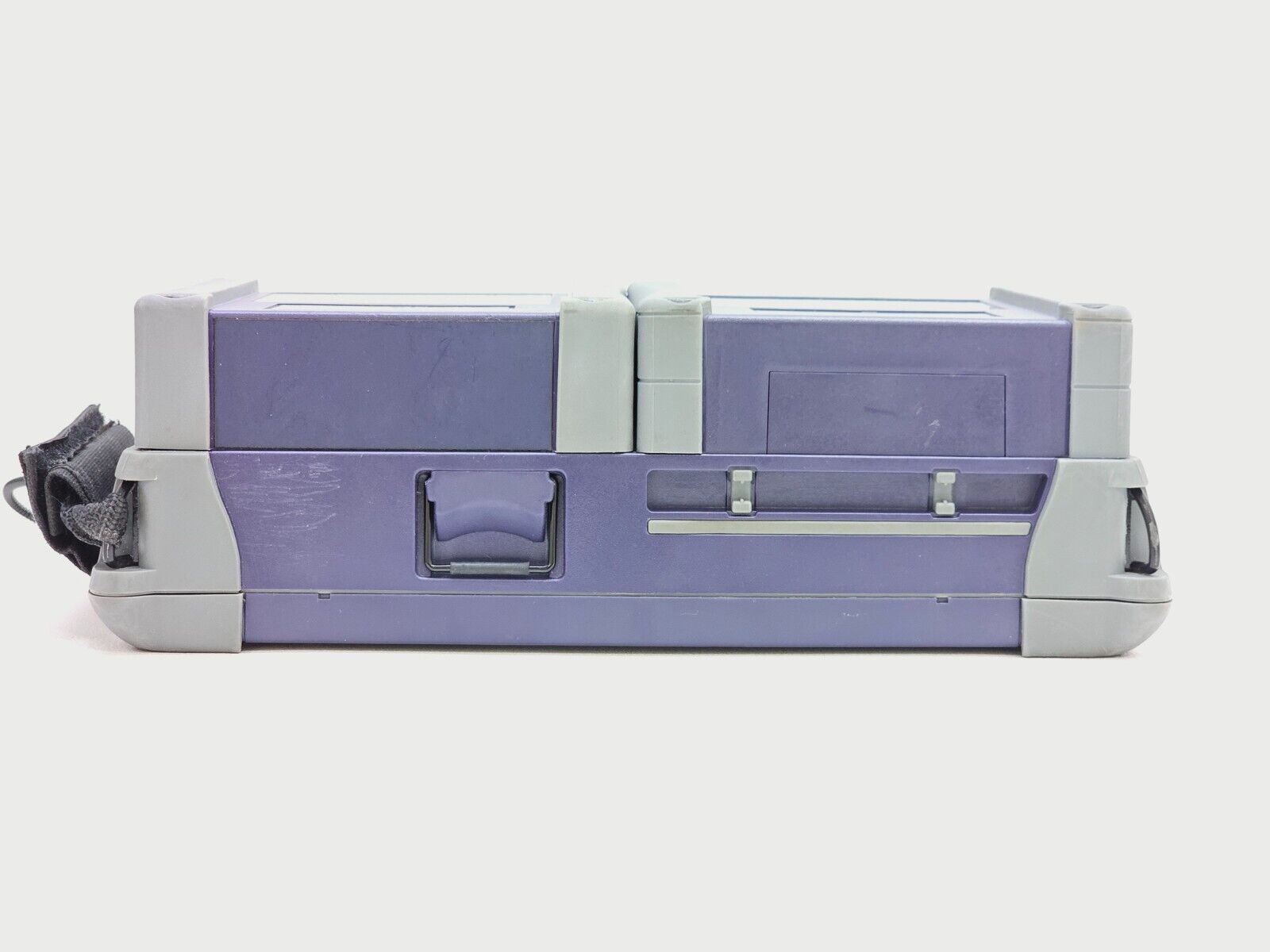

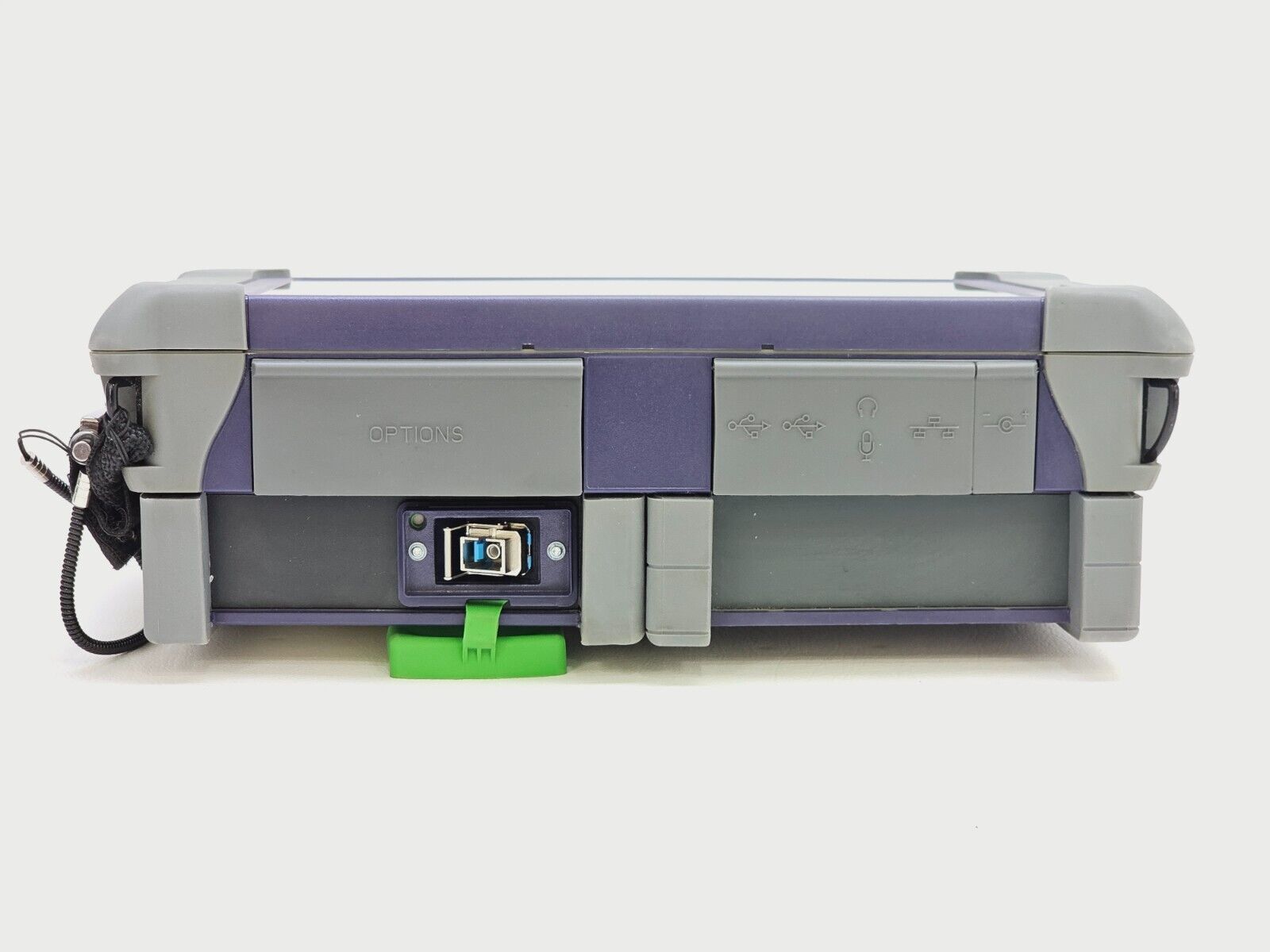

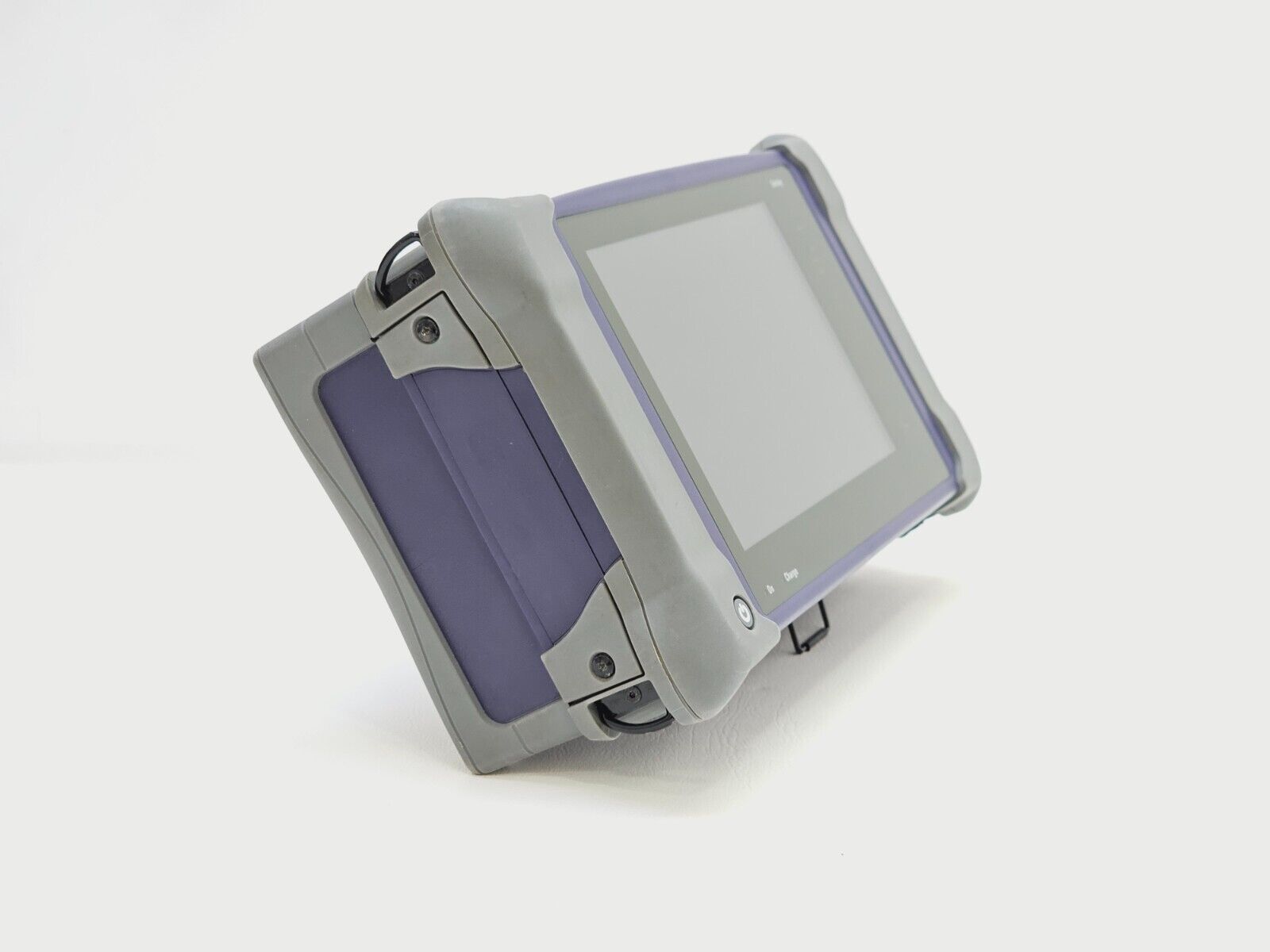

Good condition, as pictured.

Included in the sale:

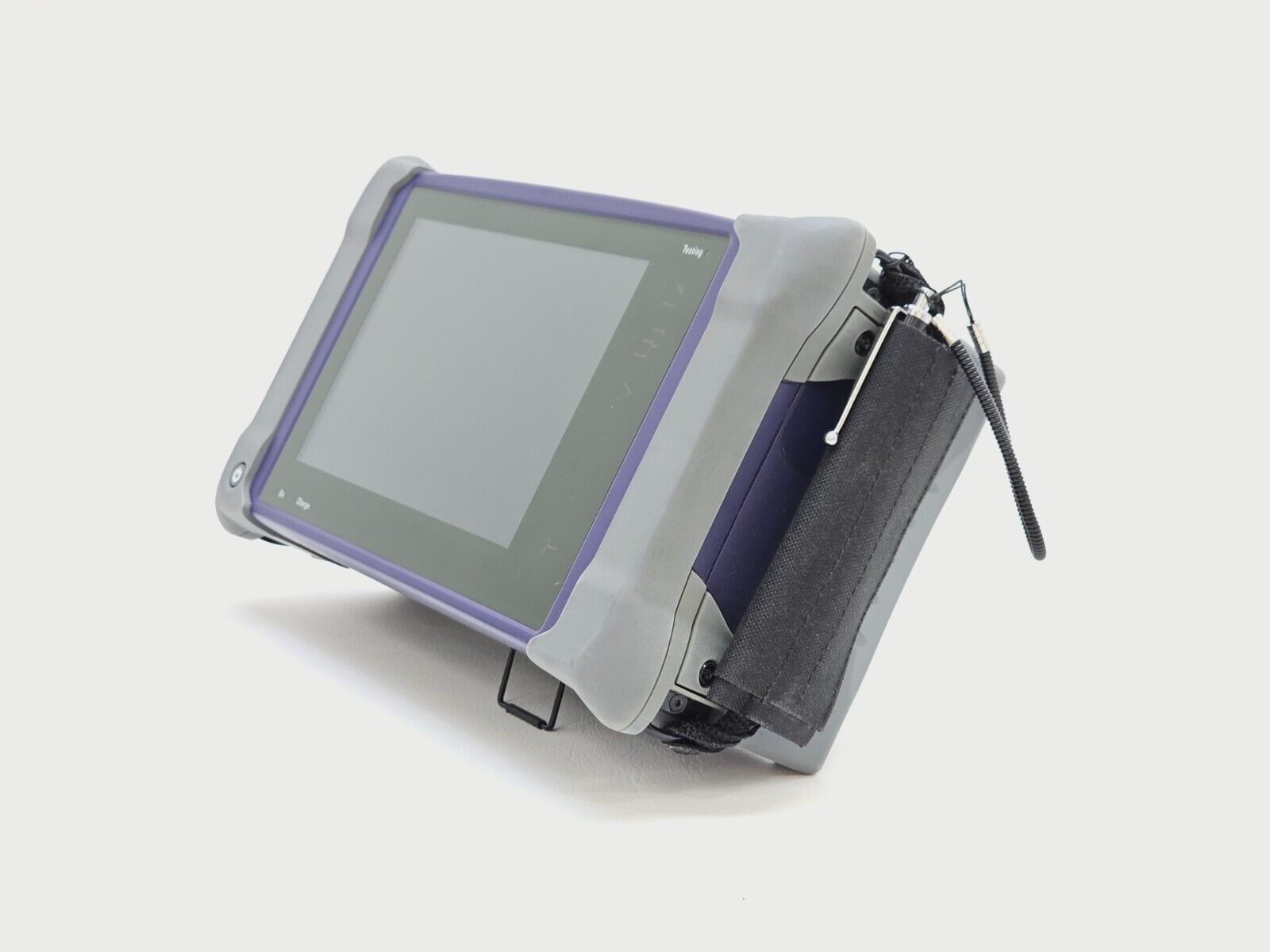

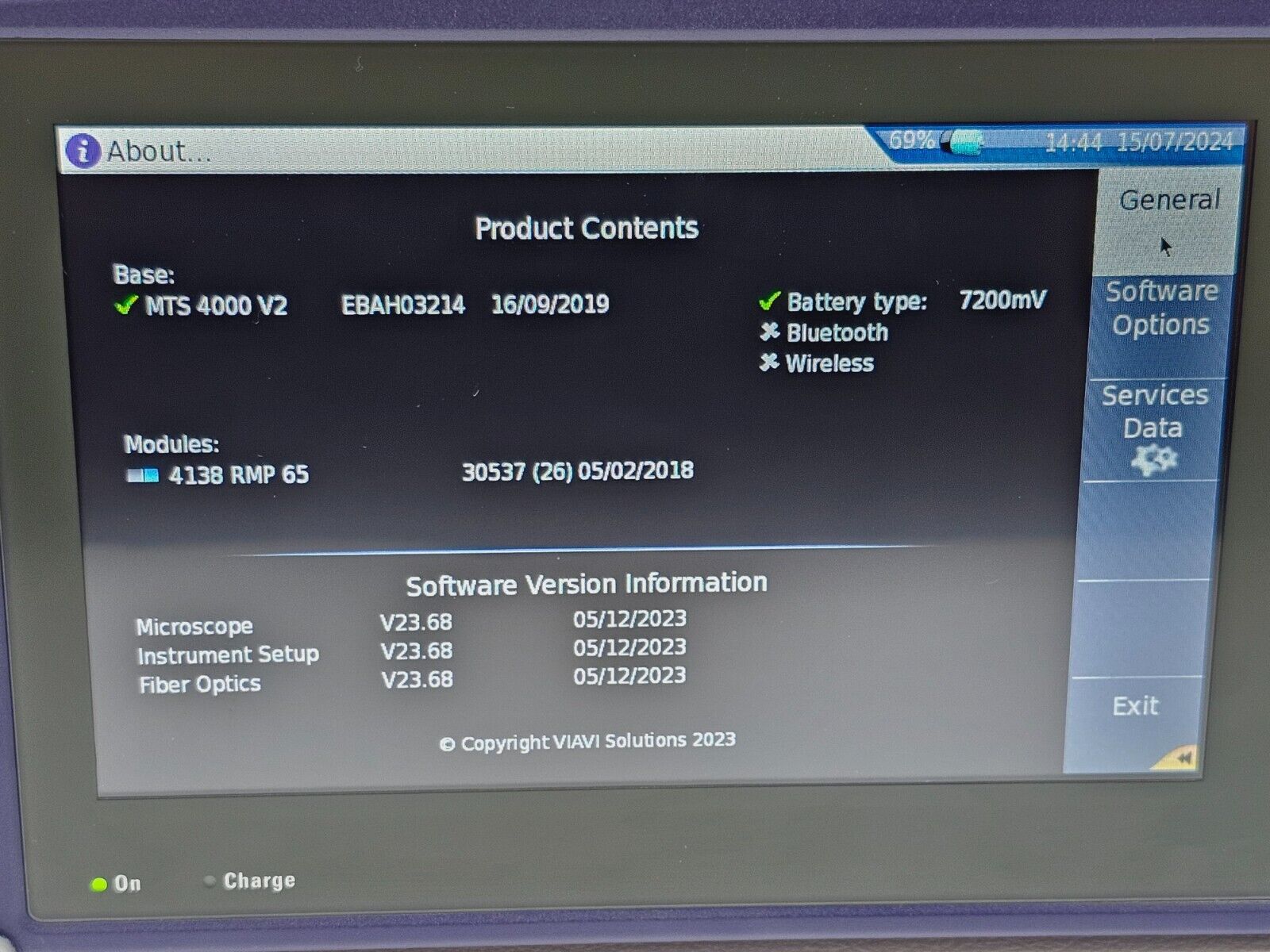

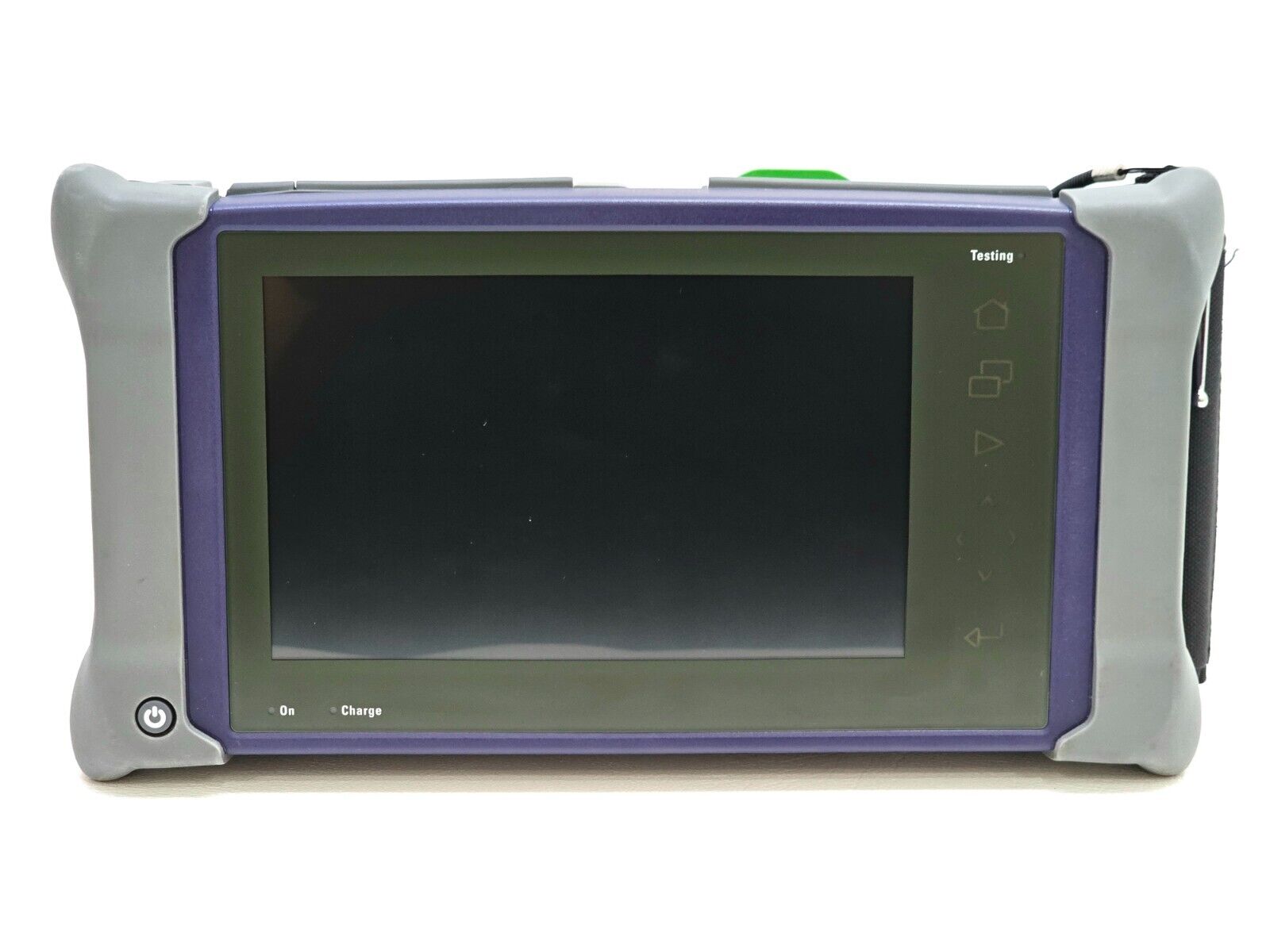

Viavi MTS 4000 V2 Mainframe

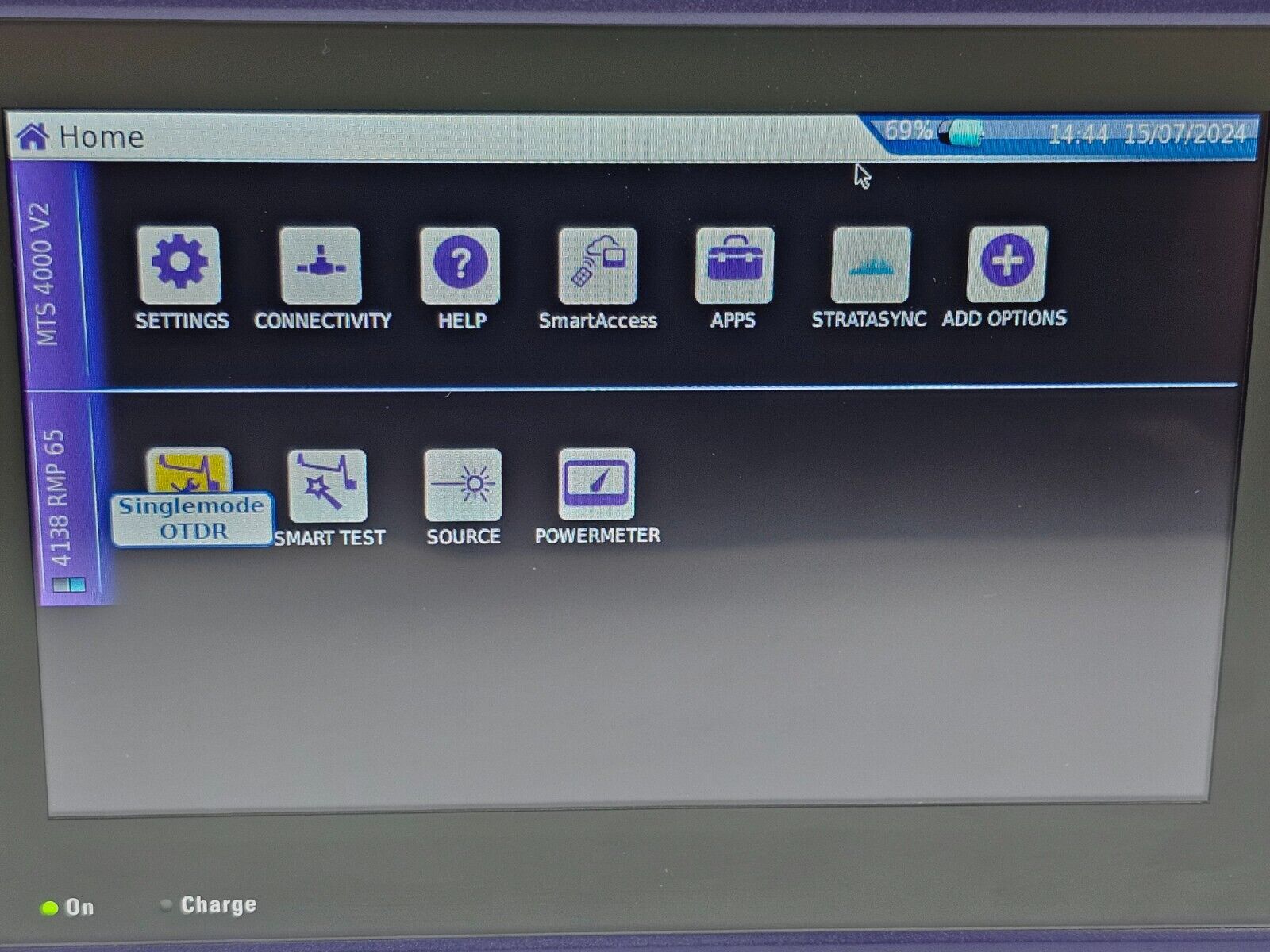

o   Touch Screen

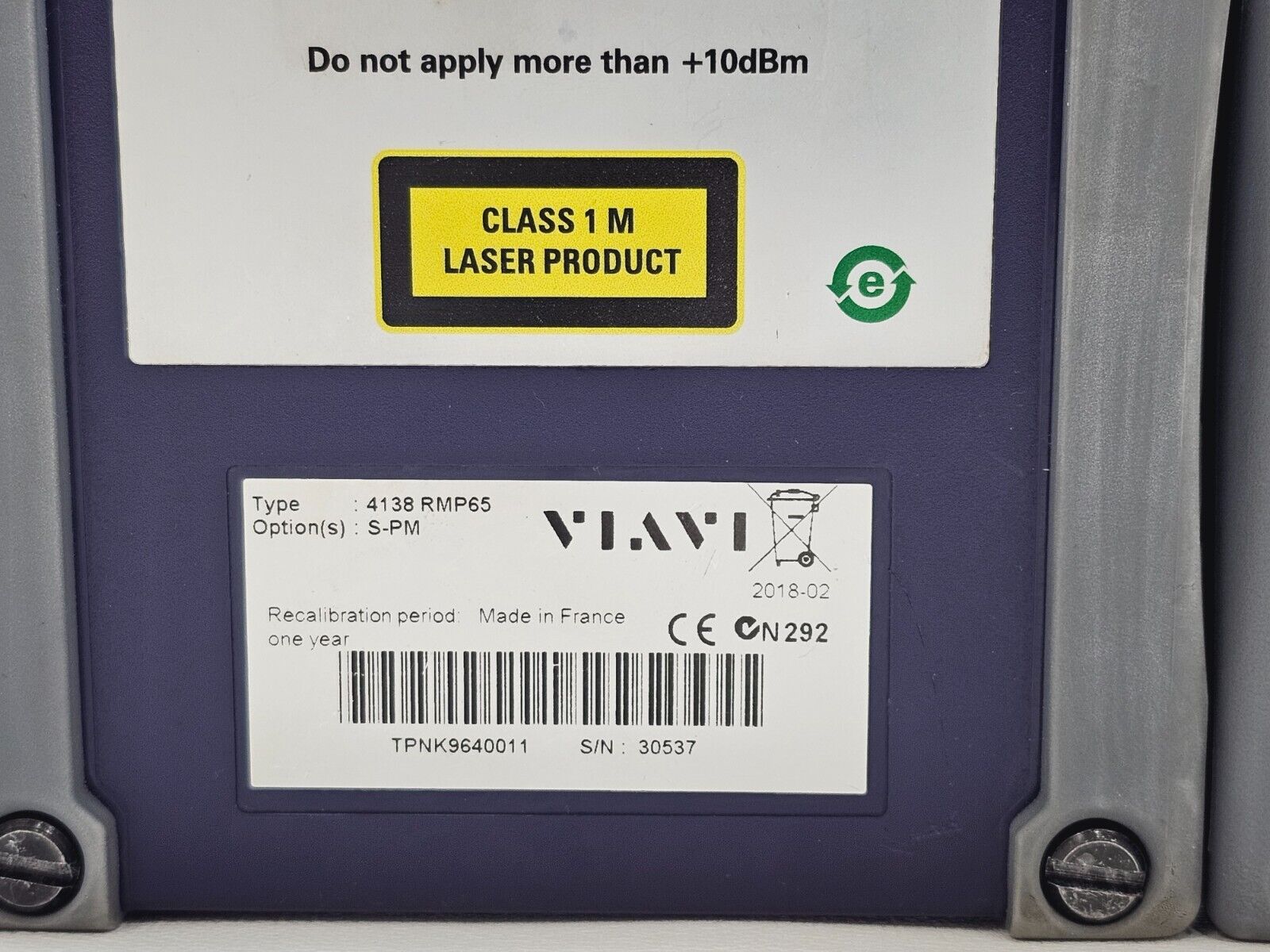

Viavi 4138 RMP 65 SM OTDR Module with buil in power meter and light source + singlemode OTDR and smart test software

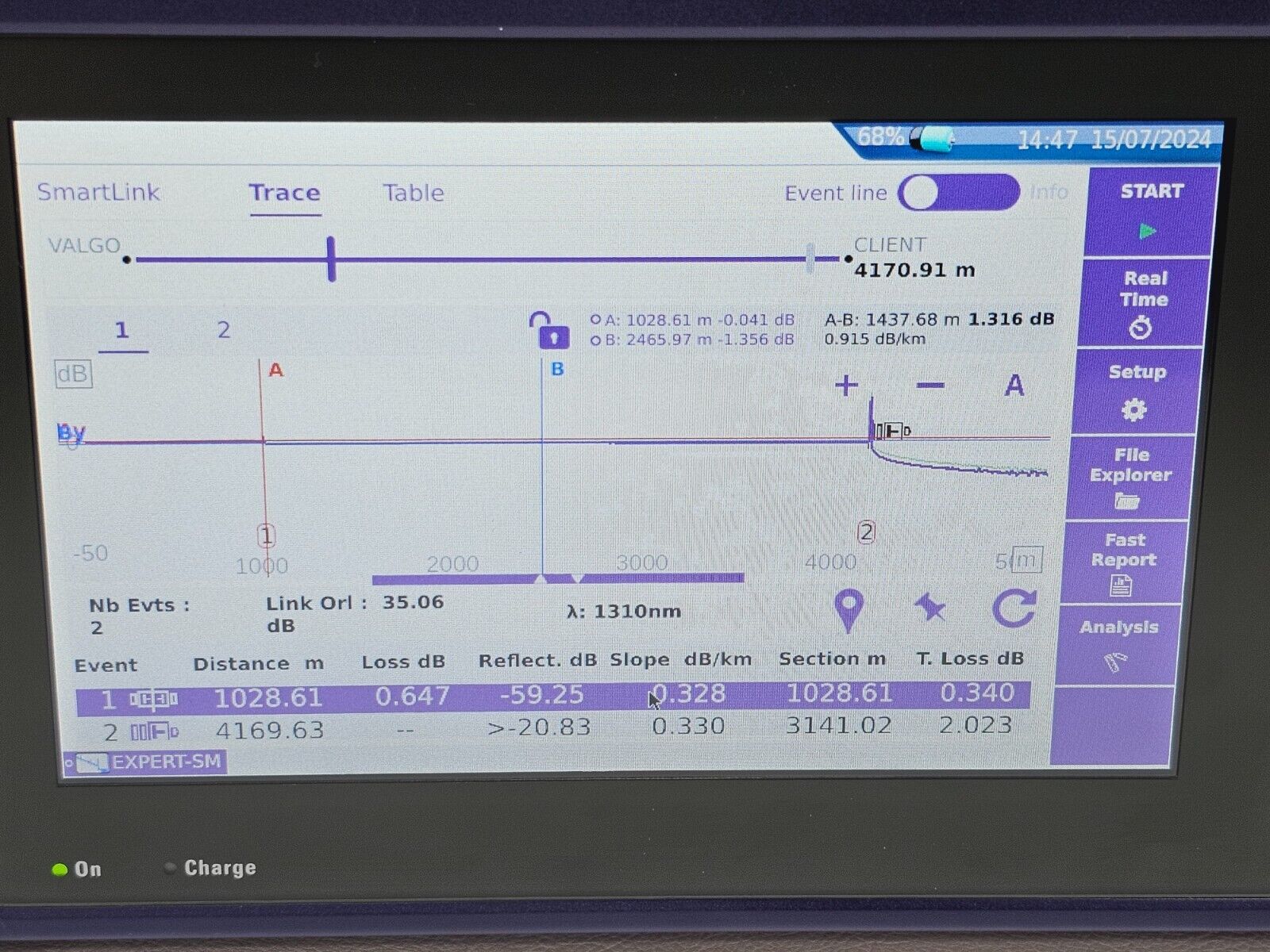

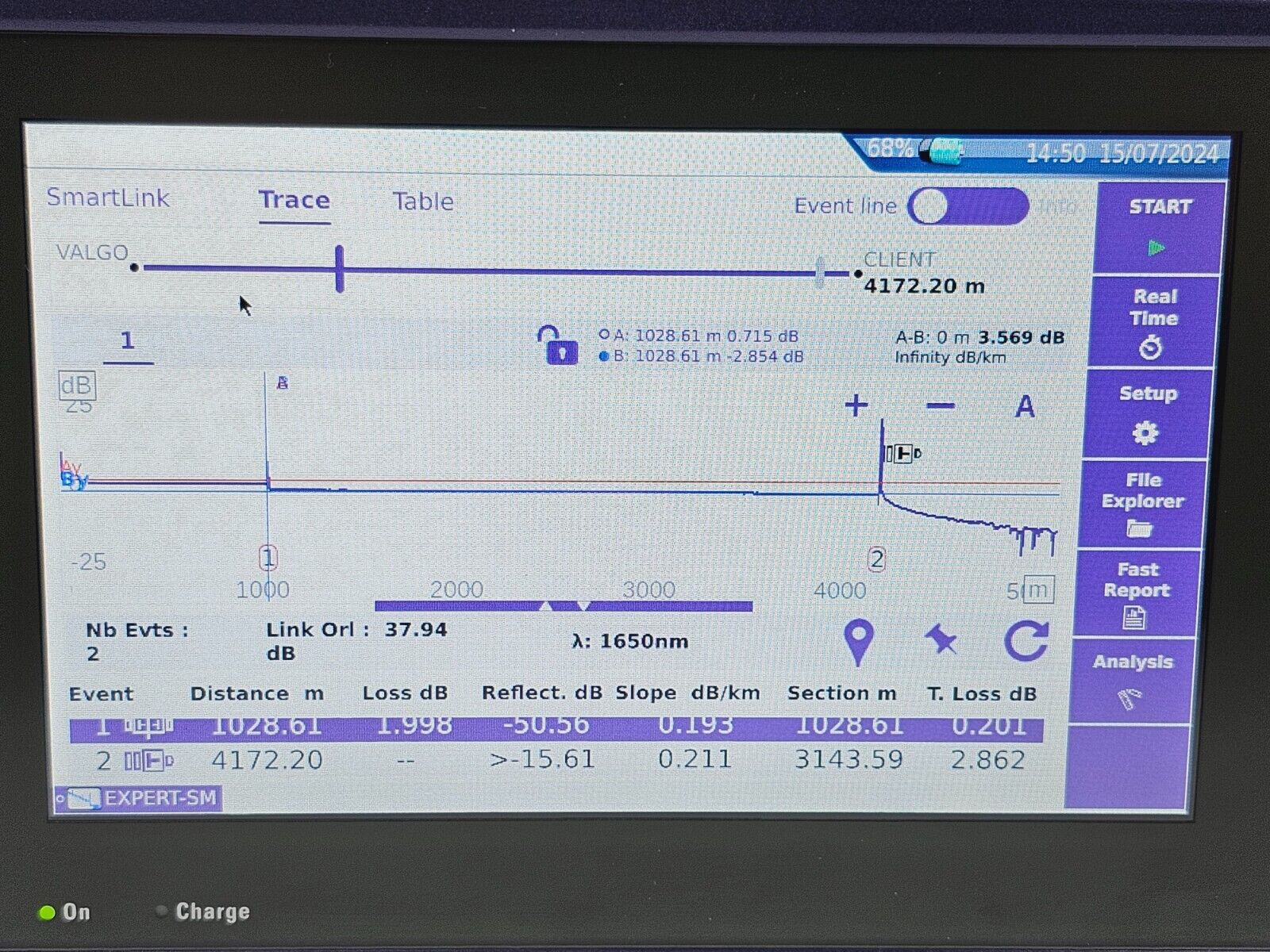

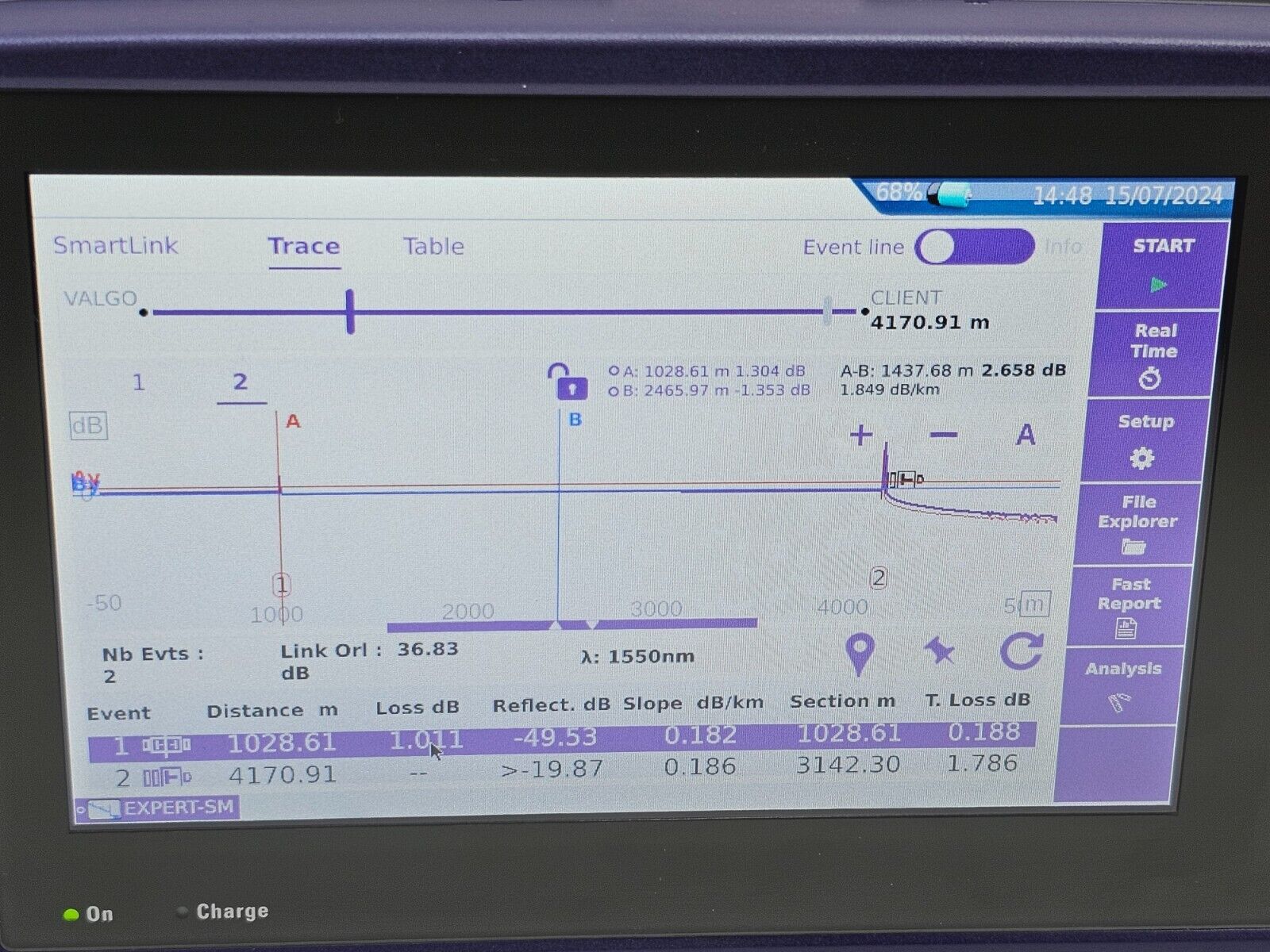

o   Source: 1310/1550 and Live 1650 nm

o   Dynamic Range: 43/41/40 dB

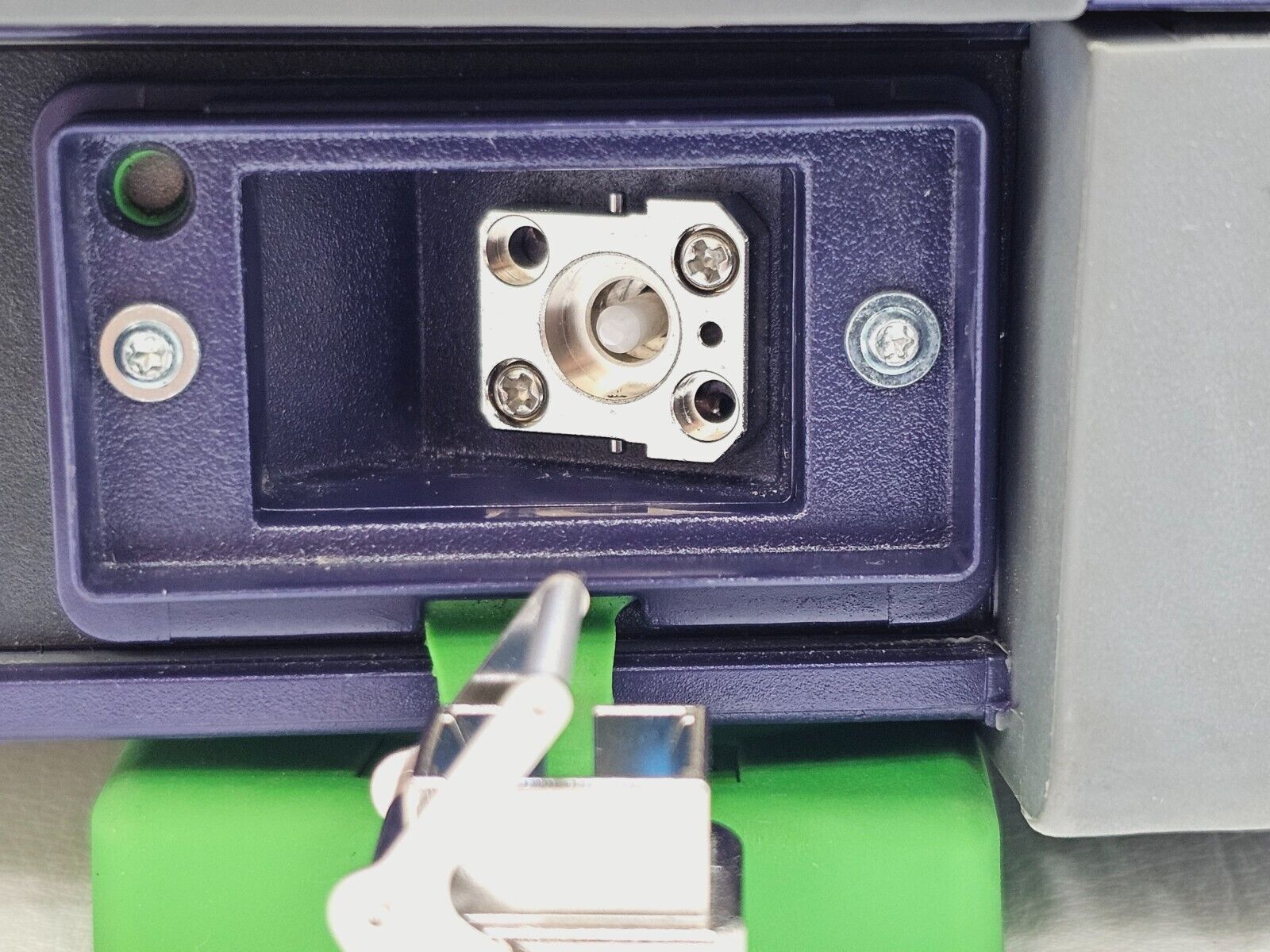

o   Connector: APC SC

o   Event Dead Zone: 0.8 m

o   Attenuation Dead Zone: 4 m

o   Distance Range: 260KM

o   Network Type: FTTH/CATV/metro

AC Power Adapter

Carry Case

Stylus

The VIAVI MP OTDR module provides the optimum performance that fiber installers and service providers need to test metro, cable TV (CATV) and FTTH networks with high-port-count splitters.

With various wavelength combinations including filtered wavelengths for in-service testing, an improved dynamic range, and optimized resolution and dead zones at short pulses, the MP module is the ideal OTDR to test any PON system with up to a 1x128 splitting ratio.

The MP module's optical performance, combined with the T-BERD/MTS platform's complete suite of features, ensures that testing is done right the first time.

Standard testing features include:

• Automatic macrobend detection
• Summary results table with pass/fail analysis
• Bidirectional OTDR analysis
• FastReport on-board report generation

Features:

• Up to 43 dB dynamic range and 256,000 acquisition points
• PON-optimized to test up to a 1x128 splitter
• Single-, dual-, and tri-wavelength versions with 1310/1490/1550/1625/1650 nm
• Single connector port for 1310, 1550, and inservice 1625 nm or 1650 nm wavelengths
• Integrated CW light source and power meter
• FiberComplete™ compatible
• Ready for SLM, FTTA-SLM, and FTTH-SLM intelligent optical application software
• Instantly detects traffic when connected to live fiber

Datasheet
