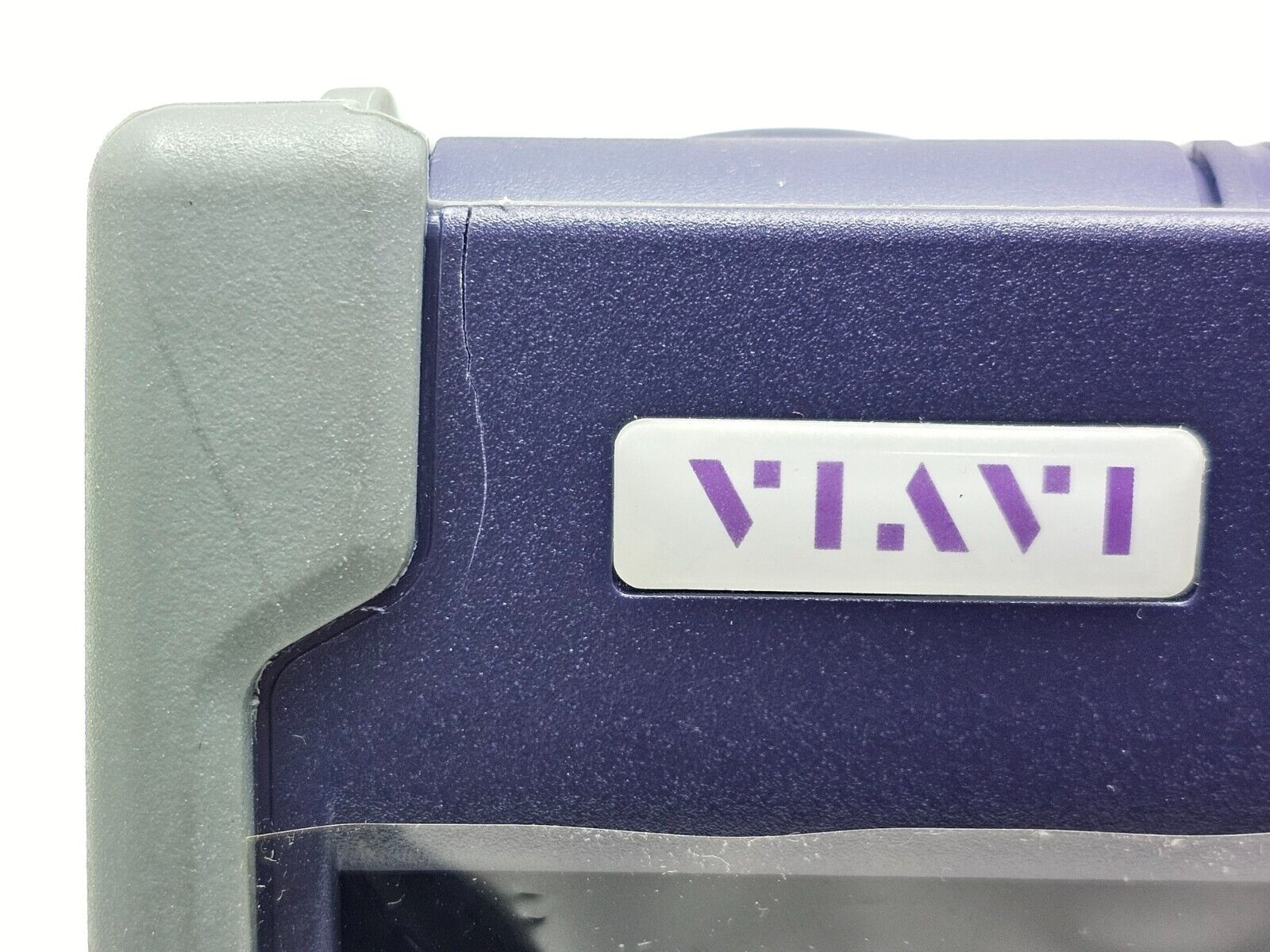

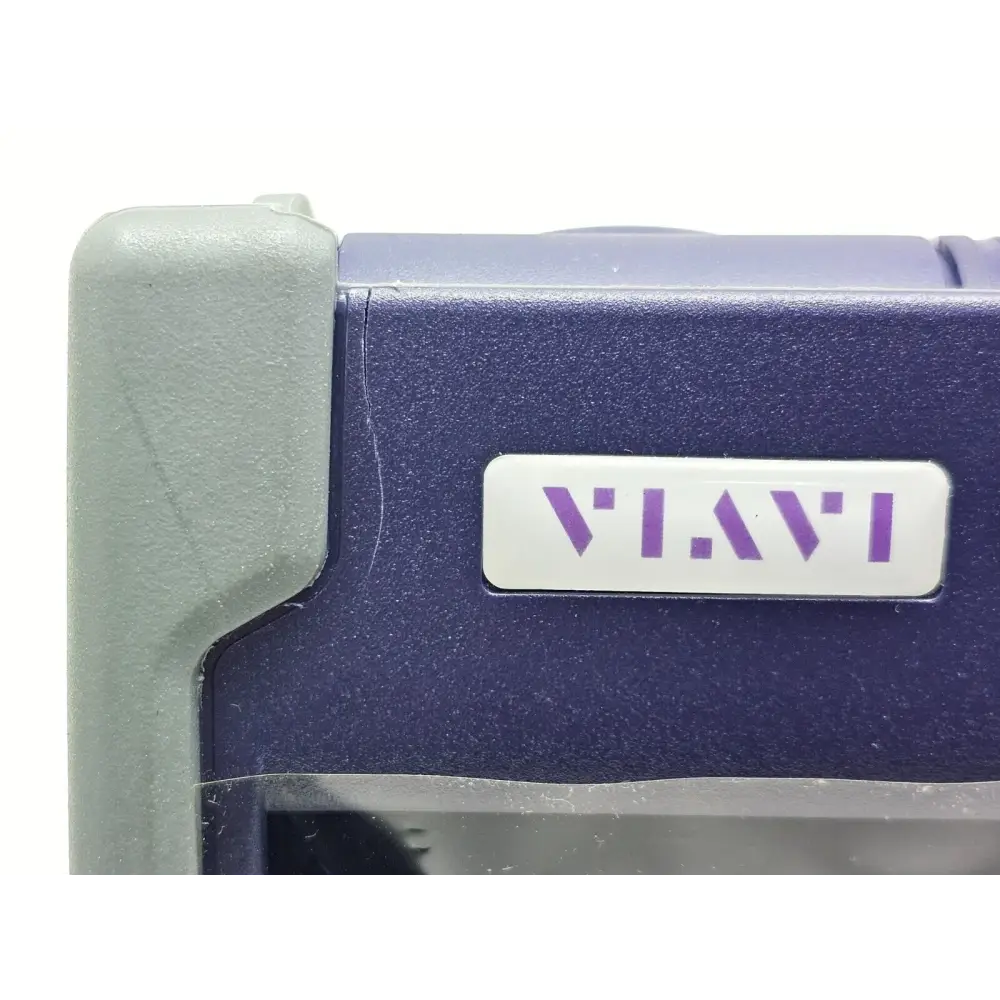

Condition: Used — In very good working condition. Note: there is a small crack in the top left of the mainframe fascia; please review the images carefully for cosmetic condition.

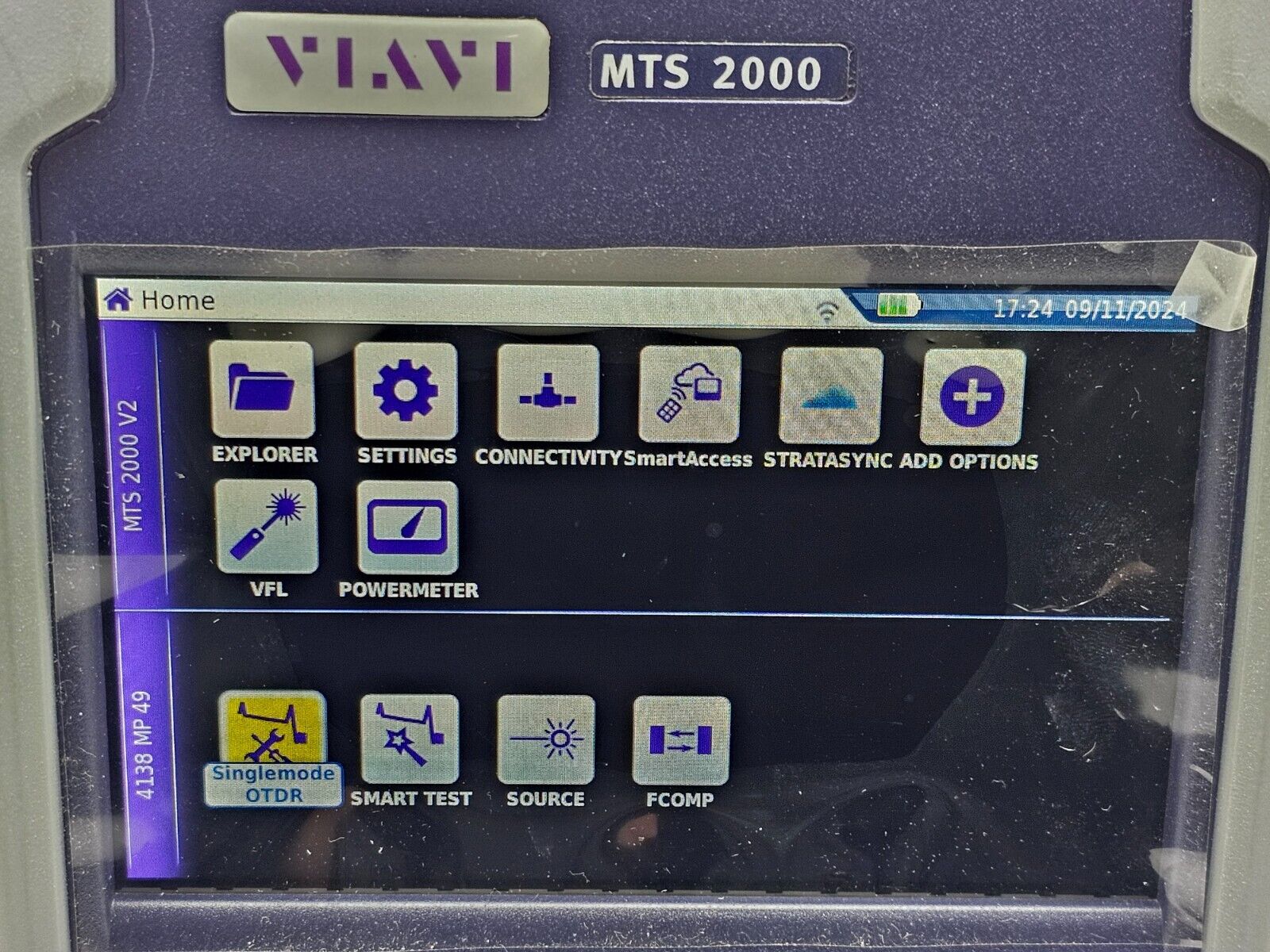

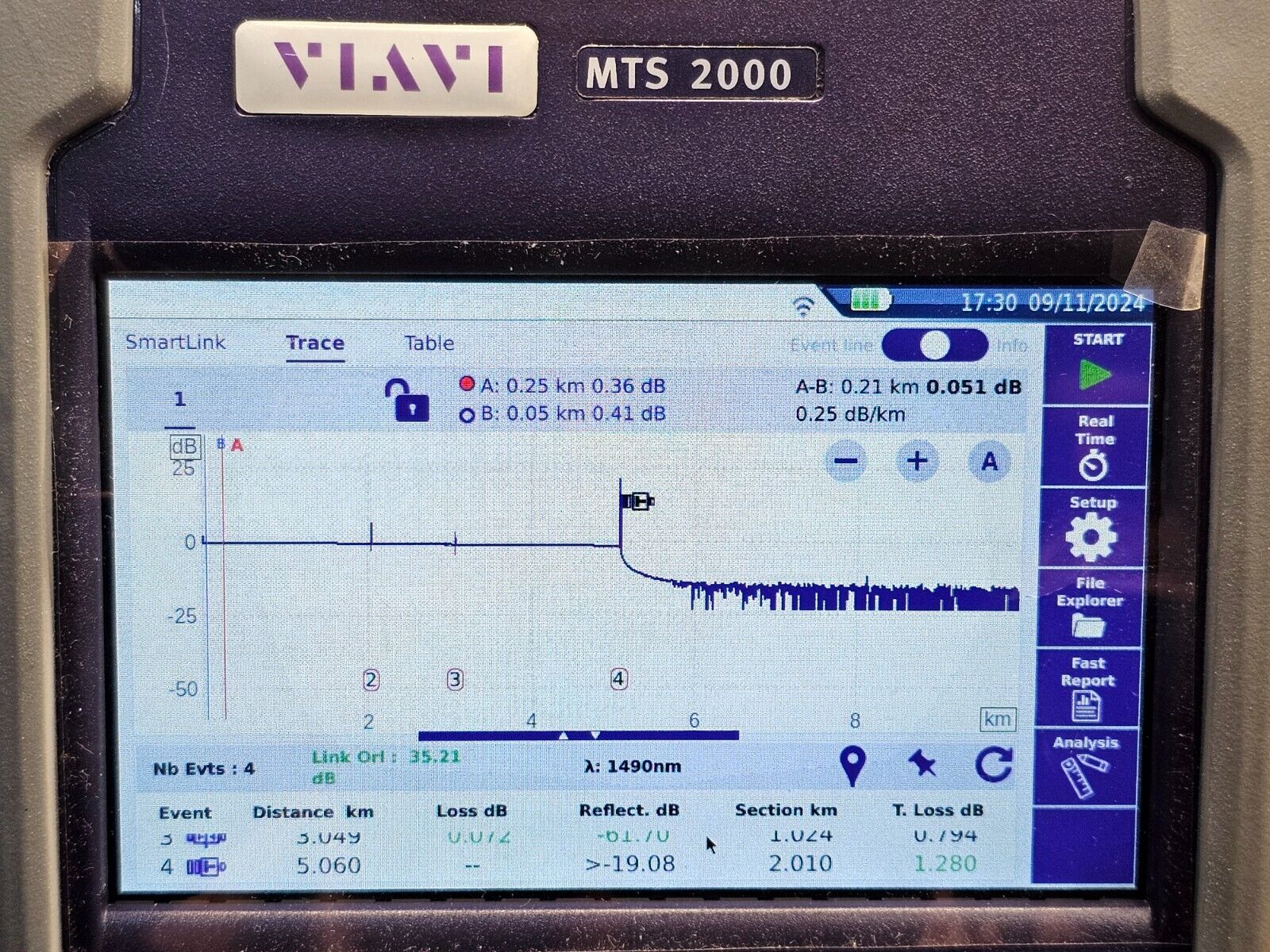

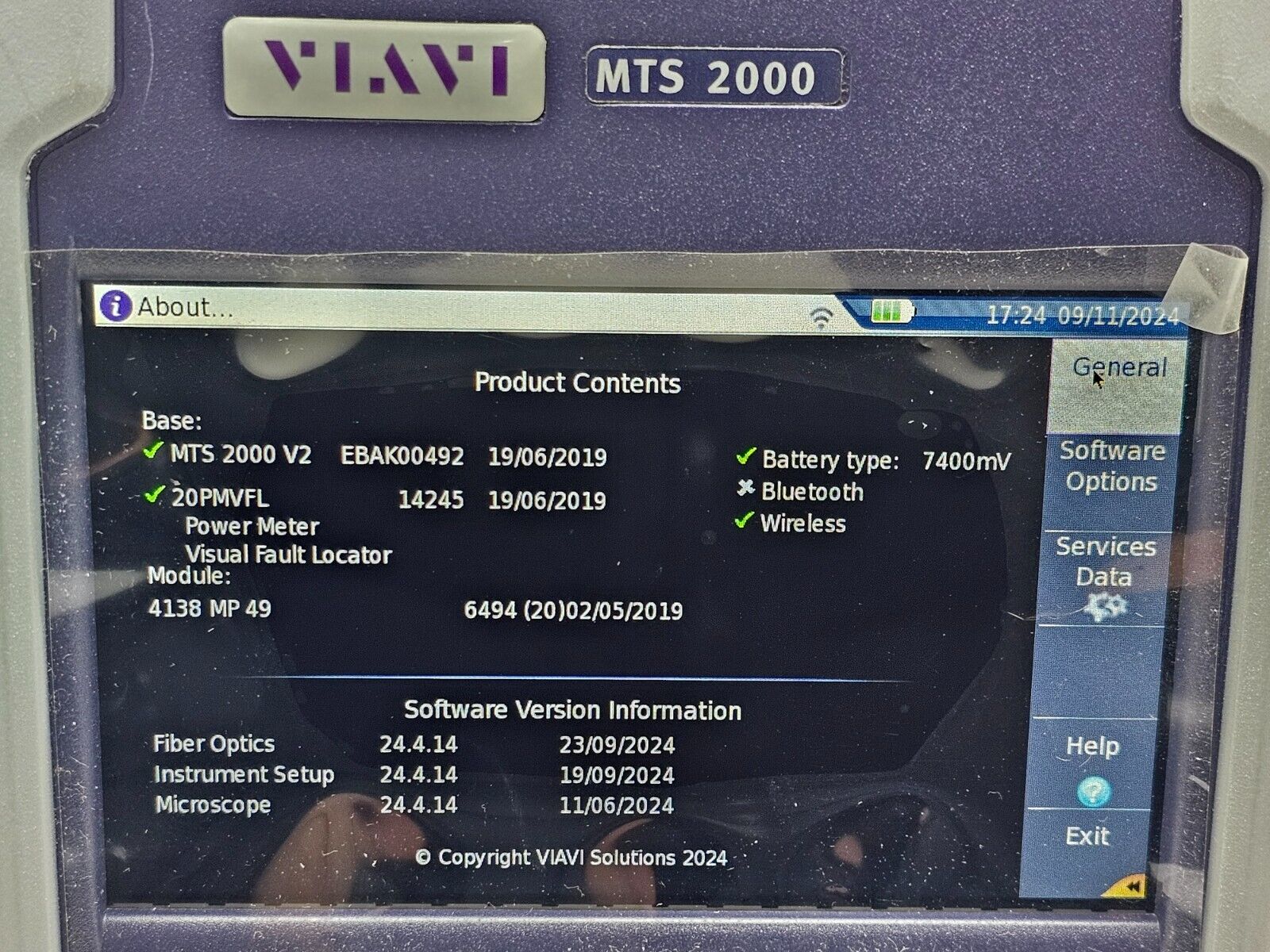

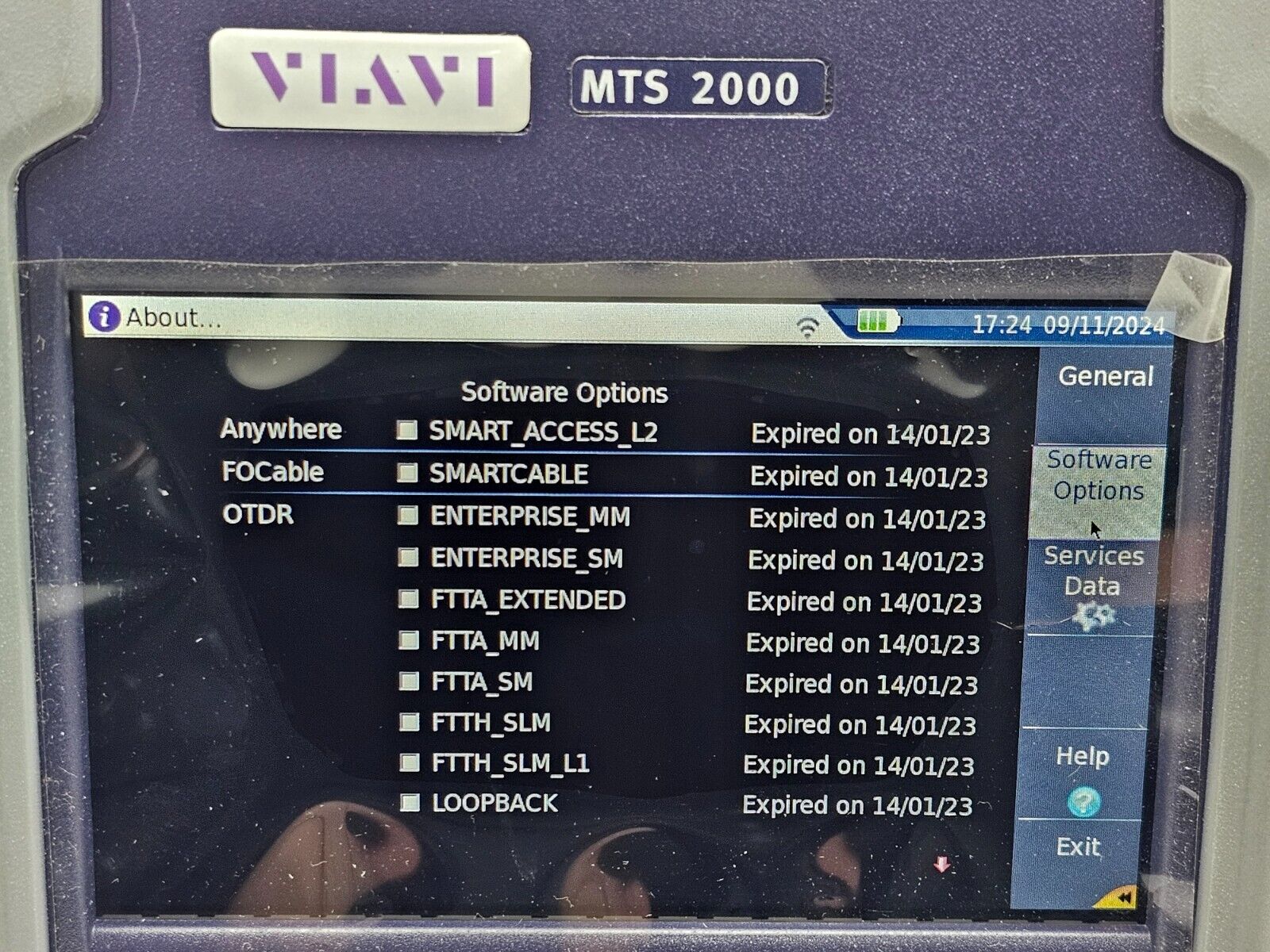

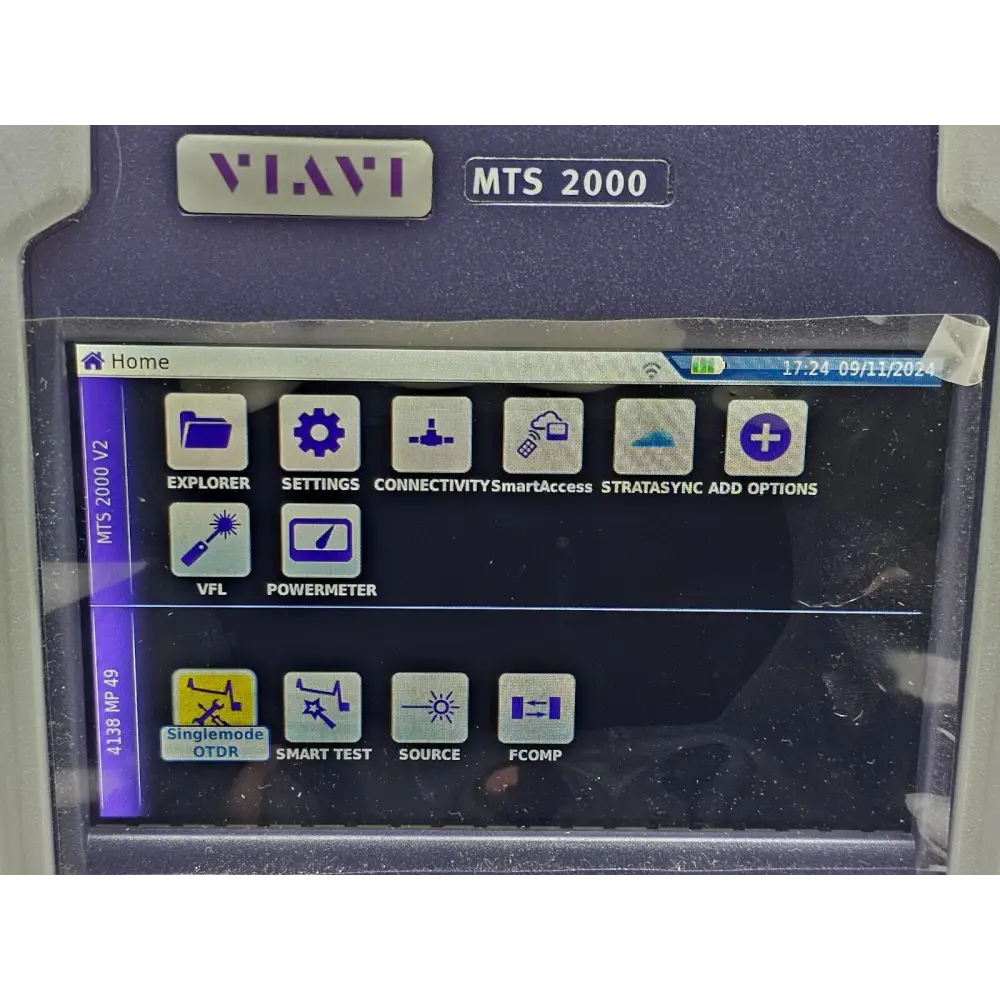

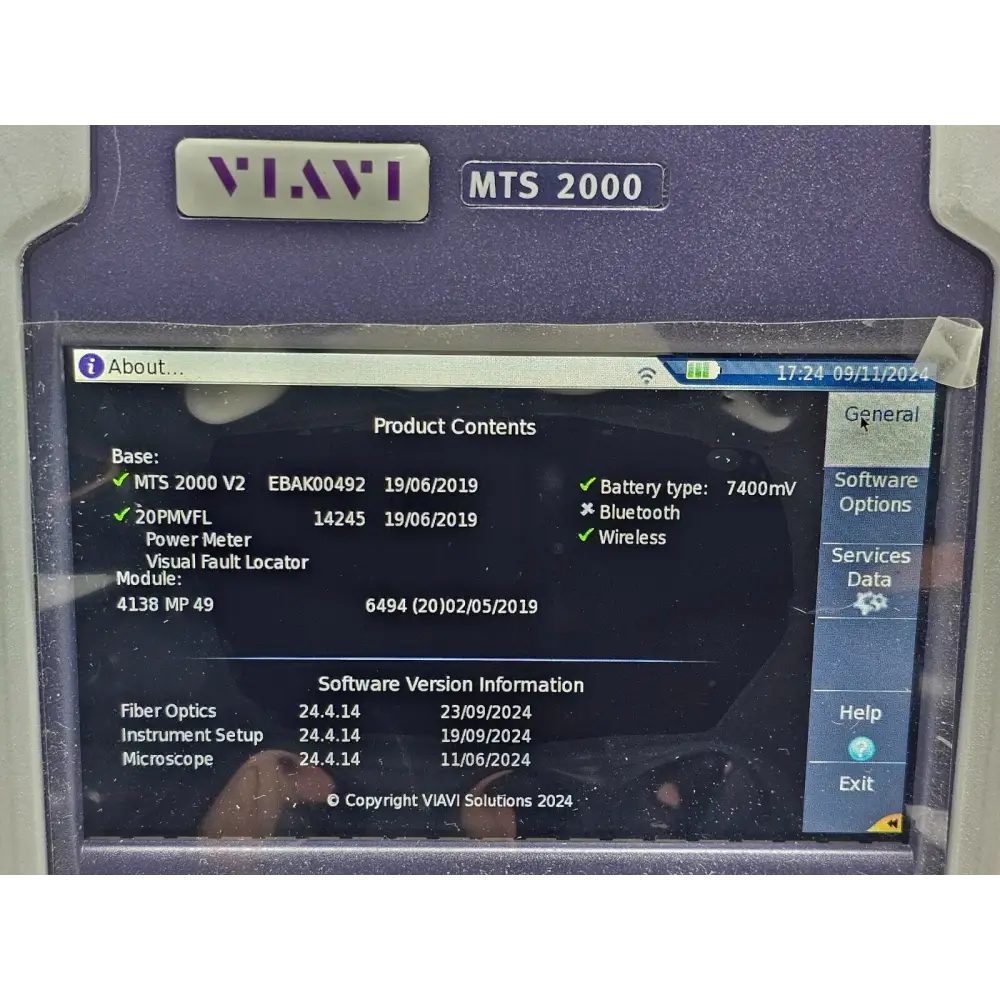

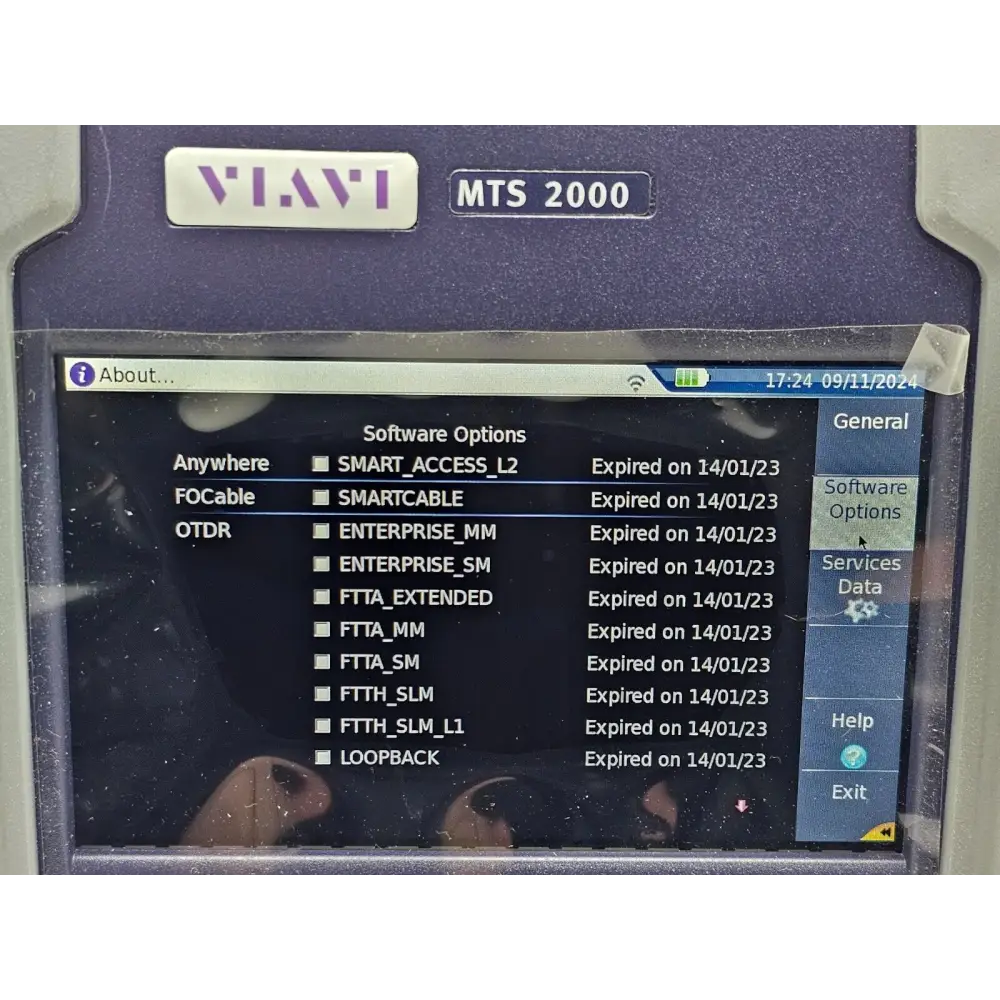

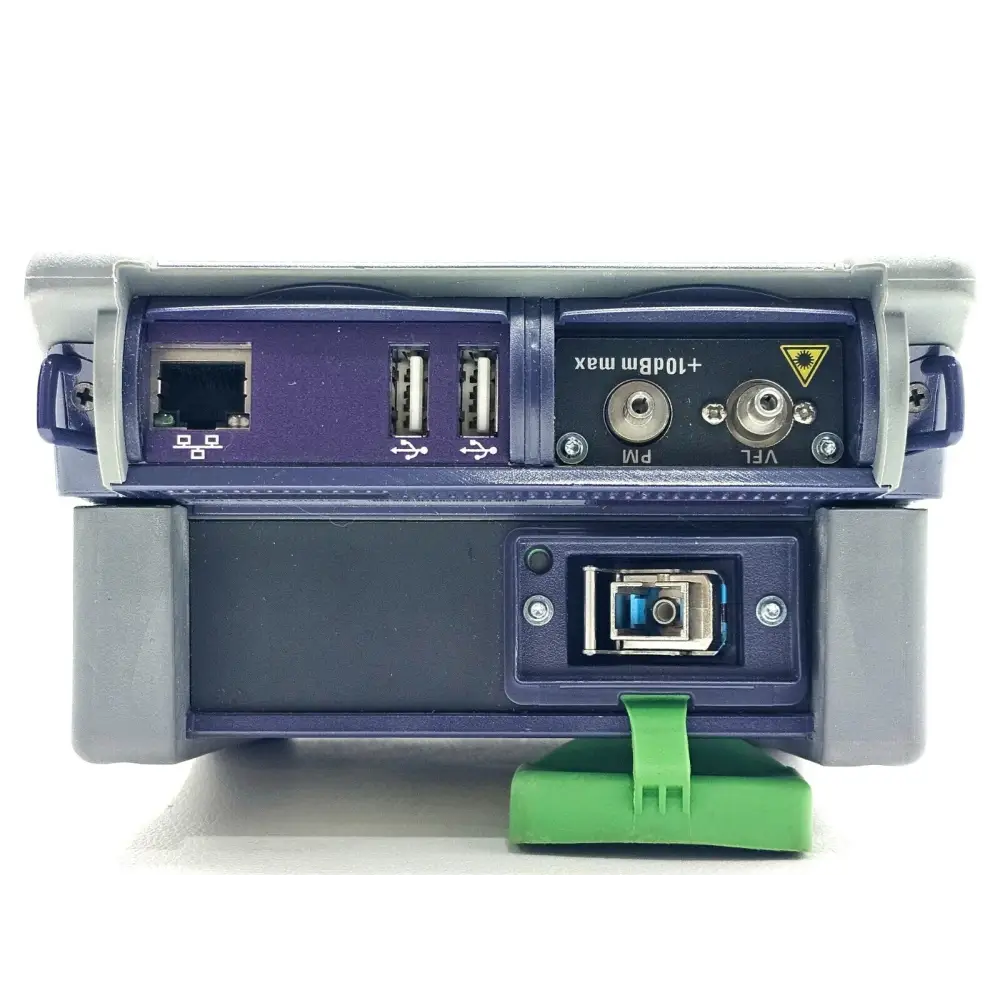

This unit is a complete OTDR system comprising the Viavi MTS 2000 V2 mainframe paired with the Viavi 4138 MP49 FC-S SM OTDR module (E4138MP49). The OTDR module operates at 1310/1490/1550 nm with a dynamic range of 43/41/41 dB and an SC-APC connector. The mainframe includes a built-in power meter (1.25/2.5 mm connectors), visual fault locator, and wireless connectivity. The following software options are active on the OTDR module: Singlemode OTDR, SMART TEST, Source, and Fiber Complete (FCOMP).

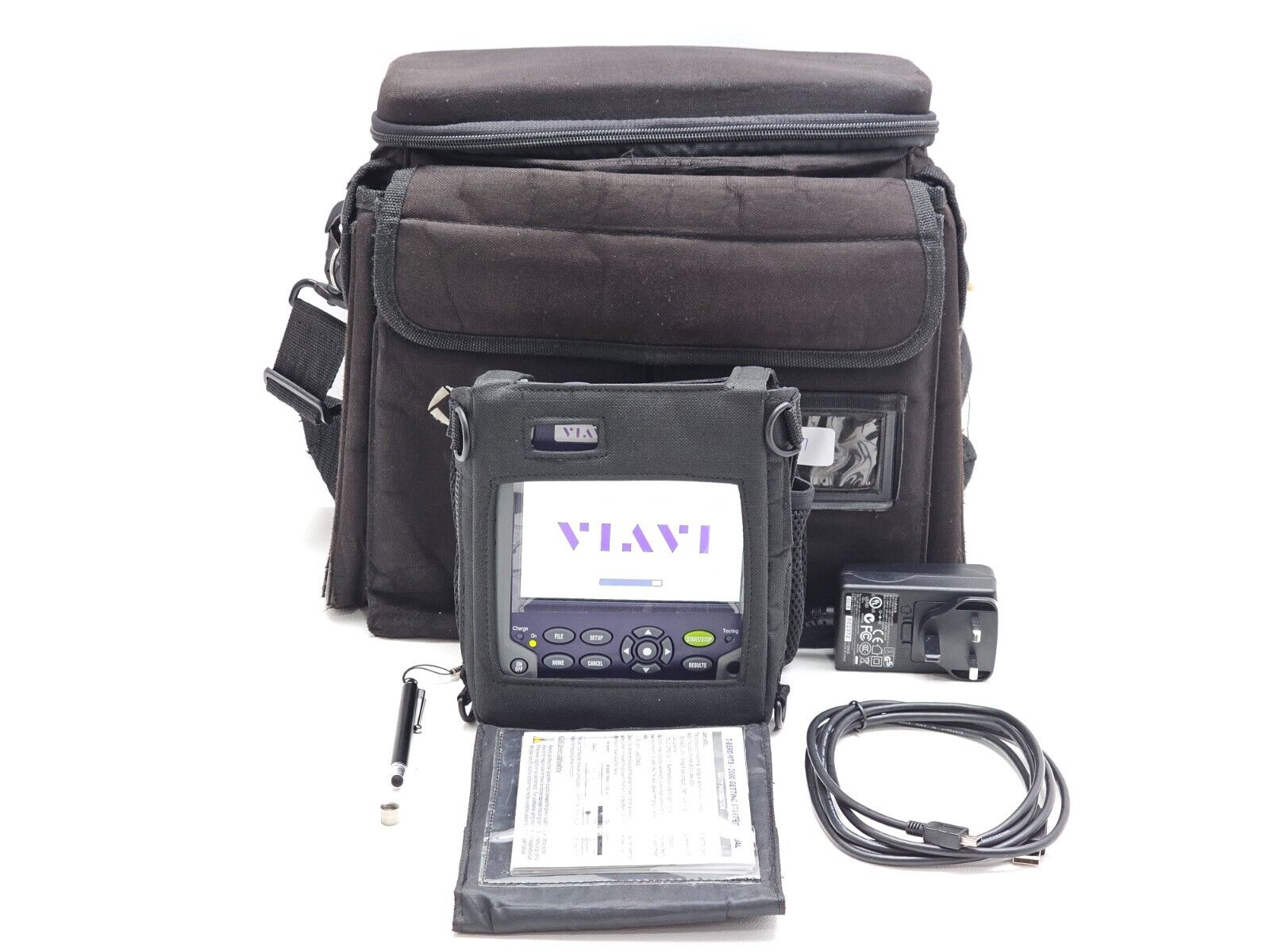

Included in the sale:

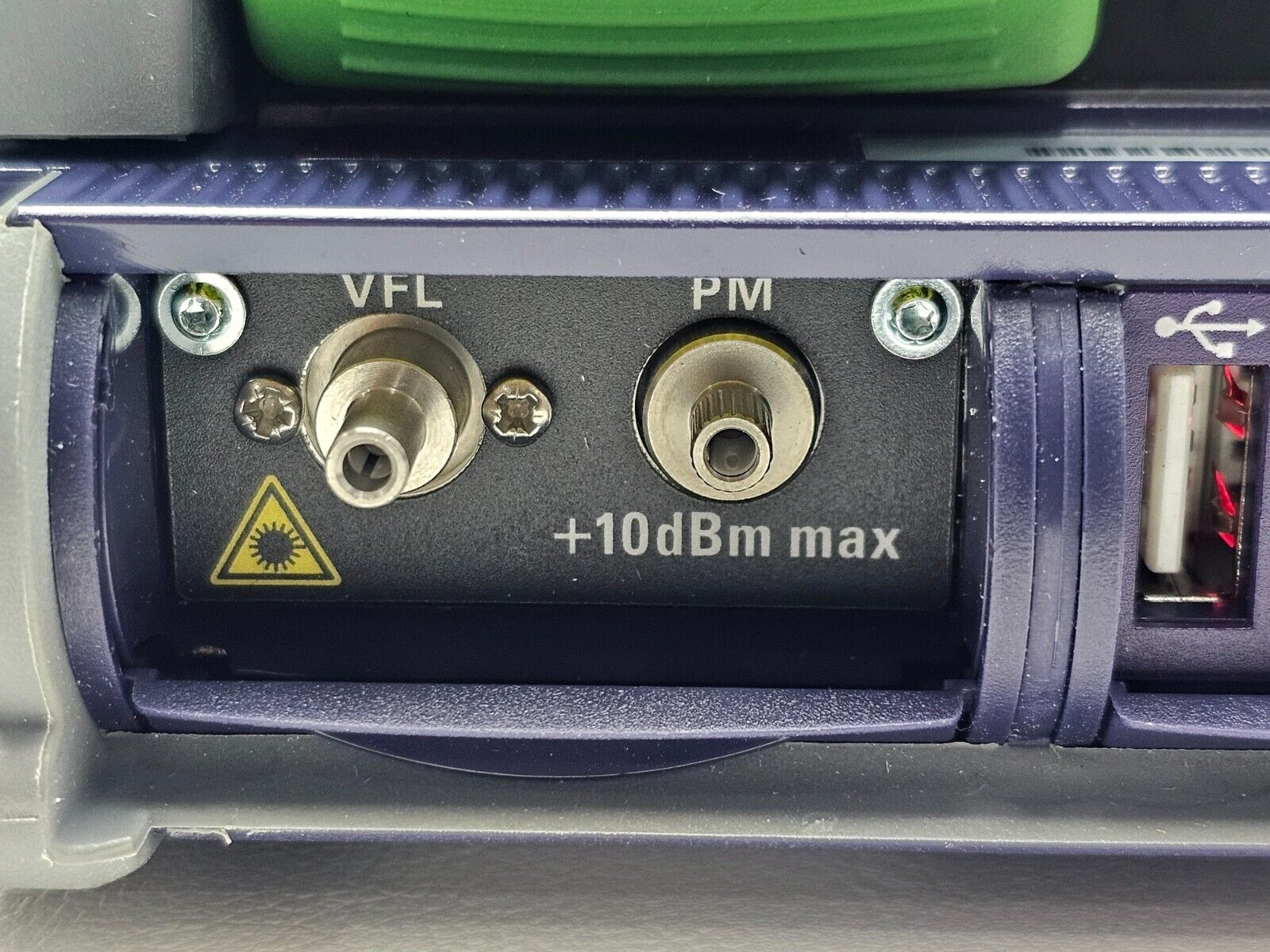

• Viavi JDSU MTS 2000 V2 mainframe (with built-in power meter and visual fault locator, wireless)

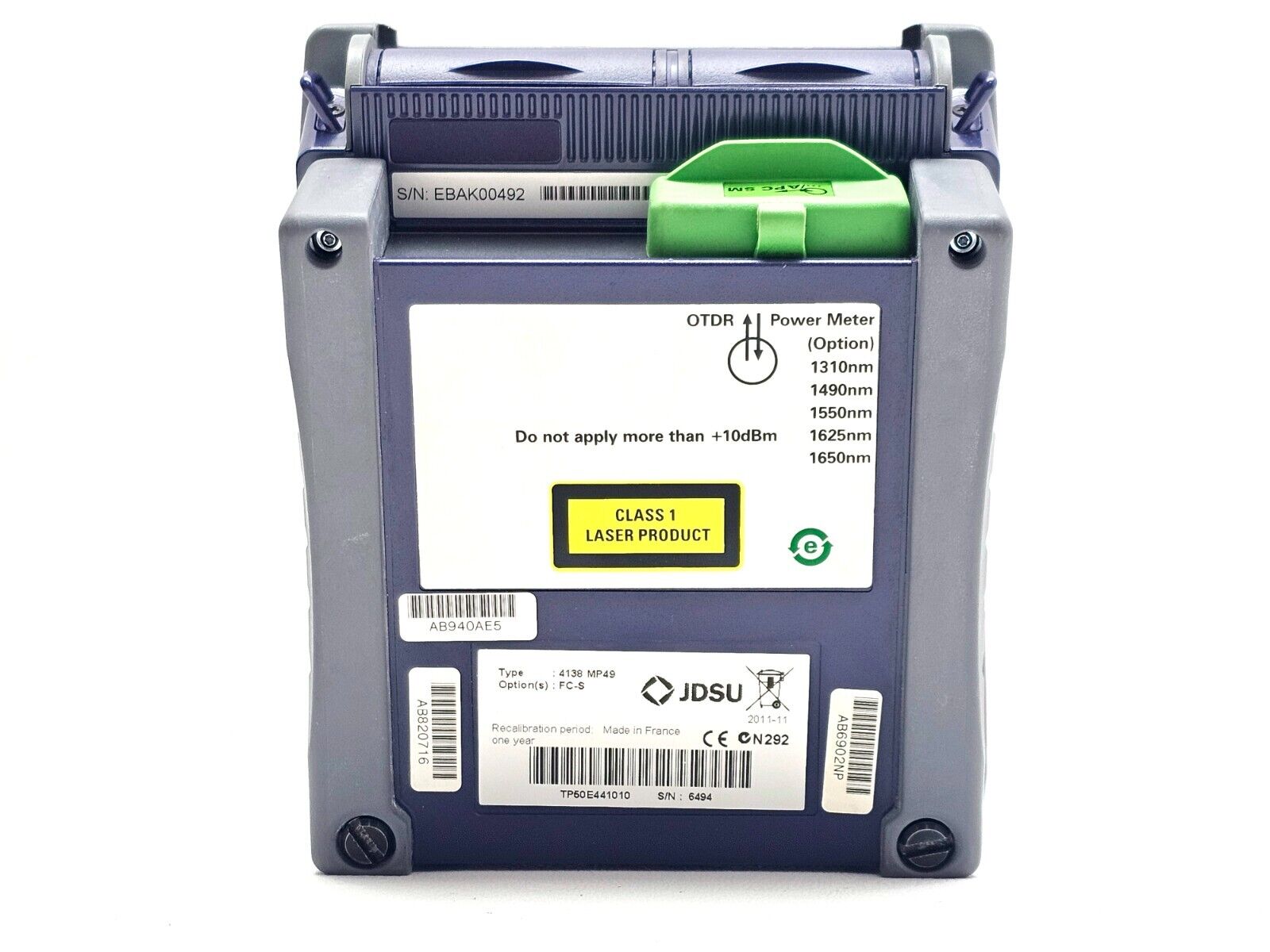

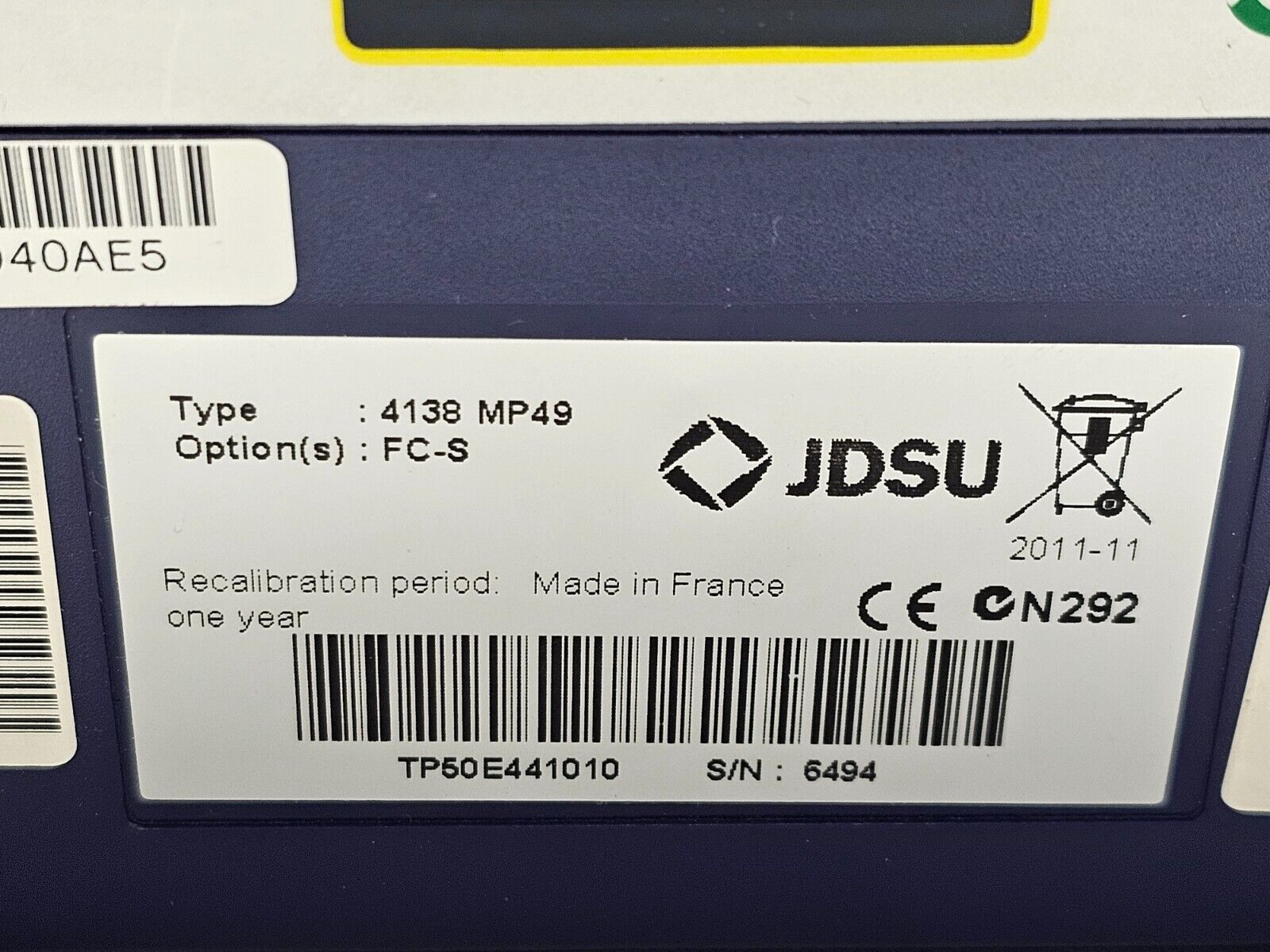

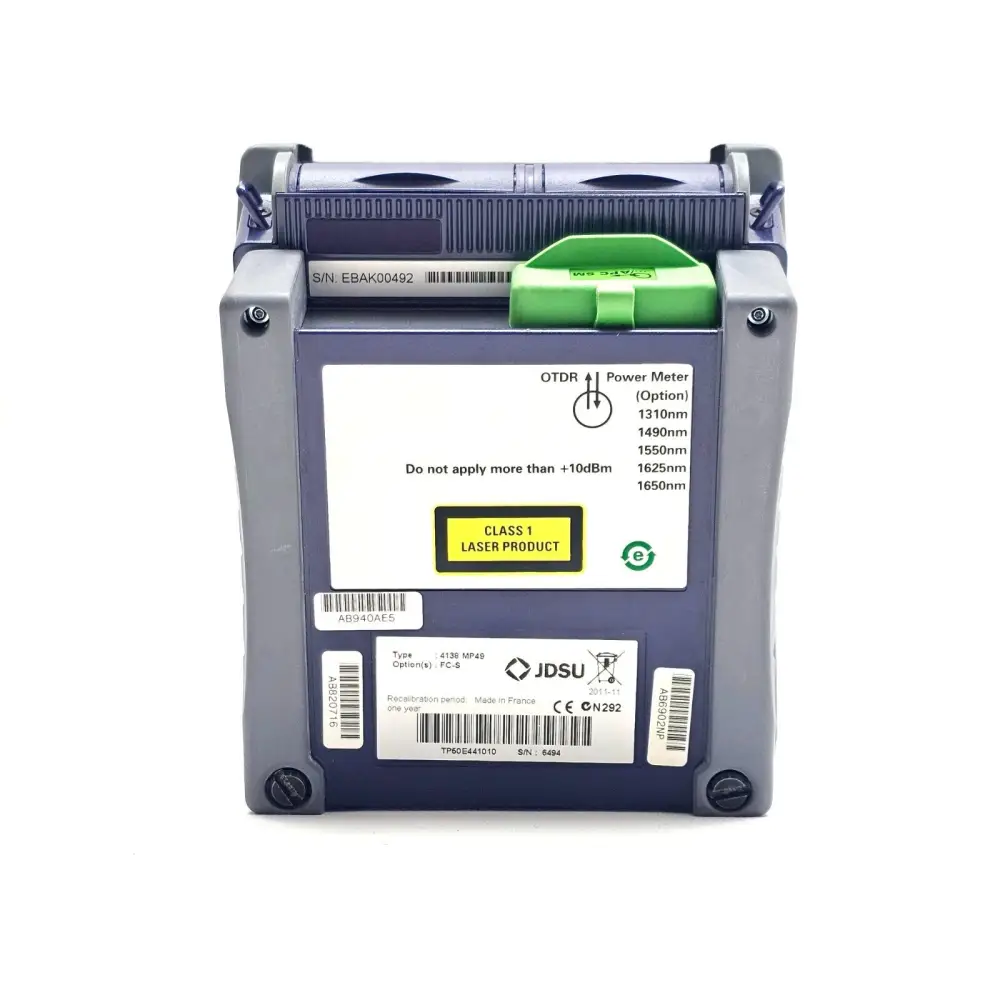

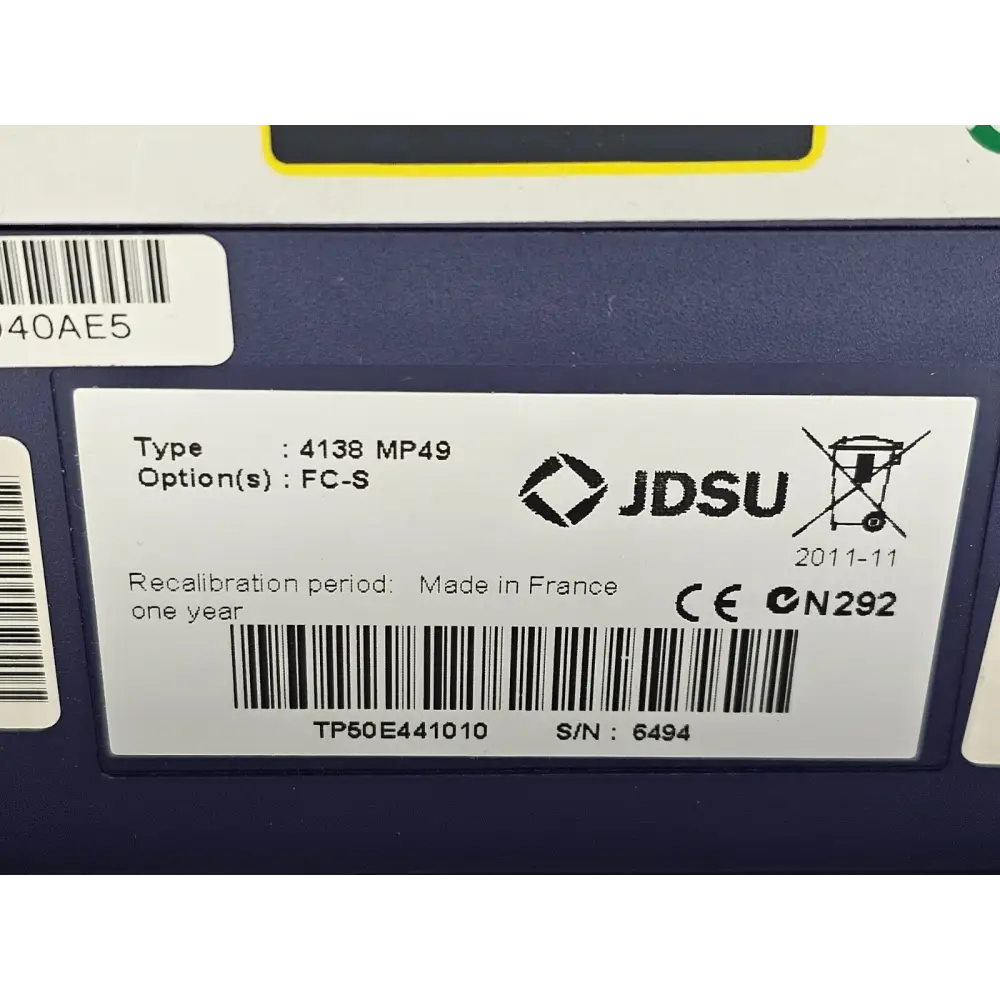

• Viavi 4138 MP49 FC-S SM OTDR Module (E4138MP49) — 1310/1490/1550 nm, 43/41/41 dB, SC-APC
• AC power adapter
• Protective case and carry case
• Stylus

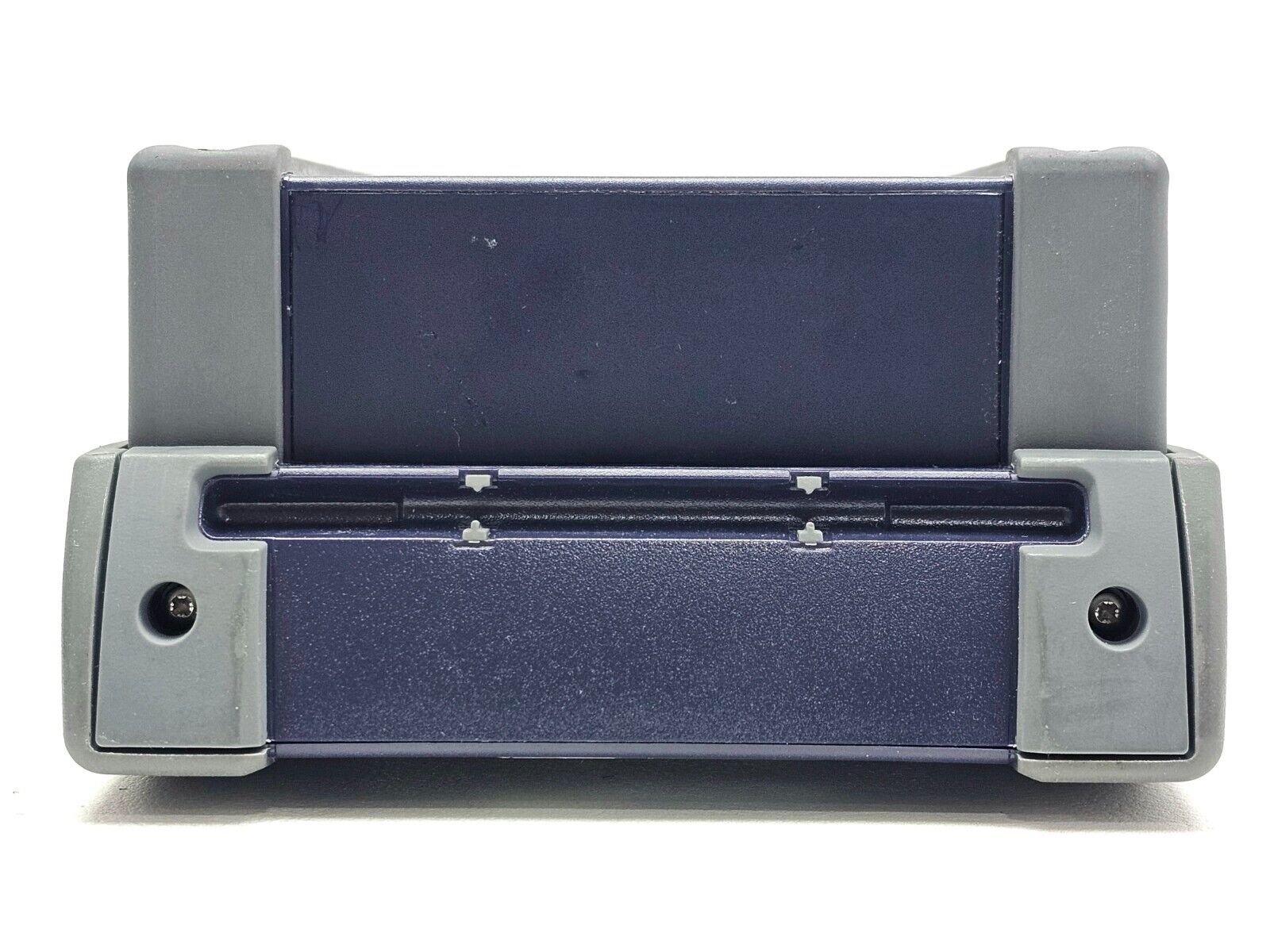

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

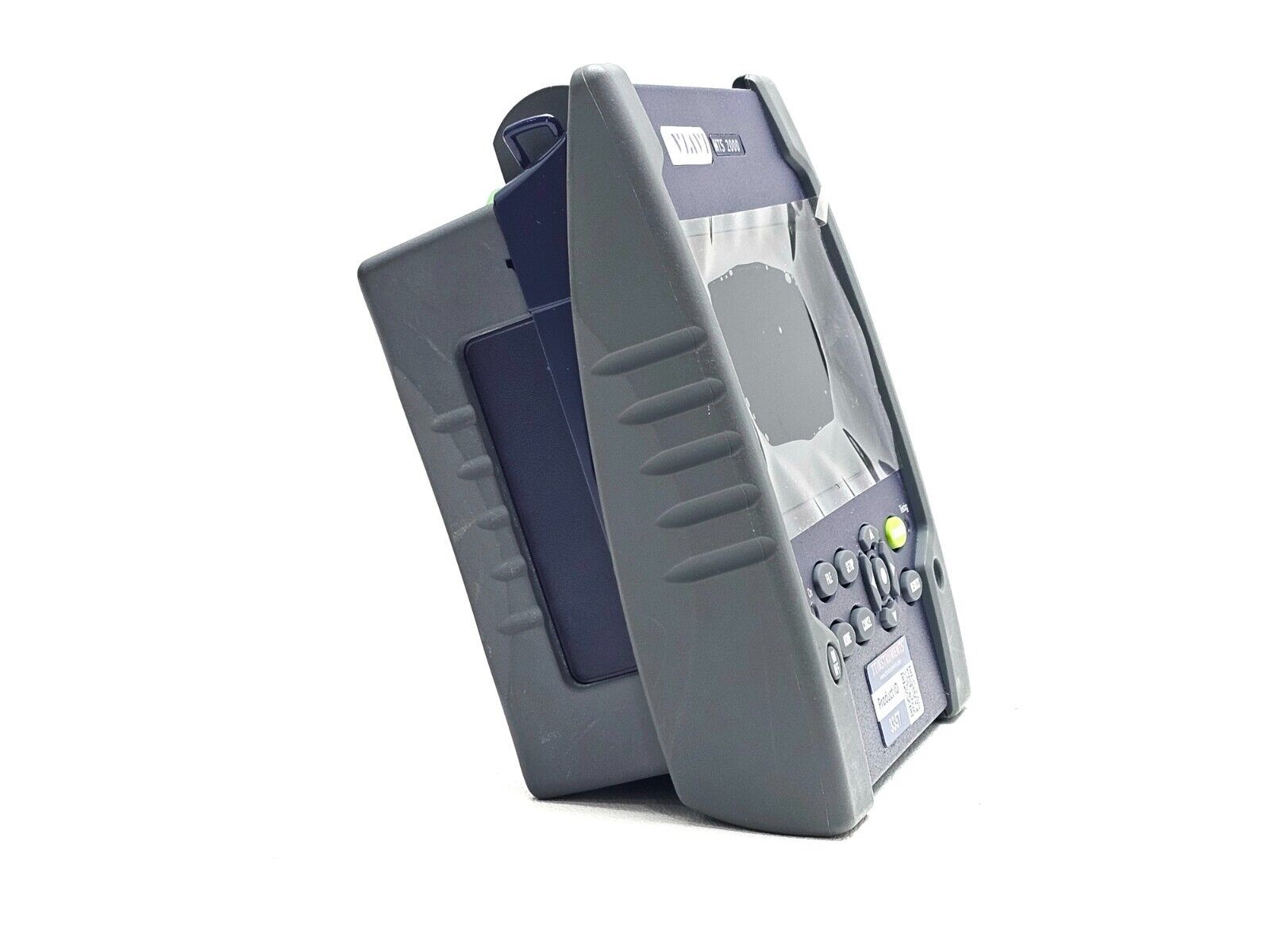

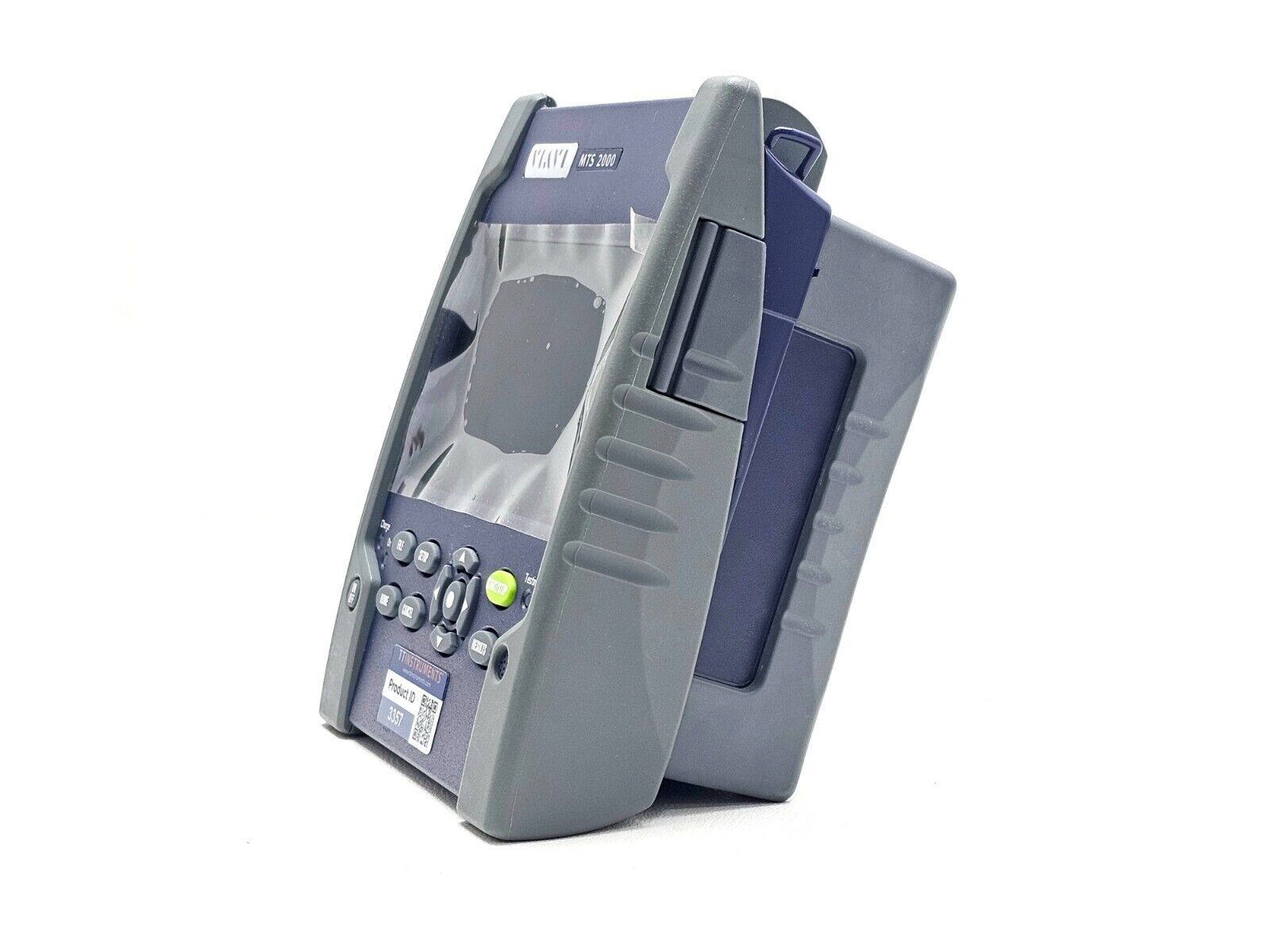

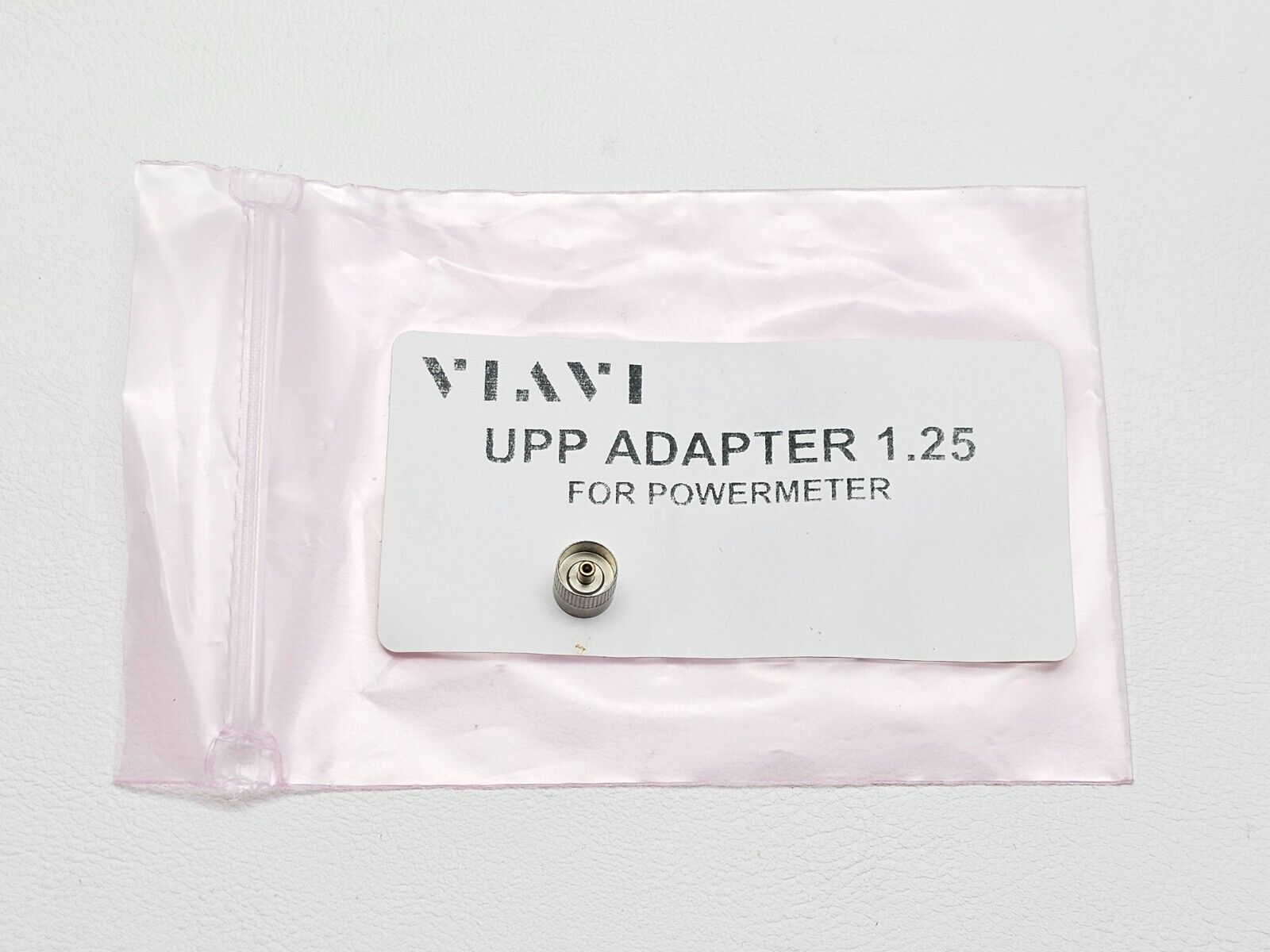

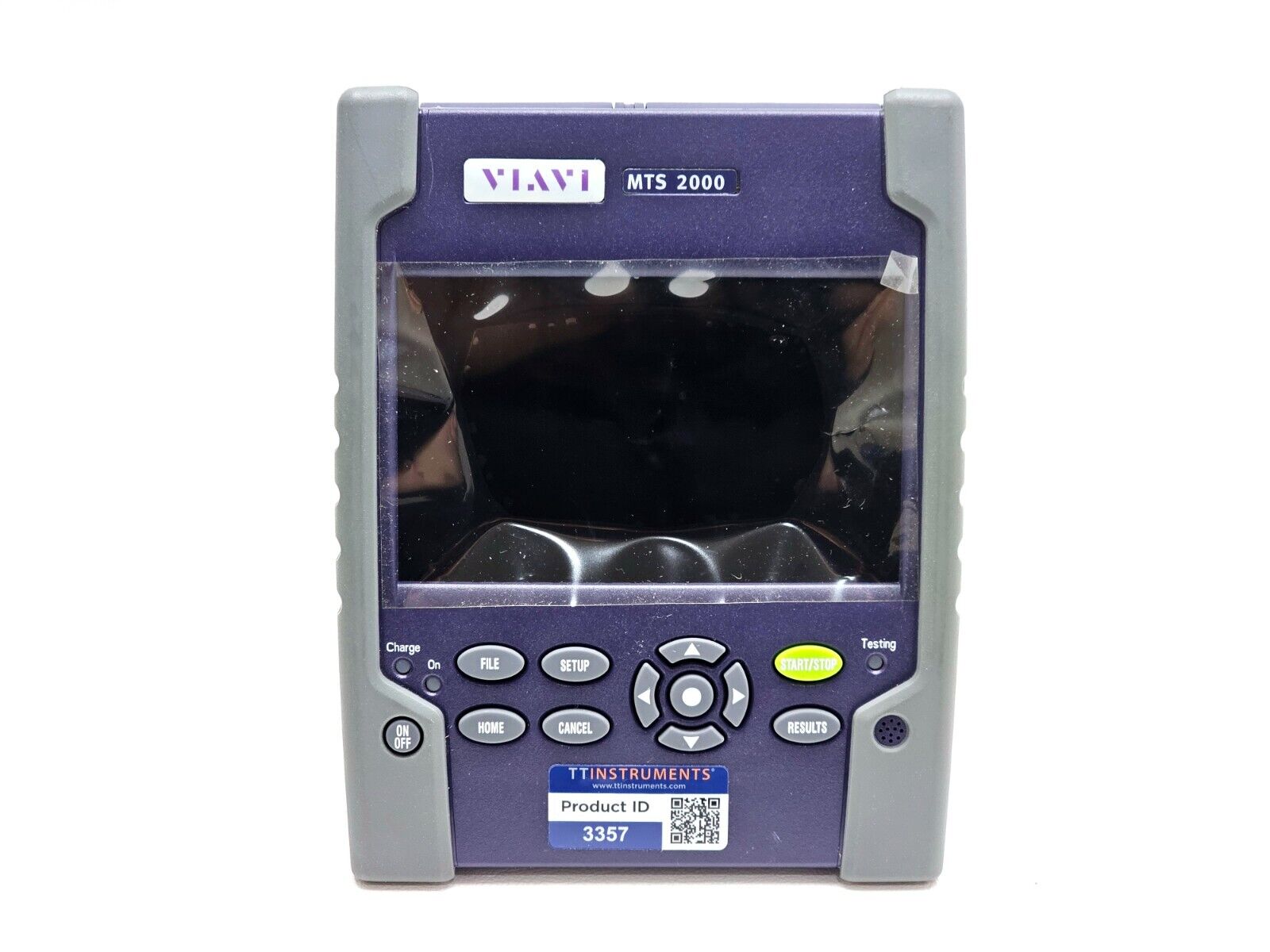

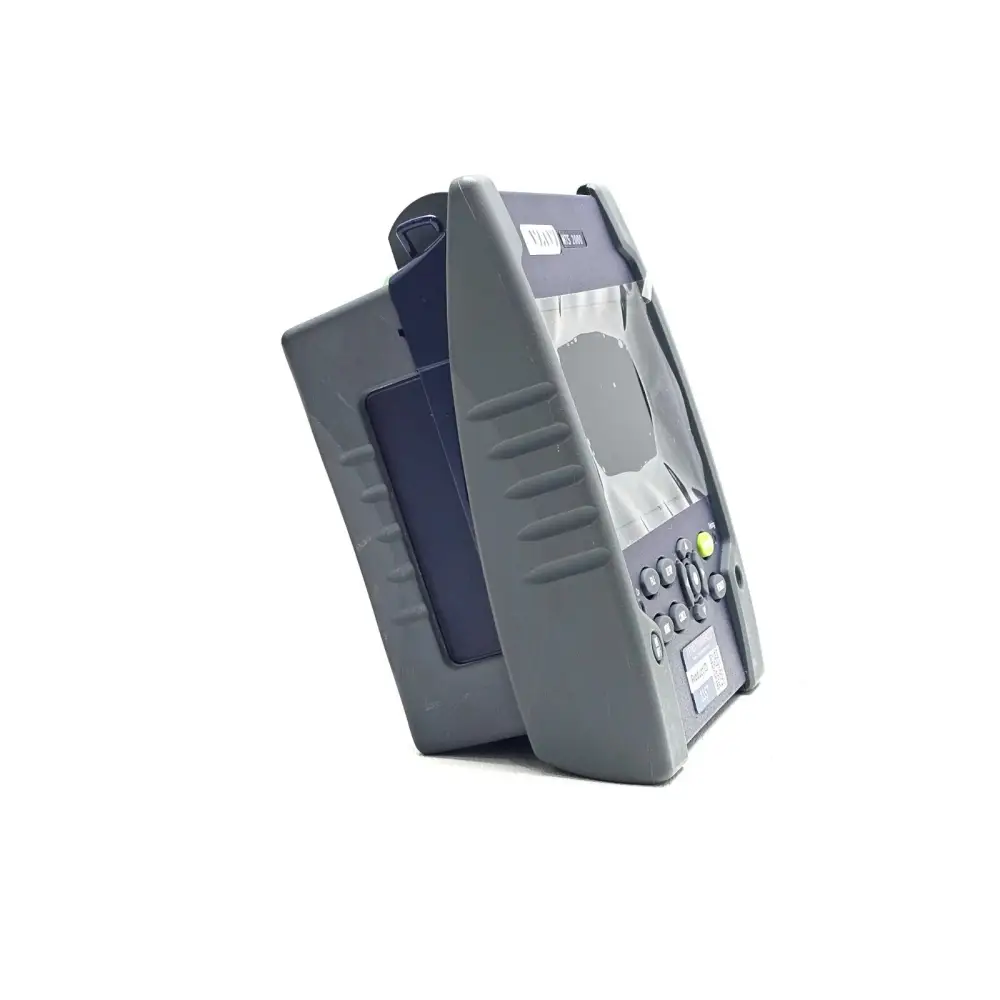

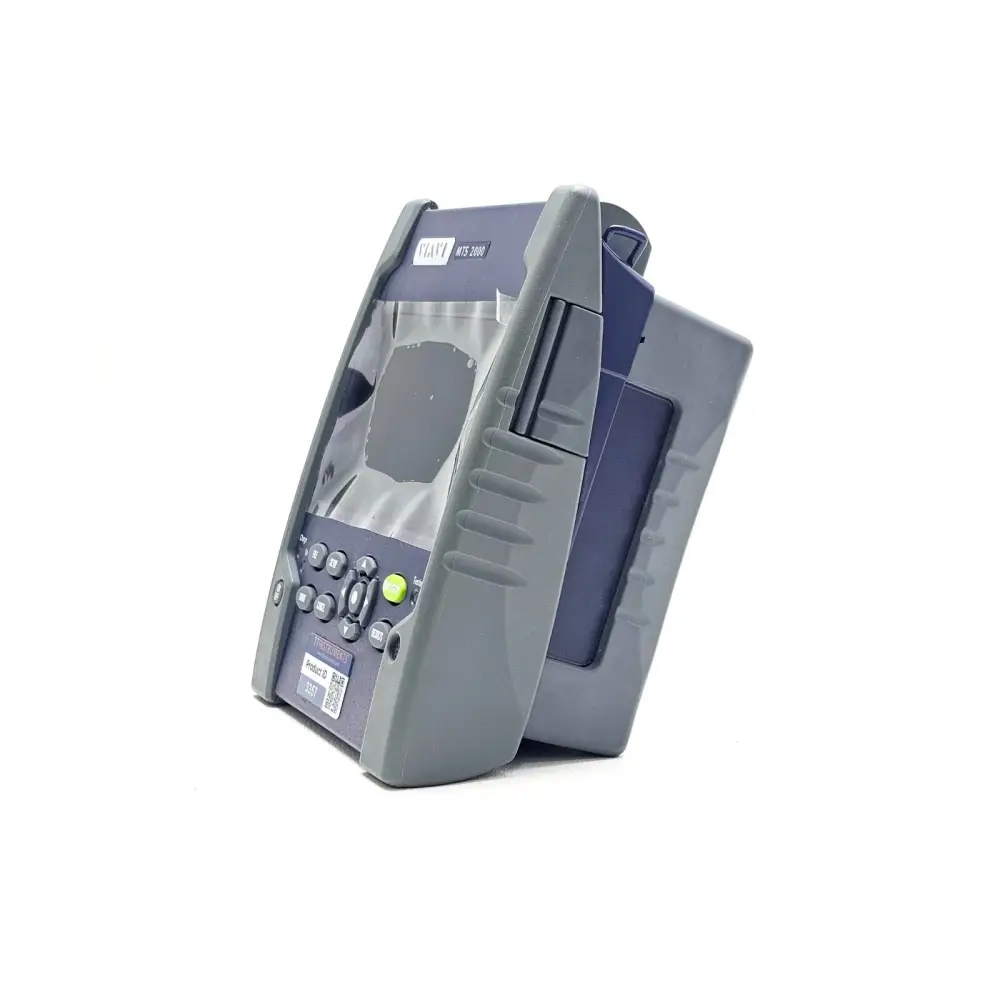

The Viavi Solutions MTS 2000 V2 is a compact, portable handheld mainframe from the T-BERD/MTS platform range, designed to support a wide variety of plug-in test modules for field fibre optic network testing. The mainframe features a touchscreen interface, built-in power meter with universal 1.25/2.5 mm adapters, integrated visual fault locator, wireless connectivity, and on-board report generation via FastReport.

The Viavi 4138 MP49 (MP OTDR) module is engineered to deliver optimum performance for fibre installers and service providers testing metro, cable TV (CATV), and FTTH networks with high-port-count splitters. With tri-wavelength capability and filtered wavelengths for in-service testing, improved dynamic range, and optimised resolution and dead zones at short pulses, the MP module is the ideal OTDR for testing any PON system with up to a 1x128 splitting ratio.

Standard testing features include:
Automatic macrobend detection
Summary results table with pass/fail analysis
Bidirectional OTDR analysis
FastReport on-board report generation
Instant traffic detection when connected to live fibre

Key Specifications — Viavi 4138 MP49 OTDR Module:
Wavelengths: 1310 / 1490 / 1550 nm
Dynamic Range: 43 / 41 / 41 dB
Acquisition Points: Up to 256,000

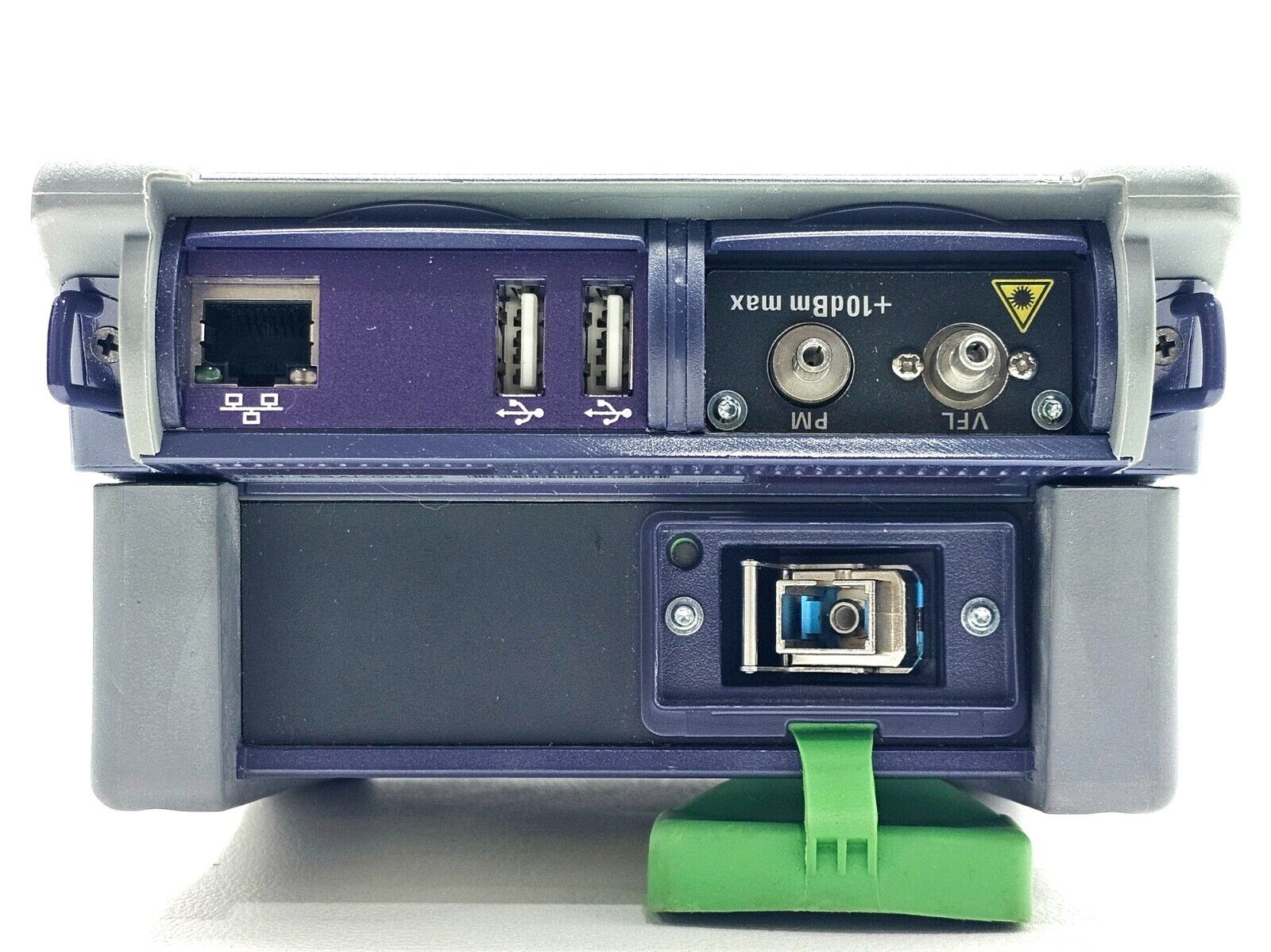

Connector: SC-APC
PON Splitter Support: Up to 1x128
Compatibility: FiberComplete (FCOMP), SLM, FTTA-SLM, FTTH-SLM
Platform: Viavi MTS 2000 V2 (T-BERD/MTS series)

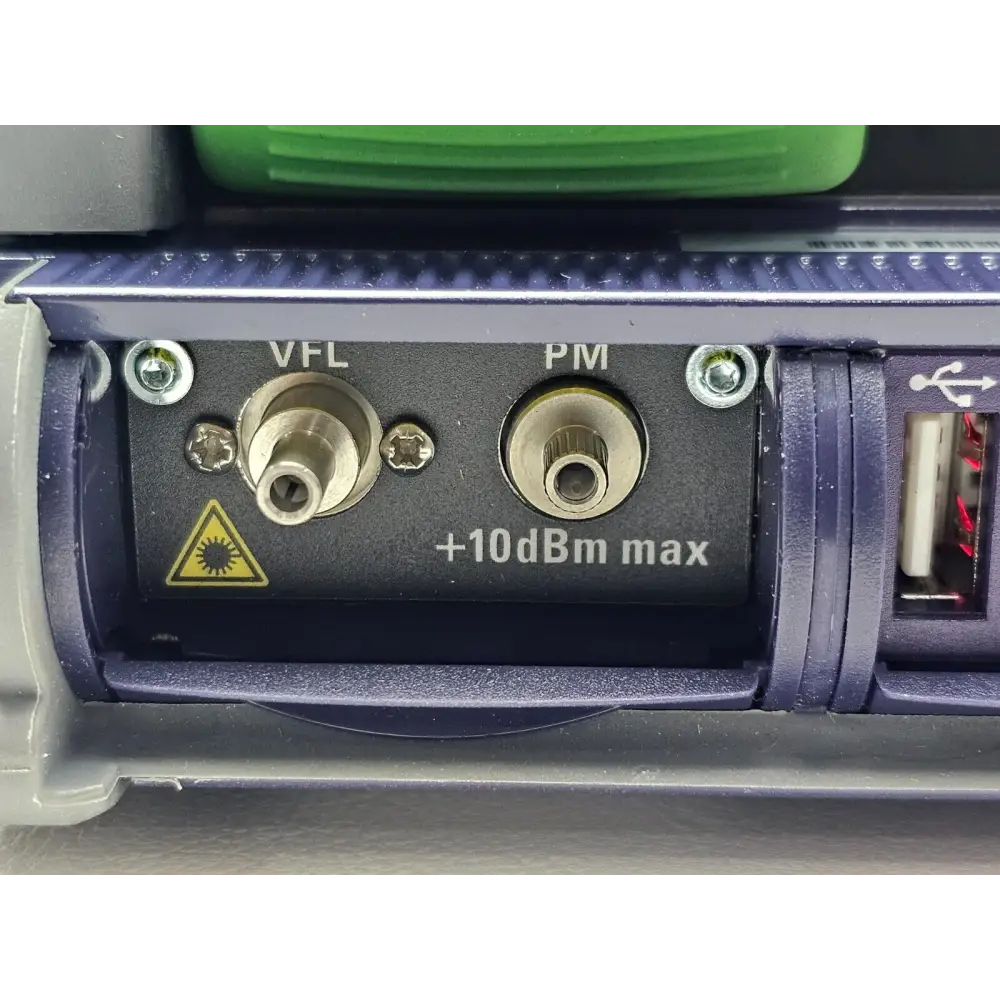

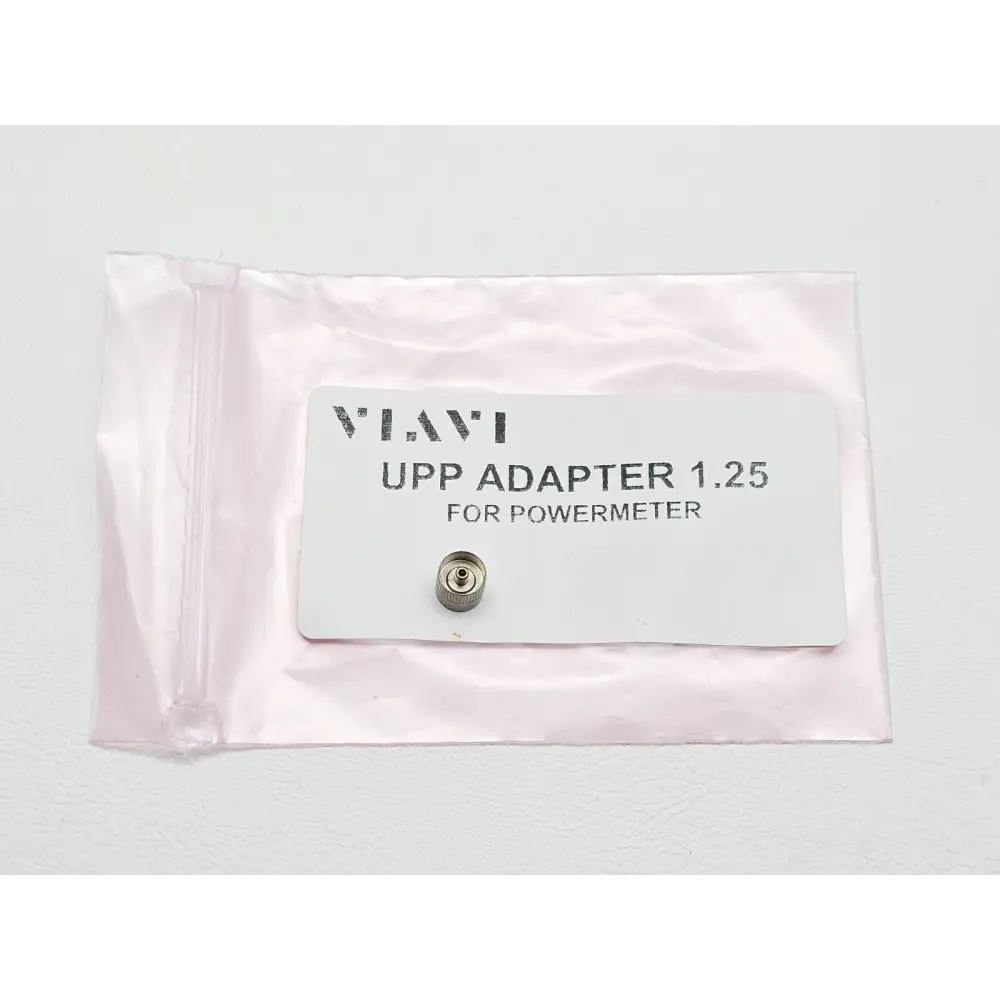

Built-in Power Meter: Yes (1.25/2.5 mm connectors)
Visual Fault Locator: Yes
Wireless: Yes

Viavi MP OTDR Module (4100 series) product datasheet: Download PDF
