Viavi JDSU MTS 2000 V2 with 4138 FMP265 Metro PON 1310/1550nm + F1650 Live OTDR

Condition: Used

Excellent condition, like new.

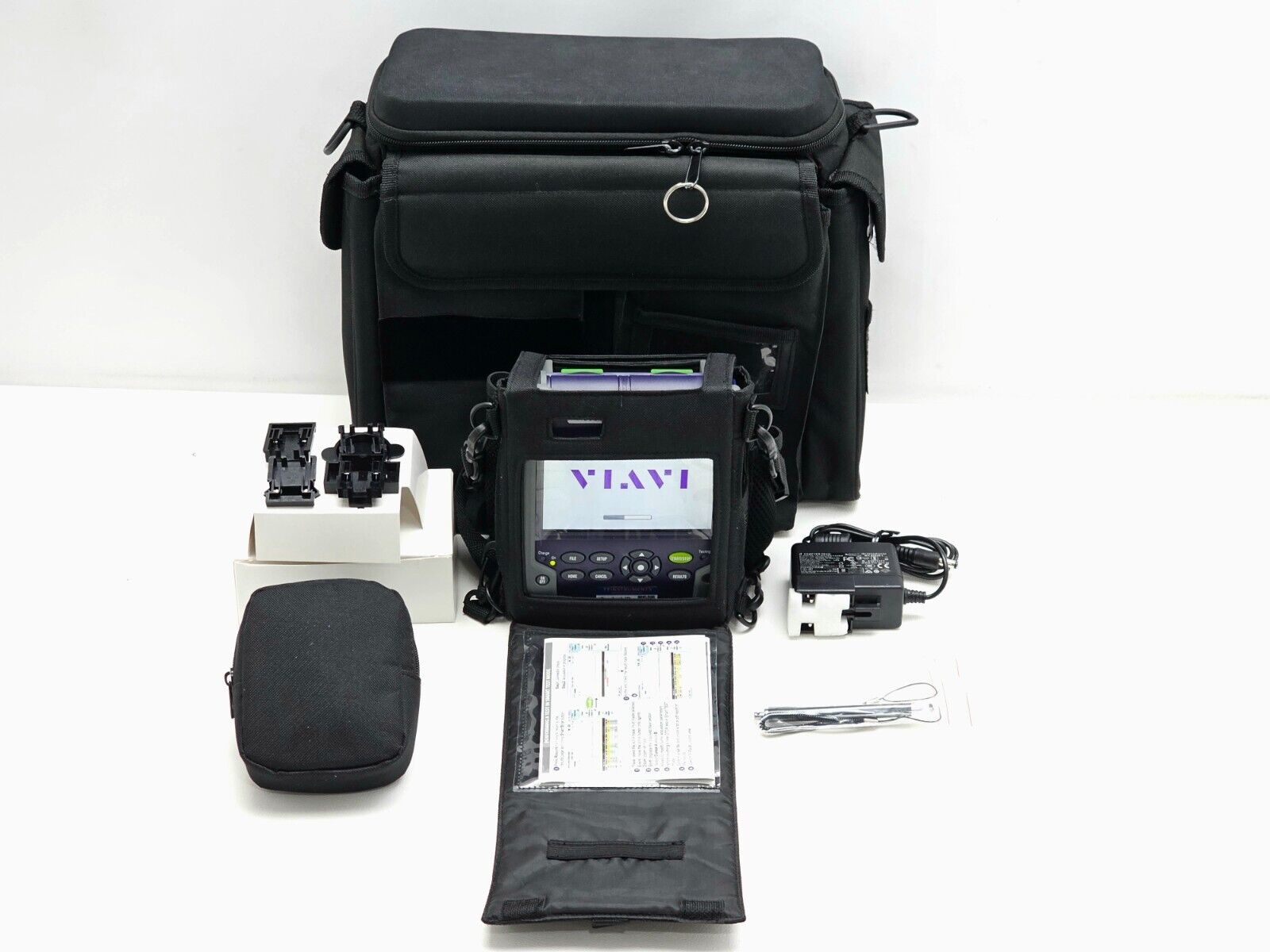

Included in the sale:

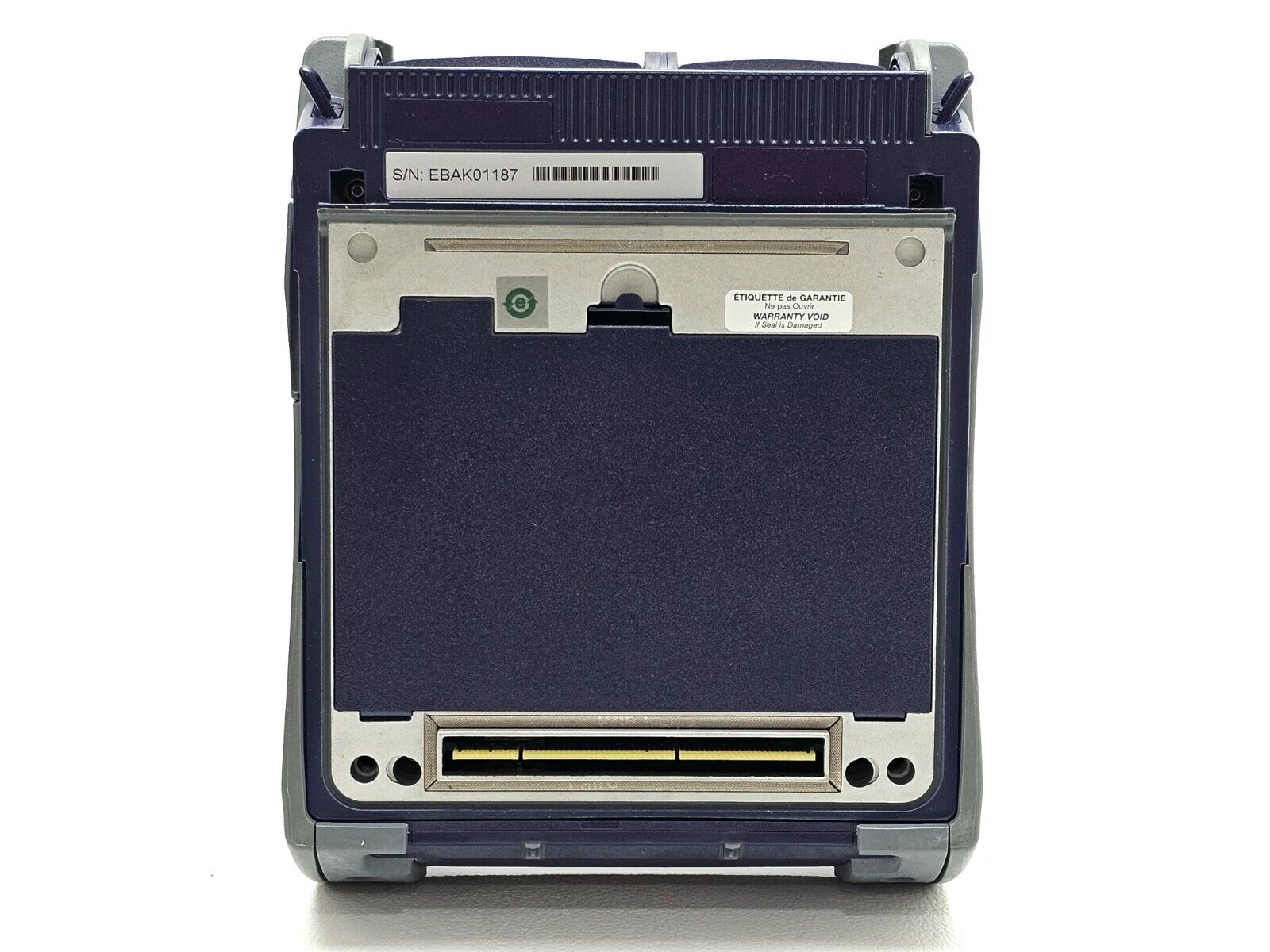

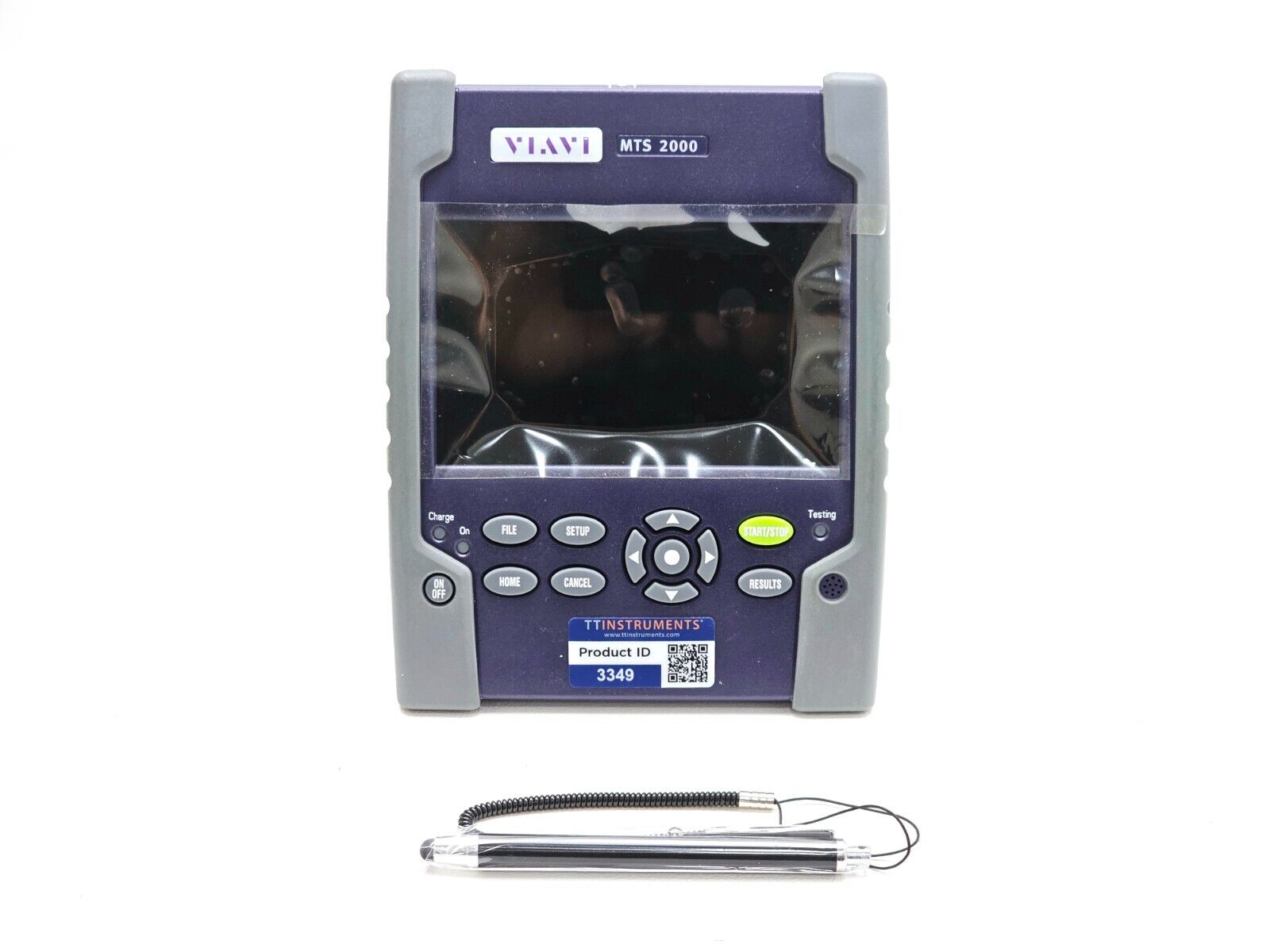

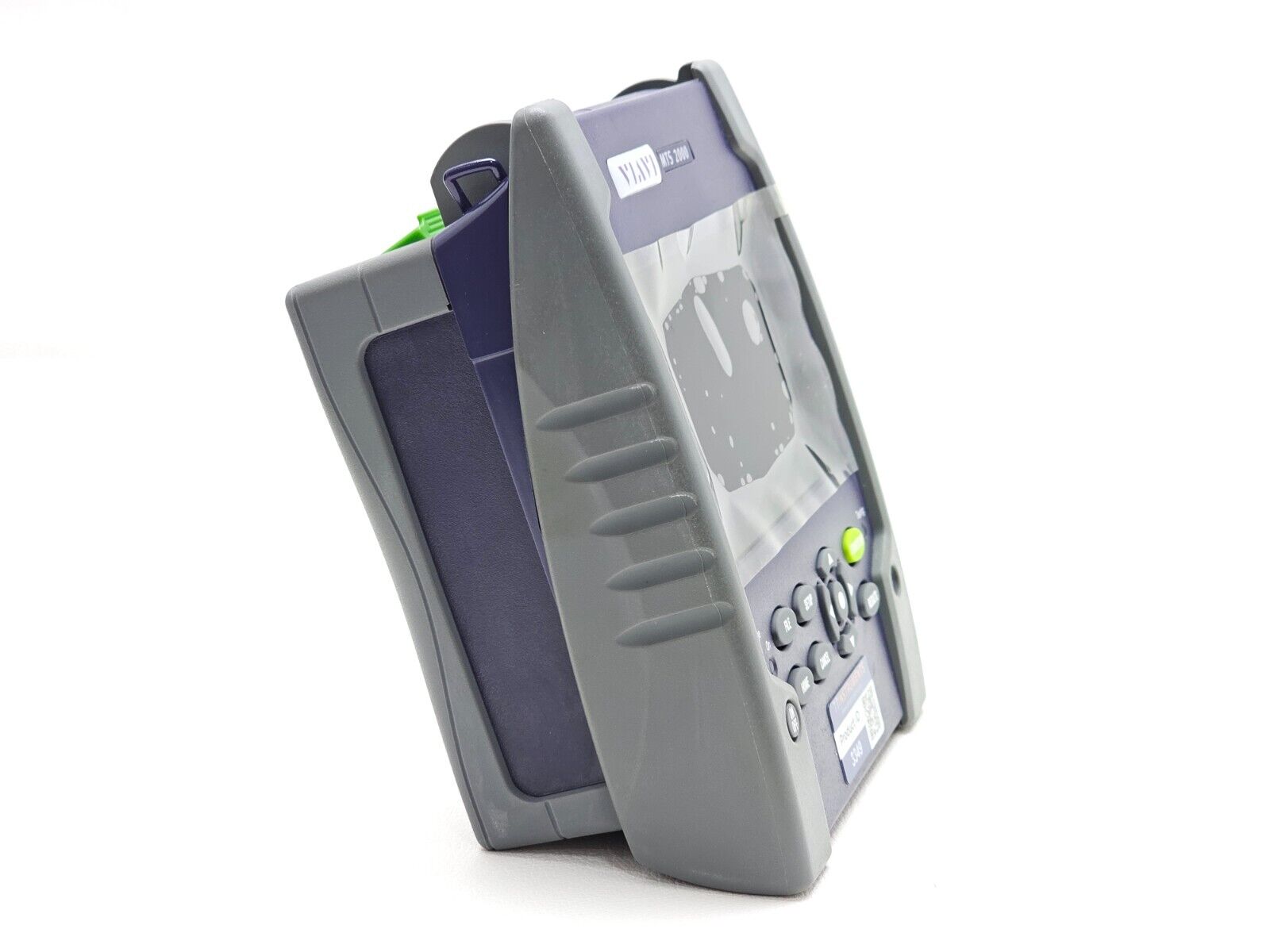

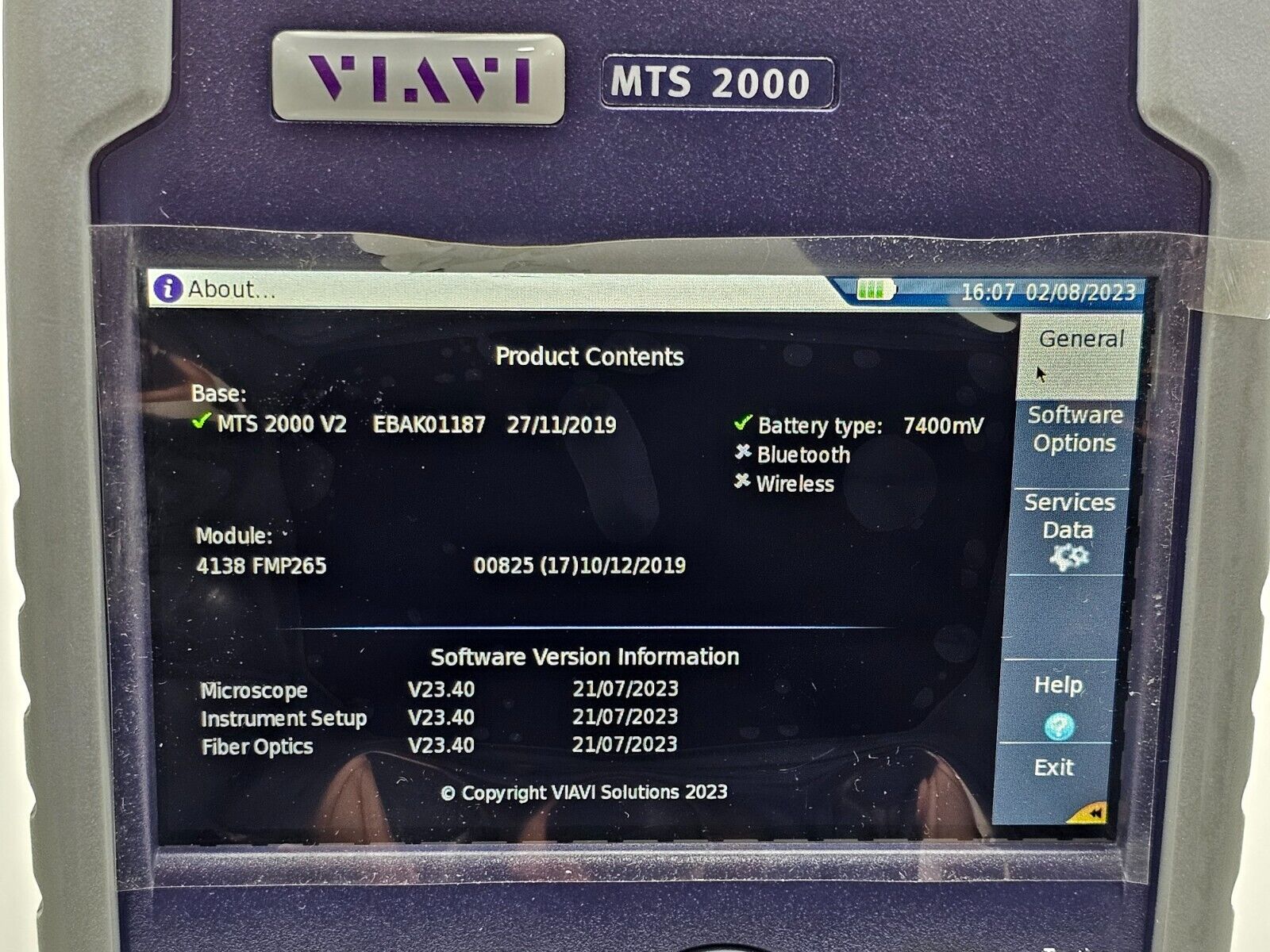

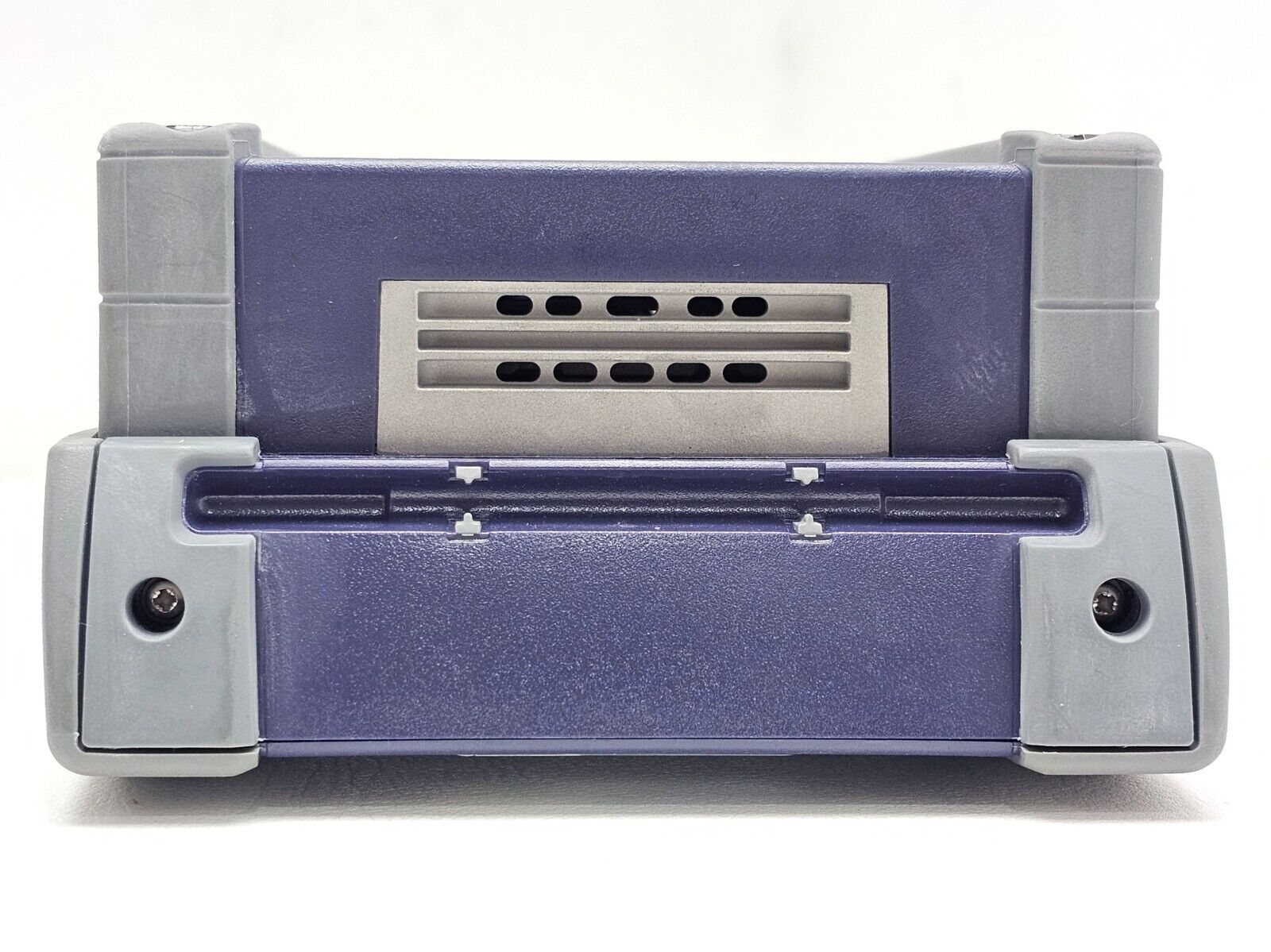

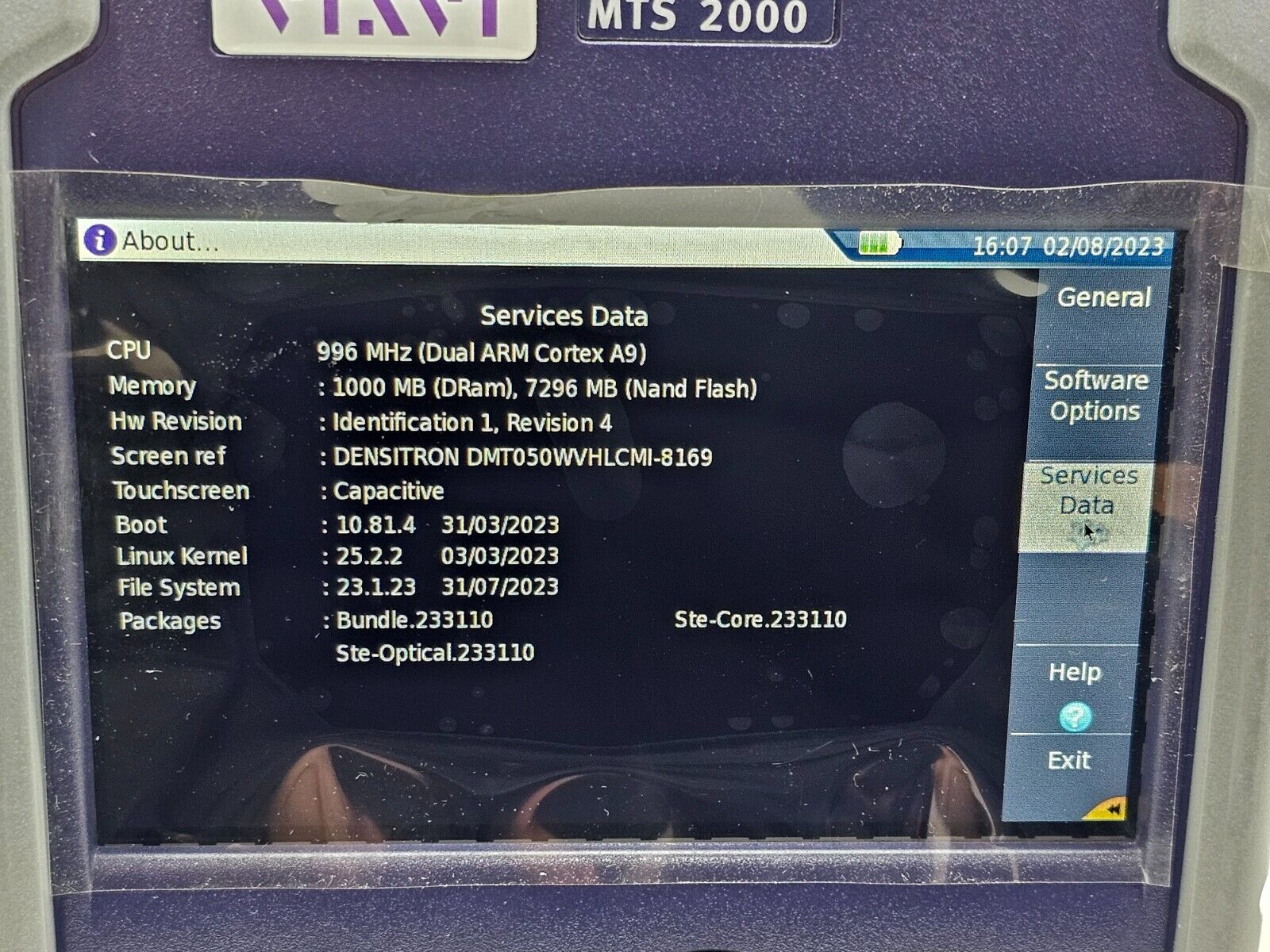

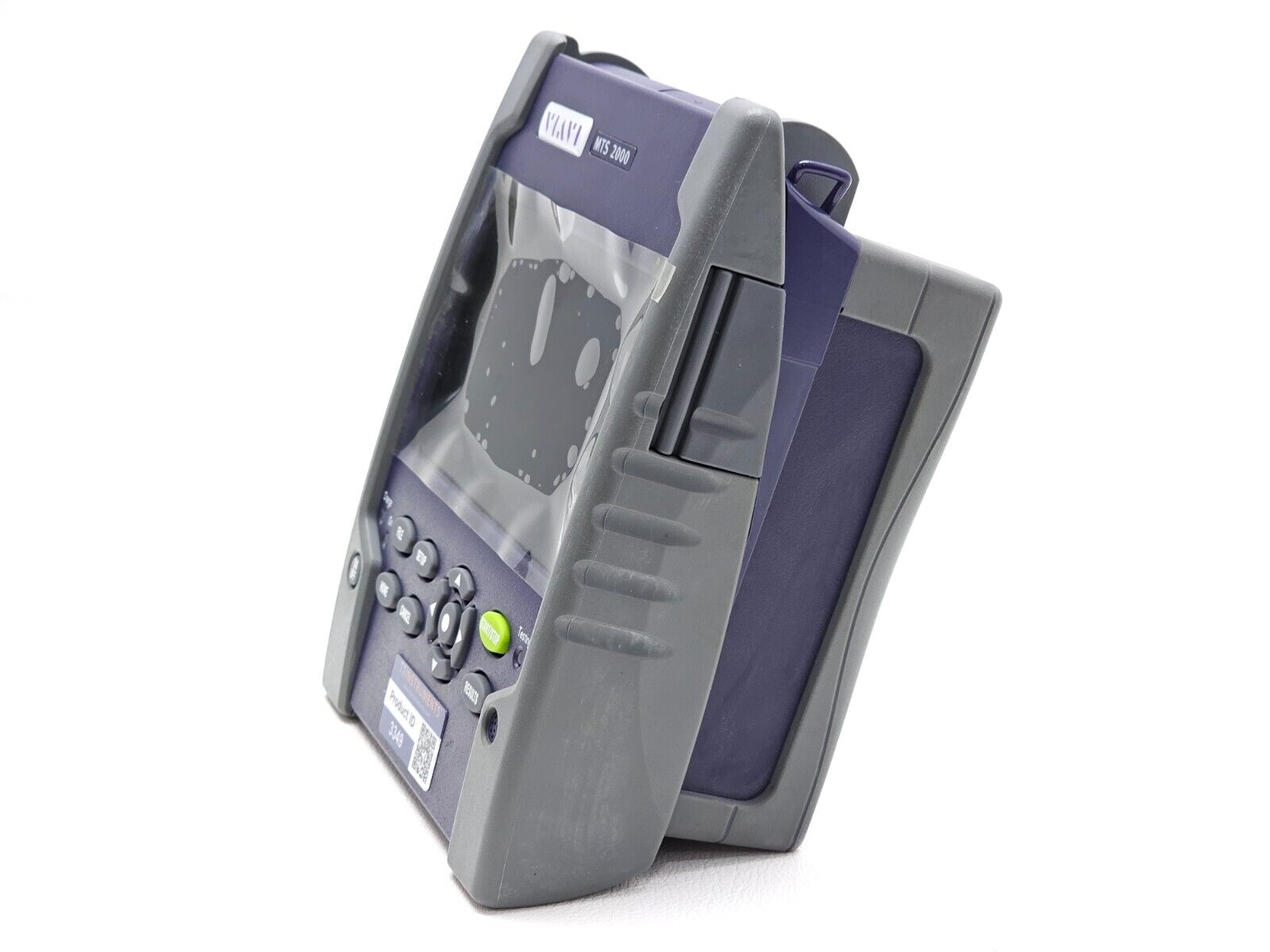

 ·        Viavi JDSU MTS 2000 V2 mainframe

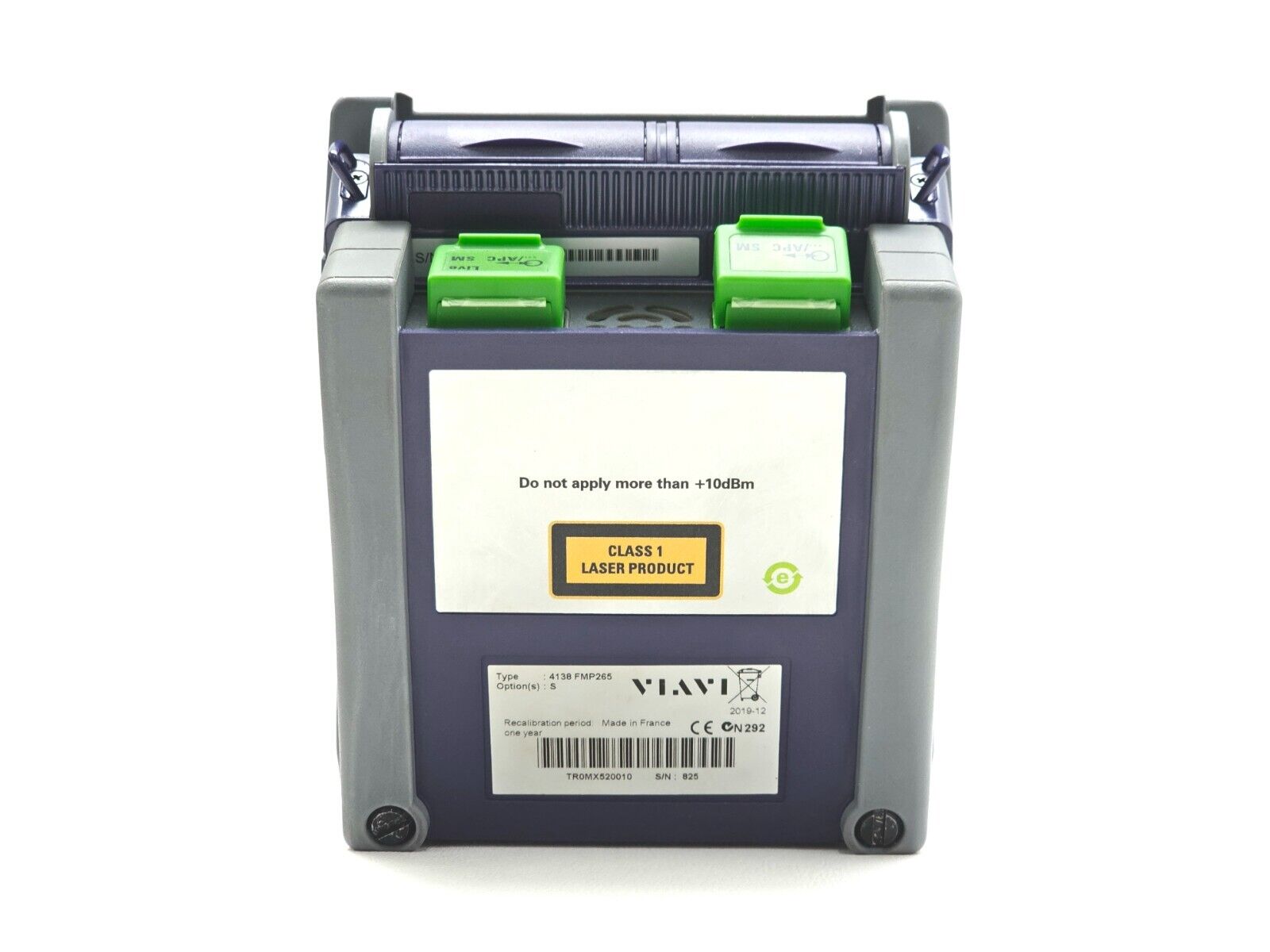

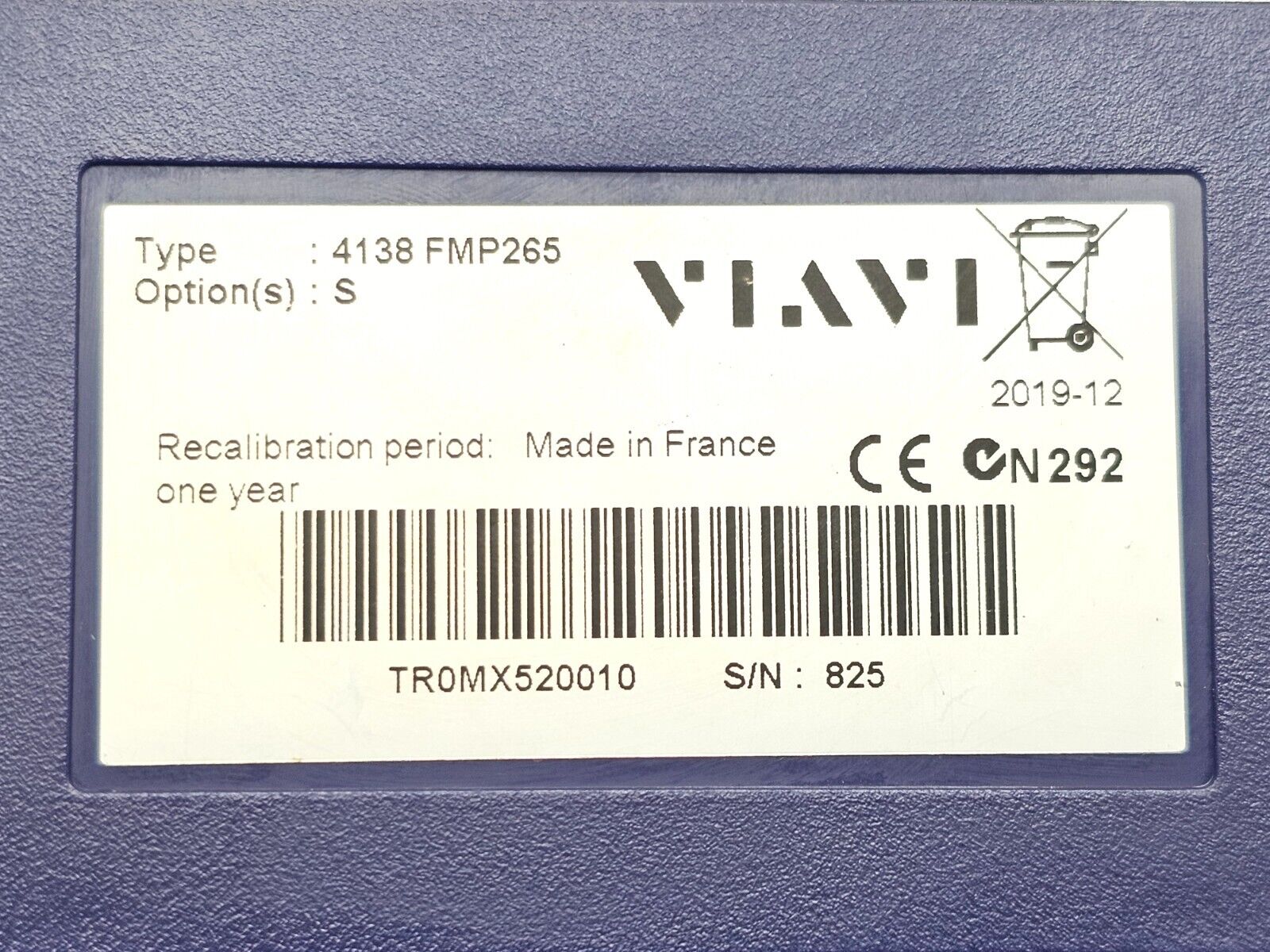

·        Viavi 4138 FMP265 S SM OTDR Module

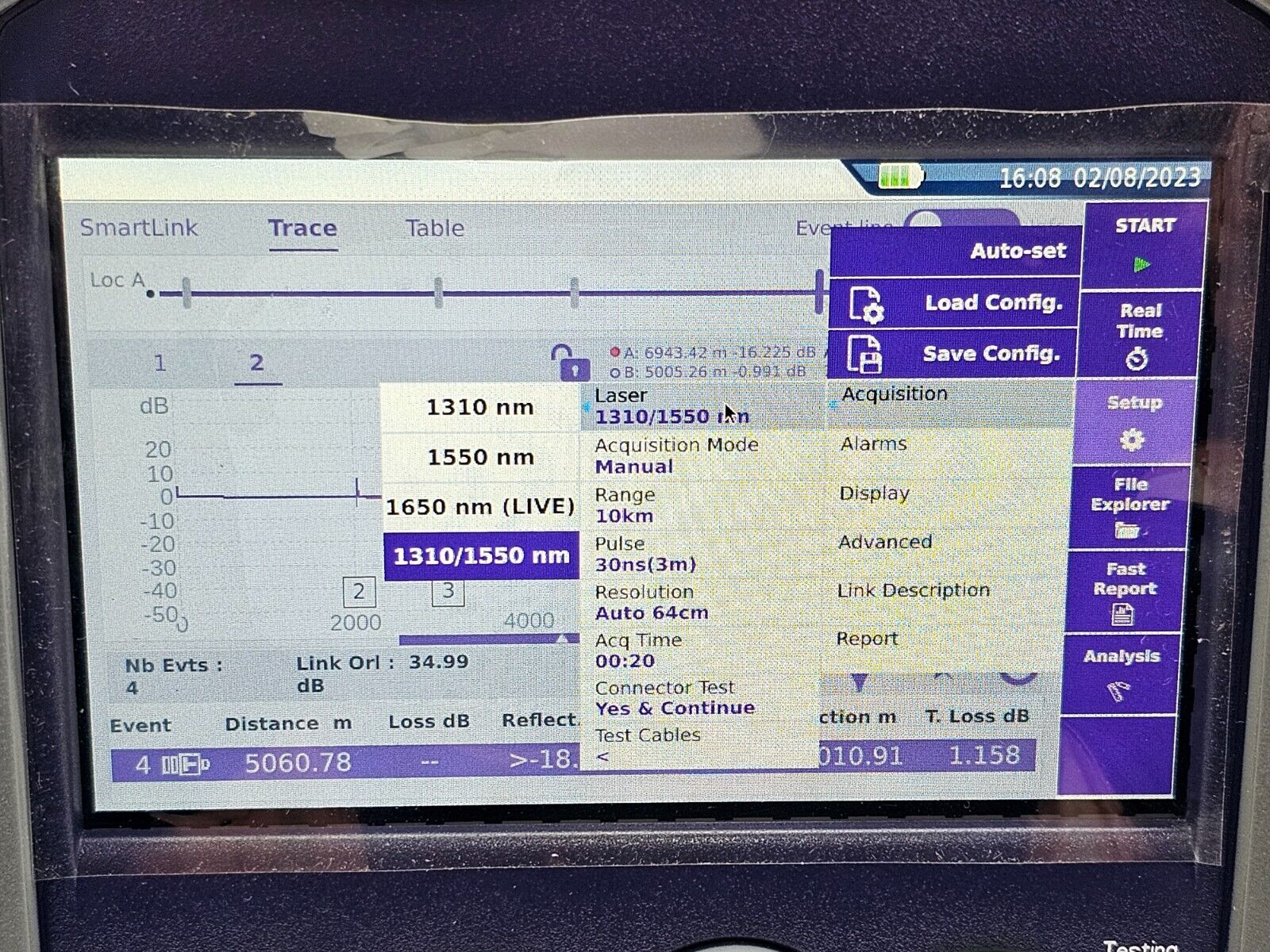

o   Source: 1310/1550 nm 1650 Filtered / In-Service (live traffic)

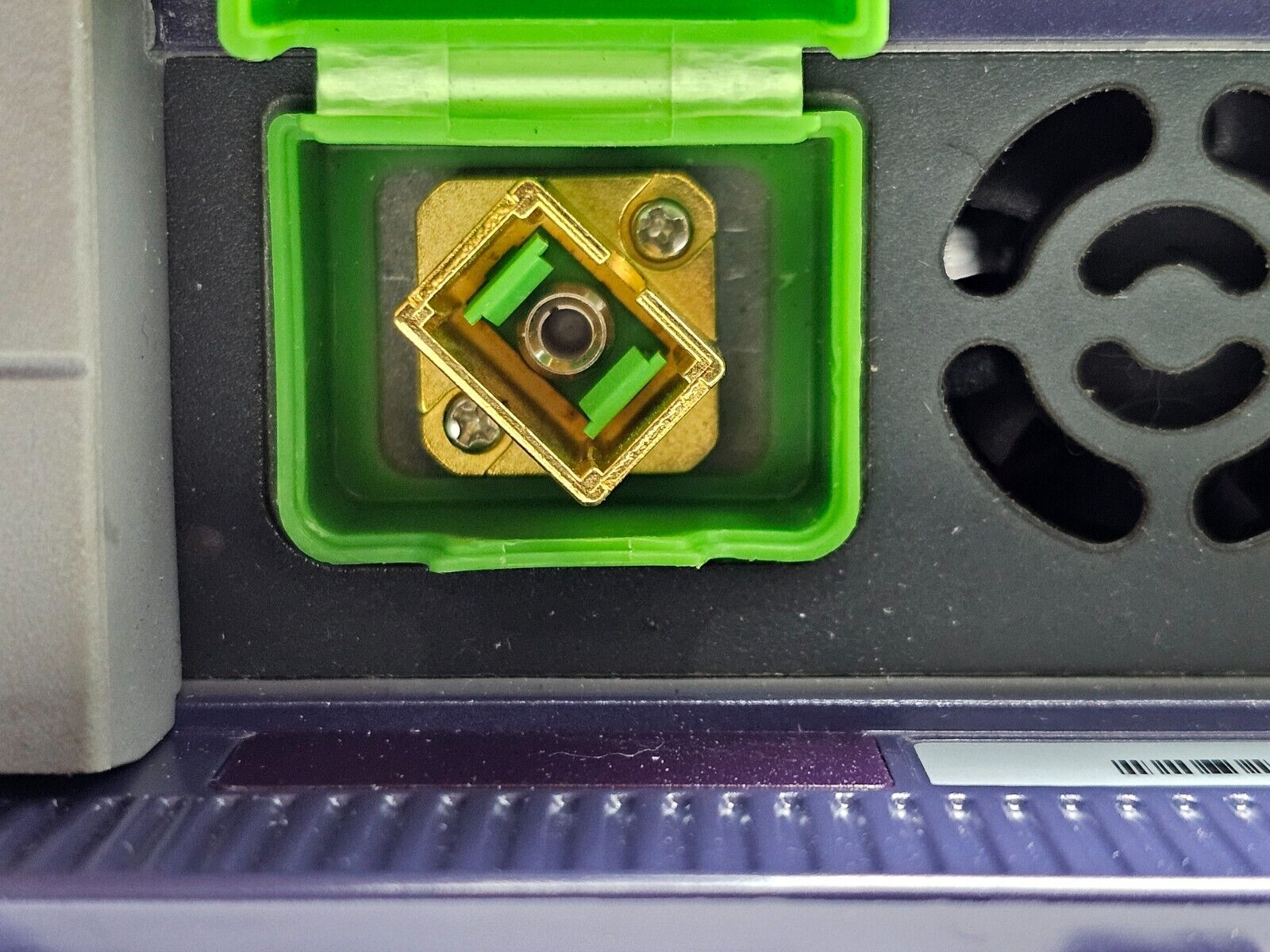

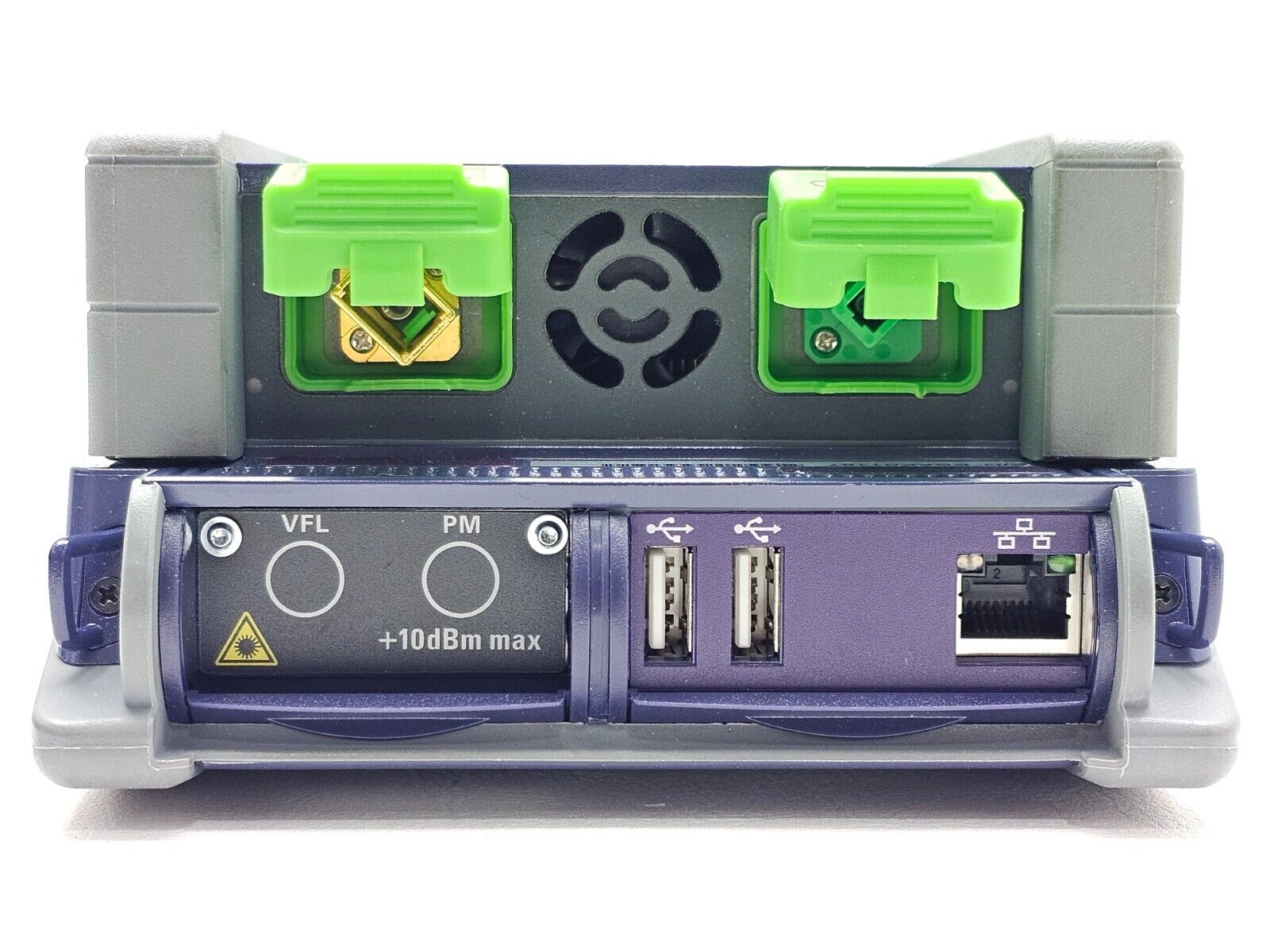

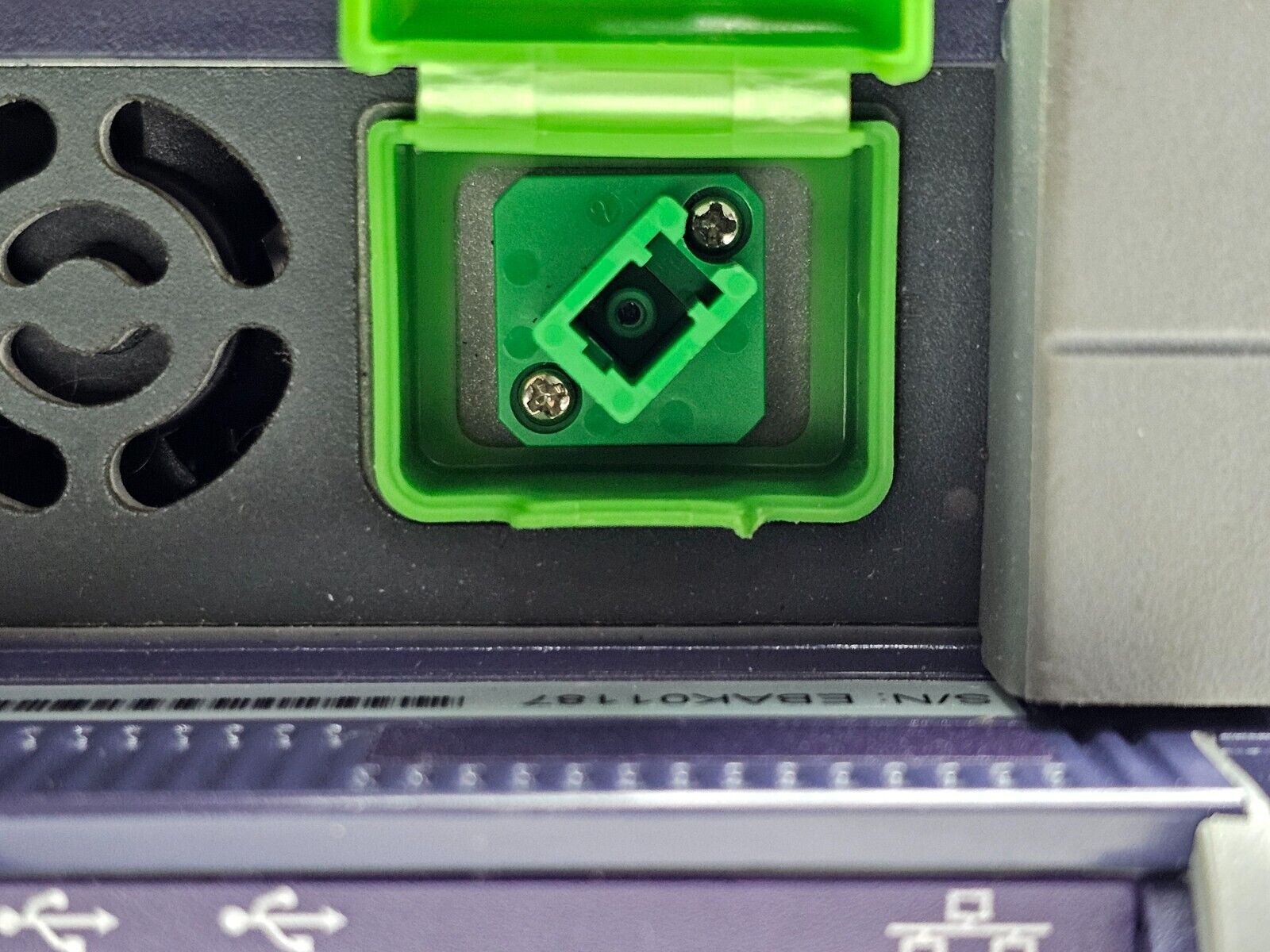

o   Connector: LC and SC-APC

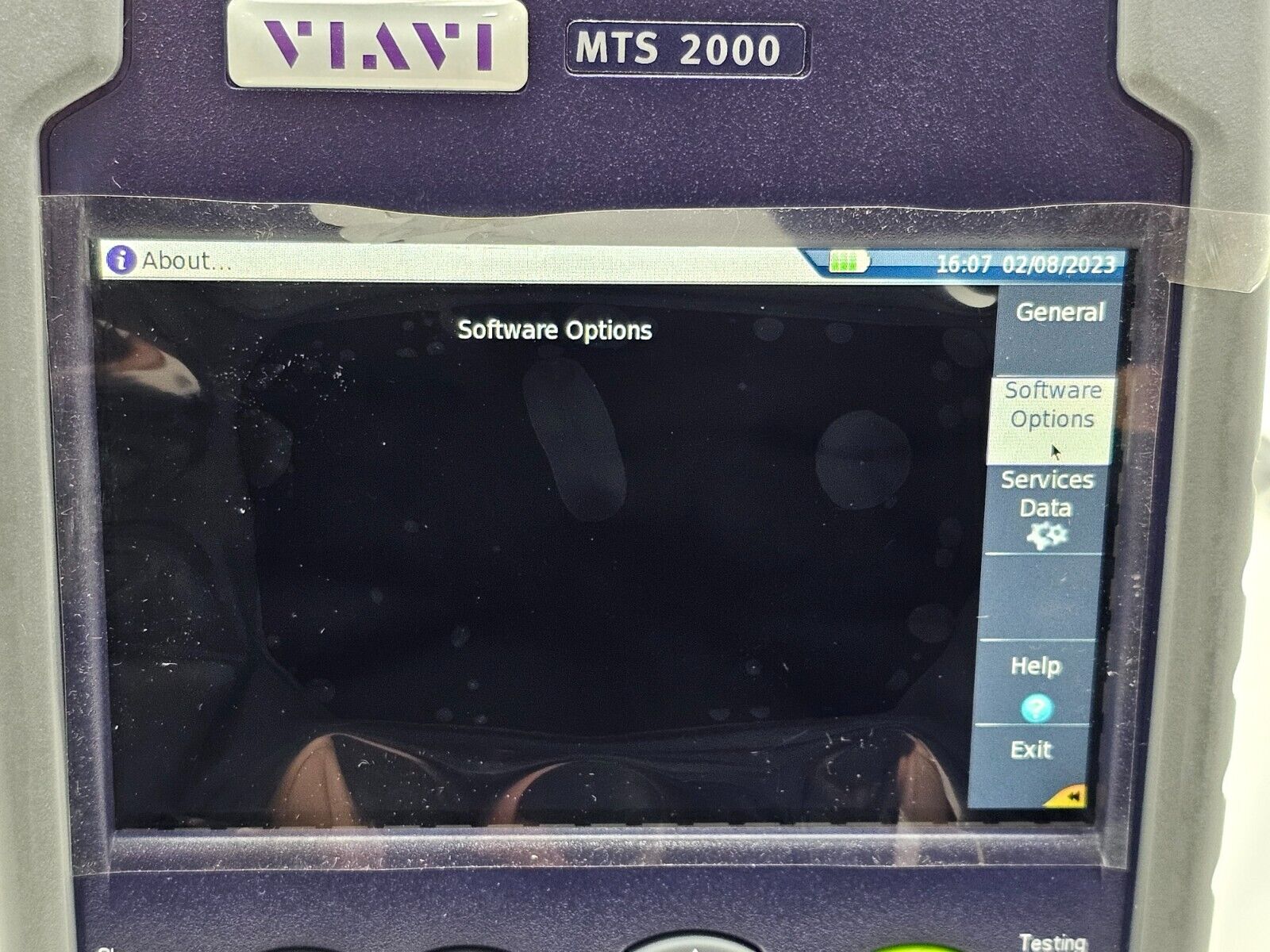

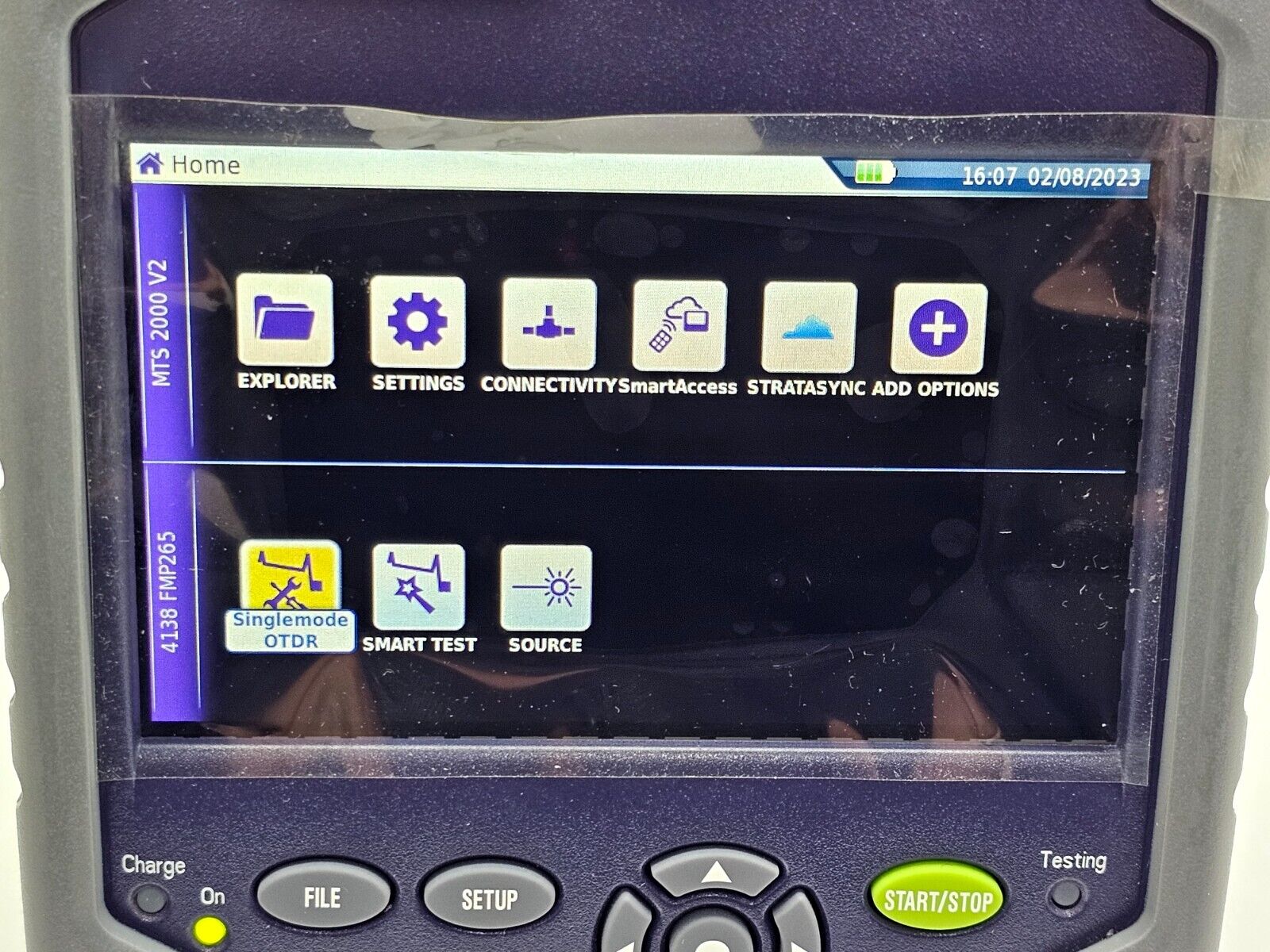

o   Software Options: Siglemode OTDR / SMART TEST / Source

·        AC power adapter

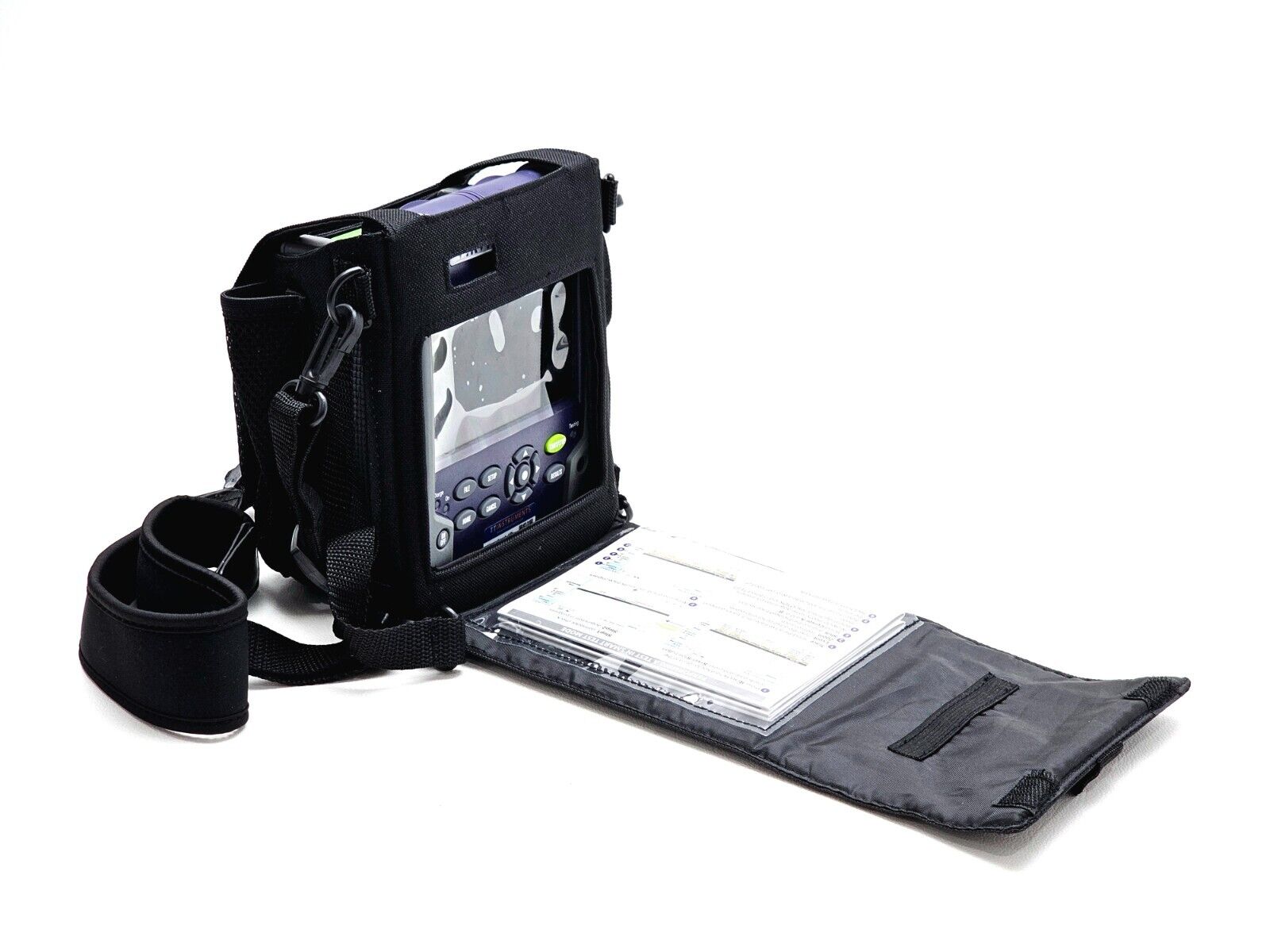

·        Protective case and carry case

·        Stylus

From the manufacturer:

The Viavi Solutions MP OTDR module provides the optimum performance that fiber installers and service providers need to test metro, cable TV (CATV), and FTTH networks with high-port-count splitters.With various wavelength combinations including filtered wavelengths for in-service testing, an improved dynamic range, and optimized resolution and dead zones at short pulses, the MP module is the ideal OTDR to test any PON system with up to a 1x128 splitting ratio.

The MP module?s optical performance, combined with the T-BERD/MTS platform?s completesuite of features, ensures that testing is done right the first time.

Standard testing features include:

• Automatic macrobend detection
• Summary results table with pass/fail analysis
• Bidirectional OTDR analysis
• FastReport on-board report generation

Key Features

• Up to 43 dB dynamic range and 256,000macquisition points
• PON-optimized to test up to a 1x128m splitter
• Single-, dual-, and tri-wavelength versions with 1310/1490/1550/1625/1650 nm
• Single connector port for 1310, 1550,and in-service 1625 nm or 1650 nm wavelengths
• Integrated CW light source and powermeter
• FiberComplete compatible
• Ready for SLM, FTTA-SLM, and FTTH-SLM intelligent optical application software
• Instantly detects traffic when connected to live fiber
