Condition: Used — Tested and working.

This is the superior MP2 model of the Viavi JDSU MTS 2000 system, featuring the 4126 MP2 PM-S SM OTDR module with elevated dynamic ranges of 46/45 dB at 1310/1550 nm respectively. Manufactured in 2016 (MFD 2016), this unit is the higher-specification MP2 variant and is well suited to demanding metro, FTTH, and PON fibre testing applications. The SC-APC connector port supports singlemode testing across both wavelengths from a single port.

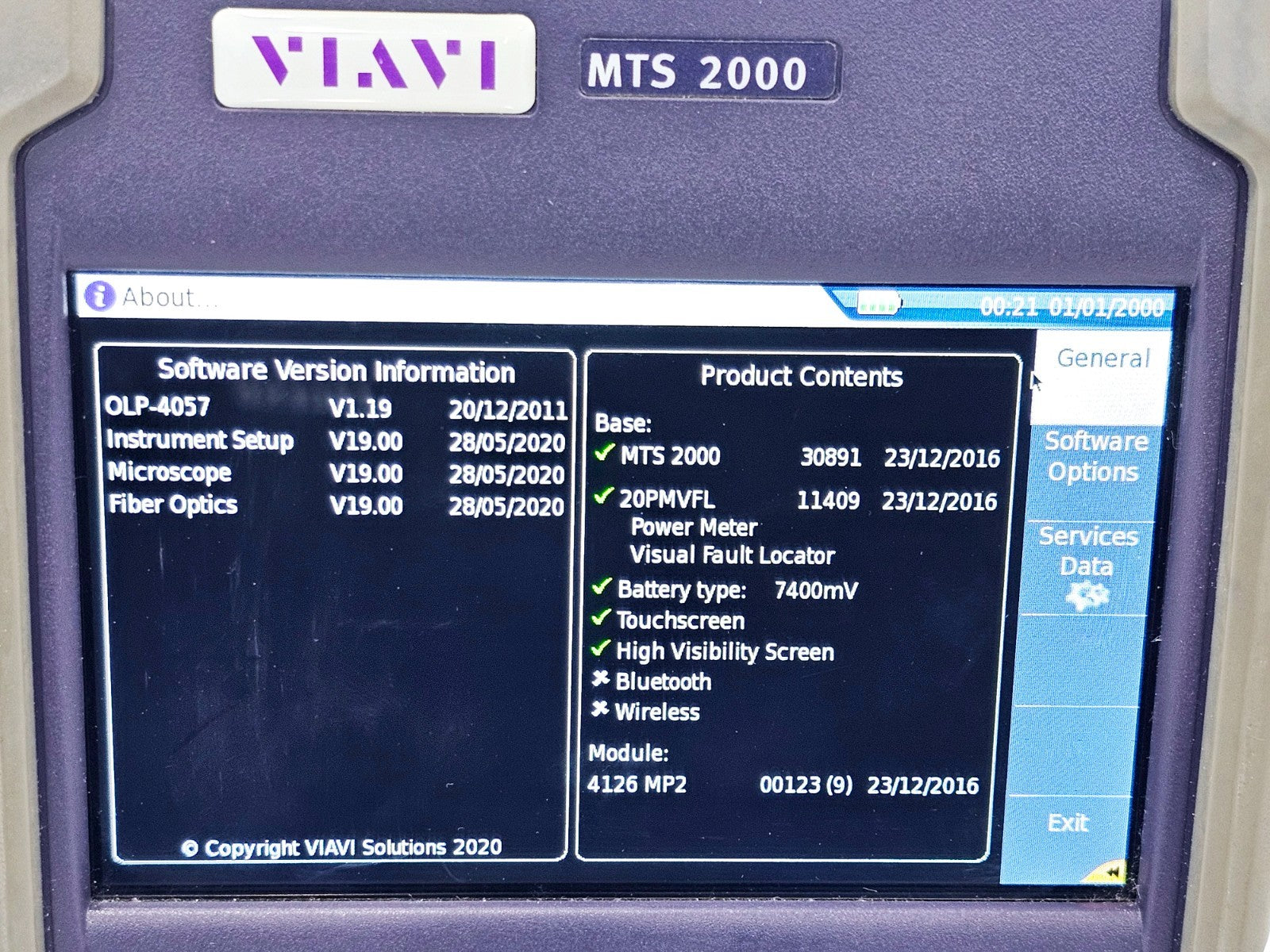

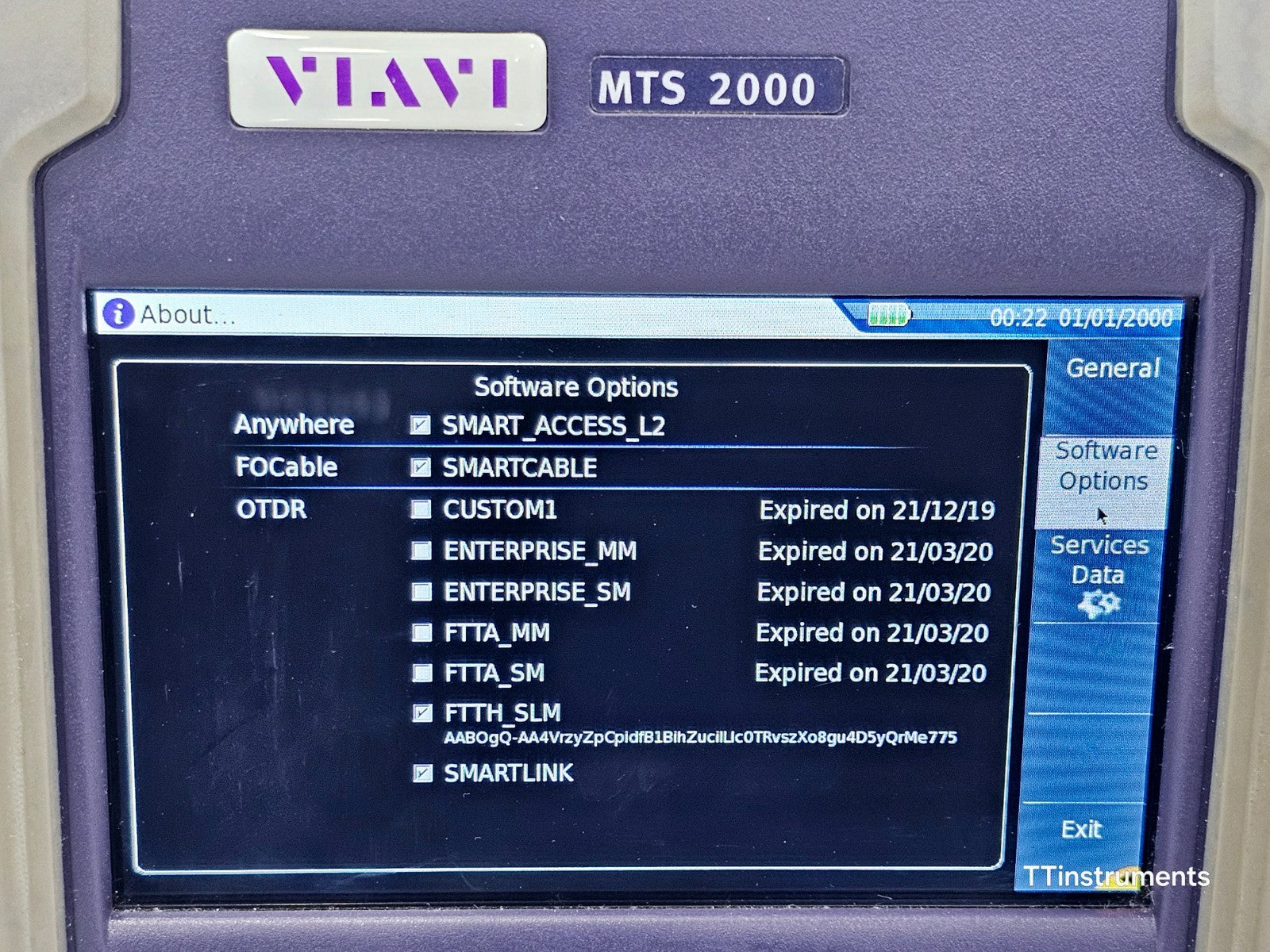

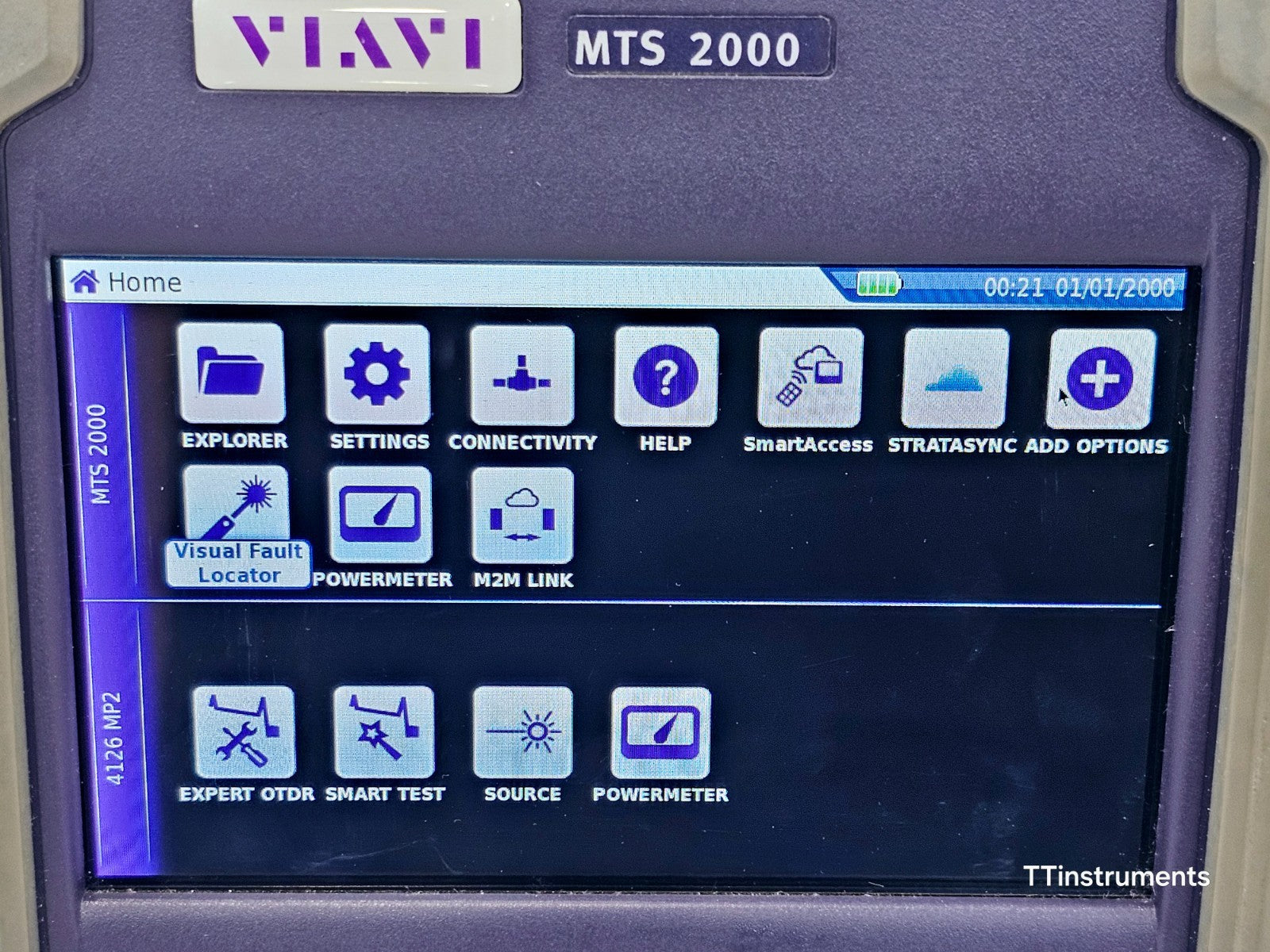

Active software options on the OTDR module:
• Singlemode OTDR
• SMART TEST
• Source
• Power Meter

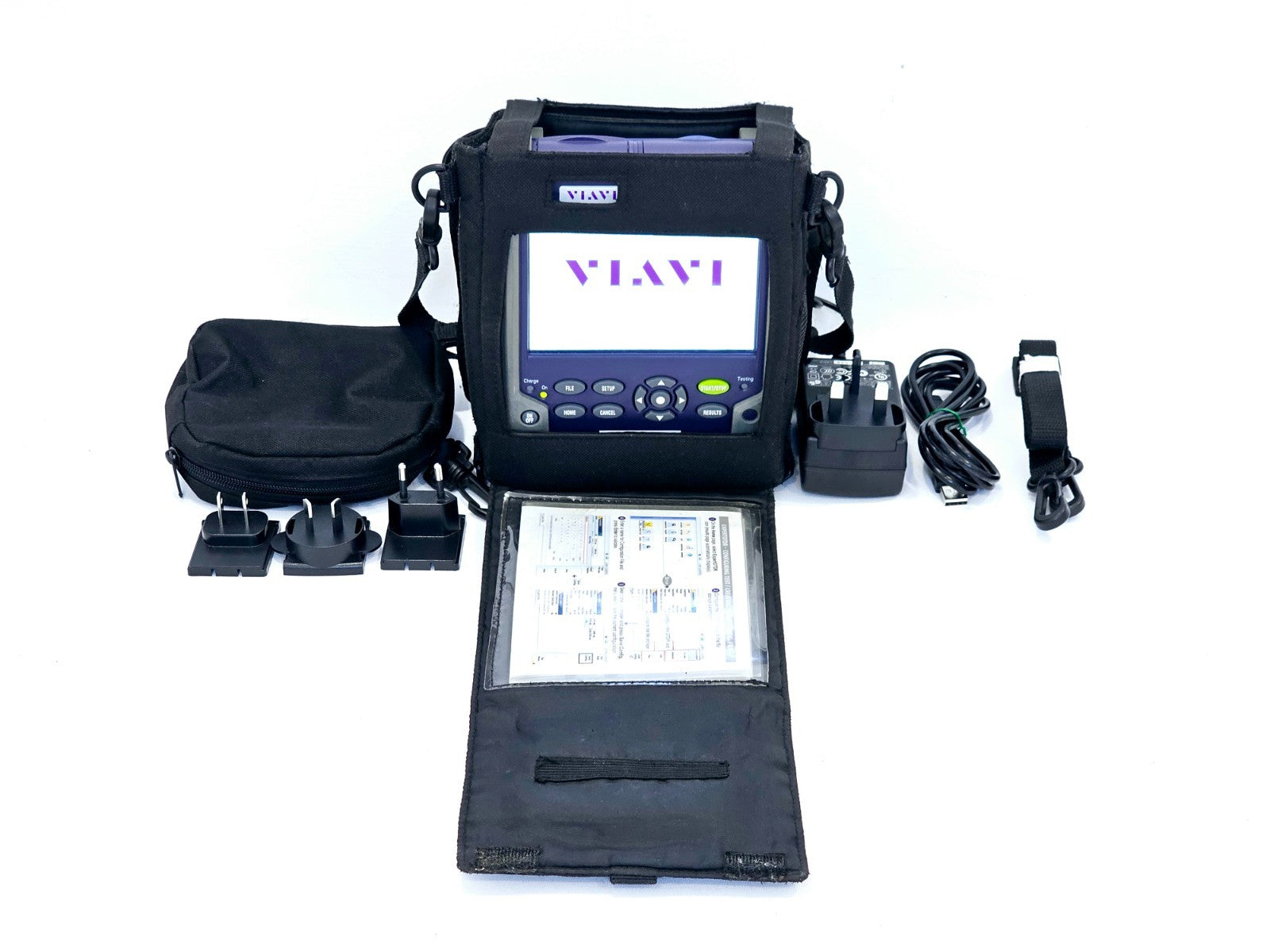

Included in the sale:

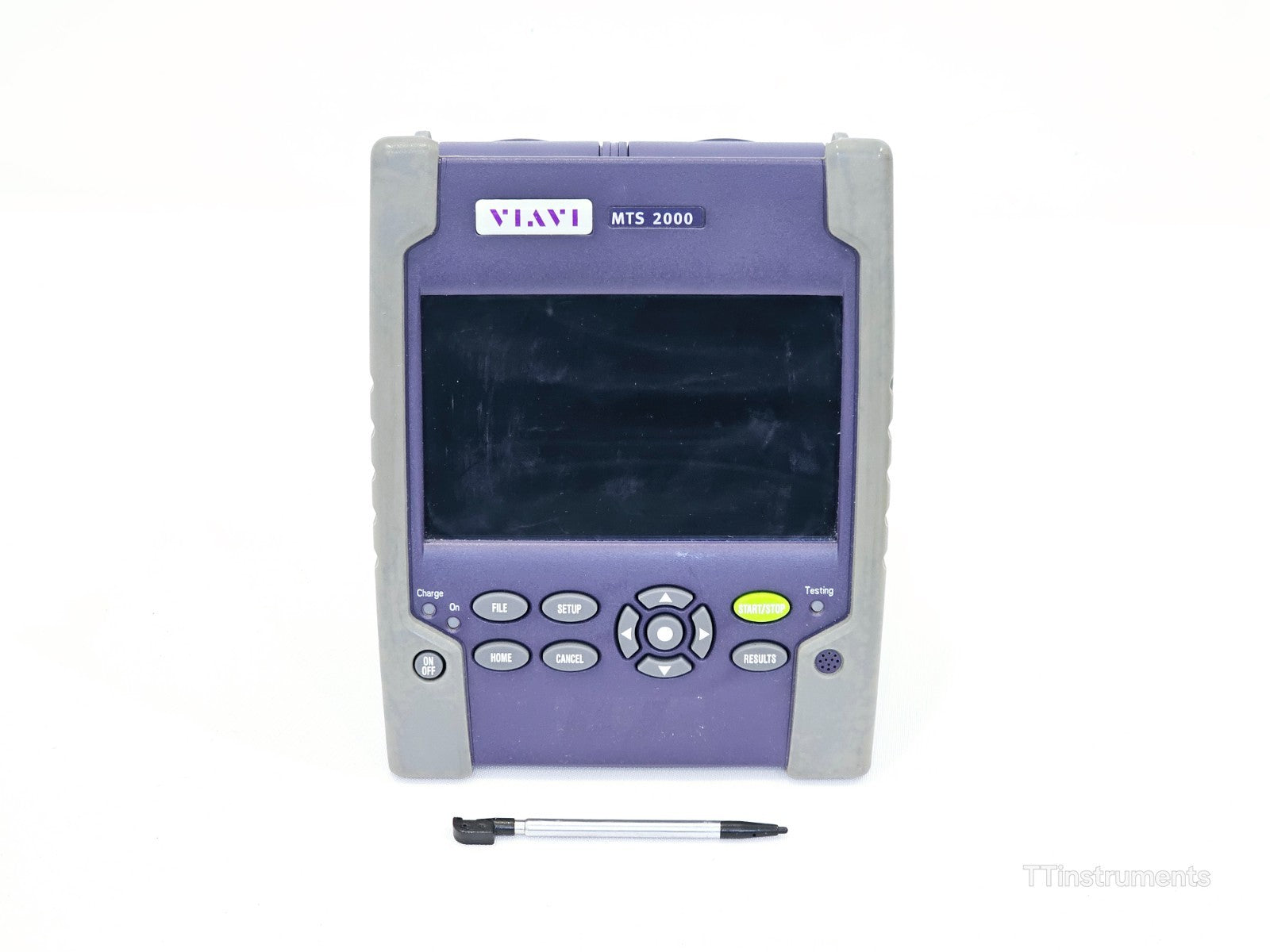

• Viavi JDSU MTS 2000 mainframe (smart cable/link/access L2 software, built-in power meter, visual fault locator, touchscreen)

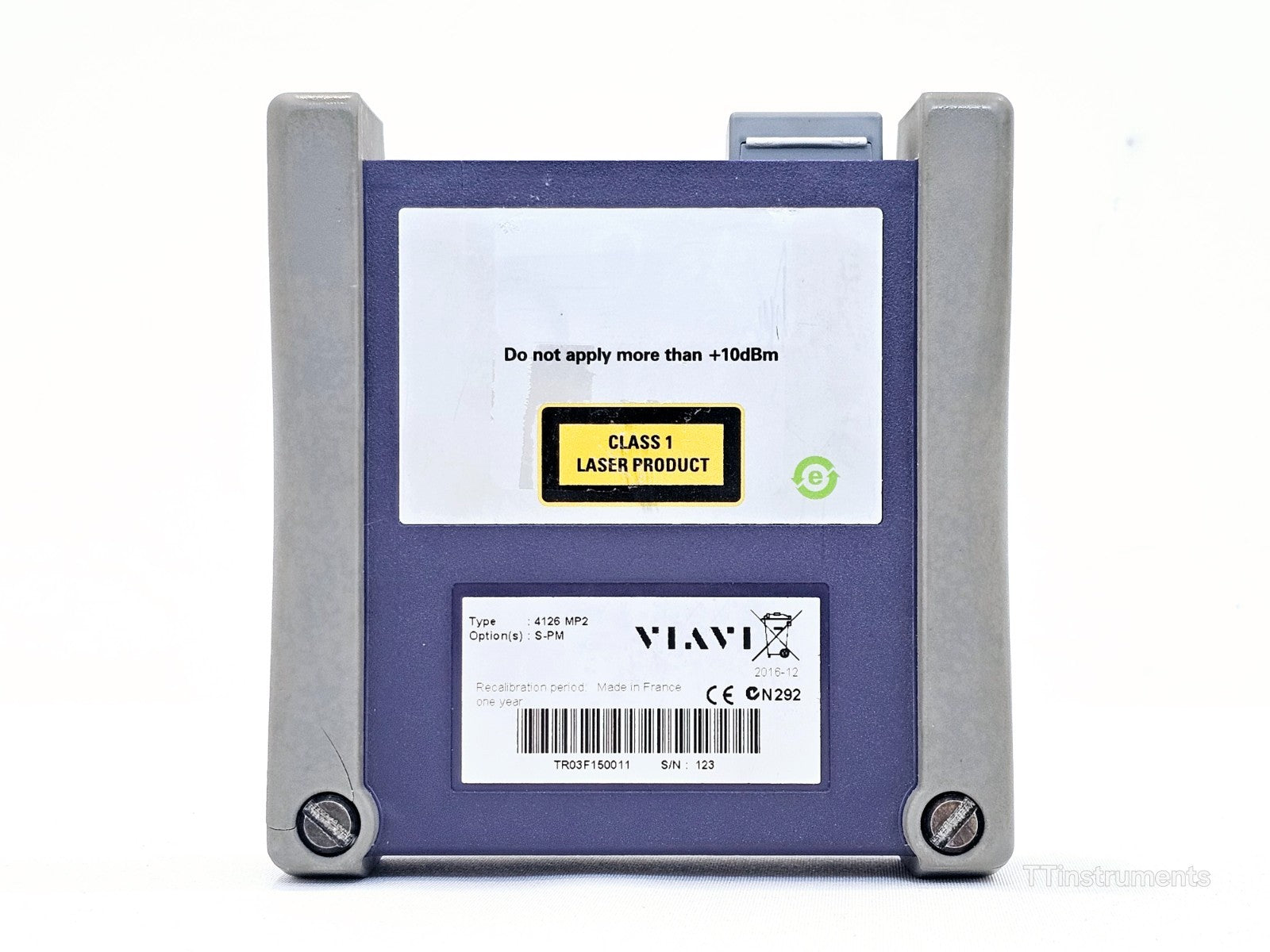

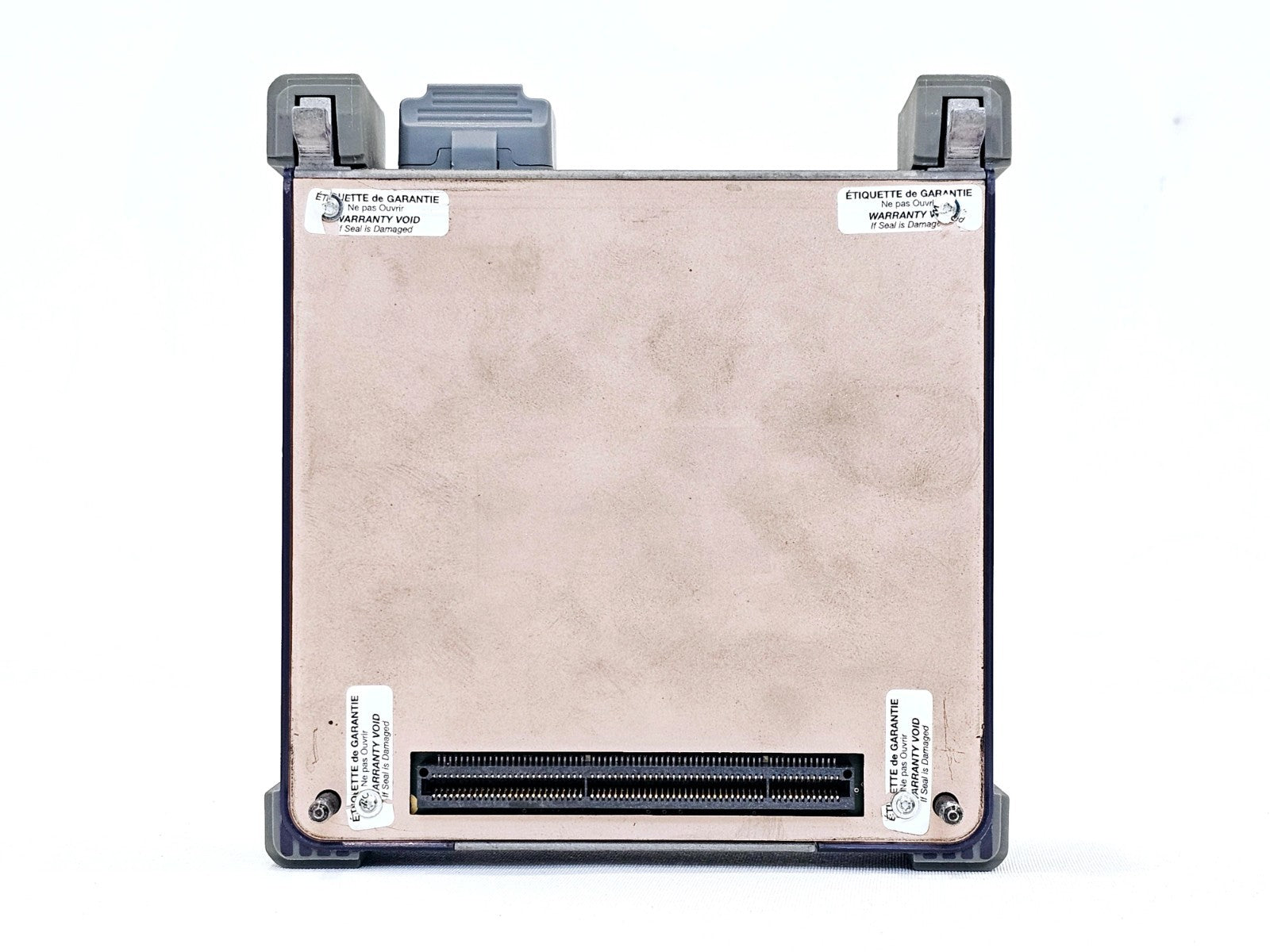

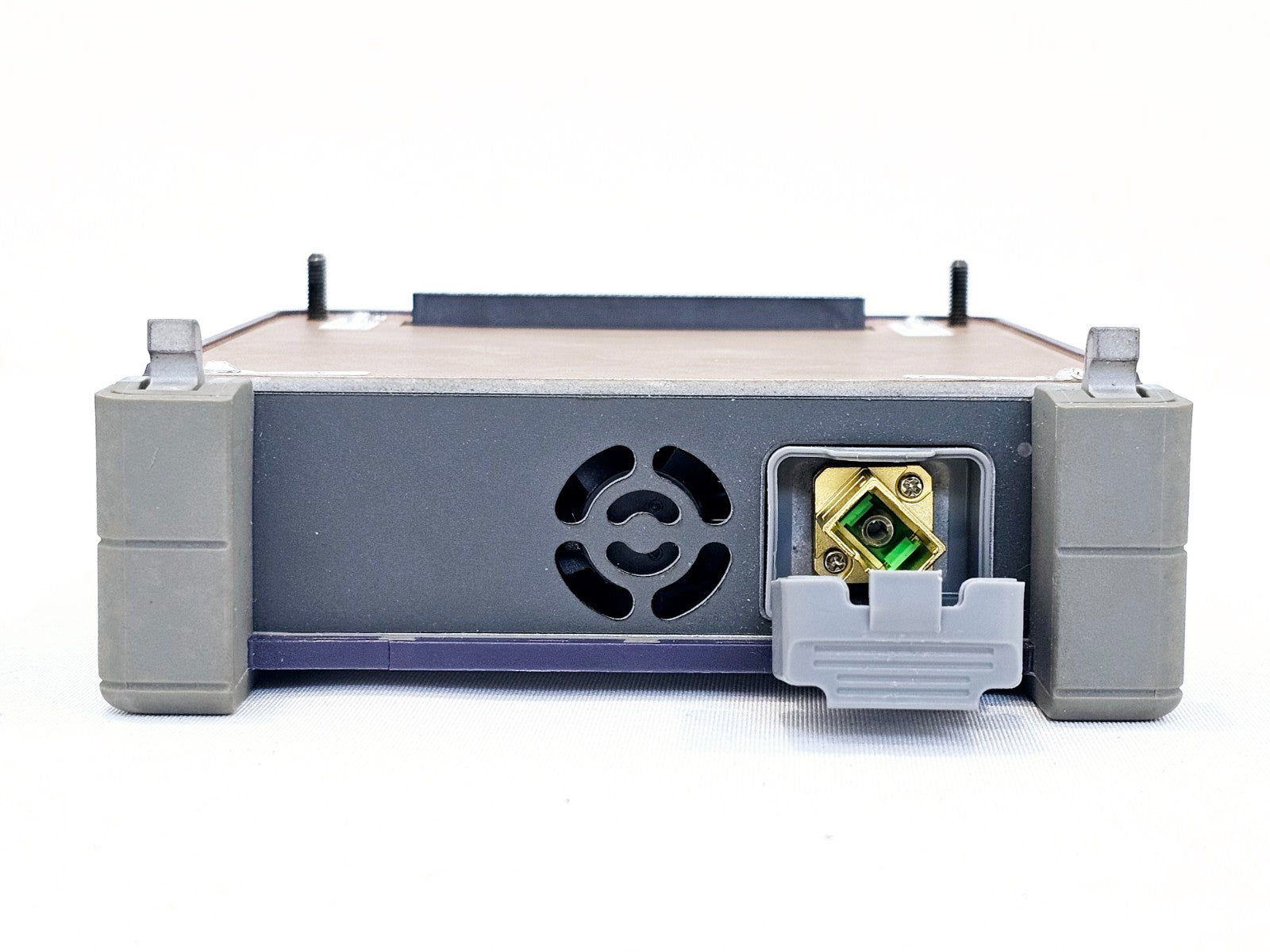

• Viavi 4126 MP2 PM-S SM OTDR Module (1310/1550 nm, 46/45 dB, SC-APC connector)
• AC power adapter
• Protective case

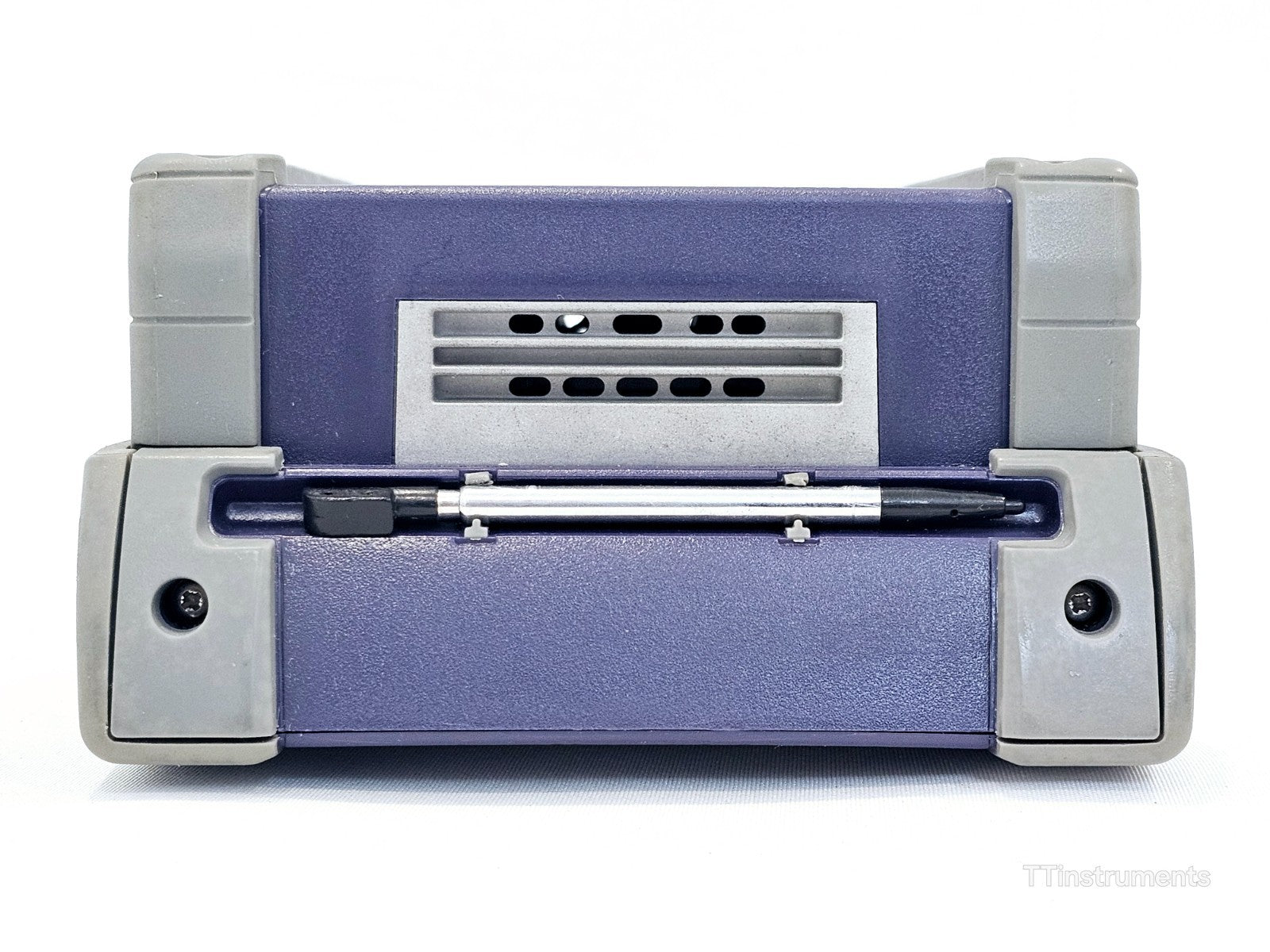

• Stylus

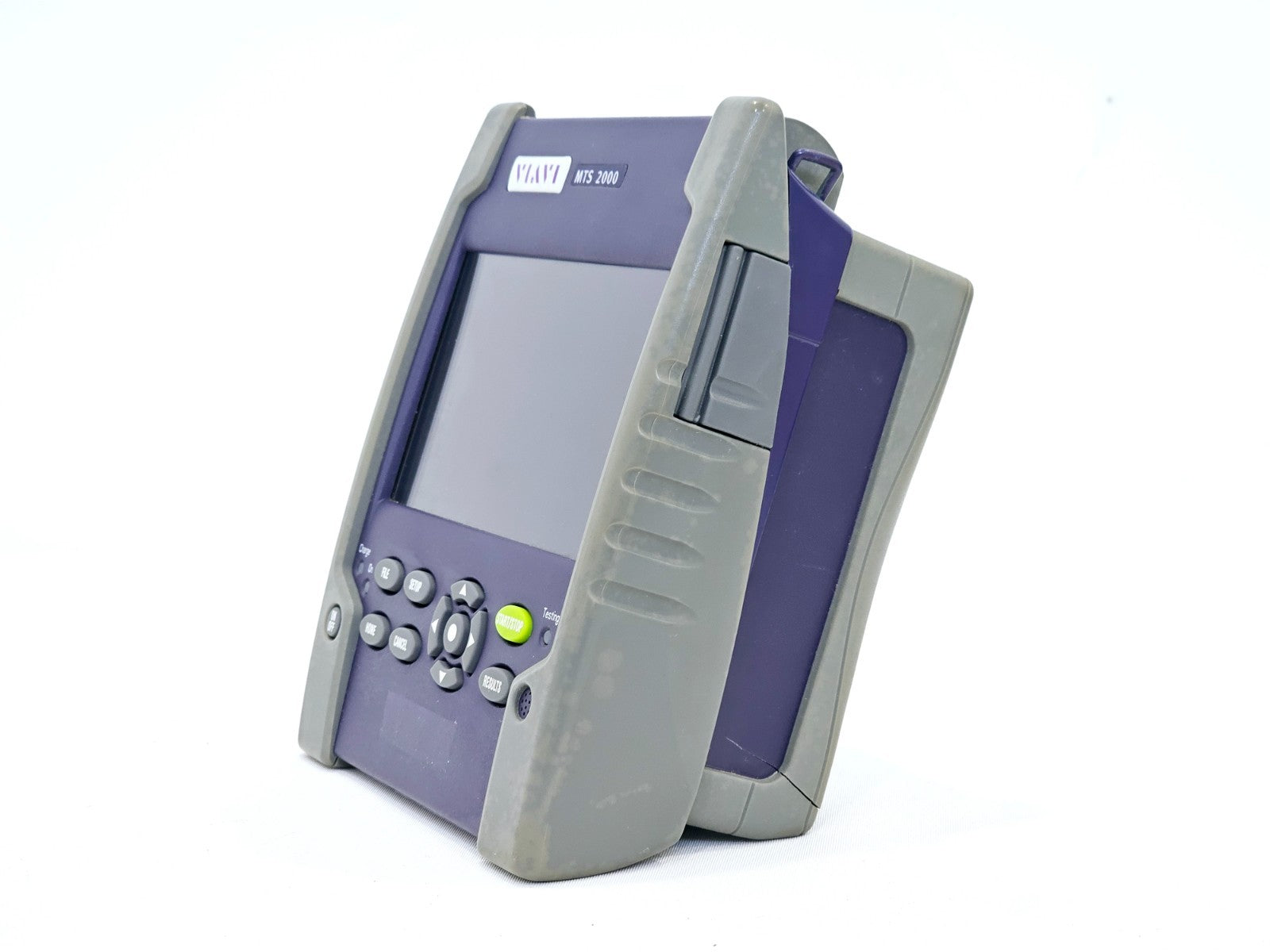

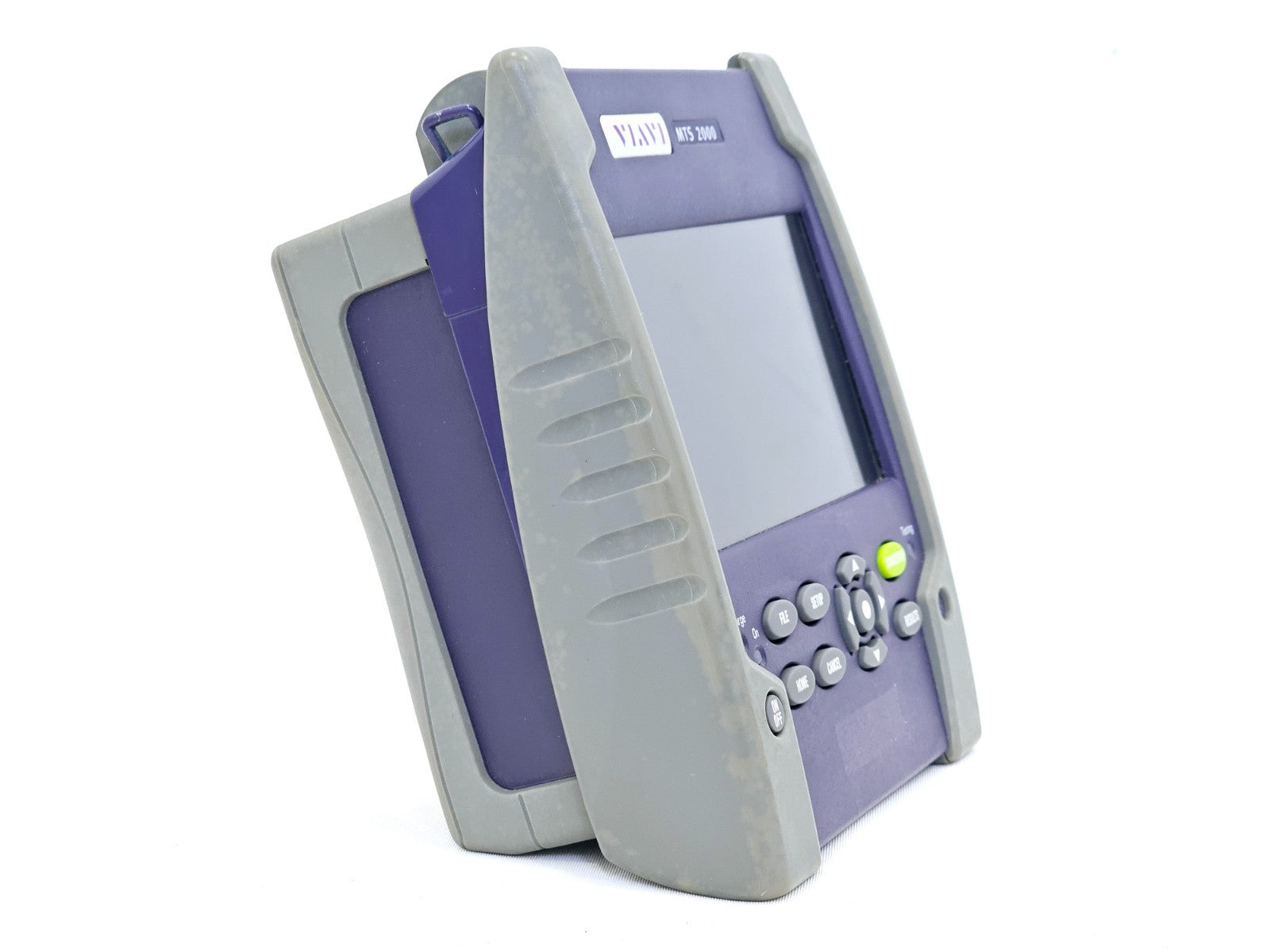

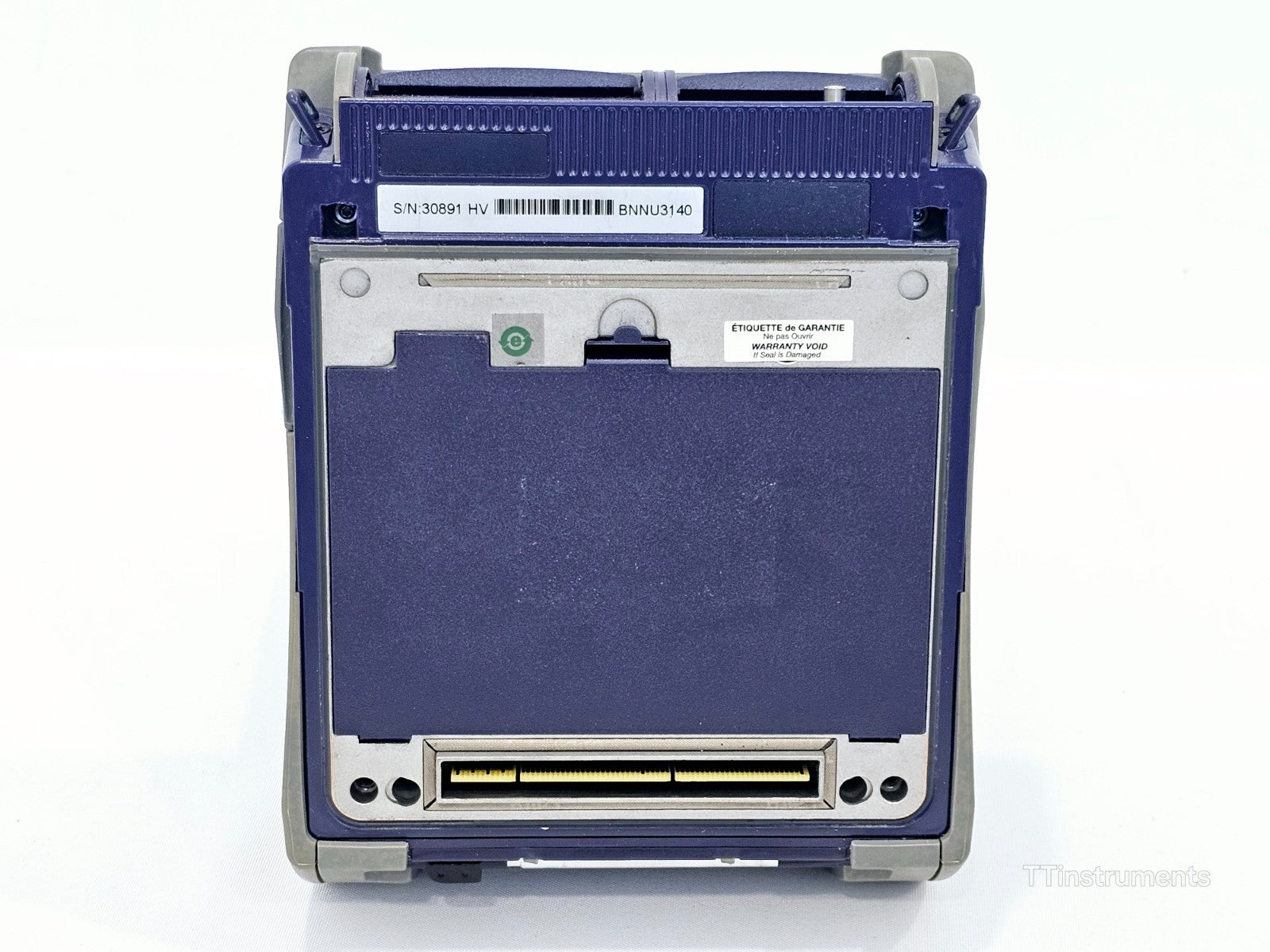

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

The Viavi Solutions MTS 2000 is a compact, touchscreen-based modular mainframe platform designed for field testing of fibre optic networks. Paired with the 4126 MP2 OTDR module, the system delivers optimised performance for metro, cable TV (CATV), and FTTH/PON network testing with high-port-count splitters.

The MP2 module features an improved dynamic range over the standard MP variant, making it ideal for testing PON architectures with splitting ratios of up to 1x128. Filtered wavelength options support in-service testing without disrupting live traffic, and the single-port design eliminates the need for connector changes between wavelengths.

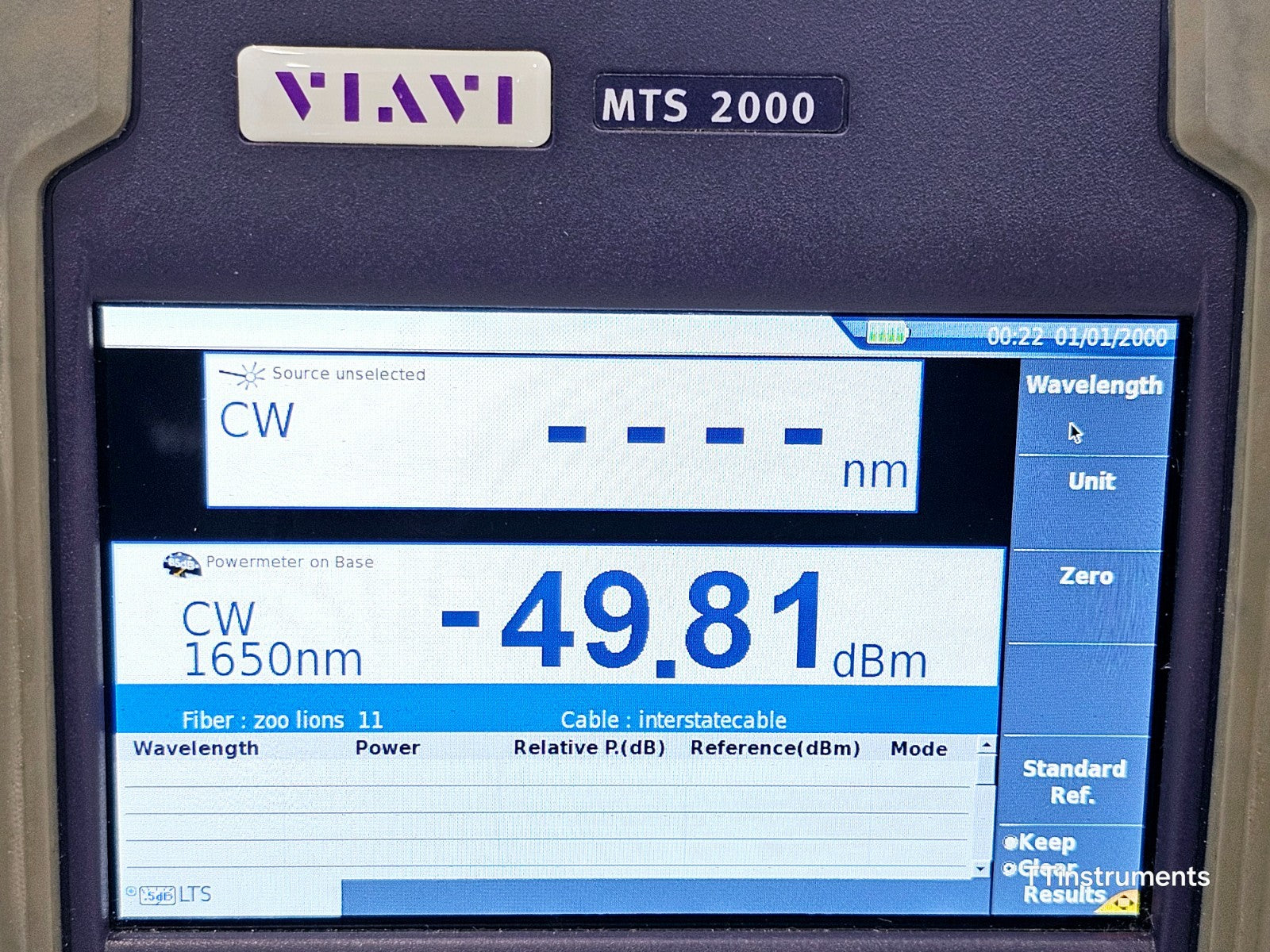

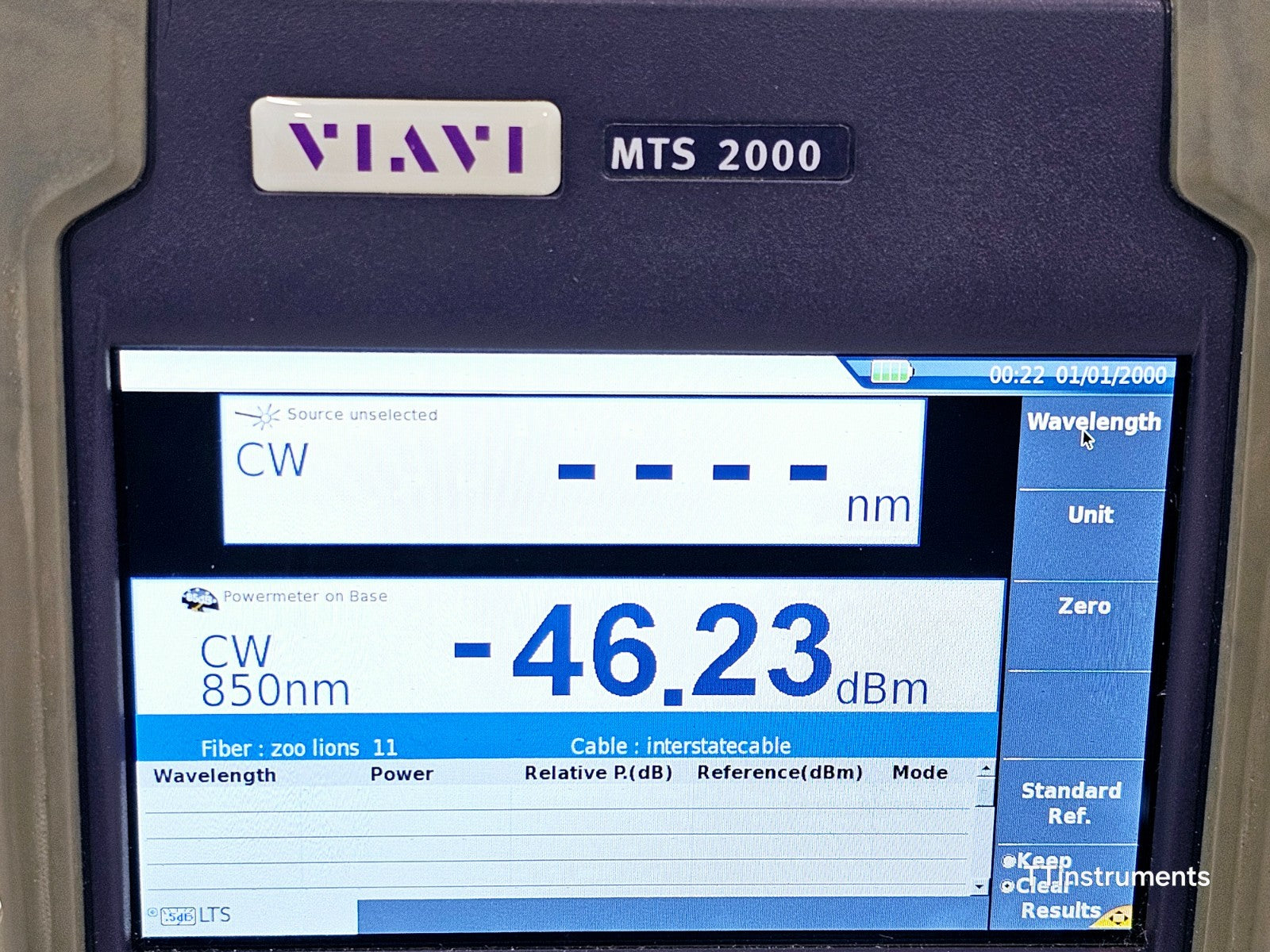

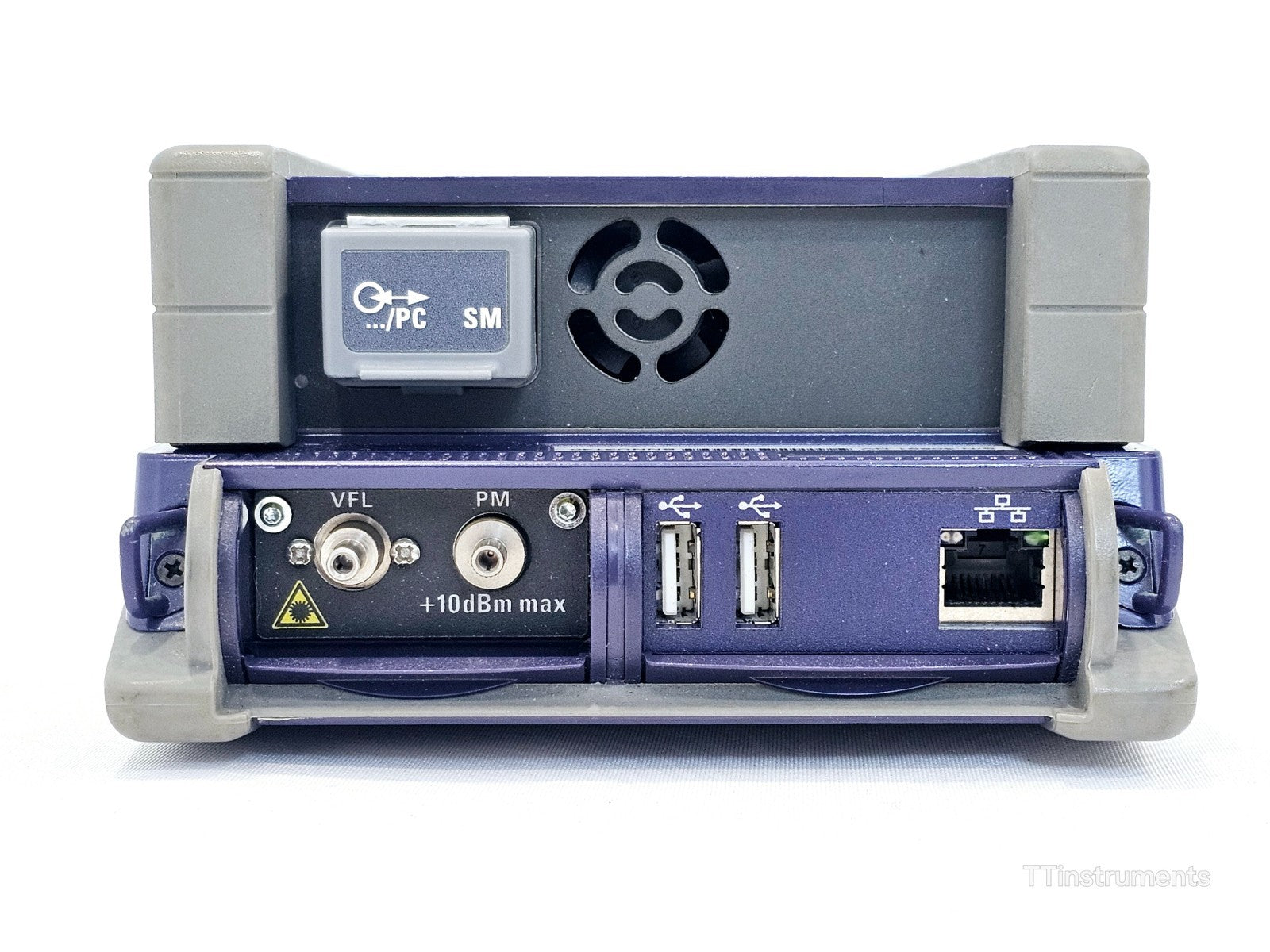

The MTS 2000 mainframe includes a built-in optical power meter and visual fault locator (VFL), a colour touchscreen interface, and supports smart cable/link/access L2 software for automated pass/fail reporting and bidirectional OTDR analysis.

Key Specifications — Viavi 4126 MP2 SM OTDR Module:

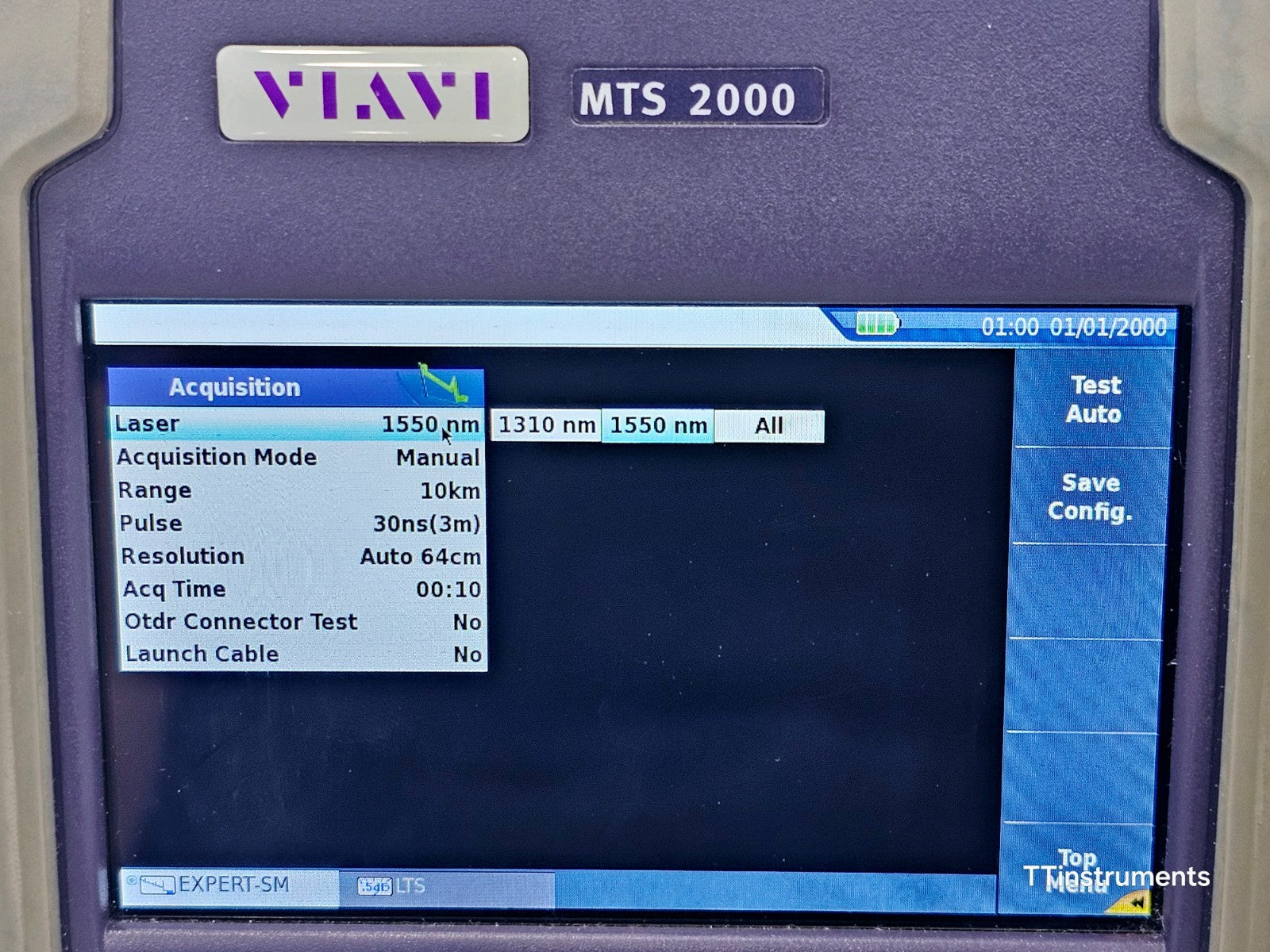

Wavelengths: 1310 nm / 1550 nm
Dynamic Range: 46 dB (1310 nm) / 45 dB (1550 nm)
Connector Type: SC-APC
Fibre Type: Singlemode
PON Compatibility: Up to 1x128 splitting ratio
Acquisition Points: Up to 256,000

Key Specifications — MTS 2000 Mainframe:
Display: Colour touchscreen
Built-in Power Meter: Yes
Built-in Visual Fault Locator (VFL): Yes
Software: Smart Cable / Link / Access L2

Standard Testing Features:
Automatic macrobend detection
Summary results table with pass/fail analysis
Bidirectional OTDR analysis
FastReport on-board report generation
Instant live-fibre traffic detection
FiberComplete compatible
Ready for SLM, FTTA-SLM, and FTTH-SLM intelligent optical application software

Viavi MTS 2000 Platform and MP OTDR Module Product Page — refer to Viavi Solutions website for datasheets: Download PDF
