Condition: Used

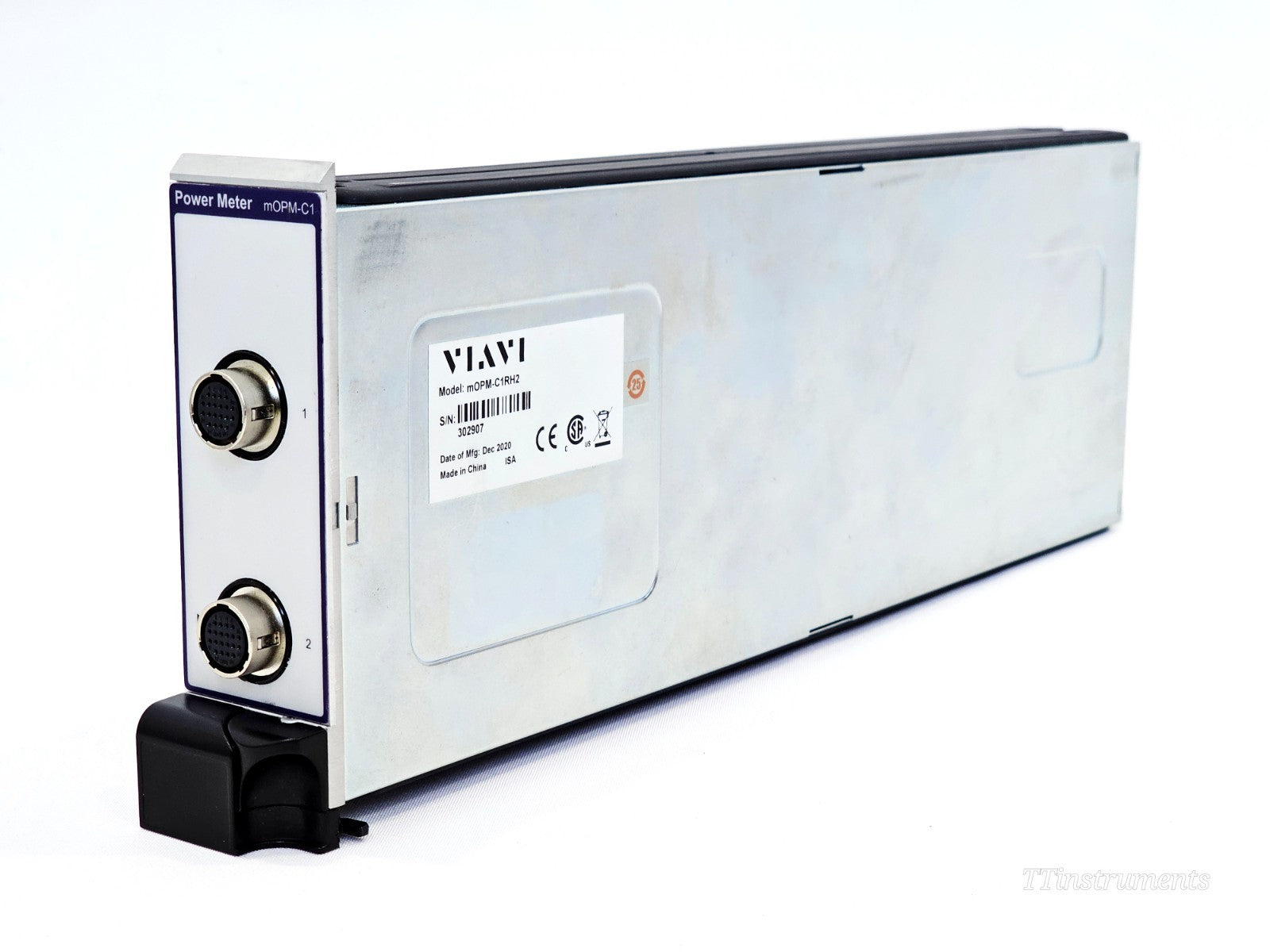

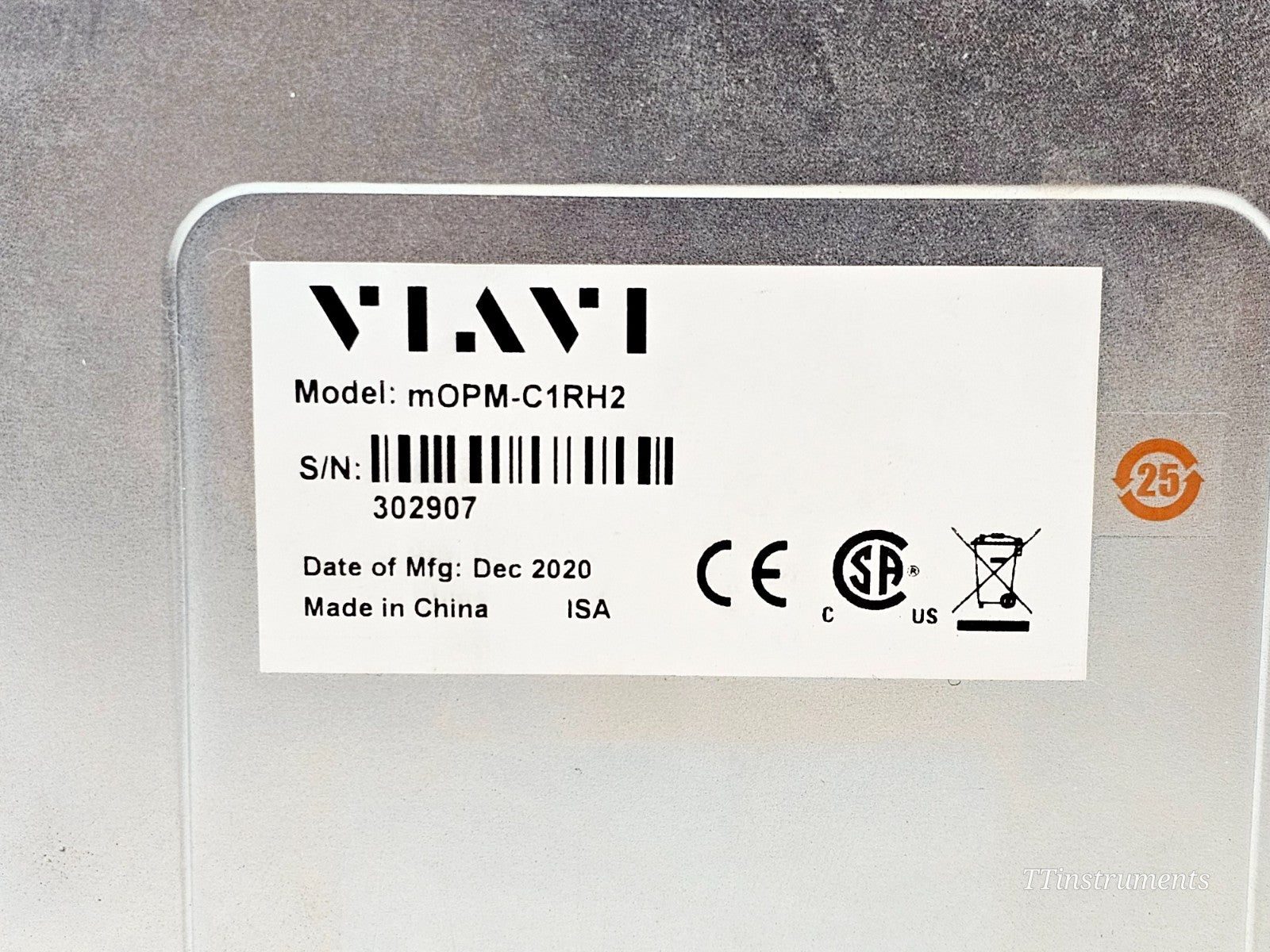

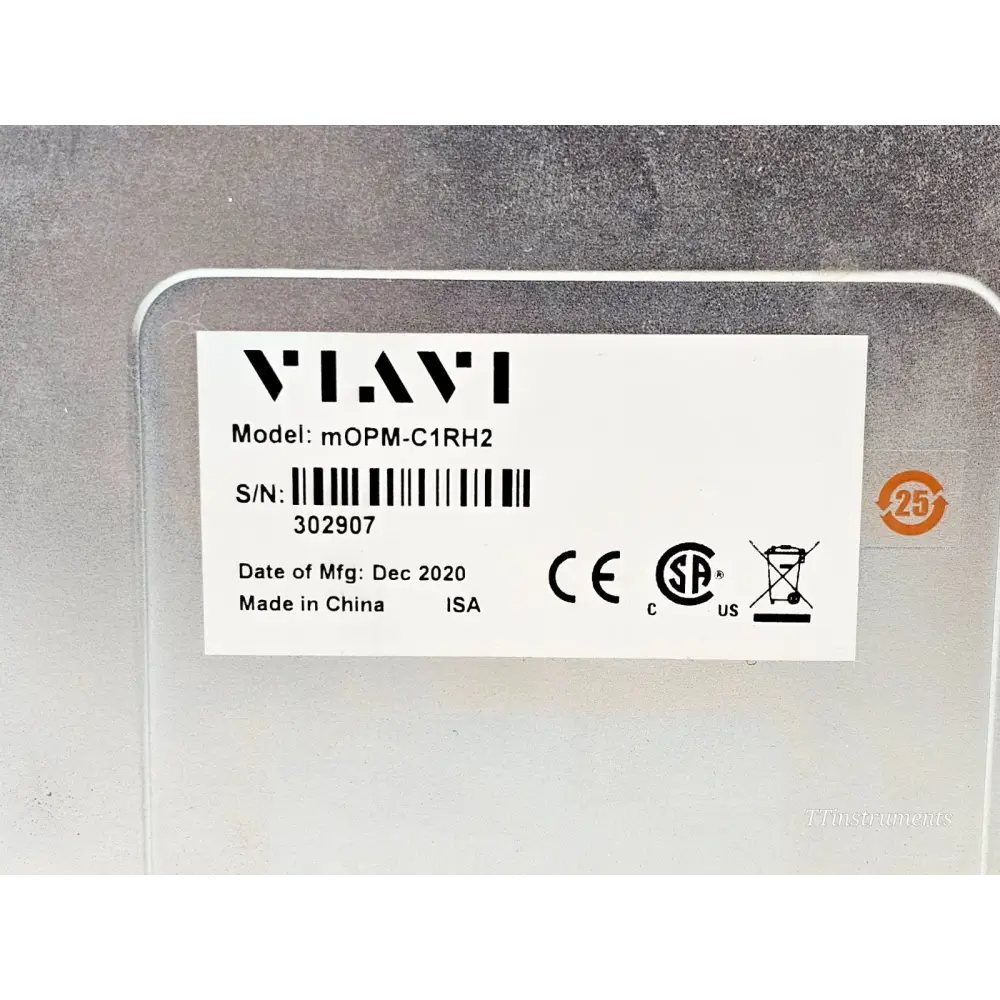

The Viavi JDSU mOPM-C1RH2 is a dual-channel remote head interface cassette for the MAP-200 platform. This unit carries S/N 302907, manufactured December 2020. It is in used condition and presents general cosmetic wear consistent with previous use.

Included in the sale:
• Viavi mOPM-C1RH2 dual-channel remote head power meter module (S/N 302907)

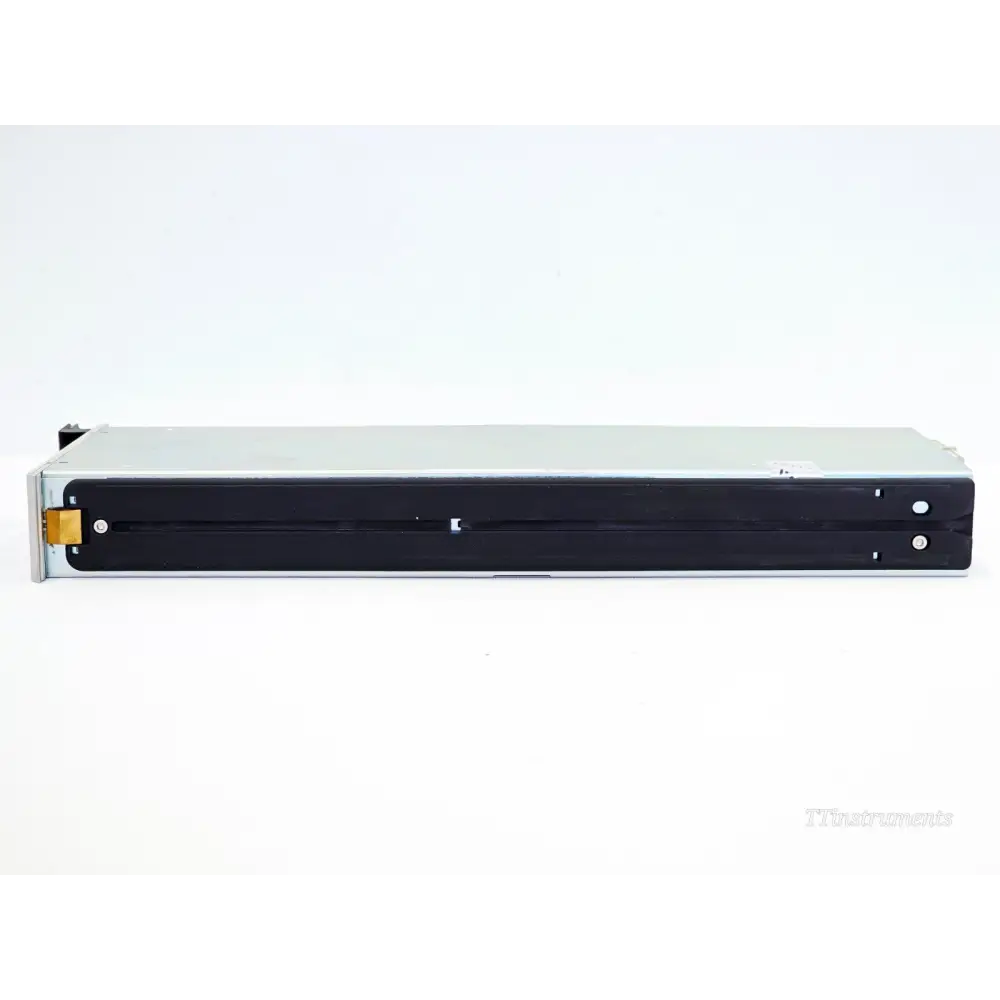

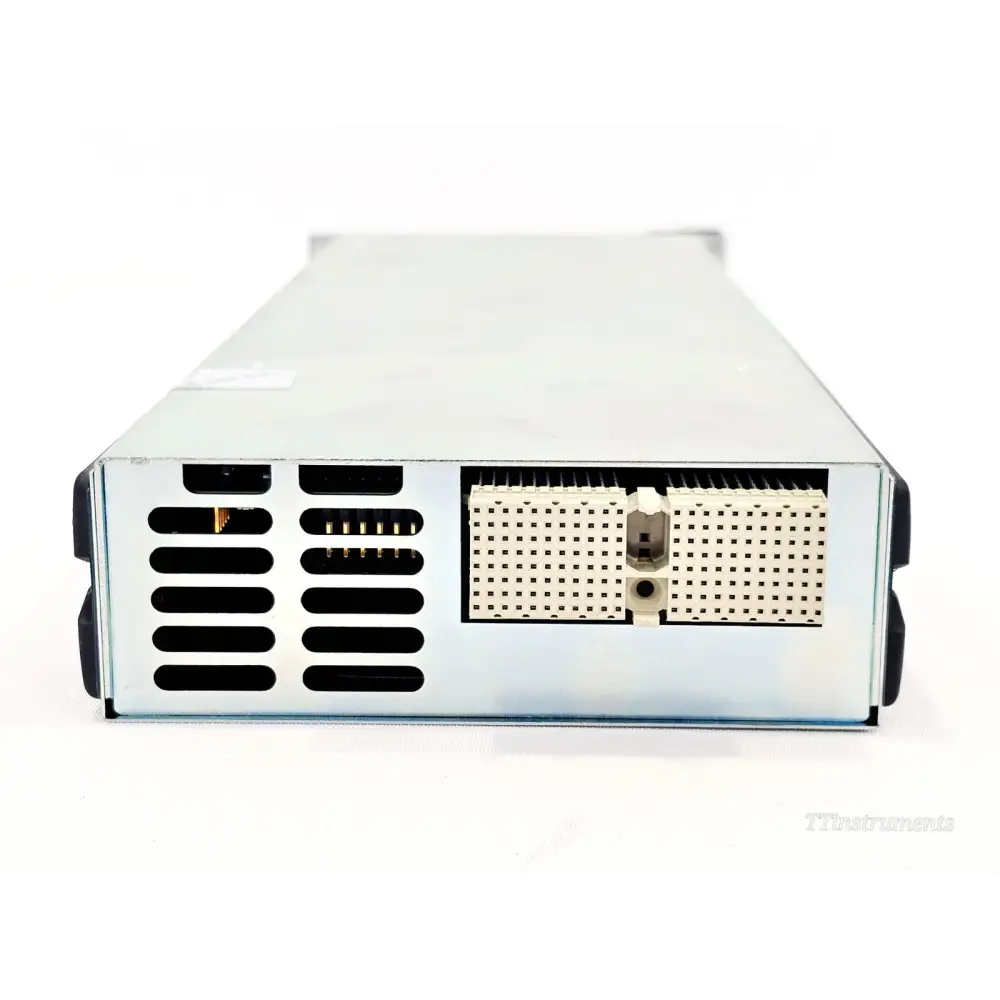

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

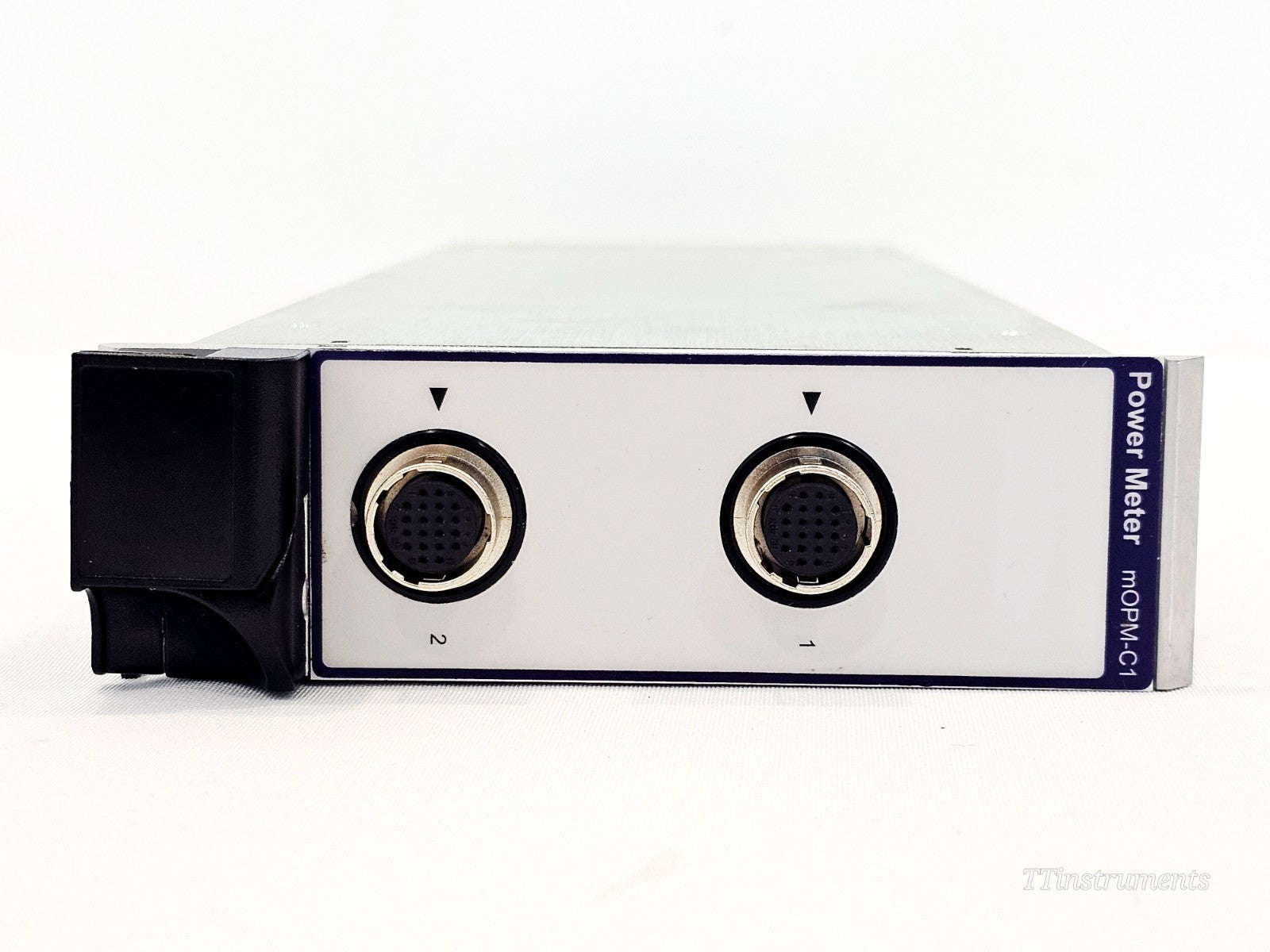

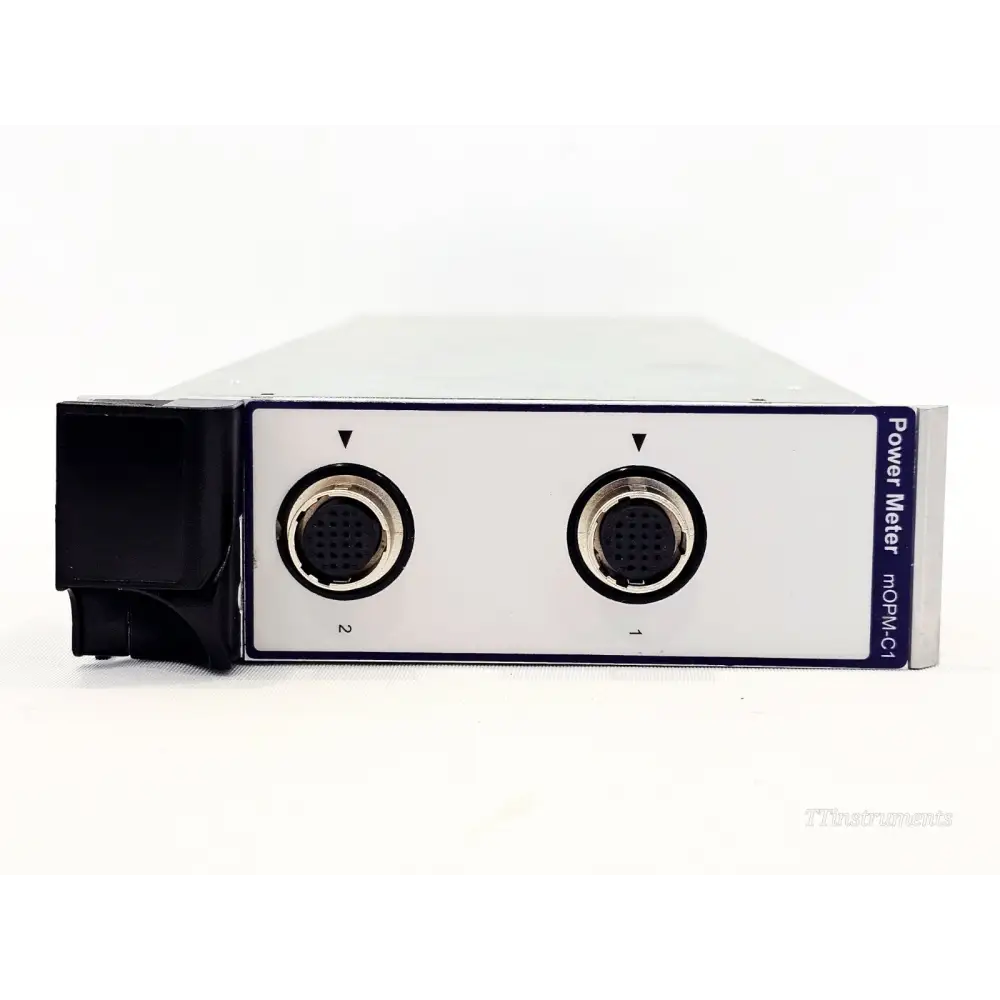

The Viavi Solutions (formerly JDSU) mOPM-C1 is an optical power meter module belonging to the MAP-200 Multiple Application Platform family. The mOPM-C1RH2 variant features two remote head interface ports, allowing external optical detector heads to be positioned directly at the device under test (DUT), decoupled from the chassis location. This makes it ideal for characterising components in complex optical test setups where physical access to the DUT is restricted.

The mOPM-C1 series builds upon the earlier mOPM-B1 design, offering improved integration and compatibility within the MAP-200 chassis ecosystem. All variants utilise InGaAs detector technology, ensuring compatibility with single-mode and multimode fibre applications across a broad wavelength range.

Key Features:
Channel Configuration: Dual channel (RH2 = 2 remote head ports)
Operating Wavelength Range: 750 to 1700 nm
Detector Type: InGaAs
Dynamic Range (General Purpose): -70 to +10 dBm
Dynamic Range (High Performance): -80 to +10 dBm
Maximum Input Power (High Power grade): +27 dBm
Sampling Rate: Up to 250 kHz
Memory Depth: 100,000 data points per optical sensor
Fibre Compatibility: Single-mode and multimode (NA ≤ 0.27, max core size 62.5 µm)
Platform Compatibility: Viavi/JDSU MAP-200 chassis
Compliance: CE, CSA/UL/IEC 61010-1, LXI Class C
Date of Manufacture: December 2020

Applications:
Amplifier characterisation
Receiver and transmitter testing
Absolute optical power measurement
Optical switching time measurement
Transient capture and data logging
Insertion loss and return loss testing

JDSU mOPM-B1 MAP Optical Power Meter Module datasheet — key features, specifications, and ordering information: Download PDF

VIAVI mOPM-C1 MAP Optical Power Meter datasheet — updated specifications and performance data for the MAP platform OPM family: Download PDF
