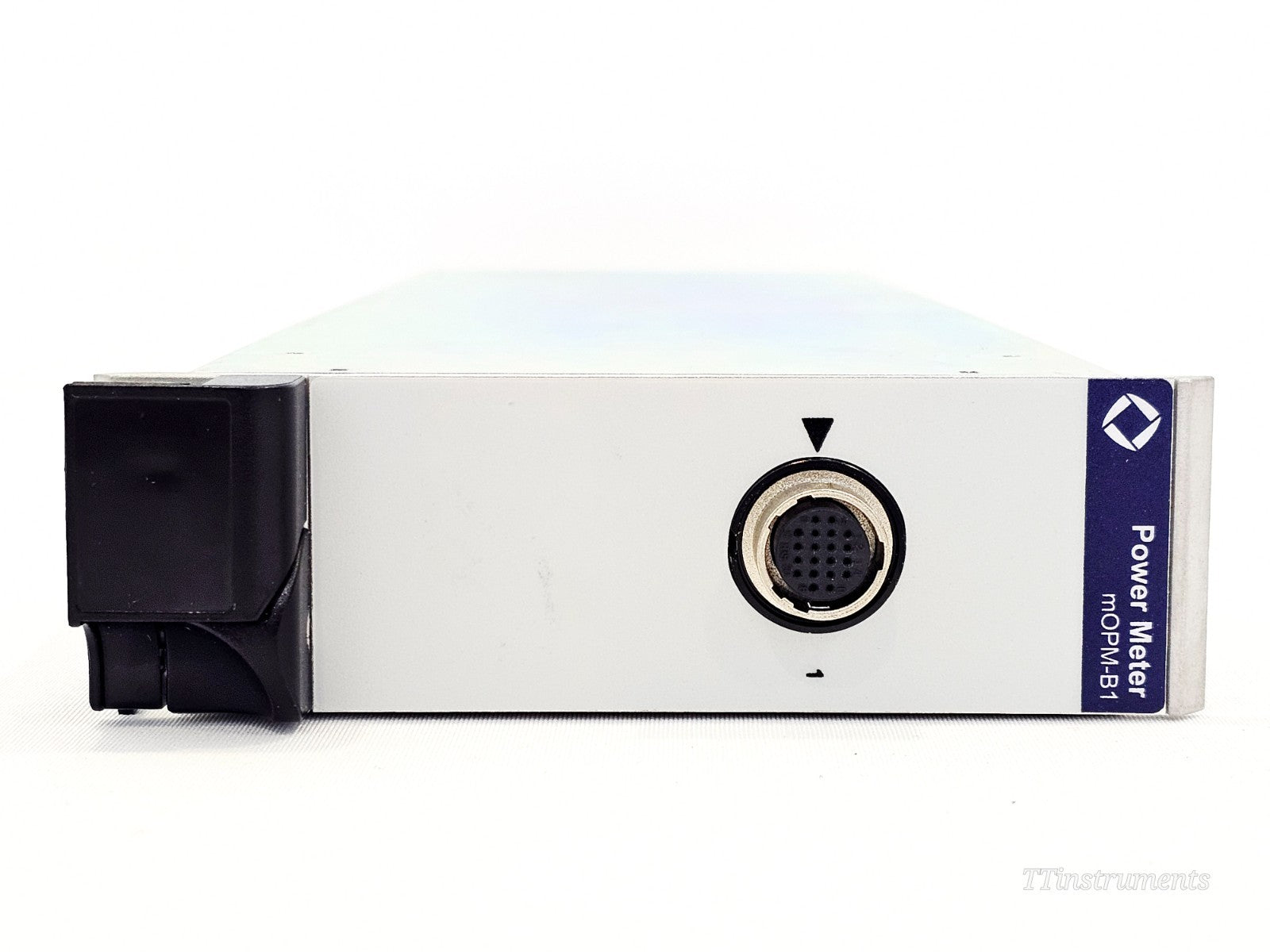

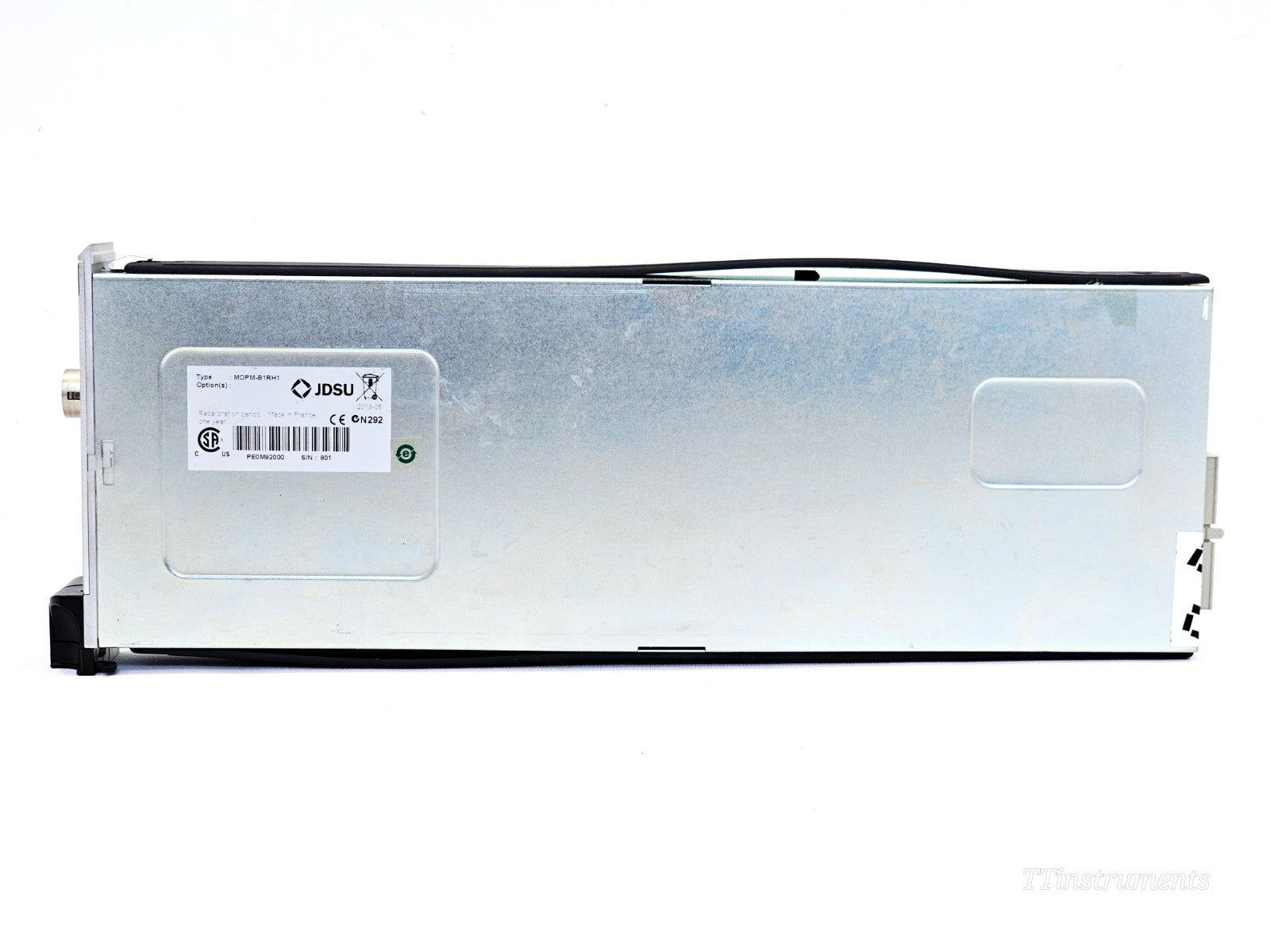

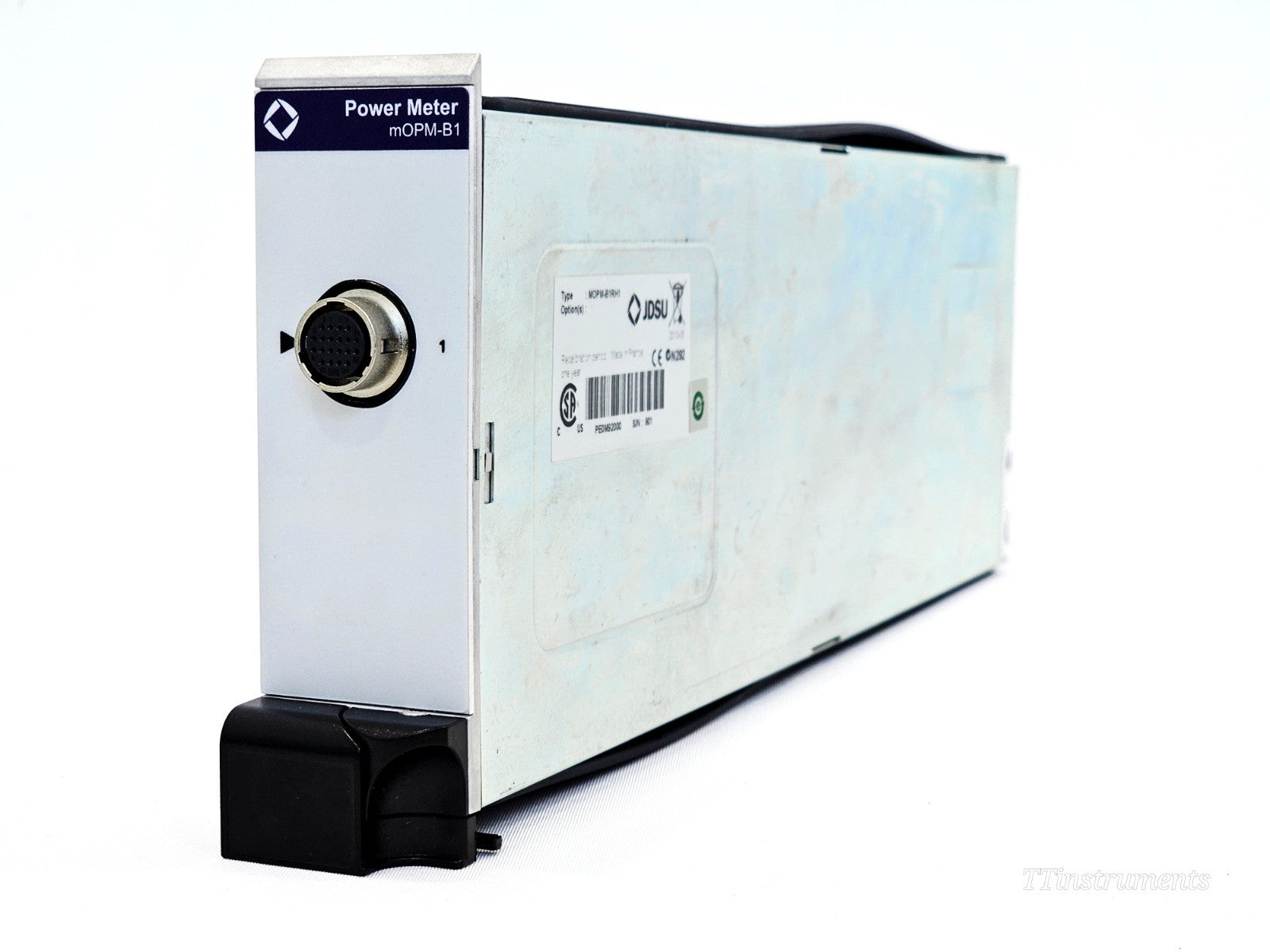

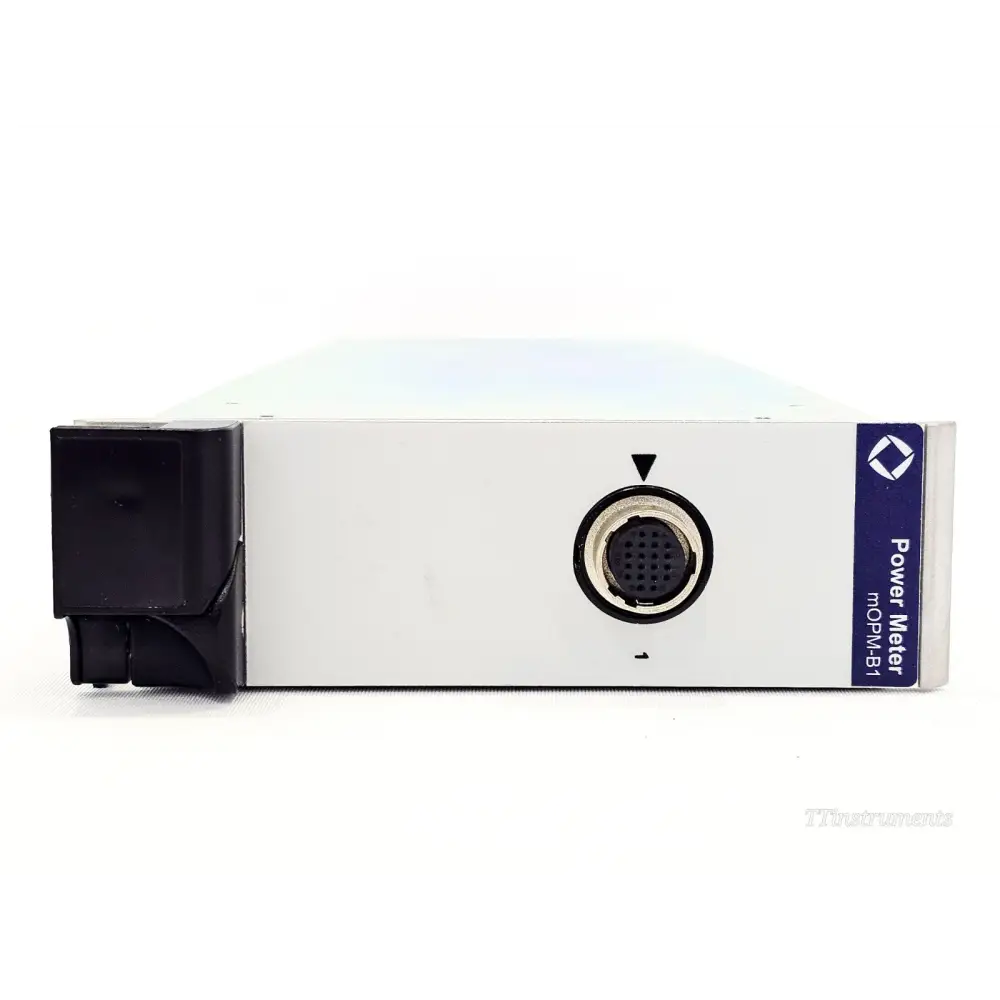

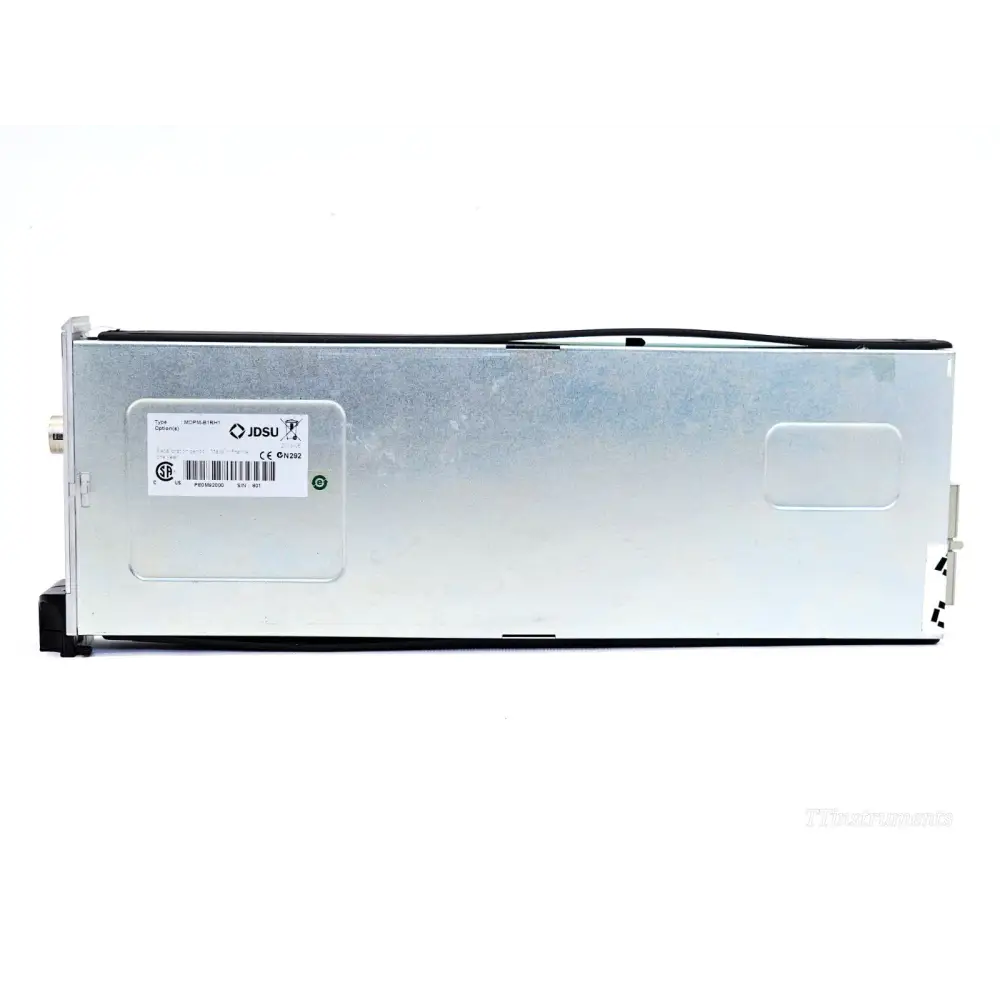

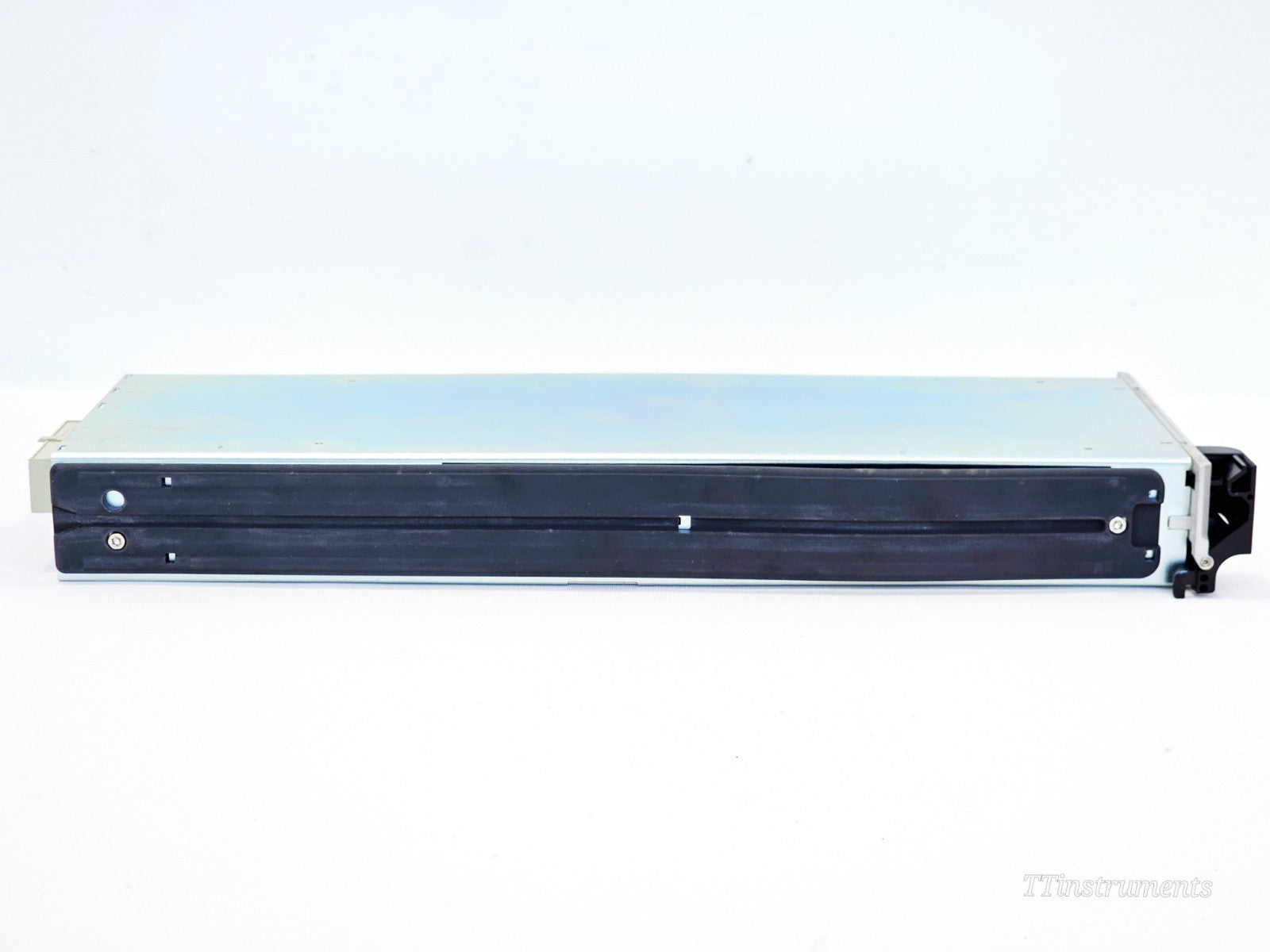

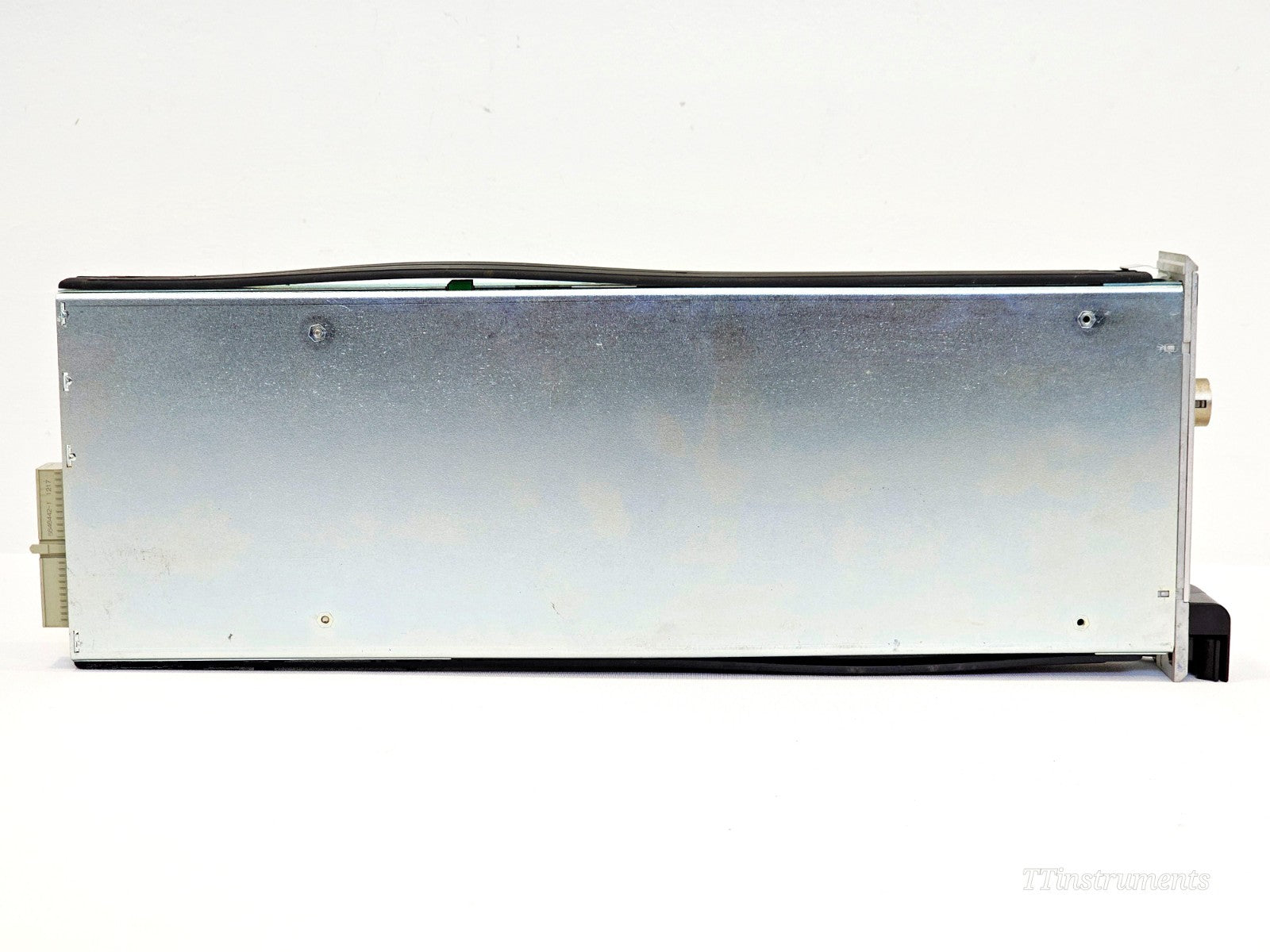

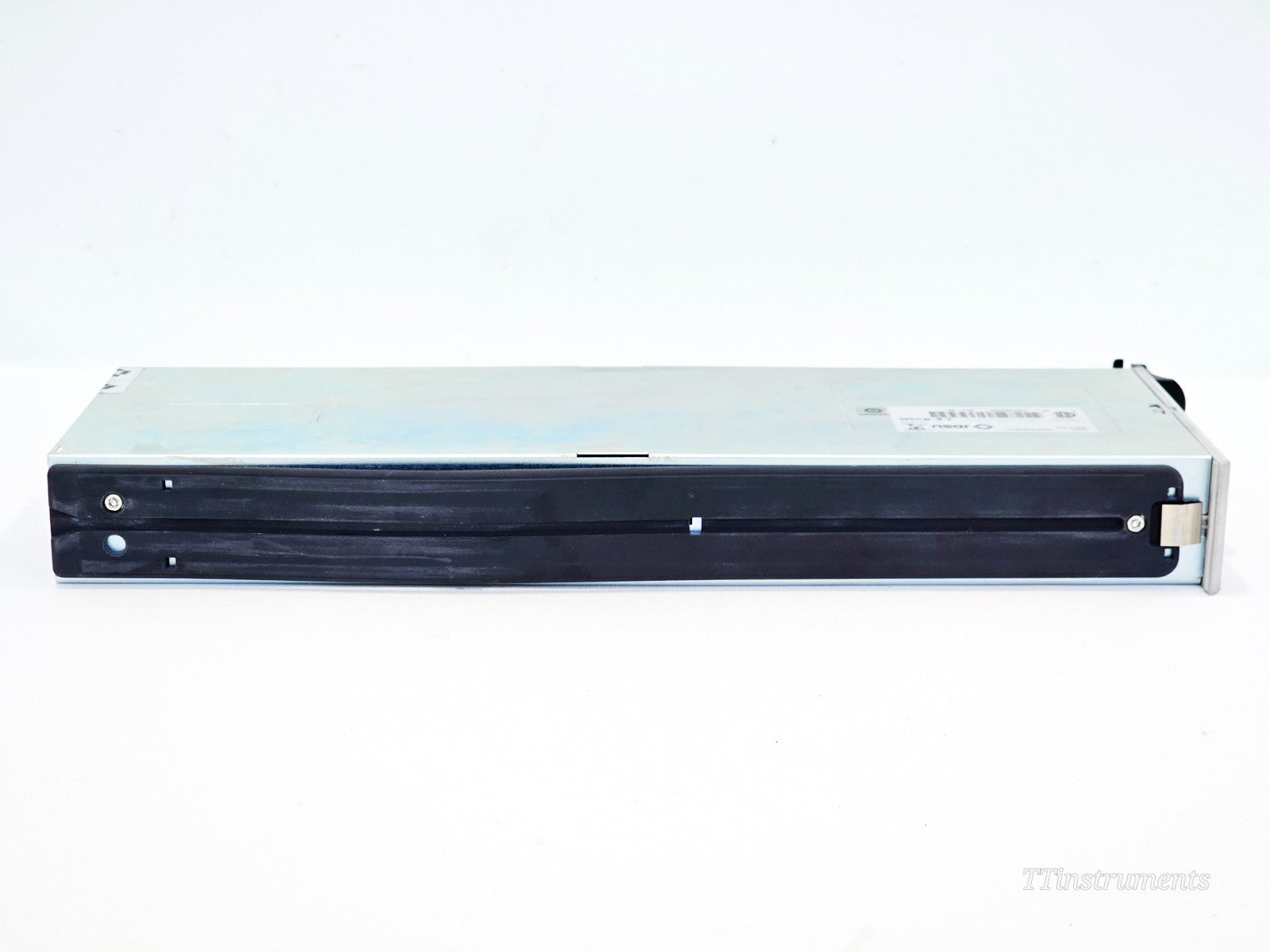

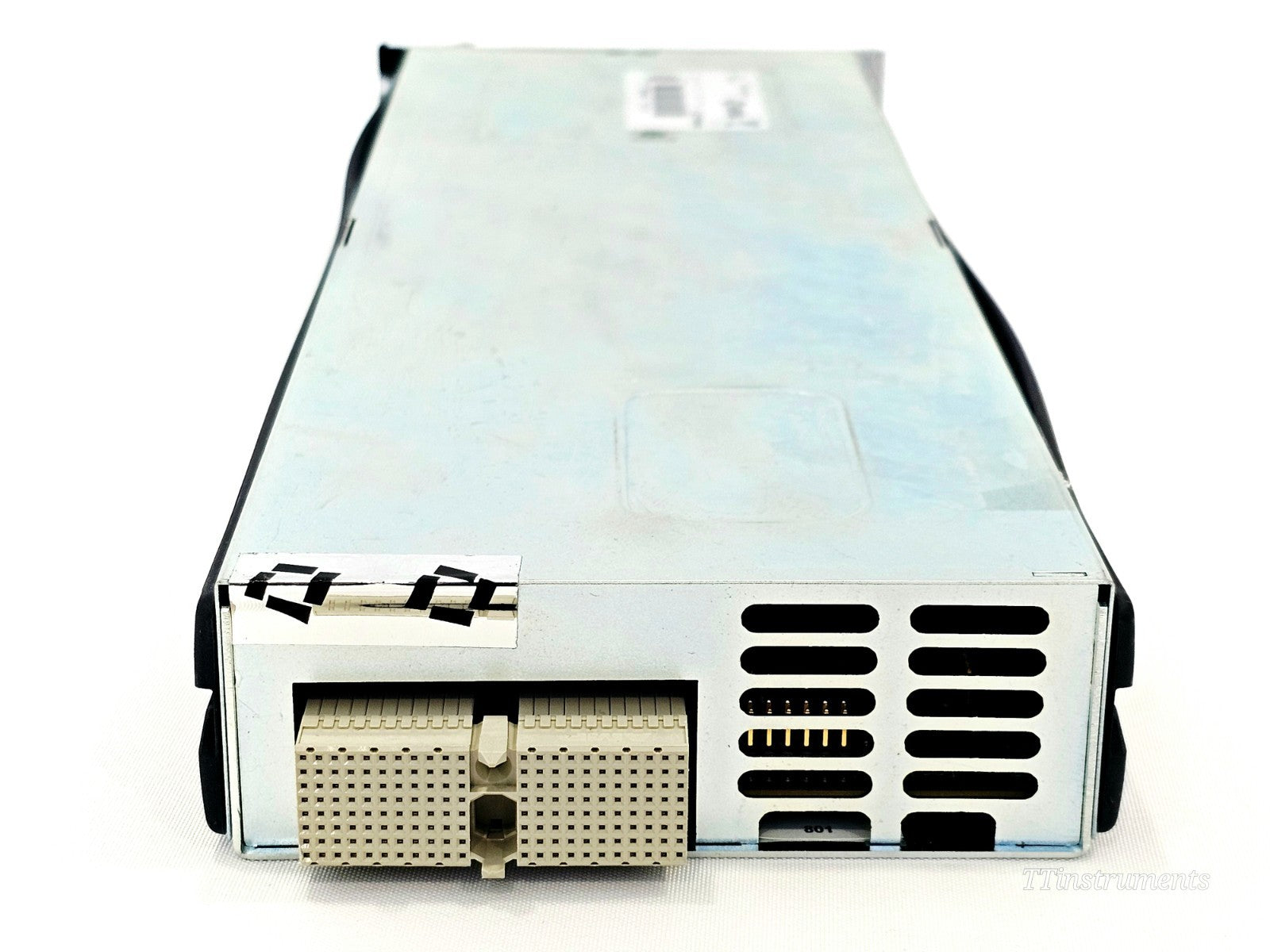

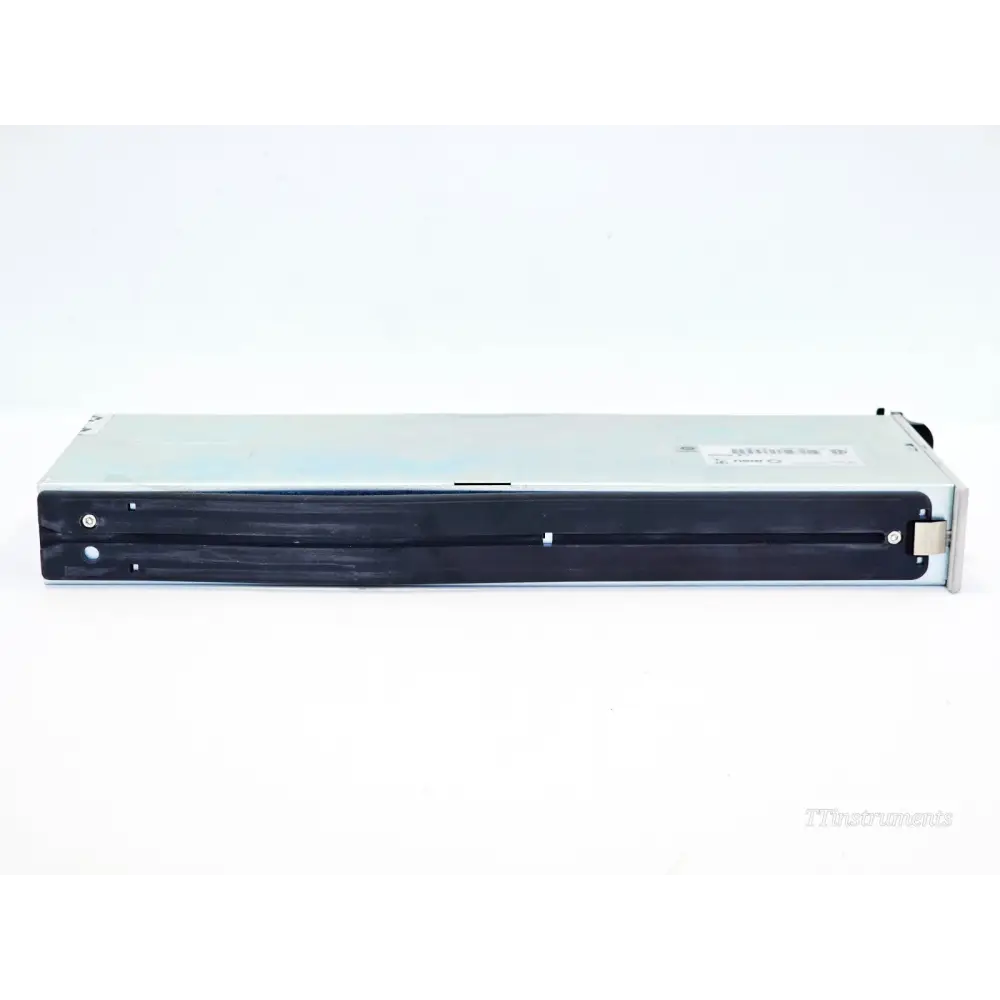

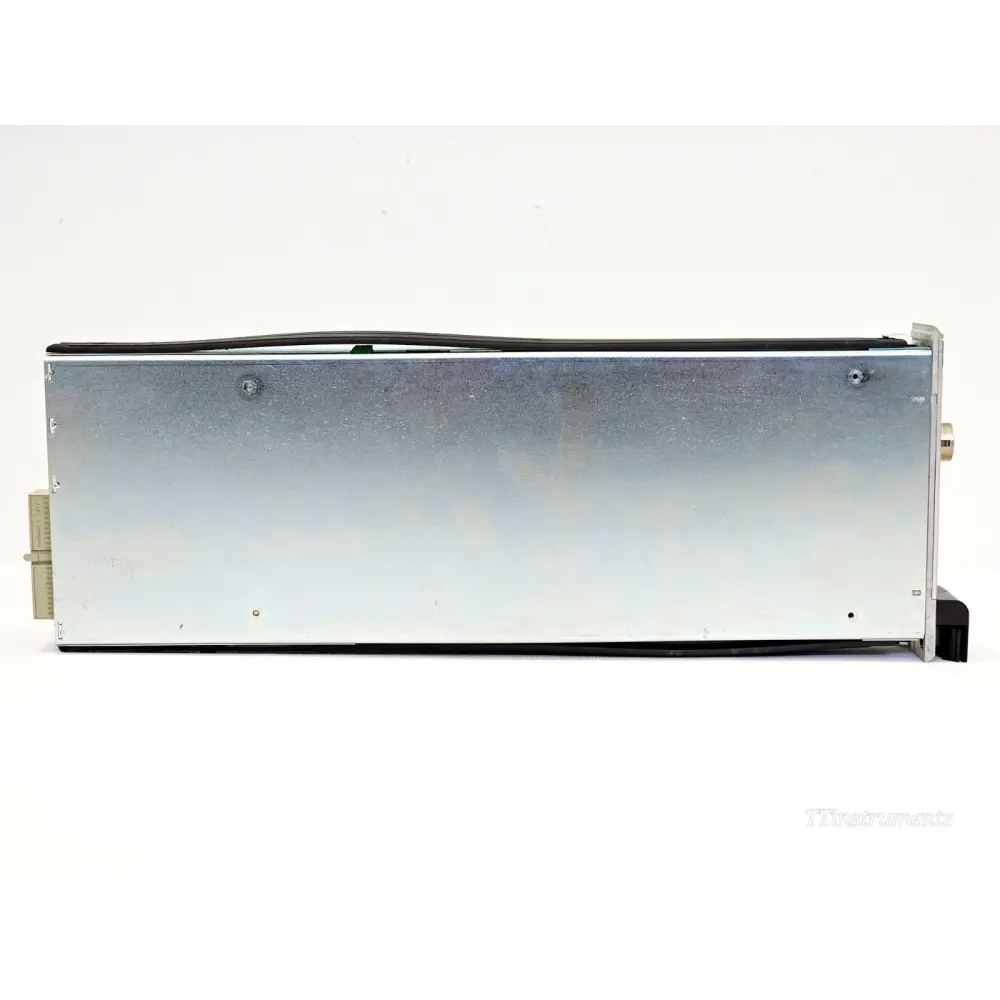

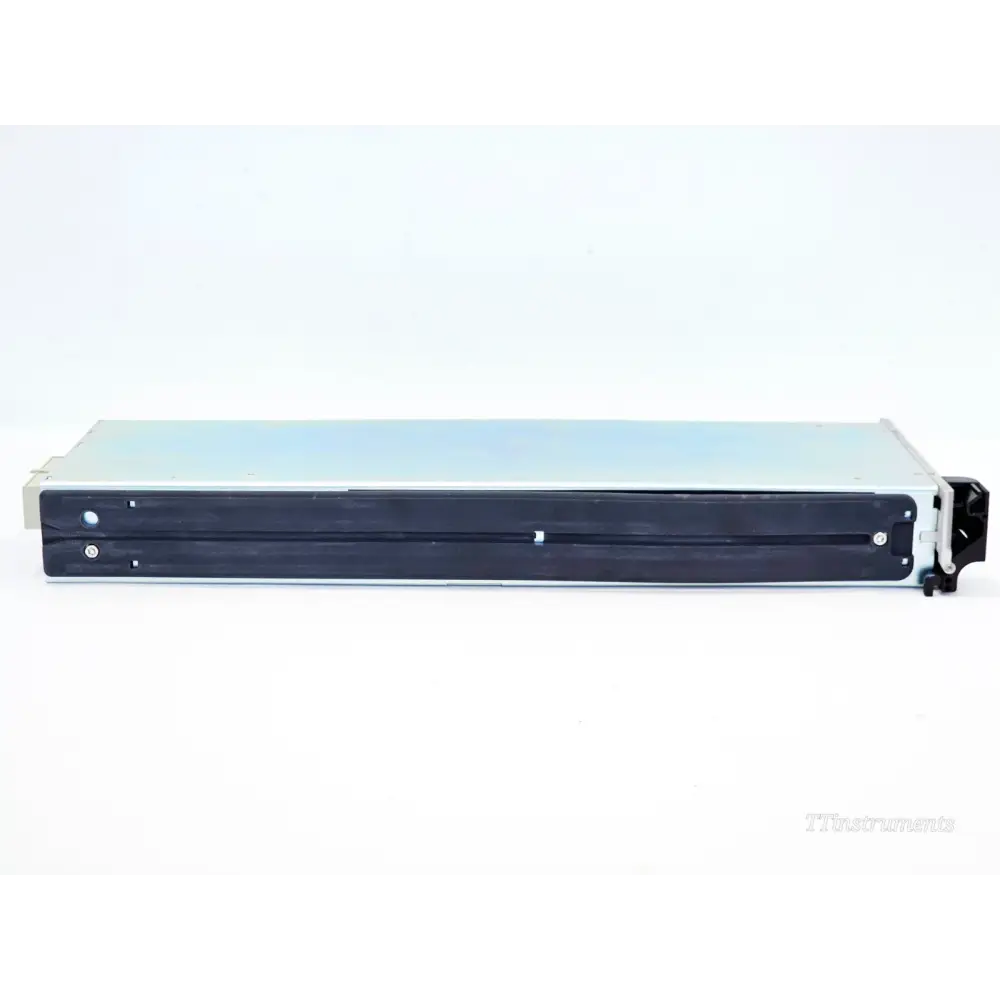

The JDSU Viavi mOPM-B1RH1 is a single-channel remote head interface module for the MAP-200 optical test platform. Configured as a general-purpose remote head cassette, it accepts external sensor heads via its front-panel multi-pin connector, allowing flexible detector positioning close to the device under test. The unit carries a JDSU label with CE and CSA markings.

Included in this sale:
• JDSU Viavi mOPM-B1RH1 Power Meter cassette module (x1)

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

The JDSU (Viavi Solutions) mOPM-B1RH1 is a single-channel remote head interface module belonging to the MAP Optical Power Meter (mOPM-B1) family, designed for use with the Multiple Application Platform (MAP-200). As a remote head base module, it accommodates external detector heads and allows the detector to be positioned directly at the device under test (DUT), independent of the MAP-200 chassis location. The interface module is compatible with all performance grades of remote head and can accommodate a mix of performance grades within a single chassis slot.

The mOPM-B1 series is a second-generation optical power meter that extends the measurement capability of the MAP-200 by offering three grades of optical performance — general purpose, high performance, and high power — in panel-mount or remote-head configurations with 1, 2, or 4 inputs per module. All performance grades are based on InGaAs detectors, suitable for single-mode (SM) and multimode (MM) fibre applications, and feature high accuracy, high linearity, and extremely low polarisation-dependent loss (PDL).

The OPMscope Super Application, available for use with the mOPM-B1 on the MAP-200 platform, provides graphical representation of optical signals in the optical domain, supporting triggering on rising or falling edges, pre-trigger history, pan and zoom, and export of up to 100,000 captured data points.

Key Features:
Channel Configuration: Single channel (RH1 = 1 remote head port)
Operating Wavelength Range: 750 to 1700 nm
Detector Type: InGaAs (general purpose grade)
Dynamic Range (General Purpose): -70 to +10 dBm
Dynamic Range (High Performance): -80 to +10 dBm
Maximum Input Power (High Power grade): +27 dBm
Sampling Rate: Up to 250 kHz
Memory Depth: 100,000 data points per optical sensor
Fibre Compatibility: Single-mode and multimode (NA ≤ 0.27, max core size 62.5 µm)
Compliance: CE, CSA/UL/IEC61010-1, LXI Class C
Platform Compatibility: JDSU/Viavi MAP-200 chassis

Applications:
Amplifier characterisation
Receiver and transmitter testing
Absolute power measurement
Optical switching time measurement
Data logging and transient capture
