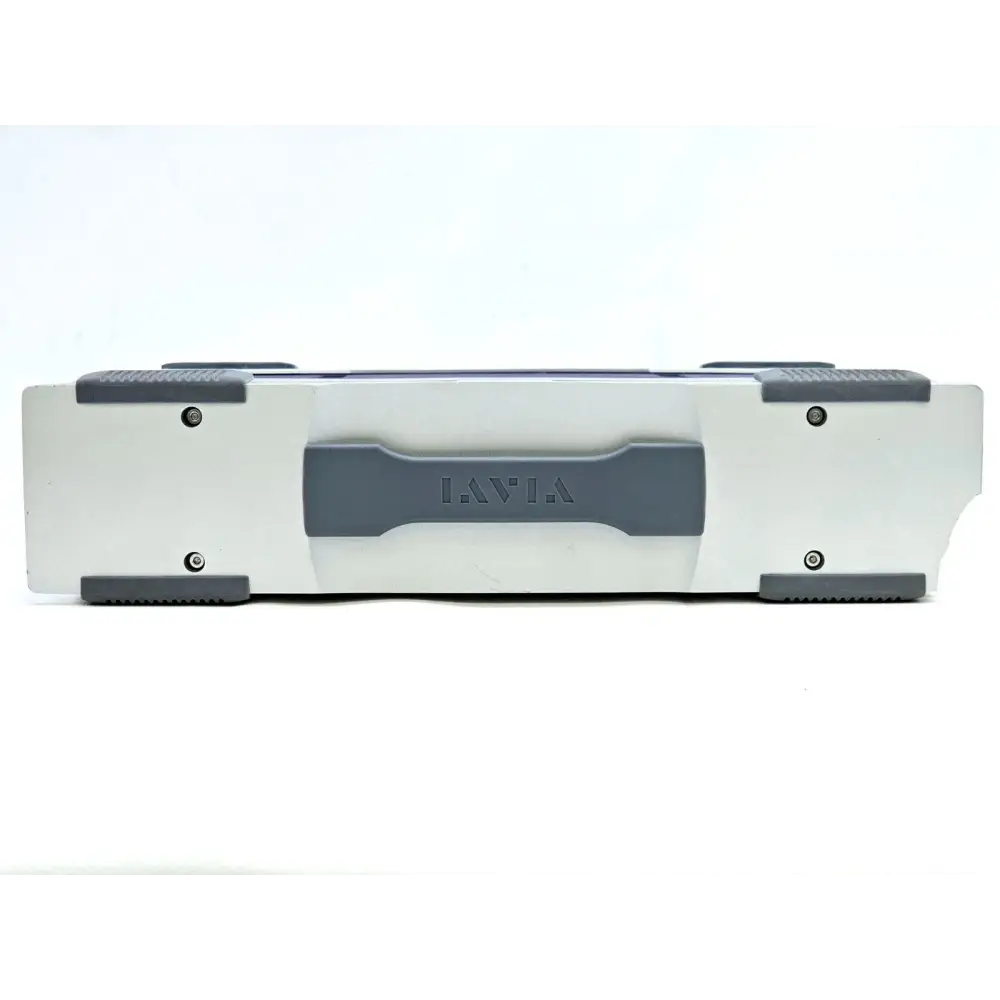

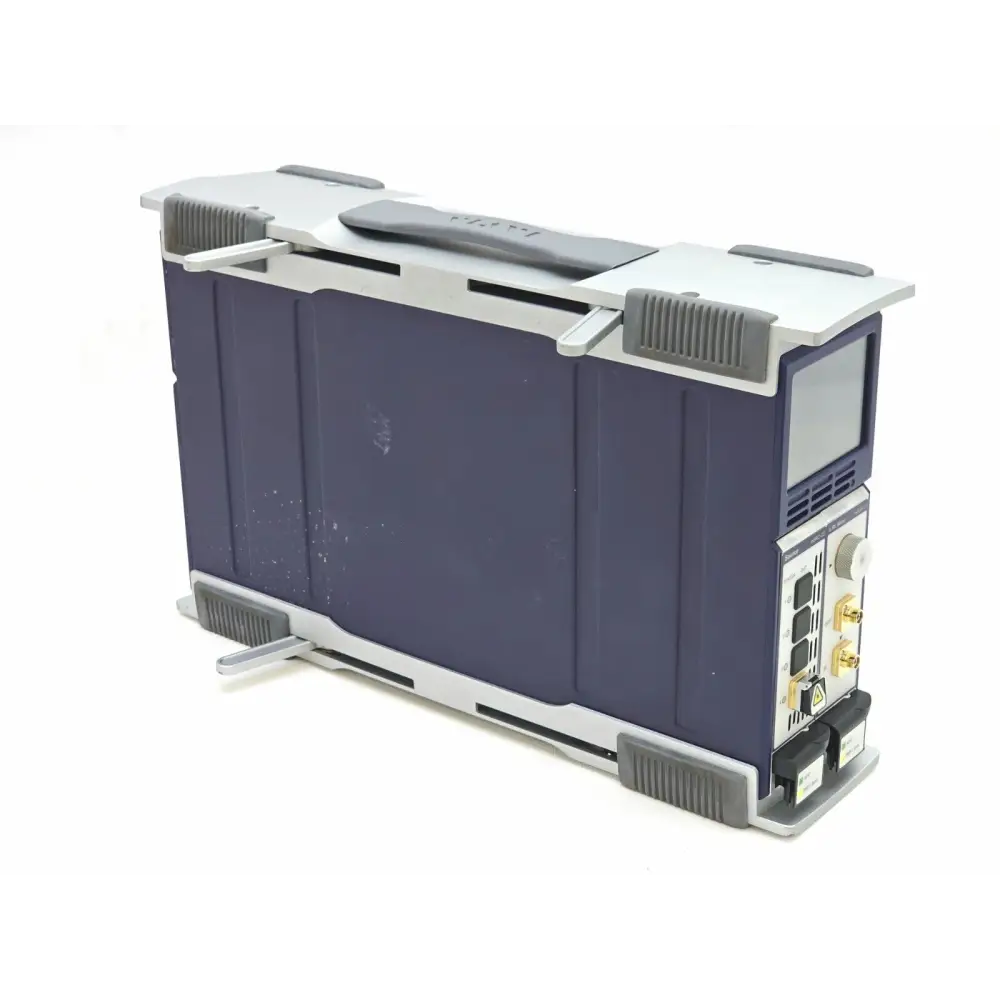

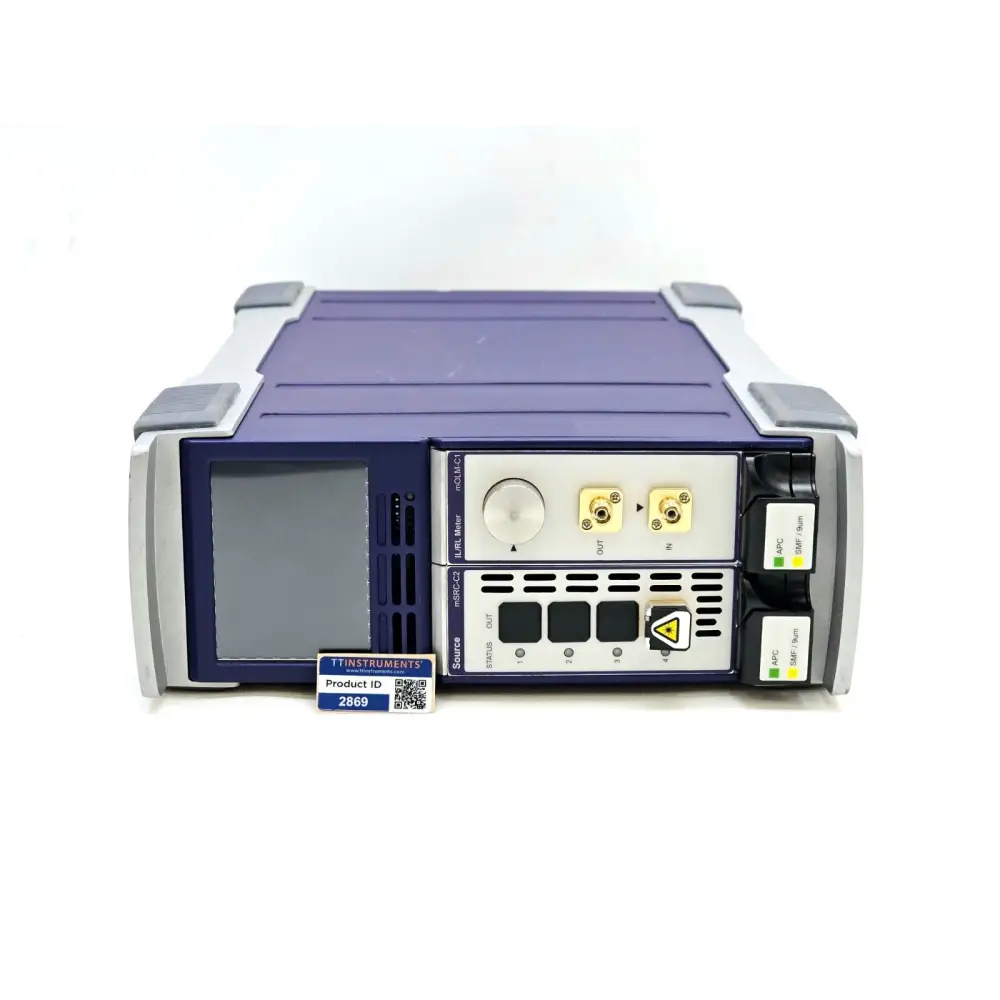

Condition: Used — Good condition apart from a break to the casing at one corner (see image 5) and one missing support leg (see image 9). The mOLM-C1 power meter module is also missing its connector. Please review images carefully before purchase.

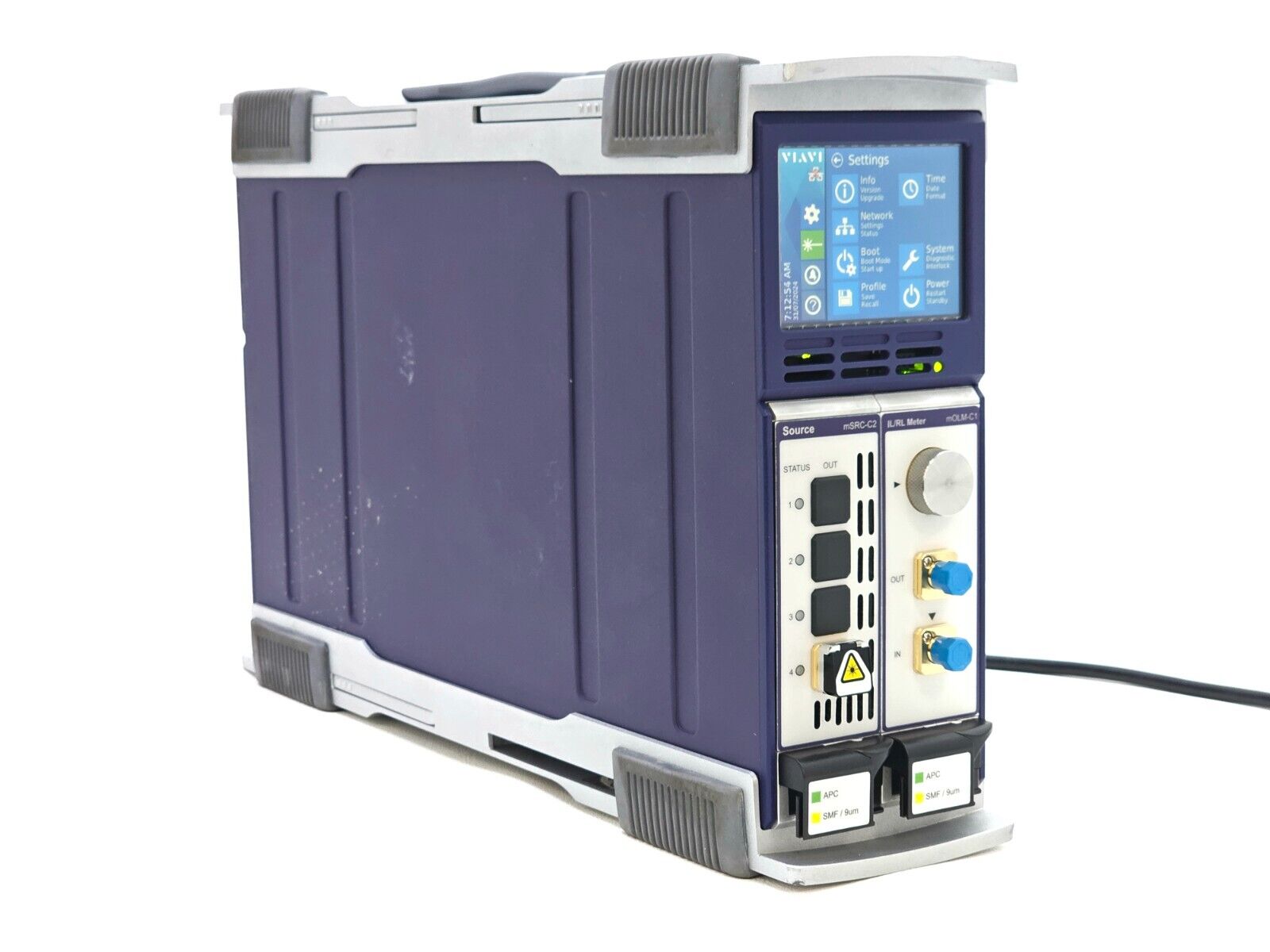

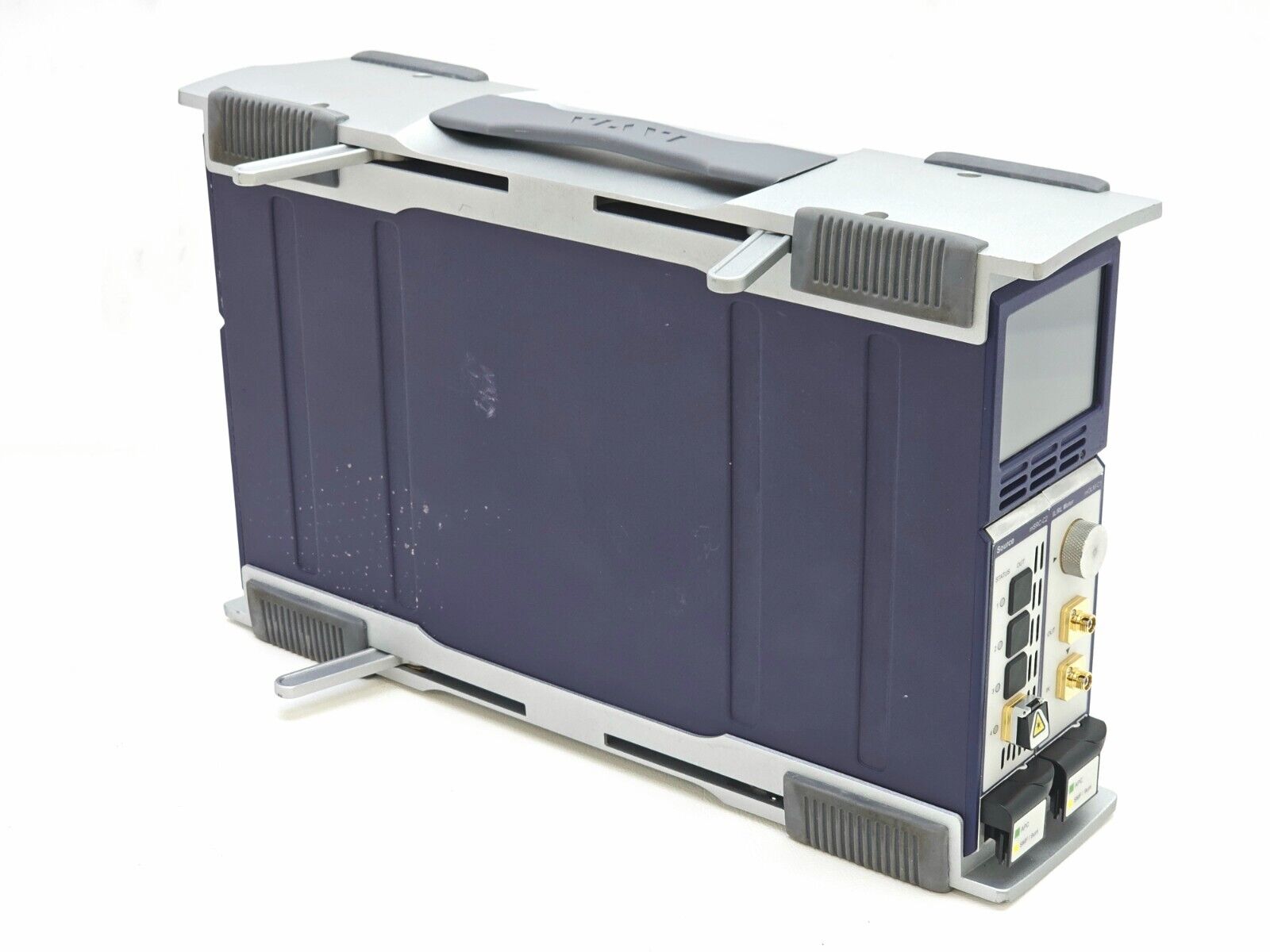

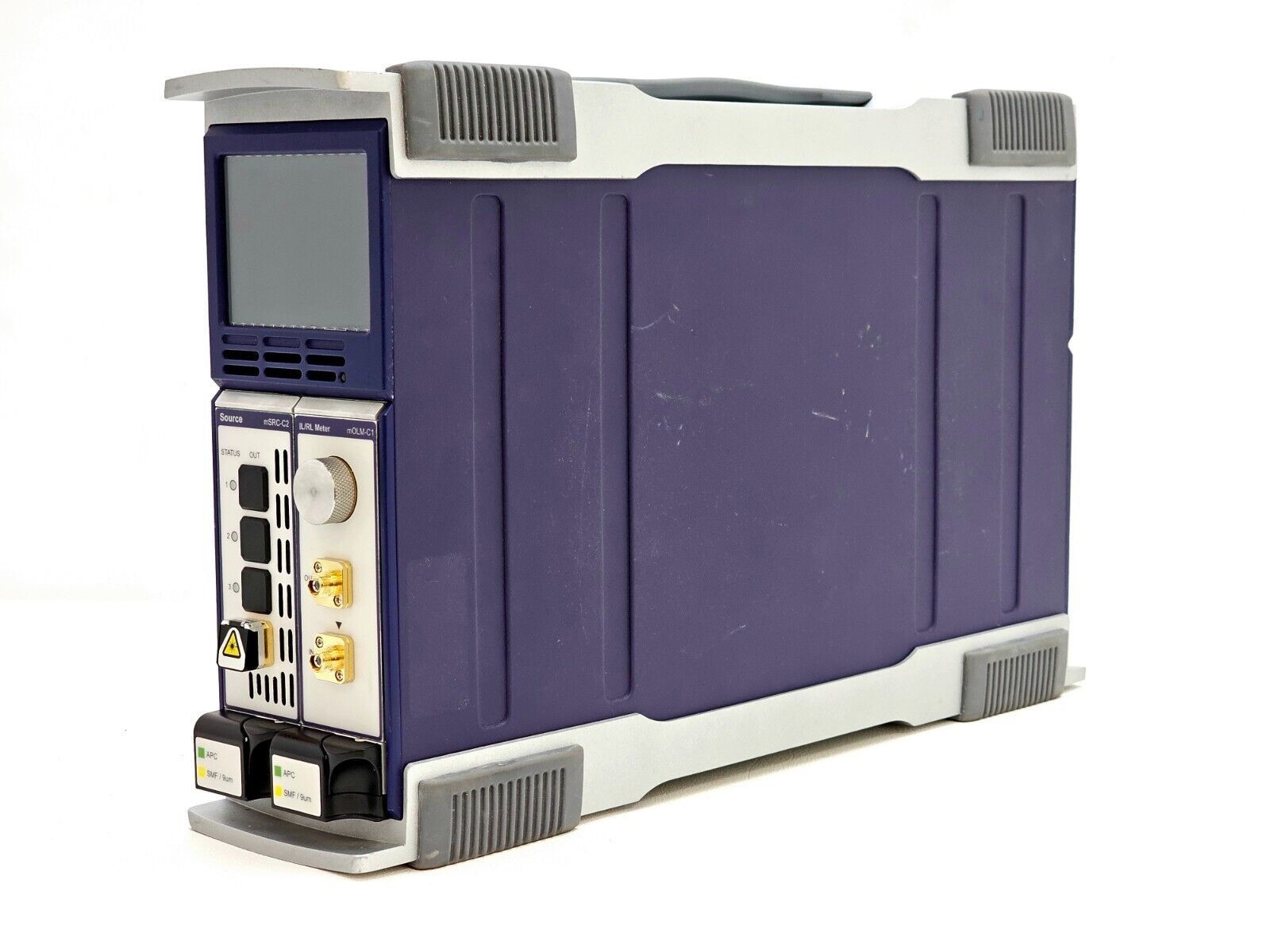

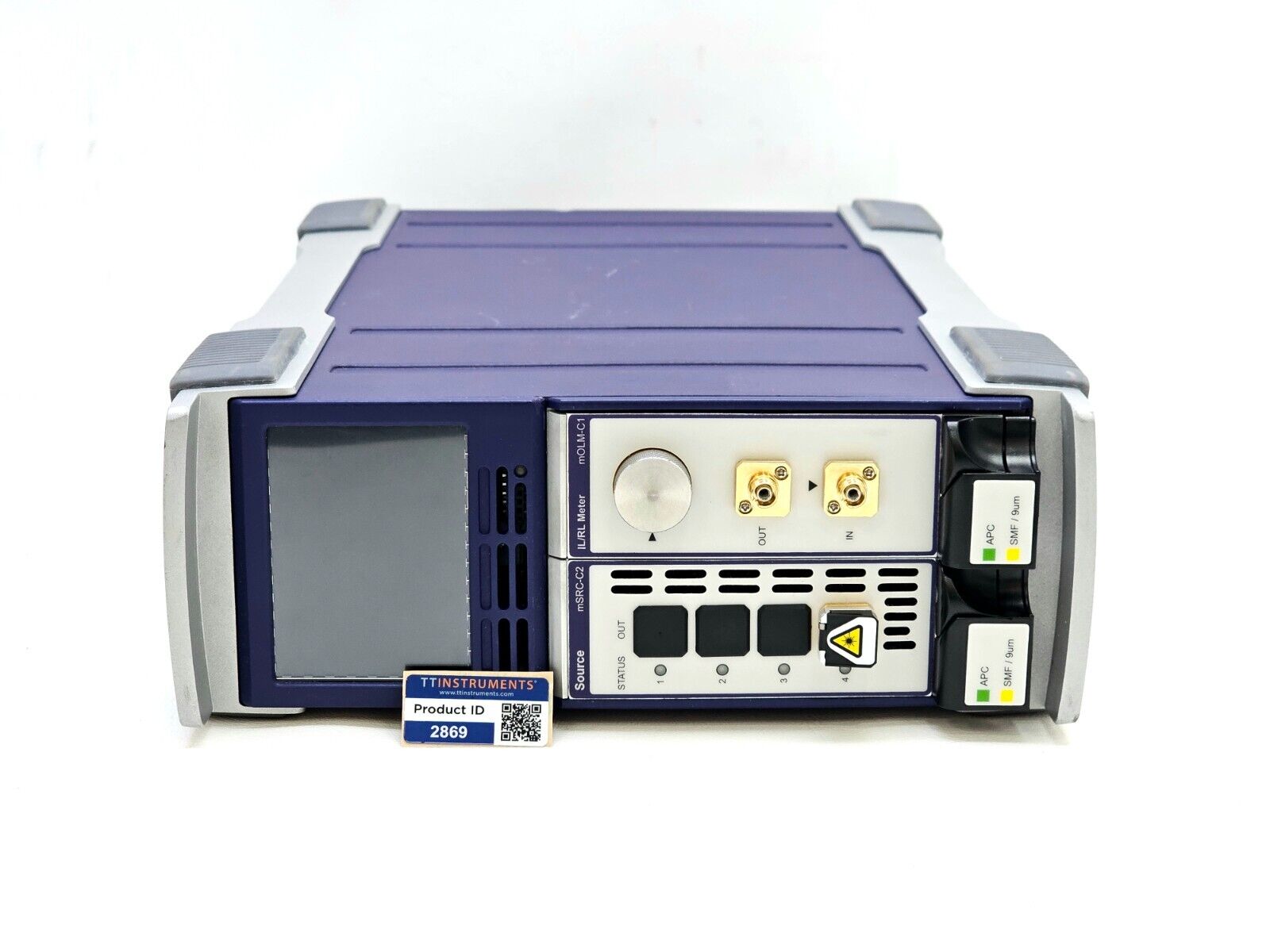

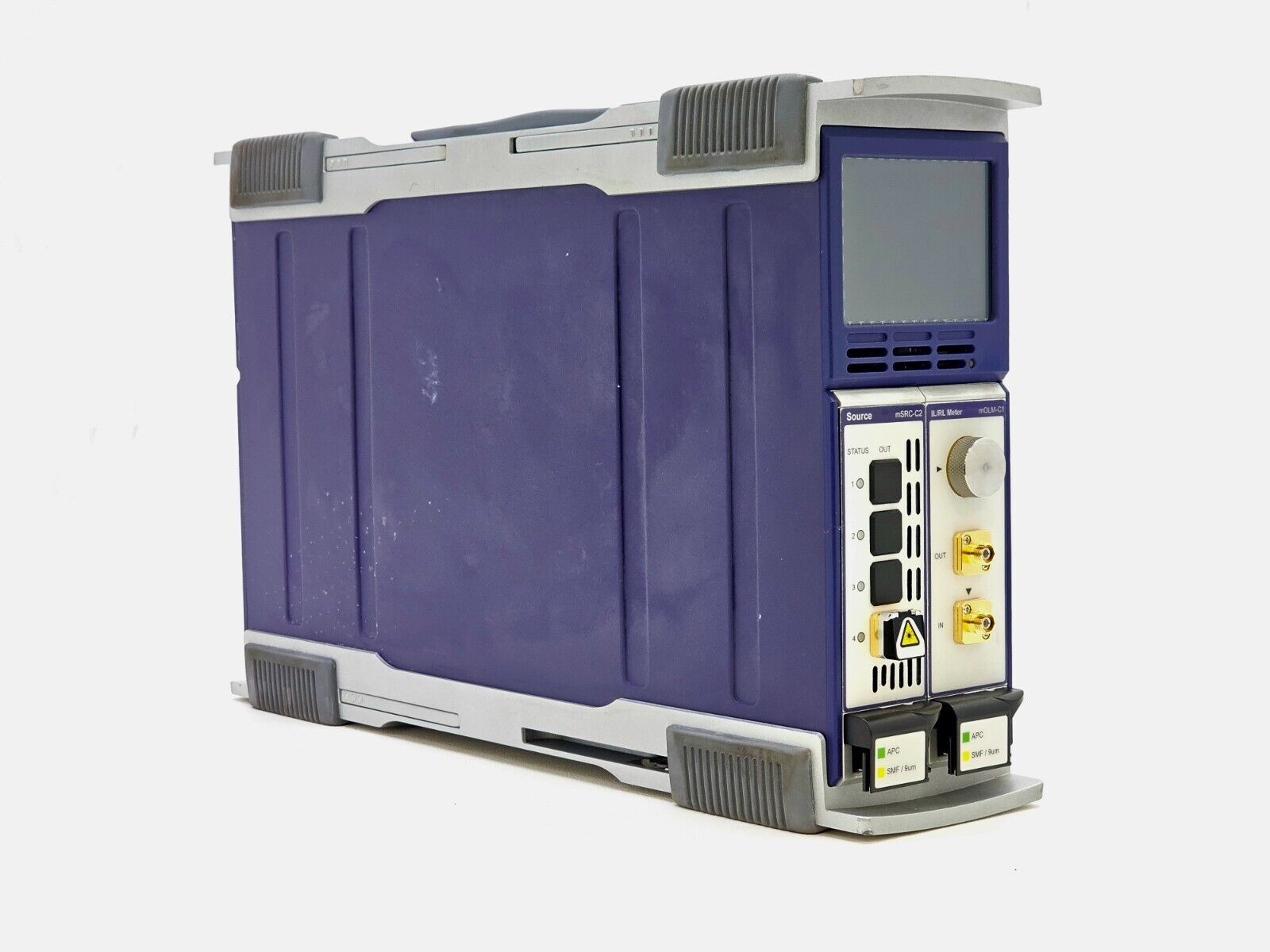

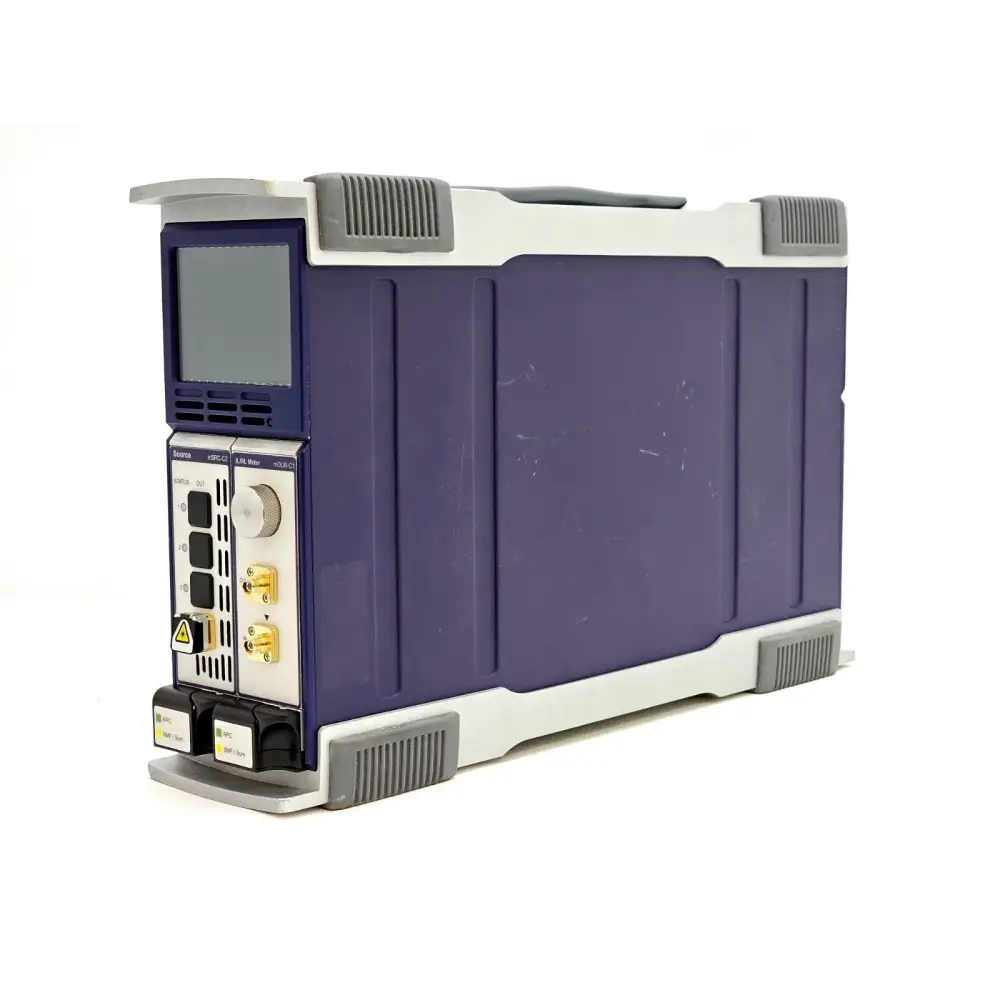

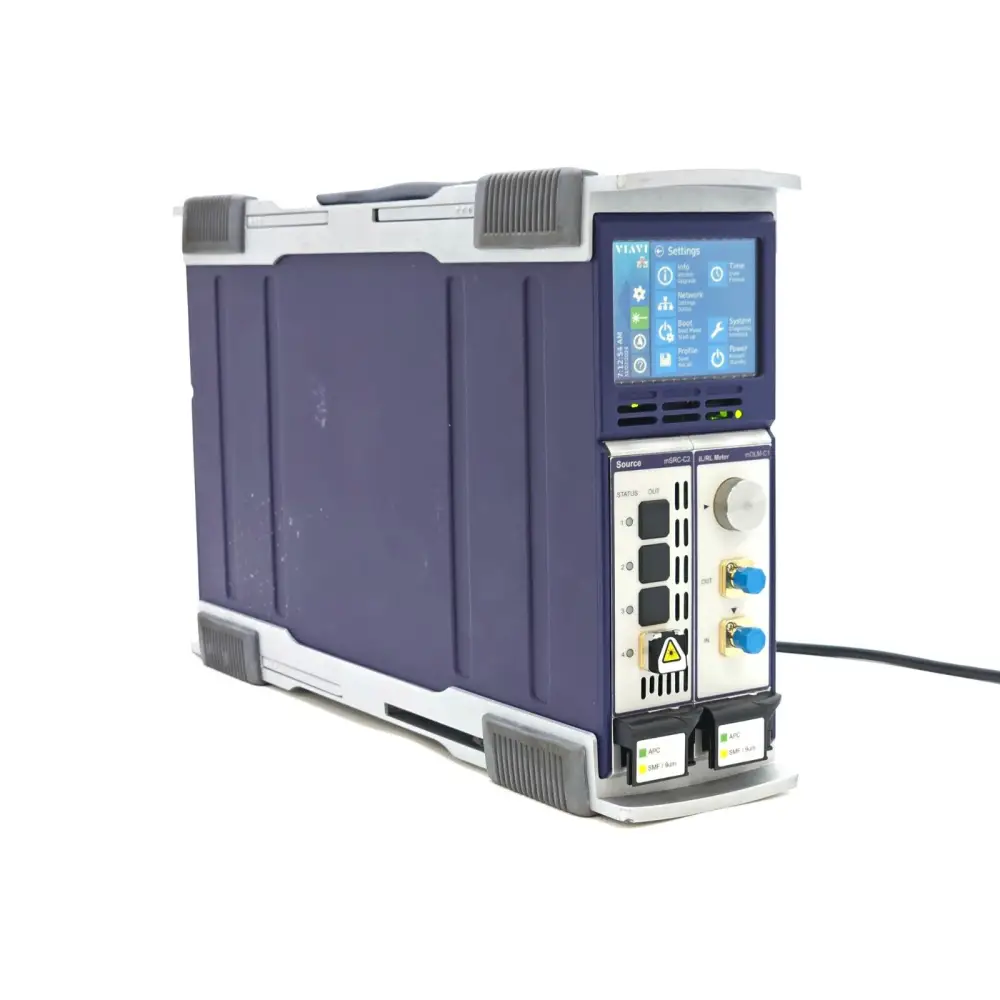

This is a Viavi JDSU MAP-220C-A PCT-rm optical test mainframe configured with the following modules:

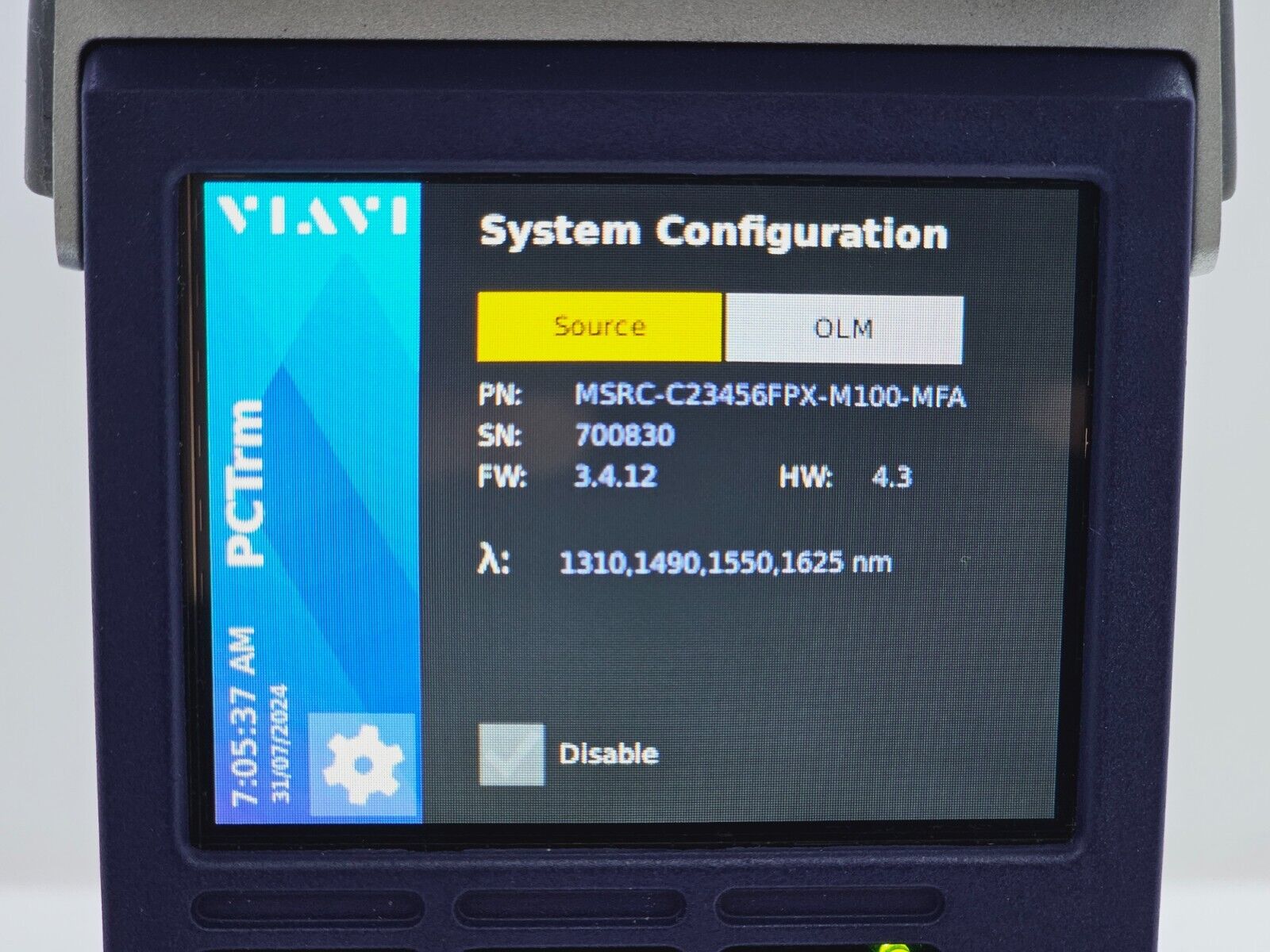

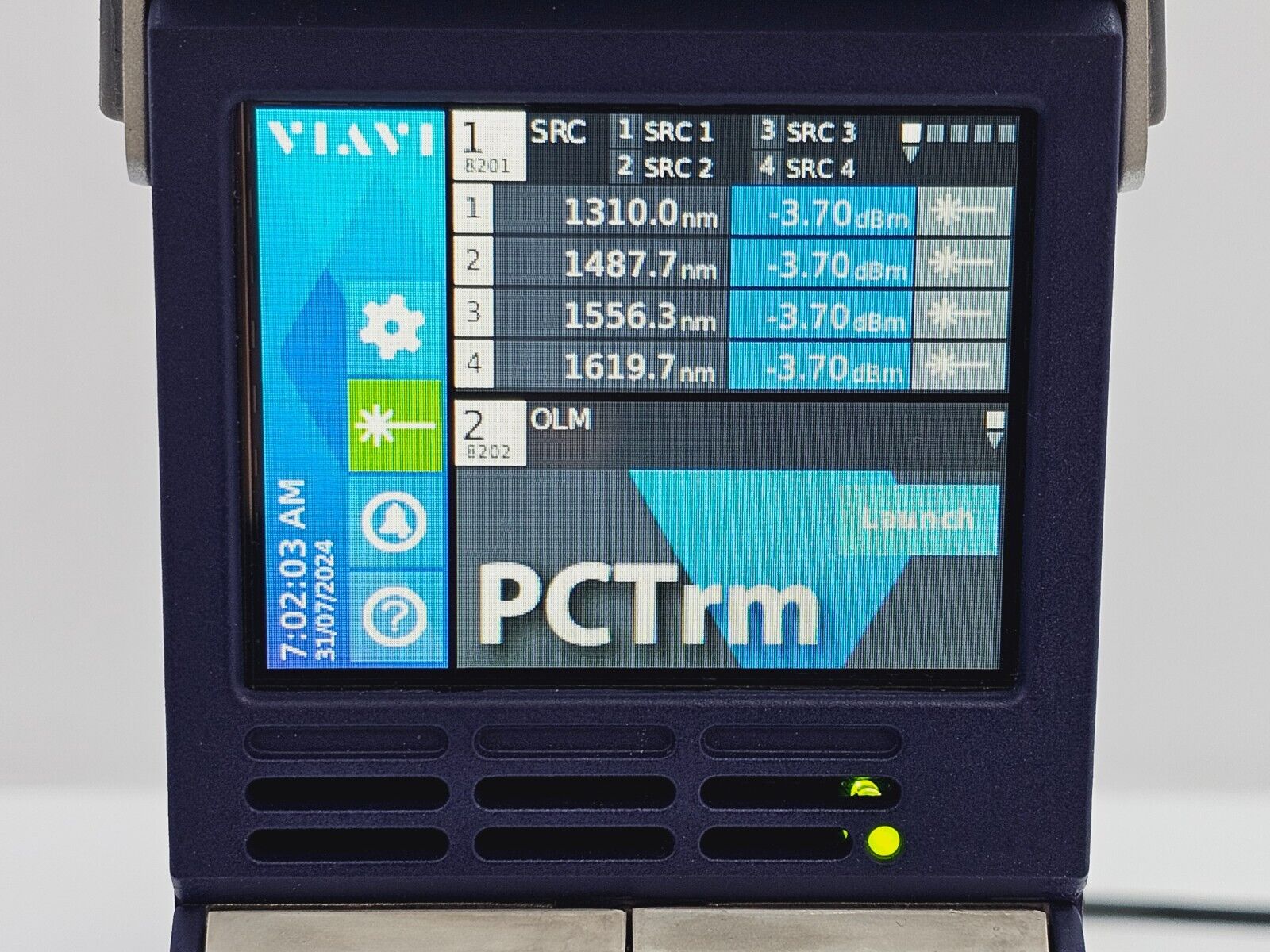

mSRC-C2 Source Module:

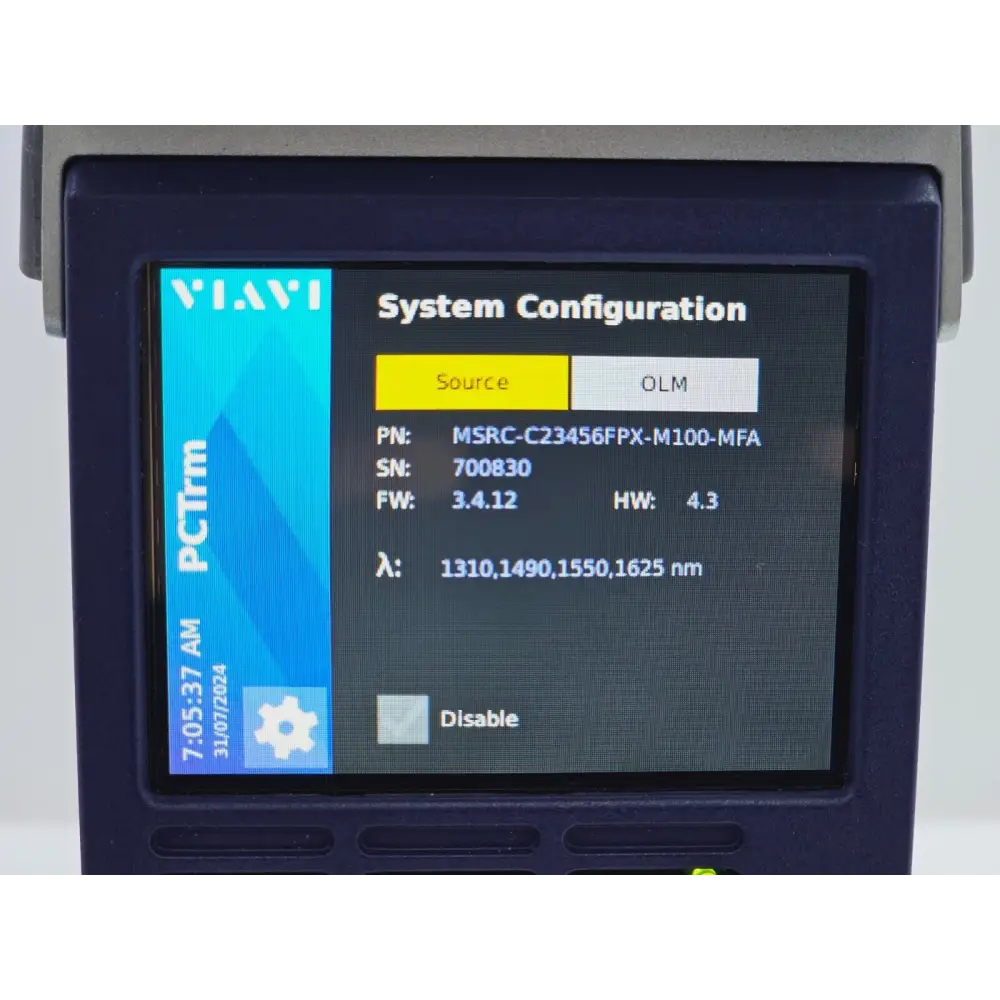

• Model: MSRC-C23456FP-M100-MFA
• TEC'd FP Laser, Single Output (Multiplexed)
• Wavelengths: 1310 / 1490 / 1550 / 1625 nm
• Standard FP laser, SMF, single output
• FC/APC connector (one active port)

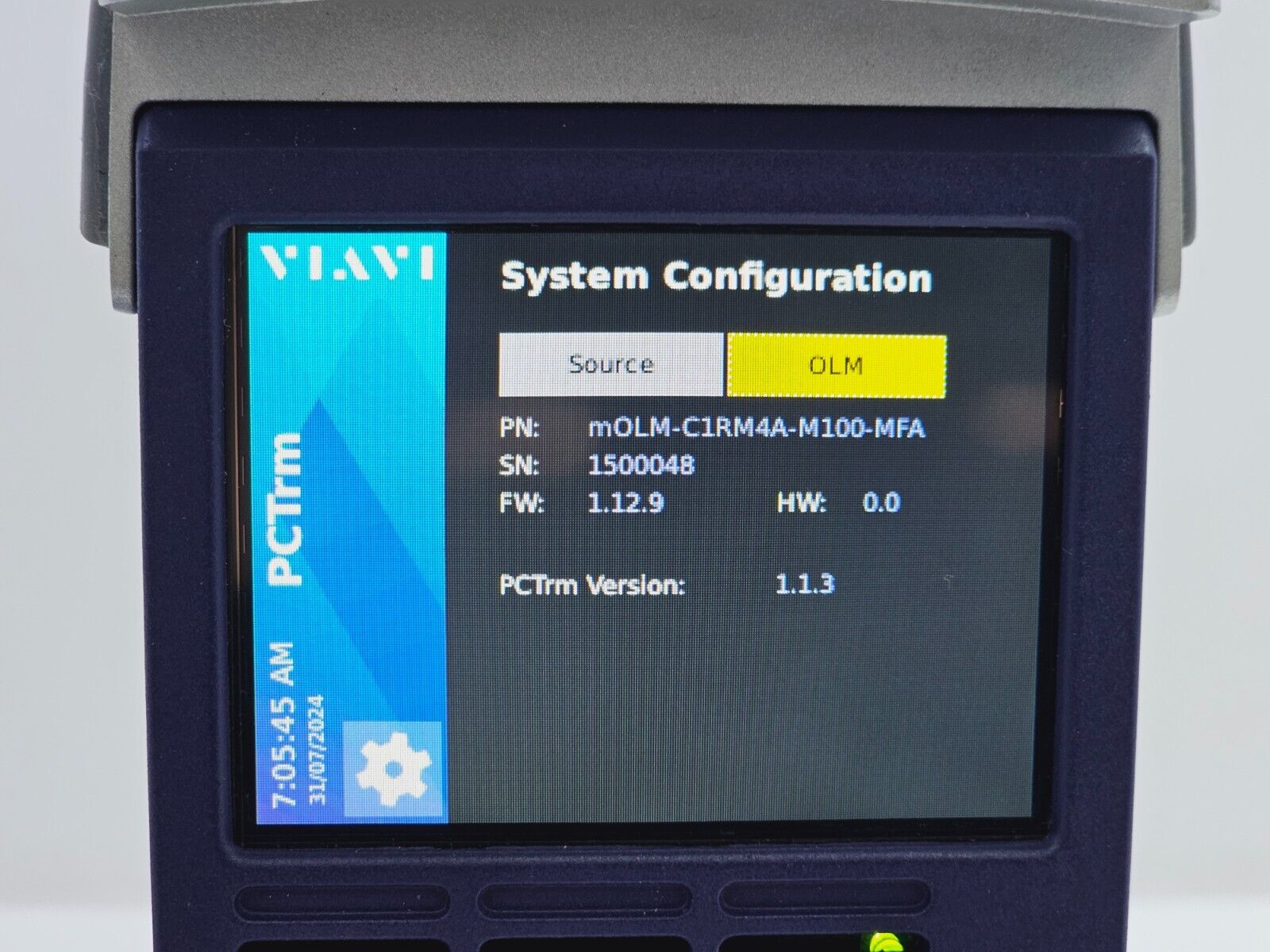

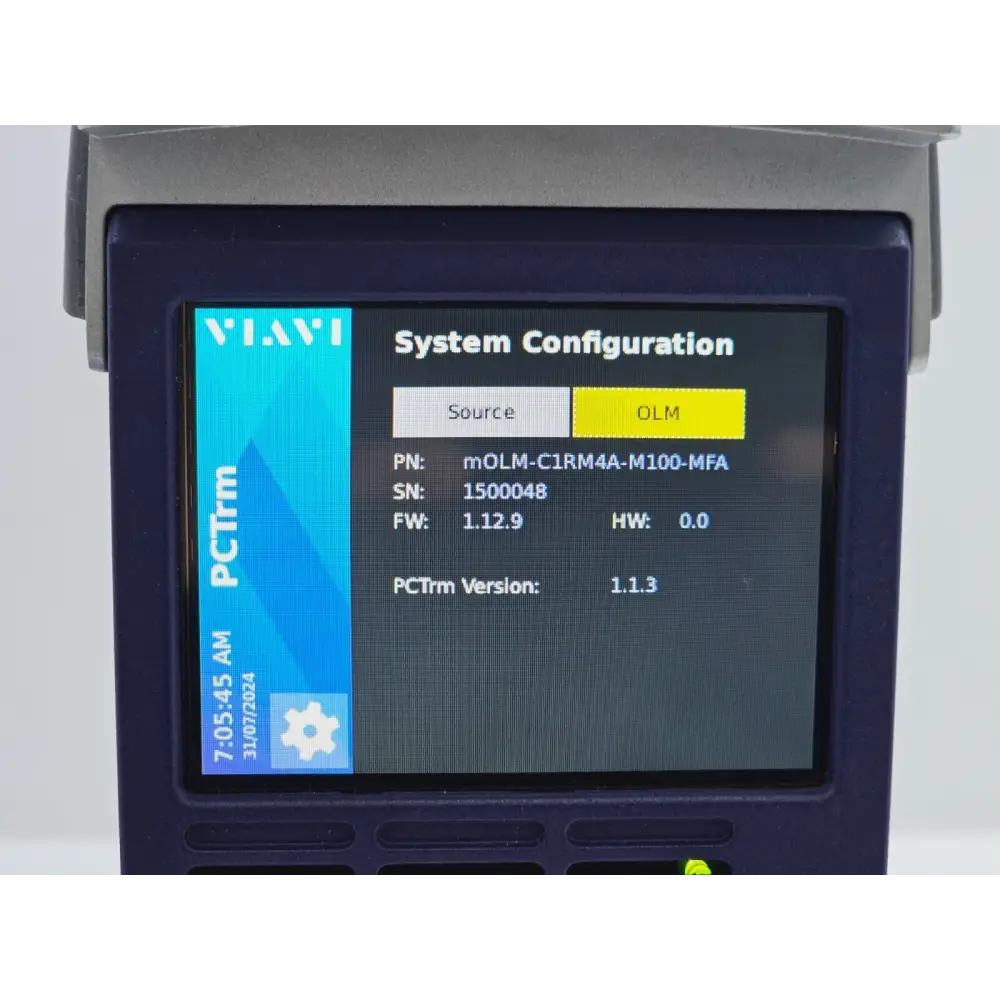

mOLM-C1 IL/RL Module:
• Power meter connector is missing

Mainframe:

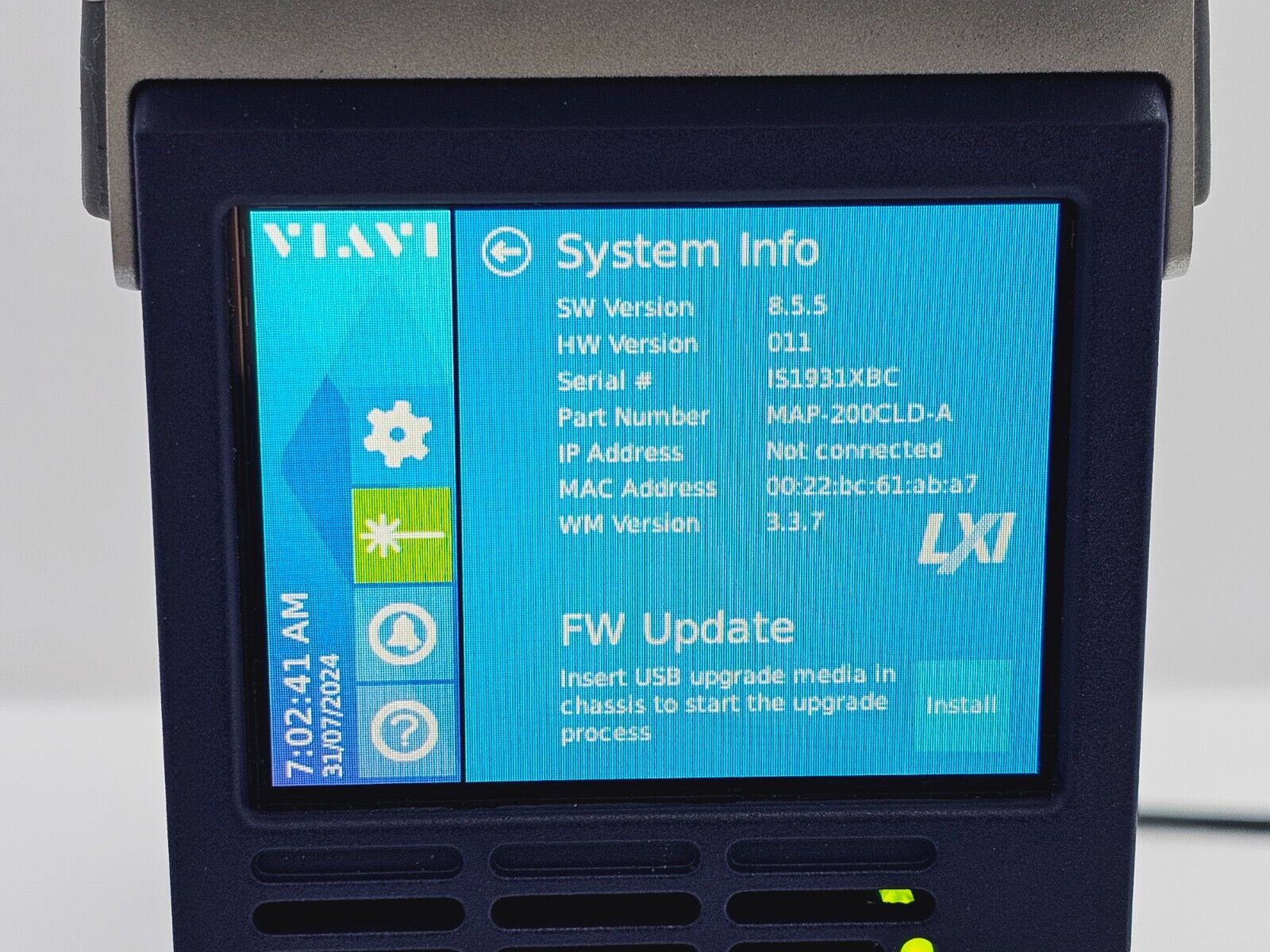

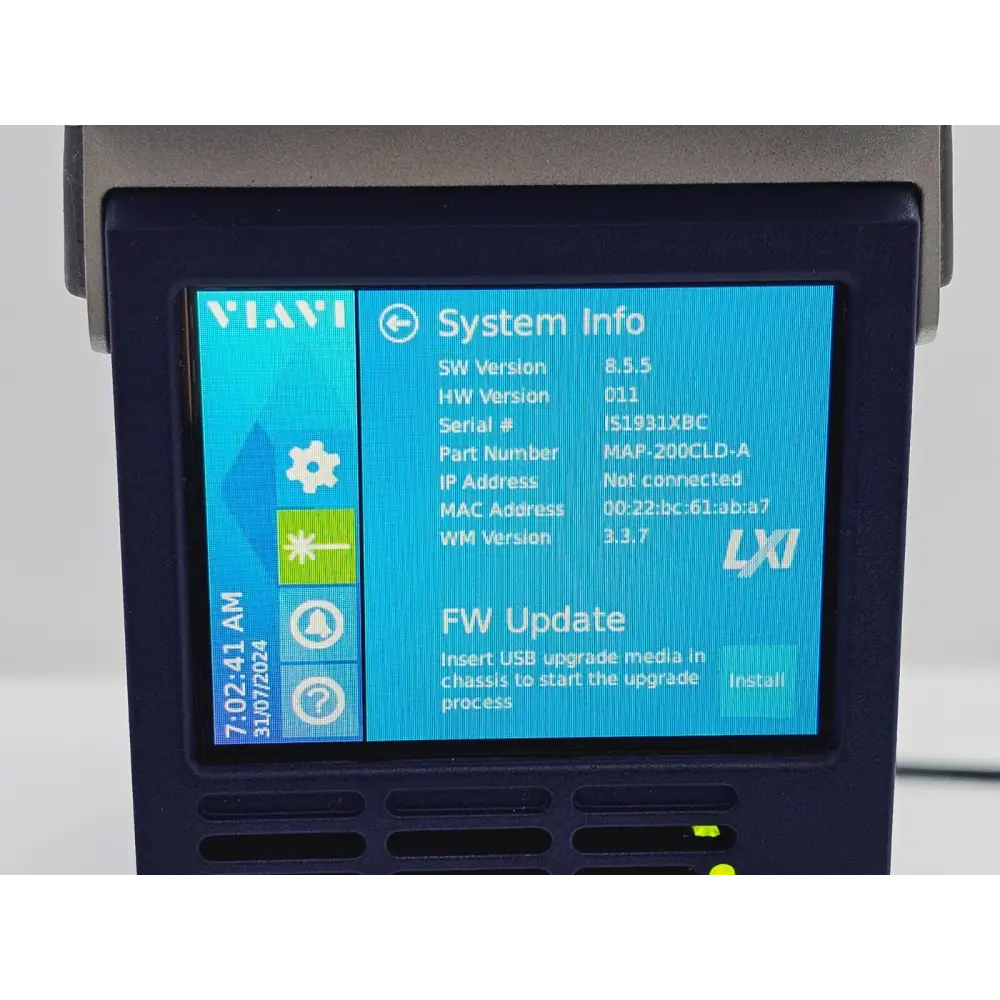

• PN: MAP-200CLD-A — Replacement LightDirect Controller

What is included in the sale:

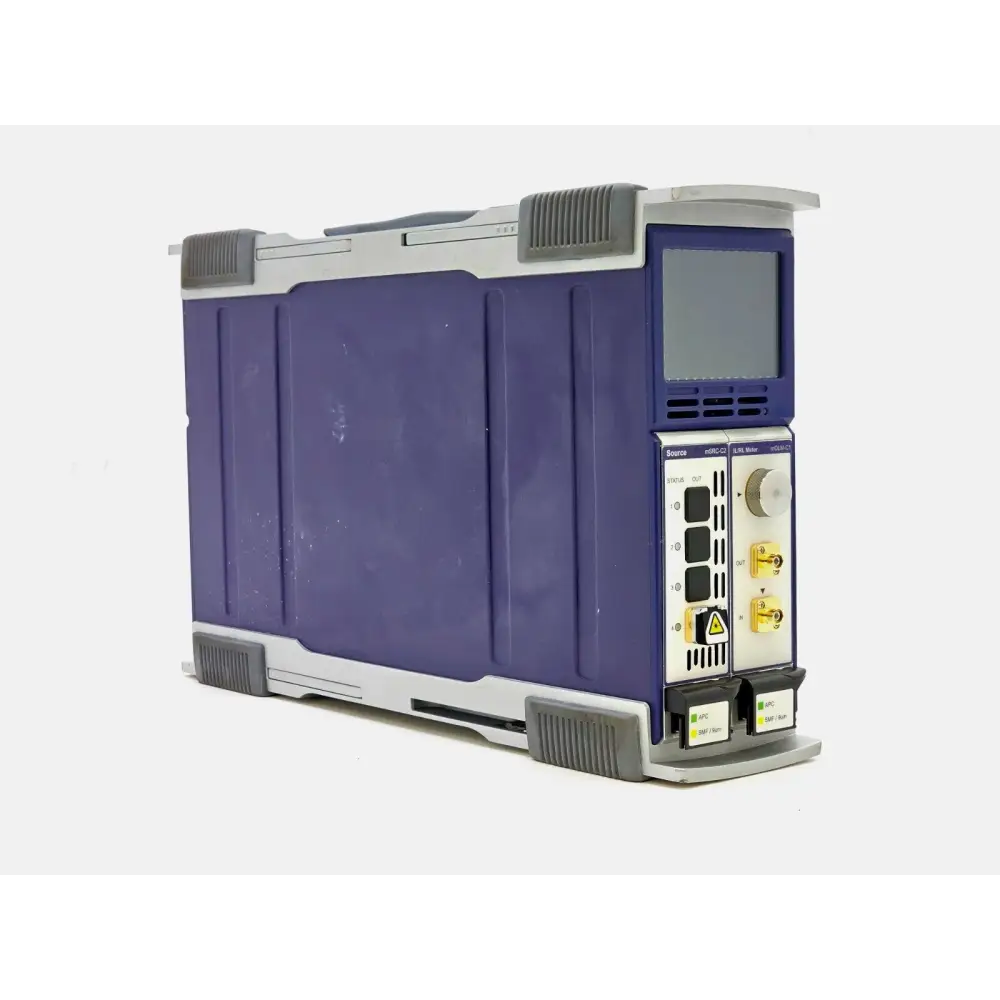

• MAP-220C-A PCT-rm mainframe
• mSRC-C2 multi-wavelength FP laser source module
• mOLM-C1 IL/RL measurement module (connector missing)

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

The Viavi (formerly JDSU) MAP-200 series is a modular optical test platform designed for characterising passive optical networks (PON), fibre-to-the-x (FTTx) infrastructures, and general single-mode fibre plant. The MAP-220C-A PCT-rm mainframe, based on the MAP-200CLD-A LightDirect Controller architecture, accepts interchangeable optical source and measurement modules to deliver a flexible, field-ready test solution.

The mSRC-C2 is a multi-wavelength Fabry-Perot (FP) laser source module supporting the key wavelengths used in PON and legacy fibre networks. It features a thermoelectrically cooled (TEC'd) FP laser with multiplexed single output via FC/APC connector.

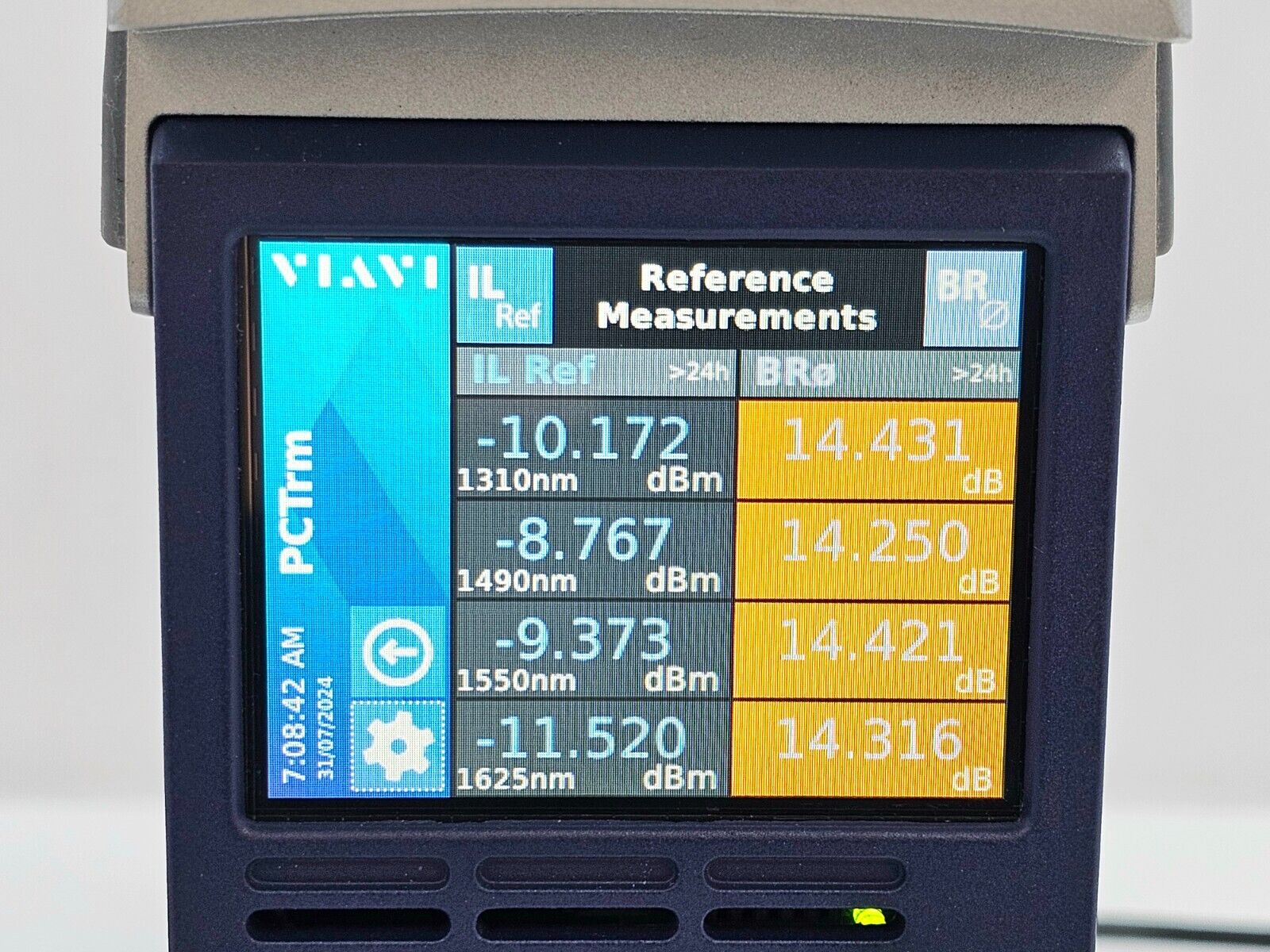

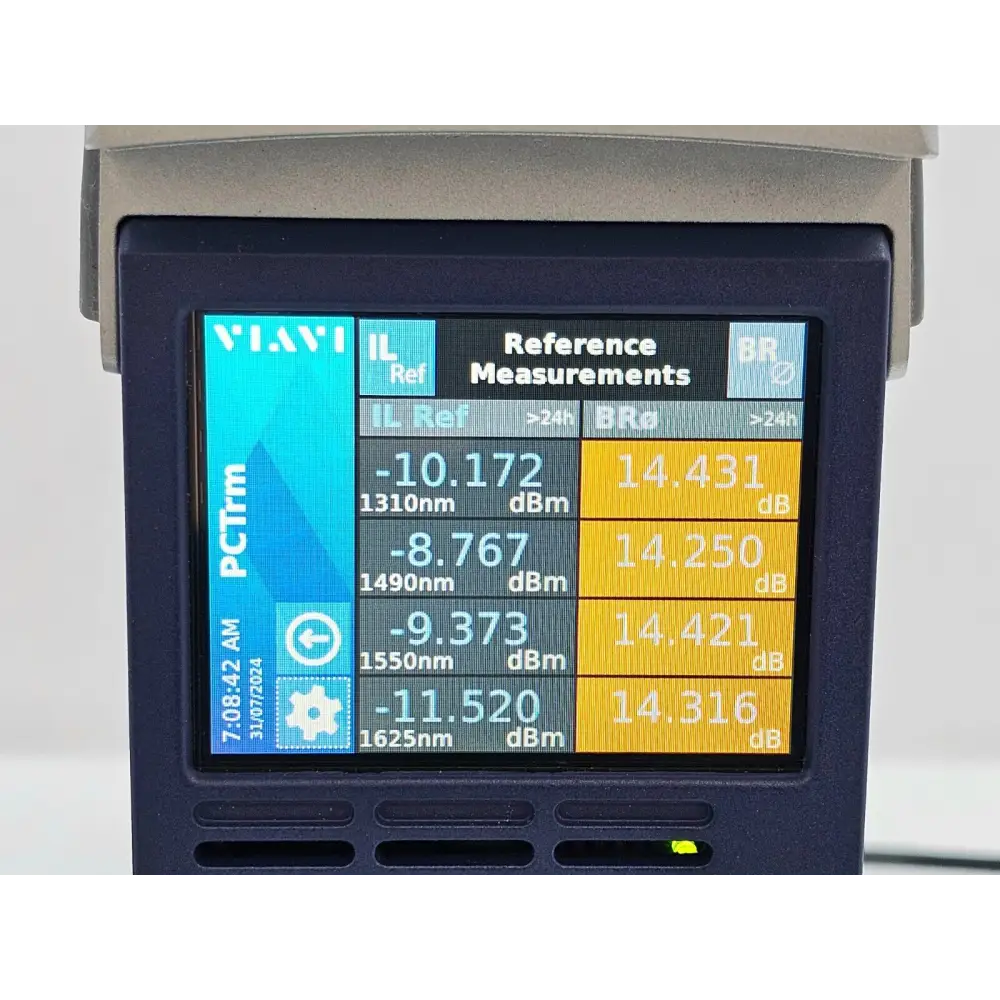

The mOLM-C1 is an optical loss and return loss measurement module enabling insertion loss (IL) and return loss (RL) testing on fibre links and components.

Key Specifications (mSRC-C2 / MSRC-C23456FP-M100-MFA):
Laser Type: TEC'd Fabry-Perot (FP)
Output Configuration: Single Output (Multiplexed)

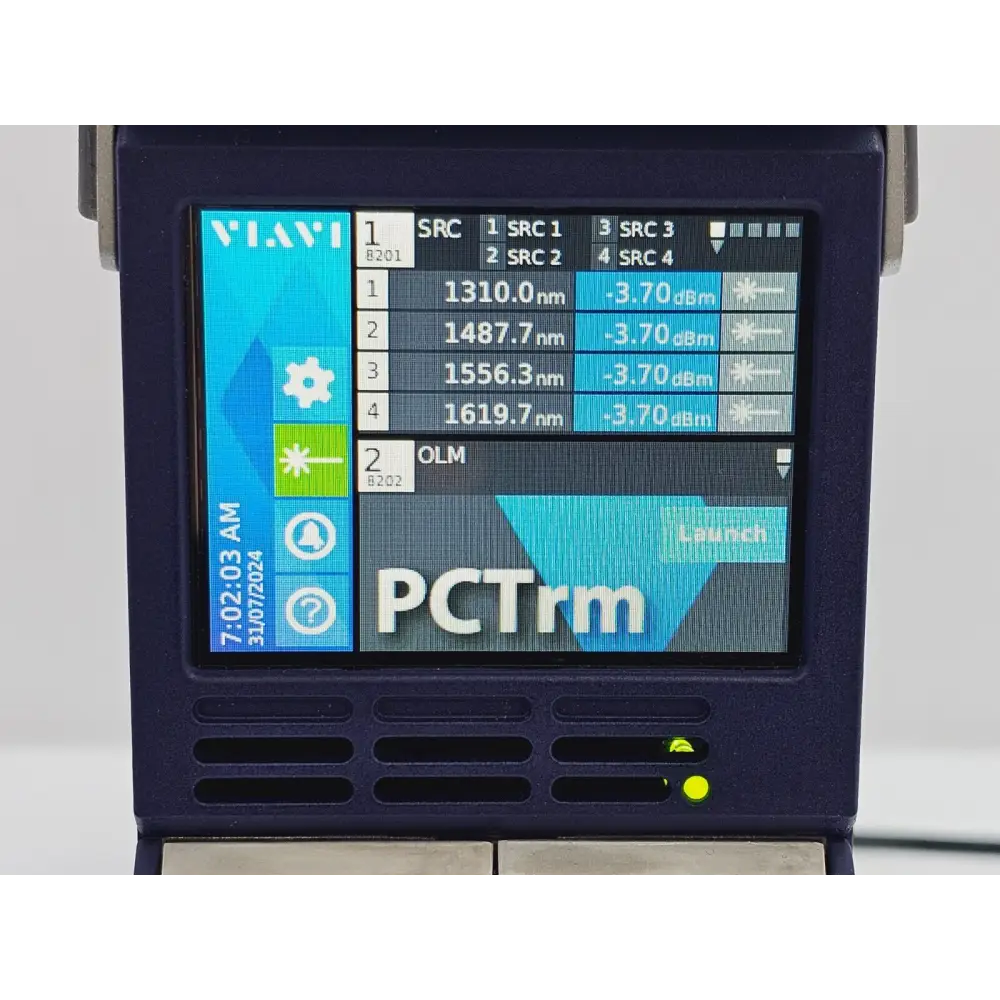

Wavelengths: 1310 nm / 1490 nm / 1550 nm / 1625 nm
Fibre Type: Single-mode (SMF)
Output Connector: FC/APC
Active Ports: 1

Mainframe:

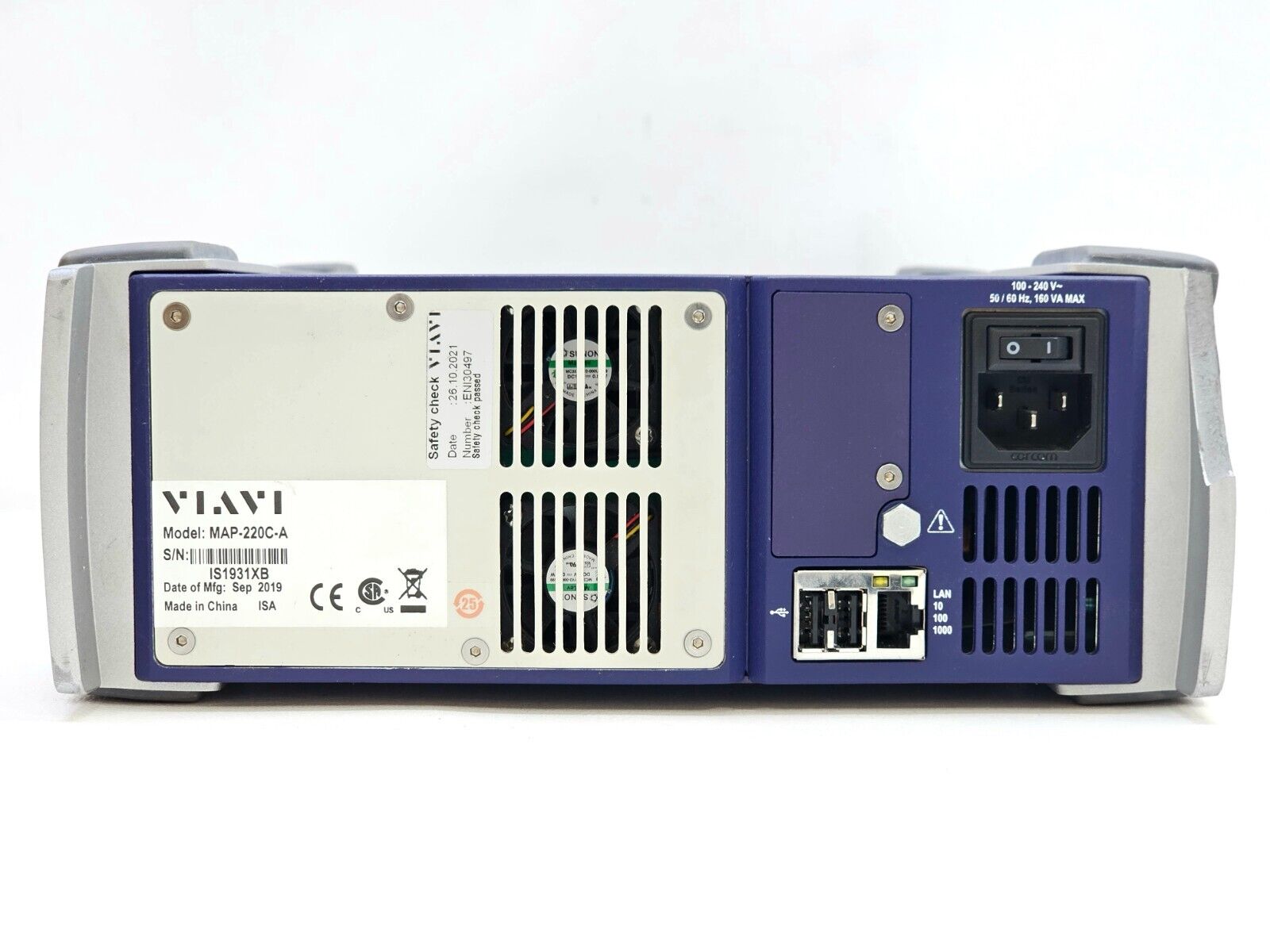

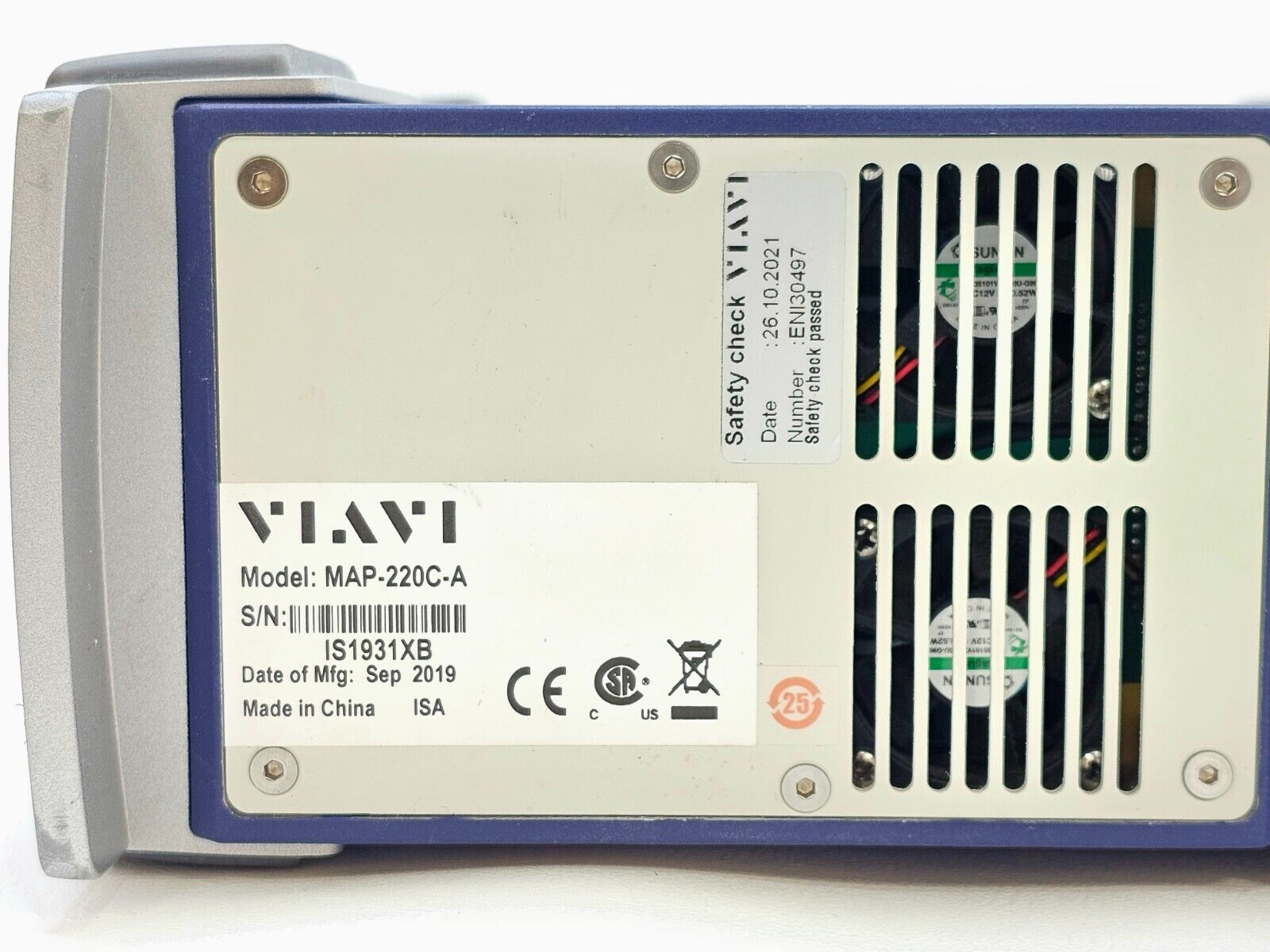

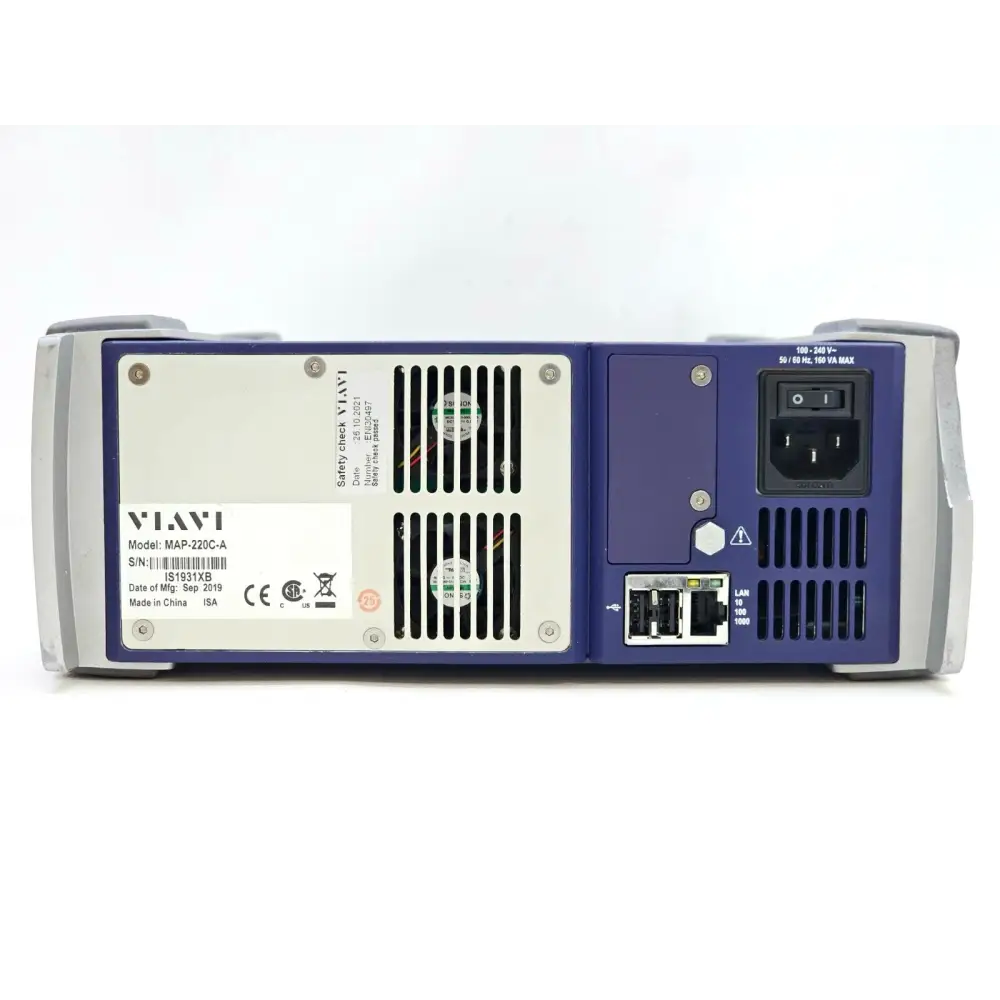

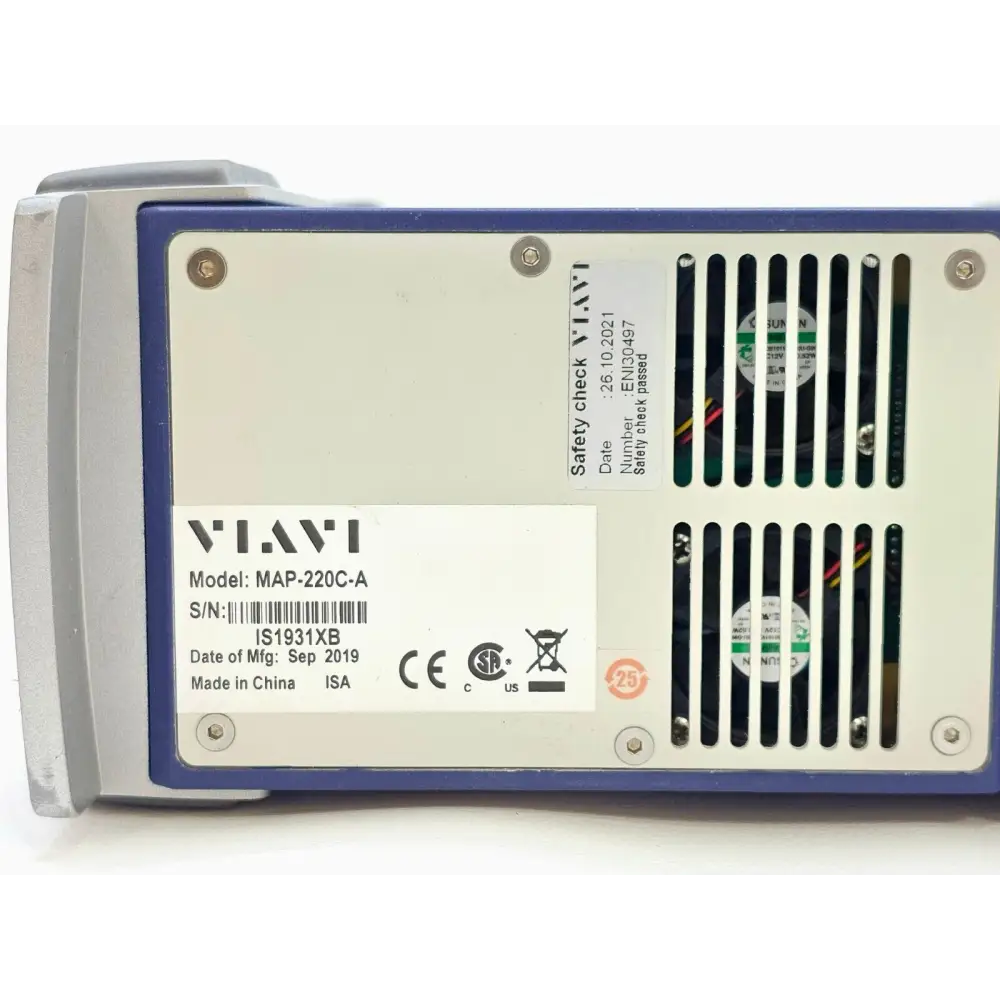

Model: MAP-220C-A PCT-rm
Controller PN: MAP-200CLD-A (LightDirect Controller)
Platform: MAP-200 modular optical test series
Manufacturer: Viavi Solutions (formerly JDSU)

Please refer to the Viavi Solutions website for full and current specifications.
