Condition: Used — Good

This is the Viavi JDSU LGX W162/BP162/F162 E9PCFSCAPC Mounting Kit, supplied as part number E98LGX1BP162SA. The module is a passive bypass component designed for in-service fibre monitoring with ONMSi, OTU-8000, and OTU-5000 platforms. It inserts an out-of-band wavelength (1625 nm) into the transmission path via a WDM, allowing OTDR measurements on live traffic-bearing fibres. The bypass function extends the OTDR signal across adjacent fibre spans, increasing monitoring distance without requiring an additional Optical Test Unit.

Included in the sale:

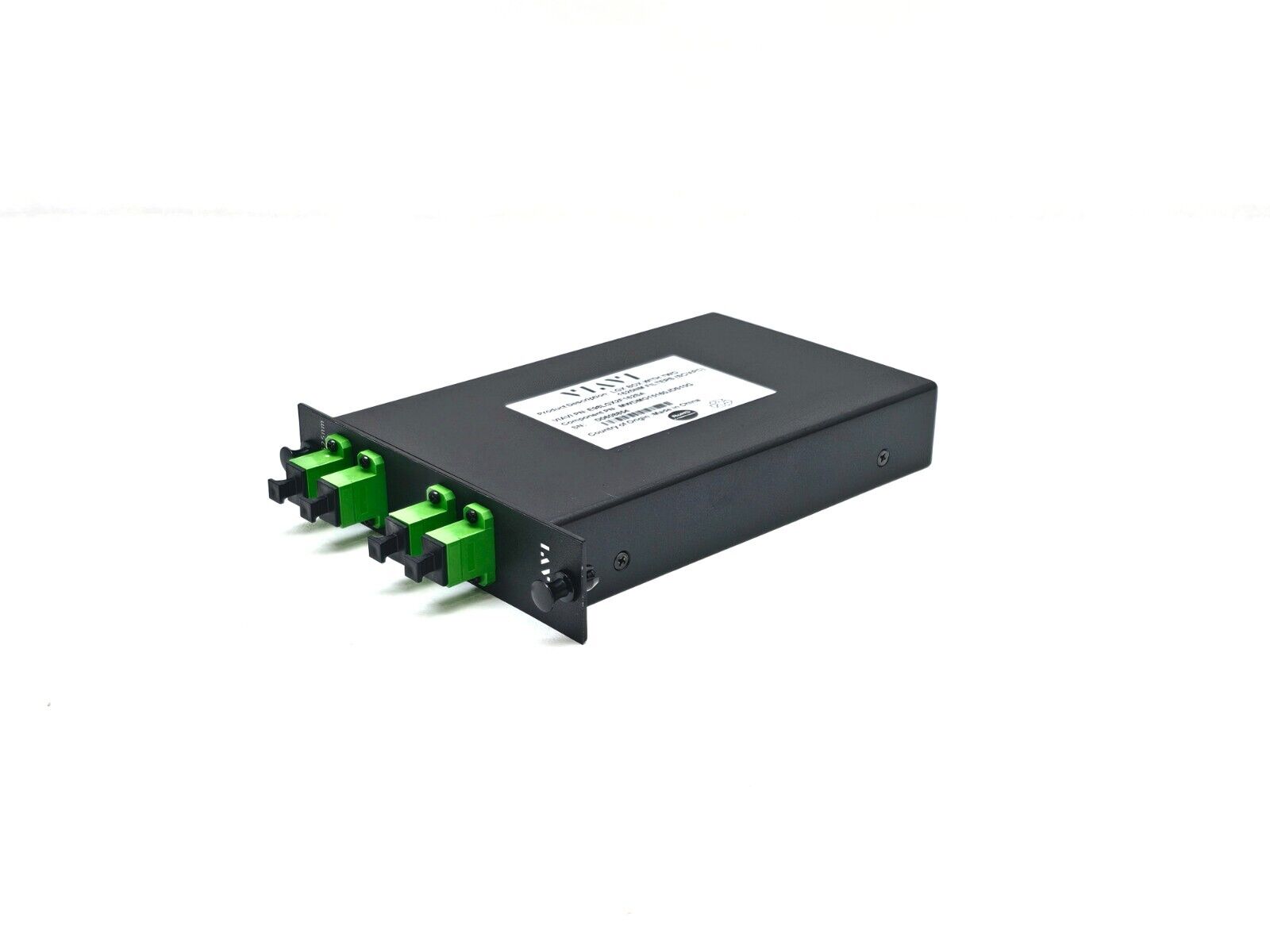

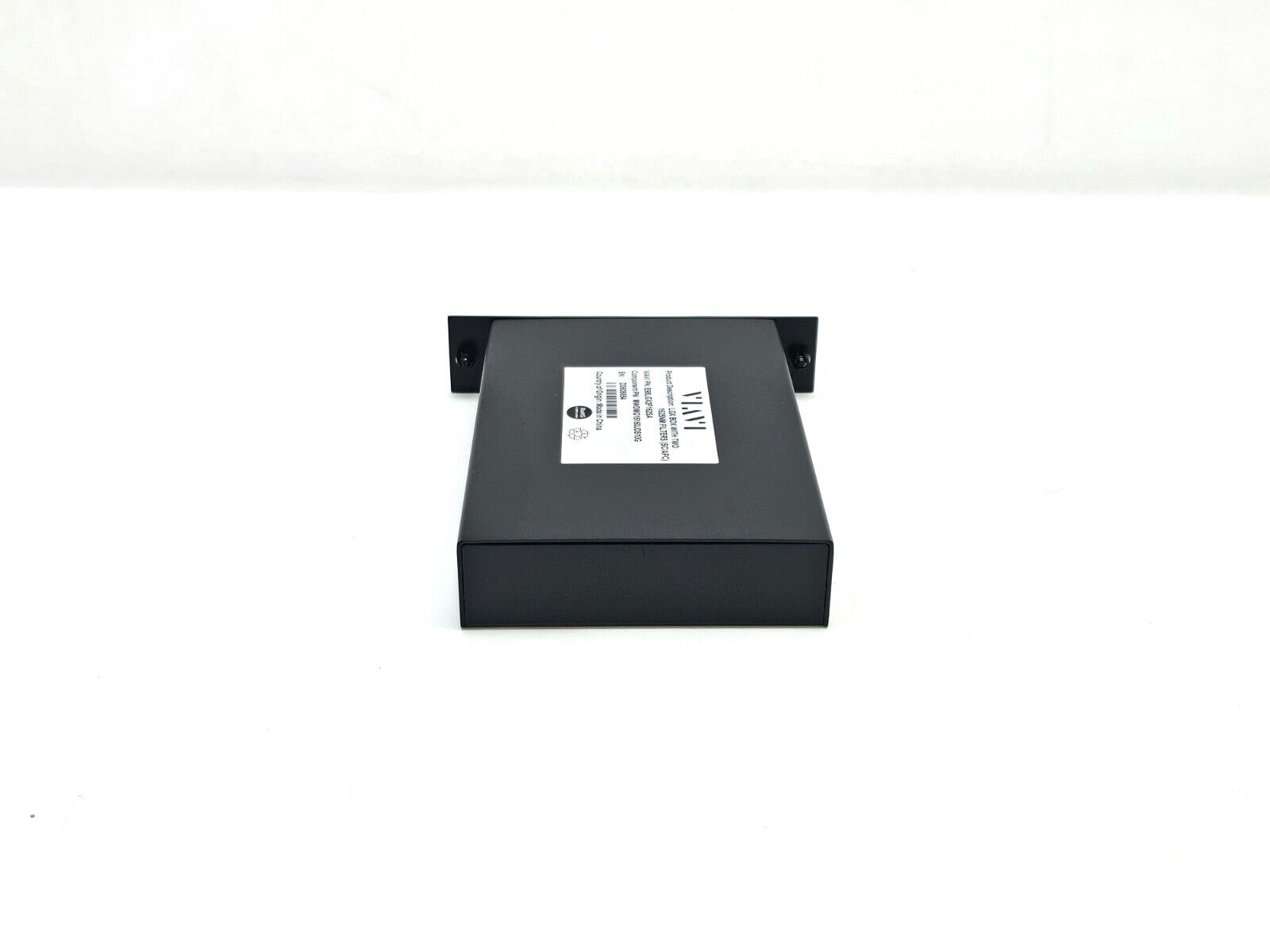

• E98LGX1BP162SA LGX bypass module (as per images)

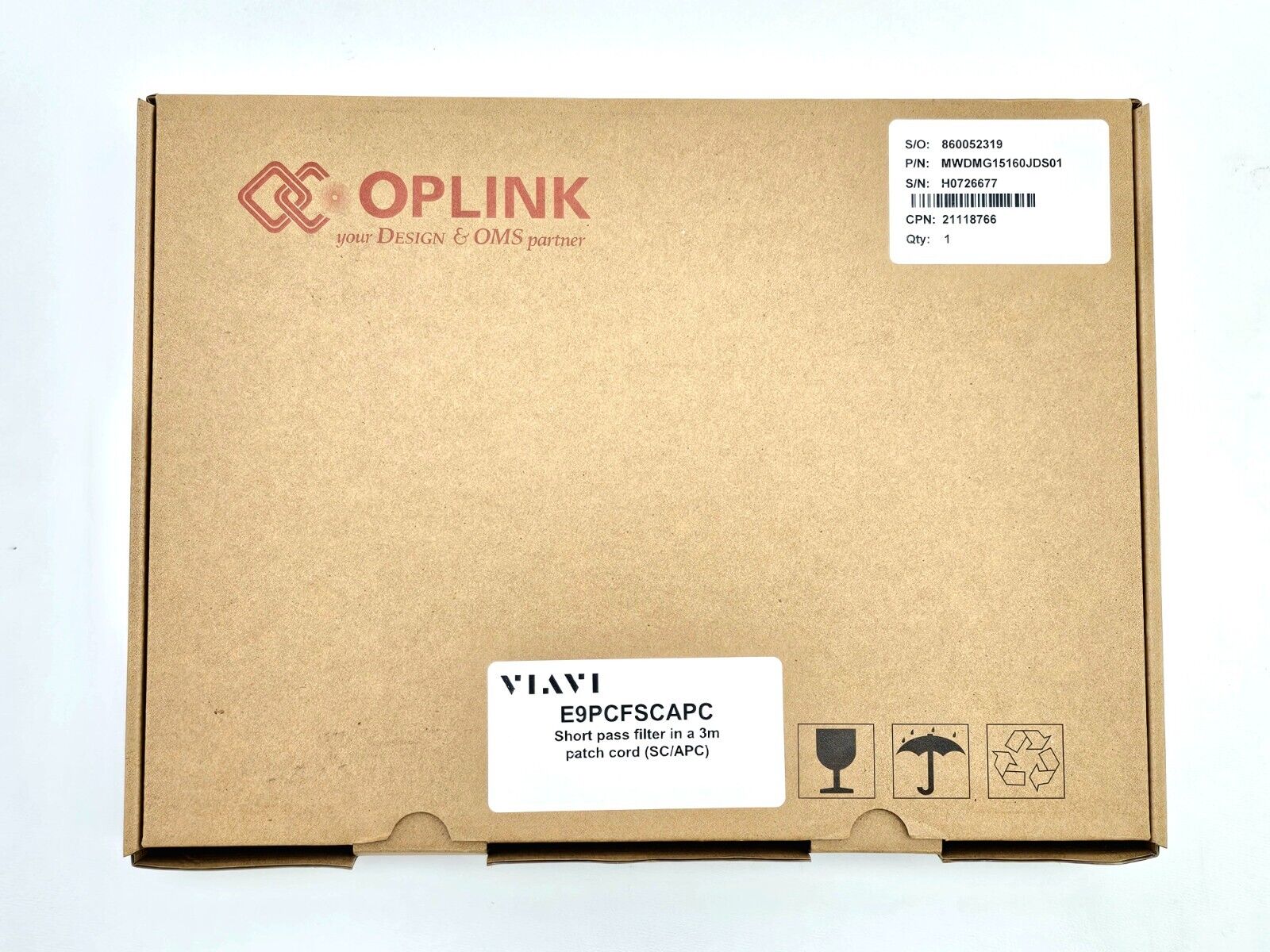

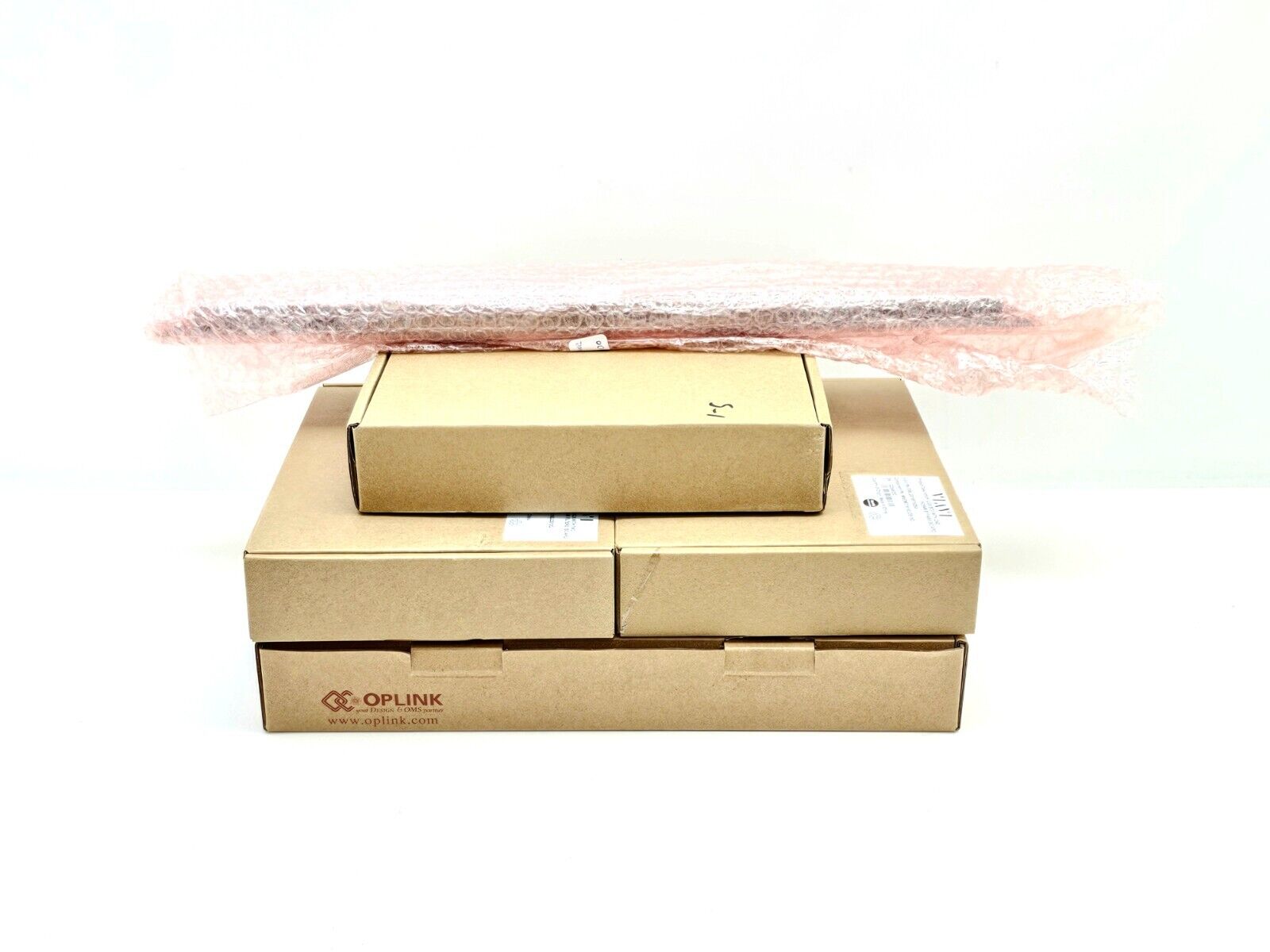

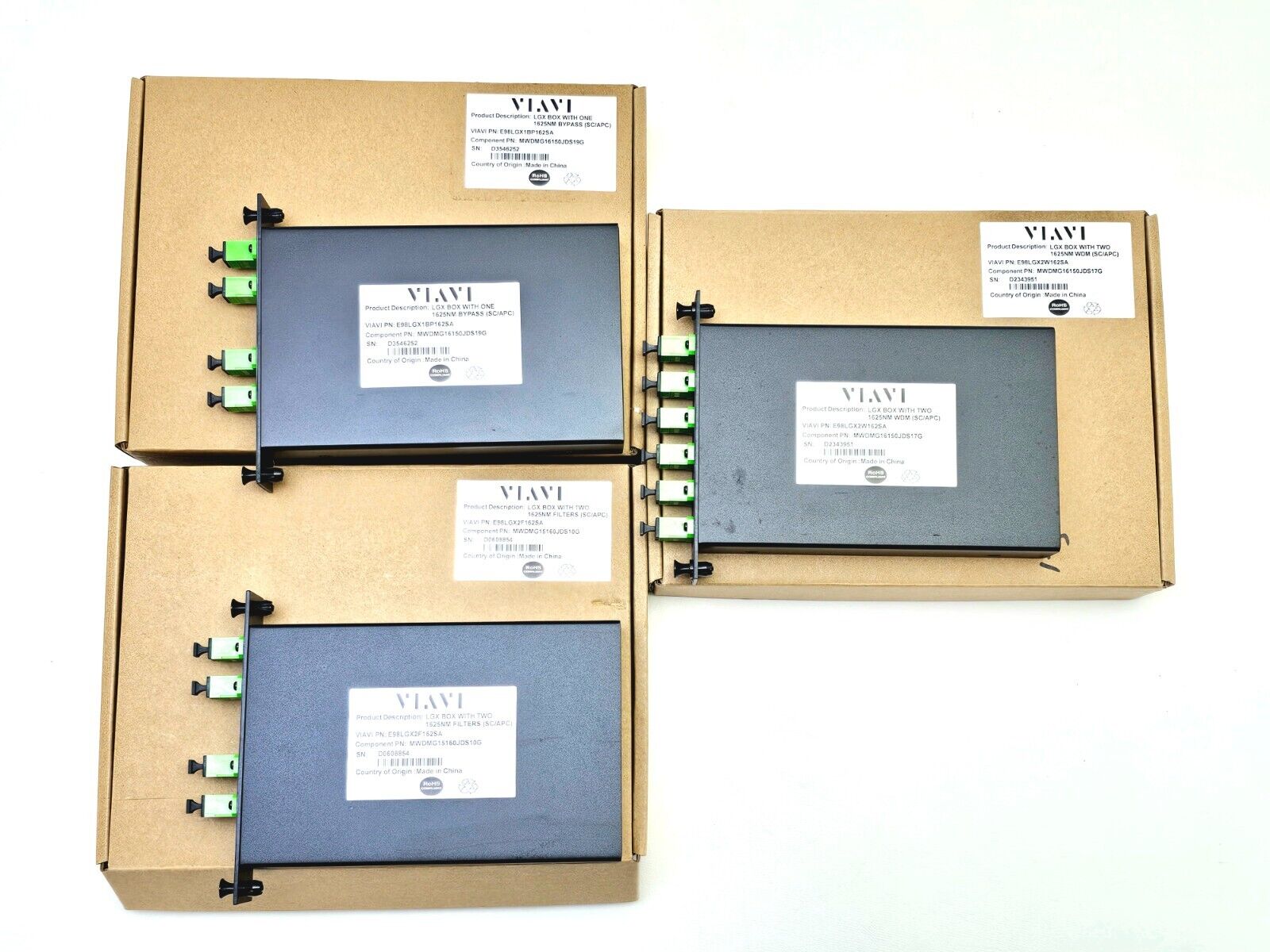

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

Viavi Solutions (formerly JDSU) Passive Component Modules — E98LGX1BP162SA

For in-service fibre monitoring with ONMSi, OTU-8000, and OTU-5000 platforms. These passive components enable OTDR testing of fibres carrying live traffic by inserting an out-of-band wavelength (1625 or 1650 nm) into the transmission path. The OTDR signal is combined with the data signal using a wavelength division multiplexer (WDM). At the far end, an optional filter can block the OTDR signal where the transmission equipment does not provide adequate isolation.

When an OTDR measurement range can cover more than one fibre span, a bypass can extend the OTDR signal to an adjacent span, increasing monitoring distance and reducing the need for additional Optical Test Units (OTU-8000 or OTU-5000).

Key Features:
In-service monitoring: Yes — no traffic interruption required
Operating wavelength: 1625 nm or 1650 nm (out-of-band)
Passband: Wide and flat
Insertion loss: Low
Data traffic compatibility: C and L band
Connector type: SC/APC
Form factor: LGX module
Installation: Tool-free, installs in minutes
Environmental stability: Exceptional reliability across environmental conditions

Applications:
Remote fibre test systems
Fibre tapping detection
In-service OTDR monitoring across multiple fibre spans
