Viavi JDSU JD723C CellAdvisor Base Station Analyzer 2.7 GHz with JD72450509 OSL
Model: JD723C
Condition: For parts or not working
In stock: 0
SKU: 3048 7E02
- Cable & Antenna Analyzers
- RF & Microwave
Choose options

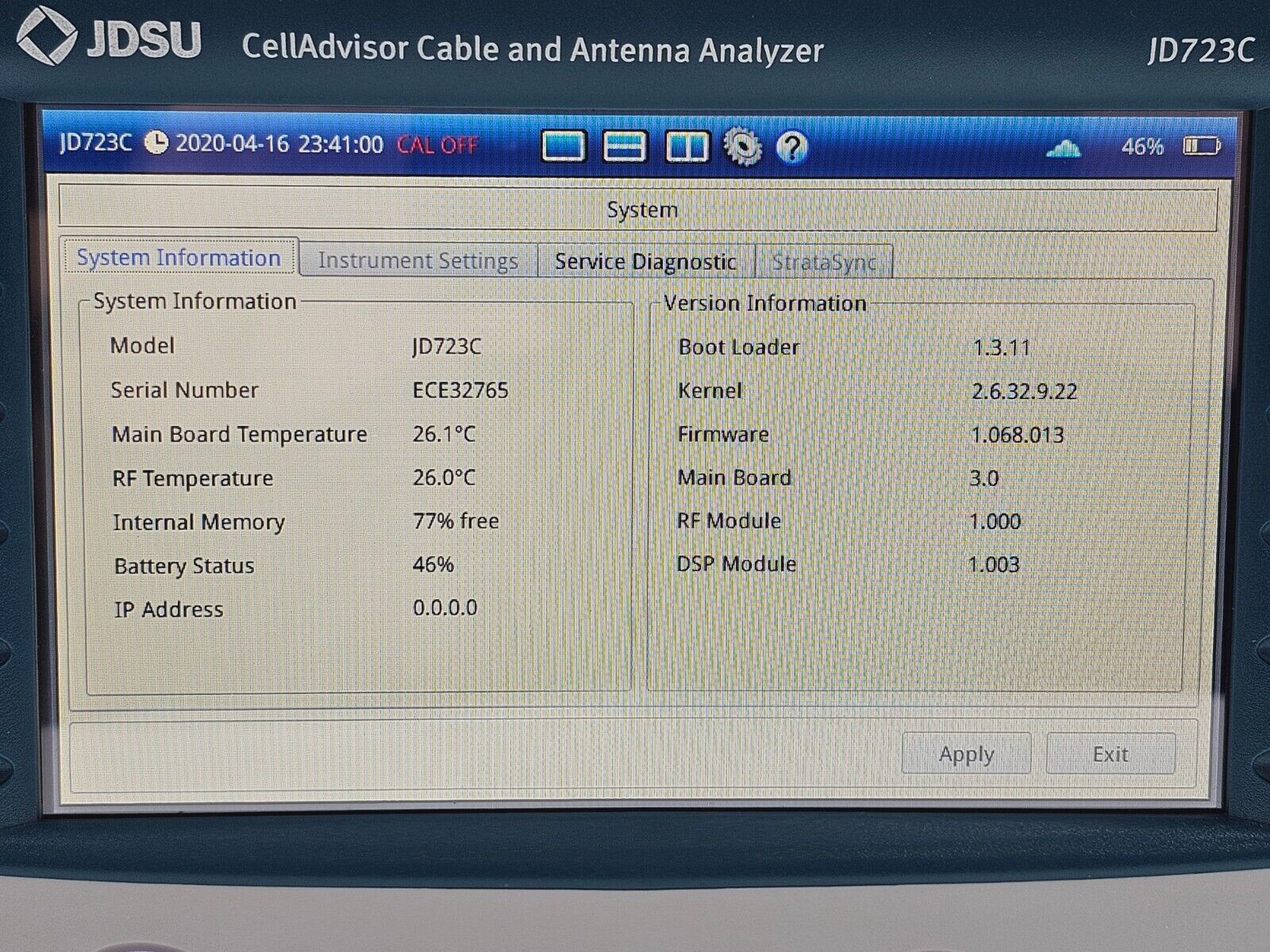

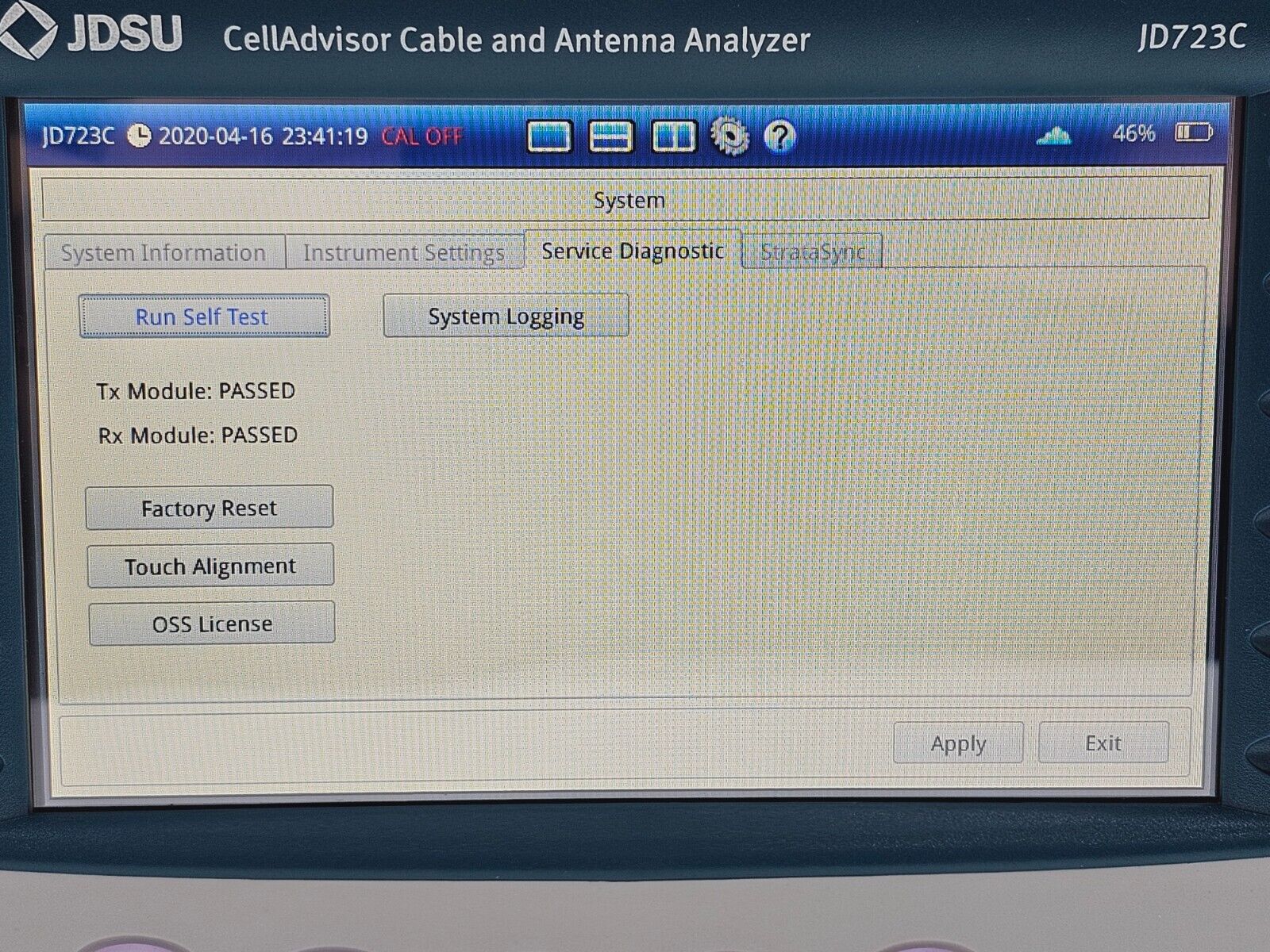

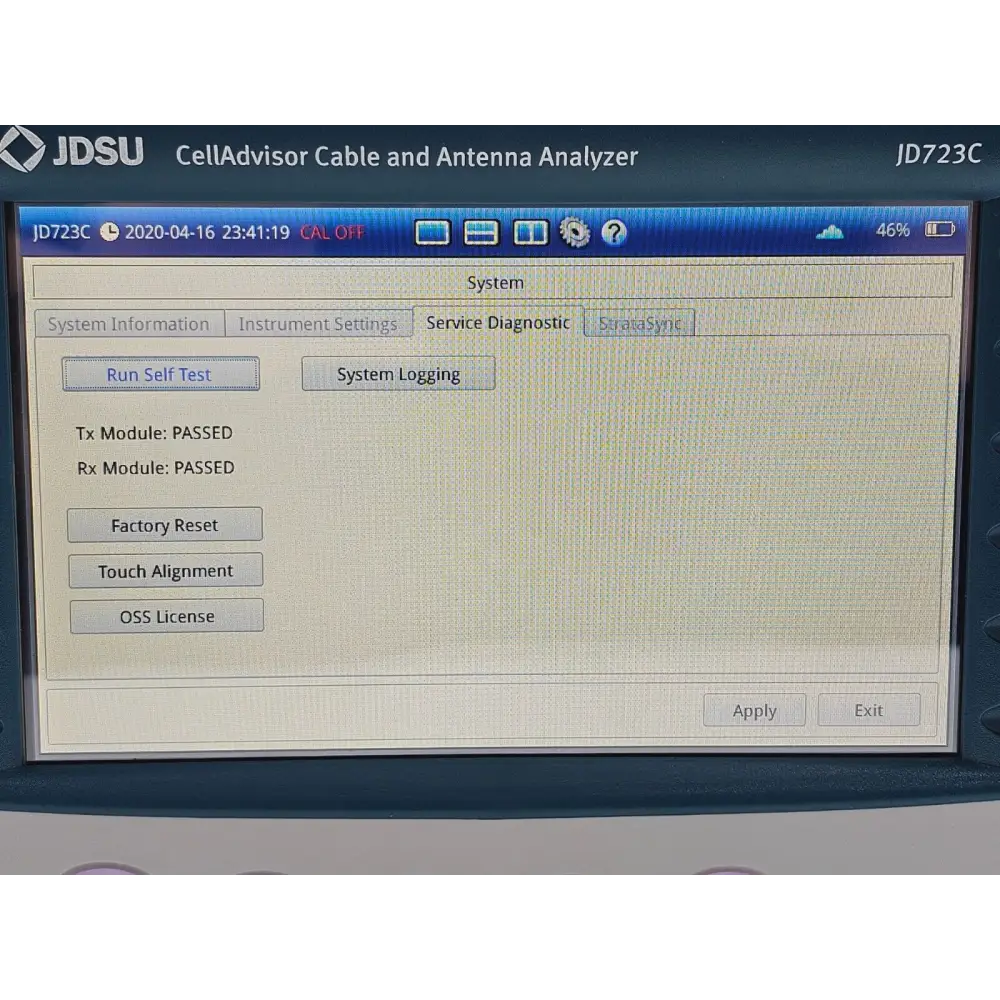

Condition: For parts or not working — the device will not charge the battery and must be used with the mains power adapter. The self-test passes and the unit functions normally when powered via the AC adapter. The battery has been tested with a known-working battery and confirmed defective; the charging circuit does not charge.

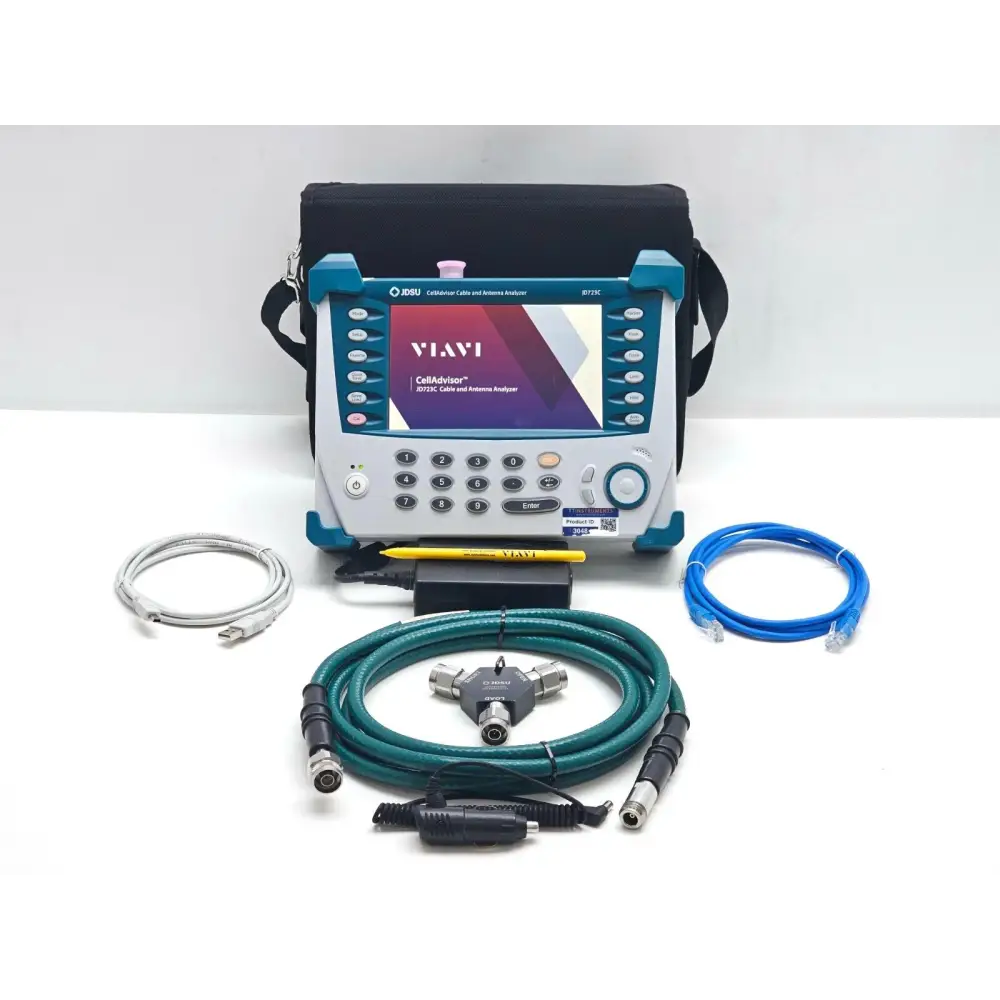

Included in the sale:
• JD723C CellAdvisor Base Station Analyser (battery defective — mains use only)

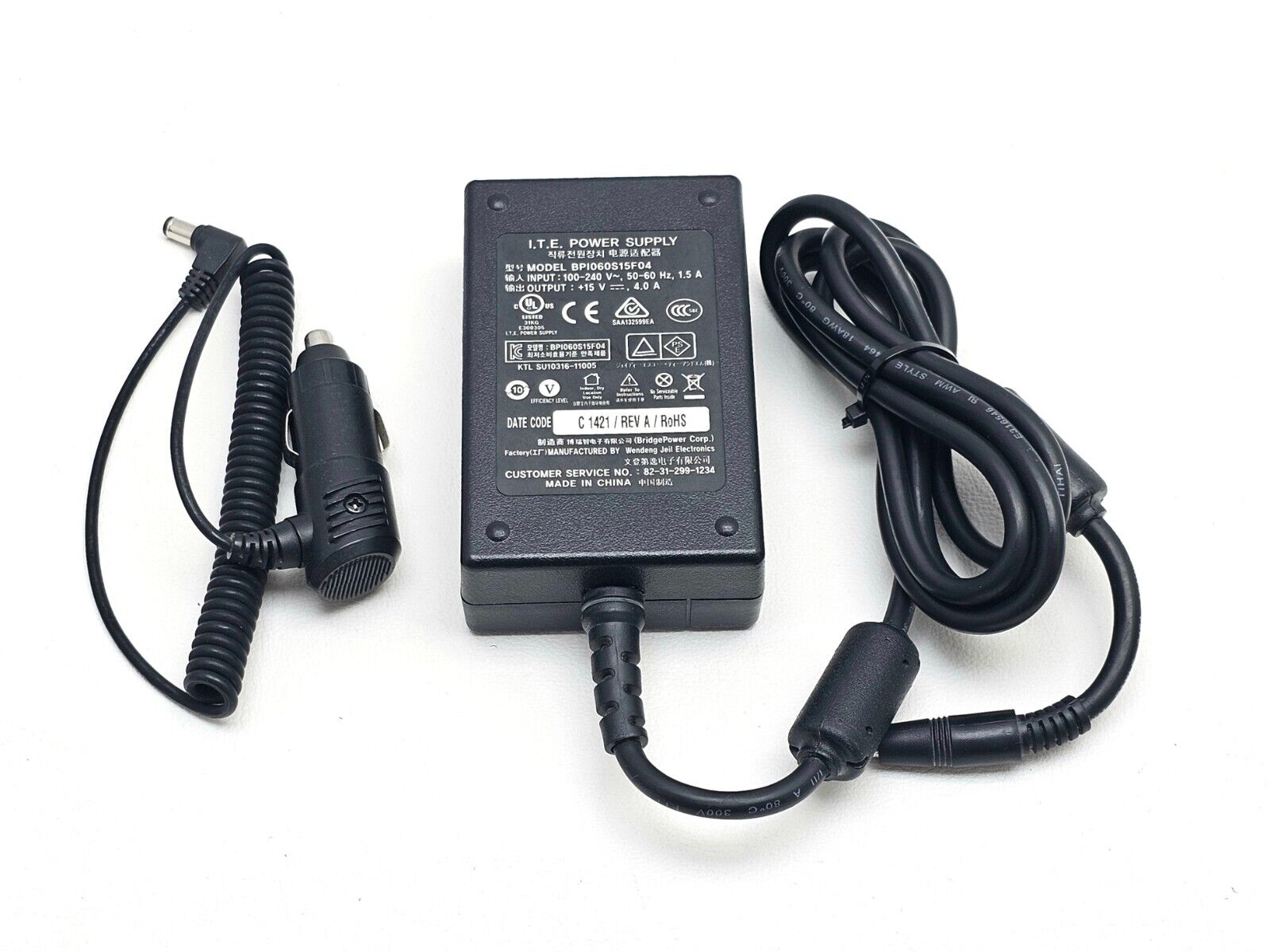

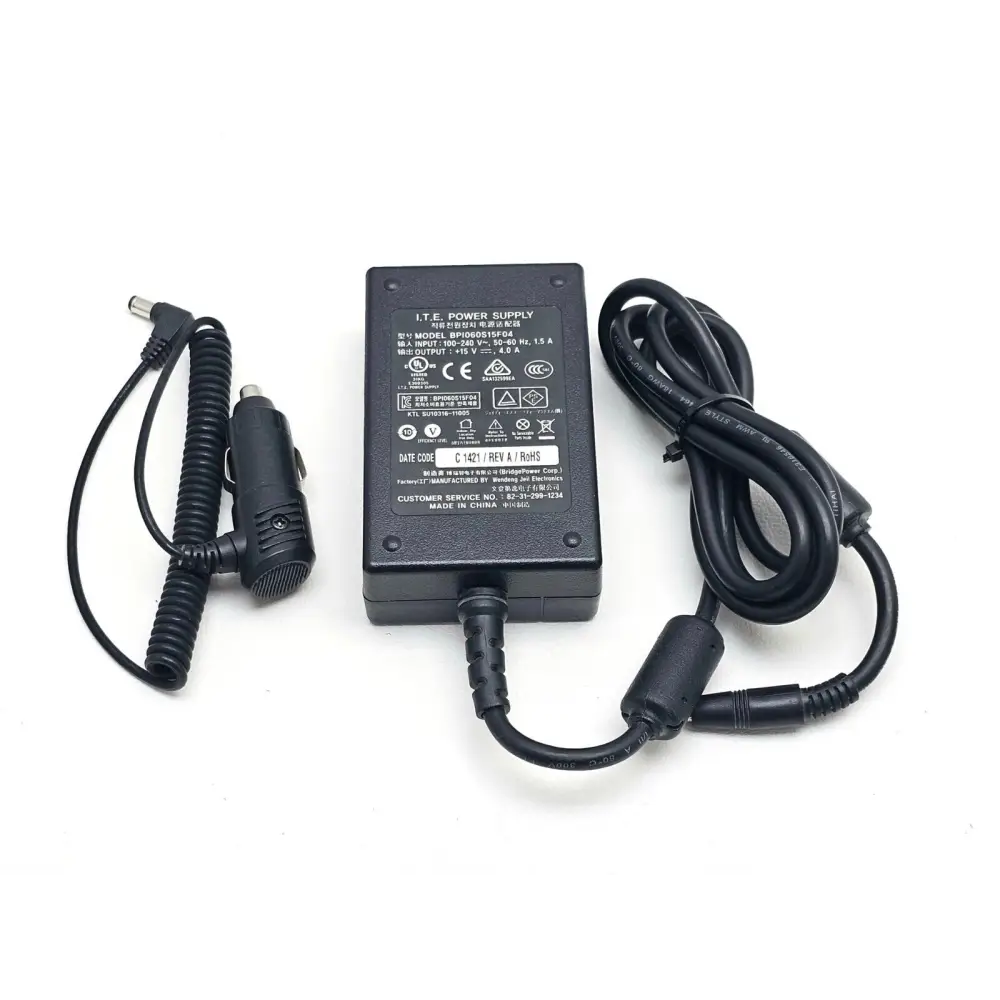

• Power adapter and car charger

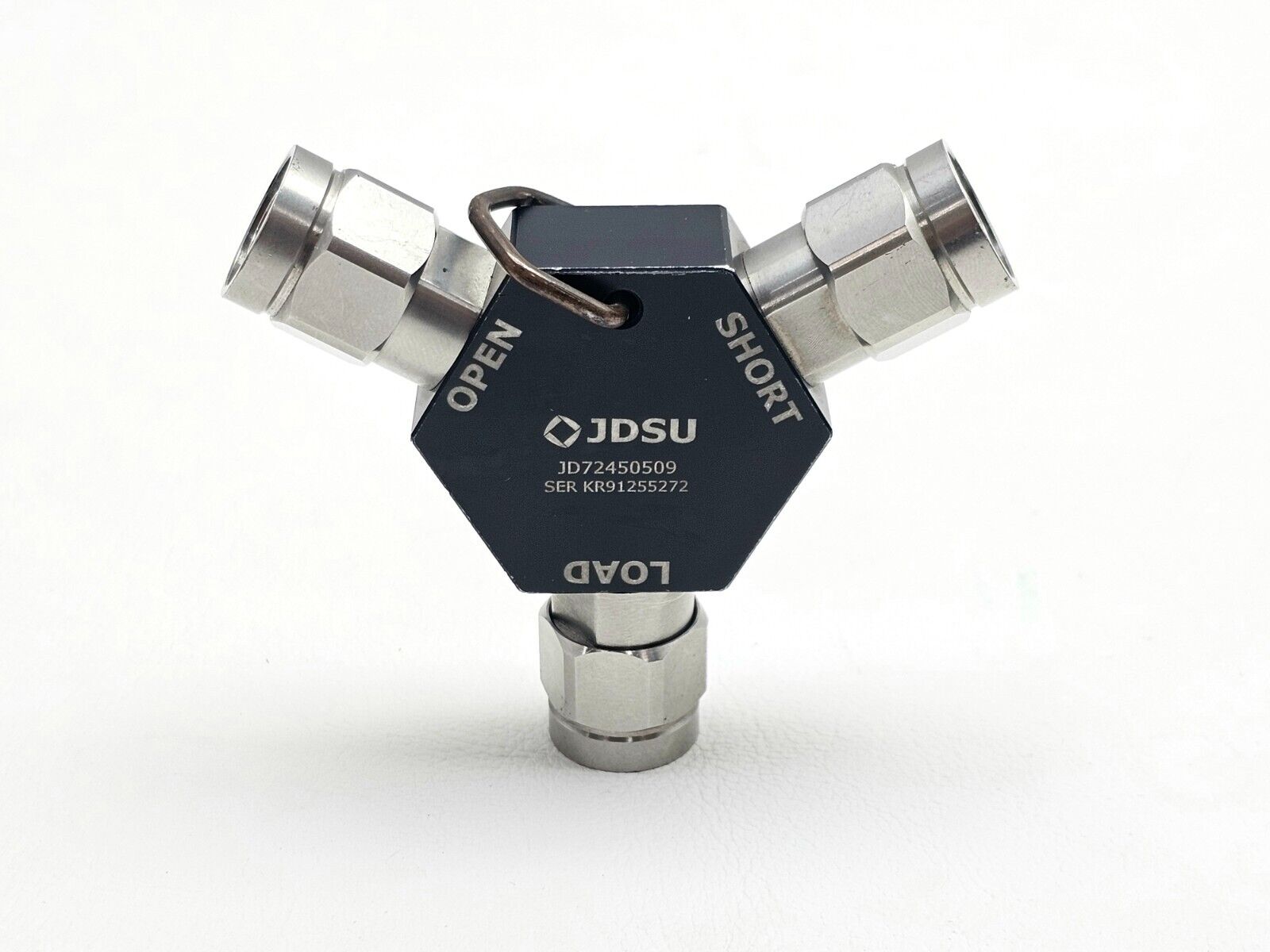

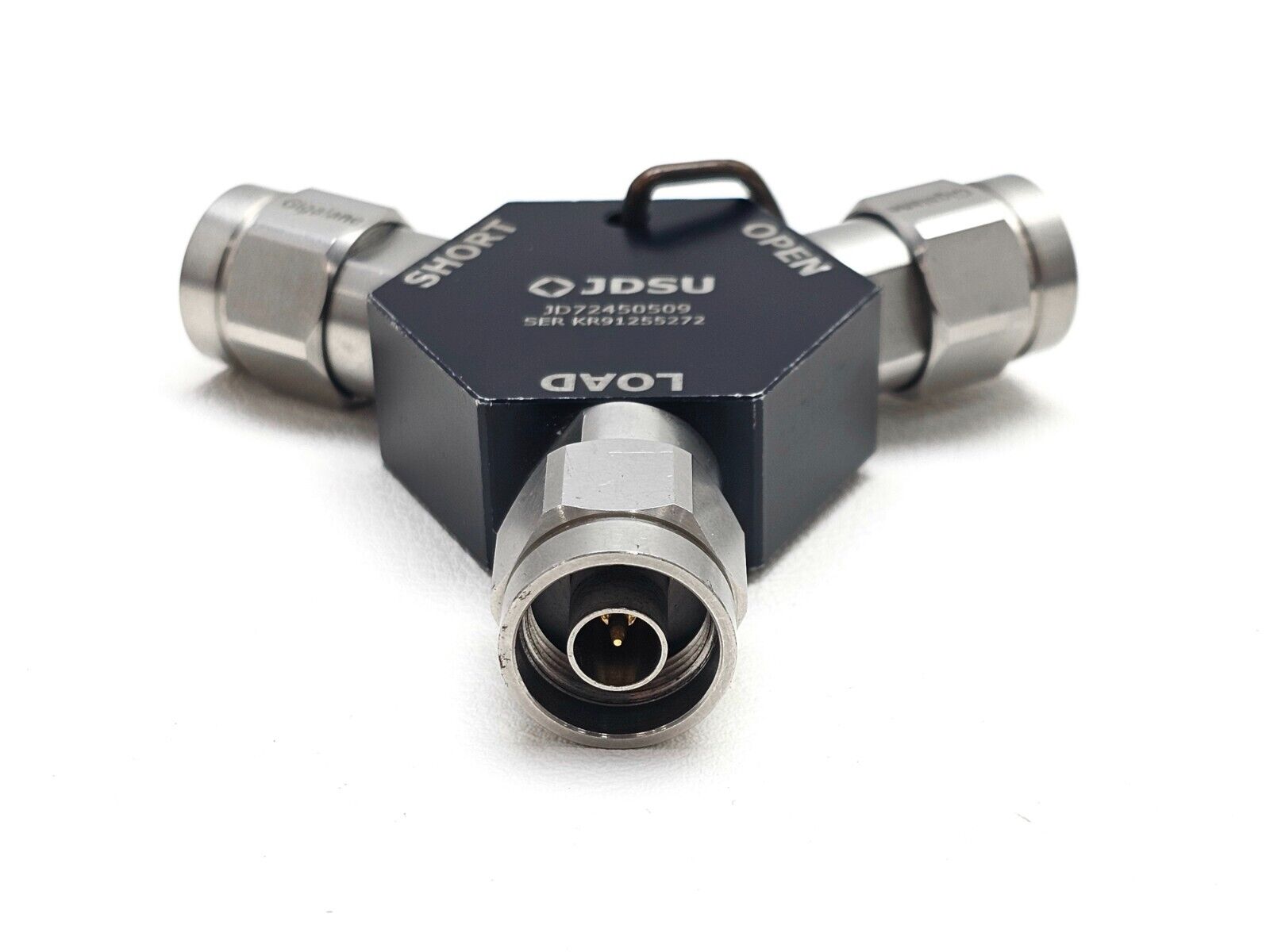

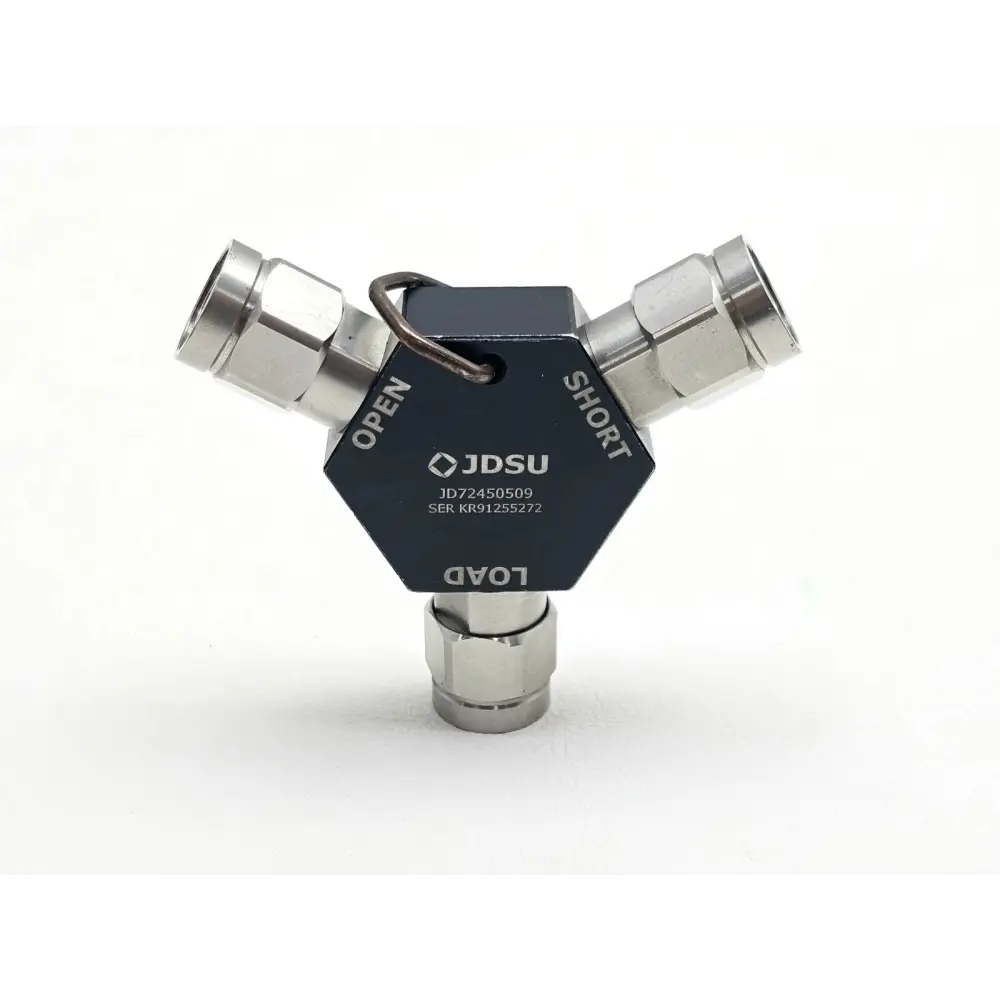

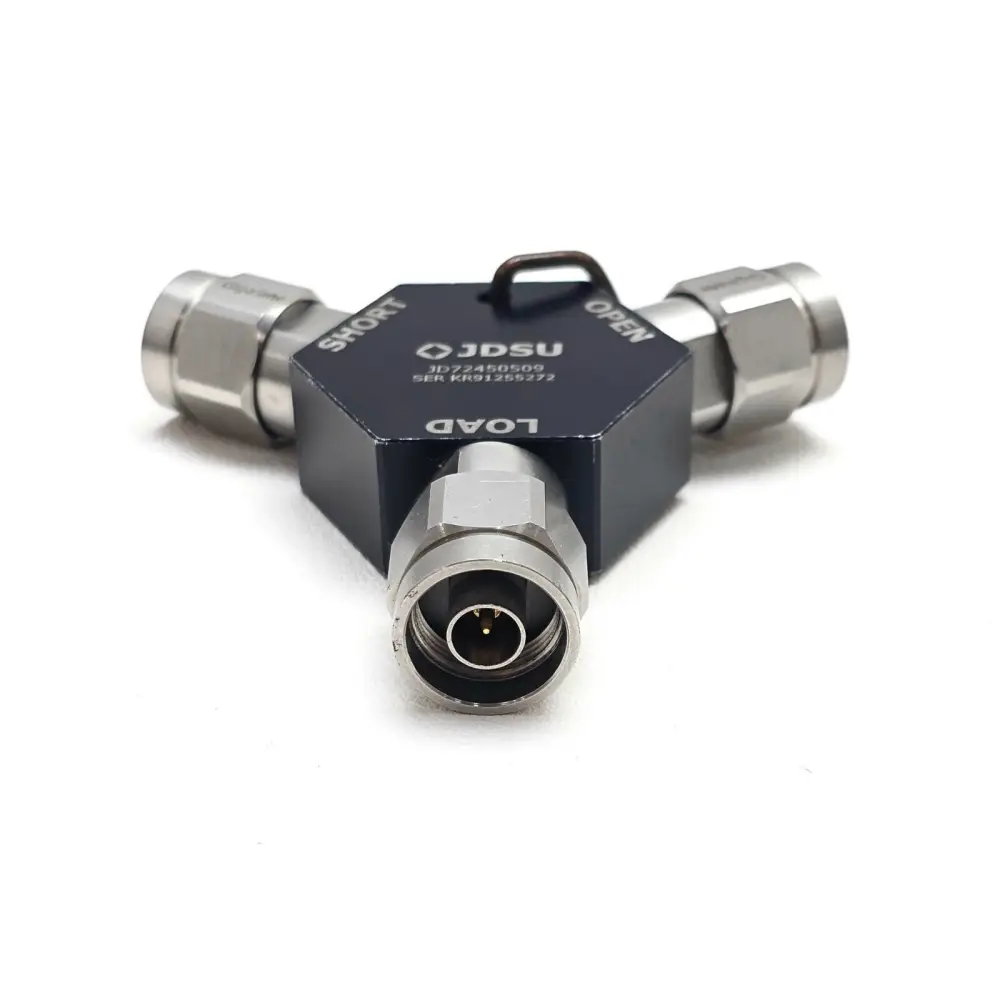

• JD72450509 OSL (Open/Short/Load) calibration kit

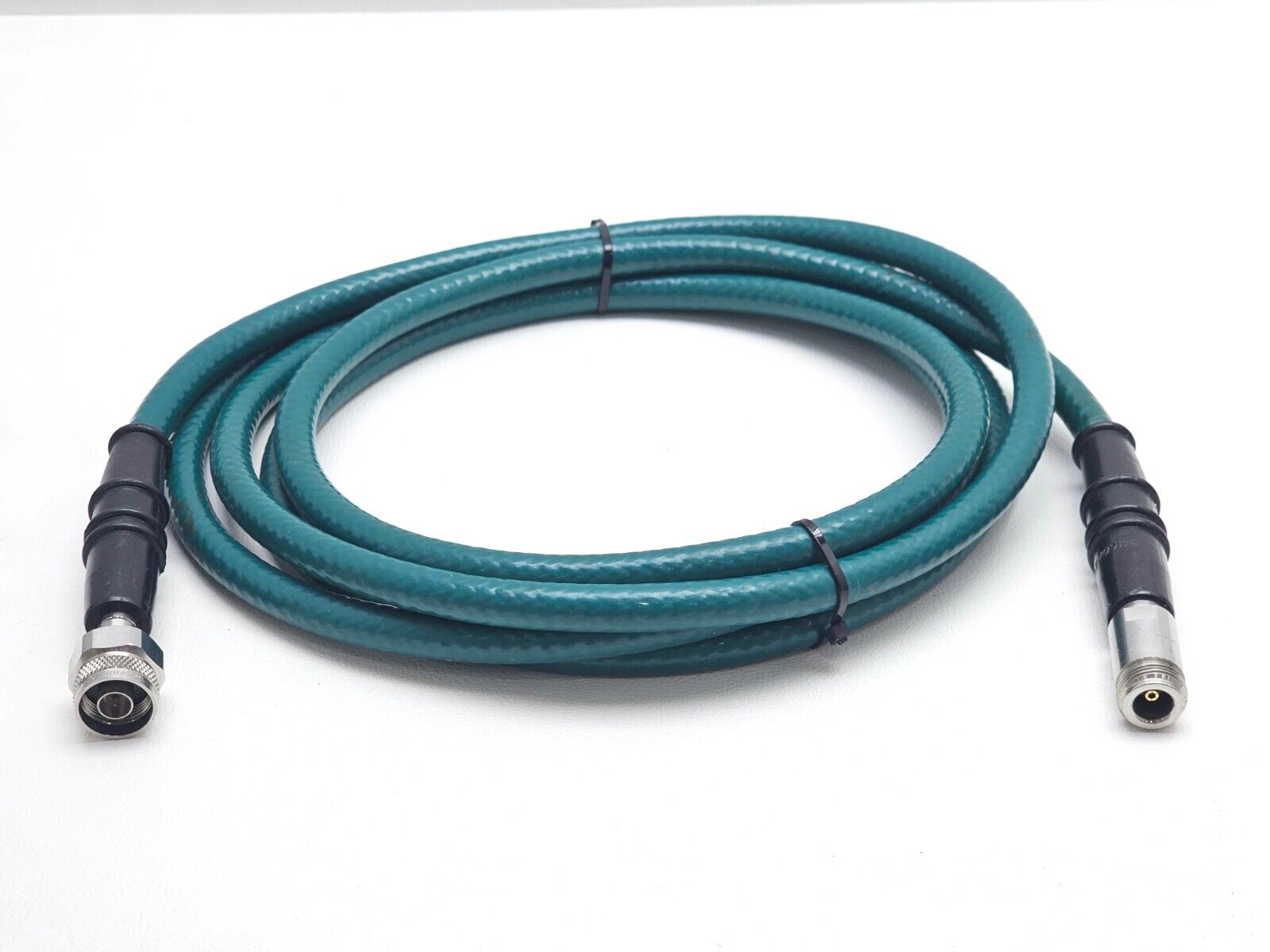

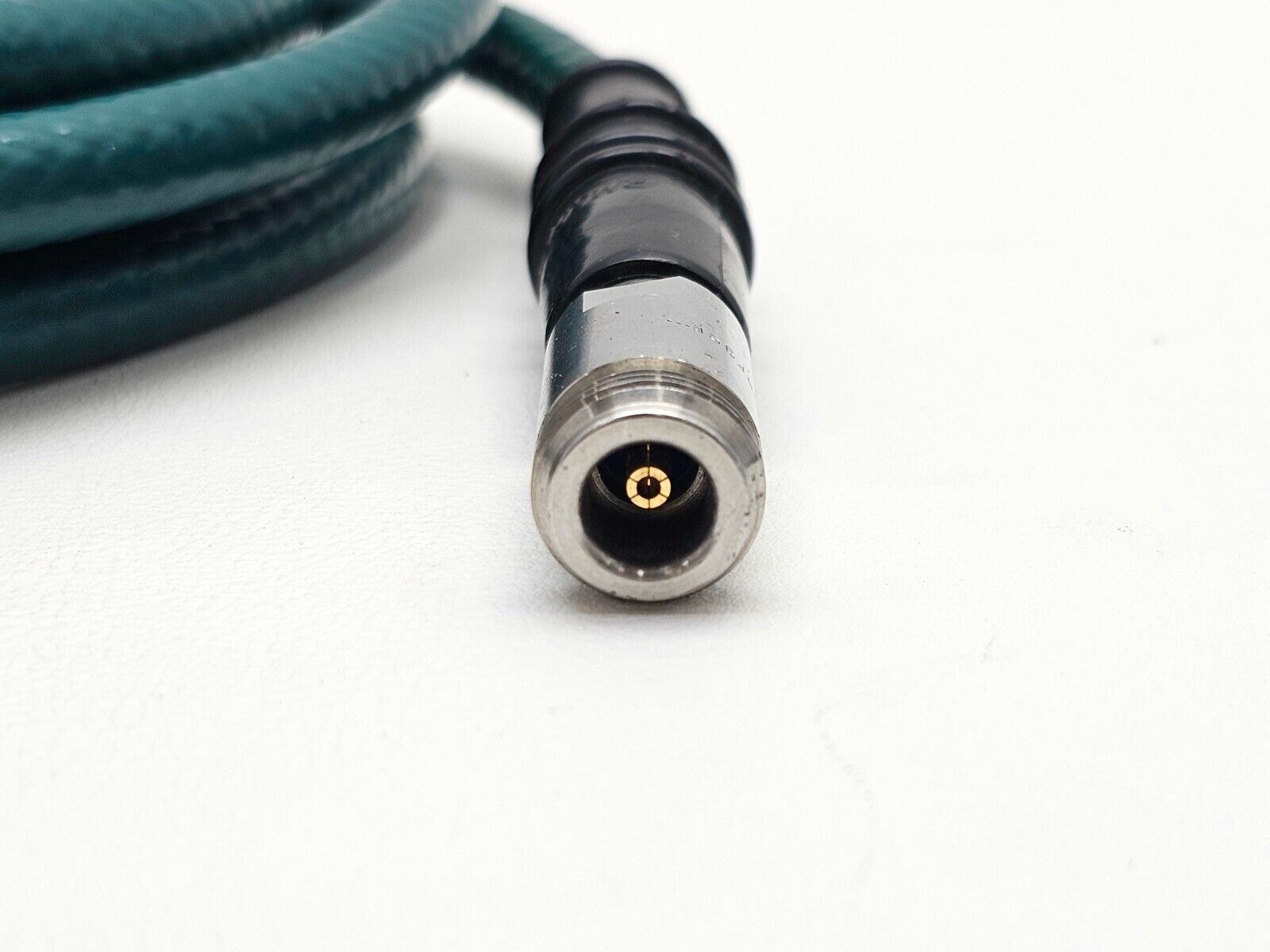

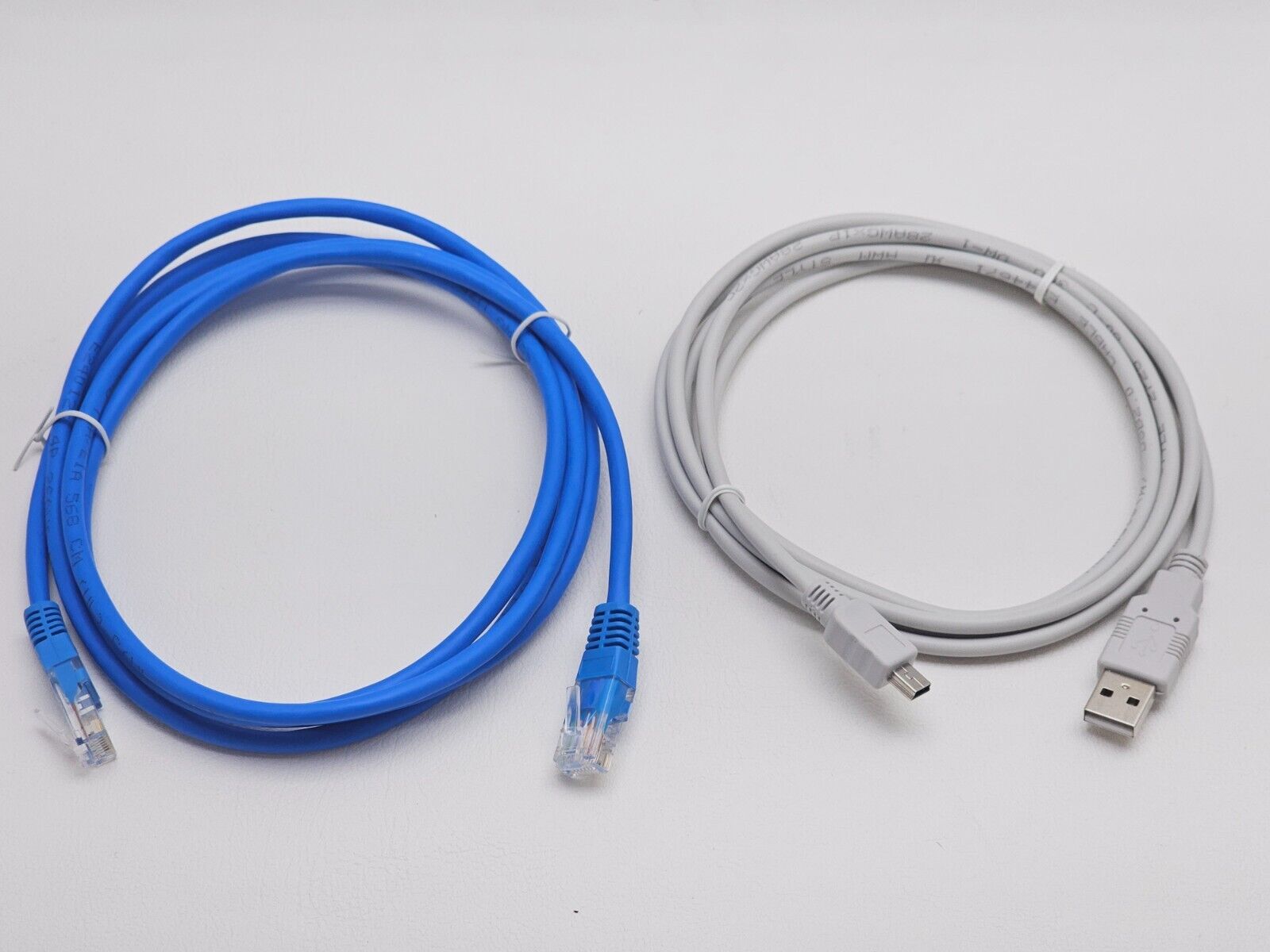

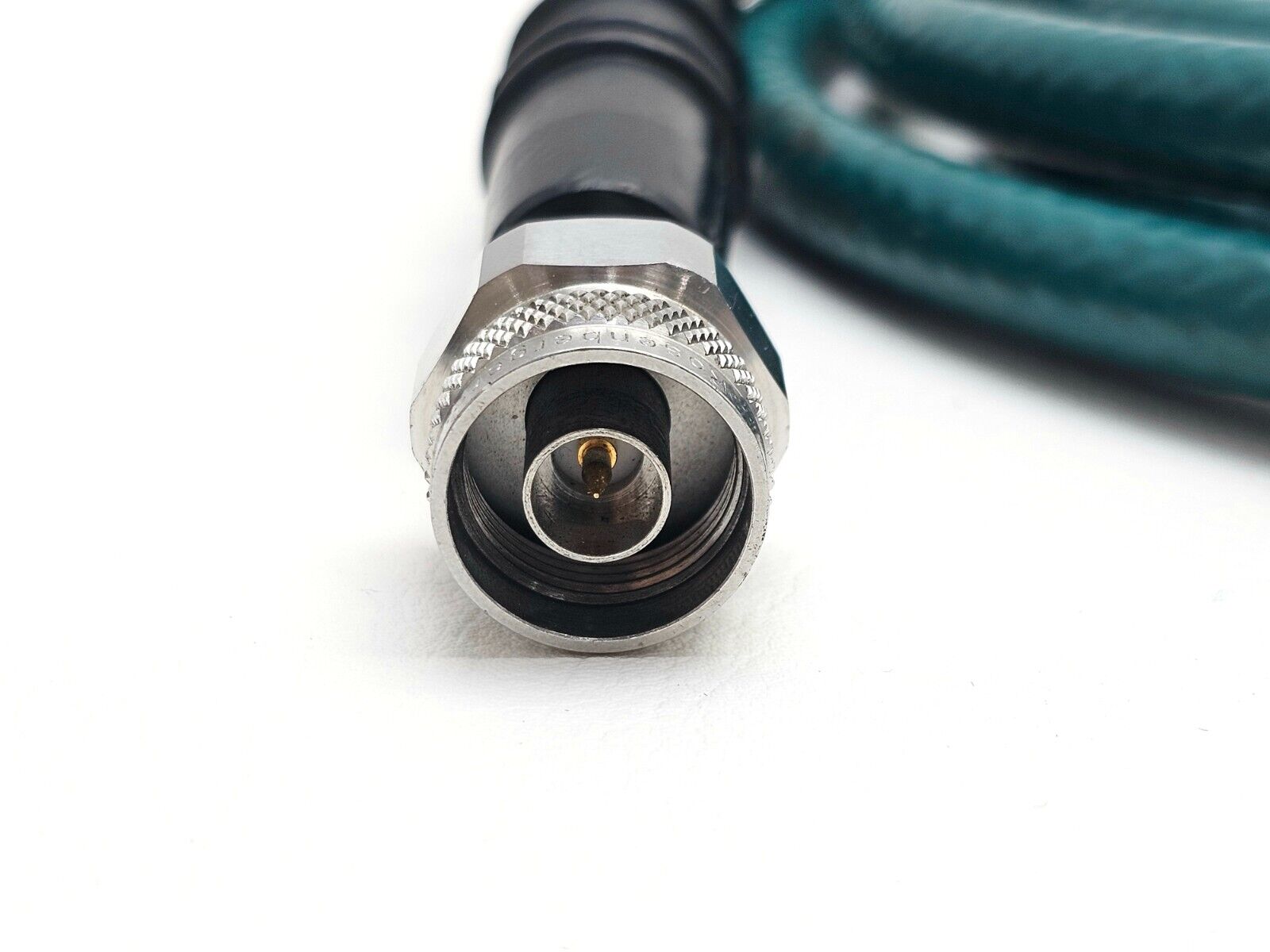

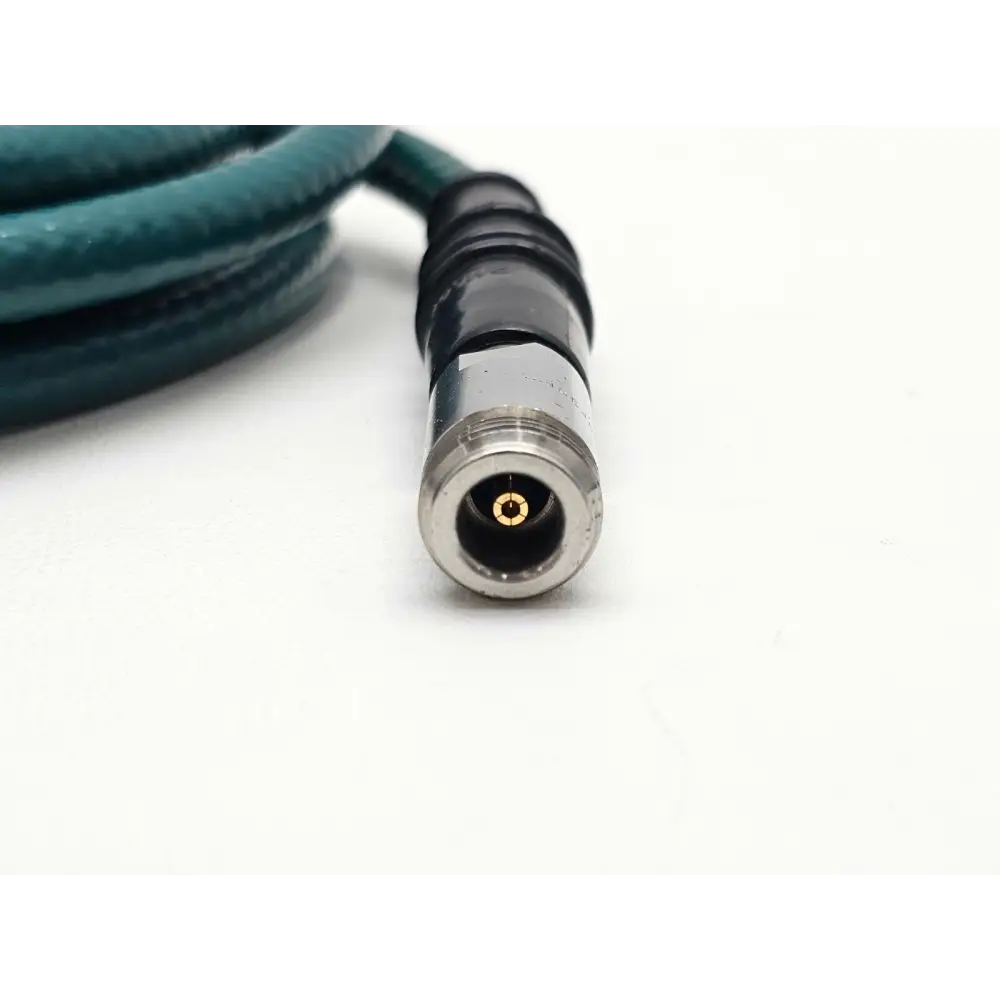

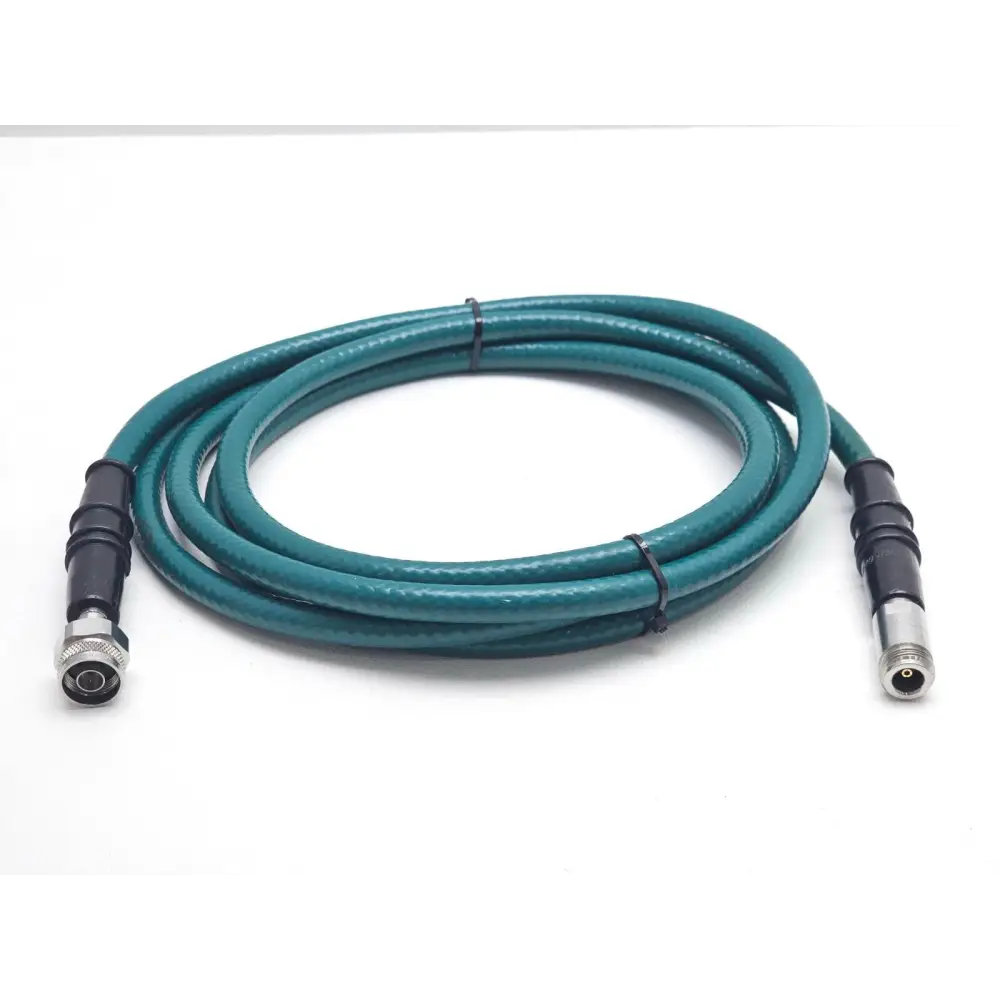

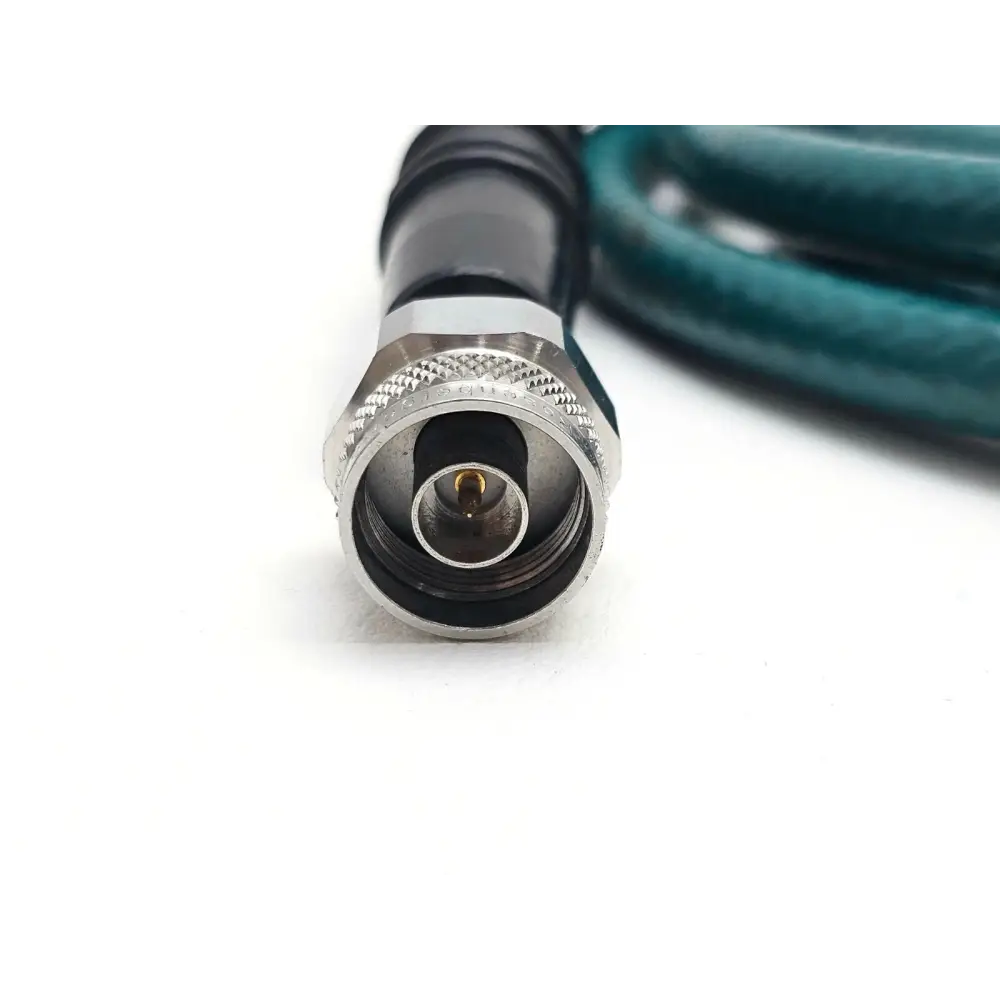

• Test cable

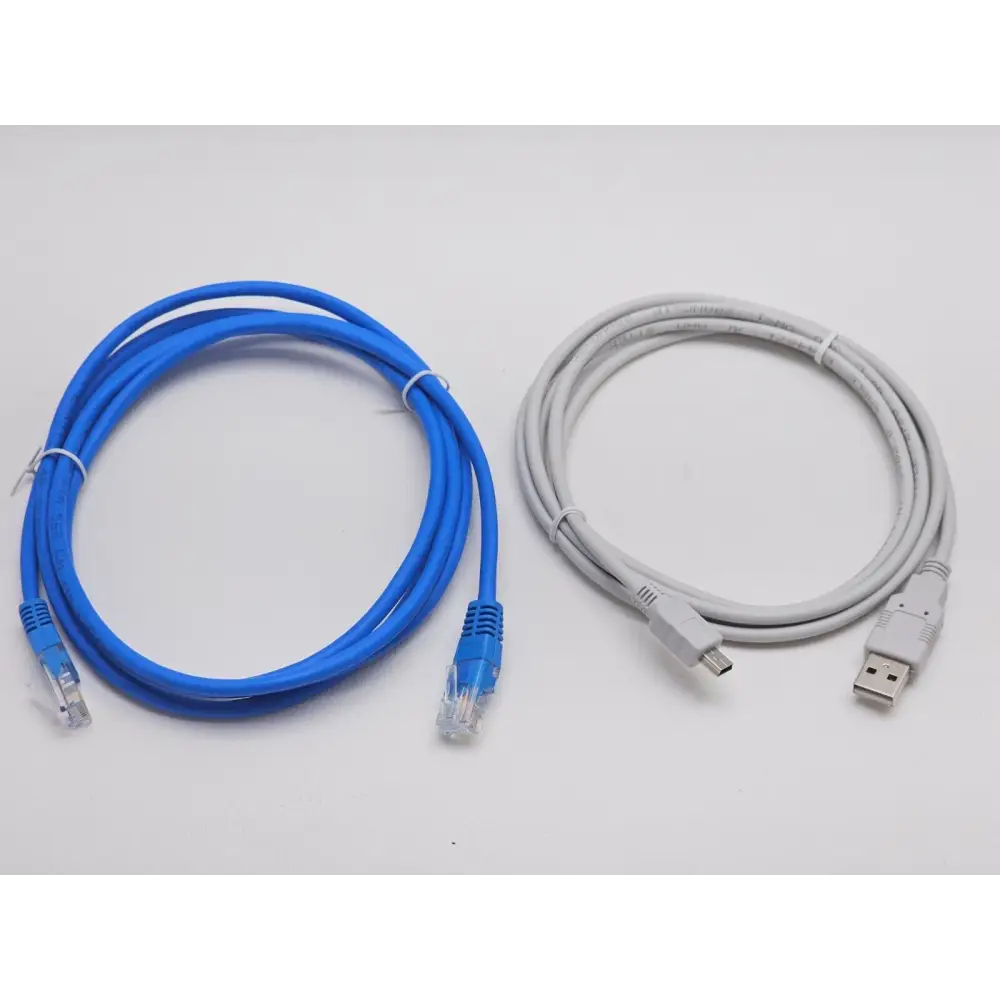

• USB cable
• Protective carry case

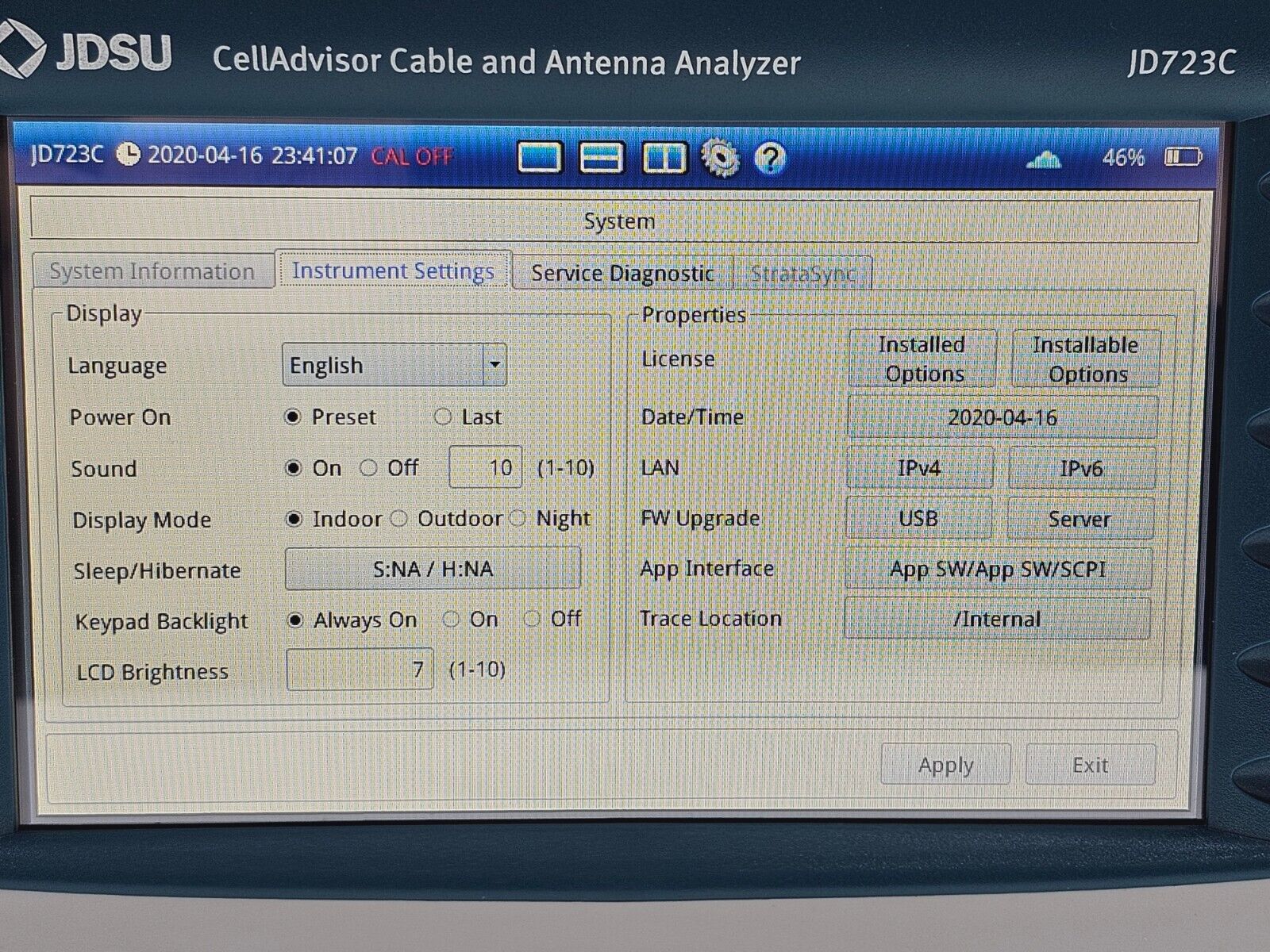

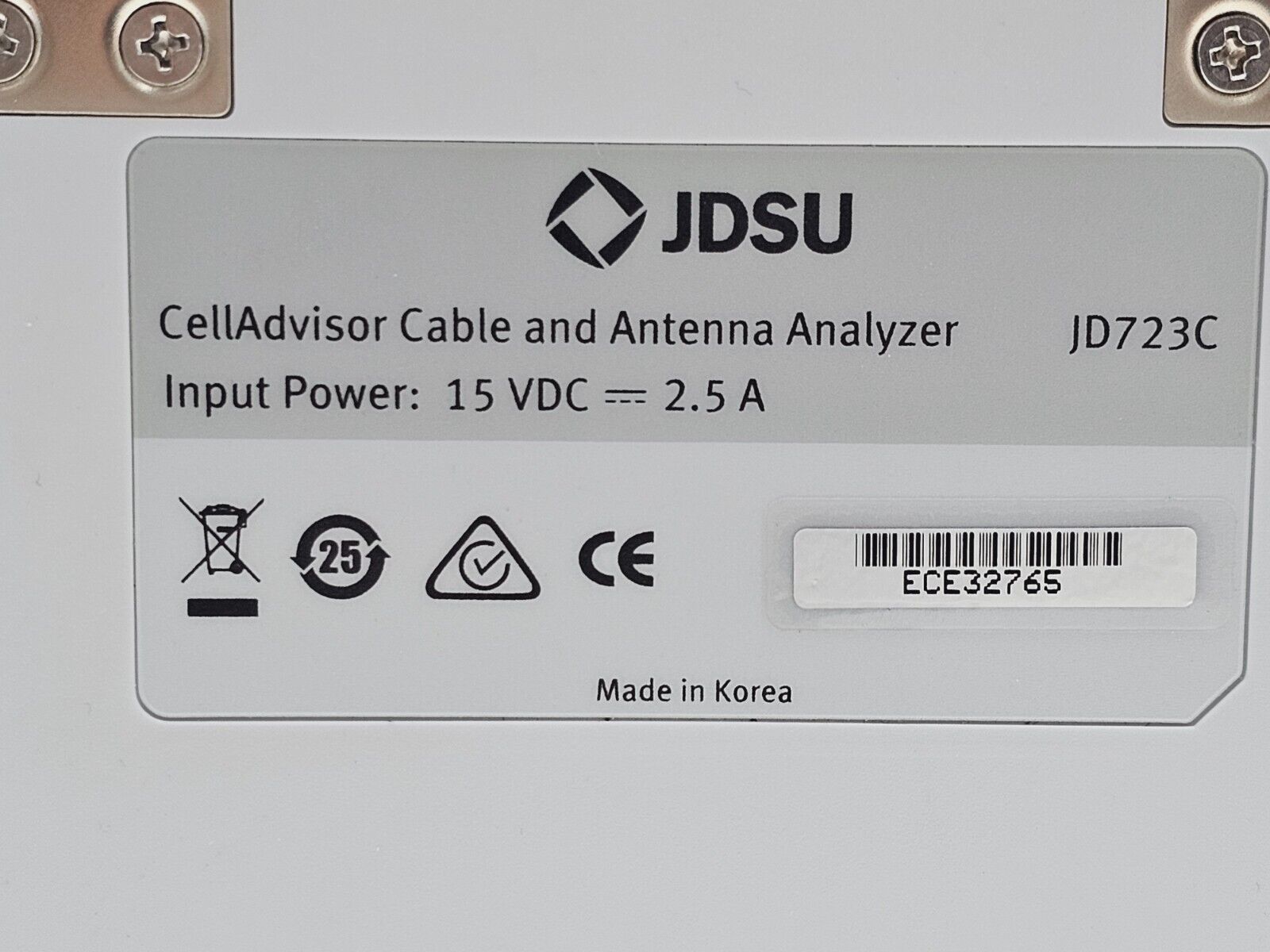

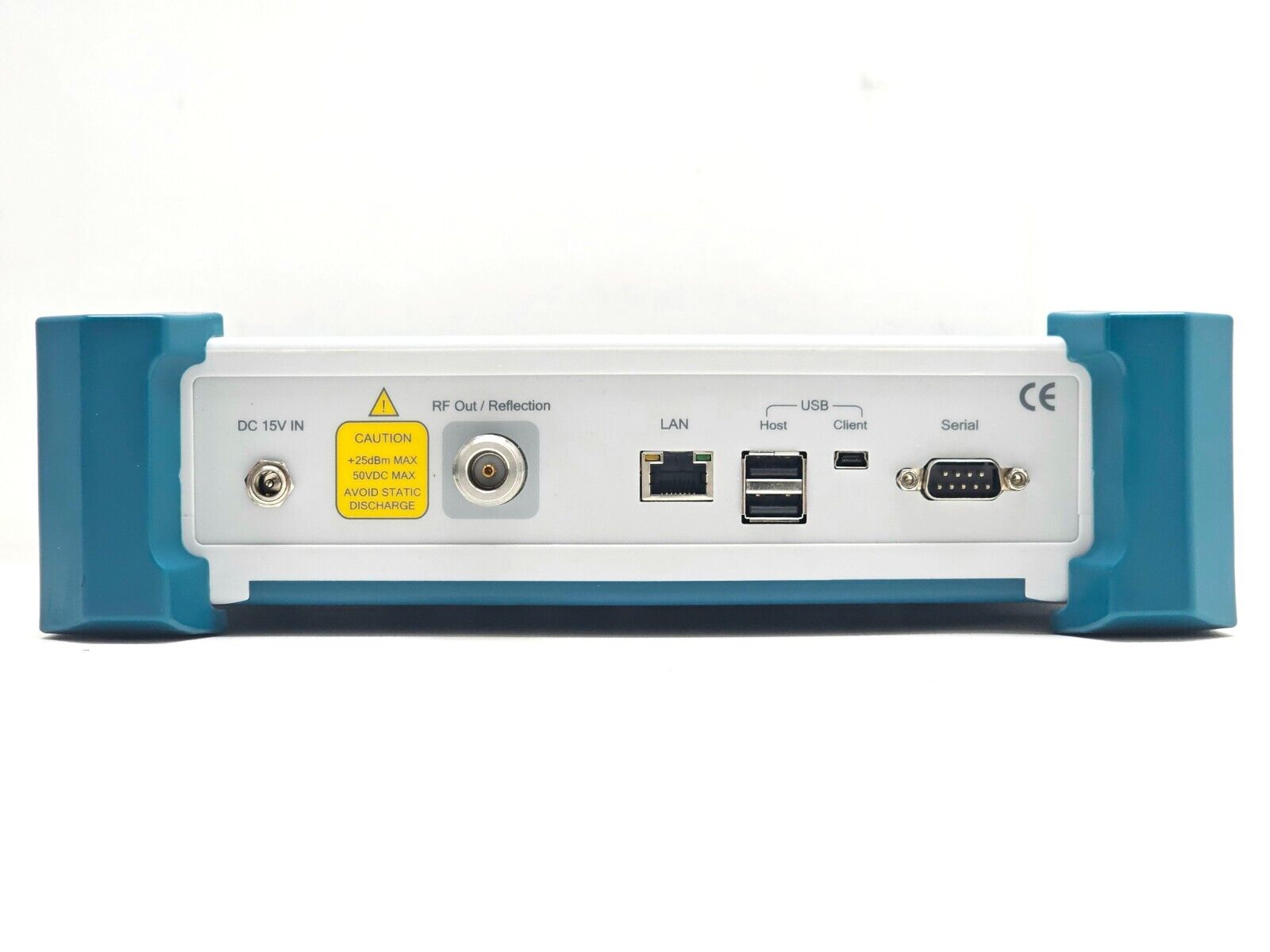

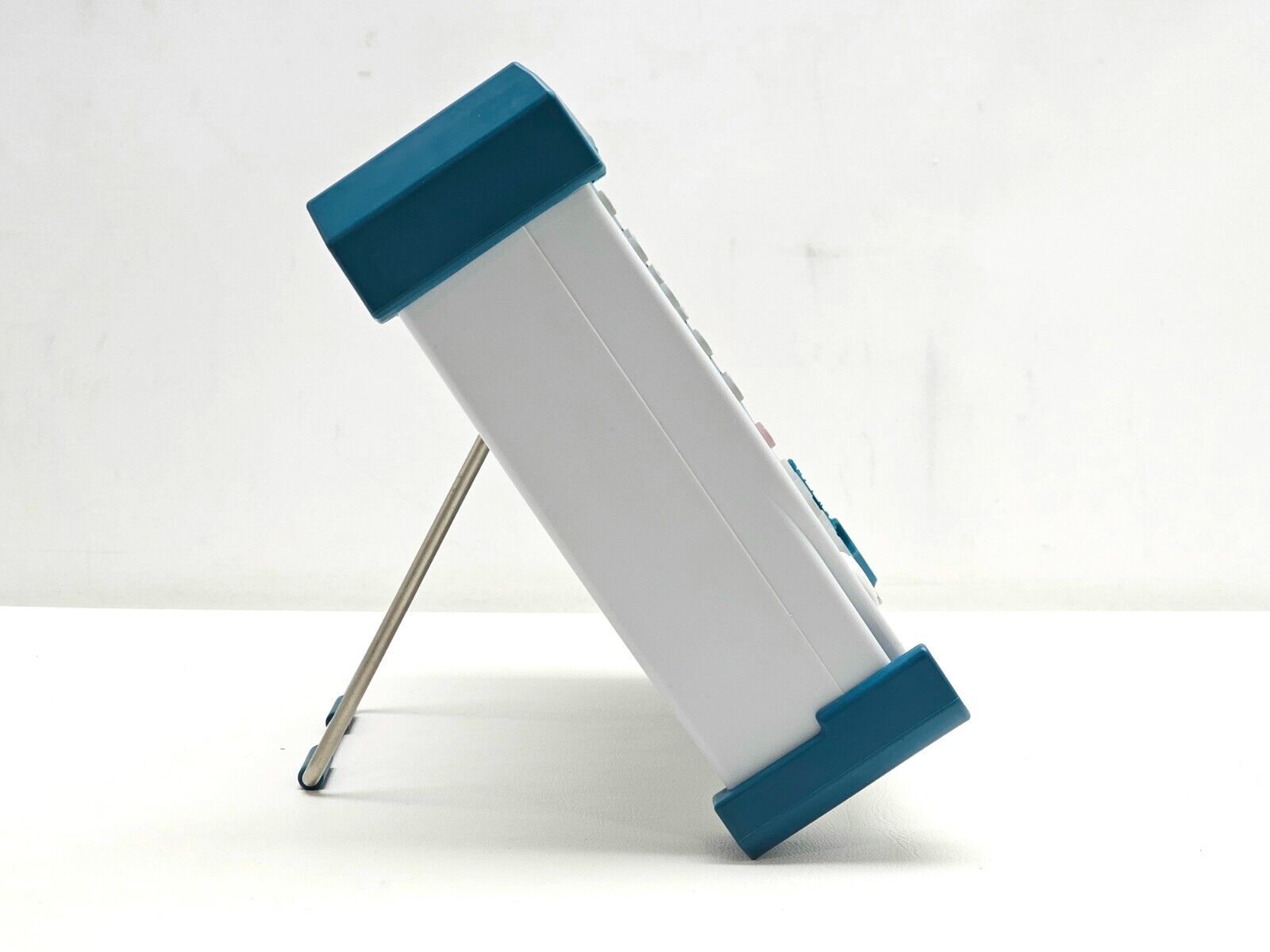

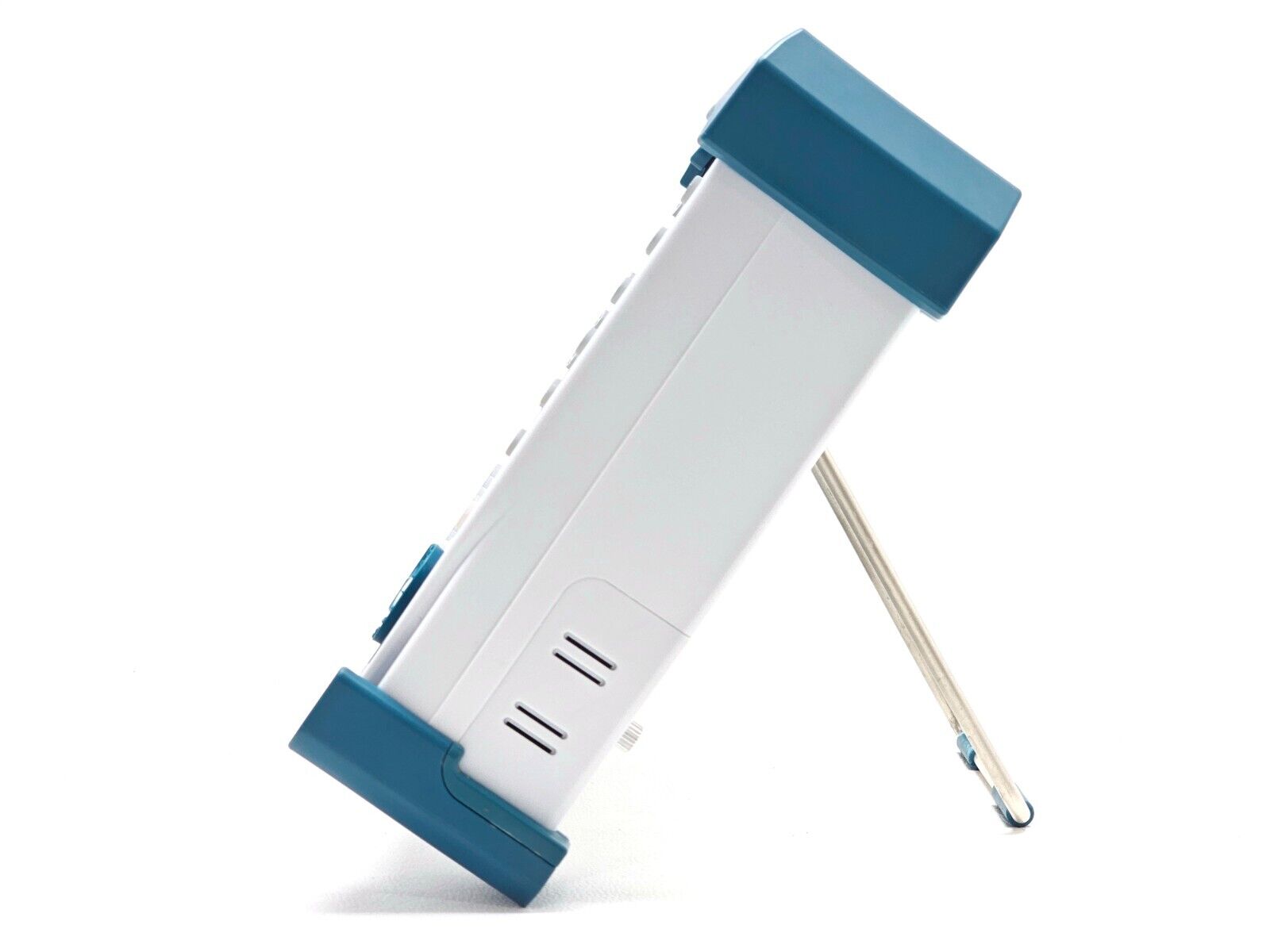

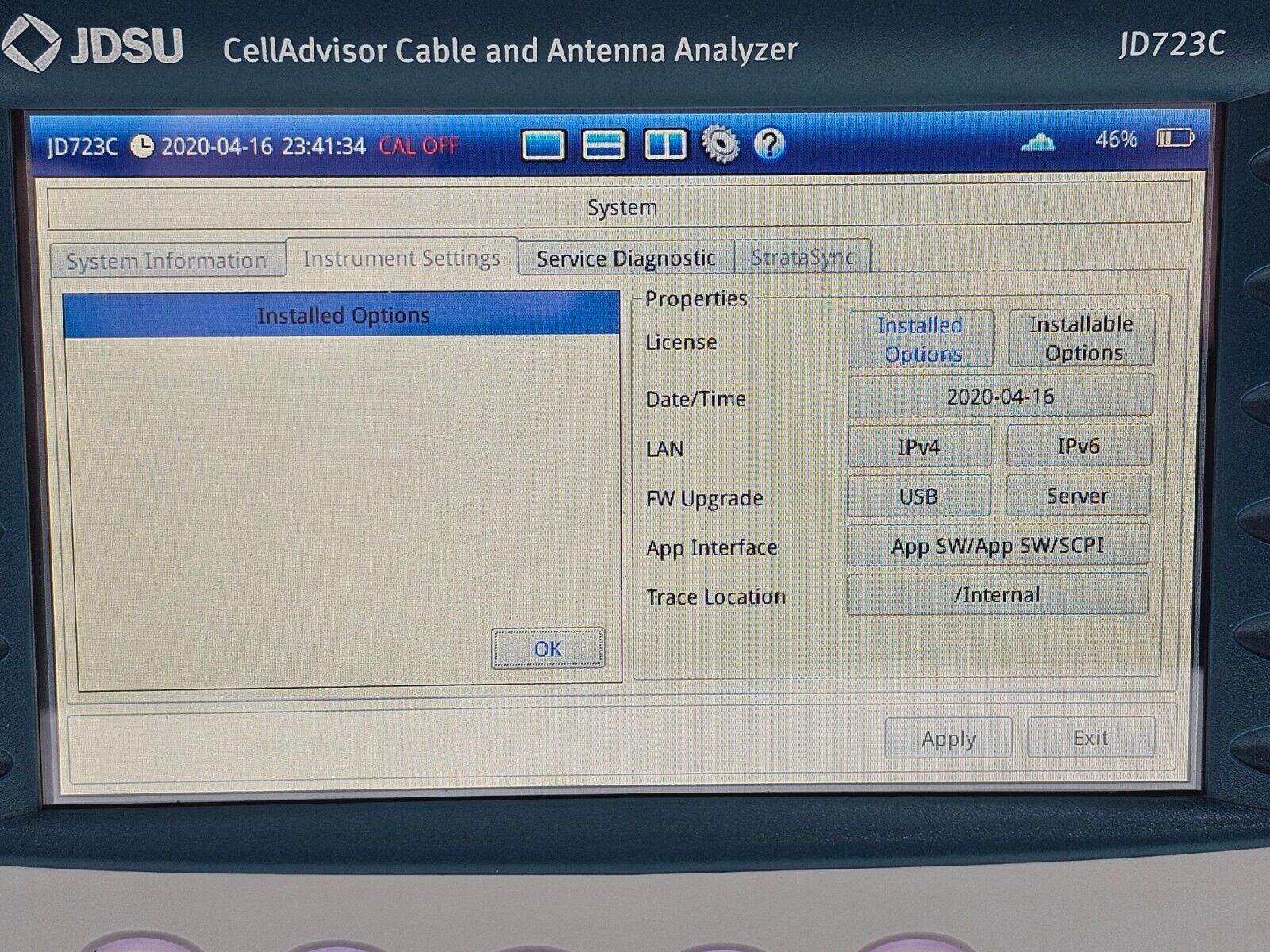

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

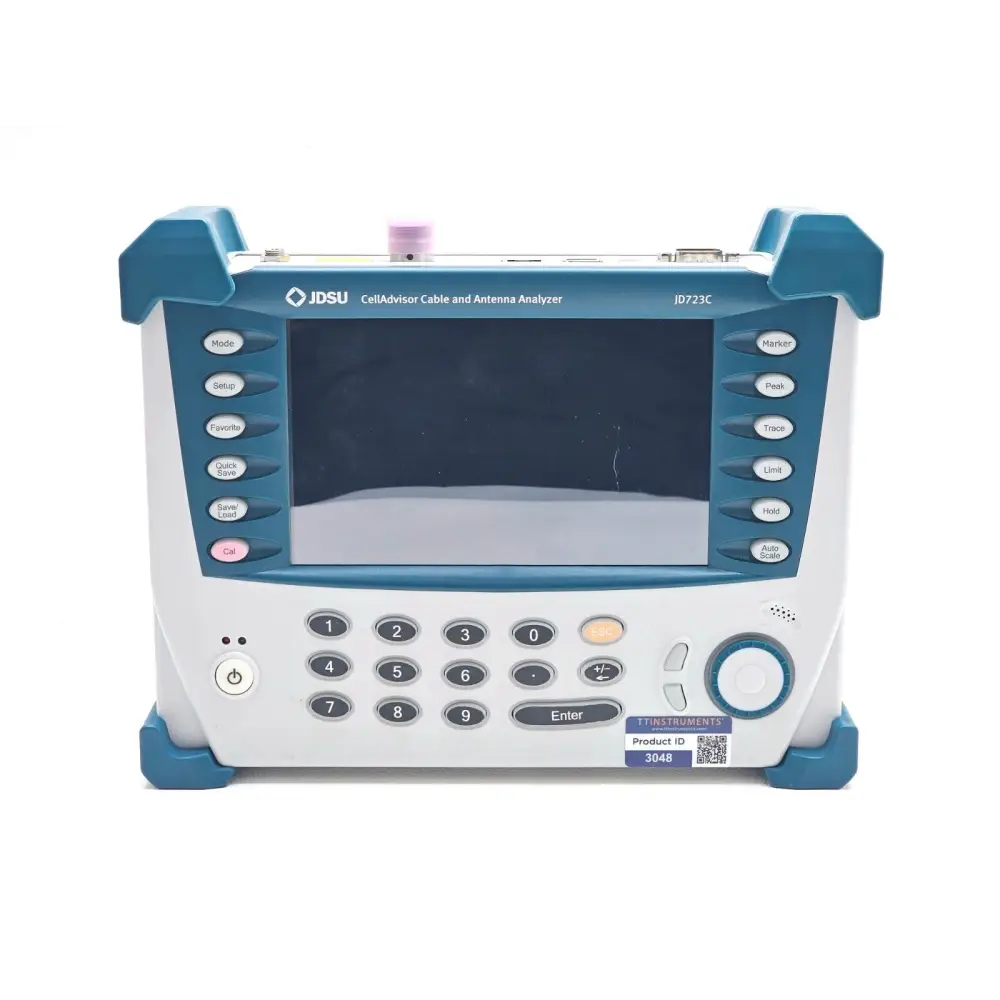

The Viavi (formerly JDSU) JD723C CellAdvisor is a rugged, handheld base station analyser designed for field technicians working on cellular infrastructure installation, commissioning, and troubleshooting. It combines cable and antenna analysis with RF spectrum analysis in a single portable platform, enabling engineers to perform comprehensive site verification without carrying multiple instruments.
The JD723C supports a wide range of measurements including return loss, VSWR, cable loss, distance-to-fault (DTF), and 1-port S-parameter measurements, making it well suited for verifying antenna systems and feedlines on cellular base stations.
Key Specifications:
Frequency Range: 300 kHz to 2.7 GHz
Measurement Modes: Cable and Antenna Analysis, Spectrum Analysis
Display: Colour TFT LCD touchscreen

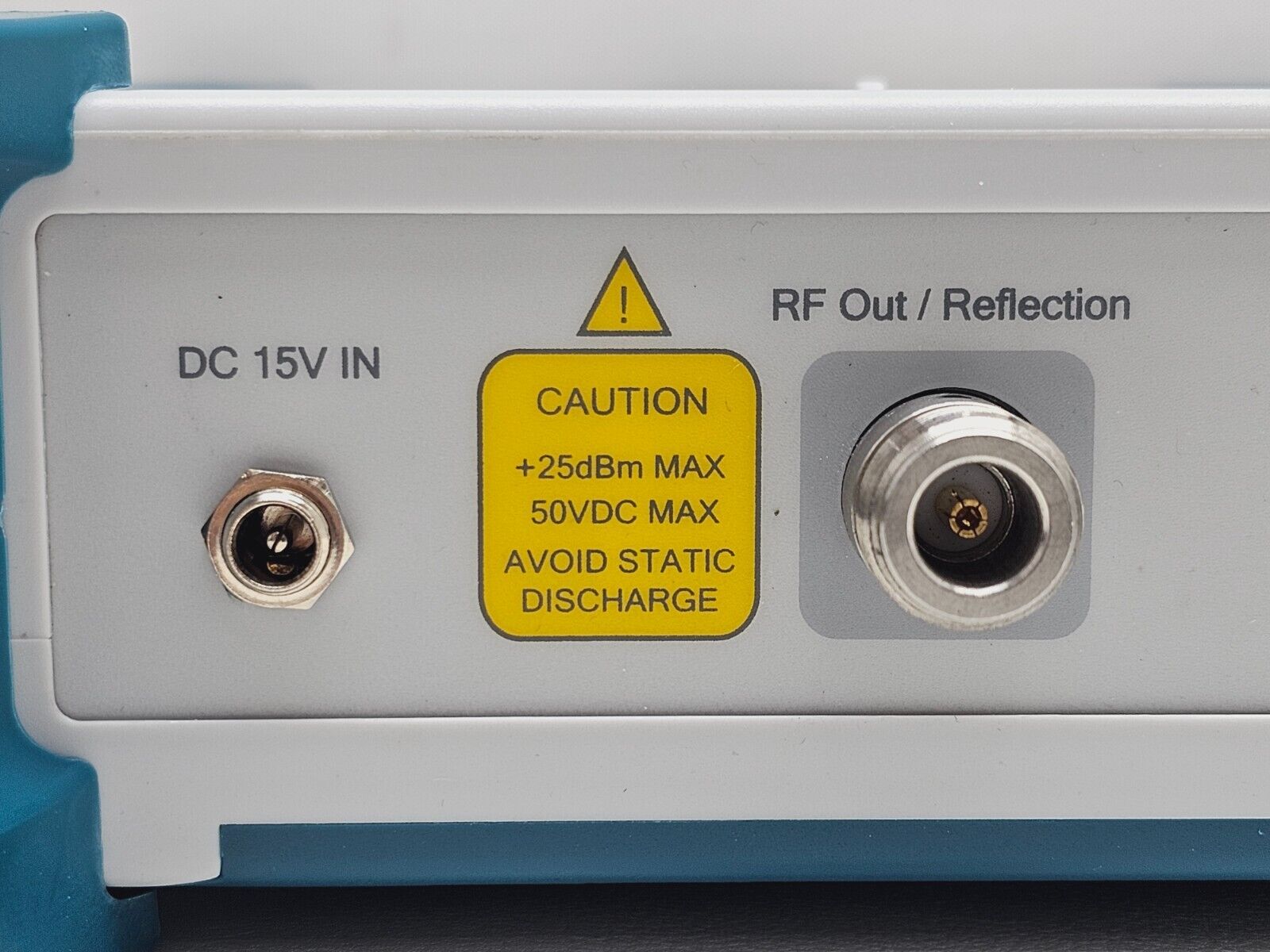

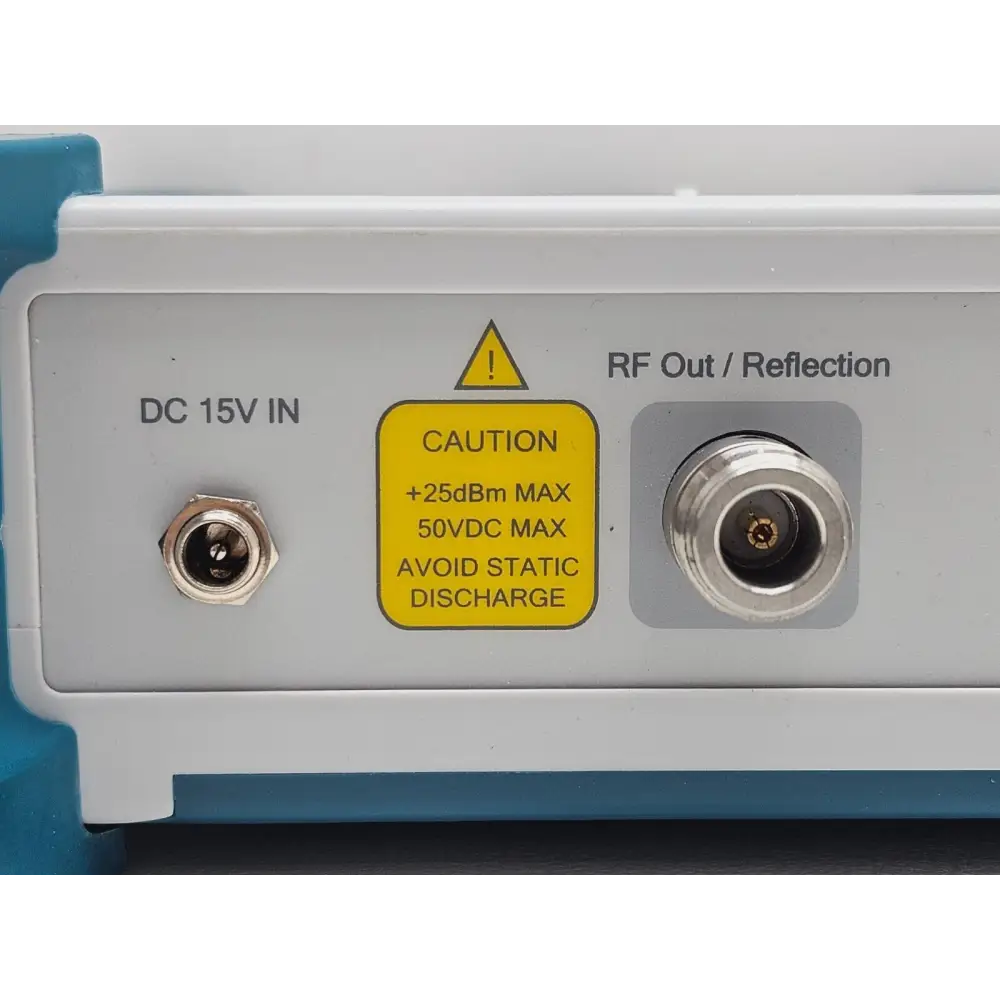

Connector: Type-N female RF port
Calibration: OSL (Open/Short/Load) 1-port calibration
Data Points: Up to 551
Dynamic Range: >90 dB
Distance-to-Fault: Yes, with selectable cable velocity factor

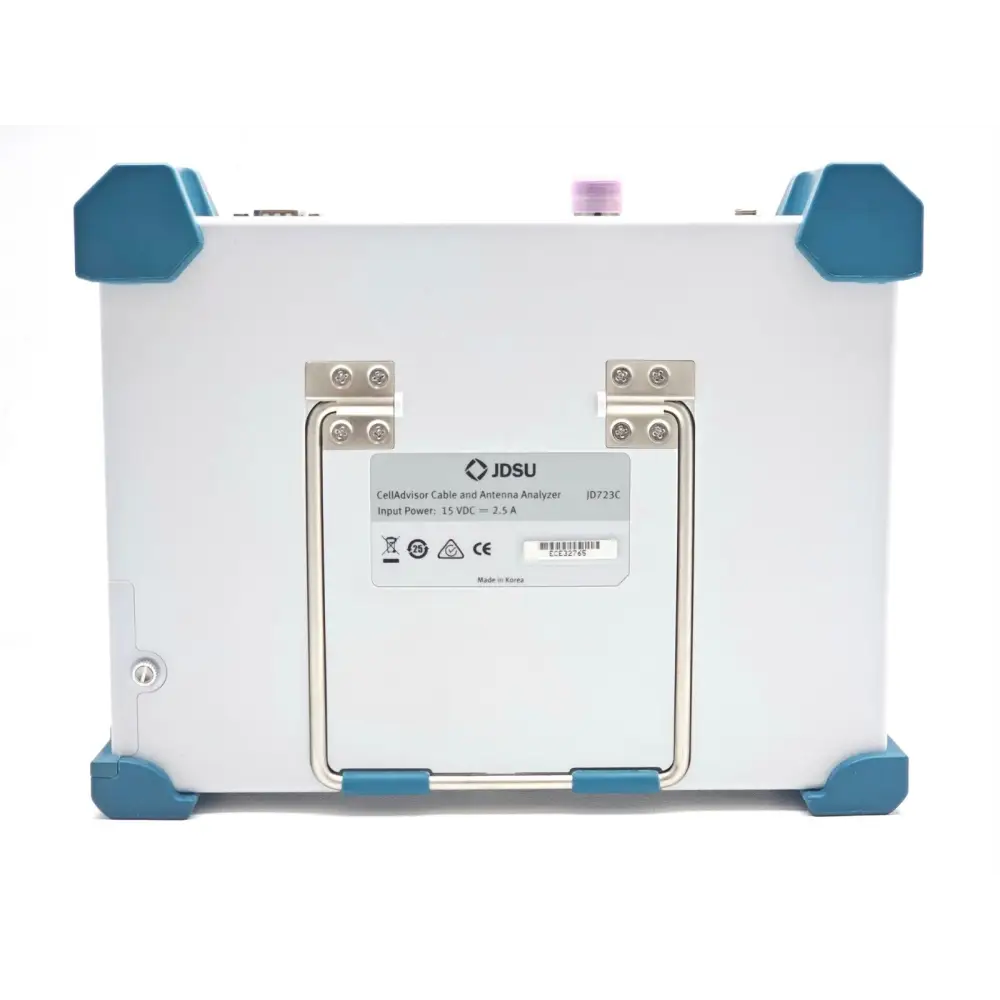

Power Supply: Rechargeable Li-ion battery and AC/DC adapter

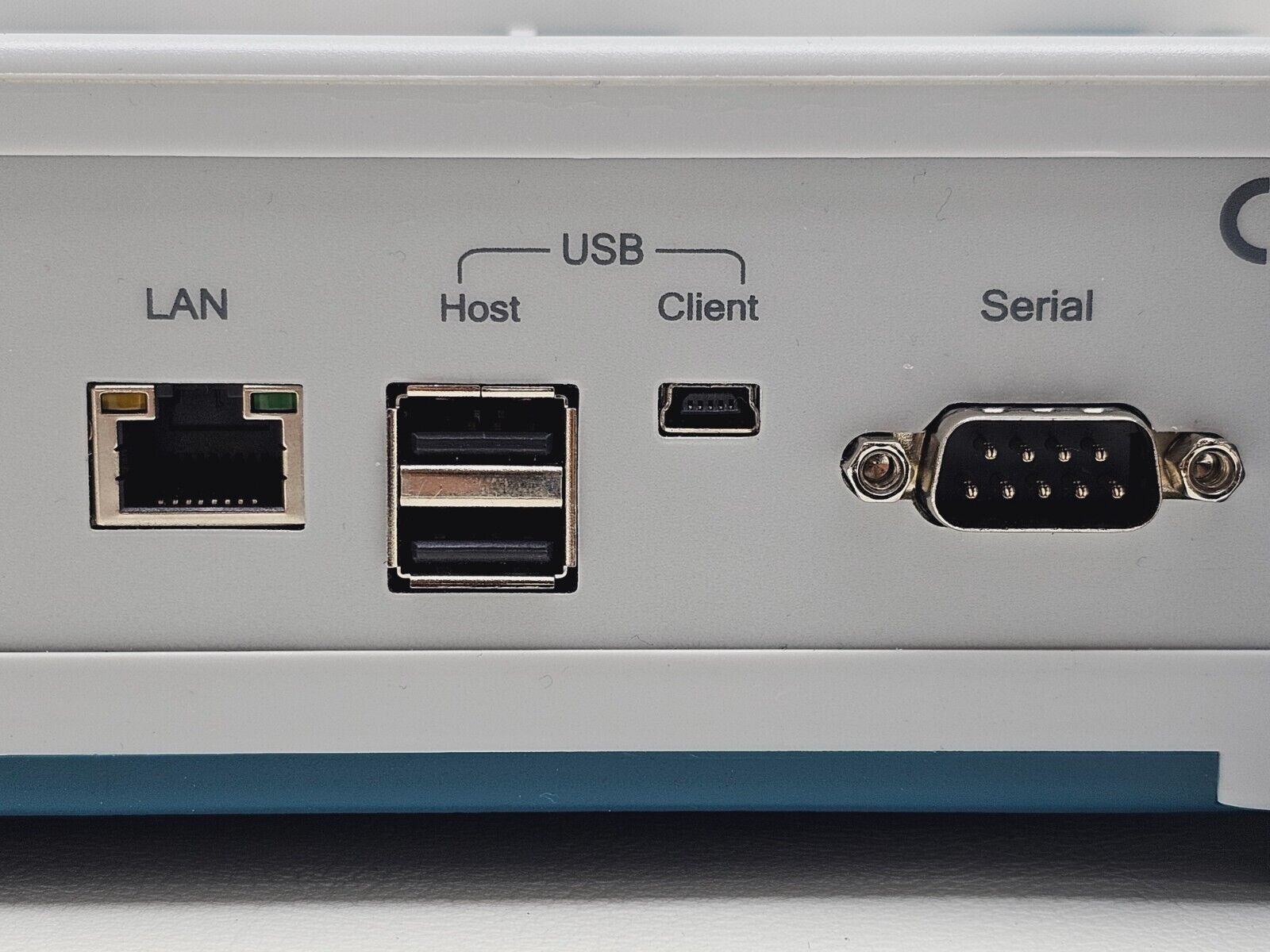

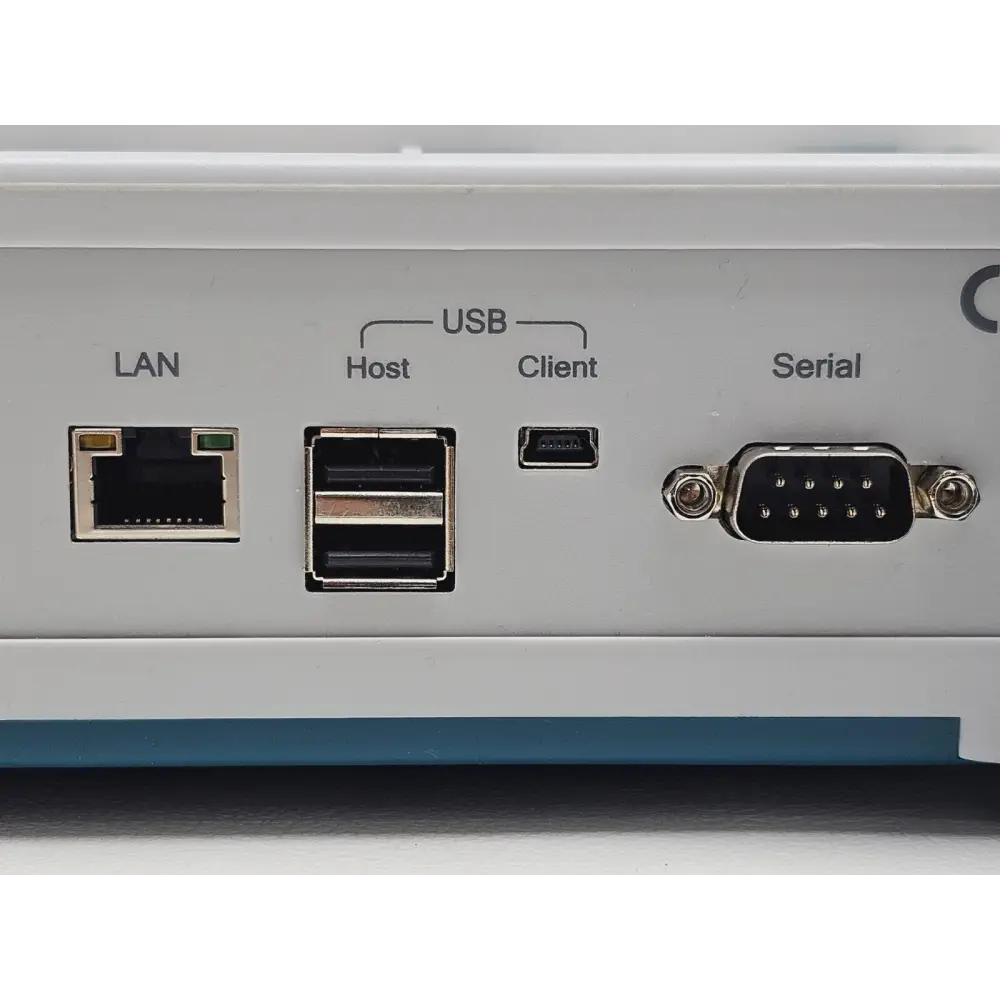

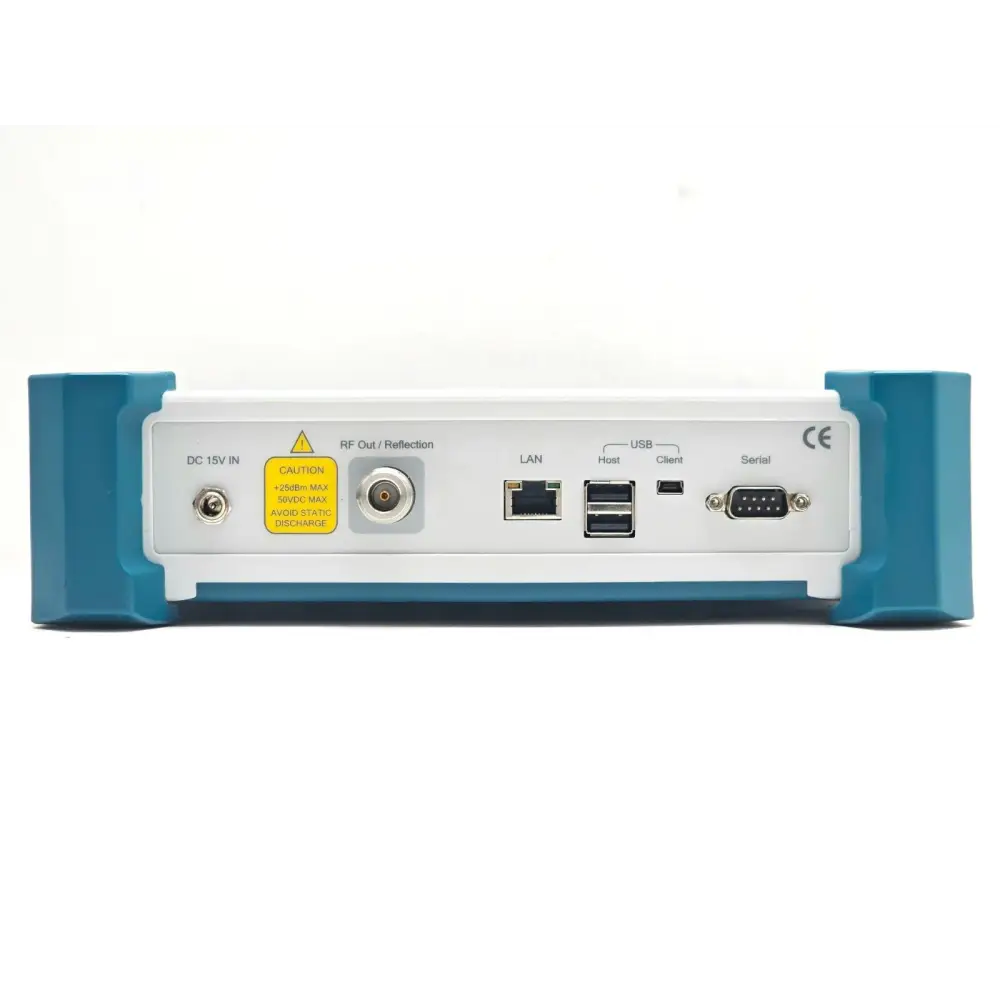

Interface: USB, Ethernet
Operating Temperature: -10°C to +50°C
Dimensions: Compact handheld form factor
The JD723C is compatible with Viavi's JDSU CellAdvisor software suite for PC-based data management, reporting, and firmware updates. It is widely used by mobile network operators and infrastructure contractors for antenna feeder testing and base station commissioning across GSM, UMTS, LTE, and other cellular technologies.
Product Overview
Condition: For parts or not working — the device will not charge the battery and must be used with the mains power adapter. The self-test passes and the unit functions normally when powered via the AC adapter. The battery has been tested with a known-working battery and confirmed defective; the charging circuit does not charge.
Included in the sale:
• JD723C CellAdvisor Base Station Analyser (battery defective — mains use only)
• Power adapter and car charger
• JD72450509 OSL (Open/Short/Load) calibration kit
• Test cable
• USB cable
• Protective carry case
The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.
Manufacturer's Description
The Viavi (formerly JDSU) JD723C CellAdvisor is a rugged, handheld base station analyser designed for field technicians working on cellular infrastructure installation, commissioning, and troubleshooting. It combines cable and antenna analysis with RF spectrum analysis in a single portable platform, enabling engineers to perform comprehensive site verification without carrying multiple instruments.
The JD723C supports a wide range of measurements including return loss, VSWR, cable loss, distance-to-fault (DTF), and 1-port S-parameter measurements, making it well suited for verifying antenna systems and feedlines on cellular base stations.
Key Specifications:
Frequency Range: 300 kHz to 2.7 GHz
Measurement Modes: Cable and Antenna Analysis, Spectrum Analysis
Display: Colour TFT LCD touchscreen
Connector: Type-N female RF port
Calibration: OSL (Open/Short/Load) 1-port calibration
Data Points: Up to 551
Dynamic Range: >90 dB
Distance-to-Fault: Yes, with selectable cable velocity factor
Power Supply: Rechargeable Li-ion battery and AC/DC adapter
Interface: USB, Ethernet
Operating Temperature: -10°C to +50°C
Dimensions: Compact handheld form factor
The JD723C is compatible with Viavi's JDSU CellAdvisor software suite for PC-based data management, reporting, and firmware updates. It is widely used by mobile network operators and infrastructure contractors for antenna feeder testing and base station commissioning across GSM, UMTS, LTE, and other cellular technologies.
