Condition: Used — This unit is in good condition.

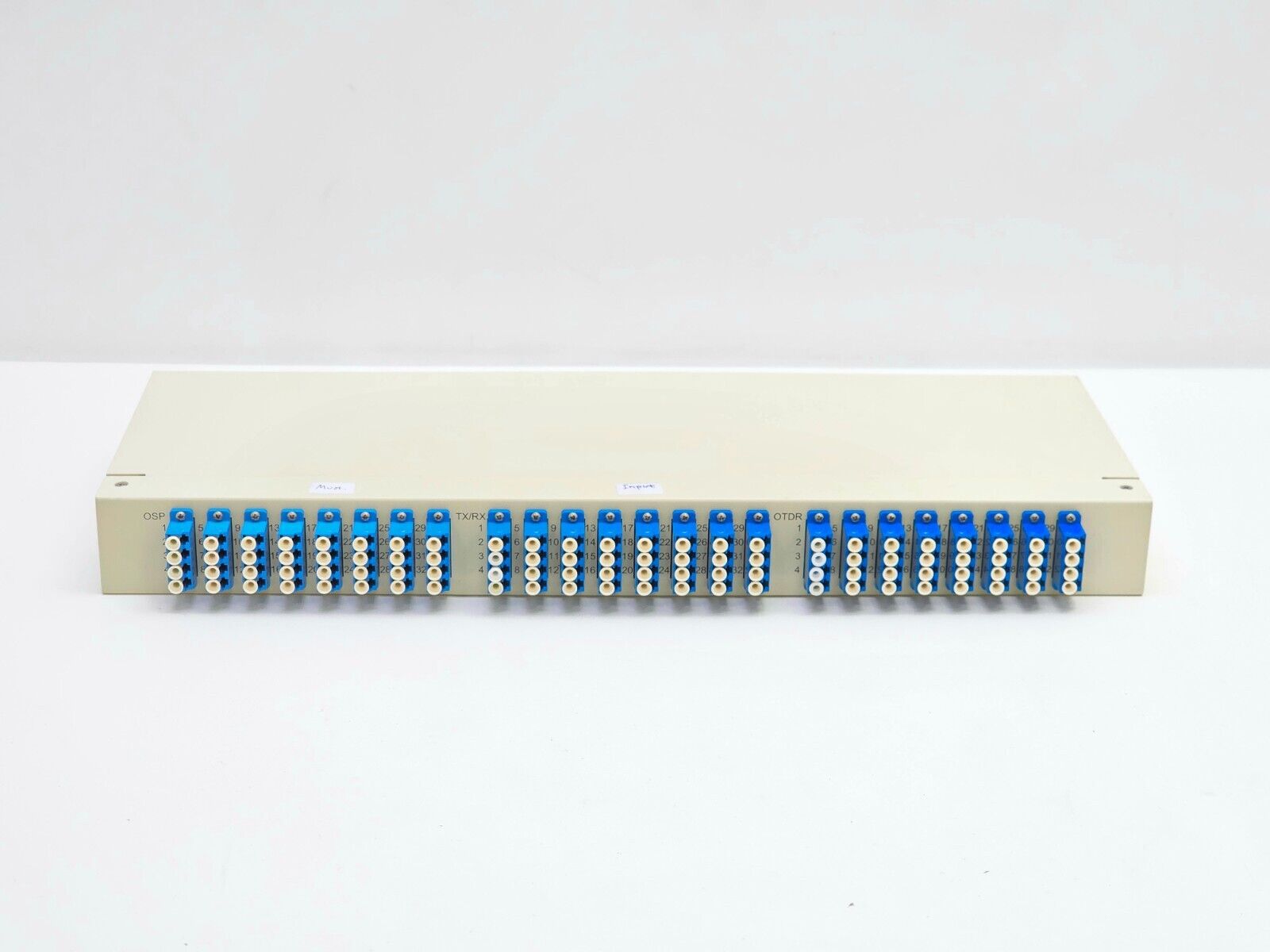

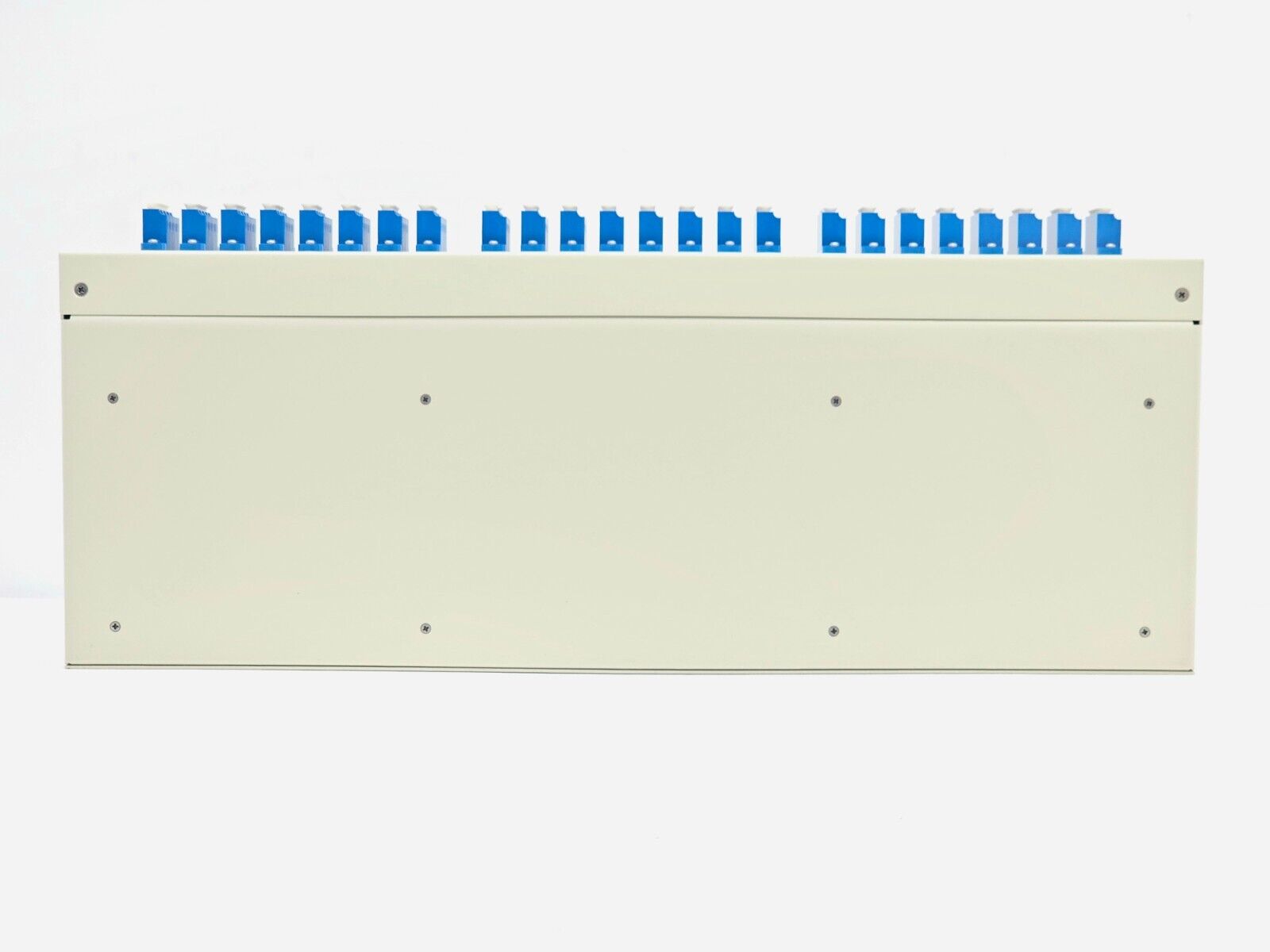

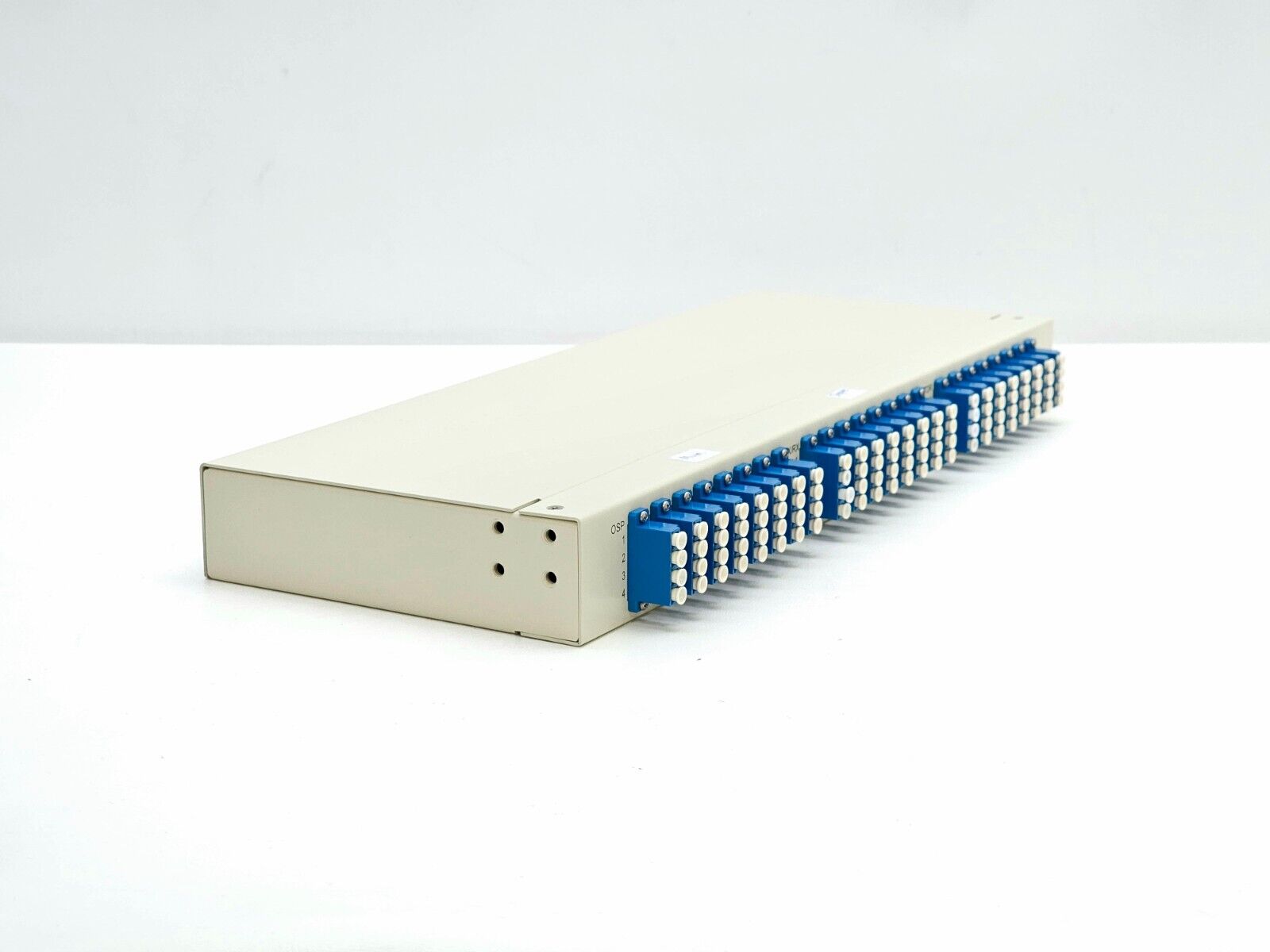

The Viavi JDSU E98RKWDM1650LCUPC is a 1U rack-mounted passive component module providing 32 WDM ports at 1650 nm with LC/UPC connectors. Designed for use with ONMSi, OTU-8000, and OTU-5000 remote fibre test systems, it enables in-service fibre monitoring by inserting an out-of-band 1650 nm wavelength alongside live data traffic. The unit is well suited for remote fibre test systems and fibre tapping detection applications.

Included in the sale:
• Viavi JDSU E98RKWDM1650LCUPC 1U rack unit with 32 WDM ports (LC/UPC)

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

Viavi Solutions (formerly JDSU) Passive Component Modules — E98RKWDM1650LCUPC

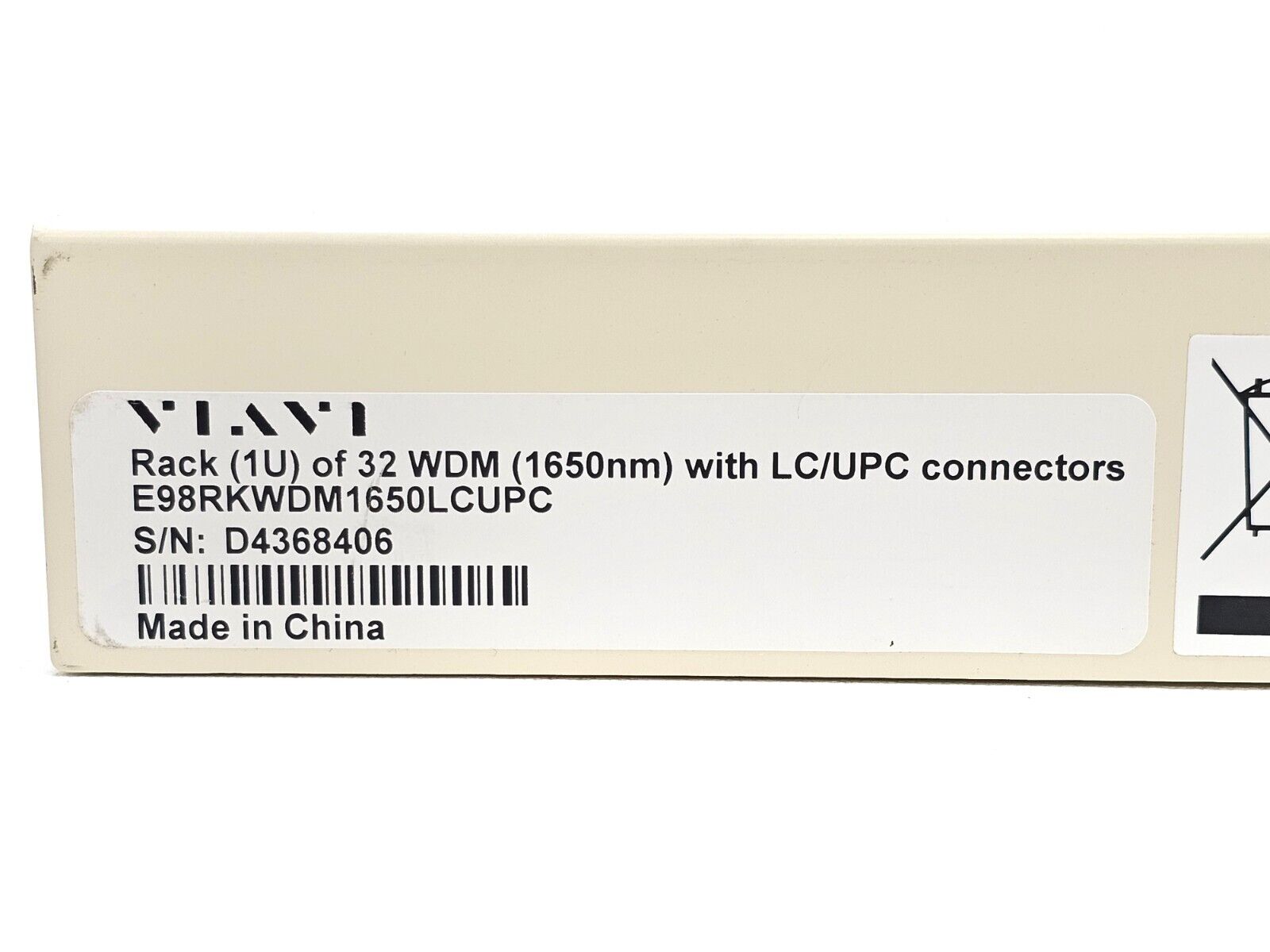

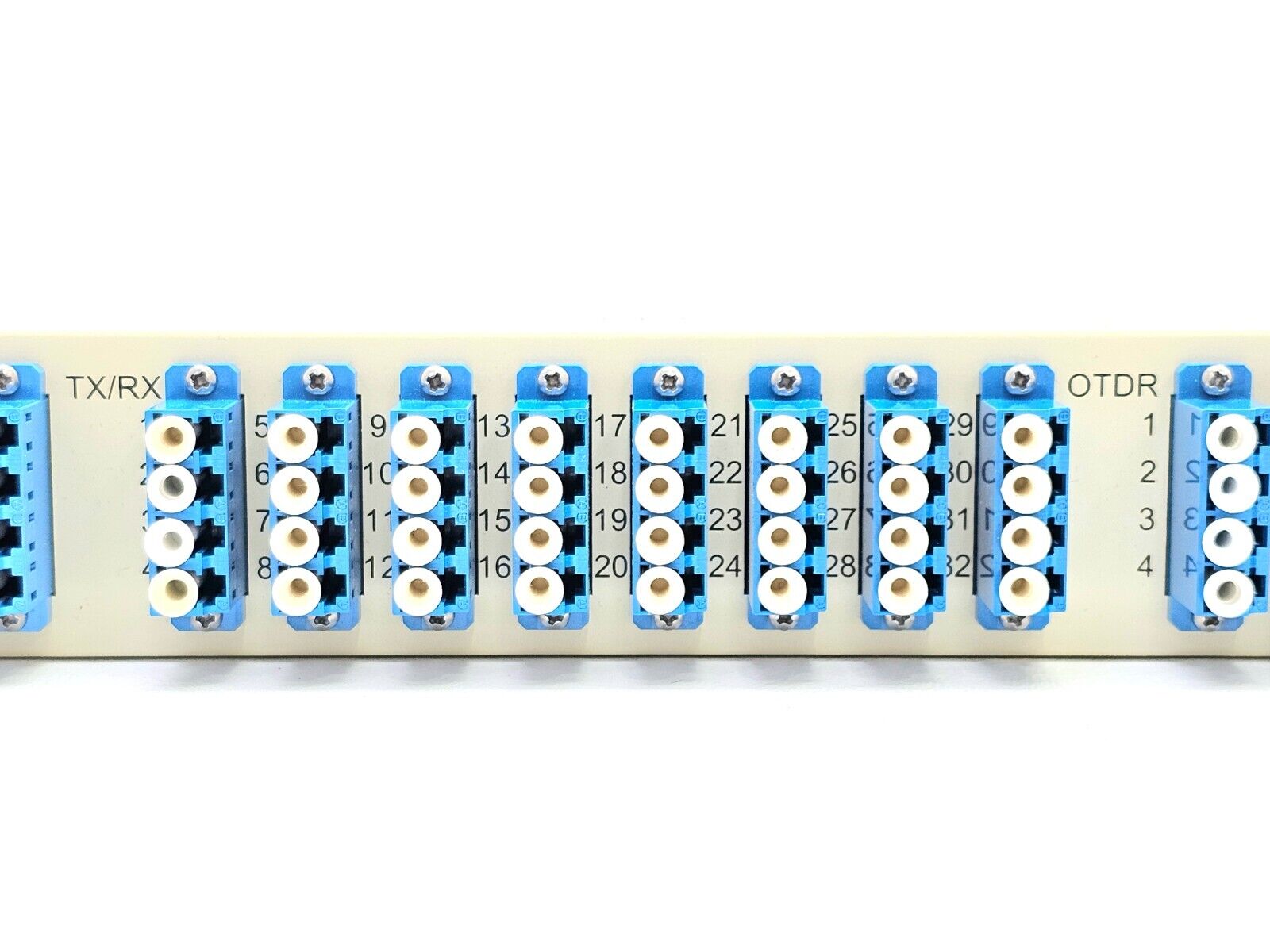

The E98RKWDM1650LCUPC is a rack-mounted (1U) passive WDM module providing 32 ports operating at 1650 nm with LC/UPC fibre connectors. It is part of the Viavi passive component range designed for in-service fibre monitoring in conjunction with ONMSi, OTU-8000, and OTU-5000 optical test platforms.

Passive components in this range enable testing of fibres carrying live traffic by inserting an out-of-band wavelength (1625 nm or 1650 nm) via a wavelength division multiplexer (WDM). The OTDR signal is combined with the data signal at one end; at the far end, an optional filter blocks the OTDR signal if the transmission equipment does not provide sufficient isolation. A bypass option can extend the OTDR signal across adjacent spans, increasing monitoring distance and reducing the need for additional Optical Test Units.

Key Features:
Wavelength: 1650 nm
Connector Type: LC/UPC
Form Factor: 1U rack-mount
Number of Ports: 32
Insertion Loss: Low
Passband: Wide and flat
Traffic Compatibility: Compatible with C and L band data traffic
Installation: Tool-free, installs in minutes
Reliability: Exceptional environmental stability for in-service applications

Applications:
Remote fibre test systems
Fibre tapping detection
In-service OTDR monitoring with ONMSi, OTU-8000, and OTU-5000
