Condition: Used

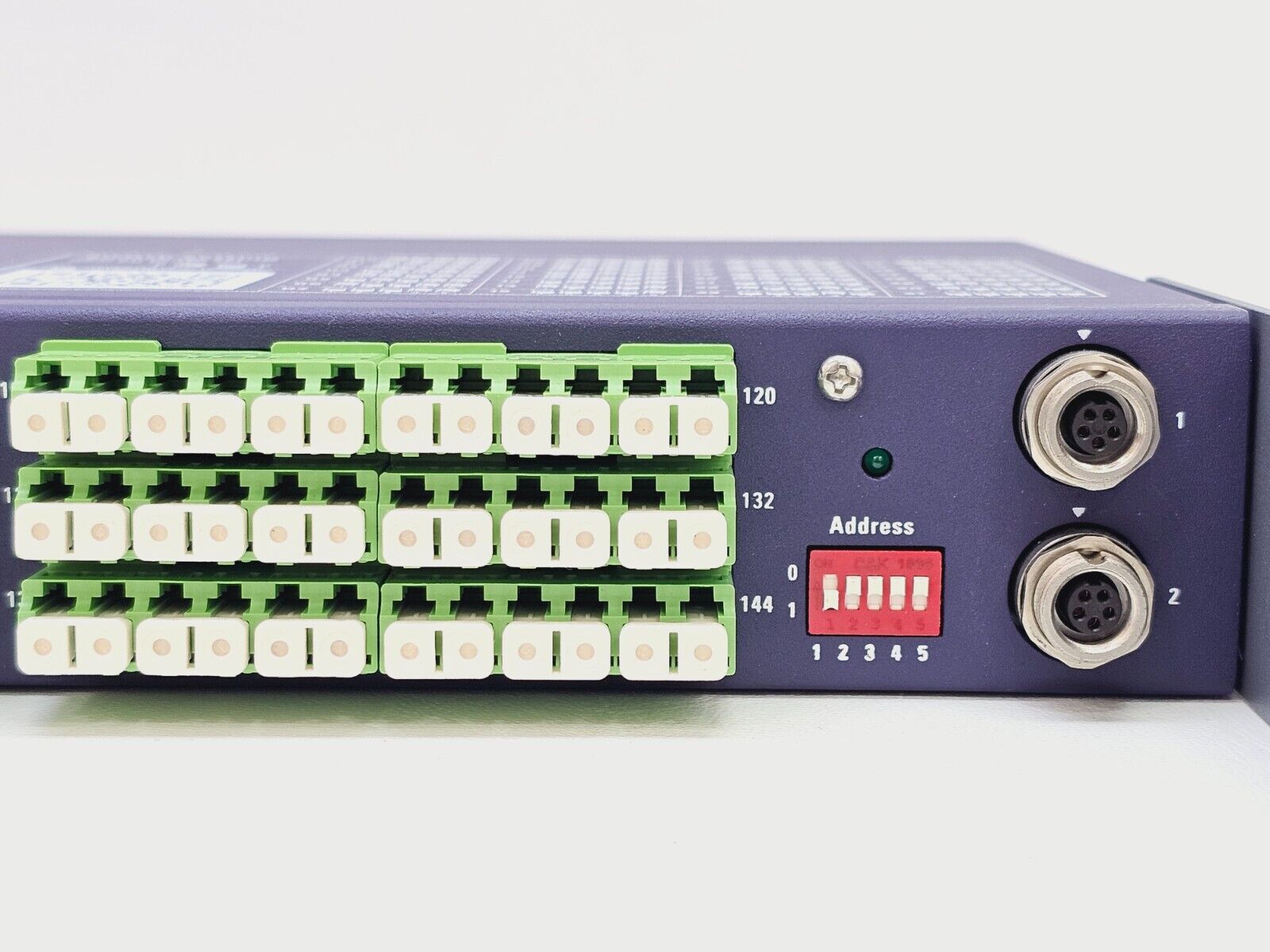

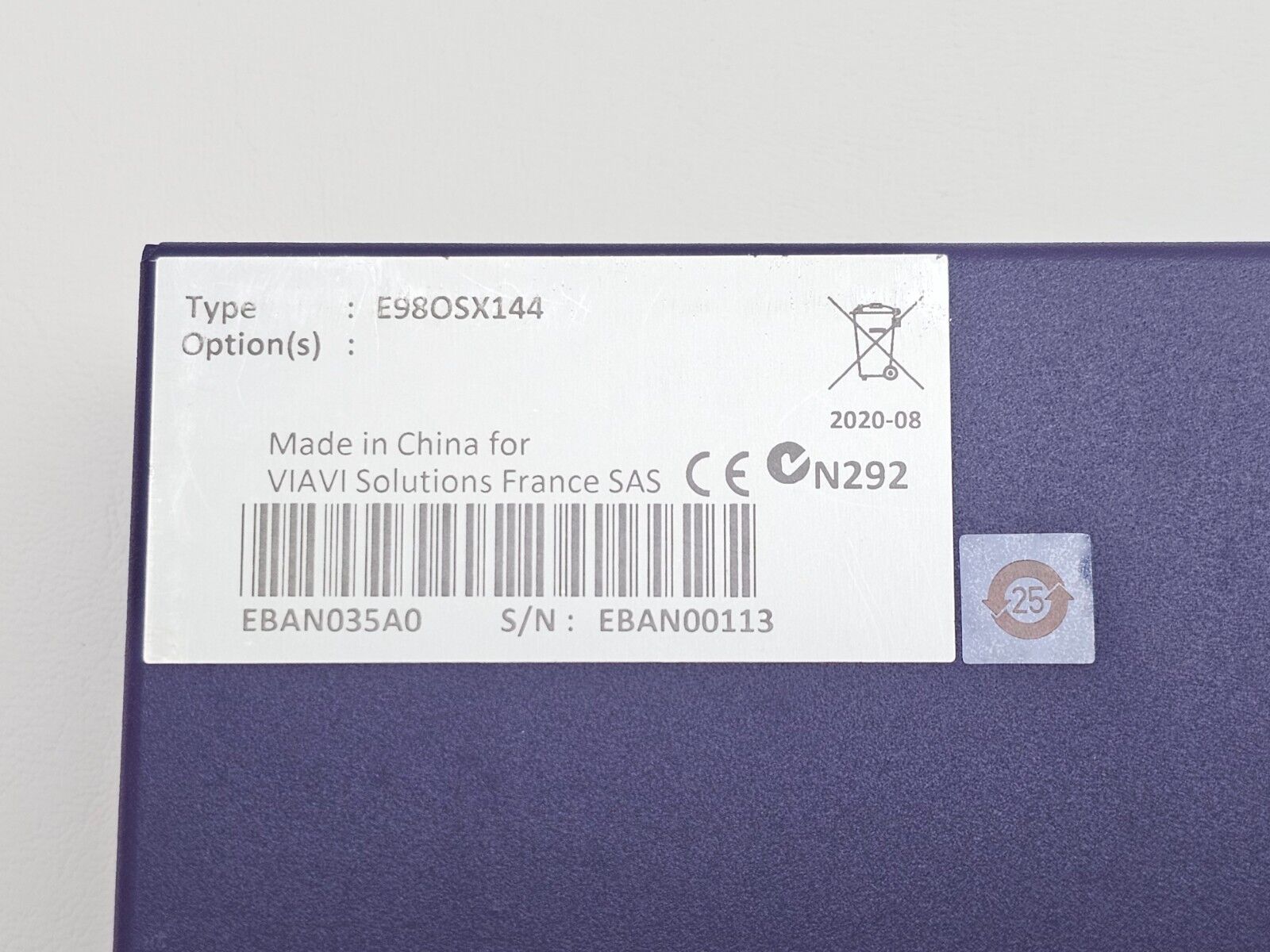

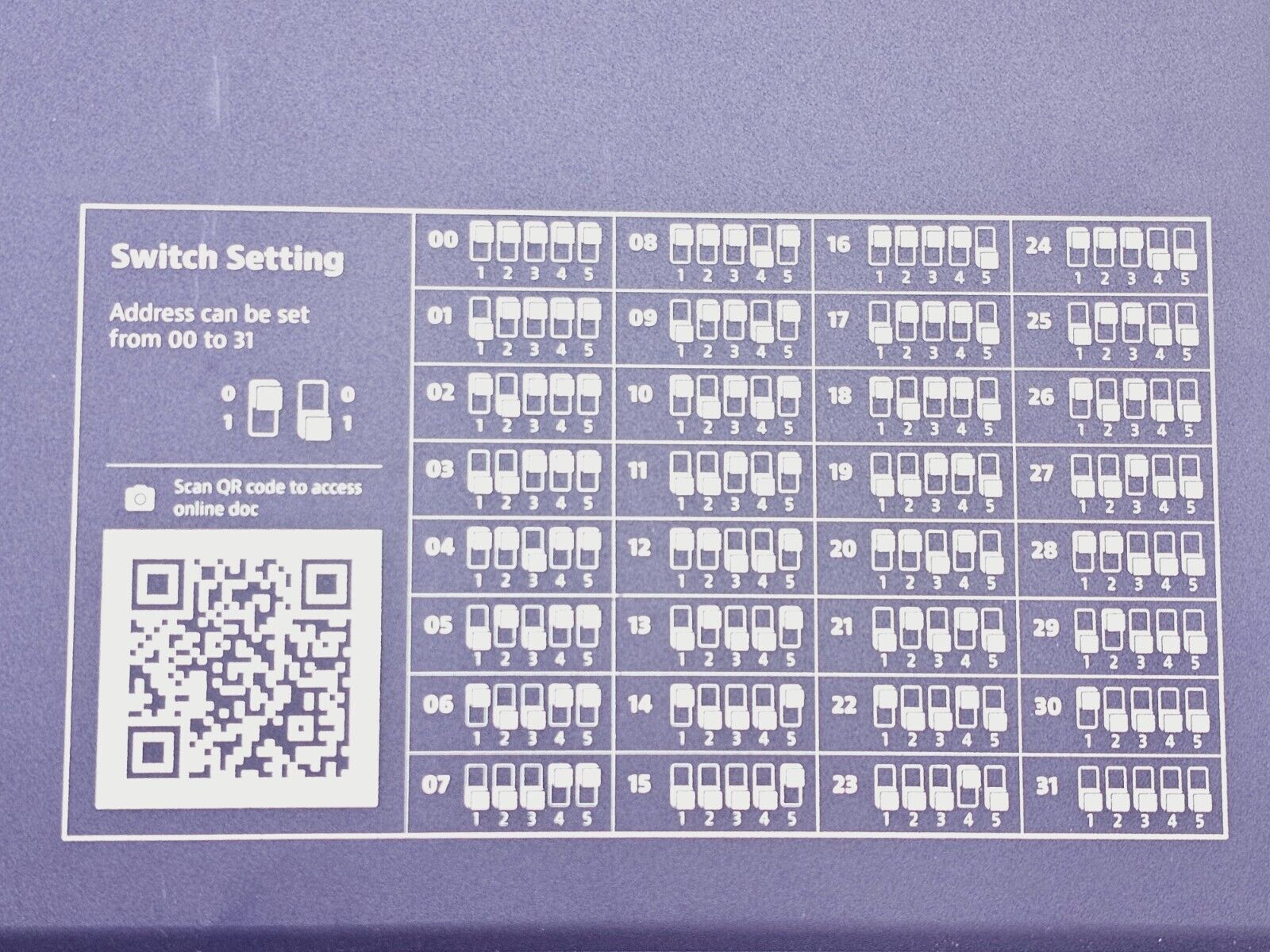

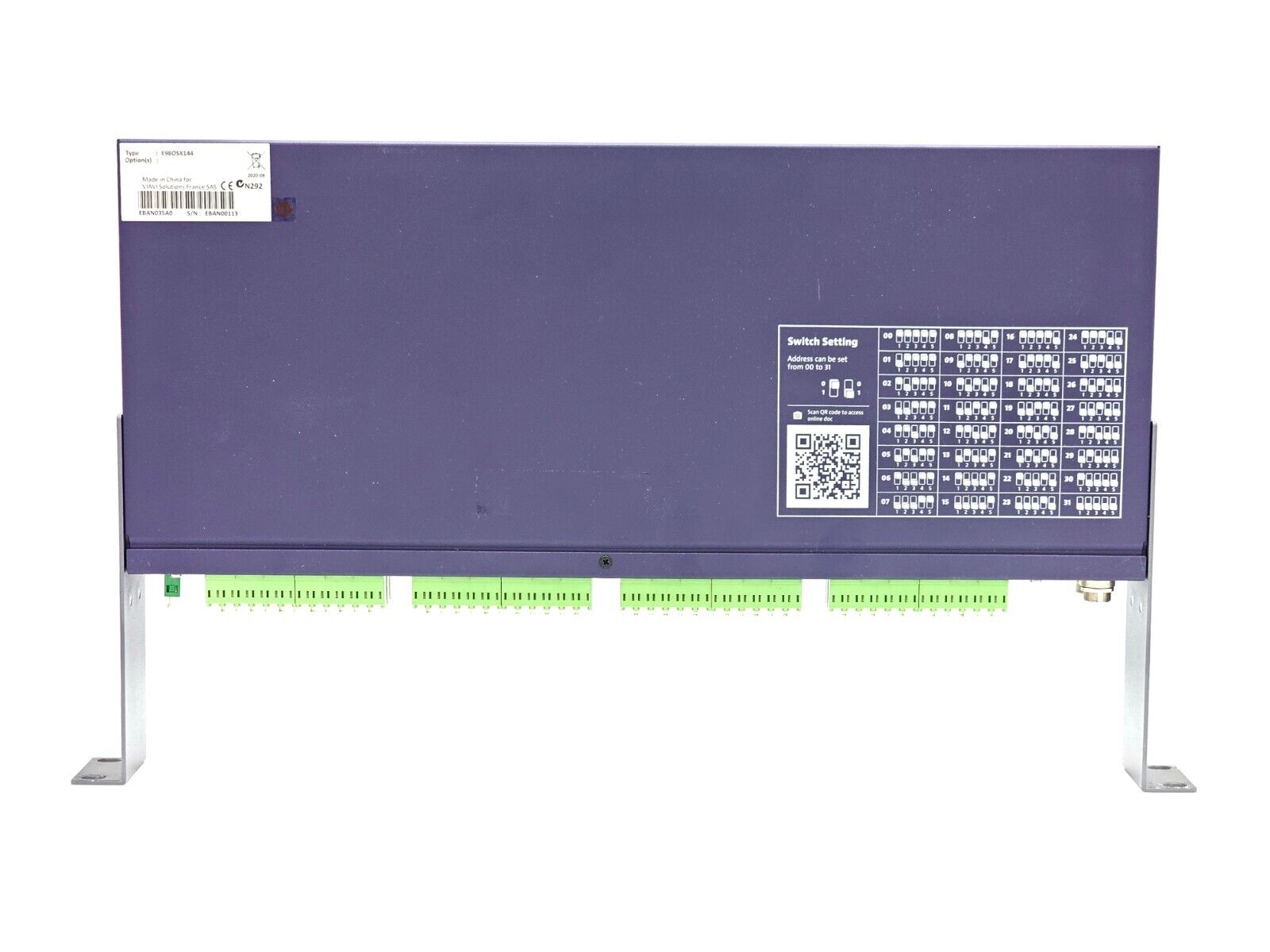

This Viavi E98OSX144 High Port Density 144 Port Optical Switch is in used condition and is presented in its original VIAVI branded packaging with foam protection. The unit carries serial number EBAN00113 and is identified on the top-panel label as Type E98OSX144 with no active options listed. The address DIP switch on the front panel is visible and configurable.

Included in the sale:

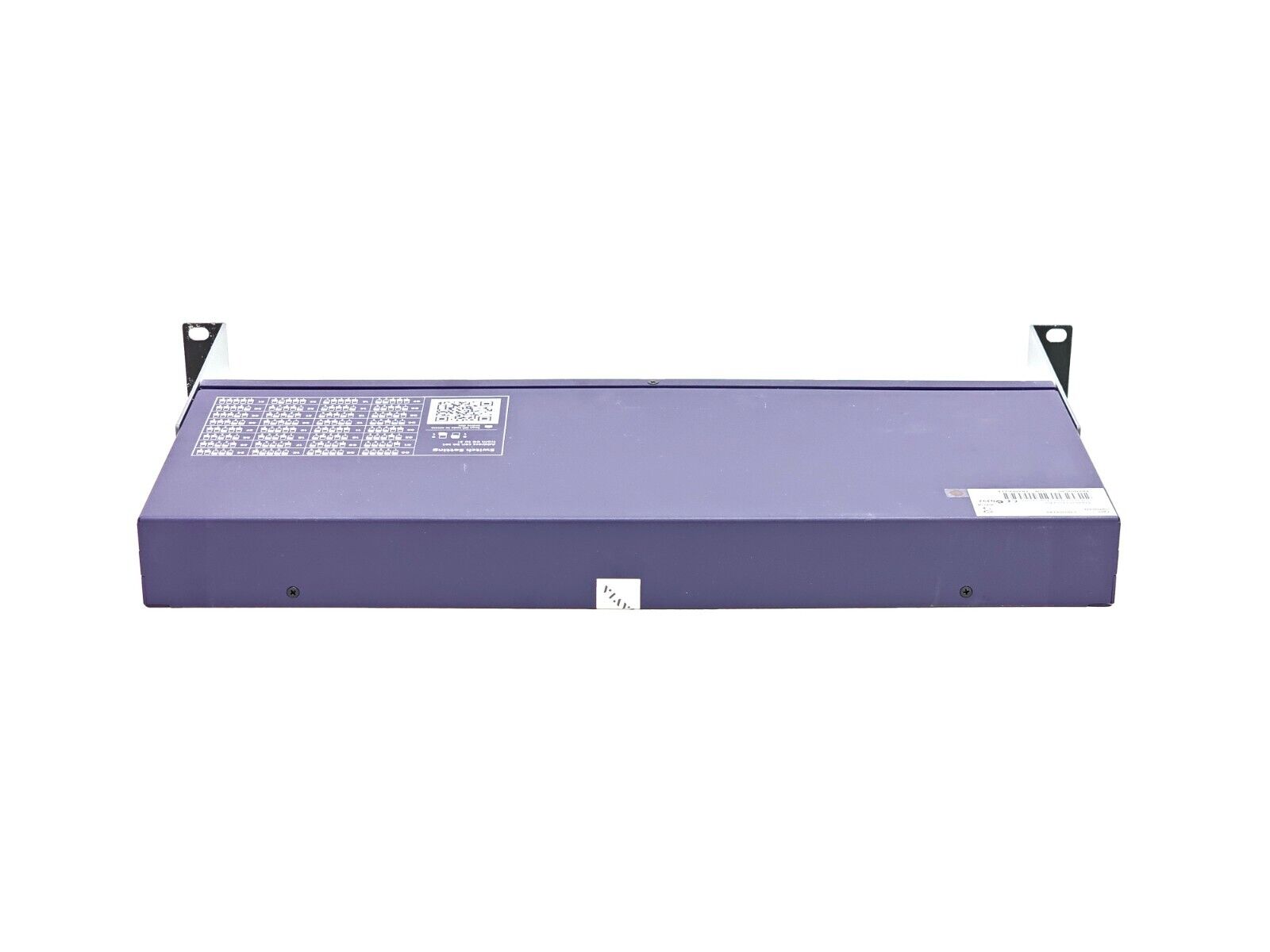

• Viavi E98OSX144 144-port optical switch (1RU rackmount unit)

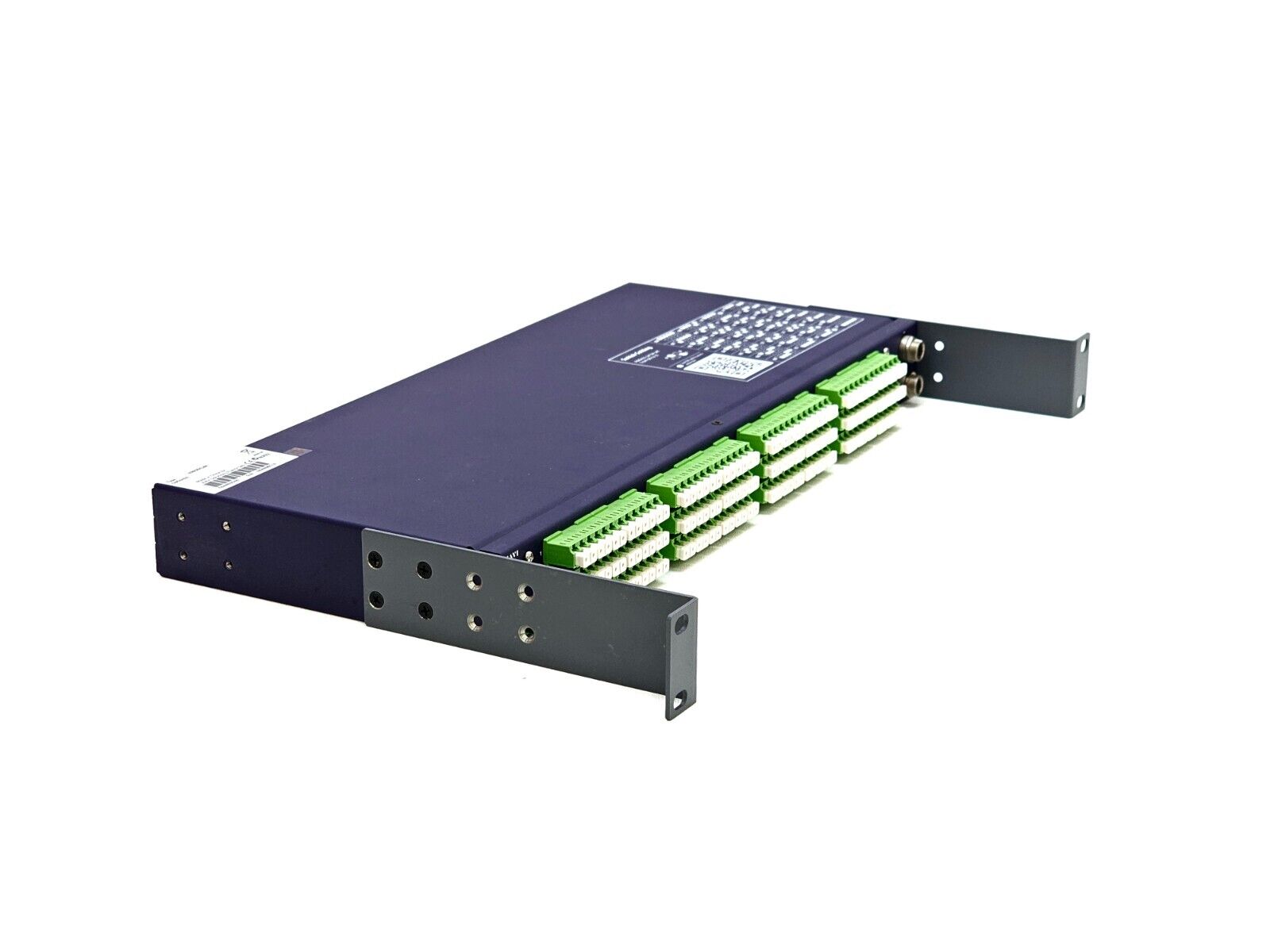

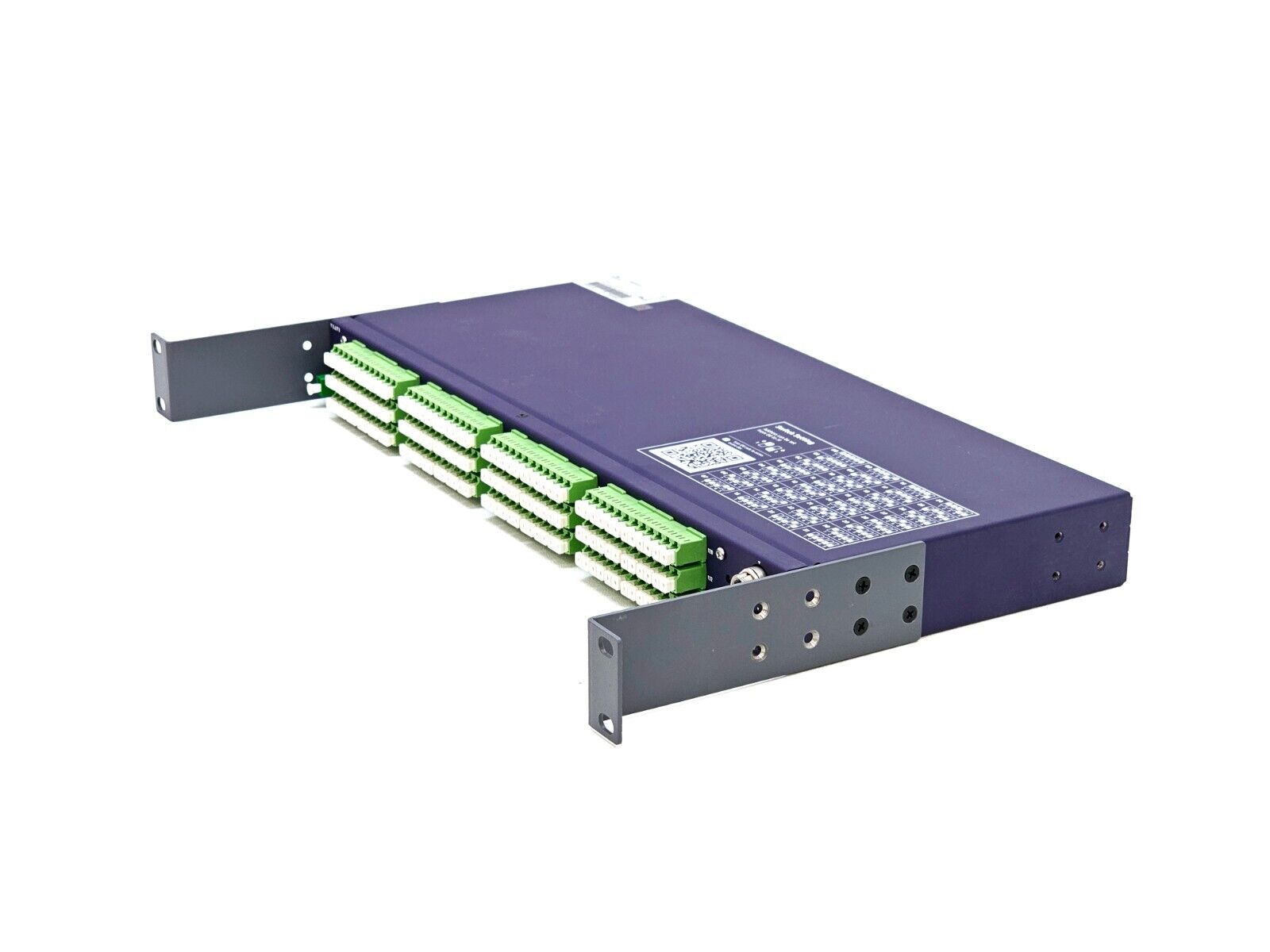

• Rack mounting brackets (fitted)
• Original VIAVI branded cardboard box with foam inserts

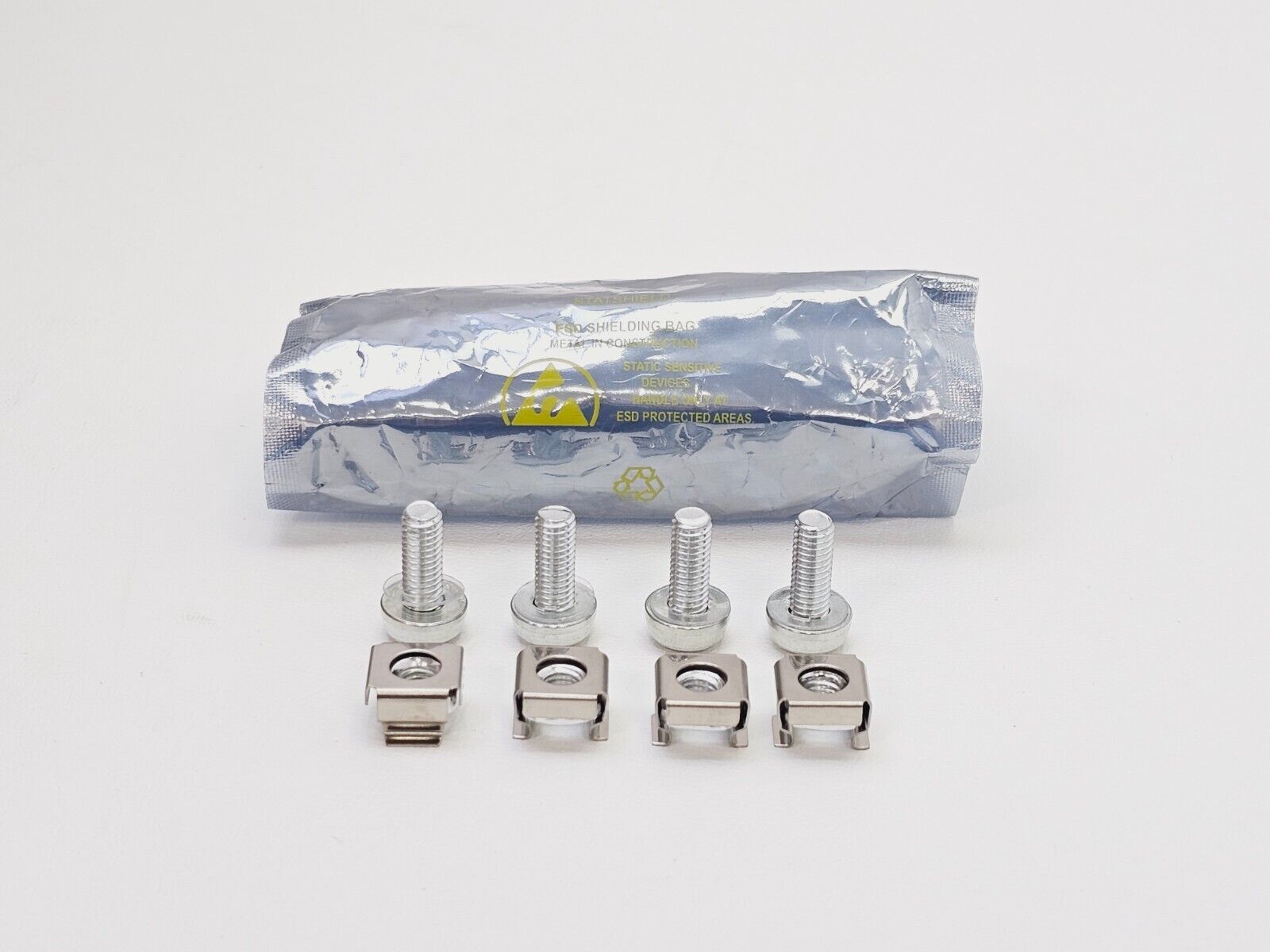

• Small accessory bag (visible in packaging image)

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

Viavi E98OSX144 — High Port Density 144 Port Optical Switch for VIAVI RFTS Solutions

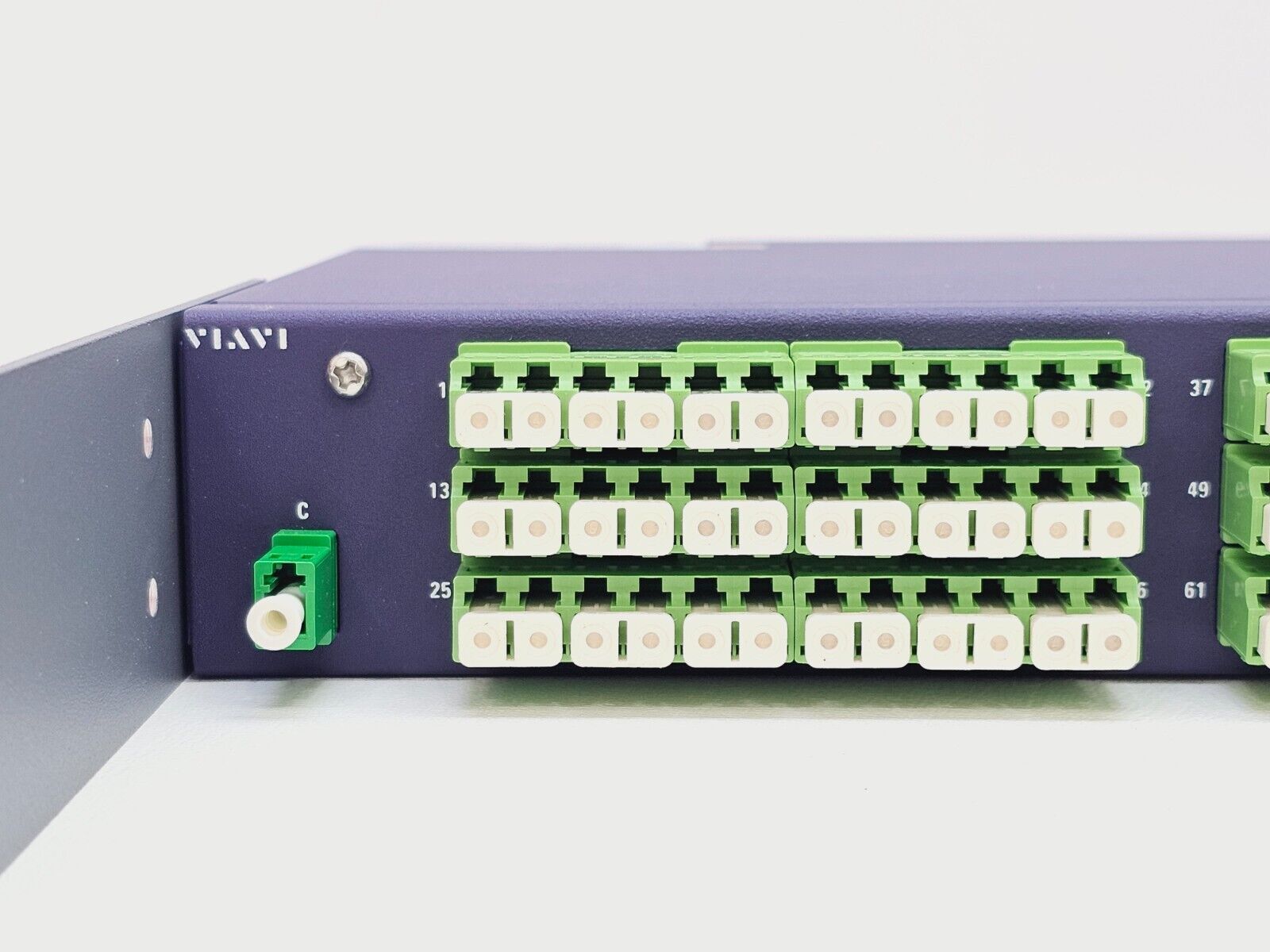

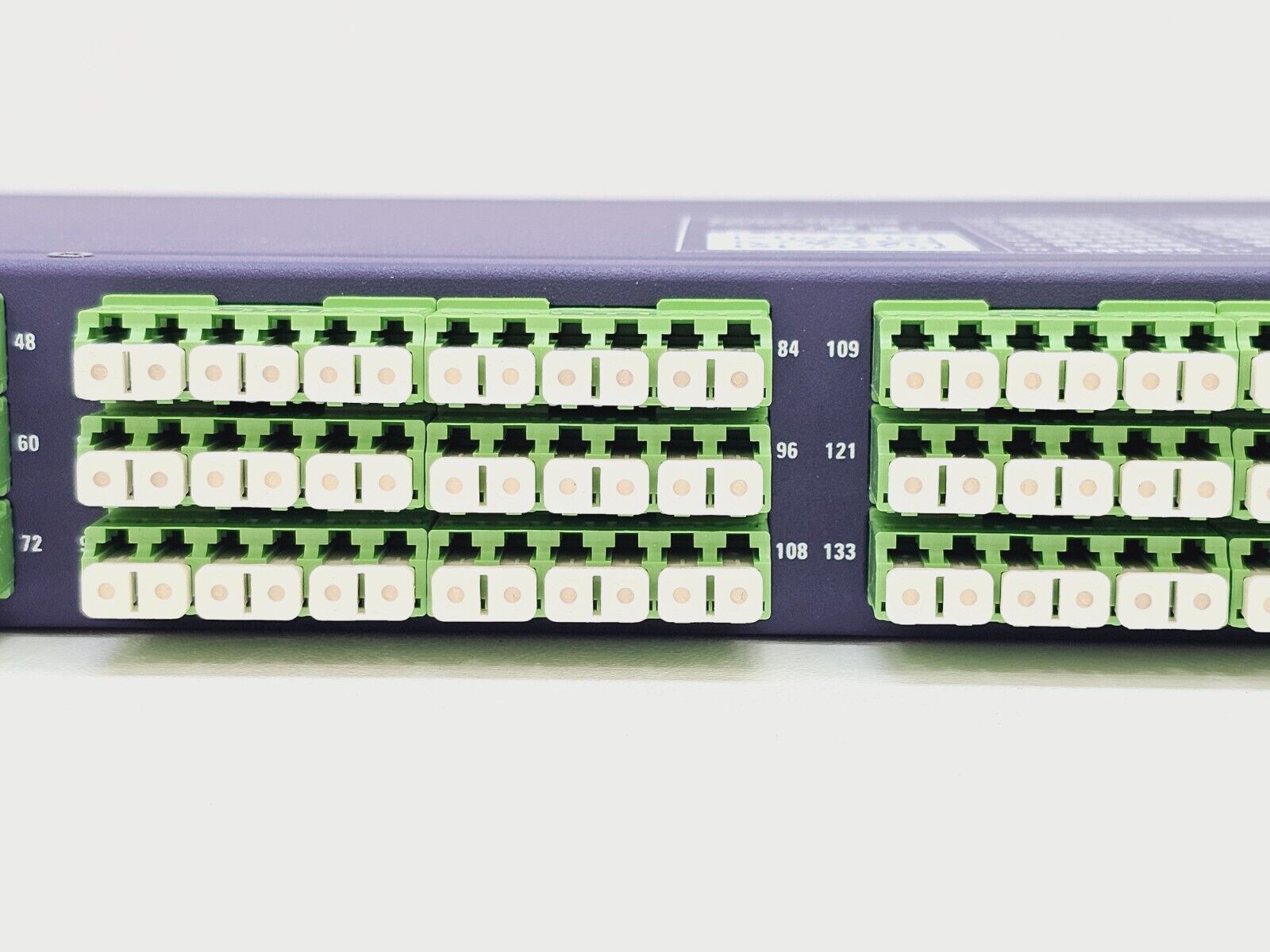

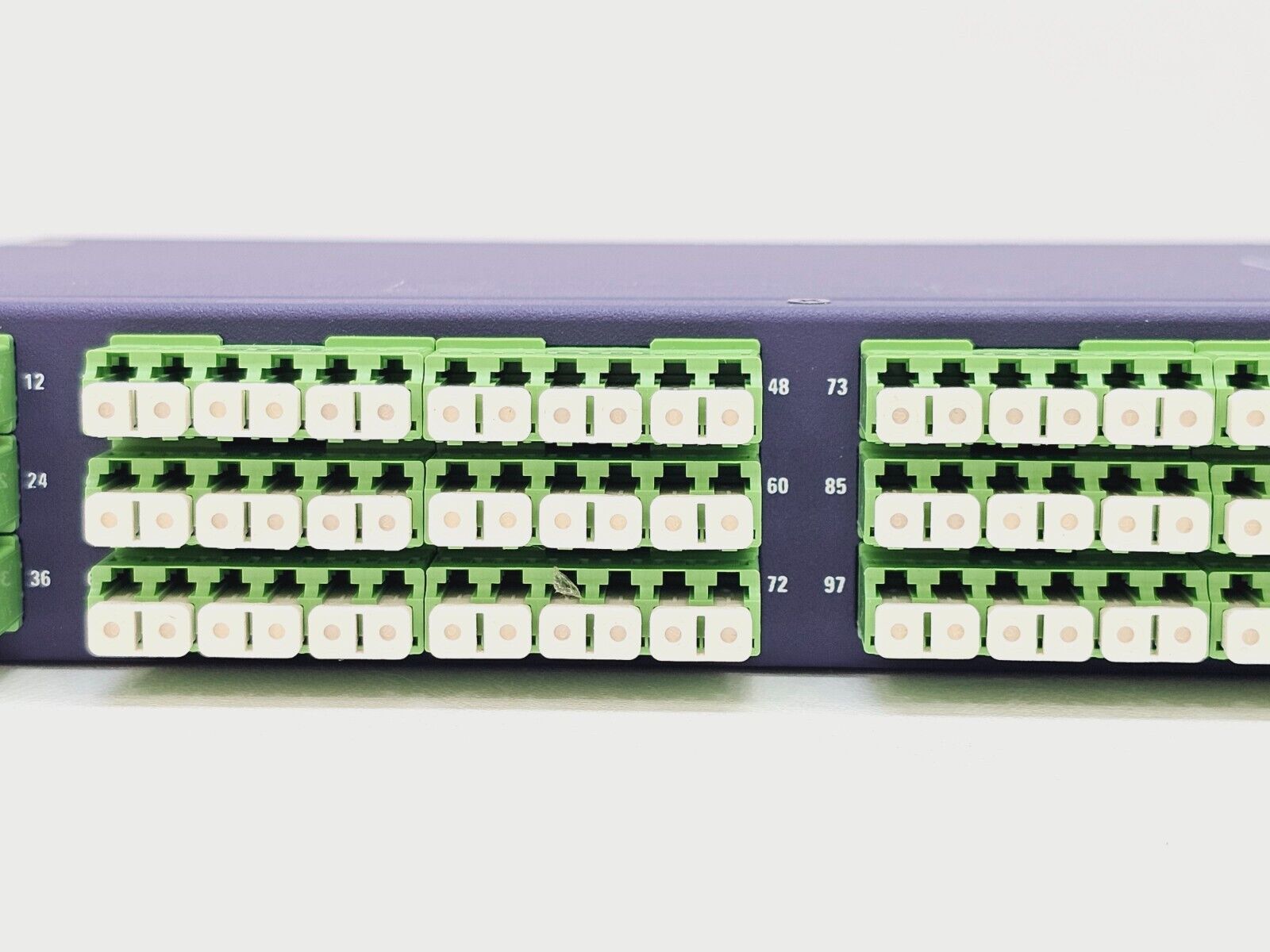

The E98OSX144 is a 1RU rackmount single-mode 1×144 optical switch optimised for remote fibre testing in dense networks featuring high fibre count cables and large numbers of FTTP service points in PON, DAA, and DWDM networks. A common input fibre can be switched to any one of 144 LC/APC output ports. Up to 31 units can be cascaded via RS485 to expand test capacity to 4,464 fibres from a single VIAVI optical test head (OTU or OTH). The switch is powered directly from the fibre test unit with no IP address required, making deployment simple and cost-effective. It is compatible with the VIAVI OTU-8000 and OTU-5000 optical test unit families.

Key Features:
• High port density, high switching speed
• Low power consumption — powered from the fibre test unit
• No IP address required
• Exceptional durability: 1 billion switch operations rated
• Versatile rack mounting to fit a wide range of rack enclosures
• Cascade enabled for up to 31 switches (4,464 fibre capacity)
• CE Compliant and FCC Part 15 Compliant

Applications:
• Remote fibre characterisation
• Fibre test on demand — construction, activation, recertification
• Continuous fibre monitoring and fault detection
• Tapping and intrusion detection
• Fault demarcation
• Fibre health reporting in PON and DWDM networks

Specifications (typical at 25°C):
Part Number: E98OSX144
Number of Ports: 144 output ports plus one common port
Connector Type: LC/APC
Operating Wavelength Range: C-Band, L-Band, and U-Band
Insertion Loss (with one pair of connectors): <2.9 dB
Return Loss (with connectors): >50 dB
Repeatability: ±0.05 dB
Durability: 1 Billion switch operations
Interface: RS485
Power Consumption (active mode): <0.7 W
Power Consumption (low power mode): <0.25 W
Form Factor: 1RU rackmount
Height: 1RU (44 mm)
Width: 19 inches
Depth: 183.2, 197.8, or 274.7 mm (depending on bracket position)
Operating Temperature: -5 to +50°C
Storage Temperature: -20 to +85°C
Humidity: 5% to 90% non-condensing
EMC Compliance: CE Compliant, FCC Part 15 Compliant
Cascade Capacity: Up to 31 units (4,464 fibres from single test head)

Viavi E98OSX144 High Port Density 144 Port Optical Switch datasheet — technical specifications and product overview: Download PDF

Viavi High Port Density Optical Switch Family for RFTS Solutions datasheet — full switch family specifications and ordering information: Download PDF
