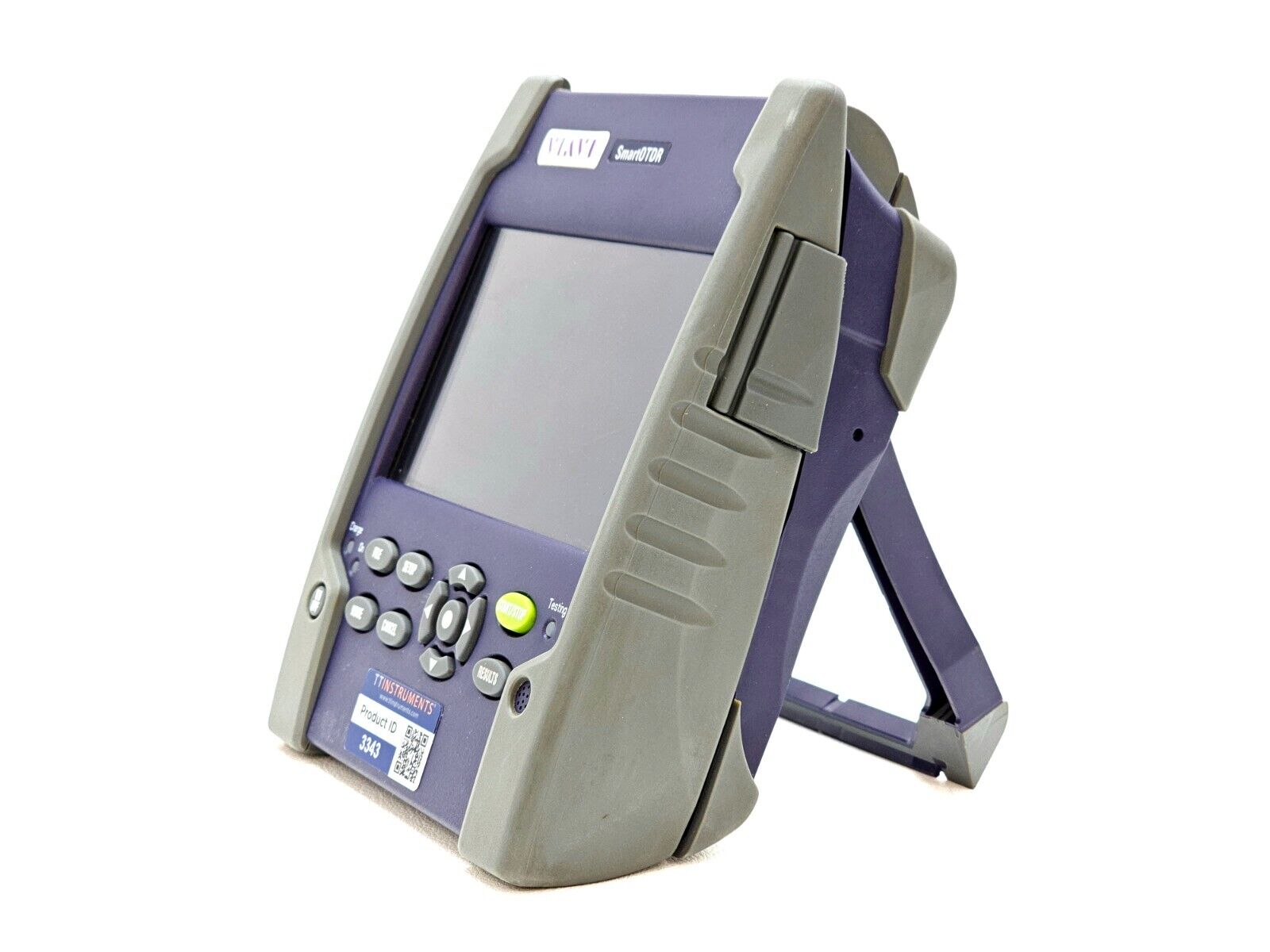

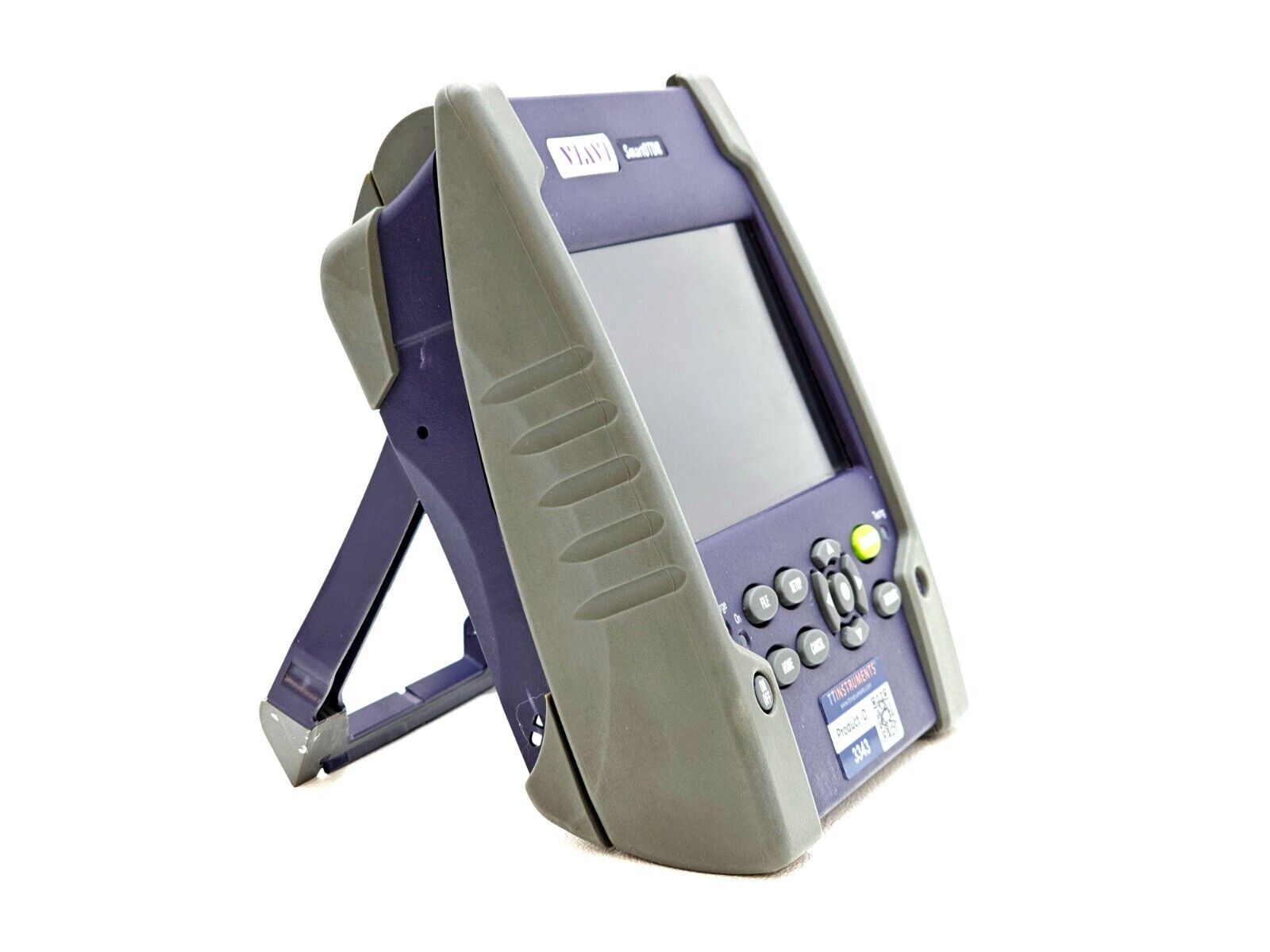

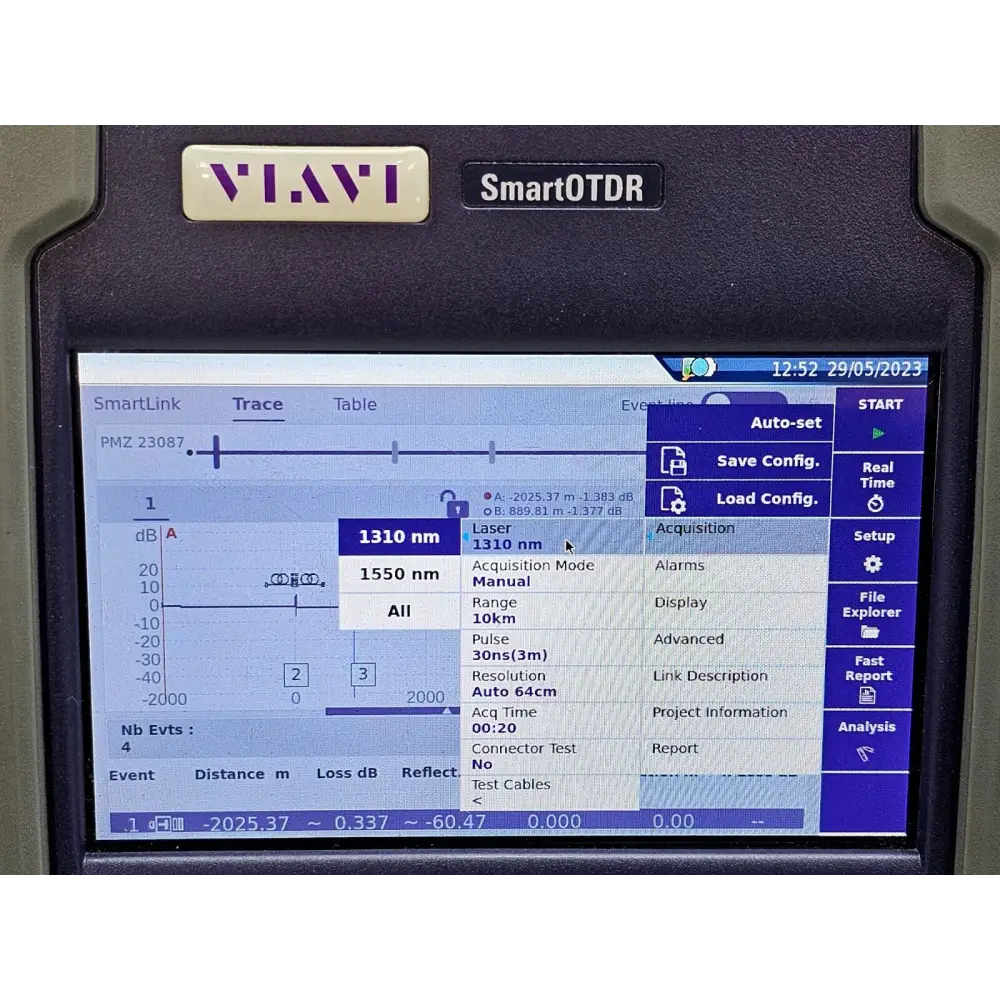

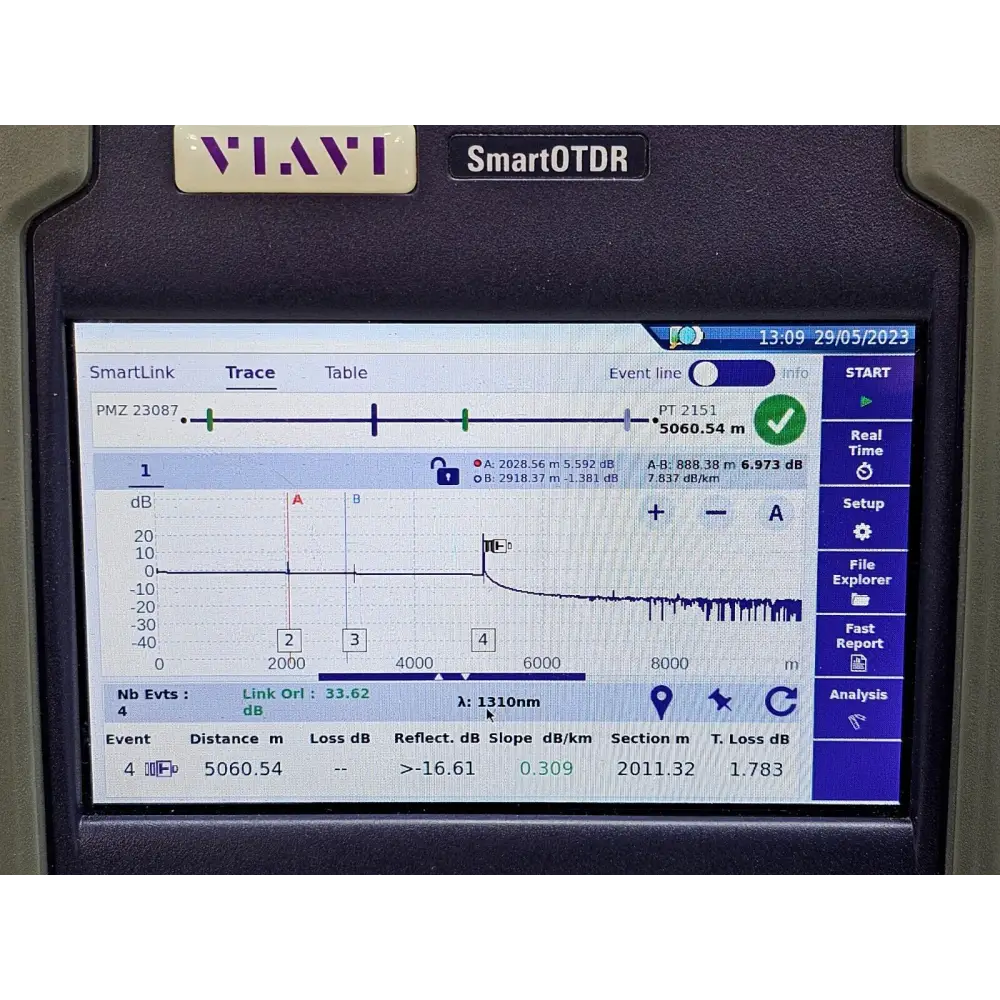

The Viavi (formerly JDSU) E126A-APC SmartOTDR is a handheld, dual-wavelength fibre tester designed for the installation and maintenance of metro and access networks. Combining essential fibre tests in a single compact unit, it supports OTDR, VFL, OPM, and other optional tools in one device. The SmartOTDR eliminates setup errors through generic or user-defined configuration profiles and provides automatic pass/fail analysis — making it accessible to technicians at any skill level.
Multiple wireless connectivity options, including 3G/4G via USB and optional Bluetooth/WiFi, allow remote control and data transfer to tablets, smartphones, and computers. Optional SmartAccess Anywhere (SAA) enables cloud-based remote access to the instrument. The onboard FastReport tool generates PDF reports instantly in the field. The integrated CW light source on the OTDR port and rechargeable lithium-polymer battery offering up to 20 hours of operation further enhance field productivity.

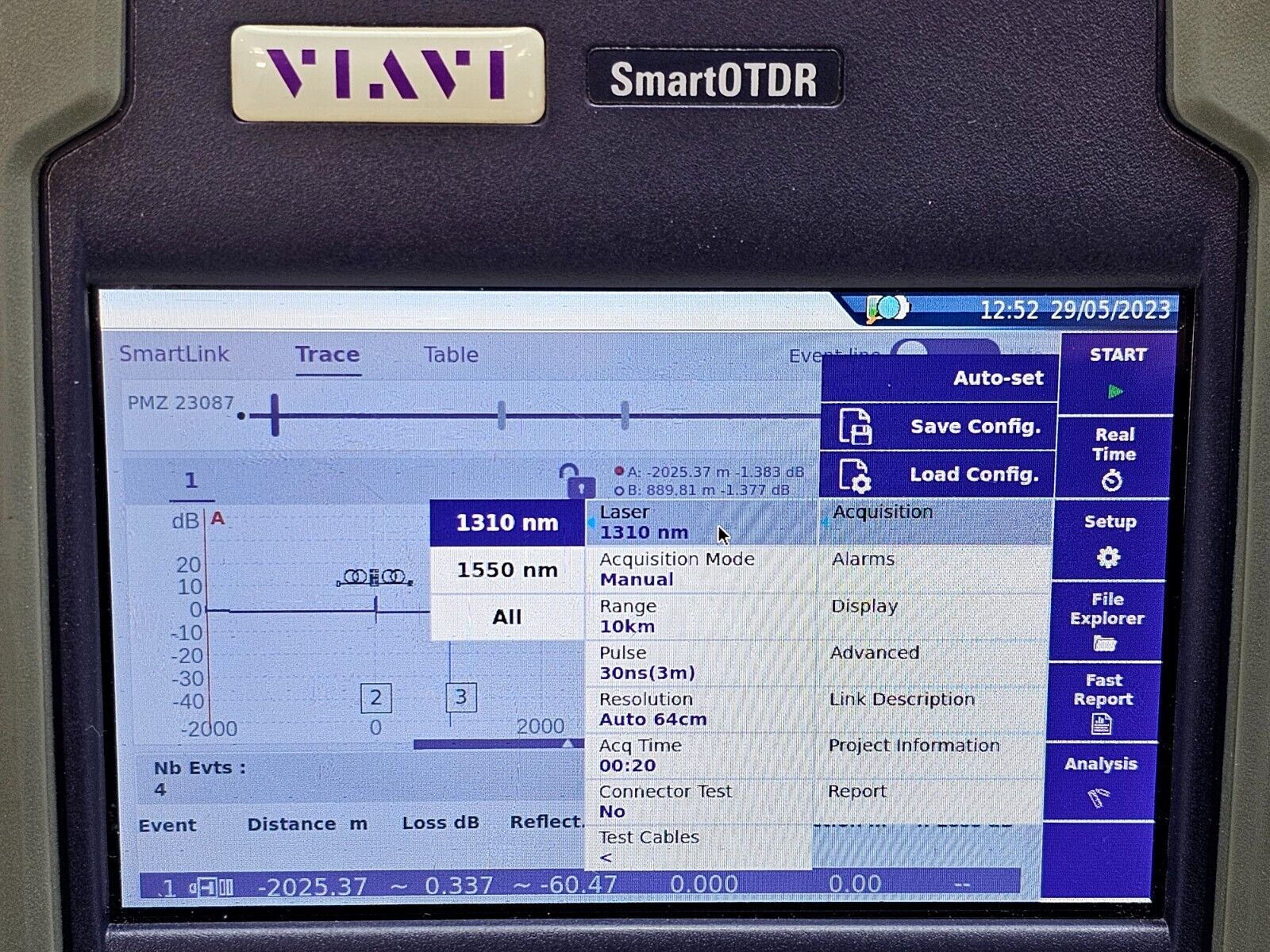

Wavelengths: 1310/1550 nm
RMS Dynamic Range: 37/35 dB

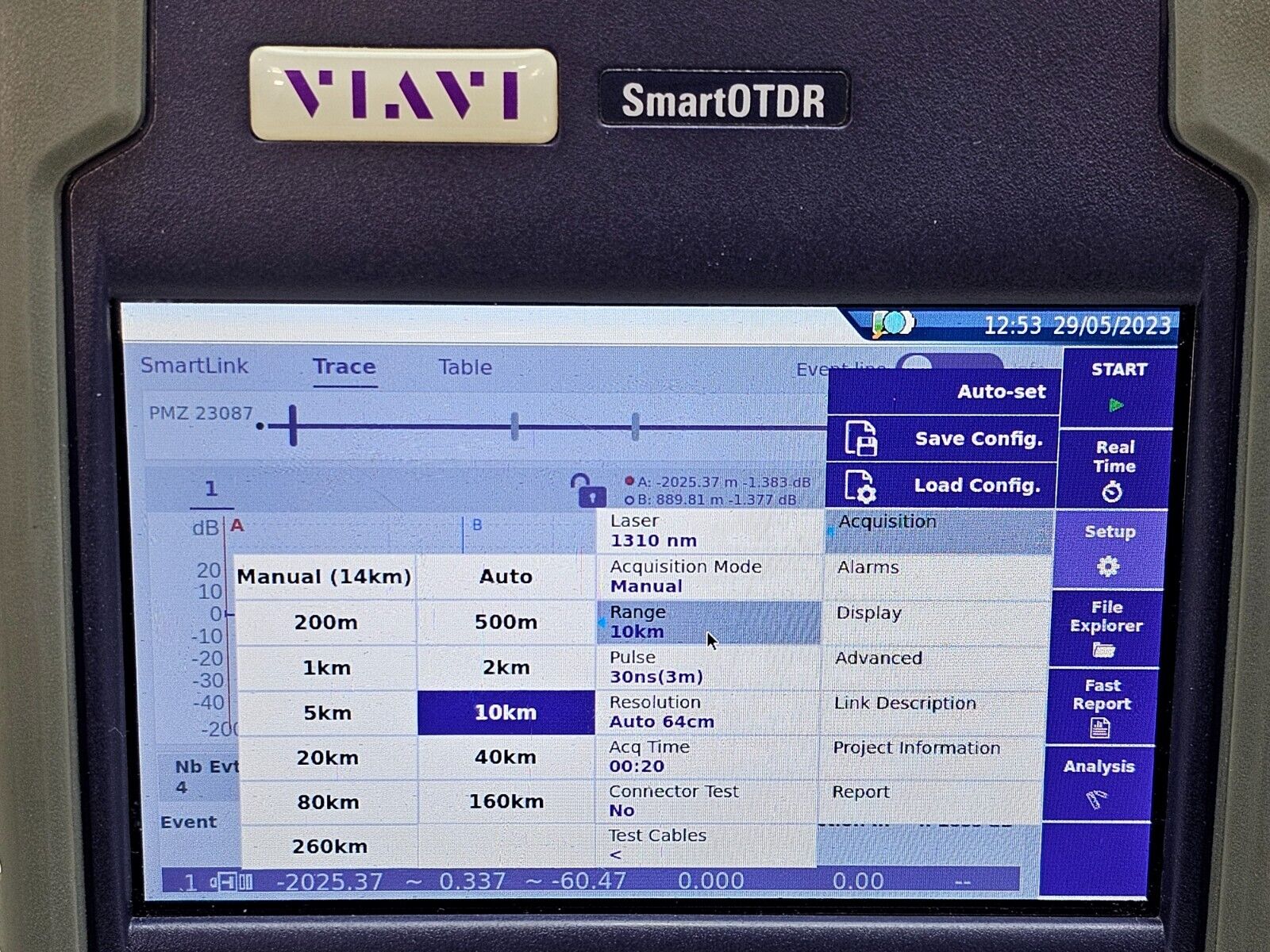

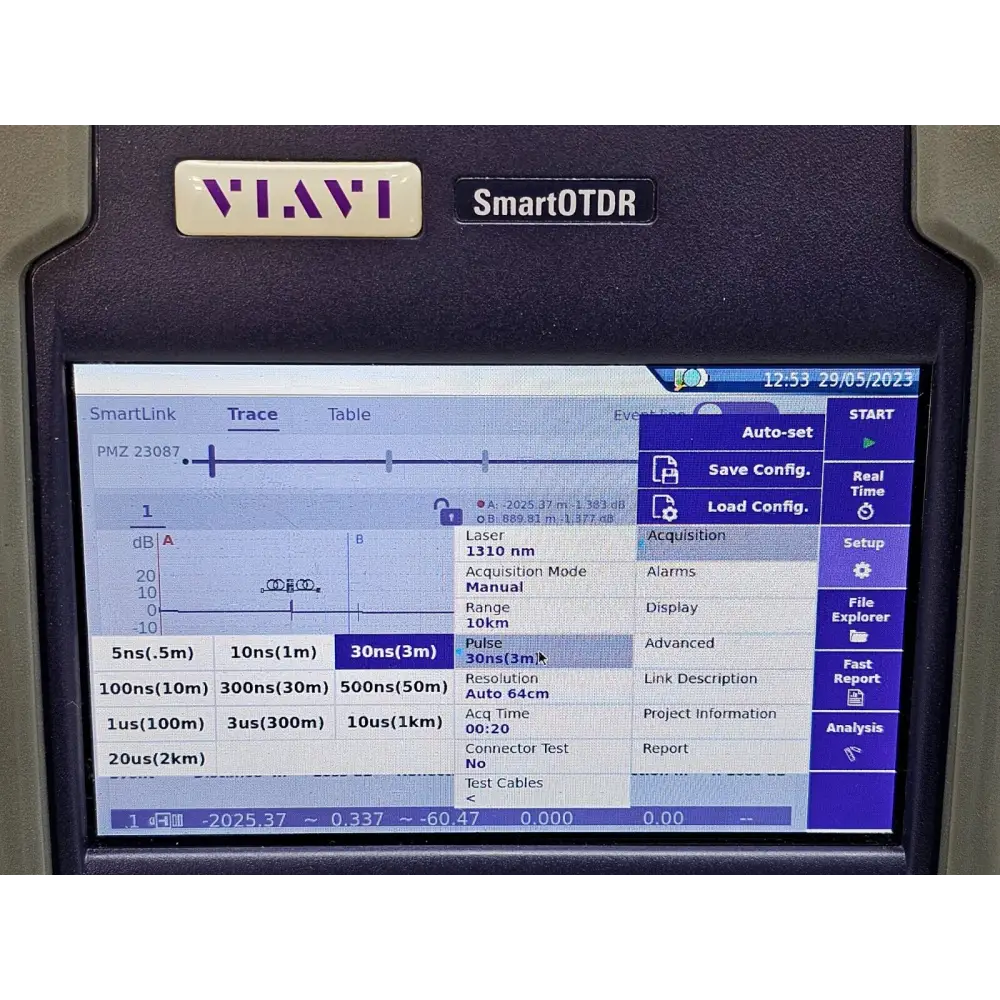

Pulse Widths: 5 ns to 20 µs
Event Dead Zone: 1.35 m
Attenuation Dead Zone: 4 m

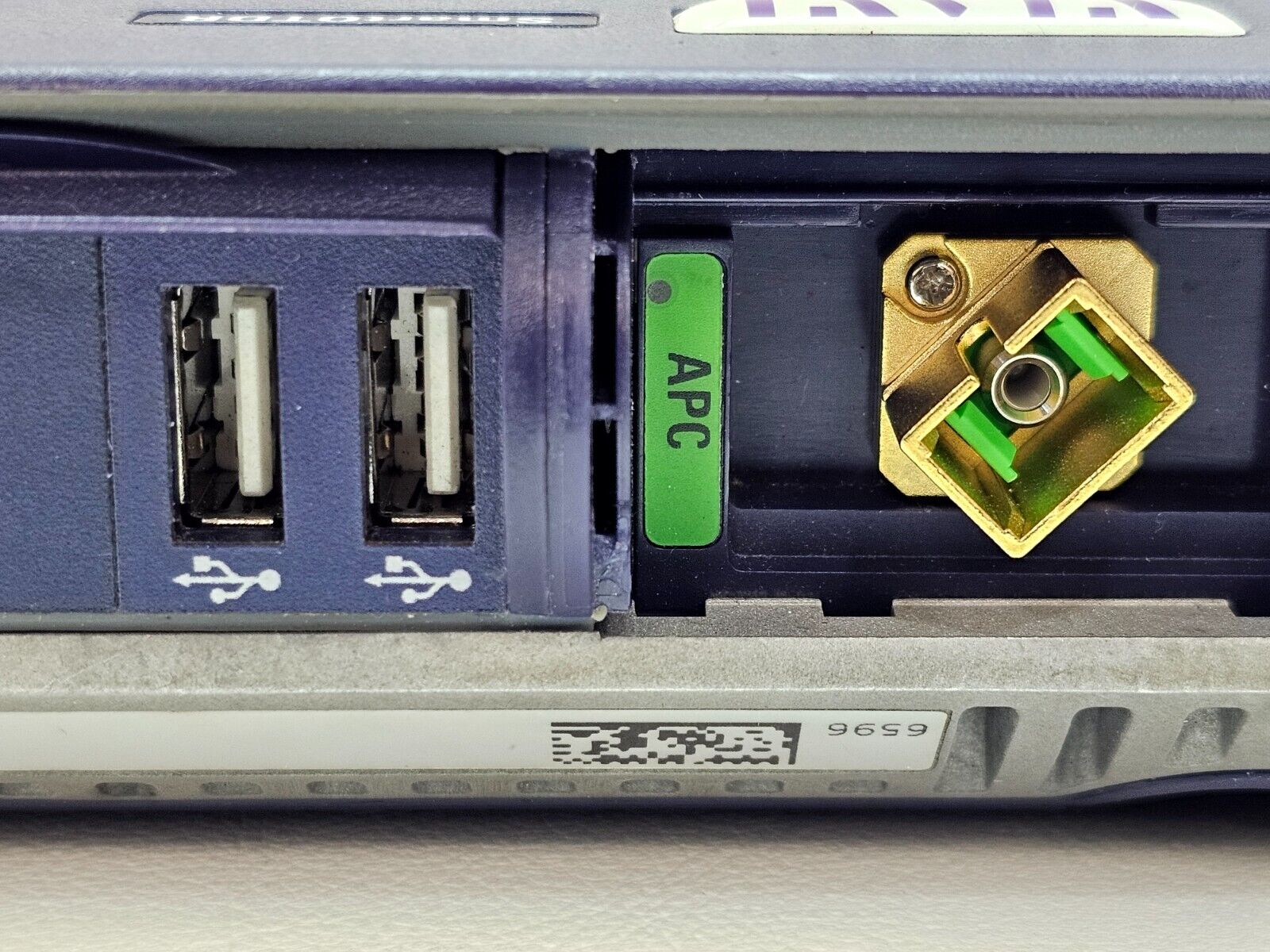

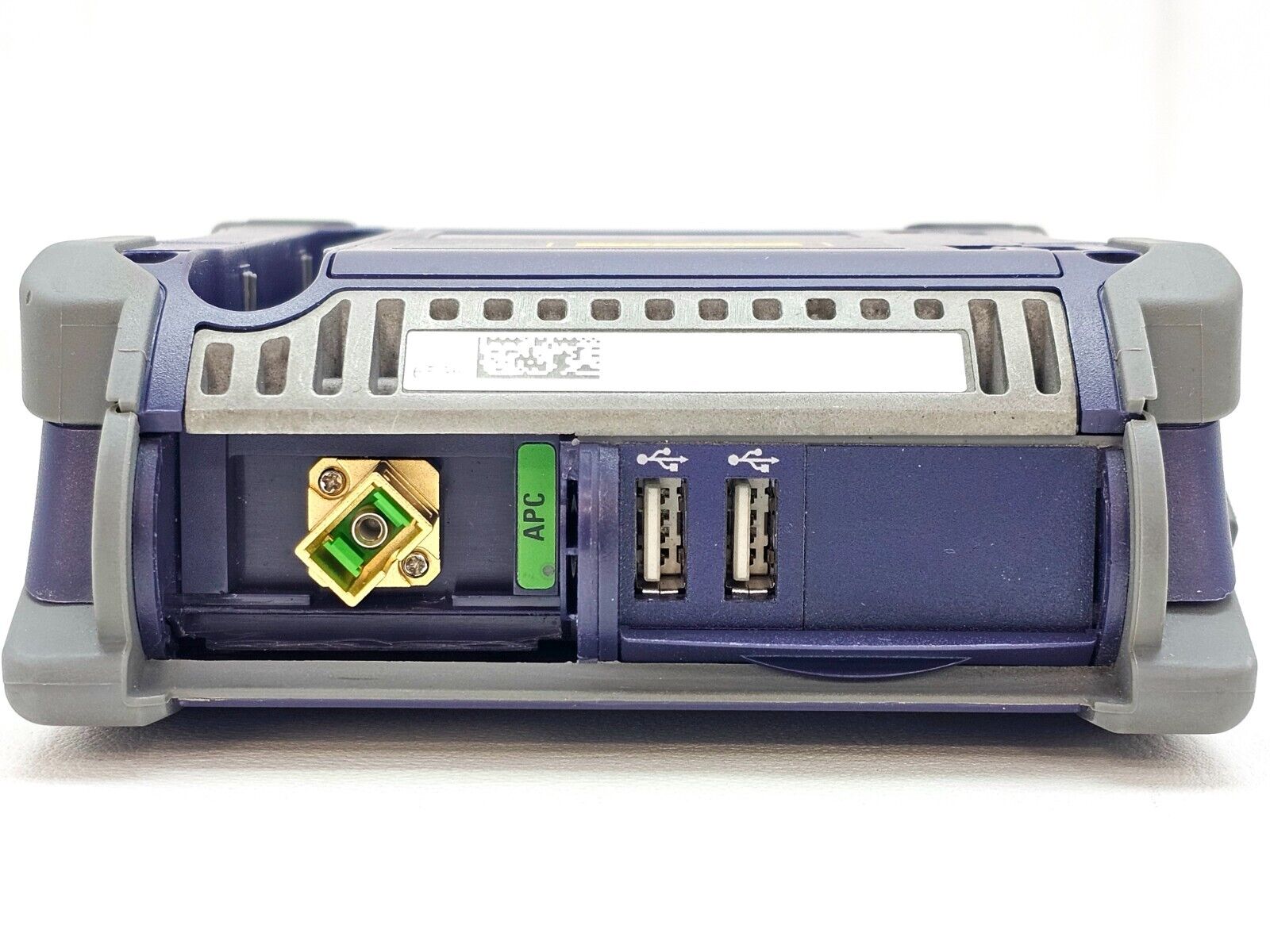

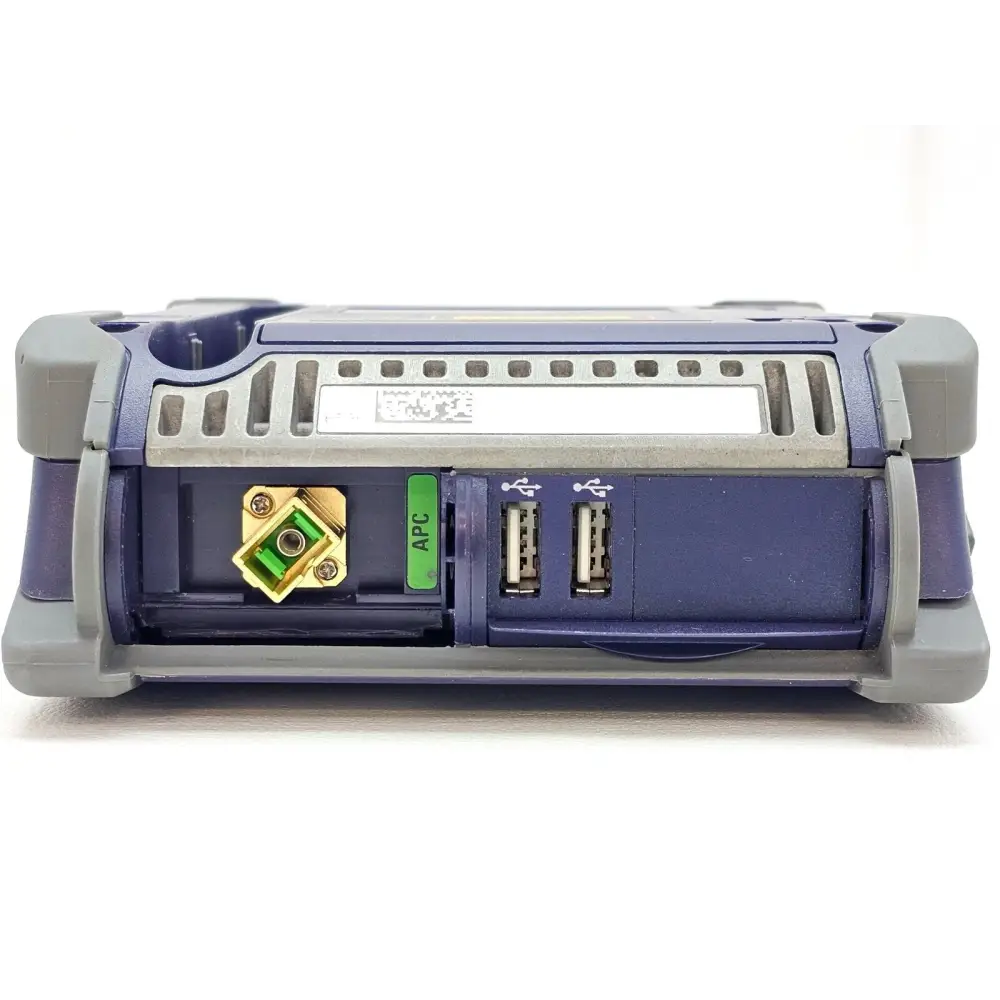

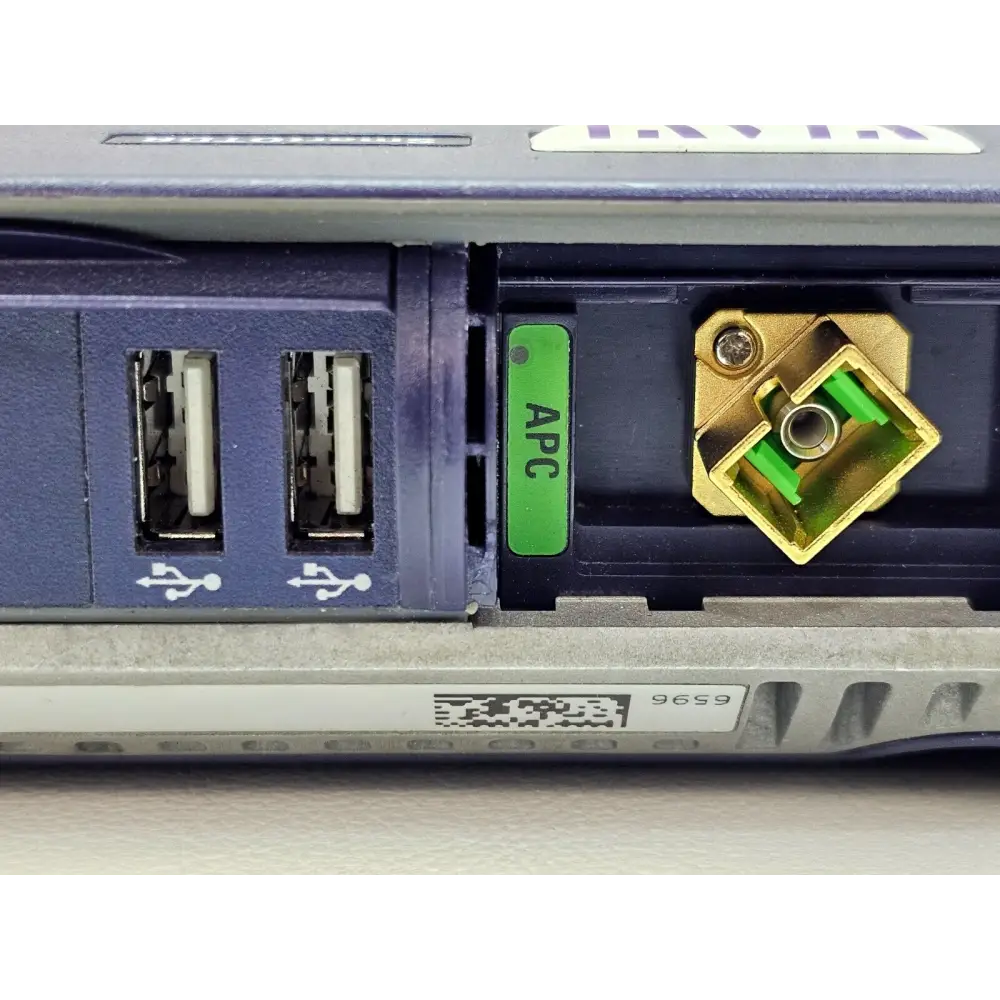

Connector: SC/APC

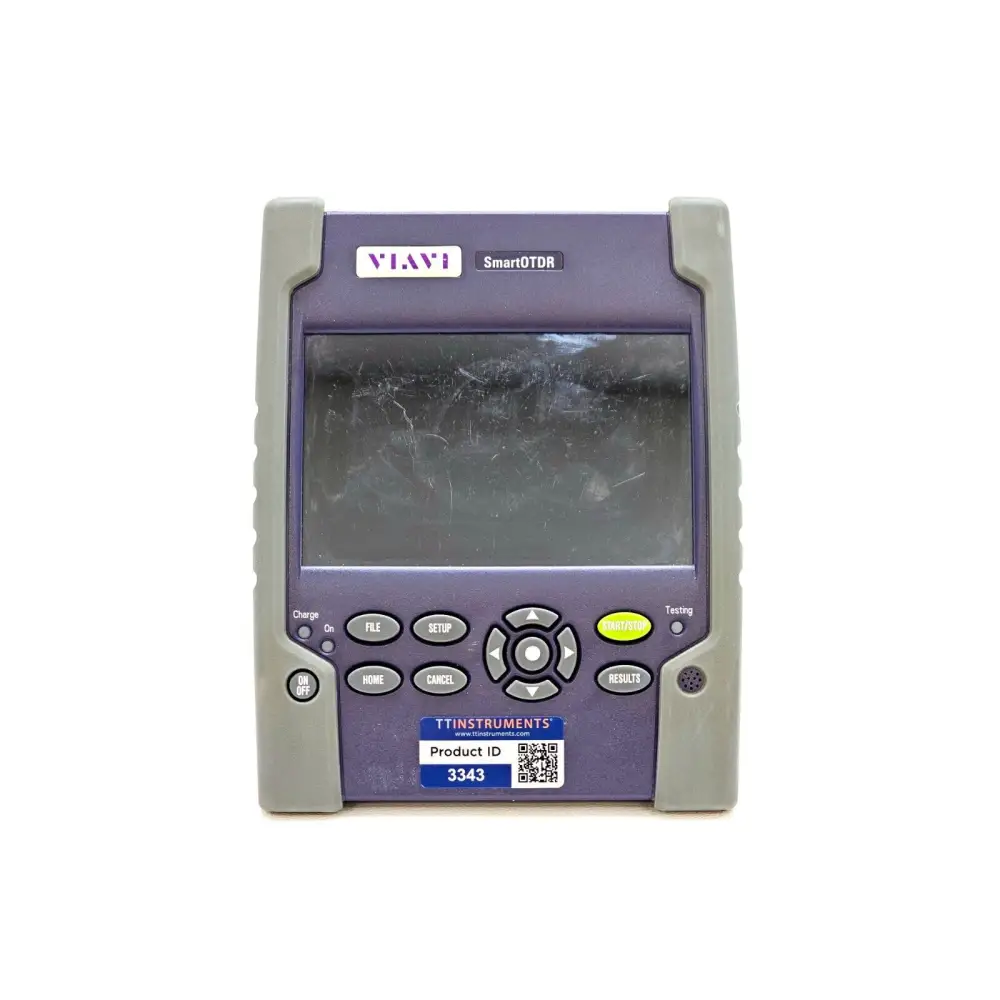

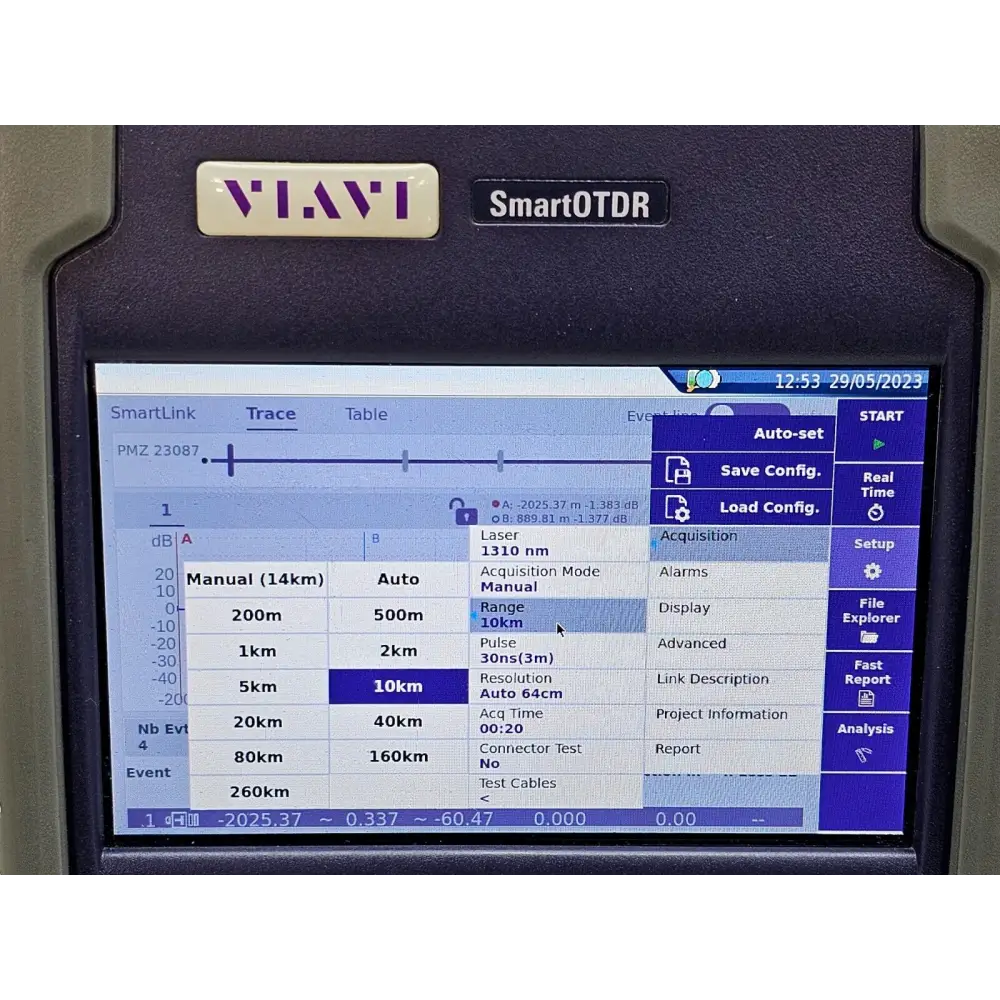

Display: 5-inch touchscreen with high outdoor visibility

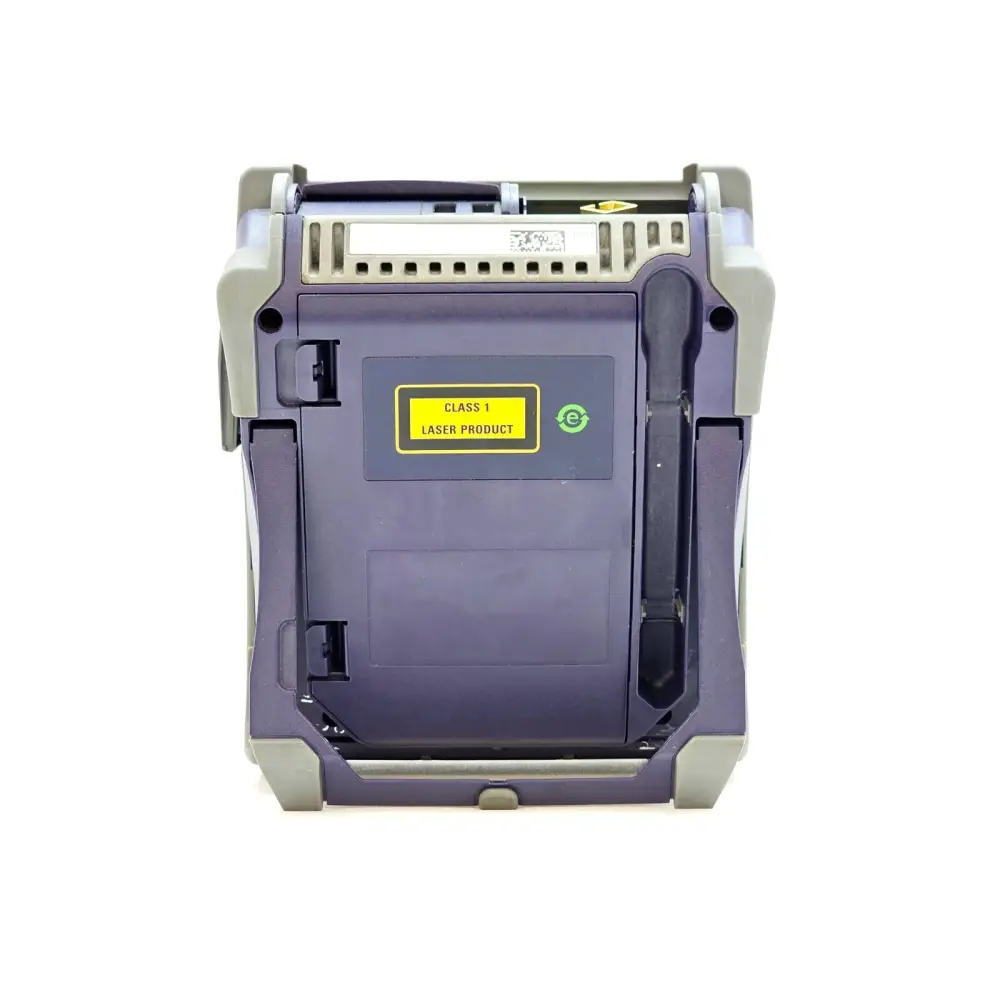

Battery Life: Up to 20 hours
Connectivity: 3G/4G via USB; optional Bluetooth/WiFi

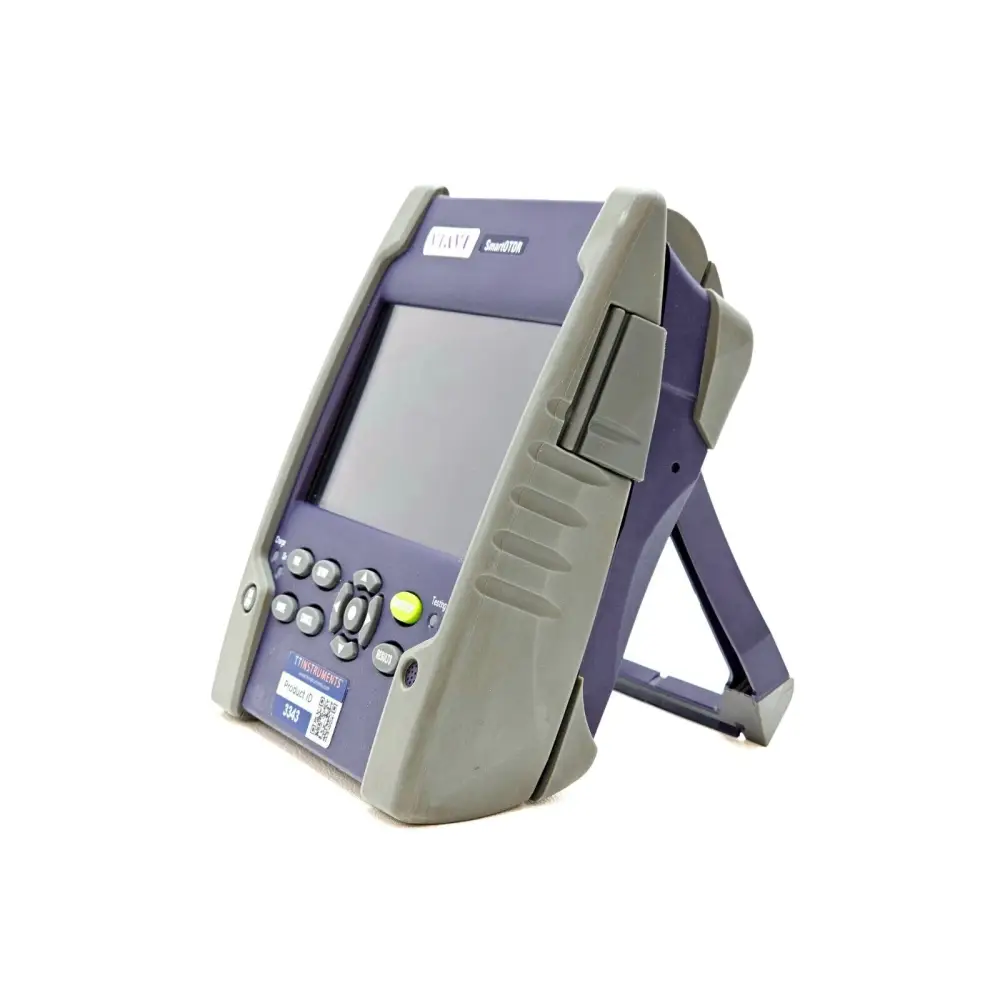

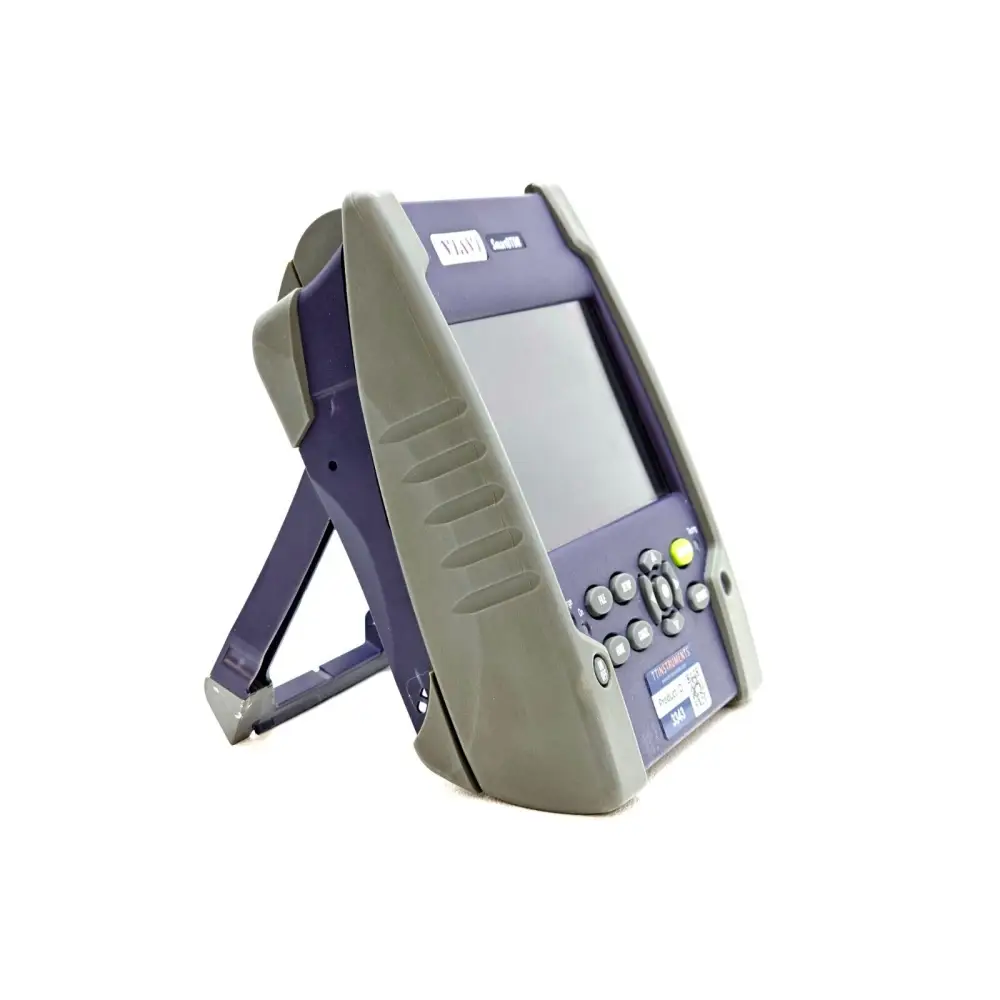

Design: Lightweight, compact, hands-free handheld
