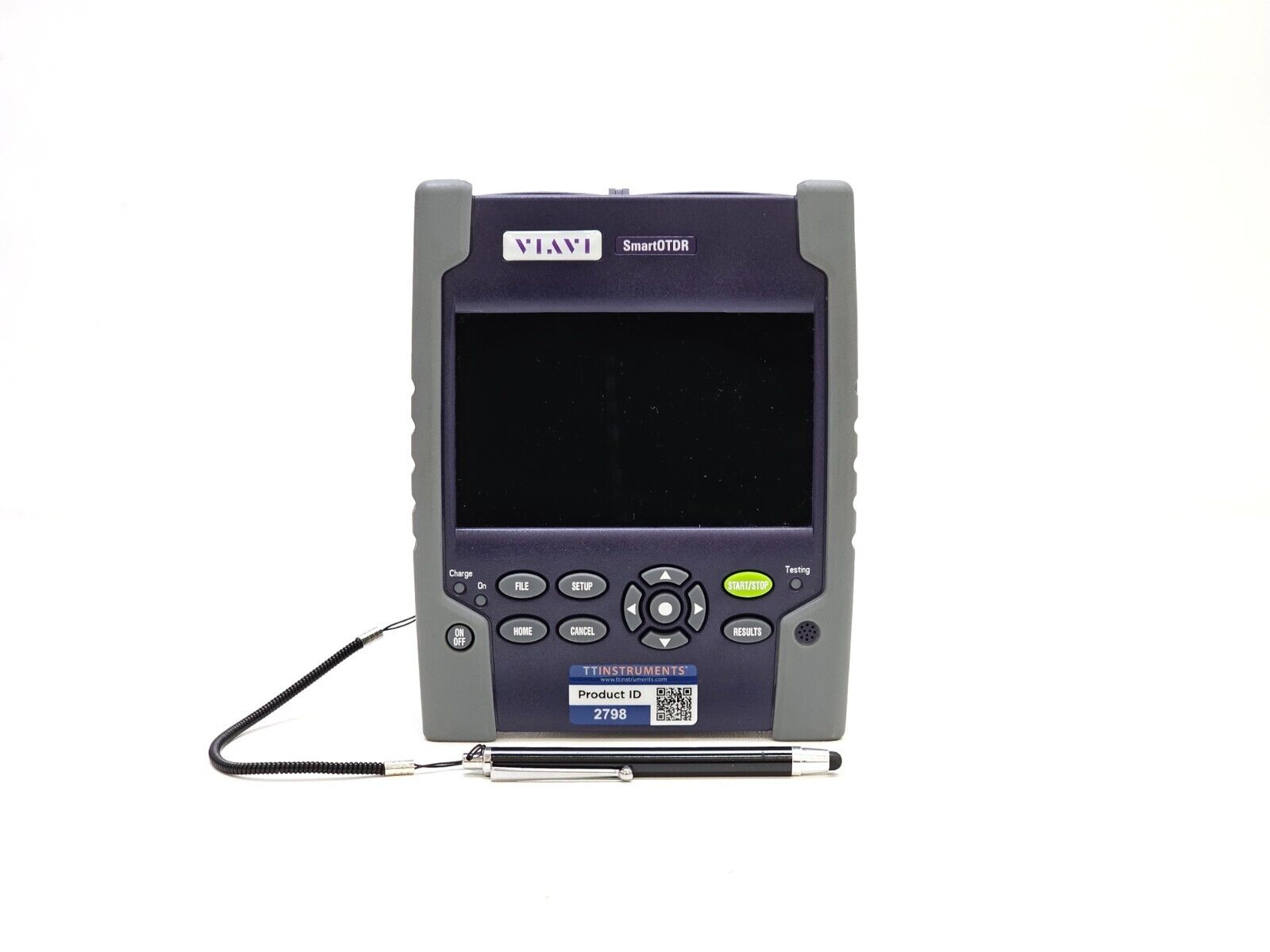

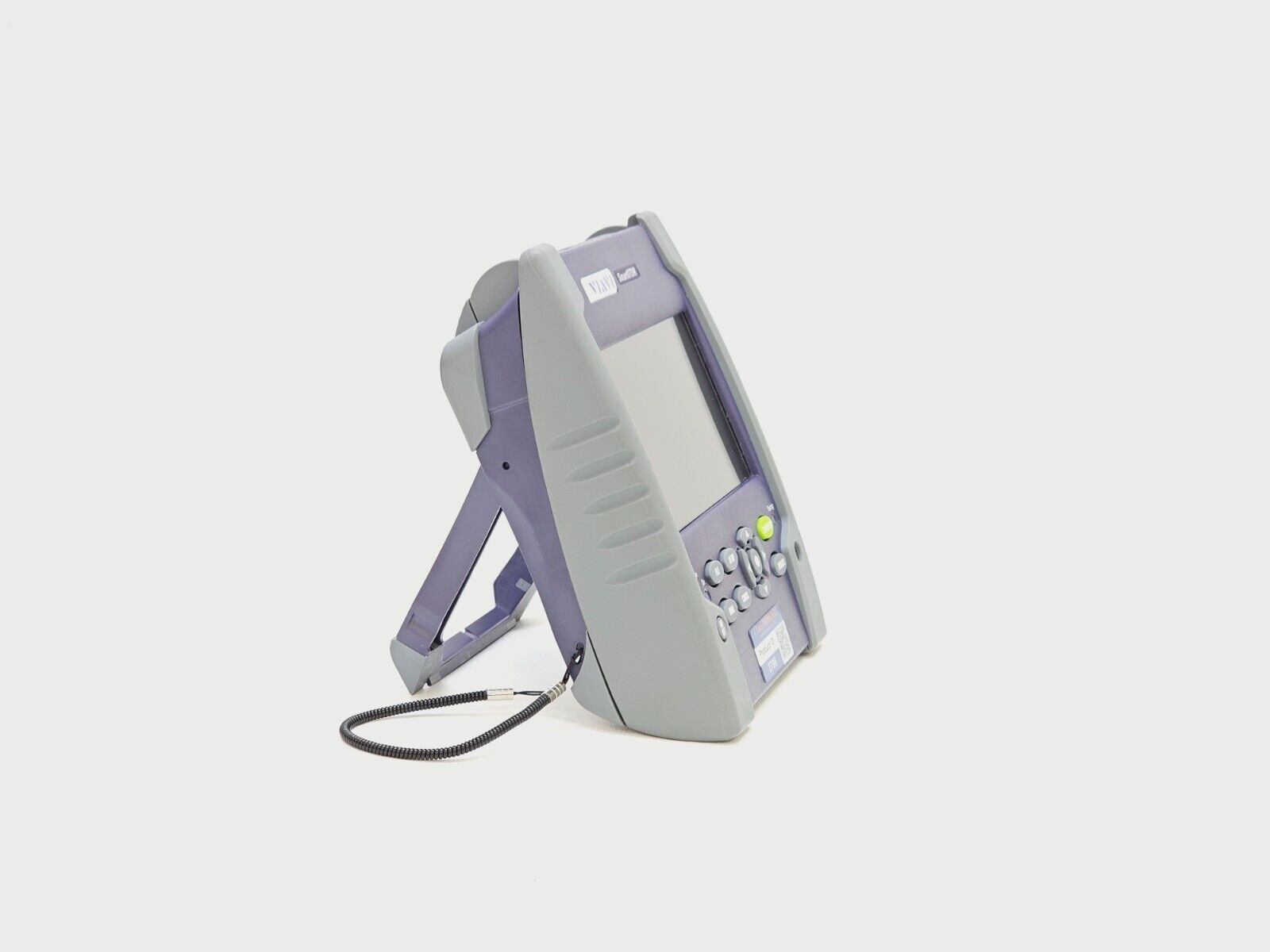

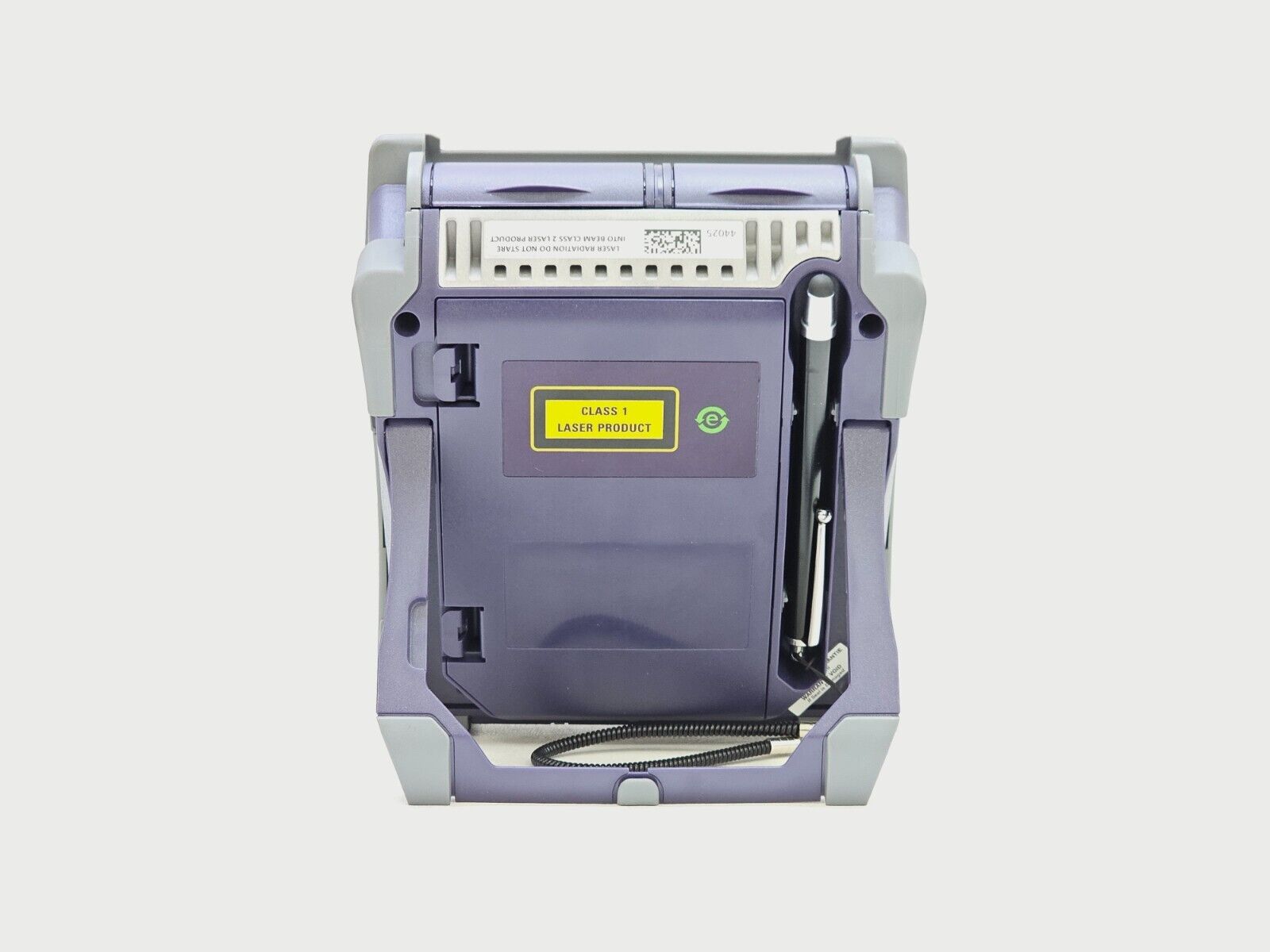

Viavi JDSU E126A SmartOTDR 1310/1550 nm 37/35 dB SM Metro Access OTDR VFL APC SC
Model: E126A
Condition: Used
In stock: 0
SKU: 2798 5C01
- Fiber Optics
- OTDR
Choose options
Condition: Used — This unit is in excellent condition with minimal usage.

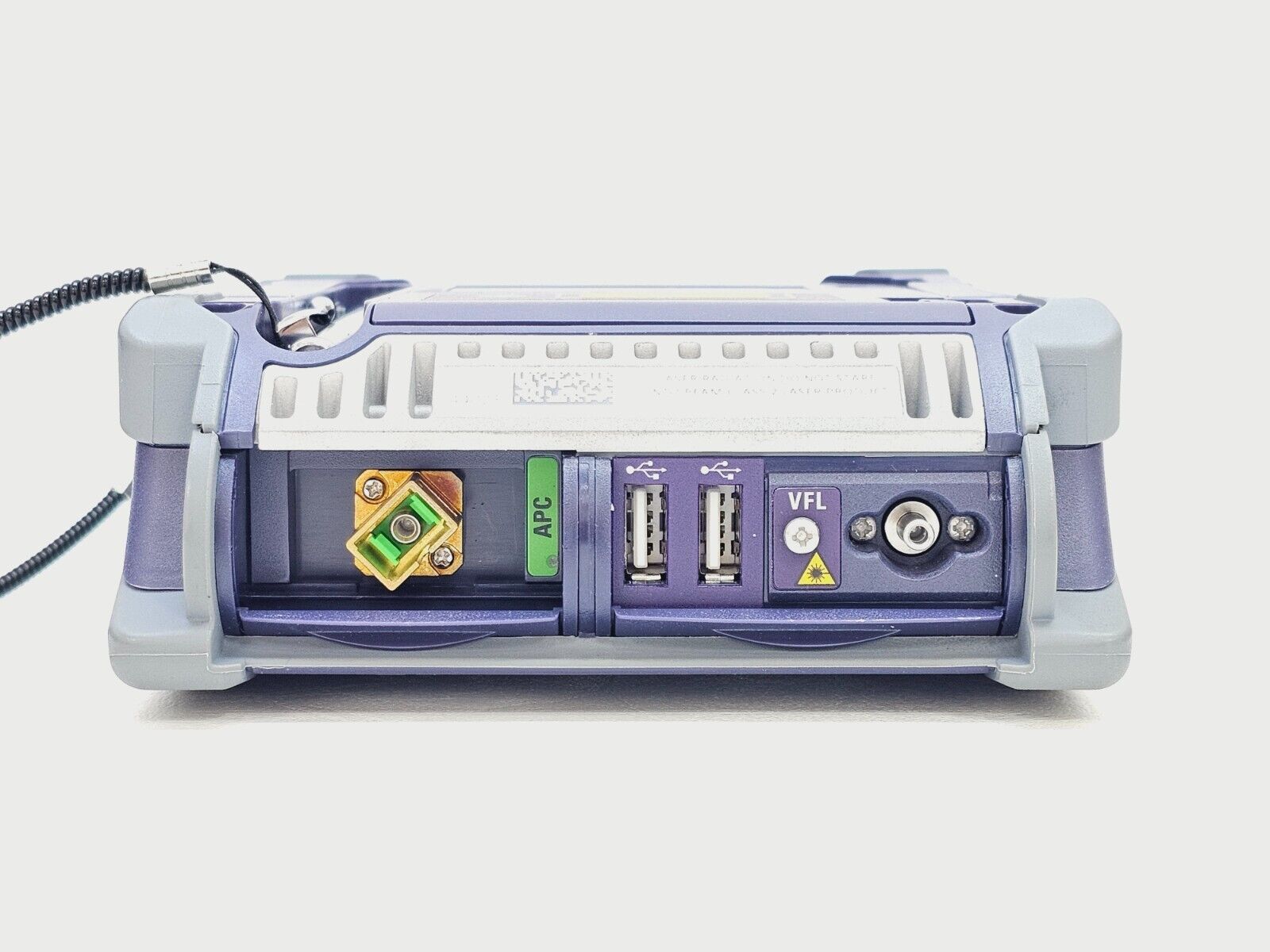

The Viavi JDSU E126A-APC SmartOTDR is a dual-wavelength handheld fibre tester for 1310/1550 nm with 37/35 dB RMS dynamic range, fitted with an SC-APC connector and a built-in visual fault locator (VFL). It is ideally suited for installation and maintenance of metro and access networks, offering one-touch operation and automatic pass/fail analysis.
Included in the sale:

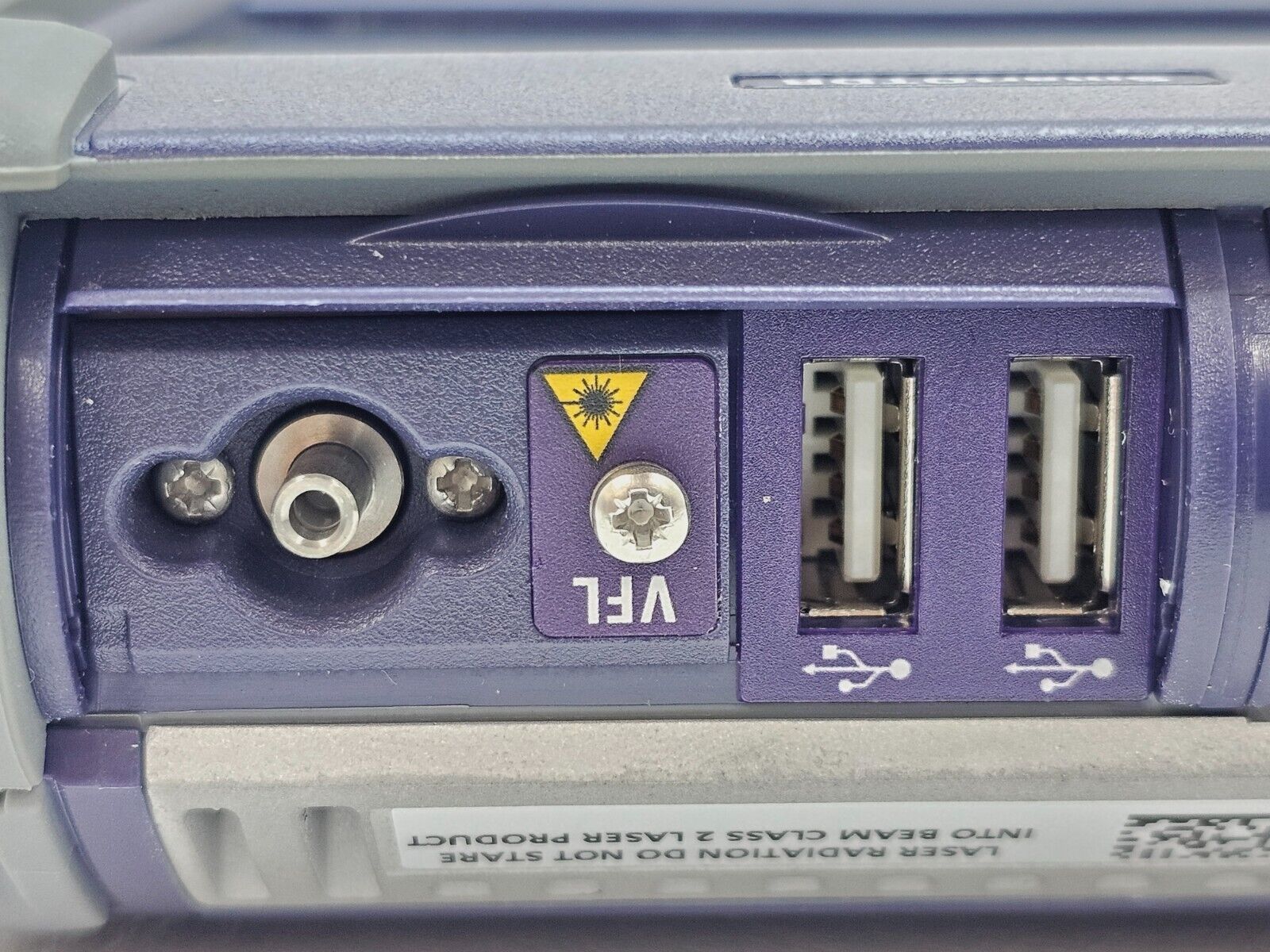

• E126A-APC SmartOTDR (1310/1550 nm, 37/35 dB) with built-in VFL and SC-APC connector

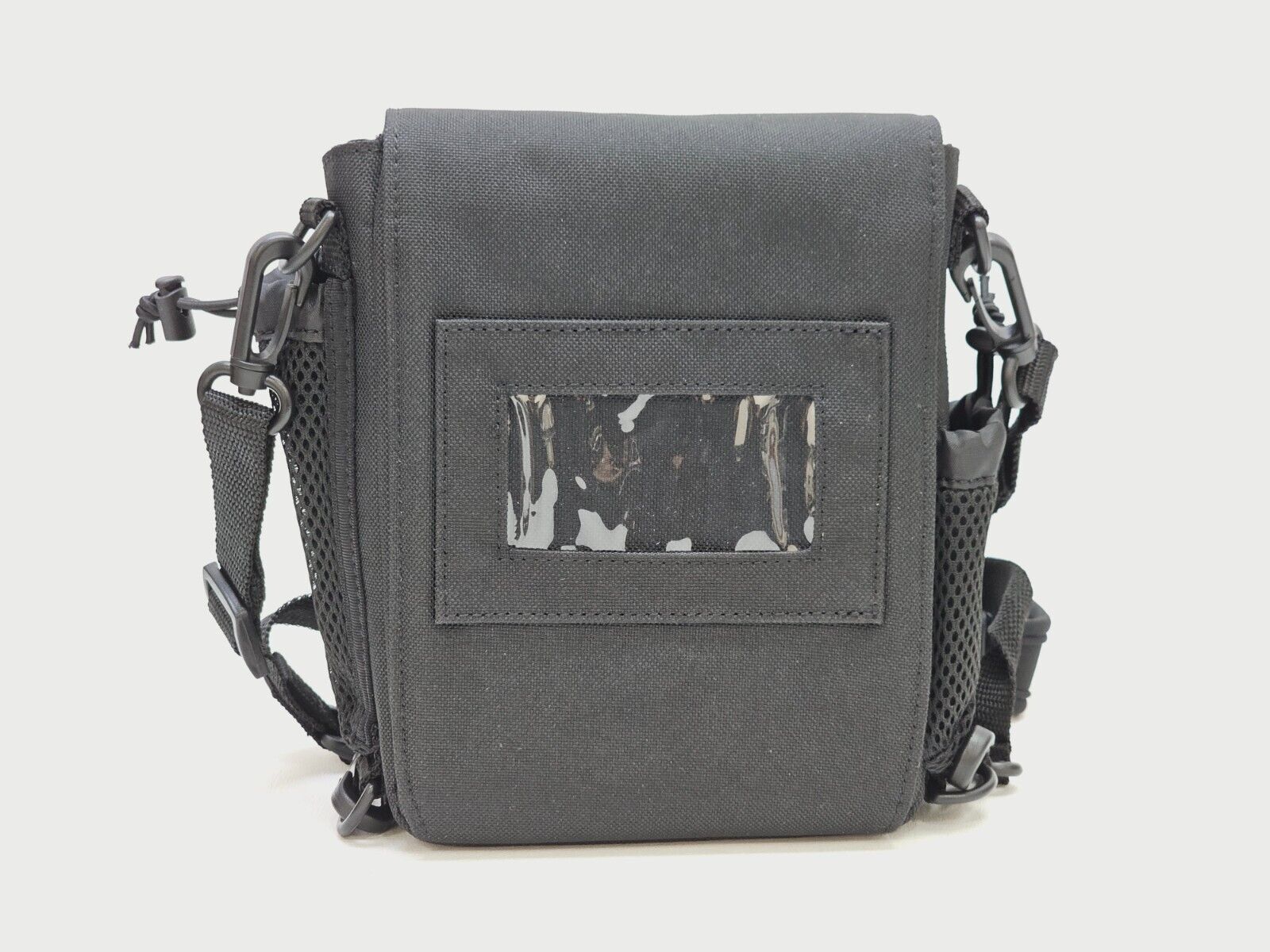

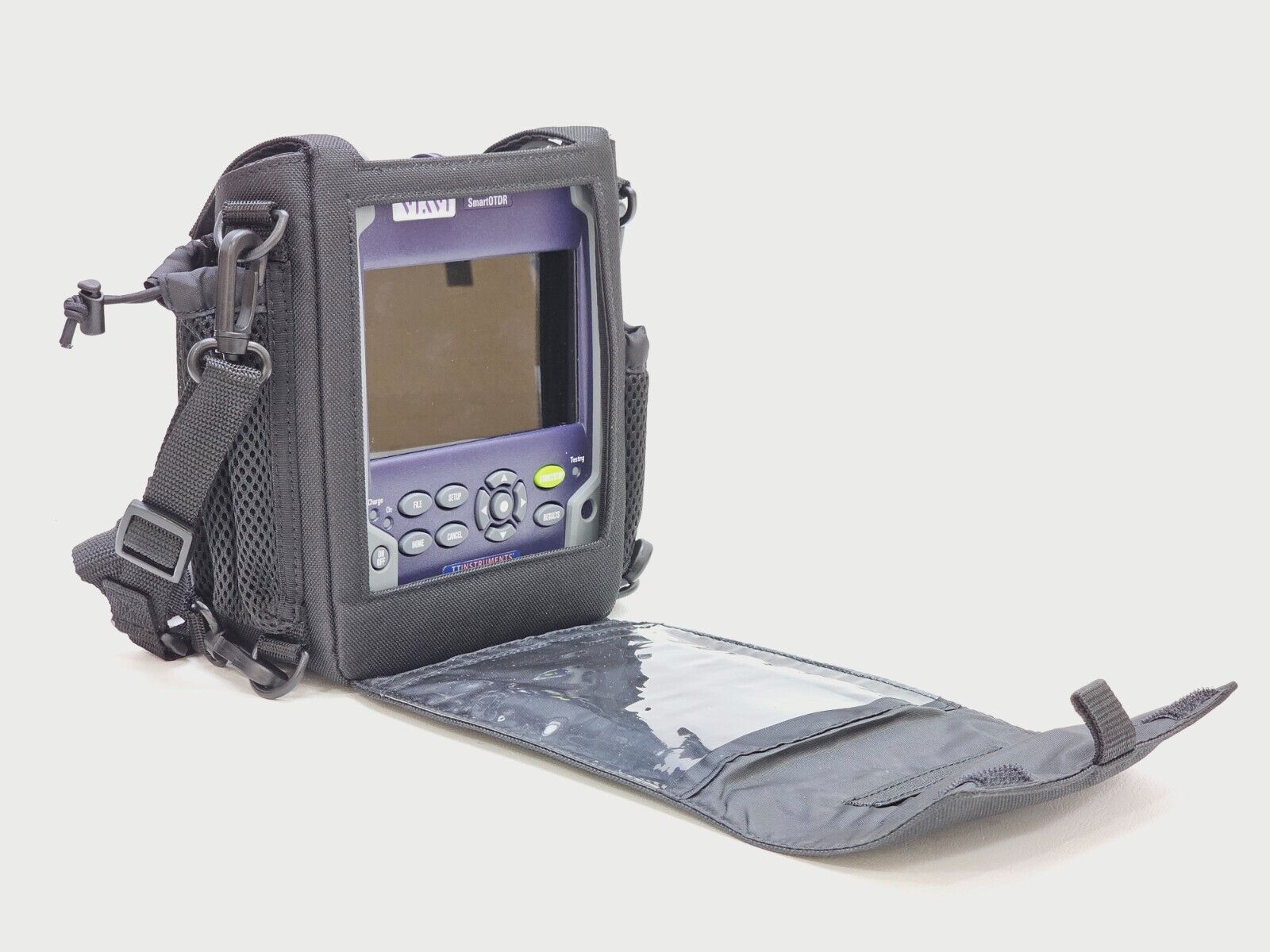

• Soft carry case
• Carry bag
• Stylus
• Power adapter

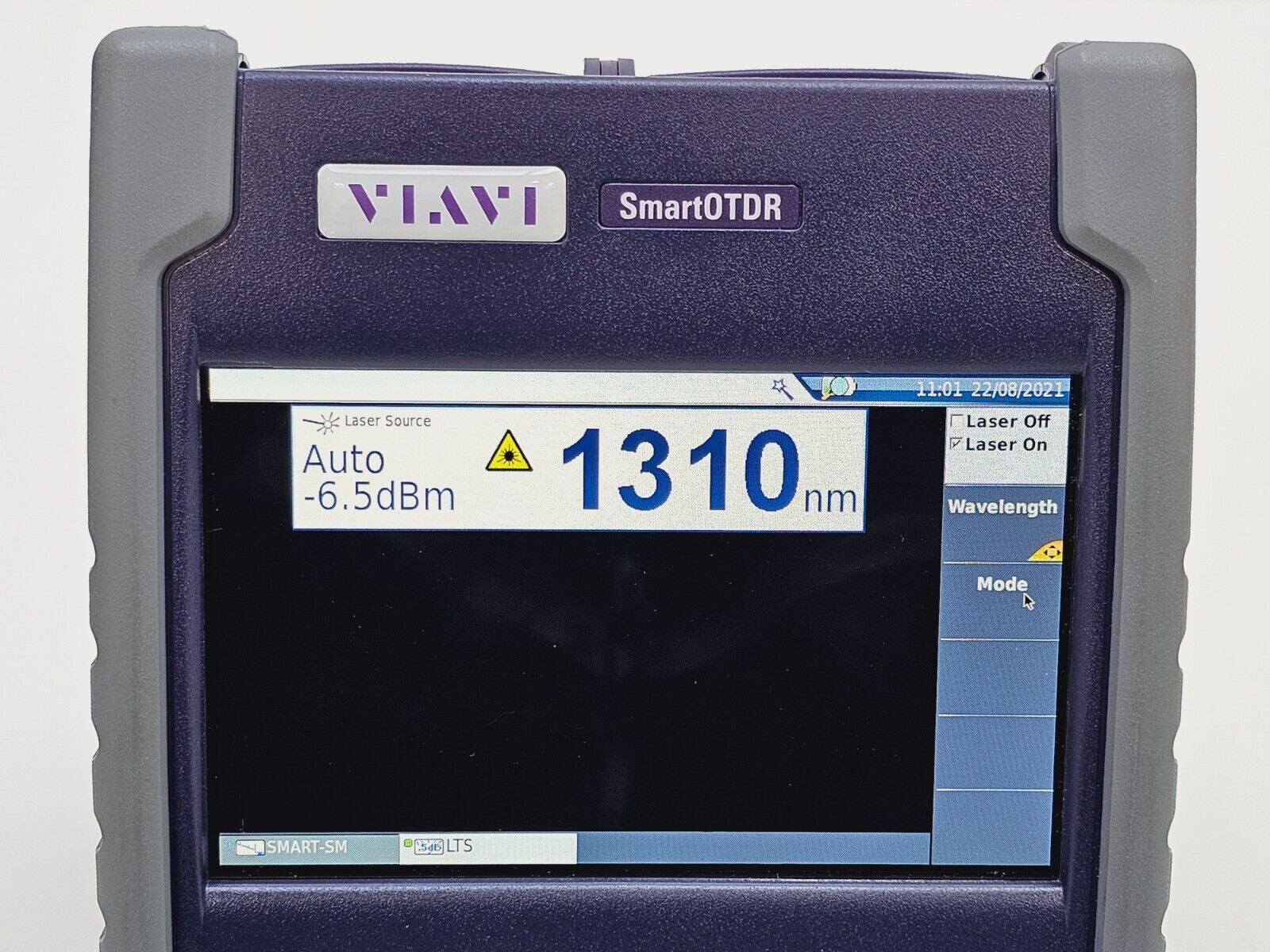

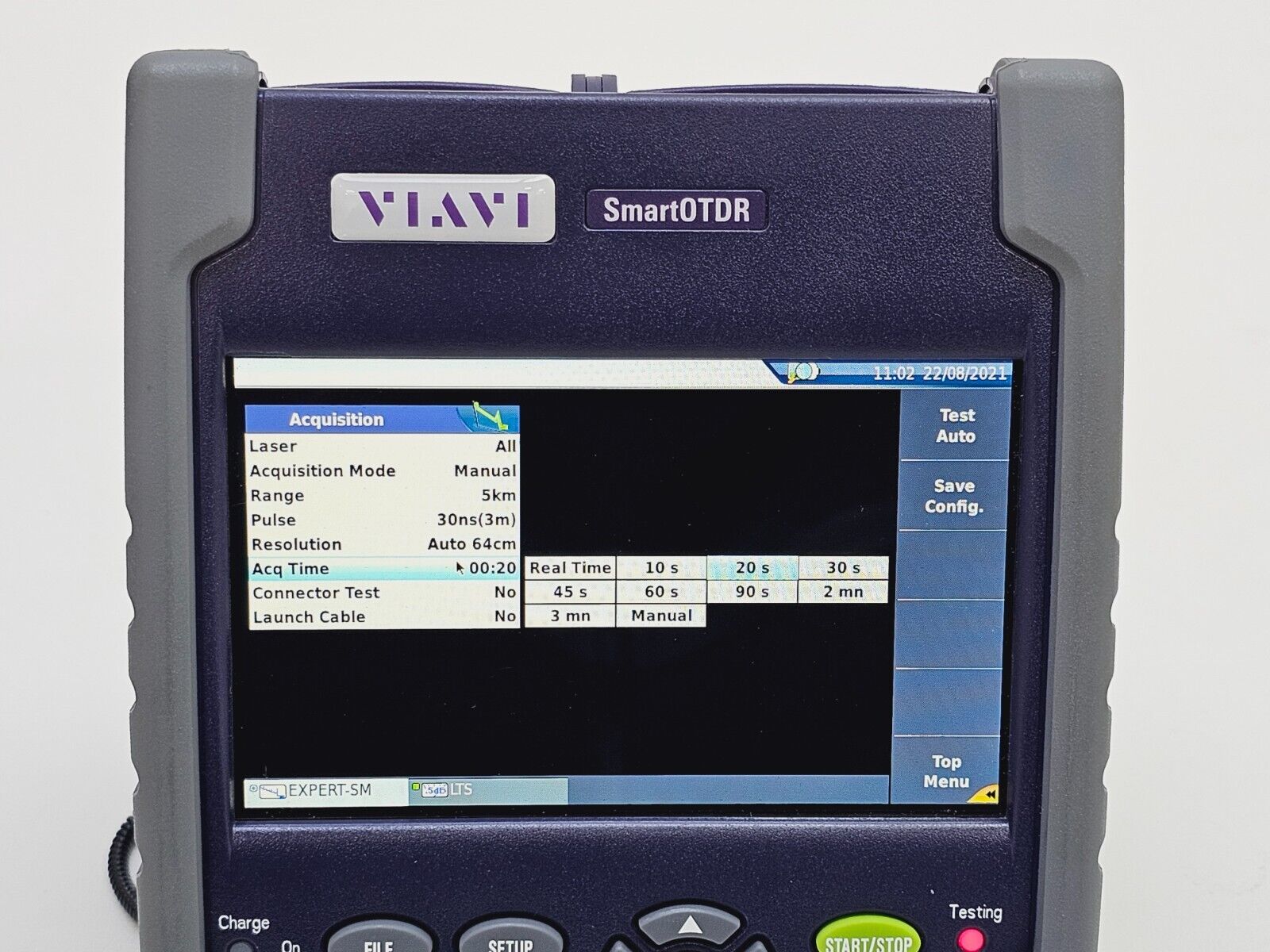

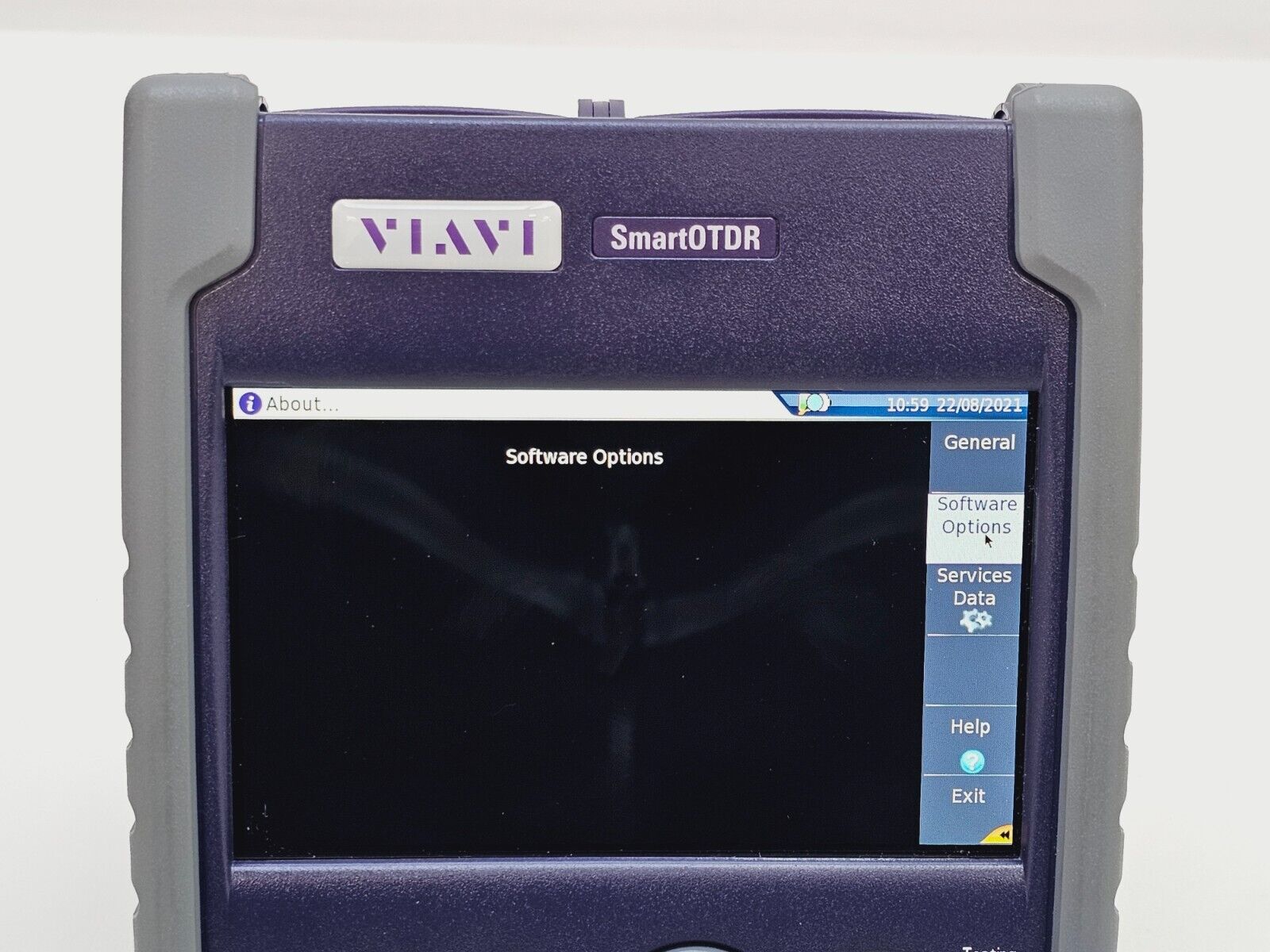

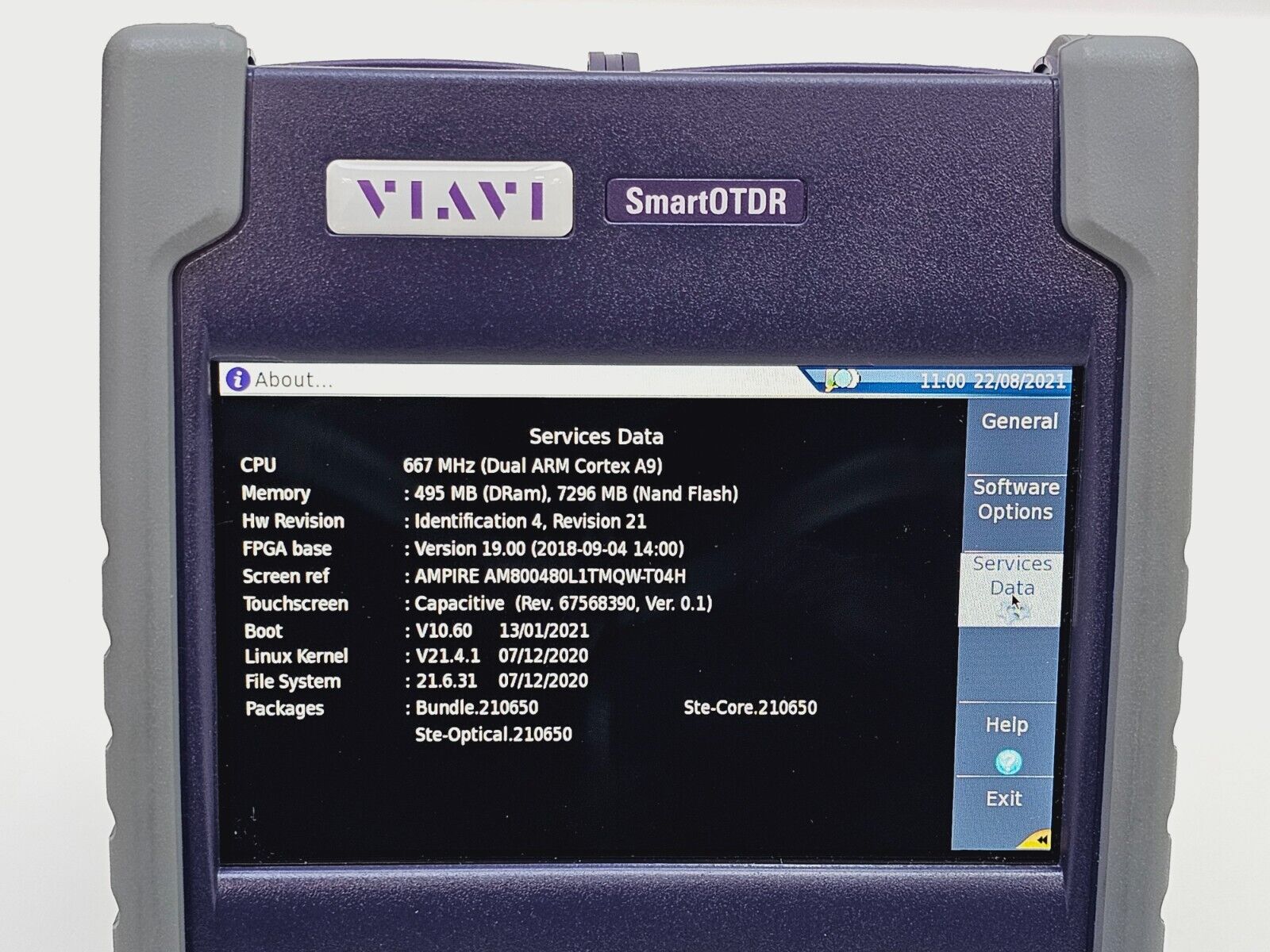

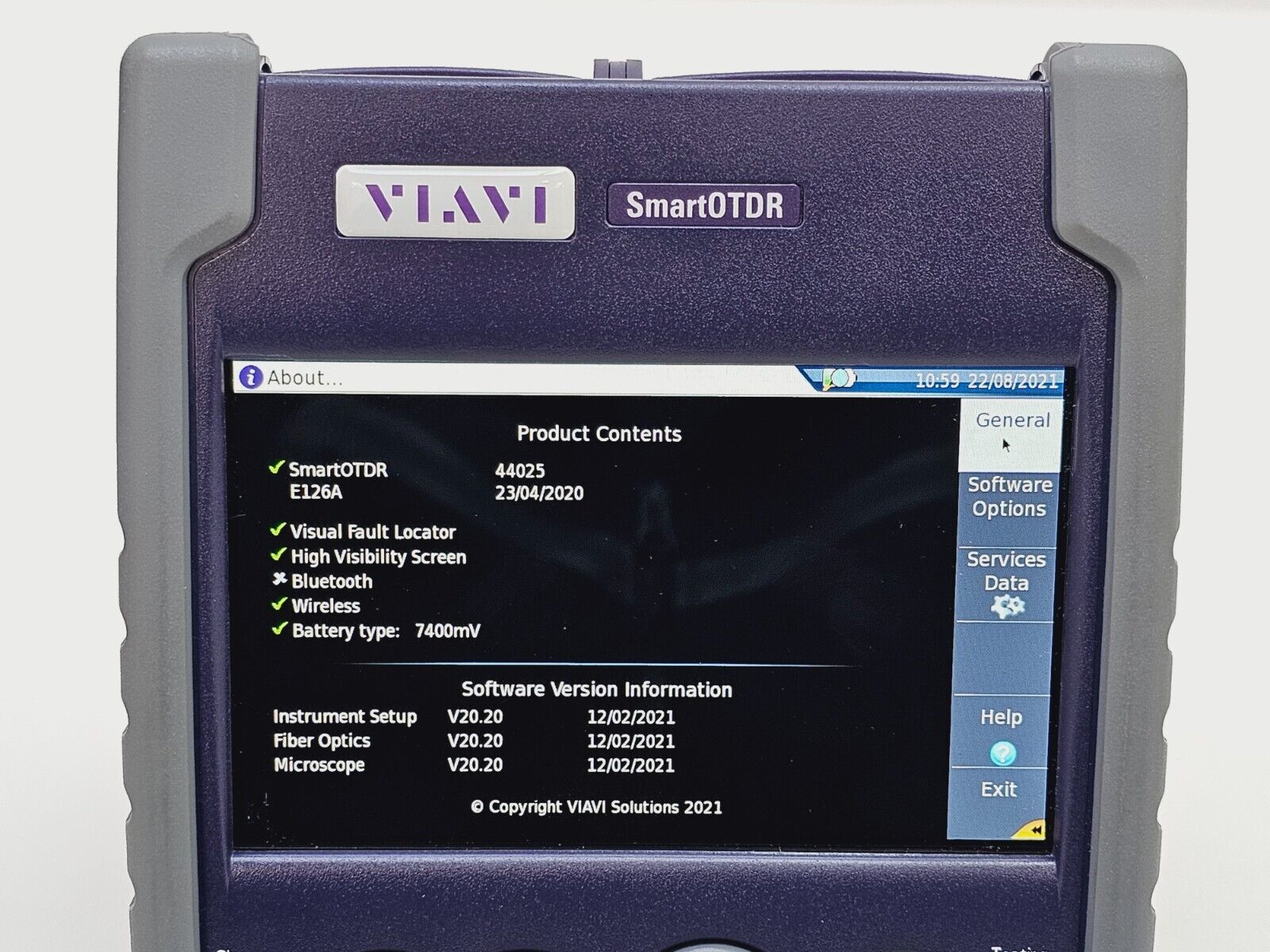

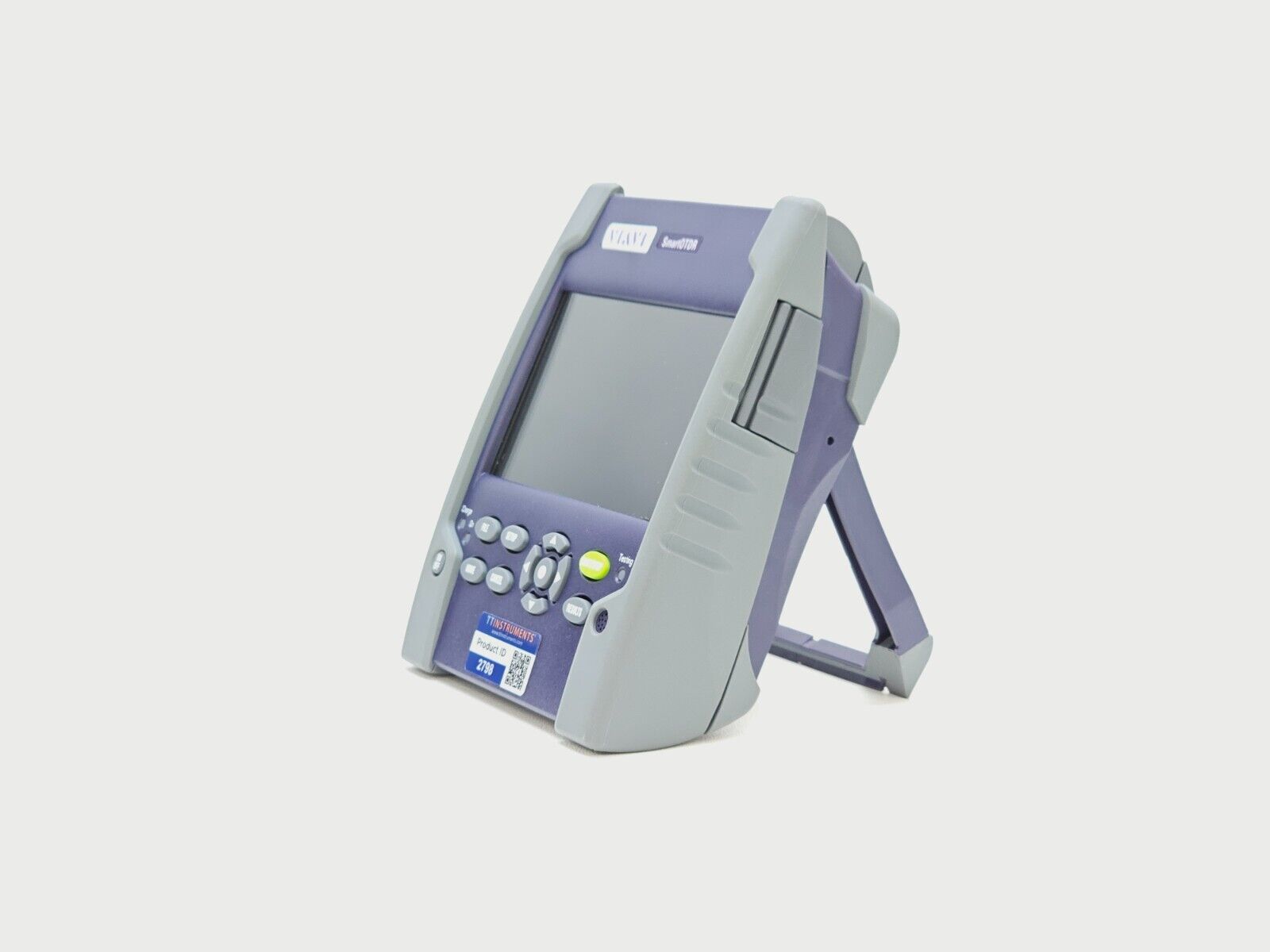

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.
The Viavi (formerly JDSU) E126A-APC SmartOTDR is a handheld, dual-wavelength fibre tester designed for the installation and maintenance of metro and access networks. Combining essential fibre tests in a single compact unit, it supports OTDR, VFL, OPM, and other optional tools in one device. The SmartOTDR eliminates setup errors through generic or user-defined configuration profiles and provides automatic pass/fail analysis — making it accessible to technicians at any skill level.

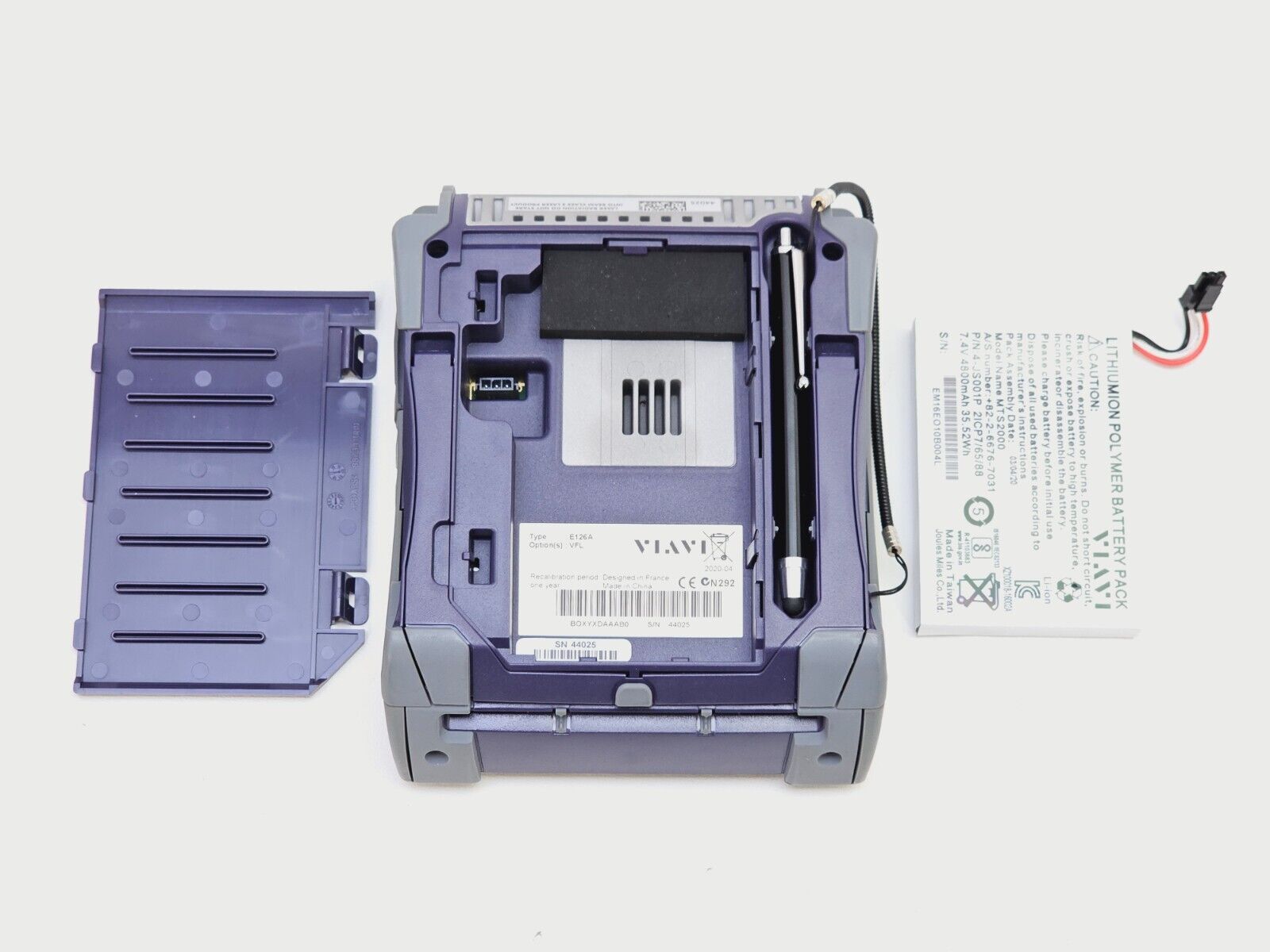

Multiple wireless connectivity options, including 3G/4G via USB and optional Bluetooth/WiFi, allow remote control and data transfer to tablets, smartphones, and computers. Optional SmartAccess Anywhere (SAA) enables cloud-based remote access to the instrument. The onboard FastReport tool generates PDF reports instantly in the field. An integrated CW light source on the OTDR port and a rechargeable lithium-polymer battery offering up to 20 hours of operation further enhance field productivity.
Key Specifications:
Wavelengths: 1310 / 1550 nm
RMS Dynamic Range: 37 / 35 dB

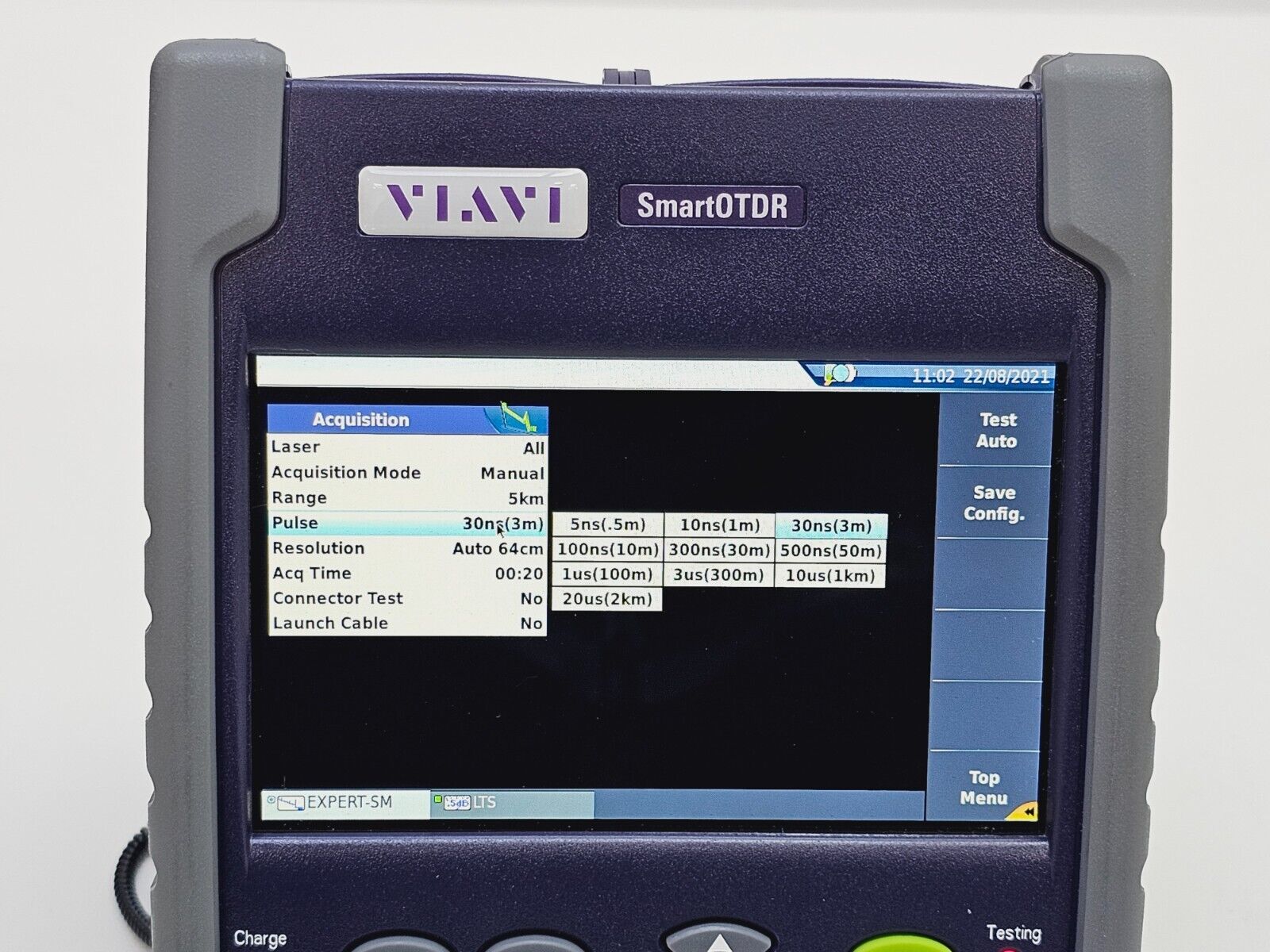

Pulse Widths: 5 ns to 20 µs
Event Dead Zone: 1.35 m
Attenuation Dead Zone: 4 m
Connector: SC/APC
Display: 5-inch touchscreen with high outdoor visibility
Battery Life: Up to 20 hours
Connectivity: 3G/4G via USB; optional Bluetooth/WiFi
Design: Lightweight, compact, hands-free handheld
For the manufacturer datasheet, please click here
Product Overview
Condition: Used — This unit is in excellent condition with minimal usage.
The Viavi JDSU E126A-APC SmartOTDR is a dual-wavelength handheld fibre tester for 1310/1550 nm with 37/35 dB RMS dynamic range, fitted with an SC-APC connector and a built-in visual fault locator (VFL). It is ideally suited for installation and maintenance of metro and access networks, offering one-touch operation and automatic pass/fail analysis.
Included in the sale:
• E126A-APC SmartOTDR (1310/1550 nm, 37/35 dB) with built-in VFL and SC-APC connector
• Soft carry case
• Carry bag
• Stylus
• Power adapter
The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.
Manufacturer's Description
The Viavi (formerly JDSU) E126A-APC SmartOTDR is a handheld, dual-wavelength fibre tester designed for the installation and maintenance of metro and access networks. Combining essential fibre tests in a single compact unit, it supports OTDR, VFL, OPM, and other optional tools in one device. The SmartOTDR eliminates setup errors through generic or user-defined configuration profiles and provides automatic pass/fail analysis — making it accessible to technicians at any skill level.
Multiple wireless connectivity options, including 3G/4G via USB and optional Bluetooth/WiFi, allow remote control and data transfer to tablets, smartphones, and computers. Optional SmartAccess Anywhere (SAA) enables cloud-based remote access to the instrument. The onboard FastReport tool generates PDF reports instantly in the field. An integrated CW light source on the OTDR port and a rechargeable lithium-polymer battery offering up to 20 hours of operation further enhance field productivity.
Key Specifications:
Wavelengths: 1310 / 1550 nm
RMS Dynamic Range: 37 / 35 dB
Pulse Widths: 5 ns to 20 µs
Event Dead Zone: 1.35 m
Attenuation Dead Zone: 4 m
Connector: SC/APC
Display: 5-inch touchscreen with high outdoor visibility
Battery Life: Up to 20 hours
Connectivity: 3G/4G via USB; optional Bluetooth/WiFi
Design: Lightweight, compact, hands-free handheld
Resources
For the manufacturer datasheet, please click here
