Condition: Used — this unit is in excellent condition, described as like new with the screen protector still on and minimal usage.

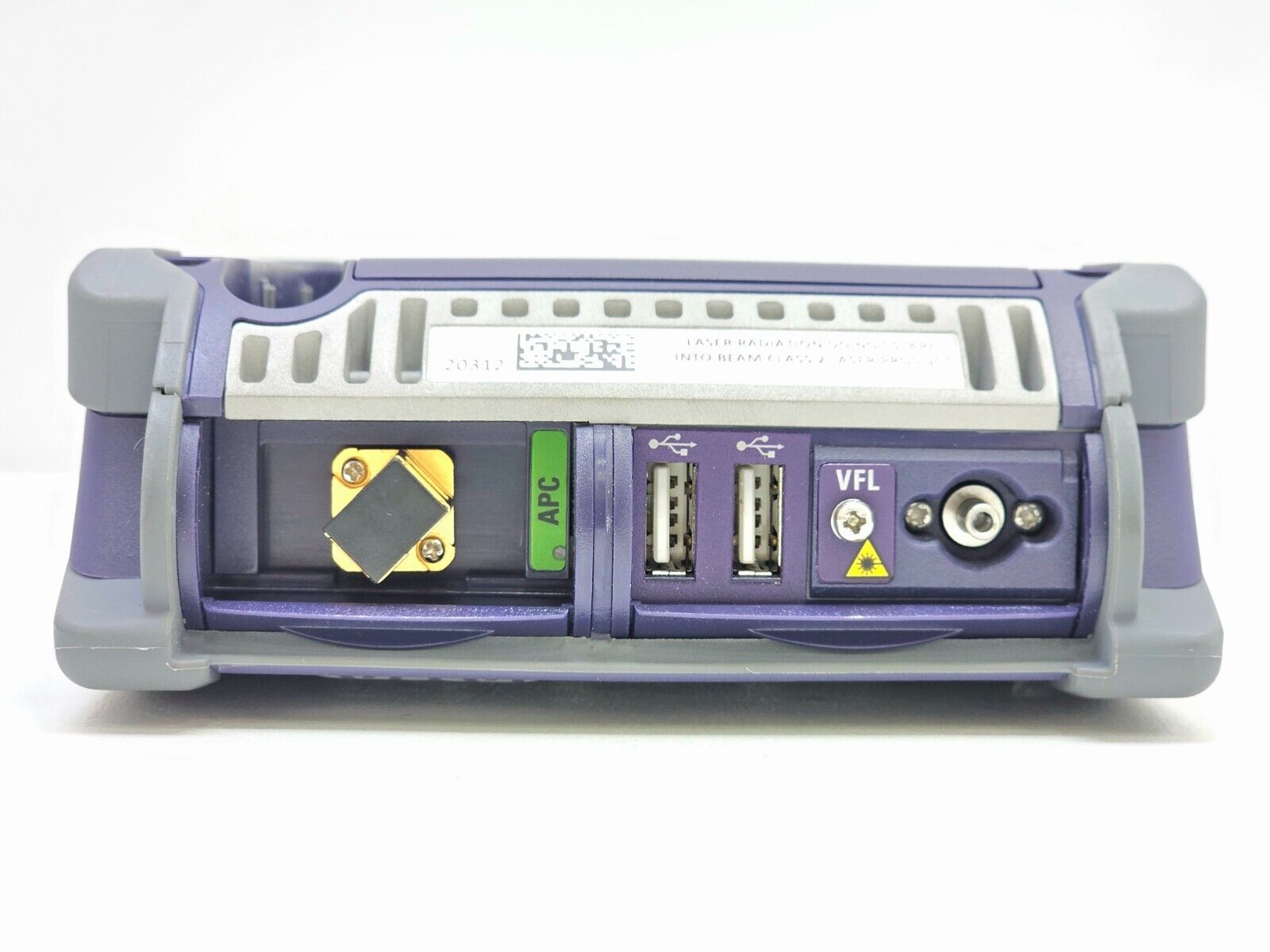

The Viavi JDSU E100AS SmartOTDR is a 1550 nm singlemode handheld OTDR with a 35 dB RMS dynamic range, featuring an integrated visual fault locator and CW light source via an SC/APC connector. The unit is suited to metro access and FTTx network commissioning, fault location, and maintenance tasks, with one-touch operation and automated analysis for technicians at any level.

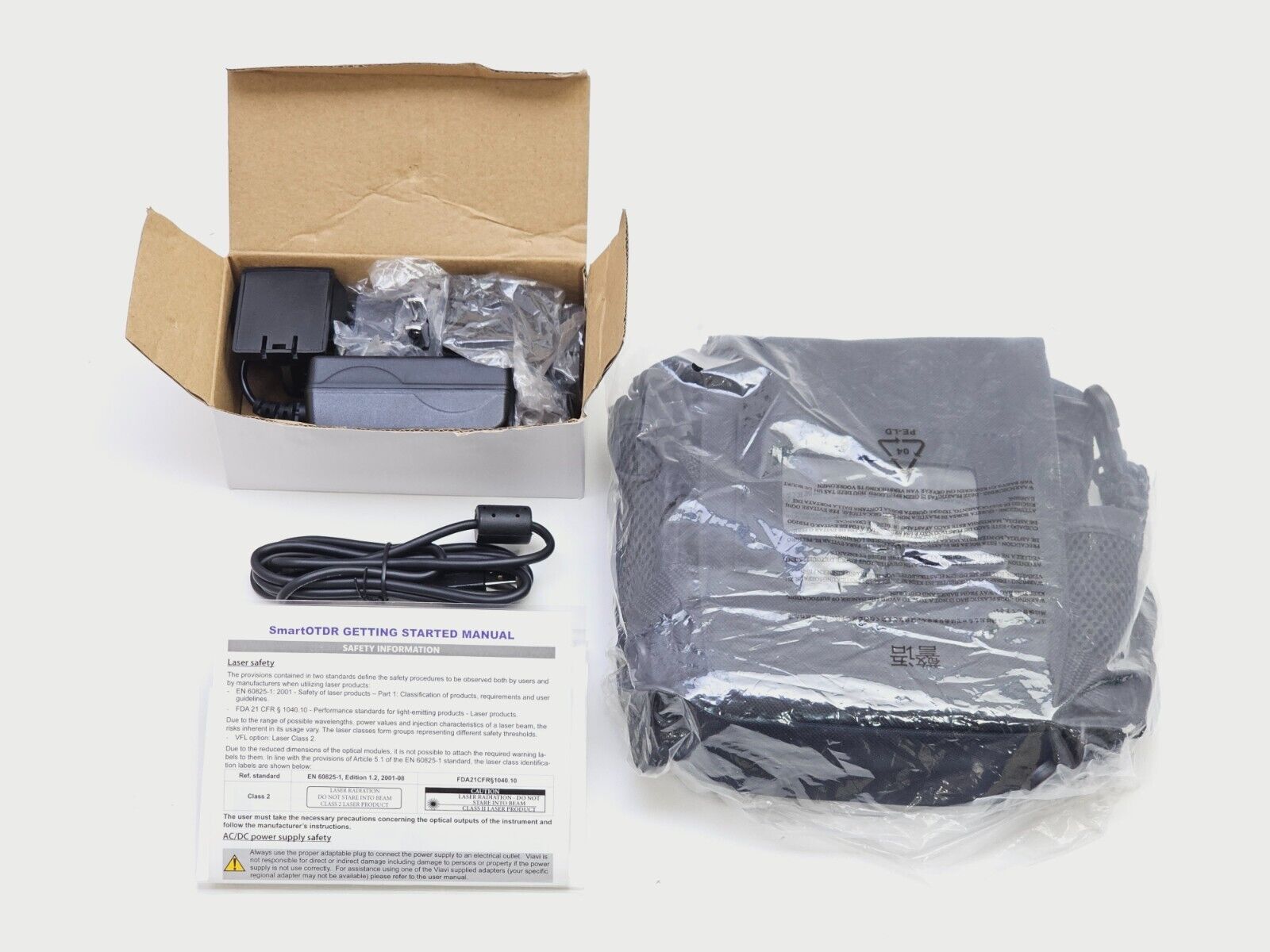

Included in the sale:
• E100AS SmartOTDR (1550 nm, 35 dB) with integrated VFL and light source (SC/APC connector)
• Soft carry case
• Stylus
• Power adapter

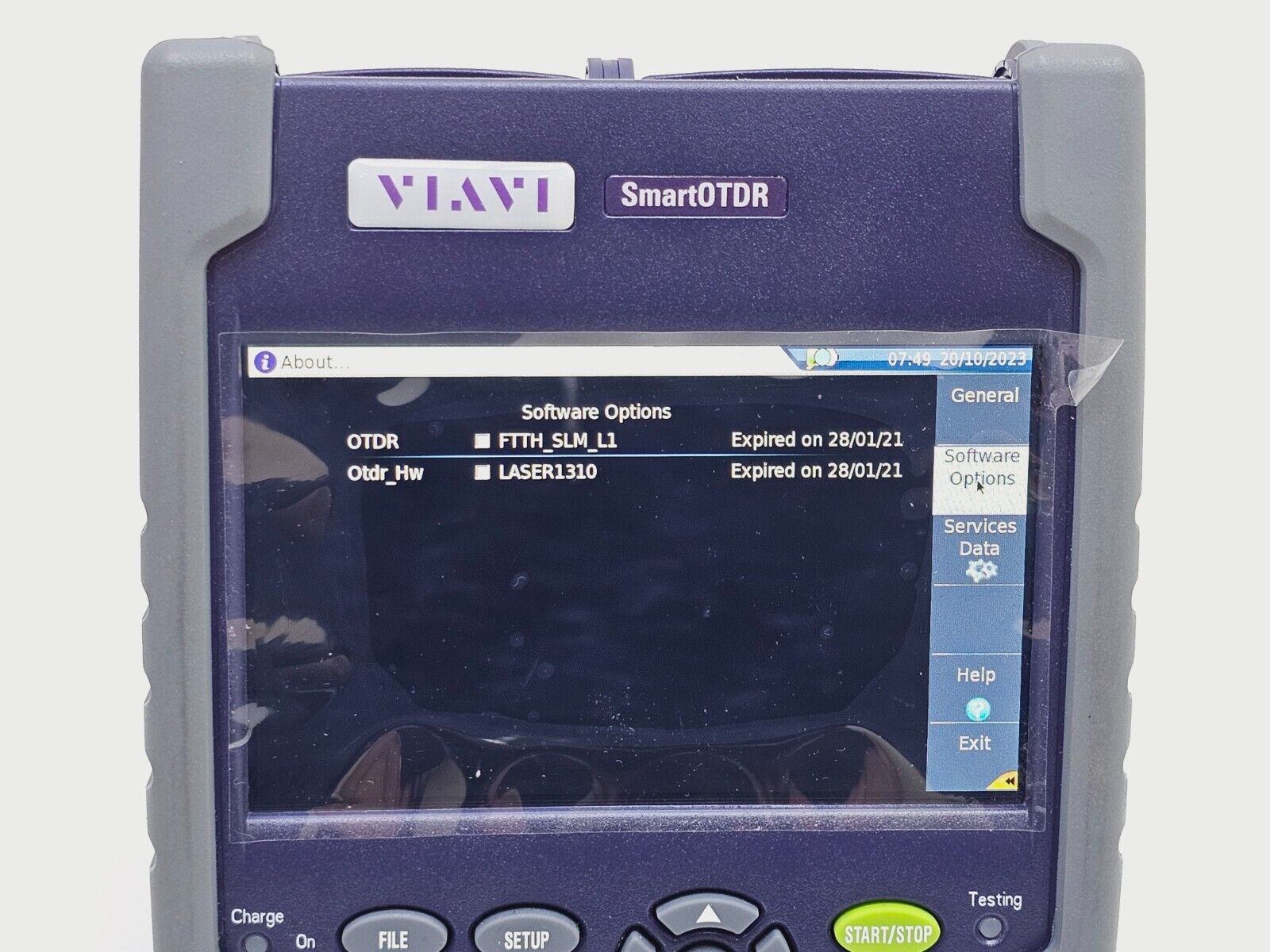

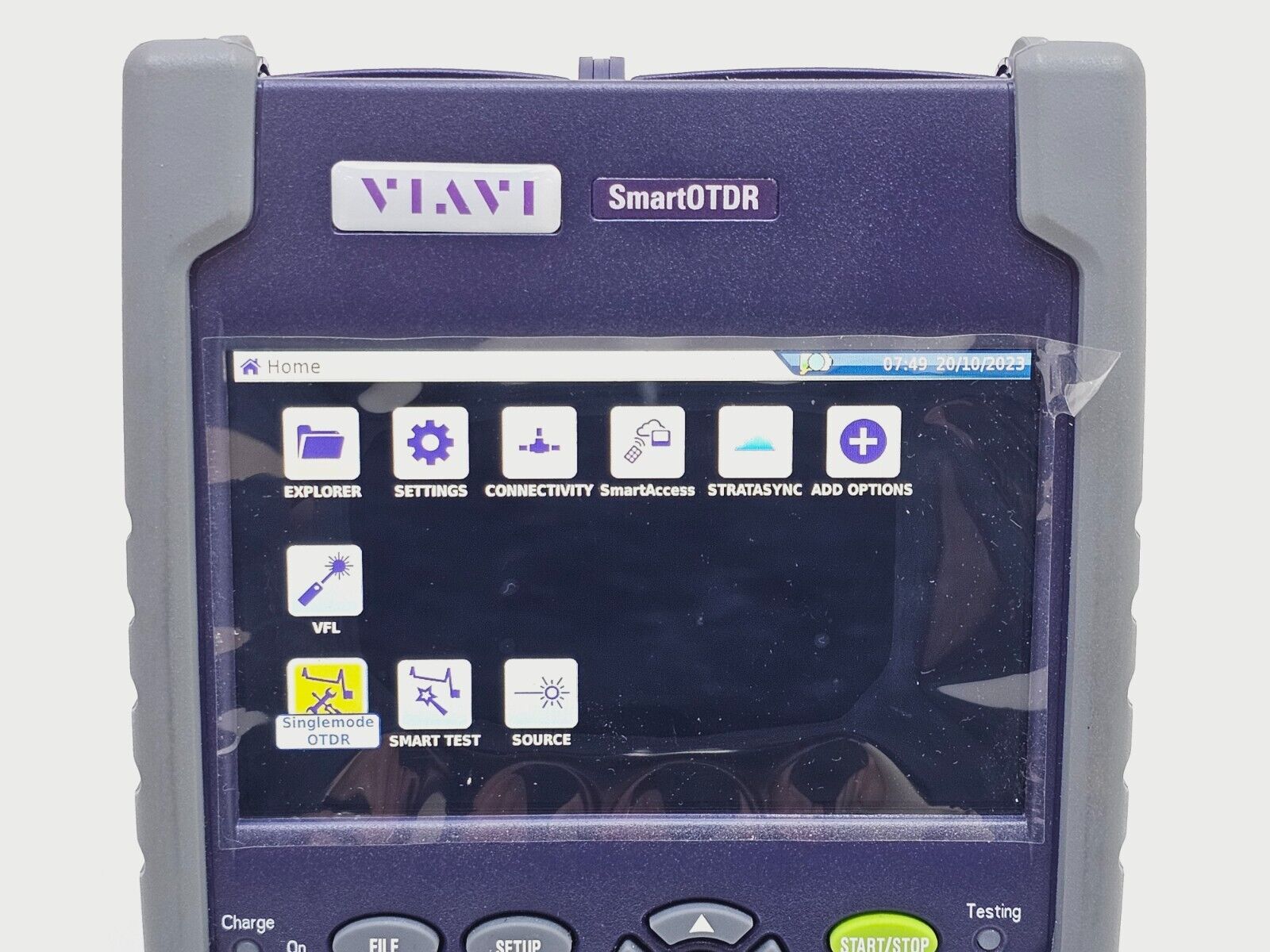

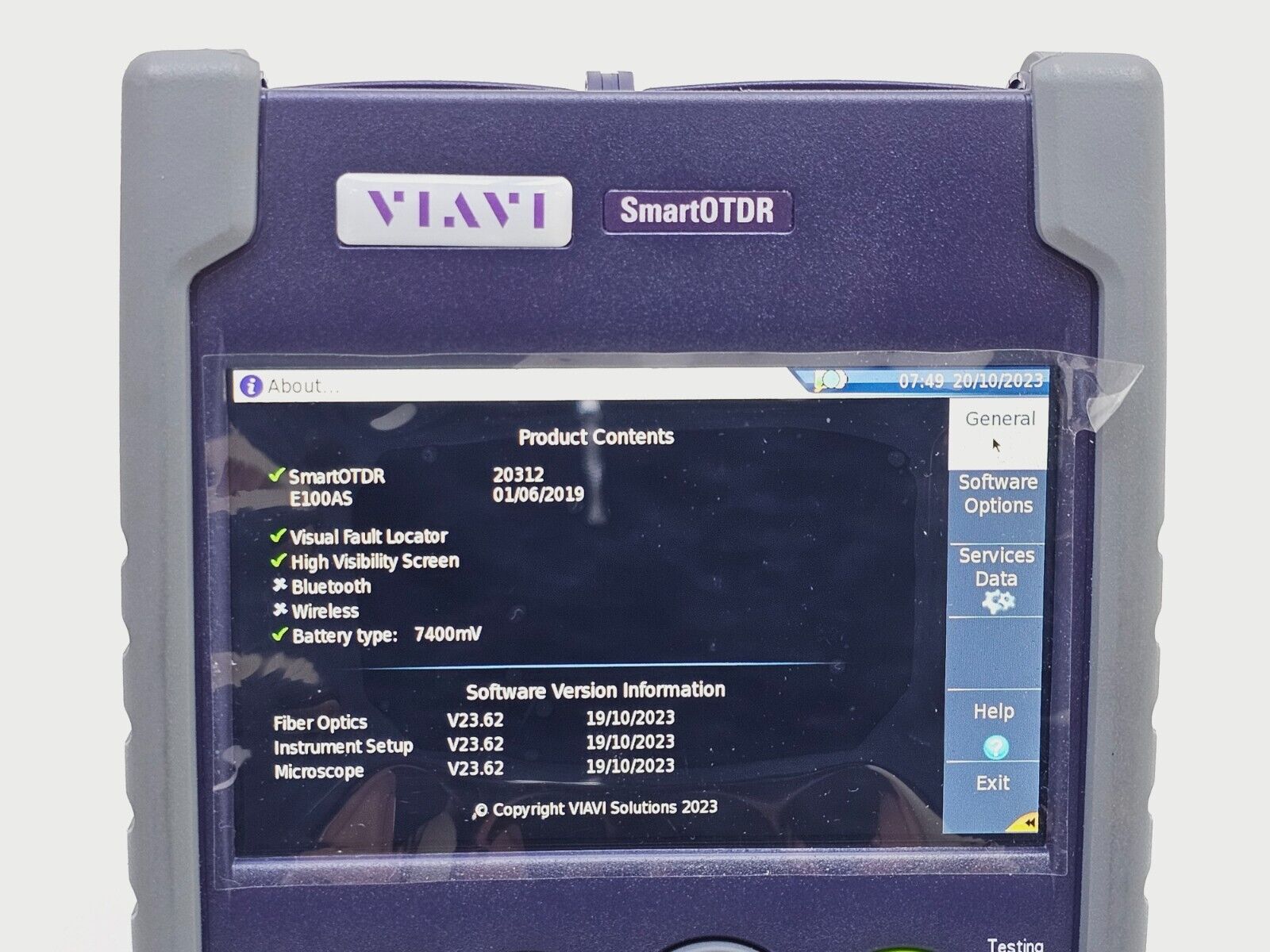

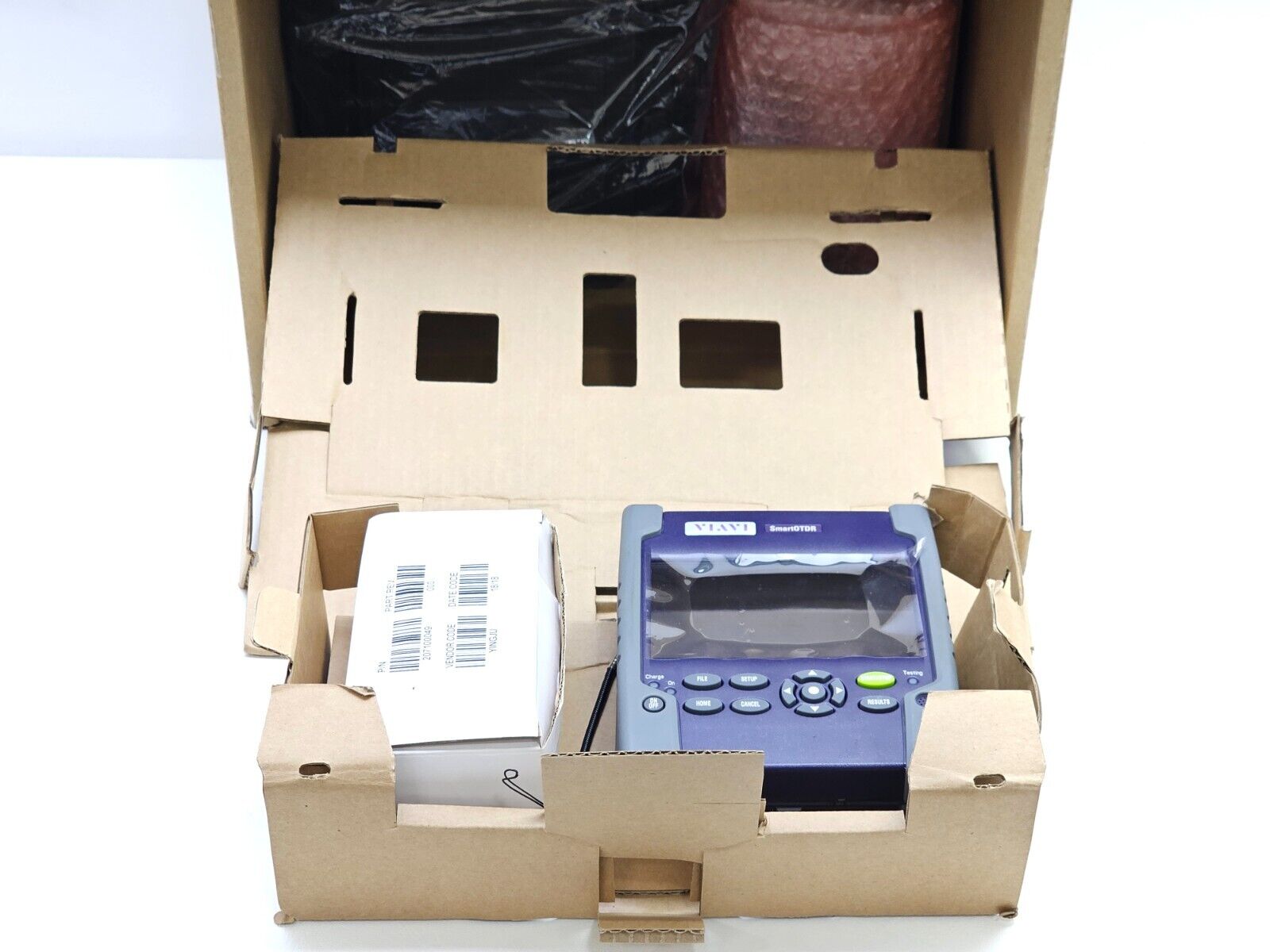

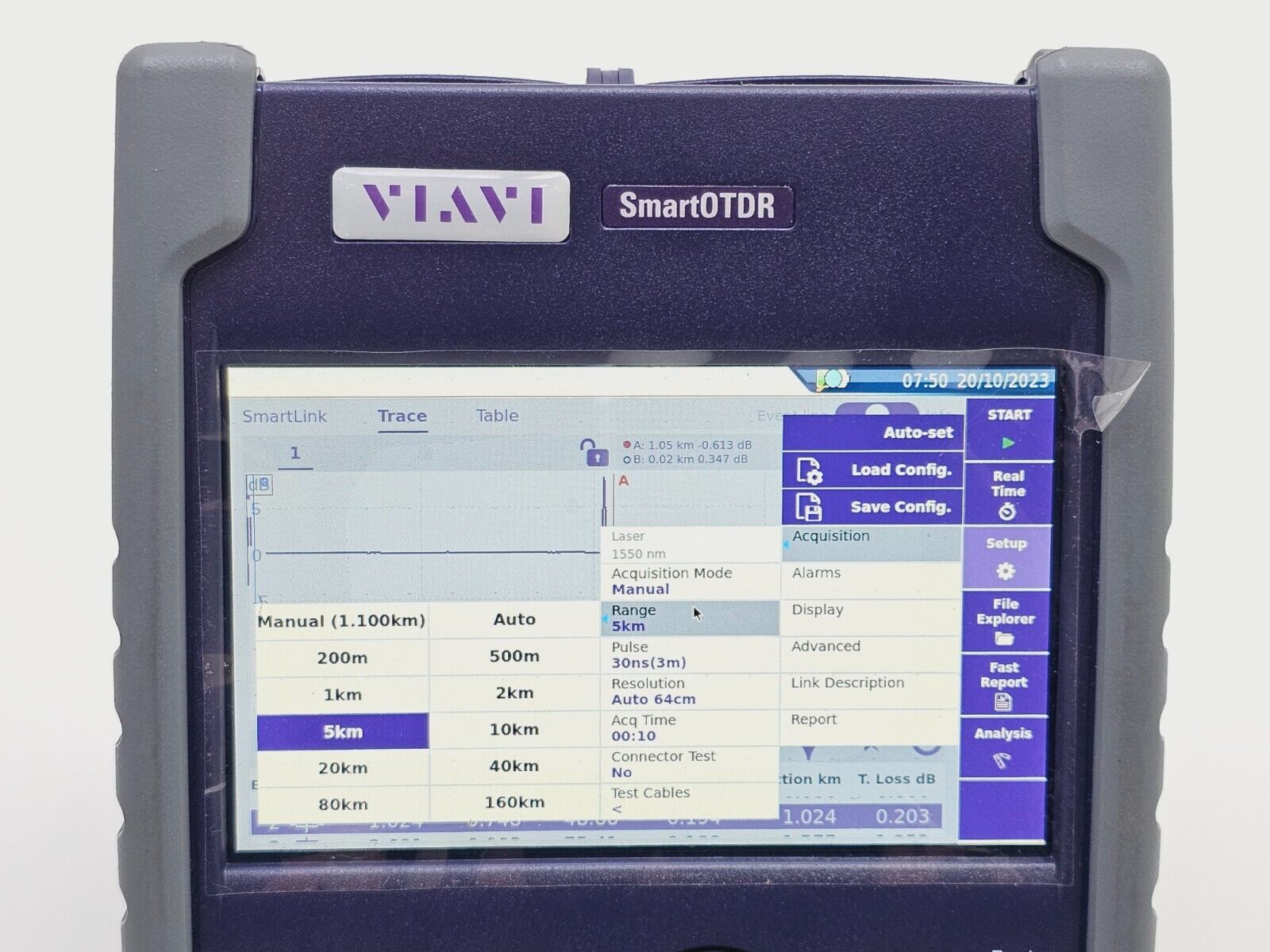

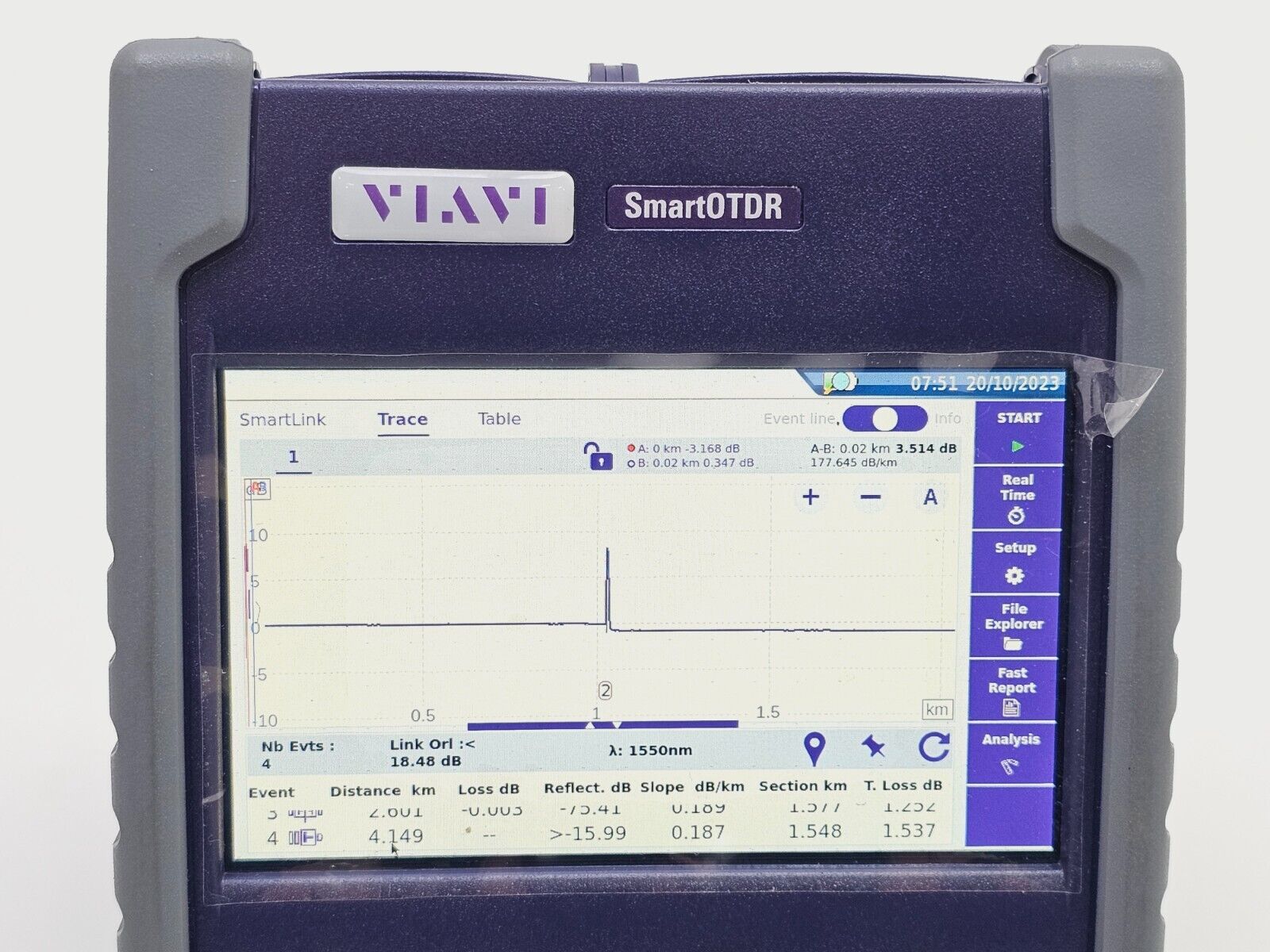

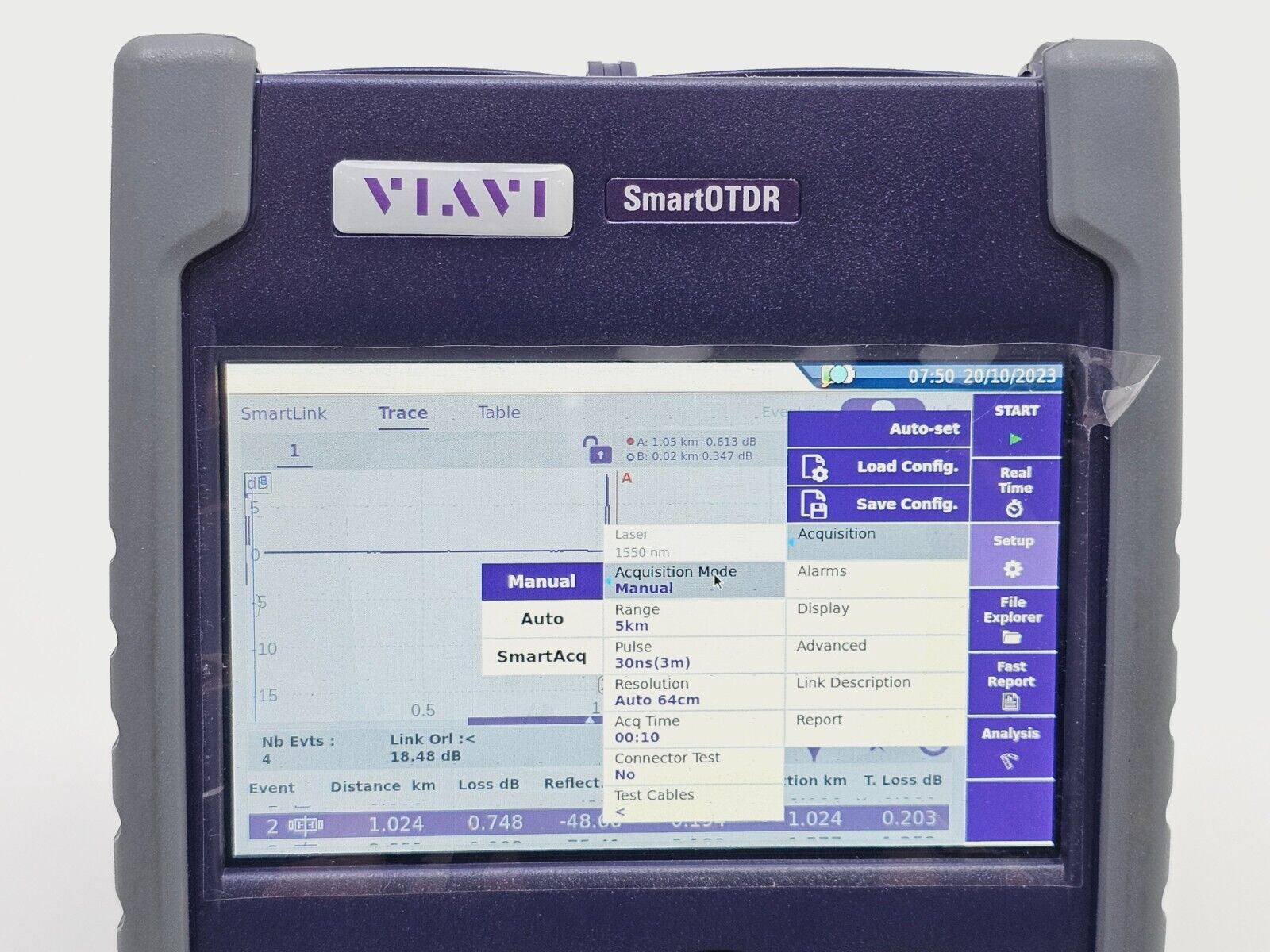

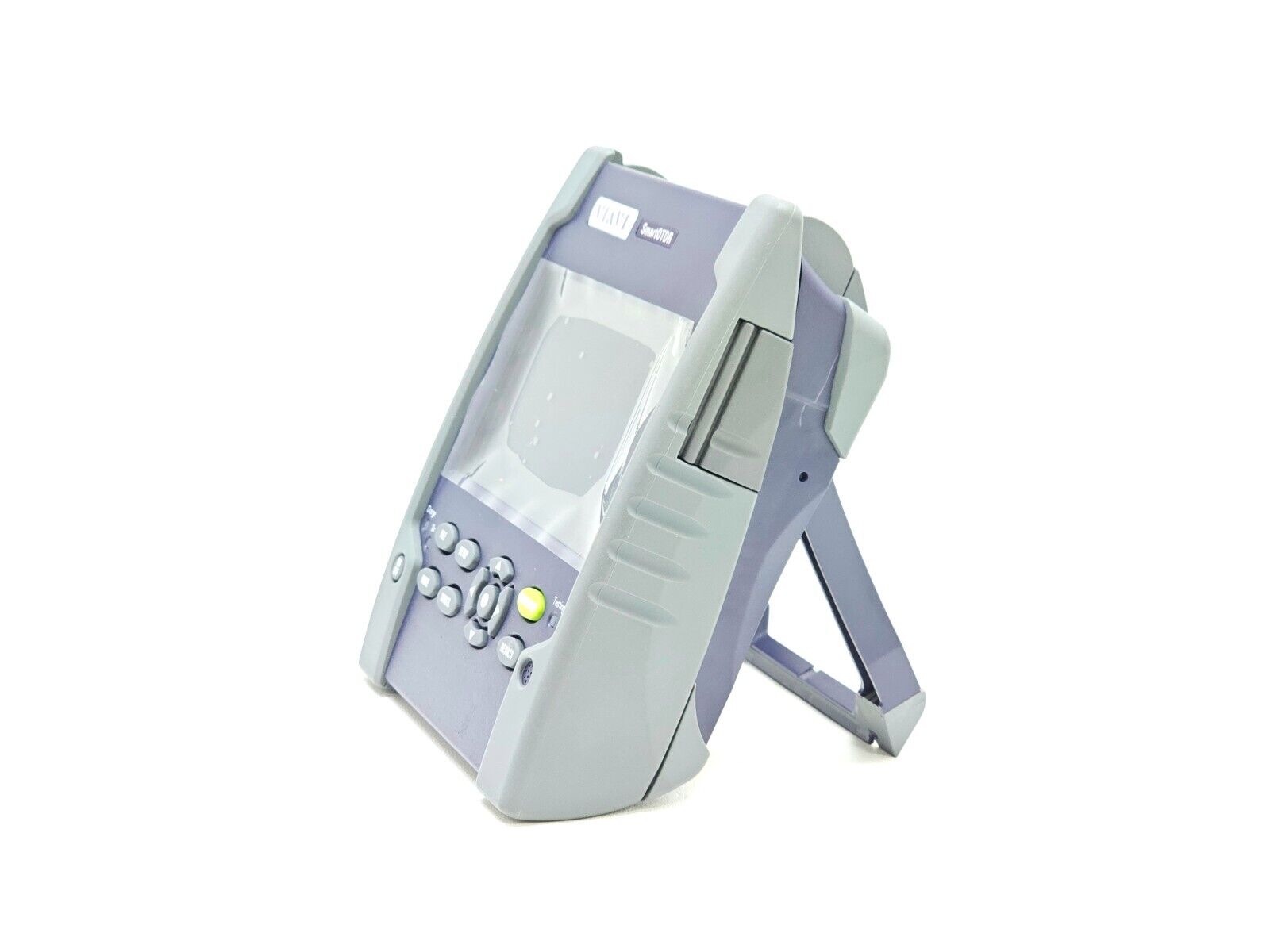

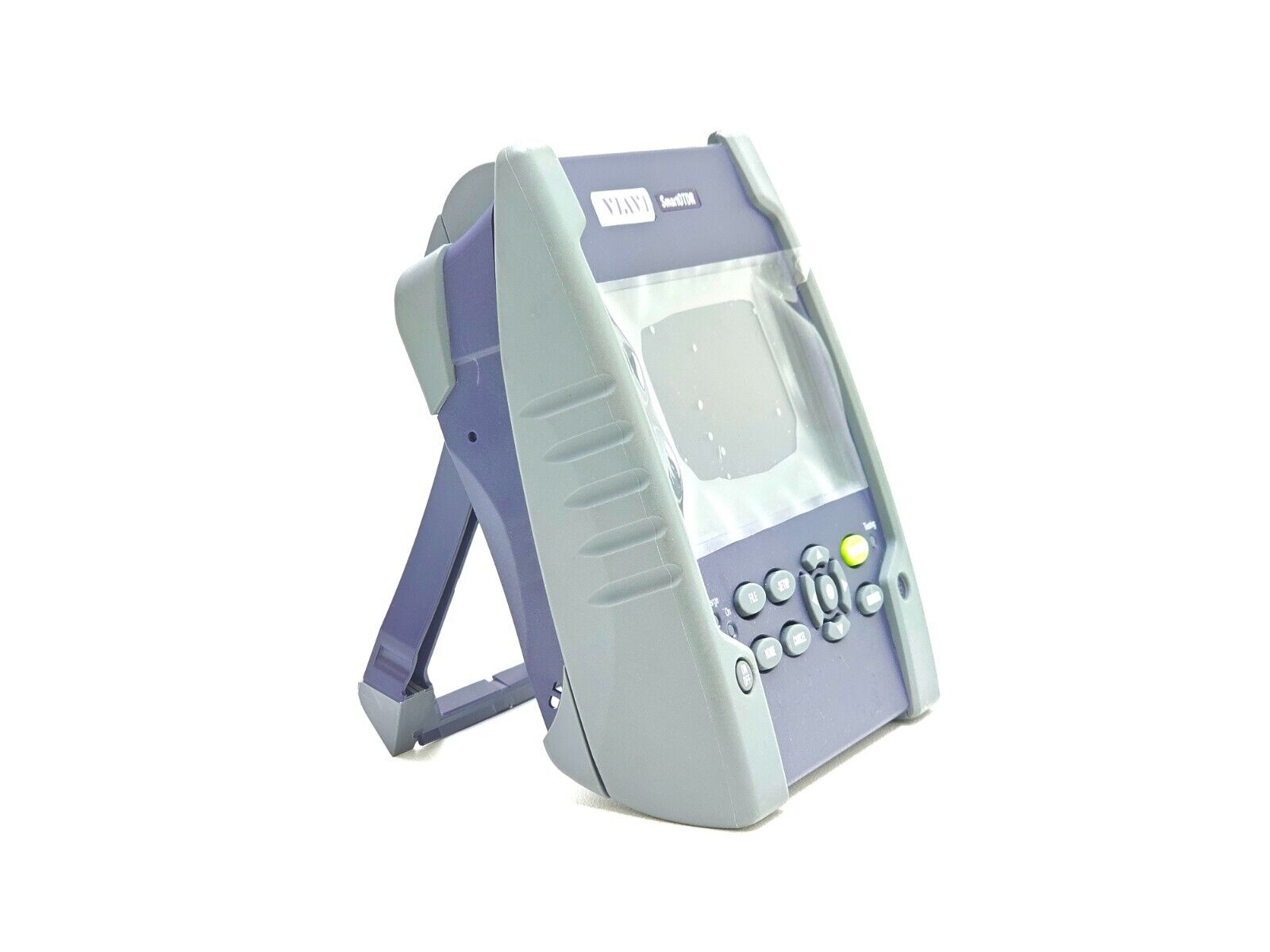

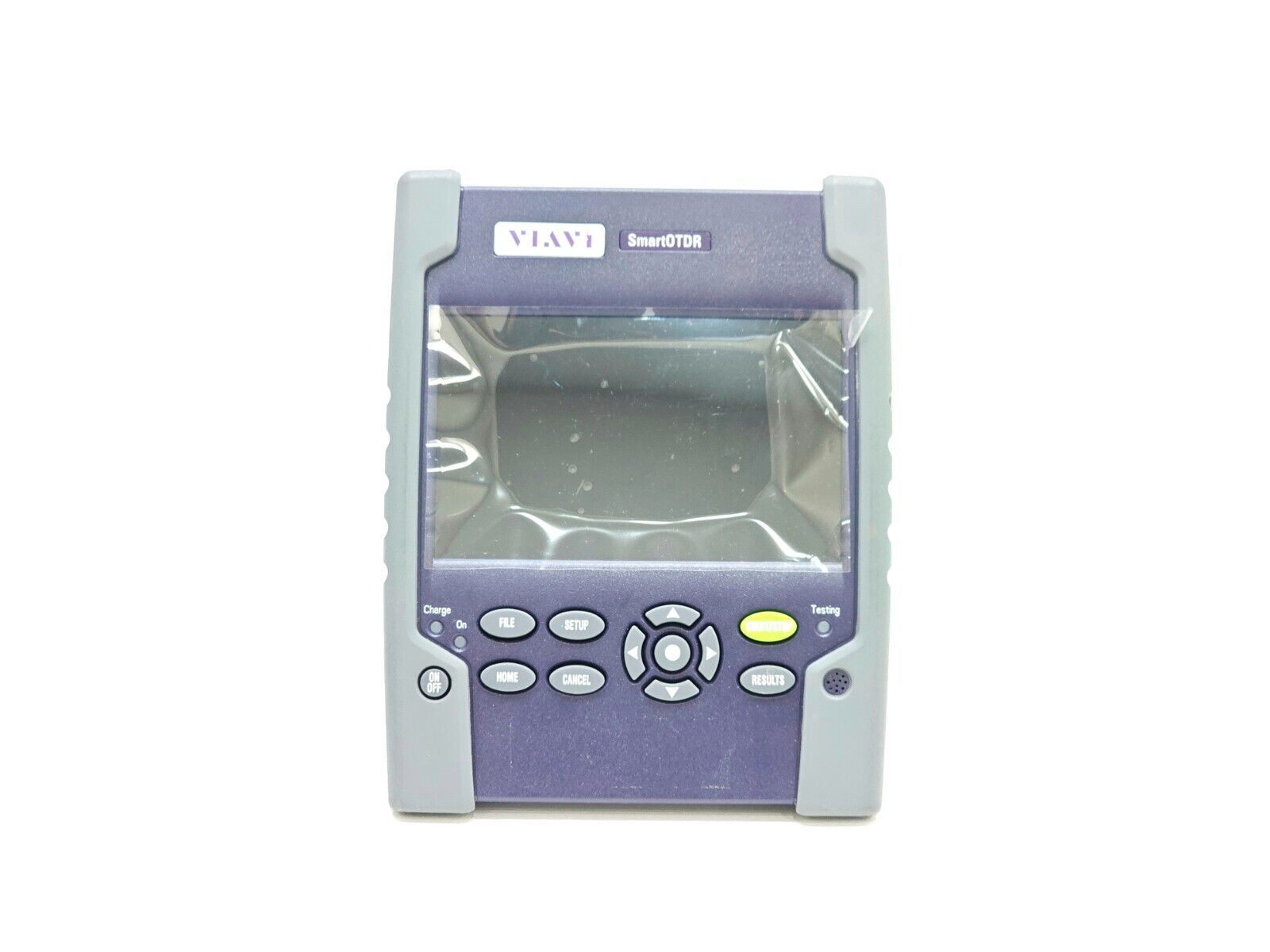

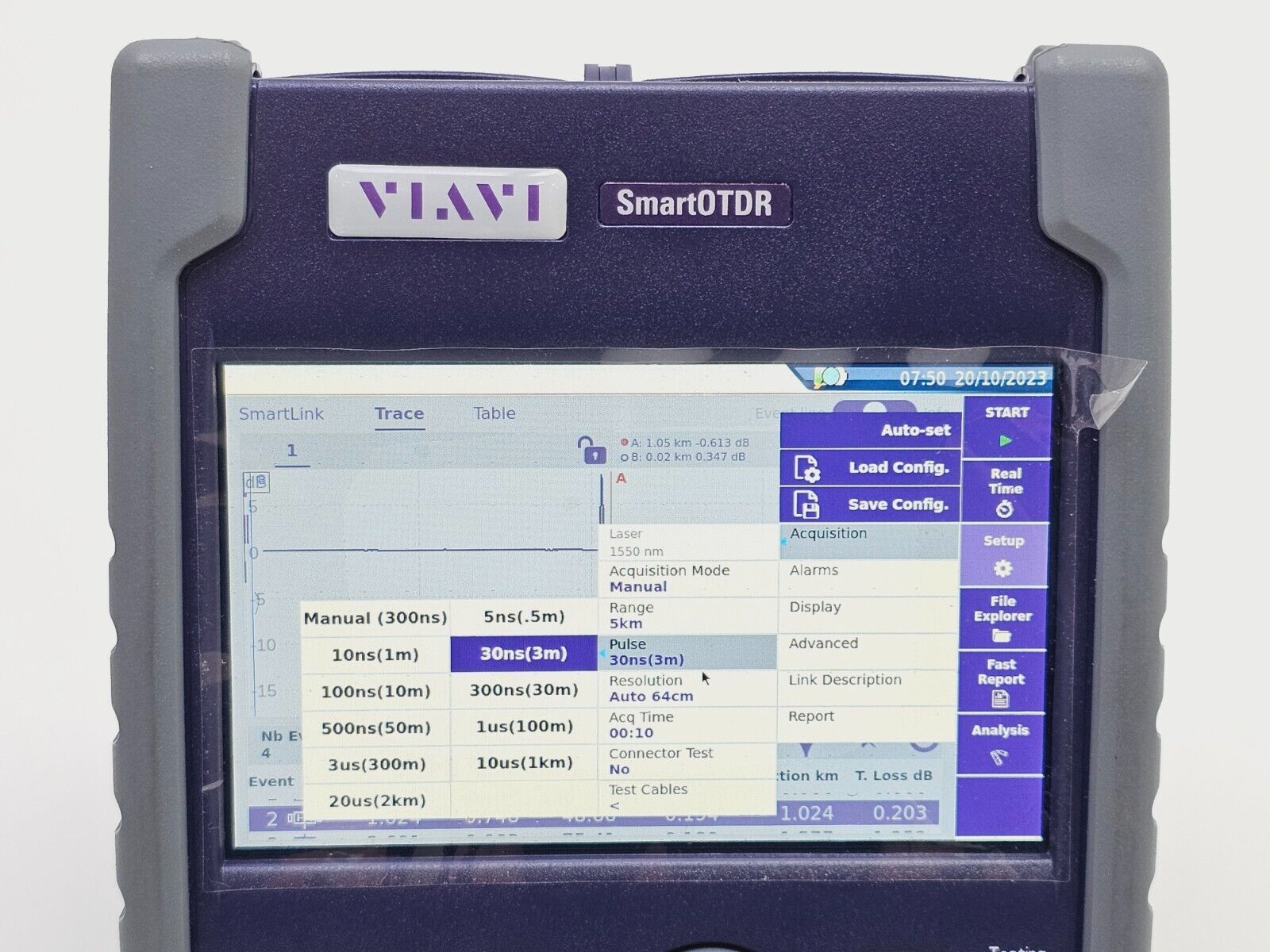

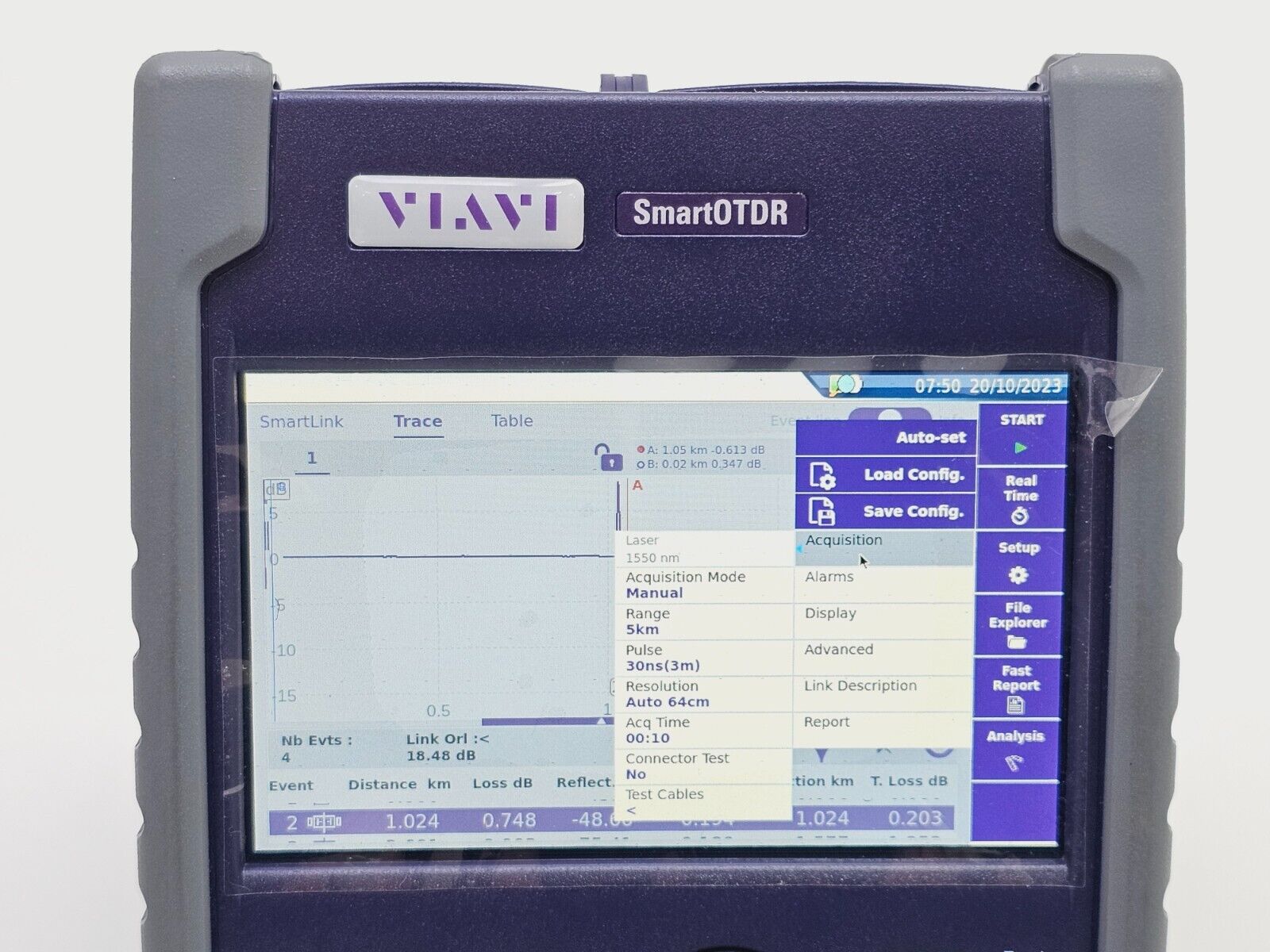

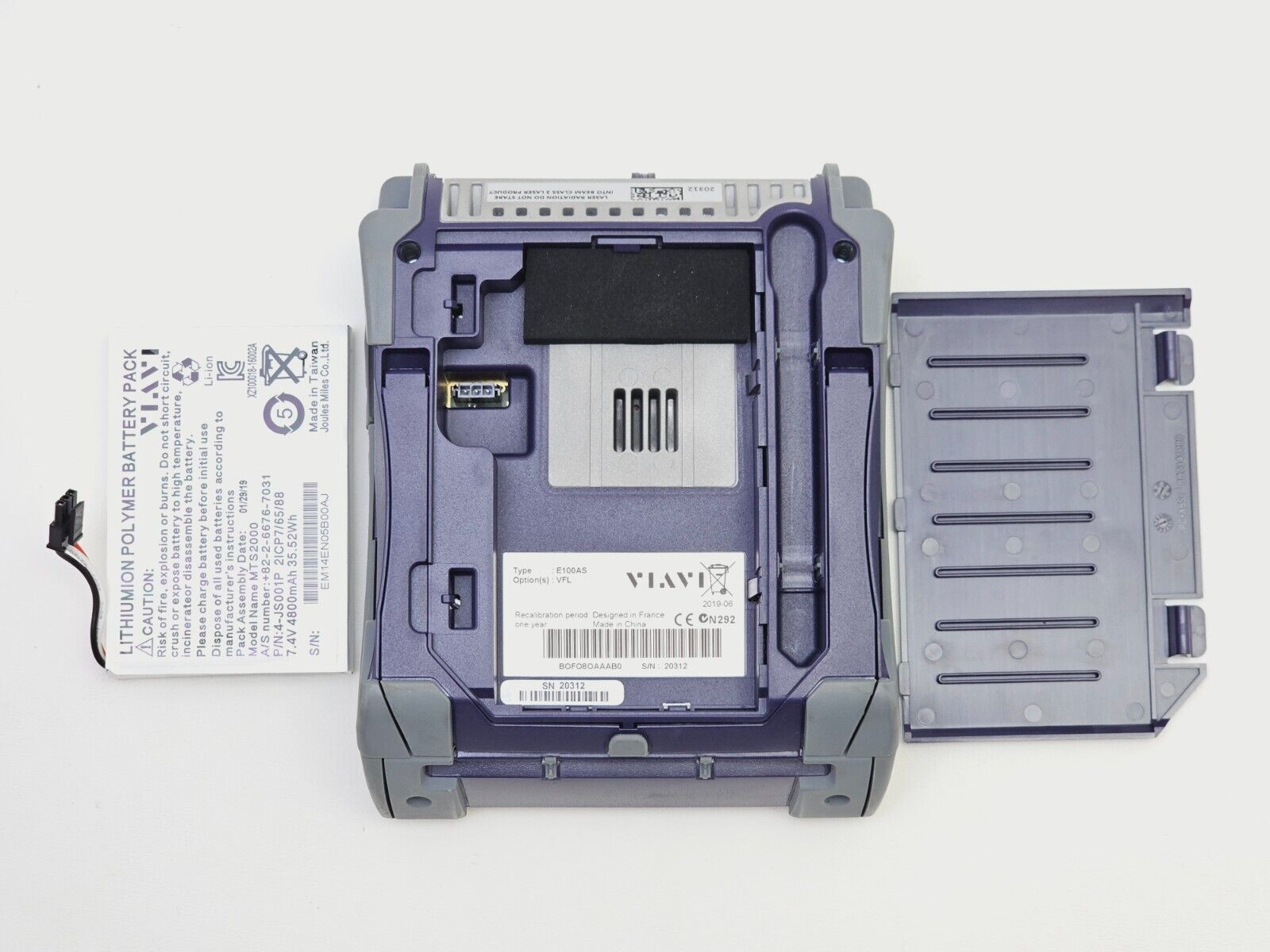

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

The Viavi (formerly JDSU) E100AS SmartOTDR is a compact, field-portable optical time-domain reflectometer designed for the testing, commissioning, and maintenance of metro access singlemode fibre optic networks. The E100AS combines OTDR capability with an intuitive 5-inch touchscreen interface and SmartLink automated test software, enabling field technicians to quickly characterise fibre links, identify faults, measure splice and connector loss, and generate professional test reports.

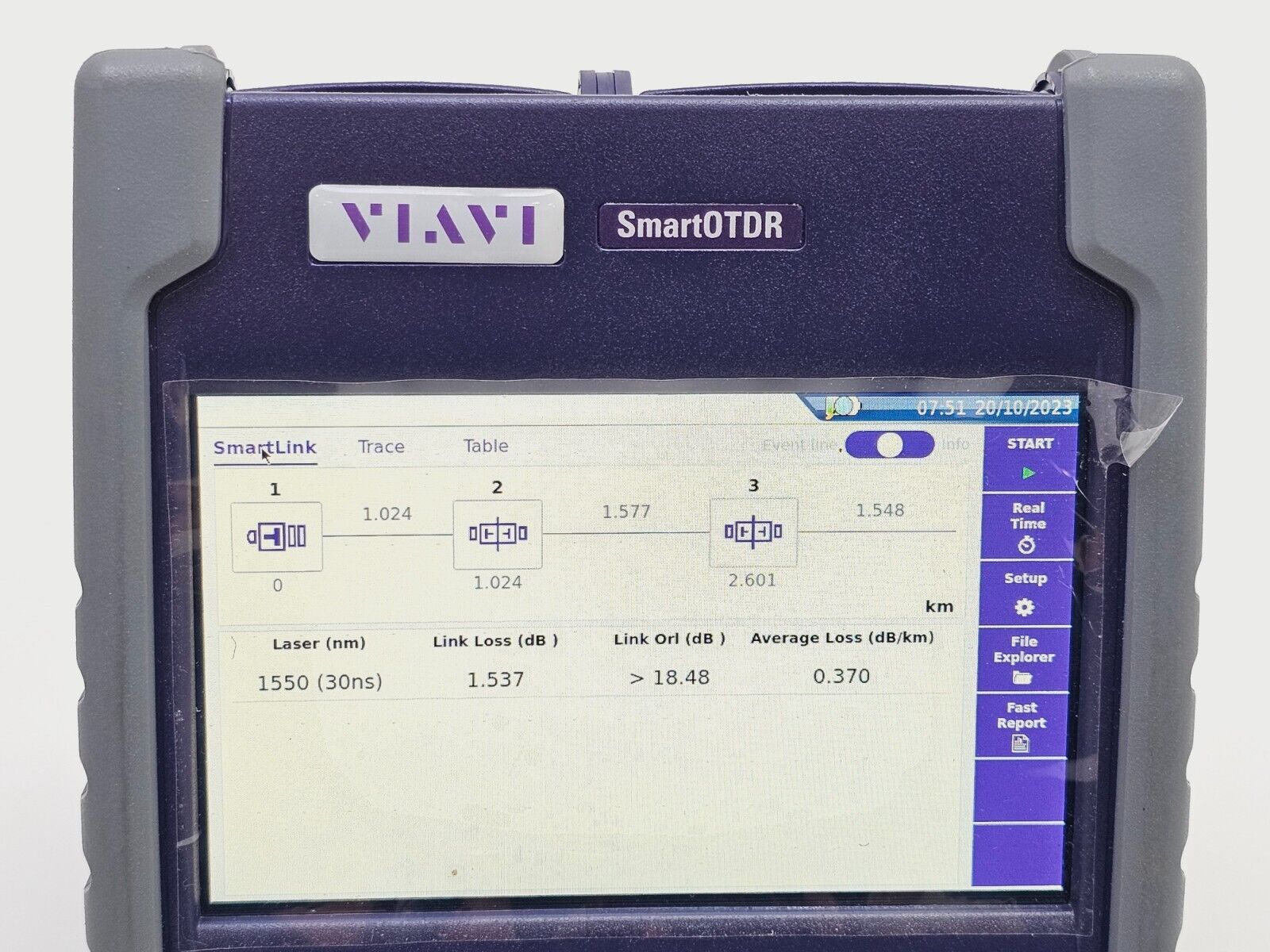

The SmartLink software automates pass/fail analysis against configurable thresholds, reducing the need for expert interpretation in the field. One-touch operation and a single results window ensure fast and easy measurements, while generic or user-defined setup configurations eliminate setup errors and maintain consistency across teams.

Several connectivity options — including 3G/4G via USB and optional Bluetooth/WiFi — enable remote control and data transfer to tablets, smartphones, and computers. Optional SmartAccess Anywhere (SAA) allows remote instrument access via a cloud tunnel, and onboard FastReport PDF generation enables instant sharing of measurement results.

Key Specifications:
Wavelength: 1550 nm
RMS Dynamic Range: 35 dB
Pulse Widths: 5 ns to 20 µs
Event Dead Zone: 1.35 m
Attenuation Dead Zone: 4 m
Connector: SC/APC
Display: 5-inch touchscreen, high outdoor visibility
Battery: Rechargeable lithium-polymer, up to 20 hours operation
Connectivity: 3G/4G via USB; Bluetooth/WiFi via optional accessories
Fibre Type: Singlemode
Form Factor: Handheld, compact, hands-free design

For the manufacturer datasheet, please click here
